TFT-LCD TV
OWNER S MANUAL'
Please READ this manual carefully before
operating your TV, and retain it for future
reference.
MODEL :
HL26S
HL32S
HL26B
HL32B
HL26BG
HL32BG
S
A
A
A
A
A
A
Warning
WARNING
RISK ELECTRIC SHOCK
DO NOT OPEN
WARNING : To reduce the risk of electric shock do not remove cover or back.
No user-serviceable parts inside refer service to qualified service personnel.
Operator Safety has been taken into consideration at the design and manufacture phase, but inappropriate operation may
cause electric shock or fire. To prevent the product from being damaged, the following rules should be observed for the
installation, use and maintenanceof th product. Read the following safety instruction before starting the operation.
The User Manual uses the following symbols to ensure a safe operation and prevent any damage to operators
or properties:
THIS SYMBOL INDICATES THAT HIGH VOLTAGE IS PRESENT
INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF CONTACT
WITH ANY INSIDE PART OF THIS PRODUCT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT
OPERATING AND MAINTENANCE INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rule. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, use and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
guarantee that interference will not occur in particular installation
to radio or television reception, which can be determined by turning the equipment off and on, the user is encourage to
try to correct the interference by one or more of the following measures:
*Reorient or relocate the receiving antenna.
*Increase the separation between the equipment and receiver.
*Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
*Consult the dealer or an experienced radio/TV technician for help.
This device compiles with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may be not cause harmful interference.
(2) this device must accept any interference received, including interference that may cause undesired
operation.
FCC CAUTION:
To assure continued compliance and possible undesirable interference, the provided ferrite cores must be
used when connecting this display to video equipment; and maintain at least 40cm spacing to other
peripheral device.
CANADIAN NOTICE:
This Class B digital apparatus compiles with Canadian ICES-003.
LCD
. If this equipment does cause harmful interference
However there is no
2 TV LCD-TFT
Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
Read all of the instructions before using this appliance. When using this
appliance, always exercise basic safety precautions, including the following:
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer`s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of
time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) WARNING-To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases,
shall be placed on the apparatus.
PORTABLE CART WARNING
(symbol provided by RETAC)
S3126A
The apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus.
The mains plug is used as the disconnect device, remain it readily operable during the
apparatus normal use.
Owner s Manual 3
Safety Instructions
SAVE THESE INSTRUCTIONS
Thank you for purchasing the Haier product. This easy-to-use manual will guide you in getting the best use of your
product. Remember to record the model and serial number. They are on label in back of the unit.
Model number
serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain warranty service.
4 TV LCD-TFT
Contents
Introduction
War ni ng . . . . . . . ... .... .. .... . . . . . . . . . . . . . . . . . . . . . .
Safe ty Ins tr ucti ons . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction
Cont rols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .... .. .
Conn ecti on O ptio ns . . . . . . . . . . . . . . . . . . . . . ... .. ....
Universal Remote Control . ............ . . . . . . . . ........
Installation
Acce ssor ie s . . . . . . . . . . . . . . . . . . . . . . . . . . . . .... .. ..
Antenna Connection . . . . . . . . . . ..........................
VCR Connection. . . . . . . . . . . . . . . . . . . . . ..............
External A/V Source Setup . . . . .. . . . . ..................
DVD Connection . . . . . ...... . . . . . . . . . . . . . ...........
DTV Connection..................................................
Digital Audio Output . . . . . . . . . . . . . . . . . . . . ...........
PC Connection. . . . . . . . . . . . . . . . . . . . . . . .............
HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. .. .... .. ..
Cable sample.....................................................
Connecting Headphones . . . . . . . . . . . . . . . . . . . .....
Power source................ . . . . . . . . . . . . . . . . . . . . . .
Take the table stand off
Operation
Switching On/Off the TV set . . . . . ... . . . . . . . . . . ....
Choose the Menu Language . . . . ..... ...................
Choose the input source......................................
Channel Menu
Auto mati c Sc an . . . ... .... . . . . . . . . . . . . . . . . . . . . . .. .
Add Channel Scan............... . . . . . . . . . . . . . . . . . . .
Rena me ... .. .... .. .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Select the desired program
Select the desired sound
Mute
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Video Menu
How to select picture mode..................................
How to customize your own picture status .............
Audio Menu
How to select audio mode.....................................
How to customize your own audio status ...............
SAP Broadcasts Setup.........................................
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .. . . .
2
3
6
7
8
9
9
10
11
11
12
12
13
14
15
16
16
17
18
18
18
19
20
20
21
21
21
22
22
23
23
24
Time Menu
Date /Time setting................................................
Time zone setting.................................................
Sleep Timer setting..............................................
Timer on setting...................................................
Timer off setting...................................................
Function Menu
Menu Language...................................................
DTV Caption Style...............................................
OSD Timeout.......................................................
OSD Transparency...............................................
DNR...................................................................
Adjust Menu
Screen Setup for Component or PC mode..............
Lock Menu
Parental Control rating and categories...................
Lock setup...........................................................
Other Functions
Brie f Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .... .. .. ..
Quick program view.............................................
Aspect Ratio Control . . . . . . . . . . . . . . . . . . . . .. . . .. . .
CC (Closed Caption Display) . . . . . . . . . . . . . ... . .. .
Remote Control
Setting up your remote control .............................
Remote Control Codes ........................................
Maintenance . . .... .. . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Specifications . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . ..
Warranty ...........................................................
24
25
25
26
26
26
27
28
28
28
28
29
30
32
32
33
33
34
36
40
41
42
43
Owner s Manual 5
Controls
This is a simplified representation of front panel.
Here shown may be somewhat different from your TV.
Front panel controls
Introduction
HL26S HL32S
A A
AV3 AUDIO Input
connect to hear
stereo sound from an
external device.
AV3 VIDEO Input
AUDIO-R
AUDIO- L
Connects the video signal
from a video device.
VIDEO
Headphone jack
Headphone audio
output terminal.
1.INPUT: Press to show the input source mode. In the
MENU/INPUT screen, these buttons serve as
OK buttons.
-/+
2.CH : Press to scan through channels. To scan
quickly through channels, press and hold down
either +/- . In the MENU screen, these buttons
serve as up/down buttons.
-/+
3.VOL : Press to adjust the volume .In the MENU screen,
these buttons serve as left/right buttons.
4.MENU: Menu display.
5.POWER: Press to turn on and off the TV.
6.Power indicator: In red when standby mode,
in blue when display.
7.Remote control signal receive window.
INPUT CH- VOL- MENU
(The buttons are on the bottom of the TV set)
CH+ VOL+
POWER
HL26B HL32B HL26BG HL32BG
A A A A
AV3 AUDIO Input
connect to hear
stereo sound from an
external device.
AV3 VIDEO Input
Connects the video signal
from a video device.
Headphone jack
Headphone audio
output terminal.
1.INPUT: Press to show the input source mode. In the MENU/INPUT screen,
these buttons serve as OK buttons.
-/+
2.CH : Press to scan through channels. To scan quickly through channels,
press and hold down either +/- . In the MENU screen, these buttons
serve as up/down buttons.
-/+
3.VOL : Press to adjust the volume .In the MENU screen, these buttons
serve as left/right buttons.
4.MENU: Menu display.
5.POWER: Press to turn on and off the TV.
6 TV LCD-TFT
R
AUDIO
L
VIDEO
INPUT
CH+
CH-
VOL+
VOL-
MENU
POWER
1
2
3
4
5
Connection Options
Back panel controls
Introduction
HL26S HL32S HL26B HL32B HL26BG HL32BG
A A A A A A
Power Cord Socket
This TV operates on AC power.
The voltage is indicated on the
Specifications page. Never attempt
to operate the TV on DC power.
Digital Audio Output
Connect digital audio from
various types of equipment.
Note: In standby mode,
these ports will not work.
VIDEO
AC IN
HDMI/DVI IN 1 HDMI/DVI IN 2
PC IN
Y
Y
COMPONENT IN
Pb
Pr
PC/DVI
OPTICAL
Pr
AUDIO IN
Pb
PC/DVI Audio Input
HDMI
connect a
signal to
HDMI/DVI.
PC VIDEO Input
Connect the monitor
output connector from
a PC to the jack
Connect the audio out from
the external device, used
while linking PC audio
frequency output terminals
or using a DVI to HDMI
connector.
DVD/DTV Input
Connect a component
(Component )
COMPONENT AUDIO Input
video device to these
jacks.
S-Video Input
Connect S-Video
out from an S-VIDEO
device to the
S-VIDEO input.
Video
L R
Video
L R
AV IN
AUDIO
L R
L R
VIDEO Input
Connects the video
signal from a
video device.
connect to hear
stereo sound from an
external device.
Antenna Input
Connect cable or
antenna signals to
the TV, either directly
or through your
cable box.
S-VIDEO
ANT IN
AUDIO Input
connect to hear
stereo sound from an
external device.
Owner s Manual 7
Universal Remote Control
The remote control cannot be operated unless the batteries are properly loaded.
When using the remote control, aim it at the remote control sensor on the TV.
Introduction
Function introduction
POWER
HDMI
Press to enter HDMI signal
CH.LIST
Open the channel list.
Shortcut Button of Input
TV:Press to enter TV signal;
VIDEO:Press to enter VIDEO signal;
: Press to enter COMPONENT signal.
COMPONENT
Brings up the main menu to the screen.
“54-3”, press “54”, then press “-” and “3”.
S-VIDEO: Press to enter S-VIDEO signal;
S.MODE
Selects the sound mode appropriate
for the program's character.
P.MODE
Selects the picture mode appropriate
for the program's character.
CC(closed caption)
Select a closed caption
MENU
TIME
Shows time.
EXIT
Clears all on-screen displays and
returns toTV viewing from any menu.
Switches the sound on or off
MUTE
ARC
(Aspect Ratio Control)
Changes the aspect ratio.
VOLUME UP/DOWN
Press to adjust the volume.
Numeric buttons
Press to change the channel.
- button
Press to select additional channels
(digital )
being broadcast by the same station.
For example, to select channel
PC
Press to enter PC signal.
.Press to turn on and off the TV
CH.LIST
TV
HDMI
VIDEO
SELECT
PC
S-VIDEO
COMPONENT
TV DVD VCR SETBOX CABLE AUDIO
Press the SELECT button repeatedly to select
one of the system modes in which the remote
control can be used. When the desired device is
selected, the corresponding LED lights on 5 seconds.
VCR/DVD Functions
Control some video cassette recorders or
DVD players.
/ Rewind / Fast
/ backward /Forward
Stop
Play/Pause
REC
S.MO DE
CC
P.MODE
FREE ZE
NPUT
E
TIM
U
N
E
INFO
FREEZE
Freezes the currently-viewed picture, but
audio continues. Press FREEZE button again
to resume the normal picture.
INFO
When you watch the TV, press the key,
OK
the information displays on top of
the screen.
E
X
IT
A
R
C
P
E
E
L
S
P
A
S
INPUT
show the input source mode.
THUMBSTICK
(Up/Down/Left/Right/OK)
Allows you to navigate the on-screen menus
and adjust the system settings to your
VOL +
CH+
preference.
SLEEP button
Displays the Sleep Timer option.
VOL-
CH-
LIGHT
Press the light button, white LED will be
ON, release this key, white LED will be OFF.
SAP
Selects MTS sound: Mono, Stereo, and
SAP in Analog mode. Change the audio
language in DTV mode.
CHANNEL UP/DOWN
Press to scan through channels. To scan
Q.VIEW
quickly through channels, press and hold
down either +/- .
Q.VIEW
Switch the current channel to the last
channel you have viewed.
8 TV LCD-TFT
External Equipment Connections
Accessories
SELECT
CH.LIST
HDMI
PC
TV
VIDEO
S-VIDEO
COMPONENT
S.MODE
P.MODE
FREEZE
CC
N
E
P
U
IM
T
T
IN
F
O
NU
E
OK
P
E
E
X
E
I
T
L
S
A
R
P
C
A
S
VOL+
CH+
VOL-
CH-
Q.VIEW
TFT-LCD TV
OWNER S MANUAL'
Please READ this manual carefully before
operating your TV, and retain it for future
reference.
MODEL :
HL26S
HL32S
HL26B
HL32B
HL26BG
HL32BG
S
A
A
A
A
A
A
Installation
Remote control
Owner`s manual
Alkaline battery(AAA) 2
Power cable
Antenna Connection
Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV system or an
outdoor antenna .
location and antenna positioning
VHF Antenna
UHF Antenna
Over-the-air TV reception quality will depend on your antenna type, antenna
.
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Wall Antenna
Socket
Bronze Wire
RF Coaxial Wire (75 ohm)
Video
L R
Video
L R
AV IN
S-VIDEO
Turn clockwise to tighten
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
Be careful not to bend the bronze wire
when connecting the antenna.
Bronze Wire
ANT IN
ANT IN
To improve the picture quality in a poor signal area,
please purchase a signal amplifier and install properly.
If the antenna needs to be split for two TV`s, install
a 2-Way Signal Splitter in the connections.
To install the antenna properly please contact a
professional in your area.
Owner s Manual 9
External Equipment Connections
NOTE: All cables shown are not included with the TV.
Choose Your Connection
There are several ways to connect your television, depending on the components you want to connect
and the quality of the signal you want to achieve. The following are examples of some different ways
to connect your TV with different input sources.
VCR connection
To avoid picture noise (interference), leave an adequate distance between the VCR and TV
Connection Option 1
Set VCR output switch to channel 3 or 4 and
then tune the TV to the same channel number.
Installation
Connection Option 2
1. Connect the audio and video cables from the
VCR's output jacks to the TV input jacks, as
shown in the figure.
When connecting the TV to VCR, match the
jack colors (Video = yellow, Audio Left = white,
and Audio Right = red).
If you connect an S-VIDEO output from VCR to
the S-VIDEO input, the picture quality is
improved; compared to connecting a regular
VCR to the Video input.
2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner`s
manual.)
3. Select the input source with using the
INPUT button on the remote control, and
then press / button to select the source,
press theOK button to confirm.
AUDIO
L R
L R
Video
L R
Video
L R
AV IN
S-VIDEO
ANT IN
10 TV LCD-TFT
External Equipment Connections
External A/V Source Setup
How to connect
Connect the audio and video cables from the external
equipment's output jacks to the TV input jacks, as shown
in the figure. When connecting the TV to external equipment,
match the jack colors (Video = yellow, Audio Left = white,
and Audio Right = red).
How to use
1. Select the input source with using the INPUT button on
the remote control.
2. Press the / button to select the desired source.
3. Press the OK button to confirm.
4. Operate the corresponding external equipment.
DVD connection
How to connect
1. Connect the DVD video outputs (COMPONENT) to
the Y Pb Pr jacks on the TV and connect the DVD audio
outputs to the Y Pb Pr Audio IN jacks on the TV, as
shown in the figure.
2. If your DVD only has an S-VIDEO output jack,
connect this to the S-VIDEO input on the TV. as shown
in the figure.
AUDIO
L R
L R
Video
L R
Video
L R
AV IN
Installation
S-VIDEO
ANT IN
Camcorder
Video Game Set
Note
If your DVD player does not have component video
output, use S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use the INPUT button on the remote control to select
Y Pb Pr mode.
3. Press Play button on external equipment for program
play.
4. Refer to the DVD player's manual for operating
instructions.
Component Input ports
To get better picture quality, connect a DVD player to the
component input ports as shown below.
Component ports
on the TV
Y Pb Pr
Y Pb Pr
Video output ports
on DVD player
Note
The audio input terminal of AV IN 1 is compared with S-VIDEO.
Y B-Y R-Y
Y Cb Cr
Y P P
BR
Video
L R
Video
L R
AV IN
S-VIDEO
VIDEO
Y
Y
COMPONENT IN
Pb
Pr
PC/DVI
OPTICAL
Pr
AUDIO IN
Pb
AUDIO
L R
L R
or
DVD
Owner s Manual 11
Installation
External Equipment Connections
DTV connection
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do
receive Digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.
This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480p,720p,
1080i).
How to connect
Use the TV`s COMPONENT , PC or HDMI/DVI
jack for video connections, depending on
your set-top box connector. Then, make
the corresponding audio connections.
How to use
1. Turn on the digital set-top box. (Refer to the
owner`s manual for the digital set-top box.)
2. Use INPUT on the remote control to select
COMPONENT , PC or HDMI/DVI source.
HDMI/DVI IN 2
PC IN
VIDEO
Pb
Y
Pb
Y
COMPONENT IN
Pr
PC/DVI
AUDIO IN
Pr
OPTICAL
AUDIO
L R
L R
L R
Signal
480i
480p
720p
1080i
COMPONENT
Yes
Yes
Yes
Yes
HDMI/DVI
Yes
Yes
Yes
Yes
HDMI
Digital Audio Output
Send the TV`s audio to external audio equipment (stereo system) via
the Digital Audio Output (Optical) port.
How to connect
1. Connect one end of an optical cable to the TV Digital Audio
(Optical) Output port.
2. Connect the other end of the optical cable to the digital audio (optical)
input on the audio equipment.
See the external audio equipment instruction manual for operation.
Note
When connecting with external audio equipments, such as amplifers or
speakers, please turn the TV speakers off.
Digital Set-top Box
OPTICAL
AUDIO
L R
L R
Caution: Do not look into the optical output port.
Looking at the laser beam may damage
your vision.
12 TV LCD-TFT
Installation
External Equipment Connections
PC connection
How to connect
1. To get the best picture quality, adjust the PC graphics card to 1024
2. Use the TV`s PC or DVI (Digital Visual Interface)Audio IN port for video connections, depending on your PC
connector.
If the graphic card on the PC does not output analog and digital RGB simultaneously, connect only one of either PC
IN o
r HDMI/DVI IN to display the PC on the TV.
If the graphic card on the PC does output analog and digital RGB simultaneously, set the TV to eithe
HDMI/
DVI; (the other mode is set to Plug and Play automatically by the TV.)
3. Then, make the corresponding audio connection. If using a sound card, adjust the PC sound as required.
How to use
1. Turn on the PC and the TV.
2. Turn on the display by pressing the POWER button on the TV's remote control.
3. Use INPUT on the remote control to select PC or HDMI/DVI source.
4. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or
brightness in PC mode. If noise is present, change the PC mode to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC
graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.
Note
1.Use a DVI cable.
2.Avoid keeping a fixed image on the TV's screen for a long period of time. The fixed image may become permanently
imprinted on the screen.
3. The synchronization input form for Horizontal and Vertical frequencies is separate.
x768 .
r PC or
Resolution
Mode
VGA
SVGA
XGA
Resolution
Frame
frequency
(Hz)
640*480
60Hz
800*600 60Hz/75Hz
60Hz
1024*768
75Hz
HDMI/DVI IN 1 HDMI/DVI IN 2
PC IN
VIDEO
Pb
Y
Y
Pr
PC/DVI
Pr
AUDIO IN
Pb
Owner s Manual 13
Installation
HDMI
When the source device(DVD player or Set Top Box) supports HDMI
How To Connect
1. Connect the source device to HDMI port of this TV with an HDMI cable(not supplied with this product).
2. No separated audio connection is necessary.
How To Use
If the source device supports Auto HDMI function, the output resolution of the source device will be automatically
set to 1280x720p.
If the source device does not support Auto HDMI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution of the source device to 1280x720p.
Select HDMI input source in input source option of Select Main source menu.
When the source device(DVD player or Set Top Box) supports DVI
How To Connect
1. Connect the source device to HDMI port of this TV with a HDMI-to-DVI cable(not supplied with this product).
2. A separated audio connection is necessary.
3. If the source device has an analog audio output connector, connect the source device audio output to DVI Audio
In port located on the left side of HDMI port.
How To Use
If the source device supports Auto DVI function, the output resolution of the source device will be automatically set
to 1280x720p.
If the source device does not support Auto DVI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution of the source device to 1280x720p.
Press the INPUT button to select HDMI input source in input source option of Select Main source menu.
14 TV LCD-TFT
Cable sample
Installation
HDMI Cable
(not supplied with the product)
HDMI to DVI Cable
(not supplied with the product)
Analog Audio Cable
(Stereo to RCA type)
(not supplied with the product)
Owner s Manual 15
External Equipment Connections
Connecting Headphones
You can connect a set of headphones to your set if you wish to watch a
TV programme without disturbing the other people in the room.
AUDIO-R
AUDIO- L
VIDEO
Plug a set of headphones into the 3.5mm
mini-jack socket on the side panel of the set.
Note
Prolonged use of headphones at a high volume
may damage your hearing.
You will not receive sound from the speakers
when you connect headphones to the system.
Installation
Power source
Wider Hole
and Blade
Polarized AC Cord Plug
AC Outlet
TO USE AC POWER SOURCE
Use the AC polarized line cord provided for
operation on AC. Insert the AC cord plug into
a standard polarized AC outlet.
Note
Never connect the AC line cord plug to other
than the specified voltage. Use the attached
power cord only.
If the polarized AC cord does not fit into a nonpolarized AC outlet, do not attempt to file or cut
the blade. It is the user`s responsibility to have
an electrician replace the obsolete outlet.
If you cause a static discharge when touching
the unit and the unit fails to function, simply
unplug the unit from the AC outlet and plug it back
in. The unit should return to normal operation.
16 TV LCD-TFT
Take the table stand off
You can take off the table stand if you don`t want to use the table stand.
Installation
HL26S HL32S
A A
A
Please release the screws 6XM4,
see the picture.
HL26B HL32B HL26BG HL32BG
A A A A
Please release the screws 6XM4,
see the picture.
Owner s Manual 17
Operation
Operation
In the manual, the OSD (on screen display) may be different from your TV`s, because it is just an example to help
you with the TV operation.
There are several options you might need to set up in order for your TV to work properly. Read the instructions that
follow.
Switching On/Off the TV set
1. First, connect power cord correctly.
2. Select the viewing source by using INPUT button on the remote control.
3. When finished using the TV, press the POWER button on the remote control. The TV reverts to standby mode.
4. If you intend to be away on vacation, disconnect the power plug from the wall power outlet.
Note
If the TV in power on , the screen show information according the type of input signal . the information will disappear.
If there is no signal , No Signal will display on the screen.
Choose the Menu Language
When you start using your set for the first time, you must select the language which will be used for displaying menus
and indications.
Channel
Video
Audio
Time
Function
Lock
Menu Language English
DTV Caption Style
OSD Timeout Middle
OSD Transparency Middle
DNR Off
Move /OK: Select /EXIT/ MENU: Exit
1 Choose the TV Input and then Press the MENU button.
2 Press the / button to select the Function menu.
3 Press the or OK button and then select the Menu
Language.
4 Press the or OK button to select language.
English Spanish or French
5 When you are satisfied with your choice, press the EXIT button
to return to normal viewing or press the MENU button to return to
the previous menu.
Choose the Input source
Change the picture source so you can watch your TV, cable TV, VCR, DVD, or any
other devices that are connected to your TV.
1. Press the INPUT button to enter the Select Main picture Source menu
and then use the / button to select the desired items TV, V , V ,
S-Video,Component1, Component2, PC, HDMI/DVI1, HDMI/DVI2 .
Video3,
ideo1 ideo2
2. Press the OK button to confirm .
Select Source
TV
Video1
Video2
Video3
S-Video
Component1
Component2
PC
HDMI/DVI1
HDMI/DVI2
Move OK: Select EXIT/ INPUT: Exit
18 TV LCD-TFT
Channel menu
This TV set has two methods to set channels, which are respectively Auto Scan, Add Channel Scan.
In this section, how to use the remote control to set channel is explained. You can also use buttons on the TV
set to set channel.
Automatic Scan
Automatically finds all channels available through antenna or cable inputs, and
stores them in memory on the All Channel List.
Note
The Channel menu will be only operated in normal TV mode.
1 Press the MENU button and then select the Channel menu.
2 Press the or OK button and then use / button to select
Tuner.
3 Press the or OK button Select Cable or Antenna mode.
4 Press the / button to select Auto Scan.
5 Press the or OK button to start searching.
6 To cancel searching, press the EXIT /MENU button.
Channel
Video
Audio
Time
Function
Lock
Tuner Antenna
Auto Scan
Add Channel Scan
Rename
Move /OK: Select /EXIT/ MENU: Exit
Operation
Note
When Antenna is selected, the TV will detect antenna signals
and will search for antenna TV (NTSC and ATSC) channels
available in your local area.
When Cable is selected, the TV will detect cable company
supplied signals and will search for cable TV (NTSC, QAM
modulated) channels available in your area.
The Auto Scan function search for NTSC program first and then
search for ATSC or QAM program.
Auto Scan
NTSC Channel 55
Analog channels 19
Digital Channels 0
Progress(%)64
Owner s Manual 19
Channel menu
Add Channel Scan
Operation
Only search the new channel ,so the old channel will not be cleared.
1 Press the MENU button and then select the Channel menu.
2 Press the or OK button and then use / button to select
Tuner.
3 Press the or OK button Select Cable or Antenna mode.
4 Press the / button to select .
Add Channel Scan
5 Press the or OK button to start searching.
6 To cancel searching, press the EXIT/MENU button.
Note
When Antenna is selected, the TV will detect antenna signals
and will search for antenna TV (NTSC and ATSC) channels
available in your local area.
When Cable is selected, the TV will detect cable company
supplied signals and will search for cable TV (NTSC,QAM
modulated) channels available in your area.
The function search for NTSC program first
Add Channel Scan
and then search for ATSC or QAM program.
Channel
Video
Audio
Time
Function
Lock
NTSC Channel 55
Analog channels 19
Digital Channels 0
Progress(%)64
Tuner Antenna
Auto Scan
Add Channel Scan
Rename
Move /OK: Select /EXIT/ MENU: Exit
Add Channel Scan

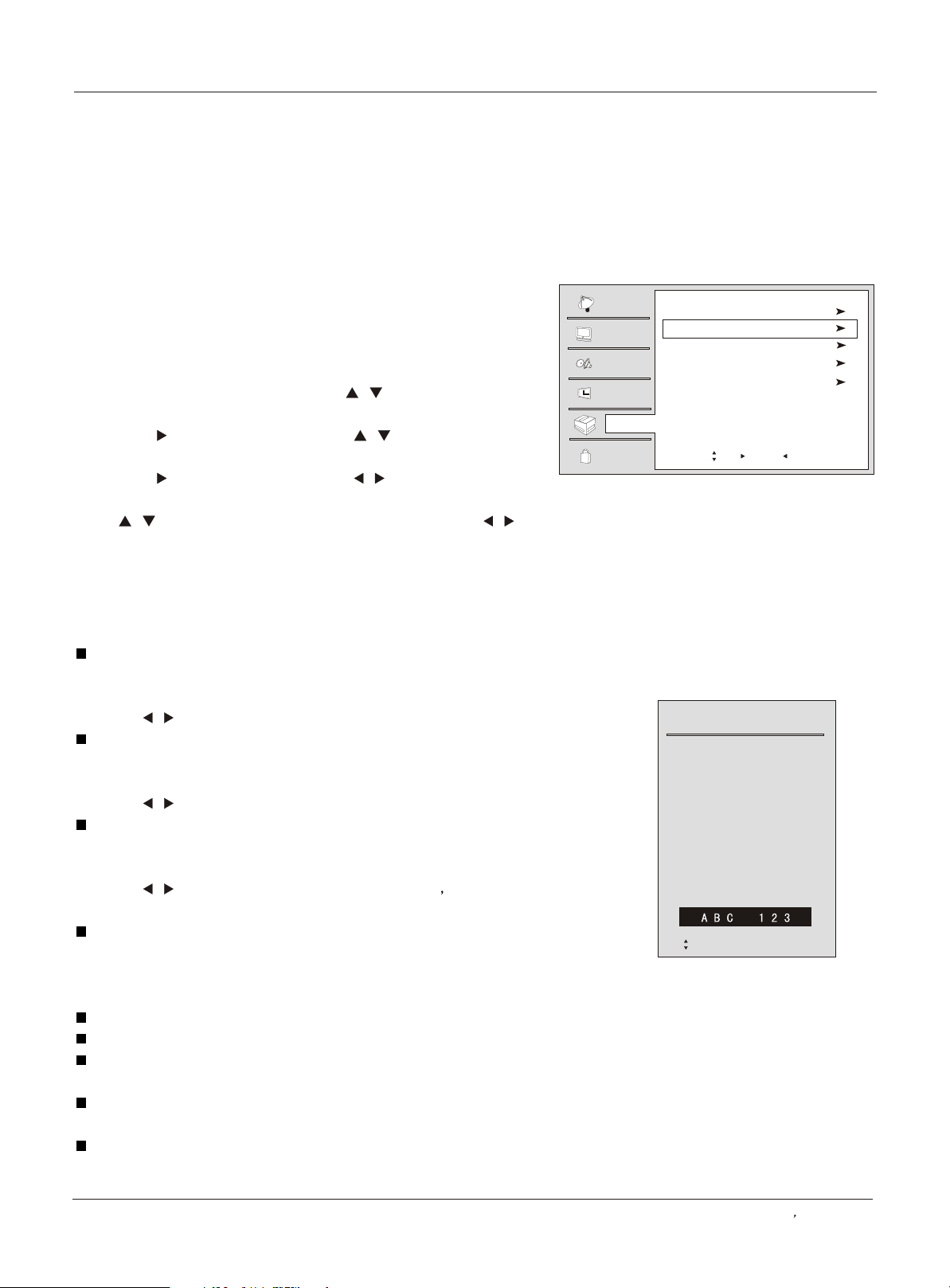

Rename
1 Press the MENU button and then select the Channel menu.
2 Press the or OK button and then use / button to select
Rename.
3 Press the or OK button to enter the Submenu.
4 press / button to move the cursor and then use / button
to change.
5 When you are satisfied with your choice, press OK button to
return to the previous menu or Press EXIT button to return to
TV viewing.
20 TV LCD-TFT
Channel
Video
Audio
Time
Function
Lock
Ch 16-0
Tuner Antenna
Auto Scan
Add Channel Scan
Rename
Move /OK: Select /EXIT/ MENU: Exit
Rename
- - - - - - -
Move Change EXIT: Exit
Operation
Select the desired program
Using the CH+/- buttons.
1
Press the CH+ button to select a channel number in number increasing direction.
Press the CH- button to select a channel number in number decreasing direction.
(Note: If Skip is ON on one channel, press CH+/- button, the channel will not appear.)
2
Also can enter channel number directly,eg:2-0.

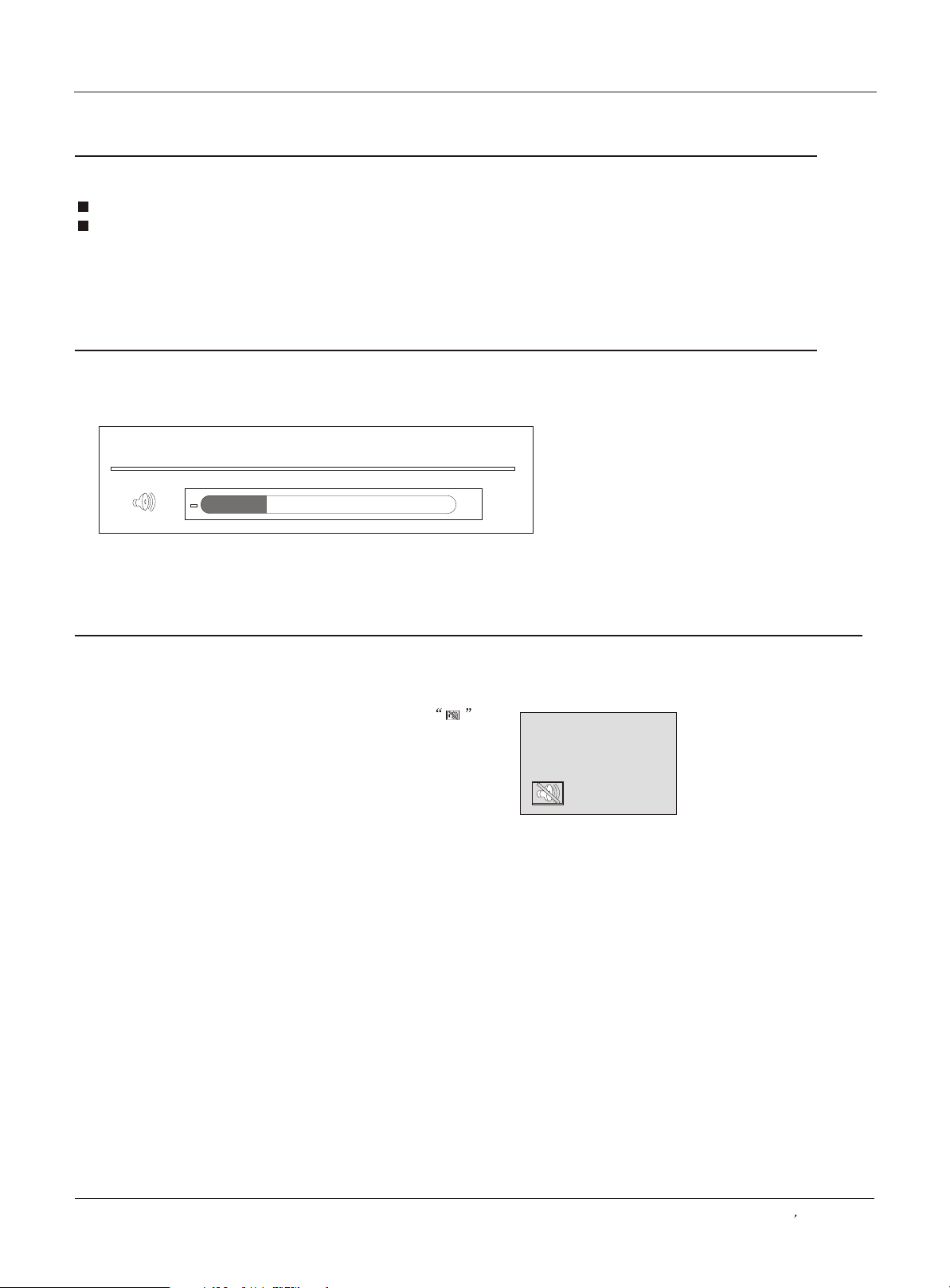

Select the desired sound
Press the VOL-/+ buttons on the remote or the front of the TV set to adjust the volume level. The range is 0~100.
When the volume buttons are pressed the volume level is displayed automatically on the TV screen.
Volume
+ 21
Mute
When you need to pay attention to , or there is a telephone calling you or there are some
guests visiting you, the sound elimination (mute) function is very convenient.
1 Press the MUTE button on the remote control and
type face will display on the screen. At this time, the sound
of the TV set is turned off.
2 If you want to recover the sound, press the MUTE
button again or directly press VOL+ buttons.
a conversation
Owner s Manual 21
Operation
Video menu
The TV menu gives you an overview of the menus you can select.
Note
Depending on the input signal, one or more menu items may not be selectable.
How to select picture mode
The picture mode provides the pre-defined images settings. There are four settings: standard/ vivid /mild/custom.
Press P.MODE button on the remote control to select the option (Standard/Vivid/Mild/Custom)
Standard:
Vivid:
Mild:
Custom:
How to customize your own picture status
1 Press the MENU button and then use / button to select the
Video menu.
2 Press the or OK button and then use / button to select the
desired items.
3 Press the or OK button and then use / button to adjust the
setting.
4 When you are satisfied with your choice, press MENU button to
return to the previous menu or press the EXIT button to return to
TV viewing.
Contrast
This will adjust the intensity of bright parts in the picture but keep
the dark parts unchanged.
normal mode.
mode of watching the movement of picture.
produces a softer picture.
allows adjustment of the picture to your personal taste.
Channel
Video
Audio
Time
Function
Lock
Contrast 50
Brightness 50
Tint 0
Color 50
Sharpness 50
Color Temperature Standard
Mode Custom
Move /OK: Select /EXIT/ MENU: Exit
Brightness
This will adjust the light output of the complete picture, which will
mainly affect the darker areas of the picture.
Tint
Allows you to select the color mix (Tint) of the picture.
Color
This will adjust the saturation level of the colors to suit your personal
preference.
Sharpness
This will adjust the sharpness of fine details in the picture.
Color temperature
This will increase or decrease Warm (red) and Cool (blue) colors to
suit personal preferences.
Select Cool to give the white colors a blue tint, Standard to give the
white colors a neutral tint, Warm to give the white colors a red tint.
Mode
Select the mode of picture(Standard/Vivid/Mild/Coustom).
Contrast
+ 21
Tint
G
Note
Only when the item of mode is custom ,
the Contrast Brightness Tint color
Sharpness and can
Color Temperature
be set by user . In other mode the value
of them are preset by program .
R
0
22 TFT-LCD TV
Audio menu
How to Select Audio mode
Press S.MODE button on the remote control to select the Audio Mode (Standard/Music/Theater/Custom).
Operation
Standard
Music
Theater
Normal sound with moderate bass and treble setting.
Designed to reduce the bass and treble which enhances the voice for news programs.
Enables extra bass and treble to enhance the movie experience.
A spare setting that can be adjusted to personal tastes. Custom
How to Customize your own audio status
1 Press the MENU button and then use / button to select the Audio menu.
2 Press the or OK button and then use / button to select the desired items.
3 Press the or OK button and then use / button to adjust the setting.
4 When you are satisfied with your choice, press MENU button to return to
the previous menu or press the EXIT button to return to TV viewing.
Volume
This will adjust the sound output level.
Bass
This will adjust the bass output level.
Treble
This will adjust the treble output level.
Balance
This will adjust the output of the right and left speakers to obtain the
best stereo reproduction for your listening position.
Channel
Video
Audio
Time
Function
Lock
Volume 50
Bass 50
Treble 50
Balance 0
Digital Audio RAW
Mode Standard
TV Speaker Off
Move /OK: Select /EXIT/ MENU: Exit
Digital Audio
The TV can output Digital audio via the optical connector to an
external amplifier or receiver.
TV Speaker
Press the or OK button to switch ON or OFF of the loudspeaker.
Owner s Manual 23
Operation
Audio menu
SAP Broadcasts Setup
This TV can receive MTS stereo programs and SAP (Secondary Audio Program) that accompanies the stereo
program; if the station transmits an additional sound signal as well as the original one.
When having selected SAP button on the remote control, this TV can only receive the signal when the TV station
transmits the proper signals.
Mono sound is automatically received if the broadcast is only in Mono; even though Stereo or SAP has been selected.
Select Mono if you want to listen to mono sound during stereo/SAP broadcasting.
Stereo or SAP can be received in a Analog channel.
1. Use the SAP button to select your desired MTS mode in a analog
signal. Each time you press the SAP button, Mono, Stereo or SAP
appear. If other languages are available on the digital signal, select
them with the SAP button.
2. Press EXIT button to save and return to TV viewing.

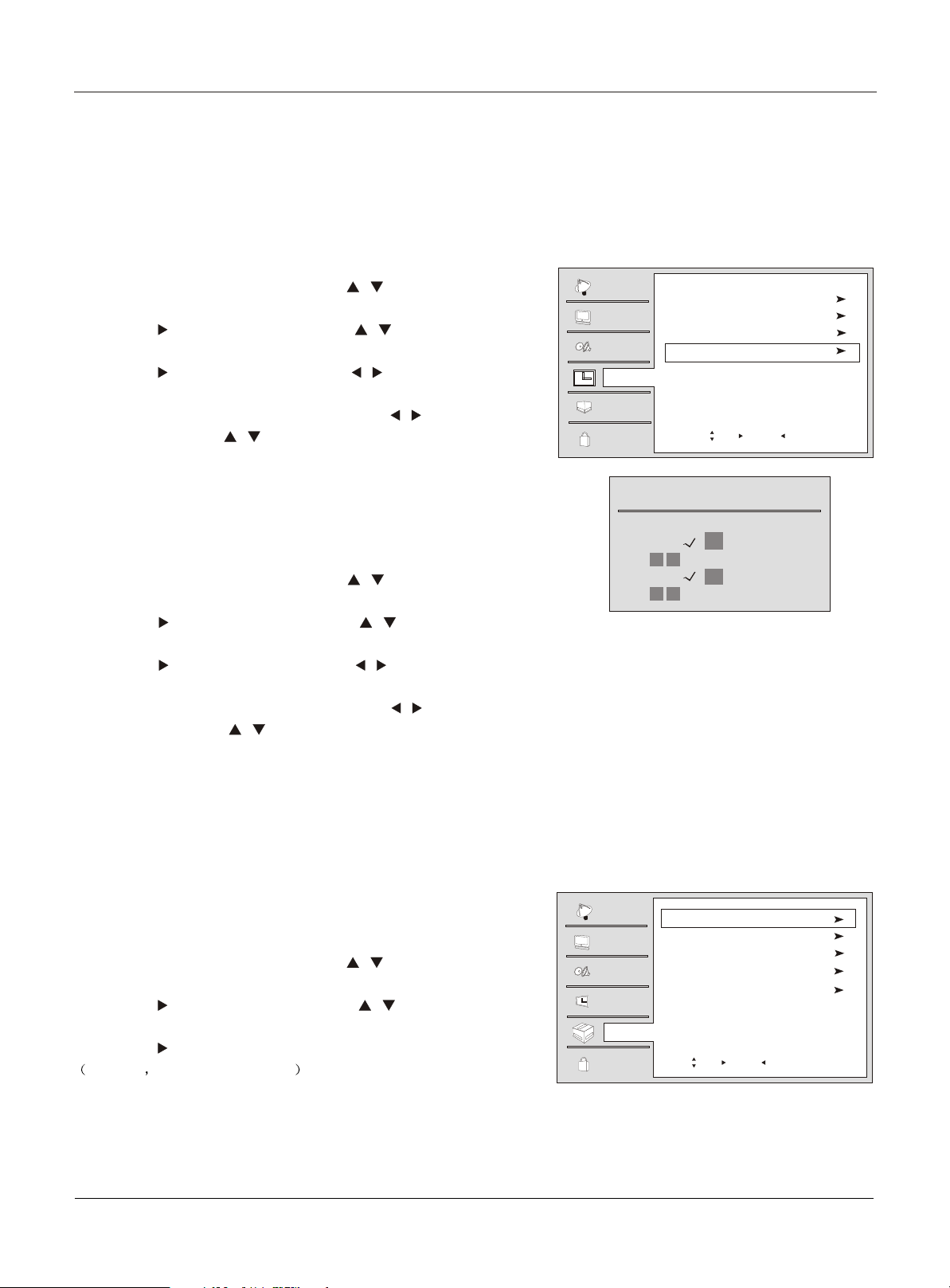

Time menu
Date /Time setting
Setting the clock is necessary in order to use the various timer
features of the TV. Also, you can check the time while watching
the TV.
1 Press the MENU button and then use / button to select the
Time menu.
2 Press the or OK button and then use / button to select the
Date/Time.
3 Press the or OK button and then use / button to select the
Mode: Manual or Auto.
4 When you are satisfied with your choice, press MENU button to
return to the previous menu or press the EXIT button to return to
TV viewing.
Channel
Video
Audio
Time
Function
Lock
Mode Auto
Year 2007
Date March27
Time 5:10PM
When Auto mode is selected
Mode Manual
Year 2007
Date March27
Time 5:10PM
Date/Time
Time Zone Pacific
Sleep Timer Off
Timer
Date/Time
Date/Time
Move /OK: Select /EXIT/ MENU: Exit
24 TV LCD-TFT
When Manual mode is selected
Time menu
Time zone setting
This function allows you to select your local time zone.
Broadcasted time information will correct the clock display
for your local time.
1 Press the MENU button and then use / button to select the
Time menu.
2 Press the or OK button and then use / button to select
the Time Zone items.
3 Press the or OK button to select your viewing area time zone:
Eastern, Central, Mountain, Pacific, Alaska or Hawaii .
4 When you are satisfied with your choice, press MENU button
to return to the previous menu or press the EXIT button to return
to TV viewing.
Channel
Video
Audio
Time
Function
Lock
Operation
Date/Time
Time Zone Pacific
Sleep Timer Off
Timer
Move /OK: Select /EXIT/ MENU: Exit
Sleep Timer setting
The sleep timer automatically shuts off the TV after a preset
time (from 5 to 240 minutes).
1 Press the MENU button and then use / button to select the
Time menu.
2 Press the button and then use / button to select the
Sleep Timer.
3 Press the button to select the number of minutes.
Select Off,5min,10min, 15min, 30min, 45min,60min, 90min,
120min, 180min or 240min.
The time begins to count down from the number of minutes selected.
4 When you are satisfied with your choice, press MENU button to
return to the previous menu or press the EXIT button to return to TV
viewing.
5 To cancel the set sleep timer: Press the button to select Off.
You can use the SLEEP button also to select quickly the sleep timer.
or OK
or OK
Channel
Video
Audio
Time
Function
Lock
Date/Time
Time Zone Pacific
Sleep Timer Off
Timer
Move /OK: Select /EXIT/ MENU: Exit
Owner s Manual 25
Time menu
Timer on setting
Switch on automatically at the time you presetting.
Operation
1 Press the MENU button and then use / button to select
the Time menu.
2 Press the or OK button and then use / button to select
the Timer.
3 Press the or OK button and then use / button to select
the On Mode.
4 Press the OK button to confirm. Then press / button to
move cursor, press / button to set.
5 When you are satisfied with your choice, press MENU button
to return to the previous menu or press the EXIT button to
return to TV viewing.
Timer off setting
Switch off automatically at the time you presetting.
1 Press the MENU button and then use / button to select
the Time menu.
2 Press the or OK button and then use / button to select
the Timer .
3 Press the or OK button and then use / button to select
the Off Mode.
4 Press the OK button to confirm. Then press / button to
move cursor , press / button to set .
5 When you are satisfied with your choice, press MENU button
to return to the previous menu or press the EXIT button to
return to TV viewing.
Channel
Video
Audio
Time
Function
Lock
On Time: Off On
01:50 AM
Off Time: Off On
05:10 PM
Date/Time
Time Zone Pacific
Sleep Timer Off
Timer
Move /OK: Select /EXIT/ MENU: Exit
Timer
Function menu
Menu Language
When you start using your set for the first time, you must
select the language which will be used for displaying
menus and indications.
1 Press the MENU button and then use / button to select
the Function menu.
2 Press the or OK button and then use / button to select
Menu Language.
3 Press the or OK button to select language.
English Spanish or French
4 When you are satisfied with your choice, press the EXIT
button to return to normal viewing or press MENU button
to return to the previous menu.
26 TV LCD-TFT
Channel
Video
Audio
Time
Function
Lock
Menu Language English
DTV Caption Style
OSD Timeout Middle
OSD Transparency Middle
DNR Off
Move /OK: Select /EXIT/ MENU: Exit
Function menu
DTV Caption Style (In DTV mode)
This allows you to modify how digital captions are displayed on
your TV. Select from the following options to change the visual
characteristics of your TV`s digital captioning.
Customize the DTV/CADTV captions that appear on your screen.
1. Press the MENU button and then use / button to select the
Function menu.
2. Press the or OK button and then use / button to select
DTV Caption Style.
3. Press the or OK button and then use / or OK button to set
style as Custom.
4. Use / button to select the Style, Font, etc., and press /
or OK button to customize to your preference .
5. When you are satisfied with your choice, press MENU button
to return to the previous menu or press the EXIT button to
return to TV viewing.
Style
Select this option to select the font style of caption display according
to your own preference.
Press the / or OK button to select Default or Custom.
Size
Select this option to select the size of caption display according to your
own preference.
Press the / or OK button to select Small, Normal or Large .
Font
Select this option to select the font of caption display according to your
own preference.
Press the / or OK button to select Default, Font1 Font2, Font3, Font4,
Font5 Font6 or Font7.
Text color
Select this option to select the text color or the opacity of the text box
of caption display according to your own preference. Select a color
and one of the opacity options.
Text Opacity: Specify the opacity for the text color.
BG (Background) Color: Select a background color.
BG (Background) Opacity: Select the opacity for the background
color.
Edge Effect
Select Edge Effect of caption.
Edge Color
Select Edge color of caption.
Channel
Video
Audio
Time
Function
Lock
Operation
Menu Language English
DTV Caption Style
OSD Timeout Middle
OSD Transparency Middle
DNR Off
Move /OK: Select /EXIT/ MENU: Exit
DTV Caption Style
Style
Size
Font
Text Color
Text Opacity
BG Color
BG Opacity
Edge Effect
Edge Color
Move OK: Select EXIT : Exit
Default
Default
Default
Default
Default
Default
Default
Default
Default
Owner s Manual 27
Function menu
Operation
OSD Timeout
1. Press the MENU button and then use / button to
select the Function menu.
2. Press the button and then use / button to select
or OK
OSD Timeout.
3. Press the button to select Short, Middle or Long.
hort is for 5 seconds; Middle is for 10 seconds; Long is
(S
for 15 seconds
or OK
)
OSD Transparency
1. Press the MENU button and then use / button to sele
ct the Function menu.
2. Press the button and then use / button to select
or OK
OSD Transparency.
3. Press the button to select Low ,Middle or High.
or OK
DNR
1. Press the MENU button and then use / button to select
the Function menu.
2. Press the button and then use / button to select
DNR.
3. Press the button to select Off, Weak, Medium, Strong.
or OK
or OK
Channel
Video
Audio
Time
Function
Lock
Channel
Video
Audio
Time
Function
Lock
Channel
Video
Audio
Time
Menu Language English
DTV Caption Style
OSD Timeout Middle
OSD Transparency Middle
DNR Off
Move /OK: Select /EXIT/ MENU: Exit
Menu Language English
DTV Caption Style
OSD Timeout Middle
OSD Transparency Middle
DNR Off
Move /OK: Select /EXIT/ MENU: Exit
Menu Language English
DTV Caption Style
OSD Timeout Middle
OSD Transparency Middle
DNR Off
Adjust menu
Screen Setup for Component or PC mode
When you select the Component or PC input, this function is used.
Adjustment for screen Position, Clock, Phase, Setting
Display Adjust menu by pressing INPUT button then use / button
to select the the source of Component1, Component2 or PC item.
Position : Adjust the screen position.
Clock : Adjust the clock of input signal.
Phase : Adjust the phase of Pixel clock.
Auto sync: Automatically adjust display of the picture(Olny
available in PC source).
Setting:Change to the default value.
1 Press the MENU button and then select the Adjust menu.
2 Press the or OK button and then use / button to select the
desired items.
3 Press the / button to adjust the setting.
4 When you are satisfied with your choice, press MENU button to
return to the previous menu or press the EXIT button to return to
TV viewing.
Function
Lock
Adjust
Video
Audio
Time
Function
Lock
Move /OK: Select /EXIT/ MENU: Exit
H Position 48
V Position 48
Clock 50
Phase 51
Auto Sync
Setting Default
Move /OK: Select /EXIT/ MENU: Exit
28 TV LCD-TFT
Operation
Lock Menu
Parental Control can be used to block specific channels, ratings and other viewing sources.
The Parental Control Function is used to block program viewing based on the ratings sent by the broadcasting
station.
The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program
and the categories.
To use this function, the following must be done :
1. Set ratings and categories to be blocked.
2. Specify a password
3. Enable the lock
Parental Control rating and categories
Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be
blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video
movies use the Movie Rating System (MPAA) only.
Ratings for Movies previously shown in theaters:
Movie Ratings :
NR (Permits all programs)
G (General audience)
PG (Parental guidance suggested)
PG-13 (Parents strongly cautioned)
R (Restricted)
NC-17 (No one 17 and under admitted)
X (Adult only)
If you set PG-13 : G and PG movies will be available , PG-13, R, NC-17 and X will be blocked.
Ratings for Television programs including made-for-TV movies :
TV-Y (All children)
TV-Y7 (Children 7 years older)
TV-G (General audience)
TV-PG (Parental guidance suggested)
TV-14 (Parents strongly cautioned)
TV-MA (Mature audience only)
TV Rating Children:
ALL (Age) (applies to TV-Y, TV-Y7)
FV (Fantasy Violence) (applies to TV-Y7)
TV Rating General:
ALL (Age) (applies to TV-G, TV-PG, TV-14, TV-MA)
D (Dialogue - sexual dialogue) (applies to TV-PG, TV-14)
L (Language - adult language) (applies to TV-PG, TV-14, TV-MA)
S (Sex - sexual situations) (applies to TV-PG, TV-14, TV-MA)
V (Violence) (applies to TV-PG, TV-14, TV-MA)
Owner s Manual 29
Lock Menu
Lock setup
Set up blocking schemes to block specific channels, ratings, and
external viewing sources.
A password is required to gain access to this menu.
1. Press the MENU button and then use / button to select
the LOCK menu. Then, press the button.
The TV is set up with the initial password 0-0-0-0 and
security default password is 9-4-4-3.
or OK
Operation
Enter Password
2. Use the / button to select the desired items, and press
the button to enter the next menu.
or OK
Once the option is selected, change the settings to your
preference.
Password: Change the password by inputting a new
password twice.
Parental Lock
1. Press / button to select Lock item.
Parental
2. Press the or OK button to select On or Off.
Note
If the Parental Lock is setting as Off, the change of the
MPAA Rating, Parental Guide ,CA Eng Rating and CA Fren
Rating will be no useful.
MPAA Rating
Blocks movies according to the movie ratings limits specified,
so children cannot view certain movies. You can set the ratings
limit by blocking out all the movies with the ratings above a
specified level. Keep in mind that the movie ratings limit only
applies to movies shown on TV, not TV programs, such as
soap operas.
1 Press / button to select MPAA Rating item.
2 Press the button and then use / button to select
or OK
the rating.
3 Press the OK button to set block or unblock.
4 When you are satisfied with your choice, press MENU button
to return to the previous menu or press the EXIT button to
return to TV viewing.
Channel
Video
Audio
Time
Function
Lock
Password
Parental Lock On
MPAA Rating
Parental Guide
CA Eng Rating
CA Fren Rating
Move /OK: Select /EXIT/ MENU: Exit
MPAA
NR
G
PG
PG-13
R
NC-17
X
Move OK: Select / : ExitMENU EXIT
30 TV LCD-TFT
Lock Menu
Parental Guide
Note
Parental control
The will automatically block certain categories that are
more restrictive . For example, if you block TV-Y category, then
TV-Y7 will automatically be blocked. Similarly, if you block the TV-G
category, then all the categories in the young adult group will be
blocked (TV-Y, TV-Y7, TV-G, TV-PG, TV-14, and TV-MA). The sub-ratings
(D, L, S, V) work together similarly.
How to set the FV, D, L, S and V sub-ratings.
First, the / button select one of these Ratings:
TV-Y, TV-Y7, TV-G, TV-PG,TV-14, or TV-MA , and press the / button.
A symbol will be displayed for each sub-rating.
While is selected, press the OK button to go to a sub rating.
To select a different Rating, press the / buttons and then repeat
the process.
Note
The V-chip will automatically block certain categories
that are More restrictive .For example, if you block sub-rating in
TV-PG, then the sub-ratings in TV-14 and TV-MA will automatically
be blocked.
Operation
TV Rating
ALL FV D L S V
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Move OK: Select / : ExitMENU EXIT
CA Eng Rating
Canadian English Language Rating
1 Press / button to select CA Eng Rating item.
2 Press the button and then use / button to select the rating.
or OK
3 Press the OK button to confirm.
4 When you are satisfied with your choice, press MENU button to return
to the previous menu or press the EXIT button to return to TV viewing.
C Children
C8+ Children eight years and older
G General Programming, suitable for all audiences
PG Parental Guidance
14+ Viewers 14 years and older
18+ Adult Programming
CA Fren Rating
Canadian French Language Rating
1 Press / button to select CA Fren Rating item.
2 Press the button and then use / button to select the rating.
3 Press the button to confirm.
4 When you are satisfied with your choice, press MENU button to return
to the previous menu or press the EXIT button to return to TV viewing.
G General
8 ans+ 8+ General - Not recommended for young children
13 ans+ Programming may not be suitable for children under
the age of 13
16 ans+ Programming is not suitable for children under the
age of 16
18 ans+ Programming restricted to adults
or OK
OK
CA Eng Rating
C
C8+
G
PG
14+
18+
Block All
Move OK: Select / : ExitMENU EXIT
CA Fren Rating
G
8 ans+
ans
13 +
ans
16 +
18 +
ans
Block All
Move OK: Select / : ExitMENU EXIT
Owner s Manual 31
Other Functions
Brief Info
Brief Info shows the present screen information.
Press the INFO button to show the Brief Info on the screen.
Press the INFO button or EXIT button to exit.
Function:
Show the present screen information.
Press the INFO button or EXIT button to exit.
A: Video resolution
B: Additional information.
Program rating
C: categories
D: Present time, Month, Day , Year
E: Program title
F: Program name
G:Sound Standard
Operation
TV-PG
Quick program view
This function enables quick swap to the last watched program.
1 Suppose the channel number you used just now is 8 and the channel number
you are using is 18 (as shown in the figure).
2
If you want to return to the last watched program channel 8, you can simply
press the Q.VIEW button.
3
If you want to return to channel 18, press the button again. Use this function,
you can easily change between the channel you are using and the channel you
used last time.
32 TV LCD-TFT
Operation
Other Functions
Aspect Ratio Control
Lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV with a 16:9 ratio picture
format.
Note
If a fixed image is displayed on the screen for a long time, on the
screen and remain visible.
Press the ARC button to select the desired picture format(Normal, Zoom, Wide, Cinema).
Normal
Choose normal when you want to view the picture with original aspect ratio of the input signal.
Zoom
Choose Zoom when you want to view the picture without any alteration. However, the top and bottom portions
of the picture will be cropped.
Wide
Choose wide when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen.
Cinema
For letterbox pictures,bars may appear on the top and bottom on some programs.
CC (Closed Caption Display)
Closed Captions
Closed captioning is a process which converts the audio portion
of a television program into written words which then appear as
subtitles on the television screen. Closed captions allow viewers
to read the dialogue and narration of television programs.
Using Closed Captions
Captions are the subtitles of the dialogue and narration of television
programs. For prerecorded programs, program dialogue
can be arranged into captions in advance. Its possible to caption
a live program by using a process called real-time captioning,
which creates captions instantly. Real-time captioning is normally
done by professional reporters using a machine shorthand
system and computer for translation into English.
Captioning is an effective system for the hearing-impaired,
and it can also aid in teaching language skills.
the image may become permanently burned
Note
The captions do not always use correct
spelling and grammar. Not all TV programs
and product commercials are made for
broadcast with Closed Caption information
included. Refer to your area`s TV program
listings for the TV channels and times of
Closed Caption shows. The captioned
programs are usually noted in the TV listings
with service marks such as CC .
CC
In ATV mode CCD function allows you to configure the way you
choose to view the analog captioning (Off,
Text1, Text2, Text3 or Text4
).
CC1, CC2, CC3, CC4,
Off
CAPTION
The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the program
provided for the hearing impaired.
TEXT
The term for the words that appear in a large black frame and almost cover the entire screen; usually messages
provided by the broadcaster.
In DTV mode
allows you to configure the way you choose to view the digital captioning(Off,Service1,Service2,
Service3,Service4, Service5 or Service6).
Select one of the digital service channels made available by the captionprovider.
There are 6 standard services. Service 1 is designated as the Primary Caption Service. This service contains
the verbatim, or near-verbatim captions for the primary language being spoken in the accompanying program
audio.Service 2 is designated as the Secondary Language Service. This service contains captions in a secondary
language which are translations of the captions in the primary Caption Service. The other service subchannels
are not pre-assigned. It is up to the discretion of the individual caption provider to utilize the remaining service
channels.
Owner s Manual 33
Remote Control
Setting Up Your Remote Control
After it has been set up properly, your remote control can operate in six different modes:
TV, DVD, VCR, SETBOX , CABLE or AUDIO. Pressing the corresponding button on the remote control
allows you to switch between these modes, and control whichever piece of equipment you choose.
Note
The remote control might not be compatible with all DVD Players, VCRs and Cable boxes.
Control Operation
To control a device using the Control
1. Program the Control to work with your device.
2. Changing device mode by pressing the SELECT key. Default device is TV. When press
SELECT key, current device led will be on. Keep pressing SELECT key to choose a
CH.LIST
TV
CC
PC
S.MOD E
NPUT
S-VIDEO
SELECT
COMPONENT
FREEZ E
IN
FO
HDMI
VIDEO
P.MODE
TIME
U
N
E
OK
device, the loop is: TV DVD VCR STB Cable Audio - TV. When device is set, related
device LED will be on for 5 seconds and then be off.
3. Aim the remote at the device.
4. Press the POWER button to turn the device on.
5. Use the other Control buttons to operate the device. Device LED will blink if user presses
any key (if the key has data in current mode.). If the key has no data, then LED will not blink.
6. Default init status: TV/Haier 001 code.
7. Bulb key to control the flash light.
Programming the Control
The Control is factory-programmed to support up to 600 code sets.
There are two ways to program the Control:
Selecting a brand code for the device you wish to operate, and then entering that code
manually into the Control.
Using the Power Scan feature to find device codes automatically.
The two programming methods are described in the following sections.
Operation
E
X
IT
A
R
C
P
E
E
L
S
P
A
S
Manually Programming the Control
1. Using SELECT key to choose the device you want to program.
2. While Press and holding OK key, press SELECT key, and device LED will be ON. Keep the
status for about 5 seconds, release both keys and then LED will blink twice per second,
indicating that the control is ready for programming.
3. Led will blink once when you enter a digit key, indicating the digit key is programmed. If 3
VOL +
CH+
digits are programmed successfully, device LED will be ON for about 3 seconds and then
blink twice per second. Then User now can:
VOL-
CH-
a) Try to operate the device by using POWER or PLAY keys. If operation can be done,
press OK to save current 3-digits code and exiting manually programming mode.
b) Return to beginning of step 3. Reprogram the control.
4. If user's input is incorrect, LED will blink 12 times in 3 seconds. And then keep twice per
second blink, user now can return to step 3 and re-program the device.
5. Within 10 seconds, user should enter the 3-digit brand code corresponding to your device.
If time out or any key other than POWER PLAY and digits is pressed, LED will be off and
manually programming process is exit.
6. Fast Programming Haier default TV code set. Press and holding the EXIT key and then press
SELECT key for 5 seconds, default Haier code set (001) will be programmed to the control.
Manually scan mode
Q.VIEW
With manually scan programming, the control tests all the codes available in the code set data
base and assign the correct one for the selected device.
To manually-scan program the control:
1. Manually turn OFF the device for manually scan mode. (TV, DVD, VCR, STB, cable box or
audio equipment).
2. Press SELECT key to choose the device you wish to program.
While Press and holding OK key, press the SELECT key and device LED will be ON. Keep
the status for about 5 seconds, release both keys and then LED will blink twice per second,
indicating that the control is ready for programming.
3. Press and release the CH+/CH- key. The LED blinks 10 times per seconds, indicating that
the Remote is in manually scan mode.
4. Press CH+/CH- key repeatedly until the device switches ON (CH+ key conducts a upward
search while the CH- key conducts a downward search in the code set database).
34 TV LCD-TFT
Remote Control
5. When the device turns ON, press and release the OK key to program the control with the
new code, saving the code and exit. To exit without programming, press any key other
except CH+/CH- and OK. LED will be off after manually scan mode is exit.
6. If the device responds, no further programming is required. If the device does not respond,
repeat step 1 through 5.And searching will start from current code set. If no key was
pressed in 30 seconds, manually scan mode will be automatically exit.
7. After searching the entire data base, this mode will be automatically exited and led will
blink for 3 times.
Automatic Scan Programming the Control
To automatic scan program the Control:
1. Manually turn OFF the device you wish to power scan. (TV, DVD, VCR, STB, cable box or
audio equipment).
2. Press SELECT key to choose the device you wish to program.
While Press and holding OK key, press the SELECT key and device LED will be ON. Keep
CH.LIST
TV
CC
PC
S.MOD E
NPUT
SELECT
S-VIDEO
COMPONENT
FREEZ E
IN
FO
HDMI
VIDEO
P.MODE
TIME
U
N
E
OK
E
X
IT
A
R
C
VOL +
VOL-
P
E
E
L
S
P
A
S
CH+
CH-
the status for about 5 seconds, release both keys and then LED will blink twice per second,
indicating that the Control is ready for programming.
3. Press and release the Mute key to enter automatic scan mode. And the remote will
automatically sending power codes to the device.
4. When the device turns ON, press OK key to program the control with the new code, saving
it and exit. To exit without programming, press any key other except OK key.
5. If the device responds, no further programming is required. If the device does not respond,
repeat steps 1 through 4. And search will start from current code set.
6. After searching the entire data base, this mode will be automatically exited and led will blink
for 3 times.
Punch-Through Features
The Control provides two punch-through features that allow users to control TV volume and
DVD or VCR operation while the control is in another device mode control certain features of
another device.
Volume Punch-Through:
The TV Volume/Mute punch-through feature allows you to control the volume and mute function
of your TV while the control is in another device mode. The feature is applicable for all devices
and brands that do not use the volume control buttons for other purposes.
Transport Key Punch-Through:
The DVD or VCR transport key punch through feature lets you control the PLAY, STOP, PAUSE,
REWIND, FF and RECORD functions of your DVD or VCR while the control operates in other
modes. The feature is applicable for all devices and brands that do not use the transport keys
for other purposes.
Protection mode
1. While press and holding OK, press AUTO key for 5 seconds to enter protection mode. In this
mode, all the above programming methods will be invalid.
2.To exit protection: While press and holding OK, press AUTO key. Current device related LED
remains ON and then release OK and AUTO. Input three digit password 8 8 8 , LED turns
off and protection mode is ended. If error password is input or no password input in 10 seconds,
LED blinks three times and then turns off. Protection mode will remain.
Operation
Q.VIEW
Display mode
1.To enter display mode, while press and holding OK key, press the SELECT key and device
LED will be ON, keep the status for about 5 seconds. Release both keys and then LED will
blink 2 times per second, indicating control is ready for programming.
2.Sequence press 9, 8, 0 to enter display mode. And LED is off now.
3.Press digit 1 key to get the first digit of current code set. For example, if the first digit of code
set is 1, so then led will blink once and remains OFF. Digit 0 in code set will not be displayed.
Blink twice per second.
4.Press digit 2 key to get the second digit of current code set. For example, if the second digit
of code set is 3, so then led will blink three times and remains OFF. Blink twice per second.
5.Press digit 3 key to get the third digit of current code set. Blink twice per second.
6.Only digit 1, 2, 3 are valid in this mode. And the sequence is not fixed. You can repeat, if you
don't remember clearly.
7.Control will not send out data in this mode if user presses any keys other than digit 1, 2, 3.
And this can be regarded as no key pressed.
8.If no key was pressed in 10 seconds or any key other than digit 1, 2, 3 is pressed display
mode is ended.
Owner s Manual 35
Remote Control
Remote Control Codes
TV
NO. Brand Code
1
Haier
2
A Mark
3
Action
4
Admiral
5
Advent
6
Aiko
7
Aiwa
8
Akai
9
Amtron
10
Anam
11
Anam National
12
AOC
13
Apex
14
Audiovox
15
Bell & Howell
16
Benq
17
Broksonic
18
Carver
19
CCE
20
Centurion
21
Citek
22
Citizen
23
Classic
24
Colortyme
25
Contec Cony
26
Contec/Cony
27
Craig
28
Crosley
29
Crown
30
CTX
31
Curtis
32
Curtis Mathes
33
Daewoo
34
Daytron
35
Denon
36
Dimensia
37
Dumont
38
Electrohome
39
Emerson
40
Envision
41
Fisher
42
Fujitsu
43
Funai
44
GE
45
Goldstar
46
Gradiente
47
Granada
48
Grundig
49
Hallmark
50
Harman Kardon
51
Hisense
52
Hitachi
53
Infinity
54
Janeil
55
JBL
56
JC Penney
57
J
ensen
58
JVC
59
Kawasho
60
Kenwood
Kloss Novabeam
61
KTV
62
LG
63
Lloyds
64
Loewe
65
Logik
66
Luxman
67
LXI
68
Magnasonic
69
Magnavox
70
Majestic
71
Marantz
72
Megatron
73
001 002 003 004 005 006 007 008 009 010 011 085
134
108
071 093 099 118 127 130 131
147
079
047
104 105 123
082
106
072 082 110
073 074 075 104 112 117 134 140
000 157 015 016
082 108 140 144
071 084 118 131
051
037 038 104 106 118 138 146
153
118
077
143
073 075 079 082 089 092 138
104 123
073 075 105 116 118 125 127 139
106 108
078 082
082 106 108 114 119 125 138
118 153
082 087 119 134
056
104
070 073 075 084 089 092 102 105 112 117 118 125 127 134 135
148 153 155
073 074 075 079 092 104 110 112 117 134 135 140 144
073 075 092 114 117 134 140
145
070 155
073 091
072 073 075 080 104 105 117 134
073 075 078 081 082 083 084 092 096 103 104 105 106 108 114
117 119 125 129 130 131 134 139 144 146
073 075 105 112
052 084 115 123 124 133
083
082 083 106 108
165 066 067 070 072 073 075 168 086 104 106 110 113 116 117
125 126 127 128 134 144 149 154 155
073 074 075 078 080 092 104 105 109 112 117 134 135 137
105 122 123
134
126 134
073 075 104
104
151
041 042 058 059 068 073 075 078 101 117 126 127 131 134 140 145
087 153
094
087 153
070 073 074 075 168 086 089 092 104 112 113 125 126 127 134 149
155
073 075 105 129
163 166 012 031 036 078 086 103 122 125 126
073 075 112 123
073 075 080 104 105 112 116 139
082 094 110
082 092 106 108 112 117 134
074
137 139
087
071 142
073 075
070 075 084 087 104 118 127 149 153 155
104 105 131 140
017 073 075 080 087 104 105 112 114 117 118 119 126 131 153
071
073 075 087 105 112 116 117 118 153
075
NO. Brand Code
Memorex
74
MGA
75
Mitsubishi
76
Montgomery Ward
77
Motorola
78
MTC
79
Multitech
80
Multivision
81
NAD
82
NEC
83
Nikko
84
Noblex
85
Onwa
86
Optimus
87
Optonica
88
Orion
89
Panasonic
90
Philco
91
Philips
92
Pioneer
93
Portland
94
Price Club
95
Prima
96
Prism
97
Proscan
98
Proton
99
Quasar
100
Radio Shack
101
Radio Shack/Realistic
102
RCA
103
Realistic
104
Runco
105
Sampo
106
Samsung
107
Sansui
108
Sanyo
109
Scott
110
Sears
111
Sharp
112
Signature
113
Signature 2000
114
Sony
115
Soundesign
116
Starlite
117
Supre-Macy
118
Sylvania
119
Symphonic
120
Tandy
121
Tatung
122
Technics
123
Techwood
124
Teknika
125
Telecaption
126
Telefunken
127
Toshiba
128
Totevision
129
Ultra
130
Uniden
131
Universal
132
Video Concepts
133
Vidikron
134
Wards
135
Wallmart
136
White Westinghouse
137
Yamaha
138
Zenith
139
RePlay
140
071 074 075 084 104
073 074 075 080 105
049 073 074 075 080 104 105 112 117 134
071
072 093
073 074 075 089 104 112 118 125 140
082
088
075 101
072 073 074 075 105 112 116 117 139
075 079 140
137
082 106
101
093
096 130 146
159 167 023 032 033 034 072 086 087 108 110 113 126 127 128 140
072 073 074 075 078 080 087 104 105 112 114 117 118 119 131 140
145 153
160 161 029 030 072 073 078 080 087 118 153
045 073 075 101 110 111 116 117
073 074 075 079 092 104 112 117 134 135
089
135 142 152
086
070 127 149 154 155
073 075 078 104 105 117 119 127 134 138
053 063 064 072 086 110 114 126 128
084 106 108 110 118 120 124 127 132 134 155
070 073 075 078 082 084 092
164 060 065 070 072 073 074 075 080 102 106 110 111 113 116 117
125 127 128 134 148 149 154 155
084 155
091
039 073 075 092 110 112 117
043 048 054 057 062 073 074 075 078 080 089 092 097 104 112 117
118 125 131 134 139
022 096 120
073 084 115 124
073 075 078 082 083 106 108 117 130 134
070 073 075 080 083 084 095 104 106 115 118 124 127 133 134 149
153 155
013 028 035 073 075 078 092 093 120 131 132 134 139 141
071
115 132
158 018 026 098 100 121 123 134
073 075 082 083 104 106 117 119 129
082
094
044 046 069 073 075 080 087 104 105 112 114 117 118 119 140 153
081 082 095 108
093 118
072 110 138
086 126 128
073 075 086 105 118
071 073 074 075 078 079 082 083 089 092 106 108 112 116 117 119
134 137 140 143 153
090
139
162 019 021 024 025 027 084 089 090 115 125 133 150
092 127
140
121
168
106
118 153
070 071 073 074 075 080 081 083 168 087 104 112 113 117 118 119
120 125 127 131 153 155
055 051 107
104 112 134 135 140 144
073 074 075 080 112 119 139 140
050 055 061 071 073 091 109 121 140
156
Operation
36 TV LCD-TFT
Remote Control
Remote Control Codes
DVD
NO. Brand Code
1
Aiwa
2
Apex
3
Audiovox
4
Blaupunkt
5
BOSE
6
Broksonic
7
Clarion
8
Classic
9
Daewoo
10
Denon
11
Emerson
12
Fisher
13
Funai
14
GE
15
Go Video
16
GPX
17
Harman Kardon
18
Hitachi
19
Irradio
20
JVC
21
Kenwood
22
Koss
23
Magnavox
24
Marantz
25
Memorex
26
Mintek
27
Mitsubishi
28
NAD
29
Nakamichi
30
Norcent
31
Onkyo
32
Oritron
33
Panasonic
34
Philips
35
Pioneer
36
Proscan
37
Qwestar
38
RCA
39
Sampo
40
Samsung
41
Sansui
42
Sanyo
43
Sharp
44
Sherwood
45
Sony
46
Sylvania
47
Techwood
48
Toshiba
49
Yamaha
50
Zenith
073 044
000 001 003 004 016 028 029 030
074
078
062 071
045
046
047
079 080
075 095 096
048 049
050 076
049 064
005 051 102
068 070
052
066
065 067
092
007 010 011 012 013
097 100
093
020 035
085
087
053
088 089 090 091
048 081
054
055 056
082 086
057
008 036 037
002 009 021 022 023 043
027 032
005 099
057
005 024 038
058
006 017 033 041
060
059 063
014 031
061
015 018 034 039
049 072 077
083
019 026 040 042
084 098
069 094
Operation
VCR
NO. B ran d Cod e 1 2 3 4 5 6 7 8 9 10 11 12
Admiral
1
Aiko
2
Aiwa
3
Akai
4
Audiovox
5
Bell & Howell
6
Broksonic
7
Calix
8
Canon
9
Capehart
10
Carver
11
CCE
12
Citizen
13
Colortyme
14
Craig
15
Curtis Mathes
16
Daewoo
17
Daytron
18
Denon
19
Dimensia
20
Electrohome
21
Emerson
22
Fisher
23
Fuji
24
Funai
25
Garrard
26
GE
27
Go Video
28
Goldstar
29
Gradiente
30
Harman Kardon
31
Harwood
32
Hitachi
33
JBL
34
JC Penney
35
Jensen
36
JVC
37
Kenwood
38
KLH
39
Kodak
40
LG
41
Lloyds
42
Logik
43
LXI
44
Magnasonic
45
Magnavox
46
Marantz
47
Matsushita
48
Memorex
49
MGA
50
MGN
51
Minolta
52
Mitsubishi
53
Montgomery Ward
54
Motorola
55
MTC
56
Multitech
57
NEC
58
Nikko
59
Noblex
60
Olympus
61
Optimus
62
Optonica
63
Orion
64
Panasonic
65
Pentax
66
Philco
67
Philips
68
Pioneer
69
Portland
70
Proscan
71
Precision
72
Proton
73
Quasar
74
Radio Shack
75
073 074 101
056
055
044 045 068 069 080 093
051
048
023 049 106
051
053 054
067 083
060 110
056 059
050 051 052 056 095
046 096
050 051 059 085 090 105
043 046 050 053 054 077 079 112
014 052 055 056 067 083 102
067 083 102
088
043 112
051 090
044 049 051 052 053 055 061 069 087 090 106
048 089 105
045 053
055 095
055
040 043 050 053 054 070 079 081 087 112
021 024 026 028 034 079 081 085 086
046 051 079 090 092
055 090
046 110
059
025 036 037 057 058 065 068 070 088
098
046 047 048 049 050 051 053 054 057 058 059 060 065 079
085 088 090
057 058 068
000 019 046 047 048 068 071 087 088
046 047 048 068 071 077
059
051 053
051
077 095 105
059 085
051
085 090 102
008 053 054 060 064 085 110
046 047 048 053 060 077 092 110
053
033 048 050 051 053 055 064 073 074 088 090 091 097105
061 069
079
057 058 065 088
003 005 006 057 058 061 069 071 090
073 074
053 073 074
050 085
050 055 059
046 047 048 068 071 077 092
051
050
053
051 073 074 090 094
062
087 090 106
002 004 009 020 053 054 066 085 090 105
057 058 065 070 077 088
053 054 060 088 106
017 018 053 042 060 062 110
047 057 071 075 078 104
067 083
043 112
102
085
053 054 090
051 062 074 090
Owner s Manual 37
Remote Control
Remote Control Codes
NO. Brand Code
Radio Shack/Realistic
76
Radix
77
RCA
78
Realistic
79
Ricoh
80
Runco
81
Samsung
82
Sansui
83
Sanyo
84
Scott
85
Sears
86
Sharp
87
Shintom
88
Signature
89
Signature 2000
90
Singer
91
Sony
92
STS
93
Sylvania
94
Symphonic
95
Tandy
96
Tashiko
97
Tatung
98
Teac
99
Technics
100
Teknika
101
Toshiba
102
Totevision
103
Tivo
104
Unitec
105
Unitech
106
Vector Research
107
Video Concepts
108
Wards
109
White Westinghouse
110
XR-1000
111
Yamaha
112
Zenith
113
Action
114
048 050 051 053 054 055 062 073
051
012 016 043 044 050 053 057 058 065 070 078 079 088 107
108 112
048 050 051 052 053 054 055 062 073 074 079 090 094 097 105
072 076
064
029 031 035 039 050 052 079 095
047 068 071 085
022 048 050 089 097 105
049 052 061 090
048 051 053 057 058 065 077 088 089 090 097 105
015 062 073 074 091 094 101
045 058 059 085
073 074
097 101
053 059 072 076 085
007 041 045 063 080 082 084 098 099
053 065
030 032 053 054 055 060 061 110
055 077 095 105
048
051
068
055 068 107
053 066
051 053 055 090
010 011 052 057 061 069 100 102 105 109
050 051 090
111
095
050
046 047 052 077
046 047 052 069 077
050 051 052 053 055 057 058 059 062 065 073 074 079 090 091 094
105 108 110
095
053 055 059
046 047 048 068 077
027 038 045 064 072 076 090 093
102
SETBOX
NO. Brand Code
1
Alphastar
2
Chaparral
3
DIRECTV
4
DISH NETWORK
5
Drake
6
Echostar
7
Express Vu
8
Fujitsu
9
GE
10
General Instruments
11
Hitachi
12
Hughes
13
Janeil
14
JVC
15
Mitsubishi
16
Panasonic
17
Philips
18
Proscan
19
Radio Shack
20
RCA
21
Realistic
22
Samsung
23
Sony
24
Star Choice
25
Star Trak
26
STS
27
Toshiba
28
Uniden
29
Zenith
CABLE
NO. Brand Code
ABC
1
Archer
2
Cableview
3
Contec
4
Eastern
5
GE
6
Gemini
7
General Instruments
8
Hamlin
9
Hitachi
10
Jerrold
11
Magnavox
12
Motorola
13
Movie Time
14
NEC
15
NSC
16
Oak
17
Panasonic
18
Philips
19
Pioneer
20
Proscan
21
RCA
22
Realistic
23
Samsung
24
Scientific Atlanta
25
Signature
26
Sprucer
27
Standard Component
28
Starcom
29
Stargate
30
Tocom
31
United Cable
32
Universal
33
View Star
34
Zenith
35
028
024
001 039
001 026 030
027
026
030
022
004 032 033
018 019
023
023 036
022
015
002 040
005 011
000 012
032 033
018 019
010 032 033
014
006 028
007 034 035 037 038
031
021
020
008 029
016 017
009 013 022
000 001 002 030
006 007
003
034
035
000
012 013
000 032
036 037 038 040 044
000
000 012 015 016 026 030 032
017
031
039
033
039
034 041
027 029
008 009 010 011 013 017 018 019 020
021 022
000
003 029 032
006
022
002 023 024 025
000
029
042 043
012 030
012
001 015
030
004 006 007
017 034 039
028
Operation
38 TV LCD-TFT
Remote Control
Remote Control Codes
AUDIO
Receiver/Tuner
NO. Brand Code
Aiwa
1
BOSE
2
Carver
3
Curtis Mathes
4
Denon
5
Fisher
6
Gradiente
7
Harman Kardon
8
Hitachi
9
JBL
10
Jensen
11
JVC
12
Kenwood
13
Luxman
14
Marantz
15
McIntosh
16
NAD
17
Nakamichi
18
NEC
19
Nikko
20
Onkyo
21
Optimus
22
Panasonic
23
Philips
24
Pioneer
25
Quasar
26
Radio Shack
27
RCA
28
Sansui
29
Sanyo
30
Sharp
31
Sherwood
32
Sony
33
Technics
34
Toshiba
35
Yamaha
36
Zenith
37
Audio Cassette
NO. Brand Code
1
Aiwa
2
Curtis Mathes
3
Denon
4
Fisher
5
GE
6
Kenwood
7
NAD
8
Nakamichi
9
Onkyo
10
Optimus
11
Panasonic
12
Philips
13
Pioneer
14
Proscan
15
Quasar
16
Radio Shack
17
RCA
18
Sansui
19
Sanyo
20
Sherwood
21
Sony
22
Technics
23
Yamaha
017 036 039
010
051
041
006 026 027 052
042 044 049
062
008 038 046
059
038
061
007 030
005 028 048 056
064
019
058
040
054
040
063
003 021 055
041 047
009 012 016 029 050
014
004 023 041 045
050
047
071 072
057
042 044
060
047
000 024 043
002 020 050
025
048 053
065
039
041
052
042 049
070
048 056
040
054
055
041 047
015 050
013
018 041 045
070
050
047
070
057
044
047
043
050
053
Audio System
NO. Brand Code
Aiwa
1
Carver
2
Curtis Mathes
3
Denon
4
Harman Kardon
5
Jerrold
6
Kenwood
7
Nakamichi
8
Panasonic
9
Philips
10
Pioneer
11
RCA & Dimensia
12
Sansui
13
Sanyo
14
Scientific Atlanta
15
Sony
16
Starcom
17
Technics
18
Yamaha
19
039
051
041
052
046
066 068
048 056
054
015 016
013 014
018 041
031 032 033 034 035
057
044
067
043
066
050
053
Amplifier
NO. Brand Code
1
2
3
4
Kenwood
Pioneer
RCA
Yamaha
048
041
069
001 053
Phono
NO. Brand Code
1
2
3
4
Kenwood
Pioneer
Sony
Yamaha
048
041
043
053
HTIB
NO. Brand Code
1
BOSE
2
Philips
Toshiba
3
010
022
025
Operation
Owner s Manual 39
Operation
Maintenance
Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have
your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
1. Here`s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water
and a little fabric softener or dish washing detergent. Wring the cloth until it`s almost dry, and then use it to
wipe the screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
Cleaning the Cabinet
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth. Please be sure not to use a wet cloth.
Extended Absence
If you expect to leave your TV dormant for a long time (such as a vacation), it`s a good idea to unplug the power
cord to protect against possible damage from lightning or power surges.
40 TV LCD-TFT
Product Specification
Specifications
Resolution
Power requirement
Color system
External Antenna Impedance
Color
Operating Temperature Range
Operating Humidity Range
Maximum Elevation
MODEL
HL26S
HL32S
HL26B
HL32B
HL26BG
HL32BG
A
A
A
A
A
A
16,770,000(256 steps of each R, G and B)
Dimensen(WX X ) Unit::inches/mmDH
(Including stand)
31.3X8.3 X18.9inches
795X210X480 mm
37.0X9.4X22.2 inches
940X240X565 mm
26.7X9.7X20.7 inches
679X246X525mm
31.9X9.7X24.4 inches
811X246X621mm
26.7X9.7X20.7 inches
679X246X525mm
31.9X9.7X24.4 inches
811X246X621mm
1366X768(Dot)
120V~ , 60Hz
NTSC ATSC Clear QAM
75 ohm
32~104 F(0~40 C)
Less than 80%
6561 feet (2000m)
Weight(pounds/kg)
26.0/11.8
39.7/18.0
24.3/11.0
35/16.0
24.3/11.0
35/16.0
The specifications shown above may be changed without prior notice for quality improvement.
Owner s Manual 41
Troubleshooting
Troubleshooting
For the sake of time and cost, it is strongly recommended that you check out the problem by yourself according to
the instructions listed hereunder before contacting the after-sales service for technical assistance.
Verify if the television is properly plugged.
No picture, no sound
Blank screen
No sound
Verify if the television is properly supplied power.
Verify if electricity is available.
Verify if correct signals are input.
Press INPUT button to change signal input to TV input.
Restart the television of power supply is interrupted.
Press Mute button and verify if Mute mode is set.
Switch to other channel and verify if the same problem
happens.
Press VOL+ button to see if the problem can be solved.
Poor sound
No picture in some
channel
No color for some
channel program
(black and white)
Spots with some or
all pictures
Horizontal/vertical bars
or picture shaking
Television out of control
Note: Do not leave the television with static picture in an extended period as the image may become permanently burned.
Verify if sound system is correct. Refer to Page 23 for
adjustments.
Verify if correct channel is selected.
Adjust the antenna.
Make adjustments by Fine Tune and Manual Scan.
Verify if the same problem exists in other channels.
Check out of picture and sound systems.
Refer to relative instructions in the Manual for color
adjust.
Verify if the antenna is correctly connected.
Verify if the antenna is in good condition.
Make fine adjustment of channel.
Check for local interference such as an electrical
appliance or power tool.
Disconnect the television from power supply and, 10
seconds later, connect the television to the power supply.
If the problem still exists, contact authorized after-sales
service for technical assistance.
Note: Production of the LCD screen requires high and precision technologies. However, there might be some dark or bright
(red, blue or green) spots, or some anomalistic stripes or spots. This is not defect. If the TV set is used in an area 2,400
meters above the sea level where the air pressure is below 750hpa, the picture on the LCD screen may be affected and a
muffled sound might be produced. These phenomena might happen in the area 1,500 meters above the sea level. This is
resulted from difference between air pressures inside and outside the display. This is not a defect covered by the limited
warranty.
42 TV LCD-TFT
Warranty
Warranty
This Haier brand product, when shipped in
its original container, will be free from
defective workmanship and materials, and
agrees that it will, at its option, either repair
the defect or replace the defective product
with a new or re-manufactured equivalent at
no change to the purchaser, for parts or
labor for the periods set forth below:
This warranty does not apply to the
appearance of the product or the exterior of
the product, which has been damaged or
defaced, altered or modified in design or
construction. It does not apply to the
additional excluded items set forth below:
The warranty commences on the date the
item was purchased and the original
purchase receipt must be presented to the
authorized service center before warranty
repairs are rendered.
The limited warranty described herein is in
addition to whatever implied warranties may
be granted to purchasers by law. ALL
IMPLIED WARRANTIES INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR USE ARE LIMITED TO THE
PERIOD(s) FROM THE DATE OF PURCHASE
SET FORTH BELOW. Some states do not
allow limitations on how long an implied
warranty lasts, so the above limitation may
not apply to you.
Neither the sales personnel of the seller nor
any other person is authorized to make any
warranties other than those described herein,
or to extend the duration of any warranties
beyond the time period described herein on
behalf of Haier.
responsibility of Haier to the purchaser with
respect to the product, and shall constitute
full satisfaction of all claims,
whether based on contract, negligence, strict
duality or otherwise. In no event shall Haier
be liable, or in any way responsible for any
damages or defects in the product which
were caused by repairs or attempted repairs
performed by anyone other than an
authorized service center or dealer; nor shall
Haier be liable, or in any way responsible
for incidental or consequential economic or
property damage. Some states do not allow
the exclusion of incidental or consequential
damages, so that above exclusion may not
apply to you.
THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS. YOU MAY
ALSO HAVE OTHER RIGHTS WHICH
VARY FROM STATE TO STATE.
Warranty period for this product:
and labor
Additional items excluded from warranty
coverage: non-rechargeable batteries.
Where to obtain service: For the location of
the nearest Haier authorized service center or
to obtain product literature, accessories,
supplies or customer assistance,
please call 1-877-337-3639.
What to do to obtain service: ship or carry in
your product to an authorized service dealer
or center .Be sure to have proof of purchase.
If you ship the product, be sure it is
packaged carefully.
Haier America
New York, NY 10018
.
one year parts
The warranties described herein shall be the
sole and exclusive warranties granted by
Haier and shall be the sole and exclusive
remedy available to the purchaser. Correction
of defects in the manner and for the period
of time described herein, shall constitute
complete fulfillment of all abilities and
Owner s Manual 43
Loading...
