Page 1
R
HL15B HL15E HL19W HL19E HL22E
A A A A A
LCD TV
USER MANUAL
Please read this manual carefully
before using this TV set and keep it
for future reference.
Page 2
WARNING AND CAUTION
CAUTION
!!
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.FOR
ANY PROBLEM, REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
THERE IS A LIGHTNING ARROW SYMBOL IN THE TRIANGLE:
THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE.
IT IS DANGEROUS TO MAKE ANY KIND OF CONTACT WITH ANY
INSIDE PART OF THIS PRODUCT.
THERE IS MARK IN THE TRIANGLE: THIS
SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE
CONCERNING OPERATION
INCLUDED WITH THIS PRODUCT.
AN EXCLAMATION
RISK OF ELECTRIC SHOCK RISK OF ELECTRIC SHOCK
DO NOT OPENDO NOT OPEN
AND MAINTENANCE HAS BEEN
!!
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE,
DO NOT PUT THE TV SET NEAR SOURCES OF HUMIDITY.
DO NOT USE ANY ABRASIVE CLEANSERS WHICH MAY
SCRATCH OR DAMAGE THE LCD SCREEN. AVOID CONTACT
WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.
NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORIZED
AND COULD LEAD TO INJURY OR PRODUCT DAMAGE.
Page 3
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8) Do not install near any hear sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purposes of the polarized or grounding type plug.
A polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. When the provided plug does
not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10) Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11) Only use the attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15 Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus.
servicing
Page 4
Safety Instructions
PRECAUTIONS
FCC WARNING: This equipment may
generate or use radio frequency energy.
Changes or modifications to this
equipment may cause harmful
interference unless the modifications are
expressly approved in the instruction
manual. The user could lose the authority
to operate this equipment if an
unauthorized change or modification is
made.
Page 5
CONTENT
Safety Notice Items...................................................................................
Front Panel Controls..................................................................................
Connection Options...................................................................................
Remote Control Key Functions...................................................................
Remote Control ..................................................................................
Installing Batteries..................................................................................
Connection Instructions.............................................................................
Grounding..............................................................................................
External equipment Connections..............................................................
Antenna Connection.............................................................................
PC Setup.............................................................................................
COMPONENT Setup.............................................................................
VCR Setup...........................................................................................
HDMI Input
........................................................................................
Cable TV Setup....................................................................................
External AV Source Setup......................................................................
Basic Operating Instructions.......................................................................
Turn on the LCD-TV.................................................................................
Audio Control..........................................................................................
Mute......................................................................................................
Select the TV Channel You Want...............................................................
Picture Mode...........................................................................................
Audio
Mode...........................................................................................
Sleep.....................................................................................................
INFO.....................................................................................................
GUIDE...................................................................................................
-button...................................................................................................
CH.LIST button.......................................................................................
FAV.LIST button......................................................................................
ARC button.............................................................................................
Menu Operations.......................................................................................
Picture Menu Options...............................................................................
Picture Menu Options Continued...............................................................
Audio Menu Options................................................................................
Audio Menu Options Continued................................................................
Set up
Menu Options................................................................................
Feature Menu Options..............................................................................
Feature Menu Options Continued..............................................................
VGA Menu Options Continued..................................................................
Component Menu Options........................................................................
HDMI and S-Video Menu Options..............................................................
Troubleshooting Guide..............................................................................
Specifications...........................................................................................
Warranty ..................................................................................................
1
2
3
4
5
5
6
6
6
6
7
7
8
8
9
9
10
10
10
10
11
11
11
11
11
11
12
12
12
12
13
13
14
14
15
16-17
18
-22
19
22-23
24
25
26
27
28
Page 6
Safety Notice Items
Incorrect usage may cause fire or electric shock.
required when you are installing, using and cleaning this machine. To
your safety and extend the life-span of LCD-TV, please read the following items
carefully before using:
l Please read and understand all the instructions before operation;
l
Please keep this manual for later use;
l
Please comply strictly with the warning instructions on the machine and
in this book;
l Please comply with the instructions provided;
l Please do not use additional devices that are not recommended by
manufacturer:
l
Before operation, please make sure that the operating voltage of your unit is
correct;
l Do not place the unit on unstable, dusty and humid places;
l Never put the unit in direct sunlight or near heat sources;
l Allow enough space for proper ventilation;
l Please keep water away from the LCD-TV . If water comes in contact with the
LCD-TV, disconnect the power cord from the power source, then wipe the set
with a dry soft cloth;
l
Do not remove the back cover. If service is needed, please contact an
Authorized service technician.
To prevent this, please do as
ensure
Page 7
Front Panel Controls
HL15B
HL19E
HL22E
2 3 4 5
A
TV/AV MENU VOL- VOL+ CH- CH+ POWER
7
6
A
A
1
HL19W
A
6
7
HL15E
A
DC POWER SWITCH
DC POWER SWITCH
Control Panel Function
1. Power supply switch
2. TV/AV
3. MENU Press to select the main menu
4. VOL- Volume down / Left orientation to adjust the item in the OSD
VOL+ Volume up / Right orientation to adjust the item in the OSD
/Press to enter
5. CH- TV channel down / to select the item in the menu
CH+ TV channel up / to select the item in the menu
6. Power indicator
7. Remote Sensor
Selects the input signals.
Receives the signals from the remote control
Page 8
Connection Options
(The above figure is for reference only, connections
may differ depending upon the models and terminals
of some models may be on the back bottom of the set)

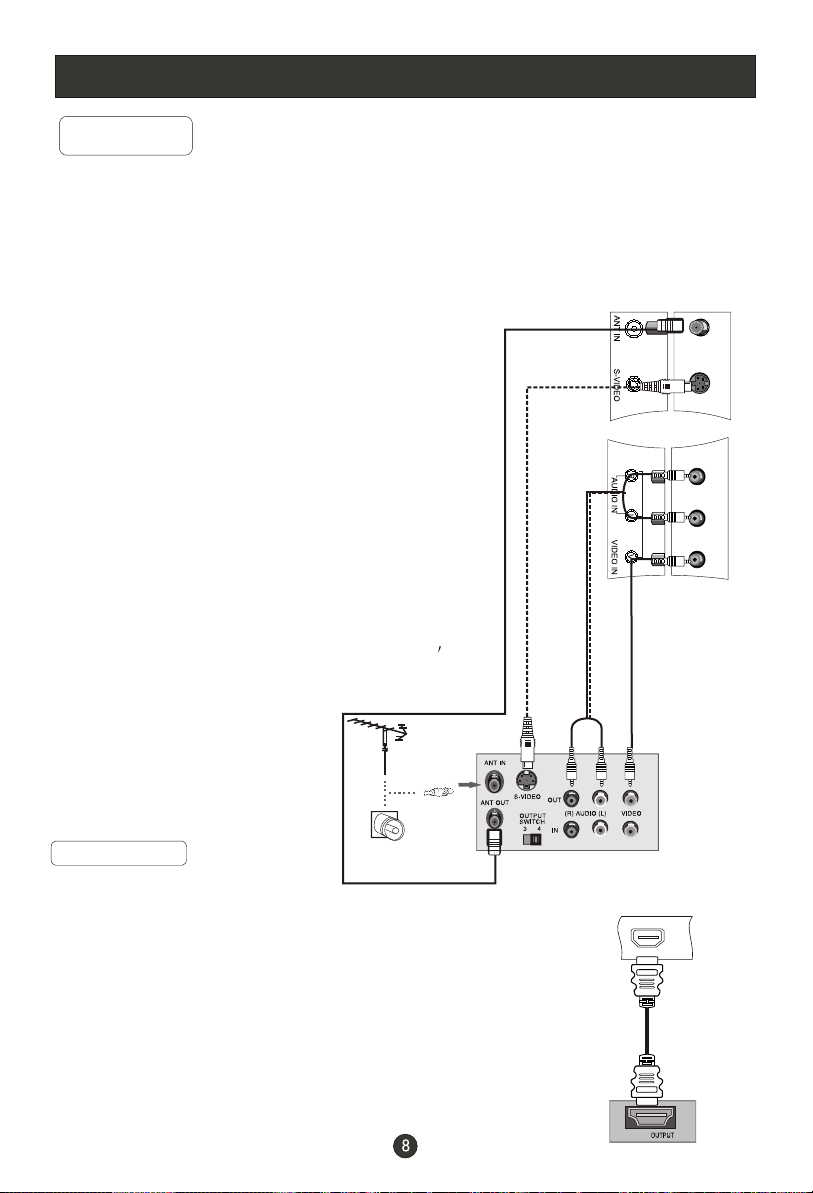

ANT IN
S-VIDEO
HDMI
VGA IN
PC AUDIO IN
Pr/Cr Pb/Cb Y
COMPONENT IN
R
AUDIO IN
L
VIDEO IN
V
Antenna Input
Connect cable or
antenna signals to
the TV, either directly or through your
cable box.
HDMI Input
Connect to HDMI
output of other
equipment
ANT IN
S-VIDEO
HDMI
S-Video Input
Connect S-Video out
from an S-Video device
to the jacks.
VGA Input
Connect to the VGA
15PIN analog output
connector of a PC
graphics card to use set
as a PC display
PC Audio Input
Connect the audio
output from the pc
to the PC audio input port
Pr/Cr Pb/Cb Y
VGA IN
PC AUDIO IN
COMPONENT IN
Component Input
Connect a component
video device to
these jacks
Video Input
Connect video output
from an external
device to this jack
R
L
AUDIO IN
V
VIDEO IN
Headphone
AV/S-VIDEO/
COMPONENT Audio
Input
Connect audio output
from an external device
to these jacks
Page 9

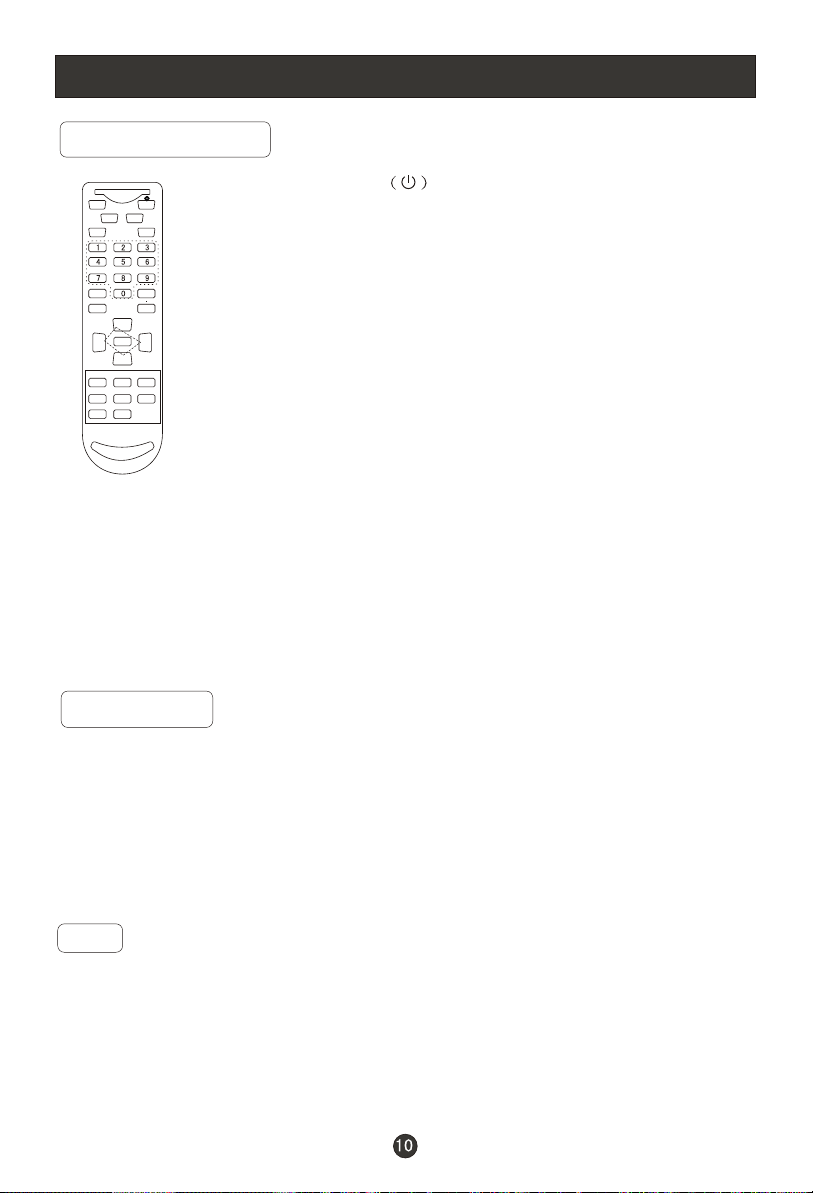

Remote Control
Installing Batteries
!
Remove the battery cover.
!
Insert two size AAA batteries matching
the +/-polarities of the battery to the +/marks inside the battery compartment.
Precautions
Make sure that there is no
obstacle between the remote
controller and television set.
Keep the remote control
away from heat sources or
humid areas to ensure
effective performance of
the remote.
As strong light may interfere with the
signals, change your position to
operate the remote control if
the television cannot be turned
on or off as expected.
Make sure that two AAA 1.5V alkaline
batteries are loaded. The batteries
must be of the same type, must be
inserted properly, and must not be
rechargeable.
Page 10
Remote Control Key Functions
When using the remote control, aim it
towards the remote sensor on the TV
Buttons on the remote control
MUTE
Q.VIEW INFO
INPUT EXIT
SAP P.MODE
OK
CH+
VOL
MENU
-
CC
SLEEP S.MODE
GUIDE ARC CH.LIST
FAV.LIST
AUDIOLIST
CH-
VOL
+
Mute
Q View: Return to previous channel in TV mode
Input selection
Program Number
Select MONO, STEREO, SAP in NTSC system
Confirm button
Volume/Channel Selection
CCD ( closed caption) On / Off
TV Sleep button
Shows program schedule in TV
Select the aspect ratio
Open the favorite channel list in TV
Open the channel list in TV
Adjust sound mode
MENU
Select additional channels
Adjust Picture Mode
Exit On Screen Display
Program Infromation
Power
Open the audio list in TV
Page 11
Connection Instructions
Grounding
Ensure that you connect the grounding / earth wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.
External Equipment Connections
Antenna Connection
- Antenna or Cable Service with a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
wall antenna
socket
RF coaxial wire (75 ohm)
Bronze Wire
VHF antenna
UHF antenna
outdoor
antenna
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
NOTE: Cables shown are not included with the TV
Turn clockwise to tighten.
Be careful not to bend the bronze
wire when connecting the antenna.
To improve picture quality in a poor
signal area, purchase and install a
signal amplifier.
If the antenna needs to be split for two
Tvs, install a 2-Way Signal Splitter
in the connections.
If the antenna is not installed properly,
contact your dealer for assistance.
Bronze Wire
Page 12
Connection Instructions

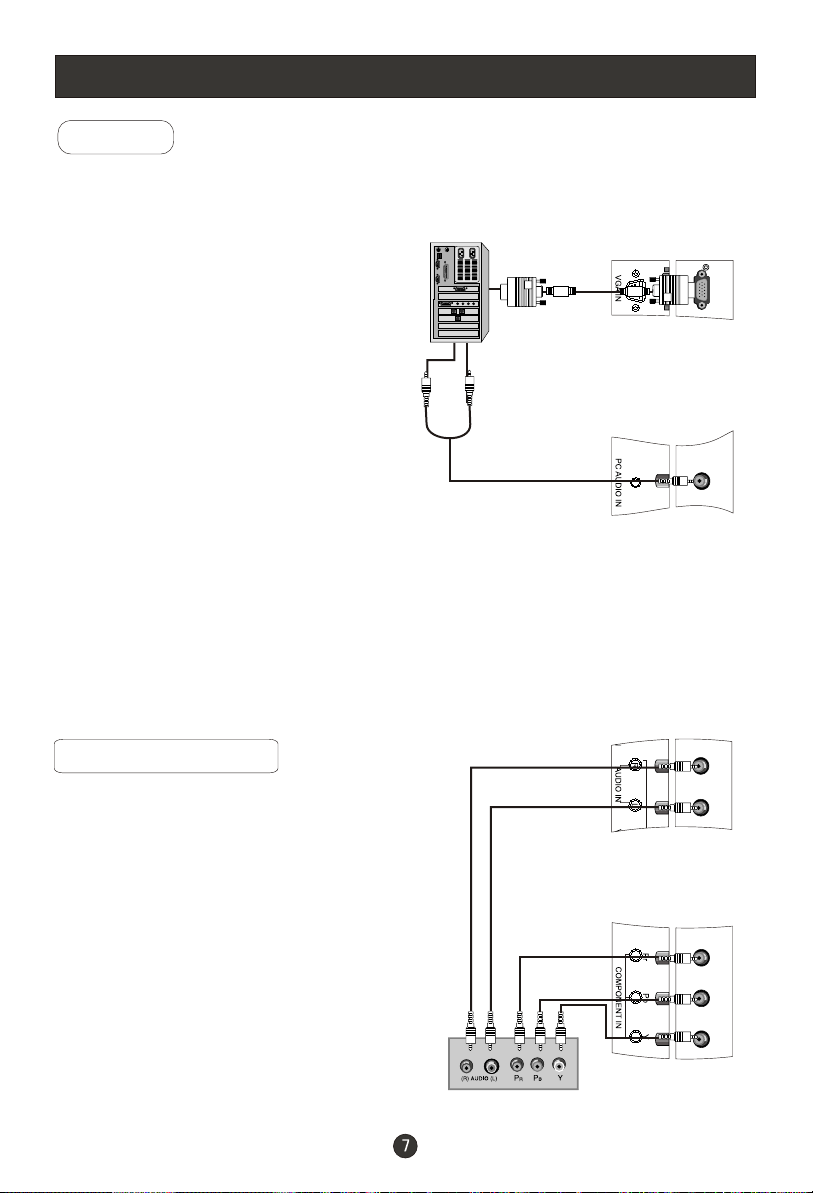

PC Setup
You can use your LCD-TV as a monitor for your personal computer using a VGA
cable (not supplied).
Connection and use steps:
1.Read the user guide supplied with
your computer and ensure that it has
a VGA connector;
2.Make sure that the power of the LCD
-TV and the PC are off;
3.Connect a D type 15-pin VGA interface
cable ( not supplied ) to the VGA video
interface connector on the PC. Then
connect the other end to the VGA video
interface connector on the back of the
LCD-TV.Tighten the screws on the VGA
connectors once they are firmly
connected;
4.Turn on the power of the LCD-TV first ,
and then turn on the power of the PC;
5.Press the INPUT button to set the video input mode of the LCD-TV to VGA;
Once the input for VGA is selected and if you see no image press function
F8 on you pc.
Check the image on your TV. There may be noise associated with the resolution,
6.
vertical pattern, contrast or brightness in PC mode. If noise is present, change
the PC mode to another resolution, change the refresh rate to another rate or
adjust the brightness and contrast on the menu until the picture is clear. If the
refresh rate of the PC graphic card can not be changed, change the PC graphic
card or consult the manufacturer of the PC graphic card.
COMPONENT Setup
How to connect
Connect the DVD video outputs (Y, PB, PR)
to the COMPONENT(Y, Pb, Pr) IN jacks on
the TV and connect the DVD audio outputs
to the AUDIO IN jacks on the TV, as shown
in the figure.
NOTE: If your DVD player does not have
component video output, use S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use the button on the remote
control to select.
INPUT
Page 13
Connection Instructions
VCR Setup
- To avoid picture noise (interference), leave an adequate distance between the
VCR and TV
Connection and use steps:
1.Read the user guide supplied with your AV devices and ensure that it has
Composite or S-Video connectors;
2.Make sure that the power of the LCD-TV and the AV device are off;
Connection Option 1
Set VCR output switch to 3 or 4 and then
tune TV to the same channel number.
Connection Option 2
1. Connect the audio and video cables from
the VCR's output jacks to the TV input jacks,
as shown in the figure.
When connecting the TV to VCR, match
the jack colors (Video = yellow, Audio
Left = white, and Audio Right = red).
If you connect an S-VIDEO output from
VCR to the S-VIDEO input, the picture
quality is improved; compared to conne cting a regular VCR to the Video input.
2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner s
manual.)
.
3
.Turn on the LCD-TV first ; and then turn on the
power of the AV device;
4.Press the INPUT button to set
the video input mode of the
LCD-TV to S-VIDEO mode or
Composite mode.
1
2
VCR
HDMI Input
How to connect
Connect the cables from the external equipment's
output jacks to the TV input jacks, as shown in the figure.
How to use
1. Select the input source by using INPUT button
on the remote control or on the TV.
2. Operate the corresponding external equipment.
Refer to external equipment operating guide.
HDMI
HDMI
Page 14
Connection Instructions

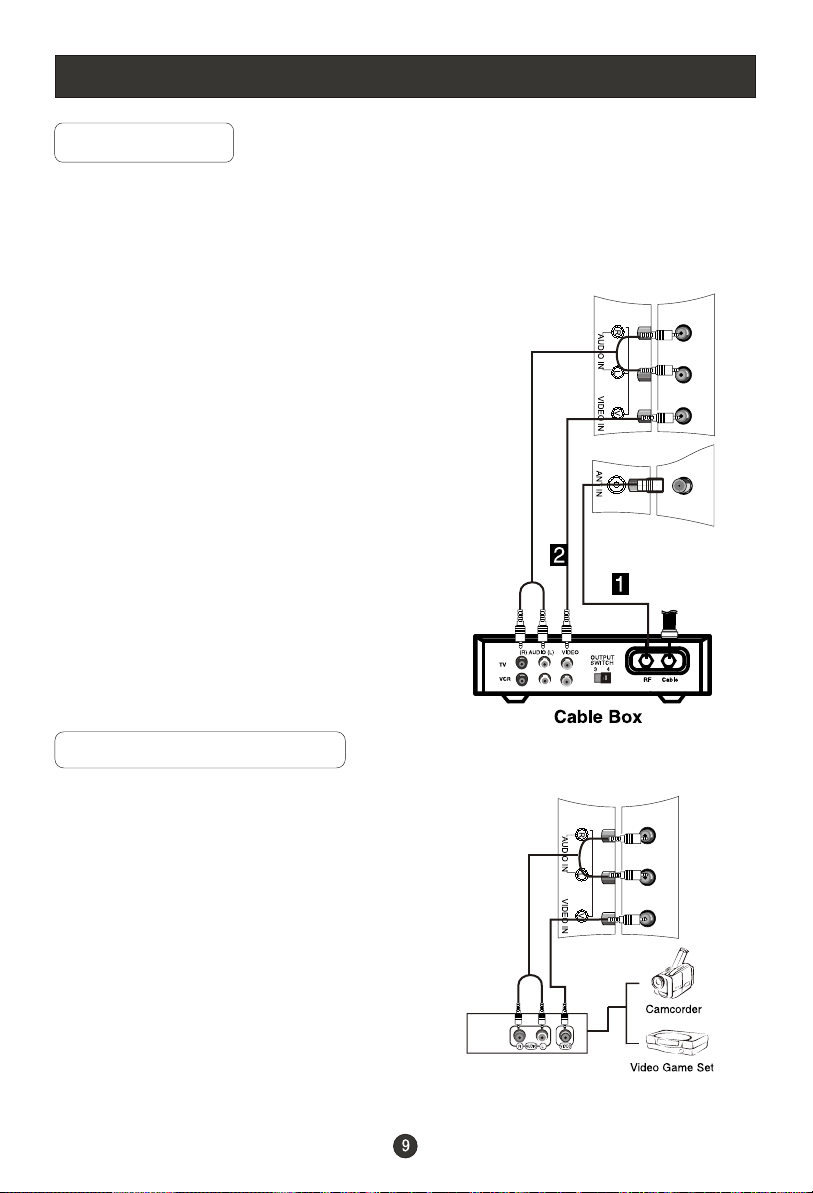

Cable TV Setup
- After subscribing to a cable TV service from a local provider you can watch cable
TV programming. The TV cannot display TV programming unless a TV tuner
device or cable TV converter box is connected to the TV.
- For further information regarding cable TV service, contact your local cable TV
service provider(s).
Connection Option 1
1. Select 3 or 4 with channel switch on cable
box.
2. Tune the TV channel to the same selected
output channel on cable box.
3. Select channels at the cable box or with
the cable box remote control.
Connection Option 2
1. Connect the audio and video cables from
the Cable Box's output jacks to the TV
input jacks, as shown in the figure. When
connecting the TV to a Cable Box, match
the jack colors
(Video = yellow, Audio Left = white, and
Audio Right = red).
2. Select the input source by using the
button on the remote control.
3. Select your desired channel with the
remote control for cable box.
INPUT
External AV Source Setup
How to connect
Connect the audio and video cables from
the external equipment's output jacks to the
TV input jacks, as shown in the figure.
When connecting the TV to external equipment, match the jack colors (Video = yellow,
Audio Left = white, and Audio Right = red).
How to use
1. Select the input source by using the
button on the remote control.
2. Operate the corresponding external equi pment. Refer to external equipment ope rating guide.
INPUT
Page 15
Basic Operating Instructions
Turn on the LCD-TV
MUTE
Q.VIEW INFO
INPUT EXIT
When the POWER button is pressed and the LCD-TV
is turned on, the indicator light on the front of the LCD-TV
changes from red to green or turn light. When the LCD-TV is
turned off using the power button, the LCD-TV will go into
standby mode and the indicator light turns red(or turns dark).
SAP P.MODE
OK
CH+
VOL-VOL
MENU
+
CH-
CC
SLEEP S.MODE
GUIDE ARC CH.LIST
FAV.LIST
AUDIOLIST
Each time you press the button, TV, Composite, S-Video,VGA,
INPUT
Component and HDMI will appear on the screen in order.
NOTE: The color of the indicator light may differ based upon the model purchased.
Audio Control
1.Press the VOL+ button to increase the volume. A number will appear
on screen indicating the volume level.
2.Press the VOL- button to decrease the volume. A number will appear
on screen indicating the volume level.
Mute
1.Press the MUTE button to mute the sound temporarily. A mute icon
appears on the screen.
2.Press the MUTE button or VOL+ again to restore the sound.
The mute icon disappears.
Page 16
Basic Operating Instructions
Select the TV Channel You Want
You can use the number buttons and button on the remote control to directly
select TV channels and press OK to confirm.
And you can press the buttons(CH+/CH-) on the remote control or on the panel to
make a selection.
Picture Mode
Press P.MODE button on the remote control for menu display . For desired mode
as follows:
Personal Standard Mild Fresh
Audio Mode
Press S.MODE button on the remote control for menu display . For desired mode
as follows:
Personal Voice Music Theatre
Sleep
Press SLEEP button to set the time :
Sleep 15 min-Sleep 30 min-Sleep 45 min-Sleep 60 min-Sleep 90 minSleep 120 min-Sleep 180 min-Sleep 240min
This feature allows you to turn off the television after a pre-selected
minutes
number of
Sleep 0 min-Sleep 5 min-Sleep 10 min-
INFO
Press INFO button to display current program information.
GUIDE(only available in digital signal)
Press GUIDE button in digital channels to display Guide menu.(This menu is
just for you to see the information and can not be changed)
Press VOL+/VOL- to select information for you to look over.
Page 17
Basic Operating Instructions
button
Press to select additional channels (digital and analog) being broadcast by the
same station. For example, to select digital channel “11.1”, press “11”, then
press “ ” and “1”.
CH.LIST button
Press to display the program list. Press CH+/CH- to select the item and OK
button to select the channel you desired.
FAV.LIST button
Adding favorite channels
Press CH.LIST. The channel list opens.Press CH+ or CH– to select a channel.
Press FAV.LIST to add the channel to the favorites channel list.
To remove a favorite channel, open the channel list, select the channel you want
to remove, then press FAV.LIST.
Tuning to a favorite channel
Press FAV.LIST. The favorite channel list opens.
Press CH+ or CH– to select the channel.
Your LCD TV/DVD combo automatically tunes to the channel you selected.
ARC button
Press to select the aspect ratio among Full Screen, Normal, Wide, Zoom,
Cinema.
Page 18
Menu Operations
* In this manual, the OSD (On Screen Display) may be differ from your TV
These are examples to illustrate the TV's operation.
Press INPUT to select the input source. The menu for each source may be
different .
1. Press MENU button to display the main menu, and CH+/CH- to select the
main menu .
2. Press VOL+/OK button to enter the menu and CH+/CH- to go up and down
to select the desired option .
3. Press VOL+/OK button to confirm and VOL+/VOL- to make changes to
the parameters
4. Press the EXIT/MENU button to exit the menu
Picture Menu Options
Picture quality can be adjusted for any input separately .
The picture quality on the screen can be adjusted as follows:

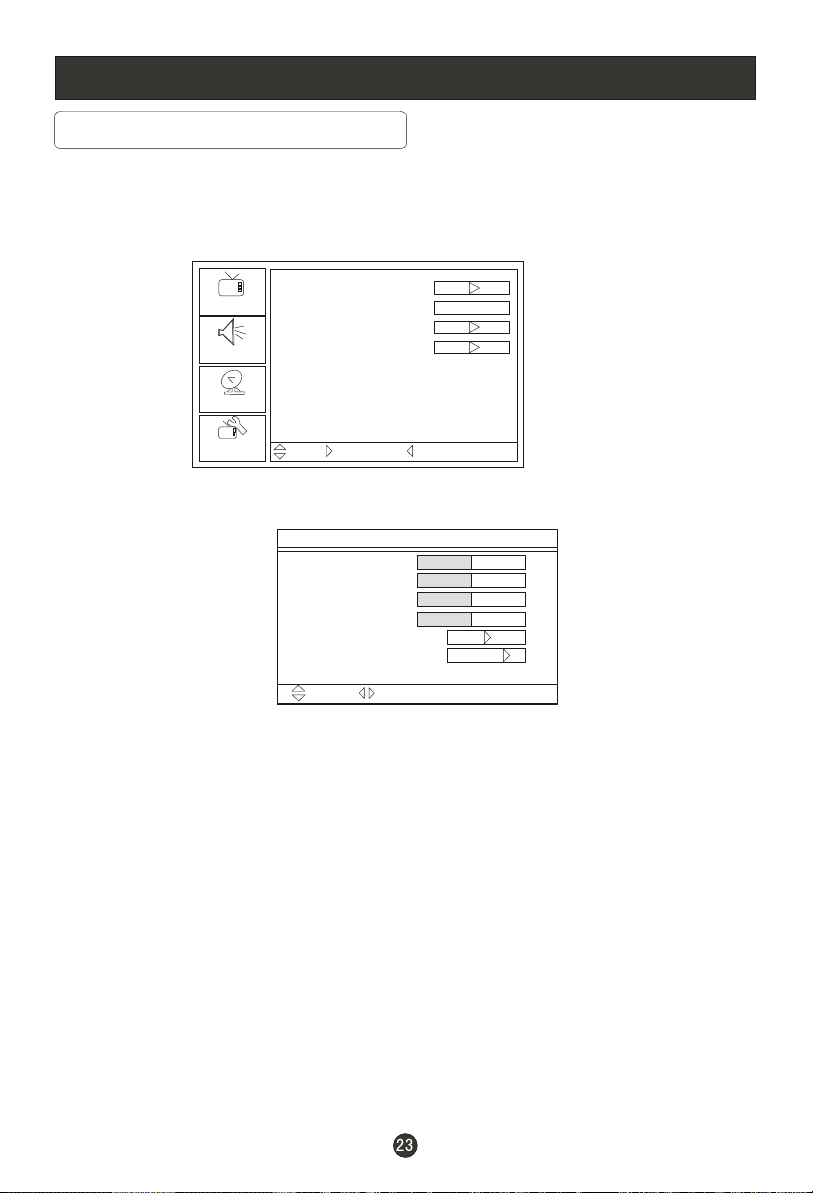

1. Press MENU button and CH+/CH- until the following menu appears on the
screen.
2. Press Vol+/ok button to enter the menu function and Ch+/CH- to scroll up and
down to select the desired function.
3.Press VOL+/OK button to confirm and VOL+/VOL- increase and decrease
the level to adjust the selected option to your preference .
4. Repeat step 2 and step 3 until desired picture quality has been achieved .
Audio
Setup
Feature
Picture Mode
Contrast
Brightness
Sharpness
Color
Tint
Aspect Ratio
Move /OK Select /Menu Exit
50
50
50
50
50
Personal
Wide
Note:
1.The options may be different because of the inputs.
2.Symbols on top of the menu in this manual may differ from the actual set
display.
3.The picture options can be changed only in Personal Mode only, the other
modes are fixed.
Page 19
Menu Operations
Picture Menu Options continued
Function:
Picture Mode: Select the type of picture which best corresponds to your viewing
requirements by selecting Picture Mode in Picture menu. You may select the
picture mode directly by pressing the P.MODE button on the remote control.
Contrast : Press CH+/CH- button and VOL+/OK to confirm, then press
VOL+/VOL- to adjust the contrast of the picture.
Brightness :Press CH+/CH- button and VOL+/OK to confirm, then press
VOL+/VOL- to adjust the brightness of the picture.
Sharpness : Adjust the amount of the detail enhancement , the image
sharpness rises as the number increases (By increasing the level, it will show
cleaner and clearer images and by decreasing the level, it will make the picture
smoother).
Color : Press CH+/CH- button and VOL+/OK to confirm, then press
VOL+/VOL- to adjust color saturation.
Tint : Adjust the tone of the picture .
Aspect Ratio: Press VOL+/OK to select the ratio of picture display such as
Wide/Zoom/Cinema/Full Screen/Normal.
Contrast, Brightness, Sharpness and Color can only be adjusted when Picture
Mode in user mode.
Audio Menu Options
Sound can be adjusted for any input as follows:
1. Press MENU button and CH+/CH- until the following menu appears on the
screen.
Audio
Setup
Feature
Audio Mode
Audio Language
Bass
Treble
Balance
50
50
0
Move /OK Select /Menu Exit
Voice
English
Page 20
Menu Operations
Audio Menu Options continued
You can adjust sound options to the levels you prefer.
2. Press VOL+/OK button to enter the Audio menu and CH+/CH- to go up and
down to select the desired option .
3.Press VOL+/OK button to confirm and VOL+/VOL- increase and decrease
the level to adjust the selected option to your preference .
4. Repeat step 2 and step 3 until desired audio quality has been achieved .
Function :
Audio Mode : Press VOL+/OK to select the type of sound which best
corresponds to your lightning requirements by selecting Audio Mode in Audio
menu.
Audio Language: Press VOL+/OK to display the default language.
Bass : Press CH+/CH- button and VOL+/OK to confirm, then press
VOL+/VOL- to increase or decrease the level of the lower-pitched sounds .
can only be stored under User mode .
Treble : Press CH+/CH- button and VOL+/OK to confirm, then press
VOL+/VOL- to increase or decrease the level of the higher-pitched sounds
Can only be stored under User mode .
Balance : Press CH+/CH- button and VOL+/OK to confirm, then press
VOL+/VOL- to adjust the audio output between left and right speakers.
Page 21
Menu Operations
Setup Menu Options
1. Press MENU button and CH+/CH- until the following menu appears on the
screen.
Audio
Setup
Feature
Tuning Band
DTV Signal
Auto Ch Search
Add On Ch Search
Manual Ch Set
Channel Label
Menu Language
Reset
Move /OK Select /Menu Exit
Air
2. Press VOL+/OK button to enter the Setup menu and CH+/CH- to go up and
down to select the desired option .
3.Press VOL+/OK button to confirm and VOL+/VOL- increase and decrease
the level to adjust the selected option to your preference .
4. Repeat step 2 and step 3 until desired quality has been achieved .
Function:
Tuning Band: Press VOL+/OK button to select Cable Auto, Air, Cable,
Cable HRC, Cable IRC.
DTV Signal: Shows the signal strength of the reception.
Auto Ch Search: Press CH+/CH- button to select the item. Then press VOL+/
OK button to enter your selection and scan. All channels now available will be
automatically preset in order .After the search has finished, the first program
number will display on the screen. This search automatically adds only the
active channels in your area to the TV's memory. It deletes any channels on
which there is no broadcast or a poor signal. The channels found are
automatically saved as below:
Auto program Menu
NTSC Channel 19
Analog Channels Found
Digital Channels Found
Progress(%)
12
Menu Stop
Not Found
2
0
Note: The TV searches channels in analog first and then searches channels in
digital signal ,which may take up to few minutes.
Page 22
Menu Operations
Setup Menu Options
Add On Ch Search: When the channels are found, use VOL+/OK to add it to
the channel list.
Manual Ch Set: Press OK button to display a channel list that you can select
channels as below:
Manual Channel Set Menu
Ch 42-1 ATSCdmo Viewable
Ch 2-0 Viewable
Ch 11-0 Viewable
Move OK Change Menu Exit
Channel Label: Allows you to name the channel that is selected. Press VOL+/
OK to enter the selection and the menu displays as below:
Channel Label Menu
Ch 42-1 -------
Move Change Menu Exit
Press VOL+/VOL- to select the position and CH+/CH- to input the characters.
Manual Language: To select language of the OSD .
Reset: Press VOL+/OK to return to the default set.
Page 23
Menu Operations
Feature Menu Options
1. Press MENU button and CH+/CH- until the following menu appears on the
screen.
Audio
Setup
Feature
Time Set
Sleep Timer
Advanced Video Menu
Password Set
Parental Control
NTSC CC
ATSC CC
Digital Closed Caption
Move /OK Select /Menu Exit
0 min
CC1
CS1
2. Press VOL+/OK button to enter the Feature menu and CH+/CH- to go u p
and down to select the desired option .
3.Press VOL+/OK button to confirm and VOL+/VOL- increase and decrease
the level to adjust the selected option to your preference .
4. Repeat step 2 and step 3 until desired quality has been achieved .
Function:
Time Set: Press CH+/CH- button and VOL+/OK to enter the time set menu
as below that allows you to set the time the DTV will display.
Time Set Menu
Time Set Mode
Time Zone
Year
Date
Time
Move Change Menu Exit
Auto
Pacific
2006
Dec29
12:00 AM
Time Set Mode: You can select one of auto and manual to set the time. When
Auto is selected, the item of year/date and time will be disabled and can not
be adjusted. When select Manual mode, you can press CH+/CH- to select the
item and VOL+/OK to confirm, then press VOL+/VOL- to adjust the time.
Time Zone: Press CH+/CH- to select the item and VOL+/OK to confirm,
then press VOL+/VOL- to select the time zone.
Year/Date/Time: Press VOL-/VOL+ to adjust the time.
Sleep Timer: Press VOL+/OK to select the amount of time before your TV turn
off automatically .
Page 24
Menu Operations
Feature Menu Options Continued

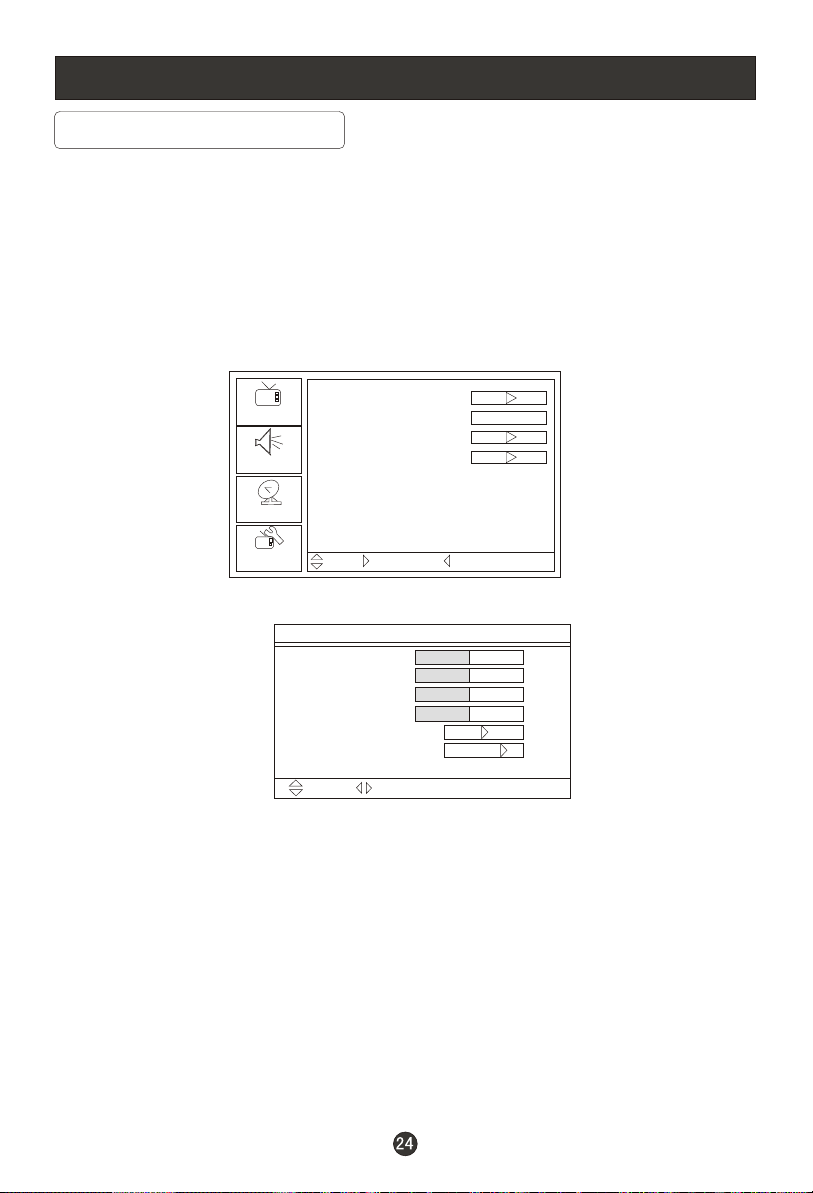

Advance Video Menu: Press VOL+/OK to enter the menu as below:
Advance Video Menu
Noise Reduction-Spatial
Noise Reduction-Speckle
Noise Reduction-Temporal
Color Temperature
3D Y/C
Move Change Menu Exit
Noise Reduction-Spatial: Press VOL-/VOL+ to select on or off
Noise Reduction-Speckle: Press VOL-/VOL+ to select on or off.
Noise Reduction-Temporal: Press VOL-/VOL+ to select on or off.
Color Temperature: Press VOL-/VOL+ to select one of Neutral/Warm/Cool.
3D Y/C: Press VOL-/VOL+ to select on or off.
Password Set: Press OK/VOL+ to enter the Enter Old Password menu, and
then input the number of 0-9 as below, and you can change the password when
you input the new one twice.( The initial password is 0000)
Enter Old Password
Parental Control: Press OK/VOL+ to enter the menu :
Enter Password
Off
Off
Off
Normal
On
input the correct password with 0-9 buttons. And the menu displays as below:
Parental Control Menu
US Ratings
Canadian Rating
Advanced Rating Off
Move Change Menu Exit
Press CH+/CH- to select US Ratings and VOL+/OK button to confirm.
Then press CH+/CH- to select the item and VOL+/OKto confirm.
Parental Control Menu
MPAA
NONE
G
PG
PG-13
R
NC-17
X
TV RATING
ALL FV L S V P
NONE
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
Page 25
Menu Operations
Feature Menu Options Continued
PARENTAL LOCK TECHNOLOGY:
The "P.L. Technology" allows you to use U.S. and Canadian Movies and TV
PROGRAMS Guide ratings to block certain types of TV programs and movies.
To clearly understand TV program rating codes, read the following information:
U.S. TV Program Ratings
NR: Not Rated-this means that programs are not rated or rating does not apply.
TV-Y: For all children - these types of rated programs are designed for a very young
audience, including children from ages 2-6.
TV-Y7: Directed towards older children - this type of rated programs may include
comedic violence of mild physical, or may frighten children under the age of 7.
TV-G: General audience - these types of rated programs contains little or no
violence, no strong language, and little or no sexual dialogue and situations.
TV-PG:Parental Guidance Suggested-this type of rated programs may contain
limited violence, some suggestive sexual dialogue and situations, and rare
language.
TV-14: Parents strongly cautioned-these types of rated programs may contain sexual
content, strong language and more intense violence.
TV-MA:Mature audience only these types of rated programs may contain sexual
violence, explicit sexual content and profane language.
FANTASY VIOLENCE : This type of rated programs contain Fantasy and cartoon
violence.
DIALOGUE: This type of rated programs contain dialogue with sexual content.
LANGUAGE: This type of rated programs contain offensive language.
SEX: This type of rated programs contain sex.
VIOLENCE: This type of rated programs contain violence.
To understand clearly about movie rating codes, read the following list:
U.S. Movie Rating Chart
NR: This means movie is not rated yet. It is pending government rating approval.
G: General Audience-this type of movie rating means all ages admitted to see
the movie.
PG: Parental guidance suggested. Some material may not be suitable for children.
PG-13:Parents Strongly Cautioned - this type of movie rating means some material
may not be appropriate for children under13.
R: Restricted- This type of movie rating means children under 17 of age require
to be with parent or guardian.
NC-17:This type of movie rating means no one 17 and under admitted.
X: This type of movie rating means adults only.
Page 26
Menu Operations
Feature Menu Options Continued
Press CH+/CH- to select Canadian Rating and VOL+/OK button to confirm.
Then press CH+/CH-/VOL+/VOL- to select the item and OK to confirm.
Canadian Rating Menu
Canadian English Canadian French
E
C
C8+
G
PG
14+
18+
Move OK Change Menu Exit
To clearly understand Canadian program rating codes, read the following list:
Canadian English Rating Chart
C: This type of programming is intended for children under age 8. There is no
offensive language, nudity or sexual content.
C8+:These types of rated programs are generally considered acceptable for children
8 years and over. There is no profanity, nudity or sexual content.
G: These types of rated programs are generally suitable for all audiences.
PG: Parental Guidance Suggested -in these types of rated programs, some material
may not be suitable for children.
14+: In these types of rated programs, some content may not be suitable for viewers
under the age of 14.Parents are strongly cautioned not to have their children
view 14+ rated programs by pre-teens and early teens.
18+: Adults Only-these types of rated programs are only for adult viewers only.
E
G
8 ans+
13 ans+
16 ans+
18 ans+
Canadian French Rating Chart
OFF: NO controls
G:These types of rated programs are generally suitable for all audiences.
8+: Children 8 years and above (French)
13+: 13 years old and above(French)
16+: 16 years old and above(French)
18+: Adults Only-these types of rated programs are only for adult viewers only.
Advanced Rating: Selecting On or Off to operation in DTV signal.
CLOSED CAPTION
NTSC CC: Press OK to select the Closed Caption options. Closed Captioning
helps the hearing impaired with the broadcast program, as well as helping children
learn how to read. A built in decoder displays the audio portion of a program as text
on the screen when this option is selected.
CC1: When CC1is displayed on TV means CC MODE is turned on.
CC2 to CC4: For other modes of video related broadcast information.
TEXT1: For program guide and other information displayed by broadcasters.
(This blocks a large portion of the picture on your screen).
TEXT2 to TEXT4 :For other modes of information displayed by broadcasters.
(This blocks a large portion of the picture on your screen).
Page 27
Menu Operations
Feature Menu Options Continued
IMPORTANT: Closed captioning availability entirely depends on broadcasters
supplying the signal. Therefore, closed captioning might not always be
available and language availability will differ by broadcast.
Note: Select CC1 for full translation of the primary language such as English in
your area. Select CC2 for secondary language translation such as French or
any other language that may be broadcast in your area.
ATSC CC: Press OK to select CS1/CS2/CS3/CS4/CS5/CS6.
Digital Closed Captions: This item allows you to set the closed caption, and press
OK/VOL+ to enter Closed Caption menu as below:
Digital Closed Caption
Style
Size
Font
Text Color
Text Opacity
Background Color
Background Opacity
Edge Effect
Edge Color
Move Change Menu Exit
Style: Press VOL+/VOL- to select one of Automatic and Custom. When you select automatic,
the others are disable and can not be adjusted.
Size: Press VOL+/VOL- to select
the size of caption display according to your own
preference.
Font: Press VOL+/VOL- to select
the font of caption display according to your own
preference.
Text Color: Press VOL+/VOL- to select the text color or the opacity of the text box of
caption display according to your own preference.
Select a color and one of the opacity options.
Text Opacity: Press VOL+/VOL- to specify the opacity for the text color.
Background Color: Press VOL+/VOL- to select a background color.
Background Opacity: Press VOL+/VOL-to select the opacity for the background color.
Edge Effect: Press VOL+/VOL- to select according your own preference
Edge Color: Press VOL+/VOL- to select the edge color according your own
preference
Automatic
Automatic
Automatic
Automatic
Automatic
Automatic
Automatic
Automatic
Automatic
VGA Menu Options Continued
1. Press MENU button and CH+/CH- button to select Feature menu in VGA mode.
2. Press VOL+/OK button to enter the Feature menu and CH+/CH- to go u p
and down to select the desired option .
Page 28
Menu Operations
VGA Menu Options Continued
3.Press VOL+/OK button to confirm and VOL+/VOL- increase and decrease
the level to adjust the selected option to your preference .
4. Repeat step 2 and step 3 until desired quality has been achieved .
Audio
Setup
Feature
VGA Set: Press CH+/CH- button to select and VOL+/OK to confirm, the
Time Set
Sleep Timer
Advanced Video Menu
VGA Set
Move /OK Select /Menu Exit
0 min
VGA
set menu as below:
VGA Setting-1024x768@60Hz
H-Pos
V-Pos
Clock
Phase
Auto Adjust
Setting
Move Change Menu Exit
Preset
H-Pos: Press CH+/CH- button and then press VOL+/VOL- to adjust the horizontal
position of the picture.
V-Pos:Press CH+/CH- button and then press VOL+/VOL- to adjust the vertical
position of the picture.
Phase: Press CH+/CH- and then press VOL+/VOL- to adjust the phase of the
picture.
Clock: Press CH+/CH- button and then press VOL+/VOL- to adjust the clock of
the picture.
Auto Adjust: Press CH+/CH- button an d then press VOL+ to auto adjust that
automatically adjusts the available options for the best viewing configuration.
Setting: Press OK to do preset that can return to the factory setting.
Page 29
Menu Operations
Component Menu Options
1. Press MENU button and CH+/CH- button to select Feature menu in Component
mode.
2. Press VOL+/OK button to enter the Feature menu and CH+/CH- to go u p
and down to select the desired option .
3.Press VOL+/OK button to confirm and VOL+/VOL- increase and decrease
the level to adjust the selected option to your preference .
4. Repeat step 2 and step 3 until desired quality has been achieved .
Audio
Setup
Feature
Time Set
Sleep Timer
Advanced Video Menu
Component Set
Move /OK Select /Menu Exit
0 min
Component Set: Press CH+/CH- button to select and VOL+/OK to confirm,
the Component set menu as below:
Component Setting-720x480I@30/29.9Hz
H-Pos
V-Pos
Clock
Phase
Auto Adjust
Setting
Move Change Menu Exit
Preset
H-Pos: Press CH+/CH- button and then press VOL+/VOL- to adjust the horizontal
position of the picture.
V-Pos:Press CH+/CH- button and then press VOL+/VOL- to adjust the vertical
position of the picture.
Phase: Press CH+/CH- and then press VOL+/VOL- to adjust the phase of the
picture.
Clock: Press CH+/CH- button and then press VOL+/VOL- to adjust the clock of
the picture.
Auto Adjust: Press CH+/CH- button an d then press VOL+ to auto adjust that
automatically adjusts the available options for the best viewing configuration.
Setting: Press OK to do preset that can return to the factory setting.
Page 30
Menu Operations
HDMI and S-Video Menu Options
1. Press MENU button and CH+/CH- button to select Feature menu in HDMI or
S-Video mode.
2. Press VOL+ button to enter the Feature menu and CH+/CH- to go up and down
to select the desired option .
3.Press VOL+/OK button to confirm and VOL+/VOL- increase and decrease
the level to adjust the selected option to your preference .
4. Repeat step 2 and step 3 until desired quality has been achieved .
HDMI S-Video
Audio
Setup
Feature
Time Set
Sleep Timer
Advanced Video Menu
Move /OK Select /Menu Exit
0 min
Audio
Setup
Feature
Time Set
Sleep Timer
Advanced Video Menu
Password Set
Parental Control
NTSC CC
Move /OK Select /Menu Exit
0 min
CC1
Time Set: Press CH+/CH- button and then VOL+/OK button to enter the
submenu that allows you to set the time the TV will display.
Sleep Timer: Press VOL+/OK button to select the amount of the time before
your TV turn off automatically.
Advanced Video Menu: Press VOL+/OK button to enter te advanced video
menu.
Password Set Press CH+/CH- button and then VOL+/OK button to enter
Password Set menu and input or change old password.
Parental Control Press CH+/CH- button and then VOL+/OK button to enter
Parental Control menu.
NTSC CC: Press CH+/CH- button and then VOL+/OK button to enter NTSC
CC menu and select the Closed Caption options.
Page 31
Troubleshooting Guide
To assist in location possible faults use help guide below.
Troubleshooting
No picture, no sound
Blank screen
No sound
Poor sound
No picture in some
channel
No color for some channel
program (black and white)
Spots with some or
all pictures
Abnormal functioning
Verify if the television is properly plugged in.
Verify if the television is properly supplied with power.
Verify that electricity is available.
Verify if correct signals are input.
Press INPUT button to change signal input to TV input.
Restart the television of power supply is interrupted.
Press MUTE button and verify if Mute mode is on.
Switch to another channel and verify if the same problem
happens.
Press VOL+ button to see if the problem can be solved.
Verify if sound system is functional. Refer to chapter on
adjusting.
Verify if correct channel is selected.
Adjust the antenna.
Make adjustments by FINE TUNE
Verify if the same problem exists in other channels.
Check picture and sound systems.
Refer to relative instructions in the Manual for color
adjust.
Verify if the antenna is correctly connected.
Verify if the antenna is in good condition.
Make fine adjustment of channel.
Disconnect the television from power supply and, 10
seconds later, reconnect to the power supply.
If the problem still exists, contact an authorized
service depot for technical assistance.
Note:
1.If the fault can not be repaired using the above guide consult with your local authorized
service center.
2.The TV set must only be repaired by a qualified registered service person. Never attempt to
remove the back cover as the TV set has dangerous voltages levels inside that may be
fatal or cause fire.
Page 32
Specifications
Specifications of the television that you have just purchased may
vary from the information in this table due to technical innovations.
Model
Picture, sound
system
Audio output
External input port
Power requirements
Power consumption
Temperature
Humidity
Accessories
HL15B /HL15E
A A A A
HL19E /HL19W
NTSC, ATSC, Clear QAM
HL22E
1.5W+1.5W
AV input PC input S-VIDEO input PC audio input
Headphone output YPbPr input Antenna input
~120V 60Hz
50W
Working:+5 ~+35
Storage:-15 ~+45
Working:20% ~ 80%
Storage: 5% ~ 90%
Remote control
Batteries
User manual
60W 80W
A
NOTE
Design and specifications are subject to change without notice.
Dimensions quoted in this manual are approximate.
Page 33

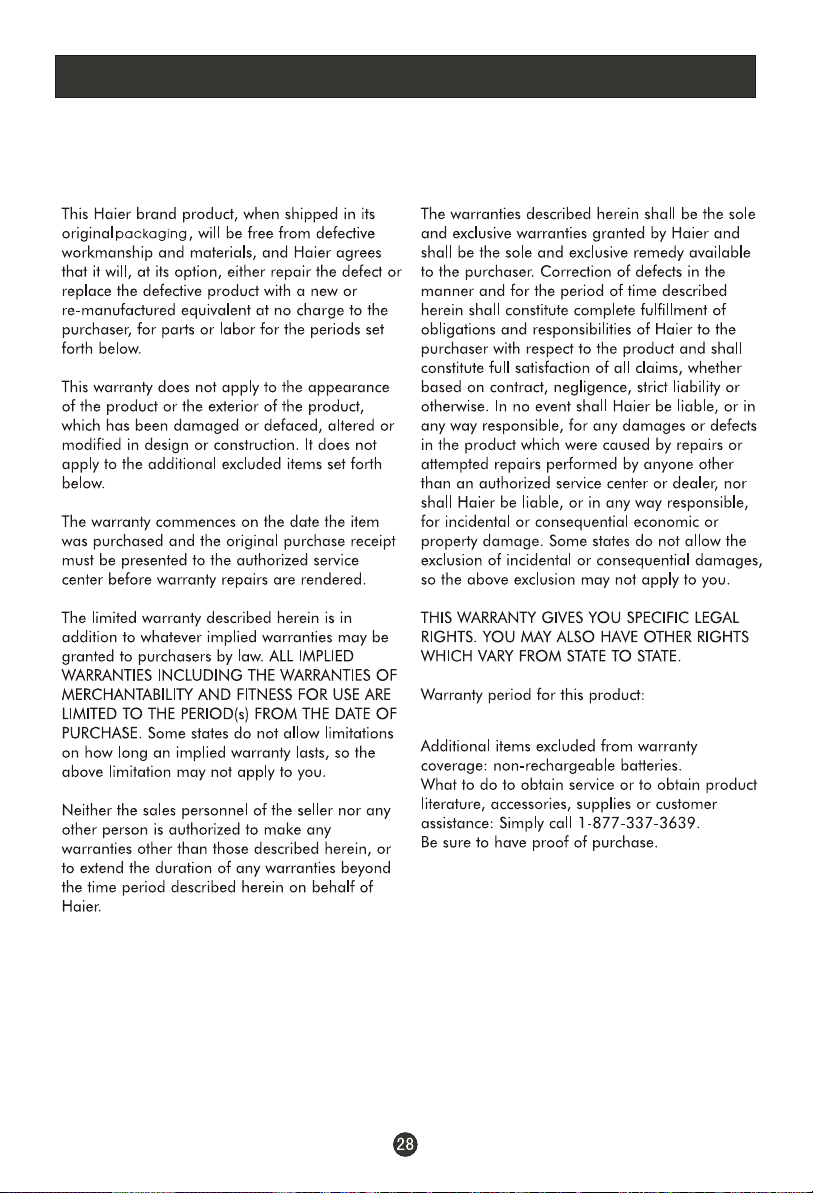

Warranty
Warranty
Warranty
and one year parts .
90 days labor
Page 34
V0.1
0090503188
Loading...
