Haier HL19D2a User Manual

FOR YOUR SAFETY

Before operating the TV please read this manual thoroughly. This manual should be retained for future
reference.

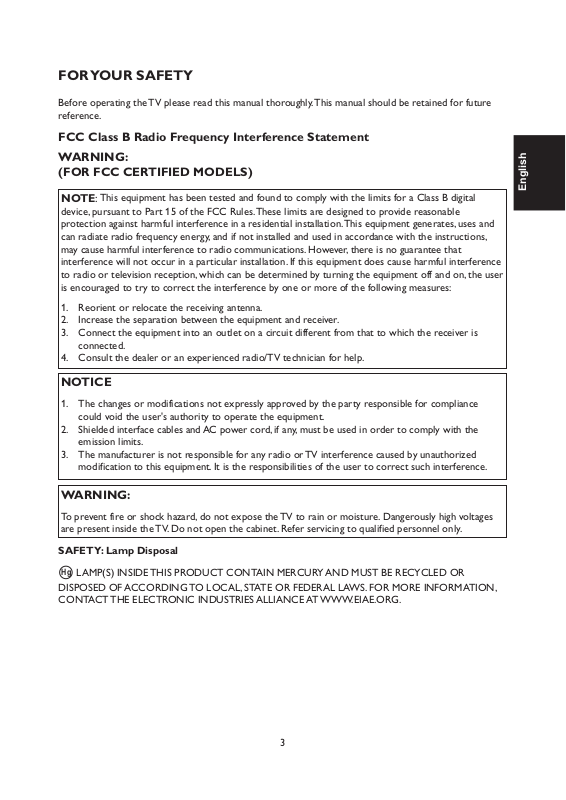

FCC Class B Radio Frequency Interference Statement
WARNING:

(FOR FCC CERTIFIED MODELS)

NOTE:

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy, and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:

This equipment has been tested and found to comply with the limits for a Class B digital

Reorient or relocate the receiving antenna.1.
Increase the separation between the equipment and receiver.2.
Connect the equipment into an outlet on a circuit different from that to which the receiver is 3.
connected.
Consult the dealer or an experienced radio/TV technician for help.4.

NOTICE

The changes or modifications not expressly approved by the party responsible for compliance 1.
could void the user's authority to operate the equipment.
Shielded interface cables and AC power cord, if any, must be used in order to comply with the 2.
emission limits.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized 3.
modification to this equipment. It is the responsibilities of the user to correct such interference.

hsilgnE

WARNING:

To prevent fire or shock hazard, do not expose the TV to rain or moisture. Dangerously high voltages
are present inside the TV. Do not open the cabinet. Refer servicing to qualified personnel only.

SAFETY: Lamp Disposal

Hg

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR

DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. FOR MORE INFORMATION,
CONTACT THE ELECTRONIC INDUSTRIES ALLIANCE AT WWW.EIAE.ORG.

3

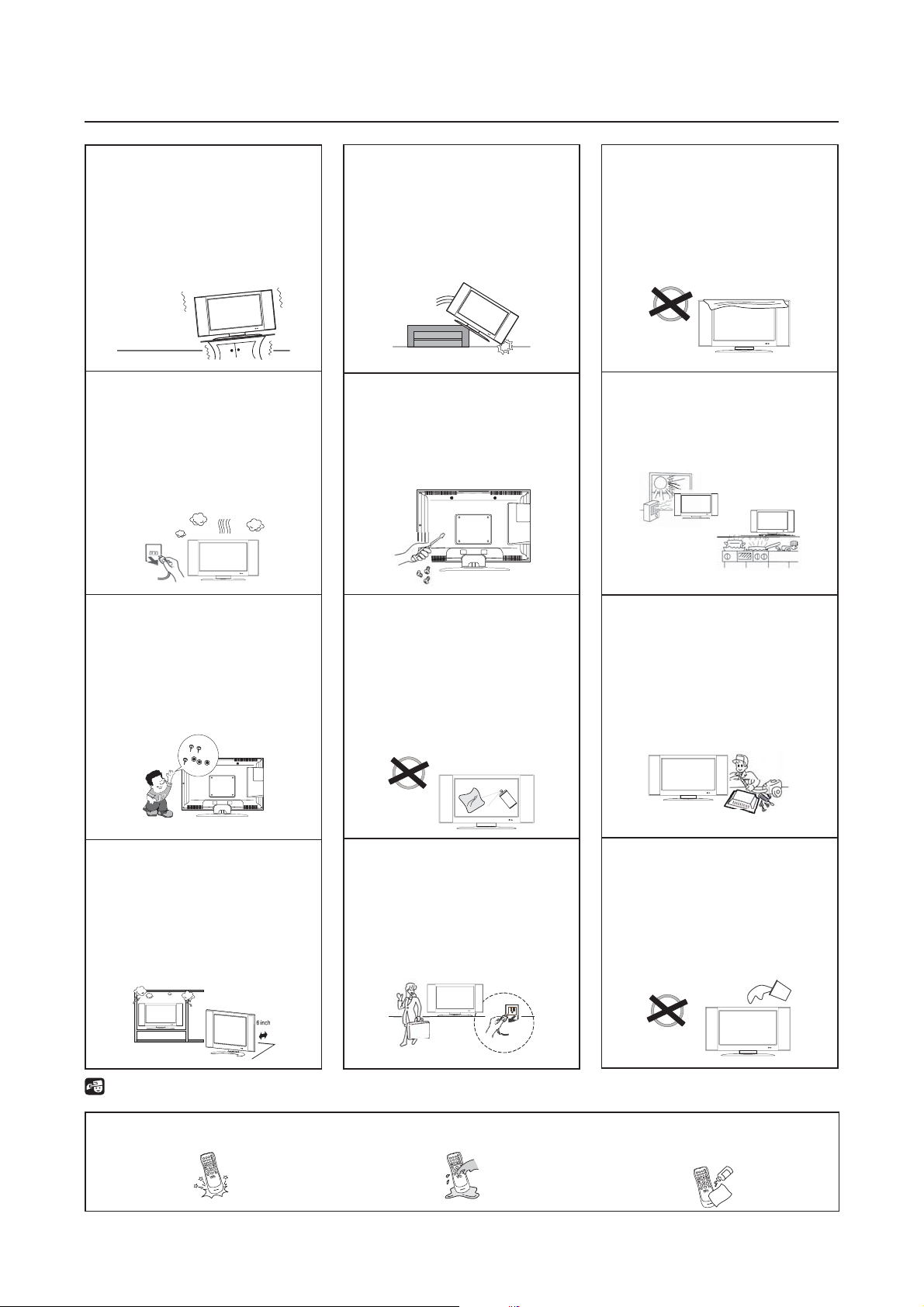

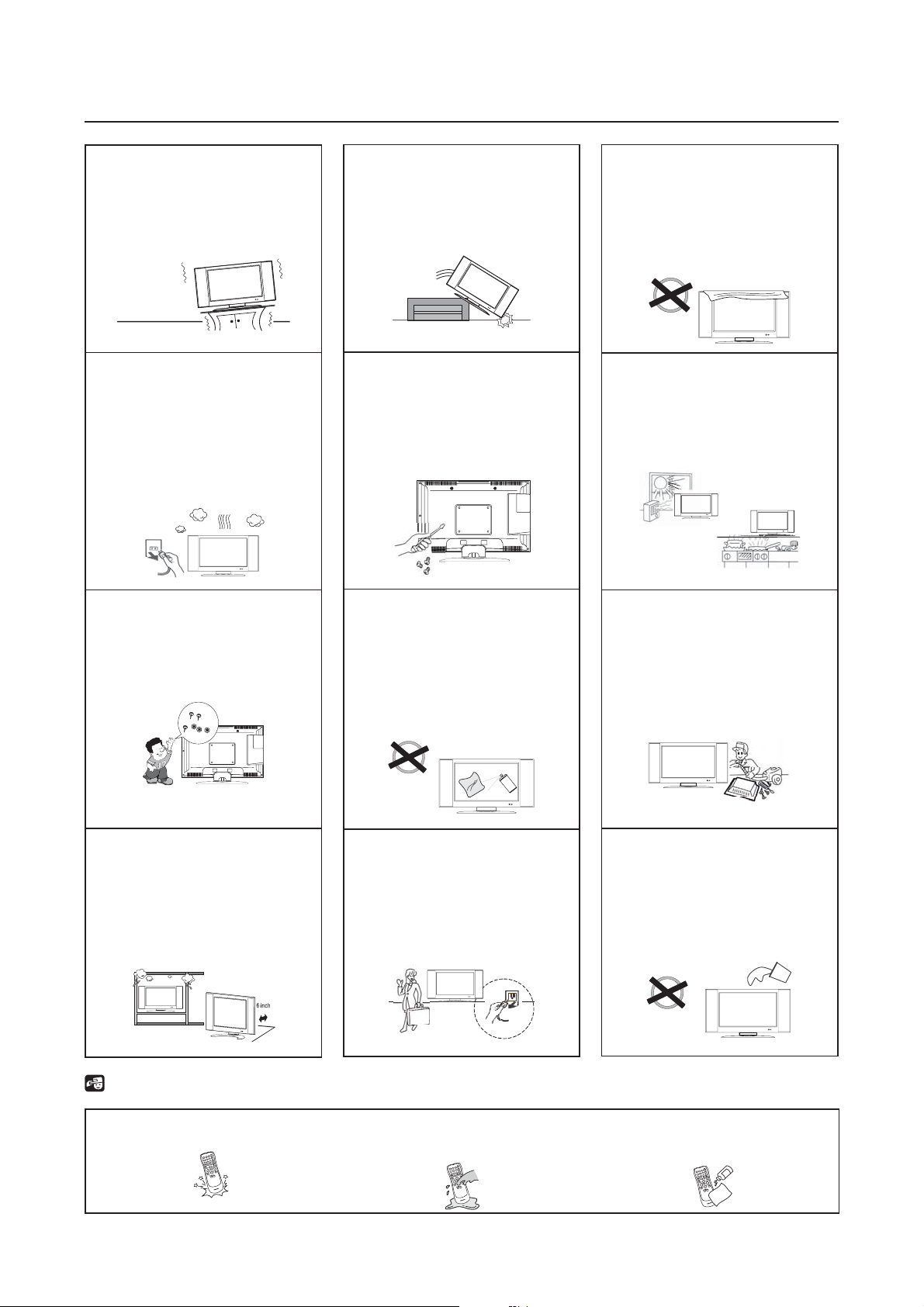

PRECAUTIONS AND REMINDERS

Place unit on even surfaces.

Unplug immediately if is
malfunction like no picture,
no video/audio, smoke and
bad odor from TV.

Don't throw any object
inside the TV box like
metals or other flammable
materials.

Unplug immediately if other
foreign materials are put
inside TV box or if the TV
fell down.

Prohibit/Avoid opening TV
cabinet.

Remember to unplug the
AC cord from the AC outlet
before cleaning. Do not use
liquid cleaners or aerosol
cleaners to clean the display.

Do not cover or block
any vents and openings.
Inadequate ventilation
may shorten the life of
the display unit and cause
overheating.

Avoid direct sunlight, dusty,
high humidity and smoky
areas

.

Call service personnel to
clean the internal part of
the TV once a year.

Don't place the TV in
confined spaces or in a box
when using it.

Notice for Remote Controller

Avoid Dropping

4

3

2

7

6

5

:

9

8

1

Make sure to unplug the
unit when not in use for a
long period of time (days).

Avoid Liquids

4

3

2

7

6

5

:

9

8

1

4

Do not place the display
near water, such as bathtub,
washbasin, kitchen sink
laundry tub, swimming pool
or in a damp basement.

Avoid Aerosol Cleaners

4

3

2

7

6

5

:

9

8

1

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

Read these instructions.1.
Keep these instructions.2.
Heed all warnings.3.
Follow all instructions.4.
Do not use this apparatus near water.5.
Clean only with a dry cloth.6.
Do not block any of the ventilation openings. Install in accordance with the manufacturers 7.
instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus 8.
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two 9.
blades with one wider than the other. A grounding type plug has two blades and third grounding
prong. The wide blade or third prong is provided for your safety. When the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience 10.
receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.11.
Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the 12.
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.

hsilgnE

The TV should be operated only from the type of power source indicated on the label. If you are not 13.
sure of the type of power supplied to your home, consult your dealer or local power company.
Unplug this apparatus during lightning storms or when unused for long periods of time.14.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been 15.
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
Class I Protective Earthing Connection – "The Class I apparatus shall be connected to a mains socket 16.
outlet with a protective earthing connection."
Disconnect Device - Mains Plug or Appliance Coupler – "The mains plug or appliance coupler is used 17.
as the disconnect device, the disconnect device shall remain readily operable."
Disconnect Device - An all-pole MAINS SWITCH – "An all-pole MAINS SWITCH is used as the 18.
disconnect device, the switch shall remain readily operable."
Service Instructions – "CAUTION – These servicing instructions are for use by qualified service 19.
personnel only. To reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so."
Wall Mount Bracket – For use only with UL Listed Wall Mount Bracket with minimum weight/load: 20.
Please see page 23.

5

CONSUMER ALERT – This television receiver has only an analog broadcast tuner and will require a 21.
converter box after June 12 2009,to receive over-the-air broadcasts with an antenna because of the
Nation's transition to digital broadcasting. Analog-only TVs should continue to work as before with
cable and satellite TV services, gaming consoles, VCRs, DVD players, and similar products, For more
information, call the Federal Communications Commission at 1-888-225-5322 (TTY: 1-888-835-5322)
or visit the Commission's digital television website at: www.DTV.gov.
Information about the DTV transition –after June 12 2009, a television receiver with only an analog
broadcast tuner will require a converter box to receive full power over the- air broadcasts with an
antenna because of the Nation's transition to digital broadcasting. Analog-only TVs should continue
to work as before to receiver low power, Class A or translator television stations an with cable and
satellite TV services, gaming consoles, VCRs, DVD players, and similar products. For more information
about the DTV transition is available from http://www.DTV.gov or 1-888-CALL-FCC, and from
http://www.dtv2009.gov or 1-888-DTV-2009 for information about subsidized coupons for digital-to­analog converter boxed.
Tilt/Stability – All televisions must comply with recommended international global safety standards 22.
for tilt and stability properties of its cabinets design.

Do not compromise these design standards by applying excessive pull force to the front, or top,

●

of the cabinet, which could ultimately overturn the product.
Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top

●

of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product

damage and/or personal injury.
Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as 23.
recommended by the manufacturer.
Power Lines – An outdoor antenna should be located away from power lines.24.
Outdoor Antenna Grounding – If an outside antenna is connected to the receiver, be sure the 25.
antenna system is grounded so as to provide some protection against voltage surges and built
up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides
information with respect to proper grounding of the mats and supporting structure grounding of the
lead-in wire to an antenna-discharge unit, size of grounding connectors, location of antenna discharge
unit, connection to grounding electrodes and requirements for the grounding electrode. See Figure
below.

ANTENNA

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM

ANTENNA DISCHARGE UNIT

GROUNDING CONDUCTORS

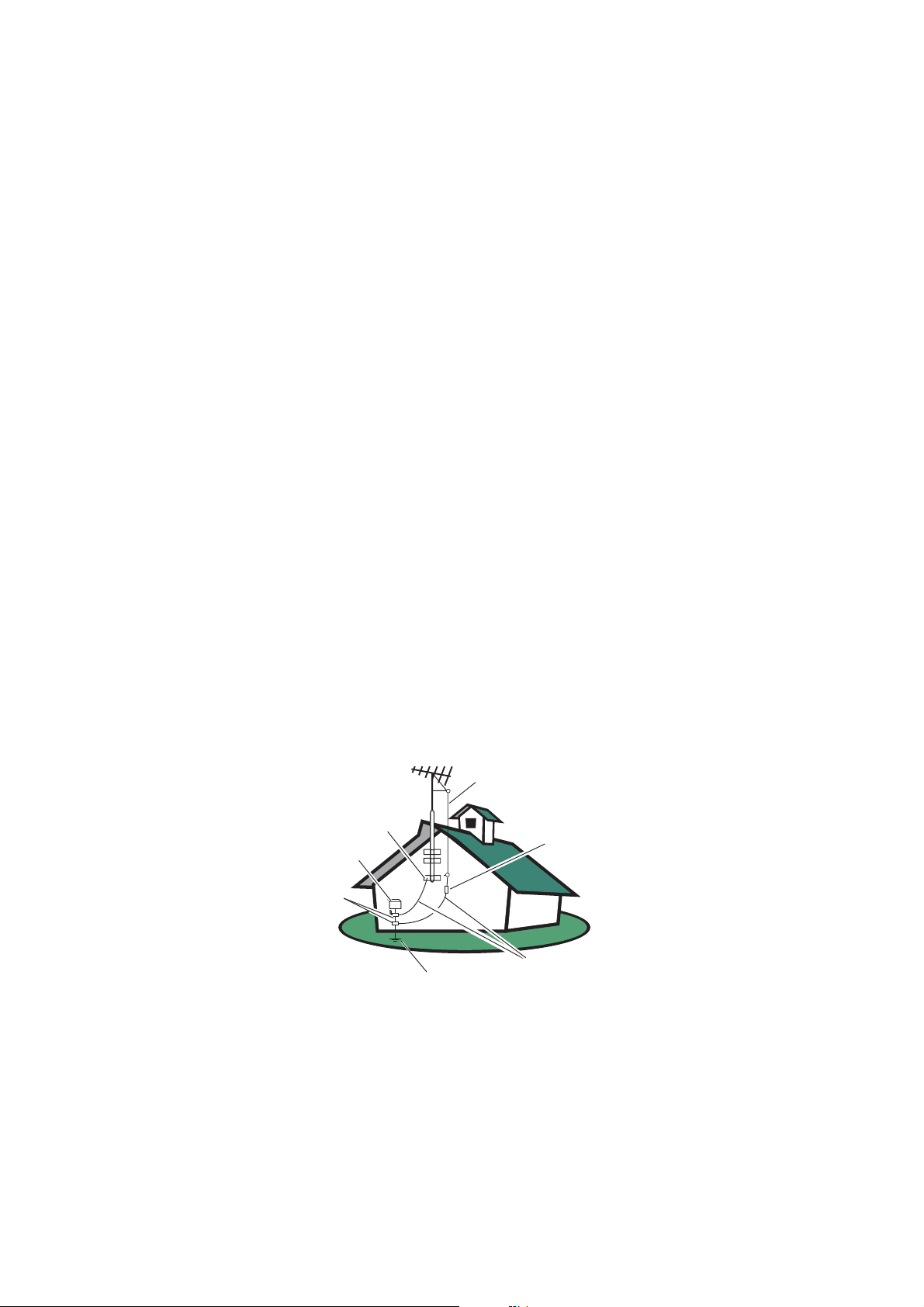

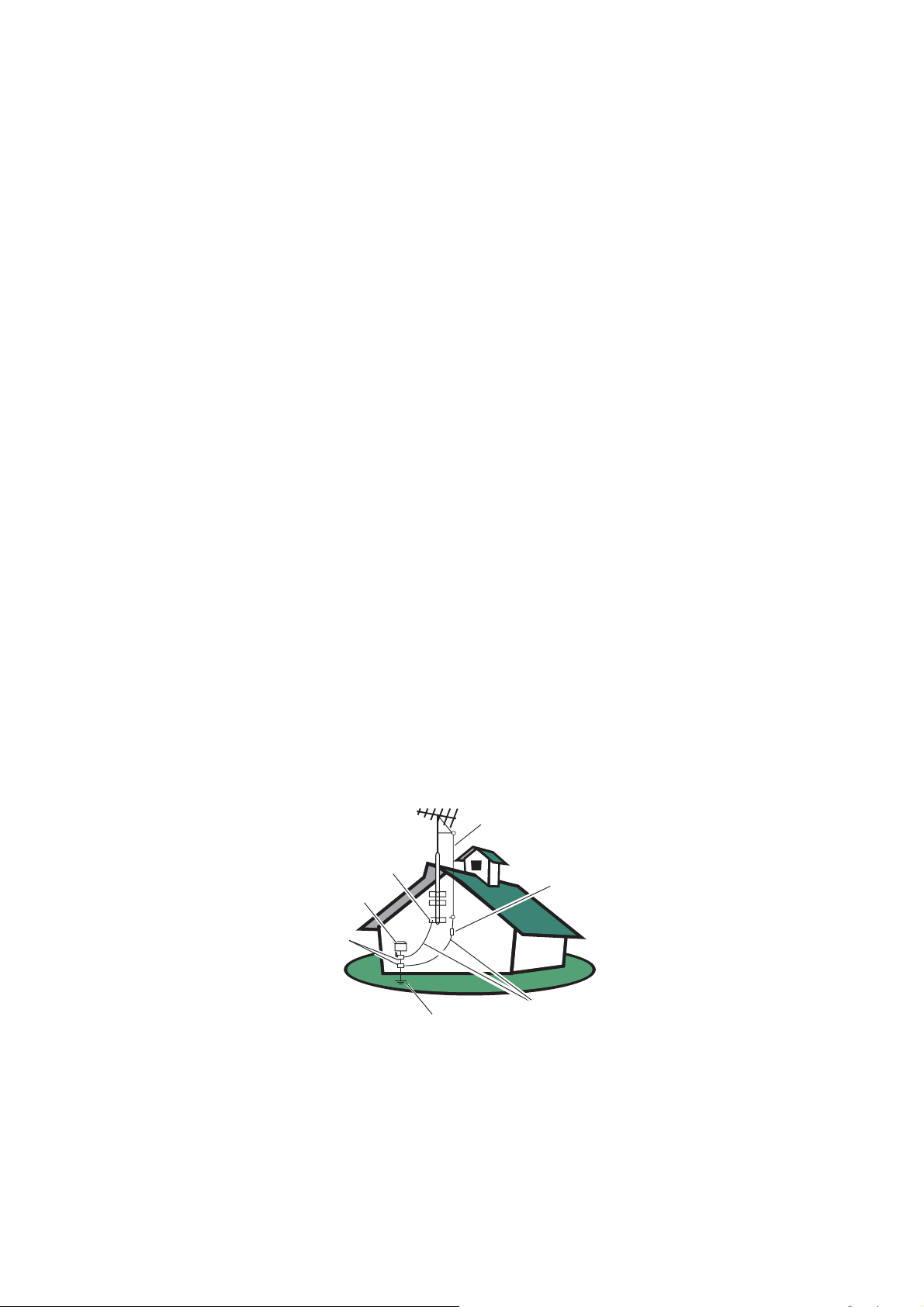

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE
Note to the CATV system installer: This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be connected to the 6 English grounding system of
the building, as close to the point of cable entry as practical. Please, make sure to connect the power
plug to the wall outlet socket after connecting the TV to the adapter!
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as 26.
vases, shall be placed on the apparatus.

6

SAVE THESE INSTRUCTIONS

Thank you for purchasing the Haier product. This easy-to-use manual will guide you in getting the
best use of your product. Remember to record the model and serial number. They are on label in
back of the unit.

hsilgnE

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain warranty service.

7

TABLE OF CONTENT

DIGITAL TELEVISION TRANSITION NOTICE ....................................... 2

FOR YOUR SAFETY ........................................................................................ 3

PRECAUTIONS AND REMINDERS ...........................................................4

IMPORTANT SAFETY INSTRUCTIONS ...................................................5

PREPARATION .................................................................................................9

ATTACHING THE BASE ......................................................................................................... 9

PREPARING YOUR LCD HDTV FOR WALL MOUNTING ..........................................9

PERIPHERAL CONNECTION GUIDE ....................................................12

OPERATING INSTRUCTIONS ..................................................................14

TO USE THE FRONT PANEL CONTROL ...................................................................... 14

TO USE THE REMOTE CONTROL .................................................................................. 15

TO USE THE MENUS ........................................................................................................... 16

CHANNEL MENU ................................................................................................................ 16

VIDEO MENU ........................................................................................................................ 16

AUDIO MENU ....................................................................................................................... 17

FEATURE MENU .................................................................................................................... 17

VGA MENU ............................................................................................................................. 20

TIPS ........................................................................................................................................... 21

PRODUCT SPECIFICATION ......................................................................22

BEFORE CALLING SERVICE ......................................................................24

GLOSSARY ...................................................................................................... 25

WARRANTY ..................................................................................................26

8

PREPARATION

IMPORTANT: Do not apply pressure to the

screen display area which may compromise
the integrity of the display. The manufacturer’s
warranty does not cover user abuse or
improper installations.

ATTACHING THE BASE

IMPORTANT: The Base of the HDTV must

be assembled prior to usage.

For HL19D2 / HL24XD2

Place TV unit face down on a soft and 1.
flat surface (blanket, foam, cloth, etc.) to
prevent any damage to the HDTV.

Carefully align and insert the Base to the 2.
stand.

Gently push the Base towards the HDTV 3.
until the locking mechanism locks into
place.

PREPARING YOUR LCD HDTV FOR
WALL MOUNTING

We suggest that you keep your TV at least 2.36
inches (60 mm) from the wall to prevent cable
interference.

Before mounting your TV on the wall, you need
to remove the base.

For your safety, please use only with UL listed
wall mount bracket with minimum weight of
the TV without stand. (Please see page 23.)

To attach a wall mount bracket to your TV:

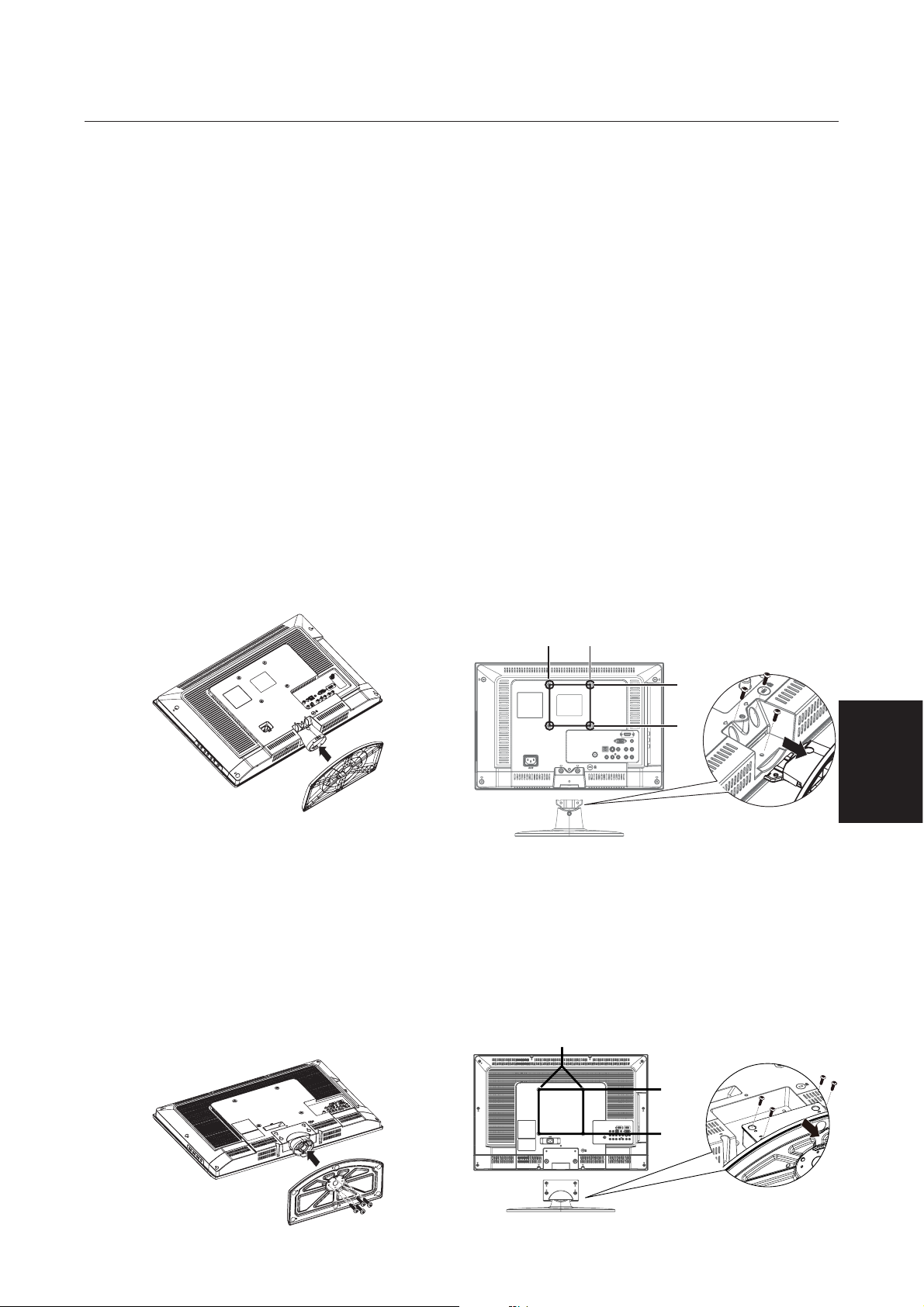

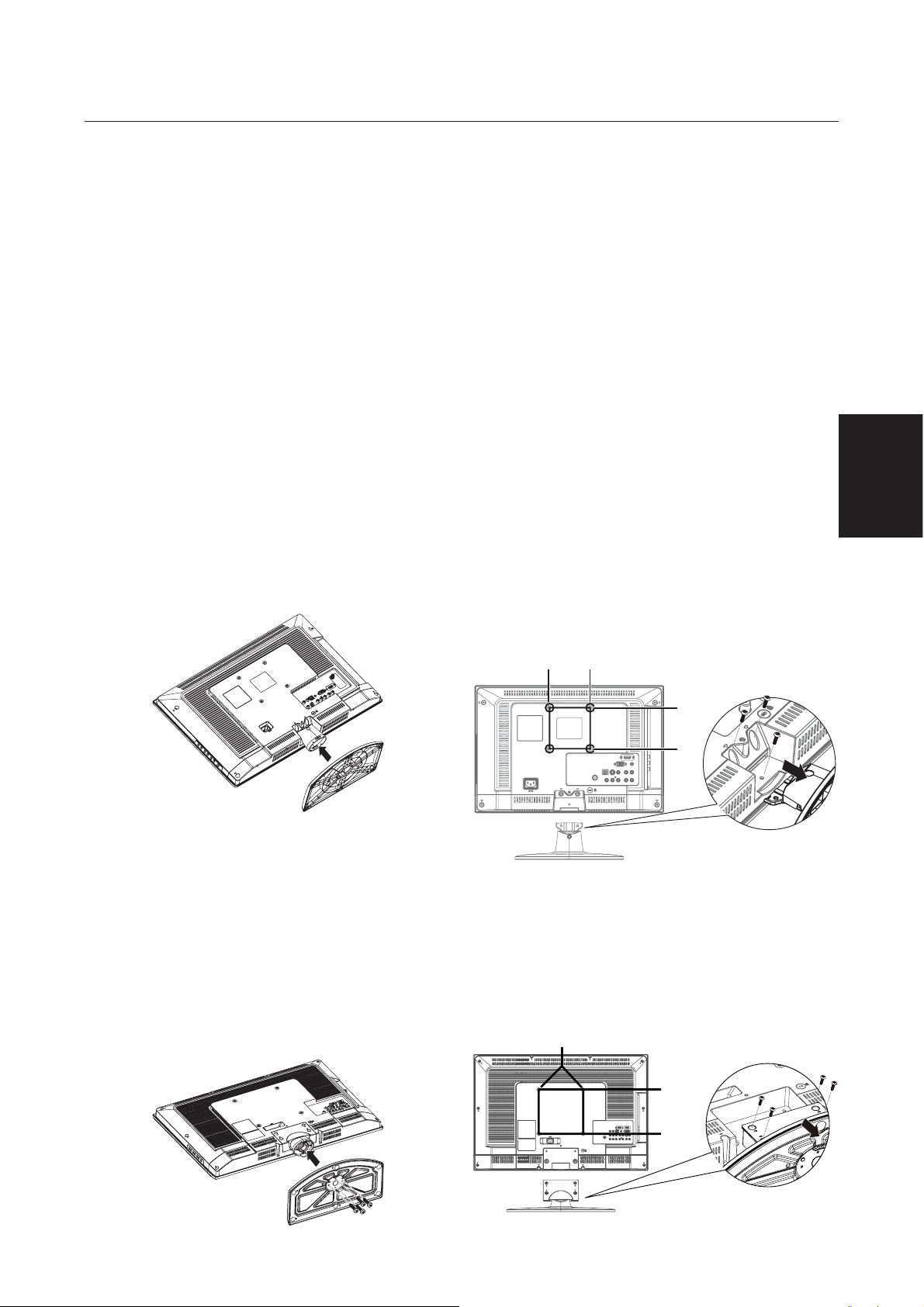

For HL19D2 / HL24XD2

Remove the screws holding your TV to the 1.
stand.

Remove the stand base from your TV.2.

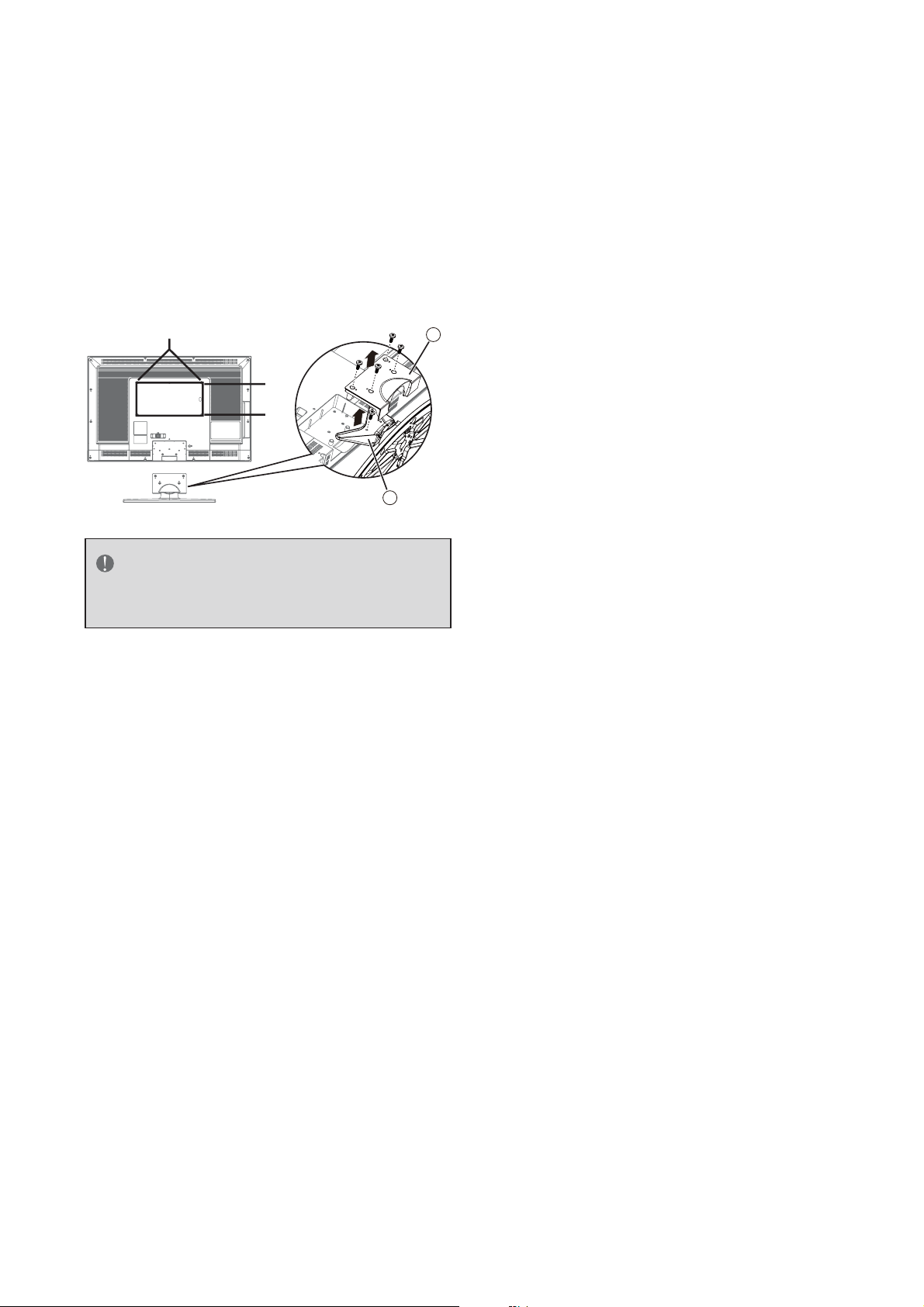

Secure the wall mount bracket to the 3.

back of your TV using four M4 screws, as
indicated in the illustration.

hsilgnE

For HL32D2

Place TV unit face down on a soft and 1.
flat surface (blanket, foam, cloth, etc.) to
prevent any damage to the HDTV.

Carefully align and insert the Base to the 2.
stand.

Insert the screws to the bottom of the 3.
base and tighten the base to the stand.

100 mm

100 mm

For HL32D2

Remove the screws holding your TV to the 1.
stand.

Remove the stand base from your TV.2.
Secure the wall mount bracket to the 3.

back of your TV using four M6 screws, as
indicated in the illustration.

200 mm

200 mm

9

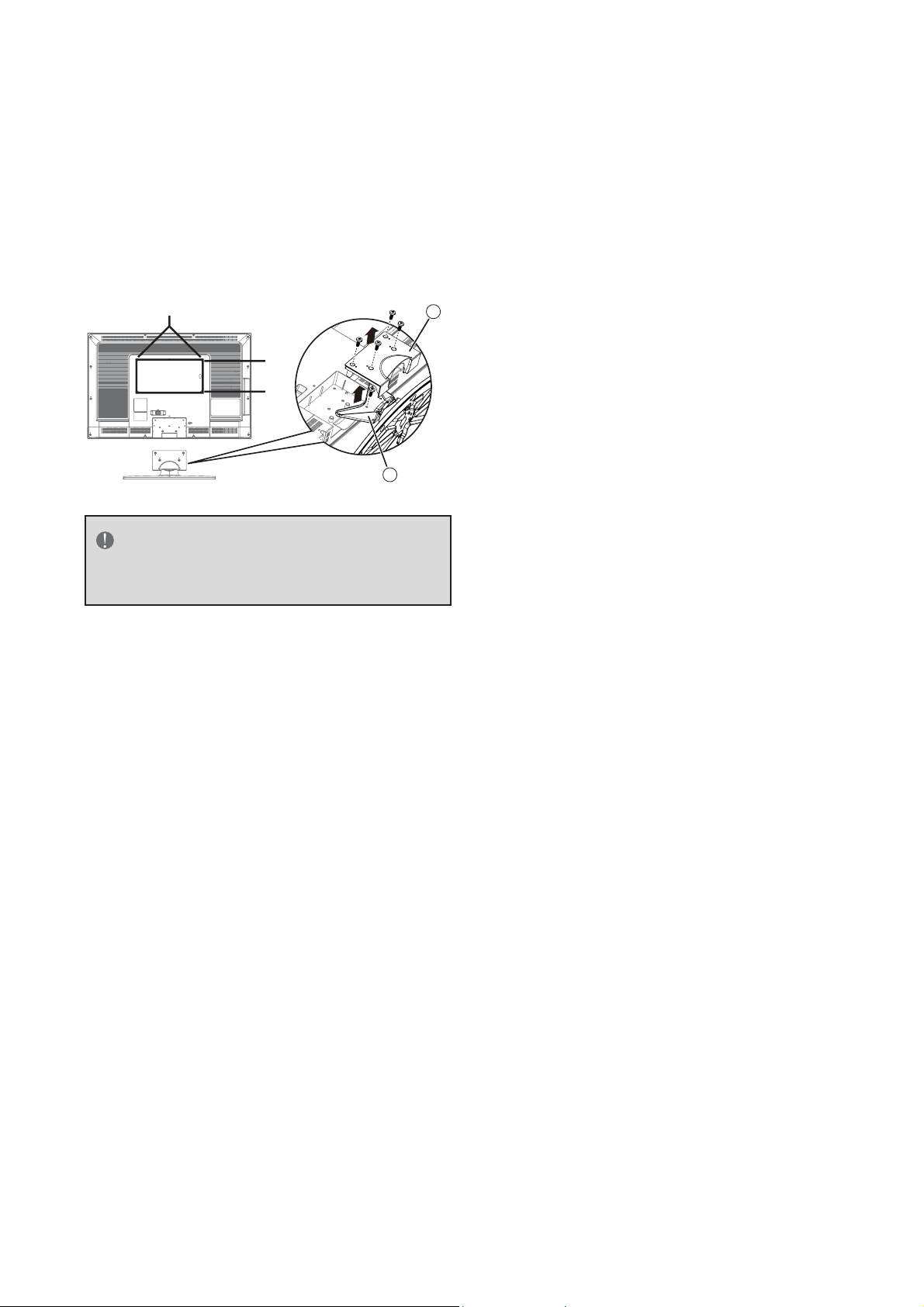

For HL42XD2

Loosen the screws on the back of the 1.
stand and remove the back cover of the
stand.

Remove the screw that secure the stand to 2.
your TV and remove the stand.

Secure the wall mount bracket to the 3.
back of your TV using four M6 screws, as
indicated in the illustration.

400 mm

200 mm

NOTE

The wall mount bracket and the



screws are not included.

1

2

10

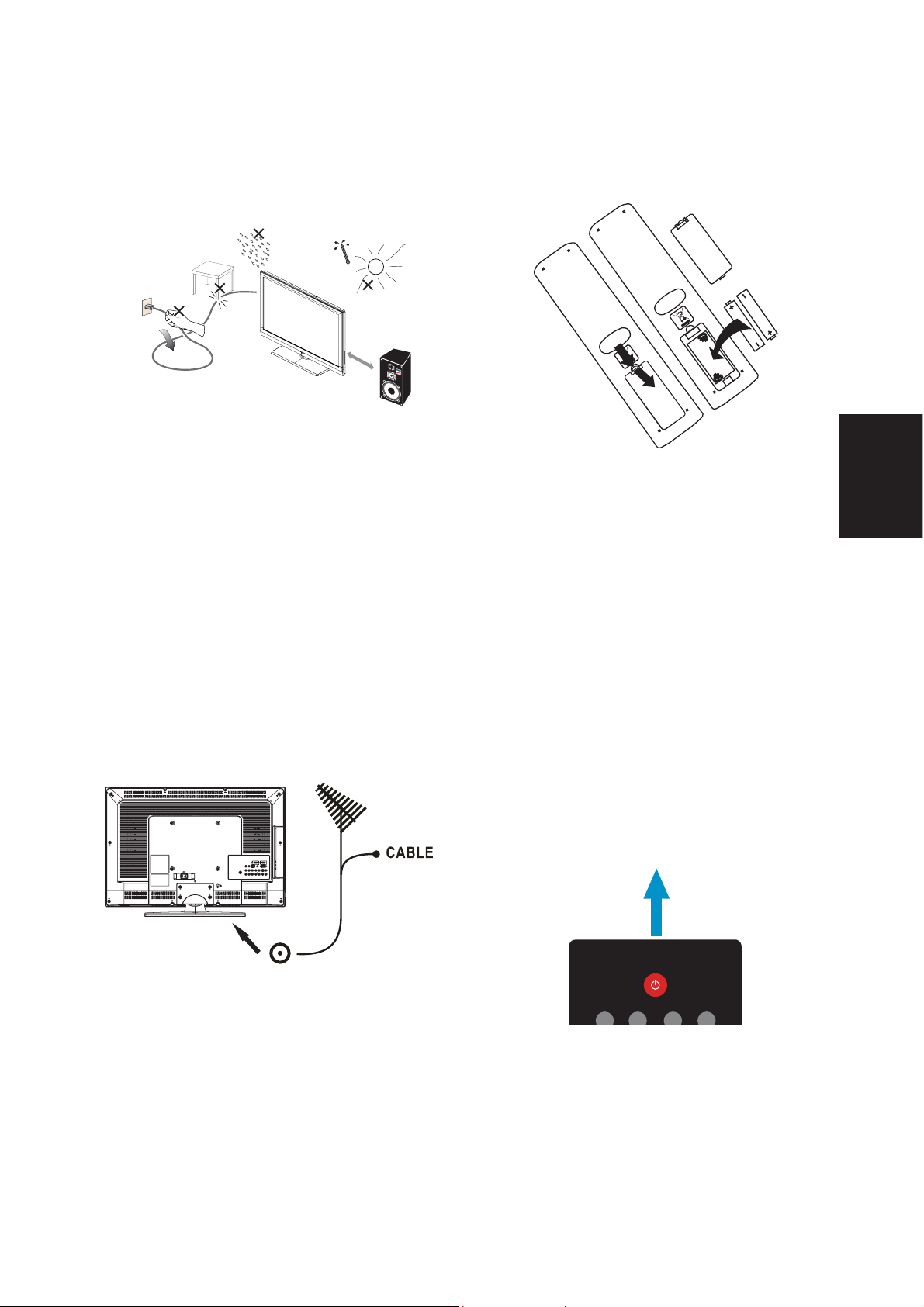

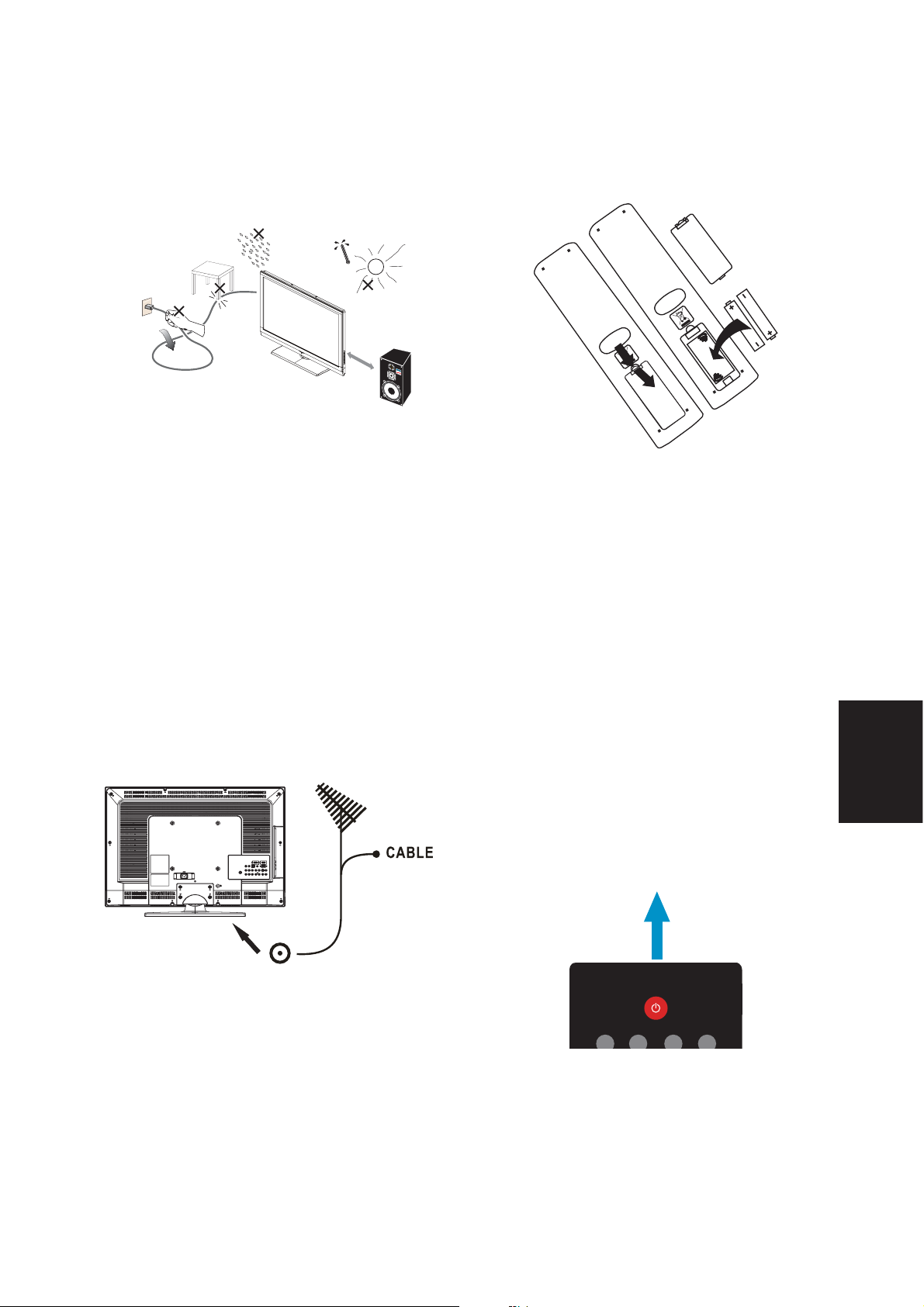

Please make sure to connect the power plug
to the wall outlet socket after connecting the
TV to the power cord!

Install the base stand; place the TV on 1.
a solid surface.

Min
1 m

Ensure that the TV is placed in a position
to allow free flow of air. Do not cover the
ventilation openings on the back cover.

To prevent any unsafe situations, no naked
flame sources, such as lighted candles,
should be placed on or in the vicinity.

Avoid heat, direct sunlight and exposure to
rain or water. The equipment shall not be
exposed to dripping or splashing.

Connect the antenna cable or CATV cable 2.
to the aerial socket ANT IN 75Ω at the
back of the TV set.

Remote control:3.
Remove the cover of the battery

compartment. Insert the 2 batteries
supplied (Type AAA 1.5V).

hsilgnE

Power :4.
Insert the power cord in the wall socket

with AC power supply. You can see LED
states at the front panel. If the LED color is
Blue, means the TV set is power on. If the
LED color is Red, which means this TV set
is in standby state.

Turn the TV on:5.
Press the Power key on the remote control

or the side panel control knobs. The TV will
be turned on in a minute with display on
the screen.

11

Power Key

Power

Video Comp PC/HDMI TV

PERIPHERAL CONNECTION GUIDE

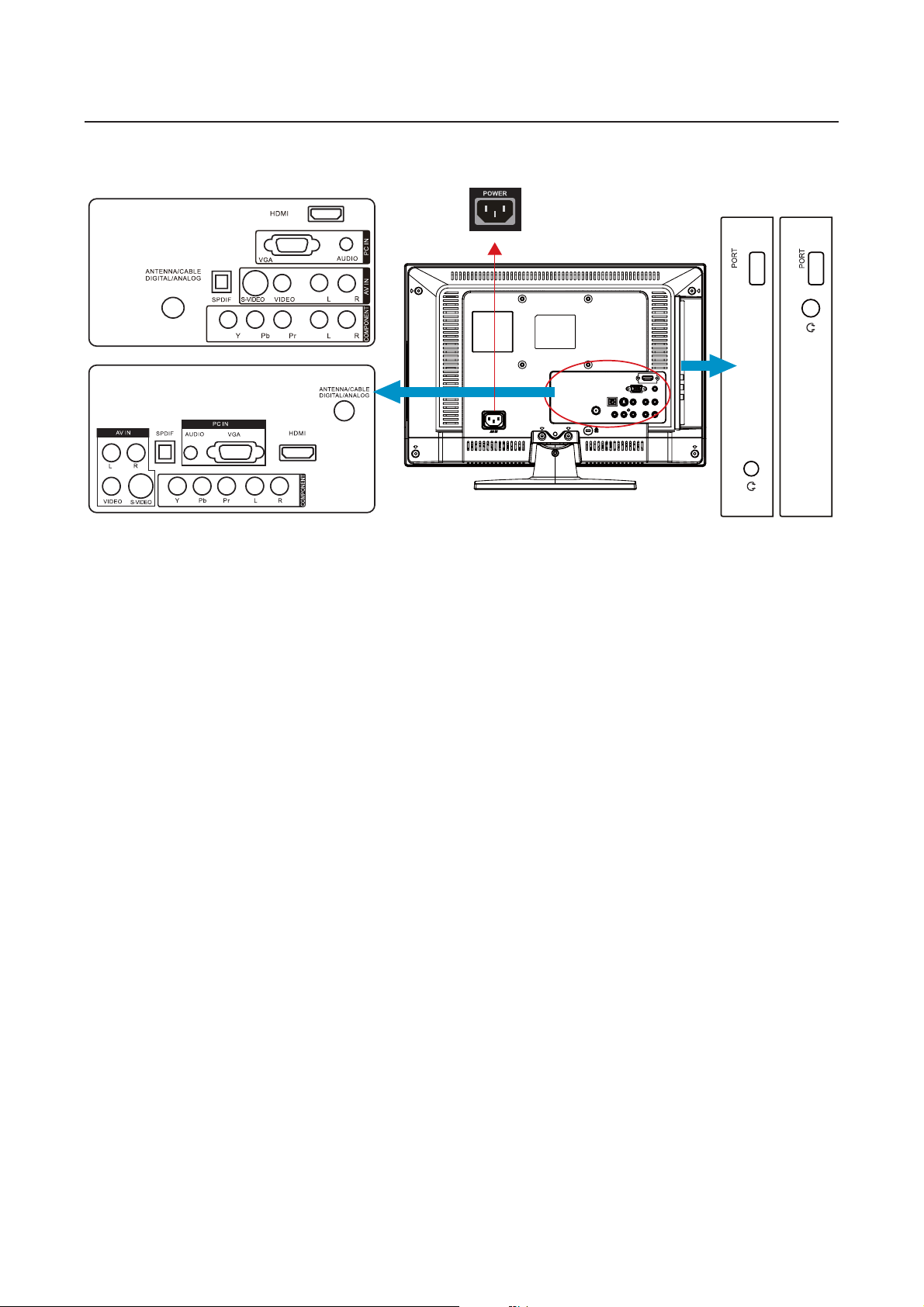

For HL19D2 / HL24XD2

HL19D2

AC POWER

HL19D2 HL24XD2

USB

HL24XD2

HDMI1. – Connect the primary source for digital video such as a DVD multimedia player or
set top box through this all digital connector.

PC IN2. – Connect the video and audio cables from a computer here.
AV IN (AV/S-VIDEO)3. – Connect the input source for composite video devices, such as a

VCR or video game. Use the white and red connectors to connect the external audio from
the same source. The signal being carried by the S-Video cable and connector, if connected,
will take priority over the Video RCA connector (yellow connector).

USB

COMPONENT (Y/Pb/Pr with Audio L/R)4. – Connect the primary source for component
video devices such as a DVD Player or set top box here. Use red for Pr, blue for Pb, green for Y,
red for right audio (R) and white for left audio (L) inputs.

ANTENNA/CABLE DIGITAL/ANALOG5. – Connect to an antenna or digital cable (out-
of-the-wall, not from Cable Box) for Digital TV.

SPDIF (Optical Digital Audio Out)6. – When a digital audio signal is associated with the
input selected for viewing, the digital audio will be available on this SPDIF connection to
your home theater system.

USB PORT7. – Insert USB storage device to the USB port to view photos or listen to music.
Earphone Output8. – Connect to the headphones. When the headphone is inserted to the

plug, all the speakers will be muted.

Once your equipment is connected, use the following procedure to view the input signal:
Press the Source button on the remote control to select the relevant source to view. (ex: Press Comp
button to select “Component” if you have connected a video recorder to Component socket.)

12

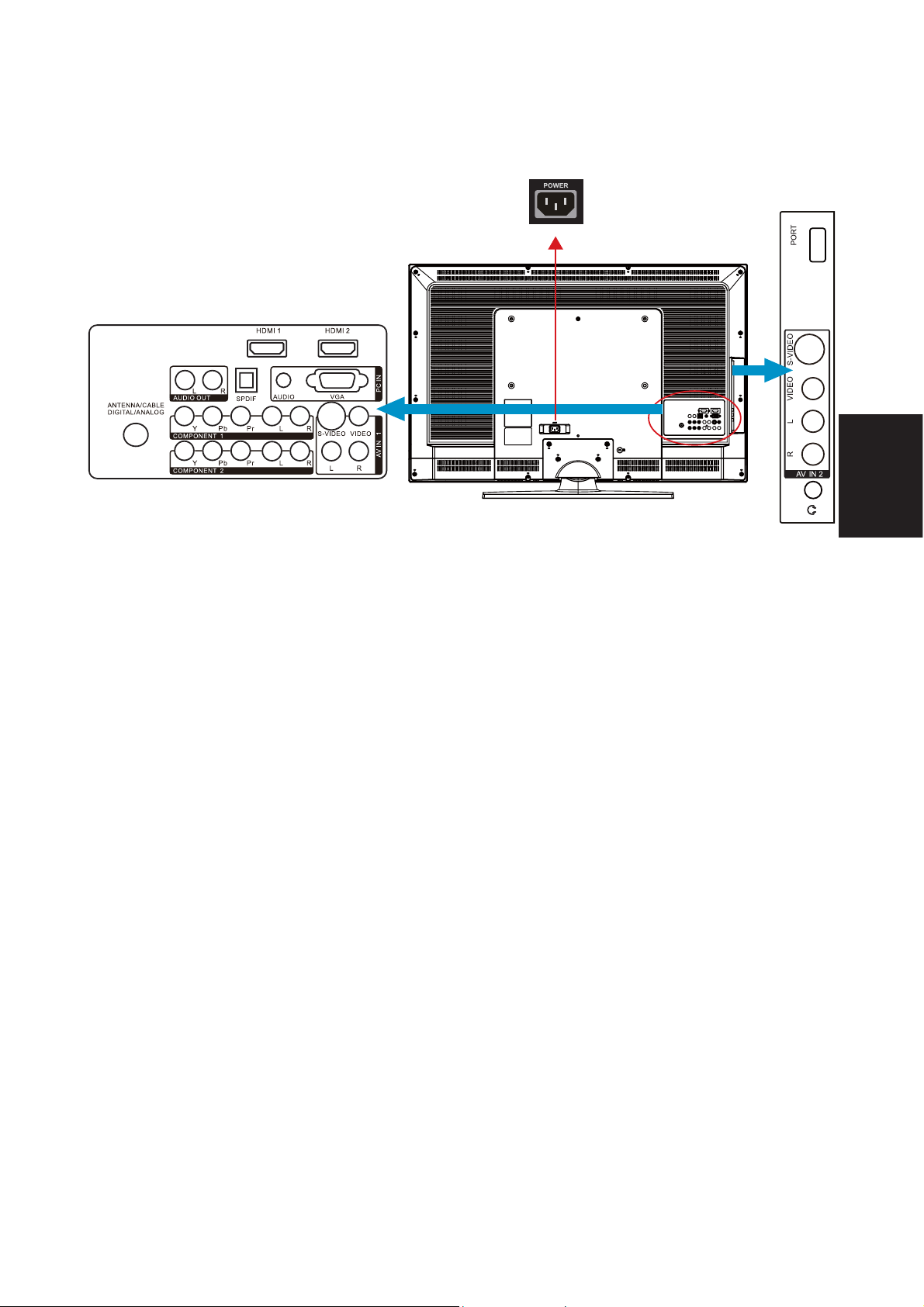

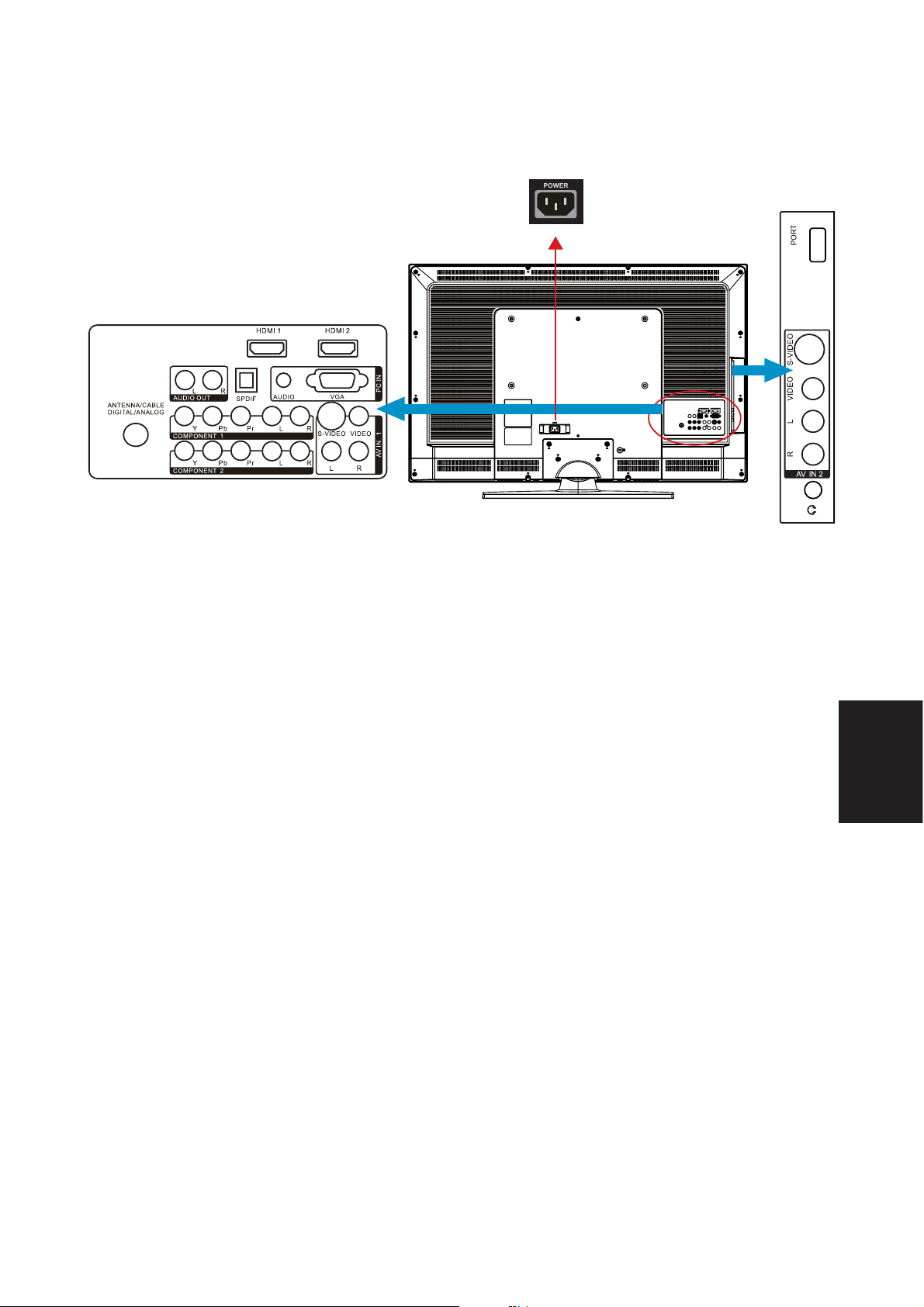

For HL32D2 / HL42XD2

AC POWER

USB

HDMI1. – Connect the primary source for digital video such as a DVD multimedia player or
set top box through this all digital connector.

PC IN2. – Connect the video and audio cables from a computer here.
AV IN (AV/S-VIDEO)3. – Connect the input source for composite video devices, such as a

VCR or video game. Use the white and red connectors to connect the external audio from
the same source. The signal being carried by the S-Video cable and connector, if connected,
will take priority over the Video RCA connector (yellow connector).

hsilgnE

COMPONENT (Y/Pb/Pr with Audio L/R)4. – Connect the primary source for component
video devices such as a DVD Player or set top box here. Use red for Pr, blue for Pb, green for Y,
red for right audio (R) and white for left audio (L) inputs.

ANTENNA/CABLE DIGITAL/ANALOG5. – Connect to an antenna or digital cable (out-
of-the-wall, not from Cable Box) for Digital TV.

SPDIF (Optical Digital Audio Out)6. – When a digital audio signal is associated with the
input selected for viewing, the digital audio will be available on this SPDIF connection to your
home theater system.

AUDIO OUT7. – Connect an external sound system with standard audio cable to the
AUDIO OUT L and R jacks on the back of your TV and to the AUDIO IN jacks on the
amplifier.

USB PORT8. – Insert USB storage device to the USB port to view photos or listen to music.
Earphone Output9. – Connect to the headphones. When the headphone is inserted to the

plug, all the speakers will be muted.

Once your equipment is connected, use the following procedure to view the input signal:
Press the Source button on the remote control to select the relevant source to view. (ex: Press Comp
button to select “Component” if you have connected a video recorder to Component socket.)

13

OPERATING INSTRUCTIONS

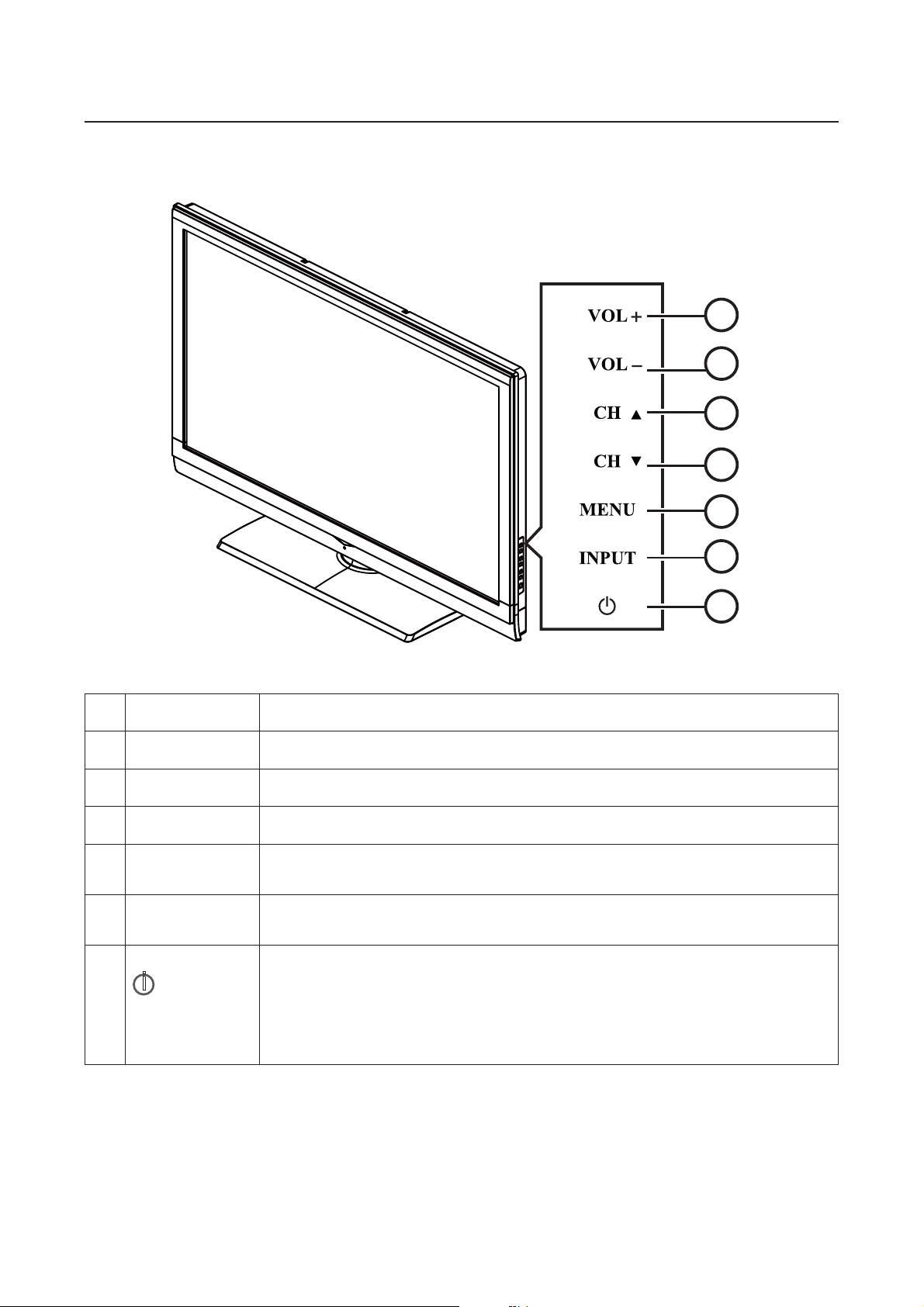

TO USE THE FRONT PANEL CONTROL

1

2

3

4

5

6

1 VOL + Press to increase the sound volume level.

2. VOL - Press to decrease the sound volume level.

3. CH

4. CH

5. MENU Press to open or exit the OSD (on-screen display) menu.

6. INPUT Press to select the input source.

7.

▲

▼

i POWER

Press to select the next higher program number.

Press to select the next lower program number.

Press to turn on / off (standby) the TV set. (Press to turn on TV after the
power on status, LED had changed to Blue and stopped flashing.)

7

14

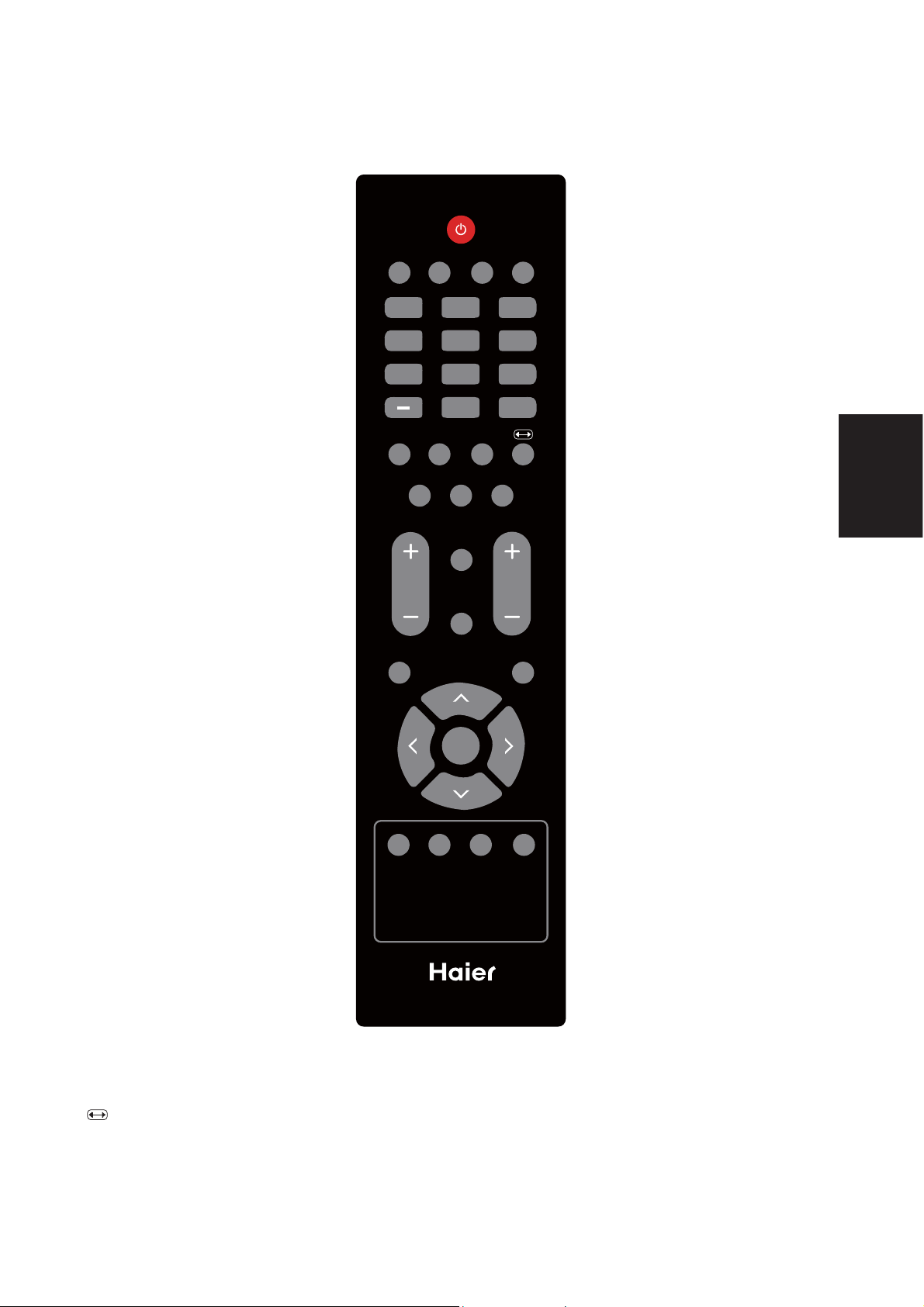

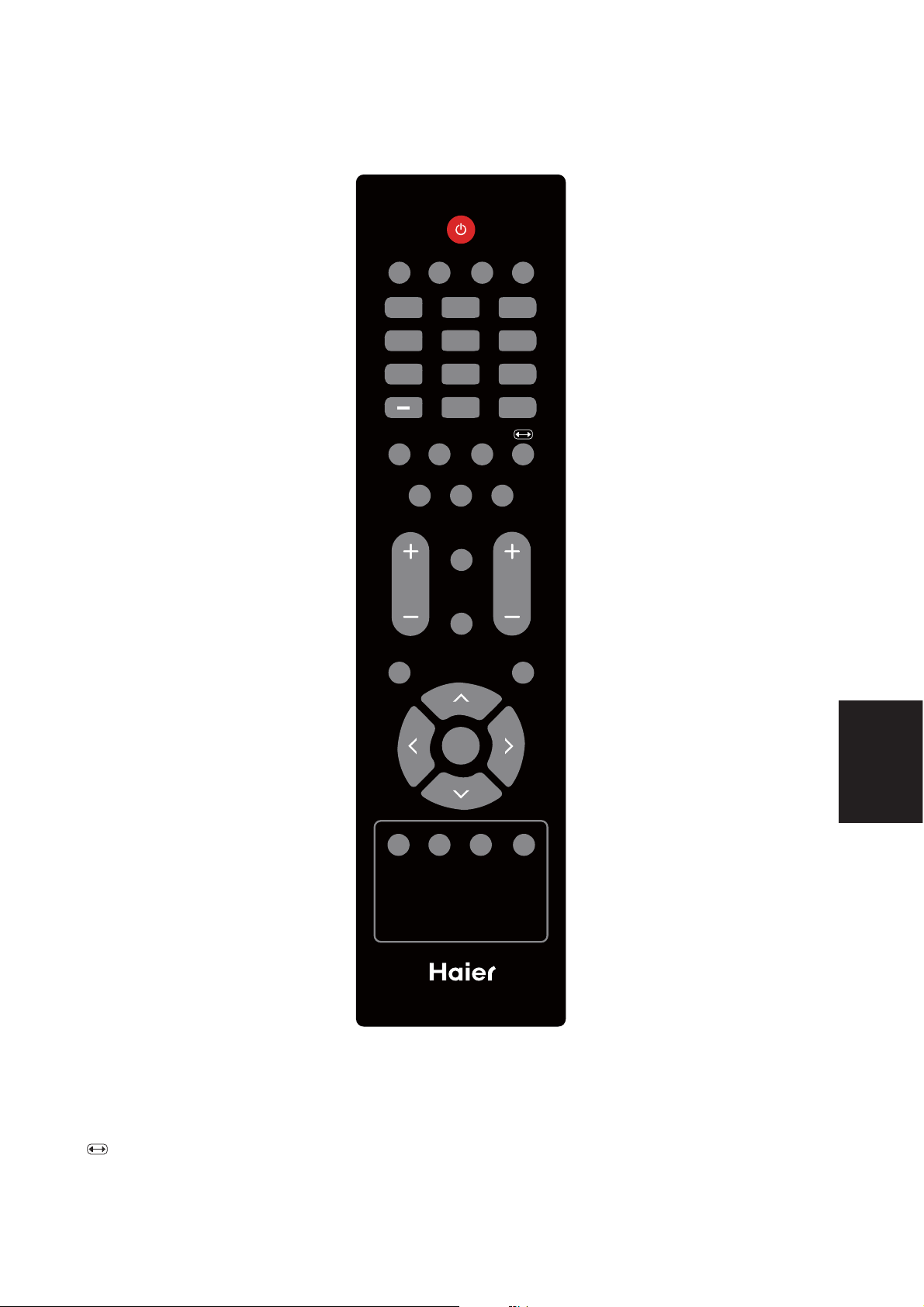

TO USE THE REMOTE CONTROL

Power

Press to power ON/OFF
(standby) TV. (Note: 1. TV is never
completely power off unless
physically unplugged. 2. Press to
turn on TV after the power on
status, LED had changed to blue
and stopped flashing.)

Video

Press repeatedly to choose
S-Video/Composite source
mode.

Comp

Press to choose Component
source mode.

PC/HDMI

Press repeatedly to choose VGA
or HDMI source mode.

TV

Press to choose ATSC/NTSC TV
source mode.

0 ~ 9 /

number

–

Press to enter TV channel
number to select channel (Press
‘-’ to choose the sub-channel).

PREV CH

Press to display the previous
channel.

Sleep

Press to set the preset time to
switch the TV to standby mode
automatically (off / 5 / 10 / 15
/ 30 / 60 / 90 / 120 / 180 /240
mins).

Freeze

Press to freeze the displayed
picture.

MTS/SAP

Press to activate the NTSC TV
sounds, such as: Stereo, SAP or
Mono tone, and languages of
DTV.

Wide

Press to choose the display
aspect as: Normal, Zoom1, Wide,
Zoom2, or HDMI PC mode.

Power

Comp PC/HDMI TV

Video

123

456

789

PREV CH

0

Sleep

Freeze MTS/SAP

Fav Source

Menu Exit

ENTER

V-Chip

Video Adj Audio Adj

EPG

Mute

VOLCH

Info

C.C.

Fav

Press "Fav" to open or toggle
channel item in Favorite Channel
List.

Source

Press repeatedly to choose the
various input sources.

EPG

Press to display the Electronic
Program Guide.

CH+ / CH -

Press + or - to browse through
the TV channels.

Mute

Switch the sound ON/OFF.

Info

Press to show the information
about the input source, TV
channel, display resolution and
current time.

VOL+ / VOL-

Press + or - to adjust the volume.

Menu

Press to open or exit menu.

<, >

, <, >, ENTER

Press to adjust the various
function items on the menu.

Exit

Press to exit menu or OSD.

V-Chip

Press to lock Parental Control
temporarily. (After setting the
restricted table of MPAA or TV
Rating.)

Video Adj

Provide video modes switching.

Audio Adj

Provide audio modes switching.

C. C.

Press repeatedly to change the
closed caption type as CC On/CC
Off/CC On With Mute.

hsilgnE

15

TO USE THE MENUS

VIDEO MENU

Press the 1. Menu button to display or close
the main menu.

Use the 2. Navigation Ring to move around
to select, adjust or confirm an item in the
OSD (On Screen Display) menu.

Press the Menu button to enter the main
OSD. Adjust the items including Video menu,

Audio menu, Feature menu, Channel
menu, and VGA menu. However, some

function items in the menus may only be
enabled in the particular source modes.

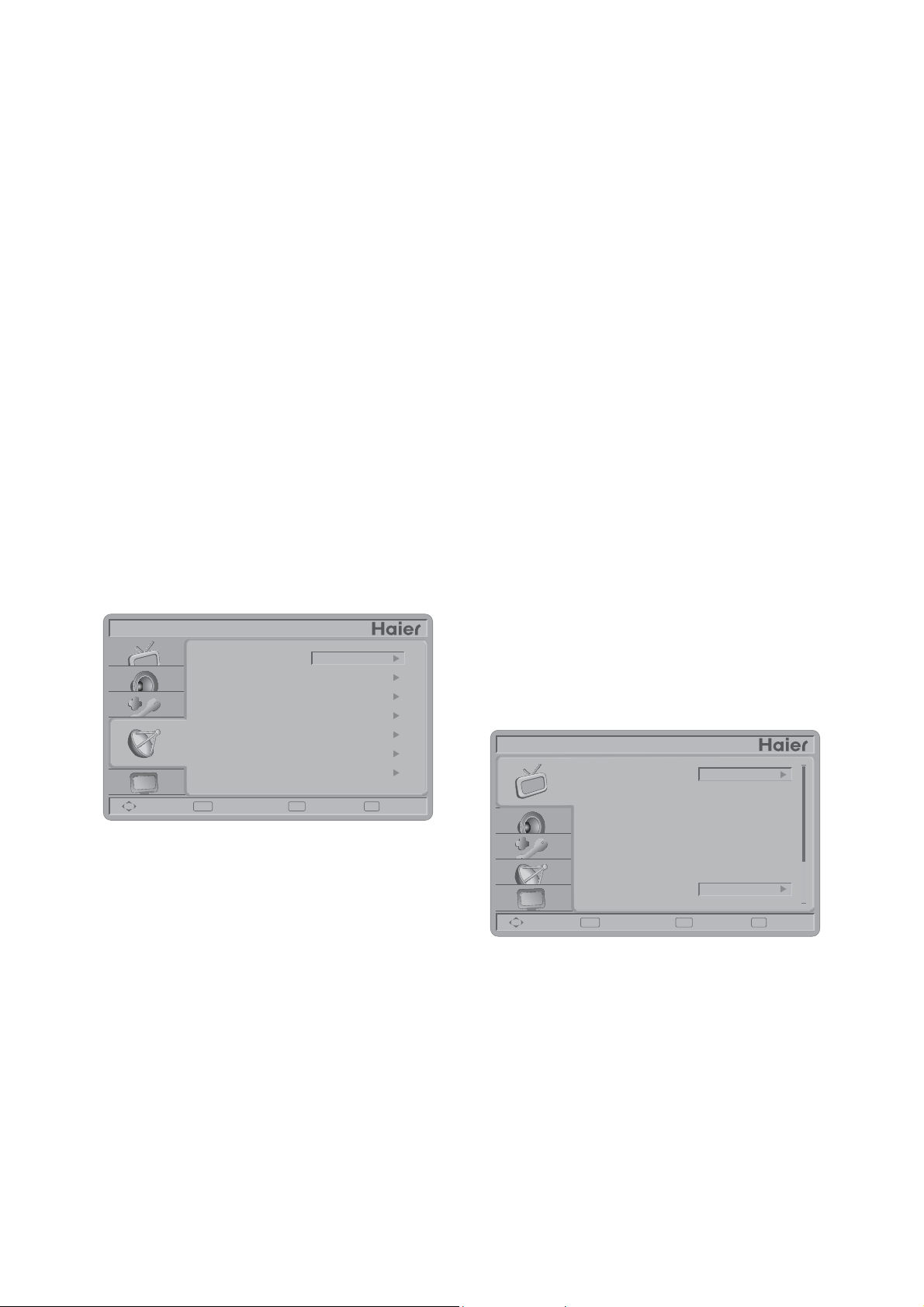

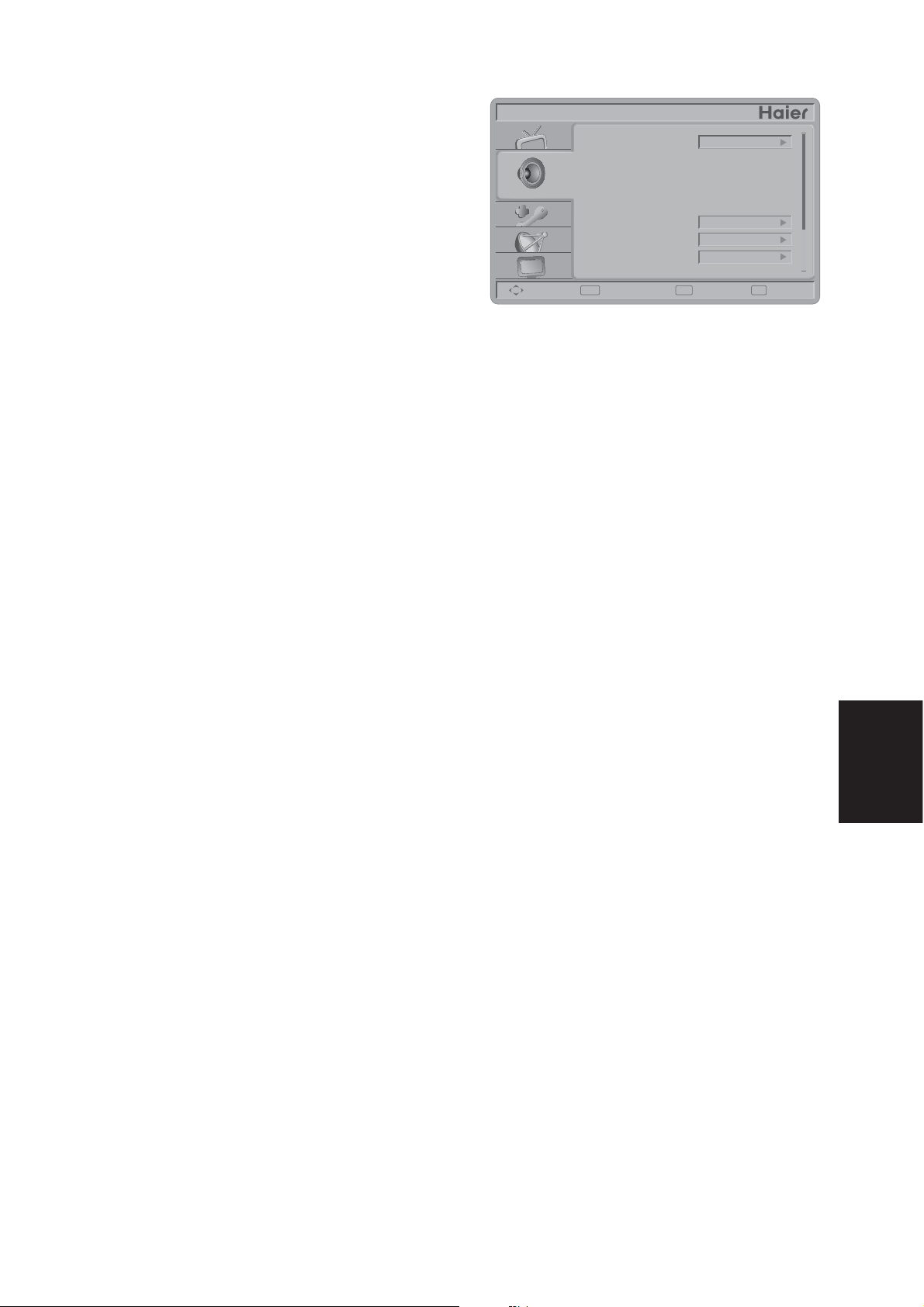

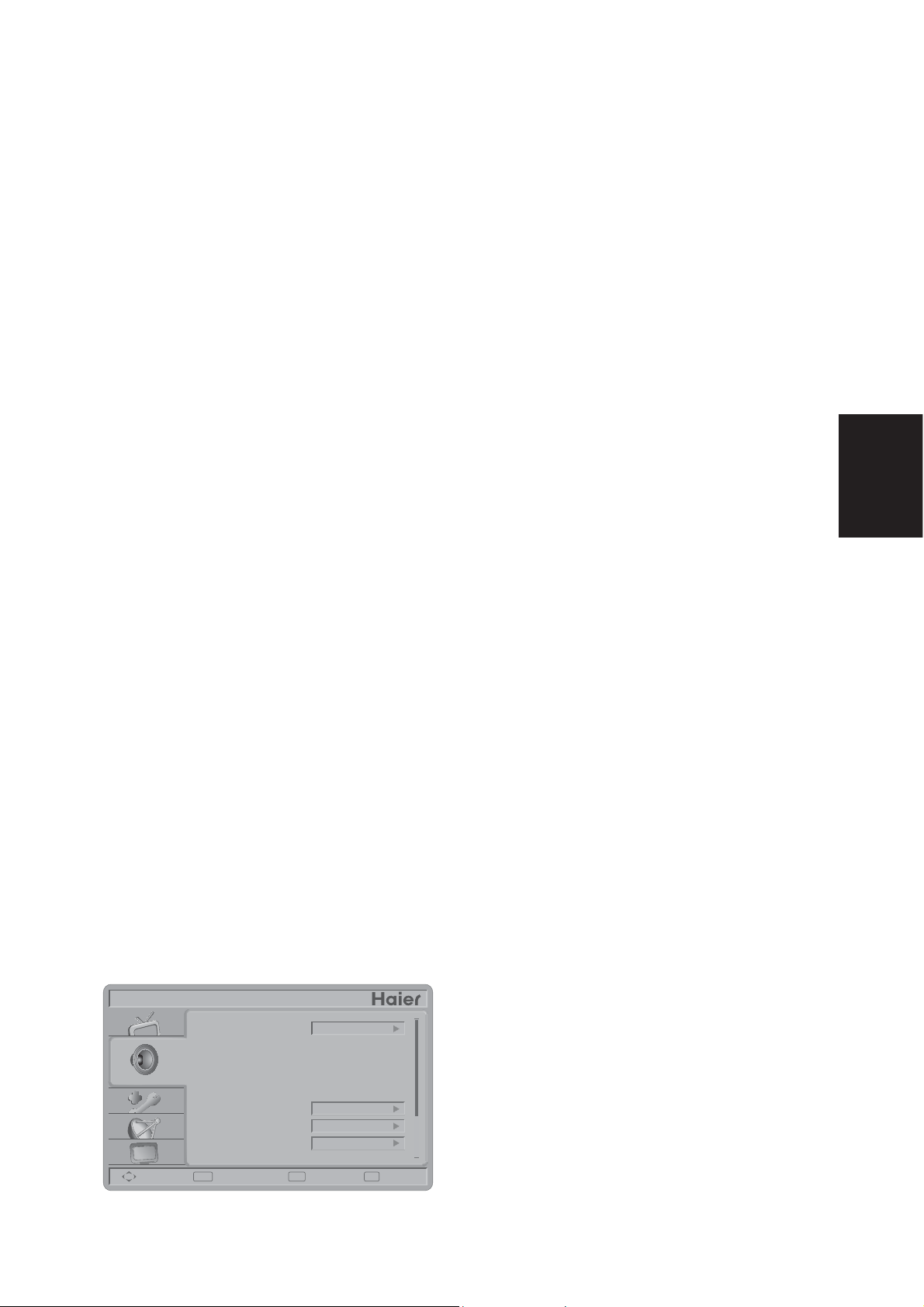

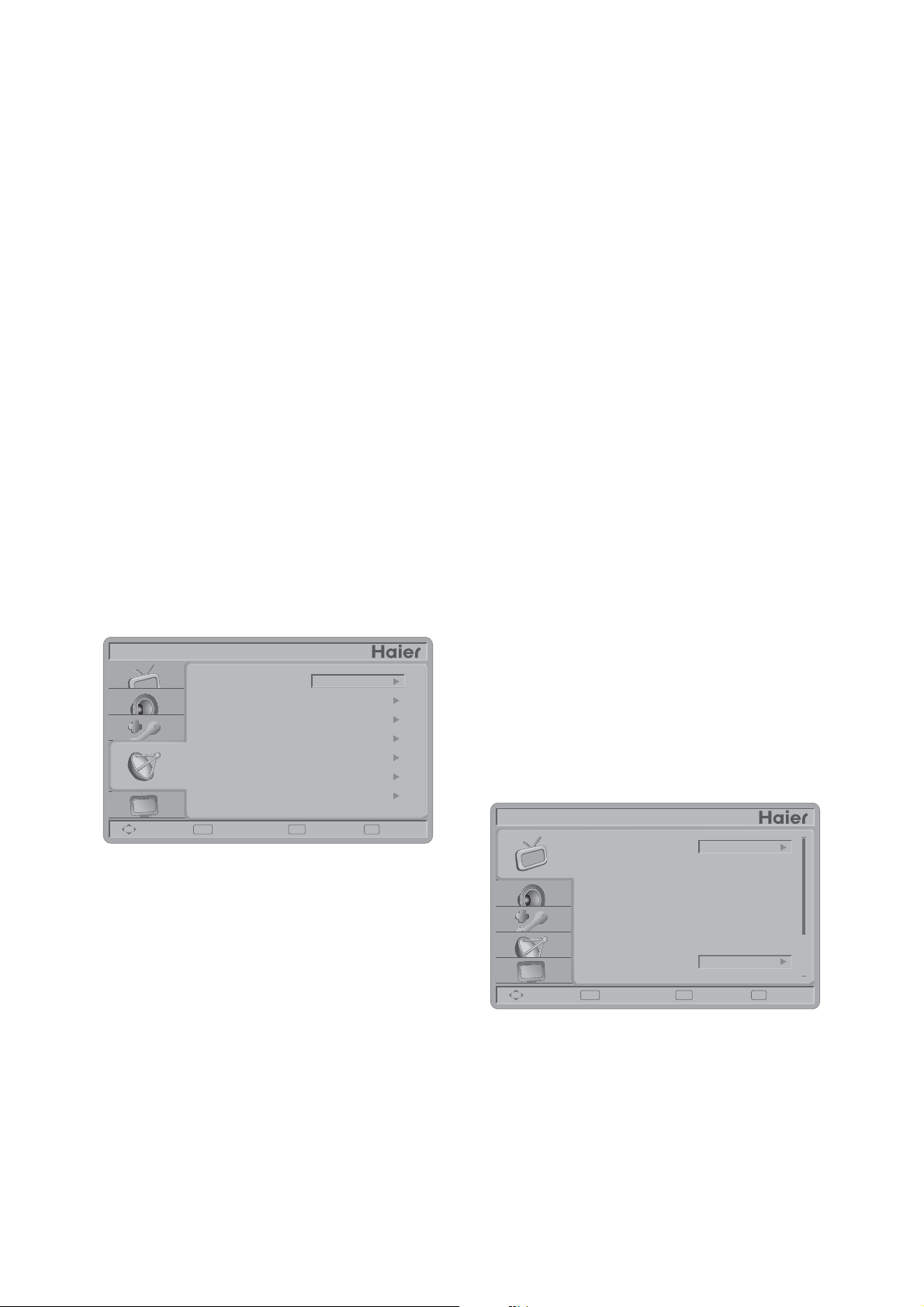

CHANNEL MENU

The Channel menu in TV mode shows as
below.

CHANNEL

Tuning Band

Channel Strength

Auto CH Search

Add on CH Search

Channels List

Channel Labels

FAV Channel Setting

Air

The Video menu in most source modes shows
as below. It provides several video adjustment
items for user fine tuning the video display.
Only in VGA source mode, the Video menu
simply provides Picture mode, Color Temp,
Backlight, Aspect Ratio, Preset items.

VIDEO

Picture Mode

Brightness

Contrast

Sharpness

Color

Tint

Color Temp

Move Select Return Exit

ENTER

Vivid

40

30

50

62

0

Cool

ExitMenu

Picture Mode:1. Adjust the best picture
appearance from selecting the preset value
of Vivid, Standard, Eco, Movie, or Personal.

Brightness:2. Video brightness adjustment,
the tuning range is 0 ~ 100.

Contrast:3. Video contrast adjustment, the
tuning range is 0 ~ 100.

Move Select Return Exit

ENTER

ExitMenu

Sharpness:4. Video sharpness adjustment,
the tuning range is 0 ~ 100.

Tuning Band:1. Select TV source signal
from the Air (antenna) or Cable (CATV).

Channel Strength:2. Show the intensity of
the received DTV signal.

Auto CH Search:3. Automatically scan
all NTSC / ATSC TV channels and then
store in the channel table. In channel scan
process, the OSD can display the number

Color:5. Video color chroma adjustment,
the tuning range is 0 ~ 100.

Tint:6. Video tint adjustment, the tuning
range is R50 ~ G50.

Color Temp:7. Three color temperature
modes. (Normal / Warm / Cool)

Noise Reduction:8. Gives four NR effect
degrees, such as: Low, Mid, High and Off.

of channels which had been found.
Add on CH Search:4. Add channels which

are new found.
Channel List:5. Show the Channel List.

User can edit (add/delete) the channel
numbers.

Channel Labels:6. Show the NTSC /
ATSC TV Channel Labels menu for user
modifying channel labels specifically.

FAV Channel Setting:7. Show the Favorite

Adaptive Contrast:9. Choose On or Off

to adjust the gamma after analyzing the
input signal automatically.

Backlight:10. Backlight strength adjustment,
the tuning range is 0 ~ 30.

Aspect Ratio:11. Choose the display aspect:
Normal, Zoom1, Wide, Zoom2, or HDMI
PC mode.

Preset:12. Restore the default video settings.

Channel List. User can edit (add/delete) the
favorite channels.

16

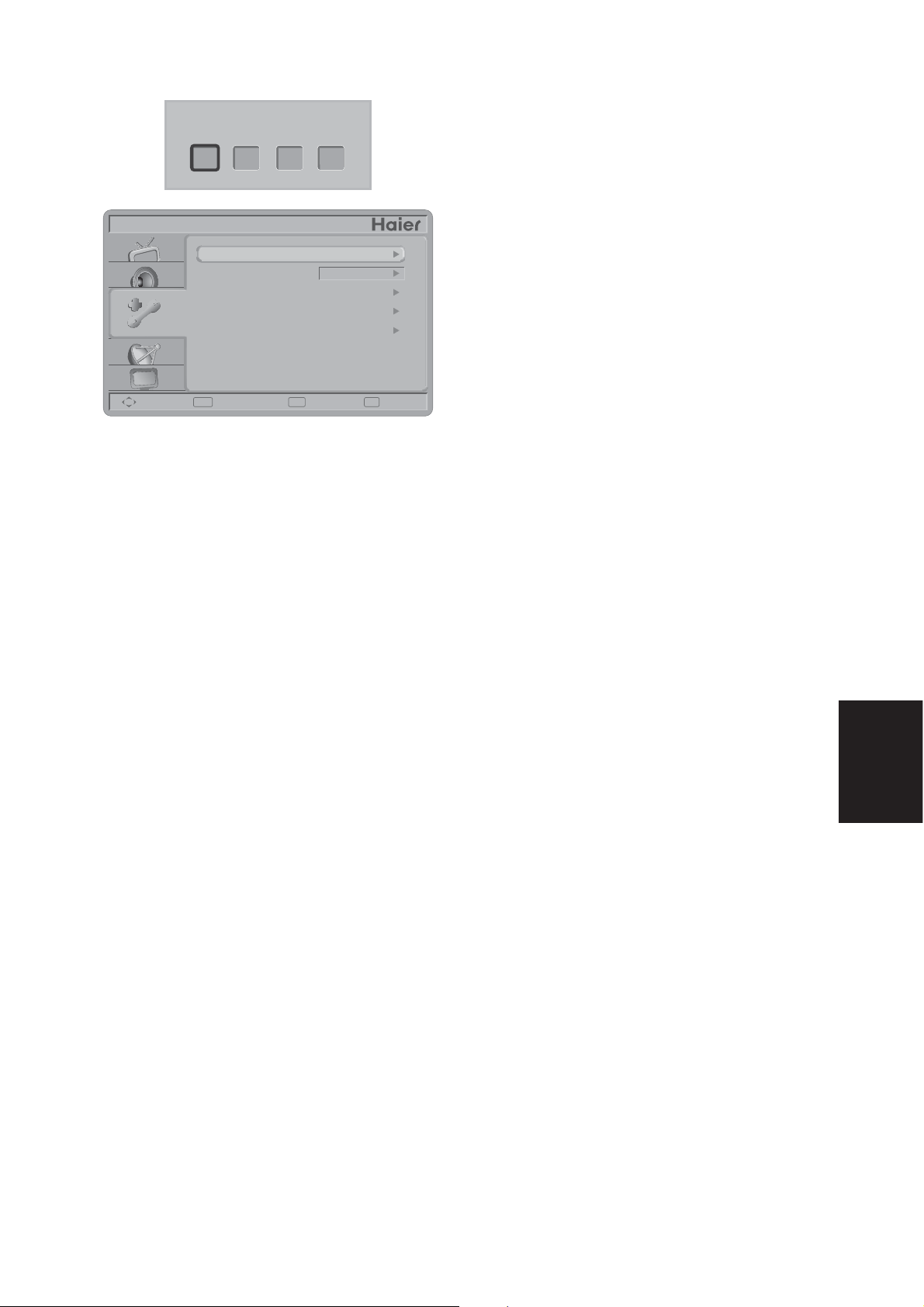

AUDIO MENU

FEATURE MENU

The Audio menu in TV mode shows as below.
It provides audio adjustment for user to modify
the audio setting. Audio language setting is only
available with ATSC TV source, the option is
disable under other source modes.

AUDIO

Sound Mode

Bass

Treble

Balance

Audio Language

SPDIF

Speaker

Move Select Return Exit

ENTER

Personal

32

32

0

English

PCM

On

ExitMenu

Sound Mode:1. Choose the audio mode:
Personal, Music, or Speech.

Bass:2. Bass tone adjustment, the tuning
range is 0 ~ 63. (The default state is
enabled.)

Treble:3. Treble tone adjustment, the
tuning range is 0 ~ 63. (The default state is
enabled.)

Balance:4. Audio balance adjustment, the
tuning range is L50 ~ R50.

The Feature menu in TV mode shows as below.
This menu gives users the most flexibility to
satisfy their generally demands. According to
the various requirements in different source
modes, certain features should be hidden
(disable) on the menu. The detailed footnotes
will be described clearly below.

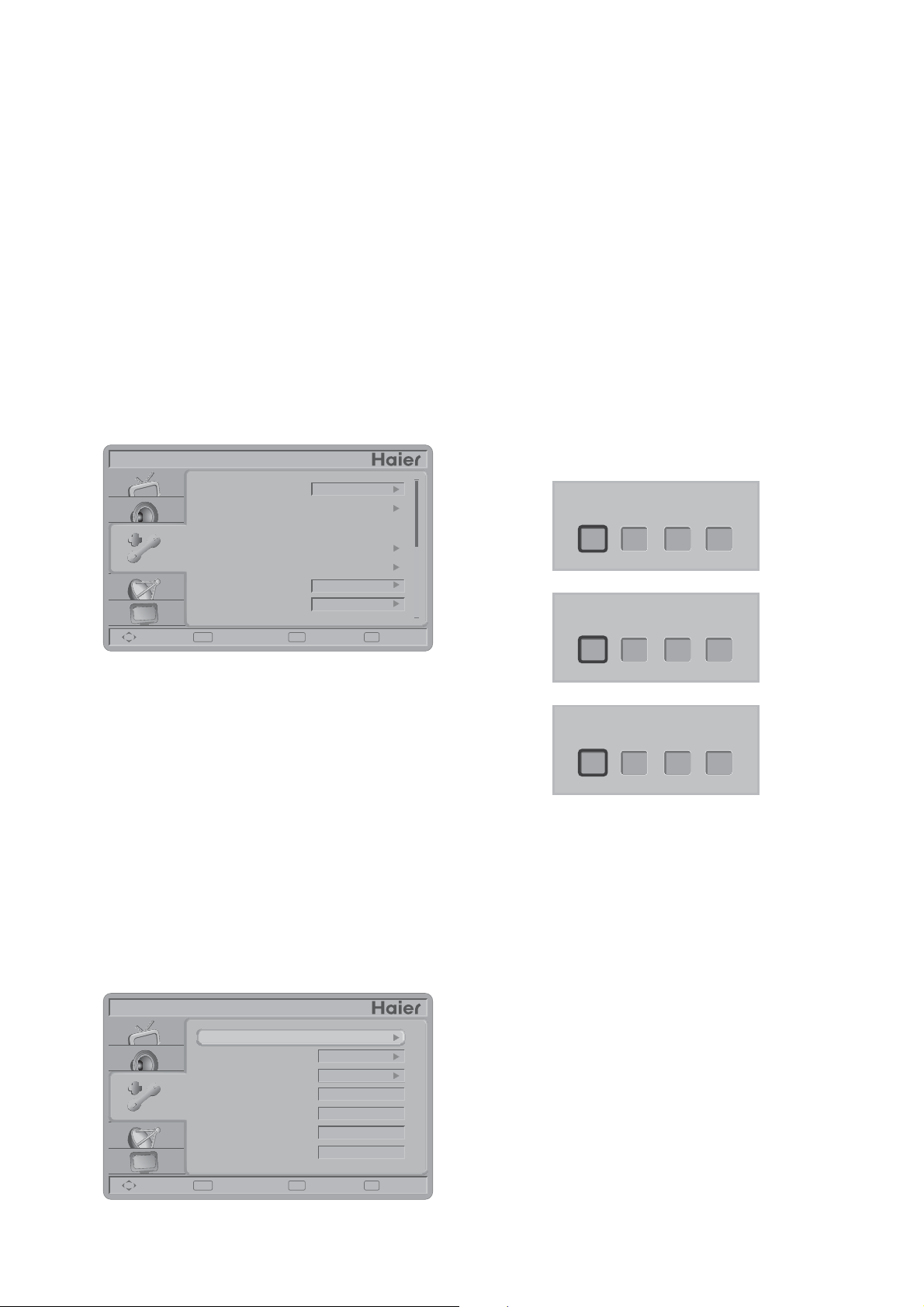

FEATURE

Menu Language

Time

Transparency

Password Setting

Parental Control

Closed Captions

Analog Captions

Move Select Return Exit

ENTER

English

1

With Mute

CC1

ExitMenu

Menu Language:1. Select the menu display
language. (English / Français / Español)

Time:2. Set current time. The sub-menu
includes Time Mode, Time Zone, and
Daylight Savings.

[Time Mode] – Choose from Auto or
Manual.

[Time Zone] – Set current time zone.

hsilgnE

Audio Source:5. Select the audio source
from Mono, Stereo, or SAP. (This function
works in ATV only.)

Audio Language:6. Change the audio
language setting on ATSC TV programs. The
number of the supported audio languages
depends on the ATSC TV programs. (English
/ Français / Español)

SPDIF:7. Digital audio output format. Select
from RAW and PCM. (This function works
in DTV only.)

Speaker:8. Choose to turn on / off the TV
internal speaker. The digital audio output
signals and earphone output signals will not
be turned off even though the TV speaker
is off. The default setting is On.

AVL:9. Choose On or Off to adjust volume
to be consistent across programs and
channels automatically.

Preset:10. Restore the default audio settings.

[Daylight Savings] – Set to On or Off.

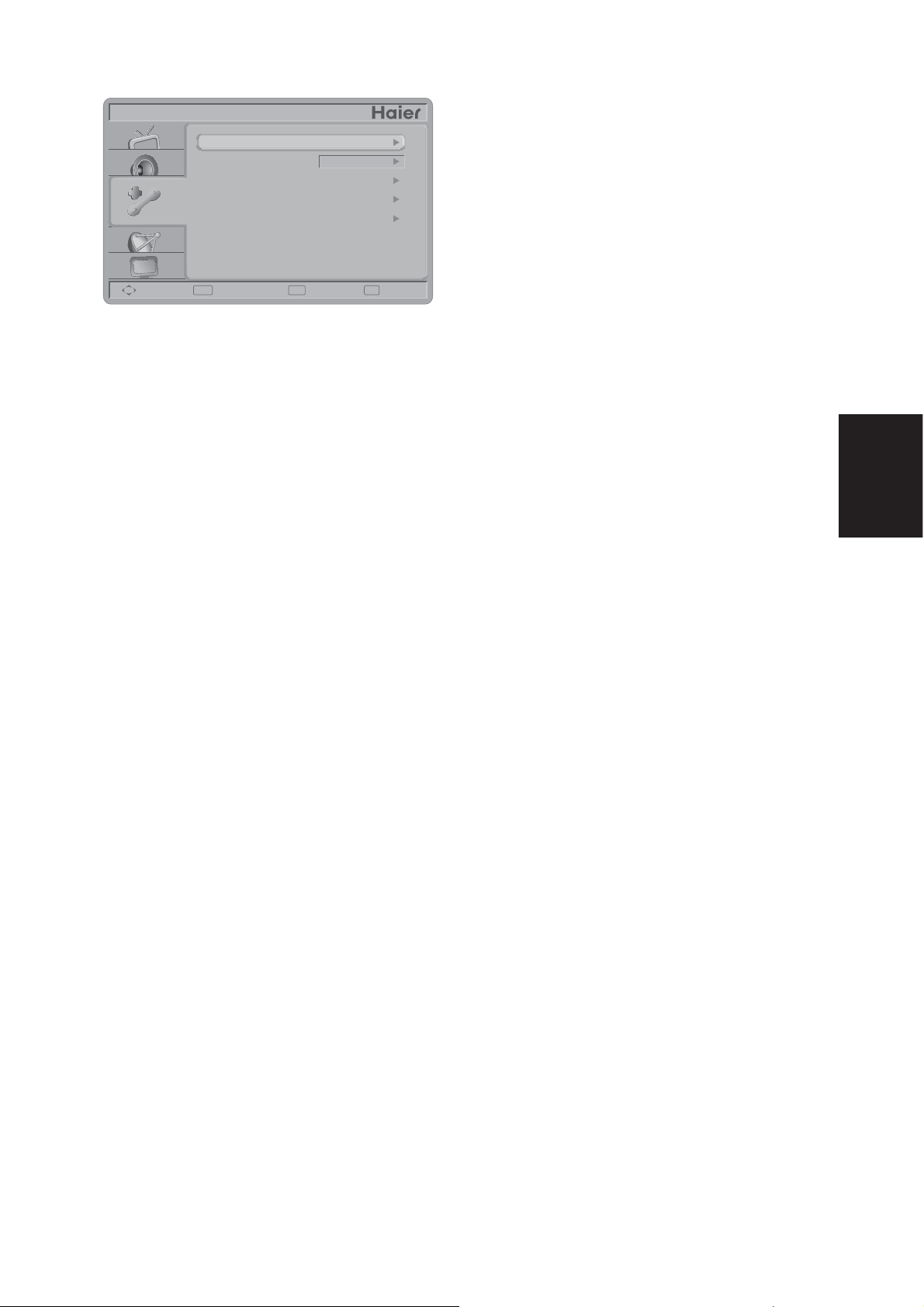

FEATURE Time

Time Mode

Time Zone

Daylight Savings

Year

Month

Day

Time

Move Select Return Exit

ENTER

Auto

HST

On

2010

Jan

1

12:02 AM

ExitMenu

Transparency:3. Adjust the transparency of
the on-screen menu from range 0 to 10.

17

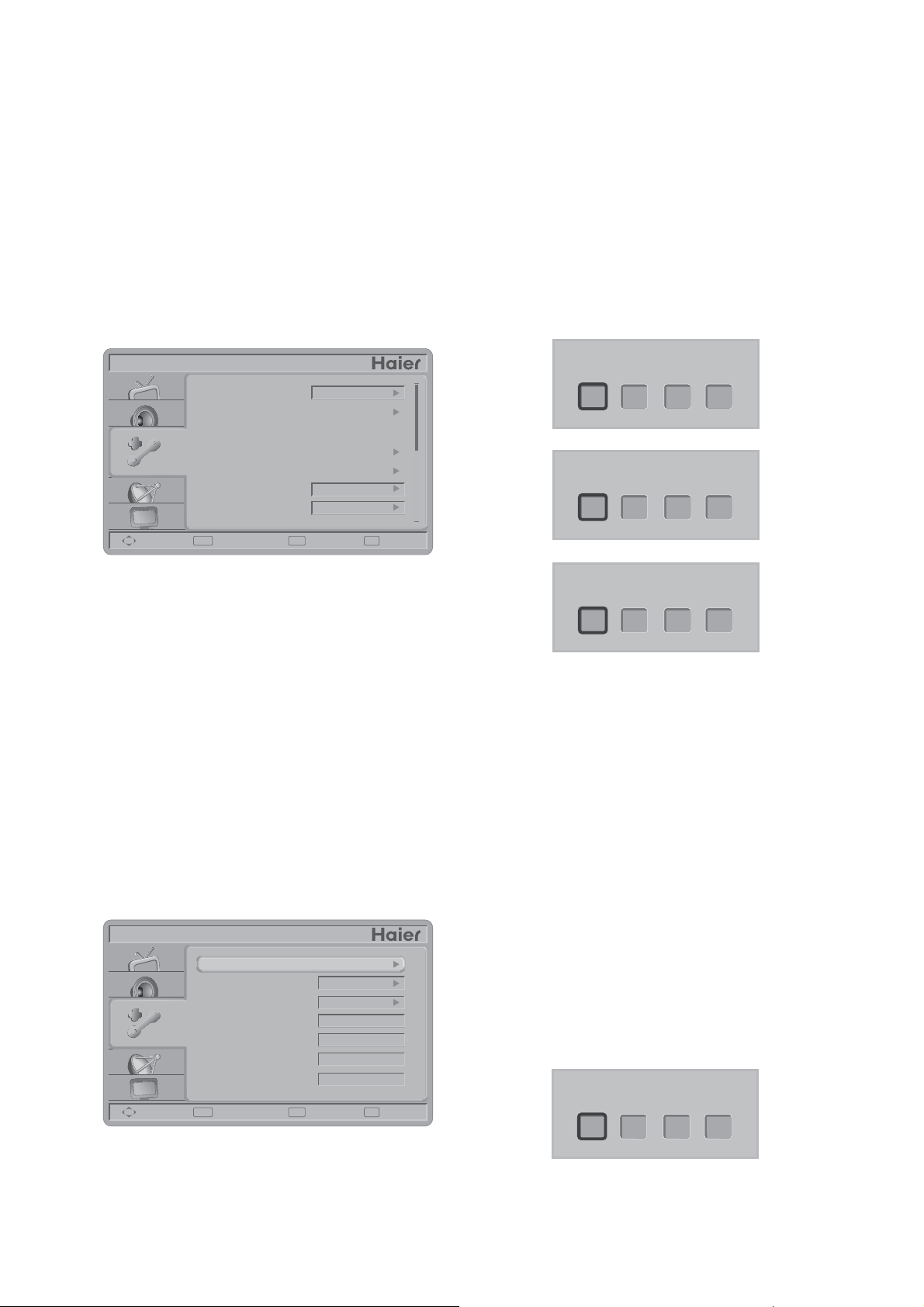

Password Setting:4. Change the 4-numeral
parental control password. Three steps are
required for changing the password: Enter
Old Password -> Enter New Password ->
Confirm New Password. Note: This item is
only available in TV, Composite and S-Video
source modes. The default password is ό0
0 0 0ύ.

Enter Old Password

Enter New Password

Confirm New Password

FEATURE Parental Control

Button Lock

Block Unrated TV

USA Parental Locks

Canadian Parental Locks

Open V-Chip

Move Select Return Exit

ENTER

Off

Off

ExitMenu

[Button Lock] – Select On or Off to lock
or unlock the control buttons on the side
panel of the TV. When this function enables,
the control buttons on your TV will be
locked and TV only can be controlled by
remote control only.

[Block Unrated TV] – When Block
Unrated TV is set to on, your TV will block
unrated program.

[USA Parental Locks] – Set the parental
control level by MPAA or TV Rating.

Parental Control:5. Provide the parental
Control (V-chip) function setting. Before
entering the Parental Control sub-menu,
user has to key in the password first. Enter
the Parental Lock item, then the user can
modify the restricted table about MPAA or
TV Rating respectively. While exiting the
sub-menu, the parental control function is
working. The inhibitive channels or source
signals can be unlock through key in the
correct password.
Note: This feature is only available in TV,
Composite and S-Video source modes.
(The default password is: 0 0 0 0.)

Enter Password

[Canadian Parental Locks] – Set the
parental control level by English Rating or
French Rating.

[Open V-Chip] – Open V-Chip is an
advanced V-Chip rating system for digital
channels that are received.

The rating table will be updated by
downloading the RRT5 data for blocking.

Closed Captions:6. Select a closed caption
options. (Off / On / With Mute)

Analog Captions:7. Select an analog
caption options. (CC 1-4 / TEXT 1-4)

Digital Captions:8. Select a digital caption
options. (SERVICE 1-6)

Digital Captions Setup:9. Provide
numerous options for setting the digital
closed caption style in the sub-menu.

[Style] – Set to Automatic or Customer
mode. If Custom mode is selected, user
can modify the detail styles described
below. The setting result will be shown
immediately on the bottom of the sub­menu OSD. Note: This feature is only
available in Digital TV (ATSC) mode.

18

[Size] – Digital closed caption font size,
which can be set as Automatic, Small,
Normal, or Large.

[Font] – Digital closed caption font style,
which can be chosen as Automatic, Default,
or Font 1 ~ 7.

[Text Color] – Automatic / White / Red
/ Green / Blue / Yellow / Magenta / Cyan /
Black.

[Text Opacity] – Automatic / Solid /
Flashing / Transparent / Translucent.

[Background Color] – Automatic /
Black / White/ Red / Green / Blue / Yellow /
Magenta / Cyan.

[Background Opacity] – Automatic /
Solid / Flashing / Transparent / Translucent.

MultiMedia Menu:12. This option shows
the photos in JPEG formats and plays the
music in MP3 formats that stored in a USB
storage device.
Note: File number is limited to 1000 files.
JPEG sizes are limited as followed:
For 19"/32": 10928x6114
For 24"/42": 15360x8640

There are two ways to enter JPEG Viewer
and MP3 MusicBox interface:

After plugging USB storage device into •
USB hub, Multimedia List menu will
display.

Multimedia List

1. JPEG Viewer

2. MP3 MusicBox

Exit

hsilgnE

[Edge Effect] – Automatic / None
/ Raised / Depressed / Uniform / Left
Shadow / Right Shadow.

[Edge Color] – Automatic / Red / Green
/ Blue / Yellow / Magenta / Cyan / Black /
White.

Input Labels:10. User can edit the input
labels.

Component Setting:11. This option only
shows and is available in component mode,
which provides fine tuning component
display.

[Phase] – Adjust Picture Phase to reduce
Horizontal-Line noise. The tuning range is
from 0 to 31.

[Preset] – Restore the default component
setting values.

Select MultiMedia Menu in Feature •
Menu to choose JPEG Viewer or MP3
MusicBox. These two items are activated
only if the USB storage device is plugged
into the USB hub.

FEATURE

Analog Captions

Digital Captions

Digital Captions Setup

Input Labels

Component Setting

MultiMedia Menu

Reset To Default

Move Select Return Exit

ENTER

English

English

ExitMenu

[JPEG Viewer] – Press Menu to display
control menu. Press Enter to enlarge the
selected photo (orange frame) in browser.

Image Delay:• Set display time for each
picture in slide show. There are three
options: Fast, Slow, and Normal.
Music On Slide Show:• Enable
background Music during slide show. It
will play with the MP3 file sequence in
current folder repeatedly. Music On Slide
Show item will be grayed out if there is
no MP3 file in current folder.
Start Slide Show:• Enter Slide Show
mode.
Rotate Photo:• Rotate selected picture.
(0/90/180/270)

19

Back to Upper Folder: • Return to the
upper folder.
Back to Root Folder:• Return to root
folder.

VGA MENU

This option only shows and is available in VGA
mode, which provides several items for the
VGA display fine tuning.

Back To Browser:• Return to Browser
mode. (Photo page with control menu.)
Exit:• Exit JPEG Viewer and return to
original source. (Browser with Control
menu.)

[MP3 MusicBox]

ListInfoBar (at the bottom):• This

part contains play list information as:
“Current Directory”, “Total File(s)”,
“Total Folder(s)”, “Current Item” in
current directory and Key Help Bar.
PlayList (on the right side):• This part
contains MP3 music files.

H-Position:1. Adjust the horizontal position
of the picture. (0-40)

V-Position:2. Adjust the vertical position of
the picture. (0-16)

Clock:3. Adjust picture clock to reduce
Vertical-Line noise. (0-16)

Phase:4. Adjust picture phase to reduce
Horizontal-Line noise. (0-31)

Auto Adjust:5. Adjust the settings
automatically.

Preset:6. Restore the default VGA setting
values.

ControlPanel (on the left side):•
Bass, Treble, Balance, Volume: Adjust

the audio tone.
Mute Screen: This provides an option

for enabling (On) or disabling (Off) auto
turn-off backlight feature while playing
MP3 media. The setting status is valid in
MP3 media player interface only. After
setting to On state, backlight will be
turned-off automatically after 10 seconds
no any key pressed. Press any key to turn
on the TV immediately; but if there’s no
other keys pressed after 10 seconds, it
will be turned-off again.

Preset: Resetting MP3 relative audio
parameters to the default values.

Exit MP3MusicBox: Exit MP3MusicBox
interface.

Reset to Default:13. Restore all the default
settings.

20

TIPS

Care of the screen

Do not rub or strike the screen with anything
hard as this may scratch, mar, or damage the
screen permanently.

Unplug the power cord before cleaning the
screen. Dust the TV by wiping the screen
and the cabinet with a soft, clean cloth. If the
screen requires additional cleaning, use a clean,
damp cloth. Do not use liquid cleaners or
aerosol cleaners.

Mobile telephone warning

To avoid disturbances in picture and sound,
malfunctioning of your TV or even damage to
the TV, keep away your mobile telephone from
the TV.

End of life directives

We are paying a lot of attention to produce
environmental friendly in green focal areas.
Your new receiver contains materials, which
can be recycled and reused.

At the end of its life, specialized companies
can dismantle the discarded receiver to
concentrate the reusable materials and to
minimize the amount of materials to be
disposed of.

Please ensure you dispose of your old receiver
according to local regulations.

Dolby License Notice and Trademark
Acknowledgement

Regulatory Notices – Federal
Communications Commission Notice

This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:

Reorient or relocate the receiving antenna.•
Increase the separation between the •
equipment and the TV.
Connect the equipment into wall power •
outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio •
or television technician for help.

Modifications

The FCC requires the user to be notified that
any changes or modifications made to this
device that are not expressly approved by
our company may void the user’s authority to
operate the equipment.

hsilgnE

Manufactured under license from Dolby
Laboratories.

Dolby and the double-D symbol are
trademarks of Dolby Laboratories.

Cables

Connections to this device must be made with
shielded cables with metallic RF/EMI connector
hoods to maintain compliance with FCC Rules
and Regulations.

Canadian notice

This Class B digital apparatus meets all
requirements of the Canadian Interference­Causing Equipment Regulations.

Avis Canadian

Cat apparel numerous de la classed B
respected toutes les exigencies du règlement
sur le materiel brouilleur du Canada.

21

PRODUCT SPECIFICATION

NOTE

This model complies with the specifications listed below.v
Designs and specifications are subject to change without notice.v
This model may not be compatible with features and/or specifications that may be added in v
the future.

Model No. HL19D2 HL24XD2 HL32D2 HL42XD2

DISPLAY

Viewable 18.5W" 23.6W" 31.5W" 42W"
Television System NTSC standard, ATSC standard (8-VSB, Clear-QAM)

VHF: 2 through 13
UHF: 14 through 69

Channel Coverage

Cable TV: Mild band (A - 8 through A - 1, A through I),

Super band (J through W),
Hyper band (AA through ZZ, AAA, BBB),
Ultra band (65 through 94, 100 through 125)

CONNECTIONS

Tuner input (75:)
AV IN:
PC IN:

Supported scan rate: 640x480@60/72/75Hz, 720x400@70Hz,

AV/S-Video and L/R audio input
D-SUB and PC Audio (Headphone mini-jack)

800x600@56/60/72/75Hz, 1024x768@60/70/75Hz,
1280x720@60Hz, 1280x768@60Hz
1360x768@60Hz: For HL19D2 / HL32D2 only.

1280x1024@60Hz,

1440x900@60Hz,

1920x1080@60Hz:

For HL24XD2 / HL42XD2 only.

1680x1050@60Hz

Rear Connectors

Side Connectors

Recommended: For HL19D2 / HL32D2: 1360x768

For HL24XD2 / HL42XD2: 1920x1080

Component Video and L/R Audio input

Supported resolution: 480i,480p,720p,1080i, 1080p

HDMI input

Supported scan rates: 480i, 480p, 720p, 1080i, 1080p

AV/S-Video input
AV/S-Video input
SPDIF
HDMI

Earphone Output
USB PORT

AV/S-Video input
SPDIF
HDMI

Earphone Output
USB PORT

SPDIF

HDMI 1

HDMI 2

Audio out

AV IN 2

Earphone Output

USB PORT

AV/S-Video input
SPDIF
HDMI 1
HDMI 2
Audio out
AV IN 2
Earphone Output
USB PORT

22

Model No. HL19D2 HL24XD2 HL32D2 HL42XD2

WEIGHT & DIMENSIOIN

Dimensions
with Stand
(W x H x D)
Dimensions
without Stand
(W x H x D)

Weight with Stand 4.25 Kg 5.75 Kg 12.5 Kg 20.5 Kg
Weight without

Stand and Base

VESA-compatible
wall bracket
(W x H)

Screw type Metric 4 x 10 mm Metric 4 x 10 mm Metric 6 x 10 mm Metric 6 x 10 mm

Power
Consumption

Standby <1W
Mains Power 120V
Audio Power 3W + 3W 3W + 3W 10W + 10W 10W + 10W

Ambient
Temperature

Supplied
Accessories

457.3 mm

324.8 mm

171.29 mm

457.3 mm
308 mm

67.1 mm

3.85 Kg 5.4 Kg 10.6 Kg 17.6 Kg

100 x 100 mm 100 x 100 mm 200 x 200 mm 400 x 200 mm

45W 70W 150W 250W

60Hz

5°C - 35°C

TV unit x1
Base x1
Screws x 4 (for 32” only)
Power cord x 1
Remote control x1 (with two size AAA alkaline batteries)
User manual x1
Registration Card x1

572.2 mm

407.6 mm

176.8 mm

572.2 mm

372.8 mm

65.4 mm

WALL MOUNTING

POWER

PACKAGE CONTENTS

790.5 mm

569.1 mm

239.6 mm

790.5 mm

526.8 mm

91.1 mm

1015.36 mm

703.03 mm

280.50 mm

1015.36 mm

654.67 mm

97.10 mm

hsilgnE

23

BEFORE CALLING SERVICE

Please make these simple checks before calling service. These tips may save you time and money
since charges for receiver installation and adjustments of customer controls are not covered
under your warranty.

Symptoms Items to Check and Actions to follow
“Ghost” or double image This may be caused by obstruction to the antenna due to •

high rise buildings or hills. Using a highly directional antenna
may improve the picture.

No power Check if the TV’s AC power cord is plugged into the mains •

socket.
Unplug the TV, wait for 60 seconds. Then reinsert plug into •
the mains socket and turn on the TV again.

No picture Check antenna connections at the rear of the TV to see if it •

is properly connected to the TV.
Possible broadcast station trouble. •
Try another channel.
Adjust the contrast and brightness settings.•
Check the Closed Captions control. Some TEXT modes •
could block the screen.

Good picture but no sound Increase the VOLUME.•

Good sound but poor color Adjust the contrast, color and brightness settings. •
Poor picture Poor picture quality may occur when an activated S-VHS •

Snowy picture and noise Check the antenna connection. •
Horizontal dotted line This may be caused by electrical interference (e.g. hair dryer, •

Television not responding to
remote control

Check if the TV is muted; press the MUTE button on the •
remote control.

camera or camcorder is connected to your TV and the other
peripheral at the same time. Switch off one of the peripherals.

nearby neon lights, etc.)
Turn off the equipment. •

Check whether the batteries are working. Replace if •
necessary.
Clean the remote control sensor lens on the TV.•
You can still use the buttons at the front of your TV.•
Select the TV mode to ensure your remote control is set in •
the TV mode.

24

GLOSSARY

HDTV

HDTV displays are technically defined as being capable of displaying a minimum of 720p or 1080i
active scan lines.

HDMI Inputs

High-Definition Multimedia Interface

Audio / Video Inputs

Located on the rear of the receiver, these connectors (RCA phono type plug) are used for the
input of audio and video signals. Designed for use with VCRs (or other accessories) in order to
receive higher picture resolution and offer sound connection options.

Menu

An on-screen listing of features shown on the TV screen is made available for user adjustments.

MPAA

Motion Picture Association of America

Multichannel Television Sound (MTS)

The broadcasting standard, which allows stereo sounds to be transmitted with the TV picture.

RF

Radio Frequency or modulated signal design used as the carrier for television broadcasts.

Second Audio Program (SAP)

Another or additional audio channel provided for in the Multichannel Television Sound (MTS)
broadcast standard. A monaural sound track included within the recorded or video signal (usually
containing a second language translation for the displayed program).

hsilgnE

Sleep Timer

You can set a time period for which the TV will be turn off automatically.

S-Video Input

You can connect your TV set to a high-resolution video source (such as Super VHS video­cassette recorder, Laser Disc player, and DVD Home Theater Set) in order to provide maximum
consumer viewing satisfaction.

25

WARRANTY

This Haier brand product, when shipped in its
original container, will be free from defective
workmanship and materials, and agrees that it
will, at its option, either repair the defect or
replace the defective product with a new or
re-manufactured equivalent, for parts or labor
for the periods set forth below:

This warranty does not apply to the
appearance of the product or the exterior
of the product, which has been damaged
or defaced, altered or modified in design
or construction. It does not apply to the
additional excluded items set forth below:

The warranty commences on the date the
item was purchased and the original purchase
receipt must be presented to the authorized
service center before warranty repairs are
rendered.

The limited warranty described herein is
in addition to whatever implied warranties
may be granted to purchasers by law. ALL
IMPLIED WARRANTIES INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR USE ARE LIMITED TO THE
PERIOD(s) FROM THE DATE OF PURCHASE
SET FORTH BELOW. Some states do not allow
limitations on how long an implied warranty
lasts, so the above limitation may not apply to
you.

Neither the sales personnel of the seller nor
any other person is authorized to make any
warranties other than those described herein,
or to extend the duration of any warranties
beyond the time period described herein on
behalf of Haier.

The warranties described herein shall be
the sole and exclusive warranties granted
by Haier and shall be the sole and exclusive
remedy available to the purchaser. Correction
of defects in the manner and for the period
of time described herein, shall constitute
complete fulfillment of all abilities and
Responsibility of Haier to the purchaser with
respect to the product, and shall constitute
full satisfaction of all claims, whether based on
contract, negligence, strict duality or otherwise.
In no event shall Haier be liable, or in any
way responsible for any damages or defects
in the product which were caused by repairs
or attempted repairs performed by anyone
other than an authorized service center or
dealer; nor shall Haier be liable, or in any way
responsible for incidental or consequential
economic or property damage. Some states
do not allow the exclusion of incidental or
consequential damages, so that above exclusion
may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS. YOU MAY ALSO HAVE
OTHER RIGHTS WHICH VARY FROM STATE
TO STATE.

Warranty period for HL19D2 and HL24XD2
1 year parts, 90 days labor; for HL32D2 and
HL42XD2 1 year parts and labor.

Additional items excluded from warranty
coverage: non-rechargeable batteries. What
to do to obtain service or to obtain product
literature, accessories, supplies or customer
assistance: Simply call 1-877-337-3639. Be sure
to have proof of purchase.

26
