Page 1

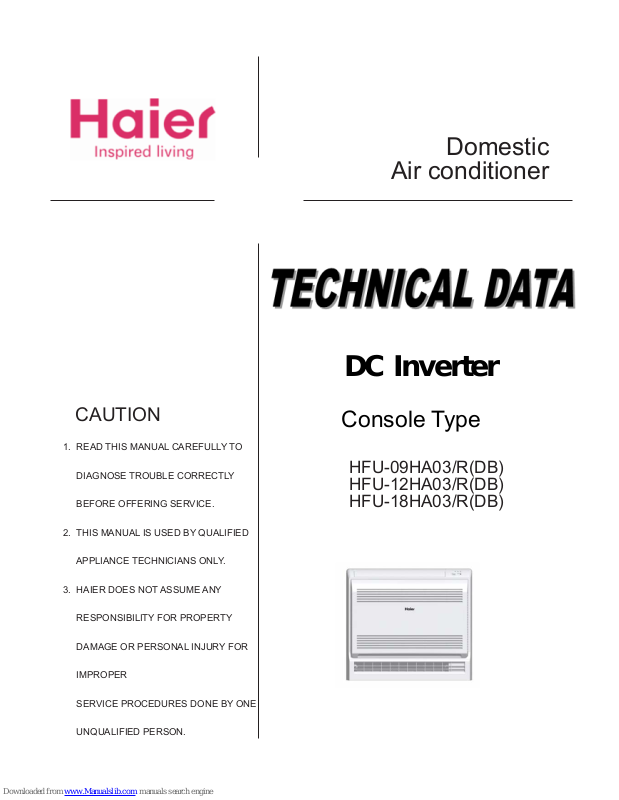

Domestic
Air conditioner
HFU-09HA03/R(DB) HFU-12HA03/R(DB) HFU-18HA03/R(DB)
1. READ THIS MANUAL CAREFULLY TO
DIAGNOSE TROUBLE CORRECTLY
BEFORE OFFERING SERVICE.
2. THIS MANUAL IS USED BY QUALIFIED
3. HAIER DOES NOT ASSUME ANY
RESPONSIBILITY FOR PROPERTY
DAMAGE OR PERSONAL INJURY FOR
IMPROPER
SERVICE PROCEDURES DONE BY ONE
UNQUALIFIED PERSON.
CAUTION
DC Inverter
Console Type
Page 2
stnetnoCfoelbaT
Table of Contents
1. Features.…………………………...…………………………..…….…….…............ 1
2. Specifications……….……………………………….……………. .….….……….. 2
3. Remote controller lists…….…………..………….….….……….………………... 5
4. Sensors lists…...….….…………………………………………………………........ 5
5. Dimensional drawings…………………………………………………………….....6
6. Operation range……………………………………...…………………………….....8
7. Piping diagrams……………………………………………………………. .…….... 9
8. Wiring diagrams………………………………………………….…………….........10

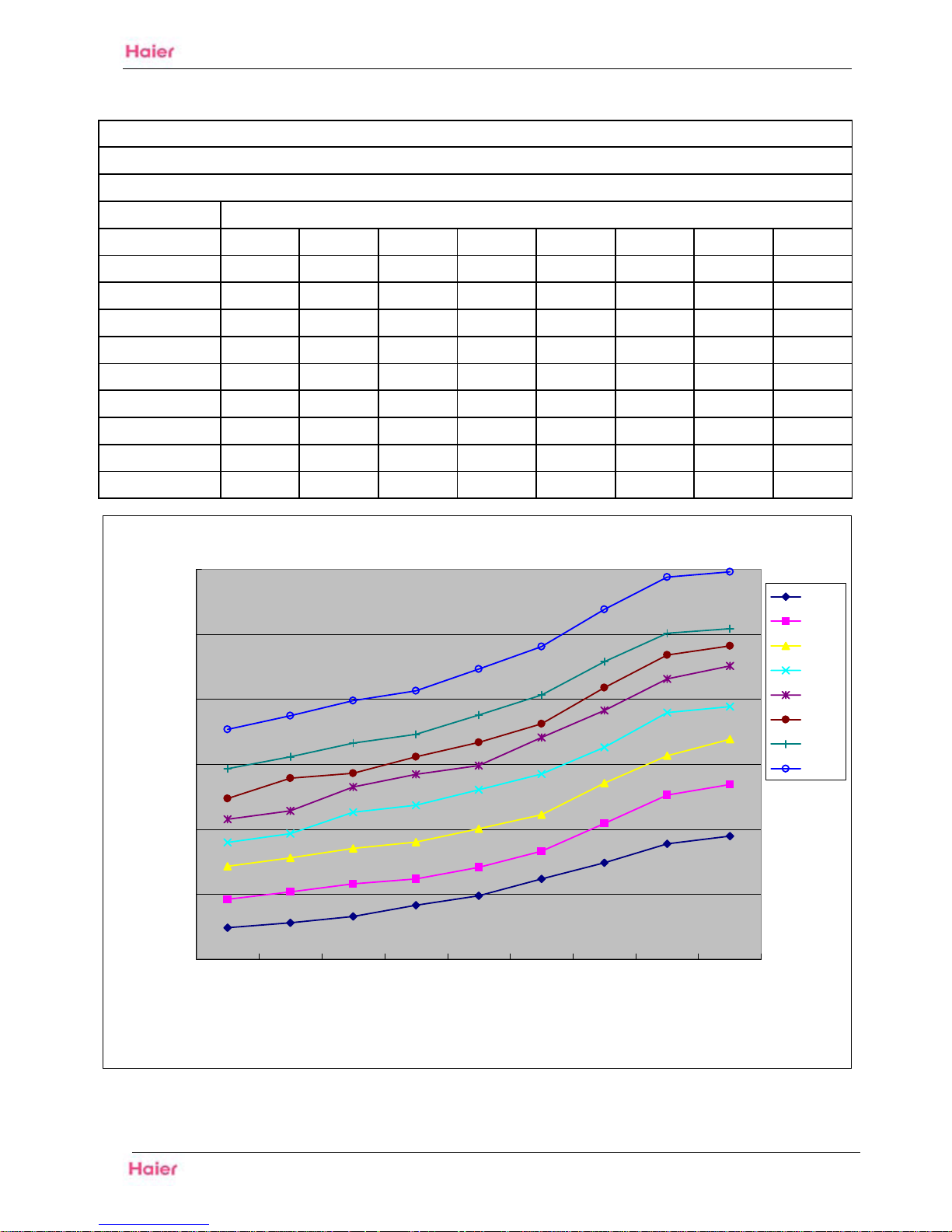

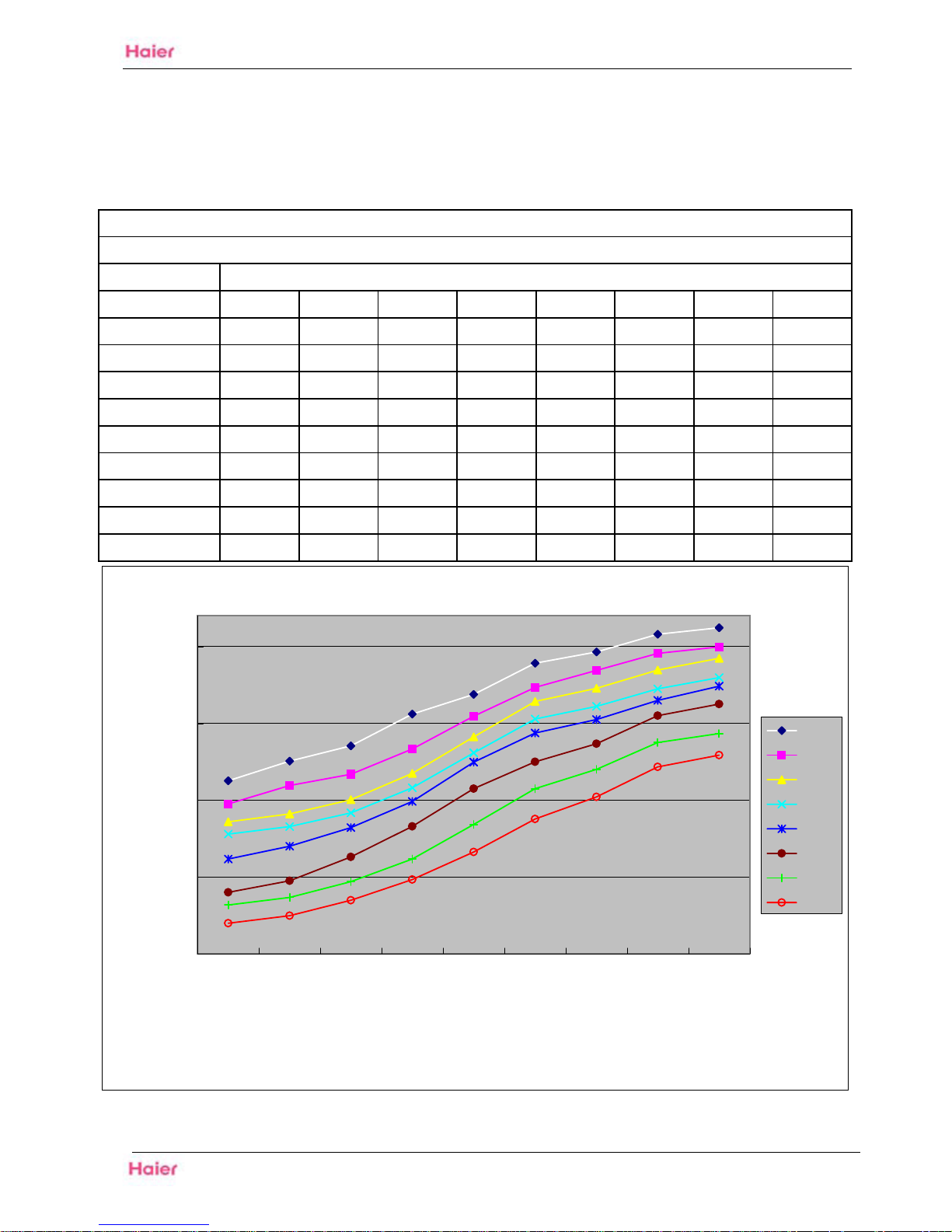

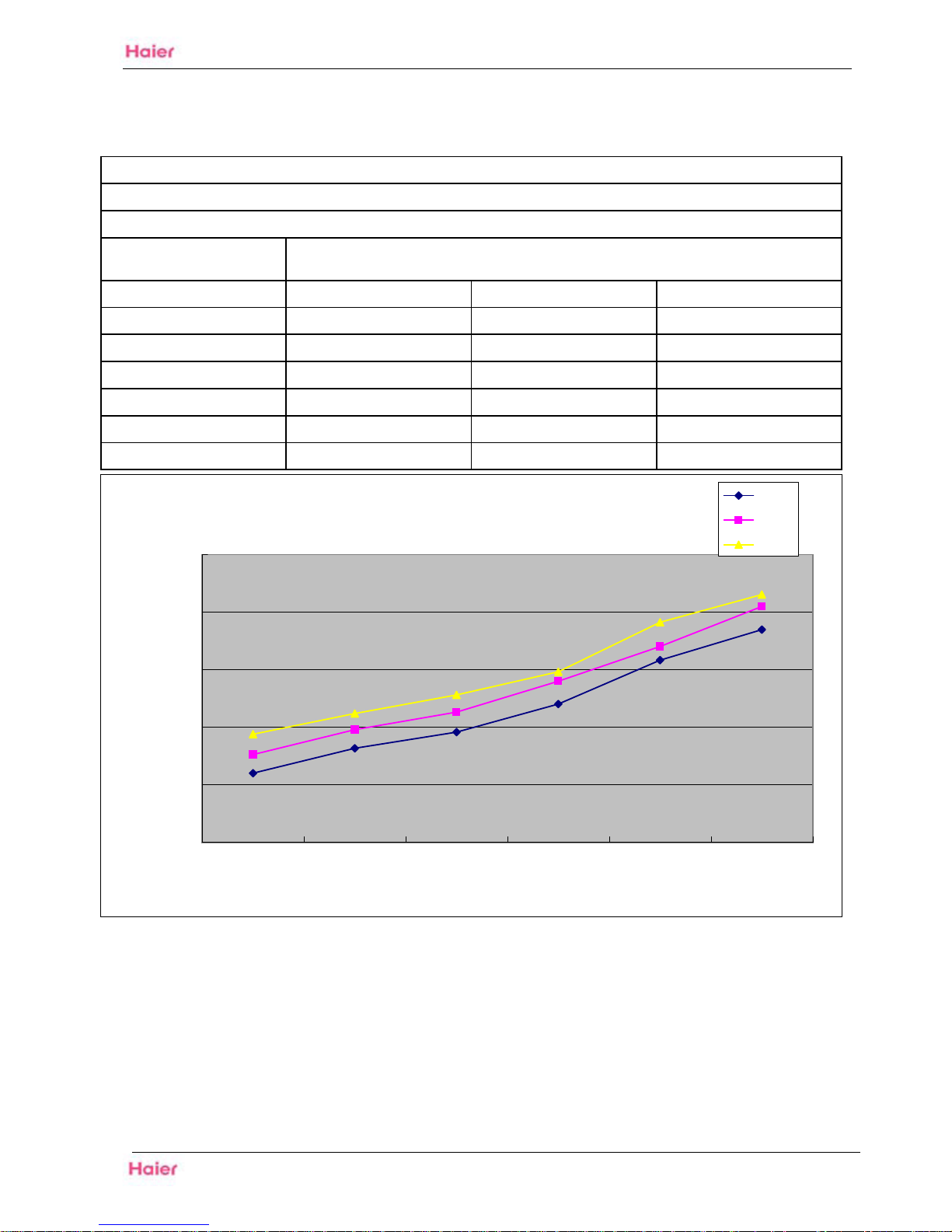

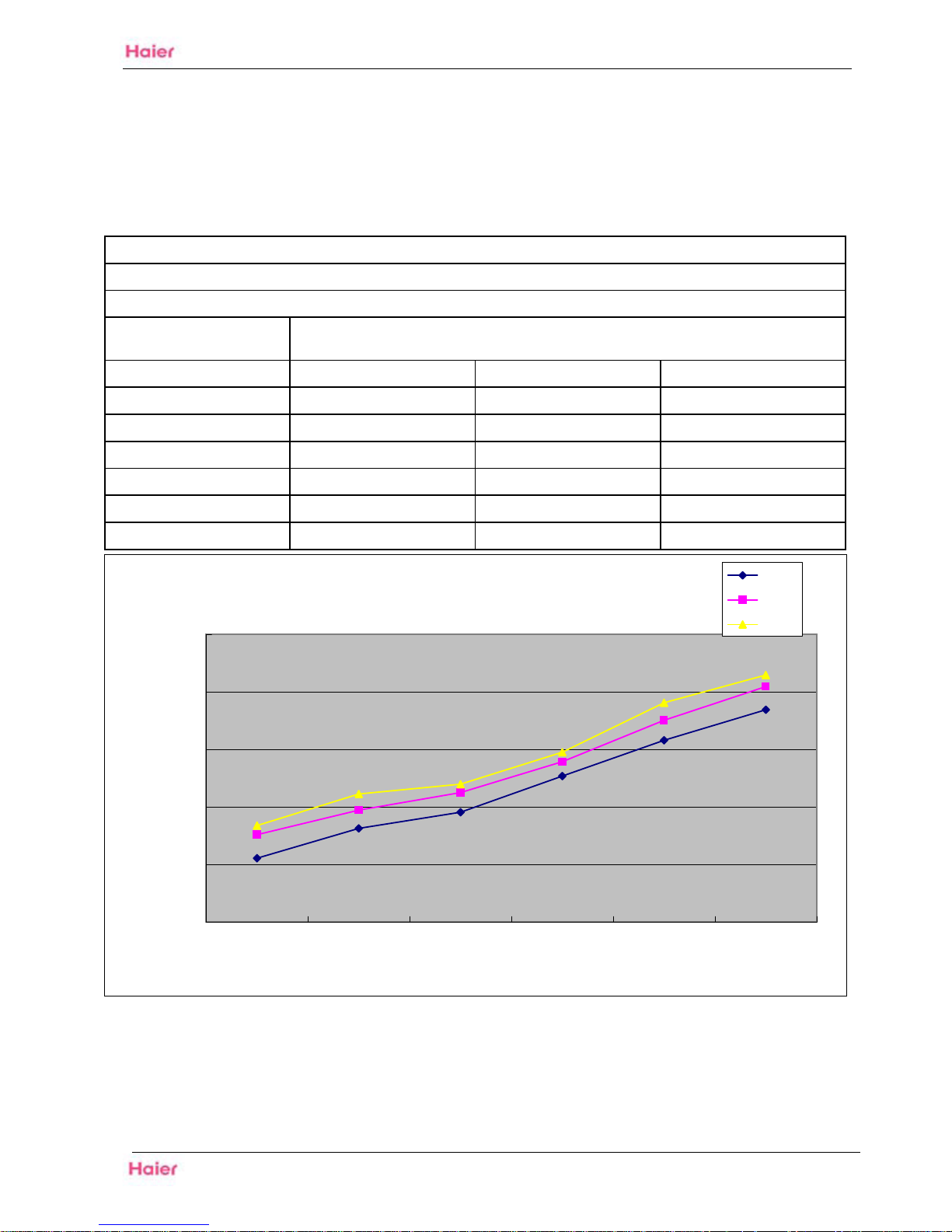

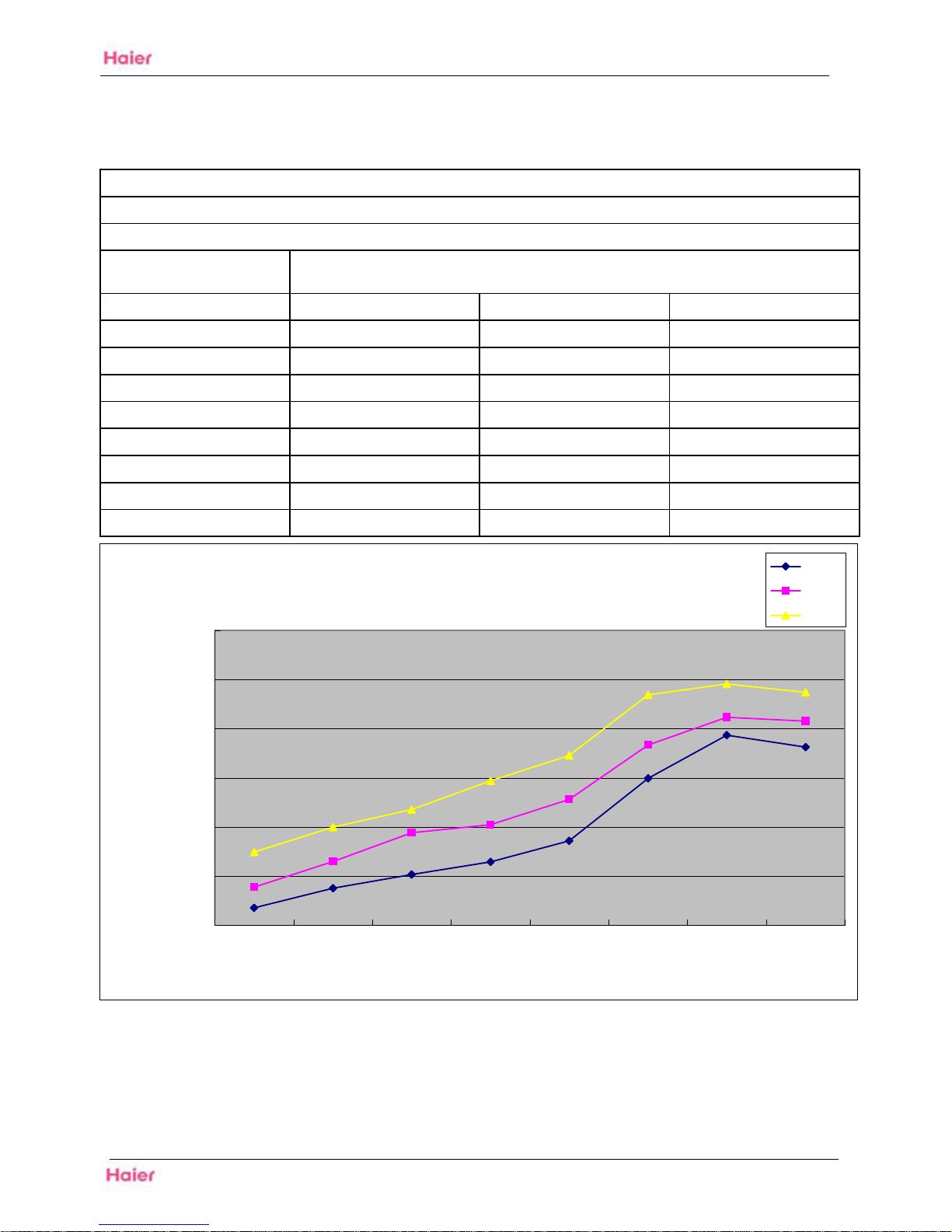

9. Performance curves diagrams ...............………………………………. ……...13

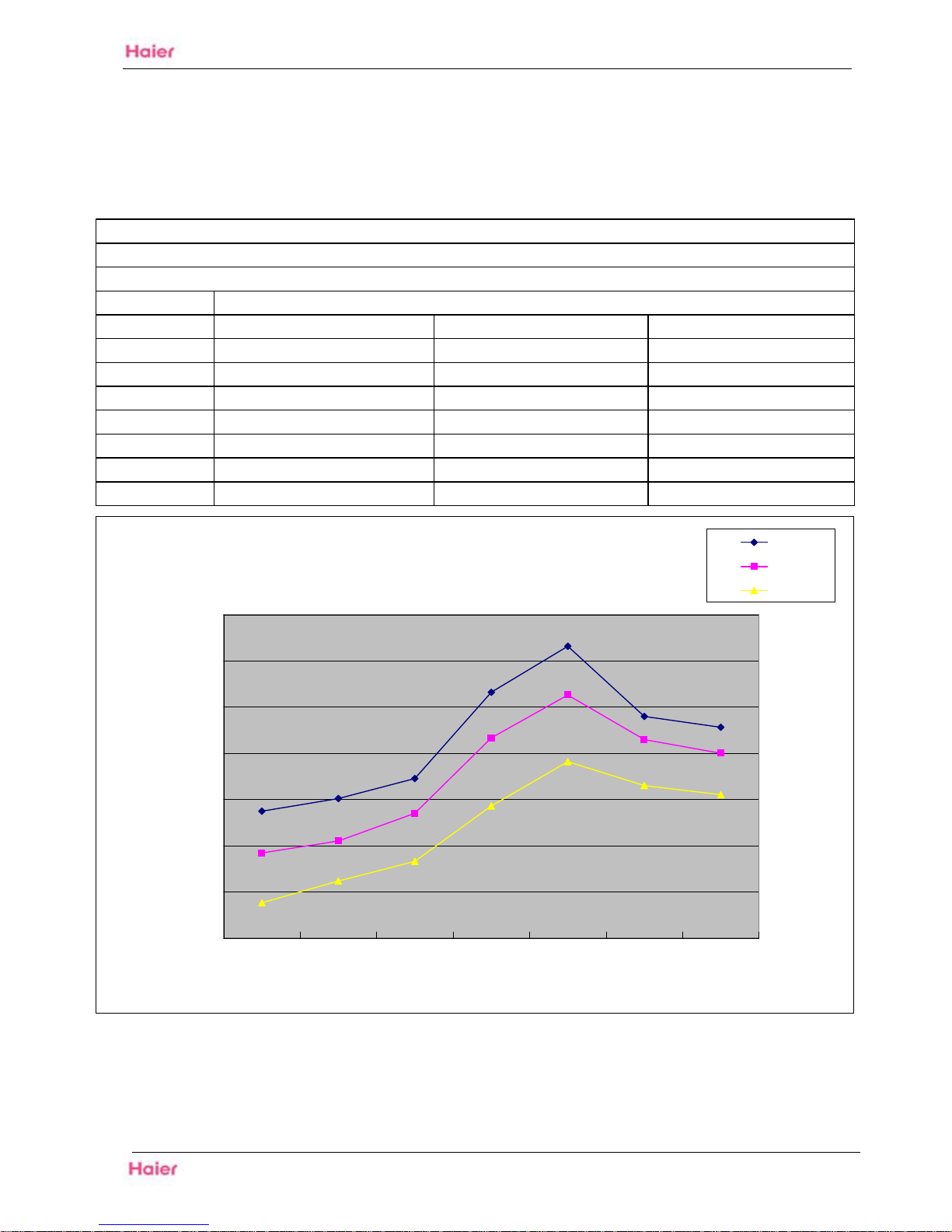

10. Sound level……………………………………………………… ………………...
11. Accessories……………………………………………………………………….. 38
12. Control systems…………………………………………………………………..

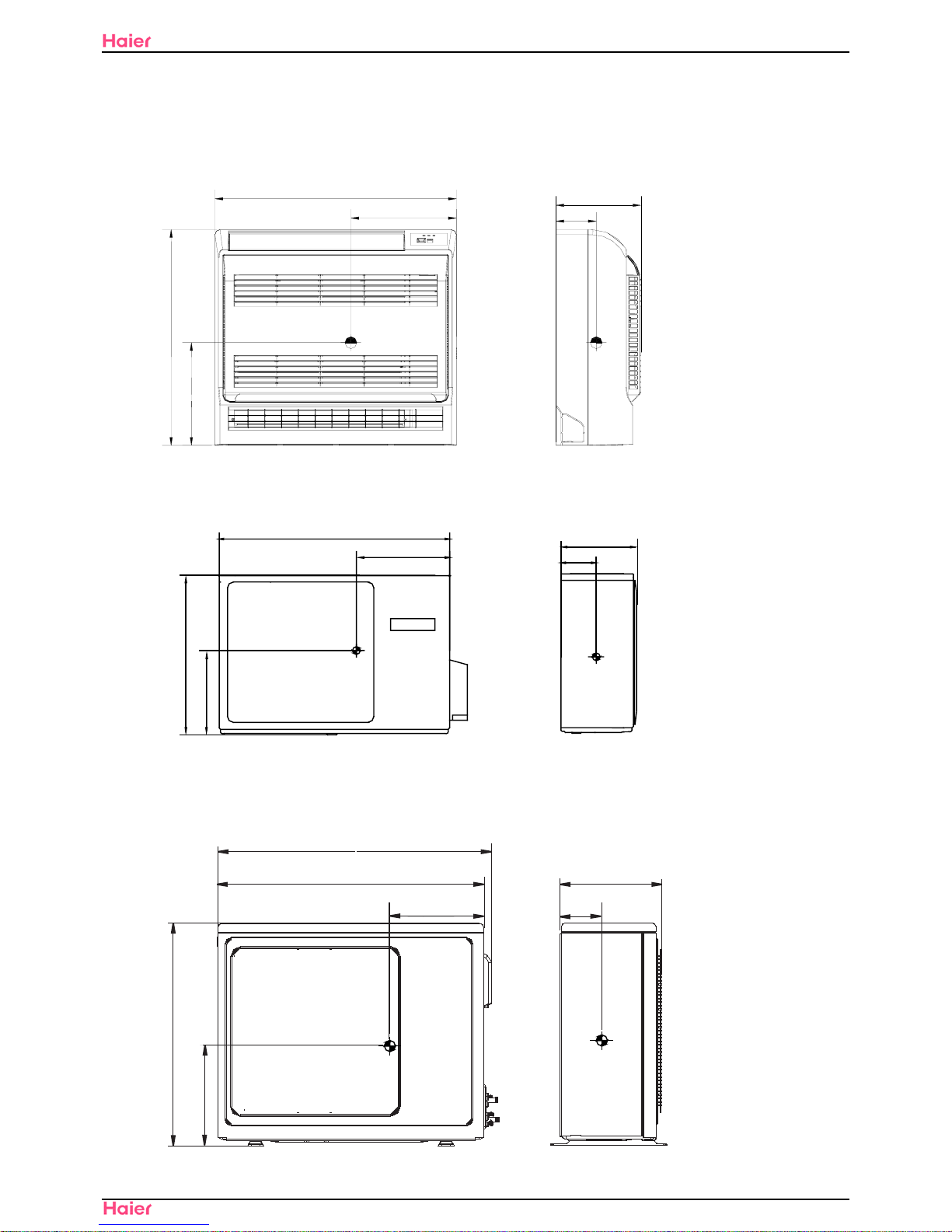

13. Center of gravity…………………………………………………………………..
39
40
14. Installations……………………………………………………………………..…
41
Domestic air conditioner
37
HFU-09,12,18HA03/R2(DB)

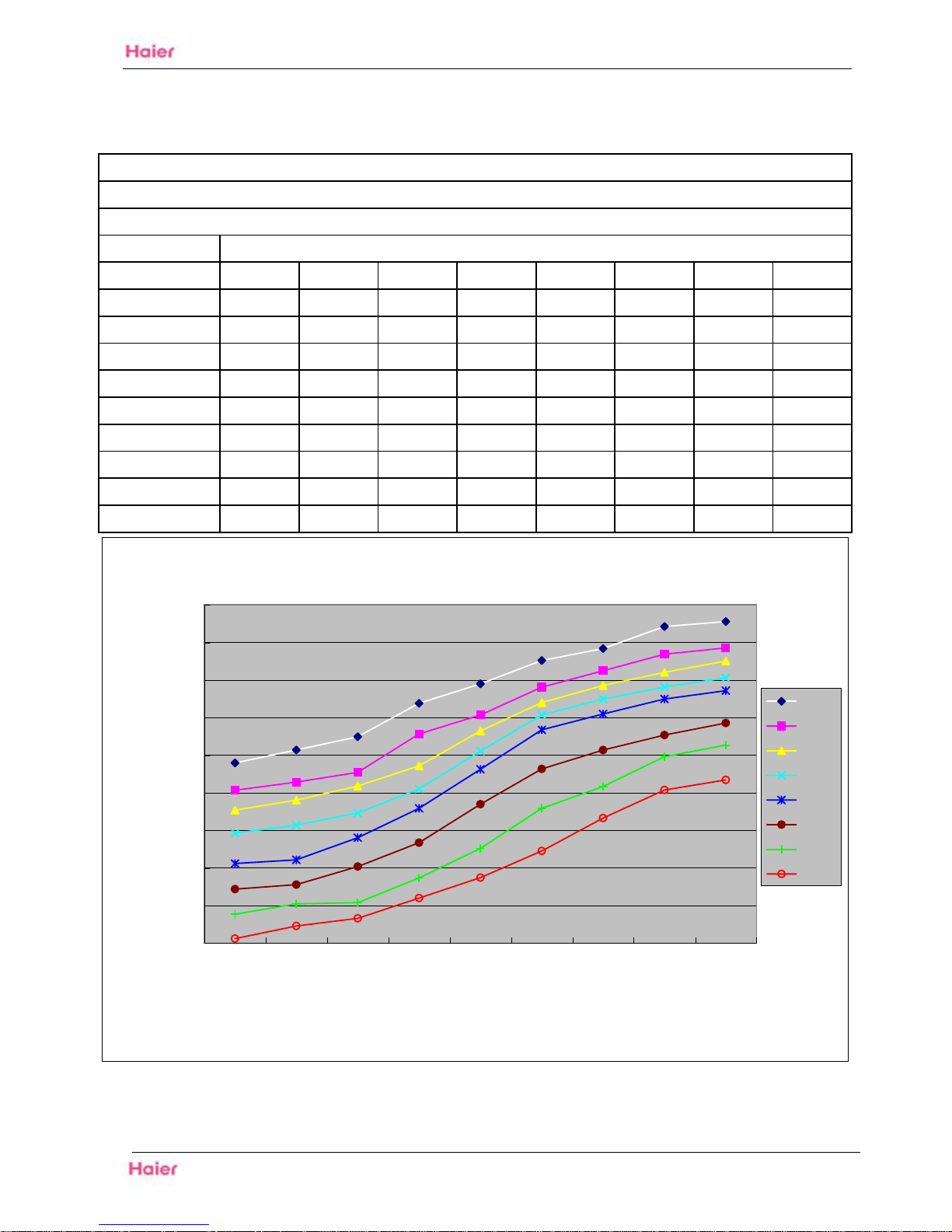

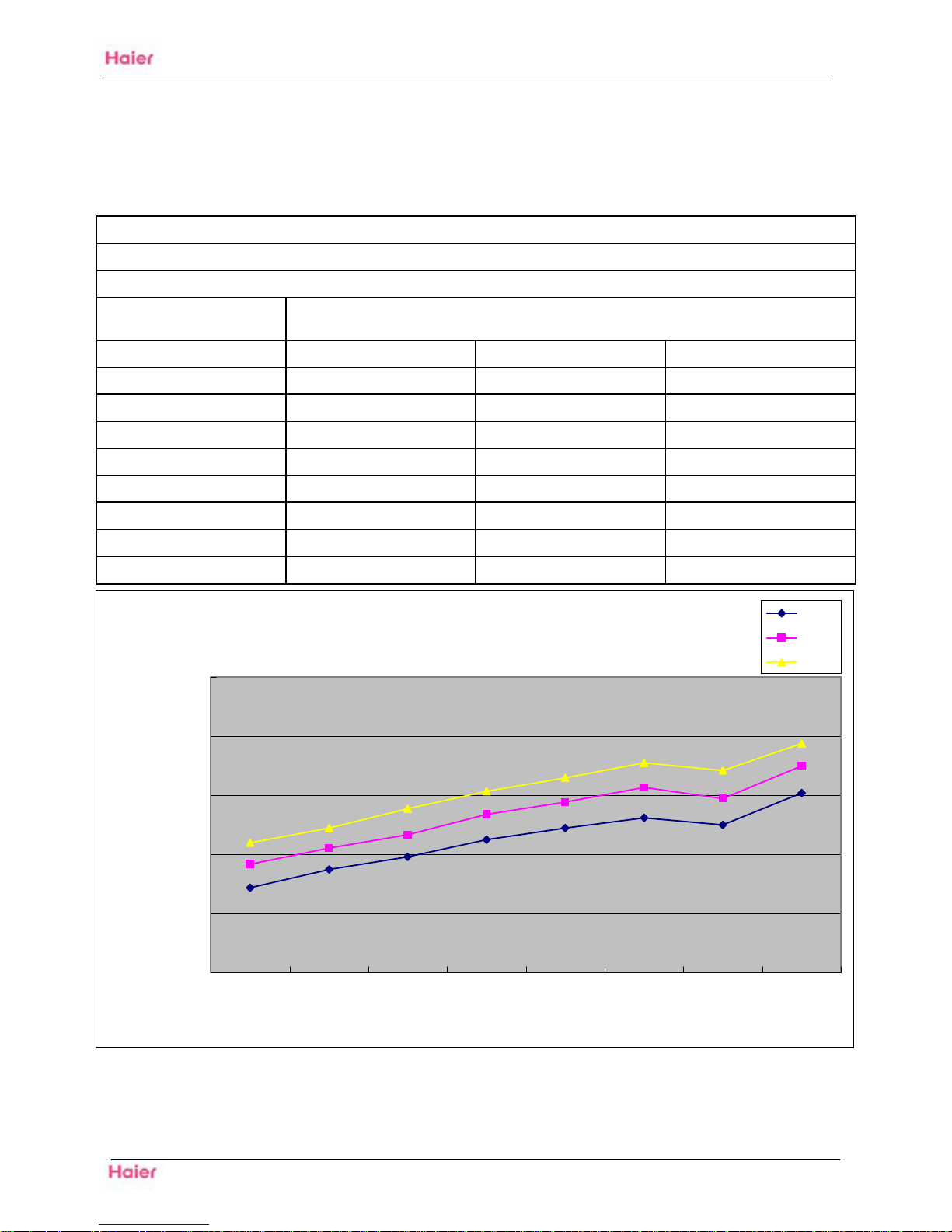

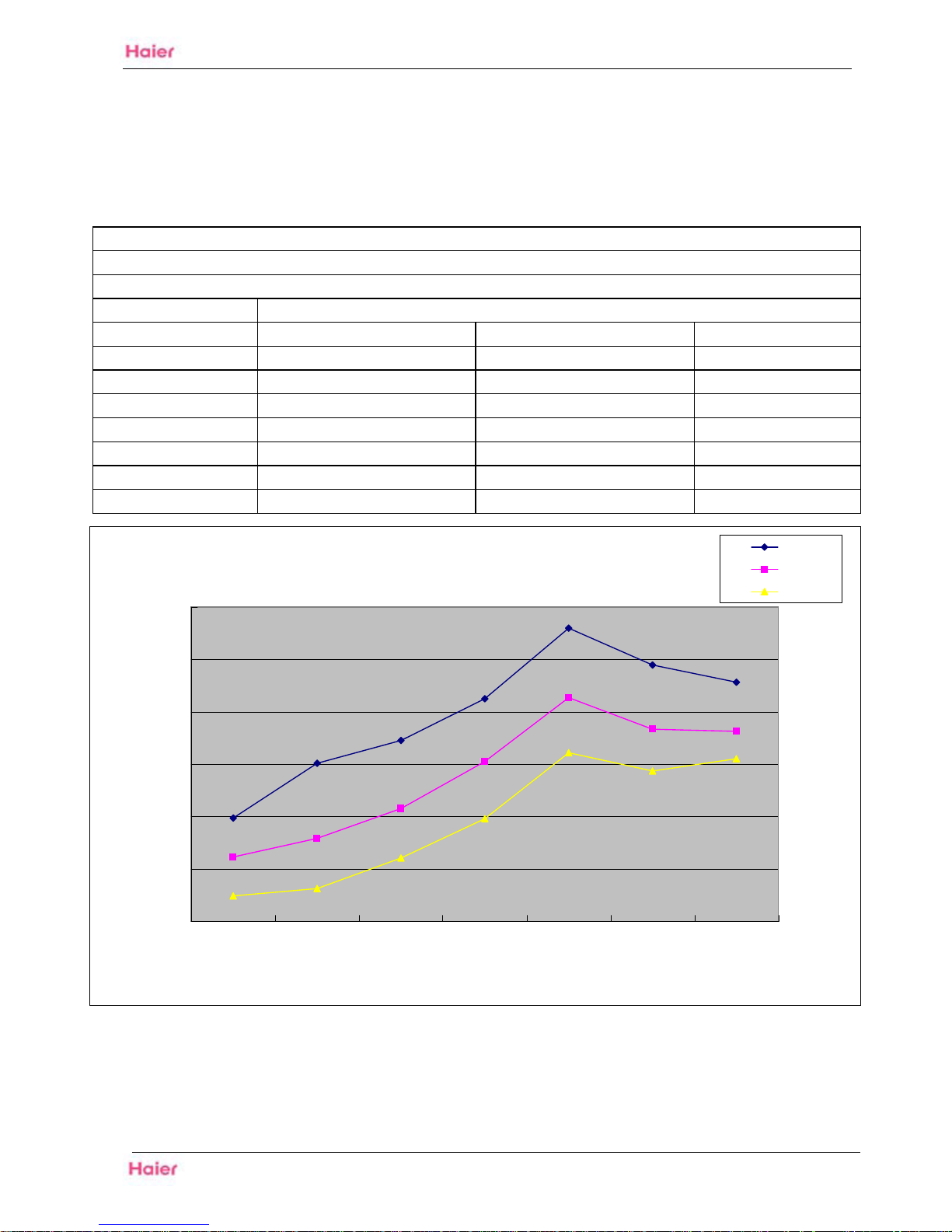

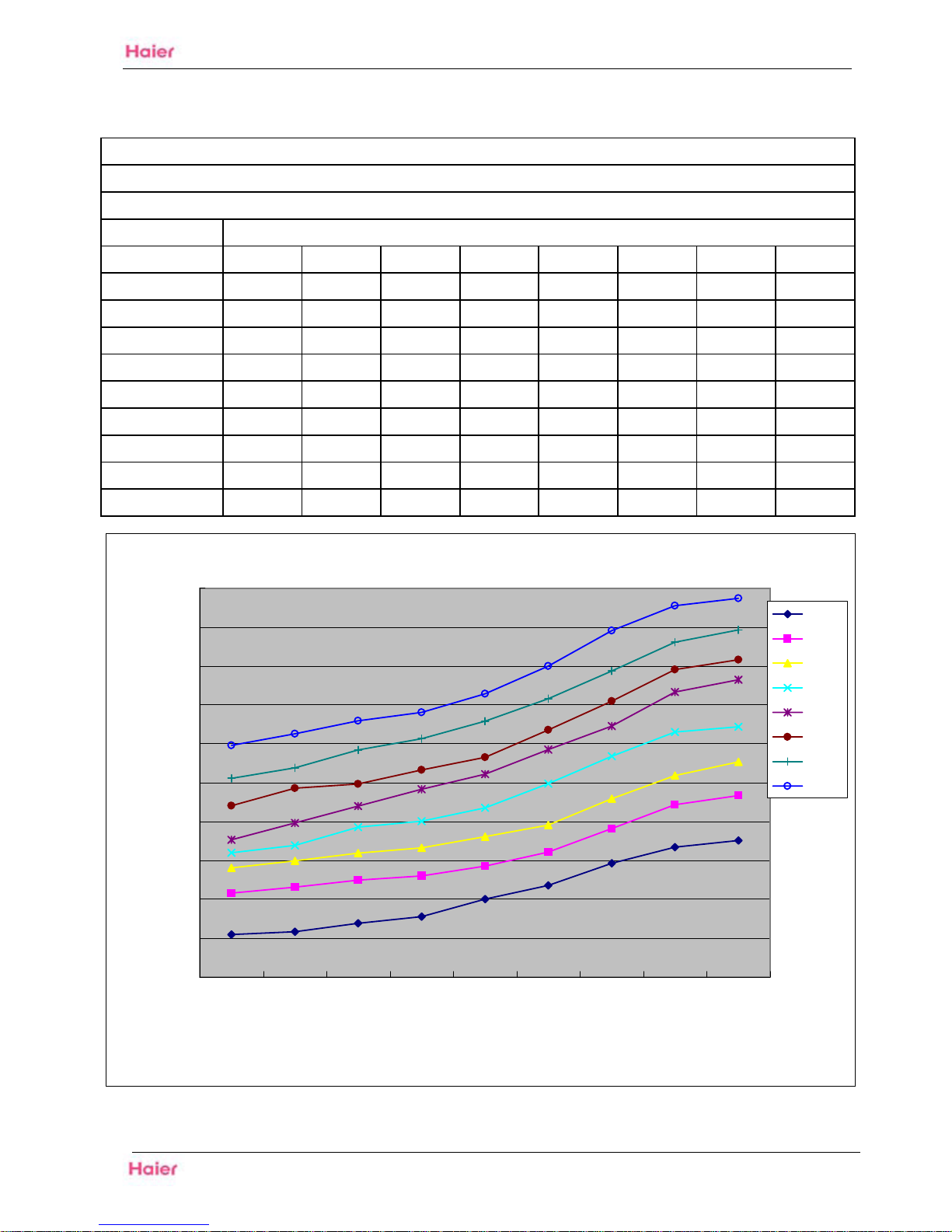

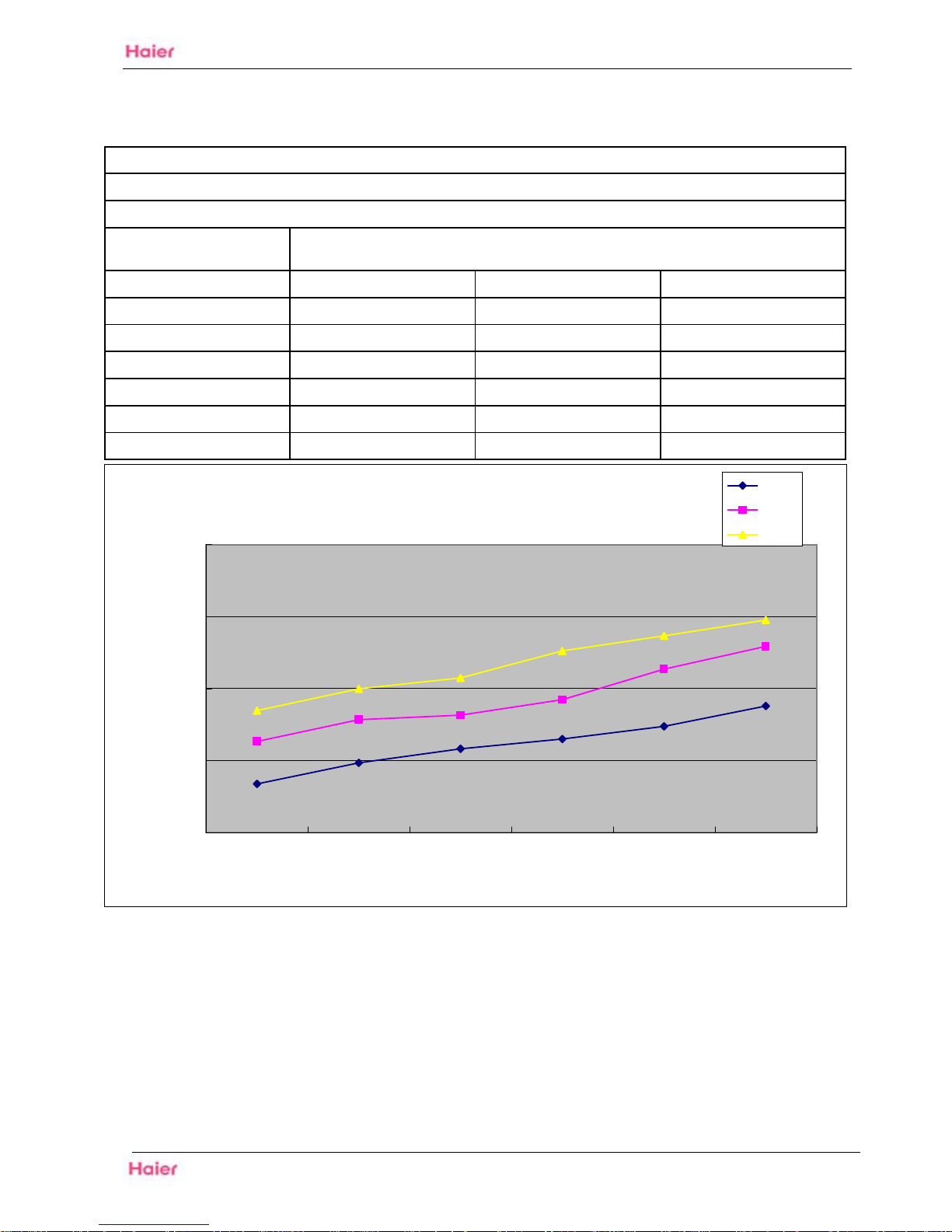

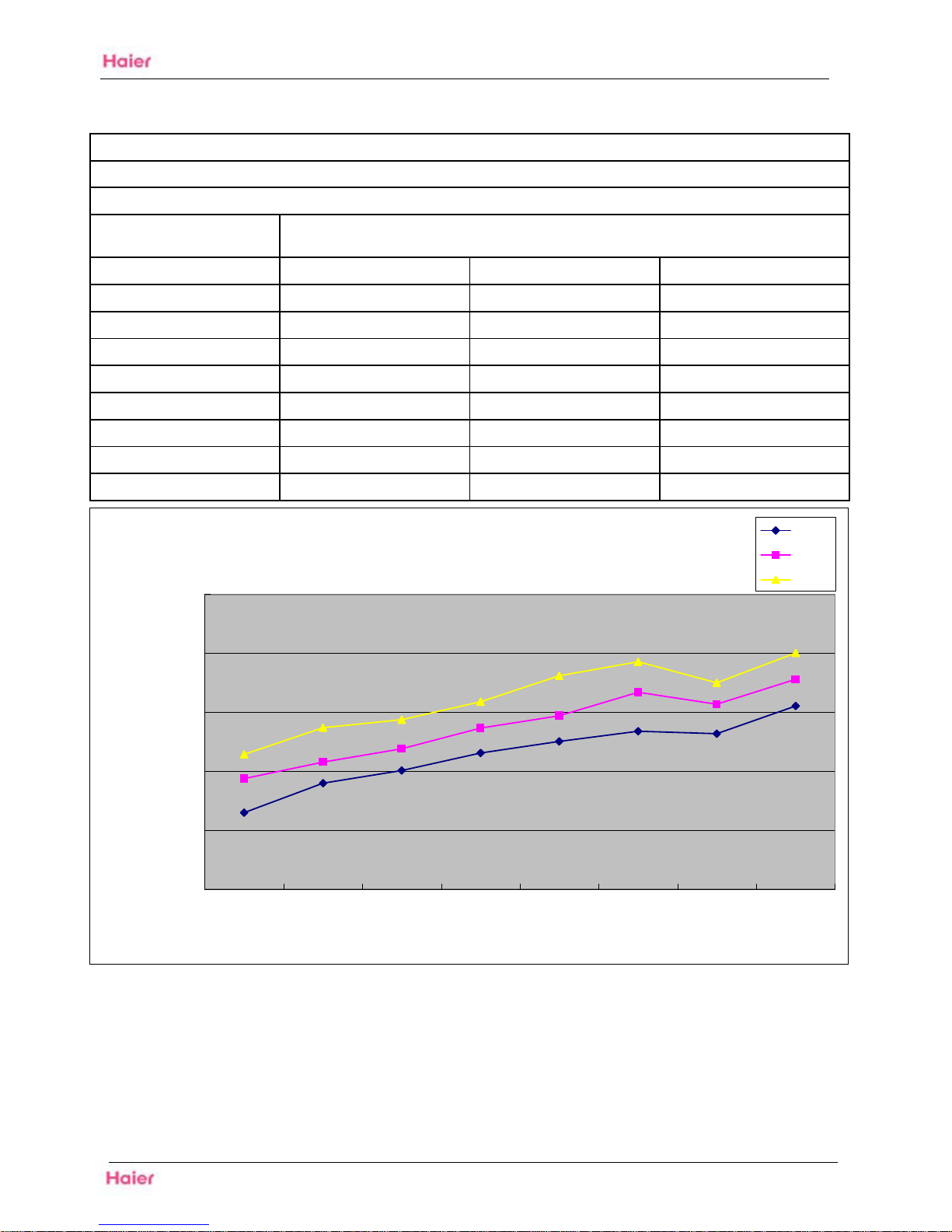

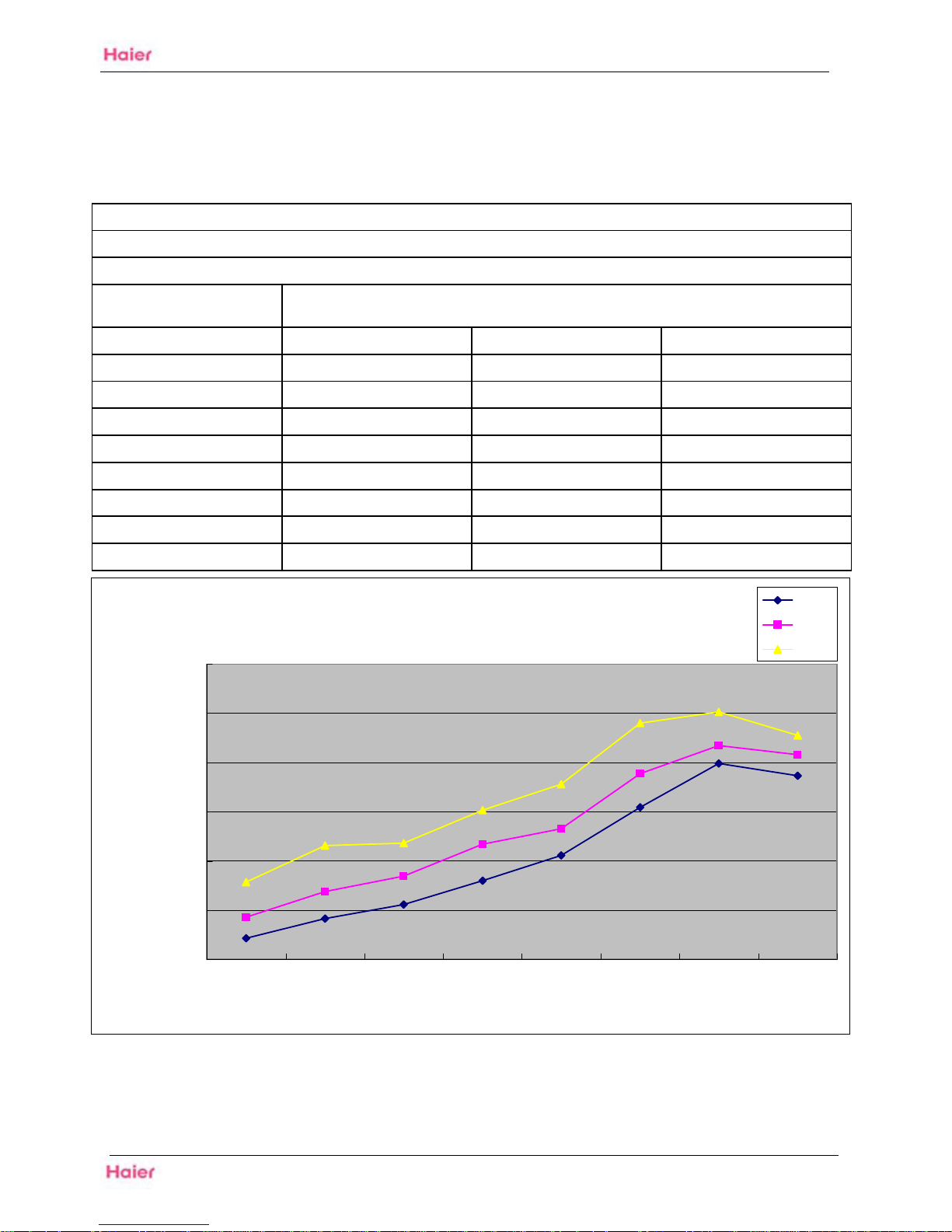

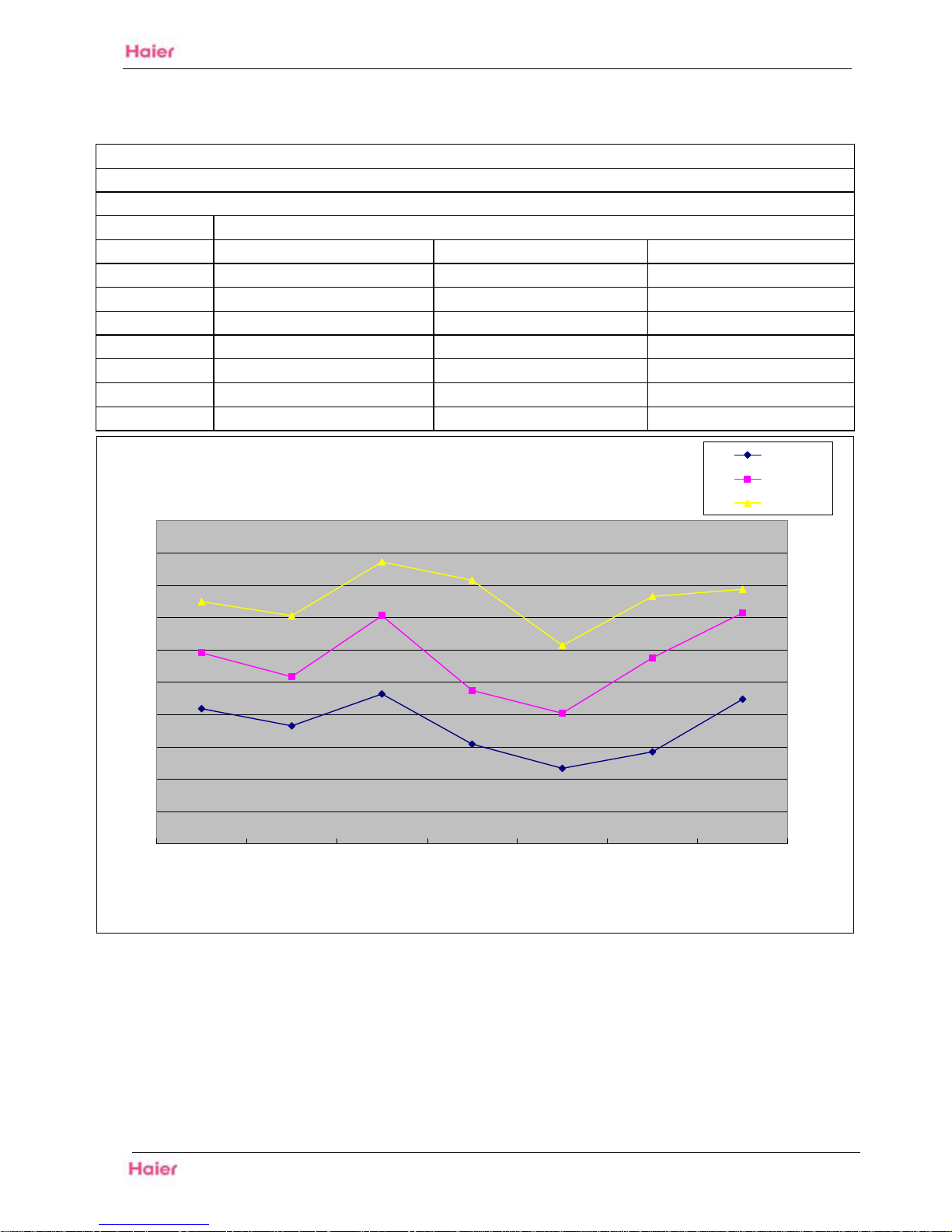

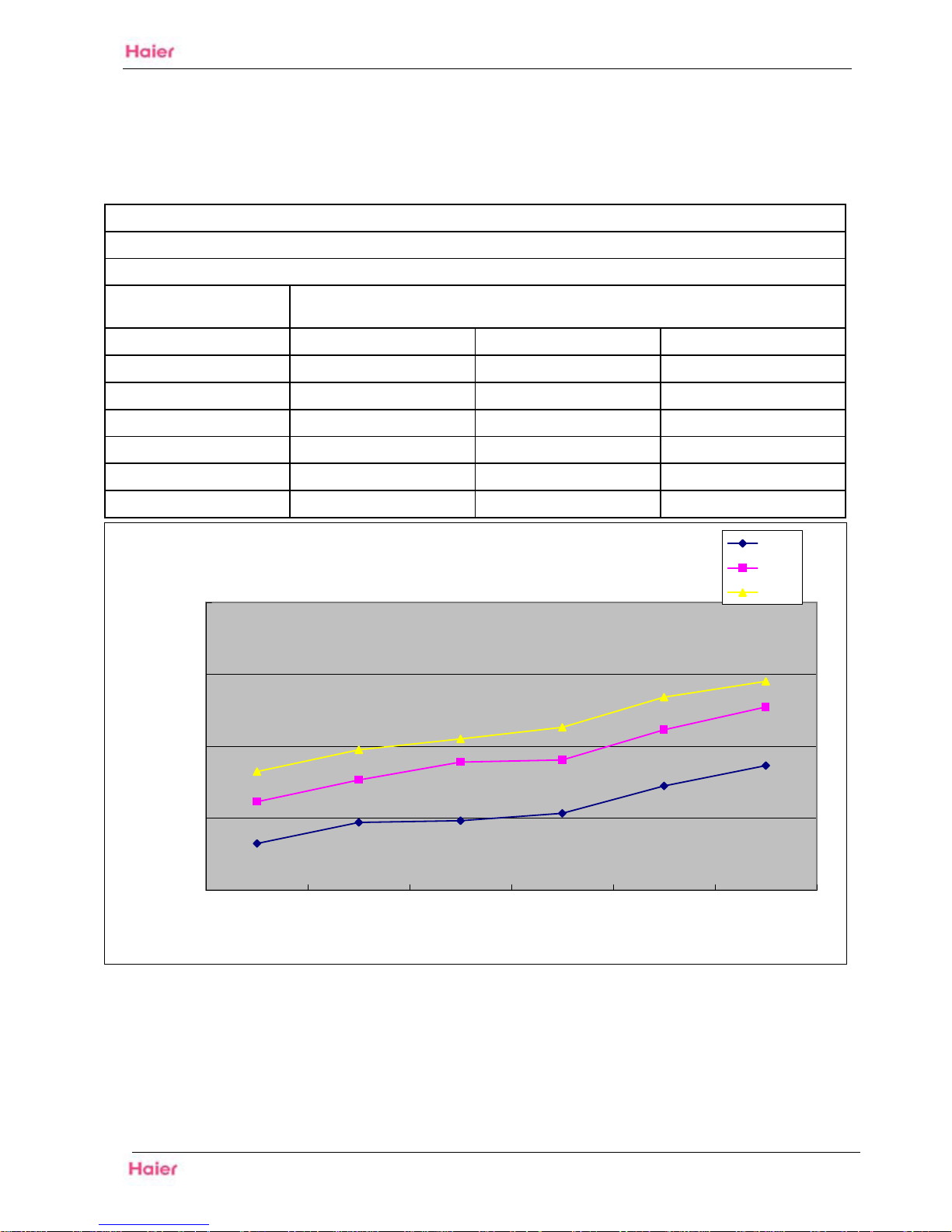

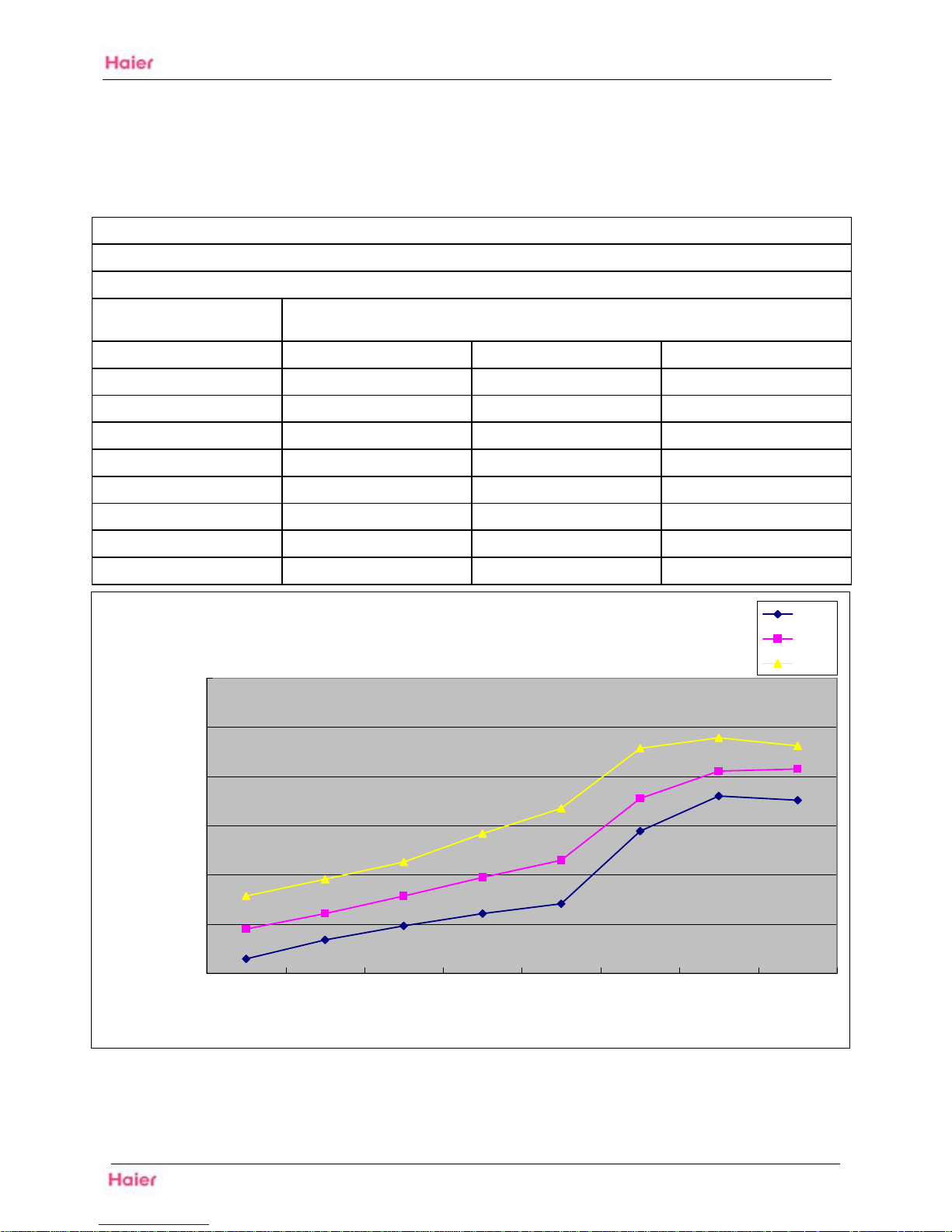

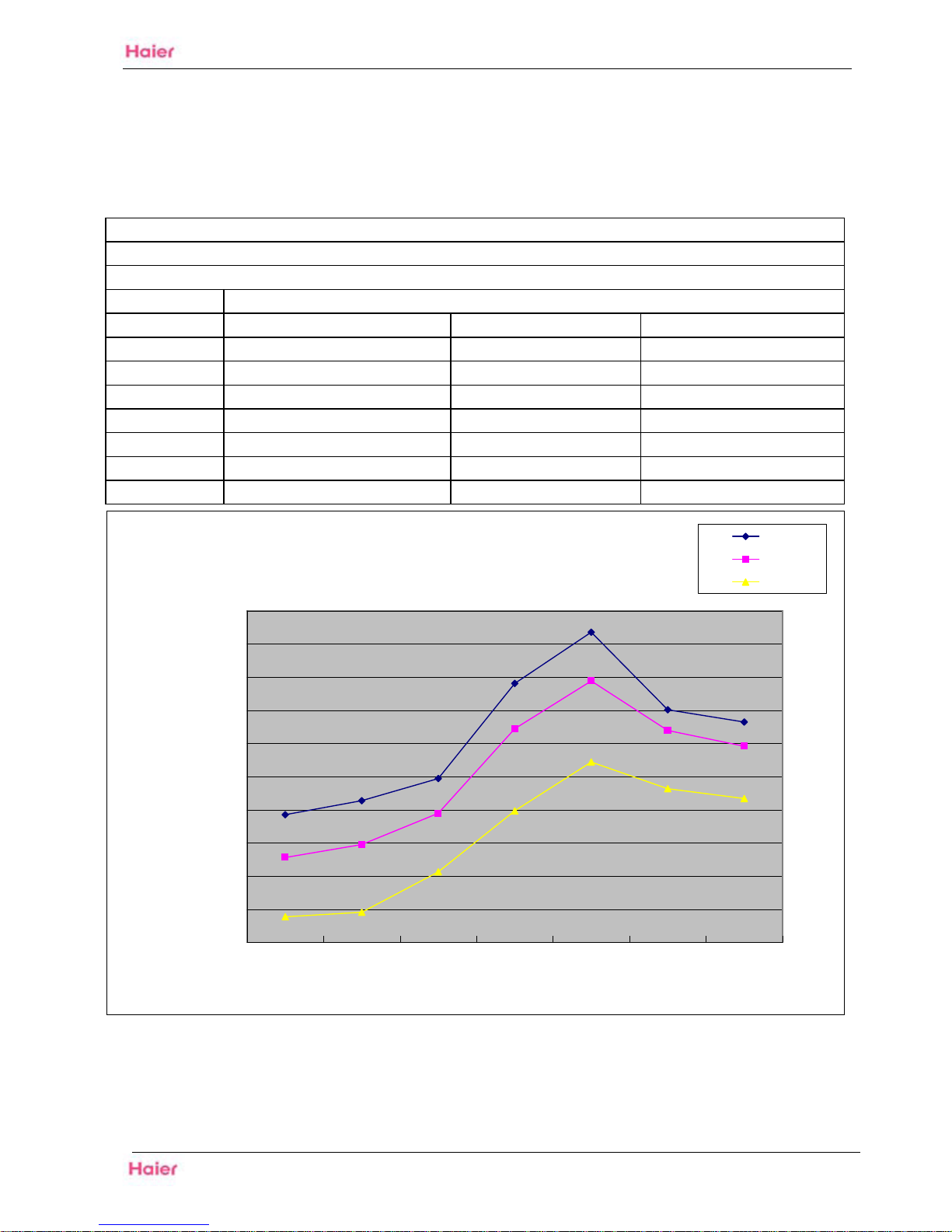

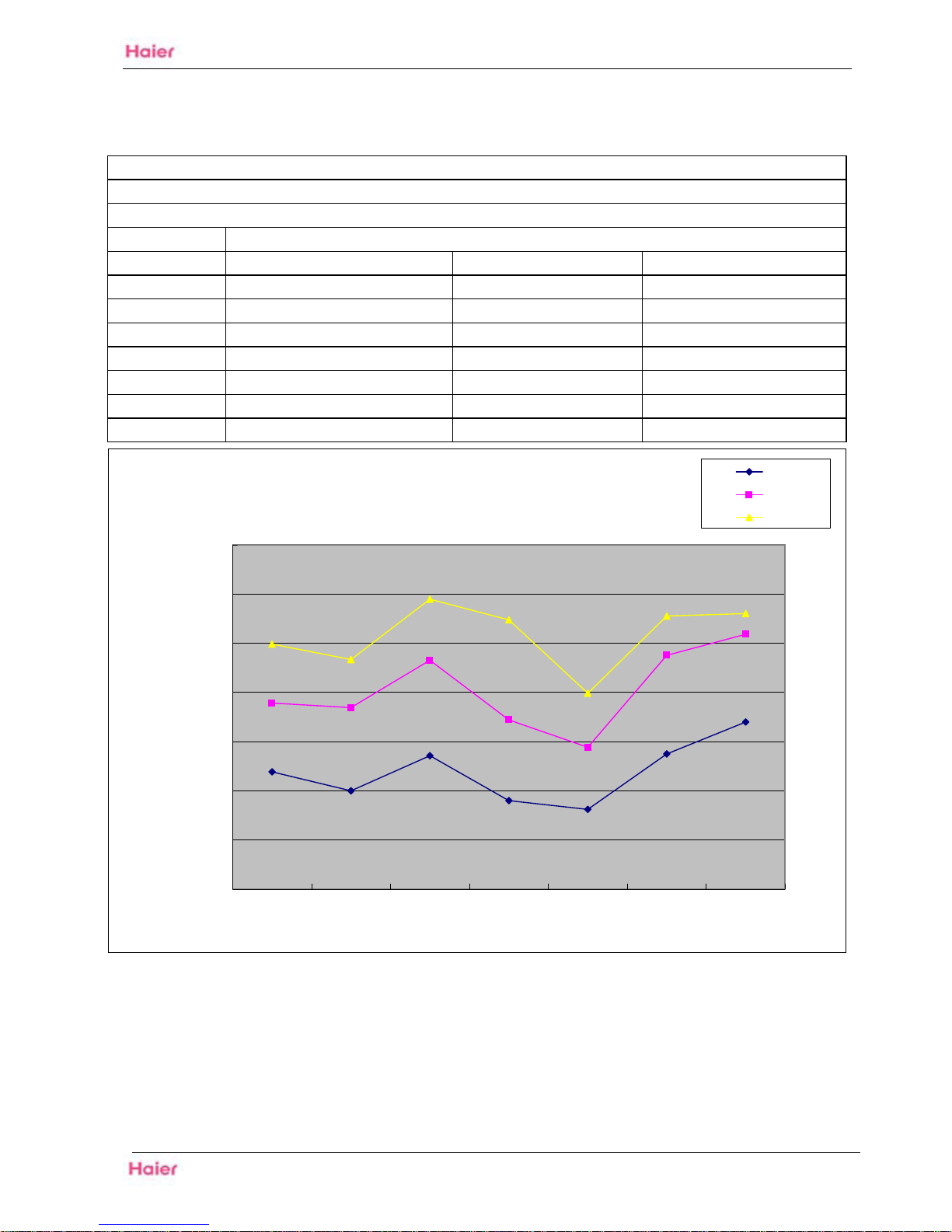

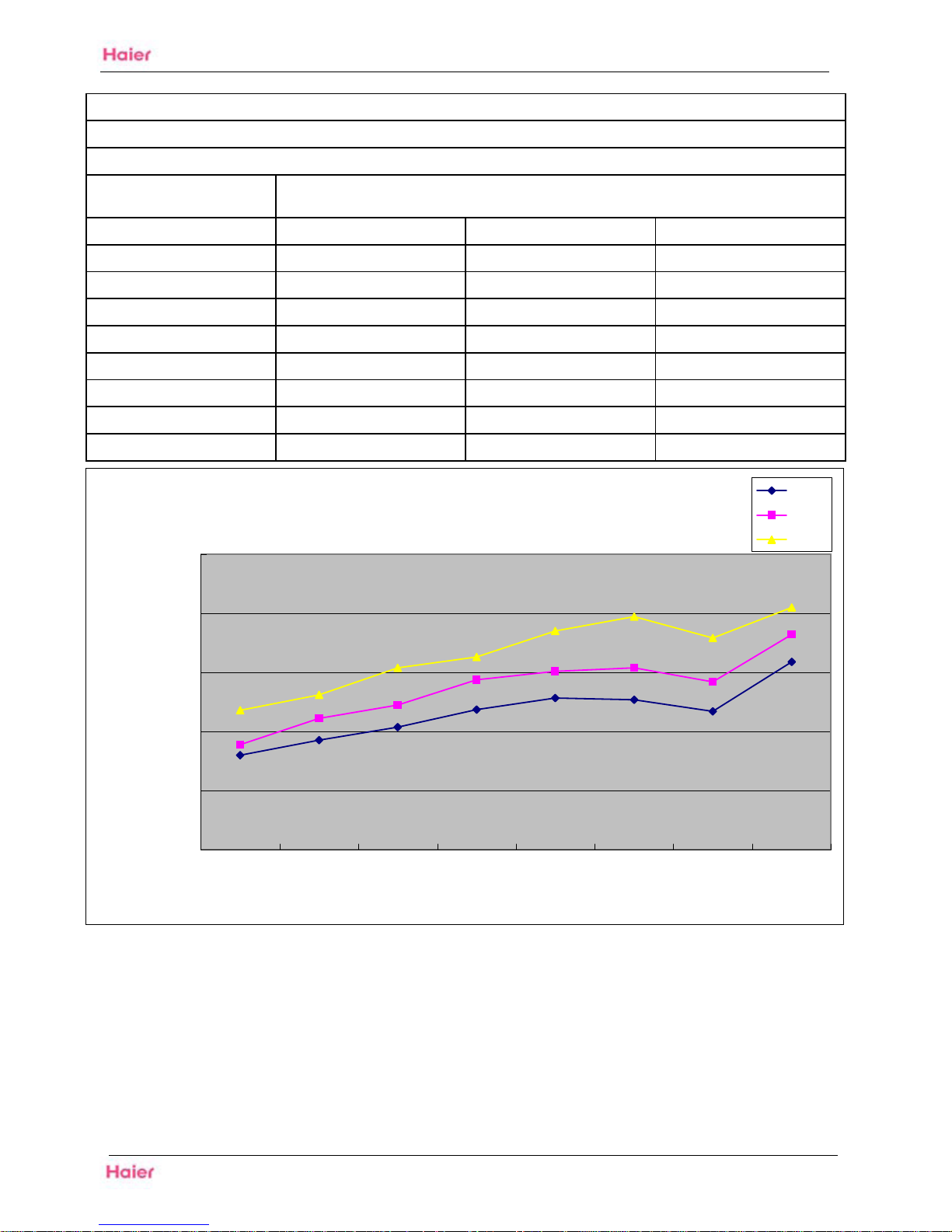

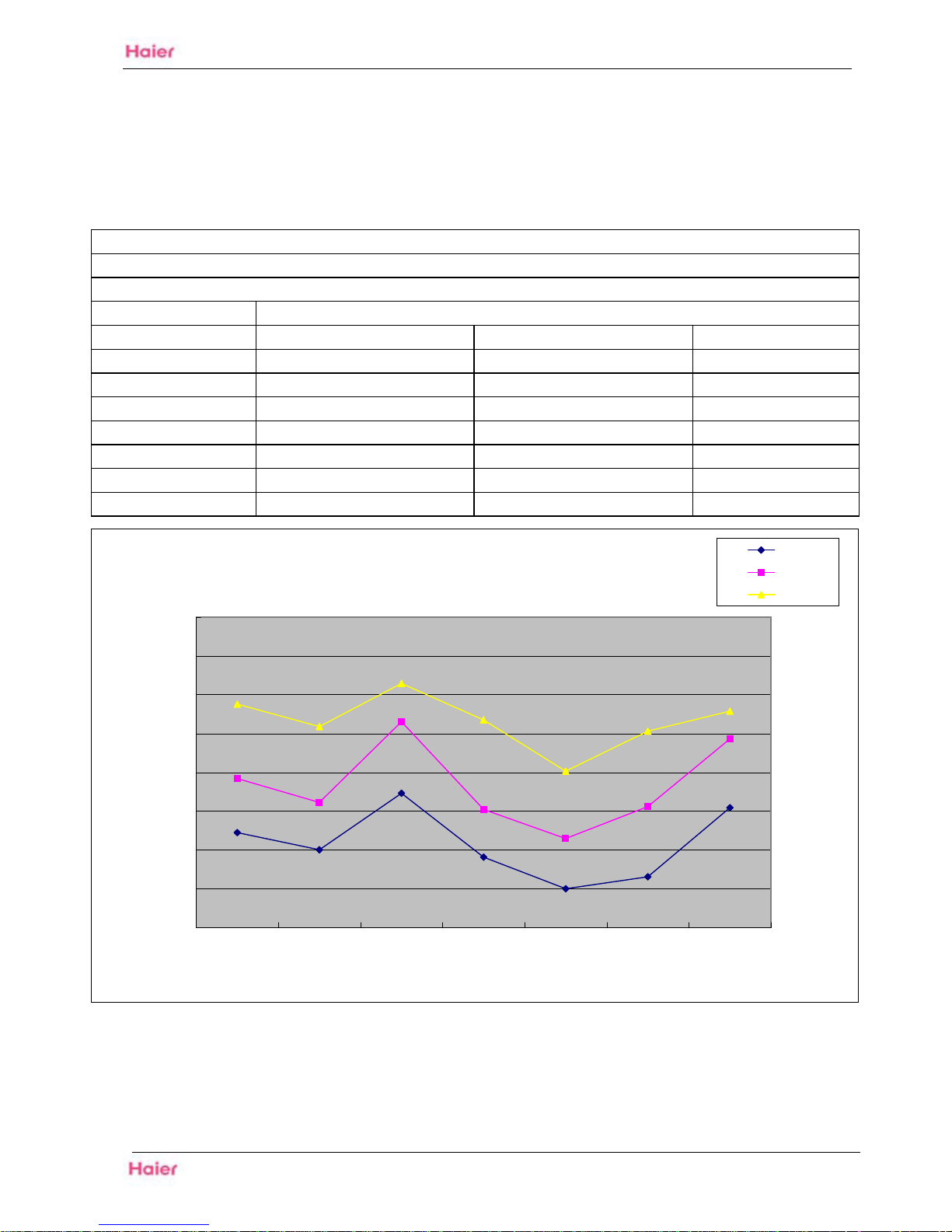

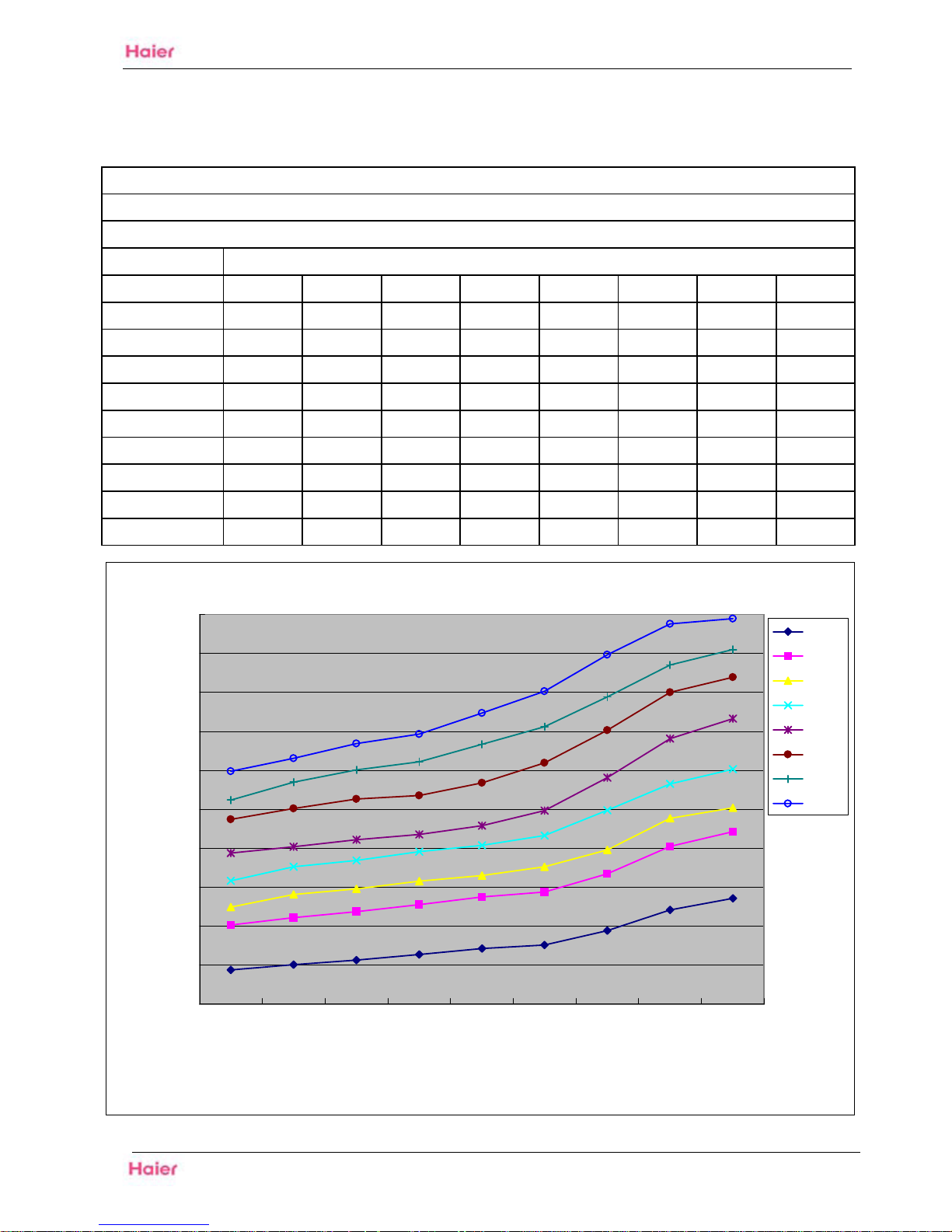

9.1 Cooling capacity-temperature curves..................................................................................13
9.2 Heating capacity-temperature curves………………………………………...........................
9.5 Cooling discharge pressure cu rves...................................................................................
25
9.6 Cooling suction pressure cu rves........................................................................................
9.7 Heating discharge
pressure curves.....................................................................................31
9.8 Heating suction pressure curves........................................................................................
9.3 Cooling power consumption value curves..........................................................................19
power consumption value curves..........................................................................
9.4 Heating
16
28
34
The end
42
…….........................................................................................................
22
Page 3
Carpet airflow: This setting blows air from upper outlet only or from both upper and lower outlet
Dry function: Make dehumidifying in the room when the unit is working in the "DRY" mode
Child lock: Avoid the child's wrong operation on the remote controller
24 Hour timer: Use the timer function to set on,or off,or from on to off,or from off to on
Auto restart: The function permits automatic return to previous peration conditions
Easy clean design: The panel is easy to wash and the airflow vents can be detached without
any special tools for quick cleaning of the inside of the air conditioner
Sleep mode: The setting temprature and the indoor noise can be adjusted to a more comfortable level when you set the "sleep mode"during night sleep
4 Fan setting: Slect the fan speed LO,MED,HI,AUTO
Entire auto mode: You can set a tempreture value,with which the unit can be adjusted theoperation mode automatically
1
Features
Domestic air conditioner
1. Features
HFU-09,12,18 HA03/R2(DB)
HFU-09,12 HA03/R2(DB)
HFU-18 HA03/R2(DB)
Page 4
HFU-09,12,18HA03/R2(DB) Specifications
2
Domestic Air Conditioner
2. Specifications
NOMINALCAPACITY and NOMINAL INPUT
Model HFU-09HA03/R(DB) HFU-12HA03/R(DB) HFU-18HA03/R(DB)
Cooling(1) min.~norm.~max. w 750.~2600.~3200. 850.~3600.~4200. 1050.~5000.~5800. NORMINAL
CAPACITY(3-4)
Heating(2) min.~norm.~max. w 800.~3200.~4000. 1000.~4000.~4500. 1200.~6000.~7000.
Cooling min.~norm.~max. w 300.~760.~1150. 320.~1100.~1450. 420.~1550.~2100. NORMINAL
INPUT
Heating min.~norm.~max. w 350.~880.~1200. 380.~1100.~1600. 550.~1650.~2300.
EER Cooling 3.42 3.27 3.23
COP Heating 3.63 3.63 3.63
ANNUAL ENERGY
CONSUMPTION(9)
Cooling kwh 400 540 750
TECHNICAL SPECIFICATIONS
INDOOR UNITS HFU-09HA03/R(DB) HFU-12HA03/R(DB) HFU-18HA03/R(DB)
H mm 640 640 640
W mm 720 720 720
DIMENSIONS Unit
D mm 255 255 255
WEIGHT Unit KG 17 17.5 17.5 COLOR Unit WHITE WHITE WHITE
high dB(A) 42/41 44/43 48/47
medium dB(A) 39/38 41/40 45/43
Sound
pressure(cooling/heating)(5)
low dB(A) 37/35 38/36 42/40
SOUND
LEVEL
Sound
power(cooling/heating)(6)
high dB(A) 52/51 54/53 58/57
high m3 /min 7.5 8.5 11
medium m3 /min 6 7.5 9.5
Air flow
rate(cooling/h
eating)
low m3 /min 4.8 6 8.5
steps 4steps,silent and auto 4steps,silent and auto 4steps,silent and auto
high rpm 900 1000 1200
medium rpm 850 975 1125
Speed(cooling
/heating)
low rpm 800 850 1050
Type Cross flow fan Cross flow fan Cross flow fan
FAN
Motor output（upper/lower）
20/11 20/11 20/11
AIR FILTER
Removable/washable/
mildew proof
Removable/washable/
mildew proof
Removable/washable/
mildew proof
REMOTE CONTROLLER YR-H05 YR-H05 YR-H05
liquid mm 6.35 6.35 6.35
gas mm
9.52 9.52 12.7
PIPING
CONNECTIONS(external
diameter)
drain mm 16 16 16
INSULATION MATERIAL
Heat insulation type
both liquid and gas
pipes
both liquid and gas
pipes
both liquid and gas
pipes
Page 5
HFU-09,12,18HA03/R2(DB) Specifications
3
TECHNICAL SPECIFICATIONS
OUTDOOR UNITS HFU-09HA03/R(DB) HFU-12HA03/R(DB) HFU-18HA03/R(DB)
H mm 543 543 680
W mm 783 783 813
NET DIMENSIONS(stop
valve, and bottom
supportis not included)
Unit
D mm 255 255 312
WEIGHT Unit KG 31 33 44
COLOR Unit Ivory white Ivory white Ivory white
Sound
pressure(cooling/heating)(5)
high dB(A) 55/55 55/55 57/58
SOUND
LEVEL
Sound
power(cooling/heating)(6)
high dB(A) 65/65 65/65 67/68
high m3 /min 30.2/26.5 30.2/26.5 31.3/27.7
Air flow
rate(cooling/heating)
low m3 /min 18.7/15.3 18.7/15.3 20.5/16.8
high rpm 800 800 840
Speed(cooling/heating)
low rpm 500 500 500
Type Propeller fan Propeller fan Propeller fan
FAN
Motor output 20 20 35
Refrigerant type R410A R410A R410A
Refrigerant charge kg 0.65 1.0 1.1
Maximum allowable distance
between indoor and outdoor
m 15 15 20
Maximum allowable level difference m 7 7 10
REFRIGERANT
CIRCUIT
Refrigerant control Capillary Capillary Capillary
Type
DC Inverter DC Inverter DC Rotary
Model
DA89X1C-20FZ DA108X1C-20FZ3 5CS130XCC03
Motor output W
690 855 1405
Oil type
ESTER OIL VG74 ESTER OIL VG74 ESTER OIL VG74
COMPRESSOR
Oil charge volume
ml 370 480 480
liquid mm 6.35 6.35 6.35
gas mm
9.52 9.52 12.7
PIPING
CONNECTIONS
drain mm 16 16 16
INSULATION MATERIAL Heat insulation type
both liquid and gas
pipes
both liquid and gas
pipes
both liquid and gas
pipes
Domestic Air Conditioner
Page 6
HFU-09,12,18HA03/R2(DB) Specifications
4
ELECTRICAL SPECIFICATIONS
Model HFU-09HA03/R(DB) HFU-12HA03/R(DB) HFU-18HA03/R(DB)
Phase 1PH 1PH 1PH
Frequency Hz 50 50 50
NORMINAL
DISTRIBUTION
SYSTIEM
VOLTAGE
Voltage V 230V~ 230V~ 230V~
Cooling A 3.5 5.0 6.8
Norminal running
current
Heating A 4.0 5.0 7.3
Cooling A 5.8 7.5 10.2 Maximum running
current
Heating A 5.3 7.0 10.2
Cooling A 1.1 1.2 1.5
CURRENT
Starting current
Heating A 1.1 1.2 1.5
Domestic Air Conditioner
NOTES
1 Nominal cooling capacities are based on: indoor temperature 27°CDB/19°CWB * outdoor temperature 35°CDB * refrigerant piping length:
5m * level difference: 0m.
2 Nominal heating capacities are based on: indoor temperature 20°CDB * outdoor temperature 7°CDB/6°CWB * refrigerant piping length
5m (horizontal) * level difference 0m. 3 Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat. 4 Units should be selected on nominal capacity. Maximum capacity is limited to peak periods. 5
6 The sound power level is an absolute value indicating the ’’power’’ which a sound source generates. 7 Energy label: scale from A (most efficient) to G (less efficient). 8 The energy label Directive 2002/31/EC will enter into force once the relevant measurement standard will be published in the European
official Standard. 9 Annual energy consumption: based on average use of 500 running hours per year at full load (= nominal conditions)
The sound pressure level is measured in an anechoic room at 1m distance from the unit. It is a relative value, depending on the distance
and acoustic environment. For measuring conditions: please refer to item 8 of this chapter.
Page 7
HFU-09,12,18HA03/R2(DB) Specifications
5
Domestic Air Conditioner

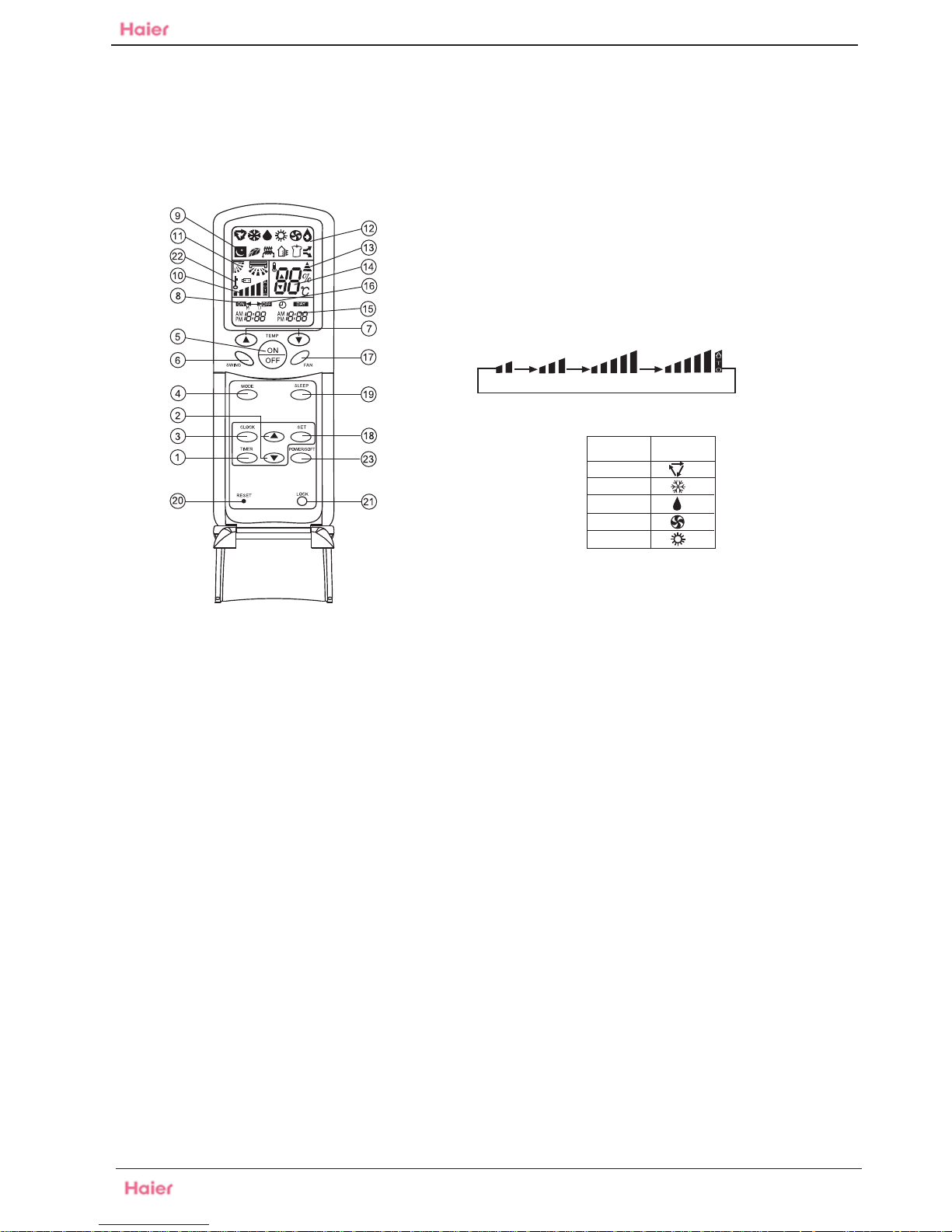

3. Remote controller lists
4. Sensors lists
Mode
HFU-09HA03/R(DB) HFU-12HA03/R(DB) HFU-18HA03/R(DB)
YR-H05 Y Y Y
INDOOR UNIT
Description Value Qty
Room sensor It's used for detecting room temperature 1
Pipe sensor It's used for detecting temperature of evaporator 1
OUTDOOR UNIT
Ambient sensor It's used for detecting temperature outdoor side 1
Defrosting sensor It's used for controlling outdoor defrosting at heating mode 1
Descharging sensor It's used for protecting compressor in case of over-heat 1
Page 8
HFU-09,12,18HA03/R2(DB) Dimensional Drawings
6
Domestic Air Conditioner
5. Dimensional Drawings
Indoor
Page 9
Dimensional drawings
7
Domestic air conditioner
Outdoor unit
HFU-09,12HA03/R2(DB)
HFU-09,12,18HA03/R2(DB)
2-way valve
6.35mm(1/4")
6.35mm(1/4")
3-way valve
9.52mm(3/8")
HFU-18HA03/R2(DB)
2-way valve
6.35mm(1/4")
3-way valve
12.7mm(1/2")
80
60
146
680
813
352
583
312
319.5
837
6.35mm(1/4")
55
783
543
255
840
68
74
Page 10
8
HFU-09,12,18 HA03/R2(DB) Operation range
Domestic air conditioner
Cooling
50
O
u
t
d
o
o
r
t
e
m
p
.
D
B
46
40 43
nwodllup03
20
18
10
0 16 23 32
10 20 30
indoor temp WB
25
gnitaeH42
20
o
u
t
d
o
o
r
t
e
m
p
WB
O
u
t
d
o
o
r
t
e
m
p
.
15
10
5
0
-5
-10
-15
10 20 30
indoor temp DB
Notes
The graphs are based on the following condition Equivalent piping length 7.5m Level difference 0m
hgihetar wolf riA
o
u
t
d
o
o
r
t
e
m
p
Page 11
,QGRRU )DQ 0RWRU
UHJQDKF[(WDH+URRGQ,
UHJQDKF[(WDH+URRGWX2
&URVV )ORZ )DQ
3URSHOOHU )DQ
2XWGRRU )DQ 0RWRU
&RROLQJ 0RGH
&RPSUHVVRU
5HYHUVLQJ 9DOYH
/LTXLG 6WRS 9DOYH
*DV 6WRS 9DOYH
&KHFN 9DOYH
&KHFN 9DOYH
*DV 6WRS 9DOYH
/LTXLG 6WRS 9DOYH
5HYHUVLQJ 9DOYH
&RPSUHVVRU
+HDWLQJ 0RGH
2XWGRRU )DQ 0RWRU
3URSHOOHU )DQ
&URVV )ORZ )DQ
UHJQDKF[(WDH+URRGWX2
UHJQDKF[(WDH
+URRG
Q,
,QGRRU )DQ 0RWRU
&DSLOODU\ 7XEH
&DSLOODU\ 7XEH
+F8,12,18 HA 52 (D%  3LSLQJGLDJUDPV
9
'RPHVWLFDLUFRQGLWLRQHU
&RROLQJPRGH
$LURXWOHW
$LURXWOHW
$LURXWOHW
+HDWLQJPRGH
3LSLQJGLDJUDPV
Page 12
HFU-09,12,18HA03/R2(DB) Wiring Diagrams
10
Domestic Air Conditioner
8. Wiring Diagrams
Indoor（for 09/12 unit）
R:RED
B:BLACK
W:WHITE
Y/G:YELLOW/GREEN
Y/G
NOTES: THE DOTTED PARTS ARE OPTIONAL
BL:BLUE
BR:BROWN
Page 13
HFU-09,12,18HA03/R2(DB) Wiring Diagrams
11
Domestic Air Conditioner
Indoor（for 18 unit）
R:RED B:BLACK
W:WHITE
Y/G:YELLOW/GREEN
Y/G
NOTES: THE DOTTED PARTS ARE OPTIONAL
Page 14
HFU-09,12,18HA03/R2(DB) Wiring Diagrams
12
Domestic Air Conditioner
Outdoor（for 09/12 unit）
0010510022
TO BILATERAL FRESH AIR MOTOR
TO FRESH AIR MOTOR
D
C
M
O
T
O
R
A
C
M
O
T
O
R
VALVE
EXPANSION
FOUR-WAY VALVE
TO INDOOR UNIT
BLOCK
TERMINAL
REACTOR
B：BLACK
BL：BLUE
R：RED
W：WHITE
NOTES：
DISCHARGE TEMP.SENSOR
AMBIENT TEMP.SENSOR
SUCTION TEMP.SENSOR
DEFROST TEMP.SENSOR
WIRING DIAGRAM OF OUTDOOR UNIT
NOTES
WARNING
DON'T TOUCH CAPACITOR, EVEN AFTER PLUG-OFF ( DANGER OF ELECTRIC SHOCK)
The capacitor retains high
voltage even after the plug-off.
For your safety, be sure to wait
at least 5 minutes. after plug
off and use a tester to confirm
the voltage between connector
CN301 and CN302 is less than DC
10V before start servicing.
F
U
S
E
2
CN25
FUSE1
ELCTRIC
HEATING
CABLE
CN24
CN23
NOTES：THE DOTTED PARTS ARE OPTIONAL.
T
2
5
A
/
2
5
0
V
A
C
CN13
CN10
CN11
(CN7)
(CN6)
AC-N
AC-L
W
CN12
CN14
CN8
CN7
CN16
LI
LO
W
(CN8) (CN9)
CN11
CN10
POWER MODULE
CN3
CN4
CN5
Outdoor（for 18 unit）
T25A/250VAC
0010562188
OUTDOOR UNIT WIRING DIAGRAM
DON'T TOUCH CAPACITOR, EVEN AFTER PLUG-OFF ( DANGER OF ELECTRIC SHOCK)
The capacitor retains high voltage even after the plug-off. For your safety, be sure to wait at least 5 minutes. after plug off and use a tester to confirm the voltage between connector P and N is less than DC 10V before start servicing.
WARNING
CAUTION
/GREEN
Y/G：YELLOW
W： WHITE
OR：ORANGE
BL：BLUE
B： BLACK
R： RED
TERMINAL BLOCK
Double-way air exchange MOTOR
POWER SUPPLY
TO INDOOR
REACTOR
COMPRESSOR
CAP BOARD
OUTDOOR PCB
(CN3)
(CN4)
AC-N
AC-L
NOTES: THE PARTS OF DOTTED ARE OPTIONAL
W
P512
LI
LO
W
(CN1) (CN2)
DEFROST TEMP.SENSOR
COMP.TEMP.SENSOR
AMBIENT TEMP.SENSOR
SUCTION.TEMP.SENSOR
EXPANSION VALVE
ELECTRIC
4-WAY VALVE
F
U
S
E
MODULE BOARD
CN10
CN11
F
L
I
T
E
R
R
Single-way air exchange MOTOR
DC FAN MOTOR
AC FAN MOTOR
Page 15
Domestic air conditioner
13
9 Performance Curves Diagram
9.1 Cooling Capacity-temperature Curves
HFU-09,12,18 HA03/R2(DB) Performance Curves
indoor temp. DB/WB 18℃ 20℃ 25℃ 32℃ 35℃ 40℃ 43℃ 46℃ 18/12℃ 2127 1976 1859 1779 1617 1400 1317 1198 18/14℃ 2254 2095 1910 1828 1700 1475 1367 1248 20/15℃ 2353 2169 2003 1917 1821 1631 1469 1348 22/16℃ 2561 2333 2174 2080 1992 1829 1617 1483 25/18℃ 2688 2547 2412 2308 2247 2075 1842 1662 27/19℃ 2892 2734 2642 2529 2437 2250 2075 1877 30/22℃ 2965 2844 2728 2611 2525 2367 2200 2021 32/23℃ 3080 2956 2847 2724 2650 2550 2375 2216 32/24℃ 3122 2998 2924 2798 2742 2625 2433 2293
outdoor temp.(humidity 46%)
cooling capacity and indoor/outdoor temp.talbe
HFU-09HA03/R2(DB) performance curves
Cooling capacity and indoor/outdoor temp.curves
1000
1500
2000
2500
3000
1
8/
1
2℃
1
8/
1
4℃
2
0/
1
5℃
2
2/
1
6℃
2
5/
1
8℃
2
7/
1
9℃
3
0/
2
2℃
3
2/
2
3℃
3
2/
2
4℃
indoor tempe.(DB/WB)
power consumption(w)
18℃ 20℃ 25℃ 32℃ 35℃ 40℃ 43℃ 46℃
Page 16
HFU-09,12,18 HA03/R2(DB) Performance Curves
14
Domestic Air Conditioner
indoor temp. DB/WB 18℃ 20℃ 25℃ 32℃ 35℃ 40℃ 43℃ 46℃ 18/12℃ 3130 2910 2720 2524 2377 2200 1940 1577 18/14℃ 3310 3080 2840 2684 2530 2283 2020 1706 20/15℃ 3503 3300 2990 2840 2634 2366 2160 1783 22/16℃ 3750 3440 3210 3020 2770 2541 2310 1990 25/18℃ 3871 3663 3466 3276 3140 2797 2593 2198 27/19℃ 4091 3970 3797 3588 3420 3151 2889 2469 30/22℃ 4250 4070 3920 3740 3550 3330 3110 2804 32/23℃ 4390 4251 4091 3940 3830 3606 3360 3030 32/24℃ 4459 4312 4201 3970 3870 3695 3440 3090
outdoor temp.(humidity 46%)
cooling capacity and indoor/outdoor temp.talbe
HFU-12HA03/R2(DB) performance curves
Cooling capacity and indoor/outdoor temp.curves
1500
2000
2500
3000
3500
4000
4500
1
8/
12
℃
1
8/
14
℃
2
0/
15
℃
2
2/
16
℃
2
5/
18
℃
2
7/
19
℃
3
0/
22
℃
3
2/
23
℃
3
2/
24
℃
indoor tempe.(DB/WB)
power consumption(w)
18℃ 20℃ 25℃ 32℃ 35℃ 40℃ 43℃ 46℃
Page 17
HFU-09,12,18 HA03/R2(DB) Performance Curves
15
Domestic Air Conditioner
indoor temp. DB/WB 18℃ 20℃ 25℃ 32℃ 35℃ 40℃ 43℃ 46℃ 18/12℃ 4399 4036 3771 3465 3061 2720 2386 2062 18/14℃ 4571 4144 3905 3571 3110 2780 2524 2231 20/15℃ 4748 4274 4091 3734 3404 3020 2541 2332 22/16℃ 5193 4785 4360 4052 3795 3338 2868 2602 25/18℃ 5451 5038 4825 4558 4315 3850 3262 2873 27/19℃ 5762 5408 5202 5039 4840 4320 3796 3228 30/22℃ 5921 5626 5430 5250 5050 4570 4086 3666 32/23℃ 6214 5847 5605 5410 5250 4770 4482 4039 32/24℃ 6280 5929 5756 5530 5361 4930 4636 4173
outdoor temp.(humidity 46%)
cooling capacity and indoor/outdoor temp.talbe
HFU-18HA03/R2(DB) performance curves
Cooling capacity and indoor/outdoor temp.curves
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
1
8/
12
℃
1
8/
14
℃
2
0/
15
℃
2
2/
16
℃
2
5/
18
℃
2
7/
19
℃
3
0/
22
℃
3
2/
23
℃
3
2/
24
℃
indoor tempe.(DB/WB)
power consumption(w)
18℃ 20℃ 25℃ 32℃ 35℃ 40℃ 43℃ 46℃
Page 18
9.2 Heatling Capacity-temperature Curves
HFU-09,12,18 HA03/R2(DB) Performance Curves
outdoor temp. DB/WB 15℃ 20℃ 25℃
-10℃ 2488 2116 1745
-5℃ 3010 2293 1816 5℃ 3228 2578 2107 7/6℃ 3626 3027 2481 15℃ 4300 3636 3112 20℃ 3947 3335 2937 25℃ 3782 3316 3053
indoor temp.(humidity 46%)
heating capacity and indoor/outdoor temp.curves
HFU-09HA03/R2(DB) performance curves
Heating capacity and indoor/outdoor temp.curves
1500
2000
2500
3000
3500
4000
4500
1234567
indoor tempe.(DB/WB)
conoling capacity(w
)
15℃ 20℃ 25℃
16
Domestic Air Conditioner
Page 19
outdoor temp. DB/WB 15℃ 20℃ 25℃
-10℃ 2874 2423 1885
-5℃ 3010 2550 2120 5℃ 3228 2850 2330 7/6℃ 4160 3667 2930 15℃ 4660 4130 3410 20℃ 3900 3650 3150 25℃ 3782 3500 3053
indoor temp.(humidity 46%)
heating capacity and indoor/outdoor temp.curves
HFU-12HA03/R2(DB) performance curves
Heating capacity and indoor/outdoor temp.curves
1500
2000
2500
3000
3500
4000
4500
5000
1234567
indoor tempe.(DB/WB)
conoling capacity(w)
15℃ 20℃ 25℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
17
Domestic Air Conditioner
Page 20
outdoor temp. DB/WB 15℃ 20℃ 25℃
-10℃ 4426 3780 2884
-5℃ 4635 3978 2953 5℃ 4971 4446 3565 7/6℃ 6406 5721 4483 15℃ 7176 6443 5217 20℃ 6006 5694 4820 25℃ 5824 5460 4671
indoor temp.(humidity 46%)
heating capacity and indoor/outdoor temp.curves
HFU-18HA03/R2(DB) performance curves
Heating capacity and indoor/outdoor temp.curves
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
1234567
indoor tempe.(DB/WB)
conoling capacity(w)
15℃ 20℃ 25℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
18
Domestic Air Conditioner
Page 21
Domestic air conditioner
19
9.3 Cooling Power Consumption Value-temperature Curves
indoor temp. DB/WB 18℃ 20℃ 25℃ 32℃ 35℃ 40℃ 43℃ 46℃ 18/12℃ 387 503 549 616 687 774 823 897 18/14℃ 401 521 581 652 704 802 869 931 20/15℃ 413 537 596 669 722 826 901 969 22/16℃ 427 555 615 691 735 835 922 993 25/18℃ 442 575 629 707 758 868 967 1047 27/19℃ 452 587 653 733 796 919 1012 1103 30/22℃ 488 634 695 797 881 1003 1088 1196 32/23℃ 542 704 777 865 981 1100 1170 1276 32/24℃ 571 743 804 902 1032 1139 1210 1289
outdoor temp.(humidity 46%)
cooling power consumption value-temｐ.talbe
HFU-09HA03/R2(DB) performance curves
Cooling power consumption value-temp.curves
300
400
500
600
700
800
900
1000
1100
1200
1300
18
/
12
℃
18
/
14
℃
20
/
15
℃
22
/
16
℃
25
/
18
℃
27
/
19
℃
30
/
22
℃
32
/
23
℃
32
/
24
℃
indoor tempe.(DB/WB)
power consumption(w)
18℃ 20℃ 25℃ 32℃ 35℃ 40℃ 43℃ 46℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
Page 22
indoor temp. DB/WB 18℃ 20℃ 25℃ 32℃ 35℃ 40℃ 43℃ 46℃ 18/12℃ 497 585 687 760 831 895 987 1108 18/14℃ 512 607 713 787 857 957 1024 1149 20/15℃ 532 632 742 853 930 972 1066 1197 22/16℃ 566 648 760 874 969 1023 1092 1226 25/18℃ 596 683 802 921 996 1068 1152 1293 27/19℃ 648 733 845 971 1083 1125 1213 1362 30/22℃ 697 818 942 1052 1166 1236 1316 1477 32/23℃ 755 905 1027 1159 1263 1336 1404 1576 32/24℃ 779 938 1077 1178 1303 1365 1418 1592
outdoor temp.(humidity 46%)
cooling power consumption value-temｐ.talbe
HFU-12HA03/R2(DB) performance curves
Cooling power consumption value-temp.curves
400
600
800
1000
1200
1400
1600
18
/
12
℃
18
/
14
℃
20
/
15
℃
22
/
16
℃
25
/
18
℃
27
/
19
℃
30
/
22
℃
32
/
23
℃
32
/
24
℃
indoor tempe.(DB/WB)
power consumption(w)
18℃ 20℃ 25℃ 32℃ 35℃ 40℃ 43℃ 46℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
20
Domestic Air Conditioner
Page 23
indoor temp. DB/WB 18℃ 20℃ 25℃ 32℃ 35℃ 40℃ 43℃ 46℃ 18/12℃ 619 831 961 1038 1105 1282 1422 1591 18/14℃ 632 863 997 1077 1193 1371 1475 1651 20/15℃ 677 898 1038 1171 1279 1392 1568 1718 22/16℃ 710 920 1064 1201 1365 1465 1626 1761 25/18℃ 800 970 1122 1269 1444 1529 1716 1857 27/19℃ 871 1042 1182 1394 1570 1671 1832 2000 30/22℃ 986 1163 1318 1535 1691 1819 1974 2181 32/23℃ 1068 1286 1437 1660 1865 1981 2122 2310 32/24℃ 1101 1333 1507 1687 1929 2032 2185 2348
outdoor temp.(humidity 46%)
cooling power consumption value-temｐ.talbe
HFU-18HA03/R2(DB) performance curves
Cooling power consumption value-temp.curves
400
600
800
1000
1200
1400
1600
1800
2000
2200
2400
18
/
12
℃
18
/
14
℃
20
/
15
℃
22
/
16
℃
25
/
18
℃
27
/
19
℃
30
/
22
℃
32
/
23
℃
32
/
24
℃
indoor tempe.(DB/WB)
power consumption(w)
18℃ 20℃ 25℃ 32℃ 35℃ 40℃ 43℃ 46℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
21
Domestic Air Conditioner
Page 24
Domestic air conditioner
22
9.4 Heating Power Consumption Value-temperature Curves
outdoor temp. DB/WB 15℃ 20℃ 25℃
-10℃ 845 984 1176
-5℃ 801 923 1118 5℃ 946 1131 1229 7/6℃ 782 905 1135 15℃ 700 830 1003 20℃ 731 912 1106 25℃ 909 1086 1158
indoor temp.(humidity 46%)
heating power consumption value-temp.talbe
HFU-09HA03/R2(DB) performance curves
Heating power consumption value-temp.curves
600
700
800
900
1000
1100
1200
1300
1400
-10℃ -5℃ 5℃ 7/6℃ 15℃ 20℃ 25℃
indoor tempe.(DB/WB)
conoling capacity(w)
15℃ 20℃ 25℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
Page 25
outdoor temp. DB/WB 15℃ 20℃ 25℃
-10℃ 1018 1191 1349
-5℃ 965 1117 1306 5℃ 1064 1306 1472 7/6℃ 909 1075 1415 15℃ 833 1004 1214 20℃ 885 1176 1366 25℃ 1047 1314 1387
indoor temp.(humidity 46%)
heating power consumption value-temp.talbe
HFU-12HA03/R2(DB) performance curves
Heating power consumption value-temp.curves
-10℃ -5℃ 5℃ 7/6℃ 15℃ 20℃ 25℃
indoor tempe.(DB/WB)
conoling capacity(w)
系列1 系列2 系列3
HFU-09,12,18 HA03/R2(DB) Performance Curves
23
Domestic Air Conditioner
Page 26
outdoor temp. DB/WB 15℃ 20℃ 25℃
-10℃ 1476 1757 1997
-5℃ 1400 1738 1933 5℃ 1543 1931 2179 7/6℃ 1360 1688 2095 15℃ 1324 1577 1797 20℃ 1550 1950 2110 25℃ 1680 2036 2120
indoor temp.(humidity 46%)
heating power consumption value-temp.talbe
HFU-18HA03/R2(DB) performance curves
Heating power consumption value-temp.curves
1000
1200
1400
1600
1800
2000
2200
2400
-10℃ -5℃ 5℃ 7/6℃ 15℃ 20℃ 25℃
indoor tempe.(DB/WB)
conoling capacity(w)
15℃ 20℃ 25℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
24
Domestic Air Conditioner
Page 27
Domestic air conditioner
25
9.5 Cooling Discharge Pressure Curves
outdoor temp. (humidity 46%)
DB/WB 16℃
19℃
22℃
15℃
2056 2258 2339
25℃
2313 2473 2614
30℃
2454 2626 2697
35℃
2768 2894 2976
40℃
3079 3254 3405
45℃
3344 3545 3646
HFU-09HA03/R2(DB) performance curves
cooling discharge pressure.table
indoor temp.
Cooling discharge pressure
1500
2000
2500
3000
3500
4000
15℃ 25℃ 30℃ 35℃ 40℃ 45℃
Outdoor Temp
discharge pressure
16℃ 19℃ 22℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
Page 28
outdoor temp. (humidity 46%)
DB/WB 16℃
19℃
22℃
15℃
2100 2262 2438
25℃
2316 2477 2618
30℃
2458 2630 2779
35℃
2700 2899 2980
40℃
3083 3200 3411
45℃
3349 3550 3652
HFU-12HA03/R2(DB) performance curves
cooling discharge pressure.table
indoor temp.
Cooling discharge pressure
1500
2000
2500
3000
3500
4000
15℃ 25℃ 30℃ 35℃ 40℃ 45℃
Outdoor Temp
discharge pressure
16℃ 19℃ 22℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
26
Domestic Air Conditioner
Page 29
outdoor temp. (humidity 46%)
DB/WB 16℃
19℃
22℃
15℃
2103 2265 2442
25℃
2319 2481 2691
30℃
2461 2634 2783
35℃
2704 2903 3063
40℃
3088 3300 3500
45℃
3354 3555 3658
HFU-18HA03/R2(DB) performance curves
cooling discharge pressure.table
indoor temp.
Cooling discharge pressure
1500
2000
2500
3000
3500
4000
15℃ 25℃ 30℃ 35℃ 40℃ 45℃
Outdoor Temp
discharge pressure
16℃ 19℃ 22℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
27
Domestic Air Conditioner
Page 30
Domestic air conditioner
28
9.6 Cooling Suction Pressure Curves
outdoor temp. (humidity 46%)
DB/WB 16℃
19℃
22℃
15℃
665 723 765
25℃
694 753 795
30℃
696 778 810
35℃
707 781 826
40℃
745 823 868
45℃
773 855 890
HFU-09HA03/R2(DB) performance curves
cooling suction pressure.table
indoor temp.
Cooling suction pressure
600
700
800
900
1000
15℃ 25℃ 30℃ 35℃ 40℃ 45℃
Outdoor Temp
suction pressure
16℃ 19℃ 22℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
Page 31
outdoor temp. (humidity 46%)
DB/WB 16℃
19℃
22℃
15℃
667 726 769
25℃
697 756 800
30℃
716 763 815
35℃
730 785 852
40℃
747 827 873
45℃
776 859 895
HFU-12HA03/R2(DB) performance curves
cooling suction pressure.table
indoor temp.
Cooling suction pressure
600
700
800
900
1000
15℃ 25℃ 30℃ 35℃ 40℃ 45℃
Outdoor Temp
suction pressure
16℃ 19℃ 22℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
29
Domestic Air Conditioner
Page 32
outdoor temp. (humidity 46%)
DB/WB 16℃
19℃
22℃
15℃
658 711 774
25℃
701 762 804
30℃
721 784 848
35℃
735 789 857
40℃
764 833 891
45℃
809 852 901
HFU-18HA03/R2(DB) performance curves
cooling suction pressure.table
indoor temp.
Cooling suction pressure
600
700
800
900
1000
15℃ 25℃ 30℃ 35℃ 40℃ 45℃
Outdoor Temp
suction pressure
16℃ 19℃ 22℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
30
Domestic Air Conditioner
Page 33
outdoor temp.
(humidity 46%)
DB/WB 15℃
20℃
25℃
－15℃
2216 2414 2596
－10℃
2372 2553 2723
－5℃
2479 2665 2885
0℃ 2624 2837 3033 5℃
2721 2942 3147
10℃ 2808 3065 3275 15℃
2750 2970 3210
20℃
3020 3248 3440
HFU-09HA03/R2(DB) performance curves
Heating discharge pressure.table
indoor temp.
Heating discharge pressure
1500
2000
2500
3000
3500
4000
－15℃ －10℃ －5℃ 0℃ 5℃ 10℃ 15℃ 20℃
Outdoor Temp
discharge pressure
15℃ 20℃ 25℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
Domestic air conditioner
31
9.7 Heating Discharge Pressure Curves
Page 34
outdoor temp.
(humidity 46%)
DB/WB 15℃
20℃
25℃
－15℃
2150 2440 2645
－10℃
2401 2580 2870
－5℃
2509 2693 2939
0℃ 2656 2866 3090 5℃
2754 2973 3310
10℃ 2842 3170 3430 15℃
2820 3070 3250
20℃
3056 3282 3505
HFU-12HA03/R2(DB) performance curves
Heating discharge pressure.table
indoor temp.
Heating discharge pressure
1500
2000
2500
3000
3500
4000
－15℃ －10℃ －5℃ 0℃ 5℃ 10℃ 15℃ 20℃
Outdoor Temp
discharge pressure
15℃ 20℃ 25℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
32
Domestic Air Conditioner
Page 35
outdoor temp.
(humidity 46%)
DB/WB 15℃
20℃
25℃
－15℃
2300 2390 2680
－10℃
2427 2611 2810
－5℃
2536 2726 3040
0℃ 2685 2940 3131 5℃
2784 3009 3353
10℃ 2770 3040 3475 15℃
2670 2920 3292
20℃
3090 3321 3550
HFU-18HA03/R2(DB) performance curves
Heating discharge pressure.table
indoor temp.
Heating discharge pressure
1500
2000
2500
3000
3500
4000
－15℃ －10℃ －5℃ 0℃ 5℃ 10℃ 15℃ 20℃
Outdoor Temp
discharge pressure
15℃ 20℃ 25℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
33
Domestic Air Conditioner
Page 36
outdoor temp.
(humidity 46%)
DB/WB 15℃
20℃
25℃
－15℃
629 690 757
－10℃
668 721 791
－5℃
696 757 826
0℃ 721 795 884 5℃
741 830 935
10℃ 889 955 1057 15℃
960 1011 1079
20℃
952 1015 1062
HFU-09HA03/R2(DB) performance curves
Heating suction pressure.table
indoor temp.
Heating suction pressure
600
700
800
900
1000
1100
1200
－15℃ －10℃ －5℃ 0℃ 5℃ 10℃ 15℃ 20℃
Outdoor Temp
suction pressure
15℃ 20℃ 25℃
Domestic air conditioner
34
9.8 Heating Suction Pressure Curves
HFU-09,12,18 HA03/R2(DB) Performance Curves
Page 37
outdoor temp.
(humidity 46%)
DB/WB 15℃
20℃
25℃
－15℃
636 678 749
－10℃
675 730 800
－5℃
704 788 835
0℃ 729 805 894 5℃
772 856 945
10℃ 899 966 1069 15℃
987 1023 1091
20℃
962 1015 1074
HFU-12HA03/R2(DB) performance curves
Heating suction pressure.table
indoor temp.
Heating suction pressure
600
700
800
900
1000
1100
1200
－15℃ －10℃ －5℃ 0℃ 5℃ 10℃ 15℃ 20℃
Outdoor Temp
suction pressure
15℃ 20℃ 25℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
35
Domestic Air Conditioner
Page 38
outdoor temp.
(humidity 46%)
DB/WB 15℃
20℃
25℃
－15℃
643 685 757
－10℃
683 738 831
－5℃
711 769 836
0℃ 760 834 904 5℃
811 865 956
10℃ 909 977 1080 15℃
998 1034 1103
20℃
973 1016 1055
HFU-18HA03/R2(DB) performance curves
Heating suction pressure.table
indoor temp.
Heating suction pressure
600
700
800
900
1000
1100
1200
－15℃ －10℃ －5℃ 0℃ 5℃ 10℃ 15℃ 20℃
Outdoor Temp
suction pressure
15℃ 20℃ 25℃
HFU-09,12,18 HA03/R2(DB) Performance Curves
36
Domestic Air Conditioner
Page 39
Sound level
Domestic air conditioner
Octave band center frequency(Hz)
approximate threshold hearing for continuous noise
heating
cooling
63
125
250
500
1000
2000
4000
8000
20
30
40
50
60
70
80
53
106 212
425
850 1700
3400 6800
NC-70
NC-60
NC-50
NC-40
NC-30
NC-20
Octave band center frequency(Hz)
approximate threshold
hearing for
continuous
noise
63
125
250
500
1000
2000
4000
8000
20
30
40
50
60
70
80
53
106 212
425
850 1700
3400 6800
NC-70
NC-60
NC-50
NC-40
NC-30
NC-20
HFU-09HA03/R2(DB)
42/41
44/43
39/38
40/39 38/36
52/51
54/53
37/35
Model
Sound presure level
230V,50Hz
Cooling/heating
Measuring location
sound power level
(cooling/heating)
H
LSL
Location of microphone

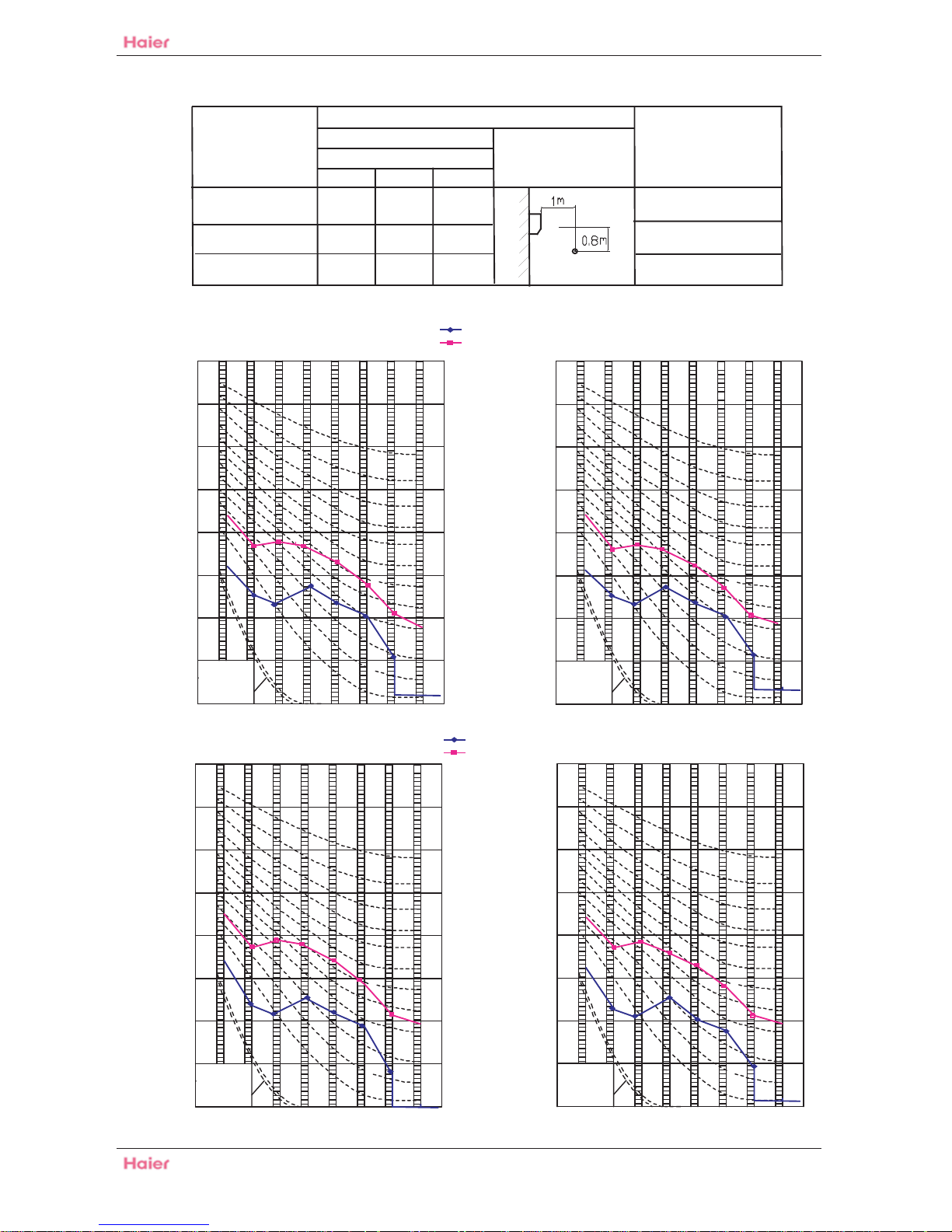

10 Sound level
HFU-09,12,18HA03/R2(DB)
HFU-12HA03/R2(DB)
HFU-09HA03/R2(DB)
HFU-09HA03/R2(DB)
Octave band center frequency(Hz)
approximate
threshold hearing for
continuous
noise
63
125
250
500
1000
2000
4000
8000
20
30
40
50
60
70
80
53
106 212
425
850 1700
3400 6800
NC-70
NC-60
NC-50
NC-40
NC-30
NC-20
Octave band center frequency(Hz)
approximate
threshold hearing for
continuous
noise
63
125
250
500
1000
2000
4000
8000
20
30
40
50
60
70
80
53
106 212
425
850 1700
3400 6800
NC-70
NC-60
NC-50
NC-40
NC-30
NC-20
HFU-12HA03/R2(DB)
HFU-12HA03/R2(DB)
cooling
heating
HFU-12HA03/R2(DB)
48/47
45/43
42/40 58/57
Indoor
Outdoor
Indoor
Outdoor
37
Page 40

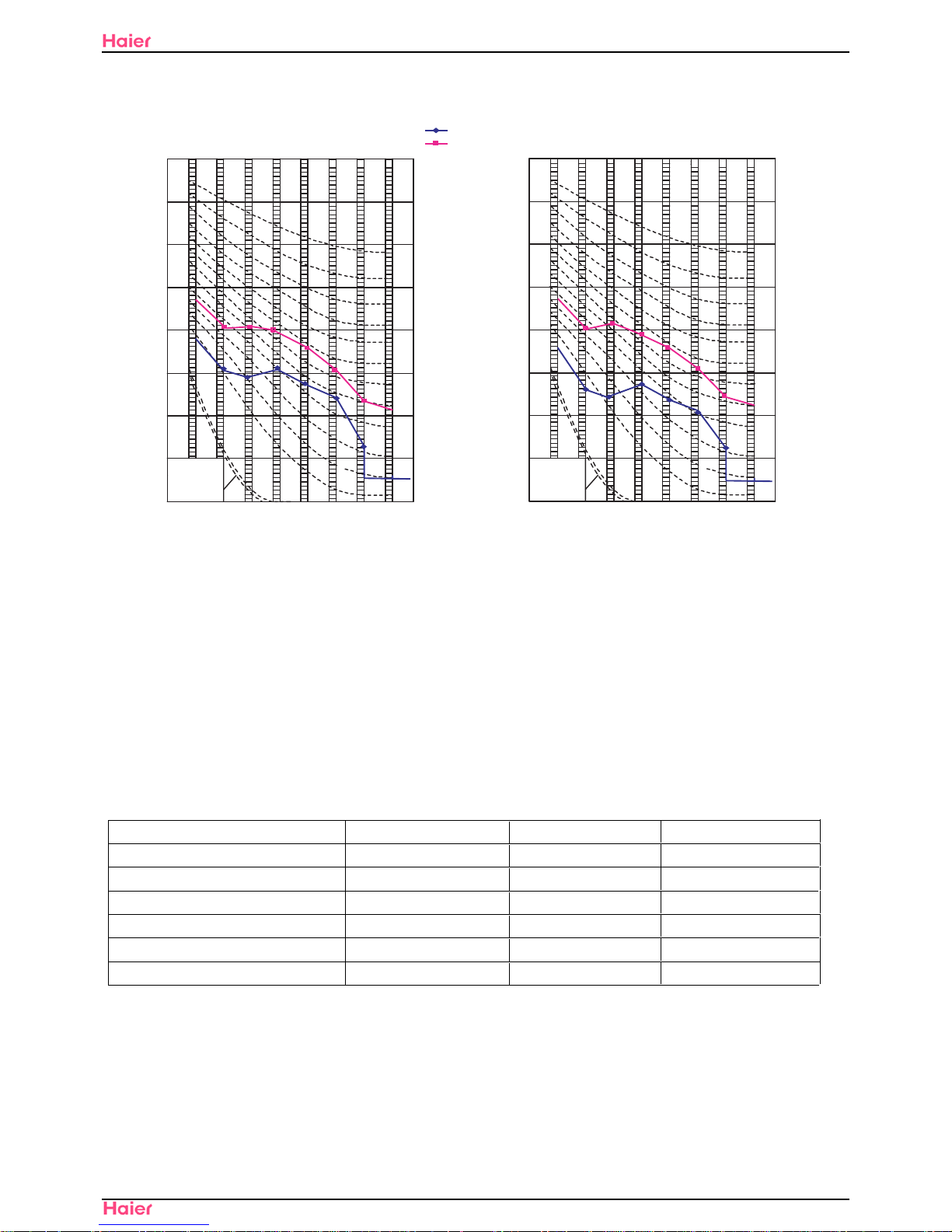

HFU-09,12,18HA03/R2(DB) Accessories
38
Domestic Air Conditioner
11. Accessories
Standard accessories
Name
HFU-09HA03/R2(DB)
Drain hose
Plastic bag
1 1
screw assembly
1 1
Battery
2 2
Remote controller
YR-H05 YR-H05
1 1
Operation manual
Octave band center frequency(Hz)
approximate threshold
hearing for
continuous
noise
63
125
250
500
1000
2000
4000
8000
20
30
40
50
60
70
80
53
106 212
425
850 1700
3400 6800
NC-70
NC-60
NC-50
NC-40
NC-30
NC-20
Octave band center frequency(Hz)
approximate
threshold hearing for
continuous
noise
63
125
250
500
1000
2000
4000
8000
20
30
40
50
60
70
80
53
106 212
425
850 1700
3400 6800
NC-70
NC-60
NC-50
NC-40
NC-30
NC-20
HFU-18HA03/R2(DB)
HFU-18HA03/R2(DB)
cooling
heating
Indoor
Outdoor
2
1
1
HFU-09HA03/R2(DB) HFU-09HA03/R2(DB)
YR-H05
1
1 1
1
Page 41
Control systems
HFU-09,12,18 HA 03/ R2(DB)
39
Domestic air conditioner
1.TIMER Used to select TIMER ON,
TIMER OFF, TIMER ON-OFF
2.HOUR Used to set clock and timer setting.
3.CLOCK Used to set correct time.
Note:
1. The following functions and related
displays are not available for all models: Display of humidifying and atmosphere humidity.
2. There is health display with the remote
controller in this type, but without health function.
4. MODE Used to select AUTO, COOL, DRY, FAN and HEAT operation.
5. ON/OFF Used for unit start and stop.
6. SWING Used to adjust the up/down air flow direction.
7. TEMP. Used to select your desired temperature.
8. TIMER ON display
9. SLEEP display
10. FAN SPEED display Remote controller:
LOW MED HI AUTO
11. SWING UP/DOWN display
12. MODE display
AUTO
COOL
DRY
FAN
HEAT
Operation mode
Remote controller
13. SIGNAL SENDING display
14. TEMP. display
Remote controller: to display the TEMP. setting.
15. CLOCK display
16. TIMER OFF display
17. FAN
Used to select fan speed: LO,MED,HI,AUTO
18. SET
Used to confirm timer and clock settings.
19. SLEEP
Used to select sleep mode.
20. RESET
When the remote controller appears abnormal, use a sharp pointed item to press this button to reset the remote controller to normal condition.
21. LOCK
Used to lock buttons and LCD display. If pressed, the other buttons will be disabled and the lock condition display appears. Press it once again, lock will be canceled and lock condition display disappears.
22. LOCK display
23. POWER/SOFT
12 Control systems
Page 42
HFU-09,12,18HA03/R2(DB) Center of gravity
40
Domestic Air Conditioner
13 Center of gravity
Indoor
Outdoor（for 09/12 unit）
Outdoor（for 18 unit）
543
255
783
310
255
118
720
305
640
315
255
120
680
312
837
275
813
332
145
Page 43
HFU-09,12,18HA03/R2(DB) Accessories
41
Domestic Air Conditioner

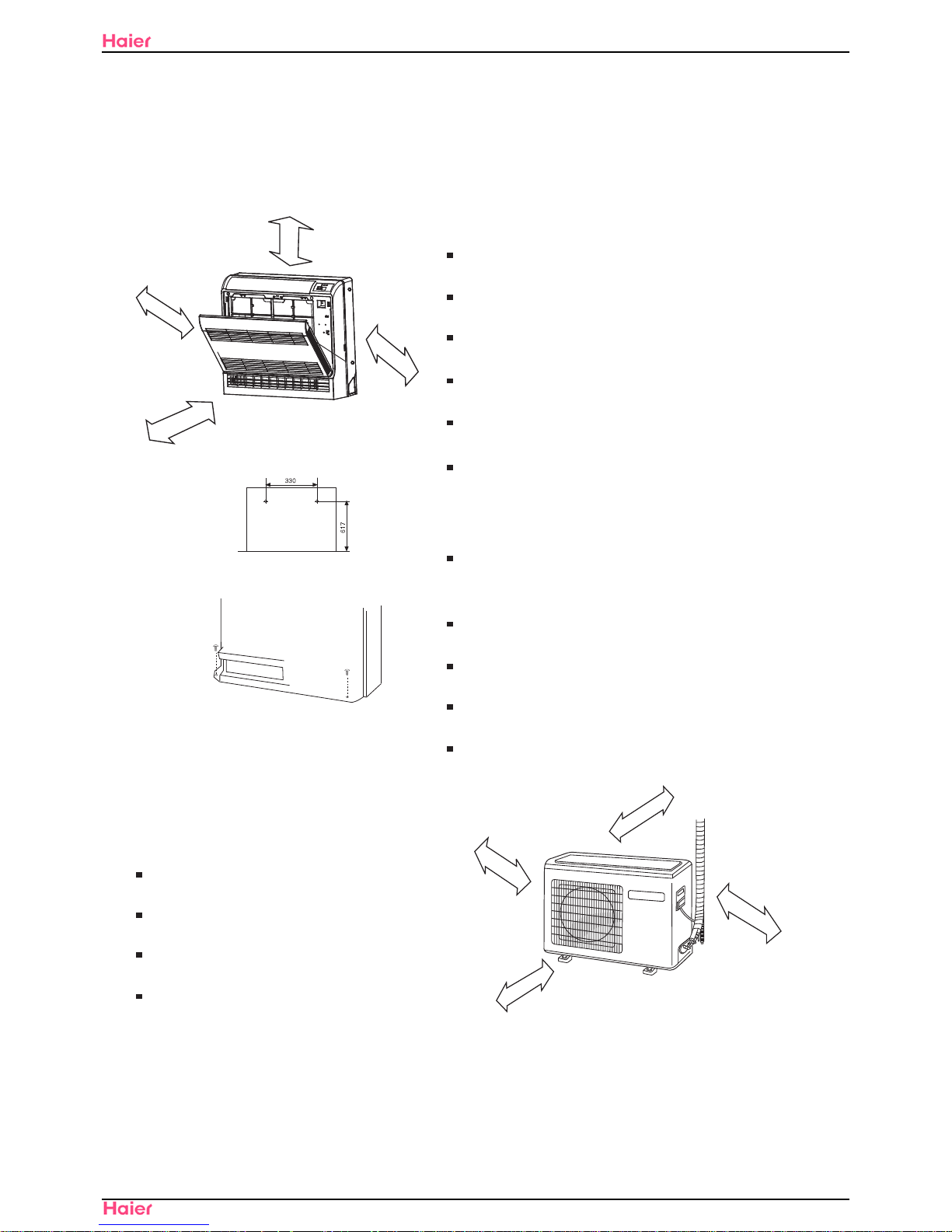

14. Installation
Installation of indoor unit
selection of installation place
Place where it is easy to route drainage pipe and outdoor piping.
Place, away from heat source and with less direct sunlight.
Place where cool and warm air could be delivered evently to every corner of the room.
Place near power supply socket.Leave enough space around the unit.
Place, robust not causing vibration, where the body can be supported sufficiently.
Installation of outdoor unit
selection of installation place Place strong enough to support the unit and will
not cause vibration and noise. Place where discharged wind and noise does not cause a nuisance to the neighbors.
Place where is less affected by rain or direct sunlight and is sufficiently ventilated,or to install a shield.
Place with enough space for smooth air flow.
Figure.2
Figure.3
Installation
To prevent interference, place it at least 1m away from other electric machines, such as TV set, radio.
There must be no gap between the indoor unit and wall.
According to the dimension of the Figure 2 shown nail two cement steel nails on the wall keep 2-3mm out, then hang the back of the unit on them.
Remove the front panel,then use two fastening screws to fix the unit on the floor. As Figure 3 shown.
Once refrigerant piping and drain piping connections are complete,fill the gap of the through hole with putty.
Attach the front panel and front grille in their orginal positions once all connections are complete.
Figure.4
more than 60 cm
more than 10 cm
more than 10 cm
more than 10 cm
Figure.1
m
c
0
0
1
n
a
h
t
e
r
o
m
m
c
0
1
n
a
h
t
e
r
o
m
mc01n
ah ter
om
m
c
0
1
n
a
h
t
e
r
o
m
Page 44
HFU-09,12,18HA03/R2(DB) The end
42
Domestic air conditioner
Sincere Forever
Haier Group
Haier Industrial Park, No.1, Haier Road Edited by: Zhang Junyan
266101, Qingdao, China
E-mail: [email protected] Signed by:
Zhang lizhi
Tel: +86 532 87636957
Http://www.haier.com
Approved by: Zhang shouxin
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
