Features
102102429 (HF-240TA)
H
FREEZER
Service Manual
Models:
HF-120T
HF-120TA
HF-180T
HF-180TA
HF-240T
HF-240TA
z Energy efficiency
z Micro foam technology
z Low noise operation
z Thick insulation for energy efficiency
Haier Group
Serial number: ER03SM0120-17
Version number: 00.00
0
Edition: 2003-01-20
CONTENT
CONTENT
1. Content……………………………………………………. 1
2. Product code illumination and Series Introduction…… 2
3. Specifications……………………….……..……………………. 3
4. Safety precautions……………………………………….……... 4
5. Parts and Functions…………………………………………. 7
6. Function Schedule……………………………......…….………. 8
7. System Flow Chart……………..………………………...…… 9
8. Circuit Diagram………………………………..….….….…… 10
9. Program Diagram…………………………..…………….. 11
10. Maintenance Service and Trouble Shooting…….…... 12

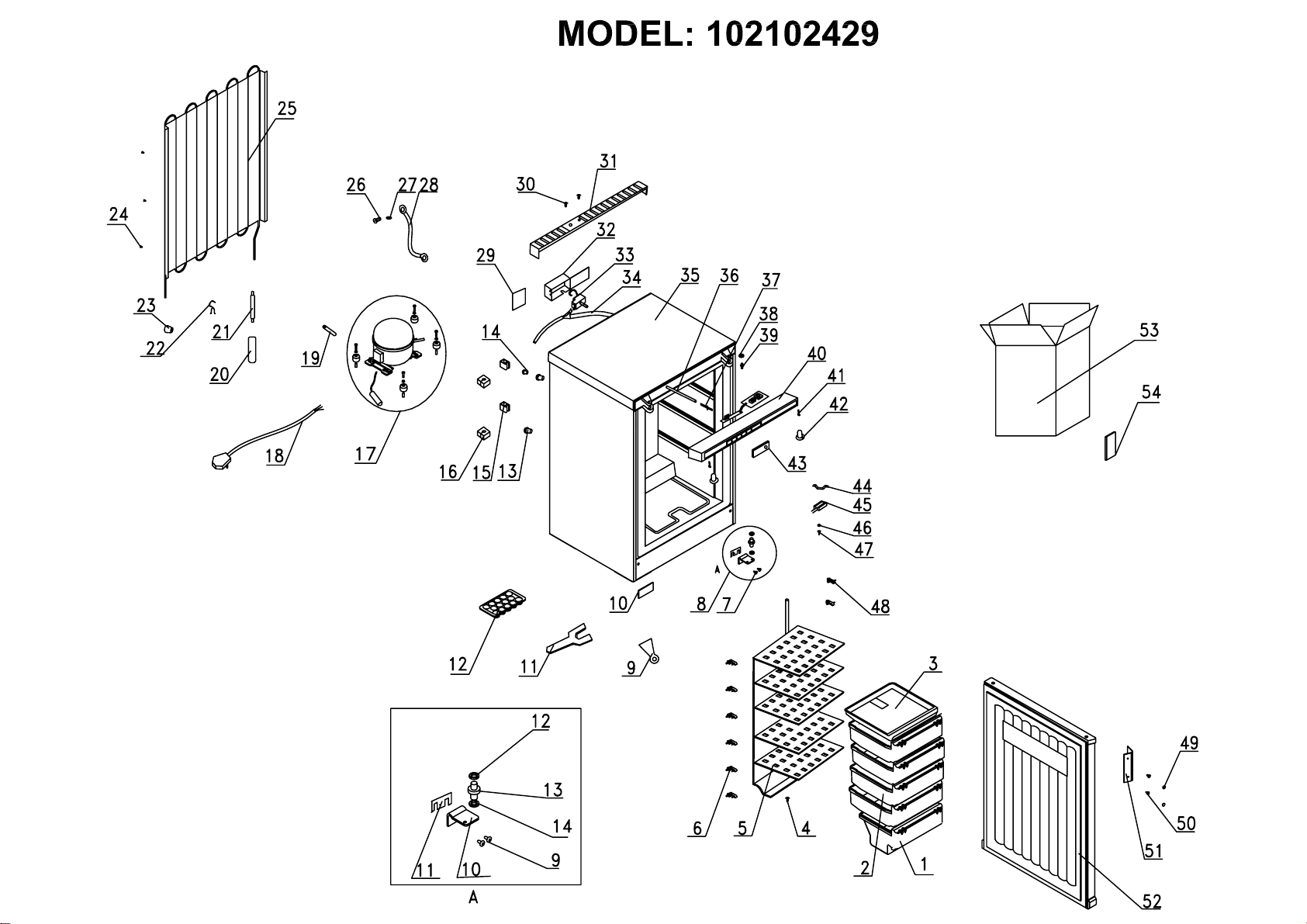

11. Exploded View…………………………………...………… 32
12. List of Parts………………..………………………….… 33
1
Product code illumination and Series Introduction
Product code illumination and Series Introduction
H F — 240 TA (102102429)
Serial Number
Gross capacity (according to
export country standard)
Freezer
Haier product
2
Specifications
Specifications
Models
Net capacity
(L)
Color White White White
Power Supply
(V/Hz)
Rated Input Power
(W)
Power Consumption
(kW.·h/24h)
HF-120T
HF-120TA
115 165 230
220-240~/50 220-240~/50 220-240~/50
90 110 120
0.60 0.63 0.67
HF-180T
HF-180TA
HF-240T
HF-240TA
Net Weight
(kg)
Gross Weight
(kg)
Unit Dimension (D*W*H)
(mm)
Packing Dimension
(D*W*H)(mm)
Container Quantity
40’
(PCS)
Container Quantity
40’HC(PCS)
45 55 63
53 68 79
600x600x850 600x600x1134 600x600x1467
700X675X920 690X685X1215 690X685X1550
144 102 74
3
Parts and Functions
Parts and Functions
A Foamed Cabinet B Short Drawer C Long Drawer
D Lower Plate E Control Panel F Foamed Door
7
Function Schedule
z Energy efficiency
z Micro foam technology
z Low noise operation
z Thick insulation for energy efficiency
Function Schedule
8
System Flow Chart
System Flow Chart
1 Schematic diagram of System Flow Chart
2 Brief Description of System Flow Chart
HF-120T/180T/240T is a direct cooling single-system freezer. When the
freezer is just powered on, the refrigerant flows in the sequence:
1->2->3->4->5.
9
Circuit Diagram
1 Schematic Circuit Diagram
A STECKER B GEFRIERSENSOR
C RAUMSENSOR D SCHALTTAFEL
E ÜBERBELASTUNGS- SCHUTZAPPARAT
F KOMPRESSOR G PTC H LAUFENDE KAPAZITANZ
Circuit Diagram
Brief Description of Control Principle
10
