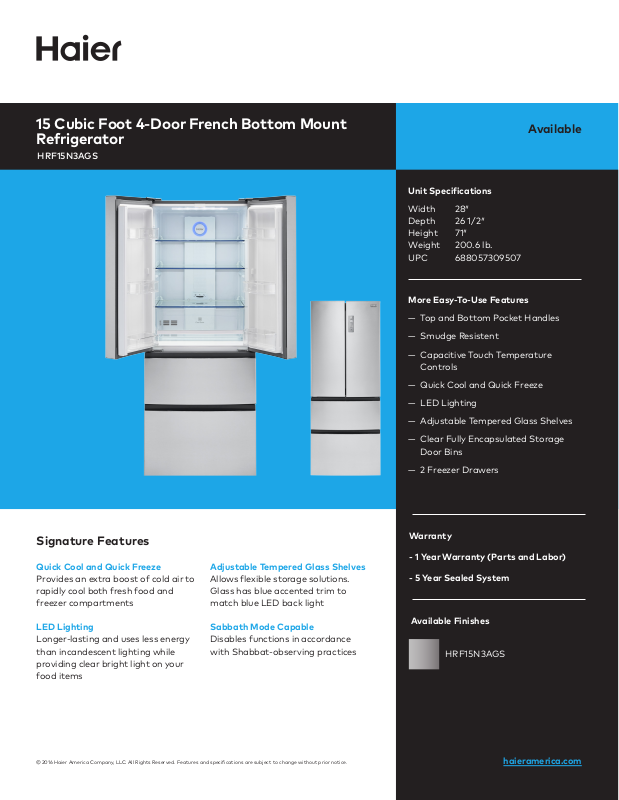

Page 1
15 Cubic Foot 4-Door French Bottom Mount
Refrigerator
HRF15N3AGS
Available
Unit Specifications
Width 28″
Depth 26 1/2″
Height 71″
Weight 200.6 lb.
UPC 688057309507
More Easy-To-Use Features
— Top and Bottom Pocket Handles
— Smudge Resistent
— Capacitive Touch Temperature
Controls
— Quick Cool and Quick Freeze
— LED Lighting
Signature Features
Quick Cool and Quick Freeze
Provides an extra boost of cold air to
rapidly cool both fresh food and
freezer compartments
LED Lighting
Longer-lasting and uses less energy
than incandescent lighting while
providing clear bright light on your
food items
Adjustable Tempered Glass Shelves
Allows flexible storage solutions.
Glass has blue accented trim to
match blue LED back light
Sabbath Mode Capable
Disables functions in accordance
with Shabbat-observing practices
— Adjustable Tempered Glass Shelves
— Clear Fully Encapsulated Storage
Door Bins
— 2 Freezer Drawers
Warranty
- 1 Year Warranty (Parts and Labor)
- 5 Year Sealed System
Available Finishes
HRF15N3AGS
© 2016 Haier America Company, LLC. All Rights Reserved. Features and specifications are subject to change without prior notice.
haieramerica.com
Page 2
15 Cubic Foot 4-Door French
"
#
"
#
Bottom Mount Refrigerator
HRF15N3AGS
Letter Cutout Dimension in.
A Height (with Hinge Cover) 71″
B Height (without Hinge) 70.5″
C Depth (with handle) 26.5″
D Depth (without handle) 26.5″
E Depth of the Cabinet Only 23.5″
F Depth (with door at 90°) 38.5″
G Overall Width 28″
Required Air Clearances
Top Open
Back
Sides 1"
2"
Power Requirements
Electrical Rating 115V, 60Hz
Overall Packaging Details
Packaging lb. / in.
Gross Weight 209.4 lb.
Dimensions
W
30.40″
D
30.30″
H
73.70″
Product Technical Illustration
B
General Appliance Information
Please read all installation details and
instructions before use.
E
C
Contact Us
For questions regarding this product
please refer to our website at
haieramerica.com or call our customer
service center at 877-337-3639.
© 2016 Haier America Company, LLC. All Rights Reserved. Features and specifications are subject to change without prior notice.
haieramerica.com
