User Manual
Dishwasher
HDW13G1 / HDW14G2
HDW15G2P / HDW15G3 Models
AA
Thank you for purchasing a Haier Product
Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.
Legend
General information and tips
Warning – Important Safety information
Environmental information
Disposal
Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to
WARNING!
Risk of injury or suffocation!
Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the door catch to prevent children and pets to get closed in the appliance.
1
|
Content |
Safety............................................................................................... |
3 |
Product Description....................................................................... |
5 |
Control-Panel ................................................................................. |
6 |
Programmes ................................................................................... |
8 |
.............................................................................. |
9 |
Daily Use ....................................................................................... |
12 |

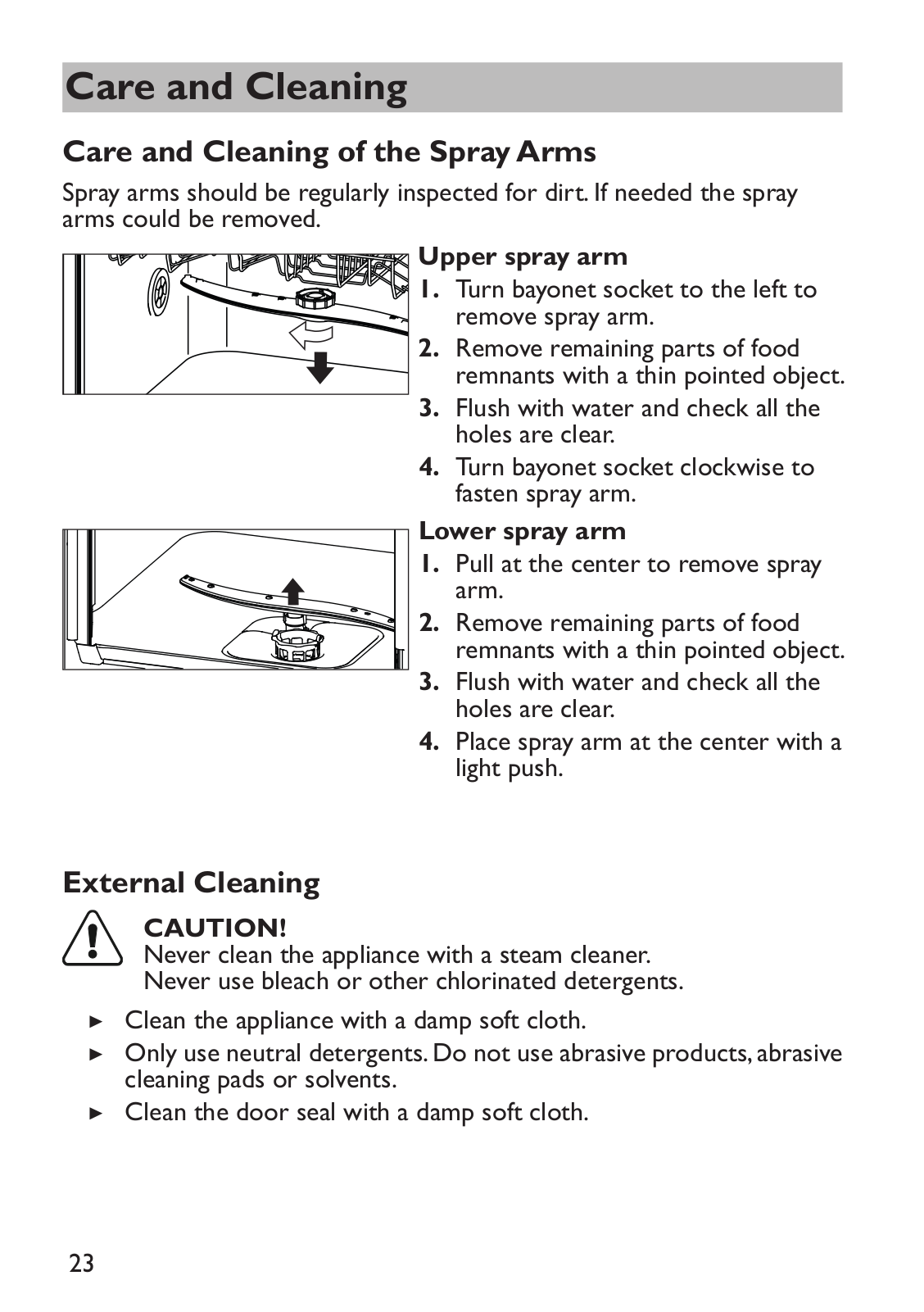

Care and Cleaning........................................................................ |
22 |

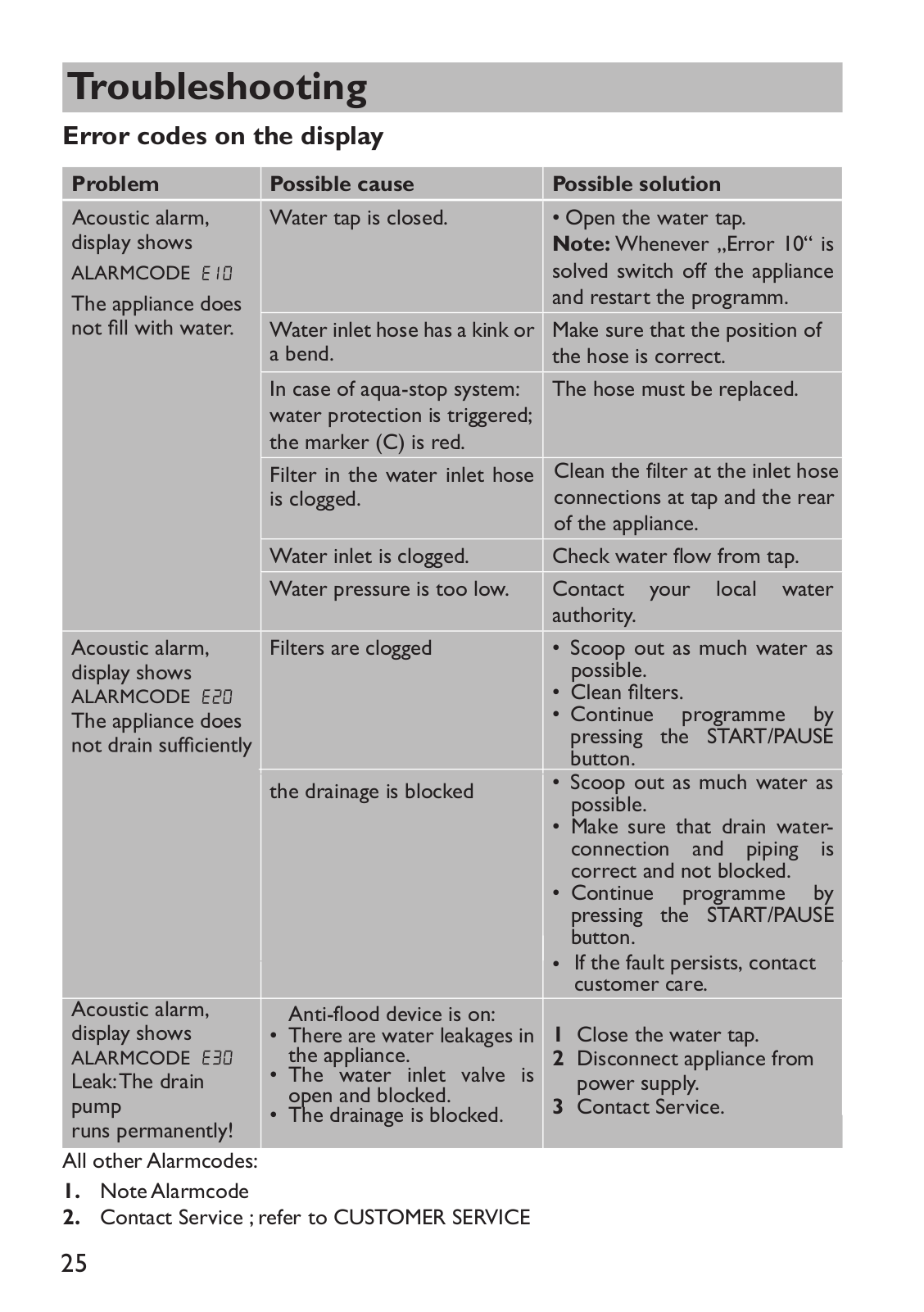

Troubleshooting .......................................................................... |
24 |

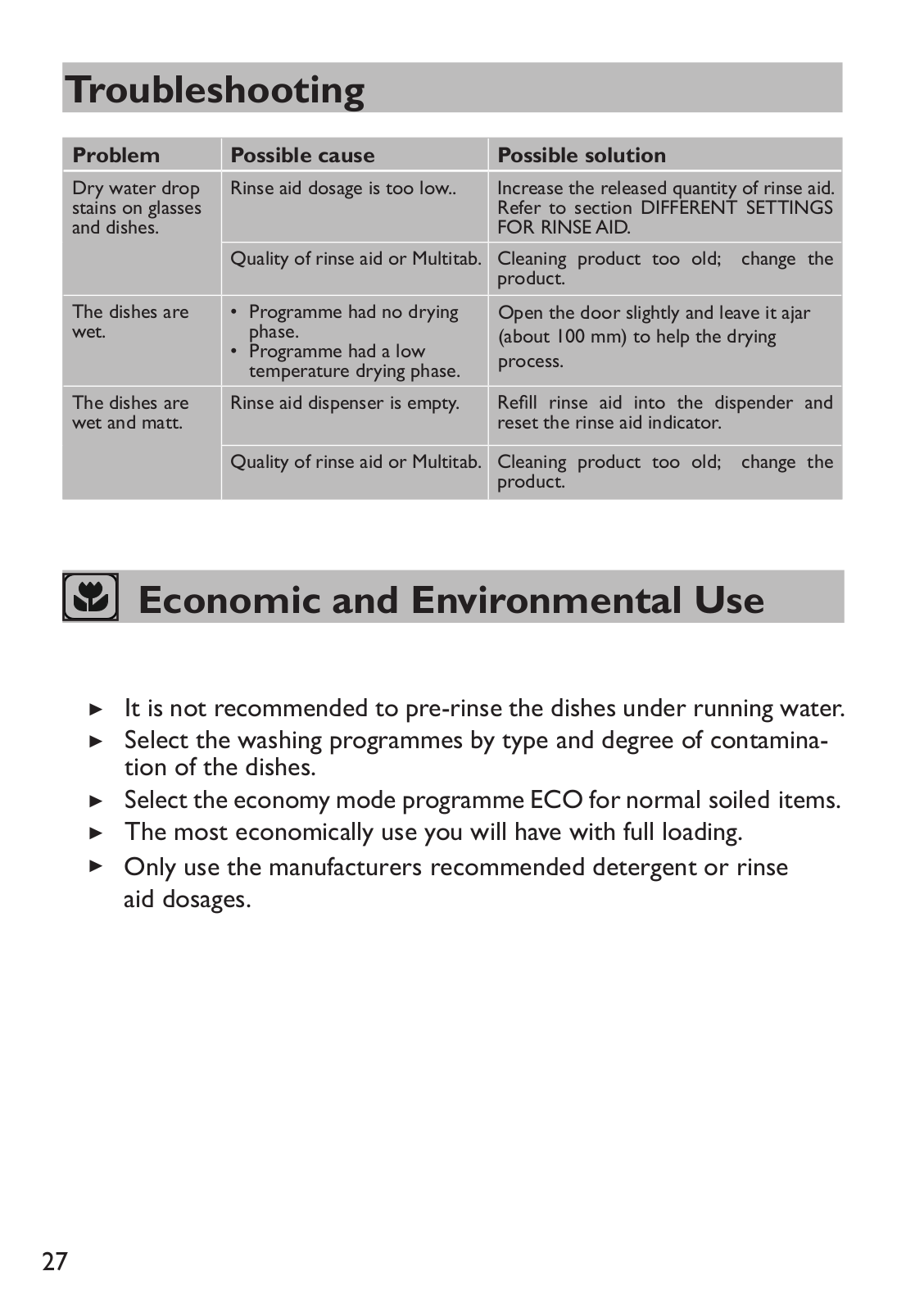

Economic and Environmental Use ............................................. |
27 |
Installation .................................................................................... |
28 |

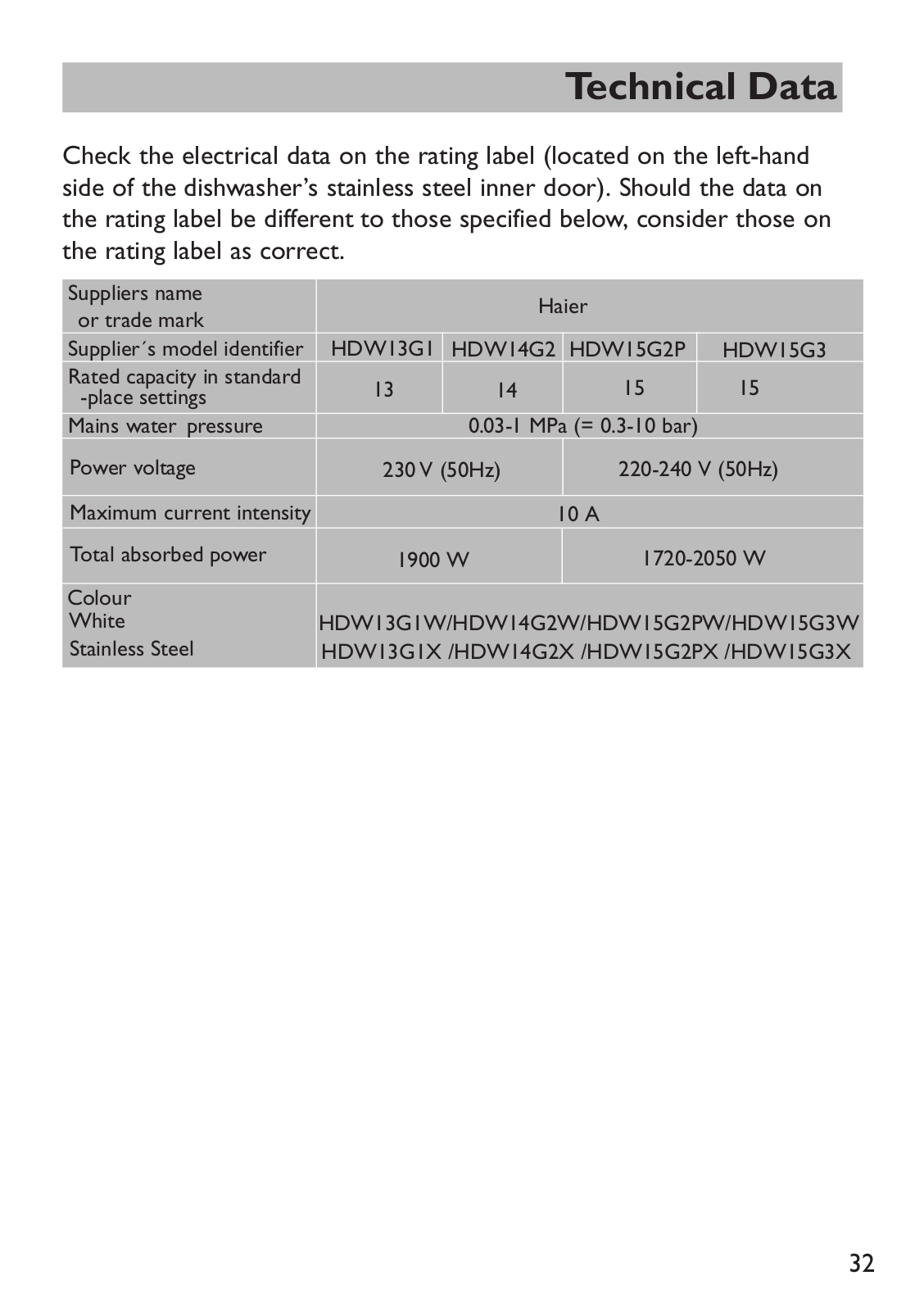

Technical Data ............................................................................. |
32 |

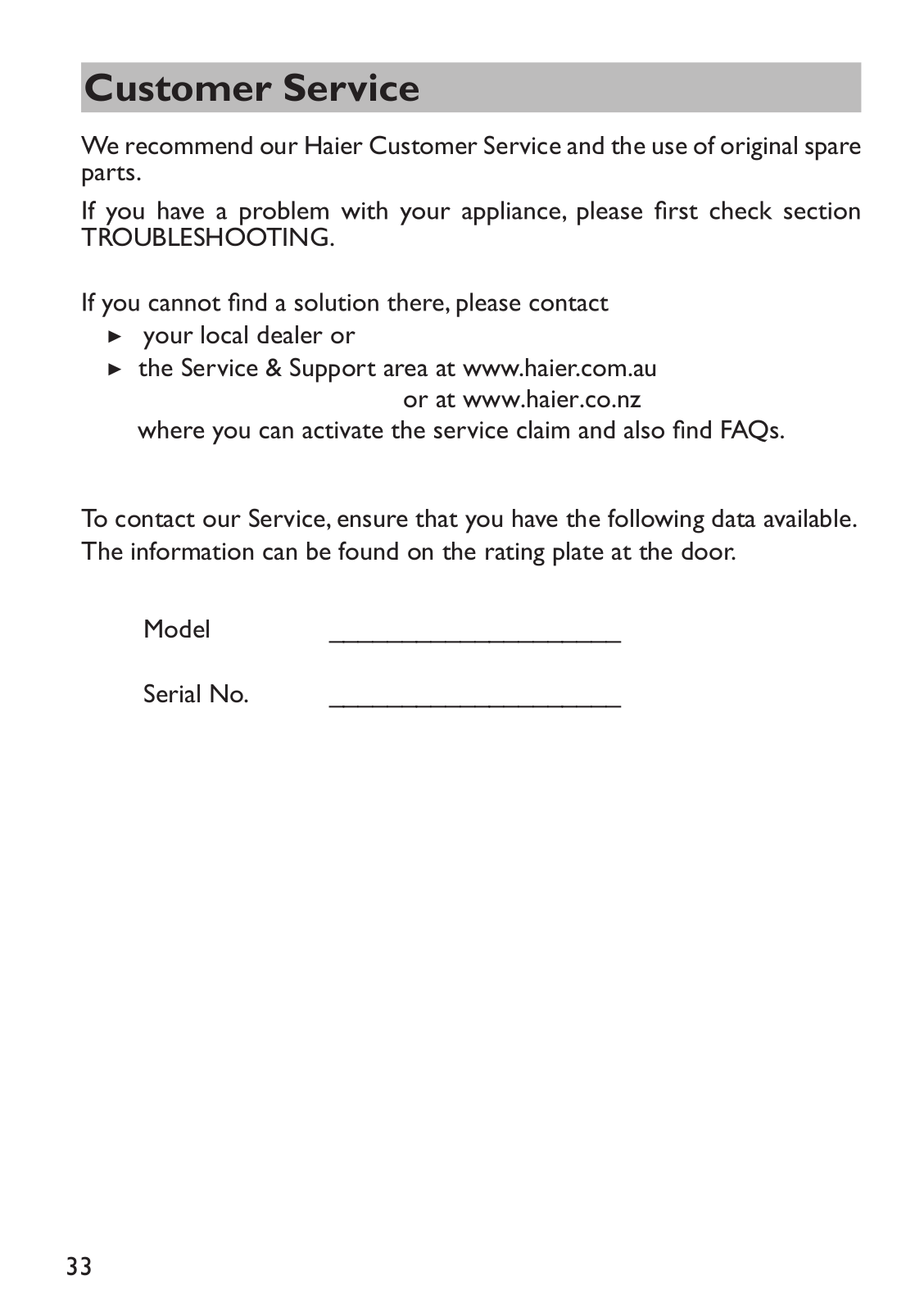

Customer Service ........................................................................ |
33 |
Standards Test ............................................................................. |
34 |
2
Safety
Intended Use
The appliance is designed for domestic use inside the house. It is not intended for commercial or industrial use. Do not use it for purposes other than that for which it was designed.
may cause hazards and loss of warranty claims.
Standards and Directives
This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.
Before Switching on the Appliance for the FirstTime
Do…
make sure all packaging is removed and is kept out of childrens reach.
make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
use a separate earthed socket for the power supply. The appliance must be earthed.
make sure the plug is easy accessible.
make sure only the delivered electric cable and hose set are used.
hold the plug and not the electric cable when unplugging the power supply.
make sure not to damage the electric cable and the plug. If damaged have it replaced by an electrician.
leakage.
Do not…
install or use the appliance where the temperature is below 5 °C.
use multi-plug adapters and extension cables.
let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance if not supervised by a person responsible for their safety.
products in, near or on the appliance.
3
Safety
During Daily Use
Do…
supervise children to prevent them playing with the appliance.
put sharp pointed objects (e.g. knives) in a way that there is no danger of injury.
Do not…
open the door while a programme operates. The appliance can release hot steam.
keep the appliance door open without supervision to prevent tripping and falling.
let children or pets come close to the appliance when the door is open.
sit or place heavy items on the open door.
remove the dishes from the appliance until the programme is completed.There can still be detergent on the dishes.
drink the water in the appliance. The water may be contaminated with detergent residues.
cover any ventilation openings in the base by a carpet or similar object.
use water spray or steam to clean the appliance.
let the children make the cleaning and user maintenance without supervision.
4
Product Description
1.Thermo dry1)
2.Top spray 2)
3.Upper spray arm
4.Lower spray arm
5.Filters
6.Rinse aid dispenser
7.Detergent dispenser
8.Rating label
9.Cutlery basket3)
10.Lower basket
11.Upper basket
12.Knife rack
13. |
The third basket |
|
4) |
Accessories
Check the accessories and literature in accordance with this list:
water inlet hose5) |
U-support |
User manual |
1) , 2) Applicable to models HDW14G2, HDW15G2P and HDW15G3 . 4) Applicable to models HDW15G2P and HDW15G3.
3)Applicable to models HDW13G1 and HDW14G2 .
5)Applicable to models HDW13G1, HDW14G2 and HDW15G2P.
5
Control Panel
HDW13G1/HDW14G2/HDW15G2P : |
3 sec to Lock |
ON / OFF button
2.PROGRAMME SELECT button
3.START DELAY button
4.START / PAUSE button
5.Time & Info Display
6.Programme Indicators
8
7. Deficit Indicators
Rinse aid indicator
Water tap indicator 8. Option Indication
Delay start indicator
Child Lock indicator
HDW15G3 : |
|
|
|
|
|
1 |
|
|
|
Option |
4 |
|
|
|
|
||
2 |
|
|
|
Ok |
5 |
|
|
|
|
||
3 |
|
$ |
|
|
6 |
|
|
|
|
||
3 sec to Lock |
|
|
|
|
|
9 |
10 |
7 |
8 |
11 |
|
1. |
ON / OFF button |
7. |
Time & Info Display |
2. |
PROGRAMME SELECT Left button |
8. |
Programme Indicators |
3. |
PROGRAMME SELECT Right button |
9. |
Status Indication |
4. |
Option SELECT button |
10. |
Deficit Indication |
5. |
OK button |
11. Option Indication |
|
6. START / PAUSE button
6
Control Panel
Time & Info display
like
►Programme cycle time
►Programme start delay time
►Error codes and service information
►Remaining time in hours of a delayed programme starts, e.g.
►Remaining programme cycle time in hours + minutes, e.g.
While running it may vary due to local conditions and daily working load.
Rinse aid
Water tap
If the indicator lights up: Rinse aid is empty!
This indicator is off while the programme operates.
water.
Check section:“TROUBLESHOOTING”
Status Indicators
|
Wash |
If the indicator lights up: the Dishwasher is washing. |
|
||
|
||
|
|
|
|
Rinse |
If the indicator lights up: the Dishwasher is rinse washing. |
|
||
|
||
|
|
|
|
Dry |
If the indicator lights up: the Dishwasher is drying. |
|
|
|
Option Indication
Delay start
Child Lock
Extra shine
Half load
Multitab
You can delay the start of a programme in 1 hour steps up to 24 hours. Check the according paragraph under “Daily use”.
To active or cancel Child lock, press and hold until the Child lock indicator comes on
This option reduces spots on glassware and dinnerware. The option adds an extra intermediate rinse.
Use this option if you have only a few items to wash. This will save water, energy and time. If you use powder detergent use a little less detergent than for a full load.
Activate this option only when you use the combi detergent
tablets. This option decreases the flow of rinse aid and salt. Related indication. The programme duration can increase.
7
Programmes
Auto 45–70°C 1)
Heavy 70°C
ECO 50°C
Glass-Auto
Fast 30min2)
Rinse 3)
On some models :
$
Saving
Mix 90min
Hygiene
Light to heavy soil: Casseroles, sauces, potatoes,
pasta, rice, roasted or fried food
Heavy soil:
Casseroles, sauces, potatoes, pasta , rice, roasted or fried food
Normal soil:
Soups, eggs, sauces, potatoes, pasta, rice, roasted or fried food
Light soil:
Coffee, cake, milk, cold drinks, salad , sausages
Fresh soil:
Coffee, cake, milk, cold drinks , salad , sausages
Dishes to be stored for a few days before washing
Light or fresh soil:
Soups, eggs, sauces, potatoes, pasta, rice, roasted or fried food
Mixed soil:
Coffee, cake, milk, cold drinks, salad, sausages, Casseroles, sauces, potatoes, pasta, rice, roasted or fried food
Hygiene soil:
Casse oles sauces, potatoes, pasta, rice, roasted or fried food
Non-delicate:
Dinnerware, cutlery, pots and pans
Non-delicate: Dinnerware, cutlery, pots and pans
Non-delicate:
Dinnerware cutlery, glassware
Delicate:
Glassware, dinnerware, cutleey
Non-delicate:
Dinnerware, cutlery, glassware
All:
Dinnerware, cutlery, glassware, pots and pans
Non-delicate:
Dinnerware,
cutlry
Non-delicate:
Dinnerware, cutlery, glassware
pots and pans
Non-delicate:
Dinnerwa
cutle, pots and pans
1) The appliance senses the type of soil and the quantity of items in the baskets. It automatically adjusts the temperature and quantity of water, energy consumption and programme duration.
2) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
3) Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on
the dishes and bad odours to come out from the appliance. Do not use detergent with this programme!
8
First Steps
Remove all packaging materials, keep them out of childrens reach and dispose them in an environmentally friendly manner.There could be water residue inside the appliance due to quality checks in the factory.
Perform the following steps:
1.Install the appliance.
Refer to section INSTALLATION.
2.Only for use of Multitabs:Adjust the rinse aid setting.
Refer to section DIFFERENT SETTINGS FOR RINSE AID.
3.Fill the rinse aid dispenser.
Refer to section HOW TO FILL THE RINSE AID DISPENSER.
4.Open the water tap.
5.Start any wash programme (apart from 20 minutes programme) with detergent but no load to remove possible manufacturing residues.
Activate / De-Activate the Buzzer
An accoustic signal informs about the end of a programme.This signal can be switched off.
Refer to section HOW TO ADJUST SETTINGS and select the
-setting:
If the display shows
the signal is switched off.
If the display shows
the signal is switched on.
9
Different Settings for Rinse Aid
Rinse aid is added during the last rinsing phase to dry the dishes without streaks and stains.
Detergent (e.g. powder, tabs, ...)
requires separate rinse aid:
Factory default setting:
No settings are necessary. The rinse aid is added from the rinse aid dispenser only.
Detergent with multifunction (e.g. Multitabs)
combine detergent and rinse aid:
The rinse aid setting should be adjust to Please use the setting instructions in section HOW TO ADJUST SETTINGS and select the
setting.
The rinse aid is added from the rinse aid dispenser in addition to the multitabs rinse aid.
Setting
cuts off the rinse aid dosage and the rinse aid indication. The higher the value for
the higher the dosage.
Usually the recommended setting performs well. In case of streaks, stains, shimmer etc.; refer to section TROUBLESHOOTING.
CAUTION!
Only use rinse aid for dishwashers.
Other product can cause damage to the appliance!
1.Press the release button (B) to open the lid.
2. Fill the tank (A) up to the ‚max‘ mark.
3. Remove any spilled rinse aid with an absorbent cloth. Overdosed or spilled rinse aid may cause problems creating foam
4.Close the lid. Make sure that the release button locks into position.
10
How to Adjust Settings
To adjust the Rinse Aid level
1.The appliance is switched off.
2.Press and hold “
and
”about 3 seconds until (for HDW15G3, Press and hold “
and Option”):
►The display shows the current Rinse Aid setting (the default is
).
3.Press
(for HDW15G3, Press OK) to change the Rinse Aid setting in steps between
(minimum dispense) and
(maximum dispense).
4.To exit the Rinse Aid menu,press and hold 1 second
.
Activate / De-Activate the Buzzer
1.The appliance is switched off.
2.Press and hold
and
about 3 seconds until (for HDW15G3 , Press and hold “
and Option”):
►The display shows the current Rinse Aid setting.
3.Press
(for HDW15G3, press Option) to scroll to the buzzer menu.
4.The display will show
(buzzer off) or
(buzzer on).
5.Press
(for HDW15G3, press OK) to toggle between
(buzzer off) or
(buzzer on).
6.To exit ,press and hold 1 second
.
Child lock
This feature disables all the buttons on the dishwasher. If any other buttons are pressed while Child lock is activated, the the Child lock indicator will flash for a few seconds.
1.To activate Child lock, press and hold
that Child lock has been
activated.
2.The display will remain on (if no programme has been started it will continue to flash while the control panel is locked).
3.To cancel Child lock, press and hold
that Child lock has been cancelled.
11
