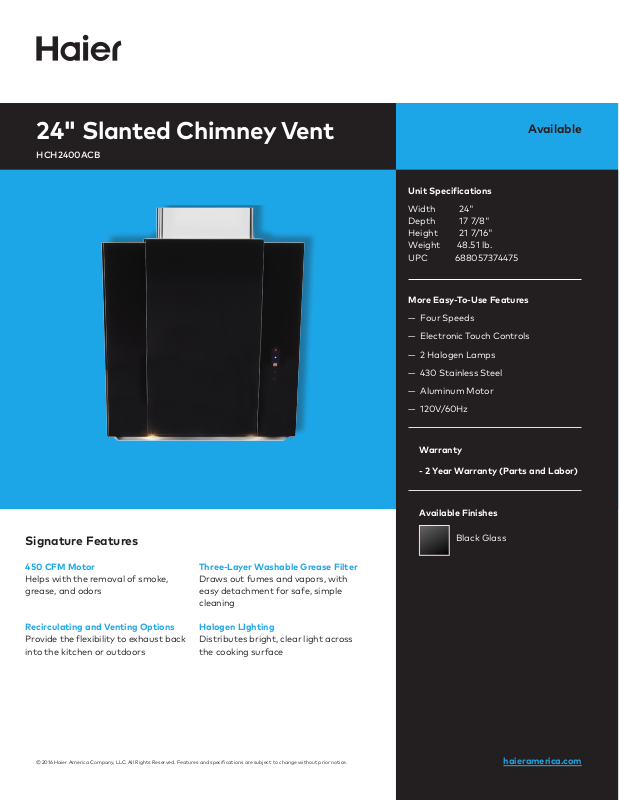

Haier HCH2400ACB Specifications

24" Slanted Chimney Vent

HCH2400ACB

Available

Unit Specifications

Width 24"
Depth 17 7/8"
Height 21 7/16"
Weight 48.51 lb.
UPC 688057374475

More Easy-To-Use Features

— Four Speeds

— Electronic Touch Controls

— 2 Halogen Lamps

— 430 Stainless Steel

— Aluminum Motor

— 120V/60Hz

Signature Features

450 CFM Motor

Helps with the removal of smoke,
grease, and odors

Recirculating and Venting Options

Provide the flexibility to exhaust back
into the kitchen or outdoors

Warranty

- 2 Year Warranty (Parts and Labor)

Available Finishes

Black Glass

Three-Layer Washable Grease Filter

Draws out fumes and vapors, with
easy detachment for safe, simple
cleaning

Halogen LIghting

Distributes bright, clear light across
the cooking surface

© 2016 Haier America Company, LLC. All Rights Reserved. Features and specifications are subject to change without prior notice. haieramerica.com

Overall Packaging Details

Packaging lb. / in.

Gross Weight 55.13 Ib.

24" Slanted Chimney Vent

HCH2400ACB

Dimensions

Power Requirements

Electrical Rating 120V, 60Hz

Product Technical Illustration

W

25.35″

D

24.96″

H

19.62″

Note: The vent hood must be installed 24" min. above electric
cooktop surface and 30" min. above gas cooktop surface.

The hood installation height, from the cooking surface to the
bottom of the hood, depends upon ceiling height.

© 2016 Haier America Company, LLC. All Rights Reserved. Features and specifications are subject to change without prior notice.

General Appliance Information

Please read all installation details and
instructions before use.

Contact Us

For questions regarding this product
please refer to our website at
haieramerica.com or call our customer
service center at 877-337-3639.
