OPERATION
MANUAL
No. 0010572033
CONVERTIBLE TYPE AIR CONDITIONER
AC282ACBCA
AU282AHBCA
(HCFU-28HD03/R1)
AC42NACBCA
AU42NAIBCA
(HCFU-42HD03/R1)
CONTENTS
CAUTIONS
..........................................................................
SAFETY PRECAUTIONS
.....................................................
FEATURES AND FUNCTIONS
............................................
NAME OF PARTS
...................................................................
INTRODUCTION TO SPARE PARTS
.................................
INSTALLATION
......................................................................
GUIDE TO OPERATION
..................................................
CLEANING AND CARE
......................................................
TROUBLE SHOOTING
...................................................
OPERATING TIPS
................................................................
1-2
3
4
5
6-7
8
9-15
16
17-18
19
1
CAUTIONS
Disposal of the old air conditioner
Before disposing an old air conditioner that
goes out of use, please make sure it's
inoperative and safe. Unplug the air
conditioner in order to avoid the risk of
child entrapment.
It must be noticed that air conditioner
system contains refrigerants, which require
specialized waste disposal. The valuable
materials contained in a air conditioner can
be recycled. Contact your local waste
disposal center for proper disposal of an
old air conditioner and contact your local
authority or your dealer if you have any
question. Please ensure that the pipework
of your air conditioner does not get
damaged prior to being picked up by the
relevant waste disposal center, and
contribute to environmental awareness by
insisting on an appropriate, anti-pollution
method of disposal.
Disposal of the packaging of your new
air conditioner
All the packaging materials employed in
the package of your new air conditioner
may be disposed without any danger to the
environment.
The cardboard box may be broken or cut
into smaller pieces and given to a waste
paper disposal service. The wrapping bag
made of polyethylene and the polyethylene
foam pads contain no fluorochloric
hydrocarbon.
All these valuable materials may be taken to a
waste collecting center and used again after
adequate recycling.
Consult your local authorities for the name and
address of the waste materials collecting centers
and waste paper disposal services nearest to
your house.
Safety Instructions and Warnings
Before starting the air conditioner, read the
information given in the User's Guide
carefully. The User's Guide contains very
important observations relating to the
assembly, operation and maintenance of the
air conditioner.
The manufacturer does not accept
responsibility for any damages that may arise
due to non-observation of the following
instruction.
Damaged air conditioners are not to be put
into operation. In case of doubt, consult your
supplier.
Use of the air conditioner is to be carried
out in strict compliance with the relative
instructions set forth in the User's Guide.
Installation shall be done by professional
people, don't install unit by yourself.
CAUTIONS
2
For the purpose of safety, the air
conditioner must be properly grounded in
accordance with specifications.
Always remember to unplug the air
conditioner before opening inlet grill.
Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from the
outlet.
All electrical repairs must be carried out
by qualified electricians. Inadequate repairs
may result in a major source of danger for
the user of the air conditoiner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air conditioner's
tubes with sharp or pointed items, crushing
or twisting any tubes, or scraping the
coatings off the surfaces. If the refrigerant
spurts out and gets into eyes, it may result
in serious eye injuries.
Do not obstruct or cover the ventilation
grille of the air conditioner. Do not put
fingers or any other things into the
inlet/outlet and swing louver.
Do not allow children to play with the air
conditioner. In no case should children be
allowed to sit on the outdoor unit.
Specifications
The refrigerating circuit is leak-proof.
For series 24,28,36,42,the breaker of
the air conditioner should be all-pole
switch;and the distance between its two
contacts should be no less 3mm.
Such means for disconnection must be
incorporation in the fixed wiring.
3
SAFETY PRECAUTIONS
WARNING!
DANGER!
CAUTION!
For series 28,42, the breaker of the air conditioner should be all-pole switch; and the distance between its
two contacts should be no less 3mm. Such means for disconnection must be incorporation
in the fixed wiring.
Use copper wire only. All the cables shall have got the European authentication certificate.
For series 28,42, the power supply connects from the outdoor side. The power cable and connecting
cable are self-provided.
The parameter of connecting cable:
For series 28,42, H05RN-F 4G 0.75mm2. The power cable and connecting cable are self-provided.
The requirement of the cross section area of the power supply cord:
For series 28, H07RN-F 3G 4.0mm2.
For series 42, H07RN-F 5G 2.5mm2.
Do not attempt to install this air conditioner by yourself.
This unit contains no user-serviceable parts. Always consult authorized service personnel for repairs.
When moving, consult authorized service personnel for disconnection and installation of the unit.
Do not become excessively chilled by staying for lengthy periods in the direct cooling airflow.
Do not insert fingers or objects into the outlet port or intake grills.
Do not start and stop air conditioner operation by connecting and disconnecting the power supply cord and so on.
Take care not to damage the power supply cord.
In the event of a malfunction (burning smell, etc.), stop operation immediately, turn off the circuit breaker,
and consult authorized service personnel.
Provide occasional ventilation during use.
Do not direct air flow at fireplaces or heating apparatuses.
Do not climb on place objects on the air conditioner.
Do not hang objects from the indoor unit.
Do not set flower vases or water containers on top of the air conditioner.
Do not expose the air conditioner directly to water.
Do not operate the air conditioner with wet hands.
Do not pull power supply cord.
Turn off power source when not using the unit for extended periods.
Check the condition of the installation stand for damage.
Do not place animals or plants in the direct path of the air flow.
Do not drink the water drained from the air conditioner.
Do not use in applications involving the storage of foods, plants or animals, precision equipment, or art works.
Do not apply any heavy pressure to radiator fins.
Operate only with air filters installed.
Do not block or cover the intake grill and outlet port.
Ensure that any electronic equipment is at least one metre away from either the indoor or outdoor unit.
Avoid installing the air conditioner near a fireplace or other heating apparatuses.
When installing the indoor and outdoor unit, take precautions to prevent access to infants.
Do not use inflammable gases near the air conditioner.
4
FEATURES AND FUNCTIONS
AUTOMATIC OPERATION
SLEEP
HEAT & COOL TYPE
Merely press the ON/OFF button, and the unit will begin automatic operation in any of the
Heating, Cooling and Blow modes as appropriate, in accordance with the thermostat setting and
the actual temperature of the room.
COOLING TYPE
When the SLEEP button is pressed during Cooling or Dry mode, the thermostat setting
gradually rises during the period of operation. When the set time is reached, the unit
automatically turns off.
HEAT & COOL TYPE
When the SLEEP button is pressed during Heating mode, the air conditioner's thermostat
setting gradually lowers during the period of operation; When the set time is reached, the
unit automatically turns off.
WIRELESS REMOTE CONTROL UNIT
The WIRELESS REMOTE CONTROL UNIT allows convenient control of air conditioner
operation.
MILDEW-RESISTANT FILTER
The AIR FILTER has been treated to resist mildew growth, thus allowing cleaner use and
easier care.
COOLING TYPE
Merely press the ON/OFF button, and the unit will begin automatic operation in the Cooling
or dry modes as appropriate, in accordance with the thermostat setting and the actual temperature
of the room.
NAME OF PARTS
5
For series 28
For series 42
Fig.2 Outdoor unit
Fig.1 Indoor unit
For series 42
For series 28
Buttons and display of the wire controller.
Cautions:
On cooling only unit, heating
mode is not available.
Note:
The above information is the explanation of
the displayed information therefore varies
with those displayed in actual operation.
CLOCK
Used to set correct time.
TIMER
Used to select
TIMER ON,
TIMER OFF,
TIMER ON/OFF.
TIME
Used to set clock and
timer setting.
Used for unit start and
stop.
Power ON/OFF
MODE
Used to select AUTO
RUN, COOL, DRY,
HEAT and FAN
operation.
FAN SPEED
Used to select fan
speed: LO, MID, HI,
AUTO
TEMP
Used to select your
desired temp.
SET
Used to confirm Timer
and Clock settings.
SLEEP
Used to select sleep
mode.
AM
PM
AM
PM
INTRODUCTION TO SPARE PARTS
6
Operation
AUTO
%
SET
ROOM
ON OFF
MODE
FAN SWING
TEMP
CLOCK SET
TIMER SLEEP
RESET
FILTER RESET
ON/OFF
OPERATING LAMP
Buttons and display of the wire controller.
DRY
COOL
AUTO
FAN SPEED
SLEEP
TIMER ON
TIMER OFF
CLOCK
TEMP.
FAN OPERATION
HEAT
Clock set
When unit is started for the first time, clock should be adjusted as follows:
Press CLOCK button, "AM"or "PM" flashes.
Press or to set correct time. Each press will increase or decrease 1min
button is kept depressed, time will change quickly
.
After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while cl
starts working.
Operation
Remote control
AM
PM
AM
PM
INTRODUCTION TO SPARE PARTS
7
AUTO
%
SET
ROOM
ON OFF
MODE
FAN SWING
TEMP
CLOCK SET
TIMER SLEEP
RESET
FILTER RESET
ON/OFF
8
INSTALLATION
WARNING !
CAUTION !
Please ask the dealer or specialist to install, never try by the users themselves. After the installation please
be sure of the following conditions.
Incorrect installation may cause water leaking, shock and fire hazard.
Please call dealer to install the air-conditioner.
Air-conditioner can't be installed in the environment with inflammable gases because the
inflammable gases near to air-conditioner may
cause fire hazard.
Installed electrical-leaking circuit breaker.
Connect earthing wire.
Use discharge pipe correctly to ensure efficient
discharge.
[Location]
[Wiring]
[Operating noise]
It easily cause electrical shock without circuit
breaker.
Air-conditioner should be located in well-vented
and easily-accessible place.
Air-conditioner should not be located in the
following places:
(a) Places with machine oils or other oil vapours.
(b) Seaside with high salt content in the air.
(c) Near to hot spring with high content of sulfide
gases.
(d) Area with frequent fluctuation of voltage e.g.
factory, etc.
(e) In vehicles or ships.
(f) Kitchen with heavy oil vapour or humidity.
(g) Near to the machine emitting electric-magnetic
waves.
(h) Places with acid, alkali vapuor.
TV, radio, acoustic appliances etc are at least 1 m
far away to the indoor unit, outdoor unit, power
Earthing wire should not be connected to the gas pipe, water pipe,
lightning rod or phone line, incorrect earthing may cause shock.
Incorrect pipe use may cause water leaking.
supply wire, connecting wire, pipes, otherwise
images may be disturbed or noises be created.
As required, take measures against heavy snow.
Air-conditioner should be equipped with special
power supply wire.
Choose the following locations:
(a) Capable of supporting air-conditioner weight,
don't increase operating noise and vibration.
(b) Hot vapour from outdoor unit outlet and ope rating noise don't disturb neighbour.
No obstacles around the outdoor unit outlet.
Earthing
(4) Unit stop
Press ON/OFF button.
Only time and room temp remains on LCD.
All indicators go out.
Vertical flap closed automatically.
9
GUIDE TO OPERATION
MODE
FAN SWING
TEMP
CLOCK SET
TIMER SLEEP
RESET
FILTER RESET
ON/OFF
1
4
3
2
AM
ROOM
Fan operation
Enjoy yourself by just a gentle press.
(1) Unit start
(2) Select operation mode
(3) Fan
Press ON/OFF button, unit starts.
Previous operation status appears on display.
(Not Timer setting)
Power indicator lights up.
Press MODE button. For each press, operation
mode changes as follows:
Unit will run in selected mode.
stop display at " " FAN.
Press FAN button. For each press, fan speed
changes as follows:
Unit will run at selected fan speed.
Wire controller can memorize settings in each operation mode. To run it next time just select
the operation mode and it will start with the previous setting.
No reselecting is needed.(TIMER ON/OFF needs reselecting)
In FAN mode, temp. can't be set.
Hints
For cooling only type no " HEAT " function.
AUTO COOL DRY FAN
The air conditioner has the function of POWER
FAILURE RESUME.
HEAT
LOW
MID HIGH
AUTO RUN, COOL,HEAT and DRY operation
Use COOL in summer.
Use HEA
T in winter.
Use DRY in spring,autumn and in damp climate.
(1) Unit start
(2) Select operation mode
(3) Select temp. setting
Press ON/OFF button, unit starts.
Previous operation status appears on display
(Not
Timer setting). Power indicator lights up.
Press MODE button. For each press, operation mode
changes as follows:
Unit will run in operation mode displayed on LCD.
Stop display at your desired mode.
Every time the button is pressed, temp. setting
increases 1 C.
If button is kept depressed, temp.setting will
increase quickly
.
Every time the button is pressed, temp. setting
decreases 1 C.
If button is kept depressed, temp. setting will
decrease quickly.
Recommendations
Hints
Wire controller can memorize each operation
status.
When starting it next time, just press
ON/OFF button and unit will run in previous
status.
Press FAN button. For each press, fan speed changes
as follows:
(4) Fan speed selection
Unit runs at the speed displayed on LCD.
In HEA
T mode, warm air will blow out after a short
period of time due to cold-draft prevention function.
In DRY mode, when room temp. becomes 2*higher
than temp. setting, unit will run intermittently at LOW
speed regardless of FAN setting.
Unit will start running to reach the temp. setting
on LCD.
Press ON/OFF button.
Only time and room temp remains on LCD.
All indicators go out.
V
ertical flap closes automatically.
(5) Unit stop
Press TEMP button
AUTO
AUTO COOL DRY FANHEAT
AM
10
GUIDE TO OPERATION
AUTO
MODE
FAN SWING
TEMP
CLOC SET
TIMER SLEEP
RESET
FILTER RESET
ON/OFF
1
5
2
3
4
SET
LOW
MID HIGH
AUTO
GUIDE TO OPERATION
ON
MODE
FAN SWING
TEMP
CLOCK SET
MER SLEEP
T
FILTER RE
ON/OFF
AM AM
1
2
4
3
SET
TIMER operation
Hints
Set Clock correctly before starting Timer operation.
Y ou can let unit start or stop automatically at following time: Before you wake up in the
morning, or get back from outside or after you fall asleep at night.
Operation mode will be displayed on LCD.
Power indicator lights up.
(2)TIMER mode selection
Press TIMER button to change TIMER mode.
Every time the button is pressed, display changes
as follows:
Select your desired TIMER mode (ON or OFF)
(3)Timer setting
Press TIME button.
Every time the button is pressed, time increases 10min.
If button is kept depressed, time will change quickly .
Every time the button is pressed, time decreases 10min.
If button is kept depressed, time will change quickly.
Time will be shown on LCD. It can be adjusted within
24hours.
(4)Confirming your setting
After setting correct time, press SET button to confirm
"ON" or "OFF" stops flashing.
Time displayed: Unit starts or stops at x hour x min (ON
or OFF).
Timer mode indicator lights up.
TIMER ON/OFF
To cancel TIMER mode
Just press TIMER button several times until TIMER mode disappears.
Wire controller possesses memory function, when use TIMER mode next time, just
press SET
button after mode selecting if timer setting is the same as previous one.
(1)After unit start, select your desired
operation mode.
blank
ON
OFF
ON
OFF
11
Just press TIMER button several times until TIMER mode disappears.
12
GUIDE TO OPERATION
ON OFF
MODE
FAN SWING
TEMP
CLOCK SET
MER SLEEP
T
FILTER RES
ON/OFF
PM
AM
1
5
6
4
2
3
SET
blank
ON
OFF
ON
OFF
TIMER ON-OFF
Operation mode will be displayed on LCD.
Power indicator lights up.
Every time the button is pressed, display changes as follows:
Select .
(3)Time setting for TIMER ON
Press TIME button.
(5)Time setting for TIMER OFF
To cancel TIMER mode
Every time the button is pressed, time increases 10min.
If button is kept depressed, time will change quickly
.
Every time the button is pressed, time decreases 10min.
If button is kept depressed, time will change quickly.
Time will be shown on LCD.
It can be adjusted within 24hours.
AM refers to morning and PM to afternoon.
Time displayed: Unit starts at Xhour X min.
After time setting, press TIMER button to confirm.
"ON" stops blinking,
While "OFF" starts blinking.
(4) Time confirming for TIMER ON
Follow the same procedures in "Time setting for
TIMER ON".
(6)Time confirming for TIMER OFF
After time setting, press SET button to confirm
"OFF" stops flashing.
Time displayed: Unit stops at X hour X min.
According to the Time setting sequence of TIMER ON or TIMER OFF, either Start-Stop or Stop-Start can
be achieved.
(1)After unit start, select your desired
operation mode
(2) Press TIMER button to change TIMER
mode
ON
OFF
AM
13
GUIDE TO OPERATION
At night, before going to bed you
can press down the SLEEP
button
on the controller and the airconditioner will run by the
comfortable sleeping mode to
make you sleep more comfortable.
In cooling, dehumidifying mode
In heating mode
Comfortable Sleep
Note:
In
AUTO mode, unit will run in SLEEP function according to the operation mode.
After setting SLEEP function, it is forbidden to calibrate clock.
If the set sleep-time does not reach 8 hours, the unit will stop operation automatically after set
time is complete.
Set "TIMER-OFF" function first, then set SLEEP, and the sleep-set is performance; set TIMERON function first, the sleep function can only be set before TIMER-ON; if set theSLEEP function
first, the TIMER function can not be set.
Press SLEEP button once to make the air conditioner have the previous-set sleep time (first poweron is "1h"), the sleep symbol will appear
. Press time button / , you can choose the time in 1~8
hours. Each press of / , the time increases/reduces 1 hour and "xh" appears in the humidity
setting part, "OFF" appears in "TIMER OFF" display part and timer-off time; press SLEEP button
again to cancel sleep function, the sleep symbol diappears.
MODE
FAN SWING
TEMP
CLOCK SET
TIMER SLEEP
R
FILTER RESET
ON/OFF
AM
SET
OF
SETTING T
SLEEP RUN BEGINS SLEEP RUN STOPS
1 hr
1 hr
3 hrs
about 3 hrs
SHUT DOWN
Heat mode
about 6 hrs
1 hr
1 hr
SLEEP RUN STOPS
SLEEP RUN BEGINS
SETTING T
SHUT DOWN
Cooling mode
GUIDE TO OPERATION
14
Adjusting up/down air flow direction
Up/down direction can be adjusted by using the SWING button on the remote controller.
Each time pressing this button, the mode changes in the following sequence.
SWING
No indication
(louver stopped)
Change to the AIRFLOW mode.
LOUVER STOPPED
Louver moves in upward and
downward directions continuously .
When the LOUVER button is
pushed during SWING mode,
it stops swinging at the just
angle.
Recommendable stopping angle of the louver
Avoid direct air flow to the body
for many hours.
Avoid downward blowing operation of cooling mode for many
hours.
Do not touch the swing louver
during swing operation.
Please use the Swing button of
remote controller. If adjusted by
hand, it would cause an injure.
(Only for 24,28,36,42 series.)
CAUTION
COOL
and
DRY
HEAT
(Horizontal Blowing)
(Downward Blowing)
SWING
Power Failure Compensation (to be applied for a necessary situation)
:
Setting Method: When the remote controller is on (excluding timer mode and fan mode), press
the "Sleeping" button on the remote controller 10 times within 5 seconds, and
after the buzzer rings 4 times, the air conditioner will enter the state of power
failure compensation.
Cancel Method: Press the "Sleeping" button on the remote controller 10 times within 5 seconds,
and after the buzzer rings 2 timer, the power failure compensation mode will be
cancelled.
Notes: When a power failure suddenly occurs during the air conditioner is working after the power
failure compensation is set, if the air conditioner will not be used for a long time, please cut
off the power supply to prevent its operation from being resumed after the power is supplied
again, or press the "Switch On/Off" button after the power comes again.
After the power failure compensation is set, if power failure suddenly occurs while the air conditioner
is working, it will resume the previous working state when the power is supplied again.
When the air conditioner does not operate properly after you have checked the above mentioned
items or when the following phenomenon is observed, stop the operation of the air conditioner
and contact your sales dealer.
The fuse or breaker often shuts down.
Water drops off during cooling operation.
There is a irregularity in operation or abnormal sound is audible.
When the CHECK lamp flickers, an irregularity has occurred in the air conditioner.
Flickering
Note:
This unit has a function of automatic restart system after recovering power stoppage. Please contact the sales
dealer if it is not required.
Content of defect
E1
The trouble
of the room
temp. sensor
E2
The trouble
of the pipe
temp. sensor
E3
The trouble
of the outdoor
temp. sensor
E4
The trouble of
the outdoor
pipe temp.
sensor
E5
The trouble of
the overload
current
E6
The trouble of
the low pressure
pressure of pipe
E8
The trouble of the
main control board
communication
E9
The trouble of the
main control board
outdoor board
communication
GUIDE TO OPERATION
15
Remote Control:
There is a telecommunication interface for remote control on the control panel of the indoor
unit. After the peripheral equipment have been installed in accordance with the instruction manual
of the selected remote control detector, the air conditioner will be computerized and controlled from
a faraway place.
Note: Air conditioner has installed detector,in order to add group control function, Can refer to
Centralized Controller installation and operation manual.
16
1. Press the two buttons on the filters, until you hear a sound of click.
2. Pull the filters upward to remove them from the Intake Grill.
CLEANING AND CARE
CAUTION!
Before cleaning the air conditioner ,be sure to turn it off and disconnect
the Power Supply Cord.
Be sure the Intake Grill is installed securely.
When removing and replacing the air filters, be sure not to touch the heat
exchanger, as personal injury may result.
3. Clean the air filter: Remove the dust from the filters by vacuum cleaner or washing them. After
washing, allow the air filters to dry thoroughly in an area protected from sunlight.
4. Re-attach the air filters to the Intake Grill, press the two buttons on the filters, until you hear
a sound of click.
When used for extended periods, the unit may accumulate dirt inside, which reduces its
performance. We recommend that the unit is inspected regularly, in addition to your own
cleaning and care. For more information, consult authorized service personnel.
When cleaning the unit's body, do not use water hotter than 40 C, harsh abrasive cleansers,
or volatile agents like benzene or thinner.
Do not expose the unit body to liquid insecticides or hairsprays.
When shutting down the unit for one month or more, first allow the Fan mode to operate
continuously for about half a day to allow internal parts to dry thoroughly.
17

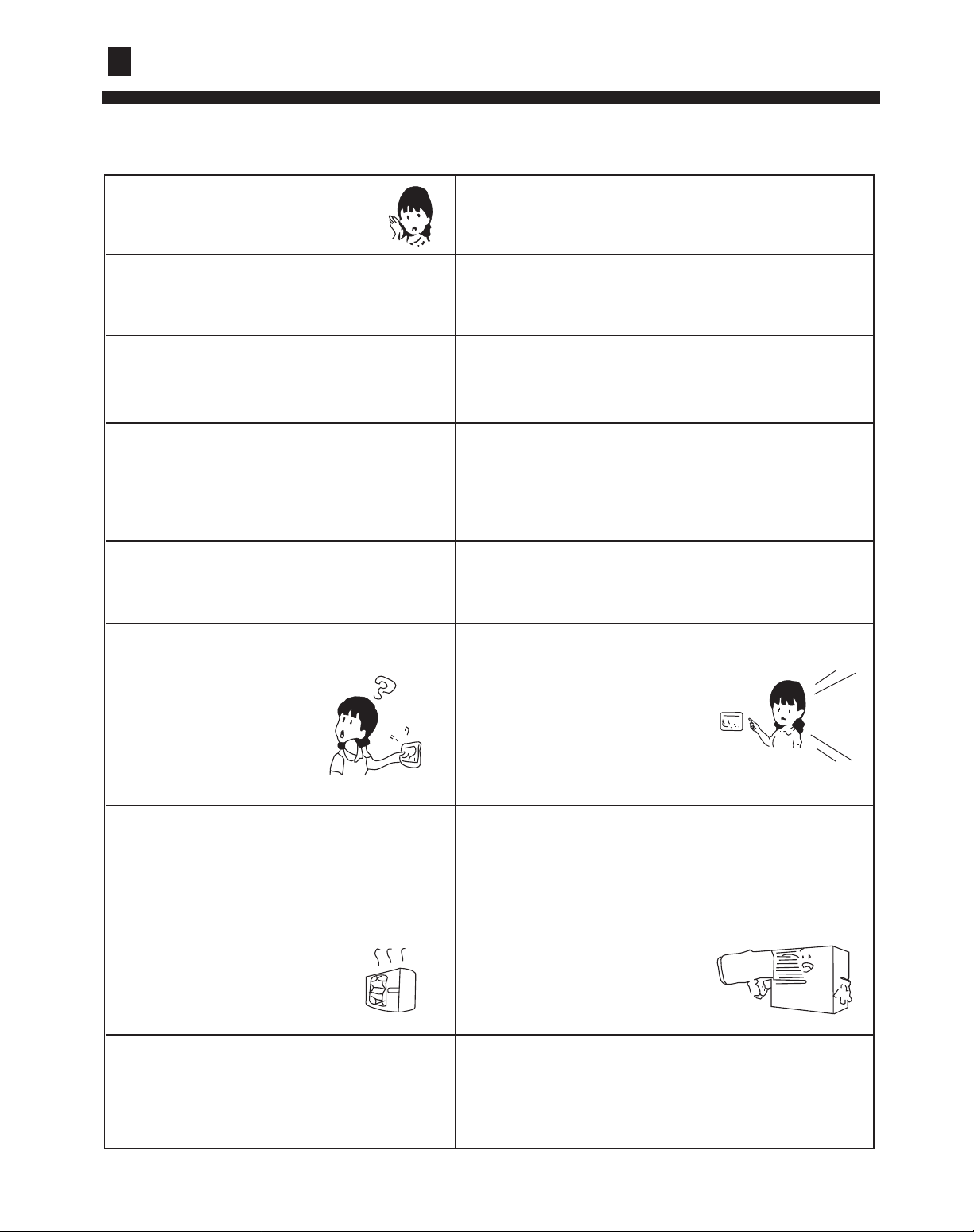

TROUBLE SHOOTING
Followings are not problems
Sound of water flowing is
not a problem.
Sound of cracking is heard.
Smell are generated.
During operation, white fog or steam
comes out from the indoor unit.
No outlet air or fan speed can't be changed
in dry mode.
In cooling operation, unit switches to
blowing operation.
Won't start?
In heating operation, water or steam are
blown out of outdoor unit.
In heating operation, indoor fan won't stop
even if unit is stopped.
During unit operation or at stop, a swishing or
gurgling noise may be heard. This noise is generated
by refrigerant flowing in the system.
Unit will not restart after stop.
During unit operation, a cracking noise may be heard.
This noise is generated by the casing expanding or
shrinking because of temperature changes.
This is because the system circulates smells from the
interior air such as the smell of cigarettes or the
painting on the furniture.
When unit is running at places like restaurant, etc. where
dense edible oil fumes always exist, this will happen.
To prevent frost from accumulating on indoor heat
exchanger, unit will switch to blowing operation for a
while then resume cooling operation.
Though ON/OFF button is set
to ON, unit won't resume cooling,
dry or heating operation
in 3 min after it is stopped, this
is because of 3-min-delay
protection circuit.
Please wait 3 minutes
Unit will reduce fan speed repeatedly and automatically
if room temp. is too low in dry operation.
This occurs when frost accumulated
on the outdoor unit is removed.
(during defrosting operation)
After unit stop, indoor fan will go on running
until indoor unit cools down.
18
Before ask for services, please first check your unit against the following.
Air conditioner won't start.
Poor cooling or heating
Is power supply switch
turned on?
Power supply
switch is not
set at ON.
Is city power supply normal? Is leakage current breaker
activated?
This is very dangerous, please
disconnect power supply
immediately and contact your
dealer.
Are operation control
adjusted correctly
as specified?
Is air filter too dirty?
Are there any obstacles in inlet
or outlet grill?
Are horizontal louvers at
up position (in heating
mode)?
Any doors or windows left
open?
Is there any direct sunlight
in the room?
If there are unexpected heat
sources in the room?
Too many people in the room?
Poor cooling
Is air conditioner in standby
condition in heating mode?
Cold air blows out
(in heating mode)
If your unit still can't work properly after above mentioned
checks, or following problems occur, please stop it immediately
and contact your dealer.
Fuses or circuit breakers often blow out.
Water comes out in cooling/dry operation.
Operation is abnormal or sound is heard.
Power
failure?
Proper
temp
TROUBLE SHOOTING
19
Operation and Performance
*Heating Performance
*Microcomputer-controlled Automatic Defrosting
Heat-pump air conditioners heat your entire
room by recirculating air throughout the room,
with the result that some time may be required
after first starting the air conditioner until the
room is heated.
This air conditioner operates on the heat-pump
principle, absorbing heat from outdoor air and
transferring that heat indoors. As a result, the
operating performance is reduced as outdoor air
temperature drops. If you feel that insufficient
heating perfomance is being produced, we
recommend you use this air conditioner in
conjunction with another kind of heating
appliance.
Instructions relating to heating (*) are applicable
only to "HEAT & COOL TYPE".
When using the Heating mode under
conditions of low outdoor air temperature high
humidity , frost may form on the outdoor unit,
resulting in reduced operating performance.
In order to prevent this kind of reduced
performance, this unit is equipped with a
Microcomputer-controlled Automatic
Defrosting function. If frost forms, the air
conditioner will temporarily stop, and the
defrosting circuit will operate briefly (for
about 7 to 15 minutes).
During Automatic Defrosting operation, the
OPERATION Indicator Lamp will flash.
*Trouble alarming performance
During operation, when there is any trouble,
the power indicator lamp will flash.
Temperature and Humidity Range
Cooling
Heating
indoor
outdoor
indoor
outdoor
max C D.B/W.B
min C D.B/W.B
max C D.B/W.B
min C D.B
max C D.B
min C D.B
max C D.B/W.B
min C D.B/W.B
32/23
18/14
43/26
18
27/20/-
24/18
-7/-8
If the air conditioner is used under higher temperature condition than those listed, the built-in
protection circuit may operate to prevent internal circuit damage. Also, during Cooling and Dry
modes, if the unit is used under conditions of lower temperature than those listed above, the
heat-exchanger may freeze, leading to water leakage and other damage.
Do not use this unit for any other purposes except for the Cooling, (*) Heating, Dehumidifying,
and air-circulation of rooms in ordinary dwellings.
The wiring method should be in line with the local wiring standand.
The waste battery should be disposed properly.
If the fuse on PC board is broken, please change it with the type T 3.15A/250V.
The indoor unit installation height is at least 2.5m.
OPERATING TIPS
Loading...
