SAFETY PRECAUTIONS

Read all of the instructions before using this appliance. When using this appliance, always exercise basic safety precautions, including the following:

1) Use this appliance only for its intended purpose as described in this use and care guide.

2) This beverage center must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section.

3) Never unplug your beverage center by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.

4) Repair or replace immediately, all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length, the plug or the connector end.

5) Unplug your beverage center before cleaning or before making any repairs.

strongly recommend that a certified technician performs the service.

Note: If for any reason this product requires service, we

If your old beverage center is not being used, we recommend that you

6) remove the doors and leave the shelves in place. This will reduce the possibility of danger to children.

This beverage center should not be recessed or built-in an enclosed

7) cabinet. It is designed for freestanding installation only.

8) Do not operate your beverage center in the presence of explosive fumes.

SAVE THESE INSTRUCTIONS

For Future Reference

DANGER

Risk of child entrapment. Before you throw away your old

beverage center, take off the doors. Leave the shelves in place

so that children may not easily climb inside.

English

Thank you for using our Haier product. This easy-to-use manual will guide you in getting the best use of your beverage center.

Remember to record the model and serial number. They are on a label in back of the beverage center.

Staple your receipt to your manual. You will need it to obtain

warranty service.

Model number

Serial number

Date of purchase

English

Table Of Contents

Safety Precautions ..........................................................................1

PAGE

Parts And Features

Installing Your Beverage Center

Unpacking Your Beverage Center ........................................................5

Leveling Your Beverage Center ............................................................5

Proper Air Circulation ..........................................................................5

Electrical Requirements ........................................................................6

Use of Extension Cords ........................................................................6

Install Limitations ................................................................................6

Door Alignmentt ..................................................................................7

Door Reversall ....................................................................................8

Beverage Center Features And Use ..................................................10

General Features ..............................................................................10

Beverage Center Interior Shelves ........................................................10

Light ................................................................................................11

Lock and Key ....................................................................................12

Normal Operating Sounds ................................................................12

Proper Beverage Center Care and Cleaning

Cleaning and Maintenance................................................................13

Power Interruptions............................................................................14

Vacation and Moving Care ................................................................14

..........................................................................4

....................................................5

..............................13

Troubleshooting

Warranty Information

............................................................................15

..................................................................16

Parts And Features

English

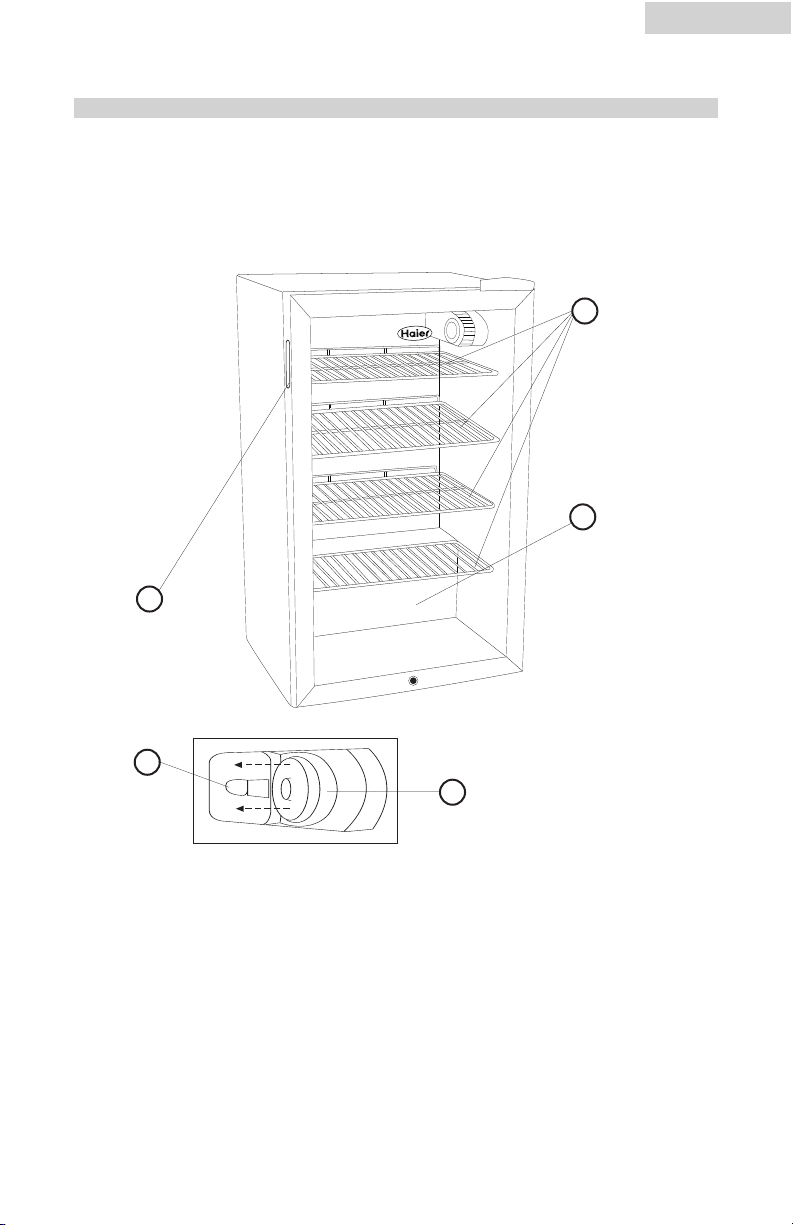

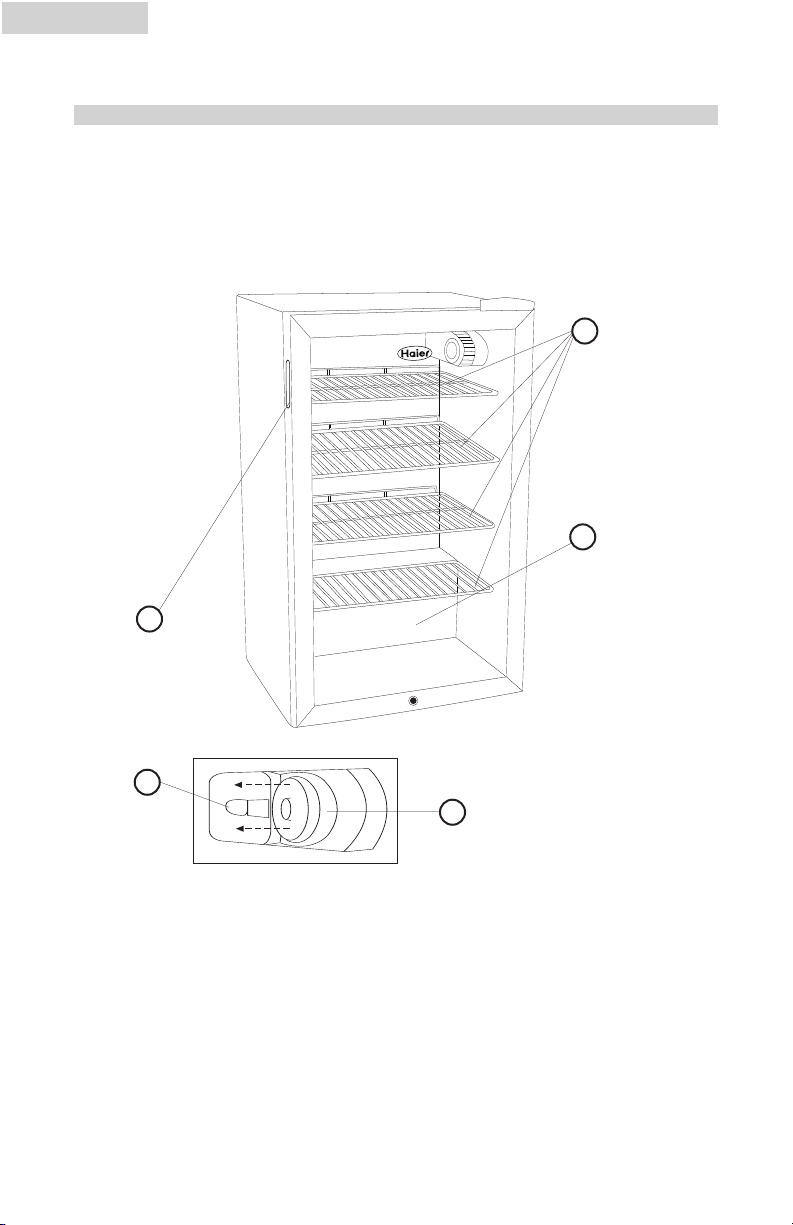

1. Full-Width Storage Shelf

2. See-through Glass Door Recessed Handle

4. Interior Light

5. Temperature Control

English

Installing Your Beverage Center

Unpacking Your Beverage Center

1. Remove all packaging material. This includes the foam base and all adhesive tape holding the beverage center accessories inside and outside.

2. Inspect and remove any remains of packing, tape or printed materials before powering on the beverage center.

Leveling Your Beverage Center

• Your beverage center has leveling legs which are located at the

bottom of your beverage center. After properly placing your beverage center in its final position, you can level your beverage center.

• Leveling legs can be adjusted by turning them clockwise to raise your

beverage center or by turning them counterclockwise to lower your beverage center. The beverage center door will close easier when the leveling legs are extended.

• Also, there is an adjustable support for the lower door hinge. (see

fig.4) After leveling the Beverage Center, adjust the hinge support, up or down as needed until it rests on the surface on which that unit is placed.

Proper Air Circulation

• To assure your beverage center works at the maximum efficiency it

was designed for, you should install it in a location where there is proper air circulation and electrical connections.

• The following are recommended clearances around the beverage

center: Sides……………3/4 "(19mm)

Top....................2" (50mm)

Back..................2" (50mm)

Electrical Requirement

• Make sure there is a suitable power Outlet (115 volts, 15 amps

outlet) with proper grounding to power the beverage center.

• Avoid the use of three plug adapters or cutting off the third grounding

in order to accommodate a two plug outlet. This is a dangerous practice since it provides no effective grounding for the beverage center and may result in shock hazard.

Use of Extension Cords

• Avoid the use of an extension cord because of potential safety

hazards under certain conditions. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot outlet that will accept the plug. The marked rating of the extension cord must be equal to or greater than the electrical rating of the appliance.

Install Limitations

• Do not install your beverage center in any location not properly

insulated or heated e.g. garage etc. Your beverage center was not designed to operate in temperature settings below 55˚ Fahrenheit.

• Select a suitable location for the beverage center on a hard even

surface away from direct sunlight or heat source e.g. radiators, baseboard heaters, cooking appliances etc. Any floor unevenness should be corrected with the leveling legs located at the bottom.

English

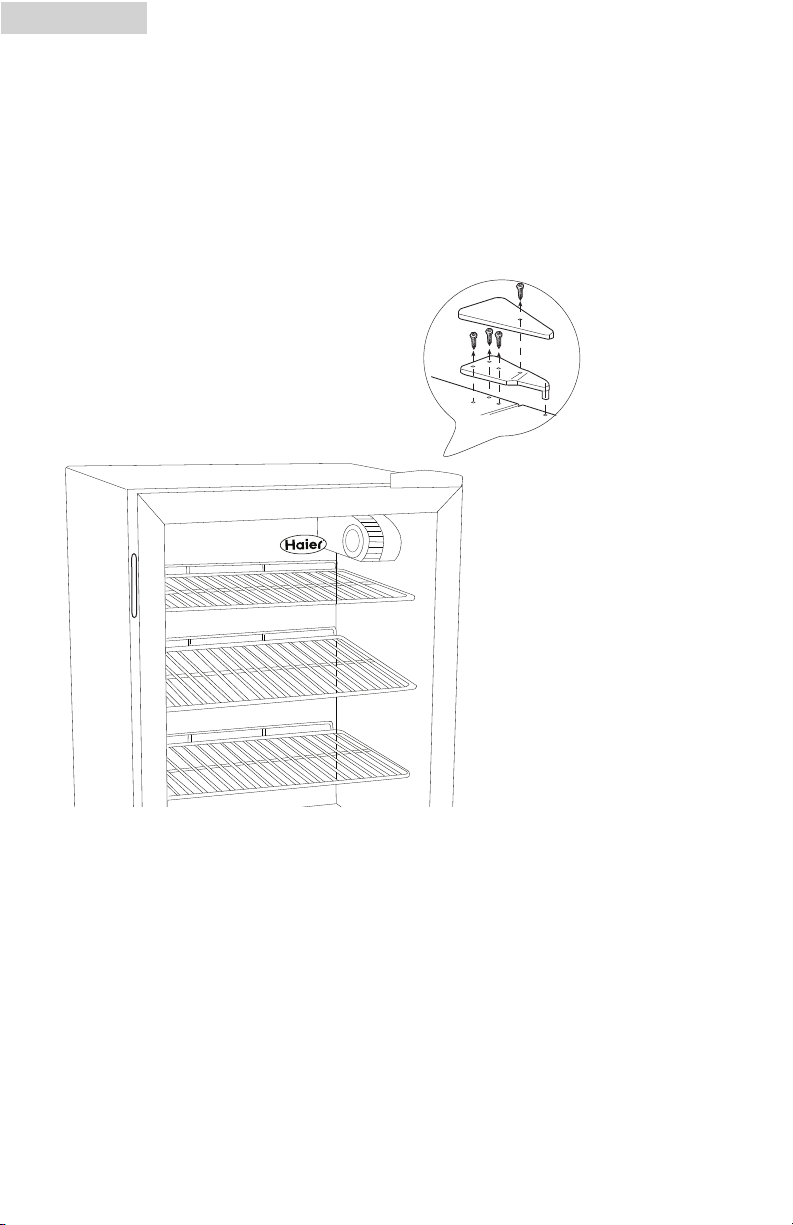

Door Alignment (see fig. # 1)

1. Remove hinge cover screw.

2. Remove the top hinge cover.

3. Loosen the top hinge screws using a Phillips Head Screwdriver.

4. Adjust the door or put a spacer in between and then tighten the screws.

5. Replace the top hinge cover.

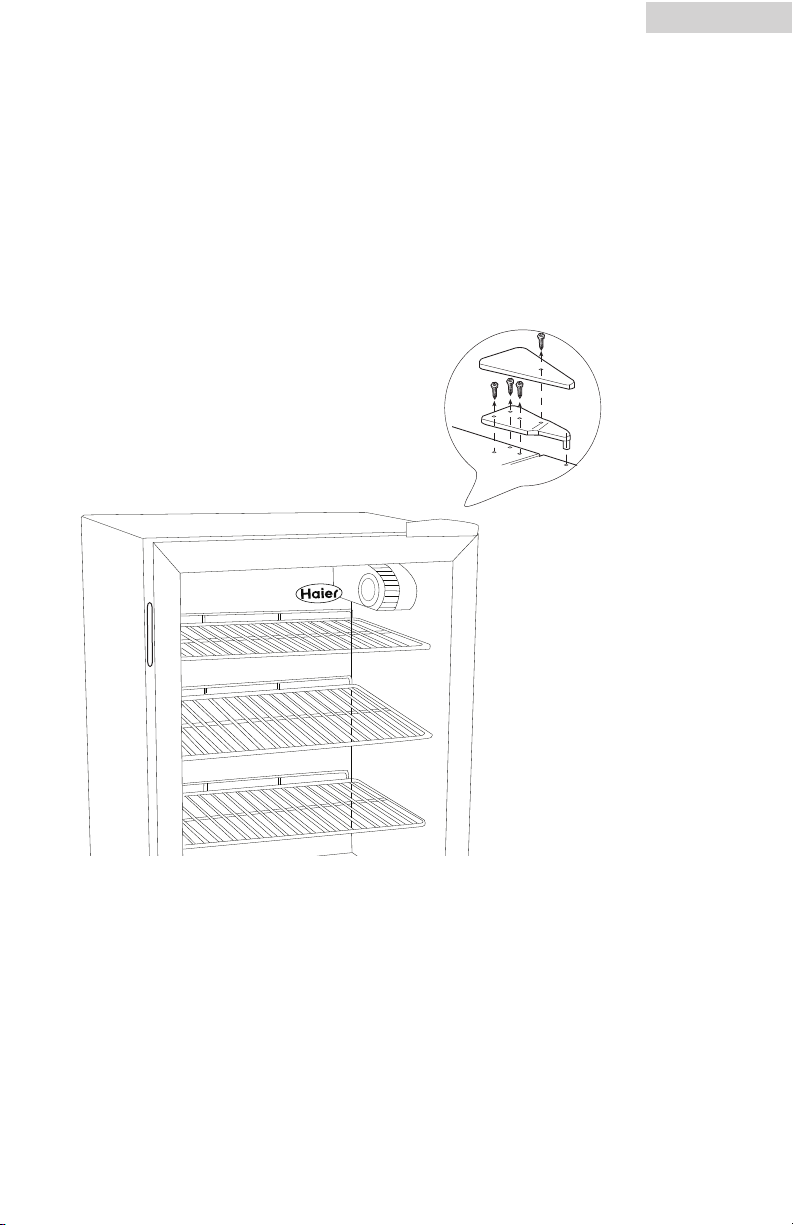

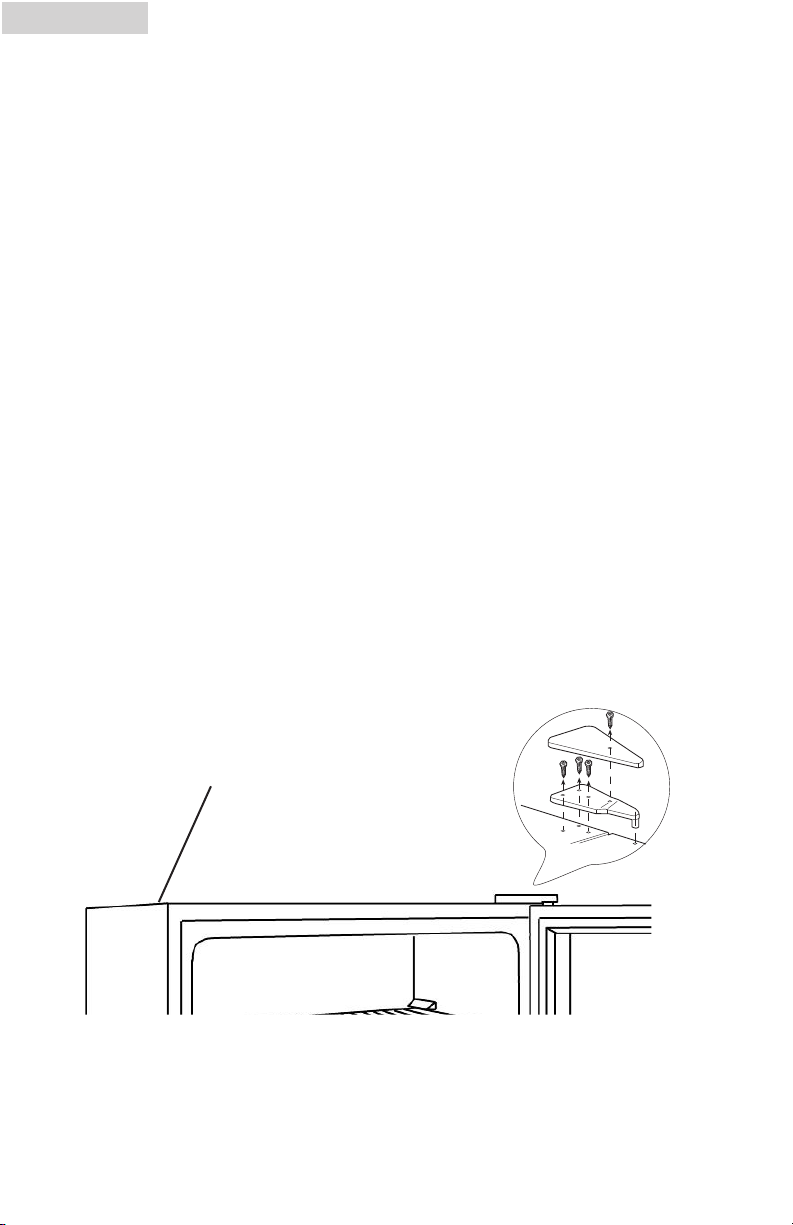

fig. # 1

Reversing the Door Hinge

1. Remove the top hinge cover screw and then remove the top hinge cover. (see fig. # 1)

2. Using a Phillips Head Screwdriver, loosen and remove the screws holding the top hinge in place. (see fig. # 1)

3. Remove the top hinge and carefully lift off the door.

4. Remove the screw hole plug from the opposite side and insert the plug in the screw hole openings of the just removed screws. (see fig. # 2)

5. Unscrew the door pin from the bracket of the lower hinge by turning counter clockwise. Move the pin to the opposite hole and tighten. (see fig. # 3) Tilt unit slightly towards back and remove the lower hinge support. (see fig. # 4)

6. Loosen the screws holding the lower hinge bracket and remove the hinge.(see fig. # 3)

7. Align the holes in the lower hinge bracket to the corresponding holes in the opposite side of the cabinet. Insert and tighten the screws.(see fig. # 3) Tilt unit slightly back to replace the lower hinge support. Adjust up or down as needed until it is just touching the surface on which that unit is placed. (see fig. # 4)

8. Align the bottom hole on the left side of the door with the pin of the lower hinge and slide into place.

English

screw hole plugs

fig. # 2

English

9. Align the pin of the top hinge with top hole on the left

side of the door and push into place. Replace the screws in the upper hinge bracket but do not tighten all the way. (see fig. # 1)

10. Make sure the door closes easily but forms a tight seal.

Adjust the door as needed. Once you are satisfied with the door alignment, completely tighten the upper door hinge screws.

11. Replace the hinge cover, insert the screw and tighten completely.

(see fig. # 1)

12. If the door does not close properly, refer to the section titled “Door

Alignment”.

spacet

door pin

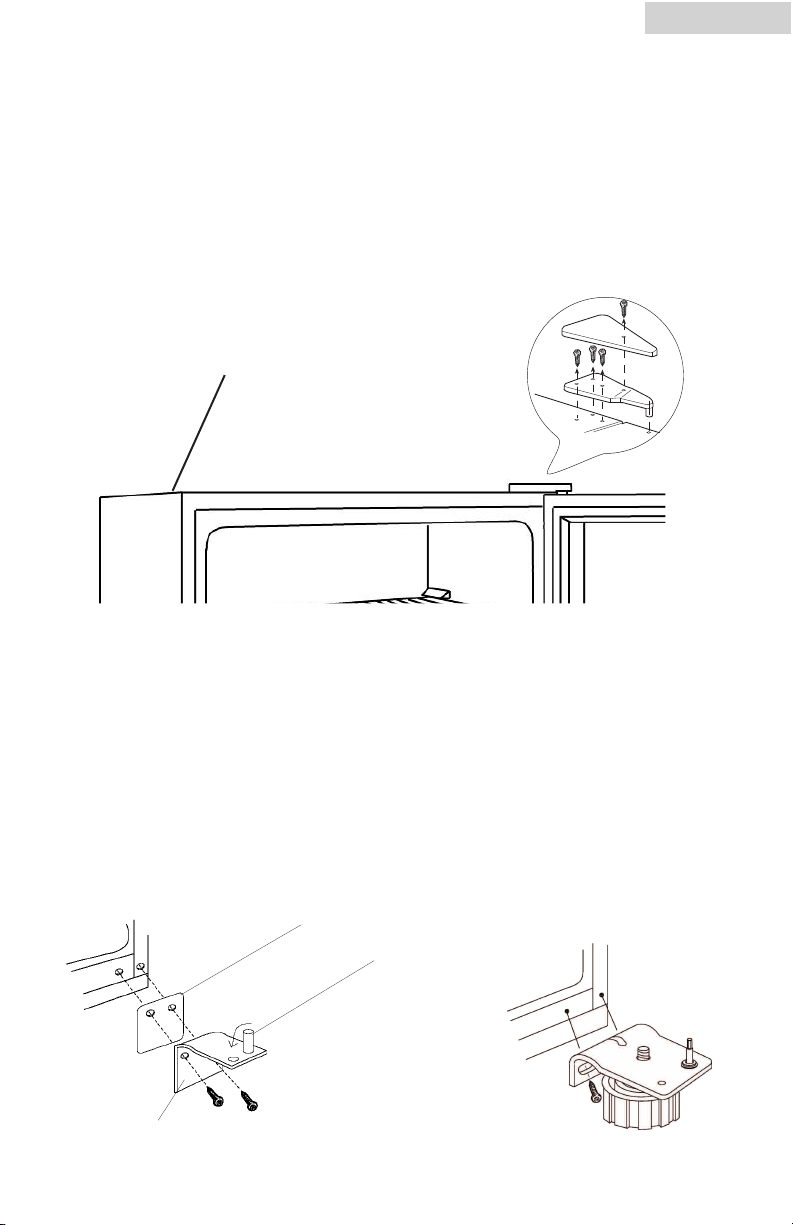

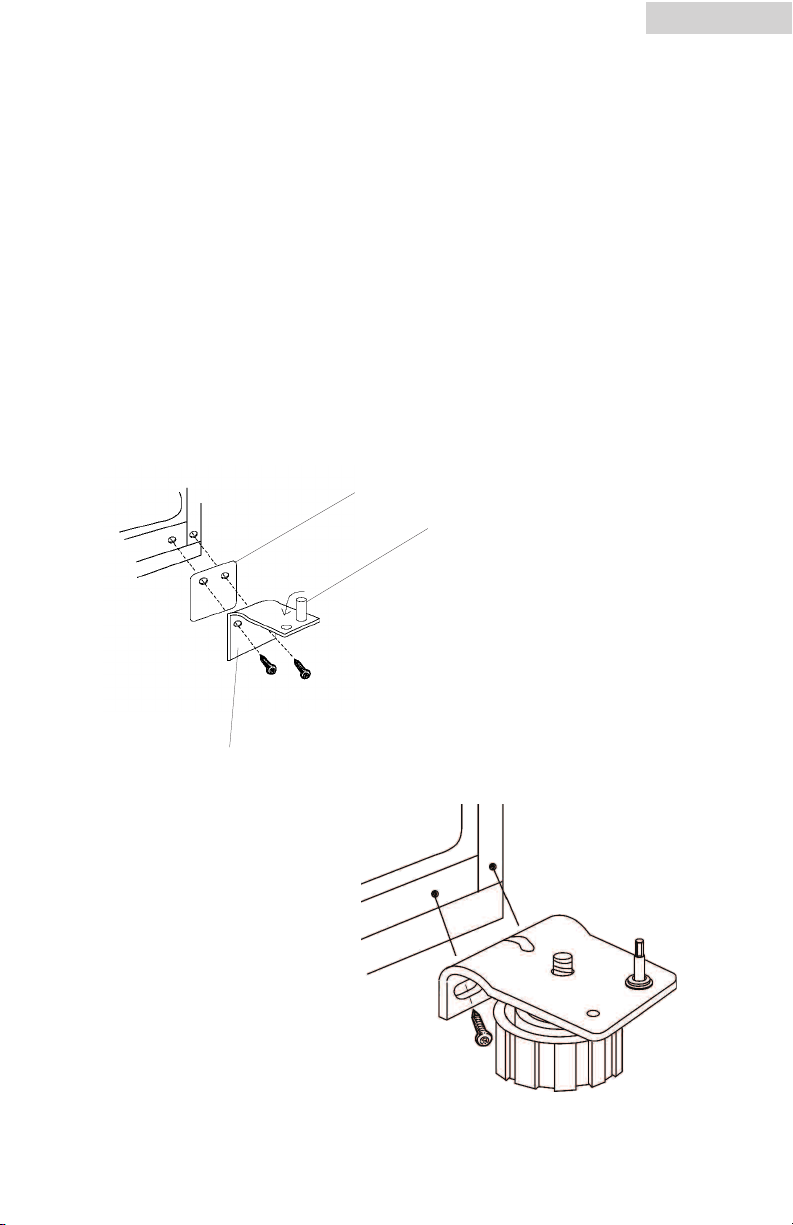

fig. # 3

lower hinge bracket

lower hinge

fig. # 4

lower hinge support

Beverage Center Features And Use

General Features

Adjustable temperature dial:

Your beverage center will automatically maintain the temperature level you select. The temperature control dial has 7 settings plus off. 1 is the warmest. 7 is the coldest. Turning the dial to OFF stops cooling in the beverage center. At first, set the dial to 4 and allow 24 hours to pass before adjusting the temperature to your needs.

(Note: If the beverage center has been placed in a horizontal or tilted position for any period of time wait 24 hours before plugging the unit in.)

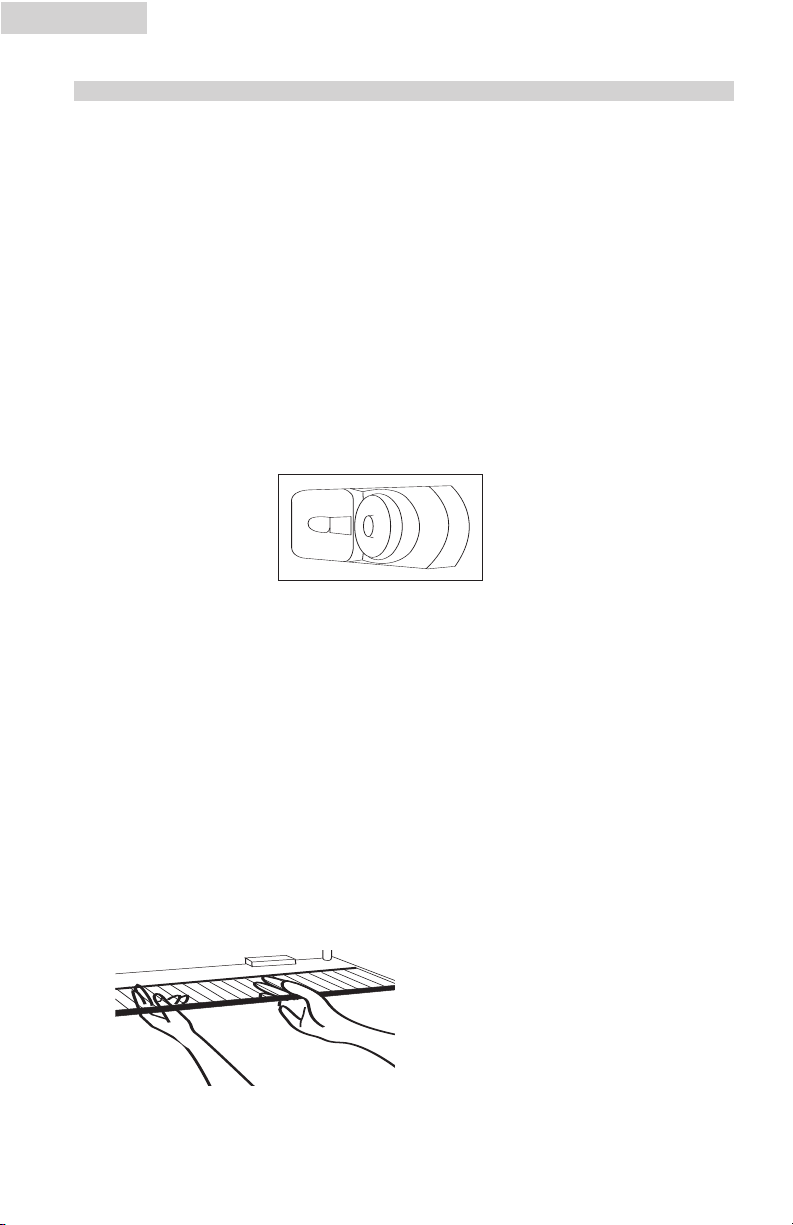

fig. # 5

English

located on interior of unit on right side

Beverage Center Interior Shelves

To remove or replace a full-width slide-out shelf:

(see fig. # 6)

1. Gently tilt the shelf up and slide forward until the shelf has been completely removed.

2. To replace the shelf, gently slide the shelf back.

fig. # 6

English

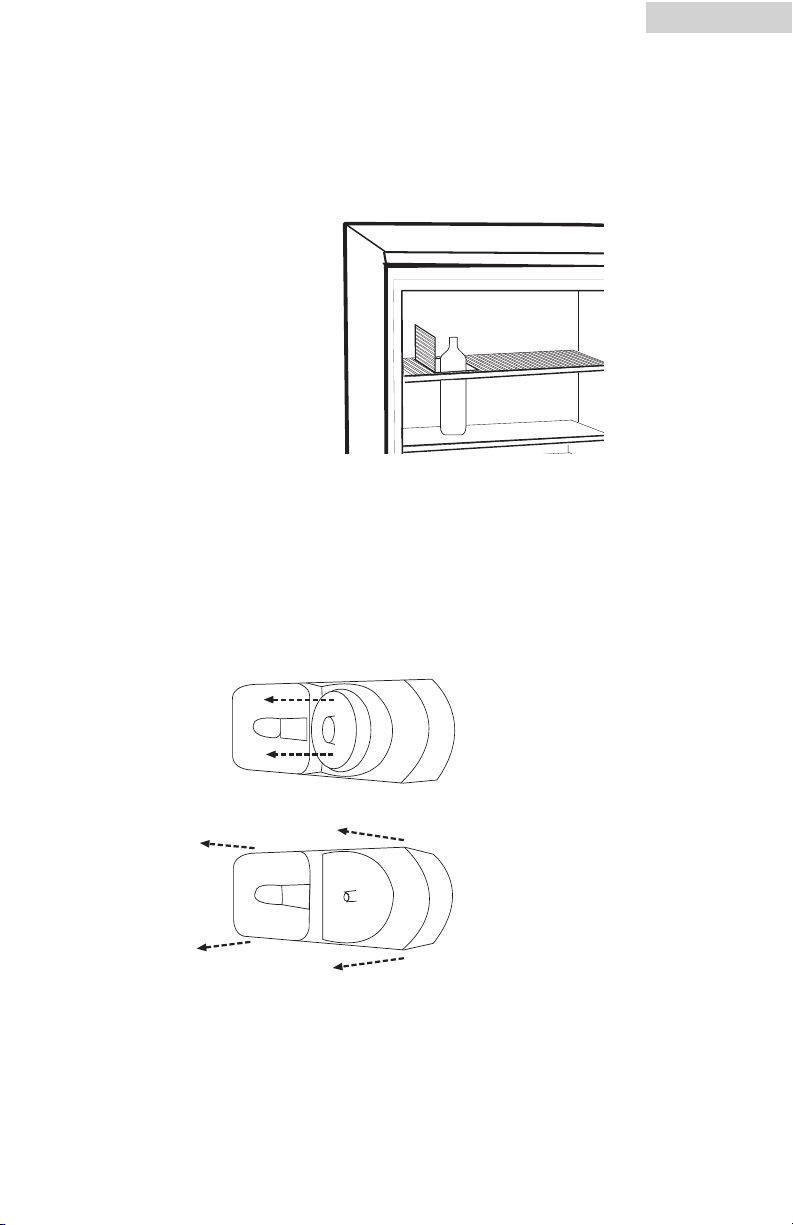

To use the interior flip shelf: (see fig. # 7)

1. Simply flip the shelf as shown in the diagram. This is designed to give you extra storage for tall bottles.

fig. # 7

Light

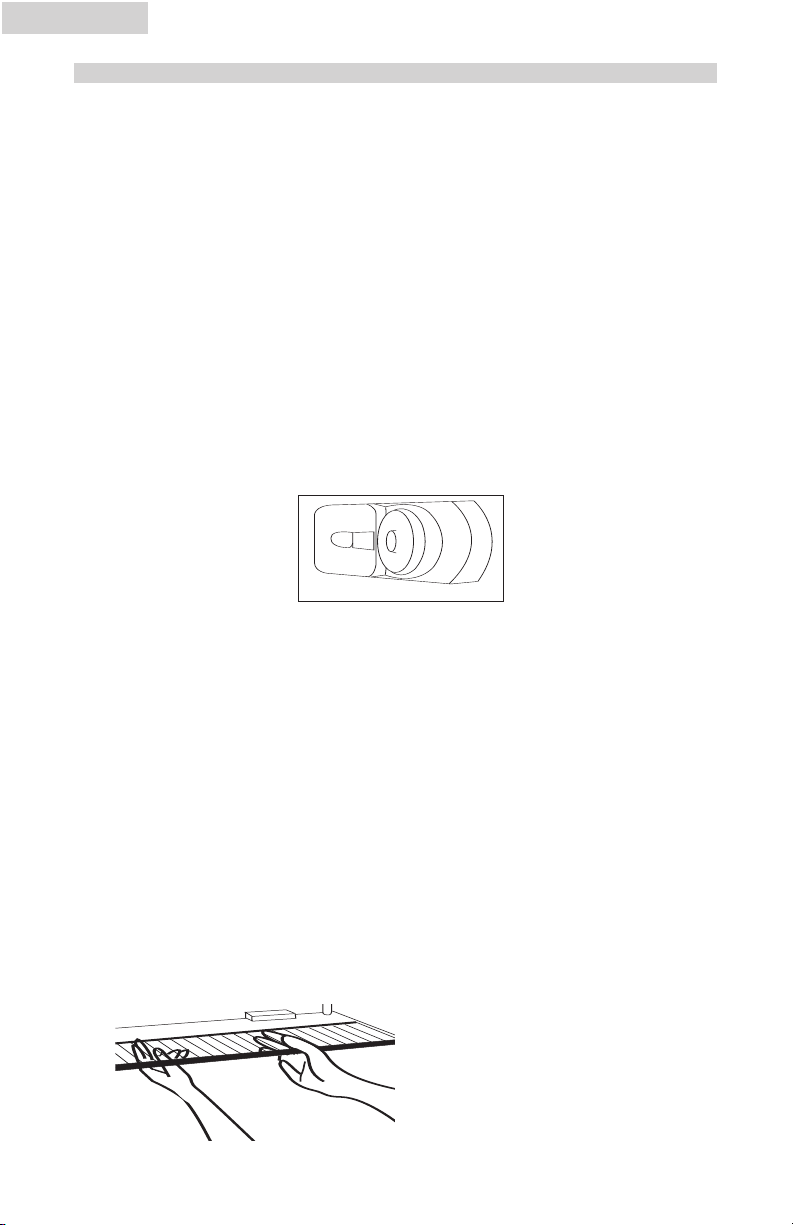

• To replace burnt-out bulbs, remove the temperature control knob by pulling it out (see fig. # 8a). Carefully pull the plastic light cover to the left and remove. Unscrew the bulb and replace it with a new one (use bulbs of 15 watts or less). To replace cover, insert the back slots into the casing (see fig. # 8b). Align the front and push the control knob back in.

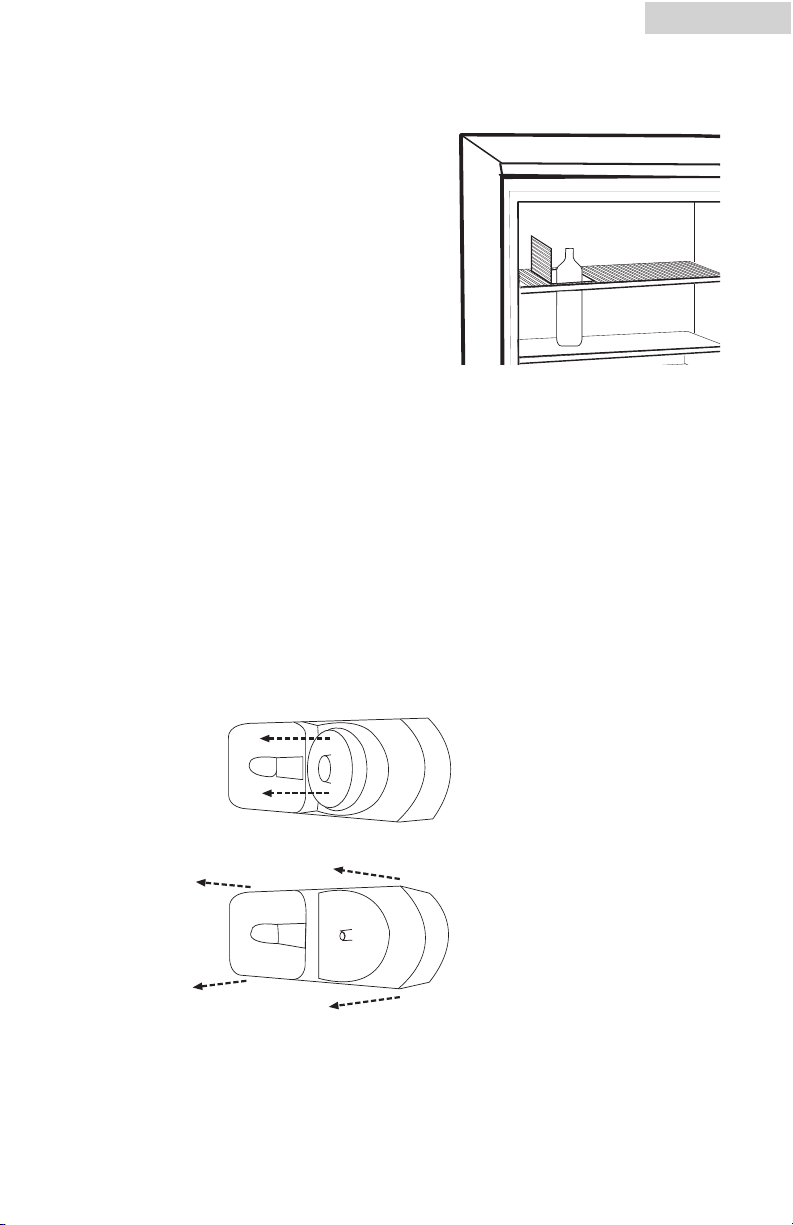

fig. # 8a

fig. # 8b

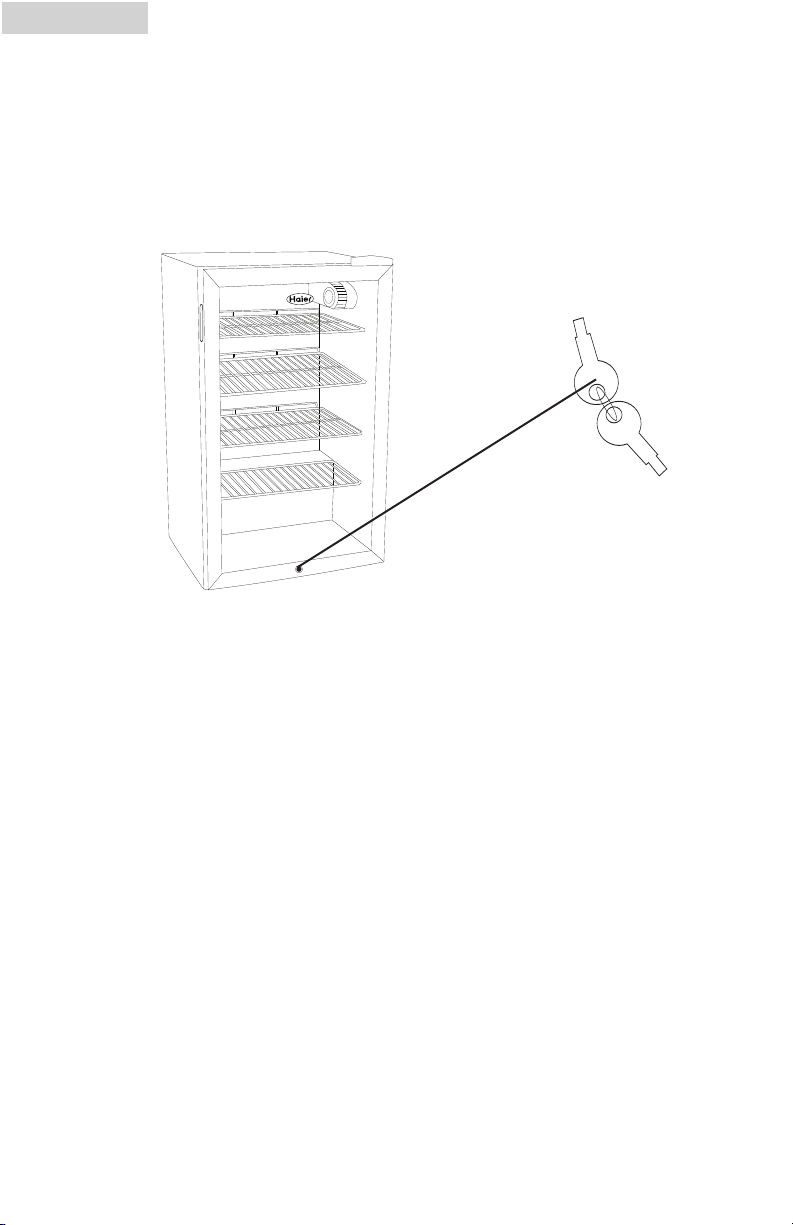

Lock and Ley

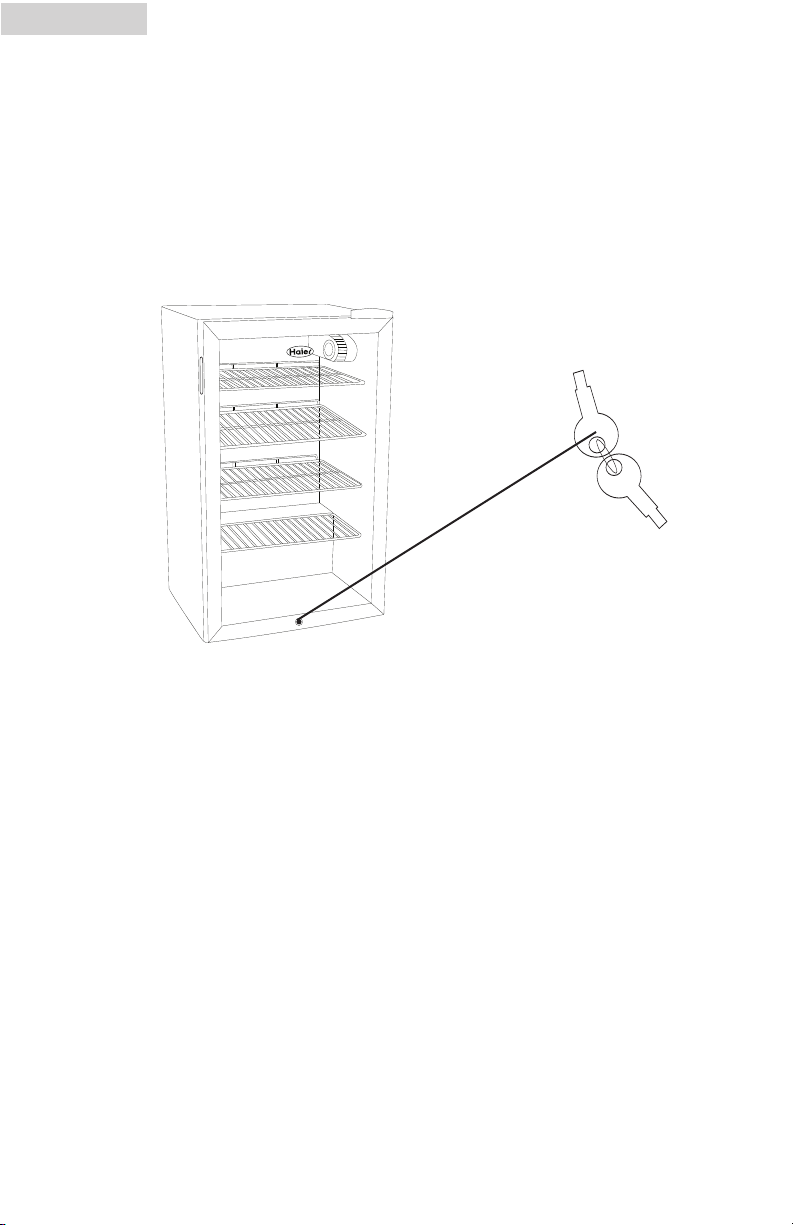

• Your beverage center is equipped with a lock and key (located at the bottom center of the door) for optional security, should you choose. Simply close the beverage center door, insert the key and turn. To open, insert the key and turn in the opposite direction.

English

Normal Operating Sounds You May Hear

• Boiling water, gurgling sounds or slight vibrations that are the result of the refrigerant circulating through the cooling coils.

• The thermostat control will click when it cycles on and off.

English

Proper Beverage Center Care and Cleaning

Cleaning and Maintenance

Warning:

Caution:

General:

Door Gaskets:

Rear Condensor Coil:

To avoid electric shock always unplug your beverage center before cleaning. Ignoring this warning may result in death or injury.

Before using cleaning products, always read and follow manufacturer’s instructions and warnings to avoid personal injury or product damage.

• Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use sponge or soft cloth, dampened with the cleaning solution, to wipe down your beverage center.

• Rinse with clean warm water and dry with a soft cloth.

• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach,concentrated detergents, solvents or metal scouring pads. SOME of these chemicals may dissolve, damage and/or discolor your beverage center.

• Clean door gaskets every three months according to general instructions. Gaskets must be kept clean and pliable to assure a proper seal.

• Petroleum jelly applied lightly on the hinge side of gaskets will keep the gasket pliable and assure a good seal.

• Every 12 months, using either a soft brissel brush or vacuum cleaner, clean dust, which has accumulated on the coil. This will aid in the efficient operation of your unit.

Power Interruptions

• Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from AC outlet when a power outage occurs. When power has been restored, replug power cord to AC outlet.

Vacation and Moving Care

• For long vacations or absences, empty contents from beverage center, move the temperature DIAL to the OFF position and clean the beverage center and door gaskets according to "General cleaning" section. Prop doors open, so air can circulate inside.When moving always move the beverage center vertically. Do not move with the unit lying down. Possible damage to the sealed system could occur.

English
