SAFETY PRECAUTIONS
Read all of the instructions before using this appliance.
When using this appliance, always exercise basic safety
precautions, including the following:
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This refrigerator must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3) Never unplug your refrigerator by pulling on the power cord. Always
grasp the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your refrigerator before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6) Do not use any electrical device or any sharp instrument in defrosting your
refrigerator.
7) If your old refrigerator is not being used, we recommend that you remove
the doors and leave the shelves in place. This will reduce the possibility of
danger to children.
8) After your refrigerator is in operation, do not touch the cold surfaces in
the freezer compartment, particularly when hands are damp or wet. Skin
may adhere to these extremely cold surfaces.
9) Do not refreeze foods, which have been thawed completely. The United
States Department of Agriculture in Home and Garden Bulletin No. 69
reads: "…You may safely refreeze frozen foods that have thawed if they
still contain ice crystals or if they are still cold-below 40˚F".
"…Thawed ground meats, poultry, or fish that have any off-odor or offcolor should not be refrozen and should not be eaten. Thawed ice cream
should be discarded. If the odor or color of any food is poor or
questionable, discard it. The food may be dangerous to eat."
"…Even partial thawing and re-freezing reduce the eating quality of
foods, particularly fruits, vegetables, and prepared foods. The eating
quality of red meats is affected less than that of many other foods. Use
refrozen foods as soon as possible, to save as much of its eating quality
as you can."
1
English
10) This refrigerator should not be recessed or built-in an enclosed cabinet. It
is designed for freestanding installation only.
11) Do not operate your refrigerator in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
For Future Reference
DANGER
Risk of child entrapment. Before you throw away your old
refrigerator or freezer, take off the doors. Leave the shelves
in place so that children may not easily climb inside.
As per UL 250 Standards
Thank you for using our Haier
product. This easy-to-use manual will
guide you in getting the best use of
your refrigerator.
Remember to record the model and
serial number. They are on a label in
back of the refrigerator.
Staple your receipt to your manual. You will need it to obtain
warranty service.
Model number
Serial number
Date of purchase
2
English
Table Of Contents
Safety Precautions ..........................................................................1
Parts And Features ..........................................................................4
Installing Your Refrigerator............................................................5
Unpacking Your Refrigerator ..................................................................5
Adjusting Your Refrigerator......................................................................5
Proper Air Circulation ............................................................................5
Electrical Requirements............................................................................6
Reversing the Door Swing ......................................................................7
Refrigerator Features And Use
General Features....................................................................................9
Refrigerator Interior Shelves ....................................................................9
Crisper and Crisper Cover....................................................................10
Refrigerator Door Shelves ....................................................................11
Freezer Defrosting................................................................................12
Food Storage Information ....................................................................13
Normal Operating Sounds....................................................................14
PAGE
Proper Refrigerator Care and Cleaning ....................................15
Cleaning and Maintenance ..................................................................15
Light Bulb Replacement ........................................................................16
Power Interruptions ..............................................................................16
Vacation and Moving Care ..................................................................16
Troubleshooting..............................................................................17
Warranty Information ..................................................................19
3
Parts And Features
1
2
3
4
5
English
10
9
6
1. Adjustable Thermostat with Light
2. 2 Full Width Interior Glass Shelves
3. Chrome Plated Wine Rack
4. 2 See Through Crispers with
Glass Cover
5. 2 Rear Casters (not shown)
6. 3 See Through Freezer Drawers
8
7
7. Adjustable Leveling Legs (not shown)
8. Shelf Huggers
9. 3 Full Width Door Shelves
with 2 Liter Storage
10. Ice Cube Tray
4
English
Installing Your Refrigerator
Unpacking Your Refrigerator
1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the refrigerator accessories inside and
outside. Slide out and remove plastic or foam guard used to
secure the compressor from shipping damage due to vibration
and shock.
2. Inspect and remove any remains of packing, tape or printed
materials before powering on the refrigerator.
Adjusting Your Refrigerator
Leveling Your Refrigerator:
• Your refrigerator has two leveling legs which are located in the
front corners of your refrigerator. After properly placing your
refrigerator in its final position, you can level your refrigerator.
• Leveling legs can be adjusted by turning them clockwise to raise your
refrigerator or by turning them counterclockwise to lower
your refrigerator. The refrigerator door will close easier when the
leveling legs are raised.
Proper Air Circulation
• To assure your refrigerator works at the maximum efficiency it
was designed for, you should install it in a location where there
is proper air circulation, plumbing and electrical connections.
• The following are recommended clearances around the refrigerator:
Sides……………3/4 "(19mm)
Top....................1" (25mm)
Back..................1" (25mm)
5
Electrical Requirement
• Make sure there is a suitable power Outlet (115 volts, 15 amps outlet)
with proper grounding to power the refrigerator.
• Avoid the use of three plug adapters or cutting off the third grounding in
order to accommodate a two plug outlet. This is a dangerous practice
since it provides no effective grounding for the refrigerator and may
result in shock hazard.
Install Limitations
• Do not install your refrigerator in any location not properly insulated or
heated e.g. garage etc. Your refrigerator was not designed to operate in
temperature settings below 55˚ Fahrenheit.
• Select a suitable location for the refrigerator on a hard even surface
away from direct sunlight or heat source e.g. radiators, baseboard
heaters, cooking appliances etc. Any floor unevenness should be
corrected with the leveling legs located on the front bottom corners of
the refrigerator.
English
6
English
Reversing the Door Swing
Left/right door opening method:
• This product provides the reversing of the left/right door opening.
You can select your preference of door opening by following the
procedure to make the change.
Dismantling: (see fig. # 1)
1. Fix refrigerator and freezer door by sticking adhesive tape on both
sides to hold doors in place.
2. As shown in fig. 1, dismantle the hinge on the lower part of freezer
door with a phillips head screwdriver. Remove the two screws from the
hinge. Take out the hinge, and keep it in a safe place.
3. Remove the bottom hinge axle pin by twisting it counter clockwise and
fix in opposite hole (see fig. # 1).
4. Remove the adhesive tape on freezer door, take the door down, and
carefully put it aside.
5. As shown in fig. 2, dismantle two screws of the central hinge, take
down the central hinge, and keep them in a safe place.
6. Remove the adhesive tape on refrigerator door, lift and take down
refrigerator door, and carefully put it aside.
7. Remove the axle pin from the top right side of the refrigerator door and
install it on the left side.
Bottom Hinge
Center Hinge
7
fig. # 1
fig. # 2

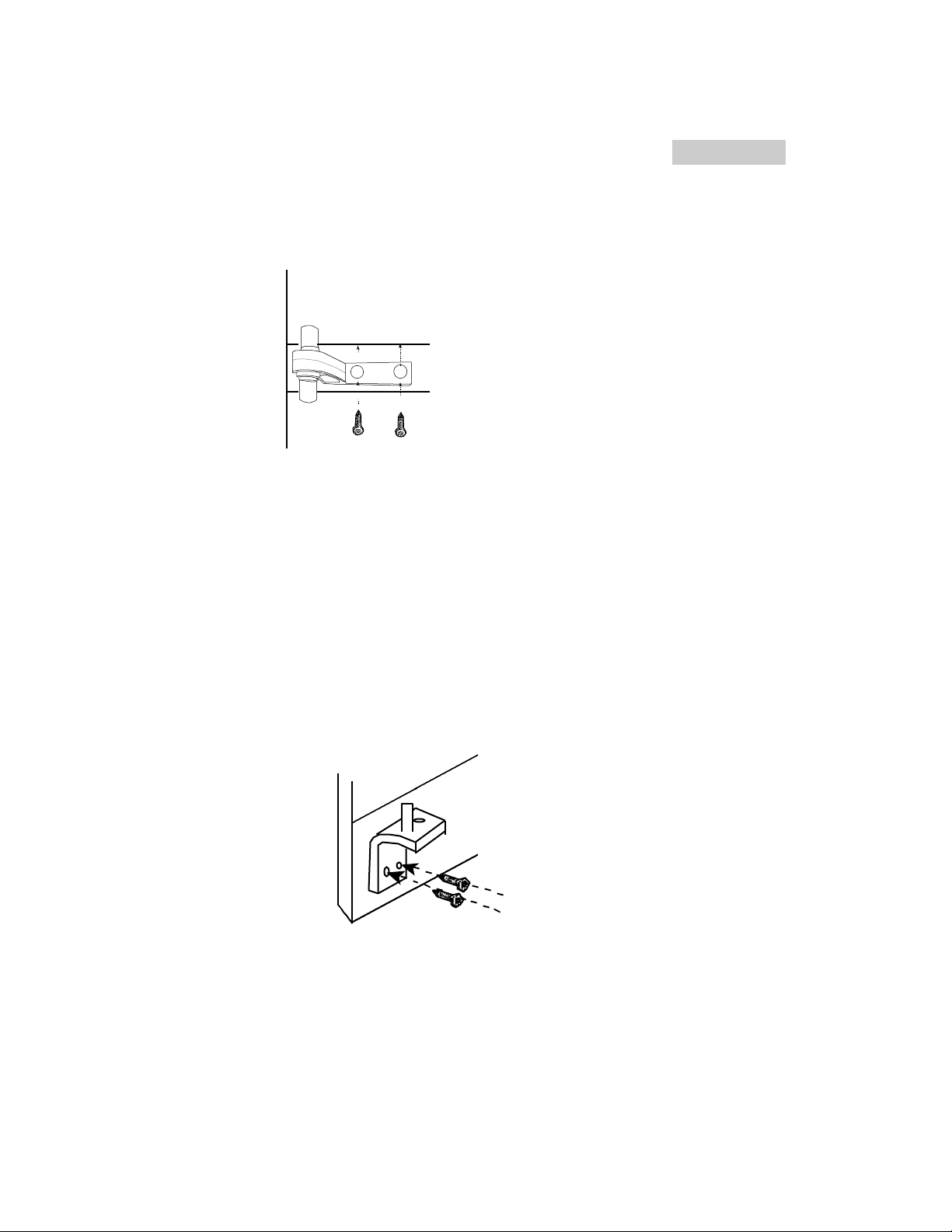

Reinstallation: (see fig. # 3 and # 4)
1. To install refrigerator door: align left top hole of refrigerator
compartment door with axle pin, with left top hole of cabinet.
fig. # 3
2. Install center hinge axle on left side. (see fig. 3) Align the center hinge
axle pin with the bottom hole of refrigerator door. Turn the hinge axle
until it completely enters the doors body.
3. Straighten and align the refrigerator door. Then tighten the screws.
4. Install the freezer door: Align the left freezer compartment door hole
with the center hinge axle.
English
5. Take the bottom hinge axle and install it on the left side. Align the left
bottom hole of the freezer door with the bottom hinge axle. (see fig. 4)
6. Straighten the freezer door, then tighten the screws.
fig. # 4
8
English
Refrigerator Features And Use
General Features
Adjustable temperature dial:
Your refrigerator will automatically
maintain the temperature level you
select. The temperature control dial has
7 settings plus off. 1 is the warmest. 7
is the coldest. Turning the dial to OFF
stops cooling in both the refrigeration
and freezer sections. At first, set the
dial to 4 and allow 24 hours to pass
before adjusting the temperature to your
needs.
Refrigerator Interior Shelves
The refrigerator shelves of your refrigerator were designed with you in
mind. Their varied adjustability allows you to satisfy your personal
storage needs.
To remove or adjust a full-width slide-out:
(see fig. # 5)
1. Gently tilt the shelf up and slide forward until the shelf has been
completely removed.
2. To replace the shelf, select the desired setting and gently slide the
shelf back until it rests in the locking position.
(Note: If the refrigerator has
been placed in a horizontal or
tilted position for any period
of time wait 24 hours before
plugging the unit in.)
Refrigerator Section
Interior Light:
Your refrigerator is equipped with an
automatic interior light in the fresh
food section for you to easily locate
your food.
fig. # 5
9
Crisper and Crisper Cover
To remove and install the crisper: (see fig. # 6))
1. Gently lift the front of the crisper.
2. Grip the crisper firmly and slide out completely.
3. Replace the crisper by gently sliding it back into place.
To remove the crisper cover: (see fig. # 7)
1. First remove both crispers.
2. Gently push upward from the underside of the crisper cover to remove.
3. Carefully grasp the crisper cover and slide out to remove.
English
fig. # 6
fig. # 7
To replace the crisper cover: (see fig. # 8)
1. Slide the rear of the crisper cover into the track and carefully lower the
front into place.
2. Replace the crispers as previously instructed.
fig. # 8
10
English
Refrigerator Wine Rack
• Your refrigerator comes with a chrome plated wine rack. This rack is
adjustable to put in any track of your convenience.
Refrigerator Door Shelves
2 liter door storage: (see fig. # 9)
• Your refrigerator is equipped with a 2 liter door storage shelf. This
feature will allow for the storage of 2 liter size bottles.
To remove refrigerator door shelves: (see fig. # 9)
1. Remove all items stored on shelf.
2. Gently push in on the left side until the shelf is clear of the door shelf
bracket.
3. Tilt the shelf upward on the left side and carefully remove.
To replace refrigerator door shelves: (see fig. # 9)
1. Align the right end of the shelf with the door shelf brackets.
11
2. Carefully push down the left side of the
door shelf, while gently pushing in the
left side until it is locked in place with the
door brackets.
fig. # 9
To adjust the door shelf bottle huggers: (see fig. # 10)
1. Grasp the hugger firmly and slide right or left until it is snug against the
items stored in the shelf.
fig. # 10
Freezer Features
Removing the full-width freezer drawer: (see fig. # 11)
1. Grasp the freezer drawer firmly and slide as far as possible. Tilt up slightly
and remove.
2. To replace the freezer drawer. Place the freezer drawer on its shelf and
slightly tilt up the drawer and slide back in.
fig. # 11
Defrosting
English
Defrost whenever frost on the wall of
the freezer compartment becomes
1/8" thick. Never use a sharp or
metallic instrument to remove frost as
it may damage the cooling coils.
(A punctured cooling coil will cause
serious damage to the product and
will void the warranty). We do not
recommend using any kind of
scraper. Do not use any electrical
device in defrosting your freezer.
Turn off and unplug the refrigerator.
Remove all foods from the freezer
drawers. Remove freezer drawers.
Defrosting usually takes a few hours.
To quicken defrosting you may, keep
the freezer door open.
Sponge water from the bottom
before cleaning. After defrosting,
clean the inside of the freezer (see
care and cleaning). Replace freezer
drawers and plug in the refrigerator
and return the temperature to its
previous position. Now return food
to freezer.
12
English
Ice Cube Trays:
• Your refrigerator is equipped with two ice cube trays.
Food Storage Information
Fresh Food
• When storing fresh food, which is not prepackaged, be sure to wrap or
store food in airtight and moisture proof material unless otherwise
noted. This will ensure proper shelf life and prevent the transfer of
odors and tastes.
• Wipe containers before storing to avoid needless spills.
• Eggs should be stored in an upright position in their original carton to
maximize shelf life.
• Fruit should be washed and dried then stored in a crisper set for low
humidity. If you do not have humidity controlled crispers place the items
in sealed plastic bags before storing in the crisper.
• Vegetables with skins should be stored in plastic bags or containers and
stored in crisper with low humidity setting.
• Leafy vegetables should be washed and drained and then stored in
plastic bags or containers in crisper with high humidity setting.
• Hot food should be allowed to cool before storing in the refrigeration.
This will prevent unnecessary energy use.
• Fresh seafood should be used the same day as purchased.
• When storing meats in the fresh food section, keep in the original
packaging or rewrap as necessary. Follow the suggestions below for
safe storage:
• Chicken 1-2 Days
• Ground Beef 1-2 Days
• Cold Cuts 3-5 Days
• Steaks/Roasts 3-5 Days
• Smoked/Cured Meats 7-10 Days
• All others 1-2 Days
If longer periods of storage are required, store immediately in the freezer
section.
13
Frozen Food
• Proper freezer storage requires correct packaging. All foods
must be in packages, which do not allow the flow of air or
moisture in, or out. Improper storage will result in odor and
taste transfer and will result in the drying out of the improperly
packaged food.
• Follow package or container instructions for proper storage.
• Packaging Recommendations:
Plastic containers with air tight lids
Heavy duty aluminum foil
Plastic wrap made from saran film
Self-sealing plastic bags
• Do not refreeze defrosted/thawed foods.
• It is recommended that the freezing date be marked on the
packaging.
English
Normal Operating Sounds You May Hear
• The fan circulating air inside the interior of your unit to maintain the
temperature you have selected.
• Boiling water, gurgling sounds or slight vibrations that are the result of
the refrigerant circulating through the cooling coils.
14
English
Proper Refrigerator Care and Cleaning
Cleaning and Maintenance
Warning: To avoid electric shock always unplug your
refrigerator before cleaning. Ignoring this warning
may result in death or injury.
Caution: Before using cleaning products, always read and
follow manufacturer’s instructions and warnings to
avoid personal injury or product damage.
General:
• Prepare a cleaning solution of 3-4 tablespoons of
baking soda mixed with warm water. Use sponge or
soft cloth, dampened with the cleaning solution, to
wipe down your refrigerator.
• Rinse with clean warm water and dry with a soft cloth.
• Do not use harsh chemicals, abrasives, ammonia,
chlorine bleach,concentrated detergents, solvents or
metal scouring pads. SOME of these chemicals may
dissolve, damage and/or discolor your refrigerator.
Door Gaskets:
• Clean door gaskets every three months according to
general instructions. Gaskets must be kept clean and
pliable to assure a proper seal.
• Petroleum jelly applied lightly on the hinge side of gaskets will keep the gasket pliable and assure a good
seal.
15
Light Bulb Replacement
1. Switch off power to refrigerator.
2. Remove the highest shelf.
3. Remove the thermostat control dial.
4. Remove the light bulb cover..
5. Allow light bulb to cool before removing.
6. Remove bulb by screwing it out counter-clockwise.
7. Always replace with appliance type light bulb rated
at 15 watts or lesser wattage.
8. Do not exceed the 15 watts rating at any time.
9. Replace the bulb cover.
10. Replace the control dial.
Power Interruptions
• Occasionally there may be power interruptions due to thunderstorms or
other causes. Remove the power cord from AC outlet when a power
outage occurs. When power has been restored, replug power cord to
AC outlet. If outage is for a prolonged period, inspect and discard
spoiled or thawed food in freezer and refrigerator. Clean
refrigerator before reusing.
English
Vacation and Moving Care
• For long vacations or absences, empty food from refrigerator and
freezer, move the temperature DIAL to the OFF position and clean the
refrigerator and door gaskets according to "General cleaning" section.
Prop doors open, so air can circulate inside.When moving always move
the refrigerator vertically. Do not move with the unit lying down. Possible
damage to the sealed system could occur.
16
English
TroubleShooting
Refrigerator Does Not Operate
• Check if thermostat control is not in the “OFF” position.
• Check if refrigerator is plugged in.
• Check if there is power at the ac outlet, by checking the circuit breaker.
• Wait for 30-40 minutes to see whether refrigerator will start.
Compressor must complete cycle.
Food temperature appears too warm
• Frequent door openings.
• Allow time for recently added warm food to reach fresh food or
freezer temperature.
• Check gaskets for proper seal.
• Adjust temperature control to colder setting.
Food temperature is too cold
• If temperature control setting is too cold, adjust to a warmer setting
and allow several hours for temperature to adjust.
17
Refrigerator runs too frequently
• This may be normal to maintain constant temperature during
high temperature and humid days.
• Doors may have been opened frequently or for an extended
period of time.
• Check gasket for proper seal.
• Check to see if doors are completely closed.
Moisture build up on interior or exterior
of the refrigerator:
• This is normal during high humidity periods.
• Prolonged or frequent door openings.
• Check door gaskets for proper seal.
Refrigerator has an odor:
• Interior needs cleaning.
• Foods improperly wrapped or sealed are giving off odors.
Refrigerator light does not work:
• Check power supply.
• Tighten bulb in socket.
• Replace burned out bulb.
Refrigerator/Freezer door does not shut properly:
• Level the refrigerator.
• Check for blockages e.g. food containers, crisper cover,
shelves, bins etc.
English
18
English
Limited Warranty
What is covered and for how
long?
This warranty covers all defects in
workmanship or materials for a period
of:
12 months labor
12 months parts
5 years sealed system
The warranty commences on the date
the item was purchased and the original
purchase receipt must be presented to
the authorized service center before
warranty repairs are rendered.
EXCEPTIONS: Commercial or
Rental Use warranty
90 days labor (carry-in only)
90 days parts
No other warranty applies
What is covered.
1. The mechanical and electrical parts,
which serve as a functional, purpose
of this appliance for a period of 12
months. This includes all parts except
finish, and trim.
2. The components of the sealed system
e.g. hermetic compressor, condenser
and evaporator from manufacturing
defects for a period of 5 years from
the date of purchase. Any damages
to such components caused by
mechanical abuse or improper
handling or shipping will not be
covered.
What will be done?
1. We will repair or replace, at our
discretion any mechanical or
electrical part which proves to be
defective in normal usage during the
warranty period so specified.
2. There will be no charge to the
purchaser for parts and labor on any
covered items during the initial 12
month period. Beyond this period
19
only parts are covered in the
remaining warranty. Labor is not
provided and must be paid by the
customer.
3. Contact your nearest authorized
service center. For the name of the
nearest service center please call
1-877-337-3639
THIS WARRANTY COVERS
APPLIANCES WITHIN THE
CONTINENTAL UNITED STATES,
PUERTO RICO AND CANADA. IT
DOES NOT COVER THE
FOLLOWING
Damages from improper installation.
Damages in shipping.
Defects other than manufacturing.
Damage from misuse, abuse, accident,
alteration, lack of proper care and
maintenance or incorrect current or
voltage.
Damage from other than household use.
Damage from service by other than an
authorized dealer or service center.
Decorative trims or replaceable
lightbulbs.
Transportation and shipping.
Labor (after the initial 12 months).
THIS LIMITED WARRANTY IS GIVEN IN
LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR, INCLUDING THE
WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR
PURPOSE
The remedy provided in this warranty is
exclusive and is granted in lieu of all
other remedies.
This warranty does not cover incidental
or consequential damages, so the above
limitations may not apply to you. Some
States do not allow limitations on how
long an implied warranty lasts, so the
above limitations may not apply to you.
This warranty gives you specific legal
rights, and you may have other rights,
which vary, from state to state.
Haier America
New York, NY 10018
IMPORTANT
Do Not Return This Product To The Store
If you have a problem with this product, please contact the "Haier Customer
Satisfaction Center" at 1-877-337-3639.
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE
IMPORTANT
Ne pas Réexpédier ce Produit au Magasin
Pour tout problème concernant ce produit, veuillez contacter le service des
consommateurs ‘Haier Customer Satisfaction Center’ au 1-877-337-3639.
UNE PREUVE D’ACHAT DATEE EST REQUISE POUR BENEFICIER DE LA GARANTIE.
IMPORTANTE
No regrese este producto a la tienda
Si tiene algún problema con este producto, por favor contacte el "Centro de Servicio al
NECESITA UNA PRUEBA DE COMPRA FECHADA PARA EL SERVICIO DE LA GARANTIA
Consumidor de Haier" al 1-877-337-3639 (Válido solo en E.U.A).
115V, 60 Hz
HBP08GNA-rev
Issued: January 02
Made in China
Fabriqué en Chine
Hecho en China
What The World Comes Home To
Haier America
New York, NY 10018
Printed in China
®
TM
Part #:RF-9999-B7
Loading...
