OPERRATION
Cautions
2006/1/10
6
Air Conditioner
Disposal of the old air conditioner
Before disposing an old air conditioner that
goes out of use, please make sure it's
inoperative and safe. Unplug the air conditioner
in order to avoid the risk of child entrapment.
It must be noticed that air conditioner system
contains refrigerants, which require specialized waste disposal. The valuable materials
contained in an air conditioner can be recycled.
Contact your local waste disposal center for
proper disposal of an old air conditioner and
contact your local authority or your dealer if
you have any question. Please ensure that
the pipework of your air conditioner does not
get damagedprior to being picked up by the
relevant waste disposal center, and contribute
to environmental awareness by insisting on an
appropriate, anti-pollution method of disposal.
All these valuable materials may be taken to
a waste collecting center and used again after
adequate recycling.
Consult your local authorities for the name
and address of the waste materials collecting
centers and waste paper disposal services
nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read the
information given in the User's Guide carefully. The User's Guide contains very important observations relating to the assembly,
operation and maintenance of the air
conditioner.
The manufacturer does not accept responsibility for any damages that may arise due
to non-observation of the following
instruction.
Disposal of the packaging of your
new air conditioner
All the packaging materials employed in the
package of your new air conditioner may be
disposed without any danger to the
environment.
The cardboard box may be broken or cut into
smaller pieces and given to a waste paper
disposal service. The wrapping bag made of
polyethylene and the polyethylene foam pads
contain no fluorochloric hydrocarbon.
Damaged air conditioners are not to be
put into operation. In case of doubt, consult
your supplier.
Use of the air conditioner is to be carried
out in strict compliance with the relative
instructions set forth in the User's Guide.
Installation shall be done by professional
people, don't install unit by yourself.
1
Cautions
2006/1/10
7
Air Conditioner
For the purpose of the safety,the air conditioner must be properly grounded in accordance with specifications.
Always remember to unplug the air
conditioner before openning inlet grill. Never
unplug your air conditioner by pulling on
the power cord. Always grip plug firmly and
pull straight out from the outlet.
All electrical repairs must be carried out
by qualified electricians. Inadequate repairs
may result in a major source of danger for
the user of the air conditioner.
Do not damage any parts of the air
conditioner that carry refrigerant by piercing
or perforating the air conditioner's tubes
with sharp or pointed items, crushing or
twisting any tubes, or scraping the coatings
off the surfaces. If the refrigerant spurts
out and gets into eyes, it may result in
serious eye injuries.
Do not obstruct or cover the ventilation
grille of the air conditoner.Do not put fingers
or any other things into the inlet/outlet and
swing louver.
Specifications
The refrigerating circuit is leak-proof.
Remark per EMC Directive 89/336/EEC.
To prevent flicker impression during the
start of the compressor(Technical Process)
and the adversely influence caused by
the 2nd harmonies of compressor following
installation conditions do apply:
1.The power connection for air conditioner
has to be done at the main power
distribution.This distribution has to be of a
Iow impedance. Normally the required
impedance is reached at a 32A fusing point.
2.No other equipment has to be connected:
to this power line.
3.For the details installation acceptance
please refer to your contract with the power
supplier, if restrictions do apply for products:
like washing machines,air conditioners or
electrical ovens.
4.For the details of the power of air,
conditioner, please refer to the rating plate
of the product.
5.For any question contact your local dealer.
Do not allow children to play with the air
conditioner.In no case should children be
allowed to sit on the outdoor unit.
Air Conditioner
2006/1/10
Parts and Functions
Indoor Unit
Test running switch(manual)
Used only for test running in cooling
when room temp. is below 16oC.
Inlet grille
Air filter
Don't use it in normal operation.
Emergency switch(manual)
Used when remote controller is lost or
defective. Unit will run temporarily.
Remote signal receiver
A beeping sound is generated when
a signal from remote controller is
received.
Vertical flap
Use remote controller to
adjust up and down air flow.
(Don't adjust it manually.)
Power indicator
Lights up when unit starts.
Timer mode indicator
Lights up when Timer operation
is selected.
Operation mode indicator
Lights up during compressor
running.
Actual inlet grille may vary from the one shown in the manual according to
the product purchased
Outdoor Unit
OUTLET CONNECTING PIPING AND ELECTRICAL WIRING
1
2
INLET DRAIN HOSE
3
4
Air Conditioner
2006/1/10
9
Parts and Functions
The machine is adaptive in following situation
1. Applicable ambient temperature range:
Cooling
Heating
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
or a similar qualified person. The type of connecting wire is H05RN-F or H07RN-F.
3. If the fuse on PC board is broken please change it with the type of T.3.15A/250V.
4. The distance between the indoor unit and the floor should be more than 2m.
5. The wiring method should be in line with the local wiring standard.
6. After installation, the power plug should be easily reached.
7. The waste battery should be disposed properly.
8. The appliance is not intended to use by young children or infirm persons without supervision
9.Young children should be supervised ensure that they do not play with the appliance.
10.The appliance must be installed on strong enough supporter.
11 .The wiring diagram is attached inside the machine.
Indoor
Outdoor
Indoor
Outdoor
Maximum:D.B/W.B
Minimum:D.B/W.B
Maximum:D.B/W.B
Minimum:D.B
Maximum:D.B
Minimum:D.B
Maximum:D.B/W.B
Minimum:D.B/W.B
32oC/23oC
18oC/14oC
43oC/26oC
18oC
27oC
15oC
24oC/18oC
-7oC/-8oC
Air Conditioner
2006/1/10
Parts and Functions

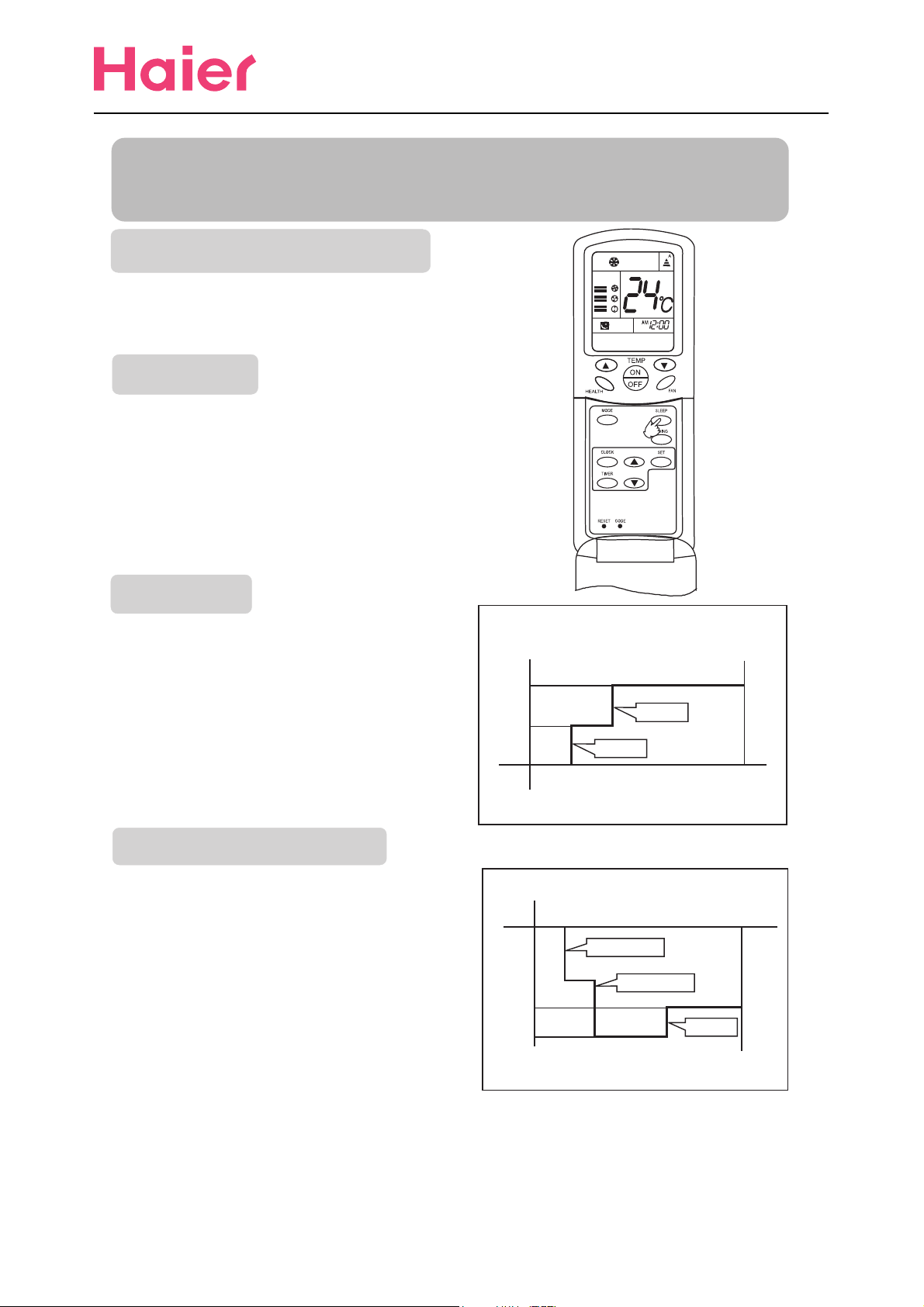

Buttons and display of the remote controller.
1.Mode display
AUTO
COOL
DRY
HEAT
FAN
2. SWING display
3. FAN SPEED display
4. HEALTH display
5. SLEEP display
6. LOCK display
7. TIMER ON display
8. AUXILIARY HEAT display
9. HEALTH
10. MODE
Used to select AUTO,COOL
and FAN
11. CLOCK
Used to set correct time
12. TIMER
Used to select TIMER ON,TIMER OFF
13. RESET
Used to reset the controller back to
normal condition.
14. CODE
Used to select code A or B with a press,A
or B will be displayed on LCD.please
select A without special explanation
15. CODE display
16. SIGNAL SENDING display
17. POWER/SOFT display
18. TEMP. display
19. CLOCK display
20. TIMER OFF display
21. TEMP
Used to select your desired temperature
22. FAN
Used to select fan speed
25. SWING
26. SET
Used to confirm timer and clock settings
27. HOUR
Used to set clock and timer settings
NOTE:(1)The following functions and related displays are not available: AUXILIARY HEAT display, POWER/SOFT display, LOCK display.
(2)If the Air conditioner don't have the function of the code ,press code B can cause it not available.
(3)Cooling only unit do not have functions and displays related with heating.
23. POWER ON/OFF
Used for unit start or stop
24. SLEEP
Used to select sleep mode
LOW MED HI AUTO
When unit is started for the first time and after replacing batteries in remote controller, clock should
be adjusted as follows:
Press CLOCK button, "AM" or "PM" flashes.
Press or to set correct time. Each press will increase or decrease 1min. If the button is kept
depressed, time will change quickly.
After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock starts working.
Clock set
Hints
After replacing with new batteries, remote controller will conduct self-check, displaying
all information on LCD. Then, it will become normal.
