SPLIT TYPE ROOM AIR CONDITIONER
OPERATION MANUAL
Please read this operation manual before using the air conditioner.
No.
HSU-07RA03/R1(B)
HSU-09RA03/R1(B)
HSU-12RA03/R1(B)
H2SM-18RA03/R1(B)
Before disposing an old air conditioner that
goes out of use
, please make sure it's inoperative and safe. Unplug the air conditioner
in order to avoid the risk of child entrapment
It must be noticed that air conditioner system
contains refrigerants, which require specialized waste disposal. The valuable materials
contained in an air conditioner can be recycled
.Contact your local waste disposal center for
proper disposal of an old air conditioner and
contact your local authority or your dealer if
you have any question. Please ensure that
the pipework of your air conditioner does not
get damagedprior to being picked up by the
relevant waste disposal center, and contribute
to environmental awareness by insisting on an
appropriate, anti-pollution method of disposal.
Cautions
Disposal of the old air conditioner
All the packaging materials employed in the
package of your new air conditioner may be
disposed without any danger to the
environment.
The cardboard box may be broken or cut into
smaller pieces and given to a waste paper
disposal service. The wrapping bag made of
polyethylene and the polyethylene foam pads
All these valuable materials may be taken to
a waste collecting center and used again after
adequate recycling.
Consult your local authorities for the name
and address of the waste materials collecting
centers and waste paper disposal services
nearest to your house.
Disposal of the packaging of your
ne
w air conditioner
Before starting the air conditioner, read the
inf
ormation given in the User's Guide carefully. The User's Guide contains very important observations relating to the assembly,
operation and maintenance of the air
conditioner.
The manufacturer does not accept responsibility for any damages that may arise due
to non-observation of the following
instruction.
Damaged air conditioners are not to be
put into operation. In case of doubt, consult
your supplier.
Use of the air conditioner is to be carrie
out in strict compliance with the relative
instructions set forth in the User's Guide.
Installation shall be done by professional
people, don't install unit by yourself.
For the purpose of the safety,the air con
ditioner must be properly grounded in accordance with specifications.
Always remember to unplug the air
conditioner before openning inlet grill. Never
unplug your air conditioner by pulling on
the power cord. Always grip plug firmly and
pull straight out from the outlet.
All electrical repairs must be carried ou
by qualified electricians. Inadequate repairs
may result in a major source of danger for
the user of the air conditioner.
Safety Instructions and Warnings
Do not damage any parts of the air
conditioner that carr
y refrigerant by piercing
or performating the air conditioner's tubes
with sharp or pointed items, crushing or
twisting any tubes, or scraping the coatings
off the surfaces. If the refrigerant spurts
out and gets into eyes, it may result in
serious eye injuries.
1
Do not obstruct or cover the ventilation
g
rille of the air conditoner.Do not put fingers
or any other things into the inlet/outlet and
swing louver.
Do not allow children to play with the air
conditioner
.In no case should children be
allowed to sit on the outdoor unit.
The refrigerating circuit is leak-proof.
1.Applicable ambient temperature range:
Specifications
The machine is adaptive in following
situation
10 .The power plug and connecting cable
m
ust have acquired the local attestati
2. If the power supply cord is damaged, it
m
ust be replaced by the manufacturer
or its service agent or a similar qualified
person.
3. If the fuse of indoor unit on PC board is
brok
en,please change it with the type of
T. 3.15A/ 250V.
4. The wiring method should be in line with
the local wiring standard.
5. After installation, the power plug should
be easily reached.
6. The waste battery should be disposed
proper
ly.
7. The appliance is not intended for use
b
y young children or infirm persons
without supervision.
8. Young children should be supervised
to ensure that the
y do not play with
the appliance.
9.Please employ the proper power plug,
which fit into the po
wer supply cord.
Cautions
2
Cooling
Indoor
Maximum:D .B/W.B
Maximum:D .B/W.B
Maximum:D .B
Maximum:D .B
Maximum:D .B
Minimum:D .B/W.B
Maximum:D .B/W.B
Minimum:D .B/W.B
Outdoor
Indoor
Outdoor
Heating
32oC/23oC
24oC/18oC
-7oC/-8oC
43oC/26oC
18oC
27oC
15oC
18oC/14oC
Outdoor
Maximum:D .B/W.B
Minimum:D .B/W.B
24oC/18oC
-15oC
(INVERTER)
Cautions
STRICT
ENFORCEMENT
Safety Instruction
Installation
WARNING
Please read the following Safety Instructions carefully prior to use.
The instructions are classified into two levels, WARNING and CAUTION according to
the ser
iousness of possible risks and damages as follows. Compliance to the
instructions are strictly required for safety use.
Please call Sales/Service Shop for the Installation.
Do not attempt to install the air conditioner by yourself because improper works
ma
y cause electric shock, fire, water leakage.
lnstallation in a inadequate place may cause accidents. Do not install in the following plac
Connect the earth
cab
le.
earthing
Do not install in the
place where there is
an
y possibility of
inflammable gas
leakage around the
unit.
Do not get the unit
e
xposed to vapor
or oil steam.
Check proper
installation of the
dr
ainage securely
PROHIBITION PROHIBITION
CAUTION
3
Cautions

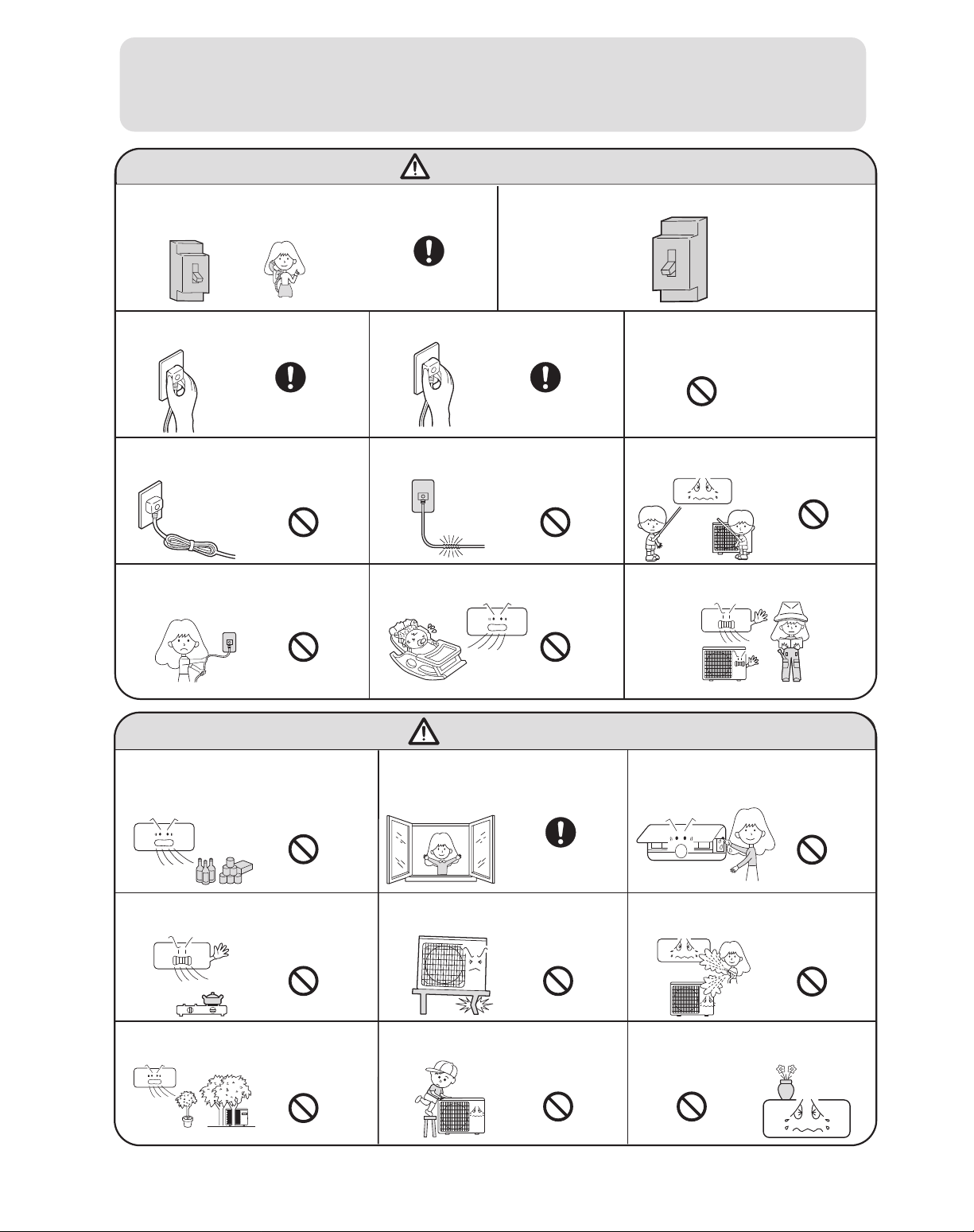

WARNING
When abnormality such as burnt-small found,
immediately stop the operation button and
contact sales shop.
OFF
Use an exclusive power source with a
circuit breaker
ENFORCEMENT
Connect power supply cord
to the outlet completely
Use the proper voltage
Do not use power supply cord
in a bundle.
Take care not to damage
the power supply cord.
Do not use power supply cord
extended or connected in halfway
STRICT
ENFORCEMENT
STRICT
STRICT
ENFORCEMENT
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
Do not start or stop the
operation by disconnecting
the power supply cord and so on.
Do not channel the air flow directly
at people, especially at infants or
the aged.
Do not try to repair or reconstruct
by yourself.
Do not use for the purpose of storage of
food, art work, precise equipment,
breeding, or cultivation.
CAUTION
Take fresh air occasionally especially
when gas appliance is running at the
same time.
PROHIBITION
STRICT
ENFORCEMENT
Do not operate the switch with
wet hand.
PROHIBITION
PROHIBITION
4
PROHIBITION
PROHIBITION
PROHIBITION
Do not install the unit near a fireplace
or other heating apparatus.
Check good condition of the
installation stand
Do not pour water onto the unit
for cleaning
PROHIBITION
Do not place animals or plants in
the direct path of the air flow
Do not place any objects on or
climb on the unit.
Do not place flower vase or water
containers on the top of the unit.
Do not insert objects into the air
inlet or outlet.
PROHIBITION
PROHIBITION
PROHIBITION

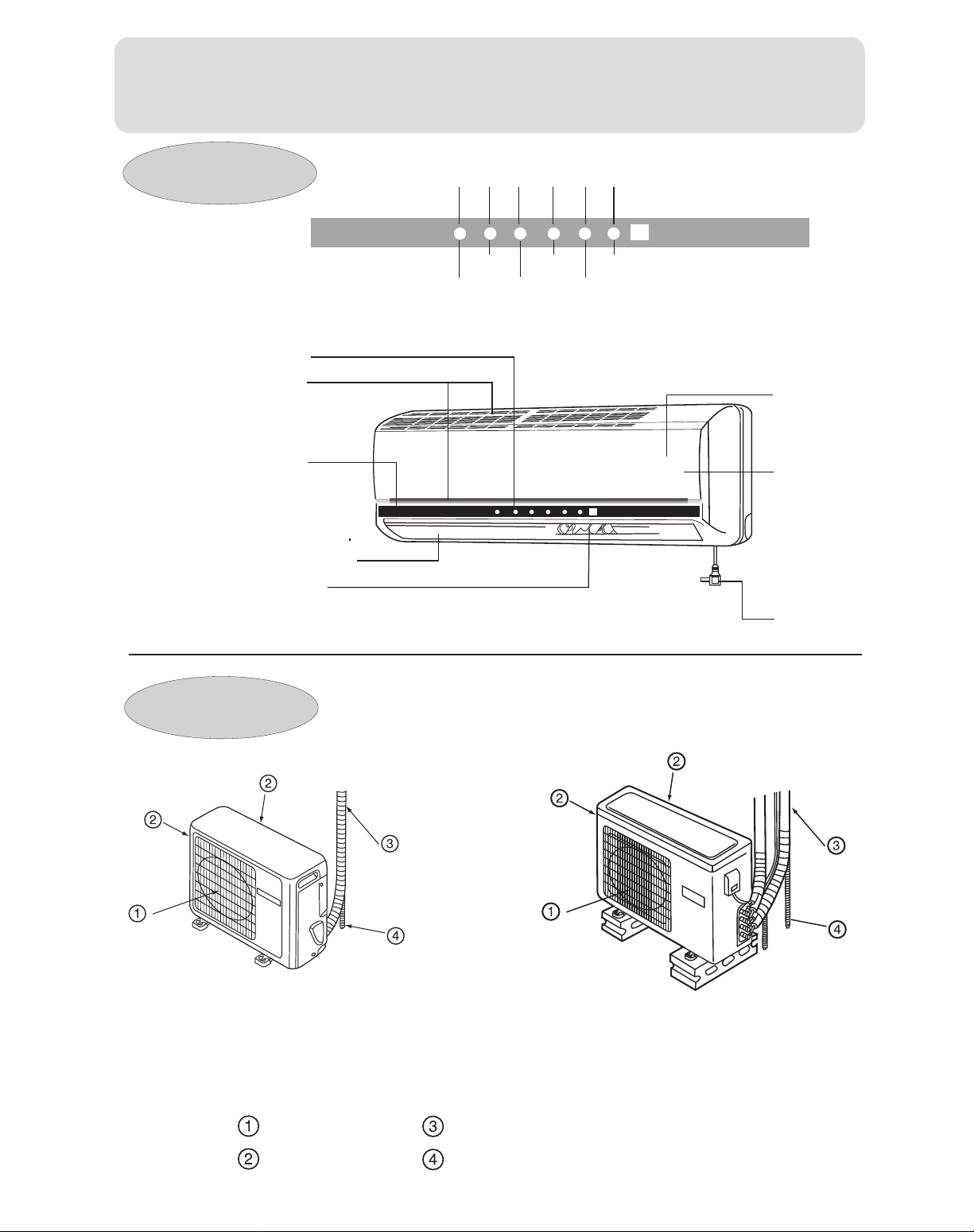

Parts and Functions
Indoor unit
Outdoor unit
OUTLET
CONNECTING PIPING AND ELECTRICAL WIRING
DRAIN HOSE
INLET
Display board
Display board
Inlet
Anion generator
Vertical flap
(Use remote controller to
adjust up and down air flow.
Don't adjust it manually)
Horizontal louver
Air filter
Inlet grille
Power plug
(inside)
(adjust left and right air flow)
(inside)
The conversion of pilot light's colors will be displayed as
the figure under different operation models
OPERATE
RED
RED
GREEN
GREEN
GREEN
YELLOW
COOL DRY HEAT TIMER HEALTH
5
HSU-07RA03/R1(B)
HSU-09RA03/R1(B)
H2SM-18RA03/R1(B)
HSU-12RA03/R1(B)
For multi-split type, the power plug is on the outdoor unit.
16. SIGNAL SENDING display
17.
POWER/SOFT display
18. Left/right air flow display
19. TEMP display
Remote controller: to display the TEMP. setting.
20. TIMER OFF display
21. CLOCK display
22. FAN button
Used to select fan speed: LOW,MED, HI, AUTO
23. ON/OFF button
Used for unit start and stop.
24. SLEEP button
Used to select sleep mode.
25. HEALTH AIRFLOW button
Used to set the healthy airflow mode.
26. SET button
Used to confirm timer and clock settings.
27. POWER/SOFT button
28. LOCK
Used to lock buttons and LCD display. If
pressed, the other buttons will be disabled
and the lock condition display appears.
Press it once again, lock will be canceled
and lock condition display disappears.
29. LIGHT button
Colorful display bar of the controlling indoor
machine is on and extinguished.
30. CODE
Used to select CODE A or B with a press,A or
B will be displayed on LCD.
Please select A without special explanation.
1. SWING button
Used to select up or do
wn air sending direction.
2. HOUR button
Used to set clock and timer setting.
3. MODE button
Used to select operation mode. AUTO,
COOL,DRY, FAN,HEAT.
4. HEALTH button
Used to set healthy operation.
5. CLOCK button
Used to set correct time.
6. TIMER button
Used to select TIMER ON,
TIMER OFF, TIMER ON-OFF.
7. RESET
When the remote controller appears
abnormal, use a sharp pointed article
to press this button to reset the
remote controller normal
8. HEALTH display
9. SLEEP display
10. SWING UP/DOWN display
11. LOCK display
12.
FAN SPEED display
13. TIMER ON display
14.
TEMP button
Used to select your desired temperature.
15. Operation mode display
LOW
Operation mode AUTO HEAT FANCOOL DRY
Remote controller
HI
MED AUTO
NOTE: (1)The following functions and related displays are not av ilable and
(2) Cooling only unit do not ha
ve functions and displays related with heating.
Parts and Functions
,
6
Remove the batteries in case unit won't be in usage for a long period. If there are any disp
taking-out, just need to press reset k
ey.
Parts and Functions

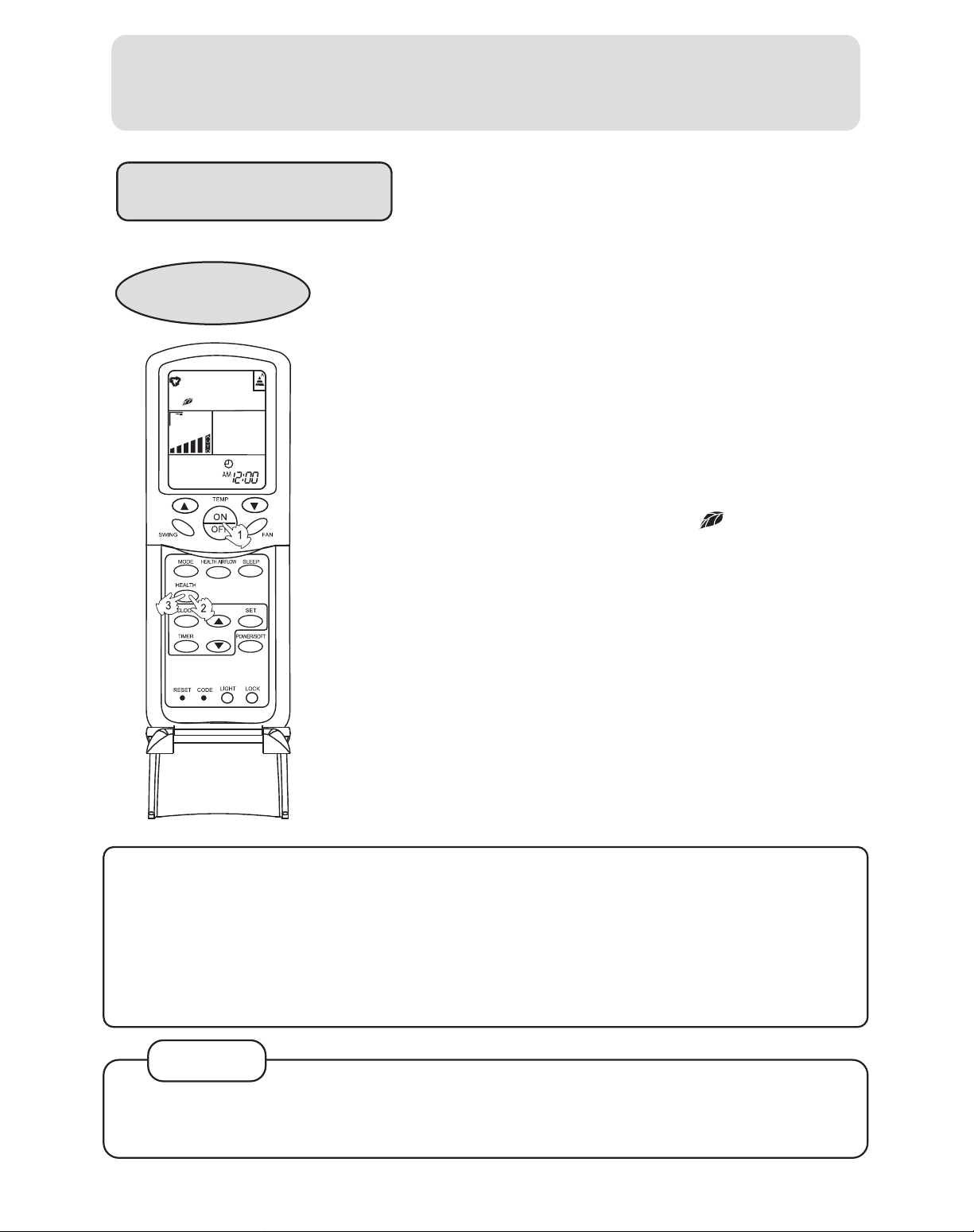

Clock Set
When unit is started for the first time and after replacing batteries in remote
controller
, clock should be adjusted as follows:
Remote controller's operation
3. After time setting is confirmed, press SET, "AM" or "PM" stop
flashing,
while cloc
k starts working.
2. Press or to set correct time. Each press will increase or decrease 1
min.
If the button is kept depressed, time will change quickly.
1. Press CLOCK button,"AM" or "PM" flashes.
When in use, put the signal transmission head directly to the receiver hole on the indoor
The distance between the signal transmission head and the receiver hole should be within 7
without an
y obstacle as well.
Don't throw or knock the remoter controller.
When electronic-started type fluorescent lamp or change-over type fluorescent lamp or wire
telephone is installed in the room, the receiv
er is apt to be disturbed in receiving the s
so the distance to the indoor unit should be shorter.
Loading of the battery
Load the batteries as illustrated right
2 R-03 (7#) batter
ies
Remove the battery cover:
Slightly press" "area and push down the cover
as illustr
ated.
Load the battery:
Be sure that the loading is in line with the "+" / ".
request as illustr
ated on the bottom of the case.
Put on the cover again.
Confirmation indicator:
After pressing power ON/OFF, if no display, reload the batteries.
Note:
Full display or unclear display during operation indicates the batteries have been used u
Please change batter
ies.
Used two new same-typed batteries when loading.
If the remote controller can't run normally during operation, please remove the batteries
reload se
veral minutes later.
Hint:
7
Press HEALTH button, the health function stops.
The pilot light of healthy process on the display board
is extinguished.
BRIEF INTRODUCTION TO HEALTH OPERATION
The anion generator in the air conditioner can generate a lot of anion to
effectively balance the quantity of position and anion in the air and also to kill
bacteria and speed up the dust sediment in the room and finally clean the air
in the room.
Note
When the fan in the indoor unit does not work, the health lamp lights up, but
the anion generator does not release anion.
Operation
Health Operation
Remote controller
1. Unit start
Then set up the comfortable working state.
Link with electronic power.
Press ON/OFF on the remote controller, unit starts.
The liquid crystal will display the working state of last
time (Except Timer, Sleep, Power/Soft and Health
airflow).
2. Select operation mode
Press HEALTH button. For each press, is displayed.
The pilot light of health process on the display board
is on, hence healthy process begins.
When indoor wind machine is running, it has healthy
process function. (It's available under any mode)
3. Unit stop
8
Loading...
