Page 1

HSU-07RS03/R2 HSU-09RS03/R2 HSU-12RS03/R2

Please read this operation manual before using the air conditioner.

No.

H2SM-18HS03/R2 HSU-09HS03/R2(DB) HSU-12HS03/R2(DB)

HSU-18RS03/R2 HSU-22RS03/R2

HSU-22HS03/R2(DB)

HSU-18HS03/R2(DB)

HSU-12HSB03/R2(DB)

SPLIT TYPE ROOM AIR CONDITIONER

OPERATION MANUAL

Page 2

Before disposing an old air conditioner that goes out of use, please make sure it's inoperative and safe. Unplug the air conditioner in order to avoid the risk of child entrapment.

It must be noticed that air conditioner system contains refrigerants, which require specialized waste disposal. The valuable materials contained in an air conditioner can be recycled .Contact your local waste disposal center for proper disposal of an old air conditioner and contact your local authority or your dealer if you have any question. Please ensure that the pipework of your air conditioner does not get damagedprior to being picked up by the relevant waste disposal center, and contribute to environmental awareness by insisting on an appropriate, anti-pollution method of disposal.

Cautions

Disposal of the old air conditioner

All the packaging materials employed in the package of your new air conditioner may be disposed without any danger to the environment.

The cardboard box may be broken or cut into smaller pieces and given to a waste paper disposal service. The wrapping bag made of polyethylene and the polyethylene foam pads

contain no fluorochloric hydrocarbon.

All these valuable materials may be taken to a waste collecting center and used again after adequate recycling.

Consult your local authorities for the name and address of the waste materials collecting centers and waste paper disposal services nearest to your house.

Disposal of the packaging of your new air conditioner

Before starting the air conditioner, read the information given in the User's Guide carefully. The User's Guide contains very important observations relating to the assembly, operation and maintenance of the air conditioner.

The manufacturer does not accept responsibility for any damages that may arise due to non-observation of the following instruction.

Damaged air conditioners are not to be put into operation. In case of doubt, consult your supplier.

Use of the air conditioner is to be carried out in strict compliance with the relative instructions set forth in the User's Guide.

Installation shall be done by professional people, don't install unit by yourself.

For the purpose of the safety,the air conditioner must be properly grounded in accordance with specifications.

Always remember to unplug the air conditioner before openning inlet grill. Never unplug your air conditioner by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.

All electrical repairs must be carried out by qualified electricians. Inadequate repairs may result in a major source of danger for the user of the air conditioner.

Safety Instructions and Warnings

Do not damage any parts of the air conditioner that carry refrigerant by piercing or performating the air conditioner's tubes with sharp or pointed items, crushing or twisting any tubes, or scraping the coatings off the surfaces. If the refrigerant spurts out and gets into eyes, it may result in serious eye injuries.

Page 3

Do not obstruct or cover the ventilation grille of the air conditoner.Do not put fingers or any other things into the inlet/outlet and swing louver.

Do not allow children to play with the air conditioner.In no case should children be allowed to sit on the outdoor unit.

The refrigerating circuit is leak-proof.

1.Applicable ambient temperature range:

Cooling

Indoor

Maximum:D.B/W.B

Maximum:D.B/W.B Minimum:D.B

Maximum:D.B Minimum:D.B

Minimum:D.B/W.B

Maximum:D.B/W.B Minimum:D.B/W.B

Outdoor

Indoor

Outdoor

Heating

Specifications

The machine is adaptive in following situation

10.The power plug and connecting cable must have acquired the local attestation.

2. If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person.

3. If the fuse of indoor unit on PC board is broken,please change it with the type of T. 3.15A/ 250V.

4. The wiring method should be in line with the local wiring standard.

5. After installation, the power plug should be easily reached.

6. The waste battery should be disposed properly.

7. The appliance is not intended for use by young children or infirm persons without supervision.

8. Young children should be supervised to ensure that they do not play with the applience.

9.Please employ the proper power plug, which fit into the power supply cord.

Cautions

32oC/23oC

24oC/18oC

-7oC/-8oC

43oC/26oC 18oC

27oC 15oC

18oC/14oC

Outdoor

Maximum:D.B/W.B Minimum:D.B/W.B

24oC/18oC

-15oC

(INVERTER)

11.For the unit H2SM-18HS03/R2 Through poor conditions of the electrical MAINS, shortly voltage drops can appear when starting the EQUIPMENT.This can influence other equipment (eg. Blinking of a lamp). If the MAINS-IMPEDANCE Zmax<0.325 OHM, such disturbances are not expected. (In case of need, you may contact your local supply authority for further information.)

12.For the unit HSU-18RS03/R2 Through poor conditions of the electrical MAINS, shortly voltage drops can appear when starting the EQUIPMENT.This can influence other equipment (eg. Blinking of a lamp). If the MAINS-IMPEDANCE Zmax<1.088 OHM, such disturbances are not expected. (In case of need, you may contact your local supply authority for further information.)

13.For the unit HSU-22RS03/R2 Through poor conditions of the electrical MAINS, shortly voltage drops can appear when starting the EQUIPMENT.This can influence other equipment (eg. Blinking of a lamp). If the MAINS-IMPEDANCE Zmax<0.094 OHM, such disturbances are not expected. (In case of need, you may contact your local supply authority for further information.)

Page 4

Cautions

STRICT ENFORCEMENT

Safety Instruction

Installation

WARNING

Please read the following Safety Instructions carefully prior to use.

The instructions are classified into two levels, WARNING and CAUTION according to the seriousness of possible risks and damages as follows. Compliance to the instructions are strictly required for safety use.

Please call Sales/Service Shop for the Installation.

Do not attempt to install the air conditioner by yourself because improper works may cause electric shock, fire, water leakage.

lnstallation in a inadequate place may cause accidents. Do not install in the following place.

Connect the earth cable.

earthing

Do not install in the place where there is any possibility of inflammable gas leakage around the unit.

Do not get the unit exposed to vapor or oil steam.

Check proper installation of the drainage securely

PROHIBITION PROHIBITION

CAUTION

Page 5

Cautions

WARNING

When abnormality such as burnt-small found, immediately stop the operation button and contact sales shop.

OFF

Use an exclusive power source with a circuit breaker

ENFORCEMENT

Connect power supply cord to the outlet completely

Use the proper voltage

Do not use power supply cord in a bundle.

Take care not to damage

the power supply cord.

Do not use power supply cord

extended or connected in halfway

STRICT

ENFORCEMENT

STRICT

ENFORCEMENT

PROHIBITION

Do not start or stop the operation by disconnecting the power supply cord and so on.

Do not channel the air flow directly at people, especially at infants or the aged.

Do not try to repair or reconstruct by yourself.

Do not use for the purpose of storage of food, art work, precise equipment, breeding, or cultivation.

CAUTION

Take fresh air occasionally especially when gas appliance is running at the same time.

PROHIBITION

STRICT

ENFORCEMENT

Do not operate the switch with wet hand.

PROHIBITION

Do not install the unit near a fireplace or other heating apparatus.

Check good condition of the installation stand

Do not pour water onto the unit for cleaning

PROHIBITION

Do not place animals or plants in the direct path of the air flow

Do not place any objects on or climb on the unit.

Do not place flower vase or water containers on the top of the unit.

Do not insert objects into the air inlet or outlet.

PROHIBITION

Page 6

Parts and Functions

Indoor unit

HSU-07RS03/R2

HSU-12RS03/R2

HSU-09RS03/R2

H2SM-18HS03/R2

HSU-09HS03/R2(DB) HSU-12HS03/R2(DB)

HSU-18RS03/R2

Display board

The conversion of pilot light's colors will be displayed as the figure under different operation models

OPERATE

RED

GREEN

YELLOW

COOL DRY HEAT TIMERHEALTH

Display board

Inlet

Anion generator

Vertical flap

(Use remote controller to adjust up and down air flow. Don't adjust it manually)

Horizontal louver

Air filter

Inlet grille

Power plug

(inside)

(adjust left and right air flow)

(inside)

For multi-split type, the power plug is on the outdoor unit

Outdoor unit

HSU-22RS03/R2

HSU-18HS03/R2(DB)

HSU-22HS03/R2(DB)

CONNECTING PIPING AND ELECTRICAL WIRING

DRAIN HOSE

OUTLET INLET

1 3

HSU-12HSB03/R2(DB)

Page 7

16. SINGAL SENDING display

17. POWER/SOFT display

18. Left/right air flow display

19. TEMP display Remote controller: to display the TEMP. setting.

20. TIMER OFF display

21. CLOCK display

22. FAN button Used to select fan speed: LOW,MED, HI, AUTO.

23. ON/OFF button Used for unit start and stop.

24. SWING UP/DOWN button Used to select up or down air sending direction.

25. SWING LEFT/RIGHT button Used to select left or right air flow.

26. HEALTH AIRFLOW button Used to set the health airflow mode.

27. SET button Used to confirm timer and clock settings.

28. POWER/SOFT button

29. LOCK Used to lock buttons and LCD display. If pressed, the other buttons will be disabled and the lock condition display appears. Press it once again, lock will be canceled and lock condition display disappears.

30. LIGHT button Colorful display bar of the controlling indoor machine is on and extinguished.

31. CODE Used to select CODE A or B with a press,A or B will be displayed on LCD. Please select A without special explanation.

1. HEALTH button Used to set healthy operation.

2. HOUR button Used to set clock and timer setting.

3. MODE button Used to select operation mode. AUTO, COOL,DRY, FAN,HEAT.

4. SLEEP button Used to select sleep mode.

5. CLOCK button Used to set correct time.

6. TIMER button Used to select TIMER ON, TIMER OFF, TIMER ON-OFF.

7. RESET When the remote controller appears abnormal, use a sharp pointed article to press this button to reset the remote controller normal.

8. HEALTH display

9. SLEEP display

10. SWING UP/DOWN display

11. LOCK display

12. FAN SPEED display

13. TIMER ON display

14. TEMP button Used to select your desired temperature.

15. Operation mode display

Operation mode AUTO HEAT FANCOOL DRY

Remote controller

NOTE: (1)The following functions and related displays are not available: (2) Cooling only unit do not have functions and displays related with heating.

Parts and Functions

30631

LOW HI

MED AUTO

Page 8

Remove the batteries in case unit won't be in usage for a long period. If there are any display after taking-out, just need to press reset key.

Parts and Functions

Clock Set

When unit is started for the first time and after replacing batteries in remote controller, clock should be adjusted as follows:

Remote controller's operation

3. After time setting is confirmed, press SET, "AM" or "PM" stop flashing, while clock starts working.

2. Press or to set correct time. Each press will increase or decrease 1 min. If the button is kept depressed, time will change quickly.

1. Press CLOCK button,"AM" or "PM" flashes.

When in use, put the signal transmission head directly to the receiver hole on the indoor unit.

The distance between the signal transmission head and the receiver hole should be within 7 m without any obstacle as well.

Don't throw or knock the remoter controller.

When electronic-started type fluorescent lamp or change-over type fluorescent lamp or wireless telephone is installed in the room, the receiver is apt to be disturbed in receiving the signals, so the distance to the indoor unit should be shorter.

Loading of the battery

Load the batteries as illustrated right 2 R-03 (7#) batteries

Remove the battery cover: Slightly press" "area and push down the cover

as illustrated.

Load the battery: Be sure that the loading is in line with the "+" / "- ".

request as illustrated on the bottom of the case. Put on the cover again.

Confirmation indicator: After pressing power ON/OFF, if no display, reload the batteries.

Note:

Full display or unclear display during operation indicates the batteries have been used up. Please change batteries.

Used two new same-typed batteries when loading.

If the remote controller can't run normally during operation, please remove the batteries and reload several minutes later.

Hint:

Page 9

Press HEALTH button, the healthy function stops. The pilot light of healthy process on the display board is extinguished.

BRIEF INTRODUCTION TO HEALTH OPERATION

The anion generator in the air conditioner can generate a lot of anion to effectively balance the quantity of position and anion in the air and also to kill bacteria and speed up the dust sediment in the room and finally clean the air the room.

Note

When the fan in the indoor unit does not work, the health lamp lights up, but the anion generator does not release anion.

Operation

Health Operation

Remote controller

1. Unit start

Then set up the comfortable working state.

Link with electronic power.

Press ON/OFF on the remote controller, unit starts.

The liquid crystal will display the working state of last time (Except Timer, Sleep, Power/Soft and Health airflow).

2. Select operation mode

Press HEALTH button. For each press, is displayed. The pilot light of healthy process on the display board is on, hence healthy process begins.

When indoor fan motor is running, it has healthy process function. (It's available under any mode)

3. Unit stop

Page 10

Operation

Auto Operation

Remote controller

About Auto Operation Under the mode of auto operation, air conditioner will automatically select Cool or Heat operation according to room temperature.

1. Unit start

Link with electronic power.

Press ON/OFF on the remote controller, unit starts.

The liquid crystal will display the working state of last time (Except Timer, Sleep, Power/Soft and Health airflow).

2.Select operation mode

Press FAN button. For each press, fan speed changes as follows:

Press MODE button. For each press, operation mode changes as follows:

Remote controller:

Then Select Auto operation

AUTO

LOW

MED

AUTO

COOL DRY FAN HEAT

3.Fan speed selection

4.Unit stop

Air conditioner is running under displayed fan speed When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature.

Press ON/OFF button, the unit stops.

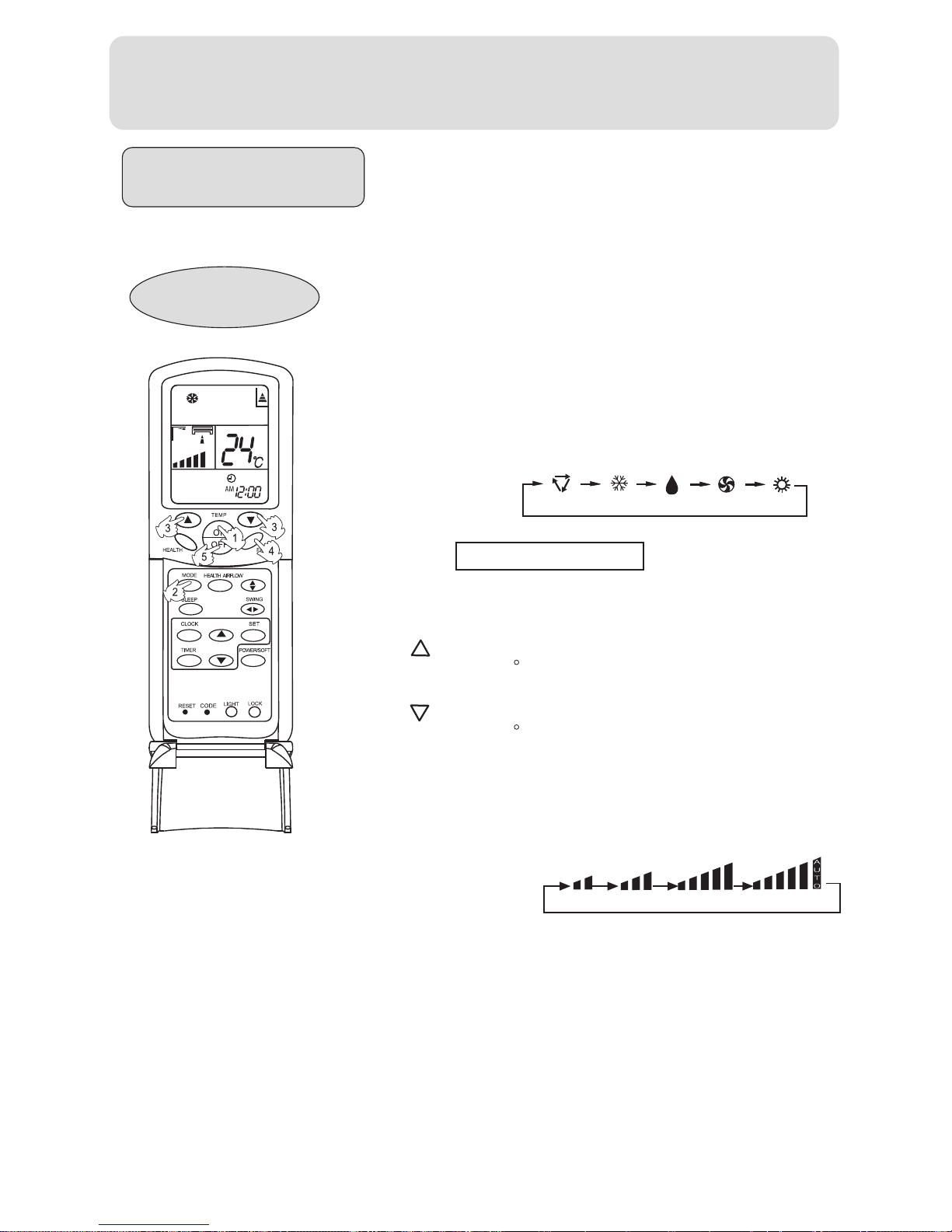

Page 11

Operation

Cool Operation

Remote controller

1. Unit start

Link with electronic power.

Press ON/OFF on the remote controller, unit starts. The liquid crystal will display the working state of last

time (Except Timer, Sleep, Power/Soft and Health airflow).

2.Select operation mode

Press FAN button. For each press, fan speed changes as follows:

Press MODE button. For each press, operation mode changes as follows:

Remote controller:

Then Select COOL operation

Press TEMP. button

Every time the button is pressed, temp.setting increase 1 C,if kept depressed, it will increase rapidly

Every time the button is pressed, temp.setting increase 1 C,if kept depressed, it will decrease rapidly

Select a desired temperature.

4.Fan speed selection

3.Select temp.setting

5.Unit stop

Air conditioner is running under displayed fan speed When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature.

Press ON/OFF button, the unit stops.

AUTO

LOW

MED

AUTO

COOL DRY FAN HEAT

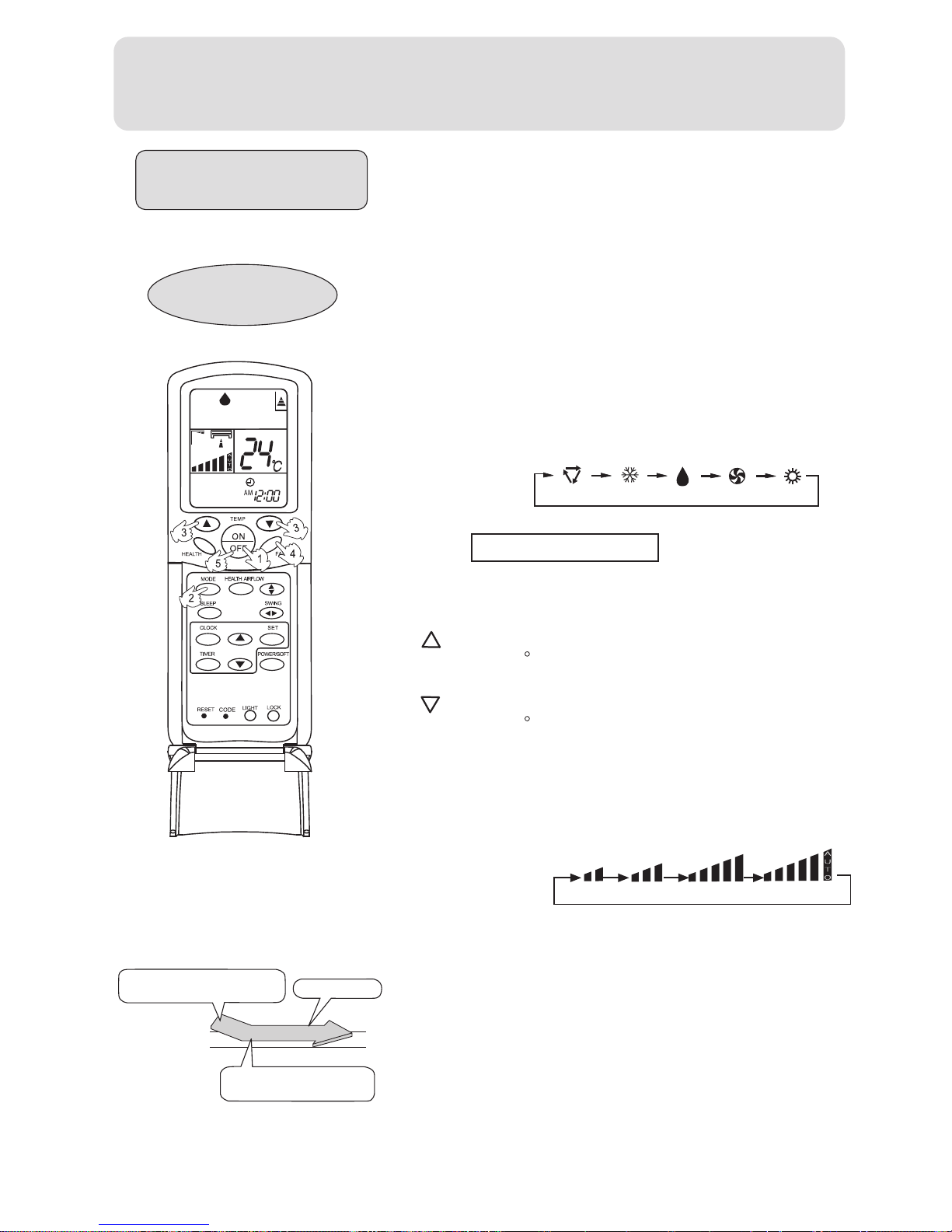

Page 12

Operation

Dry Operation

Remote controller

1. Unit start

Link with electronic power. Press ON/OFF on the remote controller, unit starts. The liquid crystal will display the working state of last

time (Except Timer, Sleep, Power/Soft and Health airflow).

2.Select operation mode

Press FAN button. For each press, fan speed changes as follows:

Press MODE button. For each press, operation mode changes as follows:

Remote controller:

Then Select DRY operation

Press TEMP. button

Every time the button is pressed, temp.setting increase 1 C,if kept depressed, it will increase rapidly

Every time the button is pressed, temp.setting increase 1 C,if kept depressed, it will decrease rapidly

Select a desired temperature.

4.Fan speed selection

3.Select temp.setting

5.Unit stop

Air conditioner is running under displayed fan speed In DRY mode, when room temperature becomes 2oC higher than temp.setting,unit will run intermittently at LOW speed regardless of FAN setting.

Press ON/OFF button, the unit stops.

COOL operation starts when room temp.is higher than temp.setting.

On reaching temp.setting +2oC unit will run in mild DRY mode.

Ultra-low air flow

Temp.setting+2oC Temp.setting

AUTO

LOW

MED

AUTO

COOL DRY FAN HEAT

Page 13

Operation

Fan Operation

Remote controller

1. Unit start

Link with electronic power. Press ON/OFF on the remote controller, unit starts. The liquid crystal will display the working state of last

time (Except Timer, Sleep, Power/Soft and Health airflow).

2.Select operation mode

Press FAN button. For each press, fan speed changes as follows:

Press MODE button. For each press, operation mode changes as follows:

Remote controller:

Then Select FAN operation

3.Fan speed selection

4.Unit stop

About FAN operation

In FAN operation mode, the unit will not operate in COOL or HEAT mode but only in FAN mode ,AUTO is not available in FAN mode.And temp.setting is disabled. In FAN mode,SLEEP operation is not available.

Press ON/OFF button, the unit stops.

AUTO

LOW

MED

COOL DRY FAN HEAT

Page 14

Operation

Heat Operation

Remote controller

1. Unit start

Link with electronic power.

Press ON/OFF on the remote controller, unit starts. The liquid crystal will display the working state of last time (Except Timer, Sleep, Power/Soft and Health airflow).

2.Select operation mode

Press FAN button. For each press, fan speed changes as follows:

Press MODE button. For each press, operation mode changes as follows:

Remote controller:

Then Select HEAT operation

Press TEMP. button

Every time the button is pressed, temp.setting increase 1 C,if kept depressed, it will increase rapidly

Every time the button is pressed, temp.setting increase 1 C,if kept depressed, it will decrease rapidly

Select a desired temperature.

4.Fan speed selection

3.Select temp.setting

5.Unit stop

Air conditioner is running under displayed fan speed

IN HEAT mode, warm air will blow out after a short period

of the time due to cold-draft prevention function.

Press ON/OFF button, the unit stops.

AUTO

LOW

MED

AUTO

COOL DRY FAN HEAT

When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature.

Page 15

Operation

Air Flow Direction Adjustment

1.Status display of air sending direction

2.Up and down air flow direction

Vertical flap

Pos.1

Pos.1 Pos.2 Pos.3 Pos.4 Pos.6

Pos.5 Pos.4 Pos.3 Pos.2 Pos.1 Pos.6

Pos.1 Pos.2 Pos.3 Pos.4 Pos.5 Pos.6

Pos.2

Pos.3

Pos.4

Pos.5

Pos.6

(Auto swing)

For each press of button, air flow direction on remote controller displays as follows according to different operation modes:

remote controller:

COOL/DRY/FAN:

remote controller:

The vertical flap will swing according to the above positions

HEAT:

AUTO:

Horizontal louvers

Pos.1

Pos.2

Pos.3

Pos.4

Pos.5

Pos.6

Pos.7

Pos.8

3.Left and right air flow direction

For each press of button, remote controller displays as follows :

remote controller:

Pos.1 Pos.2 Pos.3 Pos.4 Pos.5 Pos.6 Pos.7 Pos.8

The horizontal louvers will swing according to the above positions.

Note:When restart after remote turning off, the remote controller will automatically memorize the previous set swing position.

Page 16

Before going to bed, you can simply press the SLEEP button and unit will operate in SLEEP mode and bring you a sound sleep. Use of SLEEP function After the unit starts, set the operation status, then press SLEEP button before which the clock must be adjusted and time being set. Operation Mode

1. In COOL,DRY mode 1 hours after SLEEP mode starts, temp. will become 1OC higher than temp. setting. After another 1 hours, temp. rises by 1OC further. The unit will run for further 6 hours then stops. Temp. is higher than temp. setting so that room temperature won't be too Iow for your sleep.

Remote Controller

SLEEP operation starts SLEEP operation stops

SLEEP operation starts

SLEEP operation stops

Approx.6hrs

1 hr

3 hrs

Rises 1OC

Temp.setting

Unit stop

In COOL, DRY mode

In HEAT mode

Decreases 2OC

1 hr

Sleep Operation

In HEAT mode 1 hours after SLEEP mode starts, temp will become 2 OC lower than temp. setting. After another 1 hours, temp decrease by 2 OC further. After more another 3 hours, temp. rises by 1OC further. The unit will run for further 3 hours then stops. Temp. is lower than temp. setting so that room temperature won't be too high for your sleep.

In AUTO mode The unit operates in corresponding sleep mode adapted to the automatically selected operation mode.

4. In FAN mode It has no SLEEP function.

Note

The sleeping hours lasts 8 hours and couldn't be adjusted. When timing on function is set, the sleeping function can't be set up After the sleeping function is set up, if user resets timing on function, the sleeping function will be cancelled; the machine will be in the state of timing-on. If the sleeping function and timing-on function are set up at the same time, no matter which one is operated earlier, the machine will be off automatically, and the other function will also be cancelled.

Operation

Page 17

Remote Controller

Timer On/Off Operation

Operation

Hints: After replacing batteries or a power failure happens, time setting should be reset. Remote controller possesses memory function, when use TIMER mode next time,just press SET button after mode selecting if time setting is the same as previous one.

Set clock correctly before starting TIMER operation.

1. After unit starts, select your desired operation mode Operation mode will be displayed on LCD.

2. Timer mode selection Press TIMER button to change TIMER mode. Every time the button is pressed, display changes as follows: Remote controller:

BLANK

TIMER ON TIMER OFF TIMER ON-OFF

Then select your desired TIMER mode (TIMER ON or TIMER OFF). " "or " "will flash.

3.Time setting Press HOUR button.

Every time the button is pressed, time setting increases 1 min , if kept depressed, it will increase rapidly. Every time the button is pressed, time setting decreases 1 min, if kept depressed, it will decrease rapidly. It can be adjusted within 24 hours.

4.Confirming your setting

After setting correct time, press SET button to confirm " "or" "on the remote controller stops flashing. Time displayed: Unit starts or stops at x hour x min. (TIMER ON or TIMER OFF).

5.Cancel TIMER mode Just press TIMER button several times until TIMER mode disappears.

Page 18

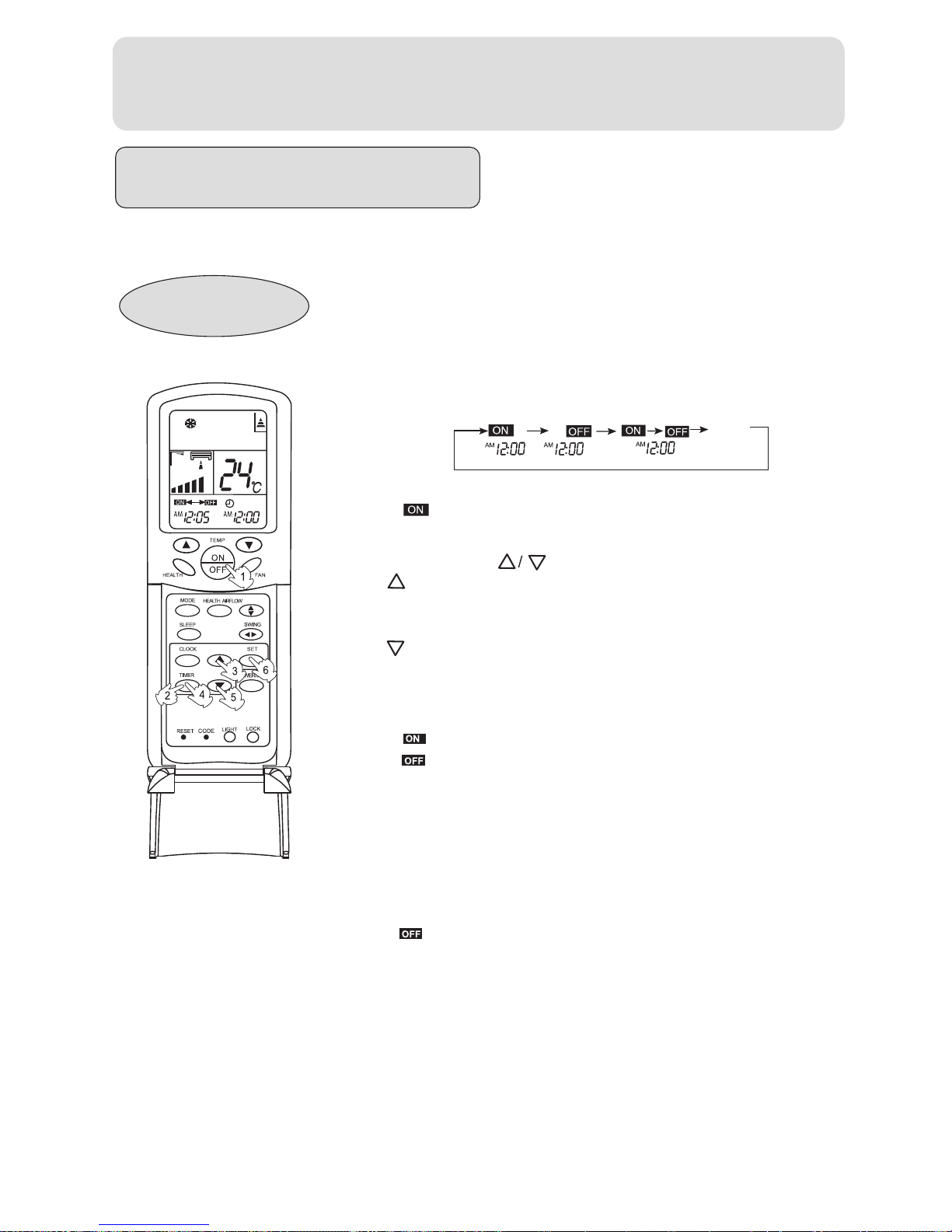

Remote Controller

Timer On-Off Operation

Operation

Just press TIMER button several times until TIMER mode disappears. According to the Time setting sequence of TIMER ON or TIMER OFF, either Start-Stop or Stop-Start can be achieved.

Set clock correctly before starting TIMER operation.

1. After unit starts, select your desired operation mode Operation mode will be displayed on LCD.

2. Timer mode selection Press TIMER button to change TIMER mode. Every time the button is pressed, display changes as follows: Remote controller:

BLANK

TIMER ON TIMER OFF TIMER ON-OFF

Then select your desired TIMER mode (TIMER ON - OFF). " "will flash.

3.Time setting

Press HOUR button. Every time the button is pressed, time setting

increases 1 min , if kept depressed, it will increase rapidly. Every time the button is pressed, time setting decreases 1 min, if kept depressed, it will decrease rapidly. It can be adjusted within 24 hours.

4.Timer confirming for TIMER ON After setting correct time, press TIMER button to confirm

" " on the remote controller stops flashing. " " starts flashing. Time displayed: Unit starts or stops at x hour x min.

5.Time setting for TIMER OFF

6.Time confirming for TIMER OFF

To cancel TIMER mode

Just press HOUR button ,follow the same procedure in "Time setting for TIMER ON"

After time setting,press SET button to confirm. " " on the remote controller stops blinking. Time displayed:Unit stops at x hour x min.

Page 19

POWER/SOFT Operation

POWER

Operation

POWER Operation

SOFT Operation

When you need rapid heating or cooling, you can use this function.

You can use this function when silence is needed for rest or reading.

Selecting of POWER operation Press POWER/SOFT button. Every time the button is pressed,display

In HEAT or COOL mode, fan speed automatically runs in HI mode for 15 min then returns to original status setting.

Press POWER/SOFT button twice ,POWER/SOFT disappears.

In SOFT operation mode, fan speed automatically takes"LOW"

changes as follows:

Stop the display at

SOFT

BLANK

POWER

Press POWER/SOFT button. Every time the button is pressed,display

changes as follows:

Stop the display at

SOFT

BLANK

In POWER operation status:

Selecting of SOFT operation

To cancel POWER operation

Press POWER/SOFT button twice ,POWER/SOFT disappears.

To cancel POWER operation

Hints: During POWER operation, in rapid HEAT or COOL mode, the room will show inhomogeneous temperature distribution. Long period SOFT operation will cause effect of not too cool or not too warm.

Page 20

Health airflow Operation

1.Press ON/OFF to starting

Operation

The liquid crystal will display the working state of last time (Except timer, sleeping, power/soft and health airflow). Setting the comfort work conditions.

2.The setting of health airflow function

1).Press the button of health airflow, appears on the display. The nether inlet and outlet grills of the air conditioner are closed and the airflow is blown horizontally from the above inlet and outlet grills. Avoid the strong airflow blows direct to the body.

2).Press the button of health airflow again, appears on the display. The above inlet and outlet grills of the air conditioner are closed and the airflow is blown vertically from the nether inlet and outlet grills. Avoid the strong airflow blows direct to the body.

Note: 1 .After setting the health airflow function, the position of inlet and outlet grills is fixed.

2.In heating, it is better to select the mode.

3.In cooling, it is better to select the mode.

4.In cooling and dry, using the air conditioner for a long time under the high air humidity, a phenomenon falling drips of water occurs at the outlet grille .

5.Select the appropriate fan direction according to the actual conditions.

3.The cancel of the health airflow function Press the button of health airflow again, both the inlet and outlet grills of the air conditioner are opened, and the unit goes on working under the condition before the setting of health airflow function. After stopping, the outlet grille will close automatically. Notice: Cannot pull direct the outlet grille by hand. Otherwise, the grille will run incorrectly. If the grille is not run correctly, stop for a minute and then start, adjusting by remote controller.

Page 21

When the remote controller is manipulated, it gets the system back to the normal operation mode.

Emergency and Test Operation

Operation

When machine is running in emergency, the set value of temperature and wind speed couldn't be altered; meanwhile, it can't operate for dehumidifying or under timing mode.

Emergency operation:

Use this operation only when the remote controller is defective or lost.

When the emergency operation switch is pressed,the" Pi "sound is heard once, which means the start of this operation.

In this operation, the system automatically selects the operation modes, cooling or heating, according to the room temperature.

Test operation:

Test operation switch is the same as emergency switch.

Use this switch in the test operation when the room temperature is below 16OC, do not use it in the normal operation.

Continue to press the test operation switch for more than 5 seconds. After you hear the "Pi" sound twice, release your finger from the switch: the cooling operation starts with the air flow speed "Hi".

Removal of the restriction of emergency or test operation

Press the emergency operation switch once more, or manipulate through the remote controller; the "Pi" sound, the emergency or test operation is terminated.

Page 22

For Smart Use of The Air Conditioner

Setting of proper room temperature

Proper temperature

During cooling operation, prevent the penetration of direct sunlight with curtain or blind.

Close doors and windows during operation

If the unit is not to be used for a long time, turn off the power supply main switch.

OFF

Use the timer effectively

Use the louvers effectively

Do not block the air inlet or outlet

Maintenance

Page 23

For Smart Use of The Air Conditioner

WARNING

Air Filter cleaning

Open the inlet grille by pulling it upward.

Remove the filter.

Clean the filter.

Attach the filter.

Close the inlet grille.

Push up the filter's center tab slightly until it is released from the stopper, and remove the filter downward.

Use a vacuum cleaner to remove dust, or wash the filter with water.After washing, dry the filter completely in the shade.

Once every two weeks

Attach the filter correctly so that the "FRONT" indication is facing to the front.Make sure that the filter is completely fixed behind the stopper.If the right and left filters are not attached correctly, that may cause defects.

Remote Controller

Do not use the following for cleaning

Do not use water, wipe the controller with a dry cloth.Do not use glass cleaner or chemical cloth.

Gasoline,benzine, thinner or cleanser may damage the coating of the unit.

Hot water over 40OC(104OF) may cause discoloring or deformation.

Wipe the air conditioner by using a soft and dry cloth.For serious stains,use a neutral detergent diluted with water.Wring the water out of the cloth before wiping.then wipe off the detergent completely.

Indoor Body

Before maintenance,be sure to turn off the system and the circuit breaker.

Maintenance

Page 24

Replacement of Air Purifying Filter

1.Open the lnlet Grille

2.Detach the standard air filter

3.Detach old Air Purifying Filter

Detach old Air Purifying Filter

4.Attach old Air Purifying Filter

5.Attach the standard air filter

(Necessary installation)

6.Close the Inlet Grille

Close the Grille surely

Open the inlet grille by pushing each ends of the inlet grille upward.(use thumbs to push up)

Slide the knob slightly upward to release the filter, then withdraw it.

Put air purifying filter appliances into the right and left filter frames .

Maintenance

NOTE:

The air purifying filter of the bacteria-killing medium and the electrostatic air purifying filter accessories with machine will be used based on real situation.

The green aspect of the bacteria-killing medium air purifying filter will face outside, the white aspect will face to the machine. and the white side of the electrostatic air purifying filter will face outside.

The bacteria-killing medium air purifying filter is available for a long time and needn't to be changed. But it must be noticed to use the vacuum cleaner frequently to adsorb the dusts covering the purifying filter lest the covering dusts effect the function of the bacteria-killing medium air purifying filter. (It is strictly prohibited for the bacteria-killing medium air purifying filter to be washed)

Page 25

To Keep Your Air conditioner in Good Condition after Season.

Operate in cooling mode for 2-3 hours.

Put off the power supply cord.

Take out the batteries from the wireless remote controller.

Cleaning the body.

To prevent breeding mold or bad smell, be sure to operate at the designated temperature or 30OC,cooling mode and High speed fan mode for 2-3 hours.

Maintenance

Page 26

Before Setting in High season

Cleaning the standard air filter.

Connecting the cable.

Do not block the air inlet or outlet.

Plug-in

Caution

After brush away dust at the plug, insert the plug of the power supply cord into the outlet completely.In case of suing exclusive circuit breaker,switch on the circuit breaker.

NO WET HAND

EARTHING

Operation without filter may cause troubles.Be sure to attach both right and left filters prior to the operation. Each of them are of different shapes.

Incomplete earthing may cause an electric shock.

Maintenance

Page 27

Is the air filter dirty? Normally it should be cleaned every 15 days. Are there any obstacles before inlet and outlet? Is temperature set correctly? Are there some doors or windows left open? Is there any direct sunlight through the window during the cooling operation?(Use curtain) Are there too much heat sources or too many people in the room during cooling operation?

Cause or check points

Phenomenon

The system does not restart immediately.

Noise is heard:

Smells are generated.

Mist or steam are blown out.

Does not work at all.

Multiple check

Normal Performance inspection

Poor cooling

Before asking for service, check the following first.

When unit is stopped, it won't restart immediately until 3 minutes have elapsed to protect the system. When the electric plug is pulled out and reinserted, the protection circuit will work for 3 minutes to protect the air conditioner.

During unit operation or at stop, a swishing or gurgling noise may be heard. At first 2-3 minutes after unit start, this noise is more noticeable. (This noise is generated by refrigerant flowing in the system.) During unit operation, a cracking noise may be heard. This noise is generated by the casing expanding or shrinking because of temperature changes. Should there be a big noise from air flow in unit operation, air filter may be too dirty.

This is because the system circulates smells from the interior air such as the smell of furniture, cigarettes.

During COOL or DRY operation, indoor unit may blow out mist. This is due to the sudden cooling of indoor air.

Is power plug inserted? Is there a power failure? Is fuse blown out?

Trouble shooting
