GRL-26POT
GRL-26POT
GRL-32POT
GRL-32POT
GRL-37POT
GRL-37POT
GRL-40POT
GRL-40POT
GRL-42POT
GRL-42POT
GR-42OT
GR-42OT
LCD COLOR TELEVISION
OPERATING
INSTRUCTIONS
01
0090500571
◆Wide view-angle display, high contrast
◆Nicam
◆Teletext
◆HDMI
◆Double scarts
CONTENTS
Warning and caution...........................................................................................2
Buttons and interface position............................................................................5
Wall mount switching support assembly instructions.............................................6
Base disassembly/assembly method.........................................................................6
Preparation for remote control..........................................................................7
Remote control panel..........................................................................................8
Basic operation.................................................................................................9
Screen display...................................................................................................10
TV program setting..........................................................................................11
Im a g e cont r o l.......... . . ........... . . ........... . . ........... . . ........... . . ........... . . ...14
Sound control...................................................................................................15
Function setting......................................................................................16
Time setting...........................................................................................................18
Signal source setting..............................................................................................19
Child lock setting..................................................................................................20
Teletext function.....................................................................................................21
Other setting function............................................................................23

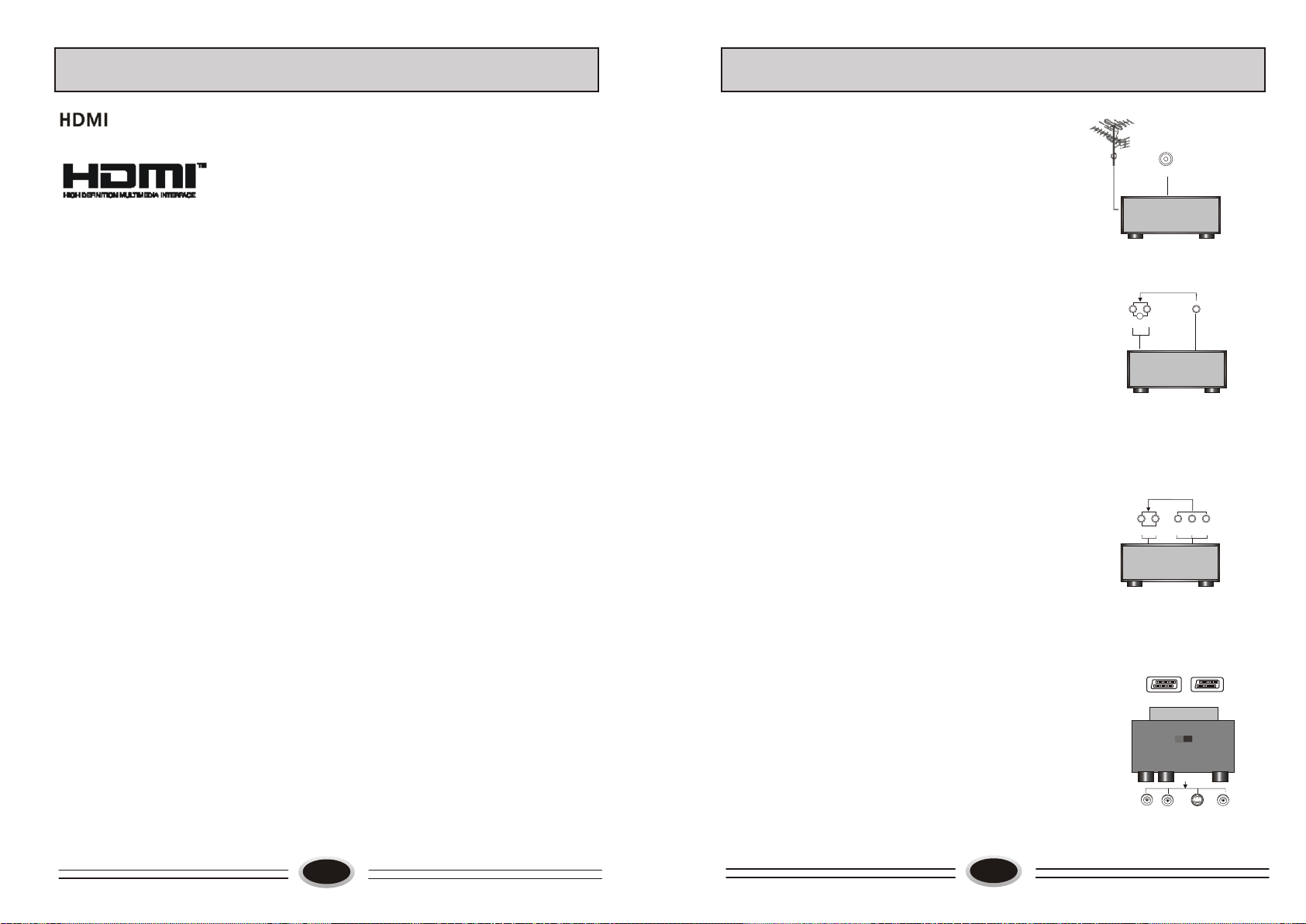

External audio and video equipment connection..............................................24
Using your TV as a computer display..............................................................25
Specifications...................................................................................................26
Trouble shooting guide...........................................................................................27
WARNING AND CAUTION
CAUTION
!!
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.FOR
ANY PROBLEM, REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
THERE IS A LIGHTNING ARROW SYMBOL IN THE TRIANGLE:
THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE.
IT IS DANGEROUS TO MAKE ANY KIND OF CONTACT WITH ANY
INSIDE PART OF THIS PRODUCT.
THERE IS A EXCALMATION MARK IN THE TRIANGLE: THIS
SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE
CONCERNING. OPERATION AND MAINTENANCE HAS BEEN
INCLUDED WITH THIS PRODUCT.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE,
DO NOT PUT THE TV SET NEAR SOURCES OF HUMIDITY.
DO NOT USE ANY ABRASIVE CLEANSERS WHICH MAY
SCRATCH OR DAMAGE THE LCD SCREEN. AVOID CONTACT
WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.
RIS K OF ELEC TRIC SH OCK RIS K OF ELEC TRIC SH OCK
DO NO T OPE NDO NO T OPE N
1
!!
NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORIZED
AND COULD LEAD TO INJURY OR PRODUCT DAMAGE.
2
BUTTONS AND INTERFACE POSITION
WALL MOUNT SWITCHING SUPPORT ASSEMBLY INSTRUCTIONS
Front control panel
GRL-26POT/GRL-32POT
VID EO
MENU
R
AUD IO
L
TV/AV
CH-
CH+
VOL-
VOL+
Remote sensor
Power indicator
GRL-37POT/GRL-40POT/GRL-42POT/GR-42OT
Volume down/up button
Program down/up button
TV/AV switch button
Menu button
MEN U
CH-TV/ AV
CH+
MEN U
TV/ AV
CH-
CH+
VOL -
VOL +
Power button
VOL - VOL +
Menu button
TV/AV switch button
Program down/up button
Volume down/up button
Power button
L
AUD IO
R
VID EO
GRL-26POT/GRL-32POT
(1) In order not to scratch the
TV set, it is recommended
putting the TV set with face
down on the soft and clean
Switching support
Switching support
blanket.
(2)Disassemble the six screws
from base and remove the
base. (This item will be
cancelled if the product is
without base.)
Airproof board
(3)Mount the airproof board.
(4)Take out the switching
support from the accessory
Base
bag, and use four M5×16
screws (included in the
accessory bag) to fix the switching support on the back of complete set.
(5)The remaining four M5×16 screws in the accessory bag are used to mount the wall
mount parts.(The wall mount parts are in the wall mount box.)
(6)After completing the above operations, the complete set can be mounted on the wall
mount bracket.(Wall mount bracket operations refer to the assembly instructions of it.)
Note: 1. The arrow indicates the position of screw.
2. This operation is only used before mounting the bracket.
3. Wall mount bracket is additional purchase.
Back interface
POWER
1. Antenna input
HDMI
9
Remote sensor
2. Earphone output
3. SCART2 input
4. SCART1 input
5. S-VIDEO input
6. YPbPr input
7. VGA audio input interface
8. VGA input
9. HDMI input
10.Power input socket
Power indicator
L-AUDIO-R
-
7
5
SCART1 SCART2
5 4
BASE DISASSEMBLY/ASSEMBLY METHOD
GRL-37POT/GRL-40POT/GRL-42POT/GR-42OT
(1)As figure, removing the four M4×20 screws, the base
2
36810
1
will be disassembled.
(2)As figure, mounting the four M4×20 screws, the base
will be assembled.
Note:
The arrow indicates the position of screw.
The position to strike the screw.
6
PREPARATION FOR REMOTE CONTROL
Remote control installation
1. According to the figure display below, place the remote control with face down,
then open the cover of battery apartment.
2. As in the figure display below, install two AA batteries. (The + and - symbol of
battery must match with the marks on the remote).
3.Close the cover of battery apartment.
1
Cautions for using remote control
Confirm there is no object between the
remote control and the remote sensor
of TV set.
2
++
3
Sunshine or other strong light will
interfere the signal sent by the remote
control. In this situation turn the TV
set to avoid the direct light source.
REMOTE CONTROL PANEL
Buttons and Descriptions
MUTE
STILL
2
3
7
6
SCAN
SLEEP
1 2 3
4
7
TV/AV
11
P.STD
12
14
VOL-
I/II
PIP
5
8 9
0
CH+
MENU
CH-
DISPLAY
6
SWAP
S.STD
VOL+
Power button
1
1
2
8
4
5
9
10
13
15
16
Mute button
3
Still button
4
Display button
5
This function is not available
6
Sleep timer button
7
Scan button
8
Nicam button
9
One digit selection button
10
Swap button
11
TV/AV selection button
12
Picture mode selection button
11
Sound mode selection button
13
14
Program up/down button, direction
selection button
Volume up/down button, direction
15
selection button
Menu call/selection button
16
Teletext buttons
17
Fast text coloured buttons
18
Do not put the remote control in direct
heat or a damp place, or potential
damage to the remote may occur.
Please use two AA 1.5V batteries.
Do not mix battery types.
Install the batteries as the correct
polarities.
Do not use the rechargeable batteries.
7
- - - -
??
17
↑
←
TIMER
→
ZOOM
H.LOCK
←
EXITCH.LIST
18
↓
HT R - 1 9 2
8
BASIC OPERATION
SCREEN DISPLAY
MUTE
SCAN
STILL
SLEEP
POWER ON/OFF TV
Standby set: connecting the power supply wire,
the TV set will enter standby status.
I/II
1. If the TV set is in standby status, pressing power
button can cancel the standby status, then enter
DISPLAY
PIP
the power on status. The power on channel number
will display on the screen and it will disappear
without operation in 5 seconds.
For your convenient operation and in order to know the TV set, we offer the below
menus.
Picture setting menu
PICTURE SOFT
CONTRAST 45
BRIGHTNESS 45
TINT 50
COLOR 45
SHARPNESS 50
COLOR TEMP. NORMAL
ZOOM FULL
Tuner setting menu
CH. NUM. 11
C SYS. PAL
S SYS. D/K
FINE TUNE
MANUAL SCAN
AUTO SCAN
EDIT PROGRAM
COUNTRY CHINA
2. Pressing power button again, the TV set will enter
standby status.
TV PROGRAM SELECTION AND VOLUME
ADJUSTMENT
You can use CH+/- button or direct-digit choosing
Sound setting menu
SOUND STANDARD
BALANCE 50
AVC ON
EQUALIZER
SURROUND ROOM
DIGITAL BASS ON
SLEEP TIMER OFF
CLOCK - - : - TIME OFF - - : - BOOK TIME - - : - BOOK CHAN. 0
TUNER
Timer setting menu
button to select the TV channel number.
Press VOL+/- button to adjust the volume.
TIMER
SWAP
Pressing SWAP button can switch the channel to the
last channel you watched.
MUTE FUNCTION
1. Press MUTE button to shut off the TV sound, the
screen displays mute mark.
SOUND
Function setting menu
LANGUAGE ENGLISH
BLUE SCREEN OFF
OSD SETTING
IMAGE POSITION
ADVANCE
SAVE MODE AUTO
TTX LANGUAGE WEST
2. Press MUTE button again or VOL+ button to turn
on the TV sound.
FUNCTION
LANGUAGE ENGLISH
BLUE SCREEN OFF
OSD SETTING
IMAGE POSITION
ADVANCE
SAVE MODE AUTO
TTX LANGUAGE WEST
FUNCTION
OSD LANGUAGE SELECTION
Select the LANGUAGE item in the menu.
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select FUNCTION menu.
3. Press CH+/- button to select LANGUAGE item.
4. Press VOL+/- button to select the language you need.
9
Operation instructions
The real display may be different from the above menus, if you need adjust, please do as
follows:
1.Press MENU button to open the menu, press VOL+/- button to select every menu
separately, then press CH- button to enter.
2.Press CH+/- button to select the item needs adjust.
3.Press VOL+/- button to adjust the selected item, or enter the next menu.
4.Press MENU button to return the last menu or exit the screen menu display.
Note: “press VOL+/- button to select the menu ”operation in the user’s manual, please
refer to these operation instructions.
10
TV PROGRAM SETTING
TV PROGRAM SETTING
CH. NUM. 11
C SYS. PAL
S SYS. D/K
FINE TUNE
MANUAL SCAN
AUTO SCAN
EDIT PROGRAM
COUNTRY CHINA
TUNER
AUTO SCAN
CH. NUM. 11
C SYS. PAL
S SYS. D/K
FINE TUNE
MANUAL SCAN
AUTO SCAN
EDIT PROGRAM
COUNTRY CHINA
TUNER
MANUAL SCAN
CH. NUM. 11
C SYS. PAL
S SYS. D/K
FINE TUNE
MANUAL SCAN
AUTO SCAN
EDIT PROGRAM
COUNTRY CHINA
TUNER
FINE TUNE
55
71.68
55
71.68
55.25
AUTO SCAN
Using AUTO SCAN can search all receiving
programs. We recommend using auto search to
search the program when you use this TV set for
the first time.
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select TUNER menu, press
CH- button to enter.
3.Press CH+/- button to select AUTO SCAN.
4.Press VOL+/- button to start searching, press MENU
button to stop auto scan during searching.
Note: The order of the auto scan is due to the
frequency of the program, generally speaking,
it is used only at the first time you search the
program, and once the order of the program has
been confirmed, you don’t have to use this
function, otherwise the order of the program
will be changed.
MANUAL SCAN
Manual search can search and order the program freely.
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select TUNER menu, press
CH- button to enter.
3. Press CH+/- button to select MANUAL SCAN item,
4. Press VOL+/- button to start searching, pressing
VOL+ button is used to search the higher frequency
channel, pressing VOL- button is used to search the
lower frequency channel, when you have searched
a program, the searching will stop automatically.
You can press VOL+/- button to go on searching or
press MENU button to exit.
Note: During searching, it may appear black screen
because of change of signal, it is normal, it will
recover after finishing searching.
FINE TUNE
When you can’t get a satisfactory picture effect,
you can fine tune to obtain.
1.Press MENU button to make the main menu display.
2.Press VOL+/- button select TUNER menu, press
CH- button to enter.
3. Press CH+/- button to select FINE TUNE item.
4. Press VOL+/- button to start fine tune until you
obtain the best picture and sound, then loose
the button, press MENU button to exit.
11
COLOR SYSTEM
1.Press MENU button to make the main menu display.
2.Press VOL+/- button select TUNER menu, then
press CH- button to enter.
3.Press CH+/- button to select C SYS. item.
4.Press VOL+/- button to select the color
system you need.
SOUND SYSTEM
1.Press MENU button to make the main menu display.
2.Press VOL+/- button select TUNER menu, then
press CH- button to enter.
3.Press CH+/- button to select S SYS. item.
4.Press VOL+/- button to select the sound system you
need.
EDIT PROGRAM
Using this function, you can rename, skip, delete, copy
and insert the channel.
1.Press MENU button to make the main menu display.
2.Press VOL+/- button select TUNER menu, press CH button to enter.
3.Press CH+/- button to select EDIT PROGRAM item,
press VOL+/- button to enter the sub-menu.
RENAME
1.Press CH+/- button to select the channel you need
operate, press red button to enter rename mode.
2.Press VOL+/- button to select the number position of
channel name, press CH+/- button to select number.
3.During operating, if you want to cancel input, press
green button to exit, after setting, press red button to
save. The channel name set will display before
channel number on the top right corner of screen.
SKIP
1.Press CH+/- button to select the channel you need
skip, press green button to skip the current channel.
2.During operating, if you want to cancel input, press
green button to exit, after setting, press red button to
save.
3.When you use CH+/- button to select channel, this
channel number will be skipped. But you can still
use one direct-digit choosing button to select the
skipped channel number.
4.If you want to cancel skip, please select the skipped
channel and do above steps.
12
CH. NUM. 11
C SYS. PAL
S SYS. D/K
FINE TUNE
MANUAL SCAN
AUTO SCAN
EDIT PROGRAM
COUNTRY CHINA
TUNER
001
002
003
004
005
006
007
008
009
010
RENAME DELETE
SKIP COPY
[VOL+/-] INSERT
[CH+/-] SELECT
[SOUND] PAGEUP
[PICTURE] PAGEDOWN
RETURN
MENU
001
002
003
004
005
006
007
001
008
002
009
003
010
004
RENAME
005
OK CANCEL
006
MENU RETURN
007
[VOL+/-] POSITION
008
[CH+/-] CHAR.
009
010
SKIP
OK CANCEL
MENU RETURN
TV PROGRAM SETTING
IMAGE CONTROL
001
002
003
004
005
006
007
008
001
009
002
010
003
INSERT
004
MENU RETURN CANCEL
005
[CH+/-] SELECT
[VOL+/-] OK
[SOUND] PAGEUP
[PICTURE] PAGEDOWN
CH. NUM. 11
C SYS. PAL
S SYS. D/K
FINE TUNE
MANUAL SCAN
AUTO SCAN
EDIT PROGRAM
COUNTRY CHINA
001
006
002
007
003
008
004
009
005
010
006
DELETE
007
OK CANCEL
008
MENU RETURN
009
010
COPY
OK CANCEL
MENU RETURN
[CH+/-] SELECT
[SOUND] PAGEUP
[PICTURE] PAGEDOWN
TUNER
INSERT
1.Press CH+/- button to select the channel you need
insert, press VOL+/- button to drag the channel you
need move.
2.Press CH+/- button to select the position you need
insert. Press VOL+/- button to insert the selected
channel in this position, during operating, press
green button to cancel insert.
3.For example: insert the channel 5 before channel 2,
you can first press CH+/- button to select channel5,
then press VOL+/- button to drag channel 5, then
press CH+/- button to select channel 2, press
VOL+/- button to insert this position and save, the
program in channel 5 is before the program in
channel 2.
4.Using this function can arrange the program order
as you like.
DELETE
1.Press CH+/- button to select the channel you need
delete, press blue button to delete the current channel.
2.During operating, if you want to cancel delete, press
green button to exit, after setting, press red button to
save.
3.The deleted channel will disappear from the channel
list completely, you can’t use CH+/- button or one
digit selection button to select this channel.
COPY
1.Press CH+/- button to select the channel you need
copy, press yellow button to copy the current channel.
2.Press CH+/- button to select the channel you need
copy to, press red button to save. During operating
press green button to cancel copy.
3.The copied channel may have same setting as the
original copied channel.
COUNTRY
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select TUNER menu, press
CH- button to enter.
3.Press CH+/- button to select COUNTRY item.
4. Press VOL+/- button to select the country you live in.
13
SET YOUR FAVOURITE PICTURE MODE
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select PICTURE menu,
press CH- button to enter.
3.Press CH+/- button to select the item that needs
adjust.
4.Press VOL+/- button to adjust the selected item, the
detailed adjustment is as following table.
The table of picture item adjustment effect
Items
Contrast
Brightness
*
Tint
Color
Sharpness
VOL- VOL+
Weak
Dark
Green
Light
Blur
Strong
Bright
Red
Thick
Sharp
Note: Tint is only valid in N system.
PICTURE MODE
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select PICTURE menu,
press CH- button to enter.
3.Press CH+/- button to select PICTURE item.
4.Press VOL+/- button to select STANDARD, SOFT,
USER or BRIGHT.
STANDARD: common mode.
SOFT: the image effect is soft.
USER: set the image effect you like.
BRIGHT: suitable for sport image.
Note: You can also press P.STD button on the remote
control to select the picture modes.
COLOR TEMPERATURE
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select PICTURE menu,
press CH- button to enter.
3.Press CH+/- button to select COLOR TEMP. item.
4.Press VOL+/- button to select NORMAL, COOL,
COOLER, WARMER or WARM.
ZOOM
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select PICTURE menu,
press CH- button to enter.
3.Press CH+/- button to select ZOOM item.
3.Press VOL+/- button to select , ZOOM1, ZOOM2,
FILM, PANORAMA, FULL or 4:3 .
14
PICTURE SOFT
CONTRAST 45
BRIGHTNESS 45
TINT 50
COLOR 45
SHARPNESS 50
COLOR TEMP. NORMAL
ZOOM FULL
PICTURE SOFT
CONTRAST 45
BRIGHTNESS 45
TINT 50
COLOR 45
SHARPNESS 50
COLOR TEMP. NORMAL
ZOOM FULL
PICTURE SOFT
CONTRAST 45
BRIGHTNESS 45
TINT 50
COLOR 45
SHARPNESS 50
COLOR TEMP. NORMAL
ZOOM FULL
PICTURE SOFT
CONTRAST 45
BRIGHTNESS 45
TINT 50
COLOR 45
SHARPNESS 50
COLOR TEMP. NORMAL
ZOOM FULL
SOUND CONTROL
FUNCTION SETTING
SOUND STANDARD
BALANCE 50
AVC ON
EQUALIZER
SURROUND ROOM
DIGITAL BASS ON
SOUND
SOUND STANDARD
BALANCE 50
AVC ON
EQUALIZER
SURROUND ROOM
DIGITAL BASS ON
SOUND
SOUND STANDARD
BALANCE 50
AVC ON
EQUALIZER
SURROUND ROOM
DIGITAL BASS ON
SOUND
SOUND STANDARD
BALANCE 50
AVC ON
EQUALIZER
SURROUND ROOM
DIGITAL BASS ON
SOUND
SOUND MODE
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select SOUND menu, press
CH- button to enter.
3.Press CH+/- button to select SOUND item.
4.Press VOL+/- button to select STANDARD, NEWS,
USER or MUSIC.
Note: You can also press S.STD button on the remote
control to select the sound modes.
BALANCE
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select SOUND menu, press
CH- button to enter.
3.Press CH+/- button to select BALANCE item.
4.Press VOL+/- button to adjust the value.
AUTOMATIC VOLUME CONTROL
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select SOUND menu, press
CH- button to enter.
3.Press CH+/- button to select AVC item.
4.Press VOL+/- button to select ON or OFF.
EQUALIZER
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select SOUND menu, press
CH- button to enter.
3.Press CH+/- button to select EQUALIZER item.
4.Press VOL+/- button to enter.
5.Press CH+/- button to select different frequency.
6.Press VOL+/- button to adjust.
SURROUND
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select SOUND menu, press
CH- button to enter.
3.Press CH+/- button to select SURROUND item.
4.Press VOL+/- button to select OFF, VALLEY, ROOM
or THEATER.
DIGITAL BASS
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select SOUND menu, press
CH- button to enter.
3.Press CH+/- button to select DIGITAL BASS item.
4.Press VOL+/- button to select ON or OFF.
15
BLUE SCREEN
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select FUNCTION menu,
press CH- button to enter.
3.Press CH+/- button to select BLUE SCREEN item.
4.Press VOL+/- button to select ON/OFF.
OSD SETTING
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select FUNCTION menu,
press CH- button to enter.
3.Press CH+/- button to select OSD SETTING item,
press VOL+/- button to enter the sub-menu.
4.Press CH+/- button to select DURATION item,
5.Press VOL+/- button to adjust the pause time, and
you can adjust the time from 5s to 60s.
6.Press CH+/- button to select the HALF TONE
item, the larger the value is , the higher the
half tone is.
7.Press MENU button to save and exit.
IMAGE POSITION
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select FUNCTION menu,
press CH- button to enter.
3.Press CH+/- button to select IMAGE POSITION item,
press VOL+/- button to enter the sub-menu.
4.Press CH+/- button to select H-POSI. or
V-POSI. item, press VOL+/- button to adjust the
image position in horizontal or vertical direction.
5.Press CH+/- button to select AUTO item, pressing
VOL+ button can adjust the image position
automatically. If the arrow changes from green to yellow,
it shows that the automatic adjustment finishes.
6.In VGA mode, if you don’t get a satisfactory automatic
adjustment effect, you can select PHASE, CLOCK to
adjust the image properly.
ADVANCE
Using this function can improve the quality and
expressive force of image.
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select FUNCTION menu,
press CH- button to enter.
3.Press CH+/- button to select ADVANCE item,
press VOL+/- button to enter the sub-menu.
16
LANGUAGE ENGLISH
BLUE SCREEN OFF
OSD SETTING
IMAGE POSITION
ADVANCE
SAVE MODE AUTO
TTX LANGUAGE WEST
FUNCTION
DURATION 15S
HALT TONE 50
LANGUAGE ENGLISH
BLUE SCREEN OFF
OSD SETTING
IMAGE POSITION
ADVANCE
SAVE MODE AUTO
TTX LANGUAGE WEST
FUNCTION
H-POSI. 48
V-POSI. 31
PHASE 100
CLOCK 55
AUTO
LANGUAGE ENGLISH
BLUE SCREEN OFF
OSD SETTING
IMAGE POSITION
ADVANCE
SAVE MODE AUTO
TTX LANGUAGE WEST
FUNCTION
FUNCTION SETTING
TIME SETTING
LANGUAGE ENGLISH
BLUE SCREEN OFF
OSD SETTING
IMAGE POSITION
ADVANCE
SAVE MODE AUTO
TTX LANGUAGE WEST
FUNCTION
AAA ON
CTI ON
LTI ON
DLC ON
SKIN ON
DNR MEDIUM
LANGUAGE ENGLISH
BLUE SCREEN OFF
OSD SETTING
IMAGE POSITION
ADVANCE
SAVE MODE AUTO
TTX LANGUAGE WEST
FUNCTION
4.Press CH+/- button to select different item, press
VOL+/- button to adjust.
AAA: using this function can improve the
brightness, contrast and arrangement of image.
There are ON, SPLIT, MOVE and ZOOM four
modes.
CTI: opening this function can restrain the
different color from crossing and interfering, in
order to improve the quality of picture.
LTI: opening this function can dynamically optimize
the brightness of image, in order to improve the
quality of picture.
DLC: opening this function can adjust the sight depth
of image according to the image content dynamically
optimize.
SKIN: opening this function can optimize the skin of
character in the image, in order to make the image
more natural.
DNR: use digital mode to restrain the image noise, in
order to reduce the interference. There are OFF,
WEAK, MEDIUM and STRONG four modes.
SAVE MODE
Using this function can reduce the power consumption
of TV set.
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select FUNCTION menu,
press CH- button to enter.
3.Press CH+/- button to select SAVE MODE item.
4.Press VOL+/- button to select AUTO, MODE1 or
MODE2.
SLEEP TIMER
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select TIMER menu, press
CH- button to enter.
3.Press CH+/- button to select SLEEP TIMER item.
4.Press VOL+/- button to select the sleep timer you
need. You can select OFF, 15,30, ......, 240. After
setting, press MENU button to save and exit, the
TV will start counting.
Note: You can press SLEEP button on the remote
controller to set the sleep timer you need.
CLOCK
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select TIMER menu, press
CH- button to enter.
3.Press CH+/- button to select CLOCK item, press
VOL+/- button to enter setting. Press VOL+/- button
to select hour or minute position, press CH+/- button
to adjust the value. After setting, press MENU button
to save and exit.
TIME OFF
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select TIMER menu, press
CH- button to enter.
3.Press CH+/- button to select TIME OFF item, press
VOL+/- button to enter setting. Press VOL+/- button
to select hour or minute position, press CH+/- button
to adjust the value. After setting, press MENU button
to save and exit. When the time off is coming, the TV
set will enter standby status.
SLEEP TIMER OFF
CLOCK - - : - TIME OFF - - : - BOOK TIME - - : - BOOK CHAN. 0
TIMER
SLEEP TIMER OFF
CLOCK - - : - TIME OFF - - : - BOOK TIME - - : - BOOK CHAN. 0
TIMER
SLEEP TIMER OFF
CLOCK - - : - TIME OFF - - : - BOOK TIME - - : - BOOK CHAN. 0
TIMER
LANGUAGE ENGLISH
BLUE SCREEN OFF
OSD SETTING
IMAGE POSITION
ADVANCE
SAVE MODE AUTO
TTX LANGUAGE WEST
FUNCTION
TTX LANGUAGE
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select FUNCTION menu,
press CH- button to enter.
3.Press CH+/- button to select TTX LANGUAGE item.
4.Press VOL+/- button to select the language you need.
17
BOOK TIME
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select TIMER menu, press
CH- button to enter.
3.Press CH+/- button to select BOOK TIME item, press
VOL+/- button to enter setting. Press VOL+/- button
to select hour or minute position, press CH+/- button
to adjust the value. After setting, press MENU button
to save and exit.
Note: on the condition that the clock is set.
18
SLEEP TIMER OFF
CLOCK - - : - TIME OFF - - : - BOOK TIME - - : - BOOK CHAN. 0
TIMER
TIME SETTING
CHILD LOCK SETTING
SLEEP TIMER OFF
CLOCK - - : - TIME OFF - - : - BOOK TIME - - : - BOOK CHAN. 0
TIMER
SIGNAL SOURCE SETTING
TV
AV
S-VIDEO
YPBPR
VGA
SCART1
SCART2
HDMI
BOOK CHANNEL
1.Press MENU button to make the main menu display.
2.Press VOL+/- button to select TIMER menu, press
CH- button to enter.
3.Press CH+/- button to select BOOK CHAN.
item, press VOL+/- button to set the on channel, if
the on channel is off, the on channel is the channel
before standby status.
Note: on the condition that the book time is set.
There is different signal source mode in this TV set,
you can select according to your require: TV, AV,
S-VIDEO, YPBPR, VGA, SCART1, SCART2 or
HDMI.
1.Press TV/AV button on the remote control to make
the signal source menu display.
2.Press CH+/- button to select the signal source you
need.
Note: You can also press TV/AV button on the remote
control to select the signal source directly.
Using this function can control the image, volume,
channel and so on. Pressing H.LOCK on the remote
control, it will display input password menu, the original
password is 0000, after inputting, it will enter the child
lock setting menu.
1.Press CH+/- button to select the first item, press
VOL+/- button to select signal input source, pressing
H.LOCK button can open or lock the selected source.
2.Press CH+/- button to select CHANNEL item, press
CH+/- button to select digit, press VOL+/- button to
change channel number, the channel range is 0-100,
pressing H.LOCK button can open or lock the selected
channel.
3.Press CH+/- button to select TV SEARCH item,
pressing VOL+/- button can open or lock the TV
search function.
4.Press CH+/- button to select KEYPAD item, pressing
VOL+/- button can open or lock keypad function, if
locked this item, the control panel will not work.
5.Press CH+/- button to select REMOTE item, pressing
VOL+/- button can open or lock keypad function, if
locked this item, the buttons will not work except
H.LOCK and power switch.
6.Press CH+/- button to select CLEAR ALL item, press
VOL+/- button to unlock all the locked items.
7.Press CH+/- button to select CHANGE PSW item, press
VOL+/- button to enter INPUT NEW PASSWORD
menu, first input new password and then confirm the new
password, the password will be changed.
8.Press CH+/- button to select VOLUME-LIM item, press
VOL+/- button to set the maximum volume, the limited
range is 10-100.
9.Press CH+/- button to select PW. CHANNEL item, press
VOL+/- button to set channel number, this channel is the
pw.channel number, if select OFF, it will turn off the
pw.channel lock function.
10.BUS item is not available.
After setting the locked item, it will enter the locked item,
for example, the video1 doesn’t display the image, it will
display LOCKED, pressing H.LOCK button and input the
password can open the current channel in the current status.
O TV UNLOCK
CHANNEL 000 UNLOCK
OTV SEARCH UNLOCK
OKEYPAD UNLOCK
OREMOTE UNLOCK
OCLEAR ALL
OCHANGE PSW
OVOLUME-LIM 100
OPW.CHANNEL OFF
OBUS ON
INPUT NEW
PASSWORD
* * * *
INPUT NEW
PASSWORD
* * * *
* * * *
INPUT NEW
PASSWORD
* * * *
AGAIN * * * *
20
19 20
TELETEXT FUNCTION
TELETEXT FUNCTION
Teletext is an information system, broadcast by certain channels, which can be read like
a newspaper . It also provides subtitles for people with hearing difficulties or those who
are unfamiliar with the language in which a particular program is being broadcast (cable
networks, satellite channels, etc.).
Note: The teletext buttons could be working even if there is no teletext signal, but there
is no teletext display.
Teletext
Teletext functions
To select "Teletext" press the Teletext button on the remote
control. To switch off Teletext, press the button again.
"Note all menu functions are not available in Teletext
mode". Only a few direct button control functions are
available in TELETEXT mode, they are:
CH+
MENU
VOL-
VOL+
CH-
1 2 3
4
7
5
8 9
0
6
Volume adjustment
Mute function
Page up/down
Use the CH+/- buttons to browse next or previous page.
Page number entering
To select a Teletext page, enter the page number using
the numeric key pad on the remote control, or use the
CH+/- buttons, or the coloured Fast text buttons.
Mix mode
To view the TV picture while in Text mode press the
button, this will superimpose the Teletext data on top of
the TV picture. Press this button again to return to Full
text.
INDEX
Press the tune button to go to the index page of teletext.
21
Teletext
↑
←
- - - -
Cancel mode
This feature allows the TV picture to be displayed while next
page to be searched is entered and found. Only the top
teletext line is displayed until the page is found. Press the
button to hide the teletext information. Either press the
button or the Text button to exit the cancel display mode.
Language change
Pressing the button will change the Teletext characters
between Eastern and Western.
Hold
Pressing the button will stop the teletext page automa-
tically updating. This feature is very useful where there are
several teletext pages or data on the same page number.
Size
Pressing the button changes between full screen top
half bottom half full screen. This feature is very useful as it
magnifies the image making the characters easier to read.
??
H.LOCK
→
Reveal
Pressing the button will reveal hidden text. This feature
is used to reveal information such as answers to Teletext
on-line interactive puzzles.
Subcode / Time
By entering its 4-digit number to enter a secondary page;While
in normal TV mode only, pressing the button will display the
teletext time in the top right hand corner for a few seconds.
Switch teletext on/off
Press the button on the remote control to turn teletext
On/Off.
Fast text coloured buttons
←
Fast text automatically displays the four most commonly
used pages that the broadcaster thinks that you may want
to choose next. Press the same coloured button on the
remote control as the coloured link at the bottom of the
teletext page to go directly to that page.
Subtitle
Pressing the button will get the teletext decoder to
automatically search for the subtitle page.
??
- - - -
20
22
OTHER SETTING FUNCTION
- HDMI . The HDMI logo and High-Definition Multimedia Interface is a trademark
or registered trademark of HDMI Licensing.
-This TV can receive the High-Definition Multimedia Interface (HDMI).
-This TV supports HDCP (High-bandwidth Digital Contents Protection) Protocol for
720x480p, 1280x720p and 1920x1080i resolution.
-When you connect this TV with a source device (DVD player, Set Top Box or PC)
supporting Auto HDMI function, the output resolution of the source device will be
automatically set to 1280x720p.
-If the source device does not support Auto HDMI, you need to set the output
resolution appropriately.
To get the best picture quality, adjust the DVD Player or Set Top Box’s output resolution
to 1280x720p, and the PC graphics card’s output resolution to 1024x768, 60Hz.
-If the source device has an HDMI output, no other audio connection is necessary
because HDMI-to-HDMI connecting includes both video and audio.
How To Connect
1. Connect the source device to HDMI port of this TV with an HDMI cable (not
supplied with this product).
2. No separated audio connection is necessary.
How To Use
-If the source device supports Auto HDMI function, the output resolution of the source
device will be automatically set to 1280x720p.
-If the source device does not support Auto HDMI, you need to set the output resolution
appropriately.
To get the best picture quality, adjust the output resolution of the source device to
1280x720p.
-Select HDMI input source by using TV/AV button.
How To Set
The method to set is similar to TV.
TM
EXTERNAL AUDIO AND VIDEO EQUIPMENT CONNECTION
You can connect outside signal source VCR, VCD
DVD, PC equipment to the TV set.
Antenna Input
1.Connect the VCR radio frequency input to
the back radio frequency input of the LCD.
2. Connect the antenna to VCR antenna input.
3. Press TV/AV button to select TV mode.
4. Press PLAY button in VCR to start watching.
S-VIDEO input
If you use S terminal as signal input source, the
image quality will be better than video (AV).
1.Connect S terminal output in DVD to S terminal
input in TV set.
2.Connect S terminal left/right audio output in DVD to
the relevant port in TV set.
3.Press TV/AV button repeatedly until the display
mode is S-VIDEO.
4.Press PLAY button in DVD to broadcast. At this time
the image programs in DVD will broadcast in TV set.
YPBPR input
1. Component terminal (Y/PbCb/PrCr) connect to the
component output of picture output device (such as
DVD, HDTV TUNER and so on ), the sound is input
from AUDIO IN:
2.Press TV/AV button to select YPBPR mode.
3.Press PLAY button on the external device to start
watching.
SCART input
1.Connect AUDIO OUT in the VCD/DVD to the
AUDIO/VIDEO port in the SCART commutator
in the accessory.
2.Connect the SCART commutator in the accessory
to the SCART1 or SCART2 in the TV set.
3.When SCART commutator select INPUT, it enter
video input status, when SCART commutator
select OUTPUT, it enter video output status.
4.Press TV/AV button to select SCART1 or SCART2
mode.
5.Press PLAY button in VCD/DVD to start watching.
Note: please never use the S terminal in commutator.
ANT .
VCR
L
R
S-V IDEO
AUD IO IN
L
AUD IO IN
INPUT OUTPUT
AUD IO
（L/MON O）
IN
DVD
R
Y Cb/ Pb Cr/P r
DVD
SCART1 SCART2
S-VIDEO
AUD IO
（R）
VIDEO
23
24
USING YOUR TV AS A COMPUTER DISPLAY
SPECIFICATIONS
VGA input
1. Connect the VGA output port in the computer to the VGA port in the TV set.
2. Connect the audio cable in computer to VGA AUDIO IN port in TV set.
3. Press TV/AV button to select VGA mode.
4. Turning on the computer, the screen image of the computer will display on the
TV set.
At this time, the TV set can be used as a computer display.
VG A
VG A- AU D IO I N
RESOLUTION:
Mode
VGA
SVGA
XGA
Resolution
640 x 480
800 x 600
1024 x 768
Horizontal
Frequency
31.5kHz
37.9kHz
48.4kHz
Vertical
Frequency
60Hz
60Hz
60Hz
Note: The above parameters are VESA standard.
The part specifications of this TV set provided here are for reference only.
Difference may occur as product technology is updated.
Model
Screen
TV/VIDEO
DTV Y/Pb/Pr
Power
Power consumption
Dimension (W×D×H)(cm)
Environment conditions
Accessory
Type
Viewable angle
Color system
Sound system
Video input
GRL-26POT/GRL-32POT/GRL-37POT/GRL-40POT/GRL-42POT/GR-42OT
A-si TFT activ e matrix
176°(H )/ 176° (V)
PAL, SECAM, NTSC (AV)
BG, DK, I
AV, SCART, S-VIDEO, YPb/Pr, YCb/Cr, VGA, HDMI
Composite: 480i/p, 576i, 720p,1080i,1080p
See rating plate
See rating plate
68.1×24.6×52.5 (included base) (GRL-26POT)
81.3×24.6×62.1(included base) (GRL-32POT)
93.7×31×70.5 (included base) (GRL-37POT)
101.4×31×73.8(included base) (GRL-40POT)
106×31.5×80.4(included base) (GRL-42POT/GR-42OT)
Working temperature:
Working humidity:
Storage temperature:
Storage humidity:
User’s manual (×1)
Remote control (×1)
Power cord (×1)
Battery (×2)
SCART commutator
+5℃～+35℃
20%-80%
-15℃～+45℃
5%-90%
Note:
1. If the temperature of the TV set is rather low, it is normal that there may be some
artifacts when the set is first turned on.
2. Nonconforming pixels may occur on the panel, but they have no influence on the
normal function of the display.
3. In the standard operation, It is normal if there is one bright dot or dark dot on the
screen.
25
The design and specifications are subject to change without notice.
26
TROUBLE SHOOTING GUIDE
The following problems are not always caused by hardware failure, please use the
follow trouble shooting guide before you call for service:
BREAKDOWN PHENOMENON
Picture with S now
Double or Triple Image
Disturb
SOUND
Noise
Normal
Noise
The direction and connection of the
antenna
Direction, station and connection
of the antenna
Interference from electric
appliance. Automobile、Motor,
Vehicle Fluorescence lamp etc.
CHECK FOR
Normal
?
??
No Picture
No Sound
No Sound
The power plug isn't plugged in AC
outlet. The main power isn't turned
on. The setting up of contrast, brightness and volume.
Adjust color control
Volume, Sound mute
No Color
Normal Volume
Adjust channel again
Scramble
Normal or Weak Volume
Note:1.If the problem can not be fixed after you check above items. DO NOT attempt
to remove the back cover by yourself.
2.A snapping sound from the cabinet of the TV set can be heard occasionally.
This is normal and is caused by temperature changes of the operating environment
and does not affect the operation of the set.
3.Do not let the TV set stay on a static images, as this can lead to permanent
residual images. If this situation occurs, the TV set may recover normal
automatically after 12 hours if you switch the TV set to dynamic programming.
27
Loading...
