Haier FCD-HM80, FCD-HM60GI(E), FCD-HM40GI(E), FCD-HM50GI(E), FCD-HM80GI(E) Operation Instruction Manual
...
Silver Walrus
Haier Household Electric Water Heater Operation Instruction
FCD-HM40GI(E)
FCD-HM50GI(E)
FCD-HM60GI(E)
FCD-HM80GI(E)
FCD-HM100GI(E)
z Please carefully read this operation instruction prior to the use of this unit.
z Please store these operation instructions properly for future reference.
Distinguished Haier User:
Thanks for choosing and using a Haier electric water heater.
Haier products have high quality and excellent performance. For convenience of use, please carefully read this
instruction manual and follow the steps carefully. Please store this instruction manual properly after use. If you
have questions during operation, please contact your local after-sales service department. We are always ready to
provide service to you.
Due to product improvements, it is possible that the Haier electric water heater you have purchased is inconsistent
with that of illustrations in this instruction manual. We are sorry for any inconvenience this may cause.
Safety Warning Expert
Logo of a Haier Safety
Water Heater
This marking is the exclusive marking of “Safety Warning Expert” of the Haier
Water Heater Company. The interior uses the patent technology, which will
constantly monitor if the earth wire of your residence is live while ensuring you can
bathe safely. If you finds that this marking is illuminated, it means that your family’s
earth wire is live (if the earth wire is not connected well, it will be live
simultaneously), you should immediately stop the use of this unit and remove the
plug from the power point. Meanwhile, do not touch any casing of electric
appliances within your home and immediately contact the after-sales service
department or real estate company and request a professional electrician conduct
system detection. “Safety Warning Expert” will become the safety bodyguard for
electricity use in your home.
Content
Product Features 1
Electric Diagram 1
Technical Data
Introduction to Appearance and Components 2
Technical Parameters 2
Safety Points of Attention 3
Location Environment 4
Instructions Prior to Use
Packing List 5
Special Notices 5
Installation Guide
Installation Points of Attention 6
Installation Method 6-8
Operation Guide
Introduction of Control Panel 9
Operation Sketch Map 9
Operation Method 10-15
Operation Points of Attention 15
Cleaning & Maintenance of Unit 15-16
Keys to Difficulties
Keys to Difficulties 16
Appearance, color or figure of the water heater refers to the actual unit.
Product Features · Electric Diagram
Product Features
1. Hi-tech

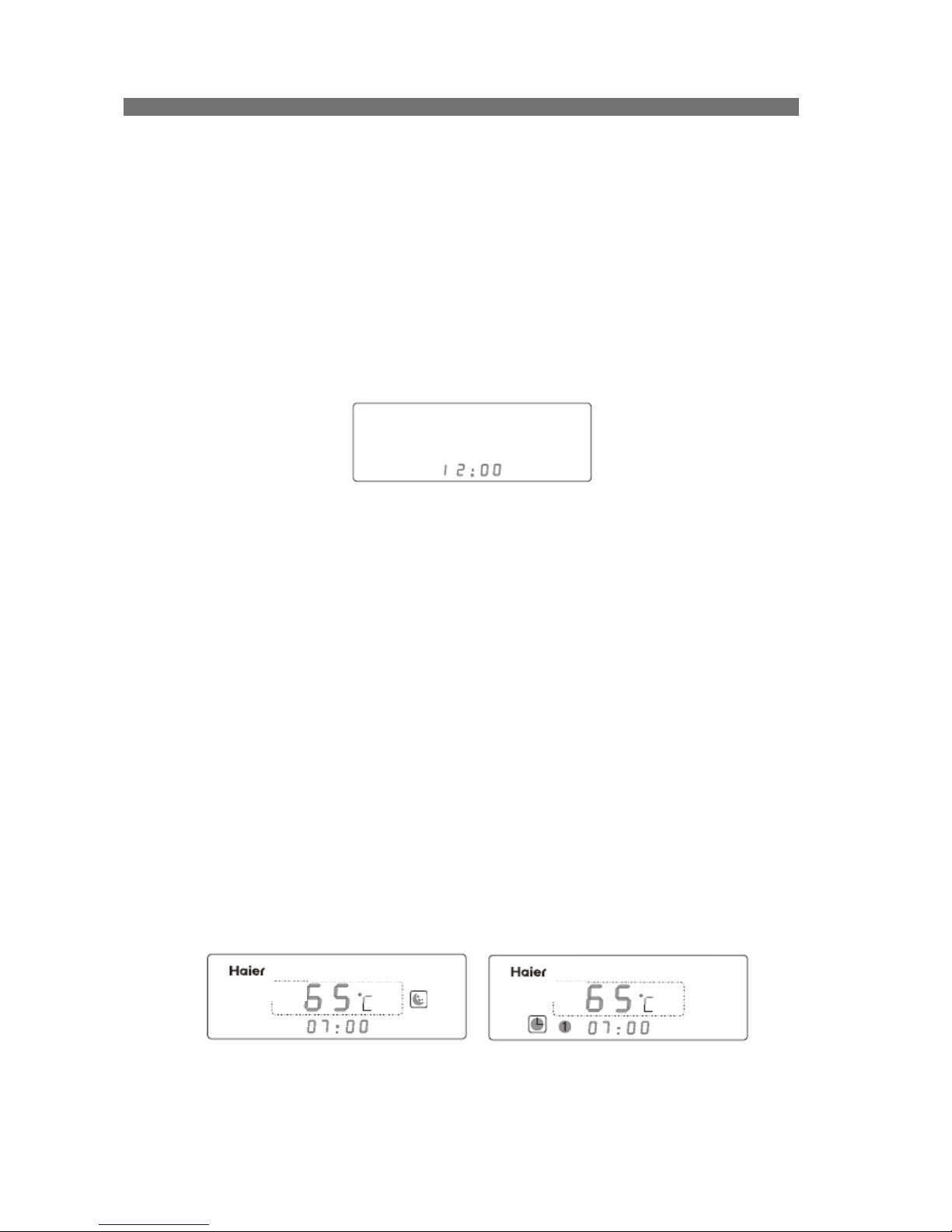

Full computer control and display screen indicates the actual water temperature and set temperature, clock,
and working status.
If a fault occurs, it will automatically cut off power, and the display screen will indicate a fault code.
The intelligent heating function embodies a more user-friendly design.
2. Safety
Quality imported heat-resisting stainless steel electrothermal elements make it corrosion-resistant and more
reliable. Such functions as fuzzy control, over-temperature protection, interior shell over-pressure protection,
electricity leakage protection, “shockproof wall” patented design, and “monitoring indication of live earth
wire” make this unit safety bodyguard for electricity use in your home.
3. Durability
The exterior shell is specially treated, and it is artistic and durable.
The interior shell adopts three-layer enamel technology, and the quality is higher.
4. Energy Saving
This unit adopts integral polyurethane foam to preserve heat and save energy. This unit can manually set two
levels of reservation times of utilization of water, so it is convenient and energy saving. The functions of night
power and medium-temperature heat preservation can be chosen randomly. This unit adopts prompt-heating
design, so it is rapid and energy saving.
5. Convenient Operation
The heating water temperature can be set and adjusted between a range of 35℃～75℃ with intervals of 5℃.
The outlet temperature can be adjusted randomly at the range of inlet temperature ～75℃, and the operation
is simple and flexible.
This unit adopts a prompt-heating design and top heating technology, which can meet the demand for hot
water instantaneously.
Prompt-heating type and water storage type are combined into one unit, and it can be chosen willfully and can
simultaneously meet the demand for hot water of many people.
This unit has a drain opening to facilitate the periodic cleaning of interior shell to obtain high quality water.
6. Power-failure Memory
The computer panel is of patented design. This unit will automatically keep the set information in memory
before a power failure, and it will directly return to the previous working status after the power comes back
on.
7. Multipurpose
This unit has an enclosed structure and it can provide water for bathroom and kitchen simultaneously. (The
outlet water is not suitable for drinking)
8. Horizontal installation and concealed shockproof wall installation design; free choice of unit control or line
control.
This kind of water heater is a function-improved product of this series of products, and please use this unit
according to the indications shown in this operation manual.
Electric Diagram
1
Display Panel
L: Live Wire (Brown)
N
: Zero Line (Blue); E: Earth Wire
(Double colors of yellow and green)
MT1/MT2: Manual Reset
Temperature Controller
EH: Heating Tube; RT: Sensor
Introduction to A ppearanc e and Components · Technical Parameters
Introduction of Appearance and Components
Technical Parameters
Installation Conditions
Type
Capacity
(L)
Rated
Electricity
Rated
Power (W)
Rated
Pressure
(MPa)
Rate
Temperature
(℃)
Waterproof
Level
Net
Weight
(kg)
a1
(mm)
b1
(mm)
c1
(mm)
d1
(mm)
Wire
Requirement
(mm
2
)
Socket
FCD –
HM40GI(E)
40 220V～
/50Hz
3000
(Prompt)
1500
(Storage)
0.75 75 IPX4 20 714 409 100 359 ≥2.5 16A
FCD –
HM50GI(E)
50 220V～
/50Hz
3000
(Prompt)
1500
(Storage)
0.75 75 IPX4 22 666 494 100 409 ≥2.5 16A
FCD –
HM60GI(E)
60 220V～
/50Hz
3000
(Prompt)
2000
(Storage)
0.75 75 IPX4 25 770 494 100 409 ≥2.5 16A
FCD –
HM80GI(E)
80 220V～
/50Hz
3000
(Prompt)
2000
(Storage)
0.75 75 IPX4 29 876 530 100 432 ≥2.5 16A
FCD –
HM100GI(
E)
100 220V～
/50Hz
3000
(Prompt)
2000
(Storage)
0.75 75 IPX4 34 1042 530 100 432 ≥2.5 16A
Note: The allowable tolerance range of the above parameters (dimensions and weights) is ±10%.
2
Elevation
Sectional View Side View
A – Inlet Tube; B – Outlet Tube; C –Heating Tube; D –Enamel Interior Shell;
E – Magnesium Bar; F – Wall-mounted Bracket
Elevation
Side View
G – Drain Opening
Safety Points of Attention
z Check if ammeter and
wires are in
conformity with rated
current of the water
heater. Request a
qualified electrician to
check if necessary.
z This water heater uses
AC 220V/50Hz
power. It uses an
independent socket (it
is prohibited to use a
multipurpose socket), and conducts reliable
earthing, and the socket quality must meet the
national standards. Remove the metal sheet on
power plug to prevent fire accidents arising due to
stains on the metal sheet.
z Don’t use electric
apparatuses if the
wire is damaged and
the power socket and
plug slack,
otherwise, it may
cause such accidents as electric shock, short
circuit or fire. Please confirm if the power plug
is closed connected with the power socket.
z The power socket of
the water heater must
be installed in a dry
place where water
cannot spray it. Don’t
insert and remove the
power plug with wet hands, otherwise, such
accidents as electric shock and injury may occur.
z After installation and
before the first use,
firstly fill with water
and then connect the
power. If the power is
connected under the condition that the vessel is
not fully filled with water, the heating tube will
overheat, which may result in an accident.
Operation by a child should be supervised by an
adult.
z Please don’t point the
shower nozzle at the
body when turning the
water on to prevent
injury from scalding.
z In cold areas, if this
unit is not to be used
for a long time in
winter, please lift the
handle of the safety
valve and drain out
the water to prevent the water heater from being
damaged due to water freezing.
z If the power wire of
the electric water
heater is damaged, it
must be replaced
with a special wire
(provided by manufacturer) by after-sales
serviceman. No one is allowed to conduct the
dismantlement, except for professional technical
serviceman. In addition, don’t place flammable
objects near water heater.
The water temperature value indicated in the display screen is the water temperature around the detection
points. The outlet temperature of the water heater is normally higher than the temperature indicated in display
screen. Prior to use, you should drain the cold water first and then adjust the water temperature value you desire
to avoid scalding. During operation, the water temperature value indicated in the display screen is also the water
temperature around the detection points, is not the actual outlet temperature, and please don’t directly drain the
hot water.
The design of this unit adopts the “Shockproof Wall” patent technology of our company. In the normal situation
that it is connected with civil electricity, this unit will also effectively ensure your operation safety through the
technology filter of “shockproof wall” of this unit, even the in occurrence of deteriorated that exterior is
mistakenly connected to the civil electricity with earth wire that will result in a live earth wire. When you
perceive that there is a sensitive current, please remove the power plug, and immediately notify the after-sales
service department of our company for maintenance. Don’t dismantle this unit by yourself.
Symbols Description
Don’t operate! If it is mistakenly used, it may result in bodily injury.
You must follow the instruction to operate this unit. If it is mistakenly used, it may result in bodily injury or
property loss.
