Haier Esa410ml Owner's Manual

User & Care Guide Guide d'utilisation et d'entretien Guía de uso y cuidado

Room Air Conditioner

Climatiseur individuel

Aire acondicionado

de uso doméstico

HWR05XCM

ESA405M ESA406M

ESA408M ESA410M ESA412M

Design may vary by model number. La conguration peut varier selon le

numéro de modèle.

This user manual is to be only use for electronic control 5000 BTU, 5200 BTU 6000 BTU, 8000 BTU 10,000 BTU and 12,000 BTU Models. - Some models may have an additional letter after the

model number.

Ce guide d'utilisation doit être utilisé strictement avec les modèles à commande électronique de 5 000BTU, 5 200 BTU 6 000 BTU, 8 000 BTU, 10000 BTU et 12 000 BTU. - Sur certains modèles, le numéro de modèle peut être suivi d'une lettre.

El diseño puede variar conforme al

número de modelo

Este manual del usuario es únicamente para utilizar los controles electrónicos modelos 5000 BTU, 5200 BTU, 6000BTU, 8000 BTU, 10,000 BTU y12,000 BTU. Algunos de los modelos pueden tener una letra adicional después del número de modelo.

TABLE OF CONTENTS

SAFETY INFORMATION............................................................................................................. 2

Important Safety Precautions ................................................................................................ 2-3

Operational Safety & Warnings .................................................................................................. 4

INSTALLATION REQUIREMENTS .............................................................................................5

Tools and Parts ............................................................................................................................ 5

Location Requirements .............................................................................................................. 6

Electrical Requirements .........................................................................................................7-9

HOW TO INSTALL ....................................................................................................................10

Unpacking the Air Conditioner ................................................................................................. 10

Preparing the Air Conditioner ............................................................................................10-11

Preparing the Window ..............................................................................................................12

Completing the Installation ...................................................................................................... 13

USING YOUR AIR CONDITIONER ........................................................................................... 14

Starting the Air Conditioner ............................................................................................... 14-18

Using the Remote Control ..................................................................................................18-20

Changing the Air Direction ....................................................................................................... 20

Normal Sounds of an Air Conditioner ...................................................................................... 21

ENGLISH

CARING FOR YOUR AIR CONDITIONER ................................................................................ 22

Cleaning the Air Filter ...............................................................................................................22

Cleaning the Front Panel ..........................................................................................................23

Annual Maintenance .................................................................................................................23

Customer Service .....................................................................................................................23

TROUBLESHOOTING ..............................................................................................................24

LIMITED WARRANTY ...............................................................................................................25

PRODUCT REGISTRATION

Thank you for purchasing our Haier product. This easy-to-use manual will guide you in getting the best use of your product.

Remember to record the model and serial numbers. They are on a label on the side of your unit.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain warranty service.

ENGLISH

1. Use this air conditioner only for its intended application as described in this

2. This air conditioner must be properly installed and use the correct wall

IMPORTANT SAFETY PRECAUTIONS

WARNING

THE INFORMATION IN THIS USE & CARE GUIDE MUST BE

FOLLOWED TO MINIMIZE THE RISK OF PERSONAL INJURY, FIRE,

ELECTRIC SHOCK OR OTHER UNSAFE CONDITIONS.

THE INSTRUCTIONS IN THIS USE & CARE GUIDE ARE NOT MEANT

TO INCLUDE EVERY POSSIBLE CONDITION OR SITUATION THAT

MAY OCCUR. USE CAUTION AND CARE WHEN INSTALLING, OPERATING

AND CLEANING THE AIR CONDITIONER.

Use & Care Guide.

outlet that matches with the air conditioner’s power supply cord in accordance with the Installation Section of this Use & Care Guide before it is operated.

3. Never unplug the air conditioner by pulling on the power supply cord. Always grip the plug firmly and pull straight out from the wall outlet.

4. Replace the power supply cord immediately if it becomes damaged in any way. A new power supply cord must be purchased from the air conditioner manufacturer and installed by a qualified technician. DO NOT use a power supply cord that is cracked, split, cut, or damaged anywhere along its length or either at the plug end or connector end.

5. Turn off the air conditioner and unplug it from the wall outlet before performing any cleaning or maintenance.

6. Do not store or use combustible or flammable materials or liquids on or near the air conditioner.

7. If the wall outlet configuration does not match the plug configuration on the air conditioner, the wall outlet must be changed by a qualified electrician.

PAGE 2 SAFETY INFORMATION

IMPORTANT SAFETY PRECAUTIONS

8. This air conditioner contains R410a refrigerant and requires certified technicians to use the proper equipment, tools and safety standards that are approved for this refrigerant. Use only equipment certified for R410a refrigerant. In addition, under federal law, all refrigerant must be properly removed from the air conditioner prior to its disposal.

READ AND FOLLOW THE

SAFETY INSTRUCTIONS CAREFULLY.

SAVE THESE INSTRUCTIONS

ENGLISH

SAFETY INFORMATION PAGE 3

OPERATIONAL SAFETY & WARNINGS

ENGLISH

1. This air conditioner contains no consumer serviceable parts. If you have

2. Be sure that the air conditioner is properly and securely installed in

3. DO NOT drill any holes in the base or sides of the air conditioner.

4. DO NOT place fingers or objects in the air discharge or air intake in the

5. DO NOT operate the air conditioner with a protective cover on the

6. DO NOT block the air discharge or air intake areas on the front panel.

7. DO NOT block the side louvers on the outside of the air conditioner.

8. DO NOT place any objects either on the indoor or outdoor sections of

problems or questions regarding the operation of your air conditioner always call Haier Customer Service: 1-877-337-3639.

the window according to the installation instructions included in this Use & Care Guide.

front of the air conditioner.

outside section.

the air conditioner

9. Operate the air conditioner with the air filter installed.

10. Keep this Use & Care Guide, carton and packing material for future use in removing, storing and reinstalling the air conditioner.

PAGE 4 SAFETY INFORMATION

TOOLS AND PARTS

Read and follow the instructions provided with any tools listed here.

TOOLS NEEDED

ENGLISH

Phillips head screwdriver Scissors

Level Tape measure

Drill and 1/8” bit Pencil

PARTS SUPPLIED:

Check that all parts for your specific air conditioner are included in the parts package.

NOTE: If parts are missing, call Haier Customer Service: 1-877-337-3639.

5,200 BTU

10,000 BTU

IMAGE PART 5,000 BTU

Top channel

Foam seal

Side bracket

8,000 BTU

1 1 1

Not used 2 2

12,000 BTU

Window lock

1 1 1

bracket

7/16" self-

3 3 4

tapping screws

1" wood screws

Side curtains

Side curtain

7 9 9

2 2 2

frames

ON/OFF

MODE

SPEED

TIMER

TEMP/TIME

Remote control 1 1

INSTALLATION REQUIREMENTS PAGE 5

LOCATION REQUIREMENTS

HEIGHT

WIDTH

HEIGHT

WIDTH

ENGLISH

IMPORTANT: Observe all governing codes and ordinances. Check the location where the air

THE LOCATION SHOULD PROVIDE:

• A grounded electrical outlet within 6 ft. (183 cm) of where the power supply cord exits the air

•

NOTE: Do not use an extension cord, plug adapter, surge protector or multi-outlet adapter.

•

conditioner will be installed. Make sure you have everything necessary for correct installation.

conditioner, for models: HWR05XCM ESA405M ESA406M ESA408M

A grounded electrical outlet within 4 ft. (122 cm) of where the power supply cord exits the air

conditioner, for models: ESA410M ESA412M

Free movement of air in the room to be cooled.

Fig. 1

A large enough opening for the air conditioner. (See Fig.1) The air conditioner must not be installed in a through-the-wall sleeve

or in a wall. It can only be installed in a double-hung window.

NOTE: The outside cabinet louvers must not be obstructed by bushes,

trees, etc. Air must be able to pass freely through the cabinet louvers. (See Fig.2)

Fig. 2

CABINET LOUVERS

WINDOW INSTALLATION

Window opening measurements: (See Fig.3) A. Width B. Height

Fig. 3

B-HEIGHT

WIDTH

LENGTH

A-WIDTH

PAGE 6 INSTALLATION REQUIREMENTS

ELECTRICAL REQUIREMENTS

WARNING

ELECTRICAL SAFETY and WARNINGS

1. DO NOT cut or remove the grounding prong on the attached power supply cord. Doing so may cause sparks or fire, and voids all warranties. For safety purposes the air conditioner must be properly grounded.

2. To avoid a fire hazard or possible electric shock, DO NOT use an adapter plug, extension cord,

surge protectors, or multi-outlet adapters with the air conditioner.

3. The power supply cord is equipped with a 3-prong plug which mates with a standard 115 volt wall outlet to minimize the possibility of electrical shock from this air conditioner.

4. The power supply cord includes a leakage current detection interrupter device (LCDI). A

RESET and TEST button are on the plug case. The device should be tested on a periodic basis by pressing the TEST button and then the RESET button while it is plugged into the wall outlet. If the TEST button does not trip or the RESET will not stay engaged, do not use the air conditioner and contact a qualified service technician.

ENGLISH

5. Have the wall outlet and circuit inspected by a qualified electrician to ensure that the wall outlet is properly grounded.

6. If there is a 2-prong wall outlet present and not a 3-prong wall outlet, it is the responsibility of the user to have it replaced with a properly grounded 3-prong outlet.

7. The air conditioner should always be plugged into a dedicated electrical outlet which has a voltage rating that matches the serial label on the side of the air conditioner.

8. The electrical ratings for your air conditioner are listed on the Model/Serial Number label. The Model/Serial Number label is located on the side of the air conditioner cabinet, or behind the front grille.

9. Specific electrical requirements are listed in the chart below. Follow the requirements for the type of plug on the power supply cord.

INSTALLATION REQUIREMENTS PAGE 7

ELECTRICAL REQUIREMENTS cont.

RESET

TEST

ENGLISH

POWER SUPPLY CORD

Wiring Requirements

•

RECOMMENDED GROUNDING METHOD (See Fig.4)

This air conditioner must be grounded. This air conditioner is equipped with a power supply cord that has a 3 prong grounding plug. The power supply cord must be plugged into a mating, grounded 3 prong outlet, and grounded in accordance with all local codes and ordinances. If a mating outlet is not available, it is the customer’s responsibility to contact a qualified electrician and ensure that a properly grounded 3 prong outlet is installed.

POWER SUPPLY CORD (See Fig.5)

NOTE: Your air conditioner's plug may differ slightly in appearance from the one shown.

A. Reset button

115-Volt (103.5 min. to 126.5 max.)

0 to 12 amps 15-Amp time-delay grounded fuse or circuit breaker Use on single outlet circuit only.

Fig. 4

B. Test button

Fig. 5

This room air conditioner is equipped with an a leakage current detection interrupter (LCDI) power supply cord required by UL. This power supply cord contains a current detection device. If the power supply cord is crushed, this device will detect current leakage and power will be disconnected from the air conditioner. If this power supply cord is damaged, it cannot be repaired and must be replaced with a cord from the product manufacturer. If the power supply cord is damaged call Haier Customer Service: 1-877-337-3639.

PAGE 8 INSTALLATION REQUIREMENTS

ELECTRICAL REQUIREMENTS cont.

WARNING

• Electrical shock hazard

• Plug into a mating, grounded 3 prong

outlet.

• Do not remove the ground prong from the

power supply cord.

TO TEST YOUR POWER SUPPLY CORD:

ENGLISH

• Do not use a plug adapter, extension cord,

surge protector, or multi-outlet adapter

• Failure to follow these instructions can

result in injury, fire, or electrical shock.

1. Plug power supply cord into a mating, grounded 3 prong outlet.

(See Fig.6)

2. Press RESET (on some devices, a green light will turn on).

3. Press TEST (listen for click; Reset button will trip, and on some devices, a green light will turn off).

4. Press and release RESET (listen for click; Reset button will latch, and on some devices, a green light will turn on). The power supply cord is ready

for operation.

NOTE:

The RESET button must be pushed in completely for proper operation.

•

(See Fig.7)

The power supply cord must be replaced if it fails to trip when the test

•

button is pressed or fails to reset. DO NOT turn the air conditioner on or off by unplugging the power

•

supply cord from the outlet. Always turn the air conditioner on or off at the control panel or by using the remote control.

A damaged power supply cord must be replaced with a new power

•

supply cord obtained from the product manufacturer and installed my a qualified service professional. It cannot be purchased at a retail store and must not be repaired by the user.

Fig. 6

RESET

Fig. 7

TEST

If the power supply cord is damaged please call Haier Customer Service:

1-877-337-3639.

The power supply cord contains no user-serviceable parts.

•

• Opening the tamper-resistant case voids all manufacturer warranties.

INSTALLATION REQUIREMENTS PAGE 9

ENGLISH

REMOVE PACKAGING MATERIALS

•

NOTE: There are NO internal packing materials to remove—Do Not open the cabinet.

•

UNPACKING THE AIR CONDITIONER

WARNING

EXCESSIVE WEIGHT HAZARD

When moving or lifting the air conditioner, use two or more people.

Wear gloves when handling the air conditioner to protect against

possible sharp edges and metal fins.

Remove packaging materials. Save the carton and the foam packaging for storing the unit when not in use.

Handle the air conditioner gently. Keep the air conditioner upright and level. Do not set the air conditioner on its side, front, back

or upside down. The air conditioner must be standing upright for 2 hours prior to installation and operation.

•

PREPARING THE AIR CONDITIONER

INSTALL TOP CHANNEL

Front

7/16" Screw

1. Place the top channel on the top of the air conditioner, lining up the holes in the top channel with the holes in the top of the unit. Make sure the channel is facing forward as indicated by the sticker. (See Fig.8)

2. Using 7/16" self-tapping screws, attach the top channel to the top of the air conditioner. (See Fig.9)

Use four (4) 7/16" self-tapping screws for models:

ESA410M ESA412M

Top Channel

Fig. 8

Fig. 9

Use three (3) 7/16" self-tapping screws for models:

HWR05XCM ESA405M ESA406M ESA408M

PAGE 10 HOW TO INSTALL

PREPARING THE AIR CONDITIONER cont.

INSTALL SIDE CURTAINS

NOTE: Attach side curtains to the air conditioner before placing the unit in the window.

1. Place the tabbed side of the side curtain in the track on the right-hand side of the air conditioner cabinet. (See Fig.10)

Fig. 10 Fig. 11

ENGLISH

TABBED SIDE OF SIDE CURTAIN

2. Slide the tabbed side of the side curtain down over all 3 tracks until the curtain is aligned with the top and bottom of the air conditioner cabinet. (See Fig.12)

3. Slide the side curtain frame over the top of the side curtain, then into the channel on the top of the air conditioner and into the track on the bottom of the air conditioner. (See Fig.13)

4. Slide the side curtain frame as close to the air conditioner cabinet as necessary to lock the side curtain to the frame. Gently press the frame until it clicks. (See Fig.11 & Fig.13)

5. Repeat above steps for the left-hand side curtain and frame. Make sure no gaps are left to ensure that air does not escape into or out of the room.

LOCK EDGE SIDE OF SIDE CURTAIN

Fig. 12

Fig. 13

CLICK

HOW TO INSTALL PAGE 11

PREPARING THE WINDOW

HEIGHT

WIDTH

ENGLISH

1. Measure the width of the window opening. (See Fig.14)

2. Mark the center line on the inside of the windowsill

•

with a pencil. (See Fig.15)

WIDTH OF

CENTER LINE

WINDOW OPENING

Fig. 14

WIDTH

Fig. 15

CENTER

NOTES AND WARNINGS:

Be sure your air conditioner does not fall out of the window opening during installation

•

or removal.

Do not block the air discharge or air intake areas on the front panel. Do not block the louvers on the outside of the air conditioner.

3. Center the air conditioner in the window sill.

Fig. 16

Make sure to place the unit so that it is resting on the windowsill with a ¼" to ½" downward tilt towards the outside. Lower the window sash behind the top channel to hold the unit in place. (See Fig.16)

NOTE: The appearance of your model may differ from the

one shown.

4. Loosen the screw located on the lower-right hand corner of the air conditioner.

5. Slide the side bracket over the screw. The side bracket should be resting on the window sill. (See Fig.17)

6. Partially tighten the screw. Secure the unit before tightening completely.

7. Use 1/8" drill bit to drill a starter hole through the holes in the side bracket.

8. Using two (2) 1" wood screws, attach the side bracket to the

window sill.

9. Repeat for side bracket installation on the left-hand side of the air conditioner.

PAGE 12 HOW TO INSTALL

Fig. 17

COMPLETING THE INSTALLATION

ENGLISH

ATTACH SIDE CURTAINS TO WINDOW

1. Pull the left-hand curtain and frame out until it fits flush to the side of the window frame. (See Fig.18)

2. Use a 1/8” drill bit to drill a starter hole through the top hole in the side curtain and into the window sash.

3. Insert one (1) 1" wood screws through the top hole of the left hand

curtain and into the window sash. (See Fig.19)

4. Repeat for the right-hand curtain.

5. Use a 1/8" drill bit to drill a starter hole into the window sash using the top hole in the side curtain as a guide.

6. Insert one (1) of the 1" wood screws through the bottom hole of the left-hand curtain and into the window frame. (See Fig.20)

7. Repeat for the right-hand curtain.

FINAL INSTALLATION

1. Uncoil the included foam seal. (See Fig.21)

2. Insert the foam seal behind the top of the lower window sash and against the glass of the upper window.

Fig. 18

Fig. 19

3. Place the window lock bracket as shown in the diagram using a screwdriver. Use a 1/8" drill bit to drill a starter hole through the hole in the window lock bracket and into the upper window. (See

Fig.22)

4. Attach the window lock bracket to the upper window with one (1)

1" wood screw to secure the unit in place.

5. Plug unit into a grounded 3 prong outlet.

6. Press RESET on the power supply cord. A green light will come on. See “Electrical Requirements" for full detail.

Fig. 20

Fig. 21

Fig. 22

HOW TO INSTALL PAGE 13

ENGLISH

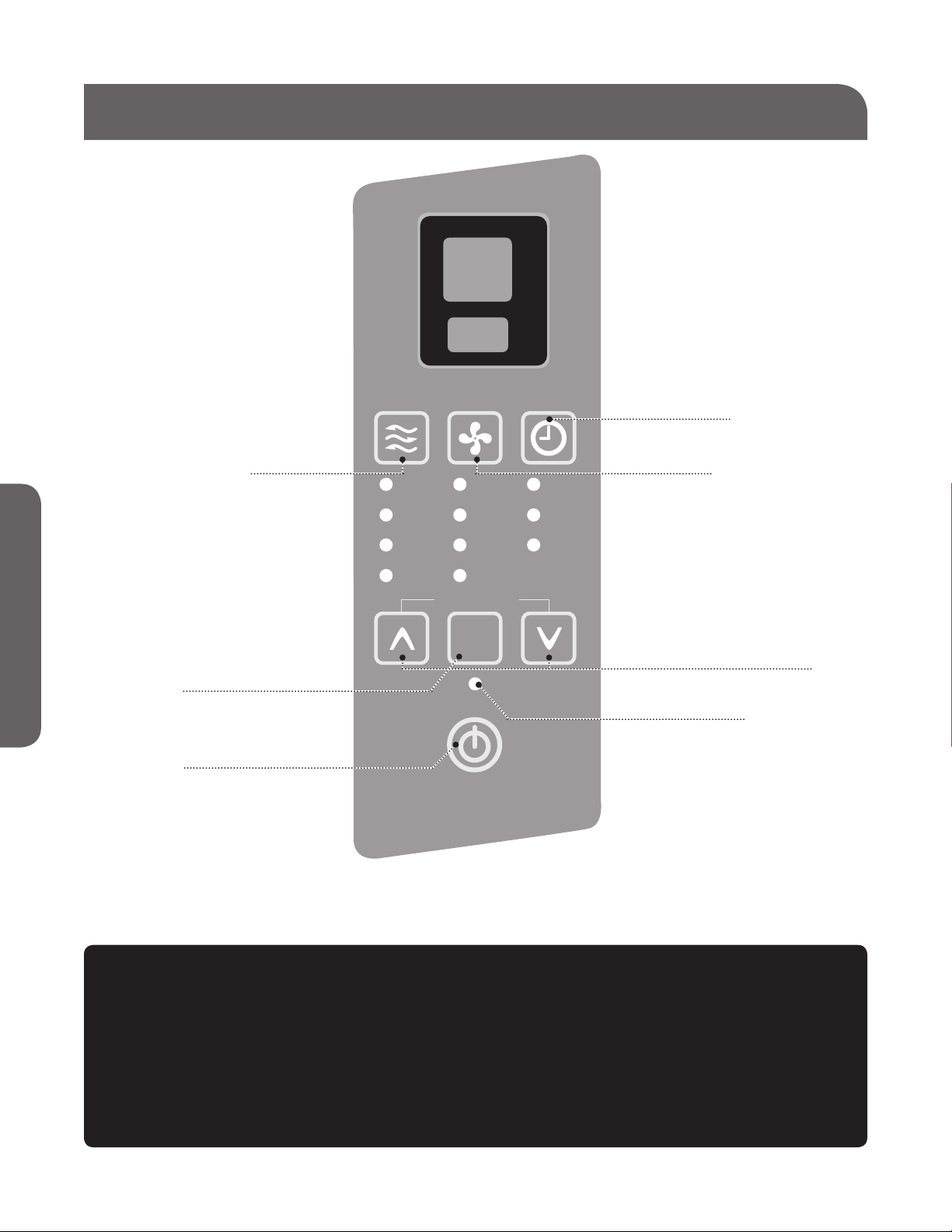

STARTING THE AIR CONDITIONER

˚F/˚C

MODE SPEED TIMER

MODE SPEED

FAN

COOL MED

ENERGY SAVE

DEHUM

FILTER RESET

HIGH

LOW SLEEP

AUTO COOL

TEMP/TIME

FILTER RESET

CLEAN FILTER

OFF

TEMPERATURE / TIME

CLEAN FILTER INDICATOR

TIMER

POWER

AUTO RESTART

Operating your air conditioner properly helps you to obtain the best possible results.

This section explains how to operate this air conditioner.

IMPORTANT:

When you turn off the air conditioner , either at the control panel or with the remote control,

•

wait at least 3 minutes before turning it back on. This prevents the compressor from overloading. This 3 minute delay also applies when switching from cool mode to fan and back.

Do not operate your air conditioner in the Cool mode when the outside temperature is below

•

61° (16° C). The inside evaporator coil will freeze up, and the air conditioner will not operate

properly.

PAGE 14 USING YOUR AIR CONDITIONER

STARTING THE AIR CONDITIONER cont.

1. Carefully remove the clear plastic film from the control panel.

2. Press POWER once to turn on the air conditioner.

NOTE: When the air conditioner is first plugged in, the LED display will show “88” for 3 seconds.

After the air conditioner is turned on for the first time, the display will show the temperature 72 F and the fan is automatically set to Low speed and the Mode indicator will show ENERGY SAVE.

NOTE: To switch the temperature display between Fahrenheit (F) and Celsius(C), the air

conditioner must be plugged in, but not turned ON. On the control panel on the front of the AC, press the UP and DOWN button at the same time and hold for 3 seconds. The change cannot be done using the remote control.

3. Select Mode. Refer to “Mode.”

4. Select Speed. Refer to “Speed.”

5. Set Timer. Refer to “Temp/Time”

6. Reset the filter. Refer to “Filter Reset”

ENGLISH

MODE

1. Press mode until you see the indicator light come on next to the desired setting.

2. Choose Fan, Cool, Energy Save, or Dehum.

FAN— Only the fan runs. Press SPEED to select High, Med or Low fan speed. The display shows

the current room temperature.

COOL— Cools the room. Press SPEED to select High,Med , Low or Auto Cool fan speed. Press the

TEMP/TIME up or down arrow button to adjust the temperature.

ENERGY SAVE— In this mode the fan runs only when cooling is needed. The fan will run for 3

minute after the compressor shuts off. The fan then cycles on for 2 minutes at 10 minute intervals until the temperature in the room is above the set temperature. The compressor then turns back on.

DEHUM— Aids in removing humidity from the room. The air conditioner automatically selects the

temperature. This setting will NOT cool the room.

NOTE:

Dehum mode cannot be used to cool the room.

•

USING YOUR AIR CONDITIONER PAGE 15

STARTING THE AIR CONDITIONER cont.

ENGLISH

SPEED

1. Press FAN SPEED until; you see the indicator light come on next to the

2. Choose High, Med, Low or Auto Cool

HIGH—For maximum cooling MED—For normal cooling LOW—For minimum cooling AUTO COOL – Adjusts the fan speed automatically to provide ideal cooling

TIMER

To set the air conditioner to turn off between 1 hour and 24 hours (The air conditioner must be ON to set):

1. Press TIMER. Timer Off indicator light will flash. The display will show the

2. Press the TEMP/TIME up or down arrow button to change the delay time

3. After 5 seconds, Timer Off indicator light will remain on. The display will

desired setting.

based on the room temperature.

remaining hours before the air conditioner will turn off.

from 1 hour to 24 hours.

show the left time to Timer Off.

˚F/˚C

MODE SPEED TIMER

FAN

HIGH

COOL MED

ENERGY SAVE

DEHUM

TEMP/TIME

FILTER RESET

CLEAN FILTER

POWER

AUTO RESTART

OFF

LOW SLEEP

AUTO COOL

To set the Timer to turn on the air conditioner, keeping the previous settings:

1. Turn on the unit.

2. Press TIMER. Timer On indicator light will flash. The display will show the remaining hours before the air conditioner will turn on.

3. Press the TEMP/TIME up or down arrow button to change the delay time from 1 hour to 24 hours.

4. Timer On indicator light will remain on.

TO SET THE TIMER TO TURN ON THE AC, CHANGING THE PREVIOUS SETTINGS:

1. Turn on the air conditioner.

2. Adjust the mode to Fan, Cool, Energy Save or Dehum.

3. For Fan or Dehum mode,adjust the fan speed to High,Med or Low. For Cool or Energy Save mode,adjust the fan speed to High,Med, Low or Auto Cool.

4. Adjust the temperature between 61°F and 86°F (16°C and 30°C).

NOTE: In Fan mode, the temperature cannot be set.

5. Press TIMER. Timer On indicator light will flash. The display will show the remaining hours before the air conditioner will turn on.

6. Press the TEMP/TIME up or down arrow button to change the delay time from 1 hour to 24 hours.

7. Timer On indicator light will remain on.

PAGE 16 USING YOUR AIR CONDITIONER

STARTING THE AIR CONDITIONER cont.

TO CLEAR TIMER PROGRAM:

NOTE: Air conditioner can be either on or off.

Press TIMER until Timer indicator light turns off.

TO VIEW OR CHANGE THE REMAINING TIME (IN HOURS): TIMER OFF

1. Press the TEMP/TIME up or down arrow button to increase or decrease the time.

2. After 5 seconds, the display will show the remaining time to Timer OFF.

TIMER ON

1. The display will show the remaining time.

2. While the display is showing the remaining time, press the TEMP/TIME up or down arrow button to increase or decrease the time.

3. After 5 seconds, the display will show the remaining time to Timer ON.

ENGLISH

SLEEP

1. Press the TIMER button to choose Sleep mode. The indicator light will turn on.

2. The temperature will increase by 2˚F 1 hour after the mode is chosen. The temperature then increases another 2˚F after 1 hour. The unit will hold this temperature for 6 hours then stops.

3. To turn off Sleep mode, press the TIMER button until the indicator light is off.

TEMP/TIME

1. Press the TEMP/TIME up arrow button to raise the temperature. Each time you press the

TEMP/TIME up arrow button, the temperature will go up 1°F until it reaches 86°F (30°C).

NOTE: After 5 seconds, under Fan mode,the display will show the current temperature,Under Cool,Energy Save or Dehum mode,the display will show the set temperature.

Press the TEMP/TIME down arrow button to lower the temperature. Each time you press the

TEMP/TIME down arrow button, the temperature will go down 1°F until it reaches 61°F (16°C).

NOTE: After 5 seconds, under Fan mode, the display will show the current temperature. Under

Cool, Energy Save or Dehum mode, the display will show the set temperature.

USING YOUR AIR CONDITIONER PAGE 17

STARTING THE AIR CONDITIONER cont.

ENGLISH

FILTER RESET

This feature automatically notifies you that the air filter must be cleaned. The indicator light will

come on after 240 hours of operation. Clean the air filter (refer to Care and Cleaning), place it back

in the front panel, and press the Filter Reset button. The light will turn off.

NOTE: The raised dots are Braille for the visually impaired. (See Fig.23)

Remote control may differ in appearance from the image shown.

NOTE: Remove and discard protective film prior to use. The remote control runs

POWER

Press ON/OFF to turn on the air conditioner.

USING THE REMOTE CONTROL

on one CR2025 battery (included). Replace battery after 6 months of use,

or when the remote control starts to lose power. To change battery, first remove screw on back panel of remote.

ON/OFF

MODE

SPEED

TIMER

TEMP/TIME

Mode Press MODE to choose Fan, Cool, Energy Save or Dehum. Speed

Fig. 23

Press SPEED to choose High, Med, Low or Auto Cool.

TIMER

To set the air conditioner to turn off after a set amount between 1 hour and 24 hours (unit must be ON):

1. Press TIMER. Timer OFF indicator light on the air conditioner control panel will flash.

2. Press the TEMP/TIME up or down arrow button to change the delay time from 1 hour to 24 hours.

3. After 5 seconds, Timer OFF indicator light on the air conditioner control panel will remain on.

TO SET TIMER TO TURN ON THE AIR CONDITIONER, KEEPING PREVIOUS SETTINGS:

1. Turn on the air conditioner.

2. Press TIMER. Timer On indicator light on the air conditioner control panel will flash

3. Press the TEMP/TIME up or down arrow button to change the delay time from 1 hour to 24 hours.

4. After 5 seconds, Timer On indicator light on the air conditioner control panel will remain on.

PAGE 18 USING YOUR AIR CONDITIONER

USING THE REMOTE CONTROL cont.

TO SET TIMER TO TURN ON THE AIR CONDITIONER, CHANGING THE PREVIOUS SETTINGS:

1. Turn on the air conditioner.

2. Adjust the mode to Fan,Cool,Energy Save or Dehum.

3. For Fan or Dehum mode,adjust the fan speed to High,Med or Low. For Cool or Energy Save mode,adjust the fan speed to High,Med, Low or Auto Cool.

4. Adjust the temperature between 61°F and 86°F (16°C and 30°C).

NOTE: In Fan mode, the temperature cannot be set.

5. Press TIMER. Timer On indicator light on the air conditioner control panel will flash. Display will show remaining hours before the air conditioner will turn on.

6. Press the TEMP/TIME up or down arrow button to change the delay time from 1 hour to 24 hours.

7. Timer On indicator light on the air conditioner control panel will remain on.

ENGLISH

TO CLEAR TIMER DELAY PROGRAM:

NOTE: Air conditioner can be either on or off.

Press TIMER until Timer indicator light turns off.

TO SEE OR CHANGE THE REMAINING TIME (IN HOURS): TIMER OFF:

1. Press the TEMP/TIME up or down arrow button to increase or decrease the time.

2. After 5 seconds, the display on the air conditioner control panel will show the remaining time to Timer Off.

TIMER ON:

1. Display on the air conditioner control panel will show remaining time.

2. While the display is showing the remaining time, press the TEMP/TIME up or down arrow button to increase or decrease the time.

USING YOUR AIR CONDITIONER PAGE 19

USING THE REMOTE CONTROL cont.

ENGLISH

SLEEP

1. Press the TIMER button to choose Sleep mode. The indicator light will turn on.

2. The temperature will increase by 2F˚ 1 hour after the mode is chosen. The temperature then

3. To turn off Sleep mode, press the TIMER button until the indicator light is off.

TEMP/TIME

• Press the TEMP/TIME up arrow button to raise the temperature. Each time you press the TEMP/

• Press the TEMP/TIME down arrow button to lower the temperature. Each time you press or

The air directional louvers let you control the direction of the airflow. The airflow can be directed up-down or left to right. (See Fig.24)

Vent: The Fresh Air vent (on some models) allows the air

conditioner to recirculate inside air, draw fresh air into the room,

and exhaust stale air to the outside.

increases another 2F after 1 hour. The unit will hold this temperature for 6 hours then stops.

TIME up arrow button, the temperature will go up 1°F until it reaches 86°F (30°C).

hold the TEMP/TIME down arrow button, the temperature will go down 1°F until it reaches 61°F

(16°C).

CHANGING THE AIR DIRECTION

Fig. 24

NOTE: For the following models only: ESA410M ESA412M A. 4-Way Air Flow B. Fresh Air Vent

PAGE 20 USING YOUR AIR CONDITIONER

NORMAL SOUNDS OF AN AIR CONDITIONER

NORMAL SOUNDS

While your air conditioner is operating, it is normal to hear the following sounds:

Your new air conditioner is designed to give you many years of dependable service. This section tells you how to clean and care for your air conditioner properly.

SOUNDS REASON

Air movement Air rotating around the fan.

Window vibration Installation not correct. Refer to Install section

Pinging

High pitched hum The compressor turning on and off.

Clicking The thermostat turning on and off.

Gurgling Refrigerant moving through the evaporator (inside) coil.

Water droplets being thrown against the condenser (outside) coil. This

helps cool the condenser coil.

ENGLISH

USING YOUR AIR CONDITIONER PAGE 21

CLEANING THE AIR FILTER

ENGLISH

The air filter is removable for easy cleaning. A clean air filter helps remove dust, lint, and particles from the air for optimal cooling and operating efficiency. The Filter Reset light will turn on to notify you that the air filter must be cleaned. The light goes on after the air conditioner has been operating for 240 hours.

1. Turn off the air conditioner and unplug the power supply cord from the outlet.

2. Remove the air filter by opening the front panel and removing the air filter. Some models may

3. Use a vacuum cleaner with the hose attachment to clean the air filter. If the air filter is very

have a filter that slides out instead and does not require opening of the front panel. (See Fig.25

& Fig.26)

Fig. 25

dirty, wash it in warm water with a mild detergent. Do not wash the air filter in a dishwasher or clothes washer, or use any chemical cleaners. Do not use a clothes dryer or microwave oven to dry it. Air-dry the air filter completely before placing it back in the unit.

Fig. 26

4. Place the air filter back in the air conditioner.

5. Close the front panel.

6. Plug the power supply cord into the outlet, turn on the air conditioner and press the filter reset button to turn off the indicator light.

NOTE: Do not operate the air conditioner without the filter in place.

PAGE 22 CARING FOR YOUR AIR CONDITIONER

+ 56 hidden pages
