Haier XQBM20-E, BW-Z20A, BW-Z20B, JW-Z20A User Manual

Names of the parts.............the 2nd cover

Safety precautions .............................1

Installation and adjustment .................3

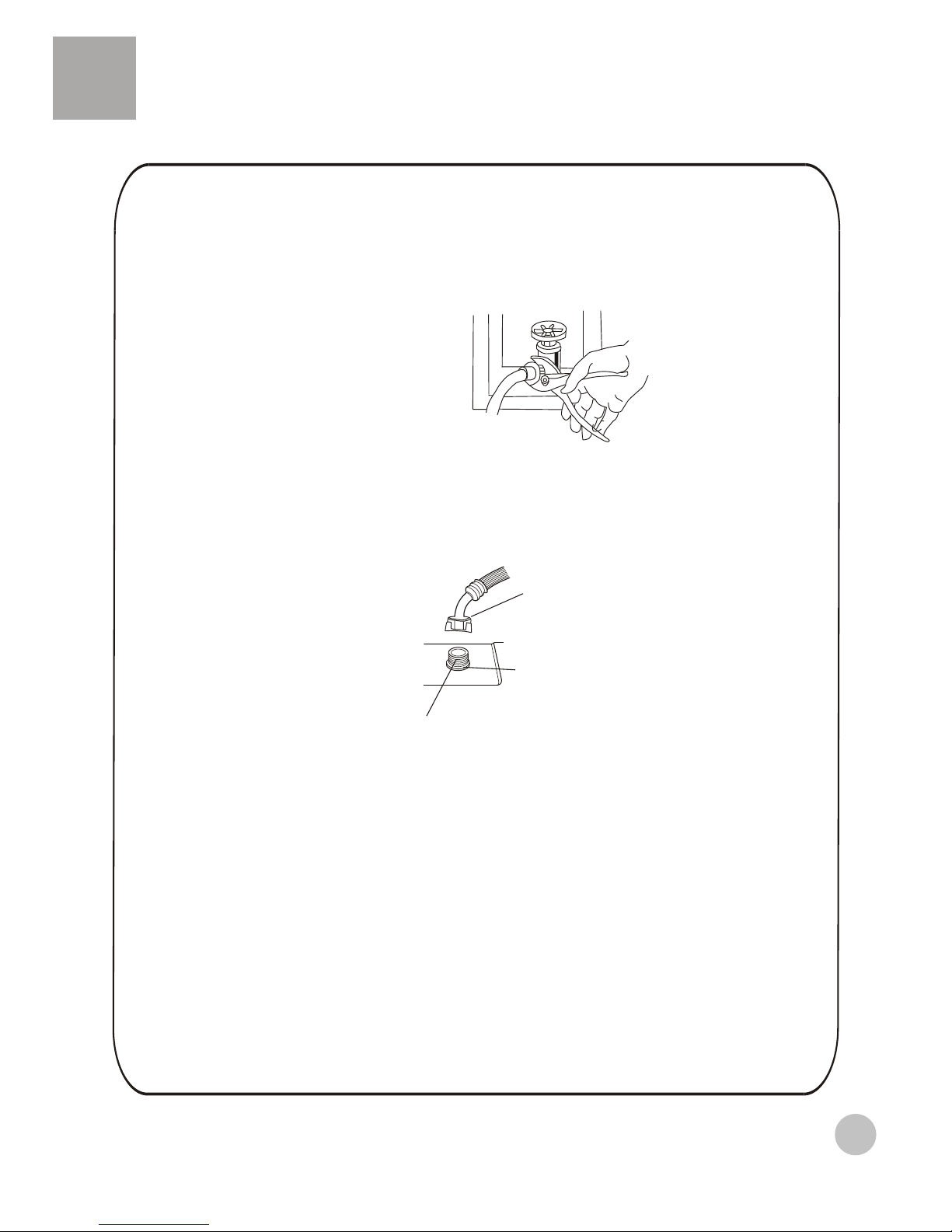

Install the water inlet hose..................5

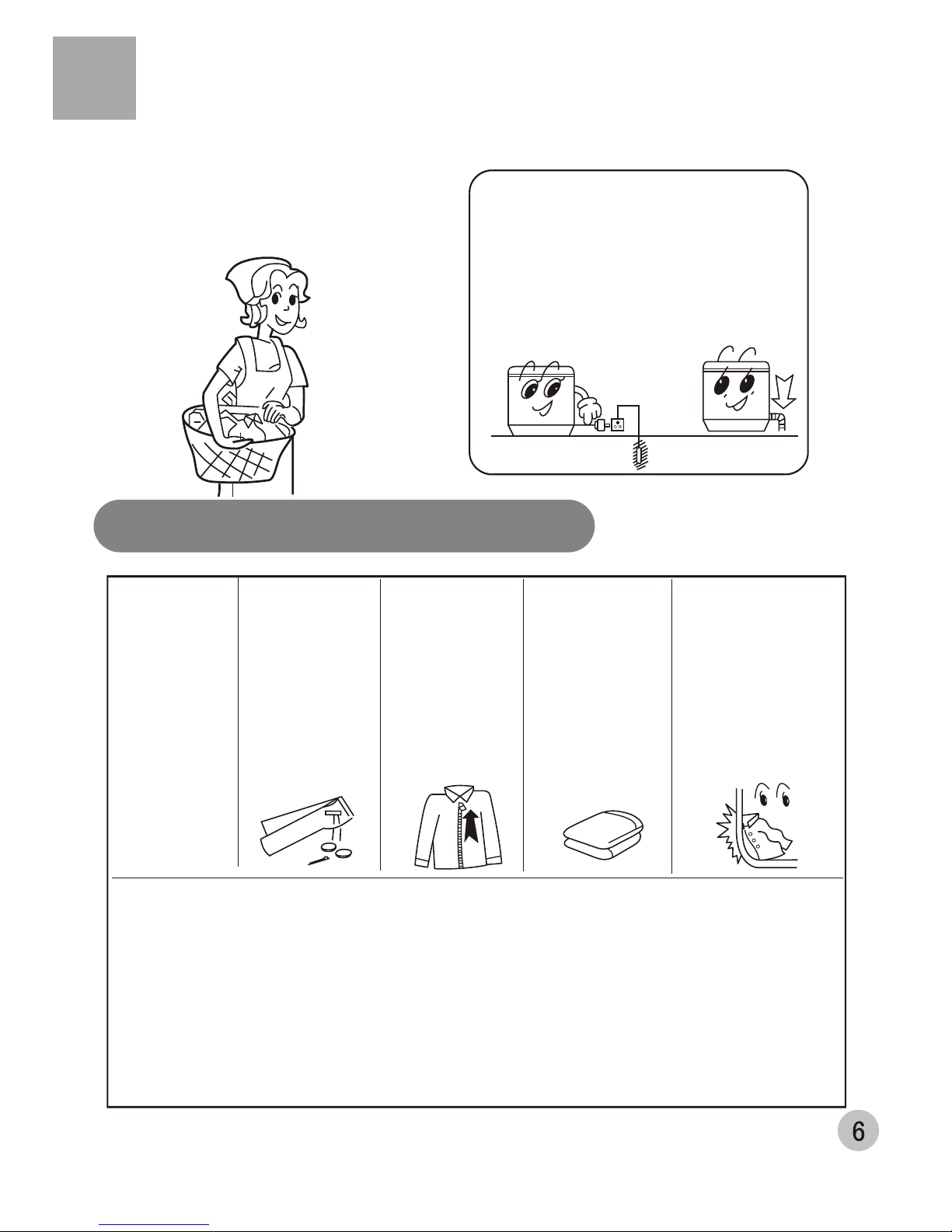

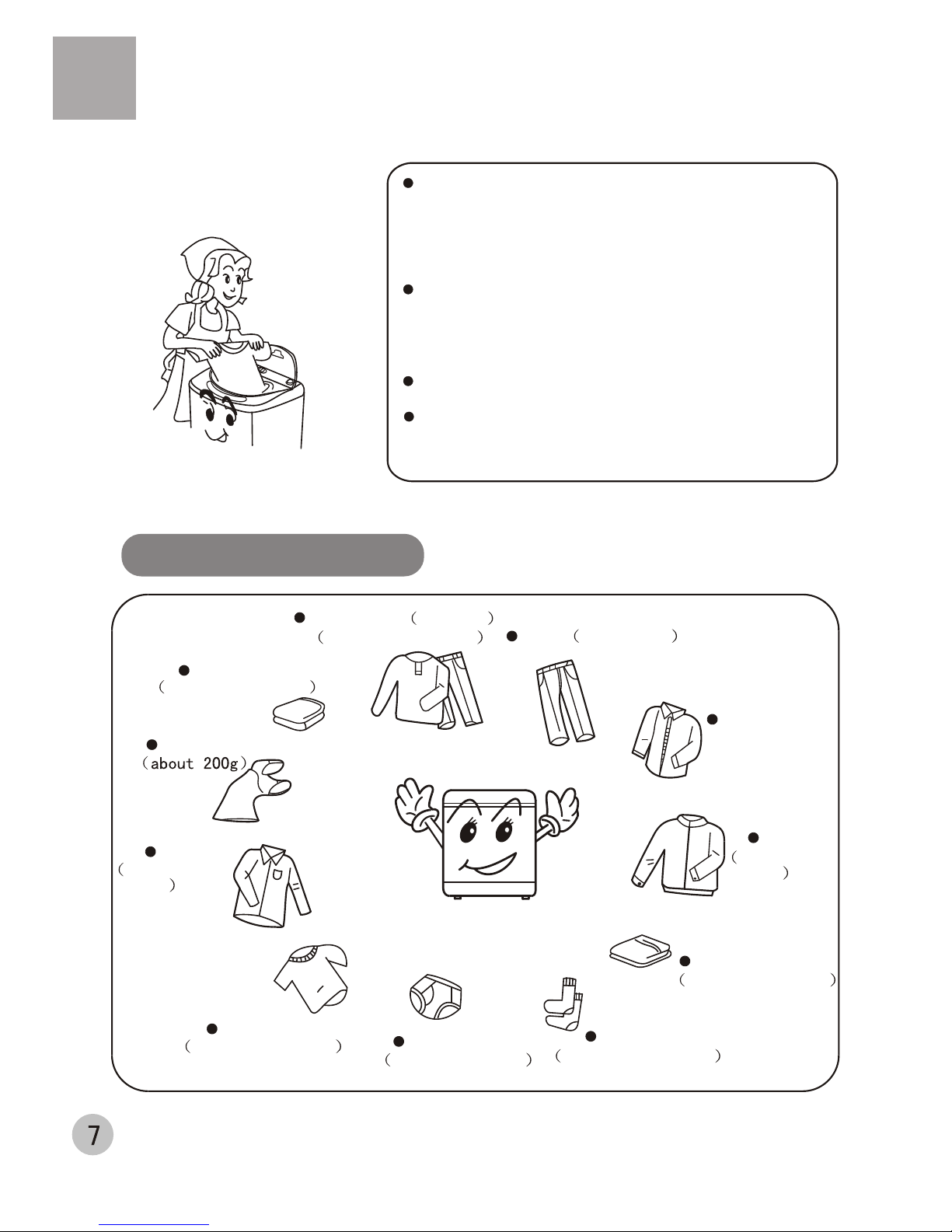

Preparation before washing .............7

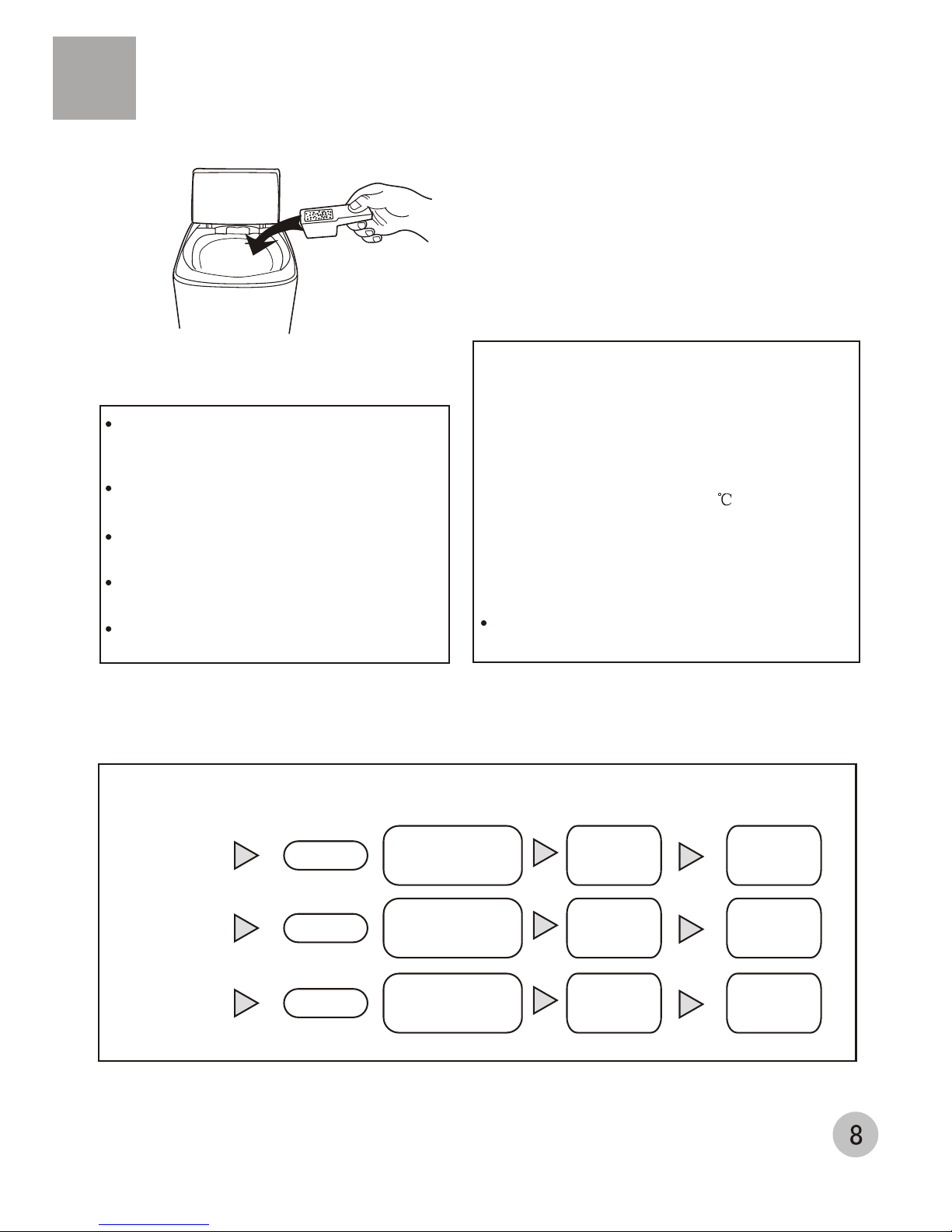

Put in the laundries ............................8

Add the detergent ..............................9

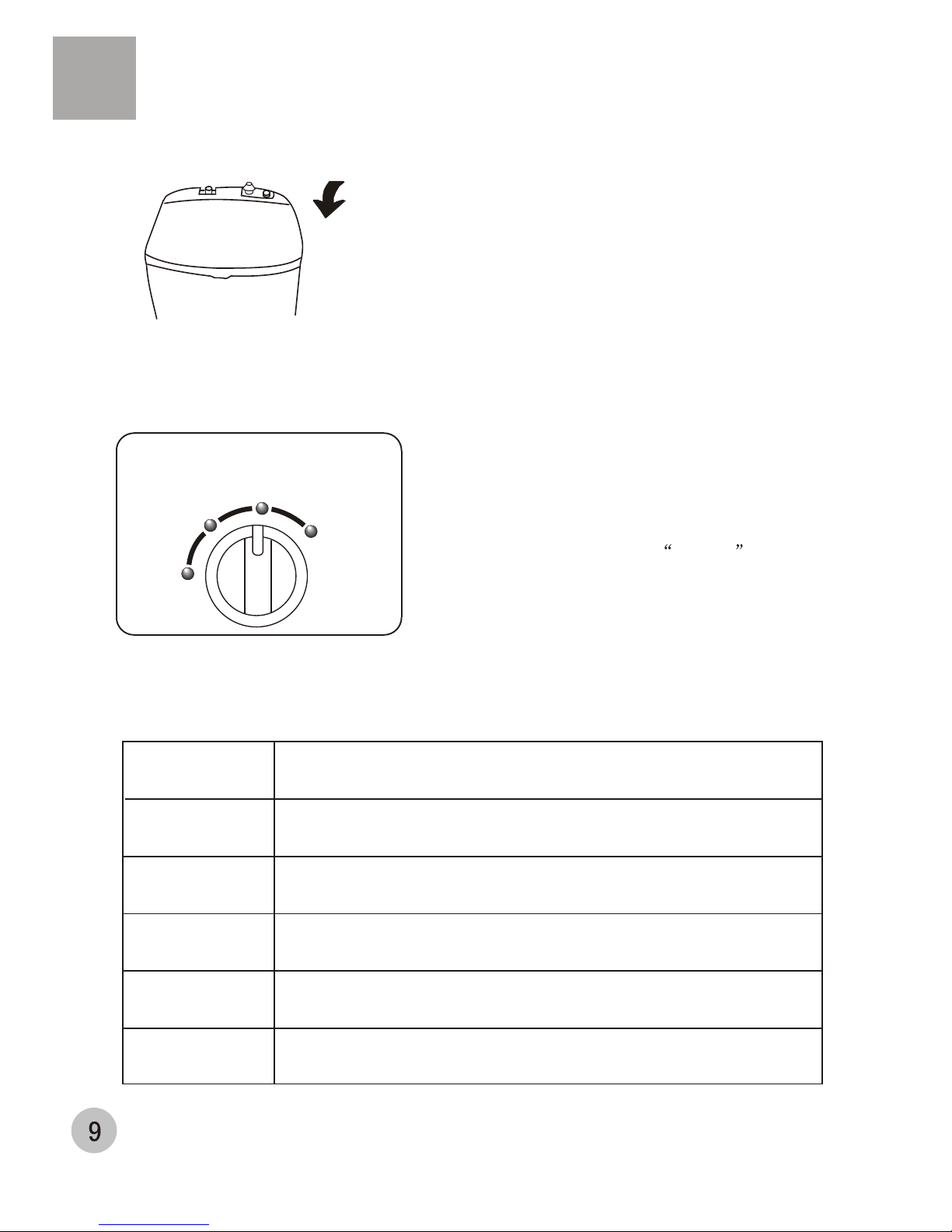

Close the top lid ...............................10

Select water level .............................10

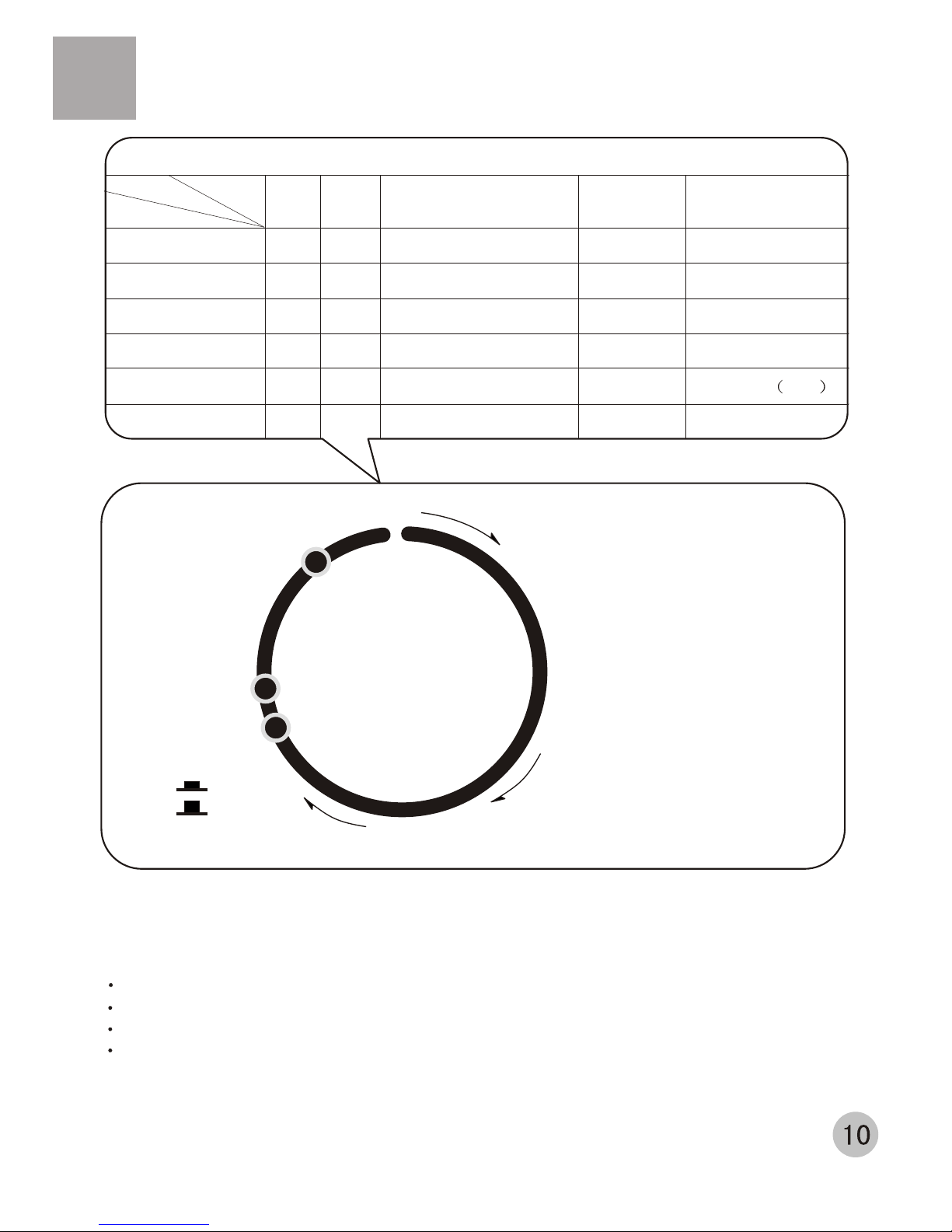

Select program .................................10

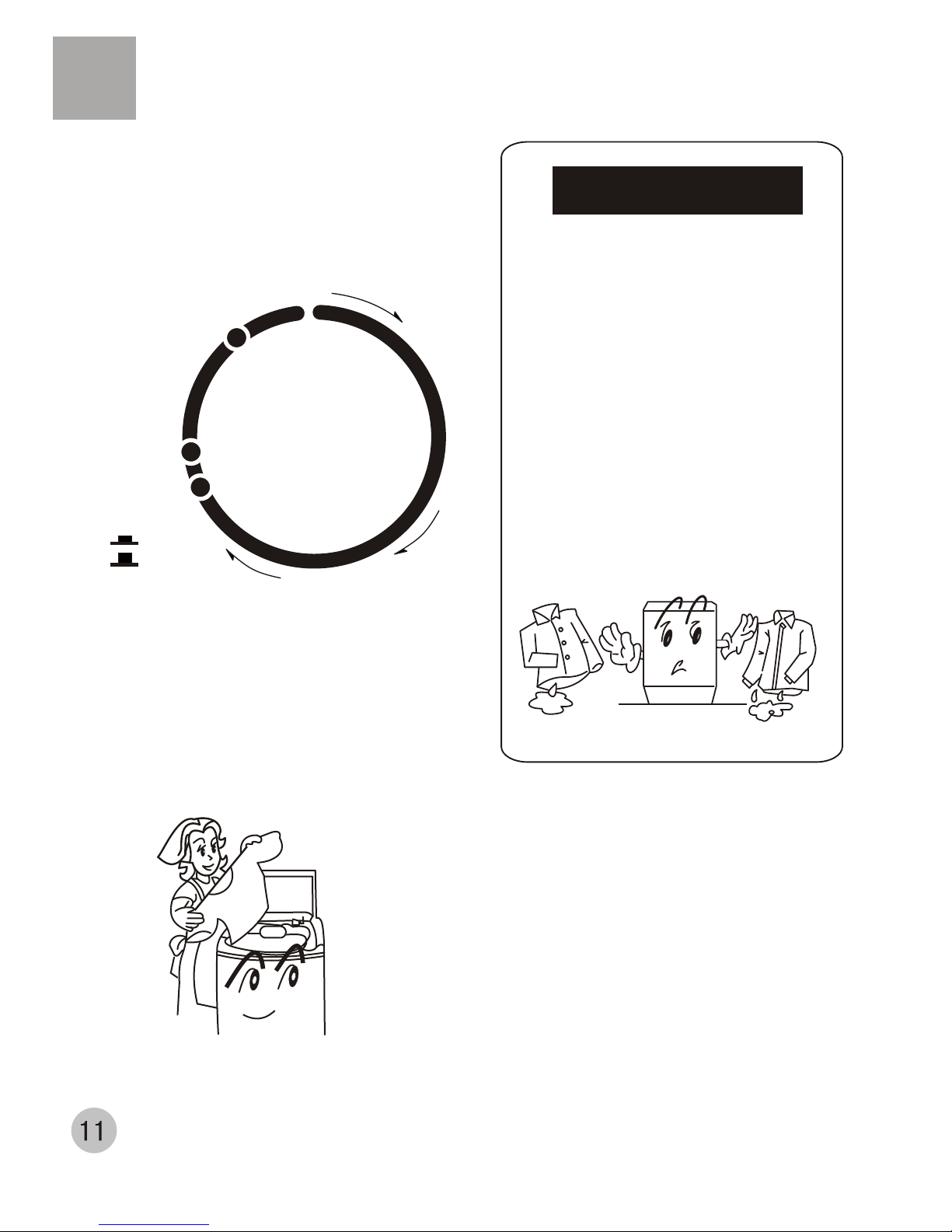

Turn the knob. .................................12

The washing is finished ...................12

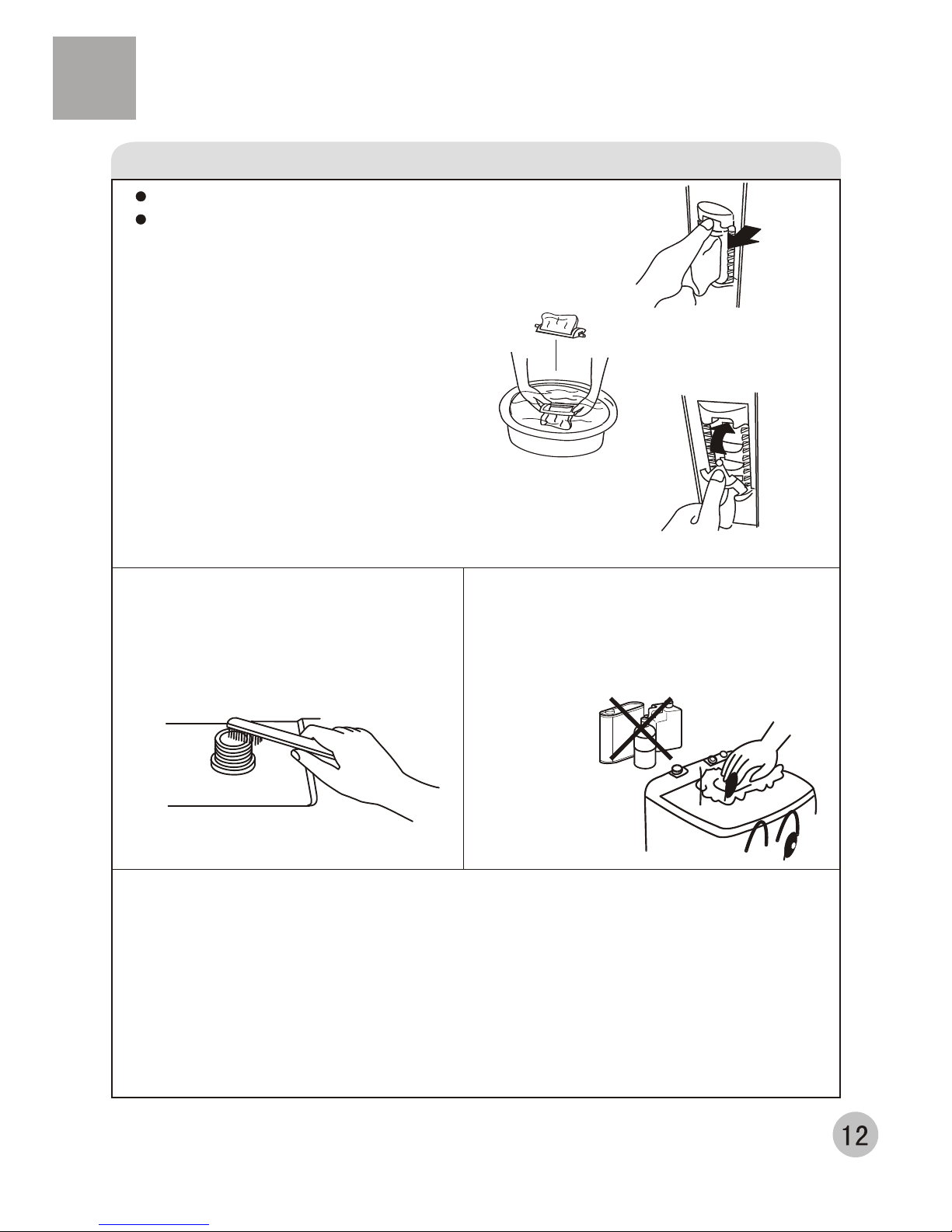

Disposal after washing .....................13

Trouble shooting Answer to question......14

Packing list .......................................15

Specification.................the back cover

Contents

Before using

Using process

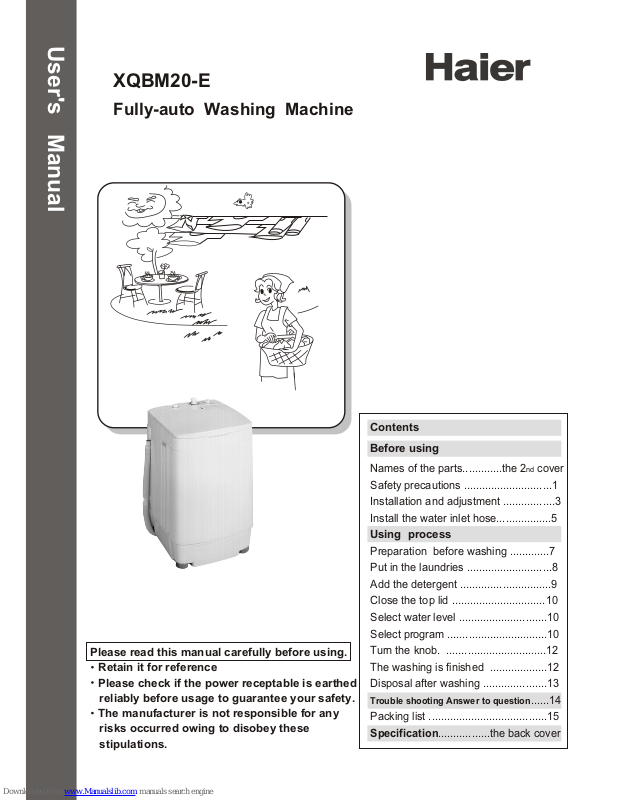

User's Manual

Fully-auto Washing Machine

XQBM20-E

Please read this manual carefully before using.
Retain it for reference
Please check if the power receptable is earthed
reliably before usage to guarantee your safety.
The manufacturer is not responsible for any
risks occurred owing to disobey these
stipulations.

Meaning and description of the symbols

ʹÓÃ֮ǰʹÓÃ֮ǰ

ʹÓÃ֮ǰʹÓÃ֮ǰ

Before Using

Before Using

Names of the parts

the end connecting
to the water inlet
hose jointer

the end connecting to
the washing machine

Warning sign

Forbidding sign

Contents marked with that symbol
are related to the safety of the
product and the personal safety
of the users. Please operate in
strictconformity to the contents,
otherwise it may cause damage
of the machine or injure the
personal safety of the user.

Contents marked with that symbol
are actions forbidden to perform.
Performing of those actions may
result in damage of the machine
or injure the personal safety of
the user.

Accessories

Adjustable foot

bottom plate
(one)

water inlet hose
(one)

ST4X16

tapping screws

(8 purchase)

Power line

Drain Hose

Handle

Back cover

Fixed Foot(3 Pcs)

Water level knob

Water inlet valve

Water absorption
gasket

Top lid

Control panel
seat

lint filter

Inner tub

Pulsator

Cabinet

Cabinet,lower

Control panel filmControl panel film

Lint filter

(one)

Before Using

Before Using

Safety precautions

If the power line is bad, to avoid risk it is required to have it replaced by the technicians
of our special shop or our agent or the after-sale service department. Keep the pin of
the power plug clean.

Do not put the machine at damp place like
the bathroom. Never wash it with water.

Do not use water hotter than 50

In case the washing machine is installed
on ground with carpet, do not block the
ventilation hole with carpet.

soft items

The ventilation holes
at the bottom

Do not let the machine share one receptacle
with other electric appliances. If the power
plug is damaged, or the plugging into the
receptacle is loose, do not use the plug any
more.

Do not wash water-proof laundries like
the raincoat, bike covers etc. to avoid
abnormal vibrations in spinning.

Be sure to earth the earthing wire reliably.

When the machine is normally using, please
put the power plug at the location easily to
be inserted and extracted by hand. Be sure
to pull the plug off when there'spower failure,
or the machine is being moved, cleaned or
when it is idle.

2

Do not decompose, repair or alter the
machine by yourself.

Do not put any hot or heavy items (such
as the kettle with hot water ) on the
washing machine.

Do not wash laundries with volatile
materials (such as thinner, petrol etc.)

The handicapped or children without
care shall not use the machine.

Keep the machine away from direct
sunlight and heat source like the heater.

Before Using

Before Using

Do not stretch hands into the working
machine. It is dangerous even if the
rotation is slow. Take special care of
the children.

P

et

ro

l

Th

inner

Safety precautions

To prevent your laundries and washing
machine from damage,be sure to take out
all of the foreign materials from your pocket,
such as coins,buttons,sand or hair pins etc.

Before washing,please check if the water
tap is open,and if the water inlet pipe is
connected properly.
It is suggested to use low-foaming washing
powder.

Please keep the lint filter in good condition,
and install it to proper position. If the lint
filter is lost or damaged, please contact
the local after-sales service department of
our company.

3

3

Before Using

Before Using

Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.

The largest allowed slope of the shank base of the machine is 2 . The slanting or
rough ground will result in unstable running or stoppage of the machine. Please
adjust it with following methods:

Confirm it's horizontal:

Adjust the adjustable foot:

Hang the lead line to confirm if it is horizontal.

After you open the package, please lean
the washing machine gently down on soft
items ( like the towel cloth, blanket, etc. ).
Install the bottom plate to the bottom of
the machine with the eight screws by
a cross screwdriver, then lift the machine
up gently. See to the figure:

Adjust the installation position

soft items

Bottom plate

Screw

Loosen

Fasten

High

Low

adjustable nut

adjustable foot

Back

Front

1.To twist the adjustable foot, please first
lift up the side of the foot slightly, loosen
the adjustable nut, and twist the foot.

2.Fasten the nut after adjustment.

Installation and adjustment

4

1.Lean the machine down gently with the front
surface facing the ground. Loosen the eight
screws by a cross screwdriver.

3.Extend the drain hose from the left side. Push the

drain hose into the groove with hands.

4.Install the bottom plate (as per indicated before),

then lift the machine up gently.

2.Pull out the drain hose from the groove at the

right side.

Back

Front

Bottom plate

Soft item

Use groove at
this side after
direction changing

Page 3

Push the drain hose
into the groove with
hands at this point

Before Using

Before Using

How to change the direction of the drain hose

Usage of the drain hose

1.The height of the drain hose shall be

less than 10cm, or the drainage will not
be smooth, and cost such long time that
the machine may stop at mid way.

2.Do not trample or press the drain hose.

If the drain hose is too long, cut it at mid
point. To make smooth drainage, cut the
front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner
diameter of the extra hose shall not
less than 26mm, and the length shall
not exceed 1.5m.

If the extra hose is too long, cut it
either at A or at B point.

The drain hose shall drain smoothly
