Page 1

Service Manual

Commercial Air Conditioning

4HP 5HP Universal Outdoor Unit air conditioning

AB36NACBEA+AU36NAIBEA AC36NACBEA+AU36NAIBEA

AD36NAMBEA+AU36NAIBEA AD36NAHBEA+AU36NAIBEA

AB42NACBEA+AU42NAIBEA AC42NACBEA+AU42NAIBEA

AD42NAMBEA+AU42NAIBEA AD42NAHBEA+AU42NAIBEA

AP42NACBEA+AU42NAIBEA

Features

Auto-Restart function Group control(with a group controller)

Auto-changeover

The same outdoor unit can match with cassette \convertible\ duct type indoor unit With new environment friendly refrigerant R407C

Remotoe control and Wired remote control(Optional)

Weekly timing(with a weekly timer)

Haier Group

MANUAL CODE: SYJS-006 -03 Rev.0 .

Page 2

CONTENTS

Contents……..............................................…...………...…….1

1. Description of Products & Features…………………...…….2

2. Specifications…………………………. ………………...……6

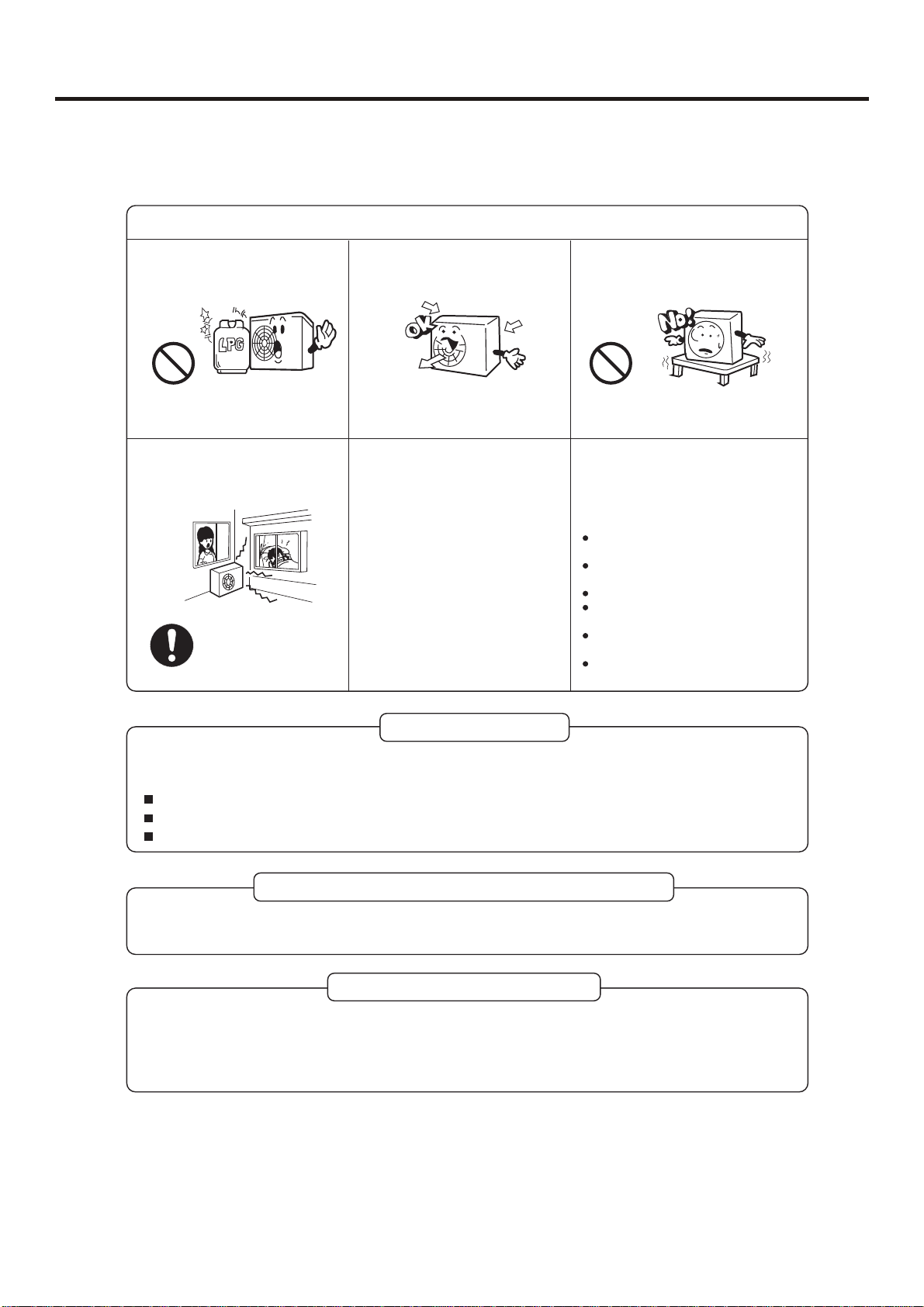

3. Safety precaution…………………………..………………….14

4. Net dimensions of indoor and outdoor unit………………...17

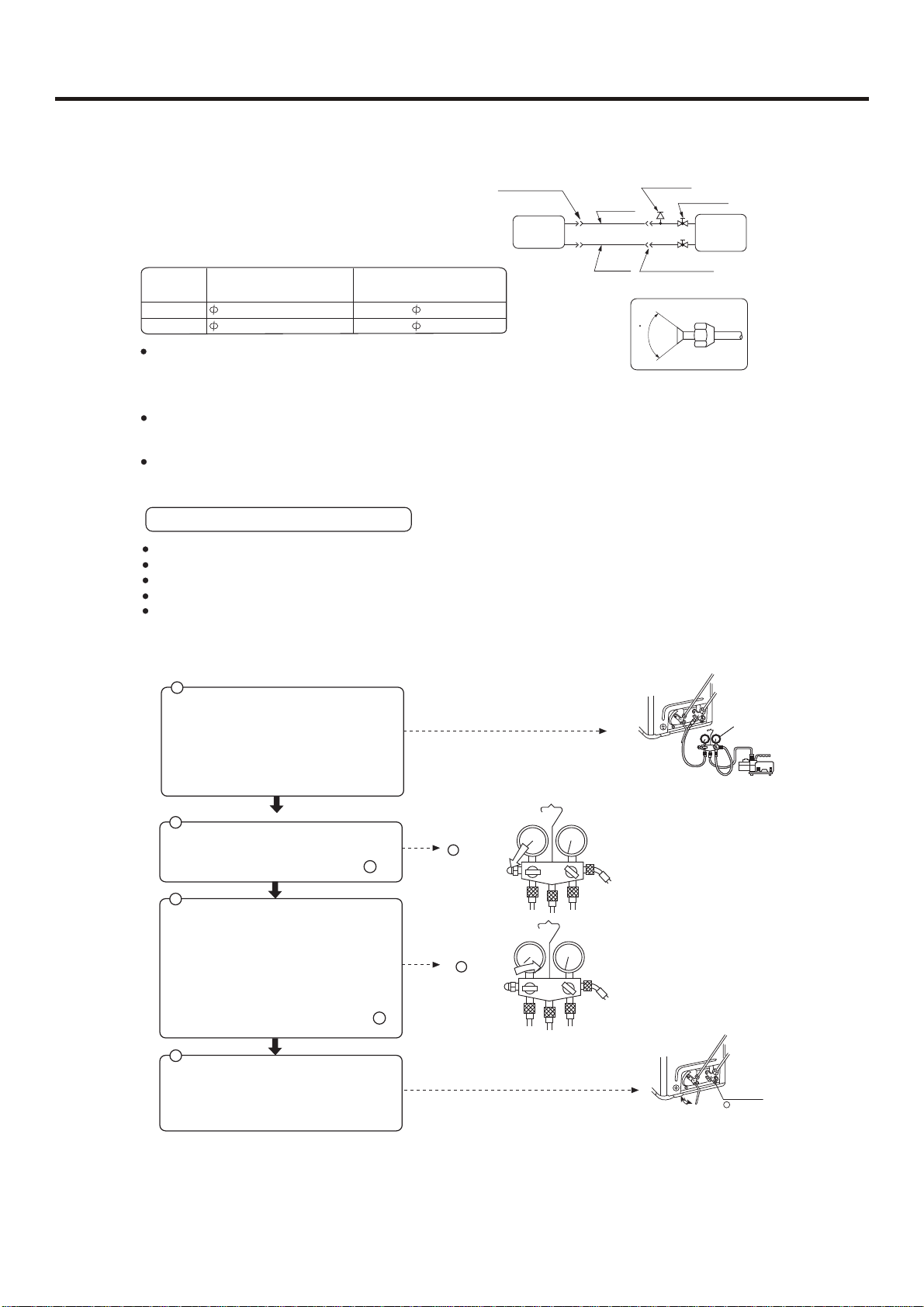

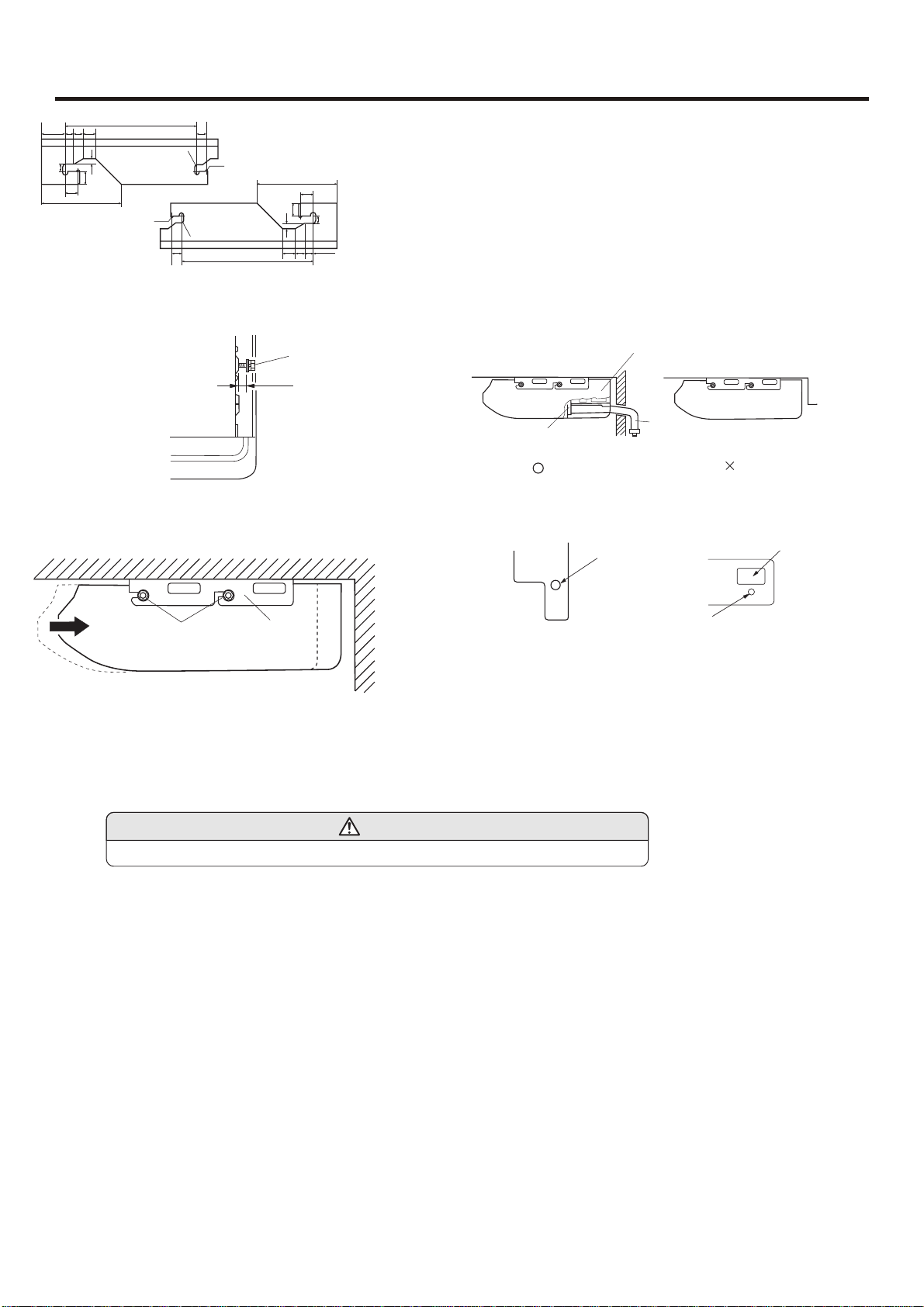

5. Installation instructions ……………………. ………………..20

6. Parts and functions …………………………..…… ..……….48

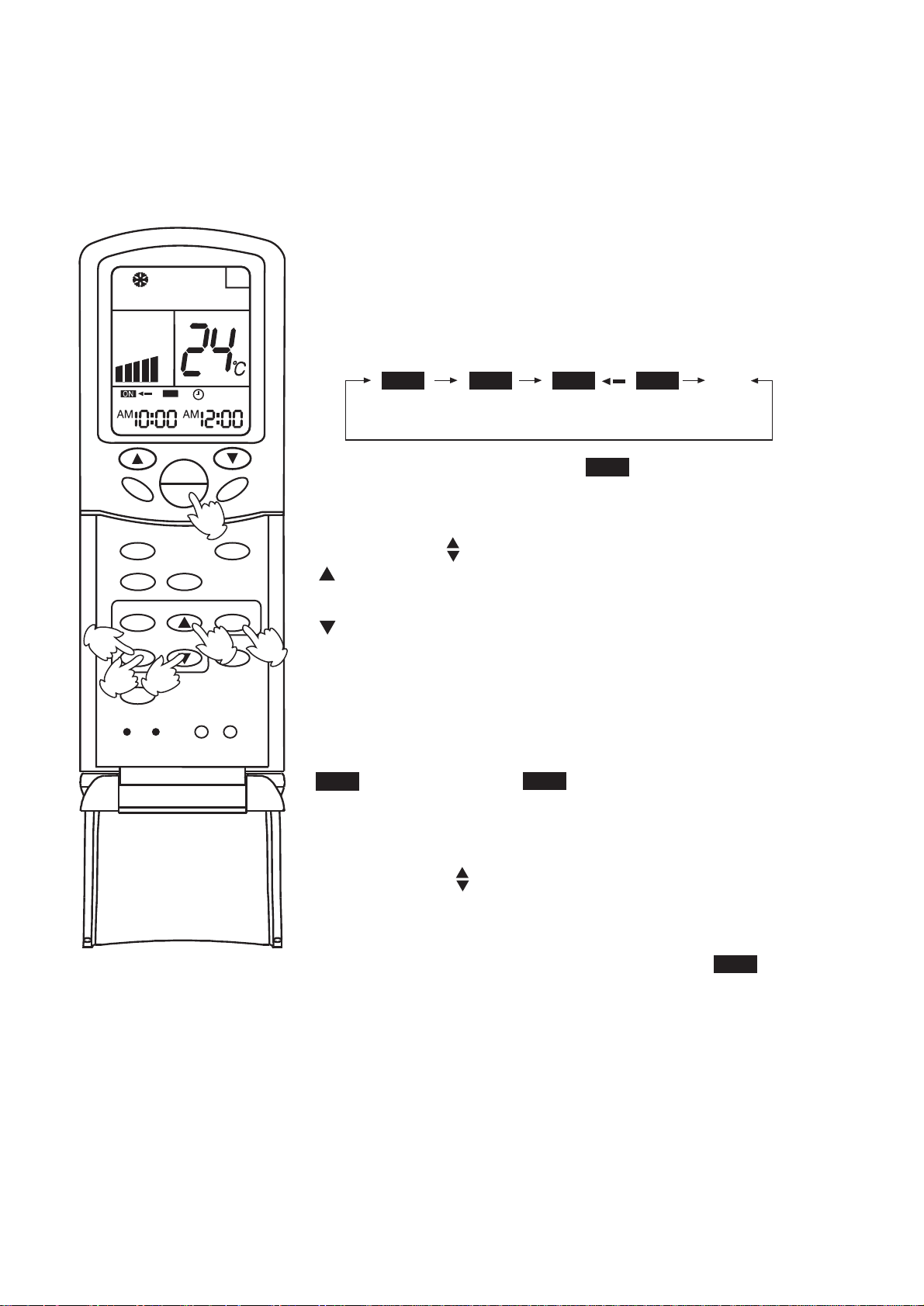

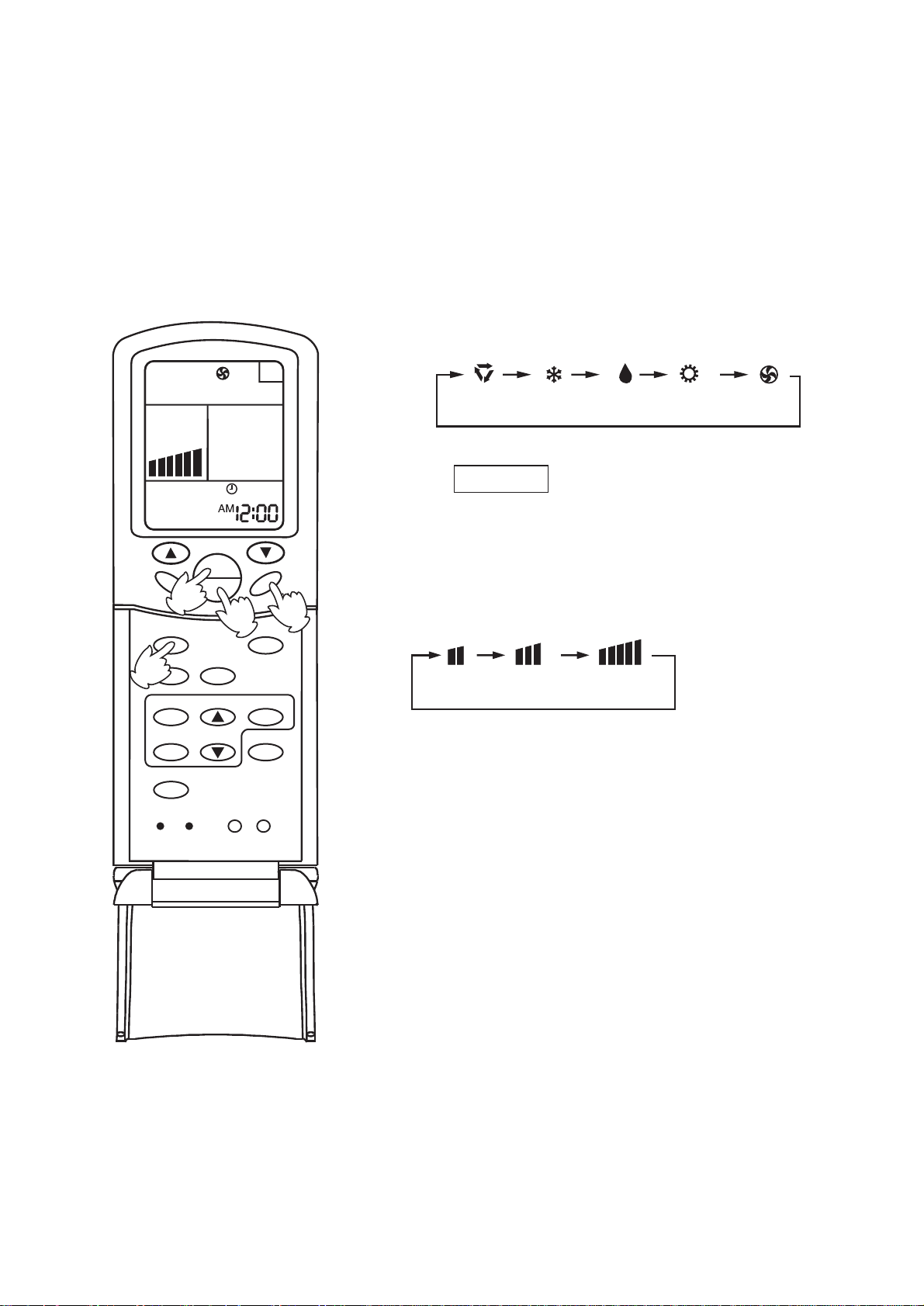

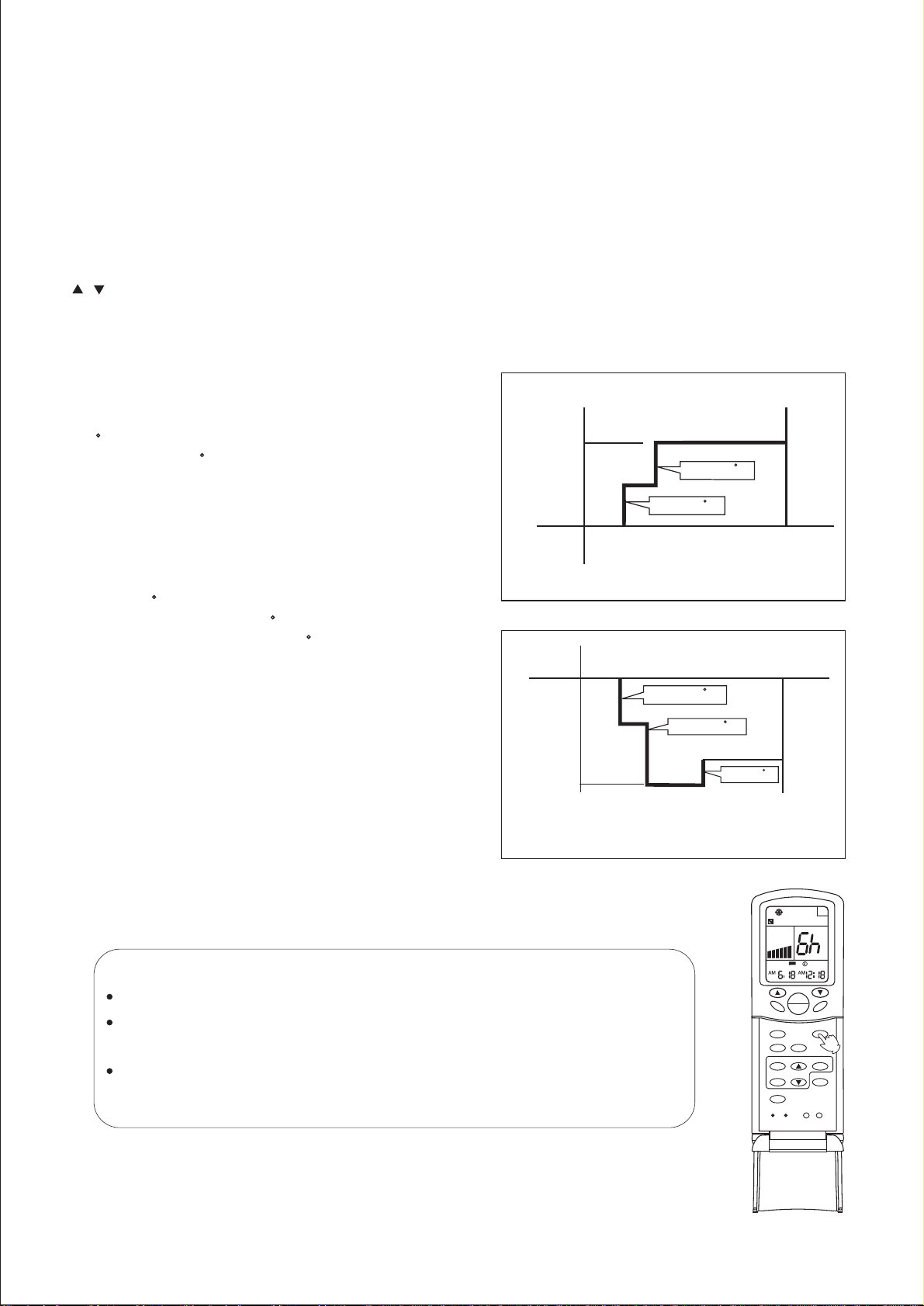

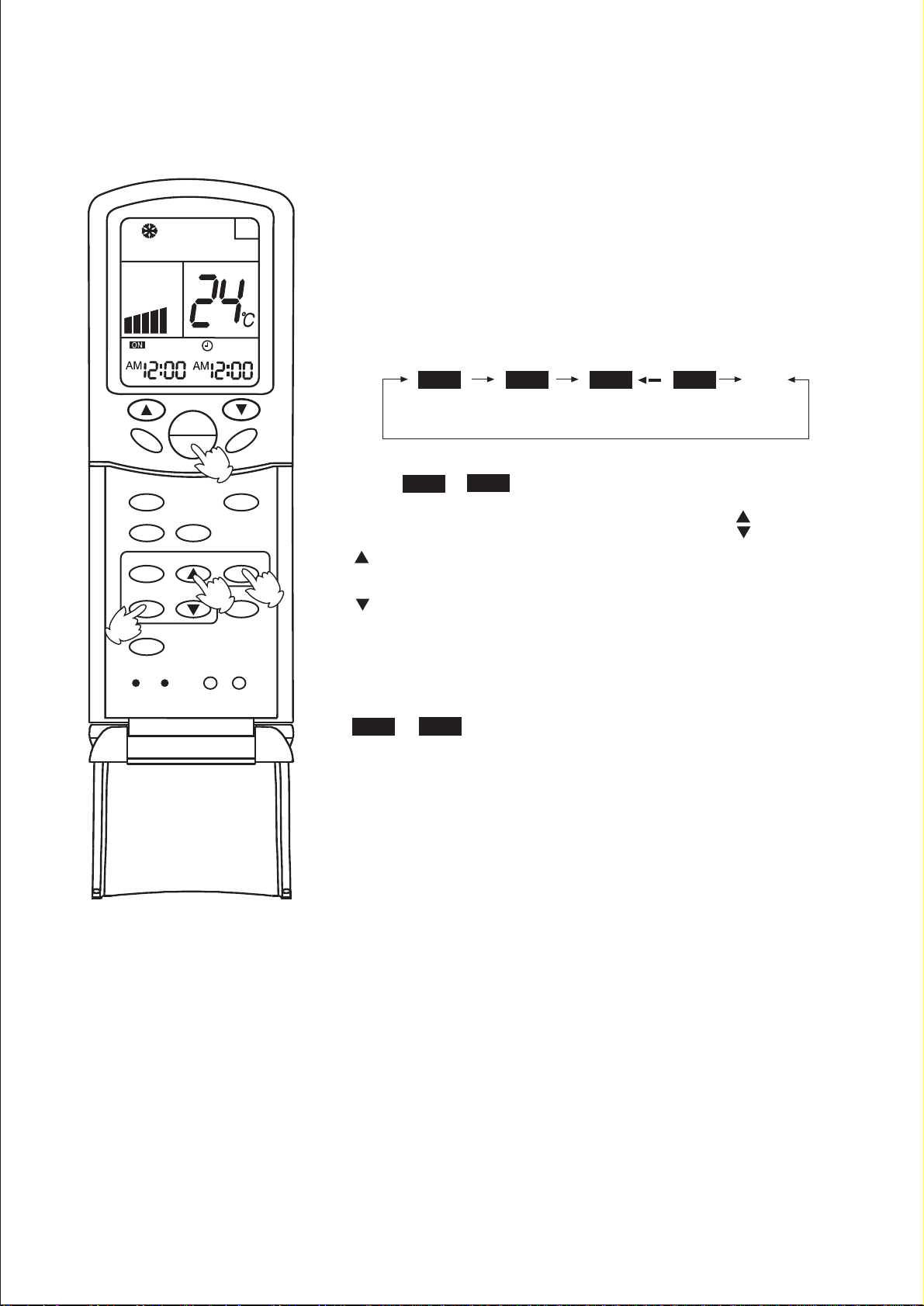

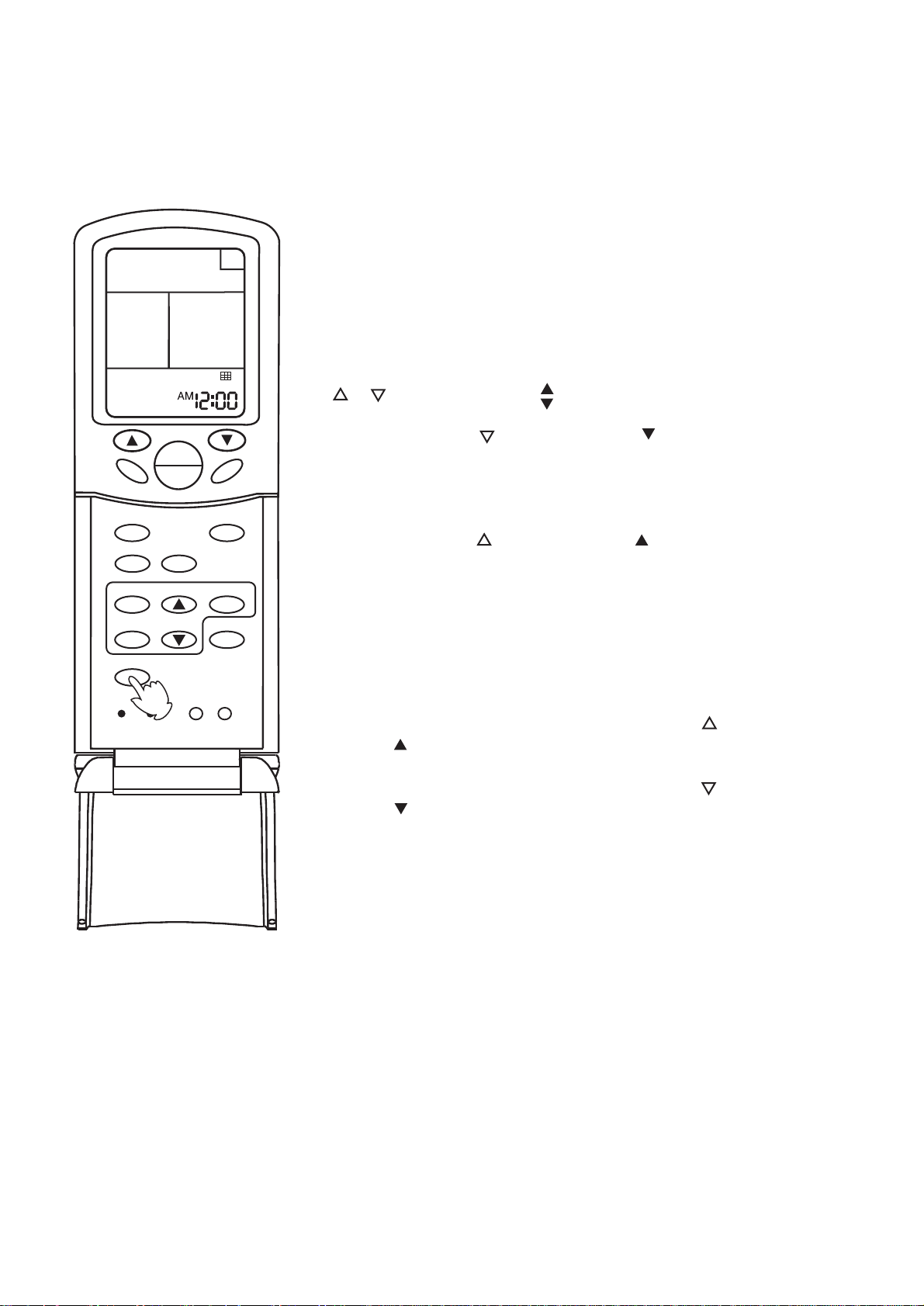

7. Remote controller functions………………………….………50

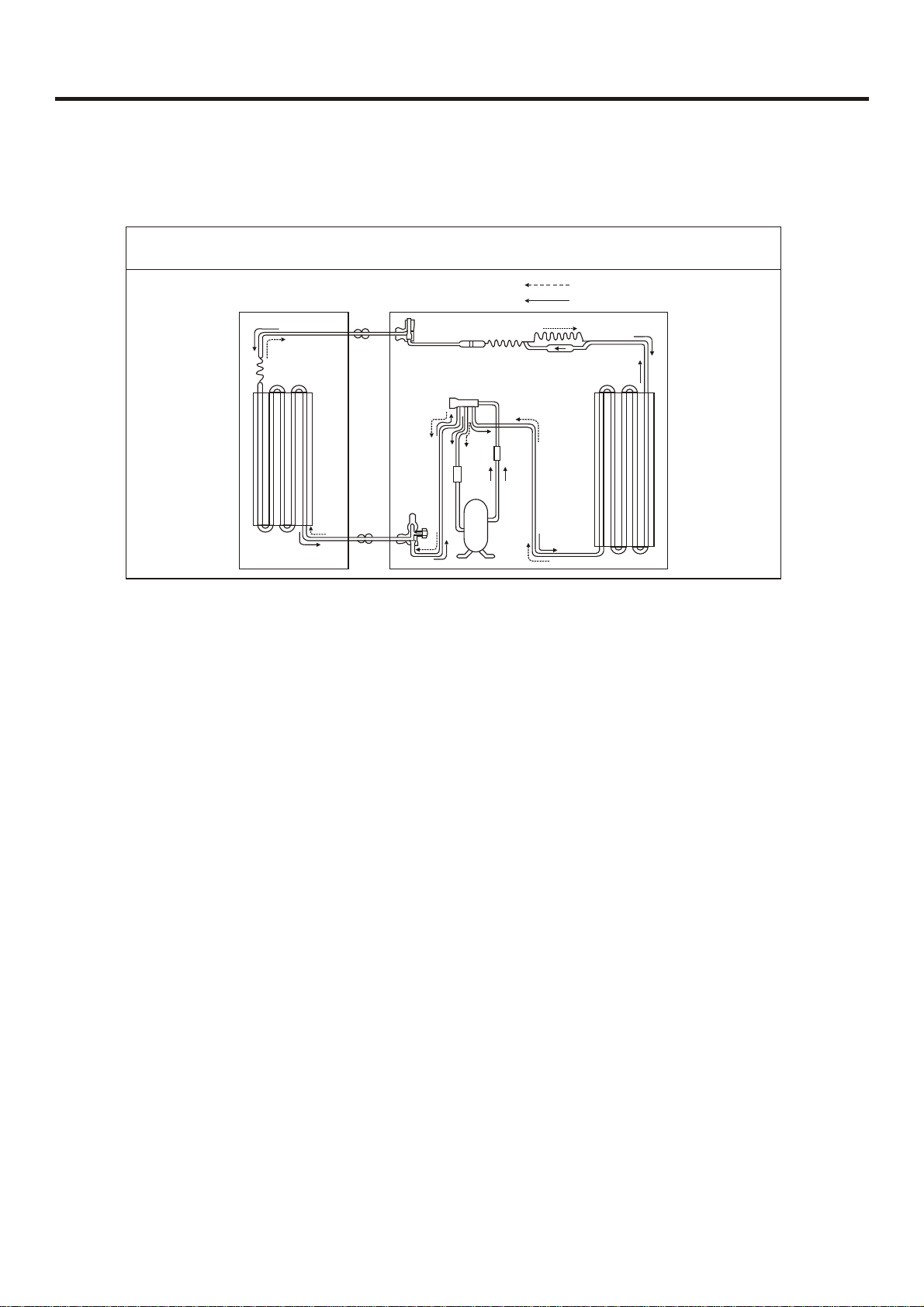

8. Refrigerant diagram…………………………..……………....71

9. Electrical control functions……………………………………72

10. Diagnostic information(trouble shooting)…………….……78

11. Electrical data.........................................…………….……85

12. Exploded views and parts lists...............……………. ……88

13. Perdormance curves……………............................... ……96

14. Noise level charts.....……………............................... ……104

15. Air velocity distribution …………............................... ……106

- 1 -

Page 3

1. Description of product code and brief introduction of the series

a) Description of the coding rule of the models

A U 36 N A I B D A

Climate type:T1

Design serial number

Product type: heat pump R407C

Appearance features

Product series:one-tag-one

Adaptive voltage:380-400V/50Hz

Product specification:valid digit above kilobi

Outdoor unit

Air conditioner

A B 36 N A C B D A

b). Standard working condition

Climate type:T1

Design serial number

Product type: heat pump R407C

Appearance features

Product series:one-tag-one

Adaptive voltage:380-400V/50Hz

Product specification:valid digit above kilobi

Product type:indoor unit

P:Cabinet typeC:Convertible type B:Cassette type D:Duct type

Air conditioner

No.

1 2

Operating Mode

Nominal Cooling

Nominal Heating

Indoor Operating Mode

Temp.

DB:27

DB:20

Humidity

WB:19

WB:15

Outdoor Operating Mode

Temp.

DB:35

DB:7 WB:6

Humidity

WB:24

Page 4

c)Brif introduction of the series:

Convertible type:

AC36NACBEA+AU36NAIBEA AC42 NACBDA+AU42NAIBEA

(1).Ceiling convertible,flexible installation,convenient

maintenance,saving the users' expenditures

(2).Adopting three-phase power supply,applicable for household

and commercial usage

(3).Dual air outlet design,floor air blowing,accelerating the indoor air

circulation, quick temperature adjustment

(4).Long-distance air blowing,large power,large cooling/heating

ratio (5).Intelligent remote control,convenient and flexible control (6).Super-slim indoor unit design,luxury and nice-looking,saving

space,harmonious and unitive with the indoor environment (7).Adopting screw-fastening for the air inlet grill,firmly

fixed;adopting slipway insert-lock fastening method for the

filter screen,convenient cleaning or replacing the filter screen

without opening the air inlet grill. (8).Group control,units up to 128 sets can be controlled .

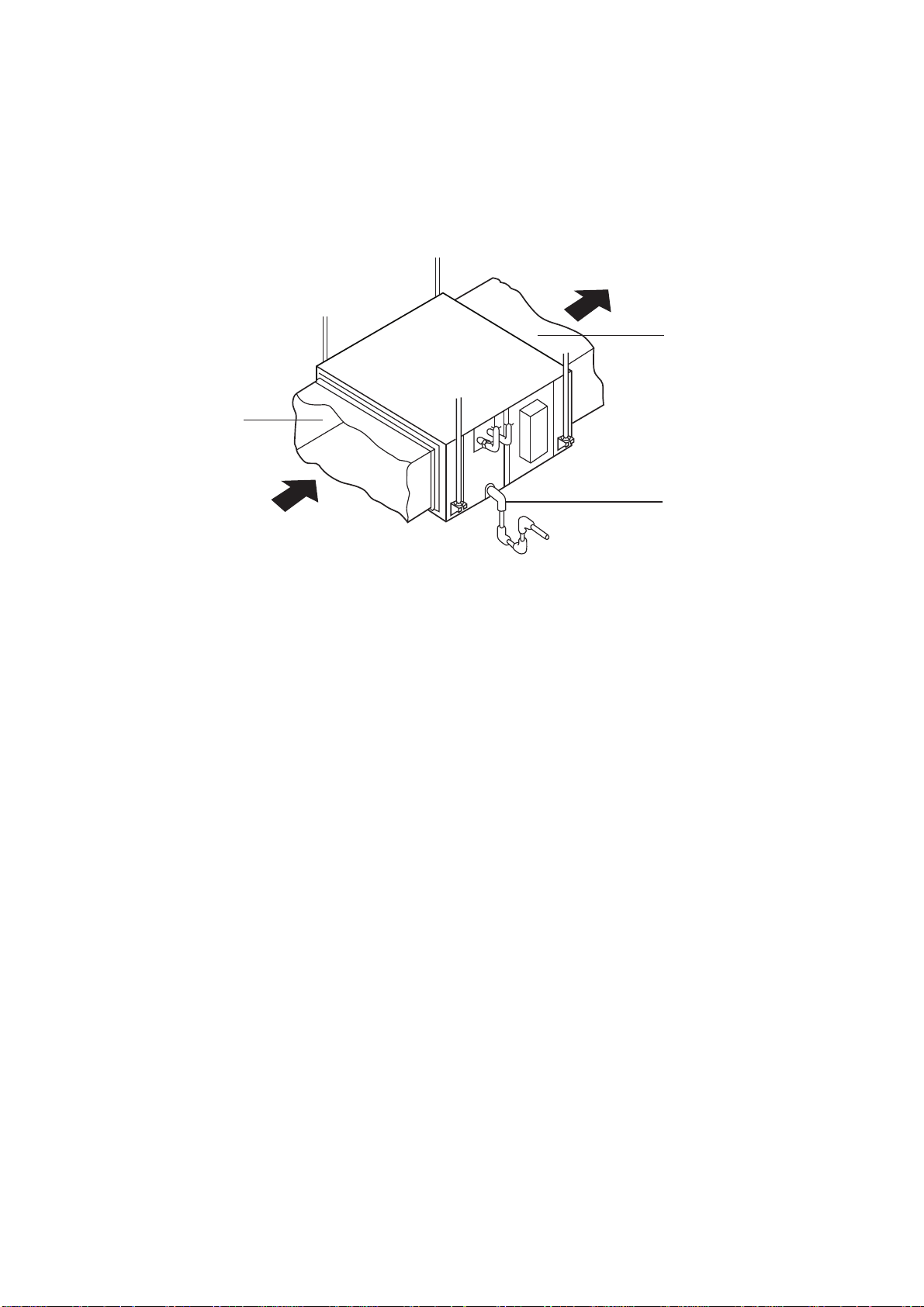

Duct type :

AD36NAMBEA+AU36NAIBEA AD42NAMBEA+AU42 NAIBEA

Totally concealed machine body

All the machine body is to be installed inside the ceiling, having no effect on the beauty of the room and without taking any room space.

Air intake via the rear air intake duct

This new design has changed the former unique pattern of air intake, and a larger distance between air intake and air return cycles as well as better air quality can be achieved.

Flexible and easier installation

The machine body is to be installed in a totally concealed way,its fan system has a longer distance coverage so as to supply its airflow to several rooms, and the indoor unit may be installed inside the ceiling of a room or corridor. The installation is simple and flexible, and there is no need to have specified personnel for management, thus cutting down the expenses; the machine is lighter and smaller, and convenient for installation, it takes an extremely small building space, thus lower the construction cost; the indoor unit is to be concealed inside the ceiling, and hence the usable space can be saved and the room decoration will not be affected.

Page 5

NEW

Cassette type:

AB36NACBEA+AU36NAIBEA AB42NACBEA+AU42NAIBE A

Products characteristic:

Completely invisible machine body:

The whole machine body is completely concealed inside the ceiling. Due to its compact size it neither breaks the harmonization of indoor decoration nor occupies the indoor spaces. The stylish look of air conditioner allows it to blend right into ceiling.

Superbly efficient healthy filter:

Superbly efficient antibiotic materials are utilized and can prevent germs from breeding efficiently .

Flexible and easy installation

Slim design with machine body, completely ceiling concealing and portable shape, all make it greatly easier to install. Moreover, it occupies least constructional spaces, which help to reduce constructional cost prices. It also features a specific drainage system with up to 600mm lift , which allows reducing installation spaces and ensures to drain smoothly. Thanks to its "smudge-free"

mobile outlet grill,

the ceiling can be protected from pollution effectively and allow the airflow to fit people's comfortable need much more

Compensation function of power failure:

When meeting a power failure during running, no matter how long it will be, once the power is restored, air conditioner will automatic restart with the previous status.

Safety and reliable control due to various signal controls

1 Inputting with press buttons on the panel 2 Inputting with temperature sensors (indoor ambient temperature sensors, indoor coil pipe temperature sensors,

3 Piping pressure signals 4 Compressor current signals

5 Testing signals

6 System time-shorten signal

7 Water overflowing signal

8 Communication signals between indoor unit and front plate or between indoor unit and outdoor unit .

Silent design

The use of radial outward flow turbine fan produces larger cyde airflow volume and acts to significantly decrease operating noise.

When using remote-controlling mode, it is comfortable and convenient to operate.

Advanced wire-controller and convenient remote-controller

The new wired controller can connect with 16 indoor units without any device such as detectors. The new remote controller can be used for single unit or muti-free unit, or H-MRV,very convenient. In addition, it can be compatible with the old remote controllers.

Low ambient temperature cooling function (optional) Equipped with high/low pressure protection switch

Page 6

d). Brief Introduction for T1\

Type of Air Conditioner

Cool only 18 43 0 35 21 52

Cool only 18 43

Heat pump -7 43 -7 35 -7 52

Electricity heating 43 35 52

T2\

T3 working condition

Climate type

T1 T2 T3

35 21 52

Page 7

ge q

(

)

2.Specifications

item Model Function Capacity BTU/h

Total power inpu Max. power inpu

EER or COP

Dehumidifying capacity Power cable Power source

Running /Max.Running

Start Current A

Unit model (color) Fan Type × Number

Speed(H-M-L) r/min Fan motor output power kW Air-flow(H-M-L) m³/h

Heat exchanger Type / Diameter mm

Total Area m² Temp. scope

Dimension

Indoor unit

Drainage pipe (material , I.D./O.D.) mm Control type (Remote /wired) Fresh air hole dimension mm

Electricity Heater Noise level (H-M-L) Weight (Net / Shipping) Dimension

Panel

Weight (Net / Shipping) Unit model (color) Compressor Model / Manufacture

Fan Type × Number

Heat exchanger Type / Diameter mm

Dimension /

Outdoor unit

Drainage pipe (material , I.D./O.D.) mm Refrigerant control method mm/mm

Defrostin Volume of Accumulato Noise level dB(A)

Type of Four way valve material of reduce noise crankcase heater power W

Weight (Net / Shipping) Refrigerant Type / Charge g

Pipe

Connecting Method

PIPING

Between I.D &O.

External Package

Type

Speed r/min Fan motor output power kW Air-flow(H-M-L) m³/h

Total area m² Temp. scope

External Package

Rechar Liquid mm Gas mm

MAX.Drop 30 MAX.Piping length 50

（L×W×H）（L×W×H）

uantit

W W

BTU/W

10‐³×m³/h

N，V，Hz

A / A

℃

mm×mm×mm

dB(A)

kg / kg

mm×mm×mm

kg / k

℃

mm×mm×mm

/ k

m m

Cooling Heating

36000 41000

4000 3800 5500 5500

9 10.8

cooling：7.5/9.5；heating：6.5/9.5；

AB36NACBEA

SANYO

3N~ 380V-400V 50HZ

AB36NACBEA(WHITE)

Centrifugal*1

30/490+40/420+50

590+

0.06

1980/-/-

TP2M/φ7

2-7

1230×840×280 1325×920×370

PVC 26/32

Remote

/ /

43/41/39

46/53

1340×950×80

1400×995×115

8.4/12

/ / / / / / / / /

/ / / /

/ /

/ / / /

R407C 3800

φ9.52

φ19.05

Falre

Page 8

item Model Function Capacity BTU/h

Total power input Max. power input

EER or COP

Dehumidifying capacity

W W

BTU/W

10‐³×m³/h

Power cable Power source

Running /Max.Running

N，V，Hz

A / A

Start Current A

Unit model (color) Fan Type × Number

Speed(H-M-L) r/min Fan motor output power kW Air-flow(H-M-L) m³/h

Heat exchanger Type / Diameter mm

Total Area m²

Dimension

Indoor unit

Temp. scope External Package

（L×W×H）（L×W×H）

℃

mm×mm×mm

Drainage pipe (material , I.D./O.D.) mm Control type (Remote /wired) Fresh air hole dimension mm

Electricity Heater Noise level (H-M-L) Weight (Net / Shipping) Dimension

External Package

Panel

Weight (Net / Shipping)

（L×W×H）（L×W×H）

dB(A)

kg / kg

mm×mm×mm

kg / kg Unit model (color) Compressor Model / Manufacture

Type

Fan Type × Number

Speed r/min Fan motor output power kW Air-flow(H-M-L) m³/h

Heat exchanger Type / Diameter mm

Total area m² Temp. scope

Dimension /

Outdoor unit

Drainage pipe (material , I.D./O.D.) mm

External Package

（L×W×H）（L×W×H）

℃

mm×mm×mm

Refrigerant control method mm/mm Defrosting Volume of Accumulator L Noise level dB(A) Type of Four way valve material of reduce noise crankcase heater power W

Weight (Net / Shipping)

kg / kg

Refrigerant Type / Charge g

Recharge quantity g/m

Pipe

Connecting Method

PIPING

Between I.D &O.

Liquid mm Gas mm

MAX.Drop 30 MAX.Piping length 50

m m

AC36NACBEA(SANYO)

Cooling Heating

36000 41000

4000 3800 5500 5500

9 10.8

3pH,380V-400V 50HZ

cooling：7.5/9.5；heating：6.5/9.5；

AC36NACBEA(WHITE)

CentrifugalX4

30/1280+30/1050+30

1350+

0.06

1600/1400/1200

TP2M/9.52

2-7

1920×715×235 1980×761×295

PVC 26/32

Remote

/ /

48/-/44

62/77

/ / /

/ / / / / / / / / /

R407C 3800

9.52

19.05 Flare

Page 9

item Model

Function

Capacity

Total power input Max. power input

EER or COP

Dehumidifying capacity

BTU/h

W W

BTU/W

10‐³×m³/h

Power cable Power source

Running /Max.Running

Start Current

N，V，Hz

A / A

Unit model (color) Fan Type × Number

Speed(H-M-L) Fan motor output power

Air-flow(H-M-L)

Heat exchanger Type / Diameter

Total Area

r/min

m³/h

m²

Temp. scope ℃

Dimension

Indoor unit

External Package

（L×W×H）（L×W×H）

Drainage pipe (material , I.D./O.D.)

mm×mm×mm

Control type (Remote /wired) Fresh air hole dimension

Electricity Heater Noise level (H-M-L) Weight (Net / Shipping) Dimension

Panel

Weight (Net / Shipping)

External Package

（L×W×H）（L×W×H）

dB(A)

kg / kg

mm×mm×mm

kg / kg

Unit model (color)

Compressor Model / Manufacture

Type

Fan Type × Number

Speed

Fan motor output power

Air-flow(H-M-L)

Heat exchanger Type / Diameter

Total area

r/min

m³/h

m²

Temp. scope ℃

Dimension /

External Package

Outdoor unit

Drainage pipe (material , I.D./O.D.)

（L×W×H）（L×W×H）

Refrigerant control method

mm×mm×mm

mm/mm

Defrosting Volume of Accumulator

Noise level

dB(A)

Type of Four way valve material of reduce noise crankcase heater power

Weight (Net / Shipping)

Refrigerant

Type / Charge Recharge quantity

Pipe

PIPING

Connecting Method

Between I.D &O.

Liquid Gas

MAX.Drop 30 MAX.Piping length 50

kg / kg

g g/m mm mm

m m

AD36NAMBEA(SANYO)

Cooling Heating

36000 41000

4000 3800 5500 5500

9 10.8

3N 380V-400V 50HZ

cooling：7.5/9.5；heating：6.5/9.5；

AD36NAMBEA(WHITE)

CentrifugalX3

1050/ 960/ 870/810

0.06

2040/1800/1600

TP2M/9.52

2-7

1410×645×350 1557×800×370

PVC 26/32

Wired

/ /

43/-/39

55/75

/ / /

/ / / / / / / / / /

R407C 3800

9.52

19.05

Flare

Page 10

item Model Function Capacity BTU/h Capacity kW Sensible heat ratio

Total power input Max. power input

EER or COP

Dehumidifying capacity Power cable Power source

Running /Max.Running

Start Current A

Unit model (color)

Type × Number

Fan

Heat exchanger

Dimension

Indoor unit

Drainage pipe (material , I.D./O.D.) mm Control type (Remote /wired) Fresh air hole dimension mm Outlet distribution hole dimension mm

Electricity Heater Noise level (H-M-L) Weight (Net / Shipping) Unit model (color)

Compressor

Fan

Heat exchanger

Dimension

Outdoor unit

Drainage pipe (material , I.D./O.D.) mm Refrigerant control method mm/mm Defrosting Volume of Accumulator L Noise level dB(A) Type of Four way valve material of reduce noise crankcase heater power W Weight (Net / Shipping)

Refrigerant

Pipe

PIPING

Connecting Method

Between I.D &O.

Norminal condition: indoor temperature (cooling): 27℃DB/19℃WB, indoor temperature (heating): 20℃DB Outdoor temperature(cooling): 35℃DB/24℃WB, outdoor temperature(heating): 7℃DB/6℃WB

Speed(H-M-L) r/min Fan motor output power kW Air-flow(H-M-L) m³/h Type / Diameter mm Total Area m² Temp. scope External Package

Model / Manufacture Type Type × Number Speed r/min Fan motor output power kW Air-flow(H-M-L) m³/h Type / Diameter mm Total area m² Temp. scope External Package

Type / Charge g Recharge quantity g/m Liquid mm Gas mm

MAX.Drop 30 MAX.Piping length 50

（L×W×H）（L×W×H）

W W

W/W

10‐³×m³/h

N，V，Hz

A / A

℃

mm×mm×mm

dB(A)

kg / kg

℃

mm×mm×mm

kg / kg

m m

coolin

36000 41000

10.55 12.01 79% /

4000 3800 5500 5500

2.64 3.16

Cooling:7.5/9.5, Heating:6.5/9.5

AD36NAHBEA

3PH 380V-400V 50HZ

AD36NAHBEA (grey)

1090/1000/930

2580/2070/1560

1197×828×355 1450×980×530

R407C 3800

heatin

centrifugal X2

0.06

TP2M/9.52

2-7

PVC 26/32

wired

/ / /

48/46/44

62/77

/ / / / / / / / / / / / / / / / / / / / /

9.52

19.05 flared

Page 11

item Model Function Capacity BTU/h

Total power input Max. power input

EER or COP

Dehumidifying capacity

W W

BTU/W

10‐³×m³/h

Power cable Power source

Running /Max.Running

N，V，Hz

A / A

Start Current A

Unit model (color) Fan Type × Number

Speed(H-M-L) r/min Fan motor output power kW Air-flow(H-M-L) m³/h

Heat exchanger Type / Diameter mm

Total Area m² Temp. scope

Dimension /

Indoor unit

External Package

（L×W×H）（L×W×H）

℃

mm×mm×mm

Drainage pipe (material , I.D./O.D.) mm Control type (Remote /wired) Fresh air hole dimension mm Electricity Heater Noise level (H-M-L) Weight (Net / Shipping) Dimension /

Panel

Weight (Net / Shipping)

External Package

（L×W×H）（L×W×H）

dB(A)

kg / kg

mm×mm×mm

kg / kg Unit model (color) Compressor Model / Manufacture

Type

Fan Type × Number

Speed r/min Fan motor output power kW Air-flow(H-M-L) m³/h

Heat exchanger Type / Diameter mm

Total area m² Temp. scope

Dimension

Outdoor unit

Drainage pipe (material , I.D./O.D.) mm

External Package

（L×W×H）（L×W×H）

℃

mm×mm×mm

Refrigerant control method mm/mm Defrosting Volume of Accumulator L Noise level dB(A) Type of Four way valve

material of reduce noise crankcase heater power W

Weight (Net / Shipping)

kg / kg

Refrigerant Type / Charge g

Recharge quantity g/m

Pipe

Connecting Method

PIPING

Between I.D &O.

Liquid mm Gas mm

MAX.Drop 30 MAX.Piping length 50

m m

AU36NAIBEA(SANYO)

Cooling Heating

36000 41000

4000 3800 5500 5500

9 10.8

3N380V-400V 50HZ

cooling：7.5/9.5；heating：6.5/9.5；

/ / / / / / / /

/ / / / / / /

/ /

AU36NAIBEA(WHITE)

C-SBN303H8A(SANYO)

Scroll

Axial-flow×2

840+30

0.15

6000

TP2M/9.52

0.92

43-60

980×340×1250

1050×440×1375

Capiliary

AUTO

64/-/-

DHF-12

XPE

91/111

R407C 3800

9.52

19.05 Flare

Page 12

ge q

item model

Function Capacity BTU/h

Total power inpu Max. power inpu

EER or COP

Dehumidifying capacity

W W

BTU/W

10‐³×m³/h

Power cable Power source

Running /Max.Running

current

N，V，Hz

A / A

Start Current A

Unit model (color) Fan Type × Number

Speed(H-M-L) r/min Fan motor output power kW Air-flow(H-M-L) m³/h

Heat exchanger Type / Diameter mm

Total Area m²

Dimension

Indoor unit

Temp. scope External Package

（L×W×H）（L×W×H）

℃

mm×mm×mm

Drainage pipe (material , I.D./O.D.) mm Control type (Remote /wired) Fresh air hole dimension mm

Electricity Heater Noise level (H-M-L) Weight (Net / Shipping) Dimension

Panel

Weight (Net / Shipping)

External Package

（L×W×H）（L×W×H）

dB(A)

kg / kg

mm×mm×mm

kg / k

Unit model (color) Compressor Model / Manufacture

Type

Fan Type × Number

Speed r/min Fan motor output power kW Air-flow(H-M-L) m³/h

Heat exchanger Type / Diameter mm

Total area m² Temp. scope

Dimension

Outdoor unit

Drainage pipe (material , I.D./O.D.) mm

External Package

（L×W×H）（L×W×H）

℃

mm×mm×mm

Refrigerant control method mm/mm Defrostin Volume of Accumulato

L Noise level dB(A) Type of Four way valve /

material of reduce noise crankcase heater power W

Weight (Net / Shipping) /

/ k

Refrigerant Type / Charge g

Pipe

Connecting Method

PIPING

Between I.D &O.

Rechar Liquid mm

Gas mm

MAX.Drop 30 MAX.Piping length 50

uantit

m m

AB42NACB

Cooling Heating

42000 48000

4800 5000 5700 7200

8.75 9.6 5

3N~ 380V-400V 50HZ

Cooling：8.3/10.2；Heating：9.5/12.6；

59.5

AB42NACBEA(WHITE)

Centrifugal

30/490+40/420+50

590+

0.06

1980/-/-

TP2M/φ7

2-7

1230×840×280 1325×920×370

PVC 26/32

Remote control

/ /

43/41/39

46/53

1340×950×80

1400×995×115

8.4/12

/ / / / / / / /

/ /

/ / / /

/ /

R407C 4000

φ9.52

φ19.05

Flare

Page 13

Item model Function Capacity BTU/h

Total power input Max. power input

EER or COP

Dehumidifying capacity Power cable Power source

Running /Max.Running

Start Current A

Unit model (color) Fan Type × Number

Speed(H-M-L) r/min Fan motor output power kW Air-flow(H-M-L) m³/h

Heat exchanger Type / Diameter mm

Total Area m² Temp. scope

Dimension

Indoor unit

Drainage pipe (material , I.D./O.D.) mm Control type (Remote /wired) Fresh air hole dimension mm

Electricity Heater Noise level (H-M-L) Weight (Net / Shipping) Dimension

Panel

Weight (Net / Shipping) Unit model (color) Compressor Model / Manufacture

Fan Type × Number

Heat exchanger Type / Diameter mm

Dimension

Outdoor unit

Drainage pipe (material , I.D./O.D.) mm Refrigerant control method mm/mm Defrosting Volume of Accumulator L Noise level dB(A) Type of Four way valve material of reduce noise crankcase heater power W

Weight (Net / Shipping)

Refrigerant Type / Charge g

Pipe

Connecting Method

PIPING

Between I.D &O.

External Package

Type

Speed r/min Fan motor output power kW Air-flow(H-M-L) m³/h

Total area m² Temp. scope External Package

Recharge quantity g/m Liquid mm Gas mm

MAX.Drop 30 MAX.Piping length 50

（L×W×H）（L×W×H）

W W

BTU/W

10‐³×m³/h

N，V，Hz

A / A

℃

mm×mm×mm

dB(A)

kg / kg

mm×mm×mm

kg / kg

℃

mm×mm×mm

kg / kg

m m

AC42NACBEA(SANYO)

Cooling Heating

42000 48000

4800 5000 5700 7200

8.75 9.6 5

3N380V-400V 50HZ

Cooling：8.3/10.2；Heating：9.5/12.6；

49.5

AC42NACBEA(WHITE)

CentrifugalX2

30/1280+30/1050+30

1350+

0.06

1600/1400/1200

TP2M/9.52

2-7

1920×715×235 1980×761×295

PVC 26/32

Remote

/ /

48/-/44

62/77

/ / / / / / / / / / / / / / / / / / / / / / / /

R407C 4000

9.52

19.05 Flare

Page 14

Item model Function Capacity BTU/h

Total power input Max. power input

EER or COP

Dehumidifying capacity Power cable Power source

Running /Max.Running

Start Current A

Unit model (color) Fan Type × Number

Speed(H-M-L) r/min Fan motor output power kW Air-flow(H-M-L) m³/h

Heat exchanger Type / Diameter mm

Total Area m² Temp. scope

Dimension

Indoor unit

Drainage pipe (material , I.D./O.D.) mm Control type (Remote /wired) Fresh air hole dimension mm

Electricity Heater Noise level (H-M-L) Weight (Net / Shipping) Dimension

Panel

Weight (Net / Shipping) Unit model (color) Compressor Model / Manufacture

Fan Type × Number

Heat exchanger Type / Diameter mm

Dimension

Outdoor unit

Drainage pipe (material , I.D./O.D.) mm Refrigerant control method mm/mm Defrosting Volume of Accumulator L Noise level dB(A) Type of Four way valve material of reduce noise crankcase heater power W

Weight (Net / Shipping)

Refrigerant Type / Charge g

Pipe

Connecting Method

PIPING

Between I.D &O.

External Package

Type

Speed r/min Fan motor output power kW Air-flow(H-M-L) m³/h

Total area m² Temp. scope External Package

Recharge quantity g/m Liquid mm Gas mm

MAX.Drop 30 MAX.Piping length 50

（L×W×H）（L×W×H）

W W

BTU/W

10‐³×m³/h

N，V，Hz

A / A

℃

mm×mm×mm

dB(A)

kg / kg

mm×mm×mm

kg / kg

℃

mm×mm×mm

kg / kg

m m

AD42NAMBEA(SANYO)

Cooling Heating

42000 48000

4800 5000 5700 7200

8.75 9.6 5

5X2.5mm

3N380V-400V 50HZ

cooling：8.3/10.2；heating：9.5/12.6；

49.5

AD42NAMBEA(WHITE)

CentrifugalX3

1050/960/ 870/810

0.06

2040/1800/1600

TP2M/9.52

2-7

1410×645×350

1450×9800×530

PVC 26/32

Wired

/ /

42/36/30

55/75

/ / / / / / / / / / / / / / /

/ / / / / / / /

R407C 4000

9.52

19.05 Flare

Page 15

item Model Function Capacity BTU/h Capacity kW Sensible heat ratio

Total power input Max. power input

EER or COP

Dehumidifying capacity Power cable Power source

Running /Max.Running

Start Current A

Unit model (color)

Type × Number

Fan

Heat exchanger

Dimension

Indoor unit

Drainage pipe (material , I.D./O.D.) mm Control type (Remote /wired) Fresh air hole dimension mm Outlet distribution hole dimension mm

Electricity Heater Noise level (H-M-L) Weight (Net / Shipping) Unit model (color)

Compressor

Fan

Heat exchanger

Dimension

Outdoor unit

Refrigerant

Pipe

PIPING

Connecting Method

Between I.D &O.

Norminal condition: indoor temperature (cooling): 27℃DB/19℃WB, indoor temperature (heating): 20℃DB Outdoor temperature(cooling): 35℃DB/24℃WB, outdoor temperature(heating): 7℃DB/6℃WB

Speed(H-M-L) r/min Fan motor output power kW Air-flow(H-M-L) m³/h Type / Diameter mm Total Area m² Temp. scope External Package

Model / Manufacture Type Type × Number Speed r/min Fan motor output power kW Air-flow(H-M-L) m³/h Type / Diameter mm Total area m² Temp. scope External Package

Type / Charge g Recharge quantity g/m Liquid mm Gas mm

MAX.Drop 30 MAX.Piping length 50

（L×W×H）（L×W×H）

W W

W/W

10‐³×m³/h

N，V，Hz

A / A

℃

mm×mm×mm

dB(A)

kg / kg

℃

mm×mm×mm

kg / kg

m m

coolin

42000 48000

12.31 14.06 79% /

4800 5000 5700 7200

2.56 2.81

Cooling: 8.3/10.2, Heating: 9.5/12.6

AD42NAHBEA

3PH 380V-400V 50HZ

AD42NAHBEA (grey)

1090+30/-/930+50

1197×828×355 1450×980×530

R407C 4000

heatin

49.5

centrifugal X2

0.06

2580/-/1560

TP2M/9.52

2-7

PVC 26/32

wired

/ / /

48/-/44

62/77

/ / / / / / / / / / / / / / / / / / / / /

9.52

19.05 flared

Page 16

item Model

ping

Function Capacity BTU/h Capacity kW

Total power input Max. power input

EER or COP

Dehumidifying capacity

W W

W/W

10‐³×m³/h

coolin

42000 50000

12.31 14.65

5000 6000 6000 7200

2.46 2.44

Power cable Power source

Running /Max.Running

N，V，Hz

A / A

Cooling:8.5/10.2 Heating:10.0/12.0；

1PH 380V-400V 50HZ

Start Current A

Unit model (color)

AP42NACBEA (white)

Type × Number

Fan

Speed(H-M-L) r/min Fan motor output power kW

590/400/350

Air-flow(H-M-L) m³/h Type / Diameter mm

Heat exchanger

Indoor unit

Dimension

Total Area m² Temp. scope External Package

（L×W×H）（L×W×H）

℃

mm×mm×mm

1820×530×310 1952×660×455

Drainage pipe (material , I.D./O.D.) mm Control type (Remote /wired) Noise level (H-M-L) Weight (Net / Shipping)

Refrigerant

Pipe

PIPING

Connecting Method

Between I.D &O.

Norminal condition: indoor temperature (cooling): 27℃DB/19℃WB, indoor temperature (heating): 20℃DB Outdoor temperature(cooling): 35℃DB/24℃WB, outdoor temperature(heating): 7℃DB/6℃WB

Type / Charge g Recharge quantity g/m Liquid mm Gas mm

MAX.Drop 30 MAX.Pi

length 50

dB(A)

kg / kg

R407C 4000

m m

AP42NACBEA

heatin

49.5

centrifugalX1

0.06

1560/-/-

TP2M/9.52

0.338

2-7

PVC 26/32

wired control

48/-/44

62/77

9.52

19.05 flared

Page 17

Item model Function Capacity BTU/h

Total power input Max. power input

EER or COP

Dehumidifying capacity

W W

BTU/W

10‐³×m³/h

Power cable Power source

Running /Max.Running

N，V，Hz

A / A

Start Current A

Unit model (color) Fan Type × Number

Speed(H-M-L) r/min Fan motor output power kW Air-flow(H-M-L) m³/h

Heat exchanger Type / Diameter mm

Total Area m²

Dimension

Indoor unit

Temp. scope External Package

（L×W×H）（L×W×H）

℃

mm×mm×mm

Drainage pipe (material , I.D./O.D.) mm Control type (Remote /wired) Fresh air hole dimension mm Electricity Heater Noise level (H-M-L) Weight (Net / Shipping) Dimension /

Panel

Weight (Net / Shipping)

External Package

（L×W×H）（L×W×H）

dB(A)

kg / kg

mm×mm×mm

kg / kg Unit model (color) Compressor Model / Manufacture

Type

Fan Type × Number

Speed r/min Fan motor output power kW Air-flow(H-M-L) m³/h

Heat exchanger Type / Diameter mm

Total area m² Temp. scope

Dimension

Outdoor unit

Drainage pipe (material , I.D./O.D.) mm

External Package

（L×W×H）（L×W×H）

℃

mm×mm×mm

Refrigerant control method mm/mm Defrosting Volume of Accumulator L Noise level dB(A) Type of Four way valve

material of reduce noise crankcase heater power W

Weight (Net / Shipping)

kg / kg

Refrigerant Type / Charge g

Recharge quantity g/m

Pipe

Connecting Method

PIPING

Between I.D &O.

Liquid mm Gas mm

MAX.Drop 30 MAX.Piping length 50

m m

AU42NAIBEA(SANYO)

Cooling Heating

42000 48000

4800 5000 5700 7200

8.75 9.6 5

3N380V-400V 50HZ

Cooling：8.3/10.2；Heating：9.5/12.6；

49.5 / / / / / / / / / / / / / / / /

/ /

AU42NAIBEA(WHITE)

C-SBN373H8A(SANYO)

Scroll

Axial-flow×2

1180+30 840+30

0.15

6000

TP2M/9.52

0.92

43-60

980×340×1225

1050×440×1375

PVC 26/32

Capiliary

Auto

64/-/-

DHF-12

XPE

91/116

R407C 4000

9.52

19.05

Flare

Page 18

SAFETY PRECAUTIONS

3 SAFETY PRECAUTIONS

Please read these "Safety Precautions" first then accurately execute the installation work. Though the precautionary points indicated herein are divided under two headings, and those points which are related to the strong possibility of an installation done in error

CAUTION

resulting in death or serious injury are listed in the section. However, there is also a possibility of serious consequences in relationship to the points listed in the section as well.

In either case, important safety related information is indicated, so by all means, properly observe all that is mentioned.

After completing the installation, along with confirming that no abnormalities were seen from the operation tests, please explain operating methods as well as maintenance methods to the user (customer) of this equipment, based on the owner's manual. Moreover, ask the customer to keep this sheet together with the owner's manual.

WARNING

CAUTION

WARNING

This system should be applied to places of office, restaurant, residence and the like. Appliaction to inferior environment such as engineering shop could cause equipment malfunction. Please entrust installation to either the company which sold you the equipment or to a professional contractor. Defects from improper installations can be the cause of water leakage, electric shocks and fires. Execute the installation accurately, based on following the installation manual. Again, improper installations can result in water leakage, electric shocks and fires. When a large air-conditioning system is installed to a small room, it is necessary to have a prior planned countermeasure for the rare case of a refrigerant leakage, to prevent the exceeding of threshold concentration. In regards to preparing this countermeasure, consult with the company from which you purchased the equipment, and make the installation accordingly. In the rare event that a refrigerant leakage and exceeding of threshold concentration does occur,there is the danger of a resultant oxygen deficiency accident. For installation, confirm that the installation site can sufficiently support heavy weight. When strength is insufficient, injury can result from a falling of the unit. Execute the prescribed installation construction to prepare for earthquakes and the strong winds of typhoons and hurricanes, etc. Improper installations can result in accidents due to a violent falling over of the unit. For electrical work, please see that a licensed electrician executes the work while following the safety standards related to electrical equipment, and local regulations as well as the installation instructions, and that only exclusive use circuits are used. Insufficient power source circuit capacity and defective installment execution can be the cause of electric shocks and fires. Accurately connect wiring using the proper cable, and insure that the external force of the cable is not conducted to the terminal connection part, through properly securing it. Improper connection or securing can result in heat generation or fire.

Take care that wiring does not rise upward, and accurately install the lid/service panel. Its improper installation can

also result in heat generation or fire.

- 14-

Page 19

SAFETY PRECAUTIONS

WARNING

When setting up or moving the location of the air conditioner, do not mix air etc. or anything other than the designated refrigerant (please see nameplate) within the refrigeration cycle. Rupture and injury caused by abnormal high pressure can result from such mixing. Always use accessory parts and authorized parts for installation construction. Using parts not authorized by this company can result in water leakage, electric shock, fire and refigerant leakage. The position of indoor unit must be above the floor 2.5m.

CAUTION

Execute proper grounding. Do not connect the ground wire to a gas pipe, water pipe, lightening rod or a telephone ground wire. Improper placement of ground wires can result in electric shock. The installation of an earth leakage breaker is necessary depending on the established location of the unit. Not installing an earth leakage breaker may result in electric shock. Do not install the unit where there is a concern about leakage of combustible gas.

The rare event of leaked gas collecting around the unit could result in an outbreak of fire.

For the drain pipe, follow the installation manual to insure that it allows proper drainage and thermally insulate it to prevent condensation. Inadequate plumbing can result in water leakage and water damage to interior items.

-15

Page 20

3 Net dimensionsof indoor unit and outdoor unit

1)Outdoor unit

185 185

1818

380

580

Screw Hole

(M10)

950

30 52

340

Power wiring Terminal

1250

Page 21

2)Indoor unit

NET DIMENSIONS OF INDOOR AND OUTDOOR UNIT

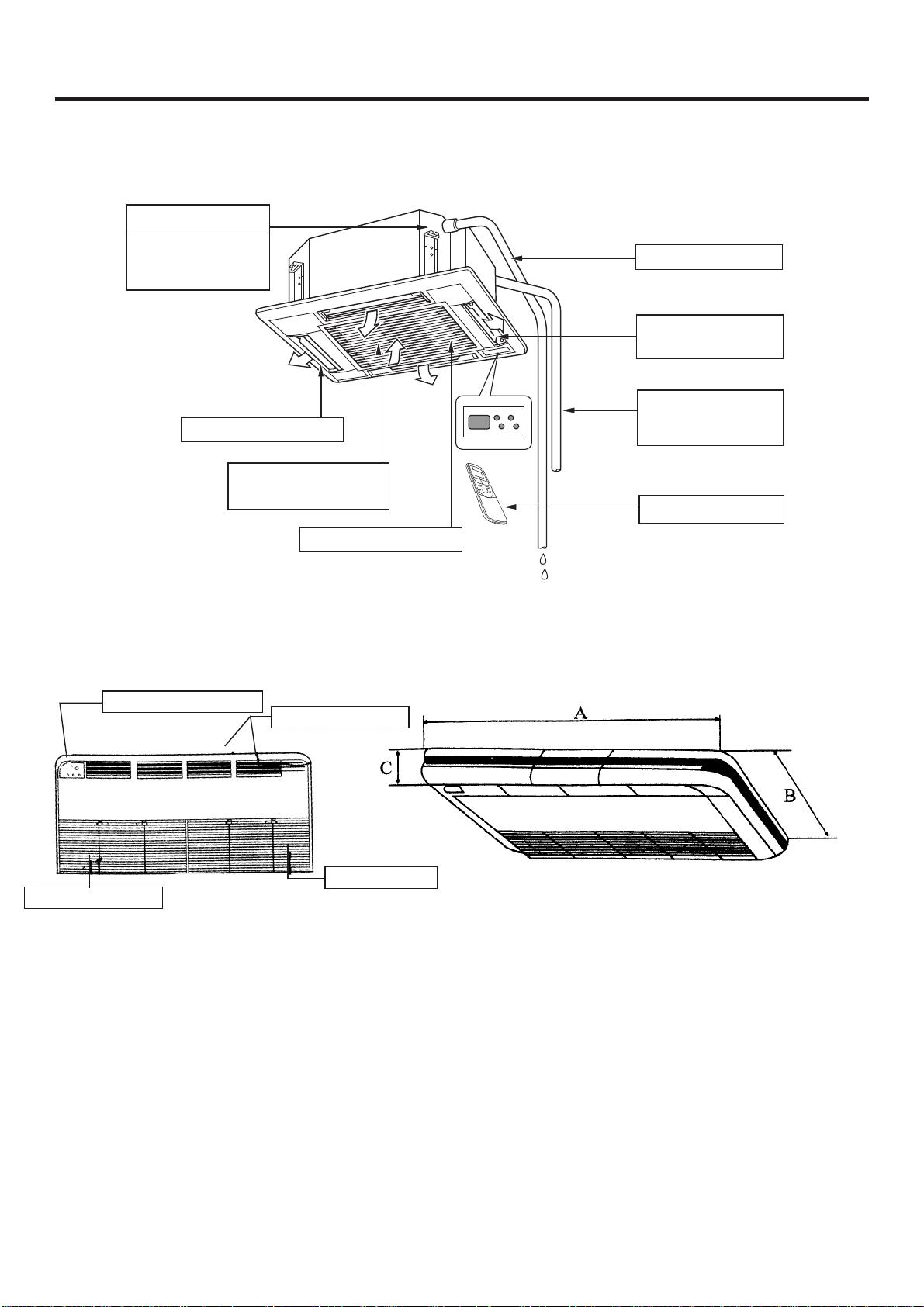

Model: AB36NACBEA Cassette type Indoor unit

1340

295

280

220

840

260

270 315

950

160

135

300

220

615

1250-1280

1070

(ceiling hole)

(hanging position)

123055 55

over1000

780

860-890

155

over1500

- 17 -

Page 22

Model: AC36NACBEA Convertible Indoor unit

195

105

NET DIMENSIONS OF INDOOR AND OUTDOOR UNIT

300300

590

545

85 150

310

235

150

600

180

600

1920

1800

600

drainage pipe

195

690

630

555

100

R15

100

300

110

45 65

Page 23

NET DIMENSIONS OF INDOOR AND OUTDOOR UNIT

Model: AD36NAMBEA AD42NAMBEA

drainage pipe

liquid pipe

gas pipe

A-A

Page 24

Model: AD36NAHBEA AD42NAHBEA

Page 25

INSTALLATION INSTRUCTIONS

5 INSTALLATION INSTRUCTIONS

5.1 Cassette type

5.1.1 Installation tools

1. Cross screwdriver 2 .Metal saw 3 .60,70mm drill 4. Inner hexagon spanner, shifting spanner 5 .Spanner(14, 17, 19,24,27mm diameter) 6. Pipe cutter

7. Pipe expander 8. Knife 9 .Pliers 10. Leak detector or soap liquor

11. Measuring tape 12 .Scraper 13. Refrigeration oil 14 .Vacuum pump 15 .Flat screwdriver

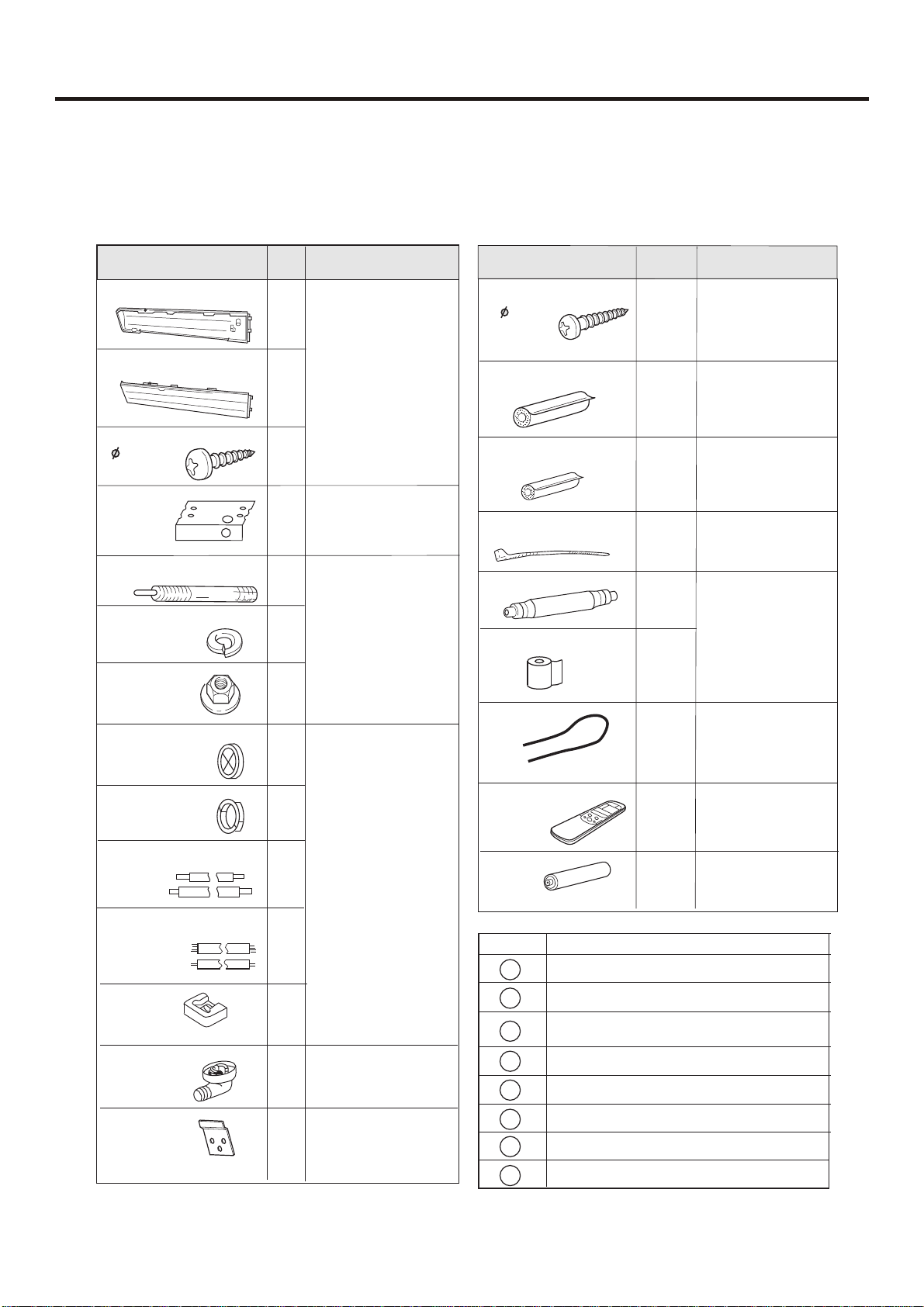

5.1.2 Standard accessories

Please check if your unit is delivered with following

Part name

QTY

Shape

Clamp

2 Piece

Washer

8 Piece

Clamp Paper pattern

6 Piece

Drain hose

1 Piece

1 Set

6321

Screw(M5 size)

3 Piece

For installation of paper pattern

Part name

QTY

Shape

Insulator

1 Piece 1 Piece

8 9

Insulator Sealing pad Sealing pad Sealing pad

For liquid pipeFor gas pipe

Dry battery

2 Piece 1 Piece 1 Piece 2 Piece

R03, 7#

5.1.3 Installation of indoor unit

5.1.3.1 Before installation

Determine the way kto carry unit to installation place. Don't remove packing until unit reaches installation place. If unpacking is unkavoidable, protect unit properly.

5.1.3.2 Selection of installation place

(1) Installation place shall meet the following and agreed by customers:

Place where proper air flow can be ensured. No block to air flow. Water drainage is smpoth. Place strong enough to support unit weight. Place where inclination is not evident on ceiling. Enough space for mainenance. Indoor and outdoor unit piping length is within limit. (Refer to Installation Manual for outdoor unit.) Indoor and outdoor unit, power cable, inter unit cable are at least 1 m away fromT.V. radio. This is helpful to avoid picture disturbance and noise. (Even if 1 m is kept, noise can still appear if radio wave is strong)

1110

[Other]

Operation

Small sizeMedium sizeLarge size

Manual Ornament

panel Remote

controller

- 20 -

Page 26

INSTALLATION INSTRUCTIONS

(2) Ceiling height

Indoor unit can be installed on ceiling of 2.5-3m in height. (Refer to Foeld setting and Installation

Manual of ornament panel.)

(3) Install suspending bolt. Check if the installation place is strong enough to hold weight. Take necessary measures in case it is not safe. (Distance between holes are marked on paper pattern. Refer to paper pattern for place need be reinforced)

Installation space

Air outlet

1500 Over

Air outlet

Air inlet

2500 Over

260

1500 Over

Air outlet

1500 Over

Air inlet

260

1500 Over

5.1.3.3 Preparation

(1) Position of ceiling opening between unit and suspending bolt.Unit: mm

890(Ceiling opening)

1070

(Distance between suspending bolts)

515

(Distance between suspending bolts)

515

860(Ceiling opening)

780

20 Over

(2) Cut an opening in ceiling for installation if necessary. (when ceiling already exists.) Refer to paper pattern for dimension of ceiling hole. Connect all pipings (refrigerant, water drainage), wirings (inter unit cable) to indoor unit, before installation. Cut a hole in ceiling, may be a frame should be used to ensure a smooth surface and to prevent vibration. Contact your real estate dealer

(3) Install a suspending bolt. (Use a M10 bolt)

To support the unit weight, anchor bolt shall be used in the case of already exists ceiling. For new ceiling, use built-in type bolt or parts prepared in the field. Before going on installing adjust space between ceiling.

Roof Anchor bolt Long nut

50~100

Suspending bolt

Ceiling

Note: All the above mentioned parts shall be prepared in field.

- 21 -

Page 27

INSTALLATION INSTRUCTIONS

5.1.3.4 Installation

In the case of new ceiling

(1) Install unit temporally

Put suspending bracket on the suspending bolt. Be sure to use nut and washer at both ends of the bracket.

(2) As for the dimensions of ceiling hole, see paper pattern. Ask your real estate dealer for details. Center of the hole is marked on the paper pattern. Center of the unit is marked on the card in the unit and on the paper pattern. Mount paper pattern onto unit using 3 screws . Fix the corner of the drain pan at piping outlet.

< After installation on the ceiling >

(3) Adjust unit to its right position. (Refer to preparation for the installation-(1)) (4) Check unit's horizontal level.

Watert pump and flating switch is installed inside indoor unit, check four corners of the unit for its level using horizontal compartor or PVC tube with water. (If unit is tilting against the direction of water drainage, problem

may occur on floating switch, causing water leakage.) (5) Remove the washer mounlting , and tighten the nut above. (6) Remove the paper pattern.

In the case of ceiling already exists

(1) Install unit temporally Put suspending bracket on the suspending bolt. Be sure to use nut and washer at both ends of the bracket. Fix the bracket firmly. (2) Adjust the height and position of the unit. (Refer to preparation for the installation (1) ). (3) Proceed with and of "In the case of new ceiling".

Scrtews at the piping outlet is fixed at the corner of drain pan.

Level

Polythene pipe

Center of ceiling hole Paper pattern

Screw (accessory)

Paper pattern

Screw (accessory)

[Fix the paper pattern]

5.1.3.5 Refrigerant piping

As for outdoor piping, please refer to installation Manual of outdoor unit.

Outdoor is precharged with refrigerant. Be sure to see the Fig.1, when connecting and removing piping from unit. For the size of the flare nut, please refer to Table 1. Apply refrigerant oil at both inside and outsid of lflare nut. Tighten it band tight 3-4 turns then tighten it. Use torque specified in Table 1. (Too much force may damage flare nut, causing gas leakage). Check piping joints for gas leakage. Insulate piping as shown in Fig. below. Cover joint of gas piping and insulator with seal .

Apple refrigerant oil

Torque spanner

Piping joing

Flare nut

Medium size seal pad 9 (accessory)

(Cover the piping joint with seal pad.)

Clip 3

spanner

Gas pipe

Liquid pipe

Insulator (accessory)

(For liquid pipe)

Insulator (accessory)

(For gas pipe)

Table 1

Diameter of Pipe

Liquid Pipe 9.52mm

Gas Pipe 19.5mm

Pipe size

9.52

19.05

Tighten torque

3270~3990N.cm

(333~407kgf.cm)

9720~11860N.cm

(990~1210kgf.cm)

A(mm) Flare shape

12.0~12.4

0.5

22.9~23.3

Tighten Torque

42N. m

60N. m

R0.4 ~ 0.8

- 22 -

Page 28

INSTALLATION INSTRUCTIONS

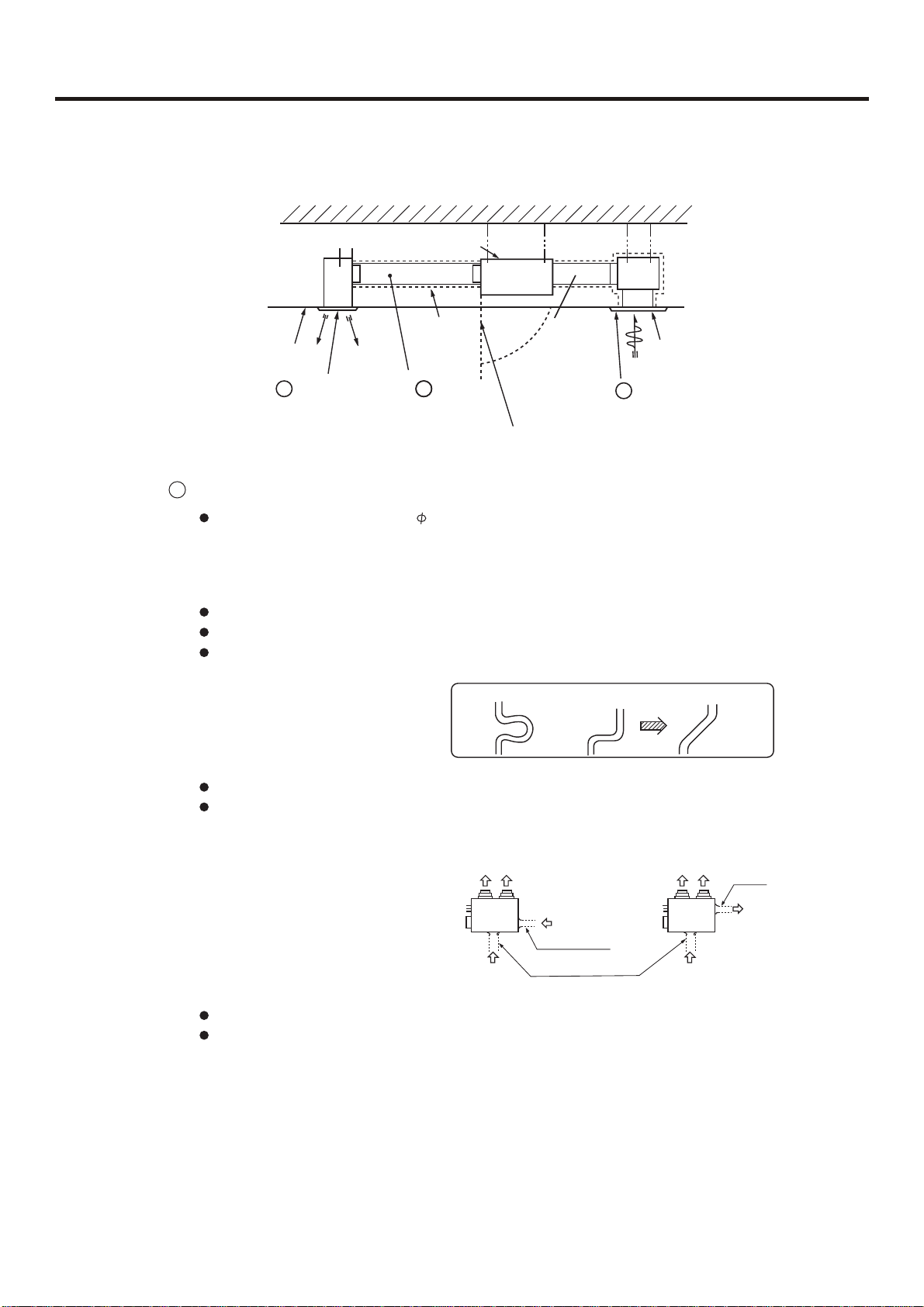

5.1.3.6 Installation of drainage pipe

(1) Install water drainage pipe

Pipe dia, shall be equal or larger than that of unit piping.(pipe of polyethylent; size: 25mm; O.D:32mm) Drain pipe should be short, with a downward slope at least 1/100 to prevent air bag from happening. If downward slope can't be made, take other measures to lift it up. Keep a distance of 1-1.5m between suspending brackets, to make water hose straight.

1-1.5m

Slope over 1/100

Waterring can of plastic

Use the self-provided stiff pipe and clip with unit. Insert water pipe into water plug until it reaches the white tape. Tighten the clip until head of the screw is less than 4mm from hose. Wind the drain hose to the clip using seal pad 8 . Insulate drain hose in the room.

Clip

Tape (White)

Self-provided stiff pipe

Clip

(accessory)

Large size seal pad

(accessory)

4mm below

Installation height shall be less than 280mm. There should be a right angle with unit, 300mm from unit.

Suspending bracket

1~1.5m

drain water lifting pipe

Clip

(accessory)

280 below

500 below

220

Self-provided stiff pipe

(accessory)

75 below

500 below

Drain hose 1

(Note)

300mm below

(accessory)

The slope of water drain hose (1) shall be within 75mm, don't apply too much force on it.

If several water hoses join together, do as per following proceedures.

Connect water hoses with a T joint.

Over 100

Specifieations of the water hoses shall meet the requirements for the unit running.

(2) Check if water drainage is smooth after installation.

Charge, through air outlet or inspecting hole, 1200ccd water to see water drainage.

After wiring

Check water drainage in cooling operation. See also test run.

When wiring is not complete

Remove cover of control box, short connect "CHECK" terminal of the indoor unit, which is on the uper part of indoor unit PCB. Connect 1PH power to terminal 1 and 2 on terminal block. Note, in this operation, fan will be running. Upon confirmation of a smooth water drainage, be sure to cut off power supply andremove short connection of "CHECK" terminal.

Method of water charging

Self-provided stiff pipe

Water drainage port for maintenance

(Drain water from this hole)

100mm

Watering can of plastic pipe should be about 100 mm long

Charge water from inspecting hole

Charge water from air outlet

Maintenance

Inspecting hole

Connect with outdoor unit

- 23 -

PCB on indoor

Terminal

Terminal block

H07RN-F 3G 4mm

Cover of controll box

Power

H07RN-F 5G 2.5mm

1 2 3

R S T

Power

Indoor

Outdoor

Indoor

1 2 3

Outdoor

H05RN-F 4G 0.75mm

Page 29

INSTALLATION INSTRUCTIONS

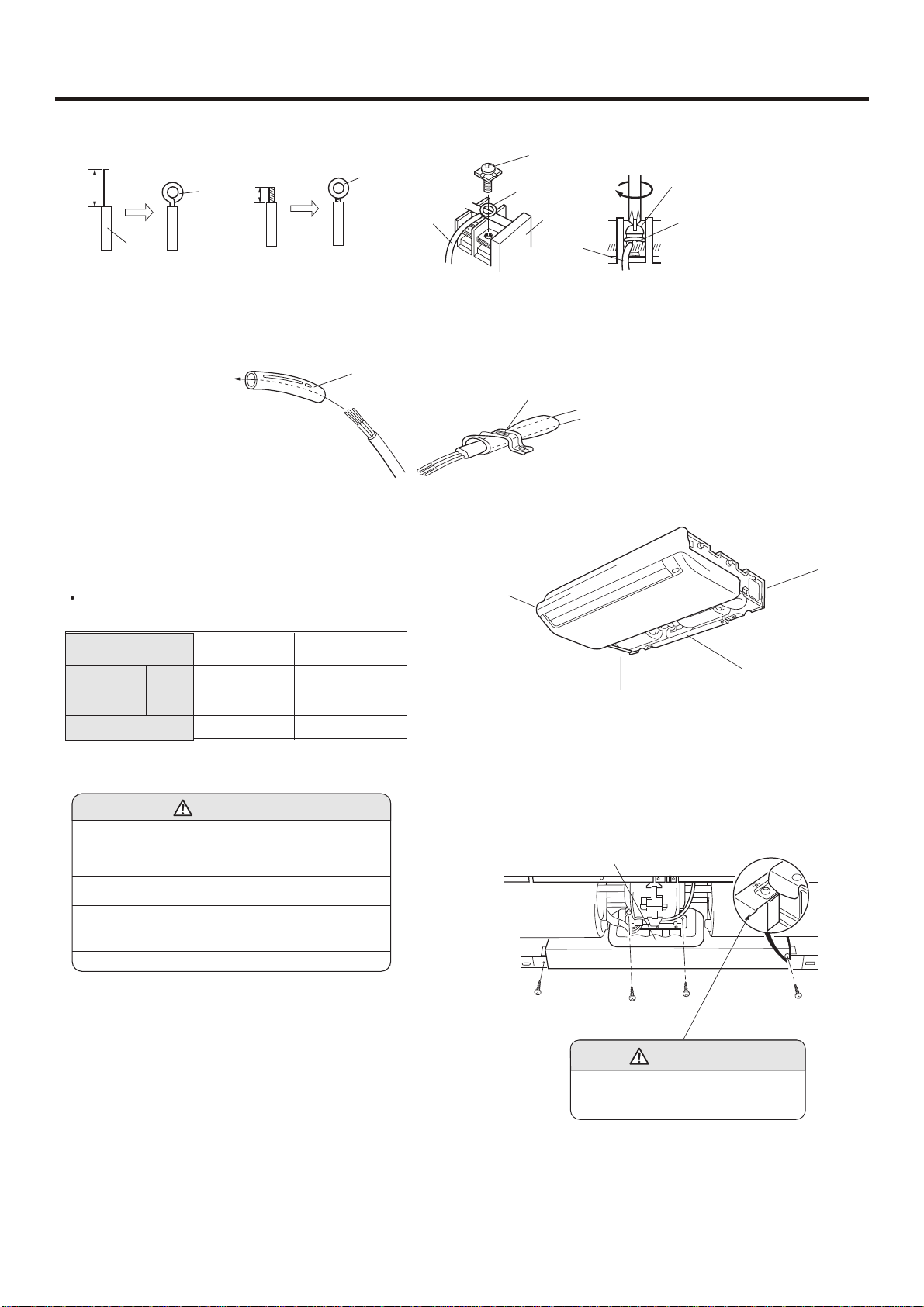

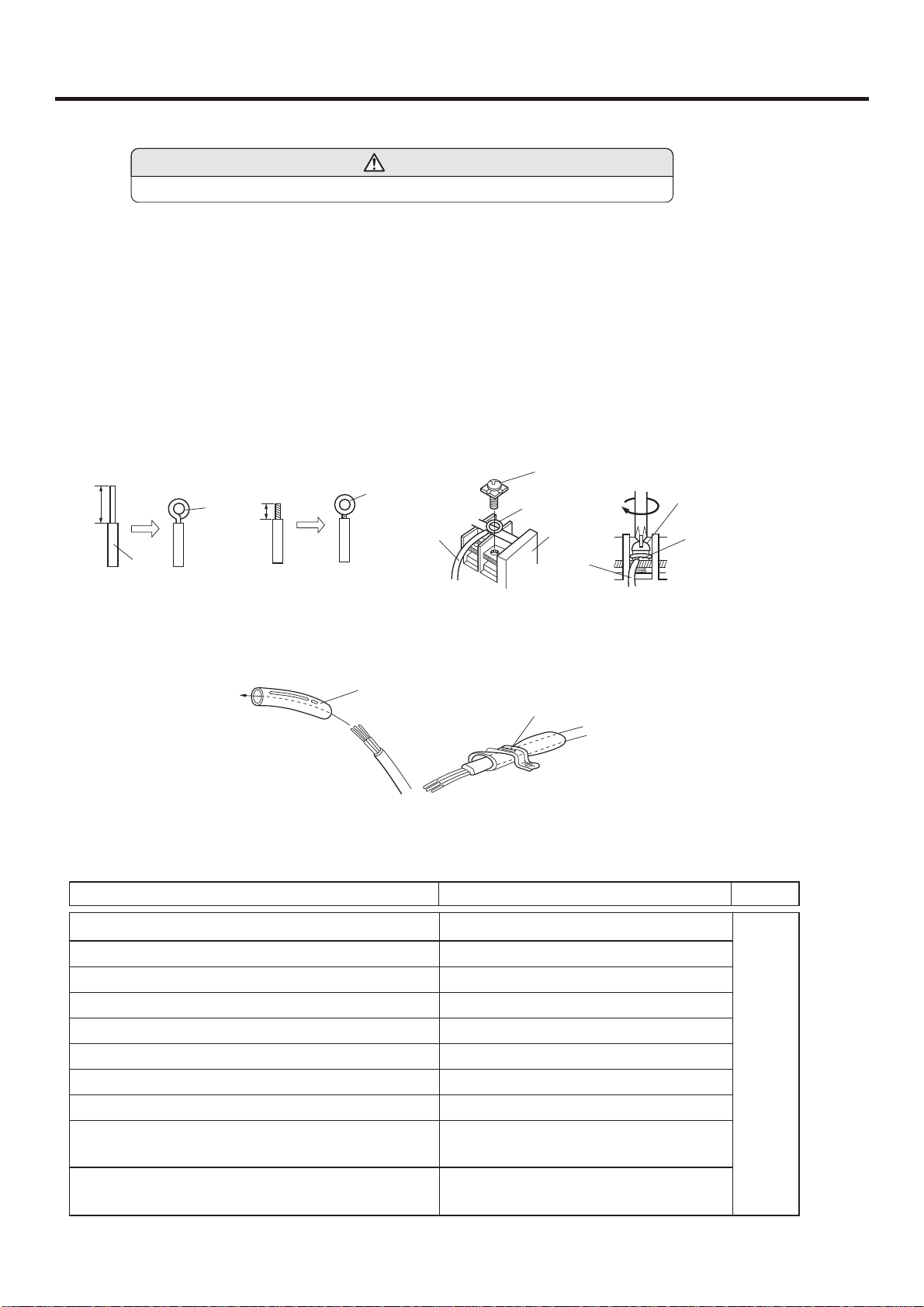

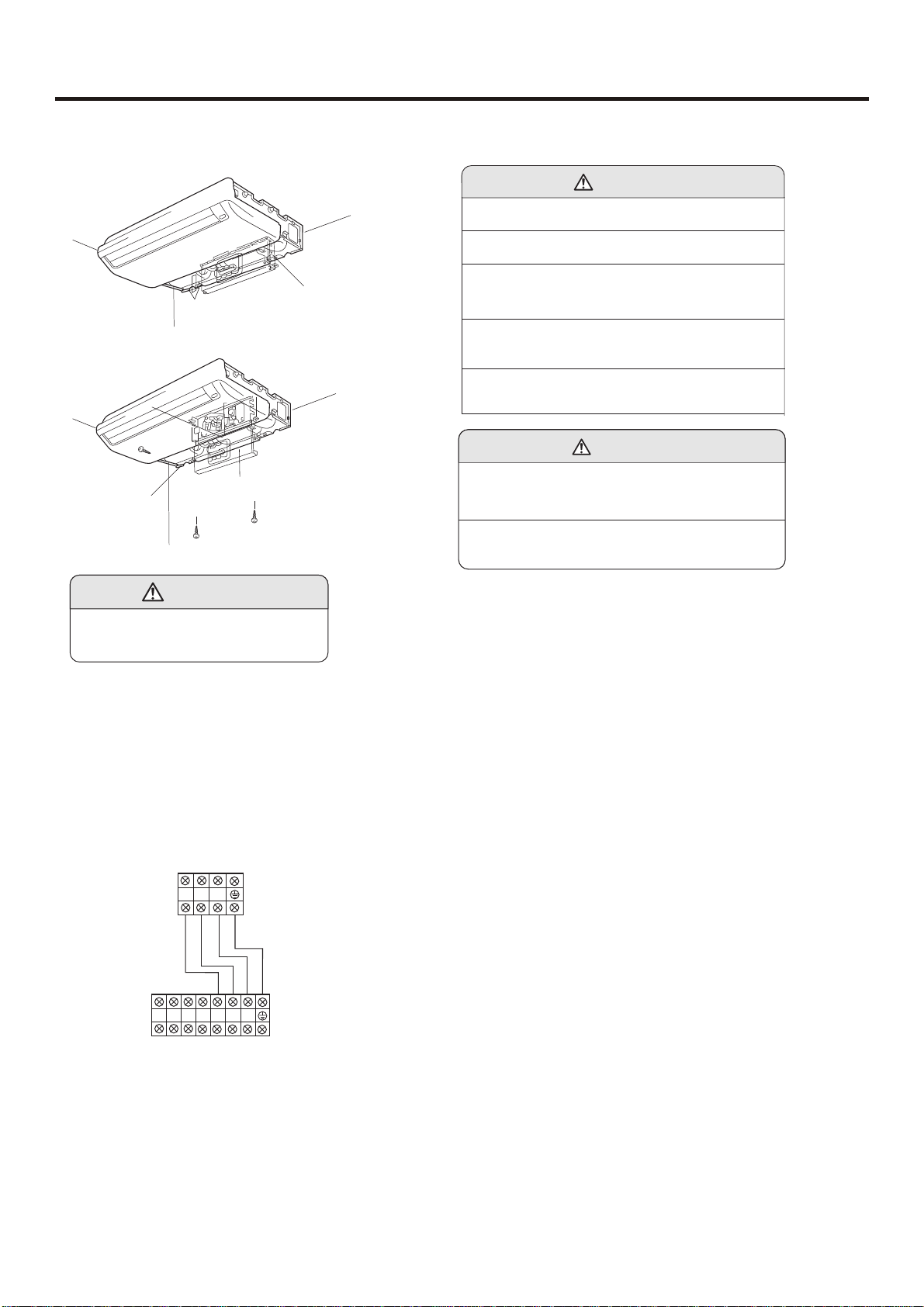

5.1.3.7 Wiring

All supplied parts. materials and wiring operation must in appliance with local code and regulations. Use copper wire only. When make wiring, please refer to wiring diagram also. All wiring work must be done by qualified electricians. A circuit breaker must be installed, which can cut power supply to all system. See Installation Manual of outdoor unit for specifications of wires, circuit breaker, switches and wiring etc.

Connecting of unit Remove cover of switch box (1) , drag wires into rubber tube A, then, after proper wiring with other wires, tighten clamp A. Connect wires of correct pole to the terminal block inside. Wind seal (12) around wires. (Be sure to do that, or, dew may occur). Upon connecting, replace control box cover (1) and (2).

Connect with outdoor unit

<<WARNING>>

Obscrve the following when connecting power supply terminal block: Don't connect wires of different specifications to the same terminal block. (Loose wire may cause overheating of circuit) Connect wires of same specifications as shown in right Fig.

Terminal block

Grounding lead

Cover of control box

Terminal block

Clip A

Rubber tube A

•

Don't fail to seal it, or, water may come in.

Connect wires of the same specifications at two sides.

Cover of control box

Rubber tube

Attach seal pad

Don't connect wires of the same specifications at one side.

Note: Have it sealed, leaving no space.

Seal pad (small size)( ) (Wind around wire)

Out

Field wiring

Don't connect wires of the different specifications.

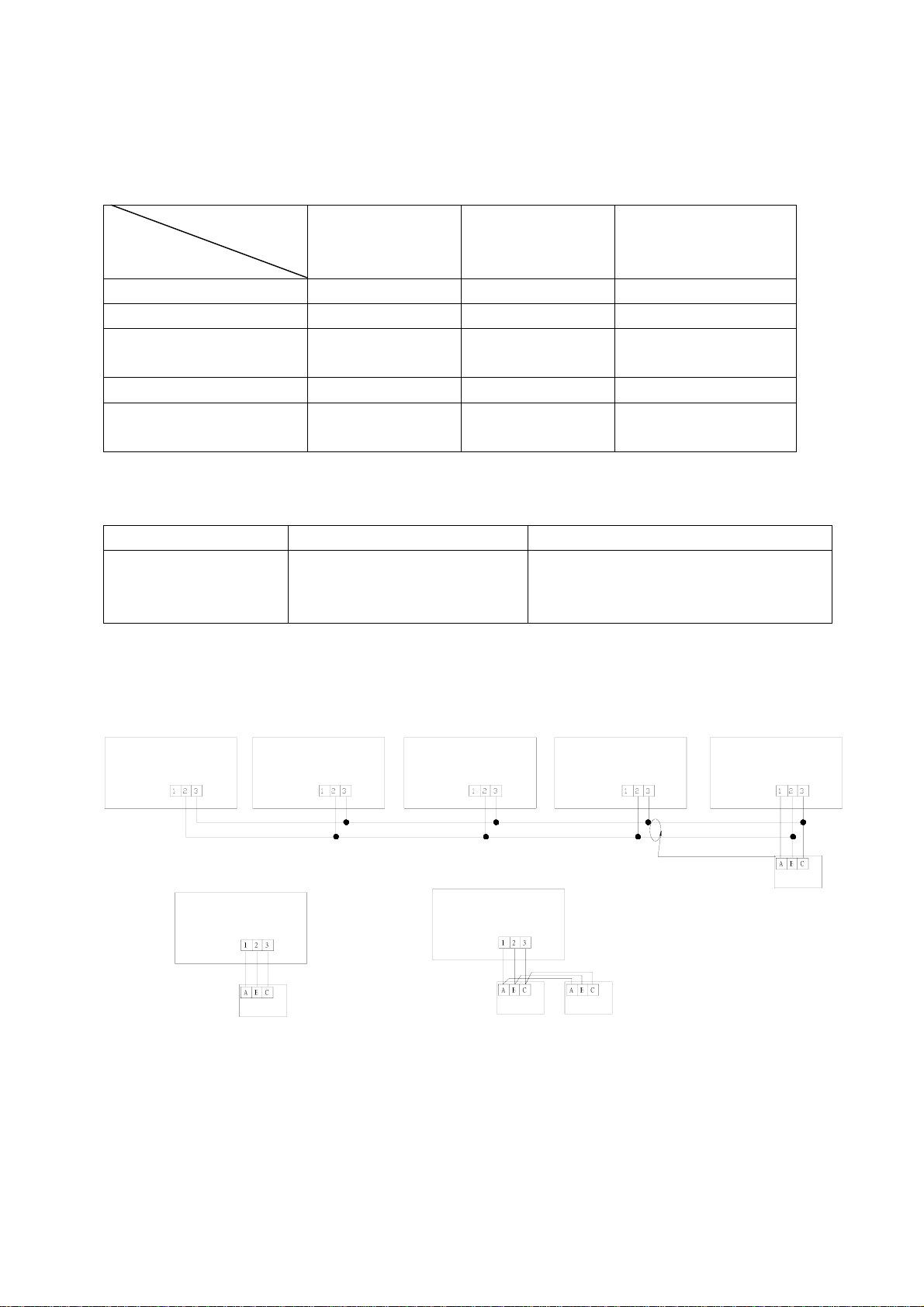

5.1.3.8 Wiring example

As for outdoor unit circuit, please see Installation Manual of outdoor unit. Note: All electric wires have their own poles, poles must match that on terminal block.

5.1.3.9 Installation of ornament panel

Cautions for the installation

Be sure to show customers Operation Manual and guide them how to operate unit correctly. Before installation, read also the Installation Manual of indoor unit. With this ornament , 2 or 3 air flow direction is not available. Suitable height is 3 m.

Accessory

Pad

1. Prepare ornament panel Handling of ornament panel

Ornament panel shall not be placed face down or against wall, neither on an uneven object. Don' t bend carelessly the swing flap, or, problem may occur.

(1)

Remove air inlet grill from ornament panel:

Push in the bar on inlet grill and lift it up. (Refer to Fig. 1)

Lift it up for about 45 degree and remove it from ornament. Tear off adhesive tape fixing air filter on the back of the air inlet grill. (Refer to Fig. 2)

Bar

- 24 -

Page 30

(2)

Remove cover plate at corner

Tear off the adhesive tape, and slide it off. (Refer to Fig. 3)

2. Install ornament panel on indoor unit.

For indoor unit installation, please refer to Installation Manual.

(1)

As shown in Fig . 7, match the position of

swing flap motor with that of the indoor unit

piping hole , so that ormament panel can be

placed on to indoor unit.

(2)

Installation of ornament panel

Place the holding ring on swing flao motor

side teporarily on hooks of the indoor unit.

(2 pcs)

Put the other two holding rings on the hooks at

both side of the indoor unit. (Care should be

taken not to push wiring of swing flap motor

into seals).

Screw in all 4 screws under holding ring for

about 15mm. (Pancl will rise).

Adjust the ornament panel as per Fig. 7 to

cover opening on the ceiling.

Tighten screws to redrce the thickness of seals

between ornament and indoor unit to 5-

8mm.

If screws are not tighten tight, problems in Fig, 8 might occur. Tighten screws properly.

Gas leakage.

Gas leakage from roof.

If there are still space after tightening of screws, please readjust the height of indoor unit. (Refer to Fig. 9)

Slide

Fig. 3

Swing flap motor

Ceiling material

Caution

INSTALLATION INSTRUCTIONS

Adhesive tape

Fig. 2

Hook

Indoor unit

Holding ring

Piping hole position

Fig. 7

Seal

5 _ 8mm

Ornament panel

If indoor unit is at horizontal level and water drainage is smooth, then, indoor unit height can be adjusted throrgh holes at corners of ornament panel.

Contamination

Mist exists and drop down.

Fig. 8

Leave no space.

Fig. 9

3. Mounting on high ceiling

(1) Ornament panel can be mounted on ceiling as high as 3 m.

(2) Please install pad as accessary.

Cut open the pad along cutting ling. Use part a only and discard part b . (Refer to Fig. 4)

Install part a of the pad on the place shown in Fig. 5. Refer to Fig. 6.

Cutting line

100

Fig. 4

(3)Wiring on ornament panel Connecting of wiring of the swing flap motor on ornament panel. (2 places) (Refer to Fit . 10)

If connecting is not made, error code (A7) appears on remote controller. So, make proper connecting.

Part a of the pad

Swing flap motor

Fig. 5

Side of indoor unit

Place it on the frame.

Part a of the pad

Leave no space.

Fig. 6

Side of ornament panel

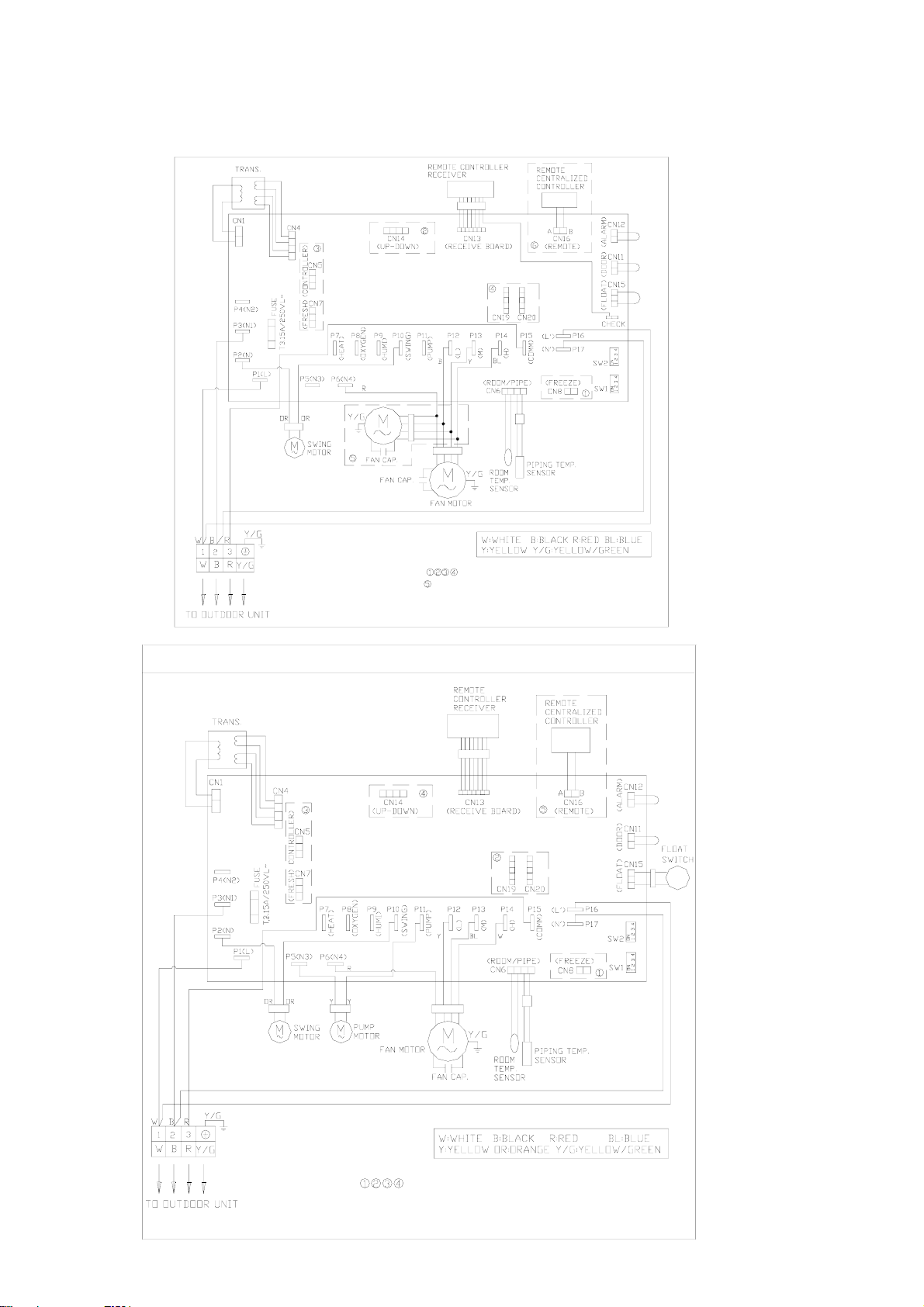

Fig. 10 Wiring diagram

- 25 -

Page 31

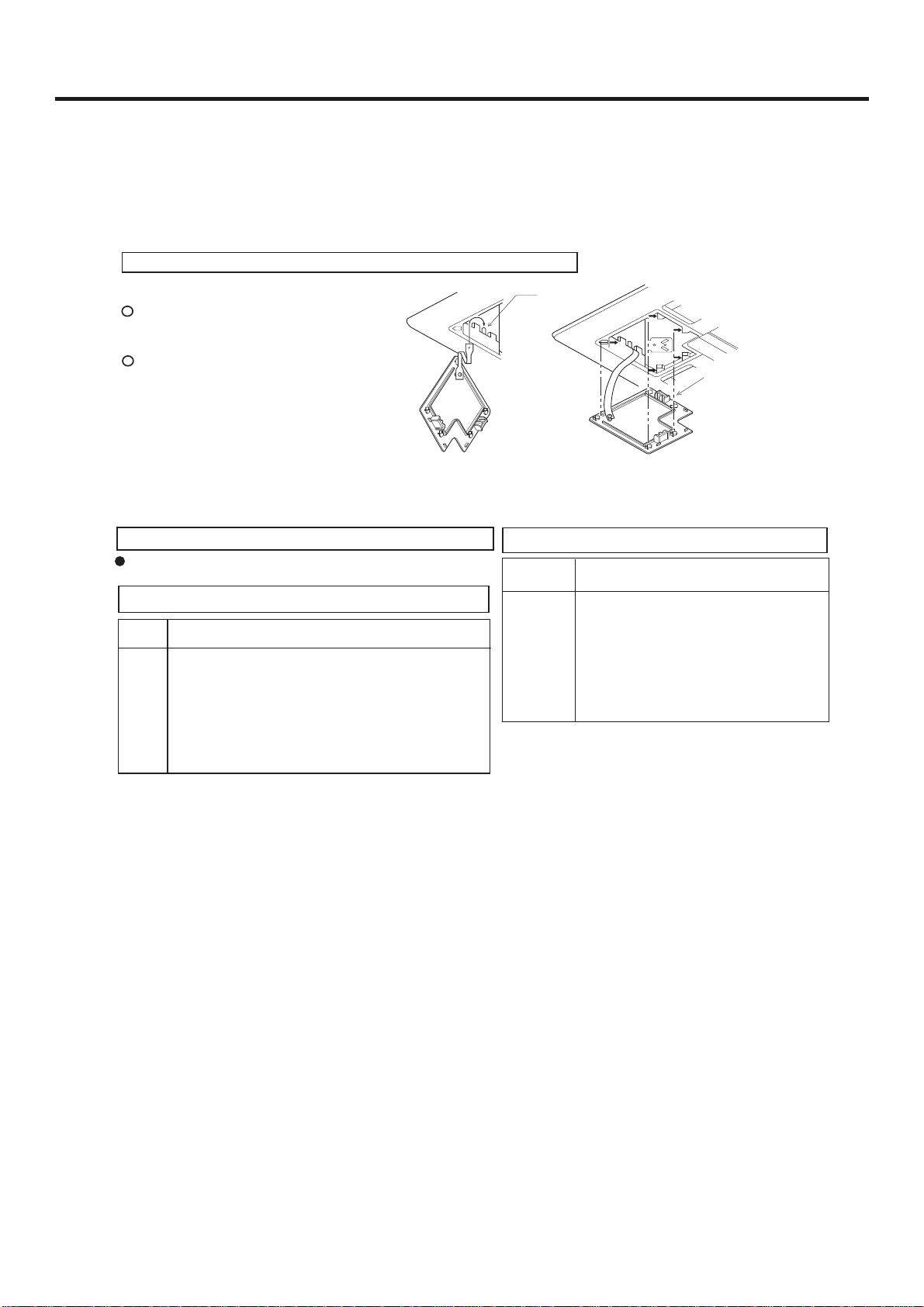

INSTALLATION INSTRUCTIONS

4. Installation of inlet grill and cover plate

(1)

Installation of inlet grill Install in reversed order of “Prepare ornament pandl”. Inlet grill can be adjusted into four directions by turning inlet grill. Inlet grill position can be adjusted as per customers request.

When installing inlet grill, take care not to twist wiring of swing flap motor.

(2)

Install cover plate on the corner As shown in Fig. 11 tie the

cover plate onto the bolt on ornament plate.

Install cover plate onto ornament plate. (Refer to Fig. 12)

5.1.3.10 Test running

Refer to Take special care during installation, check after working

Upon installation of piping, water drainage and wiring work, make test run to ensure proper unit operation.

Conduct test run after installation of ornament panel

Procedure

Open check valve on gas pipe.

(1) (2)

Open check valve on liquid pipe.

(3)

Press ON/OFF button, select Cooling mode.

(4)

Let it run for 3 min.

(5)

Press air flow adjust button to make unit run properly

(6)

Confirm unit functions according to Operation Manual.

Operation

bolt

Slide all five hold rings

to let them drop in holes on ornament plate,

Fig. 11

Fig. 12

Conduct test run before installing ornament panel

Procedure

(1) (2) (3) (4) (5)

Open check valve on gas pipe. Open check valve on liquid pipe. Press ON/OFF button, select Cooling mode. Let it run for 3 min. Cut main power supply after operation.

Operation

Note: If unit doesn’t run due to certain problem, please see ‘‘Note to unit maintenance’’.

- 26 -

Page 32

INSTALLATION INSTRUCTIONS

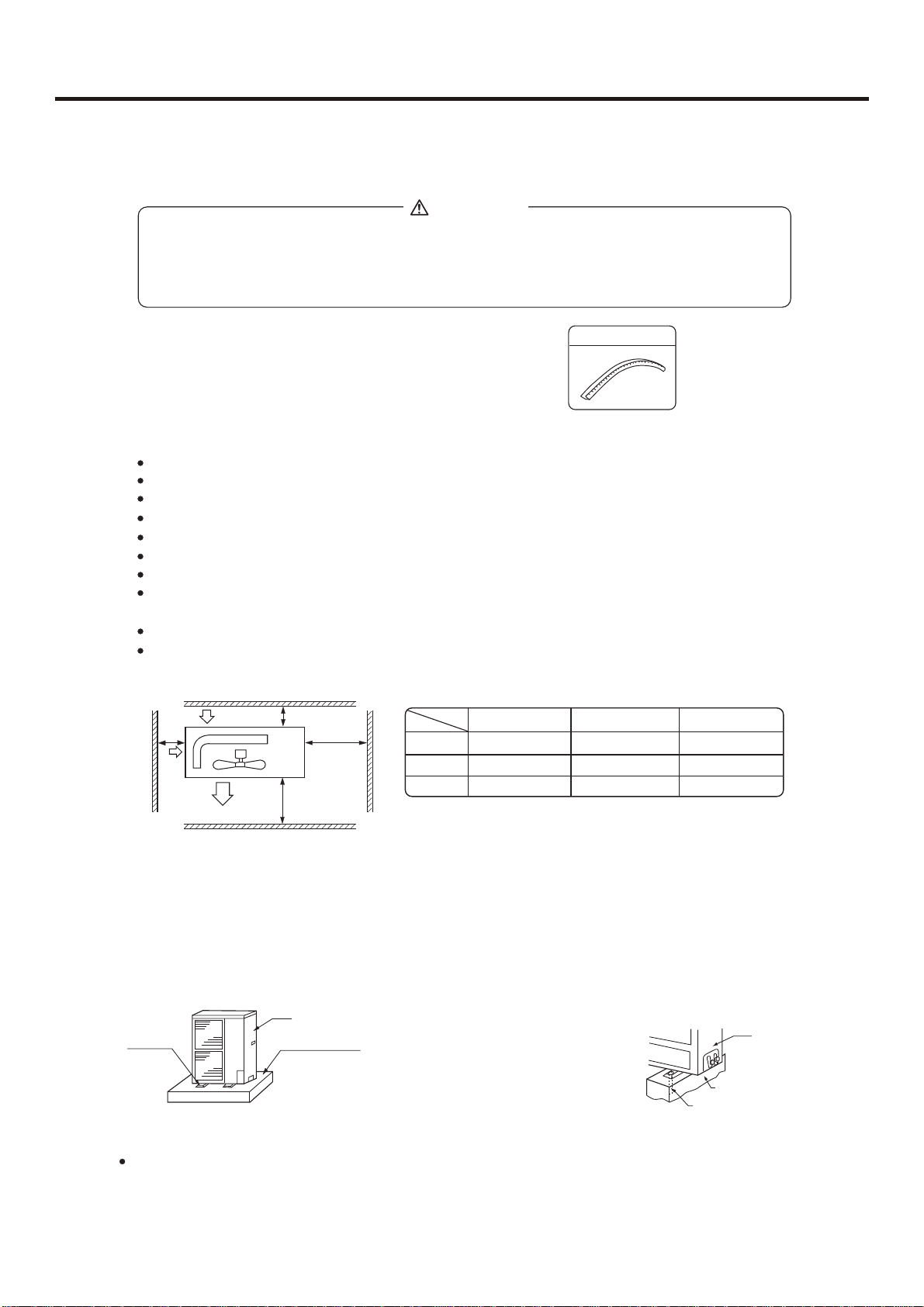

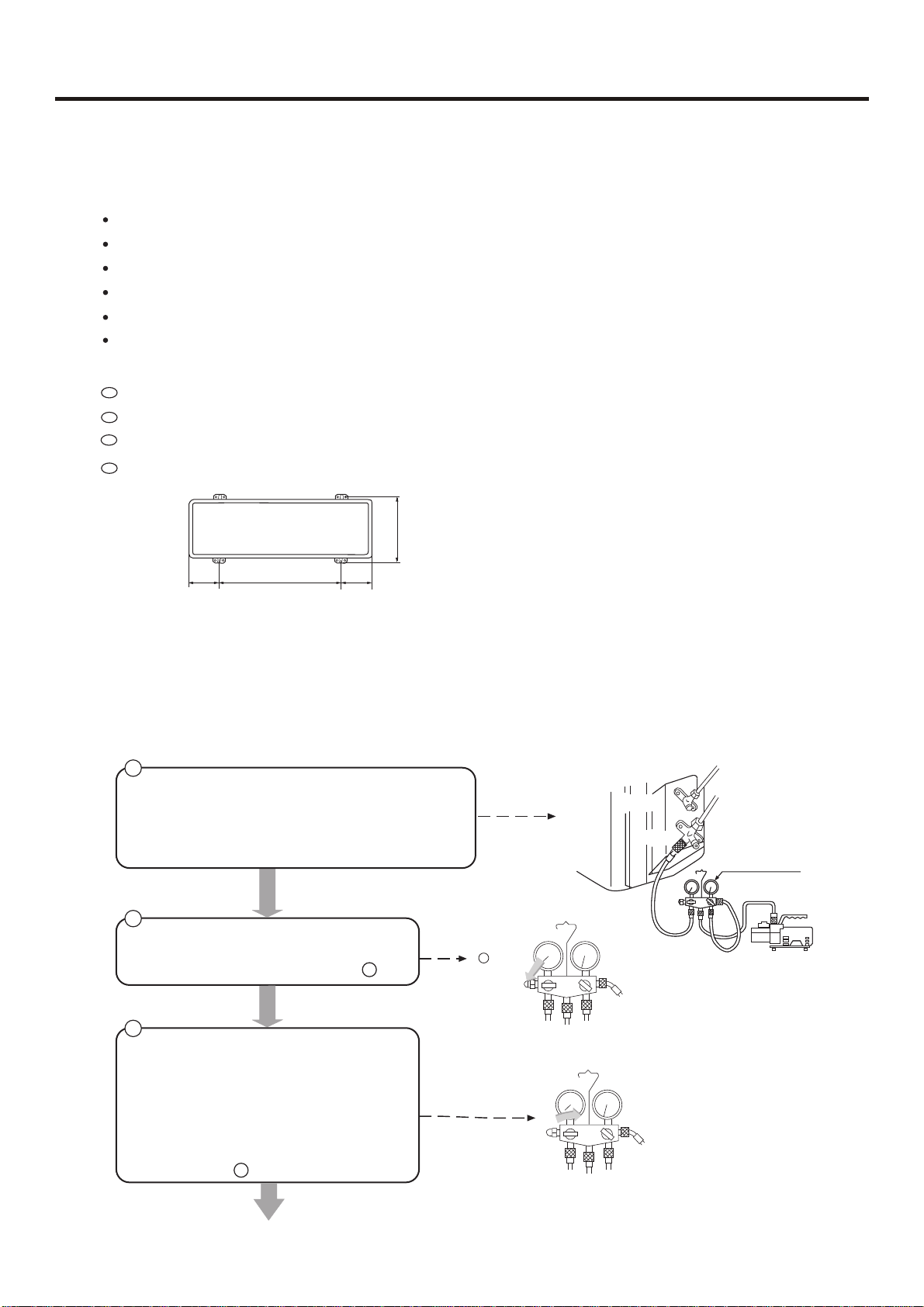

5.1.4 Installation of outdoor unit

5.1.4.1 Selection of installation place

Place strong enough to support the unit and will not cause vibration and noise. Place where discharged wind and noise do not cause a nuisance to the neighbors. Place where is less affected by rain or direct sunlight and is sufficiently ventilated, or to install a shield. Place with enough space for smooth air flow. The unit shall not be installed on an unspecifised metal frame (e.g. theft guard net). If the outdoor unit is installed close to a street, it shall be no less than 2.5m from the ground.

5.1.4.2 Fixing of the unit

Fix outdoor unit using M10 bolt to concrete floor horizontally. If installed on the wall or on top of a roof, bracket should be fixed securely to resist earthquake or storms. Use rubber pad during installation against unit vibration. Install the unit so that the angle of inclination must be less than 3 degrees.

380

185

Installation dimension of outdoor unit (mm)

580

185

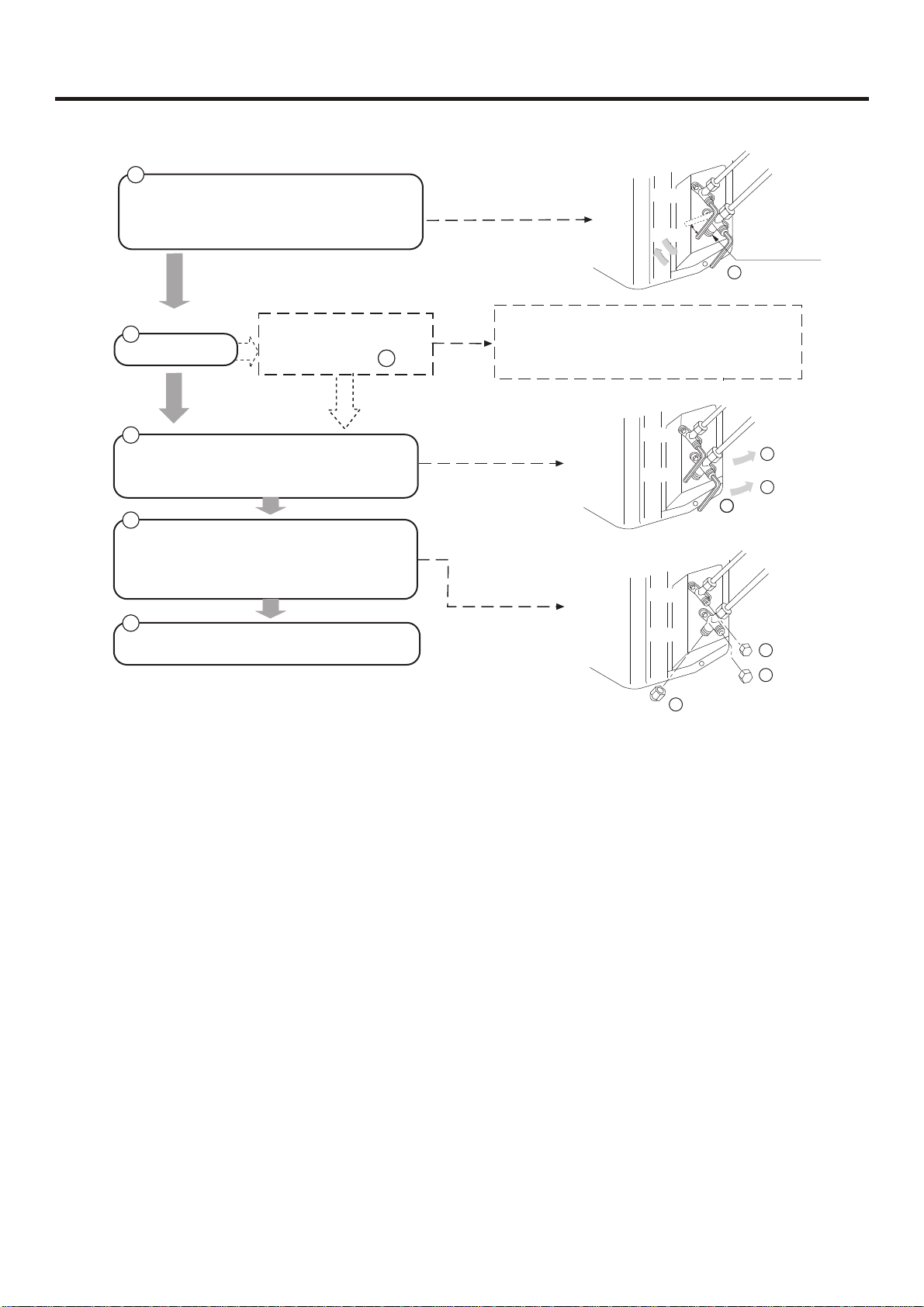

5.1.4.3 Air purging method: To use vacuum pump

For those models which adopt R407C refriengerant shall only use vacuum pump to purg air.

Liquid

Detach the service port's cap of 3-way valve, the valve rod's cap for 2-way valve and 3-way's, connect the service port into the projection of charge hose (low) for gaugemanifold. Then connect the projection of charge hose (center) for gaugemanifold into vacuum pump.

Open the handle at low in gaugemanifold, operate vacuum pump. If the scale-moves of gause (low) reach vacuum condition in a moment, check 1 again.

2way V.

3way V.

Open

(Thin)

Gas (Thick)

Gaugemanifold

Vacuum pump

Vacuumize for over 15min. And check the level gauge which should read -0.1 MPa (-76 cm Hg) at low pressure side. After the completion of vacuumizing, close the handle 'Lo' in gaugemanifold and stop the operation of the vacuum pump. Check the condition of the scale and hold it for 1-2min. If the scale-moves back in spite of tightening, make flaring work again, the return to the beginning of 3 .

Page 33

Open the valve rod for the 2-way valve to and angle of anticlockwise 90 degree. After 6 seconds later, close the 2-way valve and male the inspection of gas leakage.

INSTALLATION INSTRUCTIONS

2way V.

90°

3way V.

90°

Service port

for 6 sec.

No gas leakage?

In case of gas leakage, tighten parts of pipe connection. If leakage stops, then proceed steps.

Detach the charge hose from the service port, open 2-way valve and 3-way. Turn the valve rod anticlockwise until hitting lightly.

If it does not stop gas leakage, discharge whole refrigerants from the serice port. After flaring work again and vacuumize, fill up prescribed refrigerant from the gas cylinder.

2way V.

3way V.

To prevent the gas leakage, turn the service port's cap, the valve rod'd cap for 2-way valve and 3-way's a lottle more than the point where the torque increases suddenly.

After attaching the each caps, check the gas leakage around the caps.

2way V.

3way V.

Service port cap

Valve rod cap

If needing to remove the refrigerant gas when installation or repair , please refer to the following procedures:

1. Cut off the power

2. (After confirming the power is cut off) pull the power cable plug terminals of the low-pressure pressure-switch out.

3. (After confirming the power cable terminals of the low-pressure pressure-switch is cut off) After powering on the unit again and switch to COOLING mode,perform refrigerant gas removing according to the normal refrigerant gas removing procedure.

4. After finishing refrigerant gas removing , cut off the power , then insert the power cable terminals of the low-pressure pressure-switch properly.

- 28 -

Page 34

INSTALLATION INSTRUCTIONS

GAS LEAKAGE INSPECTION

CAUTION

After connecting the piping, check the joints for gas leakage with gas leakage detector.

HOW TO CONNECT WIRING TO THE TERMINALS

A. For solid core wiring (or F-cable)(Fig.28A)

(1) Cut the wire with a wire cutter or wire-cutting pliers, then strip the insulation to about 25mm of the exposed solid wire. (2) Using a screwdriver, remove the terminal screw(s) on the terminal board. (3) Using pliers, bend the solid wire to form a loop suitable for the terminal screw. (4) Shape the loop wire properly, place it on the terminal board and tighten securely with the terminal screw using a screw driver.

B. For strand wiring(Fig.28B)

(1) Cut the wire with a wire cutter or wire-cutting pliers, then strip the insulation to about 10mm of the exposed strand wiring. (2) Using a screwdriver, remove the terminal screw(s)on the terminal board. (3) Using a round terminal fastener or pliers, securely clamp a round terminal to each stripped wire end. (4) Position the round terminal wire, and replace and tighten the terminal screw using a screw driver.

Fig. 28

A. Solid wire

Insulation

Loop

B. Strand wire

Strip 10mm

Round terminal

Wire

Screw with special washer

Round terminal

Terminal board

Wire

Screw with special washer

Round terminal

HOW TO FIXED CONNECTION CORD AND POWER CABLE AT THE CORD CLAMP

Strip 25mm

After passing the connection cord and power cable through the insulation tube, fasten it with the cord clamp, as shown in Fig.29

Fig. 29

Insulation tube

Cord clamp

Use VW-1, 0.5 to 1.0 mm thick, PVC tube as the insulation tube.

5.5 Pay special care to the following and check after installation

Item to the checked

Is indor indoor unit firmly installed? Is gas leakage dheck performed? Is unit properly insulated? Is water drainage smooth? Is power voltage meet that stipulated on the nameplate? Is wiring and piping correctly arranged? Is unit safely grounded? Is wire size correct?

Unproper installation may cause

Unit might fall down, make vibration or noise. This may lead to gas shortage. Dew or water drop may occur. Dew or water drop may occur.

Problem may occur or parts got burned. Problem may occur or parts got burned. There might be a danger of electric shock.

Problem may occur or parts got burned.

Check

Are there any obstacles on air inlet and outlet grill of indoor and outdoor unit?

Is record made for piping length and refrigerant charging amount?

This may cause poor cooling.

It is hard to control refrigerant charging amount.

Page 35

INSTALLATION INSTRUCTIONS

5.2 INSTALLATION INSTRUCTIONS--Convertible type

For authorized service personnel only

WARNING

(1) For the room air conditioner to operate satisfactorily, install it as outlined in this installation manual. (2) Connect the indoor unit and outdoor unit with the room air conditioner piping and cords available from our

standard parts. This installation manual describes for the correct connections so that the installation set available from our standard parts should be used.

(3) Installation work must be performed in accordance with national wiring standards by authorized personnel only. (4) Never cut the power cord, lengthen or shorten the cord, or change the plug. (5) Also, do not use an extension cord. (6) Plug in the power cord plug firmly. If the receptacle is loose, repair it before using the room air conditioner. (7) Do not turn on the power until all installation work is done.

Be careful not to scratch the room air conditioner when handing it. After installation, explain correct operation to the customer, according to the operating manual. Let the customer keep this installation manual because it will be used when the room air conditioner is serviced or moved.

5.2.1SELECTING THE MOUNTING POSITION

2. OUTDOOR UNIT

WARNING

Install at a place that can withstand the weight of the indoor and outdoor units and install positively so that

(1) Install the unit where it will not be tilted by more than 5• (2) When installing the outdoor unit where it may be

exposed to the strong wind, fasten it securely.

the units will not topple or fall.

(1) If possible, do not install the unit where it will be exposed to direct sunlight.(If necessary, install a

CAUTION

(1)Do not install where there is the danger of com bustible gas leakage.

(2) Do not install near heat sources.

(3) If children under 10 years old may approach the unit, take preventive measures so that they can not reach the unit.

blind that does not interfere with the air flow.) (2) Install the outdoor unit in a place where it will be free from being dirty or getting wet by rain as much as possible. (3) Install the unit where connection to the indoor unit is easy. (4) During heating operation, drain water flows from the outdoor unit. Therefore, install the outdoor unit in a place where the drain water flow will not be obstructed.(Reverse cycle model only)

Decide the mounting position with the customer as follows:

1. INDOOR UNIT

(1) Install the indoor unit level on a strong wall, floor, ceiling which is not subject to vibration. (2) The inlet and outlet ports should not be obstructed: the air should be able to blow all over the room. (3) Install the unit near an electric outlet or special branch

(5) Do not place animals and plants in the path of the warm air. (6) Take the weight of the air conditioner into account and select a place where noise and vibration are small. (7) Select a place where the warm air and noise from the air conditioner do not disturb neighbors. (8) Provide the space shown in Fig.2 so that the air flow is not blocked. Also for efficient operation, leave open three of the four directions front, rear, and both sides.

circuit. (4) Do not install the unit where it will be exposed to direct sunlight. (5) Install the unit where connection to the outdoor unit is easy. (6) Install the unit where the drain pipe can be easily installed. (7) Take servicing, etc. into consideration and leave the spaces shown in Fig.1. Also install the unit where the filter can be removed.

NOTE: The appearance may be different from models.

Series

Case

Distance

L1 L2 L3

WARNING

Air inlet

open open

300 300 100 300 150 150 150300

Air outlet

36 42

I II III I II III

open open

0 0

500

(Servicing space)

open open

500

Page 36

INSTALLATION INSTRUCTIONS

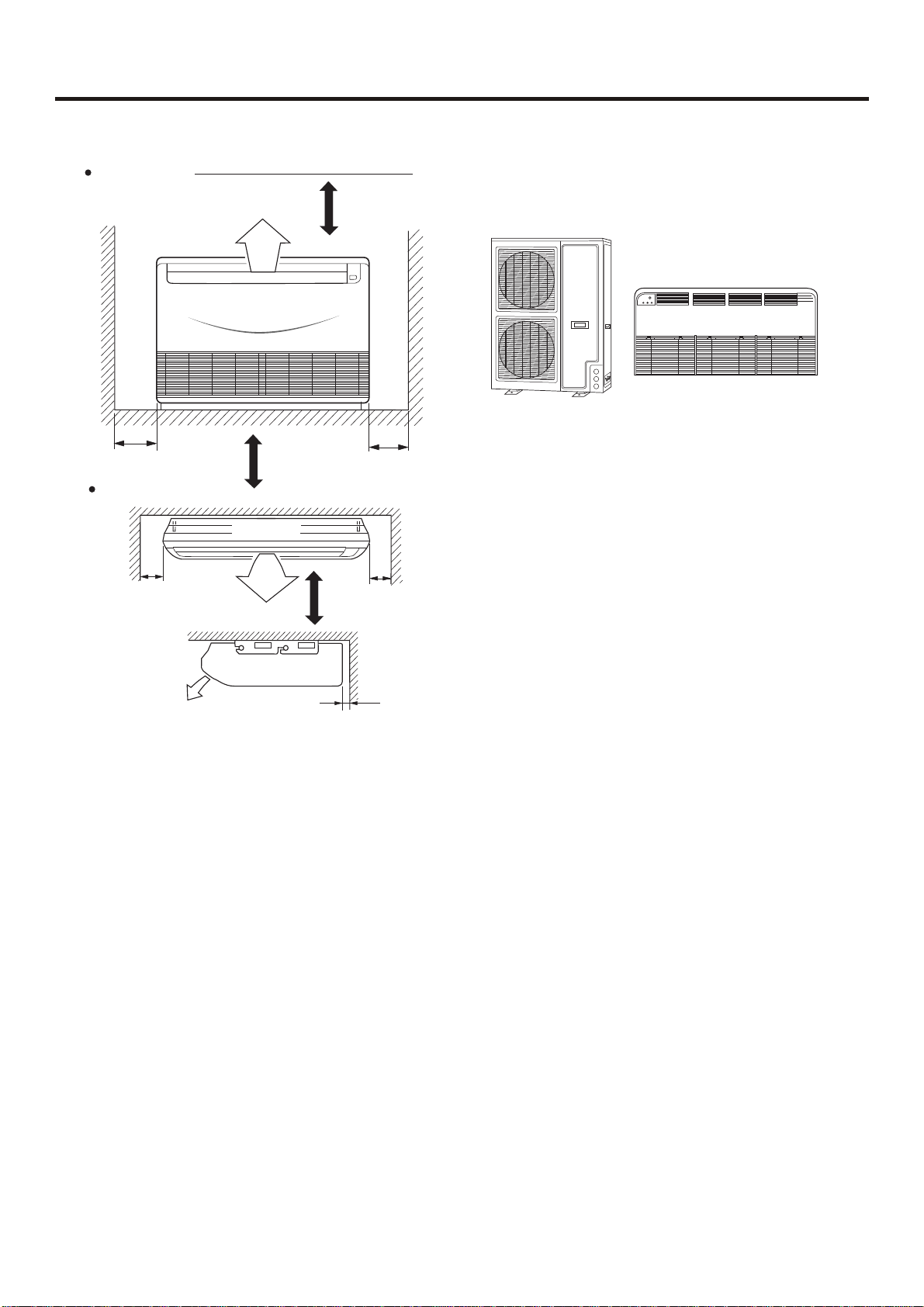

Fig. 1

Floor console

Left

30 cm or more

Under ceiling

Left

30 cm or more

may be different

1.5m

Indoor unit

Ceiling

1.5m

Right

30 cm or more

Right

30 cm or more

Fig. 2

For series 36,42

Note: For series 36, 42 no floor console type, the function below about floor console is invalid to the series.

2 cm or more

Page 37

5.2.2 STANDARD PARTS

The following installation parts are furnished. Use them as required.

ACCESSORIES

INSTALLATION INSTRUCTIONS

Name and shape

Cover plate (left)

Cover plate (right)

Tapping screw ( 4x10)

Installation template

Anchor bolt

Spring washer

Special nut

Pipe hole cover

Q'ty

Application

For series 24,28, 36,42 the two cover plate are not available

For positioning the

indoor unit For under ceiling type.

For suspending the

indoor unit from ceiling

Name and shape

Tapping screw ( 4x20)

Coupler heat insulator(large)

Coupler heat insulator(small)

Nylon fastener

Drain hose

Non-adhesive tape

VT wire

Q'ty

Application

For fixing the wall bracket. For series 24,28,36,42 no this part.

For indoor side pipe joint (Large pipe)

For indoor side pipe joint (Small pipe)

For fixing the drain hose

For fixing the drain hose L 280mm For series 24,28,36,42 VT wire is not available

Wall hole cover

Main pipes

Connecting cables

Cushion

Drain-elbow

Wall bracket

Only for the heat pump

type

For suspending the indoor

unit on the wall.For series 24,28,36,42 no this part.

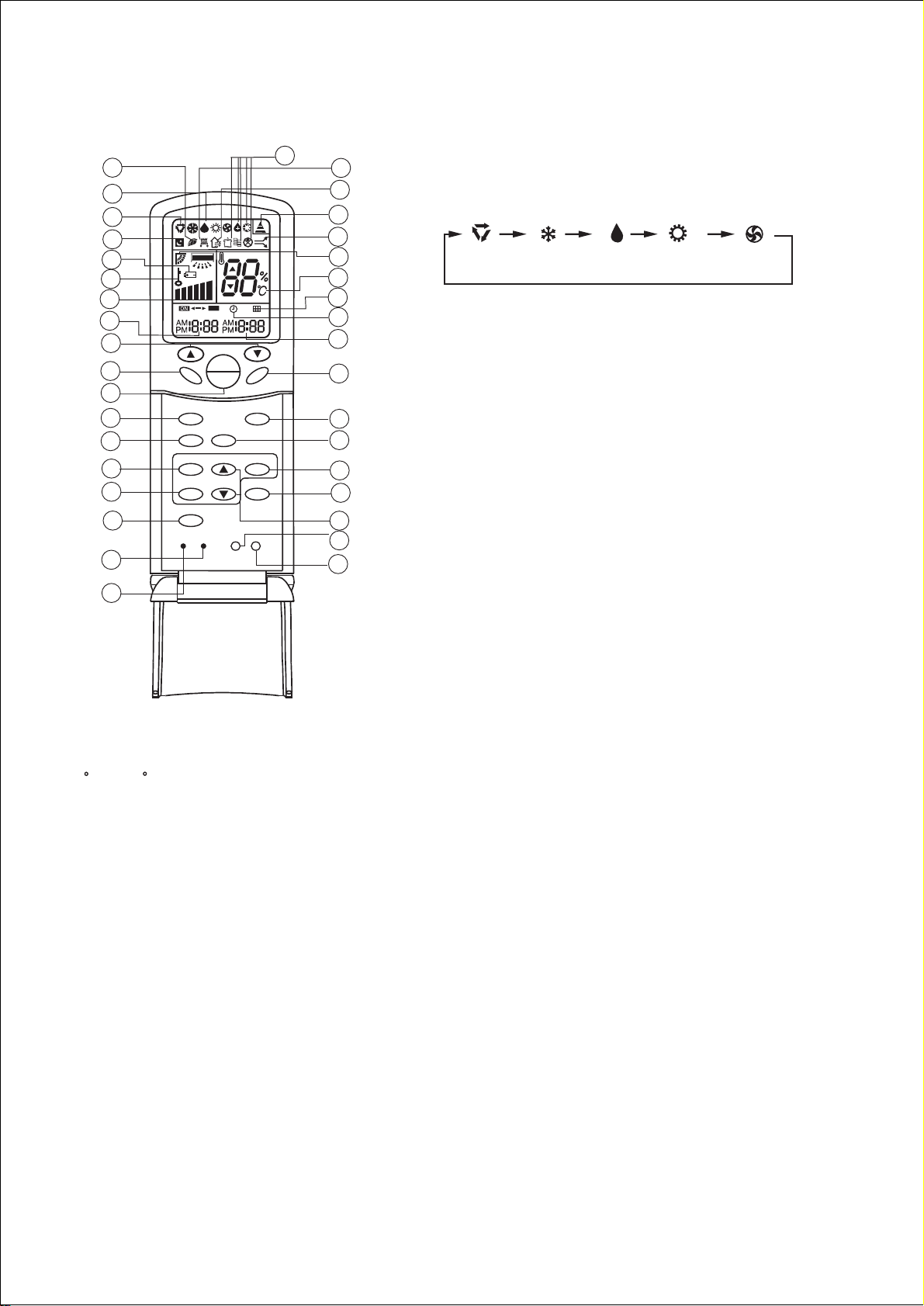

Remote controller

Battery

Optional parts

Mark Parts name

A B

D E

F G

Adhesive tape

Saddle (L.S) with screws

Connecting electric cable for indoor and outdoor

Drain hose

Heat insulation material

Piping hole cover

Putty

Plastic clamp

Use for air conditioner operation

For remote controller unit

Page 38

5.2.3CONNECTION PIPE REQUIREMENT

Table 1

Series

Diameter

Liquid side Gas side

9.52 mm

19.05mm

Maximum length

50 m

Maximum height (between indoor and outdoor)

15 m

INSTALLATION PROCEDURE

Install the room air conditioner as follows:

INSTALLATION INSTRUCTIONS

CAUTION

Install the drain hose at the rear; it should not be installed on the top or right side.

When the directions are selected, drill 80mm and 50mm or 150mm dia. hole on the wall so that the hole is tilted downward toward the outdoor for smooth water flow.

Wall

6mm

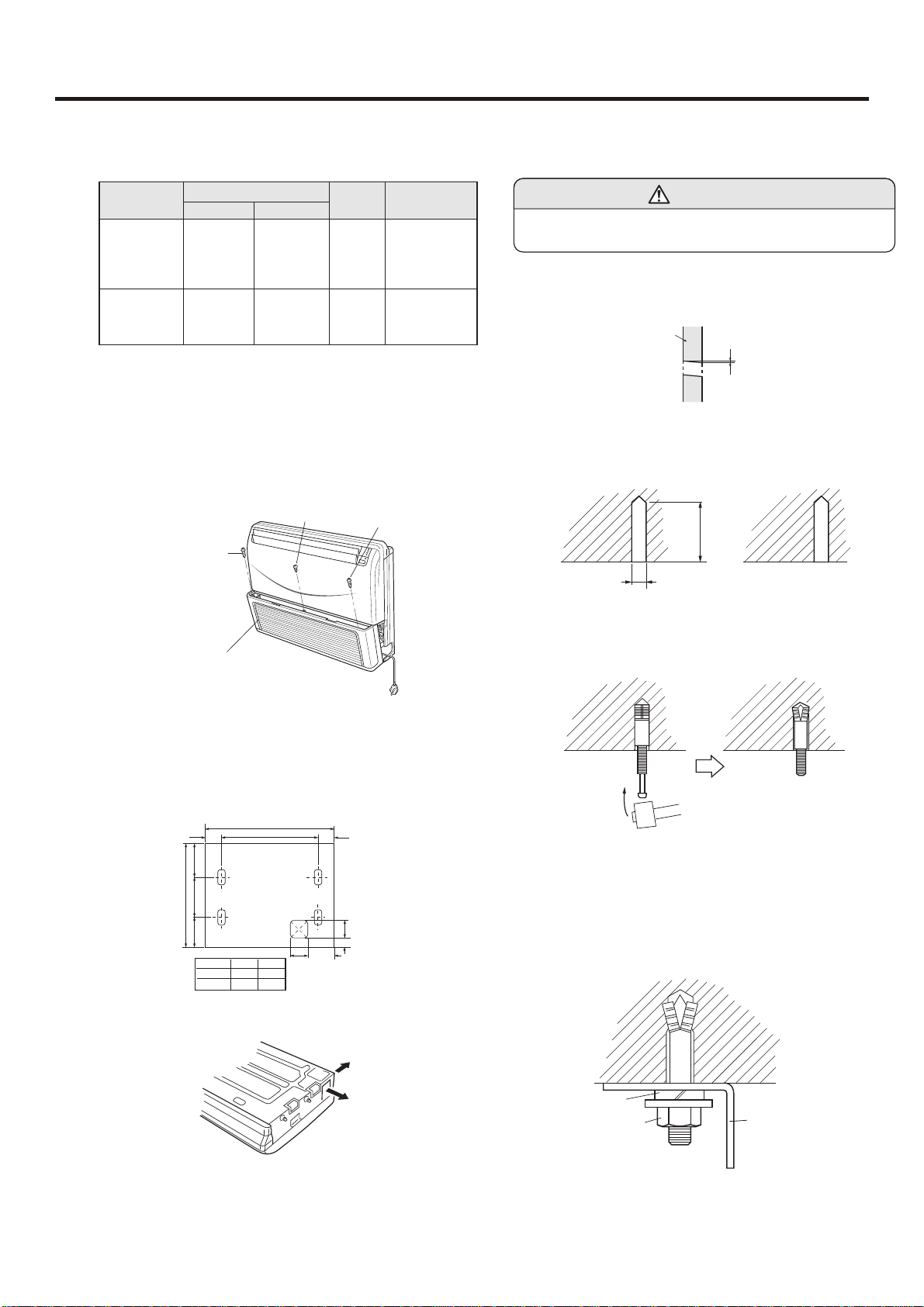

PREPARING INDOOR UNIT INSTALLATION

1. REMOVE THE INTAKE GRILL

Open the intake grill and remove the three or four or six screws. (Fig. 3)

Fig. 3

Tapping screw

Intake grill

Remark: The main unit can be wired before the indoor unit is installed. Select the most appropriate installation order.

For series36,42 not the power plug, but 3-core connecting cable.

A. UNDER CEILING TYPE-THE ONLY WAY

Using the installation template, drill holes for piping and anchor bolts(for holes).(Fig.12)

40 40

Machine screw

A B

Tapping screw

2. DRILLING HOLES FOR ANCHOR BOLTS AND INSTALLING THE ANCHOR BOLTS

With a concrete drill, drill four 12.7 mm dia. Holes.(Fig.15)

Fig. 15

60 to 70mm

12.7mm

Insert the anchor bolts into the drilled holes, and drive the pins completely into the anchor bolts with a hammer. (Fig. 16)

Fig. 16

247mm

720mm

326mm

147mm

series A B

36 42 1920 1840

1. DRILLING FOR PIPING

Select piping and drain directions. only have rear side(Fig.13)

100mm

18401920

87.5mm

Fig. 13

Rear (Install the drain hose in the direction.)

Right

3. INSTALLING BRACKETS Install the brackets with nuts, washers and spring

washers.(Fig. 17)

Fig. 17

Spring washer

Special nut

Bracket

Page 39

INSTALLATION INSTRUCTIONS

16 21 28

381

7.5

26.5

232

2-R2.5

26.5

4-R5

2-R2.5

4-R5

26.5 381

4. INSTALLING INDOOR UNIT

Reset the hex bolts as shown in Fig.18.

Fig. 18

Indoor unit

Apply the indoor unit to the brackets.(Fig.19)

Fig. 19

232

26.5

7.5

Hex bolt

8 to 13mm

5. INSTALL THE DRAIN HOSE Select whether the drain hose will be connected to the left or right side.(Fig.5) Insert the drain hose into the drain pan, then secure the drain hose with a nylon fastener.(Fig.8) Wrap the insulation (drain hose)around the drain hose connection. (Fig.9) Be sure to arrange the drain hose correctly so that it is leveled lower than the drain hose connecting port of the indoor unit.(Fig.20)

Fig. 20

Arrange the drain hose lower than this portion

Remove the hole cover.

Drain hose

When drain hose is arranged backward.Secure the drain hose with the VT wire. (Fig. 21)

Fig. 21

VT wire hole

Piping hole

Bolt

Bracket

Drain hose

Indoor unit

Now, securely tighten the hex bolts in both sides.

5.2.4 GAS LEAKAGE INSPECTION

CAUTION

After connecting the piping, check the joints for gas leakage with gas leakage detector.

HOW TO CONNECT WIRING TO THE TERMINALS

A. For solid core wiring (or F-cable)(Fig.28A)

B. For strand wiring(Fig.28B)

Fig. 28

Page 40

INSTALLATION INSTRUCTIONS

Fig. 28

A. Solid wire

Strip 25mm

Insulation

Loop

B. Strand wire

Strip 10mm

Round terminal

Wire

Screw with special washer

Round terminal

Terminal board

Wire

Screw with special washer

Round terminal

HOW TO FIXED CONNECTION CORD AND POWER CABLE AT THE CORD CLAMP

After passing the connection cord and power cable through the insulation tube, fasten it with the cord clamp, as shown in Fig.29

Fig. 29

Insulation tube

Cord clamp

Use VW-1, 0.5 to 1.0 mm thick, PVC tube as the insulation tube.

Fig. 30

ELECTRICAL REQUIREMENT

Electric wire size and fuse capacity:

Table 5

Series

Connection cord (mm2)

Fuse capacity(A)

MAX

MIN

3.5

2.5

ELECTRICAL WIRING

CAUTION

(1) Match the terminal block numbers and connection cord colors with those of the outdoor unit. Erroneous wiring may cause burning of the electric parts.

(2) Connect the connection cords firmly to the terminal block. Imperfect installation may cause a fire.

(3) Always fasten the outside covering of the connection cord with the cord clamp.(If the insulator is chafed, electric leakage may occur.)

(4) Always connect the ground wire.

1. INDOOR UNIT SIDE

(1) Remove the electric component box.

3.5

2.5

INDOOR UNIT SIDE

Fig. 31

Electric component box

Remove the four tapping screws.

Electric component box

CAUTION

Do not remove the screws. If the screws are removed, the electric component box will fall.

Page 41

INSTALLATION INSTRUCTIONS

(2) Pull out the electric component box.

Fig. 32

Electric component box

(3) Remove the electric component box cover.

Fig. 33

Base

Electric component box cover

Remove the three tapping screws.

CAUTION

Be careful not to pinch the lead wires between the electric component box and base.

(4) Wiring

(1) Remove the cord clamp. (2) Process the end of the connection cords to the dimensions shown in Fig.34. (3) Connect the end of the connection cord fully into the terminal block.

(4) Fasten the connection cord with a cord clamp. (5) Fasten the end of the connection cord with the screw. (6) The power cable and connecting are self-provided

ELECTRICAL WIRING

WARNING

(1) Always use a special branch circuit and install a special receptacle to supply power to the room air conditioner.

(2) Use a circuit breaker and receptacle matched to the capacity of the room air conditioner.

(3) The circuit breaker is installed in the permanent wiring. Always use a circuit that can trip all the poles of the wiring and has an isolation distance of at least 3mm between the contacts of each pole.

(4) Perform wiring work in accordance with standards so that the room air conditioner can be operated safely and positively.

(5) Install a leakage circuit breaker in accordance with the related laws and regulations and electric company standards.

CAUTION

(1) The power source capacity must be the sum of the room air conditioner current and the current of other electrical appliances. When the current contracted capacity is insufficient, change the contracted capacity.

(2) When the voltage is low and the air conditioner is dif ficult to start, contact the power company the voltage raised.

5.2.5TEST RUNNING

1. CHECK ITEMS

(1) INDOOR UNIT

(1) Is operation of each button on the remote control unit normal? (2) Does each lamp light normally? (3) Do not air flow direction louvers operate normally? (4) Is the drain normal?

(2) OUTDOOR UNIT

(1) Is there any abnormal noise and vibration during operation? (2) Will noise, wind, or drain water from the unit disturb the neighbors? (3) Is there any gas leakage?

Outdoor unit

1 2 3

TSR

1 2 3

Indoor unit

Outdoor unit

5.2.6 CUSTOMER GUIDANCE

Explain the following to the customer in accordance with the operating manual:

(1) Starting and stopping method, operation switching, temperature adjustment, timer, air flow switching, and other remote control unit operations. (2) Air filter removal and cleaning, and how to use air louvers. (3) Give the operating and installation manuals to the customer.

Page 42

INSTALLATION INSTRUCTIONS

5.3 INSTALLATION INSTRUCTIONS-Duct type

Installation place

Avoid installing the air conditioner near the place where possibility of inflammable gas leakage exists.

Explosion (Ignition) may occur.

Select the place so as not to annoy neighbor with the hot air or noise.

Install the unit at well ventilated place.

If some obstacle exist, it may cause capacity reduction or noise increase.

Snow protection work is necessary where outdoor unit is blocked up by snow.

For details consult your sales dealer.

Install the air conditioner firmly on the foundation that can fully support the weight of the unit.

If not, it may cause vibration or noise.

It is advisable not to install the air conditioner at the following special place. It may cause malfunction, consult the sales dealer when you have to install the unit on such a place.

The place where corrosive gas generates (Hot spring area etc.) The place where salt breeze blows (Seaside etc.) The place where dense soot smoke exists The place where humidity is extraordinarily high The place where near the machine which radiates the electromagnetic wave The place where voltage variation is considerably large

Electric work

The electric work must be burden on the authorized engineer with qualification for electric work and grounding work, and the work must be conducted in accordance with electric equipment technical standard.

The power source for the unit is to be of exclusive use. An earth leakage breaker should be installed.(This is necessary to prevent electric shock.) The unit must be grounded.

When you change your address or the installation place

Special technology is required for removal or reinstallation of air conditioner, consult the sales dealer. Besides, construction expense is charged for removal or reinstallation.

For inspection and maintenance

The capacity of air conditioner will decrease by contamination of inside of unit when it is used for about three years although depending upon the circumstances under which it is used, and so in addition to the usual maintenance service, special inspection/maintenance service is necessary. It is recommended to make a maintenance contract (charged) by consulting your sales dealer.

Page 43

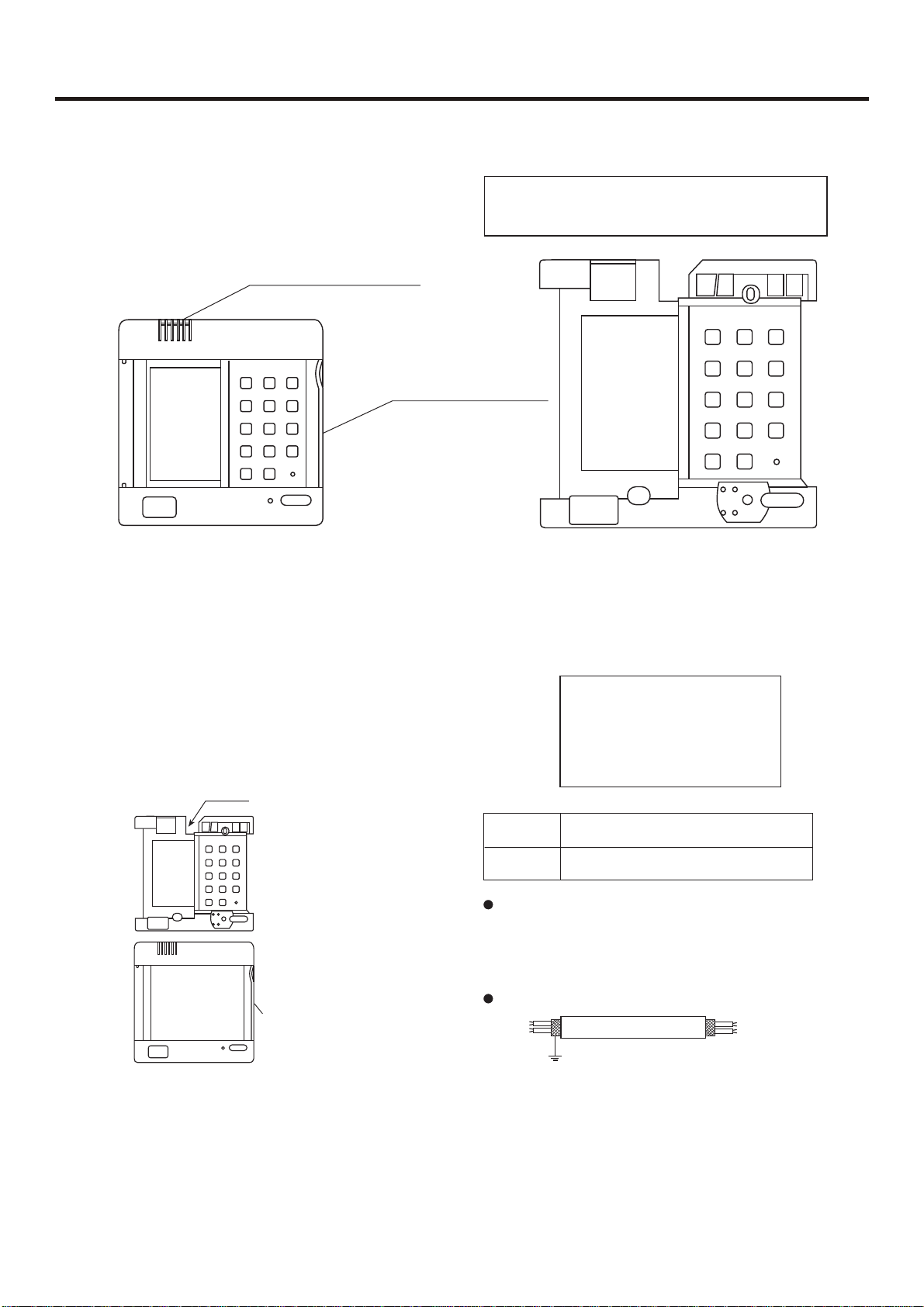

5.3.1 Installation of the wired remote controlller

INSTALLATION INSTRUCTIONS

a. Remove upper part of wire

Remove upper part of wire controller

Upper part of wire controller

Lower part of wire controller

PCB is mounted on lower part of wire controller, be careful not to damage

b. Install wire

(1) For exposed installation, use 2 wood screws(accessory).

(2) For recessed installation, use 2 wood screws(accessory).

Note: Try as far as possible a flat surface for installation. Don't use excessive

c. Indoor unit wiring

Connect terminals (A,B,C,D) on lower part of wire controller to terminals (A, B,C,D) on PCB of indoor unit.

A B C D

wiring from here

Lower part of wire controller

Upper part of wire controller

Wire size

Cord kind

Size

Use shielede wires for telecommunication between wire controller and indoor unit; indoor unit and outdoor unit. Ground the shield on one side. Otherwise misoperation because of noise may occur. Signal wire is self-provided.

ground

Hint:

When make wiring, please keepa distance between wires and power supply cord.

Shield wire (4 core) (refer to Hint 3,4)

0.33mm

Shielded wire

Hint: Tread surface of the terminal well so that shielding may not contact other part.

d. Replace the upper part of wire controller

Be careful not to press the wiring.

Hint: 1. Switch box and cord for wiring are not supplied.

2. Don't touch PCB with hand.

Page 44

INSTALLATION INSTRUCTIONS

5.3.2 Installation of outdoor unit

WARNING

BE SURE TO READ THESE INSTRUCTIONS CAREFULLY BEFORE BEGINNING INSTALLATION. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD CAUSE SERIOUS INJURY OR DEATH, EQUIPMENT MALFUNCTION AND/OR PROPERTY DAMAGE. BE SURE TO READ INSTALLATION MANUAL FOR INDOOR UNIT WITH THIS MANUAL.

a. Accessories

Edging

"Edging" for protection of electric wires from an opening edge.

b. Selection of the place of installation

Select the place of installation satisfying the following conditions and, at the same time, obtain a consent from the client or user.

Place where air circulates. Place free from heat radiation from other heat sources. Place where drain water may be discharged. Place where noise and hot air may not disturb the neighborhood. Place where there is not heavy snowfall in the winter time. Place where obstacles do not exist near the air inlet and air outlet . Place where the air outlet may not be exposed to a strong wind. Place surrounded at four sides are not suitable for installation. A 1m or more of overhead space is needed for the unit. Mount guide-louvers to place where short-circuit is a possibility. When installing several units, secure sufficient suction space to avoid short circuiting.

(1) Open space requirement around the unit

•

Air inlet

Air outlet

•L3

•L1

•500

(Servicing space)

Distance

L1 L2 L3

Case

open

300

150

II III

open

300

Unit: mm

500

open

150

(2) Installation where the area with strong winds.

Install the unit so that the air outlet section of the unit must NOT be faced toward wind direction.

c. Installation of outdoor unit

(1) Installation

Fix the unit in a proper way according to the condition of a place where it is installed by referring to the following .

(a)

Concrete foundation

Anchor bolt

Note (1) Give enough room for the concrete foundation to fix by anchor bolts.

Unit

Concrete foundation

To fix by bolts

Note (1) Place the concrete foundation deep enough.

Install the unit so that the angle of inclination must be less than 3 degrees.

Foundation anchor

Unit

Page 45

INSTALLATION INSTRUCTIONS

d. Refrigerant piping

(1) Outline piping

(2) Piping size

Model

Gas piping

Liquid piping

36 series

19.05(3/4")x1.0mm

19.05(3/4")x1.0mm 19.05(3/4")x1.0mm

9.52(3/8")x0.8mm

42 series

9.52(3/8")x0.8mm

Flare connection

Indoor unit

Gas pipe

Liquid pipe

Install the removed flared nuts to the pipes to be connected, then flare the pipes.

(3) Limitations for one way piping length and vertical height difference.

One way piping length:less than 50m (for 36,42 series)

Vertical height difference:less than 30m (for 36,42 series).

Precautions for refrigerant piping

Do not twist or crush piping. Be sure that no dust is mixed in piping. Bend piping with as wide angle as possible. Keep insulating both gas and liquid piping. Check flare-connected area for gas leakage.

Check joint

Service valve

Flare connection

+ 90 0.5

Outdoor unit

(4) Purging method ( the refrigerant is R407C)

To use vacuum pump

Open the handle at low in gaugemanifold, operate vacuum pump. If the scale-moves of gause (low) reach vacuum condition in a moment, check 1 again.

Open the valve rod for the 2-way valve to and angle ofanticlockwise 90 degree. After 6 seconds later, close the 2-way valve and malethe inspection of gas leakage.

Open

90•

For series 36,42

2-way valve

3-way valve

Gaugemanifold

Vacuum pump

2-way valve

3-way valve

Service port

90• for 6 sec.

For series 36,42

Page 46

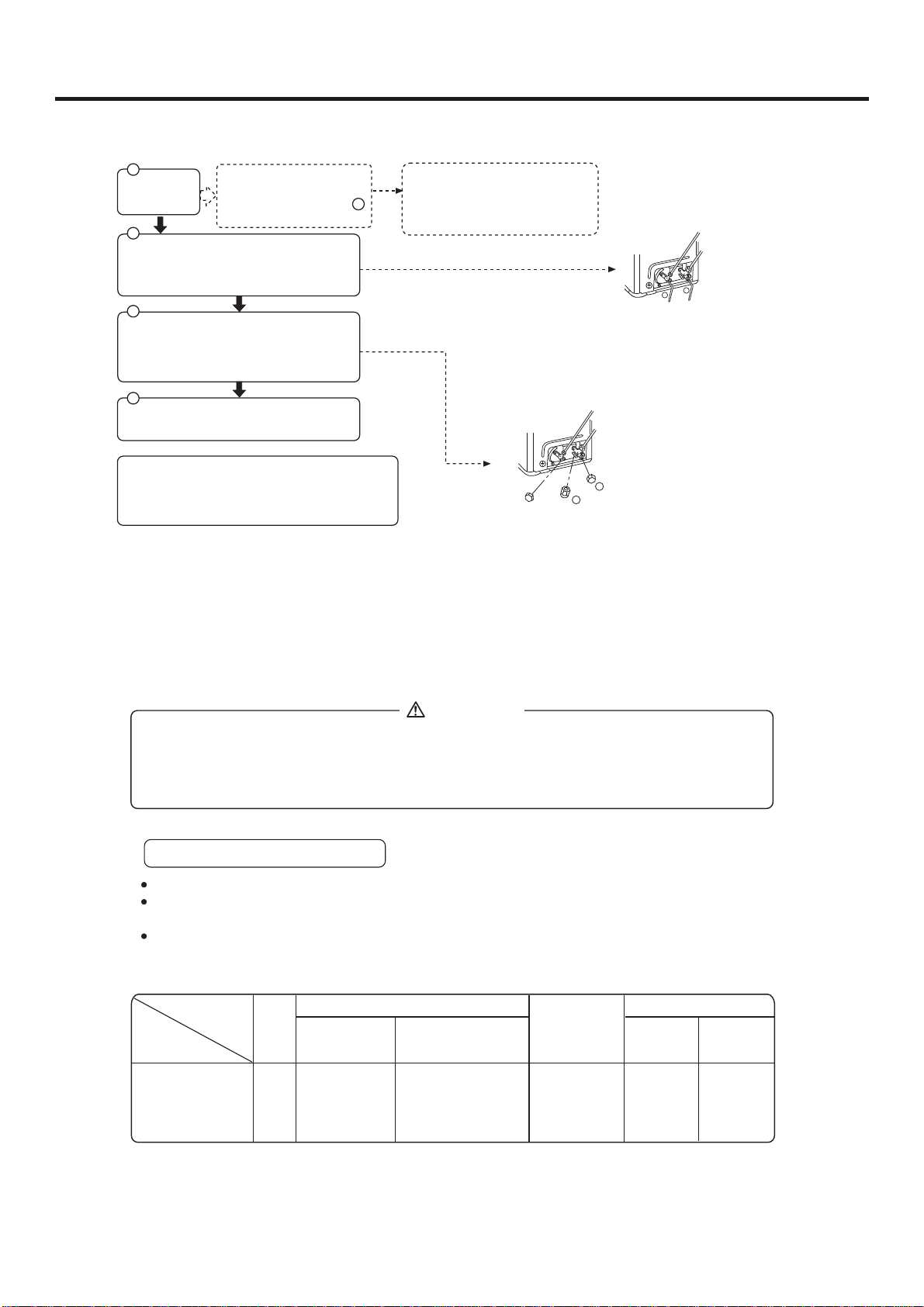

INSTALLATION INSTRUCTIONS

No gas leakage?

Detach the charge hose from the service port, open 2-way valve and 3-way. Turn the valve rod anticlockwise until hitting lightly.

To prevent the gas leakage, turn the service port's cap, the valve rod'd cap for 2-way valve and 3-way's a lottle more than the point where the torque increases suddenly.

After attaching the each caps, check the gas leakage around the caps.

CAUTION:

If the refrigerant of the air conditioner leaks, it is necessary to make

all the refrigerant out, then charge the liquid refrigerant into air conditioner according to the amount marked on the name plate.

In case of gas leakage, tighten parts of pipe connection. If leakage stops, then proceed steps.

If it does not stop gas leakage, discharge whole refrigerants from the serice port. After flaring work again and vacuumize, fill up prescribed refrigerant from the gas cylinder.

2-way valve

3-way valve

For series 36,42

Valve rod cap

Service port cap

2-way valve

Liquid pipe 9.52mm

3-way valve

Gas pipe 19.05mm

For series 36,42

If needing to remove the refrigerant gas when installation or repair , please refer to the following procedures:

1. Cut off the power

2. (After confirming the power is cut off) pull the power cable plug terminals of the low-pressure pressure-switch out.

4. After finishing refrigerant gas removing , cut off the power , then insert the power cable terminals of the low-pressure pressure-switch properly.

e. Electric wiring

WARNING

DANGER OF BODILY INJURY OR DEATH

TURN OFF ELECTRIC POWER AT CIRCUIT BREAKER OR POWER SOURCE BEFORE MAKING ANY ELECTRIC CONNECTIONS. GROUND CONNECTIONS MUST BE COMPLETED BEFORE MAKING LINE VOLTAGE CONNECTIONS.

(1) Selection of size of power supply and interconnecting wires.

Precautions for Electric wiring

Electric wiring work should be conducted only by authorized personnel. Do not connect more than three wires to the terminal block. Always use round type crimped terminal lugs with insulated grip on the ends of the wires. Use copper conductor only.

Select wire sizes and circuit protection from table below. (This table shows 20 m length

wires with less than 2% voltage drop.)

Item

Model

36,42 series (380-400 V,3N~,50Hz)

Phase

Circuit breaker

Switch breaker

(A)

Overcurrent protector

rated capacity (A)

Power source

wire size

(minimum)

2.5mm

Earth leakage breaker

Switch

breaker

Leak

current

30mA

Page 47

INSTALLATION INSTRUCTIONS

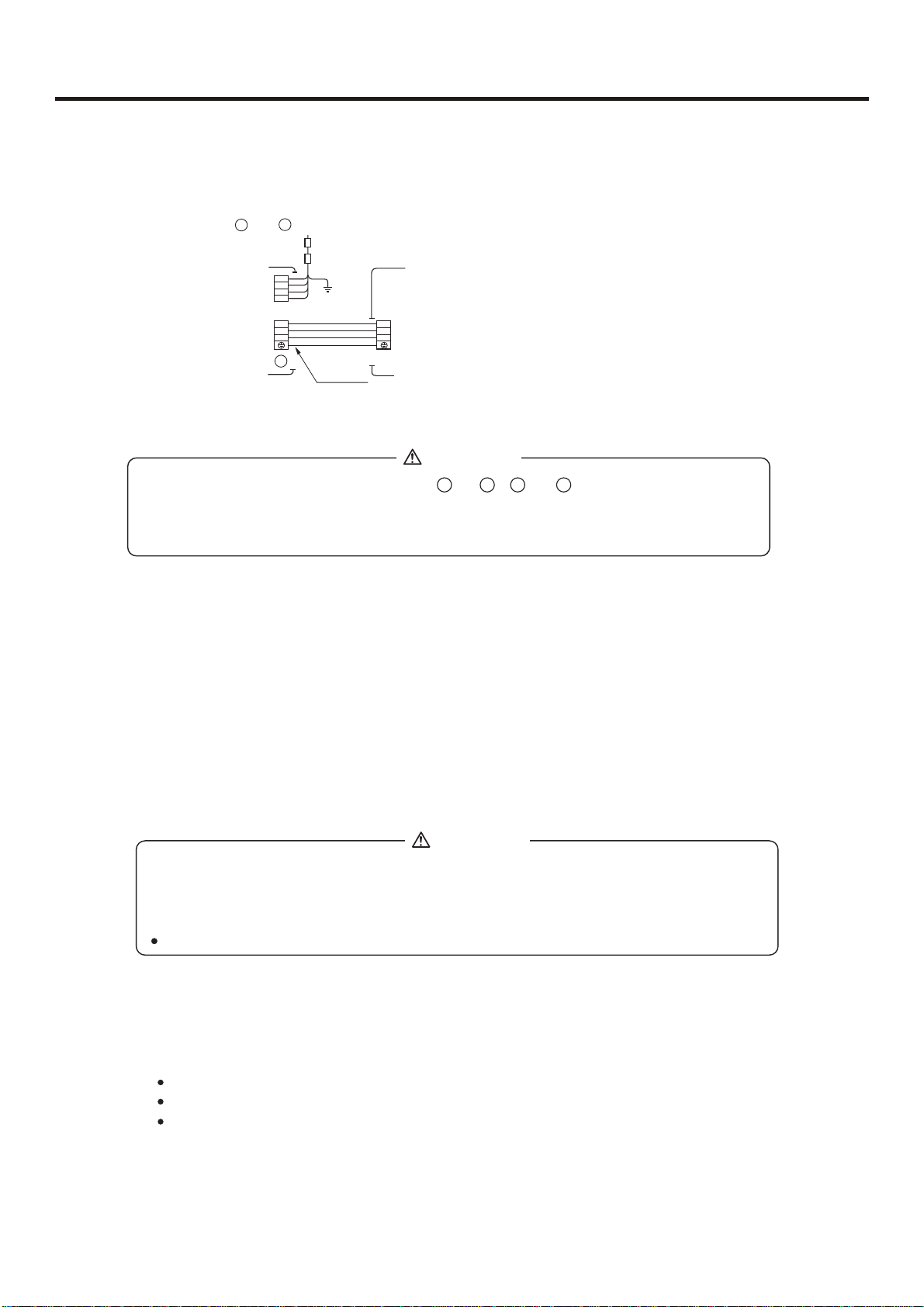

(2) Wiring connection

Make wiring to supply power to the outdoor unit, so that the power for the indoor unit is

supplied by and terminals.

DO NOT CONNECT THE NEUTRAL WIRE TO , OR PHASE. INTERCONNECT-

ING WIRES MUST BE WIRED WITH SAME SYMBOLS ON THE TERMINALS OF BOTH

INDOOR AND OUTDOOR UNIT.INCORRECT WIRING CAUSE EQUIPMENT DAMAGE

OR FIRE.

TB1

R S T N

TB2

1 2 3

Circuit breaker

Earth leakage breaker

HIGH VOLTAGE

Interconnecting wires

Indoor unit

1 2 3

Outdoor unit

(For 36,42 series(380-400V,3N~,50Hz))

WARNING

N R S

(3) Wiring procedure

1) Remove set screws on the side before taking off the front panel toward the direction shown in figure.

2) Connect wires to the terminal block correctly and fix the wires with a wire clamp equipped near by the terminal block.

3) Route the wires in a proper way and penetrate the wires through the opening for electric wiring on the side panel.

e. Test run

CAUTION

THIS UNIT WILL BE STARTED INSTANTLY WITHOUT "ON" OPERATION WHEN ELECTRIC POWER IS SUPPLIED. BE SURE TO EXECUTE "OFF" OPERATION BEFORE ELECTRIC POWER IS DISCONNECTED FOR SERVICING.

This unit has a function of automatic restart system after recovering power stoppage.

(1) Before starting test run (for all Heat pump models)

Confirm whether the power source breaker (main switch) of the unit has been turned on for over 12 hrs to energize the crankcase heater in advance of operation.

(2) Test run

Run the unit continuously for about 30 minutes, and check the following.

Suction pressure at check joint of service valve for gas pipe. Discharge pressure at check joint on the compressor discharge pipe. Temperature difference between return air and supply air for indoor unit.

Page 48

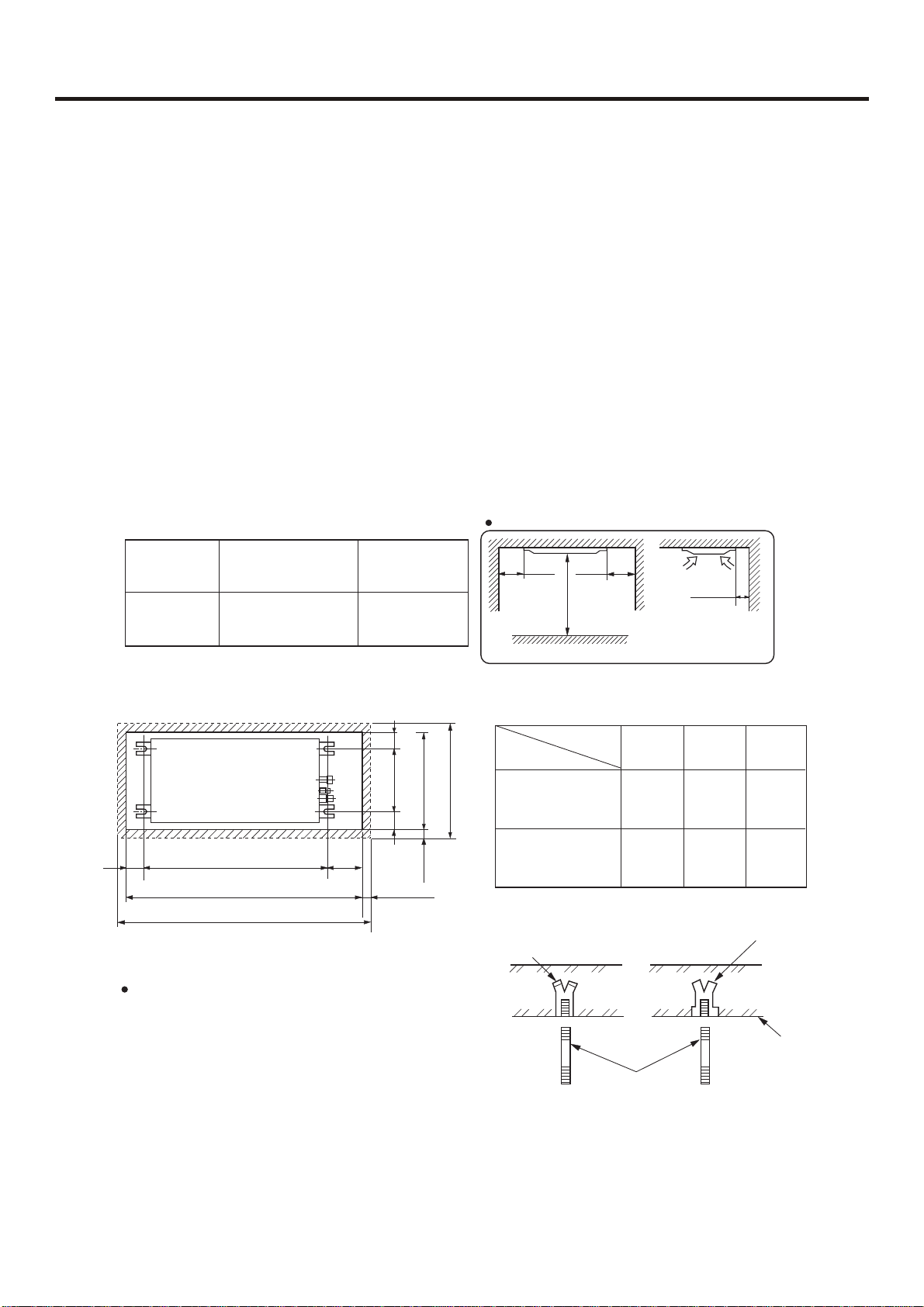

INSTALLATION INSTRUCTIONS

5.3.3 Installation of indoor unit

(1) Preparation of indoor unit

Before or during the installation of the unit, assemble necessary optional panel etc. depending on the specific type.

(2) Select places for installation satisfying following conditions and at the same time obtain the consent on the part of your client user.

(a) Places where chilled or heated air circulates freely. When the installation height exceeds 3m warmed air stays close to the ceiling. In such cases, suggest your client users to install air circulators. (b) Places where perfect drainage can be prepared and sufficient drainage. (c) Places free from air disturbances to the suction port and blowout hole of the indoor unit, places where the fire alarm may not malfunction or short-circuit. (d) Places with the environmental dew-point temperature is lower than 28 and the relative humidity is less than 80%. (When installing at a place under a high humidity environment, pay sufficient attention to the prevention of dewing such as thermal insulation of the unit.) (e) Ceiling height shall have the following height.

Installation space

36series

42 series

Combination with silent

416mm

panel

(a) Size of hole at ceiling and position of hanging bolts

(Hanging bolt position)

(Ceiling hole size)

(Panel dimensions)

(Pipe co-

nnection side)

137

(Ceiling ~ panel wrap dimensions)

545

690

750

(Ceiling hole size)

(Hanging bolt position)

(Ceiling ~ panel

Model

(Panel dimensions)

wrap dimensions)

Hole-in anchor Hole-in plug

(b) Hanger bolts installation

Use care of the piping direction when the unit is

installed.

100 or more

Obstacle

36 series

42 series

100 or more

1000 or more

Dimensions

50 or more

1406 1600

B C

Unit: mm

1660

Insert

Hanging bolt M10

Concrete

Page 49

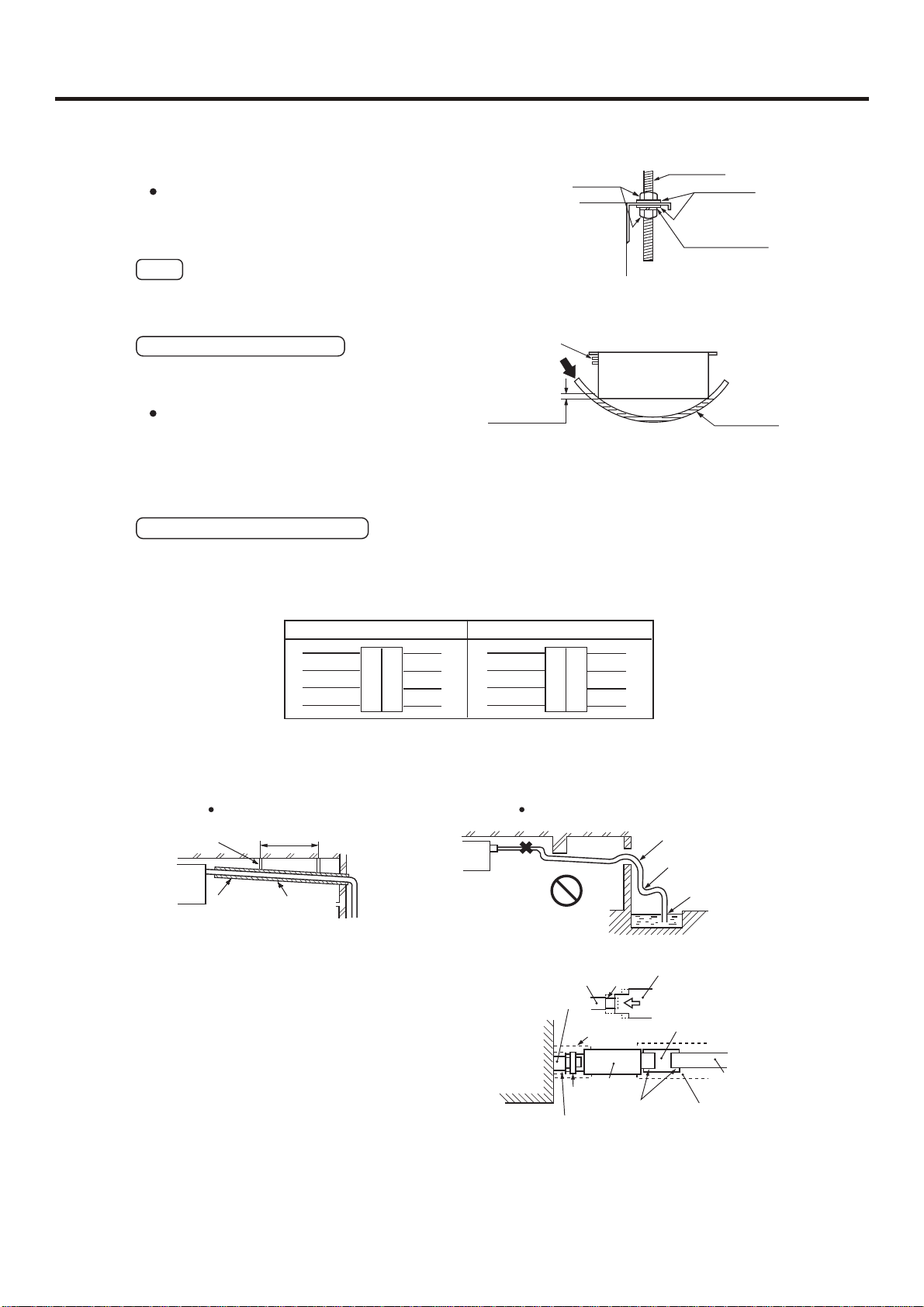

INSTALLATION INSTRUCTIONS

(5) Installation of indoor unit

Fix the indoor unit to the hanger bolts.If required, it is

M10 nut

Hanging bolt

M10 washer

possible to suspend the unit to the beam, etc. Directly by use of the bolts without using the hanger bolts.

Main unit

M10 spring washer

Note

When the dimensions of main unit and ceiling holes does not match, it can be adjusted with the slot holes of hanging bracket.

Adjusting to the levelness

(a) Adjust the out-of levelness using a level or by the following method.

Make adjustment so that the relation between the lower surface of the unit proper and water level in the hose becomes as given below.

Piping side

Supply water

Water level

0~5 mm

(0~0.2")

PVC hose

Bring the piping side slightly lower.

(b) Unless the adjustment to the levelness is made properly, malfunctioning or failure of the float switch may occur.

Tap selection on blower unit

(When the high performance filter is used.)

Taps of blower unit are set at the standard selection at the shipping from factory. Where the static pressure is raised by employing such option as the high performance filter, etc., change the connection of connectors provided at the flank of control box as shown below.

Standard tap (at shipping) High speed tap

White Blue

Yellow

Red

Control box side

White Blue

Yellow

White

Red

Connector white

Yellow

Moter side

White Blue

Red

Black White Blue

Red

Connector white

Moter side

(6) Drain Piping

(a) Drain piping should always be in a downhill grade (1/50~1/100) and avoid riding across an elevation or making traps.

Inproper pipingGood piping

Suspension bolts

Heat insulation

(b)

When connecting the drain pipe to unit, pay

1.5m ~ 2m

A downhill grade of 1/100 or more

suffcient attention not to apply excess force to the piping on the unit side. Also, fix the piping at a point as close as possible to the unit.

(c)

For drain pipe, use hard PVC general purpose pipe VP-25(I.D.1") which can be purchased locally. When connecting, insert a PVC pipe

Air vent

Drain socket

Main unit

Drain socket

Stage difference part

Pipe cover(large) [for insulation] (accessory)

Avoid riding across an elevation

Keep free from traps

Do not pipe under water

Drain hose

VP 25 joint (field purchased)

end securely into the drain socket before tightening securely using the attached drain hose and clamp. Adhesive must not be used connection of the drain socket and drain hose (accessory).

Drain hose (accessory)

Clamp (accessory)

Pipe cover(small) [for insulation] (accessory)

Adhesion

Pipe cover [for insulation] (field purchased)

VP 25 (field purchased)

Page 50

INSTALLATION INSTRUCTIONS

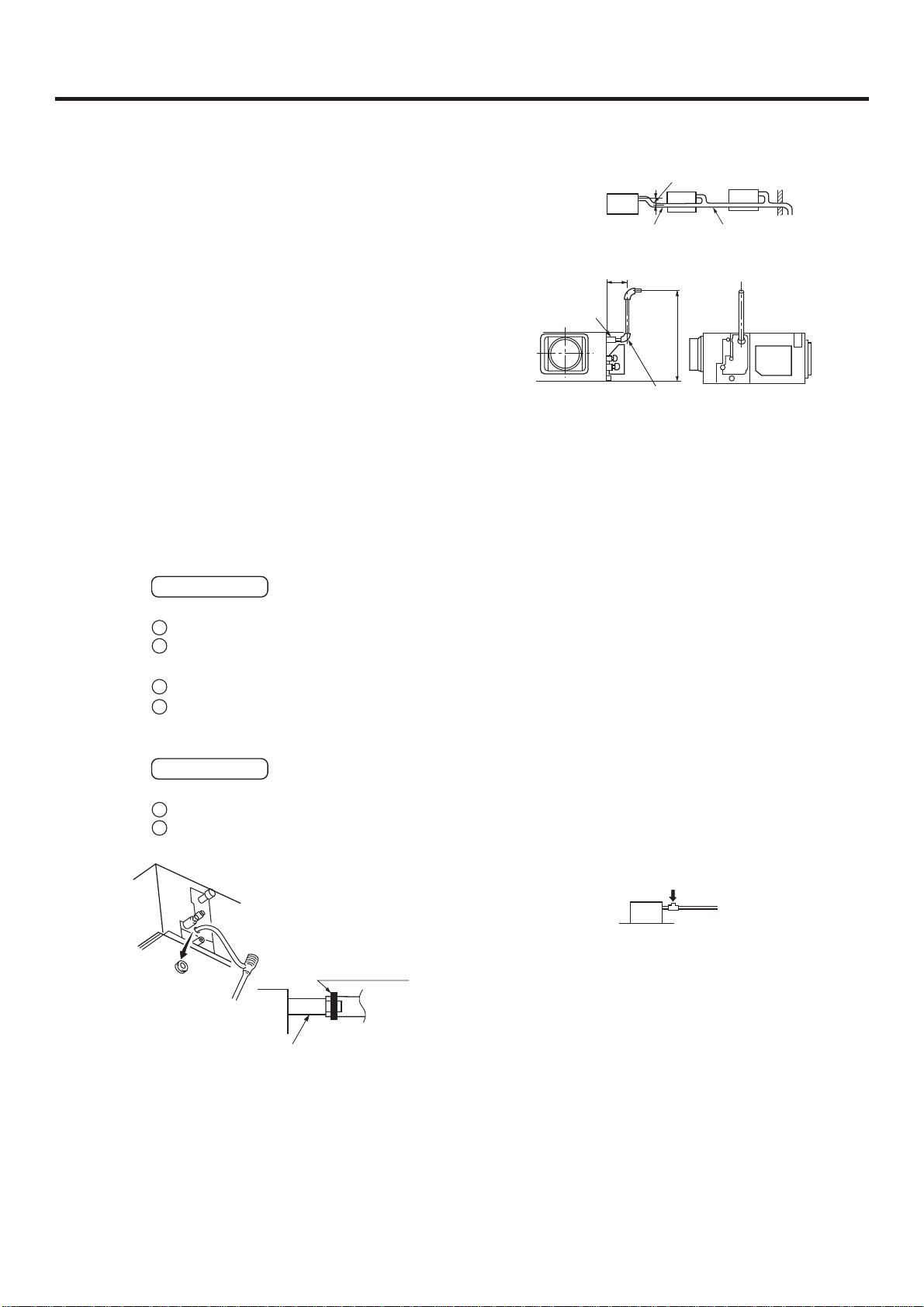

(d)

When constructing drain piping for several units, position the common pipe about 100 mm below the drain outlet of each unit as shown in the sketch. Use VP-30(11/4") or thicker pipe for this purpose.

(e)

Be sure to provide heat insulation to hard PVC pipes of indoor placement. Do not ever provide an air vent.

(f) (g)

The height of the drain head can be elevated up to a point 500 mm above the ceiling, and when an obstacle exists in the ceiling space, elevate the piping to avoid the obstacle using an elbow or corresponding gadget. When doing this, if the stretch for the needed height is higher than 500 mm, the back-flow quantity of drain at the event of interruption of the operation gets too much and it may cause overflow at the drain pan. Therefore, make the height of the drain pipe within the distance given in the sketch below.

(h)

Avoid positioning the drain piping outlet at a place where generation of odor may be stimulated. Do not lead the drain piping direct into a sewer from where sulfur gas

Drainage Test

Drain hose

A downhill grade of 1/100 or more

290~325mm

Joint for VP 25 (Local procurement)

Secure the elevation as high as possible (approx. 100 mm)

VP 30

Right overhead

600

(Maximum local drain up dimension)

Conduct a drainage test after completion of the electrical work.

During the trial, make sure that drain flows properly through the piping and that no water leaks from connections.

In case of a new building, conduct the test before it is furnished with the ceiling.

Be sure to conduct this test even when the unit is installed in the heating season.

Procedures

Supply about 1000 cc of water to the unit through the air outlet using a feed water

pump.

Remove grommet. Make sure to install it back after test.

Insert water supply hose for 20 mm ~ 30 mm to supply water. (Insert hose facing toward bottom.)

Attached drain hose clamp

Main unit

Drain situation can be checked with transparent socket

Drain piping

Pour water into a convex joint.

(In the electrical work has not been completed, connect a convex joint in the drain pipe connection to provide a water inlet. Then, check if water leaks from the piping system and that drain flows through

- 45 -

Page 51

(7) Installation work for air outlet ducts

Air conditioner main unit

INSTALLATION INSTRUCTIONS

Ceiling surface

B Special blowout (Option)

Heat

insulation

A Blowout duct (Optional or marketed item)

inlet duct

(optional or

marketat item)

Suction panel (Silent panel)

special inlet (option) (with air filter)

Hole for check

Calculate the draft and external static pressure and select the length, shape and blowout.

A Blowout duct

2-spot, 3-spot and 4-spot with 200 type duct are the standard specifications. Determine the number of spots based on following table.

Note (1) Shield the central blowout hole for 2-spot. (2) Shield the blowout hole around the center for 3-spot.

Limit the difference in length between spots at less than 2:1. Reduce the length of duct as much as possible. Reduce the number of bends as much as possible. (Corner R should be as larger as possible.)

Good exampleBad exampleBad example

Use a band. etc. to connect the main unit and the blowout duct flange. Conduct the duct installation work before finishing the ceiling.

(8) Connection of suction, exhaust ducts

(a) Duct connection position

i) Fresh air inlet

Inlet can be selected from the side or rear faces depending on the working conditions. Use the rear fresh air inlet when the simultaneous intake and exhaust is conducted. (Side inlet cannot be used.)

ii) Exhaust (Make sure to use also the suction.)

Use the side exhaust port.

Fig.1

State seeing from top of unit

Exhaust hole

Side fresh air inlet

Rear fresh air inlet

Fig.2

- 46 -

Page 52

INSTALLATION INSTRUCTIONS

5.4 Pay special care to the following and check after installation

Item to the checked

Are there any obstacles on air inlet and outlet grill of indoor and outdoor unit?

Is record made for piping length and refrigerant charging amount?

Unproper installation may cause

Unit might fall down, make vibration or noise. This may lead to gas shortage. Dew or water drop may occur. Dew or water drop may occur.

Problem may occur or parts got burned. Problem may occur or parts got burned. There might be a danger of electric shock.

Problem may occur or parts got burned.

This may cause poor cooling.

It is hard to control refrigerant charging amount.

Check

- 47 -

Page 53

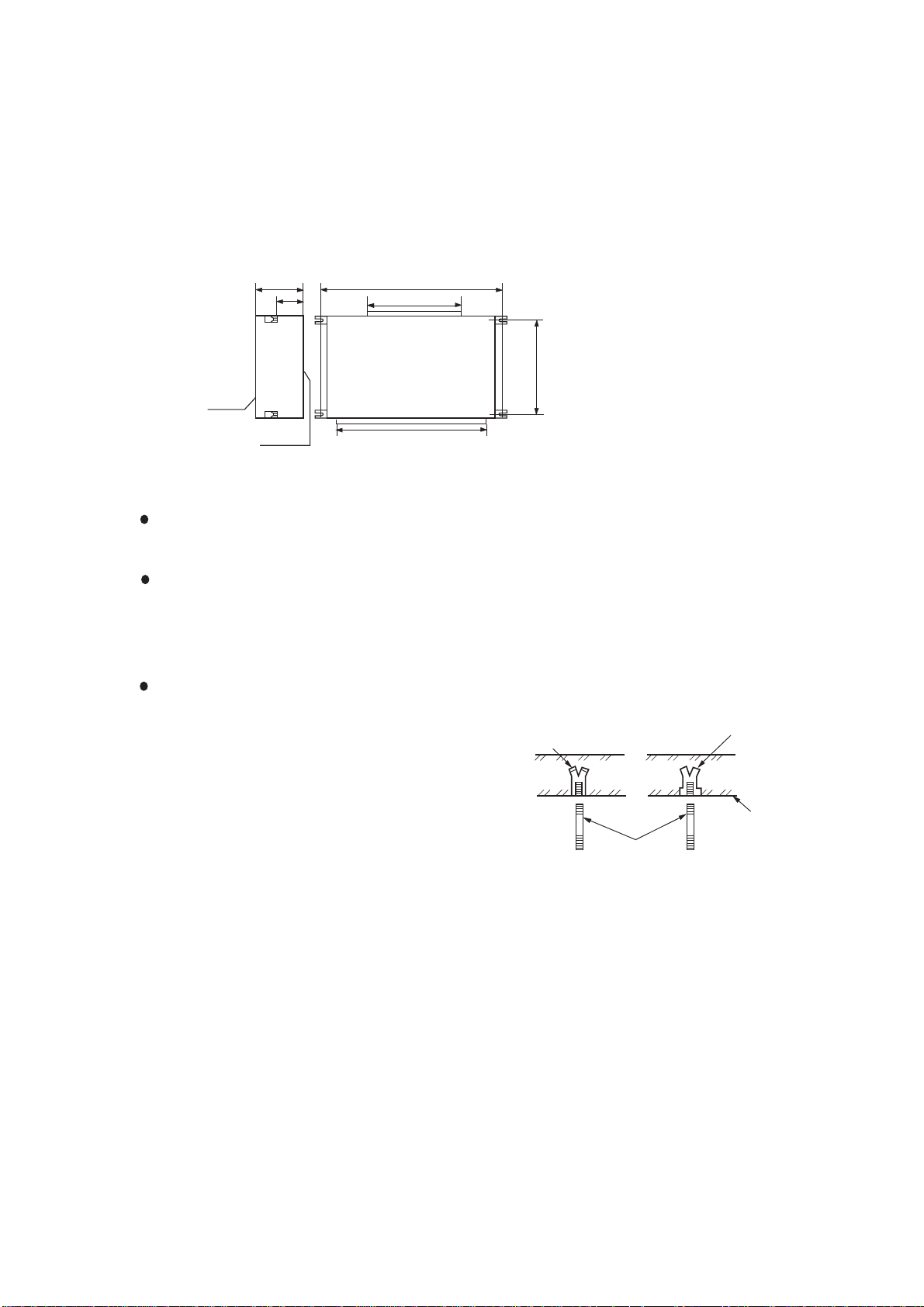

High static pressure duct unit:

3. Preparation before installation

(1) The position relation among hoisting screw (unit: mm)

360

250

1270

853853

794

Down side

Up side

1103

(2) If necessary, cut the opening installation and checking needed on the ceiling. (If has ceiling)

Before installation, finish the preparation work of all the pipes (refrigerant, drainage) and wire (wire controller connection wire, indoor and outdoor unit connection wire) of indoor unit, so that after installation, they can be immediately connected with outdoor unit.

Cut the opening on the ceiling. Maybe it needs to strengthen the ceiling to keep the ceiling even and flat and prevent the ceiling from vibration. For details, please consult to the builder.

(3) Hanger bolts installation

Use care of the piping direction when the unit is installed. (Use M10 screw bolt)

In order to bear the weight of the unit, for existed

Hole-in anchor Hole-in plug

Insert

ceiling, using foundation screw bolt, for new ceiling, using burying embedded screw bolt, burying screw bolt or spot supplied other parts.

Before going on installation, adjust the gaps with ceiling.

Hanging bolt M10

Concrete

Page 54

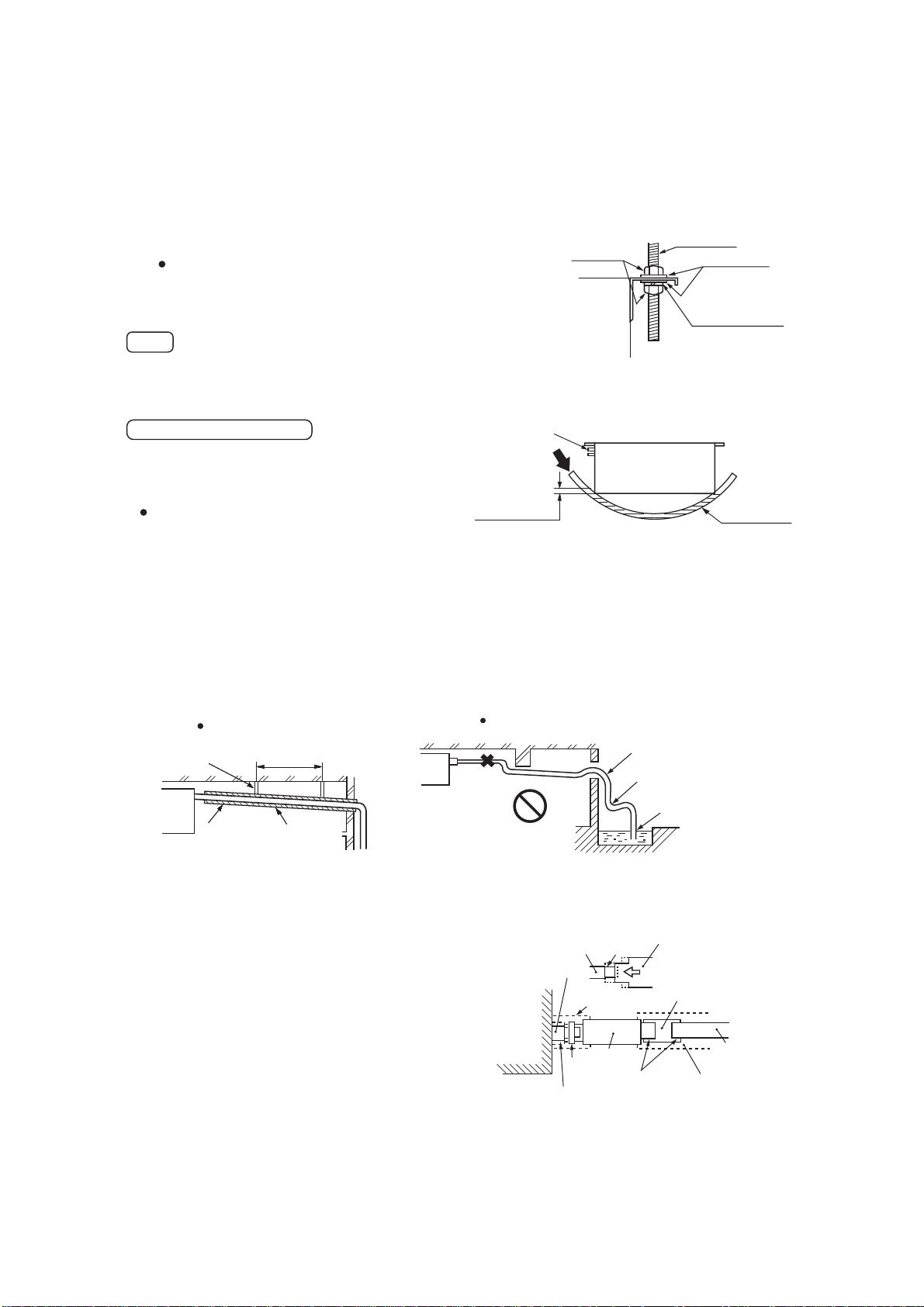

4. Installation of indoor unit

Fix the indoor unit to the hanger bolts.

M10 nut

Hanging bolt

M10 washer

If required, it is possible to suspend the unit to the beam, etc. Directly by use of the bolts without using the hanger bolts.

Main unit

M10 spring washer

Note

When the dimensions of main unit and ceiling holes does not match, it can be adjusted with the slot holes of hanging bracket.

Adjusting to the levelness

(a) Adjust the out-of levelness using a level or by the following method.

Make adjustment so that the relation between the lower surface of the unit proper and water level in the hose becomes as given below.

Piping side

Supply water

Water level

0~5 mm

(0~0.2")

PVC hose

Bring the piping side slightly lower.

(b) Unless the adjustment to the levelness is made properly, malfunctioning or failure of the float switch may occur.

5. Drain Piping

(a) Drain piping should always be in a downhill grade (1/50~1/100) and avoid riding across an elevation or making traps.

Good piping

Suspension bolts

Heat insulation

(b)

When connecting the drain pipe to unit, pay suffcient attention not to apply excess force to the piping

1.5m ~ 2m

A downhill grade of 1/100 or more

on the unit side. Also, fix the piping at a point as close as possible to the unit.

Inproper piping

Air vent

Avoid riding across an elevation

Keep free from traps

Do not pipe under water

(c)

For drain pipe, use hard PVC general purpose pipe VP-25(I.D.1") which can be purchased locally. When connecting, insert a PVC pipe end securely into the drain socket before tightening securely using the attached drain hose and clamp. Adhesive must not be used connection of the drain socket and drain hose (accessory).

Drain socket

Main unit

Drain socket

Clamp (accessory)

Pipe cover(small) [for insulation] (accessory)

Stage difference part

Pipe cover(large) [for insulation] (accessory)

Drain hose (accessory)

Adhesion

Drain hose

VP 25 joint (field purchased)

Pipe cover [for insulation] (field purchased)

VP 25 (field purchased)

Page 55

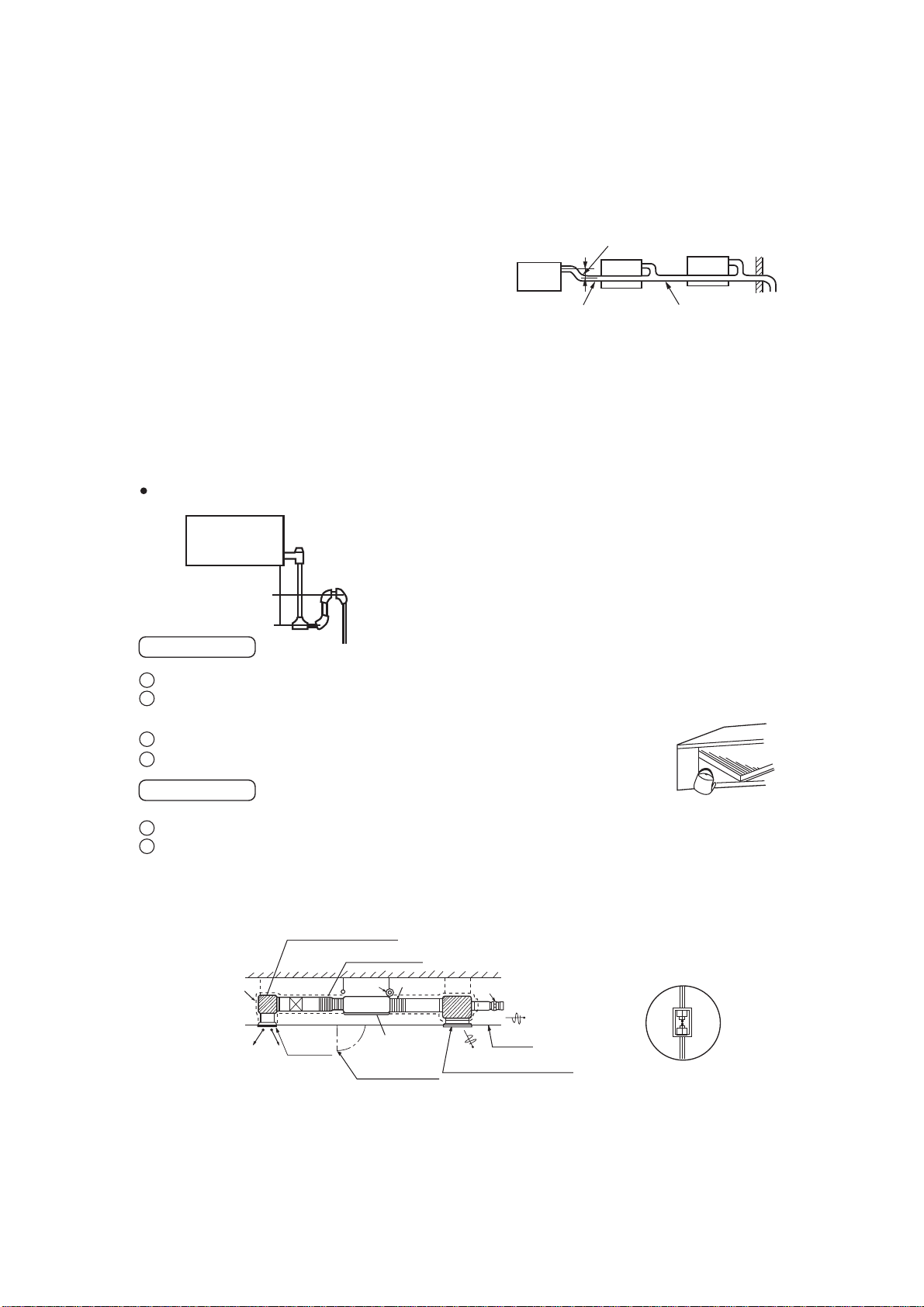

(d)

When constructing drain piping for several units, position the common pipe about 100 mm below the drain outlet of each unit as shown in the sketch. Use VP-30(11/4") or thicker pipe for this purpose.

Secure the elevation as high as possible (approx. 100 mm)

The stiff PVC pipe put indoor side should be heat insulated.

(e)

Avoid putting the outlet of drain hose in the places with irritant gas generated. Do not insert the drain

(f)

A downhill grade of 1/100 or more

VP 30

hose directly into drainage, where the gas with sulfur may be generated.

(g)

Backwater bend

Because the drain spout is at the position, which negative pressure may occur. So with the rise of water level in the drain pan, water leakage may occur. In order to prevent water leakage, we designed a backwater bend.

The structure of backwater bend should be able to be cleaned. As the below figure shown, use T type joint. The backwater bend is set near the air conditioner.

As figure shown, set a backwater bend in the middle of drain hose.

H1H2

H1=100mm or the static pressure of air sending motor H2=1/2H1 (or between 50~100mm)

Drainage Test

Conduct a drainage test after completion of the electrical work.

During the trial, make sure that drain flows properly through the piping and that no water leaks from connections.

In case of a new building, conduct the test before it is furnished with the ceiling.

Be sure to conduct this test even when the unit is installed in the heating season.

Procedures

Supply about 1000 cc of water to the unit through the air outlet using a feed water pump.

Check the drain while cooling operation.

6. Installation of air suction and discharging duct

muffler cavity (air sending)

Sacking joint

Insulation

Air outlet

Air conditioner main unit

Checking meatus

Air volume adjuster

Ceiling

Air suction grille with air filter

Please consult the after-sales service worker of Haier Air Conditioner for the choosing and installation of suction inlet, suction duct, discharging outlet and discharging duct. Calculating the design drawing and outer static pressure, and choose the discharging duct with proper length and shape.

Enlarging chart of profile chart A

Vibration resistance hook

Page 56

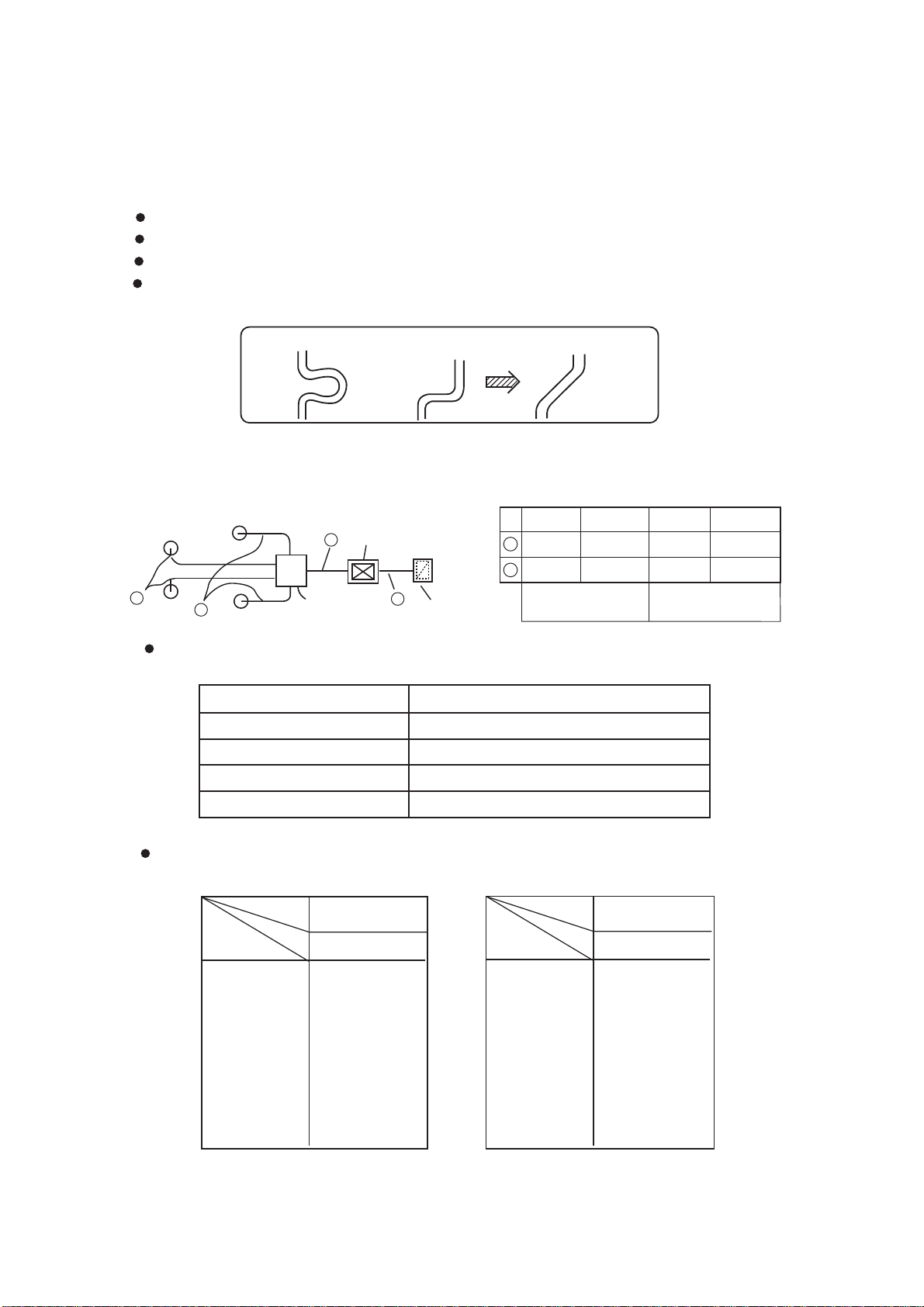

The length difference among every duct is limited below 2:1. Reduce the length of duct as possible as can. Reduce the amount of bend as possible as can.

Use heat insulation material to bind and seal the part connecting main unit and the flare part of air discharging duct. Perform duct installation work, before the fitment of ceiling.

Good exampleBad exampleBad example

7. Calculation method of the dimension of the simple quadrate air duct

Presuming the unit length friction impedance of the duct is 1Pa/m, when the dimension of one side of the air duct is fixed as 250mm, as shown below:

Duct

Air volume

Air conditioner

Static pressure box

Equipped with air filter (bought)

A B

2400m3/h (40m3/min)

600m3/h (10m3/min)

HDU-42H03/H

(mmxmm)

250x560 250x190

The calculation of duct resistance (the simple calculation is as follow table)

Air volume

1200m3/h (20m3/min)

300m3/h (5m3/min)

HDU-24H03/H HDU-28H03/H

Duct

(mmxmm)

250x310 250x120

Straight part Bend part Air out part

Static pressure box Air inlet grille (with air filter)

The chosen chart of simple duct

Note:1Pa/m=0.1mmAg/m

Shape

Item

Air volume

m3/h(m3/n)

100 200 300 400 500 600(10)

800 1,000 1,200(20) 1,400 1,600

Square duct

Dimension

(mmxmm)

250 x 60 250 x 90

250 x 120 250 x 140 250 x 170 250 x 190 250 x 230 250 x 270 250 x 310

250 x 350 250 x 390

Calculate as per 1m length 1Pa, 1Pa/m Each bend takes as a3~4m long straight duct

Calculate as 25Pa Calculate as 50Pa/each

Calculate as 40Pa/each

Shape

Item

Air volume

m3/h(m3/n)

1,800(30) 2000 2400 3,000(50) 3,500 4,000 4,500 5,000 5,500 6,000(100)

Square duct

Dimension

(mmxmm)

250 x 430 250 x 470 250 x 560 250 x 650 250 x 740 250 x 830 250 x 920 250 x 1000 250 x 1090 250 x 1180

Page 57

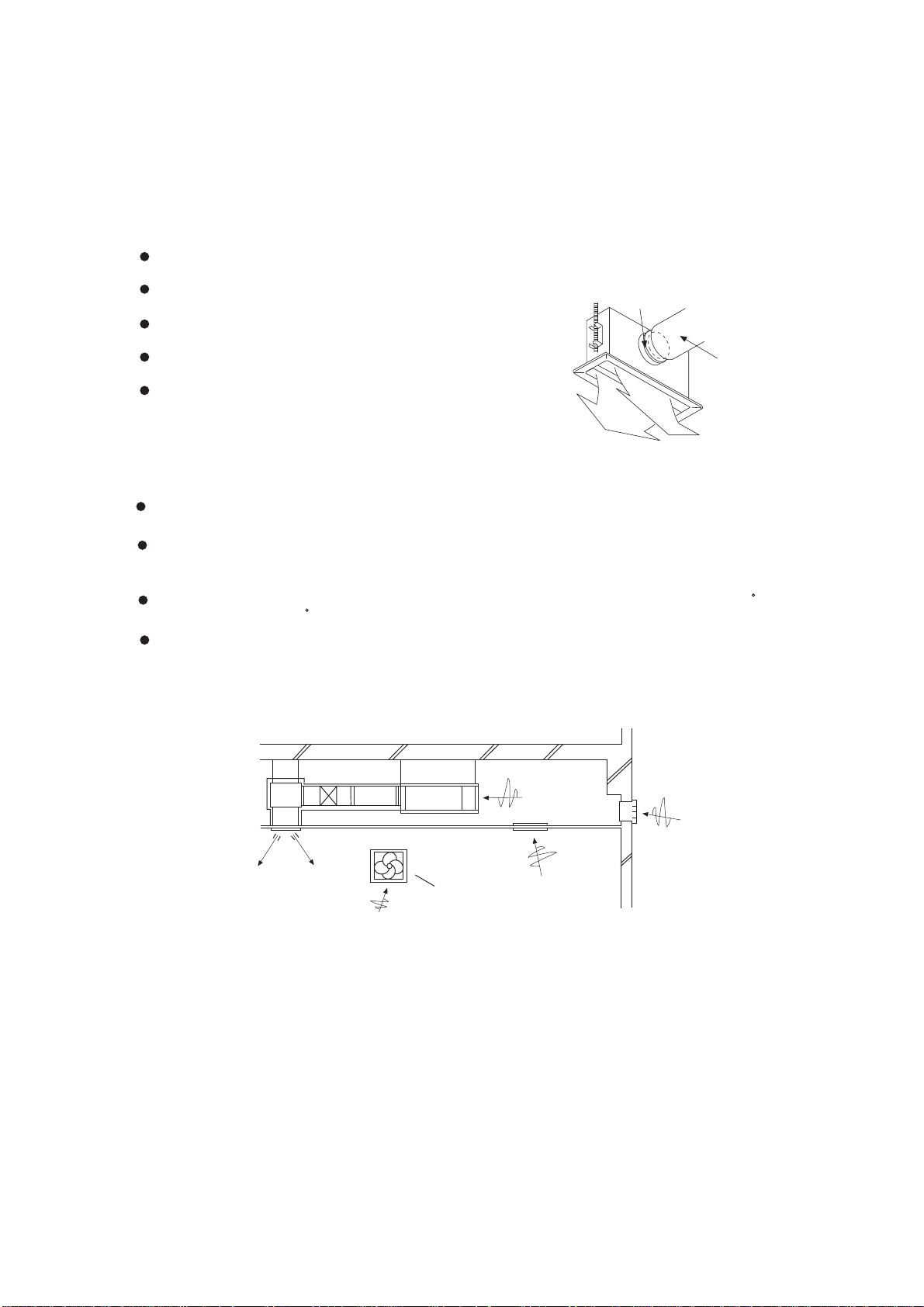

8. The attentive matters in installation of air suction and discharging duct

Recommend to use anti-frost and sound-absorbing duct. (locally bought) The duct installation work should be finished before the fitment of ceiling.

The duct must be heat insulated.

The specific air-discharging outlet should be installed at the place where the airflow can be reasonably distributed.

The surface should leave a checking meatus for checking and maintenance.

Special air discharging outlet

Use screw bolt to fix

Air

Duct

9. The examples of improper installation

Do not use air in duct and take the ceiling inner side instead. The result is because of the irregular outer air mass, strong wind and sunshine, the humidity is increased.

There may be water drop on the outside of duct. For cement and other new constructions, even if not taking ceiling inner side as duct, the humidity will also be so high. At this time, use glass fiber to perform heat preservation to the whole. (use iron net to bind the glass fiber)

Maybe exceeding the unit operation limit (for example: when indoor dry bulb temperature is 35 C, wet bulb temperature 24 C), it may lead to overload of compressor.

Affected by the capacity of air discharging fan, the strong wind in the outer duct and wind direction, when unit air sending volume exceeds the limit, the discharged water of heat exchanger will overflow, leading to water leakage.

Air discharging fan

Improper example

Page 58

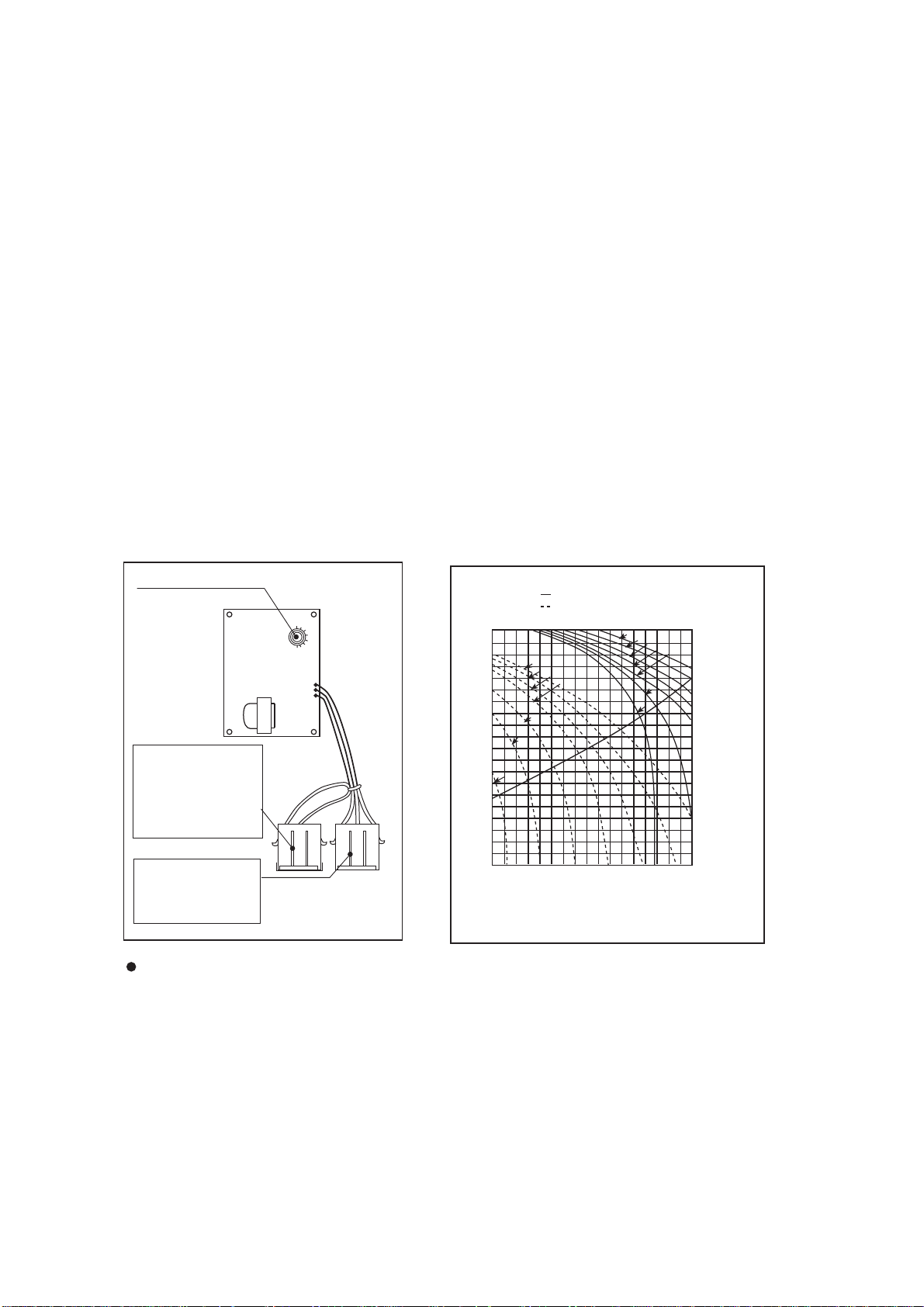

10. The operation method of fan controller

Through the fan controller switch in the electric box, the air volume of this unit can be continuously adjusted. It is unnecessary to adjust air volume through the duct side wind level (unit outside static adjustment).

The air volume set should be in the operation air volume range. Figure I shows the position of fan controller in the electric box and operation method.

After finishing the electric work, perform test run. According to the main points in Figure II making the chosen switch No. accordant. And confirm if it reaches the needed air volume.

Note:

1) When operating the fan controller, it is possible to touch the electric charging part, so do cut off the power supply.

2) Do not set the dial at the position less than 1.

3) The figure circled in Figure II indicate the capacity number of fan controller. The non-listed capacity number may exceed the permitted operation capacity range, so it is impossible to operate.

4) When delivering from factory, the capacity number of fan controller is set at “No.5”.

Rotate this switch

Condition of standard air volume

(capacity number setting: No. 1 ~ No. 8)

Once the fan controller has trouble, this linker can perform emergency assistant control. When this linker is connected to the linker from the PCB, it can operate with total load.

When this linker is connected to the linker from the PCB, through the fan speed adjustment panel to adjust speed.

Figure 1

High

(air volume 100Pa)

Low

200

•

150

100

•

Outer static pressure Pa

26 30 3435 40 43

•

Lower limit

Standard air volume

(m3/min)

•

Upper limit

Example of duct

Figure 2

The example of the method of choosing capacity number:

1) If the unit is in high-speed operation, needing take outer static pressure is 180Pa in capacity air volume 34m3/min as working condition point, according to Figure II “The characteristic chart of air volume”, the capacity number of fan controller is No. 2.

2) If the unit is in low speed operation, needing take outer static pressure is 60Pa in capacity air volume 32m3/min as working condition point, according to Figure II “The characteristic chart of air volume”, the capacity number of fan controller is No. 4.

Page 59

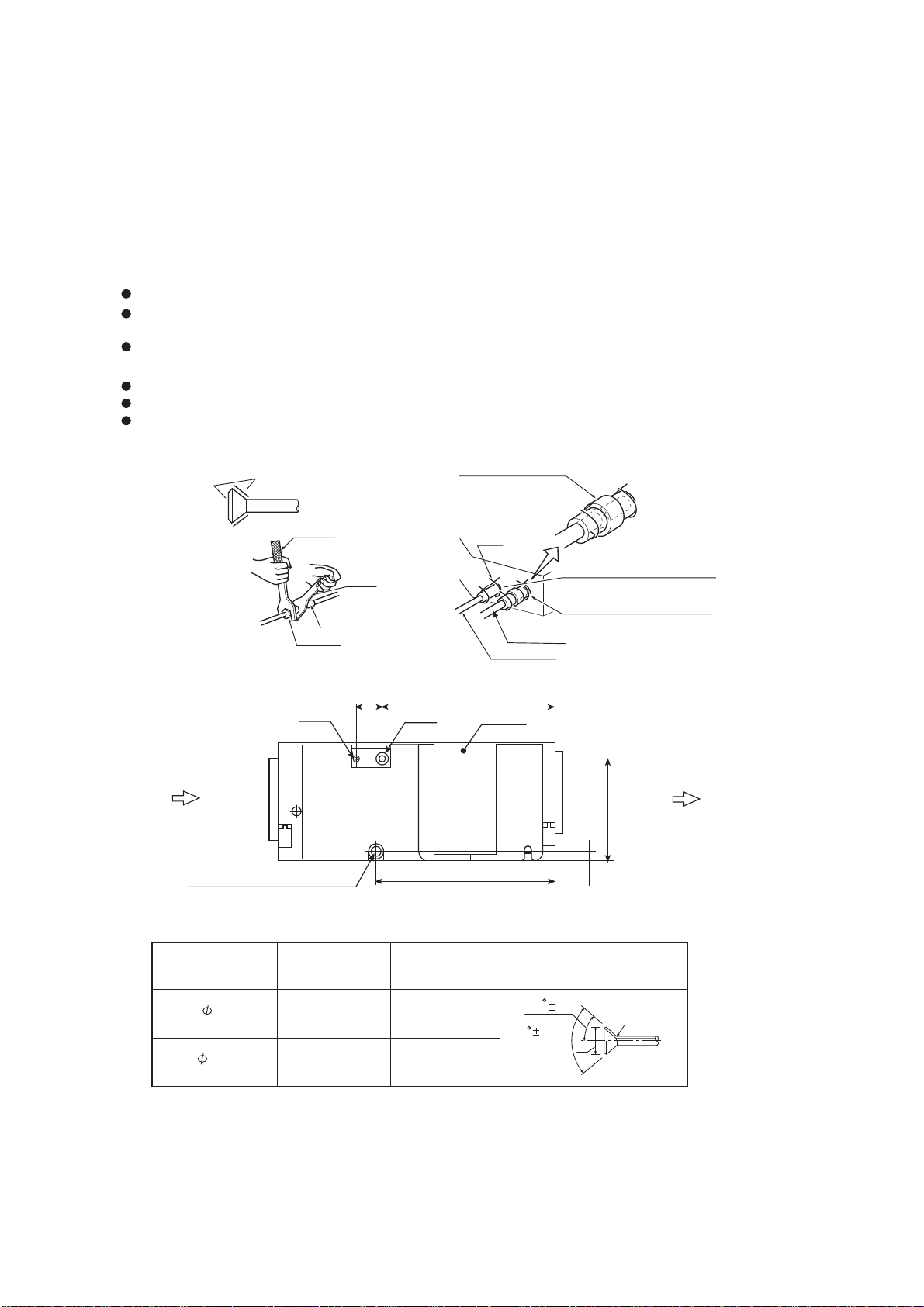

11. Refrigerant pipe

[The air side pipe, liquid side pipe must be faithfully heat insulated, if no heat insulation, it may cause water leakage.]

The outdoor unit has been charged with refrigerant. When connect the pipe to the unit or dismantling the pipe from the unit, please follow the figure shown,

use spanner and torque spanner together. When connect cone nut, the inner side and outside of cone nut should paste with refrigerant oil. Use

hand to twist 3-4 rings, then fasten with spanner. Referring to Table I to confirm the fasten torque. (too tight may damage nut leading to leakage)

Check if the connection pipe leaks, then do heat insulation treatment, as below figure shown. Only use seal cushion to bind the joint part of air pipe and heat insulation parts.

Paste the refrigerant oil here

Torque spanner

Pipe joint

Cone nut

Liquid pipe

Air inlet

Drain hose connection mouth VP25 PVC pipe

Spanner

Middle size seal cushion (accessory)

(Use seal cushion to bind the pipe joint)

Clamp

Heat insulation (accessory)

Gas pipe

Liquid pipe

Gas pipe

Electric box

Upper

Down side

Heat insulation (accessory)

(for liquid pipe)

(for gas pipe)

Air outlet

310

Specification of pipe

(mm)

9.52

15.88

Tighten torque

3270~3990 N.cm (333~407 kgf.cm)

9720~11860 N.cm (990~1210 kgf.cm)

Cone dimension

A (mm)

12.0~12.4

22.9~23.3

Cone

45 2

90 0.5

Page 60

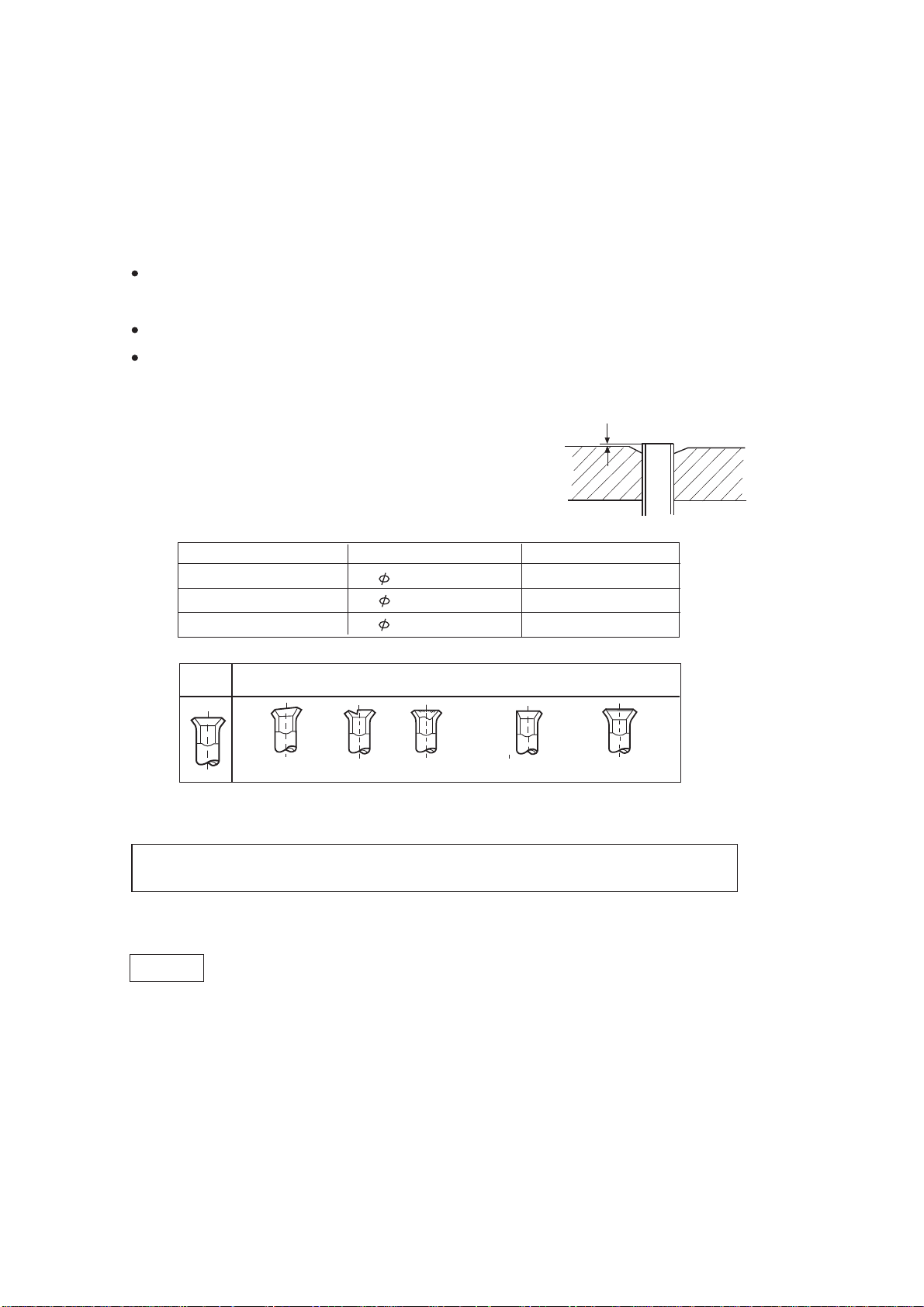

Other instruction

1. Power supply

The air conditioner must use a special power circuit. The user should provide by himself with special switch (25A~30A), grounding wire. The wiring should be done by a qualified electrician according to the wiring rules specified by national standard

An creepage breaker should be installed.

The grounding wire and null wire of the power cord should be strictly separated. It is incorrect to connect the null wire with grounding wire.

2. Cut and flaring method

Flarer

Use pipe cutter to cut the pipe, the burrs must be removed.

After inserting the flarer, perform flared nut.

Pipe diameter

Liquid pipe

Gas pipe Gas pipe

Correct Incorrect

Slant Broken Burrs Uncompleted Too long

9.52mm (3/8”)

19.05mm (3/4”)

15.88mm (5/8”)

Dimension A (mm)

1.0-1.2

1.4-2.2

Test run

The following items must be noticed carefully during installation. After finishing installation, performing checking.

After installing the refrigerant pipe, drain hose and electric wire properly, perform test run to ensure the system not have trouble.

Test run

(1) Open the stop valve of gas pipe. (2) Open the stop valve of liquid pipe. (3) Press ON/OFF button to start operation, use wire controller to set to Cooling operation. (4) Confirm the function of the unit according this manual.

Page 61

6.Parts and functions

Cassette type Indoor unit :

Discharge unit (built in)

PARTS AND FUNCTIONS

In cooling operation,to discharge the water from inside the room.

Outlet

Convertible type Indoor unit :

Drain Hose

Swing fender

(located in the outlet)

Refrigerant pipe Cable line Earthing line

Air filter

(located in the suction grill)

Remote Controller

Suction grill

Remote control PCB

Electric box assy

Outlet grill assy

Inlet grill assy

1320X715X235(AXBXC)

- 48 -

Page 62

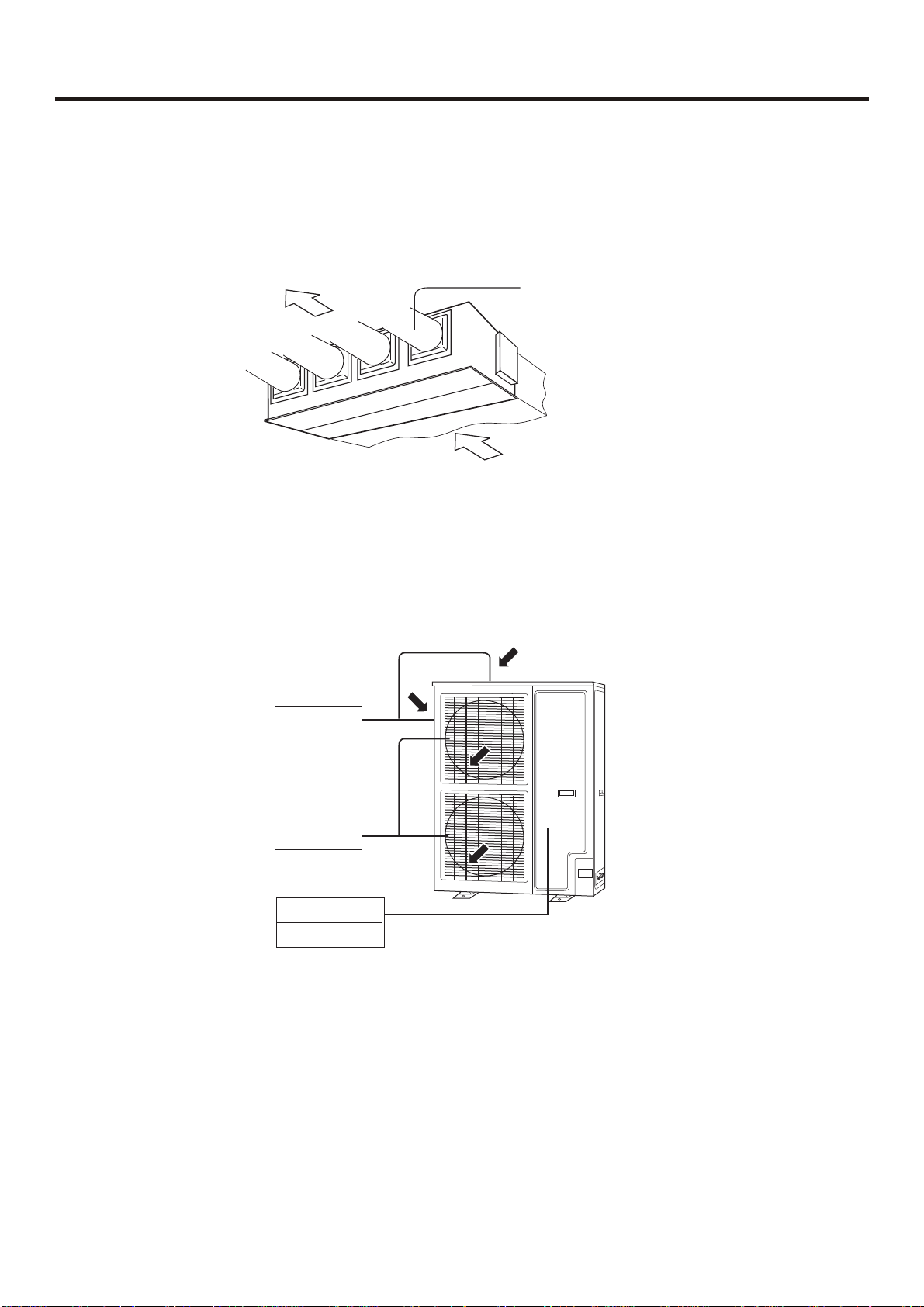

Duct type(mid static pressure)

PARTS AND FUNCTIONS

Outdoor unit

Air outlet

Air inlet

Duct

Air inlet

For series 36, 42

Air outlet

Compressor (inside)

Compressor

(Inside of unit)

For series 36, 42

- 49 -

Page 63

High static pressure

Duct

Air inlet

Air outlet

Duct

Drainpipe

Page 64

7.Remote controller functions

Remote controller

32 33 34

35 36

3 4 5

SWING

RESET

M D

MODE

HEALTH

CLOCK

TIMER

FILTER

CODE

A U T O

OFF

FRESH

TEMP

LIGHT

SLEEP

HIGH/SO

LOCK

SET

4.Operation MODE

FAN

26 25 24

23 22

Used to select operation mode. Every time you press MODE button, operation mode

changes according to following sequence:

AUTO

COOL

DRY

HEAT

FAN

5.HEALTH Button

Used to set health mode, if the unit has the negative ion function and oxygen bar function.

6.CLOCK Button

Used to set correct time.

7.CLOCK Button

Used to select TIMER ON, TIMER OFF.

(Note: if time of TIMER ON is the same as TIMER OFF ,TIMER ON/OFF cannot be set)

8. FILTER Button

Used to set up/down function of filter.

9. CODE Button

Used to select code A or B, for this unit, the code is A.

1.TEMP Setting Button

(Used to set temperature. Setting ranges: 16 C to 30 C)

In Up/Down function, for controlling up and down filter.

2.SWING Button

If you press this button once, auto swing will be activated. If you press this button again, the louver will fix in the present position.

3.Power ON/OFF Button

Used for unit start and stop After power on, the LCD of remote controller

will display the previous operation state (except for TIMER,SLEEP and SWING state).

10.RESET Button

Press this button by using a sharp article to resume the correct operation of the remote controller in case of need, i.e. for example in case of malfunctions due to electromagnetic noise.

11.LOCK Button

Used to lock operation button and LCD display contents: by pressing this button, other buttons comes out of function and lock state display appears; if you press it again, lock state will be no more active and lock state display will disappear.

12.LIGHT Button

Used to light the control panel (only for cabinet unit)

13.Up and down Button

Used to set TIMER and CLOCK up or down.

14.HIGH/SO Button

Used to select HIGH or SOFT operation.

15.SET Button

Used to confirm TIMER and CLOCK settings.

16.FRESH Button

Used to set fresh mode, the unit will draw in fresh air.

17.SLEEP Button

(The clock must be corrected before setting sleep function)

Used to set sleep mode.

NOTE: 1.Cooling only air conditioner does not have the displays and functions related to heating.

2.HIGH/SO button This button is activated in Cooling/Heating mode, the fan speed is in AUTO mode after pressing it and "high functon" will be cancelled automatically after 15 minutes running.

Page 65

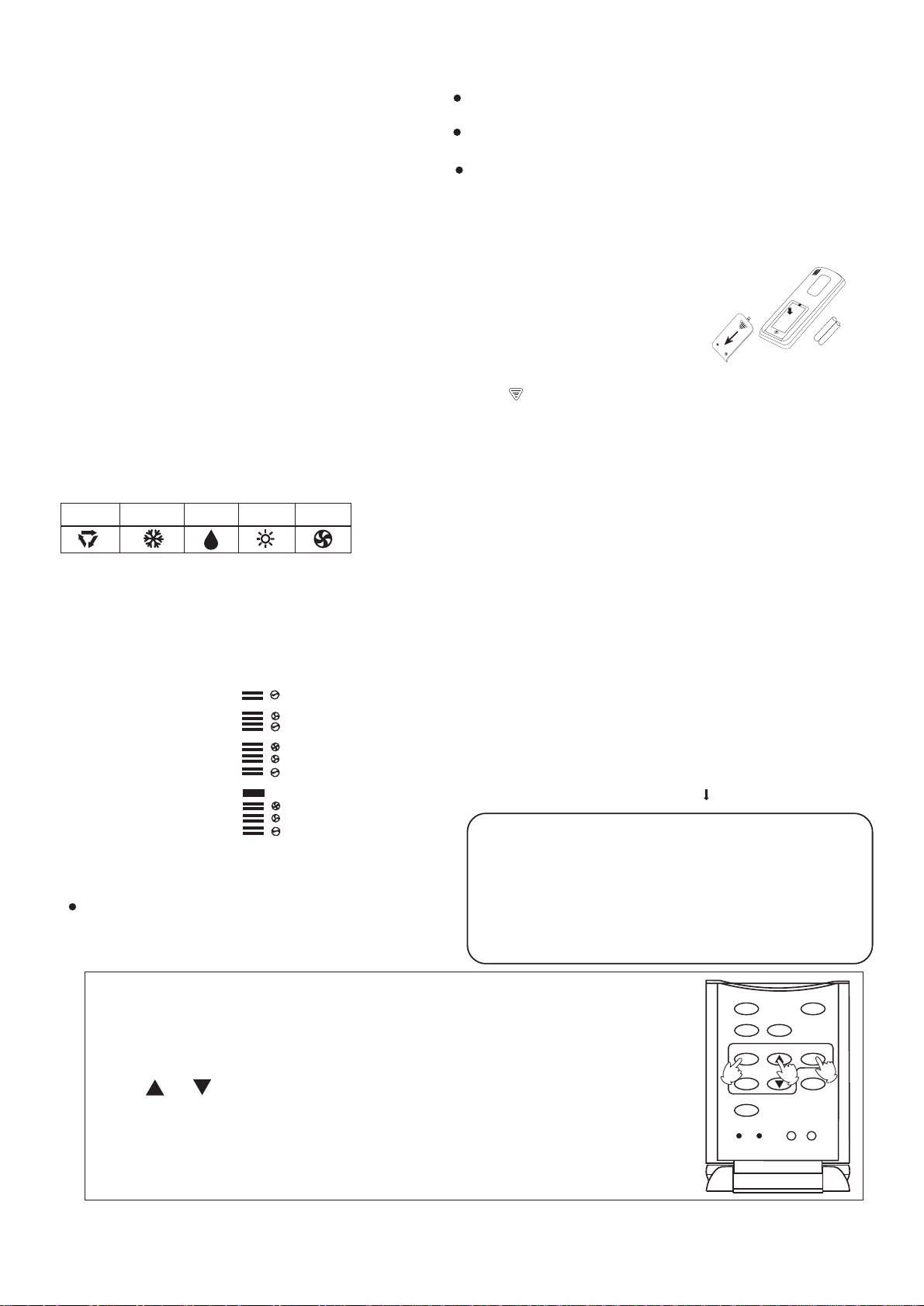

18.FAN Button

Used to select fan speed:LOW,MID,HIGH,AUTO.

19.TIMER OFF Display

20.CLOCK Display

21.FILTER Display

22.TEMPERATURE Display

23.AUTO SWING Display

24.HIGH/SO Display

25.SIGNAL SENDING Display

26.FRESH AIR Display

27.ELECTRICAL HEATING Display

28.Some other buttons

All these functions are not available now.

29.HEALTH Display

Displays when healthy run function is set.

30.DEHUMIDIFICATION Display

31.Operation MODE Display

AUTO RUN

COOL RUN

DRY RUN

HEAT RUN

FAN RUN

32.SLEEP State Display

33.BATTERY Energy Display

Notify the user when it is time to change the batteries.

34.LOCK State Display

35.FAN SPEED Display

LO MID

The distance between the remote controller and the receiver should be max 7m and there should be no obstacle between them. Do not throw the remote controller; prevent it from being damaged.

When operating the remote controller in an area where electronically controlled lights are installed or wireless handsets are used, please move closer to the indoor unit as the function of the remote controller might be affected by signals emitted by the above mentioned equipments.

Battery loading

Battery loading Batteries are fitted as follows:

Remove the battery compartment lid Slightly press and disengage the battery compartment lid marked with ì

section and then remove the battery compartment lid by pressing in the direction of the arrow as shown in the figure above.

î and then hold the remote controller by the upper

Loading the battery

Ensure that batteries are correctly placed in the compartment as required for positive and negative terminals.

Replacing the battery compartment lid

The battery compartment lid is reinstalled in the reverse sequence.

Display review

Press the button to see if batteries are properly fitted. If no display appears, refit the batteries.

Confirmation indicator

If no indication is displayed after press ON/OFF button, reload the batteries.

Caution:

* *

AUTO

If the remote controller does not operate as designed after fitting new batteries of the same type, press the Reset button (marked ) with a pointed article.

Note:

36.TIMER ON Display

Remote Controller' Operation

When in use, direct signal transmission head to the receiver placed on the indoor unit

It is recommended that the batteries be removed from the compartment if the remote controller is not used for an extended period. The remote controller is programmed for automatic test of operation mode after the batteries are replaced. When the test is conducted, all icons will appear on the screen and then disappear if the batteries are properly fitted.

Clock Set

When unit is started for the first time and after replacing batteries in remote controller, clock should be adjusted as follows:

1.Press CLOCK button, clock indication of " AM " or " PM " flashes.

2.Press or to set correct time. Each press will increase or decrease 1 min. If the button is kept pressed, time will increase or decrease quickly.

3.After time setting is confirmed, press "SET" : AM or PM stop flashing, while clock starts working. Note:AM means morning and PM means afternoon.

RESET

HEALTH

CLOCK

TIMER

FILTER

CODE

FRESH

LIGHT

SLEEPMODE

SET

HIGH/SO

LOCK

Page 66

Fan Operation

1.Unit start

Press ON/OFF button to start your air conditioner. Previous operation status appears on LCD (except for TIMER, SLEEP, and SWING setting).

2.Select operating mode

Press MODE button. At each press, operation mode changes as follows:

SWING

MODE

HEALTH

CLOCK

TIMER

FILTER

RESET

CODE

A U T O

TEMP

OFF

FRESH

LIGHT

FAN

SLEEP

SET

HIGH/SO

LOCK

AUTO

FANHEATCOOL DRY

Then select FAN

3. Adjust fan speed

Press FAN button. At each press, fan speed changes as

follows:

LOW

MID

HIGH

Air conditioner will run at the selected fan speed. When in AUTO mode, unit will adjust fan speed according to room temperature automatically.

4. Unit stop

Press ON/OFF button to stop unit.

About FAN mode When the air conditioner runs in F AN mode, it is not possible to select AUTO FAN or to set temperature.

Page 67

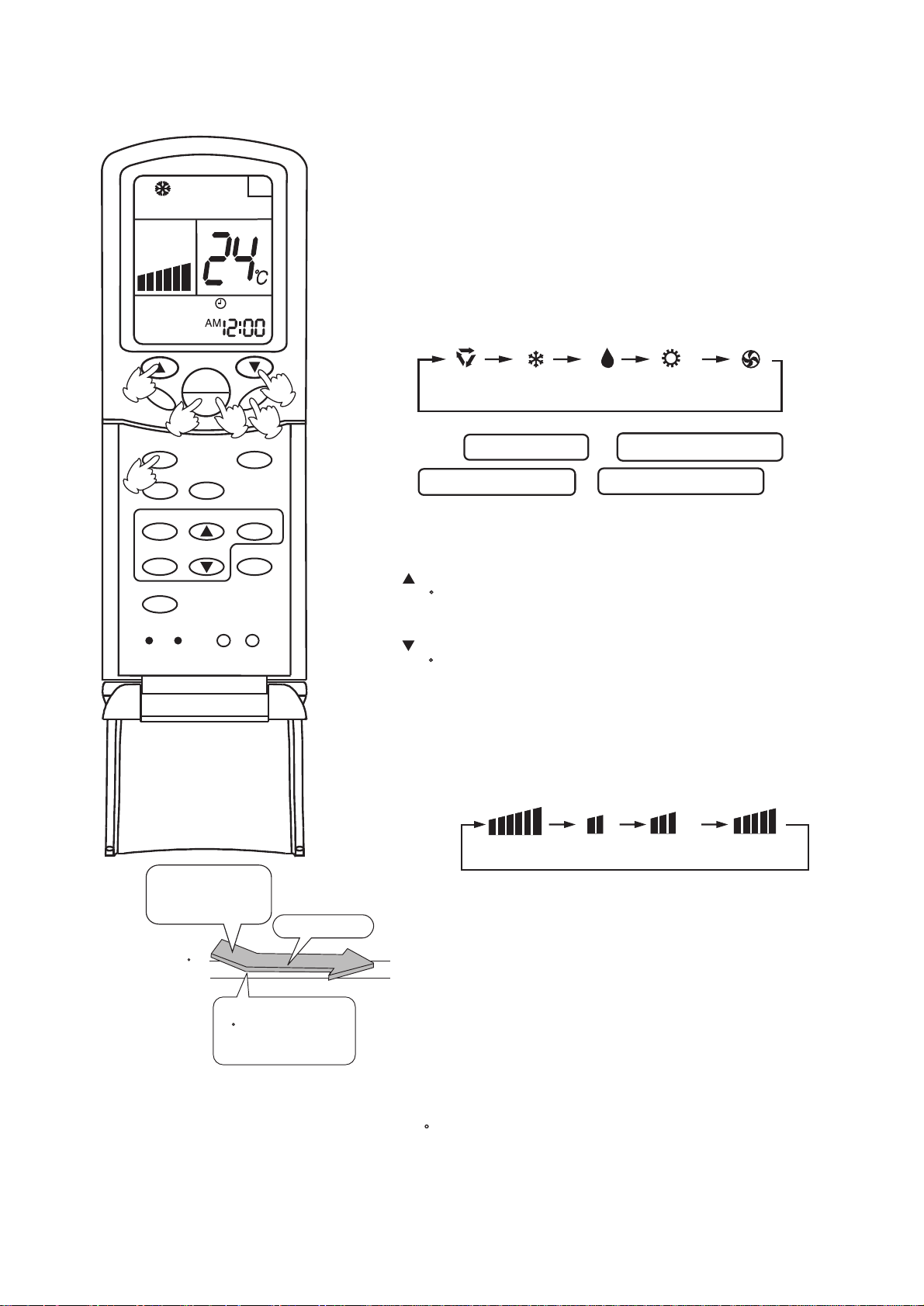

AUTO, COOL , HEAT and DRY Operation

SWING

HEALTH

CLOCK

TIMER

FILTER

RESET

MODE

CODE

A U T O

TEMP

OFF

FRESH

LIGHT

SLEEP

HIGH/SO

LOCK

SET

FAN

1. Unit start

Press ON/OFF button,unit starts. Previous operation status appears on LCD (except for TIMER, SLEEP and SWING setting)

2.Select operation mode

Press MODE button. At each press, operation mode changes as follows:

AUTO

FANHEATCOOL DRY

Then select AUTO run or select COOL operation or select DRY operation or select HEAT operation

3.T emperature setting

Press TEMP button. Every time the button is pressed, temp. setting increases

1 C; if the button is kept pressed, temp. setting will increase quickly .

Every time the button is pressed, temp. setting decreases 1 C, if the button is kept pressed, temp. setting will decrease quickly .

Set proper temperature

4.Adjust FAN button

Press F AN button. At each press, fan speed changes as follows:

A U T O

COOL operation starts when room temp.is higher than temp. setting.

Temp. setting +2 C

Temp.setting

Ultra-low air flow

On reaching temp.setting +2 C, unit will run in mild DRY mode.

AUTO

Air conditioner will run at the selected fan speed.

5. Unit stop

Press ON/OFF button,unit stops.

LOW

In ATUO mode, the temperature setting is not displayed on LCD. In this mode, during running air conditioner will select COOL, HEAT or FAN mode automatically according to the room temperature. In DRY mode, when room temperature becomes 2 C higher than temperature setting, unit will run intermittently at LOW speed regardless of FAN setting. When room temperature is lower than temperature setting, unit will only run F AN operation. In HEAT mode,warm air will blow out after a short period of time due to cold-draft prevention function.

MID HIGH

Page 68

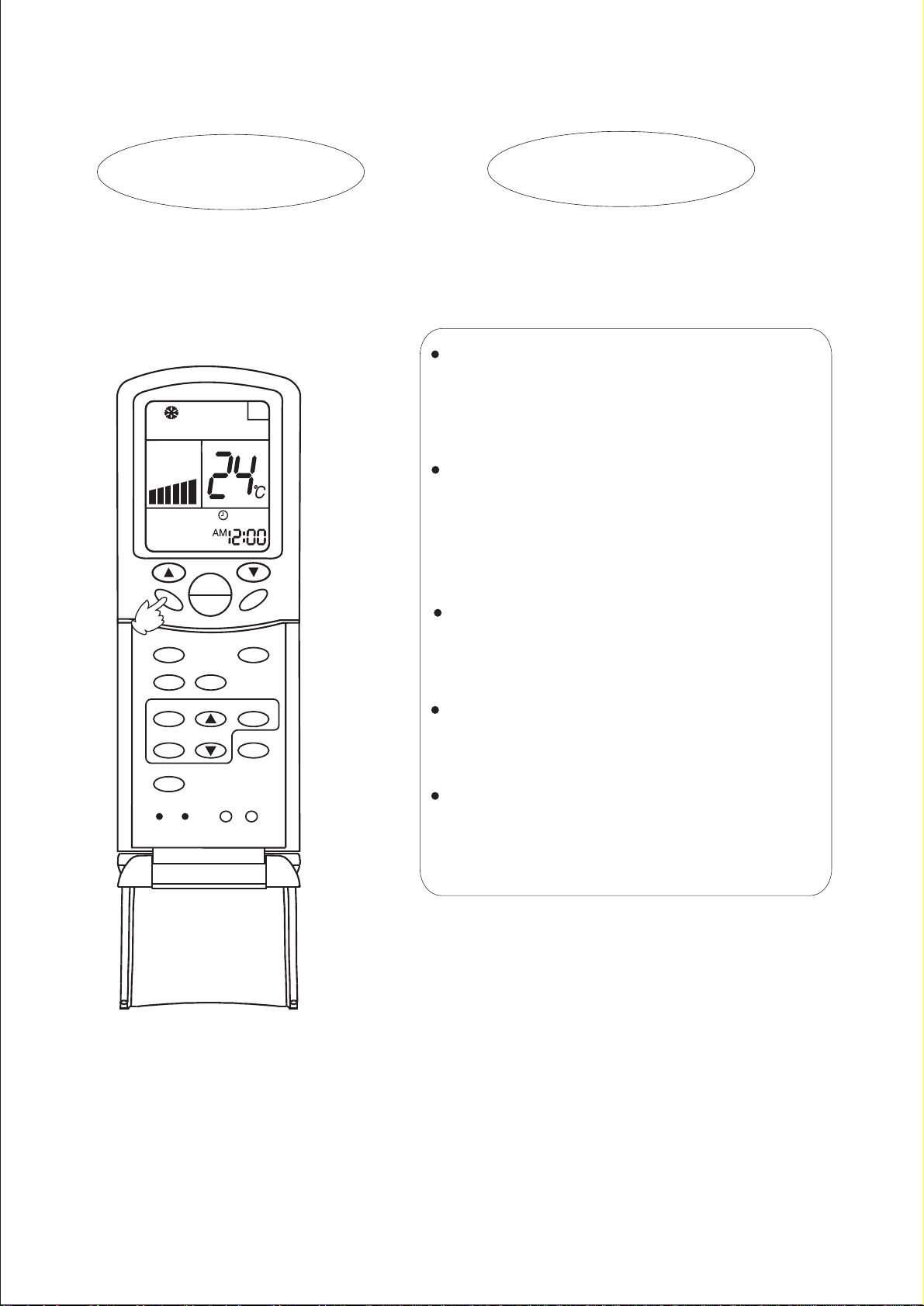

Adjusting air flow direction

AUTO SWING

Press SWING button. Up and down airflow varies upwards and downwards. Left and right airflow varies left and right sides.

A U T O

TEMP

SWING

OFF

MODE

FAN

SLEEP

AUTO SWING

When the automatic swing louver moves to the proper angle, press SWING button can fix the airflow direction.

Always use SWING button on the remote controller to adjust flaps. Adjusting them by hand may result in air conditioner's abnormally running.

In COOL or DRY mode, do not leave the louver in downward position for a long time, as the water vapor close to the grille may condense and water may drop from the air conditioner.

Please carefully set temperature when children, old or infirm people ues the air conditioner.

FRESH

HEALTH

LIGHT

SET

HIGH/SO

LOCK

In case of great humidity, If the vertical flaps are completely turned towards left or right, the louver will drop water.

Never adjust the louver directly by hand, as this

CLOCK

TIMER

FILTER

RESET

CODE

could make it work abnormally .If the louver work abnormally , stop unit, restart and adjust the louver by remote controller.

After unit stops:

Displays on the LCD disappear. All indicators on the indoor unit go out. Swing louver automatically close the air outlet.

Hints:

As in COOL mode air flows downwards, adjusting airflow horizontally will be much more helpful for a better air circulation As in HEAT mode air flows upwards, adjusting airflow downward will be much more helpful for a better air circulation. Be careful not to catch a cold when cold air blows downward directly.

Page 69

Sleep Function

Before going to bed you can press down the SLEEP button and the air conditioner will run so as to make you sleep more comfortably. Before using this function, the clock must be set.

Use of SLEEP function

After the unit's start, set running mode and then press SLEEP button once to make the air conditioner have the previous-set sleep time (first power-on is "1h"). The sleep symbol will appear. Press time button / : you can choose the time in 1~8 hours. Each time the button is pressed, the time increases/decreases 1 hour: "xh" and "OFF" indications appear on the display.

Operation Mode

1.In COOL, DRY mode

One hour after sleeping operation start, the temperature is 1 C higher than the setting one. After another hour, temperature rises 1 C: sleep run continuously for another 6 hours and then stops. The actual temperature is higher than the setting one which is to prevent from being too cold to your sleep.

2.In HEAT mode

One hour after sleeping operation start, the temperature is 2 C lower than the setting one. After another hour, temperature decreases by 2 C more. Temperature will automatically rise by 1 C after another 3 hours' continuous operation. The actual temperature is lower than the setting one which is to prevent from being too hot to your sleep.

3.In AUTO mode.

The air conditioner will run in corresponding sleep operation according to the automatically selected operation mode.

SLEEP RUN BEGINS

1 hrs

SETTING T

In COOL,DRY mode

SETTING T

1 hrs

SLEEP RUN BEGINS

In HEAT mode

SLEEP RUN STOPS

about 6 hrs

increase 1 C

decrease 2 C

about 6 hrs

3 hrs

SLEEP RUN STOPS

SHUT DOWN

increase 1 C

Notes:

After setting SLEEP function, it is not possible to set clock. If set-sleep time does not reach 8 hours, unit will automatically stop operation

after set time is reached. Set " TIMER ON " or " TIMER OFF "In COOL,DRY mode function first,

then set SLEEP. After set SLEEP function, the TIMER function cannot be set.

SWING

A U T O

OFF

TEMP

OFF

FAN

SLEEP

MODE

FRESH

HEALTH

SET

CLOCK

HIGH/SO

TIMER

FILTER

LOCK

LIGHT

RESET

CODE

Page 70

Timer ON/OFF Function

Set clock correctly before starting TIMER operation

1.Unit start

After unit start, select your desired operation mode (operation mode will be displayed on LCD)

2.TIMER mode selection

Press TIMER button on the remote controller to change TIMER mode. Every time the button is pressed, display of TIMER mode changes as follows:

SWING

HEALTH

CLOCK

TIMER

FILTER

RESET

MODE

CODE

TEMP

OFF

FRESH

LIGHT

FAN

SLEEP

SET

HIGH/SO

LOCK

ON OFF ON OFF

12:00

TIMER ON

12:00

TIMER OFF

12:00

TIMER ON-OFF

12:00

blank

Then select TIMER mode as needed (TIMER ON or TIMER OFF). Now or will flash.

OFF

3.TIMER setting (press time adjust buttons )

Every time the button is pressed, time increases 10 minuts. If the button is kept pressed, time changes quickly.

Every time the button is pressed, time decreases 10 minuts. If the button is kept pressed, time changes quickly. It can be adjusted within 24 hours at will.

4.Confirm setting

After setting correct time, press SET button to confirm time. Now

or stop flashing.

OFF

Time displayed: unit starts or stops at X hour X min (TIMER ON or TIMER OFF)

5.Cancel TIMER mode

Just press TIMER button several times until TIMER mode disappears.

Hints:

After replacing batteries or if a power failure occurs, TIMER setting must be reset.

Remote controller has memory function. When you use TIMER mode next time, just press SET button after mode selection if timer setting is the same as the previous one.

Note:

After setting TIMER function, the remote controller displays TIMER time. If you want to see clock time, just press CLOCK button once: clock time will be displayed (if you press the button again continuously ,you can adjust clock). 5 seconds later, the display will show TIMER time again.

Page 71

Timer ON-OFF Function

Set clock correctly before starting TIMER operation

1.Unit start

After unit start, select your desired operation mode (operation mode will be displayed on LCD)

SWING

MODE

HEALTH

CLOCK

TIMER

FILTER

RESET

CODE

OFF

TEMP

OFF

FRESH

LIGHT

SLEEP

SET

HIGH/SO

LOCK

FAN

2.TIMER mode selection

Press TIMER button on the remote controller to change TIMER mode. Every time the button is pressed, display of TIMER mode changes as follows:

ON OFF ON OFF

12:00

TIMER ON

12:00

TIMER OFF

12:00

Then select TIMER ON-OFF mode.

12:00

TIMER ON-OFF

will flash.

blank

3.Time setting for TIMER ON

Press time button

Every time the button is pressed, time increases 10 minuts. If the button is kept pressed, time will changes quickly.

Every time the button is pressed, time decreases 10 minuts.

If the button is kept pressed ,time will changes quickly. It can be adjusted within 24 hours at will. AM refers to morning and PM refers to afternoon.

4.Timer confirming for TIMER ON

After setting correct time, press TIMER button to confirm time. Now

stops to flash, while

OFF

starts flashing.

Time displayed : unit starts at X hour X min.

5.Timer setting for TIMER OFF

Press time buttons and follow the same procedures in " Time setting for TIMER ON"

6.Time confirming for TIMER OFF

After time setting, press SET button to confirm time. Time displayed: unit starts at X hour X min.

stops to flash.

OFF

7.Canel TIMER mode

Just press TIMER button several times until TIMER mode disappears. According to the time setting sequence of TIMER ON and TIMER OFF,

either start-stops or stops-start can be realized. If the time setting of TIMER ON is the same as TIMER OFF, TIMER

ON-OFF function cannot be set.

Page 72

Filter Up/Down

(Only for AB182ACBEA)

After the air conditioner has operated for a certain period, dust has accumulated on the filter, and the filter up/down function can be used to clean it.

1.Whether unit starts or stops, continuously press FILTER button for 3 seconds, and enter the filter up/down waiting status (when unit stops, the yellow TIMER indicator flashes, and filter and clock indication are displayed on the remote controller . Only the FILTER button, the temperature buttons " " " " and time buttons are active).

SWING

MODE

HEALTH

CLOCK

TIMER

FILTER

RESET

CODE

TEMP

OFF

FRESH

LIGHT

FAN

SLEEP

SET

HIGH/SO

LOCK

2.Press temperature button or time button in filter

" "

up/down waiting status: the up/down mechanism makes the filter moving downward and does not stop until it has reached the maximum limit.

3.Press temperature button or time button in filter

" "

up/down waiting status: the up/down mechanism makes the filter to moving upward till near the surface board and then automatically adjusts it to reset (when adjusting to reset, it will not be controlled by the remote controller till the adju stment is finished).

4.During moving downward, press temperature button or time button: moving stops.

" "

5.During moving downward, press temperature button or time button: moving stops.

" "

6.Continuously press FILTER button 3 seconds again to cancel the filter up/down waiting mode (unit stops, the yellow timer indicator stops flashing, the filter goes back to the original position, the remote controller goes back to off status and only clock is displayed).

Note: If the filter does not thoroughly go back to the original position, only needs to operate several times repeatedly.

Page 73

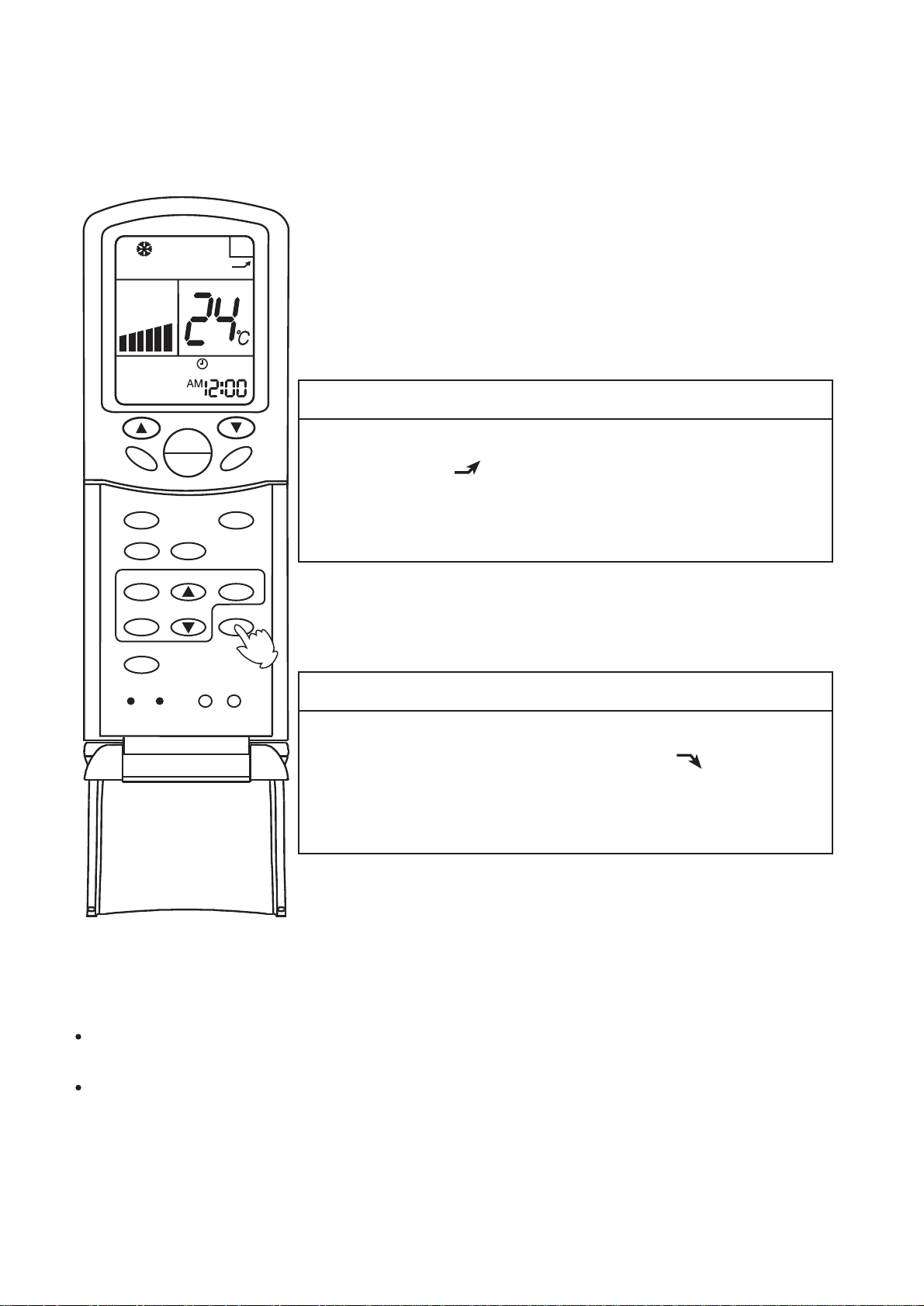

" High mode " Operation

A U T O

TEMP

SWING

MODE

HEALTH

OFF

FRESH

FAN

SLEEP

Outline of operation in "High Mode"

This function is suitable when the set temperature must be reached in the shortest delay. The button "HIGH/SO", referred to this function, is effective in Cooling/Heating mode (not in Auto/Dry/Fan modes).

Press the HIGH/SO button noce

The indication appears on the display of the remote controller and operation in "High Mode" starts. The AUTO fan speed is automatically set and the corresponding indication is also displayed.

LIGHT

SET

HIGH/SO

LOCK

OFF

CLOCK

TIMER

FILTER

RESET

CODE

Press the HIGH/SO button twice

If the button is pressed once, the indication is displayed on the remote controller. If you press the button once again, the indication disappears, regular operation is restored and fan speed goes back to the mode set before "High Mode" operation.

NOTICE: When the air conditioner is operating in " High Mode " , unevenness of room air temperature may occur due to the intensive operation in a short time. Anyway, operation in "High Mode", does not last for more than 15 minutes, then regular operation is automatically restored.

Page 74

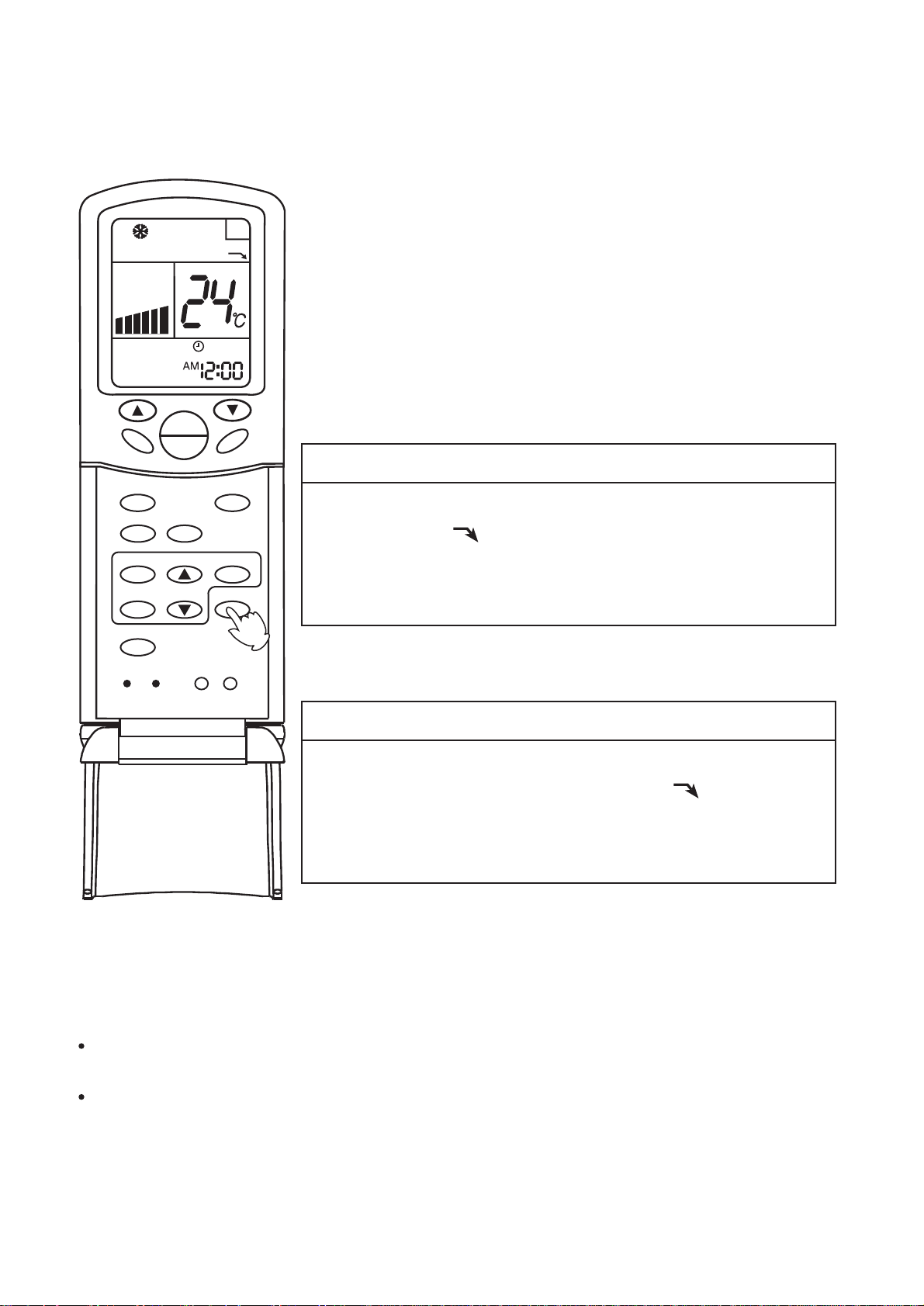

" Soft mode " Operation

A U T O

OFF

TEMP

SWING

MODE

HEALTH

CLOCK

TIMER

OFF

FRESH

FAN

SLEEP

SET

HIGH/SO

Outline of operation in "Soft Mode"

Operation in "Soft Mode", more silent, is suitable when noises should be reduced, e.g.. for reading or sleeping. The button "HIGH/SO", referred to this operation, is effective in Cooling/Heating mode (not in Auto/Dry/Fan modes).

Press the HIGH/SO button twice

The indication appears on the display of the remote controller and operation in "Soft Mode" starts. The AUTO fan speed is automatically set and the corresponding indication is also displayed.

FILTER

RESET

CODE

LIGHT

LOCK

OFF

Press the HIGH/SO button twice

If the button is pressed once, the indication is disappears from the remote controller's display. If you press the button once again, regular operation is restored and fan speed goes back to the mode set before "Soft Mode" operation.

Page 75

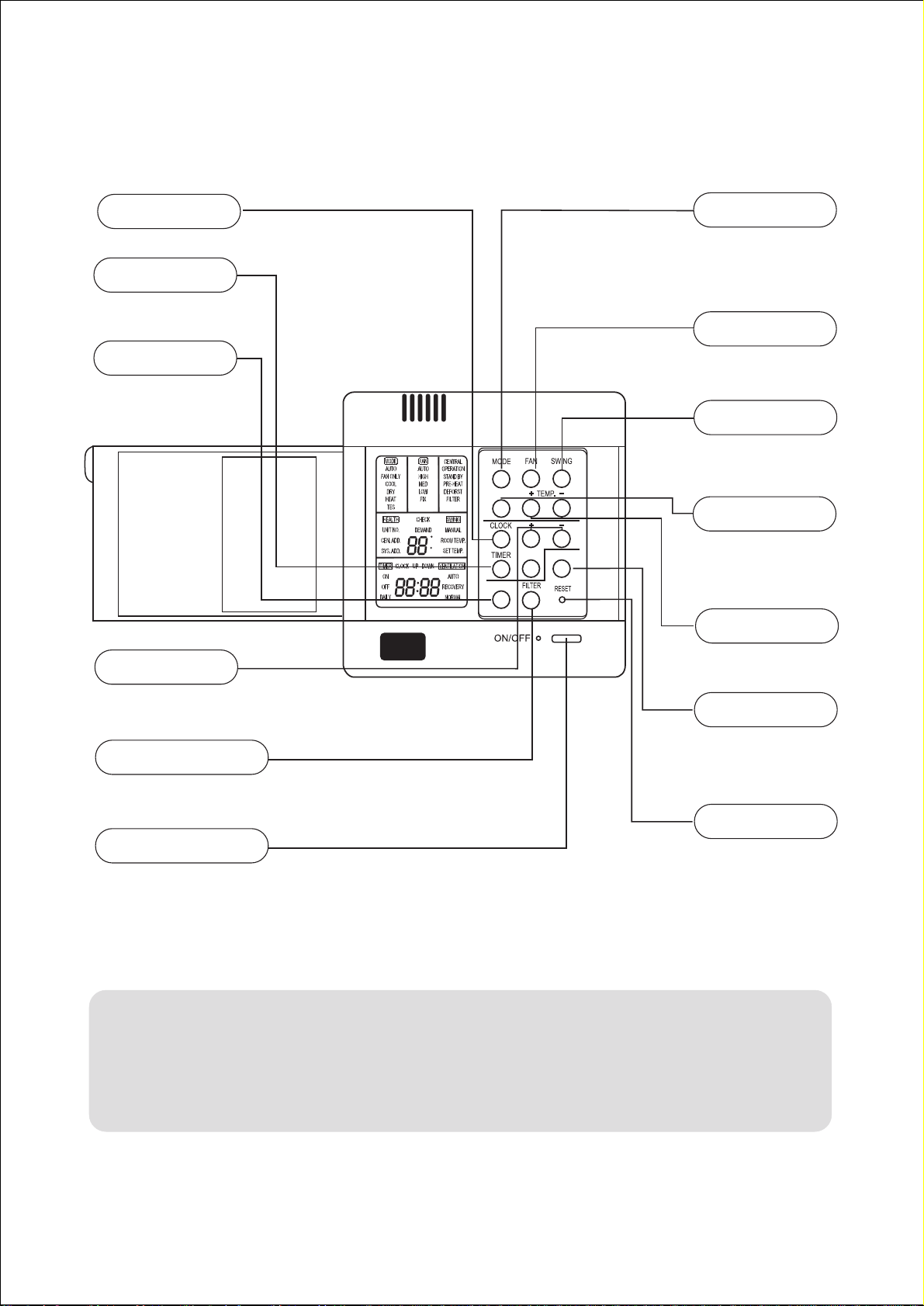

Wired controller YR-E12 functions:

Buttons and functions of the wired controller

CLOCK

Used to adjust time.

TIMER

Used to set timer mode.

CHECK

Auto-diagnostic button.

+ -

stands for time plus/minus, used to adjust time.

FILTER

Filter-cleaned button.

MODE

Used for select indoor operation mode.

FAN SPEED

Used for select indoor air flow.

SWING

Used for setting indoor swing mode.

HEALTH

SET RECOVERY

CHECK

Used for setting indoor health function.

TEMP + -

Used for changing set temperature.

RECOVERY

used to switch over airexchanging mode.

POWER ON/OFF

Used for unit start and stop.

Cautions: On cooling only unit, heating mode is not available.

RESET

Reset correct mode button.

Note: The above information is the explanation of the displayed information therefore varies with those displayed in actual operation.

Page 76

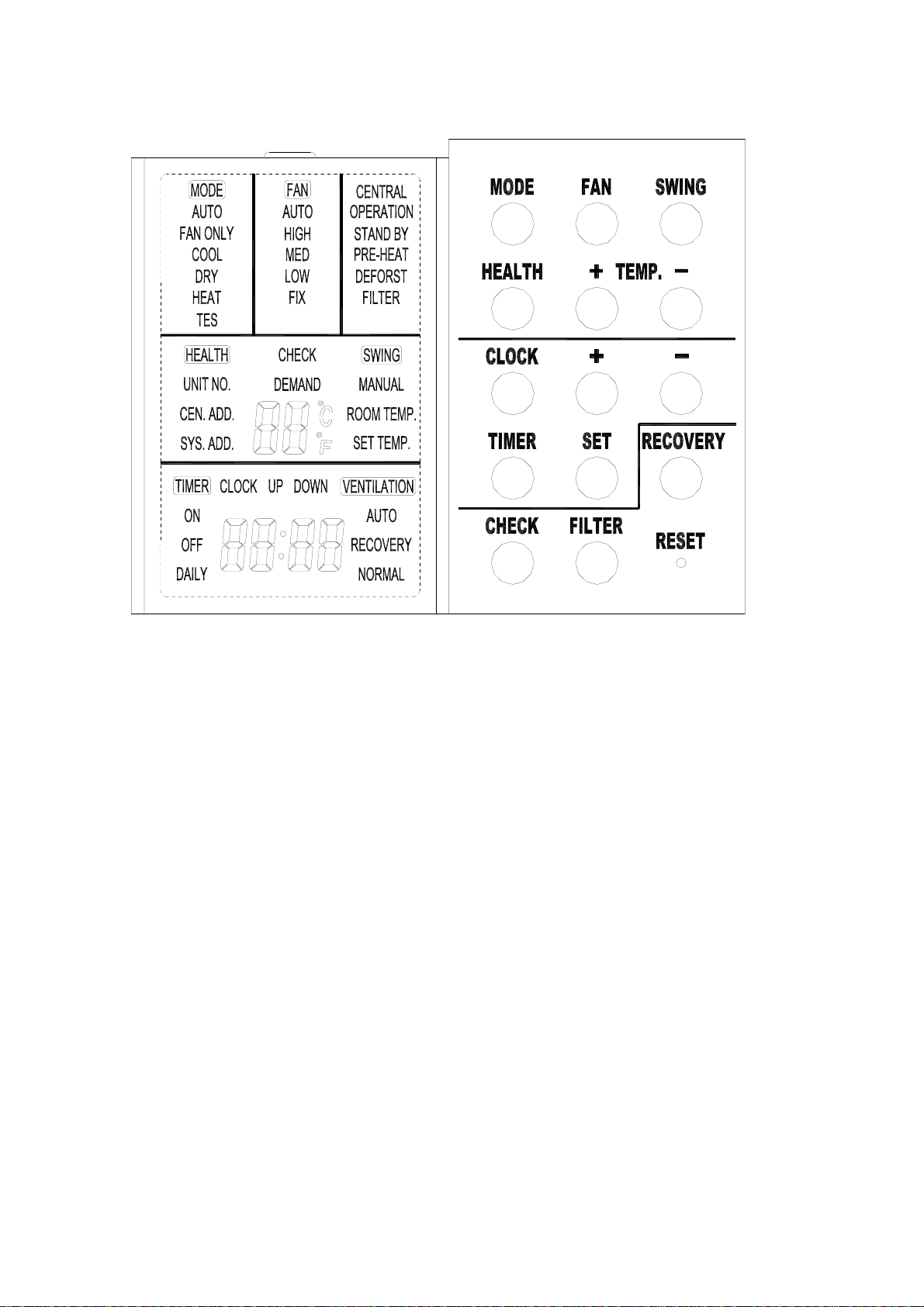

Buttons function： MODE：used for select indoor operation mode. FAN：used for select indoor air flow. SWING：used for setting indoor swing mode. HEALTH：used for setting indoor health function. TEMP + -：used for changing set temperature.

CLOCK：used to adjust time.

+、-：stands for time plus/minus, used to adjust time.

TIMER：used to set timer mode.

RECOVERY：used to switch over air-exchanging mode.

CHECK：auto-diagnostic button.

FILTER：filter-cleaned button.

RESET：reset correct mode button.

Display description：

[MODE] [AUTO]：auto operation mode [MODE] [FAN ONLY]：air-throwing mode [MODE] [COOL]：Cooling operation mode [MODE] [DRY]：Dehumidification mode [MODE] [HEAT]：Heating operation mode [MODE] [HEAT] [TES]：In heating mode, auxiliary electric heater is running. Only when the unit

with auxiliary electric heater is in auxiliary electric heating mode, it will display.

[FAN] [AUTO]：auto fan running

Page 77

[FAN] [HIGH]：high fan speed [FAN] [MED]： medium fan speed [FAN] [LOW]： low fan speed [FAN] [FIX]： fixed fan speed, it will display only when fixed fan speed is requested to main indoor

unit.

[CENTRAL]： central control mode [OPERATION] ：running mode [STAND BY] ： waiting mode [PRE-HEAT] ： pre-heating mode [DEFROST]： defrosting mode [FILTER] ： request of filter to be cleaned [HEALTH]：health function [UNIT NO.] [CEN.ADD]：central control address, the address number will display on “88” [SYS.ADD.]：system address, the address number will display on “88” [CHECK]：auto-diagnostic, trouble shooting [DEMAND]：compulsory operation function, when it works, [CENTRAL] will flash [SWING]：swing mode [ROOM TEMP.]：indoor ambient temperature [SET TEMP.]：set admired temperature [TIMER][ON] ：timer function is on, it will switch over in the sequence below:

[ON][OFF] → [ON][OFF][DAILY] →[ ] [TIMER][OFF] ：timer function is off [TIMER][ON][OFF] ：timer function ON-OFF [TIMER][ON][OFF][DAILY]：timer ON-OFF will switch over in turn daily [CLOCK]：clock display, the displaying time is the current time of the clock. [UP]、[DOWN]：indicator of filter elevating [VENTILATION][AUTO]：auto ventilation mode [VENTILATION][RECOVERY]：fully heat exchanging ventilation mode [VENTILATION][NORMAL]：normal ventilation mode

FAN ONLY OPERATION：

1）Start up operation: press the button of ON/OFF, the system will start up, and will display [MODE][AUTO]；[FAN][AUTO]；[ROOM TEMP.]+“24℃”；[CLOCK]+”12：00”. 2） Select MODE: press the MODE button, then you will see in the display section [MODE] switch

over in below sequence:[FAN ONLY]→[COOL]→[DRY]→[HEAT]→[AUTO]→[FAN ONLY]. Select [FAN ONLY].

3）Select fan speed: press FAN button, then you see in the display section [FAN] switch over in below sequence: [HIGH]→[MED]→[LOW]→[HIGH]. Select proper fan speed. 4）Power off: press ON/OFF button, indoor unit will be powered off, there are only time and the ambient temperature in the screen.

Page 78

AUTO operation, COOLING, HEATING and DEHUMIDIFICATION operation

1) Start up operation: press the button of ON/OFF, the system will start up, and will display [MODE][AUTO]；[FAN][AUTO]；[ROOM TEMP.]+“24℃”；[CLOCK]+”12：00”.

2) Select MODE: press the MODE button, then you will see in the display section [MODE] switch over in below sequence:[FAN ONLY]→[COOL]→[DRY]→[HEAT]→[AUTO]→[FAN ONLY]. Select [FAN ONLY].

3) Change set temperature: press TEMP + or – every time, [SET] will display, and set temperature will increase/reduce 1℃（F）.

4) Select fan speed: press FAN button, then you see in the display section [FAN] switch over in below sequence: [HIGH]→[MED]→[LOW]→[HIGH]. Select proper fan speed.

5) Select [SWING]: press [SWING] button，swing function is valid. Press again, swing function is

invalid.

6) Set [HEALTH]: used to set the indoor health function. Press it once, [HEALTH] will display in the display section, then indoor health function is valid. Press it again, [HEALTH] will disappear, then the health function is invalid. This function is valid only for the unit with health function.

7) Power off: press ON/OFF button, indoor unit is powered off. There are only time and the ambient temperature in the screen.

Set TIMER operation:

Adjust clock: when powered on, for the first time to set timer function, the clock will be adjusted. Press “CLOCK” button, and set the current clock. Now, “CLOCK” will flash at the frequency of 2Hz every minute. Press the clock +/- button; the current clock can be adjusted. Until the proper time comes, press [SET].

TIMER ON operation:

Press TIMER button, and keep pressing it, in the display section [TIMER] will switch over in below sequence: [ON]→[OFF]→[ON][OFF] → [ON][OFF][DAILY] →[ ]. Select [TIMER] [ON], then [TIMER] [ON] flashes, press the clock +/- button to adjust the time of TIMER ON, press [SET] button.

TIMER OFF operation:

Press TIMER button, and keep pressing it, in the display section [TIMER] will switch over in below sequence: [ON]→[OFF]→[ON][OFF] → [ON][OFF][DAILY] →[ ]. Select [TIMER] [OFF], then [TIMER] [OFF] flashes, press the clock +/- button to adjust the time of TIMER OFF, press [SET] button.

TIMER ON-OFF operation:

Press TIMER button, and keep pressing it, in the display section [TIMER] will switch over in below sequence: [ON]→[OFF]→[ON][OFF] → [ON][OFF][DAILY] →[ ]. Select [TIMER] [ON] [OFF]. Firstly, [TIMER][ON] flashes, press the clock +/- button to adjust the time of TIMER ON, press [SET]. [TIMER][ON] will be constant on. Then [TIMER] [OFF] flashes, press the clock +/- button

Page 79

to adjust the time of TIMER OFF, press [SET]. The time sequence of timer on and timer off will determine the mode is [TIMER] [ON] →[OFF] or [TIMER] [OFF] →[ON]. Note: 1. If the two times are the same, the unit will adjust the state after set time arrives according to the current state. If current state is in running mode, after set time arrives the unit will switch to “power off“ state. If current state is in “power off” mode, after set time arrives, the unit will switch to running mode.

2. When in TIMER setting state, if you do not input any button in continuous 10 seconds, the unit will think [SET] pressed.

Cancel TIMER operation:

In the timer operation state, press [TIMER] button, the unit will quit from the current timer operation state, and the set data will be memorized, then enter the next timer mode. After timer be set, press ON/OFF to cancel timer mode. When in running again, timer mode will be continuous (without timer).

[FILTER] function

When the wired controller receives the filter-cleaned signal from indoor unit, [FILTER] will display. After finishing clean, press [FILTER], the sign [FILTER] disappears, and the controller will send the filter reset signal to indoor unit. When the sign [FILTER] not display, it is invalid to press [FILTER] in short time.

FILTER ELEVATING function: (only for the unit with elevating function)

In power off state, press [FILTER] for 5 seconds to enter filter elevating set state. In this state, the sign [FILTER] will flash at the frequency of 2Hz. By pressing [+] TEMP [-], filter can go up or down. Press TEMP [+], in timer section [UP] will display, while press TEMP [-], in timer section [DOWN] will display. Press [FILTER] button to quit the mode.

DEMAND operation function:

In the stop state of cooling mode, press [ON/OFF] button for 5 seconds to enter [DEMAND] cooling operation state, the sign [DEMAND] will display. In the 7-segmet liquid crystal screen of set temp. section, “0” will display in first position, which shows that No. 0 indoor unit has enter demand operation. In the second position, “L” will display, in the meantime, [COOL] will flash, [FAN][AUTO] is constant on. Press TEMP [+] [-] to set different indoor unit. Press [ON/OFF] to cancel [DEMAND] operation. In the stop state of heating mode, press [ON/OFF] button for 5 seconds to enter [DEMAND] heating operation state, the sign [DEMAND] will display. In the 7-segmet liquid crystal screen of set temp. section, “0” will display in first position, which shows that No. 0 indoor unit has enter demand operation. In the second position, “H” will display, in the meantime, [HEAT] will flash, [FAN][AUTO] is constant on. Press TEMP [+] [-] to set different indoor unit. Press [ON/OFF] to cancel [DEMAND] operation.

VENTILATION mode (only for the unit with fresh air function or heat recovery function) Press [RECOVERY] button, then the unit will switch over the ventilation mode: [ ] → [VENTILATION][AUTO] → [VENTILATION][RECOVERY] → [VENTALATION][NORMAL]

Page 80

→[ ], please select appropriate ventilation mode.

Query indoor malfunction history:

In the state of power on or power off, press [CHECK] button, enter the malfunction-querying mode of all indoor units in the group. Then [CHECK] and [UNIT NO.] will display, and the actual indoor numbers will be displayed in some sequence (unit number is in decimals). At the same time, in the time region, there will be the current malfunction and the latest time malfunction, the displaying format is [XX：YY], in which XX stands for the current malfunction, if normal, it will display “――”; YY stands for the latest time malfunction. The failure code of every unit will display for 3 seconds. After the failure codes of all indoor units in the whole group are displayed, the mode will quit automatically.

Clear abnormal state and malfunction history:

In normal state, press [CHECK] button for 5 seconds to clear abnormal states, at the same time, wired controller will send the data of “clear abnormal state”, but the malfunction history still retains. In normal state, press [CHECK] button for 15 seconds, except for malfunction states, the malfunction history in wired controller will be cleared.

Query indoor performance state:

In normal state, press both buttons of [CHECK] and [FILTER] for 5 seconds, in the set temperature region in the screen, [XX] will display, XX is indoor number, which can be selected by pressing [TEMP] [+] [-]. In the timer region in the screen, [YZZZ] will display, in which Y stands for data type, ZZZ stands for the corresponding data. which can be selected by pressing [CLOCK] [+] [-].

Y ZZZ Type A Indoor capacity (W) Nominal cooling

capacity/10, decimal

B Request of indoor capacity（Hz） Actual value, decimal

C Temperature of indoor ambient

temp. sensor TA

d Temperature of indoor gas pipe

sensor TC1

E Temperature of indoor liquid pipe

sensor TC2

F Open degree of indoor PMV Actual value, decimal

g Preset ―――

H Outdoor total capacity Actual value, decimal

Actual value, decimal

In check mode, press [CHECK] to quit the check mode, and go into normal running mode.

Page 81

How to change the function switches?

No. Type State of

Function description

switch

J01

J02

J06

J07

J03

SW01 ①

SW01 ②

Changeover of Wired

controller and central

controller

Changeover of type of

wired controller

Selection of room temp.

sensor

Auto reset after power

failure

Display of room

temperature

Changeover of master or

slave controller ℃ or ℉

Shorten time function

Compulsorily defrost

Connected Central controller

Cut off Wired controller

Connected Set as simple controller

Cut off Set as standard controller

Connected Use the sensor in the wired

controller

Cut off Use the sensor in the indoor unit

Connected Common control

Cut off Auto reset after power failure

Connected Yes

Cut off No

ON Set as slave controller

OFF Set as master controller

OFF

Connected Indoor unit in shorted time

Cut off Common control

Connected Send compulsorily defrost signal

Cut off Common control

℉ ℃

function

to indoor unit

Note: The switches in grey can be operated after opening the cover of wired controller.

Page 82

Electrical functions of wired controller:

1.Switch over method: wired control master unit/wired control slave unit/remote control unit

Control method

Socket

/jumper

CN23 Short circuit Not short circuit Not short circuit

CN30 Short circuit Short circuit Not short circuit

CN21 Blank Blank To remote receiver

J19 Short circuit Short circuit Cut circuit

Signal terminal block A,B,C connected

Function difference between master wired controller and slave one:

Contrastive items Master wired controller Slave wired controller Function All of functions Only with below functions:

Wired control master unit

Wired control slave unit

B,C connected to

to wired controller

wired controller

Remote control unit

board

A,B,C not connected

to wired controller

ON/OFF, MODE, FAN SPEED, SET TEMP., SWING

2. Wiring connections of wired controller:

indoor 1 indoor 2

wired controller

indoor 1

wired controller

polar wire

indoor N

wired controller wired controller

indoor 1

wired controller

123

polar wire

ABC

wired controller

indoor 15

polar wire

ABC

wired controller

indoor 16

(master unit)

wired controller

control wiring of wired controller, polar.

ABC

wired controller

There are three methods to connection wired controller and the indoor

units:

A. One wired controller can control max. up to 16 sets of indoor units, and

Page 83

3 pieces of polar wire must connect the wired controller and the master

unit (the indoor unit connected with wired controller directly), the others

connect with the master unit through 2 pieces of polar wire.

B. One wired controller controls one indoor unit, and the indoor unit

connects with the wired controller through 3 pieces of polar wire.

C. Two wired controllers control one indoor unit. The wired controller

connected with indoor unit is called master one, the other is called slave

one. Master wired controller and indoor unit; master and slave wired

controllers are all connected through 3 pieces of polar wire.

3. Communication wiring:

The wired controller is equipped with special communication wiring in the

accessories. 3-core terminal (1-white 2-yellow 3-red) is connected with the terminal A、B、C of wired controller respectively.

The communication wiring is 4 meter long; if the actual length is more than

it, please distribute wiring according to below table:

Communication wiring length（m） Dimensions of wiring <100 0.3mm2X3-core shielded wire

≥100 and <200 0.5mm2X3-core shielded wire ≥200 and <300 0.75mm2X3-core shielded wire ≥300 and <400 1.25mm2X3-core shielded wire ≥400 and <600 2mm2X3-core shielded wire

※ One side of the shielded sheet of communication wire must be earthed.

Page 84

8 REFRIGERANT DIAGRAM

Piping Systematic Diagram for Cooling/Heating Type Air Conditioner

REFRIGERANT DIAGRAM

Indoor Unit

Capillary Tube

Cooling Operation

Stop Valve

Heat Exchanger

Stop Valve

Heating Operation

Quieter

Outdoor Unit

Filter

One-way Valve

Reversing Valve

Heat Exchanger

Compressor

- 71-

Page 85

ELECTRICAL CONTROL FUNCTIONS

9 ELECTRICAL CONTROL FUNCTIONS

9.1 Control Features

The brief introduction includes those for each item of various types of air conditioners and

their electric control functions.

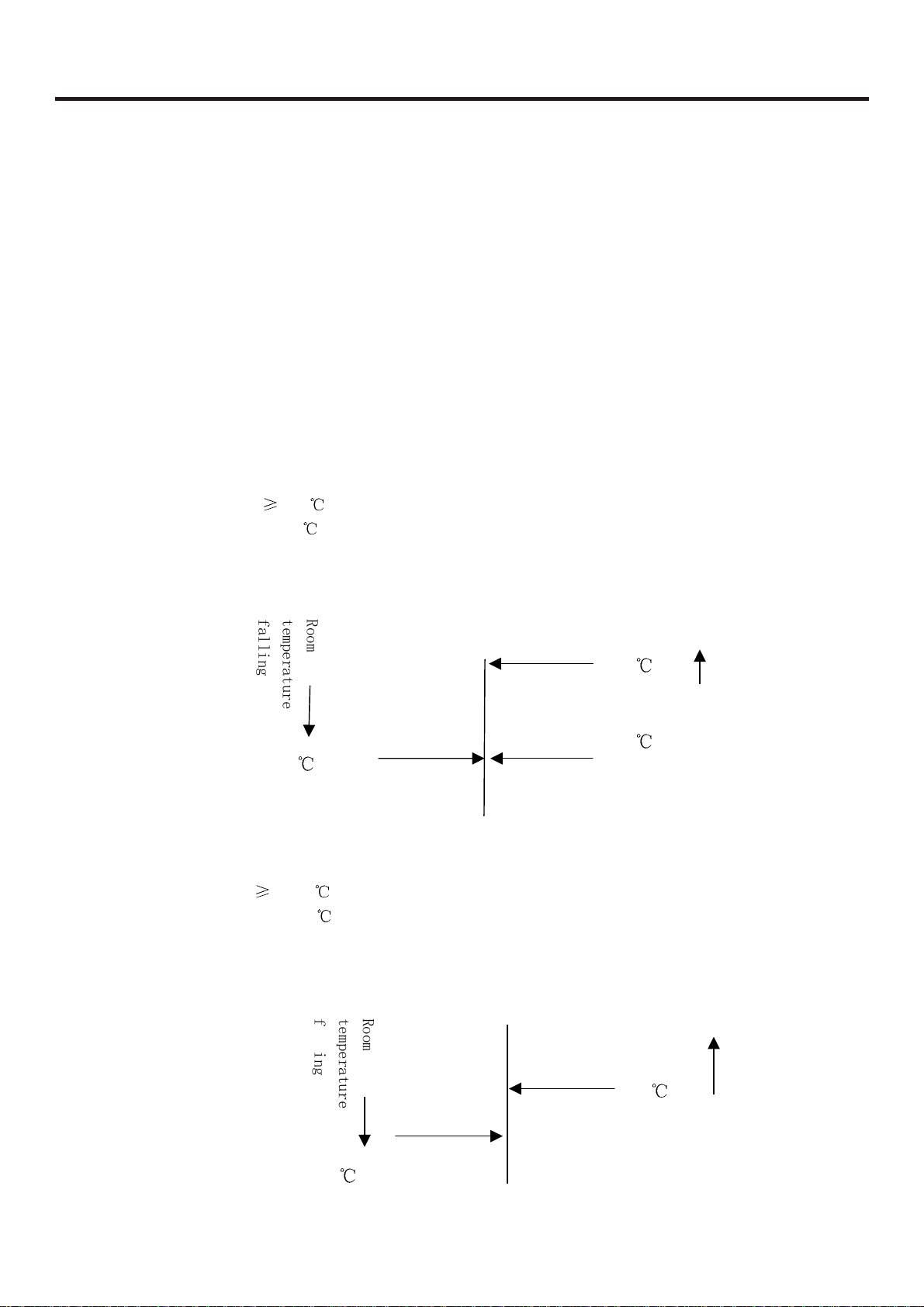

7.1 Brief introduction of electric control 7.1 Brief introduction of electric control

(1) Automatic run (1) Automatic run

a. Cooling-heating type

After the machine being started and running mode changes to AUTO, the system will

decide running mode according to difference between the present room temperature and

setting temperature, then runs as the decided mode. In the following selections, Tr means

room temperature and Ts means setting temperature.

Select running mode according to the following conditions at the first time to enter Auto

mode:

TrTs -3 to select cooling mode (with setting temperature being Ts +3)

Tr<Ts-3 to select heating mode (with setting temperature being Ts)

After the system entering auto run mode, the running mode can convert automatically

according to variation of room temperature between cooling, blowing and heating in the way

shown as the chart below:

b. Single Cooling Type

Select running mode according to the following conditions at the first time to enter Auto

mode:

After the system entering auto run, the running mode can convert automatically

according to variation of room temperature between cooling and blowing functions in the way

shown as the chart below:

f a l l i n g

p e r a t u r e

Cooling

Ts-3

Ts + 3 to select cooling mode

Tr < Ts + 3

to select blowing mode

f a l l i n g

p e r a t u r e

Cooling

Blowing

Heating

Cooling

Blowing

Ts+3

Ts-3

Ts+3

temperature

rising

temperature

rising

Room

Ts-3

-72 -

Blowing

Page 86

ELECTRICAL CONTROL FUNCTIONS

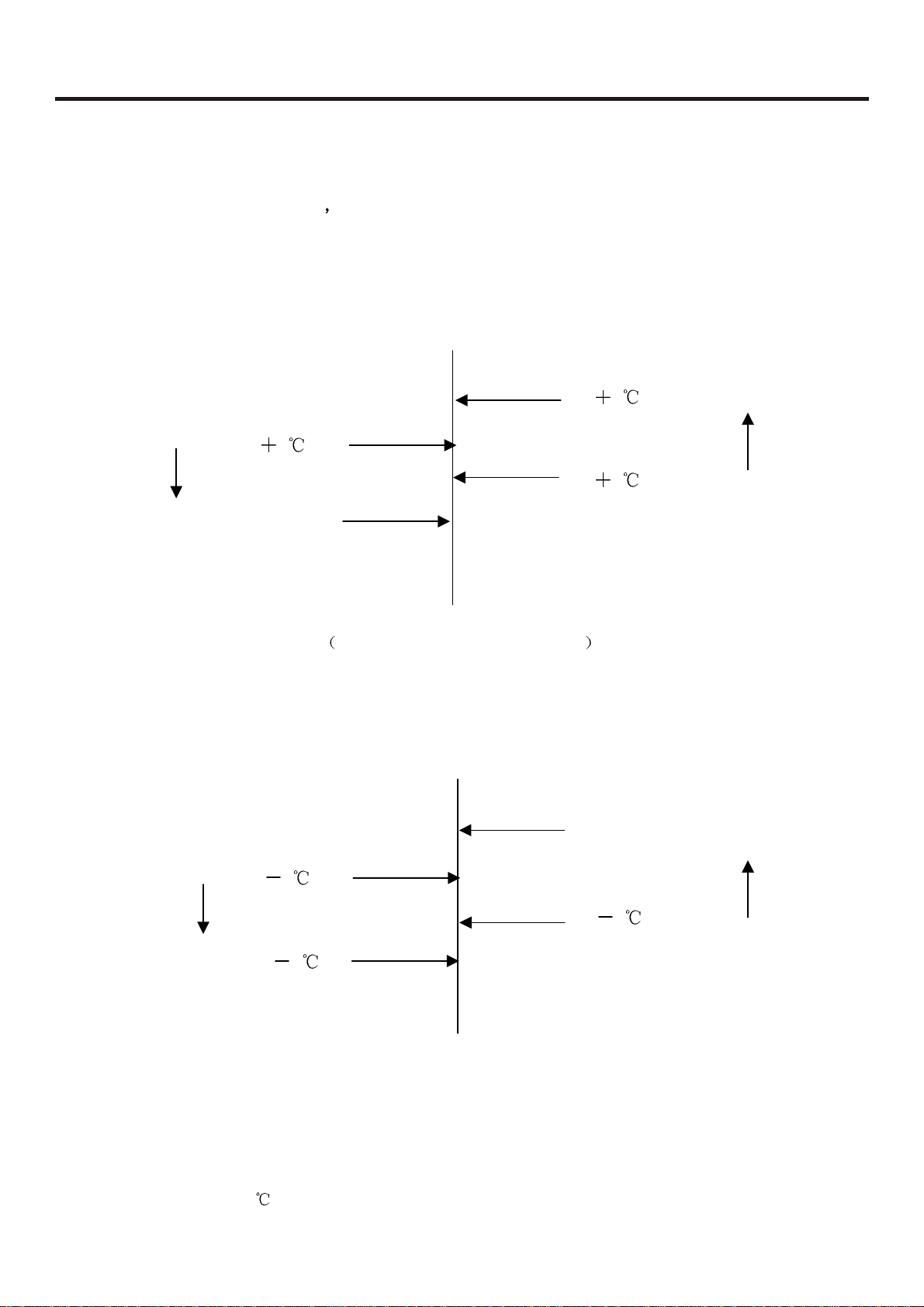

(2) Auto Selection of Wind Speed

In the following, Tr means room temperature while Ts means setting temperature.

a. During cooling program

the present speed has continued for 3 minutes while conversion from the high to low needs

no time delay. The chart below is the sketch map of conversion:

Temperature

falling

conversion of wind speed from the low to high won’t work until

High speed

Medium speed

rising

Temperature

Low peed

Low speed

b. During heating program

from the low to high won’t work until the present speed has continued for 3 minutes while

conversion from the high to low needs no time delay. The hart below is the sketch map of

conversion:

Temperature

falling

applicable for cooling-heating type , conversion of wind speed

Low speed

Temperature

rising

Low speed

Medium speed

High speed

(3) Dehumidifying program

In the following, Tr means room temperature while Ts means setting temperature.

a. After the system entering dehumidifying program, the compressor, outdoor and indoor

blowing fans run according to the following rules:

(1) Tr > Ts + 2

, the compressor and outdoor blowing fan run continuously while indoor

- 73 -

Page 87

ELECTRICAL CONTROL FUNCTIONS

blowing fan runs at setting wind speed. This working area is defined as area A.

(2) Ts

(3) Tr < Ts, the compressor and outdoor blowing fan stop working while outdoor blowing

a. After dehumidifying program starting, the system converts between A, B and C areas

according to variations of room temperature with running mode being shown as the chart

below:

Tr Ts + 2 , the compressor and outdoor blowing fan run for 10 minutes then

pause for 6 minutes, while indoor blowing fan runs at low wind speed. This working

area is defined as area B.

fan runs at low wind speed. This working area is defined as area C.

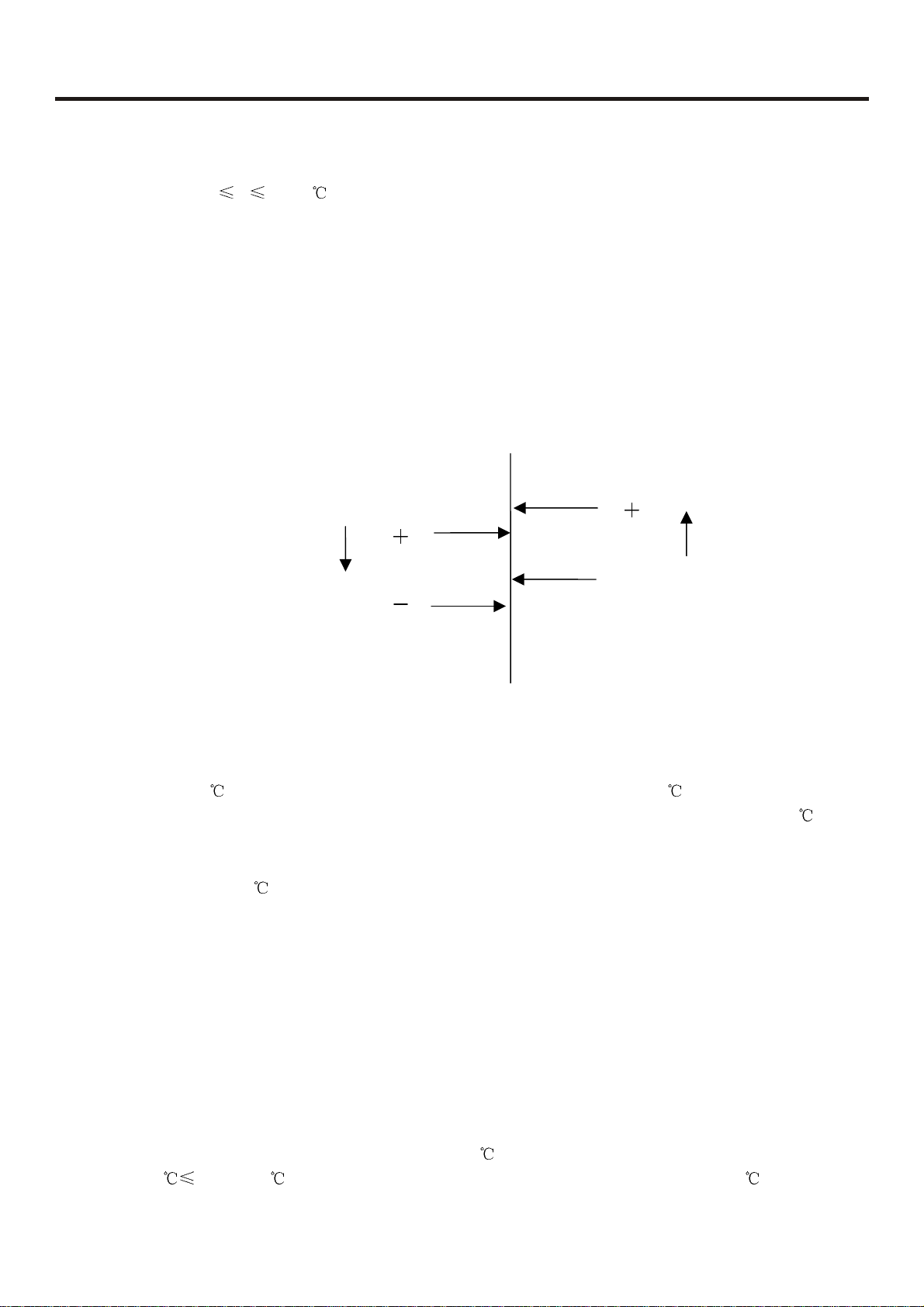

Room

temperature

falling

Area A

Ts 3

Ts 1

Area B

rising

Room

temperature

Ts 1

Area C

(4) Cutoff protection against overload and overheat

During heating program, if the indoor blowing fan has been started and the compressor

has been running more than 2 minutes, and the temperature of indoor coil pipe (Ticp)

> 64

blowing fan has kept stop state for 45 seconds, then it will restore rotation; If Ticp > 67

and such temperature has last for 10 seconds, the compressor will stop running and

indoor blowing fan run according to conditions as it reaches setting temperature. When

Ticp < 58

compressor and outdoor blowing fan will restore normal running.

Cutoff protection for heating current

After 60 seconds from the compressor being started, if CT current exceeds I1 (9.2A) and

such case has kept 5 seconds, the outdoor blowing fan will stop. If 45 seconds has passed

after the outdoor blowing stops and the current of the compressor is less than I2 (7.5A), the

blowing fan will restore running. If CT current exceeds I3 (14.3A) and such case lasts for 3

seconds, the compressor and outdoor blowing fan will stop. The compressor will not restore

running until 3 minutes passes with CT current less than 12A.

(5) Cool wind prevention during heating program

At the first time entering heating program or after ending the latest frost removal, if the

temperature of indoor coil pipe (Ticp) < 28

compressor has been running for more than 4 minutes, the indoor blowing fan will run at

, the outdoor blowing fan will stops running; If Ticp ≤ 50 and the outdoor

, and the compressor has kept stop state over 3 minutes, then the

, the indoor blowing fan will stop running; If

Ticp < 38 , the indoor blowing fan will run at low speed; If Ticp > 38 or the

- 74-

Page 88

ELECTRICAL CONTROL FUNCTIONS

setting wind speed.

(6) Afterheat blowing during heating program

During heating program, the compressor will stop running (except overheat protection or

frost removal) while the indoor blowing fan will firstly run for 50 seconds at low speed then

stop.

(7) Frost removal control (applicable for cooling-heating type)

Starting conditions for frost removal:

A The indoor unit is in overload protection and outdoor blowing fan stops. The outdoor

blowing fan does not enter overheat mode in 10 minutes after it is restarted, the

compressor has run over 45 minutes totally while 20 minutes continuously, and the

temperature of indoor coil pipe is lower than 43 ;

B After the compressor continuously running for 20 minutes, the temperature of indoor

coil pipe falls 1 every 6 minutes and such case continuously appears three times,

and the temperature of indoor coil pipe is less than 40 , and 5 minutes have passed

after the compressor is restarted;

C The compressor has run totally over 3 hours while 20 minutes continuously, and the

temperature of indoor coil pipe is less than 40 ;

D The difference between room temperature and the one of indoor coil pipe is less than

16 and the compressor has totally run over 45 minutes while 20 minutes

continuously;

Frost removal will start if any one of the above conditions is satisfied.

Ending conditions for frost removal:

1 Time of frost removal has exceeded 9 minutes; 2 CT current exceeds I4(8.2A)

Actions of each load after the frost removal starts:

The compressor and outdoor blowing fan stop, and indoor blowing fan also stops.

55 seconds later the reversal valve is closed and next 5 seconds later the compressor is

started.

Actions of each load after the frost removal ends:

The compressor stops running while outdoor blowing fan immediately runs at high

speed, 55 seconds later the reversal valve is opened and next 5 seconds later the

compressor restores running and indoor blowing fan runs as conditions for cool wind

prevention.

(8) Freeze protection

After the compressor has run for 9 minutes, the system will check temperature of

indoor coil pipe (Ticp). If Ticp is less than -1

fan will stop. They will run again after the compressor stops if both the following

conditions are satisfied:

1) 3 minutes have passed since compressor stops.

2) Ticp exceeds 7

(9) 3 minutes protection for compressor

After compressor stops, it cannot be started until 3 minutes later. During the machine’s

running, if time after loosing power not exceeds 3 minutes, the compressor cannot be

, the compressor and outdoor blowing

- 75-

Page 89

ELECTRICAL CONTROL FUNCTIONS

restarted until 3 minutes later after it is reenergized.

10 Power breakdown memory

If the machine suddenly loses power while running, or stops for maintenance or trouble

shooting, it will restart running as the status when it stops after the power is restored.

Note: 1.

(11) Control of water pump

(12) Monitoring of remote network

Through preset interface, the air conditioner is connected to remote control detector

(made by Haier) with 2-core cables for wire communication, to execute instructions sent

from computer or centralized controller via remote control detector and meanwhile send

present running status and trouble information of the machine to remote control detector.

Connection between air conditioner and remote control detector:

Function setting: Continuously press sleep button on the remote controller 10

times in 5 seconds and buzzer on control panel shall beep 4 times.

2. Memory content: Running mode, wind speed setting, temperature setting,

swing status.

3. Cancel: Press sleep button on the remote controller 10 times and buzzer on

control panel beeps 2 times.

a. In cooling (including automatic cooling mode) and dehumidifying modes, the water

pump works if the compressor runs while stops 5 minutes later after the compressor

stops.

b. When water tank is fully filled, the float switch will be off. The water pump will start

to work after a controller has detected this signal and it will continue working for 5

minutes after the float restores to normal state.

c. If the full water signal is detected continuously over 5 minutes, the water pump

indicator lamp will flash to alarm and compressor stops running. The water pump

will run 5 minutes, then pause for 5 seconds before next 5 minutes’ running, ... until

the float restores to normal state, after which the pump will run for 5 minutes then

stop.

CN11

PC board

(13) Trial run

Under shut-down state, hold pressing mandatory button. The buzzer will beep once,

then twice after 5 seconds. Release the button to enter mandatory cooling mode, under

which the indoor blowing fan runs at high speed with both the compressor and outdoor

blowing fan working. Press the mandatory button again can end the mandatory mode.

1 2

A-

A+

Interface for remote control detector

- 76 -

Page 90

9.3 Defrost operation flow chart

Come to defrost

ELECTRICAL CONTROL FUNCTIONS

Condition

for

compress

OFF

compressor

Return

Compressor

E-Heat off for 30s?

Turn off compressor

outdoor fun

Turn off for

55s?

Operation indoor

fun motor

Return

Open outdoor fun

Compressor

off or 55s?

4-way value

Compressor

ON ?

Return

Turn off

4-way value

Compressor

Clear the sign of

Return

defrosts

Return

Page 91

10. Diagnostic information

10.1 Failure code remote control type unit:

failure description

indoor ambient temp. sensor failure indoor coil temp.sensor failure

outdoor ambient temp. sensor failure or 4-way valve broken down in heating mode

outdoor coil temp. sensor failure over-current protection failure or phase sequence fault refrigerant system pressure too high or low communication between indoor PCB and receiver panel failure communication between indoor PCB and outdoor PCB drainage failure Note: For convertible type unit, drainage failure is not available.

Wired control type unit failure code:for old wired controller

Failure description Failure code on wired

controller Indoor ambient temp. sensor abnormal E1 Indoor coil temp. sensor abnormal E2 Outdoor ambient temp. sensor abnormal E3 Outdoor coil temp. sensor abnormal E4 Over current protection E5 Over high or low pressure protection E6 Communication between panel and indoor

E8 abnormal Communication between indoor and outdoor

E9 abnormal Water pump failure E0

indoor running

lamp flash times

1 2

4 5 6 8 9

Page 92

Failure code with wired controller YR-E12:

For

remote

type, flash

times

10 08 21 Drainage system failure Float switch broken down for more than

1 01 01 Indoor ambient temp. sensor

2 02 02 Indoor coil temp. sensor failure sensor broken down or short circuit for

3 4A 11 Outdoor ambient temp. sensor

4 49 12 Outdoor coil temp. sensor

5 48 10 Over-current protection CT check abnormal 3 times in 30m

6 53 14 High pressure abnormal High pressure switch acts 3 times in 30m

8 07 06 Communication between wired

9 06 05 Communication between

11 0B 30 Outside alarm signal input Outside signal broken down for more than

12 03 20 Gas pipe temp. sensor

13 0D 31 Solenoid valve abnormal Solenoid valve act incorrectly 3 times

15 05 17 EEPROM abnormal EEPROM data missing

Failure

code on

wired

controller

For central

control,

failure code

Failure description Reason

25m continuously

sensor broken down or short circuit for

failure

failure (compressor

discharging temp. sensor)

controller and indoor abnormal

indoor and outdoor abnormal

abnormal

more than 2m continuously

sensor broken down or short circuit for

more than 2m continuously

Sensor broken down or short circuit for

more than 2m continuously

Communication abnormal for more than

4m continuously

Communication abnormal for more than

4m continuously

10s

Sensor broken down or short circuit for

more than 2m continuously

continuously

Page 93

sensor resistance value

R(25℃)=10K (Indoor unit Pipe sensor)

Therameter Sensor

temperature（℃） resistance（KΩ） temperature（℃） resistance（KΩ）

-15 66.53 45 4.549

-20 87.42 50 3.788

-25 116.0 55 3.170

-10 51.8 60 2.660

-5 39.55 65 2.223 0 30.88 70 1.912 5 24.30 75 1.630

10 19.20 80 1.395 15 15.38 85 1.200 20 12.36 90 1.035 25 10.00 95 0.8967 30 8.141 100 0.7796 35 6.668 105 0.6802 40 5.492 110 0.5955

R(25℃)=23K (Indoor unit ambinent sensor)

Therameter Sensor

temperature（℃） resistance（KΩ） temperature（℃） resistance（KΩ）

-10 139.5 60 5.243

-5 105.3 65 4.336 0 80.14 70 3.603 5 61.51 75 3.008

10 47.58 80 2.522 15 35.36 -20 251.8 20 27.93 -19 235.9 25 23.00 -18 223.1 30 18.30 -17 210.1 35 14.65 -16 197.9 40 11.79 -15 186.5 45 9.556 -14 176.9 50 7.780 -13 165.9

Page 94



10.2 Trouble Shooting - Detailed for engineer

Malfunction flow chart: analyze and diagnose

If the air-condition fails to cooling or heating function and other functions, please check

the system as follows:

1.Cooling 

begining

fails in cooling

the enactment TEMP.

right or not

change the designed TEMP.

condensate flowage failure

airiness circle

improperly

the cooling load beyond the allowable arange

fault in 4-way vavle

quantity of condensate charge is not enough

compressor fault

fan speed at low-speed

air entrance filter obstruct

superaddition condensate

replacing compressor

enact fan speed of

high or middle speed

clear the filter

use arange is right or not

change the 4-way vavle

redesign the TEMP.

heat insulation of condensate pipeline between indoor unit and outdoor unit is normal

Figure 9-1

insulate the two pipeline respective

Page 95

2. Heating

begining

fails in heating

the enactment TEMP.

right or not

change the designed TEMP.

condensate flowage failure

airiness circle improperly

the heating load beyond the allowable arange

fault in 4-way vavle

quantity of condensate charge is not enough

compressor fault

fan speed at

low-speed

air entrance filter obstruct

use arange is right or not

change the

4-way vavle

superaddition condensate

replacing compressor

enact fan speed of

high or middle speed

clear the filter

redesign the TEMP.

blowing cold air

prevent cold air

failure

heat insulation of condensate pipeline between indoor unit

and outdoor unit is normal

fault in 4-way vavle

pipe sensor of indoor unit is fault

Figure 9-2

replacing the 4-way vavle

insulate the two pipeline respective

Page 96

10.3 Malfunction and Solution of Wired controller

1) There is nothing on display of wire control organ, and the air-conditioner failure to

operate

begining

if the diode on indoor unit is lumines

check the port row of power supply

redo the

connection work

replacing the transformer

if there

s voltage on the pr imary side of tranaformer

if power supply and communi cation li ne are connected corr ectly

if the transform of

PCB.socket is normal

if there' s AC 15V on

transformer subside of i ndoor unit PCB.

if there' s AC 220V

of power suplay on

PCB. of indoor unit

if the fuse of indoor unit PCB.is normal

if the pri mary si de of power supply transformer is short

replacing the transformer

replacing the PCB. of i ndoor unit

if there'e DC 12V between the four ports:A,B,C and D which on wire contr ol organ

repacing the wire control organ

Figure 9-3

Page 97

2) The wire control organ displays the alarm signal with “E0”

“E0” means the floater switch of indoor unit is abnormal 

begining

the alarm signal of wire control organ is E0

if the floater swith is orientated correctly

if the function of the floater is normal

replacing the switch

amend the oritation of the floater switch

Figure 9-4

3) The wire control organ displays the alarm signal with “E1”

“E1” means indoor ambient temperature sensor is abnormal

begining

wire control organ displays the alarm signal with E1

amend the

if the indoor ambient sensor is orientated correctly

if the resistance of sensor is right

replacing the sensor

position of the sensor

Figure 9-5

Notation: The resistance of indoor ambient sensor is 23K

Page 98

4) The wire control organ displays the alarm signal with “E2”  “E2” means indoor piping temperature sensor is abnormal

begining

the alarm signal of wire control organ is E2

if the position of piping Temp.sensor is right

if the resistance of

the sensor is right

replacing the sensor

amend the position of sensor

Figure 7-6

Notation: The resistance of piping temperature sensor is 10K 

8) The wire control organ displays the alarm signal with “E8”  “E8” means malfunction of communication between control panel and indoor units

begining

if the wire control organ can matches the PCB of indoor units

if the four ports on wire control connected corresponding

with the port on PCB of indoor unit

if the ports:A,B,C and D are connected well

replacing the wire

control organ

connect the

wire correctly

connect the

wire correctly



if the potrs A and B,or

C and D are short

Figure 9-7

connect the

wire correctly



Page 99

11. Electrical Data

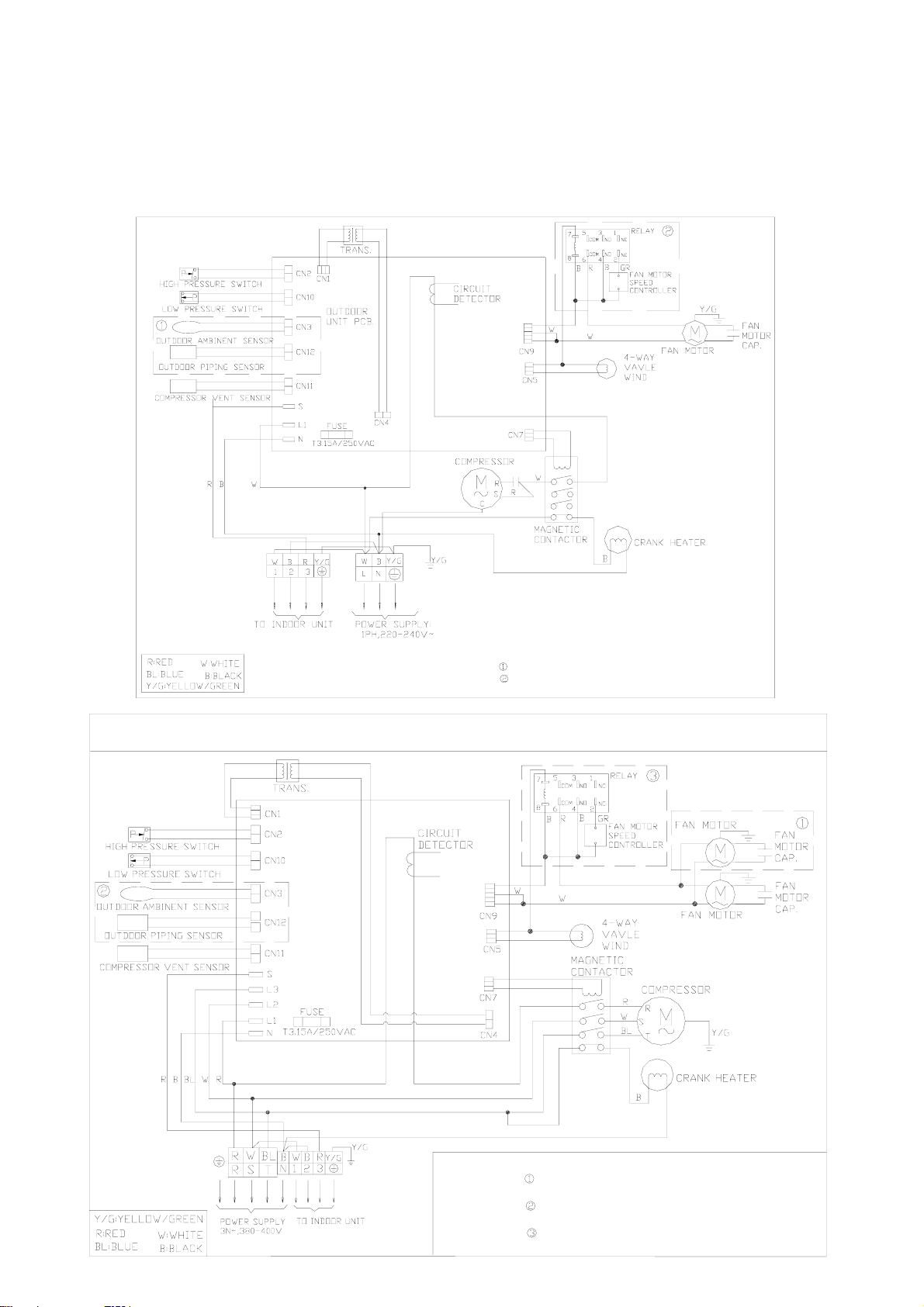

11.1 Wiring Diagram

11.1.1 Outdoor unit

single phase outdoor wiring diagram

NOTE:

1. Dashed parts is not available for only Cooling type

2. Dashed parts is optional for Low Ambient Temp. Cooling,and there is no relay in only Cooling type

3-phase outdoor wiring diagram

NOTE:

1. Dashed parts is not available for Cooling capacity below 42000Btu/h

2. Dashed parts are not available for only Cooling type

3. Dashed parts is optional for Low Ambient Temp. Cooling,and there is no relay in only Cooling type

Page 100

11.1.2 Indoor unit

over 24000BTU/h convertible type wiring diagram

NOTE:

1. Dashed parts

2. Dashes part is not avaliable below Cooling capacity 42000Bt u type

3. Remote central controller

4. P16 and P17 are used for room card function

are not availble in conve rtible type

is optional

over 24000BTU/h cassette type wiring diagram

NOTE:

1. Parts unit

2. Central controller is optional

3. P16 and P17 are used for room card function

in dashed frame are not available for cassette type
