Haier AMA05KF User Manual

ROOM AIR

CONDITIONER

Use & Care Guide

For questions about features, operation/performance, parts,

accessories or service call: 1-888-842-2440

ACONDICIONADOR DE

AIRE PARA

HABITACIÓN

Manual de Uso y Cuidado

Si tiene preguntas respecto a las características, funcionamiento,

rendimiento, partes, accesorios o servicio técnico,

Au Canada, pour assistance, installation ou service,

llame al: 1-888-842-2440

CLIMATISEUR

DE PIÈCE

Guide d’utilisation et d’entretien

composez le : 1-888-842-2440

0010555071

Table of Contents/Índice/Table des matières ...... 2

Model: AMA05KF

TABLE OF CONTENTS

AIR CONDITIONER SAFETY ........................................................3

INSTALLATION REQUIREMENTS.................................................3

Tools and Parts ............................................................................3

Location Requirements ...............................................................4

Electrical Requirements ...............................................................4

INSTALLATION INSTRUCTIONS...................................................5

Unpack the Air Conditioner..........................................................5

Prepare Air Conditioner for Installation........................................5

Prepare Window for Installation...................................................6

Position Air Conditioner ..............................................................7

Complete Installation ..................................................................8

AIR CONDITIONER USE...............................................................9

ÍNDICE

SEGURIDAD DEL ACONDICIONADOR DE AIRE......................14

REQUISITOS DE INSTALACIÓN.................................................14

Herramientas y piezas................................................................14

Requisitos de ubicación.............................................................15

Requisitos eléctricos..................................................................15

INSTRUCCIONES DE INSTALACIÓN.........................................16

Desempaque el acondicionador de aire....................................16

Prepare el acondicionador de aire para la instalación ..............16

Preparación de la ventana para la instalación............................17

Coloque el acondicionador de aire en su lugar..........................18

Complete la instalación..............................................................19

CÓMO USAR EL ACONDICIONADOR DE AIRE .......................20

Starting Your Air Conditioner .......................................................9

Changing Air Direction ................................................................ 9

Normal Sounds............................................................................ 9

AIR CONDITIONER CARE ...........................................................10

Cleaning the Air Filter .................................................................10

Cleaning the Front Panel.............................................................10

TROUBLE SHOOTING ..................................................................10

ASSISTANCE OR SERVICE..........................................................12

In the U.S.A. ...............................................................................12

In Canada ...................................................................................12

WARRANTY ..................................................................................13

Cómo poner en marcha su acondicionador de aire...................20

Cómo cambiar la dirección del aire ...........................................20

Sonidos normales.......................................................................20

CUIDADO DE SU ACONDICIONADOR DE AIRE.......................21

Limpieza del ﬁltro de aire ...........................................................21

Limpieza del panel frontal ..........................................................21

SOLUCIÓN DE PROBLEMAS......................................................

AYUDA O SERVICIO TÉCNICO...................................................23

En los EE.UU. .............................................................................23

En Canadá ...................................................................................23

GARANTÍA.....................................................................................24

TABLE DES MATIÈRES

SÉCURITÉ DU CLIMATISEUR ...................................................25

EXIGENCES D’INSTALLATION...................................................25

Outillage et pièces......................................................................25

Exigences d’emplacement.........................................................26

Spéciﬁcations électriques .........................................................26

INSTRUCTIONS D’INSTALLATION ............................................27

Déballage du climatiseur............................................................27

Préparer le climatiseur pour l’installation...................................27

Préparation de la fenêtre pour l’installation ...............................28

Positionnement du climatiseur...................................................29

Achever l’installation ..................................................................30

UTILISATION DU CLIMATISEUR................................................31

Mise en marche du climatiseur...................................................31

Changement de direction de l’air.................................................31

Sons normaux ............................................................................31

ENTRETIEN DU CLIMATISEUR...................................................32

Nettoyage du ﬁltre à air ..............................................................32

Nettoyage du panneau avant.....................................................32

DÉPANNAGE.................................................................................32

ASSISTANCE OU SERVICE.........................................................34

Aux États-Unis............................................................................34

Au Canada..................................................................................34

GARANTIE.....................................................................................35

AIR CONDITIONER SAFETY

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

You can be killed or seriously injured if you don't follow instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic precautions:

Do not use an extension cord.

Unplug air conditioner before servicing.

Use two or more people to move and install air conditioner.

SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

Parts supplied:

Check that all parts are included in parts package.

■ Phillips head screwdriver

■ Flat-blade screwdriver

■ Scissors

■ Level

■ Socket wrench and sockets

■ Tape measure

■ Cordless drill and 1/8” bit

■ Pencil

■ Pliers

■ Adjustable wrench

A. Top channel B. Foam seal C. Window lock bracket (3) D. ⁄” screws (3)

EFG

E. ⁄” screws (7) F. Side curtains (2) G. Side curtain frames (2)

Location Requirements

IMPORTANT: Observe all governing codes and ordinances. Check the location where the air conditioner will be installed.

Make sure you have everything necessary for correct installation. The location should provide:

■ Grounded electrical outlet within 6 ft (183 cm) of where the

power cord exits the air conditioner. NOTE: Do not use an extension cord.

■ Free movement of air in room to be cooled.

■ A large enough opening for the air conditioner. Installation

parts are supplied for double-hung windows.

■ Adequate wall support for weight of air conditioner. Air

conditioner weighs 36 lbs to 42 lbs (16.3 kg to 19.1 kg). NOTE: Cabinet louvers must not be obstructed. Air must be able

to pass freely through the cabinet louvers.

Electrical Requirements

The electrical ratings for your air conditioner are listed on the model and serial number label. The model and serial number label is located either on the side or back of the air conditioner cabinet or behind the front grille.

Speciﬁc electrical requirements are listed in the chart below. Follow the requirements for the type of plug on the power supply cord.

A. Cabinet louvers

Window Installation

Window opening measurements:

■ 23¼” minimum to 36” (59.1 cm to 91.4 cm) maximum opening

width.

■ 12⁄” (31.4 cm) minimum opening height.

23¼” (59.1 cm) minimum

B. 12⁄” (31.4 cm) minimum

Power Supply Cord Electrical Requirements

■ 115-volt (103.5 min. to 126.5 max.)

■ 0 to 12 amps

■ 15-amp time-delay fuse or circuit

breaker

■ Use on single outlet circuit only.

Recommended Grounding Method

This air conditioner must be grounded. This air conditioner is equipped with a power supply cord having a 3 prong grounding plug. The cord must be plugged into a mating, grounded 3 prong outlet, grounded in accordance with all local codes and ordinances. If a mating outlet is not available, it is the customer’s responsibility to have a properly grounded 3 prong outlet installed by a qualiﬁed electrical installer.

It is the customer’s responsibility:

■ To contact a qualiﬁed electrical installer.

■ To assure that the electrical installation is adequate and in

conformance with National Electrical Code, ANSI/NFPA 70— latest edition, and all local codes and ordinances.

Copies of the standards listed may be obtained from: National Fire Protection Association

1 Batterymarch Park Quincy, MA 02169

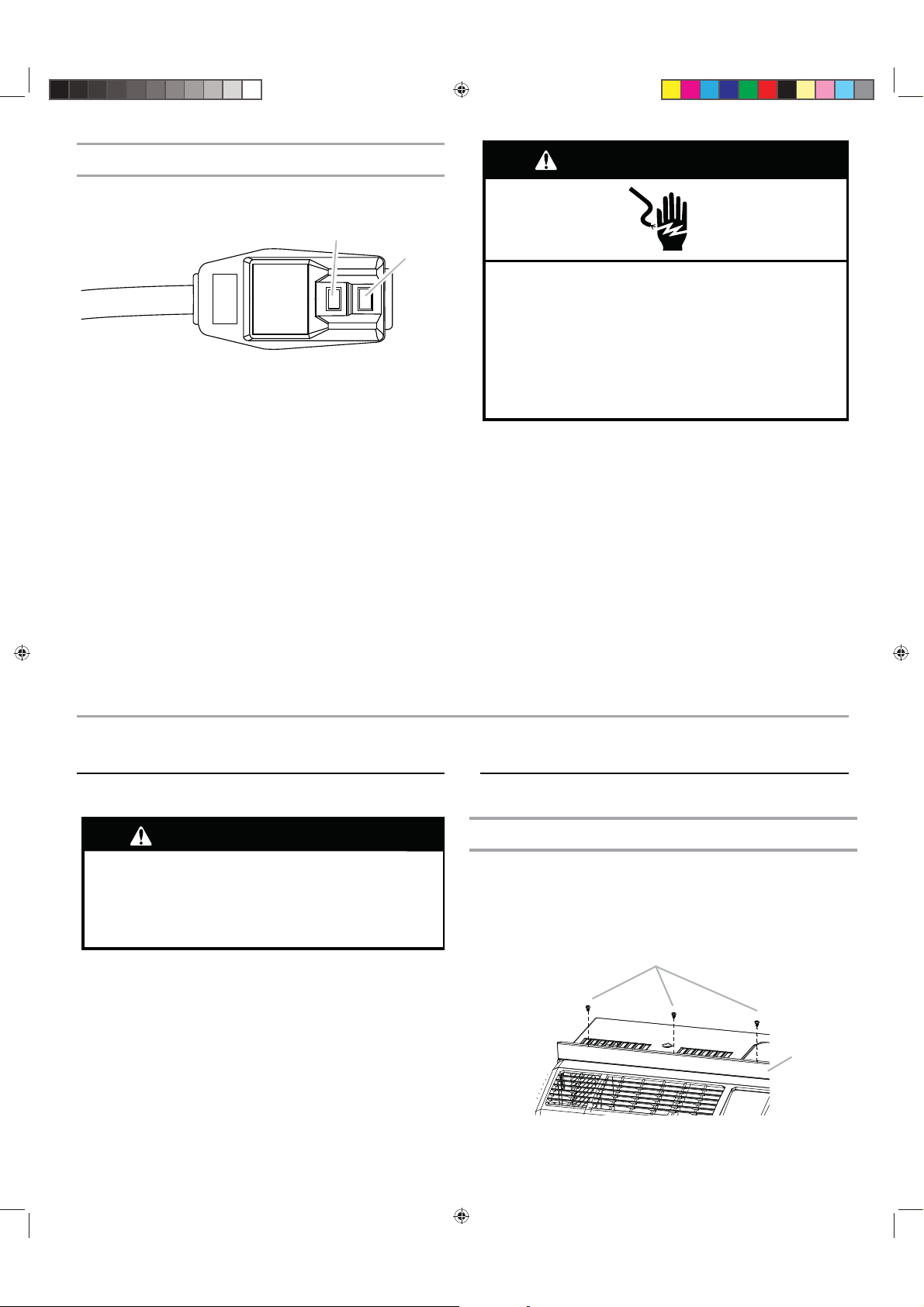

Power Supply Cord

NOTE: Your air conditioner’s device may differ from the one

shown.

RESET

TEST

A. Test button B. Reset button

This room air conditioner is equipped with a power supply cord required by UL. This power supply cord contains state-of-the-art electronics that sense current leakage. If the cord is crushed, the electronics detect current leakage and power will be disconnected in a fraction of a second.

To test your power supply cord:

1. Plug power supply cord into a grounded 3 prong outlet.

2. Press RESET (on some devices, a green light will turn on).

3. Press TEST (listen for click; Reset button will trip, and on some devices, a green light will turn off).

4. Press and release RESET (listen for click; Reset button will latch, and on some devices, a green light will turn on). The power supply cord is ready for operation.

INSTALLATION INSTRUCTIONS

Unpack the Air Conditioner Prepare Air Conditioner for Installation

NOTES:

■ The Reset button must be pushed in for proper operation.

■ The power supply cord must be replaced if it fails to trip when

the test button is pressed or fails to reset.

■ Do not use the power supply cord as an off/on switch.

■ A damaged power supply cord must be replaced with a new

power supply cord obtained from the product manufacturer and must not be repaired.

■ The power supply cord contains no user serviceable parts.

Opening the tamper-resistant case voids all warranty and performance claims.

Install Top Channel

1. Place the top channel on the top of the air conditioner, lining up the holes in the top channel with the holes in the top of the air conditioner.

2. Using three (3) ⁄” screws, attach the top channel to the air conditioner.

Remove Packaging Materials

■ Remove and dispose of/recycle packaging materials. Remove tape

and glue residue from surfaces before turning on the air conditioner. Rub a small amount of liquid dish soap over the adhesive with your ﬁngers. Wipe with warm water and dry.

■ Do not use sharp instruments, rubbing alcohol, ﬂammable

ﬂuids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your air conditioner.

■ Handle the air conditioner gently.

A. ⁄” screws B. Top channel

NOTE: Your model may differ from the one shown.

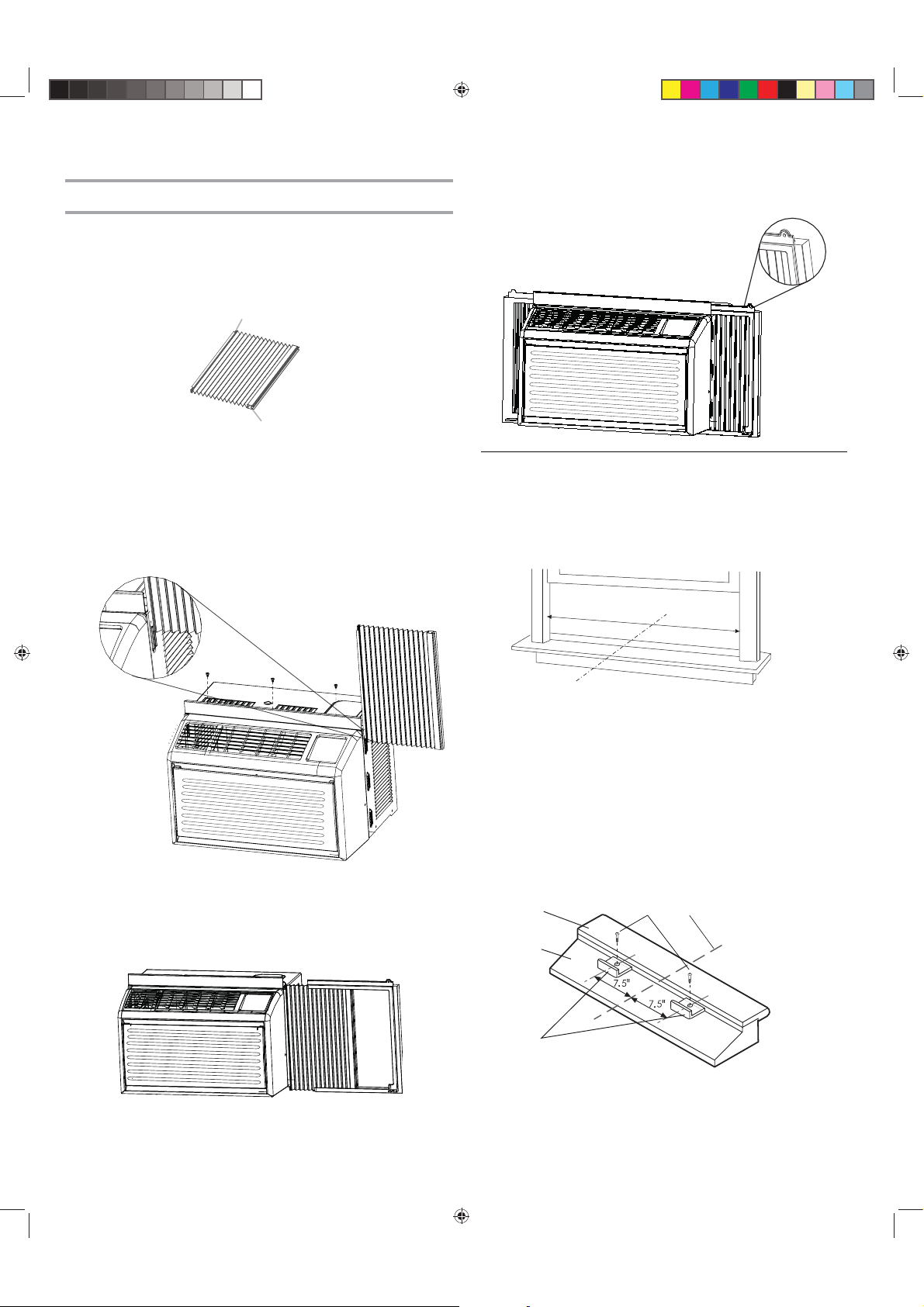

Install Side Curtains

NOTE: Attach curtains to the air conditioner before placing the air

conditioner in window.

1. Place the tabbed side of the side curtain in the track on the right-hand side of the air conditioner cabinet.

A. Tabbed side of side curtain B. Lock edge side of side curtain

4. Slide the side curtain frame as close to the air conditioner as necessary to lock the side curtain to the frame.

5. Repeat above steps for the left-hand side curtain and

frame.

Prepare Window for Installation

2. Slide the side curtain down the track until the curtain is aligned with the top and bottom of the air conditioner cabinet.

3. Slide the side curtain frame into the top channel on the top of the air conditioner and the track on the bottom of the air conditioner.

1. Measure the width of the window opening.

2. Mark the center line on the inside windowsill.

A. Width of window opening B. Center line

3. Install the Window lock bracket behind the inner windowsill, with the short side of Window lock bracket as shown.Use the two(2) wood screws 31/32” provided. The Window lock bracket helps to hold air conditioner securely in place.Be sure to place Window lock bracket edge ﬂush against back of inner sill.

INSIDE

OUTSIDE

A. Center line B. ⁄” screws C. Inner sill

D. Outer sill E.

Window lock bracket

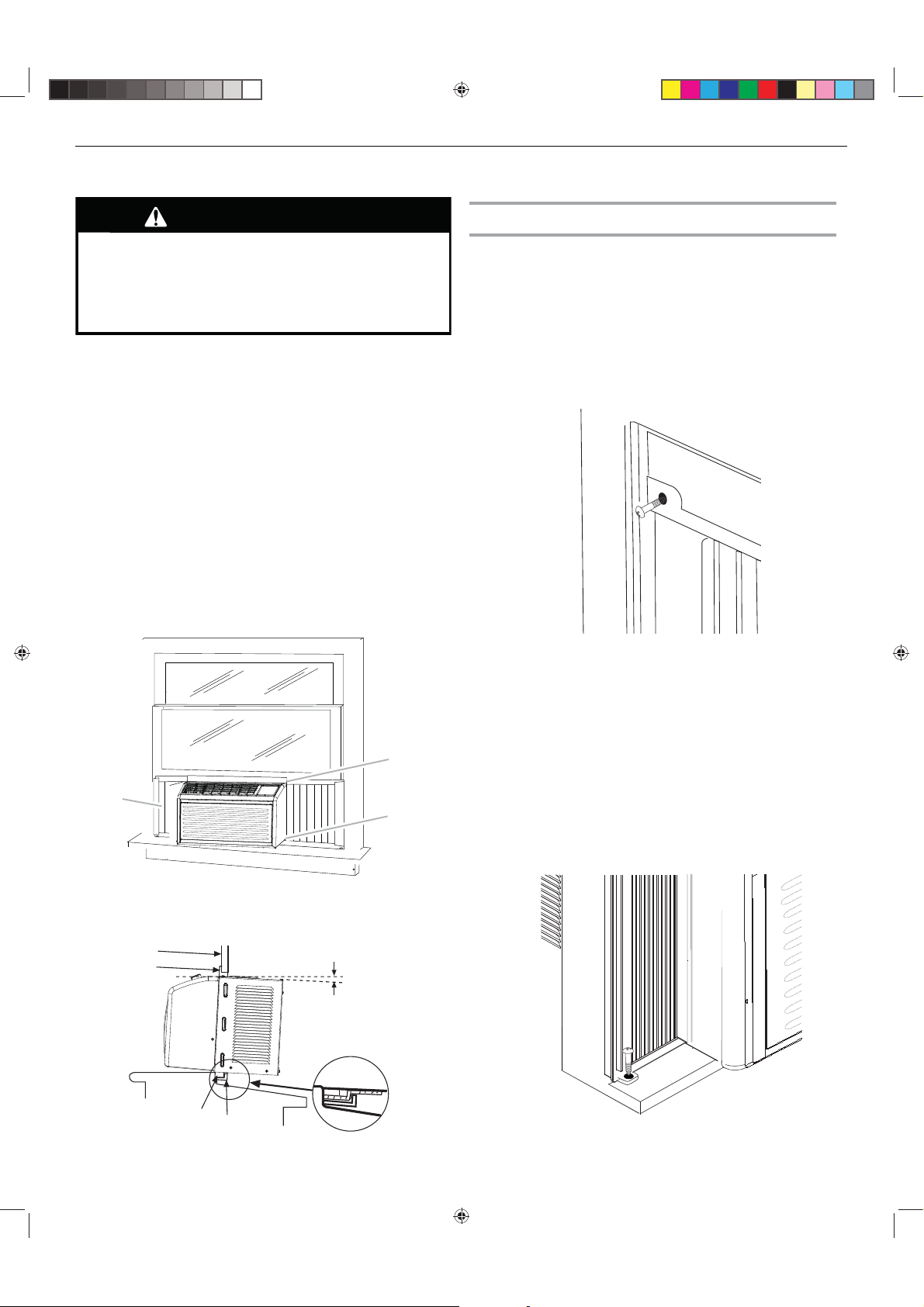

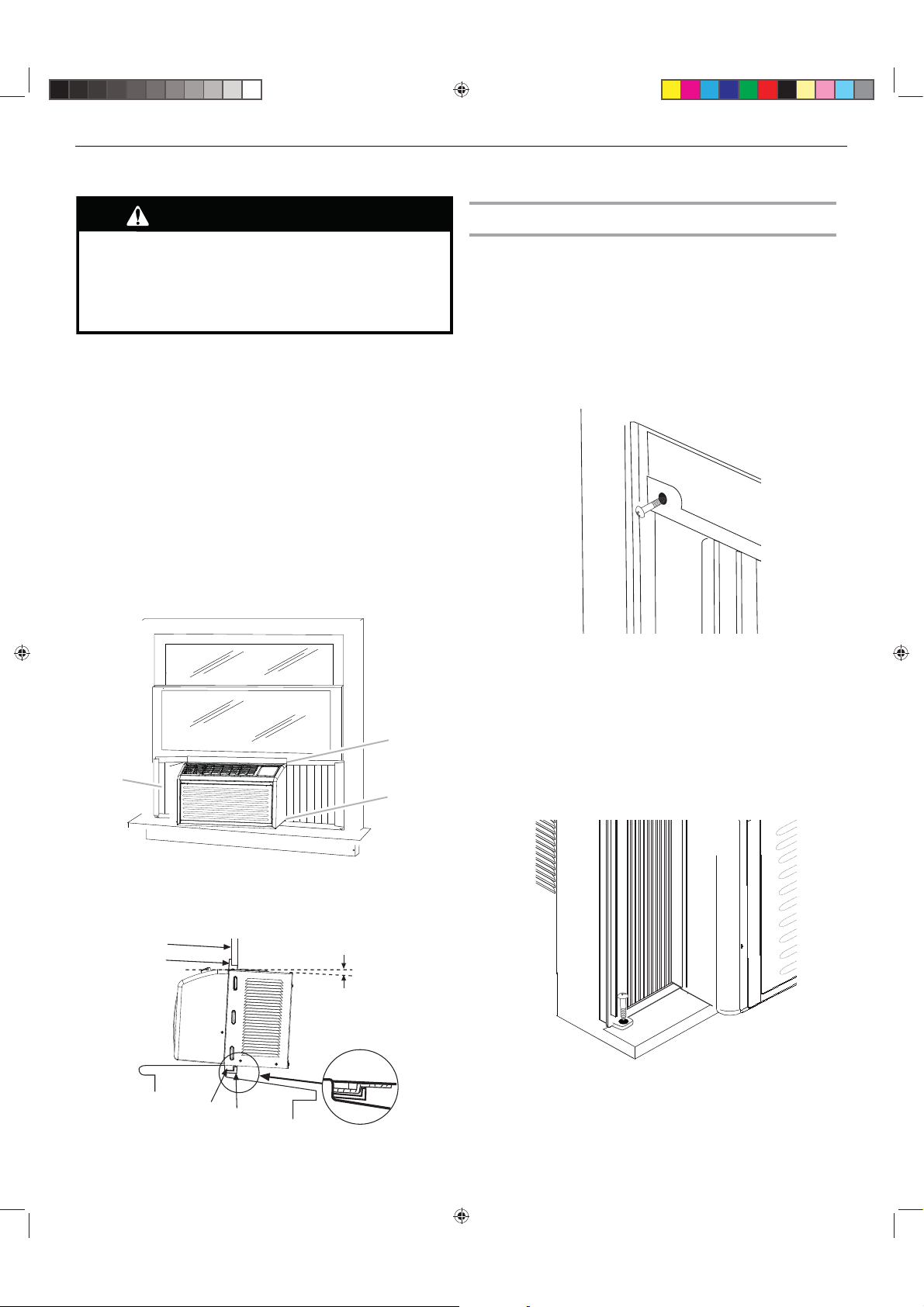

Position Air Conditioner

NOTES:

■ Handle the air conditioner gently.

■ Be sure your air conditioner does not fall out of the opening

during installation or removal.

■ The place where the power cord exits the air conditioner should

be no more than 6 ft (183 cm) from a grounded outlet.

■ Do not block the louvers in the front panel.

■ Do not block the louvers on the outside of the air conditioner.

1. Center the air conditioner in the window. Make sure the bottom guide of the air conditioner drops into the notches of the basepan angle.Lower the window sash behind the top channel to hold the cabinet in place

NOTE: Your model may differ from the one shown.

Attach Side Curtains to Window

1. Pull the left-hand curtain out until it ﬁts into the window channel.

2. Use a ⁄” drill bit to drill a starter hole through the top hole in the side curtain and into the window sash.

3. Insert one (1) of the ⁄” screws through the top hole of the

lefthand curtain and into the window sash.

4. Repeat for the right-hand curtain.

Top View

A. Side curtain against window channel B. Window sash behind top channel C. Bottom channel in behind windowsill

A B

A. Window frame B. Top channel

C. Bottom guide D.

ABOUT 1/4”

Window lock bracket

5. Use a ⁄” drill bit to drill a starter hole through the bottom hole

in the side curtain and into the window frame.

6. Insert one(1) of the ⁄” screws through the bottom hole of the

left-hand curtain and into the window frame.

7. Repeat for the right-hand curtain.

Bottom View

Complete Installation

1. Insert the foam seal behind the top of the lower window sash and against the glass of the upper window.

A. Top of lower window sash B. Foam seal

2. Place the window lock bracket as shown. Use a ⁄” drill bit to drill a starter hole through the hole in the window lock bracket and into the upper window.

3. Attach the window lock bracket to the upper window with one(1) ⁄” screw to secure the window in place.

4. Plug into a grounded 3 prong outlet.

5. Press RESET on the power supply cord. See “Electrical Requirements.”

AIR CONDITIONER USE

Operating your air conditioner properly helps you to obtain the best possible results.

This section explains proper air conditioner operation.

IMPORTANT:

■ If you turn off the air conditioner, wait at least 3 minutes before

turning it back on. This keeps the air conditioner from blowing a fuse or tripping a circuit breaker.

Starting Your Air Conditioner

■ Do not try to operate your air conditioner in the Cool mode when

outside temperature is below 65°F (18°C). The inside evaporator coil will freeze up, and the air conditioner will not operate properly.

NOTE: In the event of a power failure, your air conditioner will operate at the previous settings when the power is restored.

Maximum cooling

1. Turn the SPEED mode switch to the “HI“ setting.

2. Set the thermostat control to the MAX COOL temperature mark.

Quieter operation

1. Turn the SPEED mode switch to the “LOW“ setting.

2. Set the thermostat control as needed.

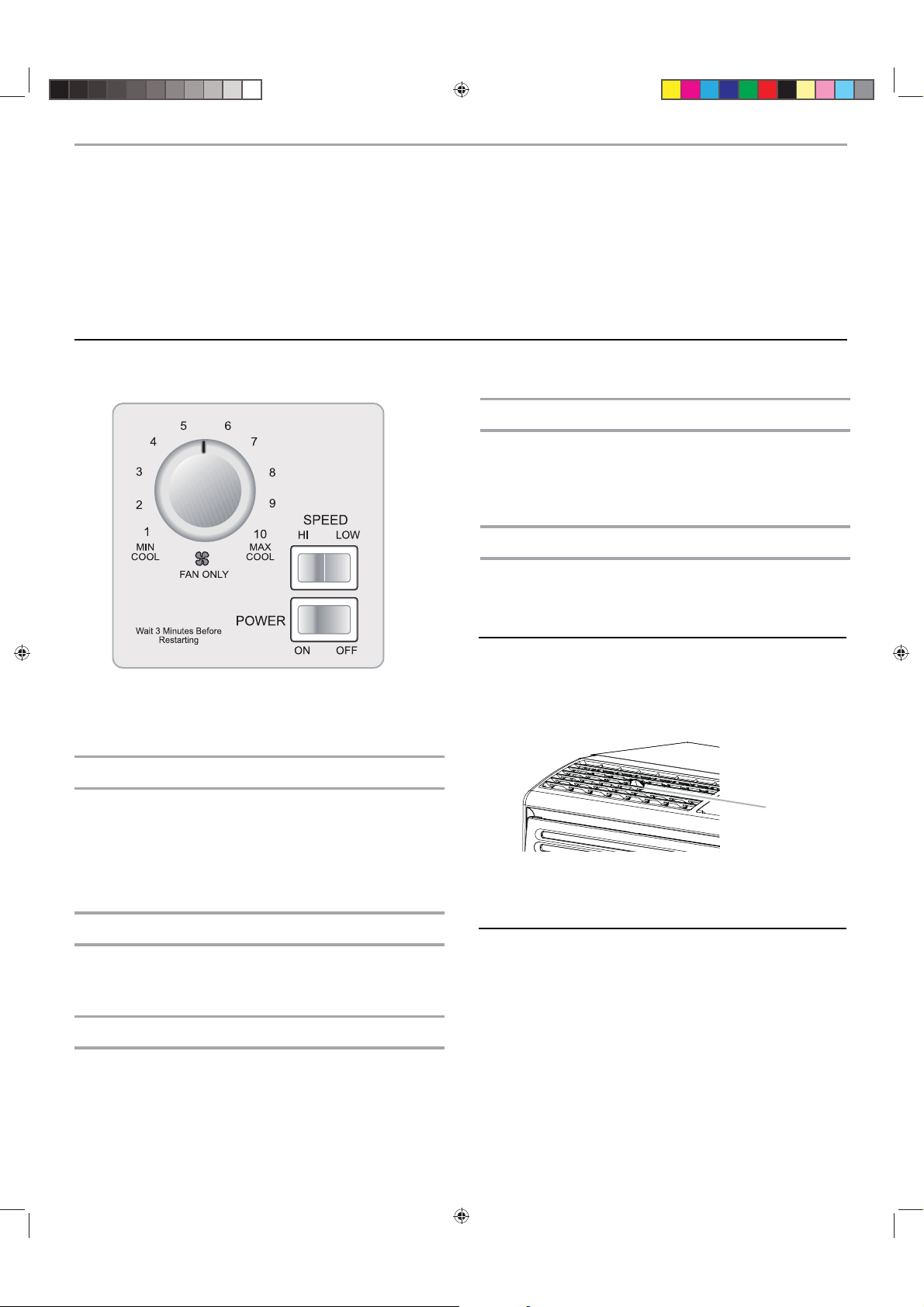

Changing Air Direction

Use the tab to direct the airﬂow right or left.

POWER Turn air conditioner on or off.

SPEED

LOW Low speed fan operate with optional cooling.

HIGH High speed fan operate with optional cooling.

This automatically controls the temperature of indoor air.Turn the knob so that the arrow points to the cooler marks for more moderate cooling.

Normal Fan

1. Turn the SPEED mode switch to the “HI“ or the “LOW“ setting.

2. Set the thermostat control to the “FAN ONLY” setting .

Normal cooling

1. Turn the SPEED mode switch to the “HI“ or the “LOW“ setting.

2. Set the thermostat control to the desired temperature.(The mid-point is a good starting position .) If the room temperature is not satisfactory after a reasonable time,adjust the control to a cooler setting,as appropriate.

A. Tab

Normal Sounds

When your air conditioner is operating normally, you may hear sounds such as:

■ Droplets of water hitting the condenser, causing a pinging or

clicking sound. The water droplets help cool the condenser.

■ Air movement from the fan.

■ Clicks from the thermostat cycle.

■ Vibrations or noise due to poor wall or window construction.

■ A high-pitched hum or pulsating noise caused by the modern

high-efﬁciency compressor cycling on and off.

AIR CONDITIONER CARE

Your new air conditioner is designed to give you many years of dependable service. This section tells you how to clean and care for your air conditioner properly.

Cleaning the Air Filter

The air ﬁlter is removable for easy cleaning. A clean ﬁlter helps remove dust, lint, and other particles from the air and is important for best cooling and operating efﬁciency. Be sure to check the ﬁlter every two (2) weeks to see whether it needs cleaning.

NOTE: Do not operate the air conditioner without the ﬁlter in place.

1. Turn off the air conditioner.

2. Remove the air ﬁlter by opening the front panel and removing the air ﬁlter.

3. Use a vacuum cleaner to clean air ﬁlter. If the air ﬁlter is very dirty, wash it in warm water with a mild detergent. Do not wash the air ﬁlter in the dishwasher or use any chemical cleaners. Air dry the air ﬁlter completely before replacing to ensure maximum efﬁciency.

4. Replace the air ﬁlter.

5. Close the front panel.

6. Turn on the air conditioner.

Cleaning the Front Panel

1. Turn off the air conditioner.

2. Clean the front panel with a soft, damp cloth.

3. Air dry the front panel completely.

4. Turn on the air conditioner.

A. Air ﬁlter B. Front panel

TROUBLE SHOOTING

Before calling for service, try the suggestions below to see whether you can solve your problem without outside help.

Air Conditioner Will Not Operate

■ The power supply cord is unplugged. Plug into a grounded

3 prong outlet. See “Electrical Requirements.”

■ The power supply cord has tripped (Reset button has

popped out). Press and release RESET (listen for click; Reset

button will latch and on some devices, a green light will turn on) to resume operation.

■ A household fuse has blown, or circuit breaker has

tripped. Replace the fuse or reset the circuit breaker. If the

problem continues, call an electrician. See “Electrical Requirements.”

■ The Power button has not been pressed or the Mode

control knob is turned to Off. Press POWER or turn the

Mode control knob to an active setting.

■ The local power has failed. Wait for power to be restored.

Air conditioner blows fuses or trips circuit breakers

■ Too many appliances are being used on the same circuit.

Unplug or relocate appliances that share the same circuit.

■ Time-delay fuse or circuit breaker of the wrong capacity

is being used. Replace with a time-delay fuse or circuit

breaker of the correct capacity. See “Electrical Requirements.”

■ An extension cord is being used. Do not use an extension

cord with this or any other appliance.

■ You are trying to restart the air conditioner too soon after

turning off the air conditioner. Wait at least 3 minutes after

turning off the air conditioner before trying to restart the air conditioner.

Air conditioner power supply cord trips (Reset button pops out)

■ Disturbances in your electrical current can trip (Reset

button will pop out) the power supply cord. Press and

release RESET (listen for click; Reset button will latch and on some devices, a green light will turn on) to resume operation.

■ Electrical overloading, overheating, cord pinching or aging

can trip (Reset button will pop out) the power supply cord.

After correcting the problem, press and release RESET (listen for click; Reset button will latch and on some devices, a green light will turn on) to resume operation.

Air conditioner cycles on and off too much or does not cool room in cooling mode

■ The air conditioner is not properly sized for your room.

Check the cooling capabilities of your room air conditioner. Room air conditioners are not designed to cool multiple rooms.

■ The ﬁlter is dirty or obstructed by debris. Clean the ﬁlter.

■ There is excessive heat or moisture (open container

cooking, showers, etc.) in the room. Use a fan to exhaust heat or moisture from the room. Try not to use heatproducing appliances during the hottest part of the day.

■ The louvers are blocked. Install the air conditioner in a

location where the louvers are free from curtains, blinds, furniture, etc.

■ The outside temperature is below 65°F (18°C). Do not try to

operate your air conditioner in the cooling mode when the outside temperature is below 65°F (18°C).

■ The temperature of the room you are trying to cool is

extremely hot. Allow extra time for the air conditioner to cool

off a very hot room.

■ Windows or doors to the outside are open. Close all

windows and doors.

■ The Temperature control is not at a cool enough setting.

Adjust the control to a cooler setting to reduce the temperature. Set the Fan Speed control to the highest setting.

Water drips from cabinet into your house

NOTE: A damaged power supply cord must be replaced with a

new power supply cord obtained from the product manufacturer and must not be repaired.

Air conditioner seems to run too much

■ The current air conditioner replaced an older model. The

use of more efﬁcient components may cause the air conditioner to run longer than an older model, but the total energy consumption will be less. Newer air conditioners do not emit the “blast” of cold air you may be accustomed to from older air conditioners, but this is not an indication of lesser cooling capacity or efﬁciency. Refer to the efﬁciency rating (EER) and capacity rating (in Btu/h) marked on the air conditioner.

■ The air conditioner is in a heavily occupied room, or

heat producing appliances are in use in the room. Use

exhaust vent fans while cooking or bathing and try not to use heatproducing appliances during the hottest part of the day. A higher capacity air conditioner may be required, depending on the size of the room being cooled.

■ The air conditioner is not properly leveled. The air

conditioner should slope slightly downward toward the outside. Level the air conditioner to provide a downward slope toward the outside to ensure proper drainage. See the Installation Instructions.

NOTE: Do not drill a hole into the bottom of the metal base and condensate pan.

+ 25 hidden pages
