Commercial Air Conditioning
SERVICE MANUAL
MULTI upgrade series
Models
Indoor: AB09CS1ERA
AB12CS1ERA
AB18CS1ERA
AB24ES1ERA
AC12CS1ERA
AC18CS1ERA
AC24CS1ERA
AD09LS1ERA
AD12LS1ERA
AD18LS1ERA
AD24LS1ERA
Outdoor: 3U19FS1ERA
4U25HS1ERA
4U30HS1ERA
5U34HS1ERA
z DC inverter technology, high energy efficiency, higher EER A+, energy
saving for the user
z Universal indoor units for multi upgrade series, Unitary smart DC inverter
and HAIER DAC split inverter type
z High voltage communication, convenient wiring work
z Multiple control types
z 10℃ constant temperature control
z Universal power supply for 50Hz and 60Hz
z Central control function available
z New friendly refrigerant R410a, zero ODP, environment protection
Manual code: SYJS-017-10REV.0 Edition: 2010-12-10
>_]]VbTZR\ <Zb >_^UZdZ_^Vb
-2-
CONTENTS
Contents……………………………………………………….....2
1. Description of products & features………………………….3
2. Specification…………………………………………………...6
3. Dimensions…………………………………………………....21

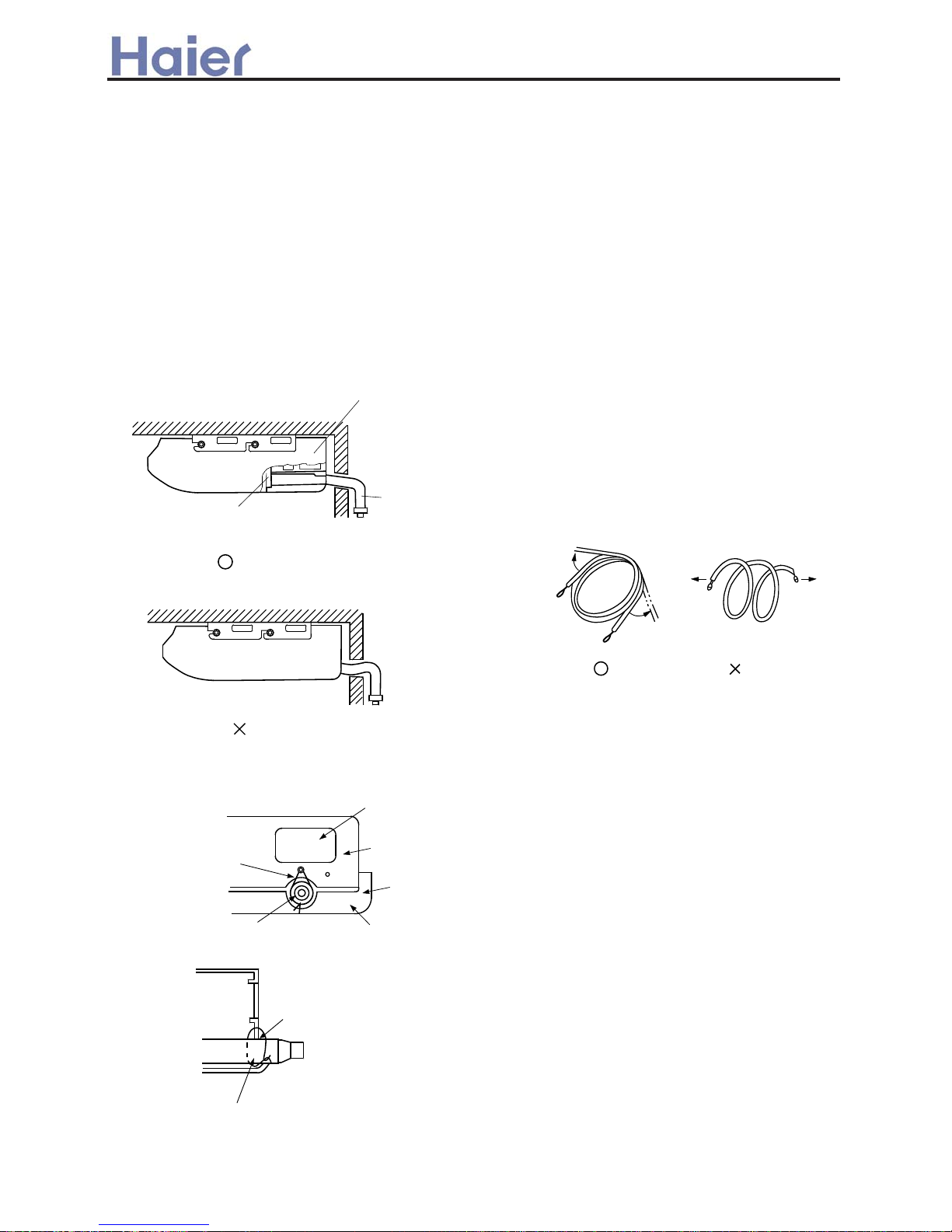

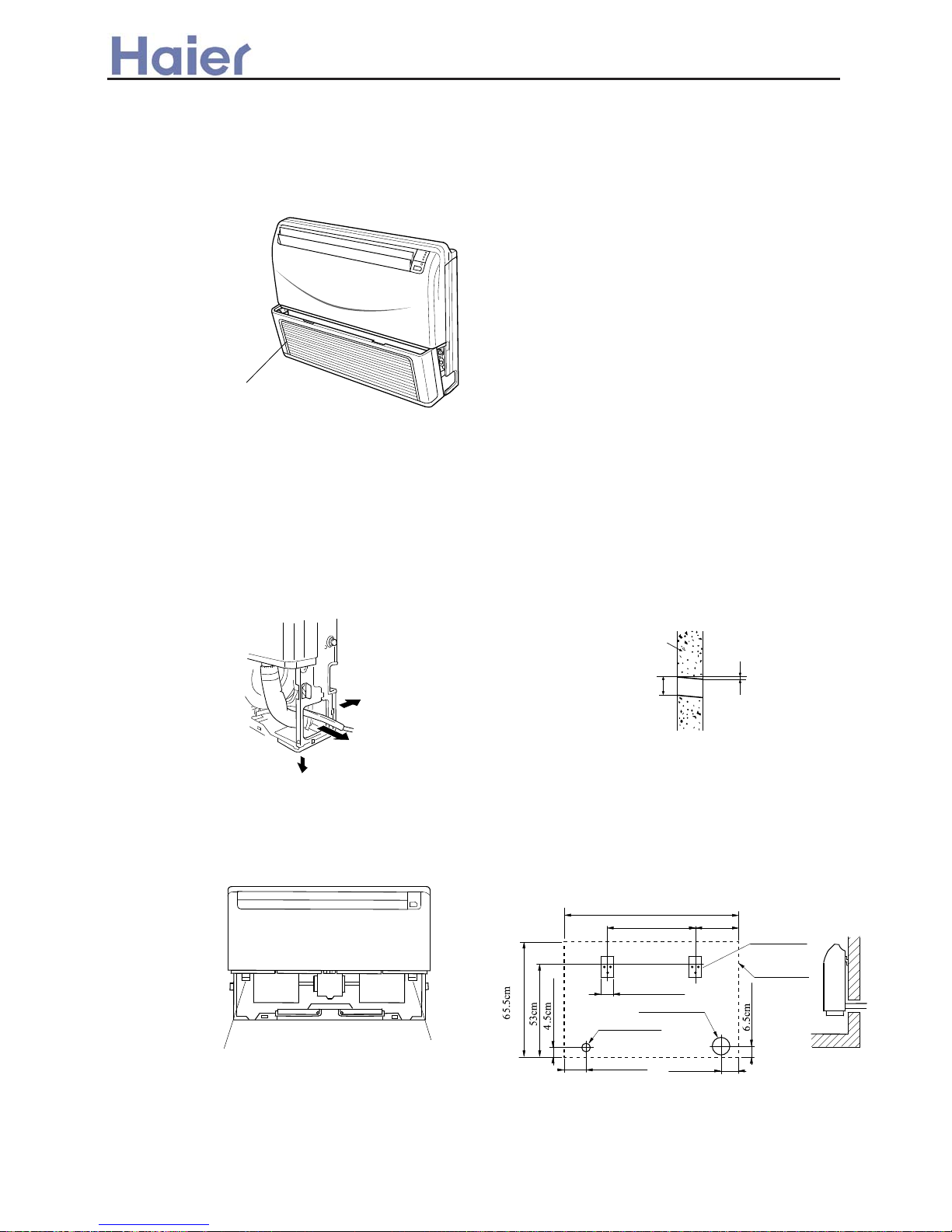

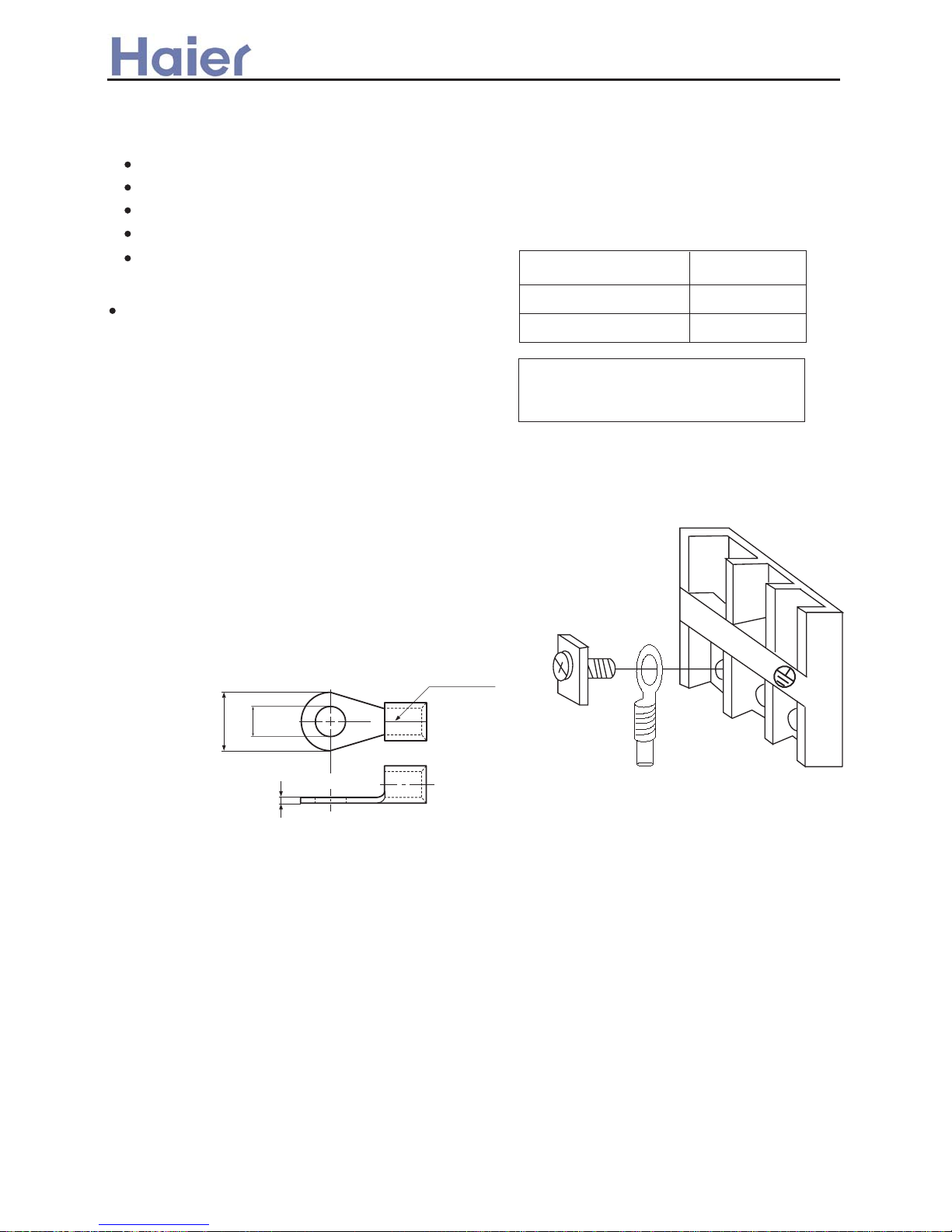

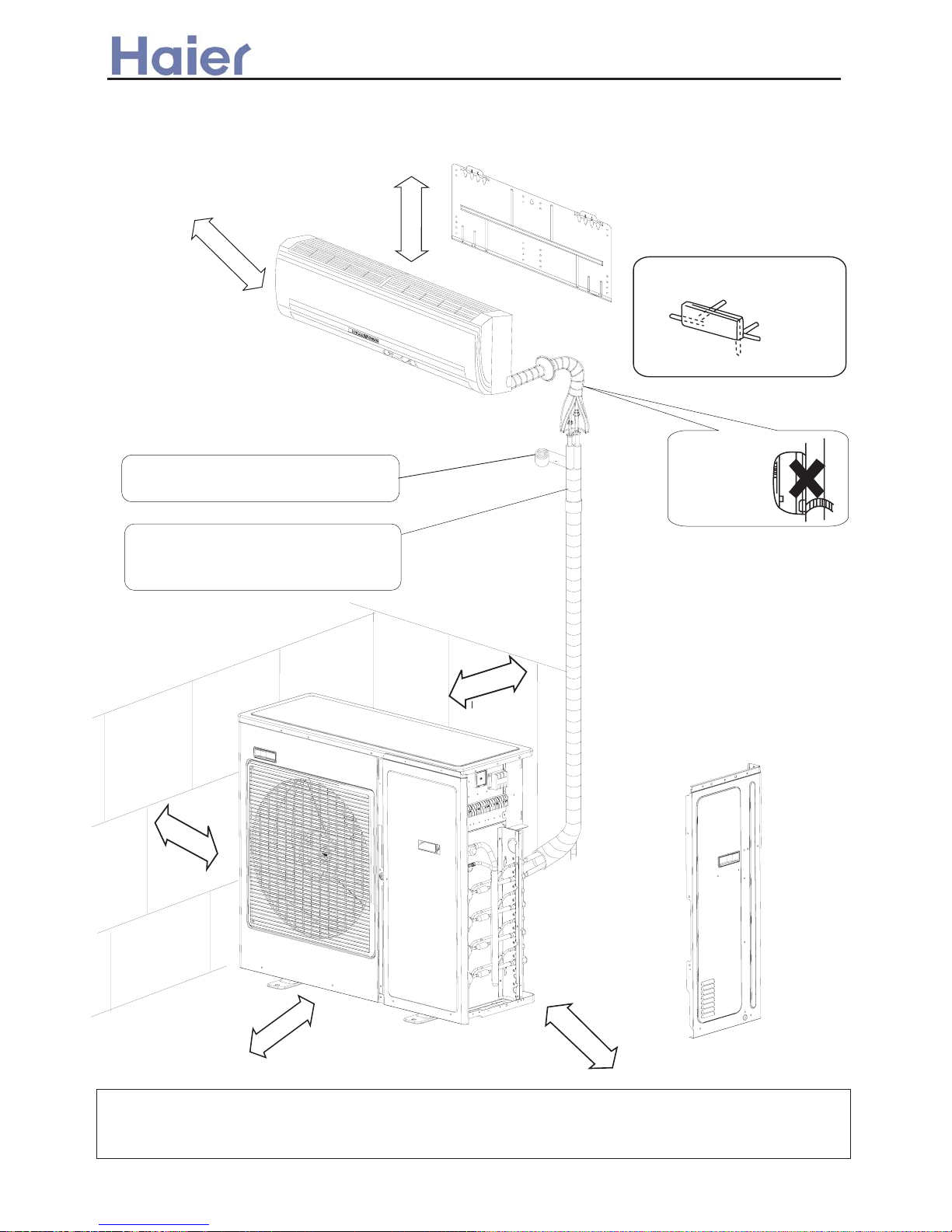

4. Pipe and wiring installation…..……………………………....26

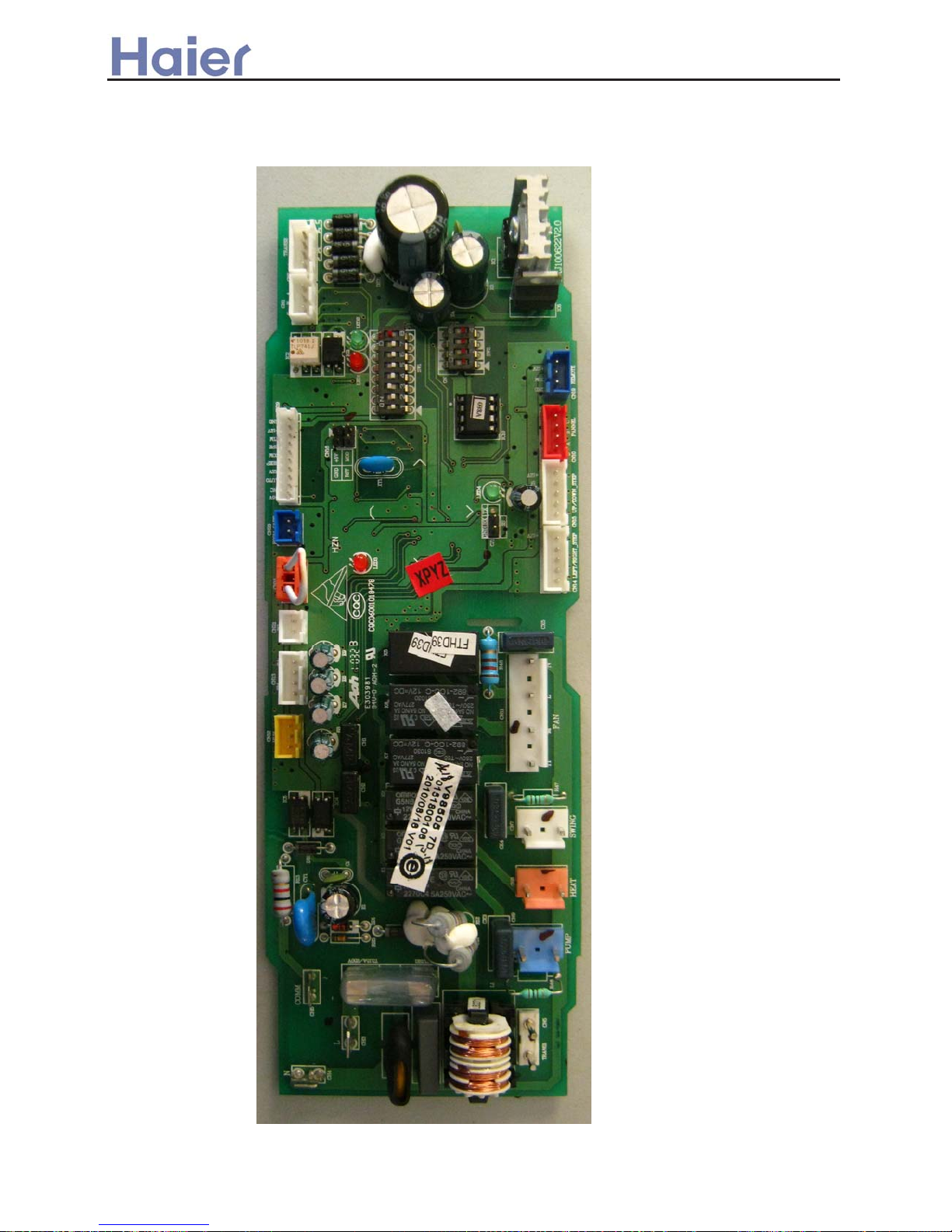

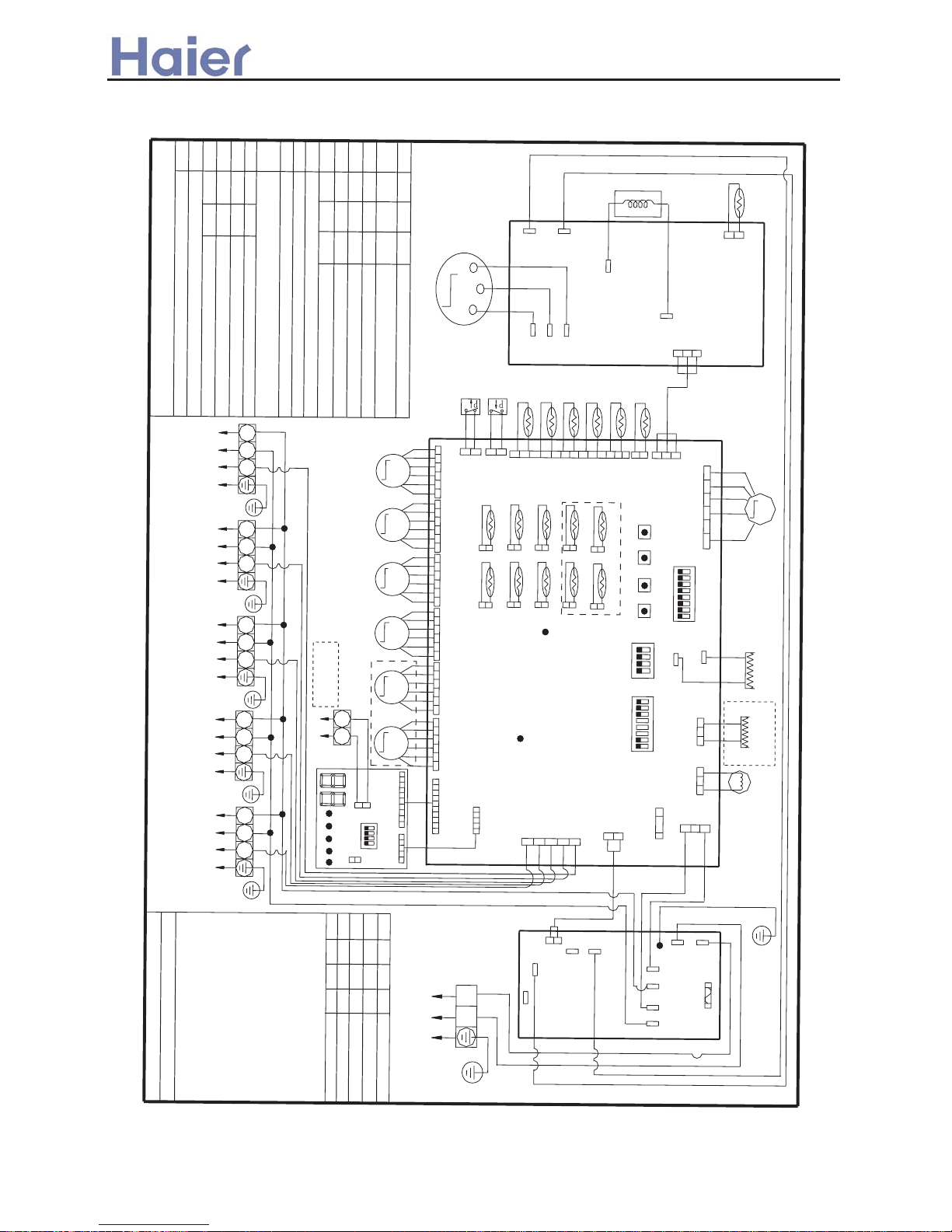

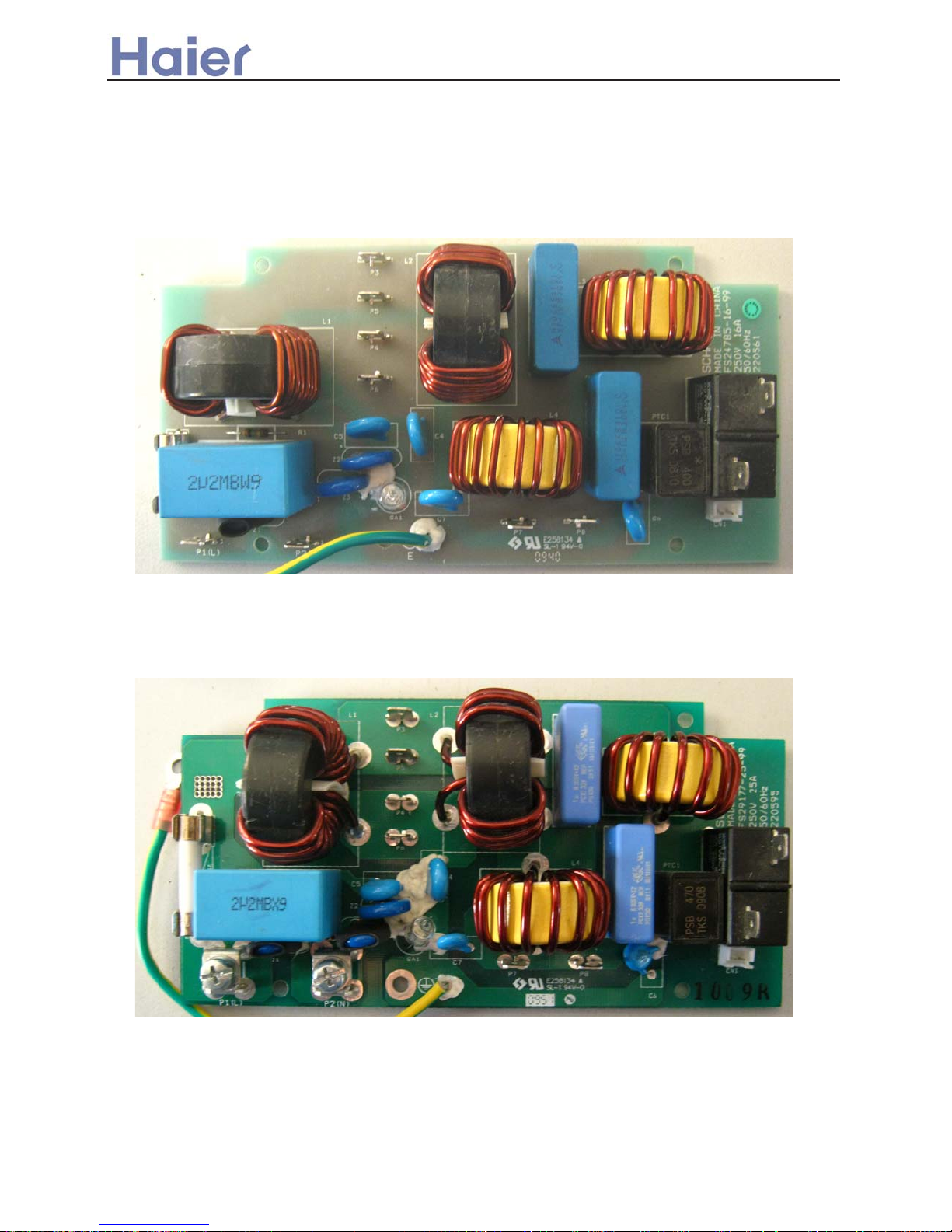

5. PCB photo, wiring diagram and function description……..72
6. Diagnostic code and troubleshooting.……………………...95
7. Outdoor performance curves………..……………………....101
8. Indoor air velocity and temperature distribution curves......105
9. Air flow and static pressure chart…………………………...111
10. Noise level…………………………………………………...113
11. Sensor characteristic….………………………………….....121
12. Controller functions…...………………………………….....124
.9773:1506 -5: .9825;5983:
1.Description of products & features
1.1. Products code explanation
3
U 19 F S 1 E R A
Climate type: T1 (see table 1)
Frequency type: DC inverter
Product type: A stands for heat pump type, refrigerant is R22
B stands for heat pump type, refrigerant is R407C
E stands for heat pump type, refrigerant is R410A
N stands for cool only type, refrigerant is R407C
Design edition
Product series: S stands for EASY STOCK
Product appearance
Cooling / Heating capacity,19=19000BTU/h
Product type : “B” stands for cassette type, “C” stands for
convertible type, “D” stands for duct, “S” stands for wall
mounted type, "F" stands for console type, “U” stands for
outdoor of split unit
Max. 1 to 3
1.2 Brief Introduction for T1,T2,T3 working condition
1.3 Operating Range of Air Conditioners
Working temperature range
Rated Maximum Minimum
Indoor
DB℃
27 32 18
WB℃
19 23 14
outdoor
DB℃
35 43 -10
Cooling
WB℃
24 26 6
Indoor
DB℃
20 27 15
WB℃
14.5 -- --
outdoor
DB℃
7 24 -15
Heating
WB℃
6 18 --
Climate type
Type of Air
Conditioner
T1 T2 T3
Cooling Only
18 ℃~43℃ 10℃~35℃ 21℃~52℃
Heat pump
-7℃~43℃ -7℃~35℃ -7℃~52℃
Electricity Heating
~43℃ ~35℃ ~52℃
Commercial Air Conditioner
1.4 Product features
DC inverter technology, high energy efficiency, higher EER A+, energy saving for the
user
The outdoor unit adopts DC inverter compressor and motor, so save power energy is just to save
you have already installed the air conditioner, if you want to add or reduce one unit, go ahead freely
as long as your operation complies with our design. Greatly convenient for designer and installer.
Precise control, more comfortable and more reliable
The outdoor is equipped with electronic expansion valve, which will control refrigerant flow more
precisely. As a result, the user will feel more comfortable and the unit is more reliable.
Also, the outdoor is with oil segregator, which will keep the compressor working normally and make
oil return more smoothly.
Universal indoor units for multi upgrade series, unitary smart DC inverter and HAIER
DAC split inverter type
The indoor units are universal for the outdoors which belongs to EASY STOCK series. EASY
STOCK is new concept brought by Haier to be convenient for design, sale, operation, and stock
management.
Adopt the much friendlier refrigerant R410a
The air conditioner system adopts the greatly friendly refrigerant R410a, which is protective for the
ozone layer and is good to avoid the earth getting warmer. Benefit for the environment.
High voltage communication, convenient wiring work
Connect indoor and outdoor directly, and there is no communication wire between indoors. Thus
Multiple control types
The indoor unit can be controlled by multiple types: infrared controller, wired controller, central
controller. More choice, more conveniently.
10℃ constant temperature control
When leave home temporarily, press 10℃ button of remote controller, the indoor temperature won’
t decrease rapidly while be controlled at 10℃. When come back home, press it again, the unit will
be back to normal status and setting temperature.
Auto–restart function (optional)
All indoor units have auto-restart function. When the power supply cut off suddenly, the unit will
automatically recover the previous running mode once the power supply is on.
Self-diagnostic function
In the course of operation, if the failure occurs, the failure code will display on the wired controller or
the wiring work is more convenient. No need to set indoor address.
money for the user. And the outdoor can match with multiple indoor units, up to 5 sets. Even when
Commercial Air Conditioner
on the operation panel. Then according to the failure code chart, you can eliminate the failure soon.
Central control function, if connected with a central controller
That is convenient for building management.
Weekly timing function, if connected with a weekly timer
Universal power supply for 50Hz and 60Hz
The multi upgrade series adopts universal power supply for 50Hz and 60Hz, which is convenient for
design. Much wider application.
¾Outdoor unit 220V/1/ (50/60Hz)
5
4
3
34302519
Cooling capacity(Kbtu)
Max.indoor
quantity
Connection diagram

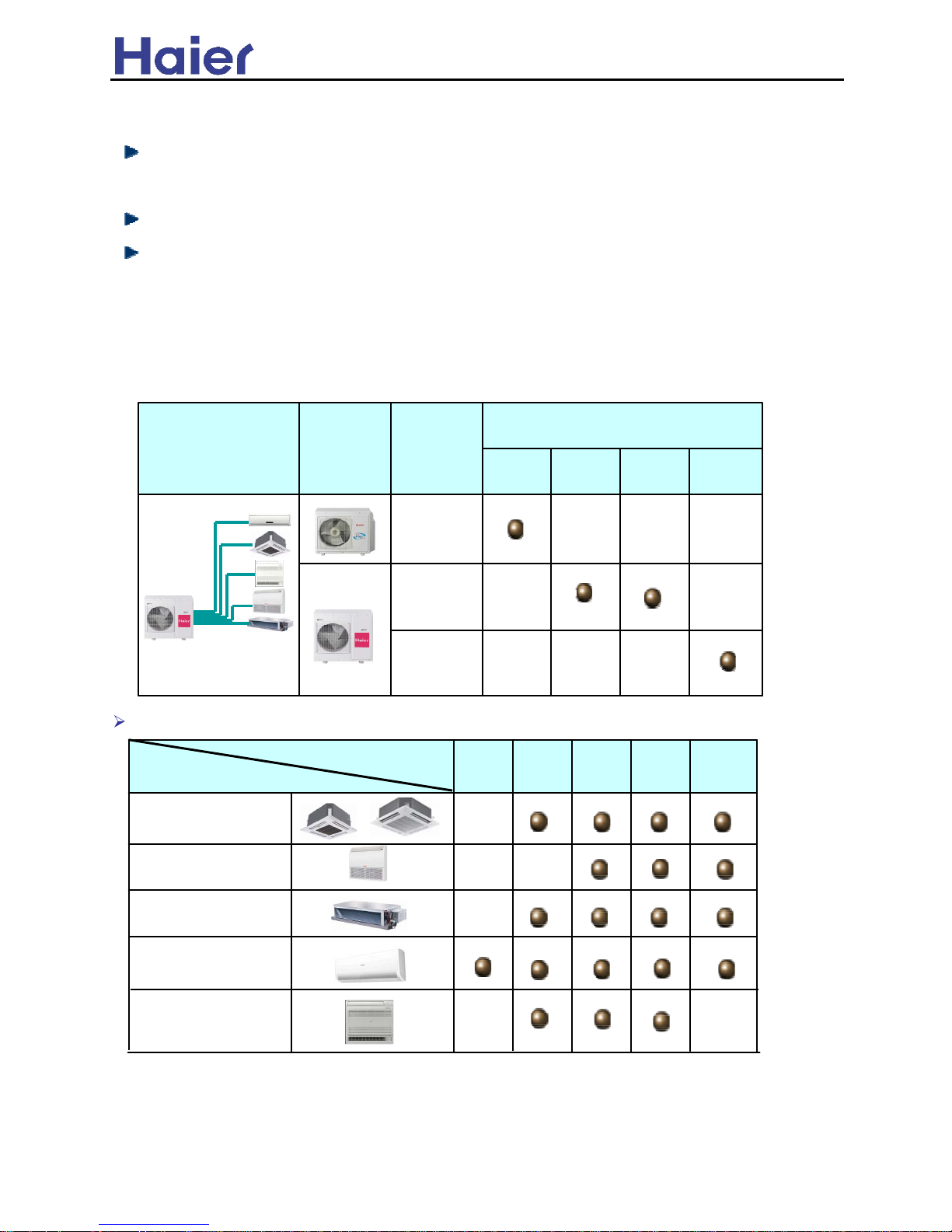

1.5 Product lineup
Indoor unit 220V/1/ (50/60Hz)
Console type
ceiling concealed
duct
24
6.5
HEM
mounted type
7
2.2
Floor & Ceiling type
Cassette
Type(4-way)
18
5.0
12
3.6
9
2.8
kBTU/h
SERIES kW
2. Specifications
Cooling Heating
W 5400 6500
W 1410 1520
A 6.13 6.6
W/W 3.84 4.28
W 1500 1800
W 500 500
W 7000 8100
W 2600 2600
A / A 11.3 11.3
99% 99%
A
Winding resistance(at 20℃)
Ω
Motor speed r/min
Motor output/input power W
Air-flows (H/M/L) m³/h
Type / Diameter mm
Face area m²
External mm
Package mm
W
sound pressure（H/M/L)
dB(A)
sound power （H/M/L)
dB(A)
Weight Net / Shipping kg / kg
Type / Charge kg
No need to recharge total liquid piping length m
Recharge g/m
Liquid mm
Gas mm
Max.Drop between IU & OU m
Max.Drop between indoor units m
Max.Piping length between IU & OU m
Max.Total length m
63/-/-
Noise level
Norminal condition: indoor temperature (cooling): 27℃DB/19℃WB, indoor temperature (heating): 20 ℃DB
Outdoor temperature(cooling): 35℃DB/24℃WB, outdoor temperature(heating): 7 ℃DB/6℃WB
The noise level will be measured in the third octave band limited values, using a Real Time Analyser calibrated sound
intensity meter. It is a sound pressure noise level.
Motor type DC
55/69
Number of rows 2
25
50
1. The above performance data are from the combination of 3U19FS1ERA+3*AS09CS1ERA
2. Large drop and long piping installation will obviously reduce the total capacity.
Indoor units number 1~3
Fan type × Number
Fan motor model ARW4403AS
Outdoor unit
Compressor
SNB130FGYMC-L1 / MGC
500CC, FV 50S
Twin Rotary (DC inverter)
Flared
Between
IU & OU
15
7.5
Connecting method
52/-/-
51/ 53
Piping
Refrigerant
R410A /1.9
30
20
Pipe size
3* Φ6.35
3* Φ9.52
PMVs
Automatic by reversible cycle
Crankcase heater power 35
Defrosting method
TP2M / 7.94
about 0.52
Dimension
(WxDxH)
886/289/688
990/405/760
0.58
Fan system
Axial × 1
Max. 860
about 2000
1PH, 220-230V~, 50/60Hz
Max.Running current (indoor + outdoor)
Fuse size (recommended size) 16
Power facor(under rating power input)
Minimum power input
Maximum capacity
Maximum power input (indoor + outdoor)
Power source
Power input (indoor + outdoor)
Current input (indoor + outdoor)
EER / COP
Minimum capacity
Item Model
3U19FS1ERA
Rating capacity
Function
Model / Manufacture
Oil charge and type
Type
Refrigerant control method
Heat
exchanger
Commercial Air Conditioner
-7-
