Page 1
34F9K34F9K
COLOUR TV RECEIVER
OWNER'S MANUAL
Haier & Higher
Please read this manual carefully before using this
TV set and keep it for future reference.
Page 2
* For your enjoyment of this TV set, please read this manual carefully and
keep it good for future reference.
CONTENTS
Before Operation
Warning and cautions........................................................................2
Installation...........................................................................................3
Antenna connection...........................................................................3
Preparation of the remote control unit................................................3
Function buttons and external sockets............................................4
Front and side panel of the TV set....................................................4
Rear panel of the TV set....................................................................4
Buttons on the remote control............................................................5
Basic operation
Switching on/off the TV set................................................................6
Watching TV program.........................................................................7
Watching TV program.......................................................................7
Program swap and auto scan functions............................................8
Searching channel..............................................................................9
Full automatic search mode..............................................................9
Semi-automatic search....................................................................10
Manual fine tune..............................................................................11
Program skip ..................................................................................12
Convenient picture and sound control functions...........................
Multiple picture modes ....................................................................13
Black stretch and noise reduce.......................................................14
Multiple sound modes....................................................................15
Surround, Woofer and mute functions...........................................16
Time functions...................................................................................17
Clock setting and time on/off functions........................................17
Sleep timer and program presetting .............................................18
Setup function .................................................................................19
Screen saver and AVL functions ...................................................19
Switch on/off modes.......................................................................20
Position exchange function.............................................................21
Other functions.................................................................................22
Calendar display, child lock and display functions..........................22
Others
Connection to the external audio and video equipments.............23

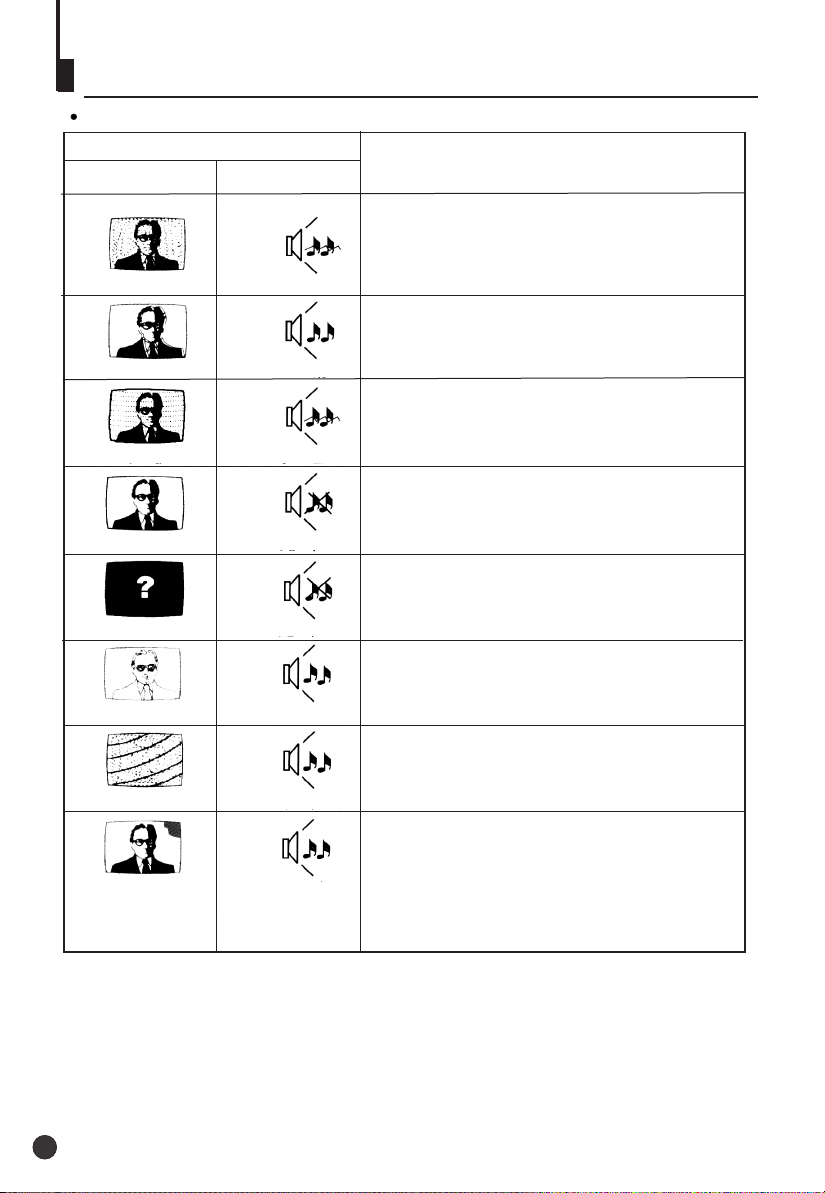

Troubleshooting guide
Specifications...................................................................................25
.....................................................................24
13
Page 3
Warning and cautions
1 When you clean the TV set, please
pull out the power plug from AC outlet.
Don't clean the cabinet and the
screen with benzene, petrol and other
chemicals.
2 In order to prolong the using life of
the TV set, please place it on a
ventilated place.
3 Don't place the
TV set in the
sunshine or near
heat source.
4. Do not place the TV set near rain or
moisture as it may cause an electric
shock, or the TV set to catch fire. The
TV set must only
be used in dry in
door locations.
5. The back cover must only be
removed by a registered electrical
service person. Removing the back
cover may result in electric shock, fire
or damage to
the TV set.
6. If the TV set is not going to be used
for a long time, or there is a severe
thunder & Lighting storm, it is
recommended that the TV set be
disconnected from the AC power outlet
and the aerial plug removed.
Explanation on the display tube
In general, it is not needed to clean the tube surface. However, necessary,
it's surface can be cleaned with a dry cotton cloth after cutting off the power.
Don't use any cleanser. If using hard cloth, the tube surface will be damaged.
22
Page 4
Installation
Antenna connection
Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV
system or an outdoor antenna .In different places, the suitable antenna type and position
are different.
300 twin-lead cable
Antenna adapter
(additional purchase)
75 coaxial cable
Note
It is recommended that you'd better use 75
disturbance caused by airwave.
Don't bind antenna cable and power wire together.
coaxial cable to remove the
Preparation of the remote control unit
Battery installation
Take off the battery compartment cover. Place two AA batteries, make sure that battery
polarity matches with the +/- mark inside the battery compartment.
Operation notes for the remote control unit
Under normal conditions, the life time of batteries is one year.
If you don't intend to use the unit for a long period or the electricity of the batteries is
used up, remove the batteries to prevent batteries acid from leaking into the battery
compartment.
Don't throw your batteries into a fire. Dispose of your batteries with a specified method.
Avoid the falling and the wetting of the remote control unit.
Page 5
Function buttons and external sockets
Front and side panel of the TV set
TV/Video
(input selector
Volume up/ down
MENU
Channel selector
Video1 input terminal
S terminal
Left sound track
Infrared sensor window
Power switch
Rear panel of the TV set
Video output terminals: VIDEO AUDIO L, R
Video 2 input terminals: VIDEO AUDIO L, R
DVD input terminals: Y, Cb, Cr

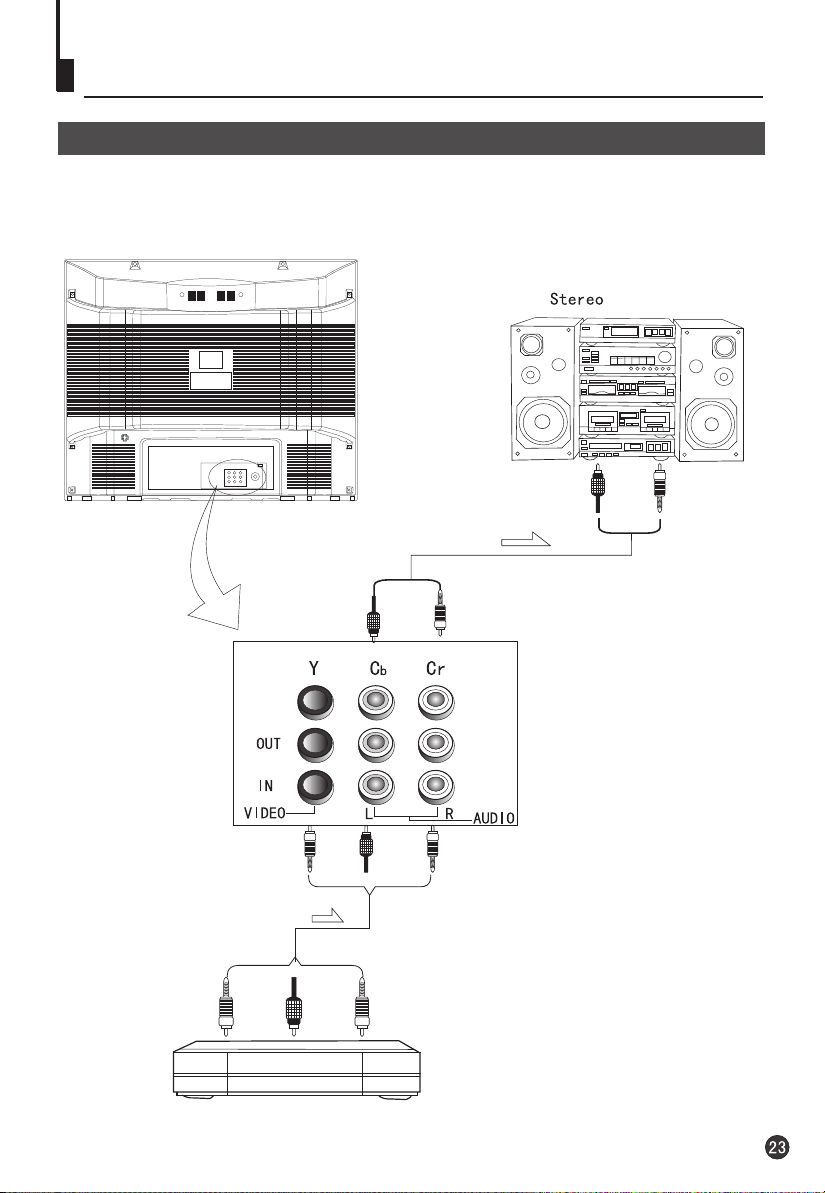

If you want to connect the TV set to the other audio/video equipments, please
refer to P23.
Right sound track
Power indicator
Antenna input
Page 6
Buttons on the remote control
Buttons on the remote control
MUTE SCAN
ZOOM
P.STD
CH+
VOL- VOL+
MENU
LIGHT
ON
CH-
TIME
FUNCTION
LOCK
CALL
LIGHT
OFF
TV/AV
SWAP
S.STD
SOUND
TUNE
EXIT
Program scan
Mute
Zoom function
Mono/stereo(No including)
Program number
Digital selector
Picture mode selection
Volume selection
Picture menu
Light on (No including)
Time menu
Function menu
Exit screen display
Tune menu
Light off (No including)
Sound menu
Menu selection / adjustment
Channel selection
Sound mode selection
Former program
Call screen display
TV/AV exchange
Stand by
Lock/unlock selectable
Page 7
Switching on/ off the TV set
In the following, the methods of using power switch and the remote control to switch
on/off power supply for the TV set will be explained.
Switching on/ off the TV set
Switching on/ off the TV set
1 Please press down the power switch to switch
on AC power supply and the power indicator will
light .
TV/Video
(input selector
MENU
Power switch
Infrared sensor window
Channel selector
Volume up/ down
Power indicator
2 If the indicator is lighting in red, press button
on the remote control again.
Note
1 When you don't operate the TV set with the
remote control, you can turn on it directly by
pressing the P+/- buttons on the TV set.
4
AUTO
BG
144.25MHz
2 If you want to exchange to standing by status,
please press down button on the remote
control.
3 If you want to fully switch off the power supply
for the TV set, please press down the power switch
button on the TV set.
Auto switch-off function
When the "Back" function is ON, if an empty
channel is selected or the TV programs are
ended for the day, the power will be switched off
5 minutes later automatically. If the "OFF TIME"
is ON, it will be switched off according to the
presetting time. The auto power off function
does not work under video input or when the
background is off.
(Note: If the "Off timer" is less than 5 minutes, it
will be switched off automatically to the presetting
time. )
Page 8
Watching TV
You can watch TV program in a presetting channel.
Watching TV program
How to select TV program
Select the desired program
1 Using "Program number" buttons
Directly enter the channel number with the numeric keypad
on the remote control.
To select channel numbers from 10 ~ 99 press [-/--] button
and enter the two digit channel number
To select channel numbers from 100 ~ 218 press [-/--] button
twice and enter the 3 digit channel number
2 Using the CH+/- buttons
Press the CH+ button to select a channel number in number
CH+
VOL- VOL+
MENU
CH-
TUNE
CH+
VOL- VOL+
MENU
increasing
Press the CH- button to select a channel number in number
decreasing
Select the desired sound
Press the VOL-/+ buttons on the remote or the front of the
TV set to adjust the volume level. The range is 0~99. When
the volume buttons are pressed the volume level is
displayed automatically on the TV screen.
If the colour of some channel is abnormal
Usually this should be set in the
Auto position. However if the
colours displayed on the screen
are incorrect you can manually
select the correct colour system.
When finish remember to turn it
back to auto again so that other
programs will still work correctly.
Press the TUNE button and the
setting menu shown on the right
will display on the screen.
direction.
direction.
TUNING
COLOR SYSTEM AUTO
BAND VHFL
SKIP OFF
PROG NO 0
SEARCH
FINE TUNE
AUTO SEARCH
CH-
If picture colour is abnormal
Press the CH+/- buttons to select "COLOR SYSTEM",
then press the VOL-/+ buttons to select the correct colour
system. In general, you can set it as "AUTO" AUTO,PAL,
NTSC and NTSC443 will display in turn .
Page 9
Watching TV Continued
Swap function enables quick swap to the last watched program.
Auto scan function enables automatic successive scanning of all the programs in
memory (each channel will last about 2 seconds), so that you are free from the trouble of
pressing keys.
Program swap and auto scan functions
Program swap
Suppose the channel number
1
SWAP
you used just now is 8 and the
channel number you are using
is 18 (as shown in the figure).
2 If you want to return to the
last watched program channel
8, you can simply press the
SWAP button.
3 If you want to return to
channel 18, press the button
again. Through this function,
you can easily change
between the channel you are
using and the channel you
used last time.
18
AUTO
BG
695.25MHz
8
AUTO
BG
199.25MHz
18
AUTO
BG
695.25MHz
SCAN
Auto program scan
1If you want to select a
desirable program, you may
scan all the TV programs in
memory. You can simply press
the SCAN key to do this. The
programs will appear one after
another from beginning to end
(each channel number will last
about 2 seconds).
2 If you want to stop the function
during auto scanning, simply
press the SCAN button again.
1
AUTO
BG
62.25MHz
2
BROWSE
3
BROWSE
1
AUTO
BG
62.25MHz
Page 10
Searching channel
This TV set has three methods to set channels, which are respectively full automatic,
semi automatic and manual fine tune.
-
In this section, how to use the remote control to set channel is explained. You can also
use buttons on the TV set to set channel.

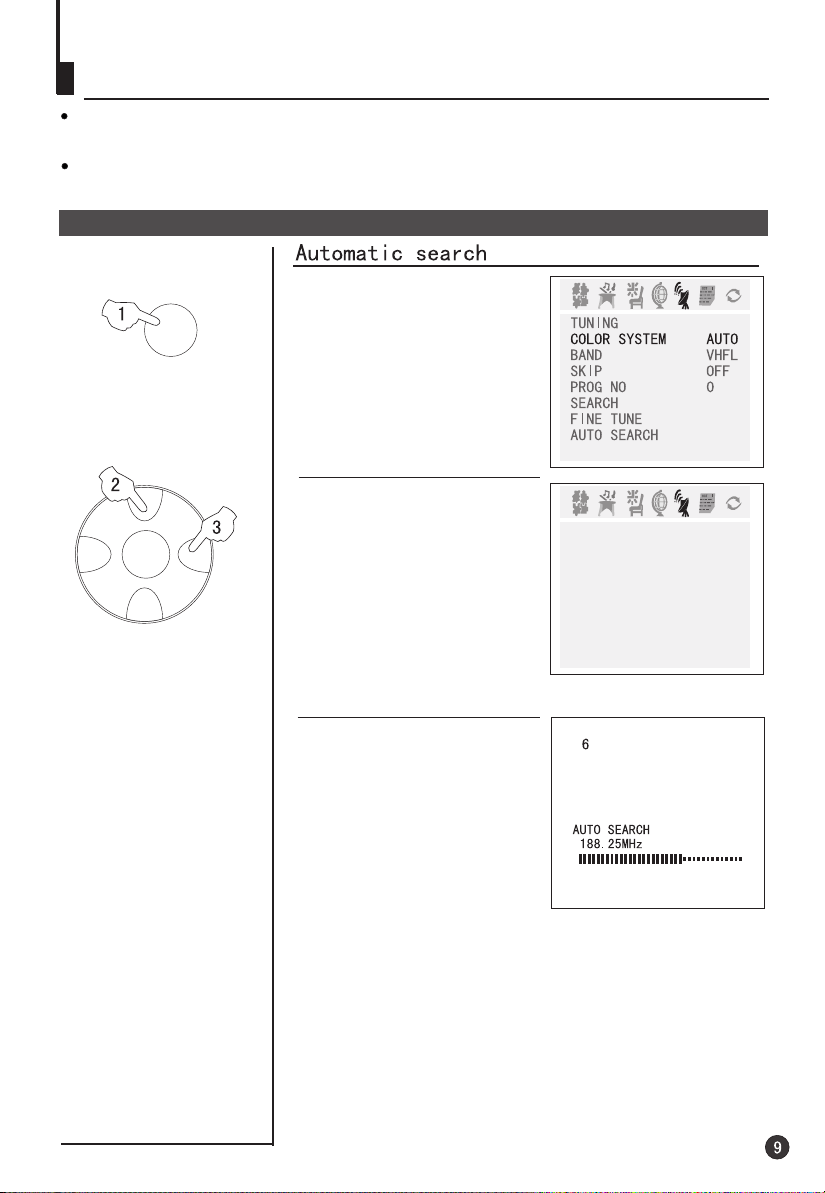

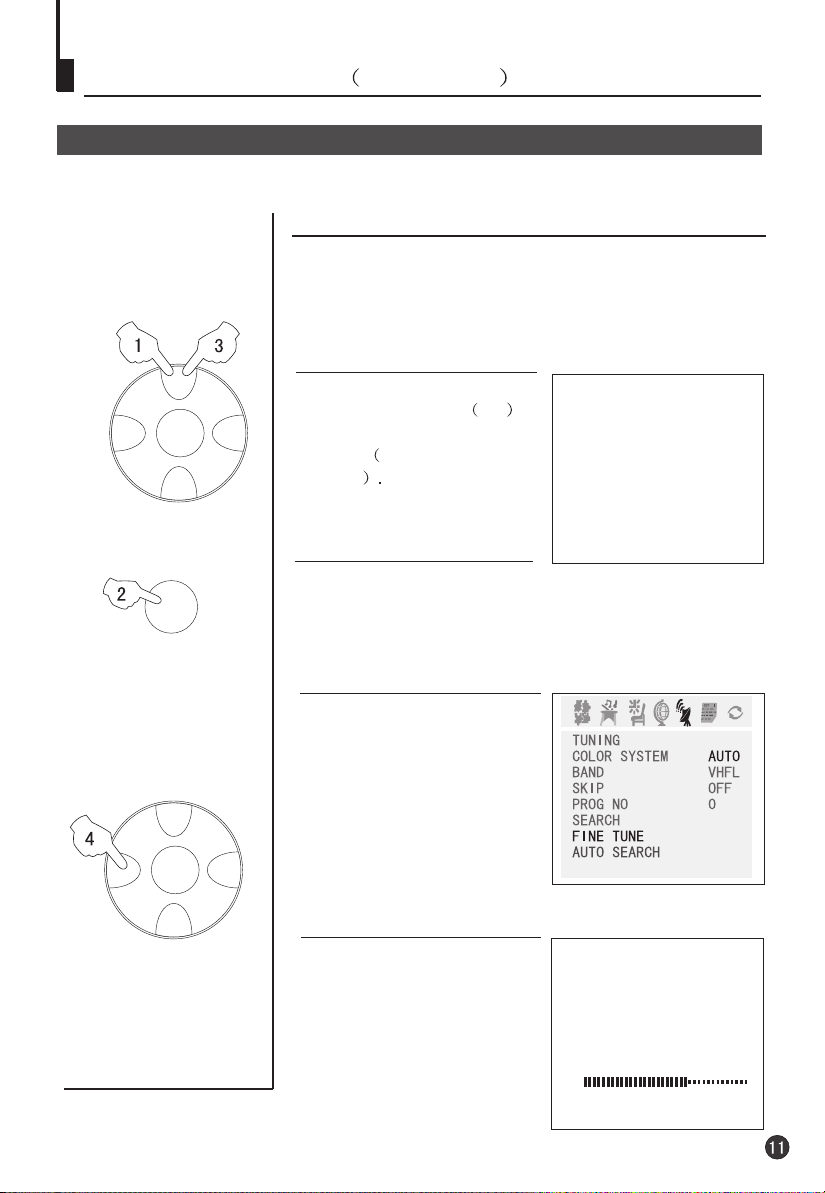

Full automatic mode
TUNE
CH+
VOL- VOL+
MENU
CH-
1 Press the TUNE menu button ,
till TUNING menu shown on the
right display on the screen.
Press the CH+/-
2 buttons to
select "AUTO SEARCH".

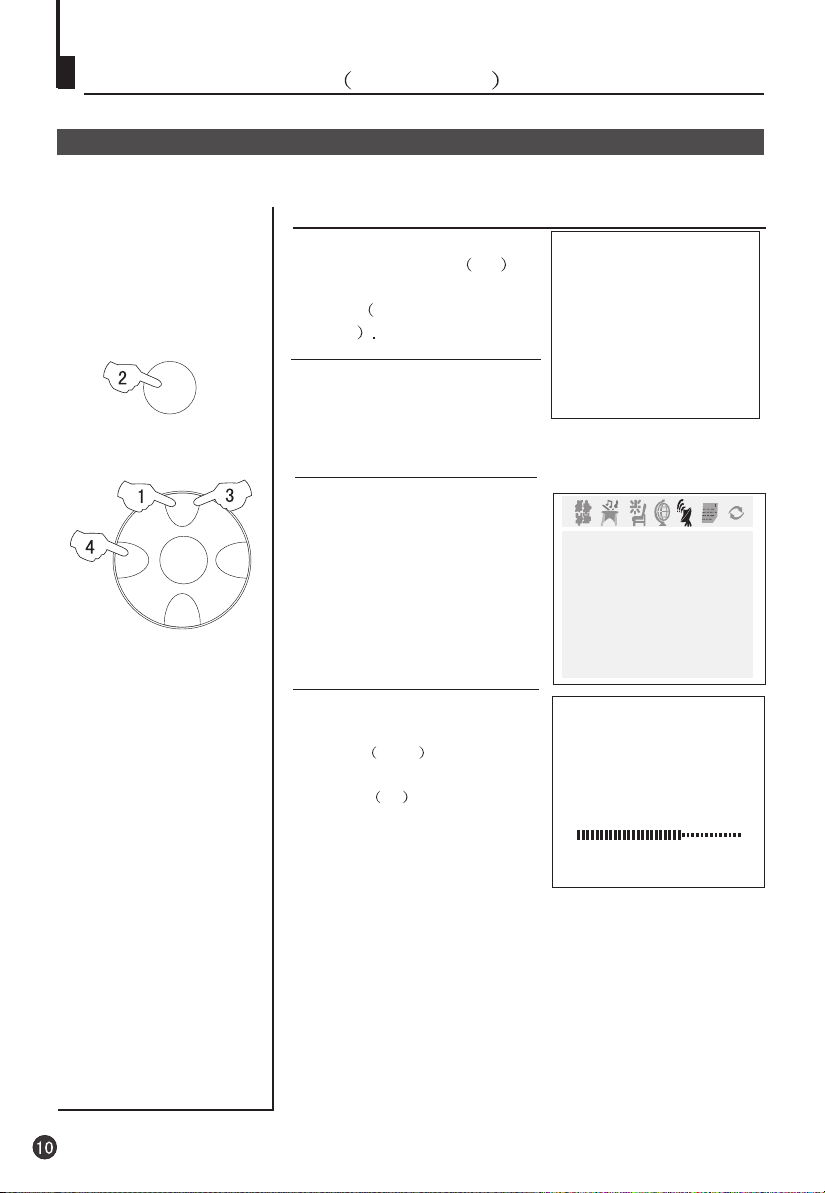

3 Press the VOL+ button to
ensure automatic search
function work.
All channels now playing
program will be automatically
preset in order .
After the s arch has finished,
e
the first program number will
display on the screen.
TUNING
COLOR SYSTEM
BAND VHFL
SKIP OFF
PROG NO 0
SEARCH
FINE TUNE
AUTO SEARCH
AUTO
Page 11
Searching channel Continued
Semi-automatic search
Semi-automatic search
1 Press the CH+/- buttons or the
PROGRAM NUMBER 0-9
button to choose desired
channels regard channel 1 as
TUNE
CH+
VOL- VOL+
MENU
CH-
example
2 Press the TUNE menu button ,
till the TUNING menu shown on
the right display on the screen.
3 buttons to
Press the CH+/-
select " SEARCH".
1
AUTO
BG
83.50MHz
OCT
TUNING
COLOR SYSTEM AUTO
BAND VHFL
SKIP OFF
PROG NO 0
SEARCH
FINE TUNE
AUTO SEARCH
4 Press the VOL-/+ buttons to
start searching.
The VOL- down button is used
for lower side program search.
The VOL+ up button is used for
higher side program search.
Repeat this step, till find the
desired channel.
1
SEARCH
80.25MHz
Page 12

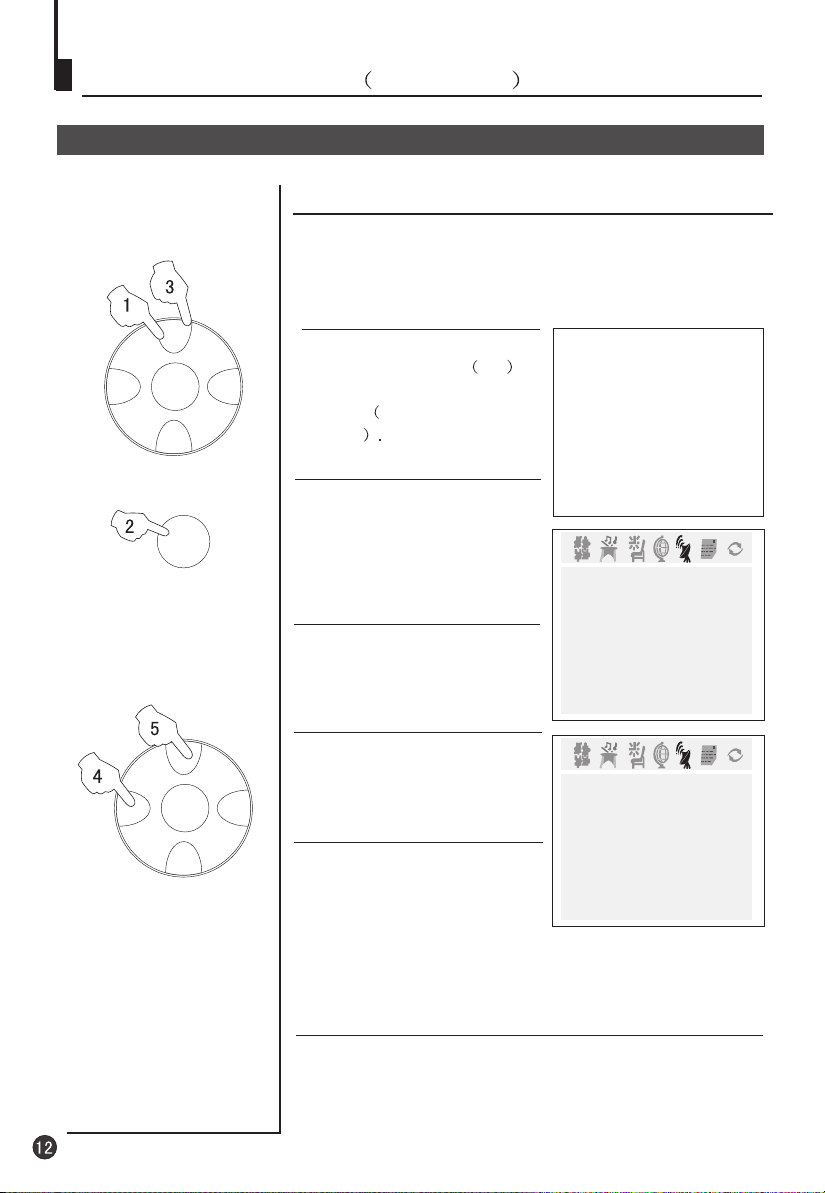

Searching channel Continued
Manual fine tune
Manual fine tune
If the picture and/or sound are poor, try using the FINE
TUNE feature. Do not use this feature unless
reception is poor.
CH+
VOL- VOL+
MENU
CH-
TUNE
CH+
VOL- VOL+
MENU
CH-
1 Press the CH+/- buttons or
PROGRAM NUMBER 0-9
button to choose desired
channels regard channel 1 as
example
2 Press the TUNE menu button ,
till the TUNING menu shown on
the right display on the screen.
3 buttons to
Press the CH+/-
select " FINE TUNE".
4 Press the VOL-/+ buttons all
through to carry out fine tune,
till the best picture and sound
are obtained, then loosen the
button.
1
AUTO
BG
83.50MHz
1
FINE TUNE
83.50MHz
Page 13
Searching channel Continued
Program skip
Program skip
The Program skip feature enables you to skip/hide
programs that you do not wish to be displayed when
using the CH+/- buttons. These channels will still be
displayed by directly using the channel number
buttons on the remote control.
CH+
VOL- VOL+
MENU
CH-
1 Press the CH+/- buttons or
PROGRAM NUMBER 0-9
button to choose desired
channels regard channel 1 as
example
1
AUTO
BG
83.50MHz
TUNE
CH+
VOL- VOL+
MENU
CH-
2 Press the TUNE menu button ,
till the TUNING menu shown on
the right display on the screen.
3 buttons to
Press the CH+/-
select "SKIP".
4 Press the VOL-/+ buttons to
turn the SKIP function "ON".
5 Press the TUNE button to close
the menu. When you use the CH /
+-
buttons to select channel, this
TUNING
COLOR SYSTEM
BAND VHFL
SKIP OFF
PROG NO 0
SEARCH
FINE TUNE
AUTO SEARCH
TUNING
COLOR SYSTEM
BAND VHFL
SKIP ON
PROG NO 0
SEARCH
FINE TUNE
AUTO SEARCH
OCT
AUTO
OCT
AUTO
channel will be skipped. However,
you can still use the PROGRAM
NUMBER buttons to select the
skipped channel numbers.
If you want to recover the skipped channel
1 Use the PROGRAM NUMBER buttons to select the channel
number to be recovered.
2 Repeat those steps just now.
3 Press the VOL-/+ buttons to turn the SKIP function "OFF".
Page 14

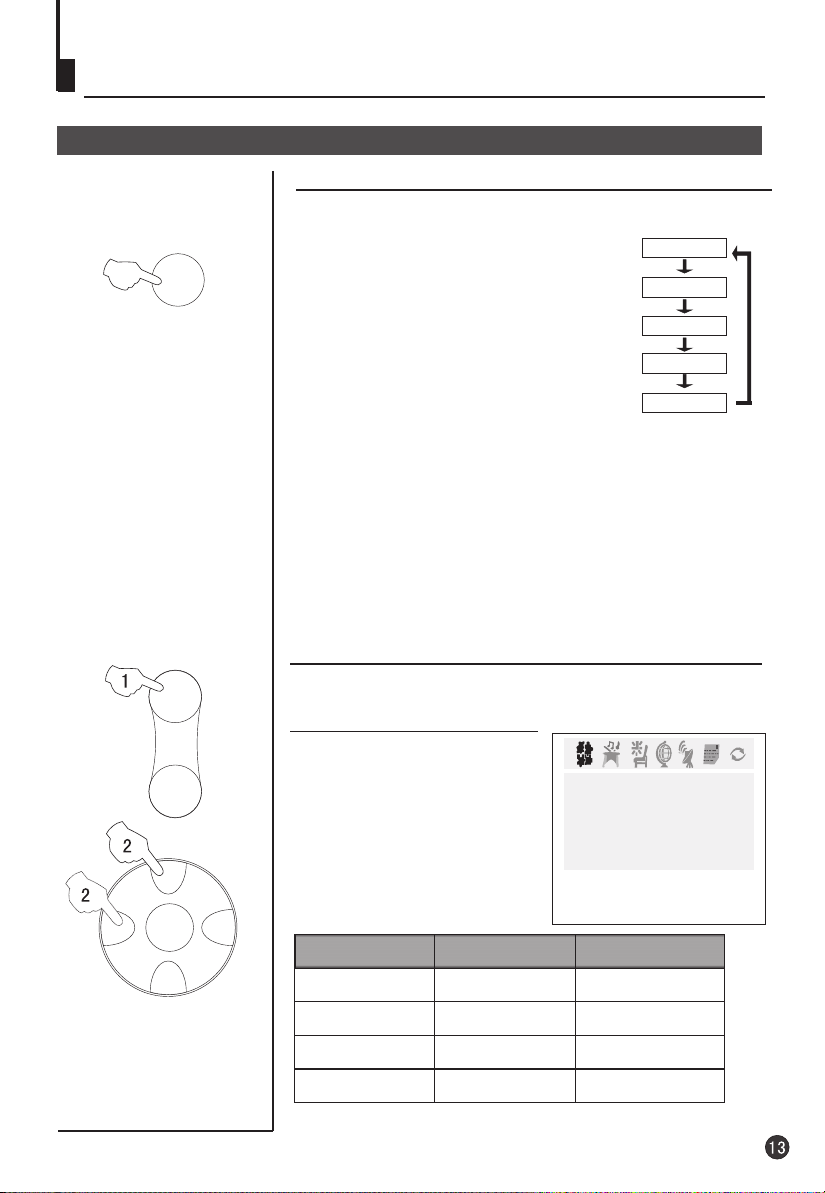

Convenient picture and sound control functions
Multiple picture modes
How to select picture modes
You can quickly select the desired picture mode from
P.STD
four preset modes and one customized mode.
Press the P.STD button to select the
STANDARD
desired picture quality. Five kinds
of picture modes (i.e.,
"STANDARD",
"RICH", "USER","LISTEN",
"SOFT" ) can be selected in turn.
The 5 modes are
Listen-This is a new feature that blacks out the TV
screen when listening to music only channels;
Soft-Designed for night time low light viewing;
Standard -Designed for rooms that have good all round
lighting;
Rich-Designed for rooms with high ambient lighting such
as daytime sport;
User-A spare setting that can be adjusted to personal
tastes.
RICH
USER
LISTEN
SOFT
CH+
VOL- VOL+
MENU
CH-
How to customize your own picture status
1 Press the PICTURE menu button , till the menu
shown on the right display on the screen.
2 Press the CH+/- buttons to
select the item to adjusted,
then press the VOL-/+ buttons
to obtain the desired effect.
ITEM
Contrast
Brightness
Color
Sharpness
Note:
The "Hue" item only appears when the colour system is NTSC.
Press VOL-
Weak
Dark
Shallow
Soft
OCT
CONTRAST
BRIGHTNESS 32
COLOR 48
SHARPNESS 40
48
Press VOL+
Strong
Bright
Deep
Sharp
Page 15

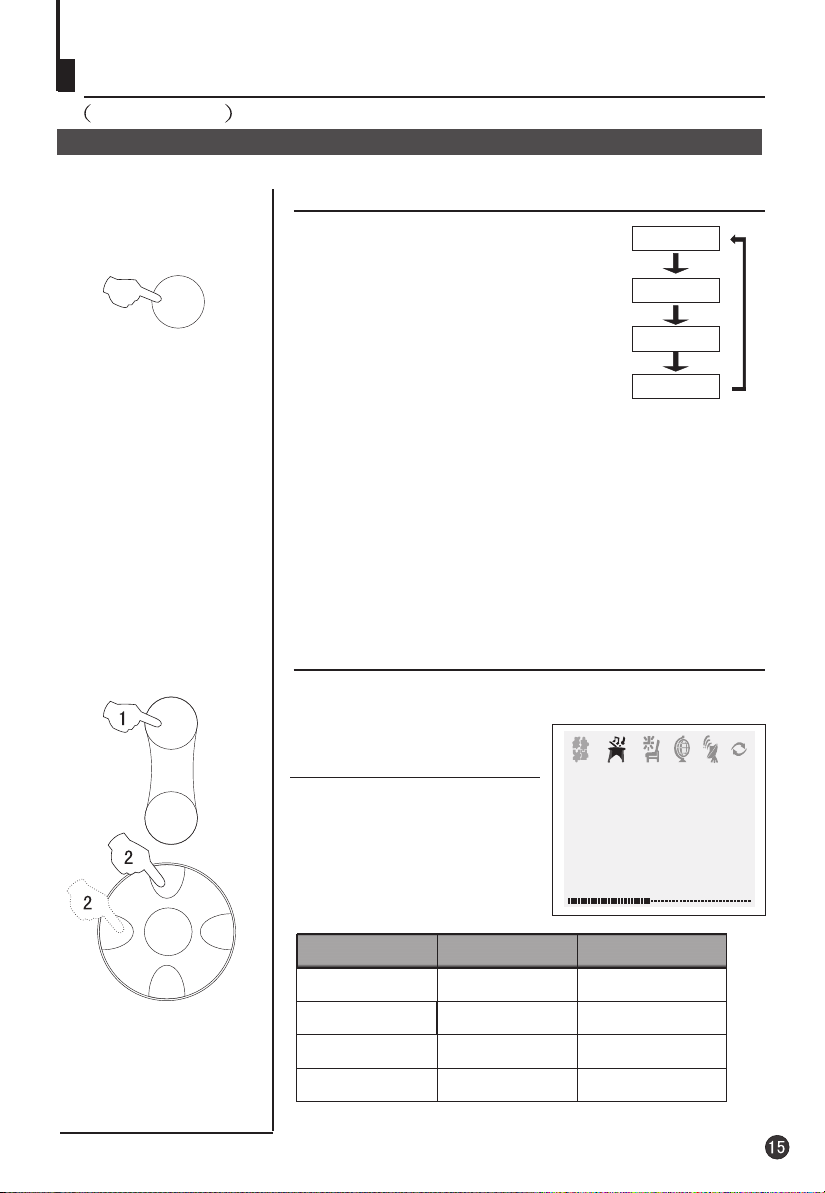

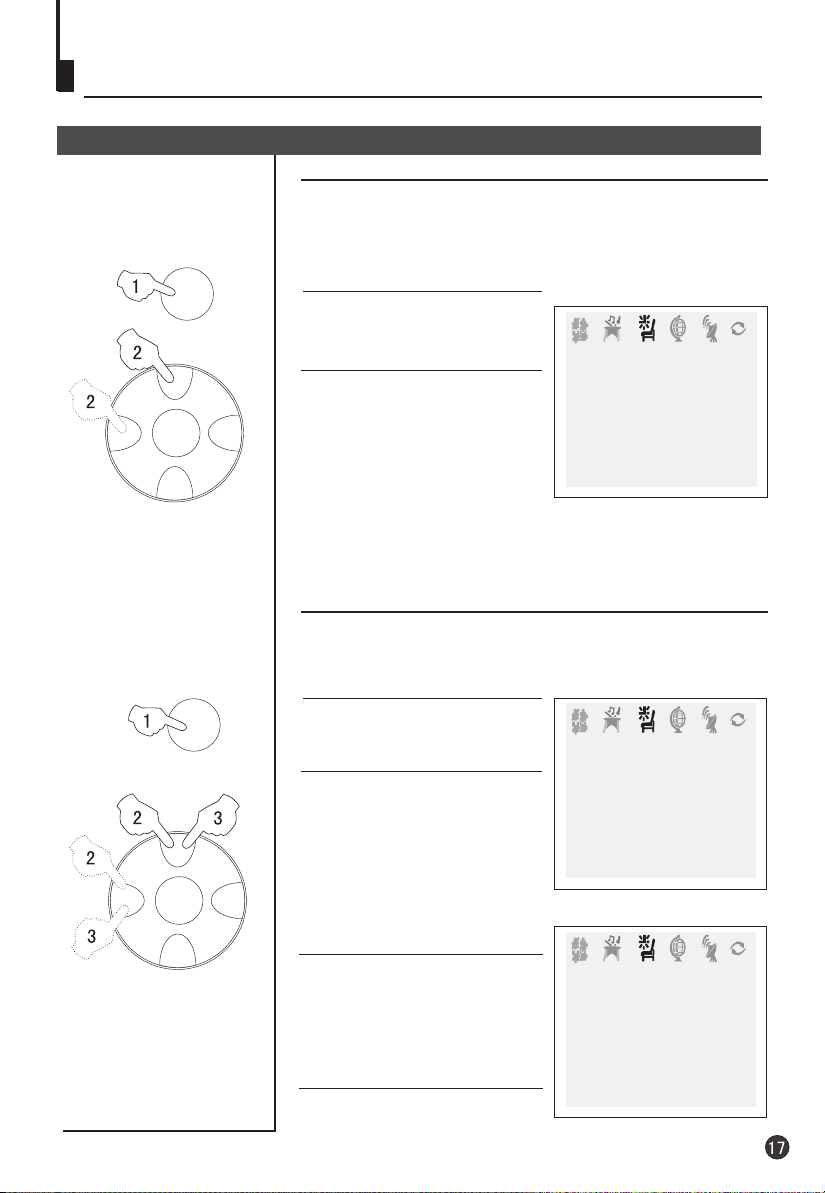

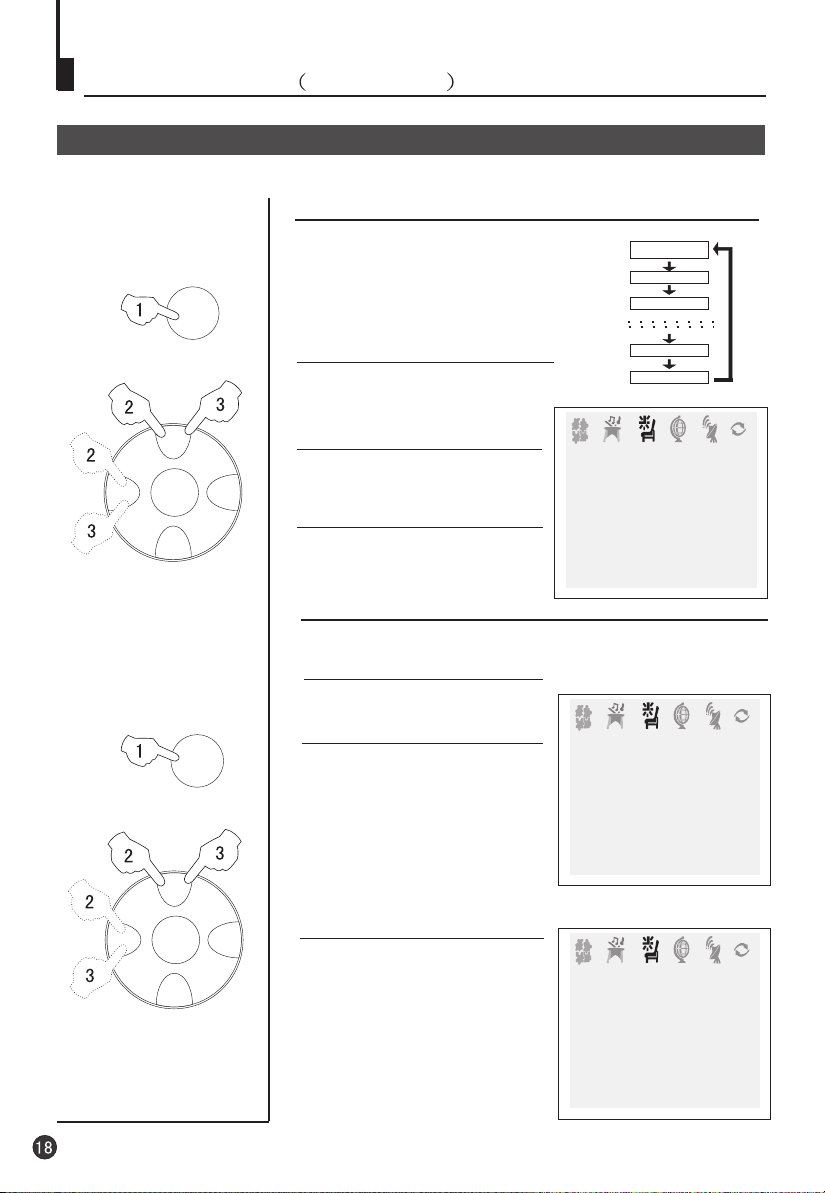

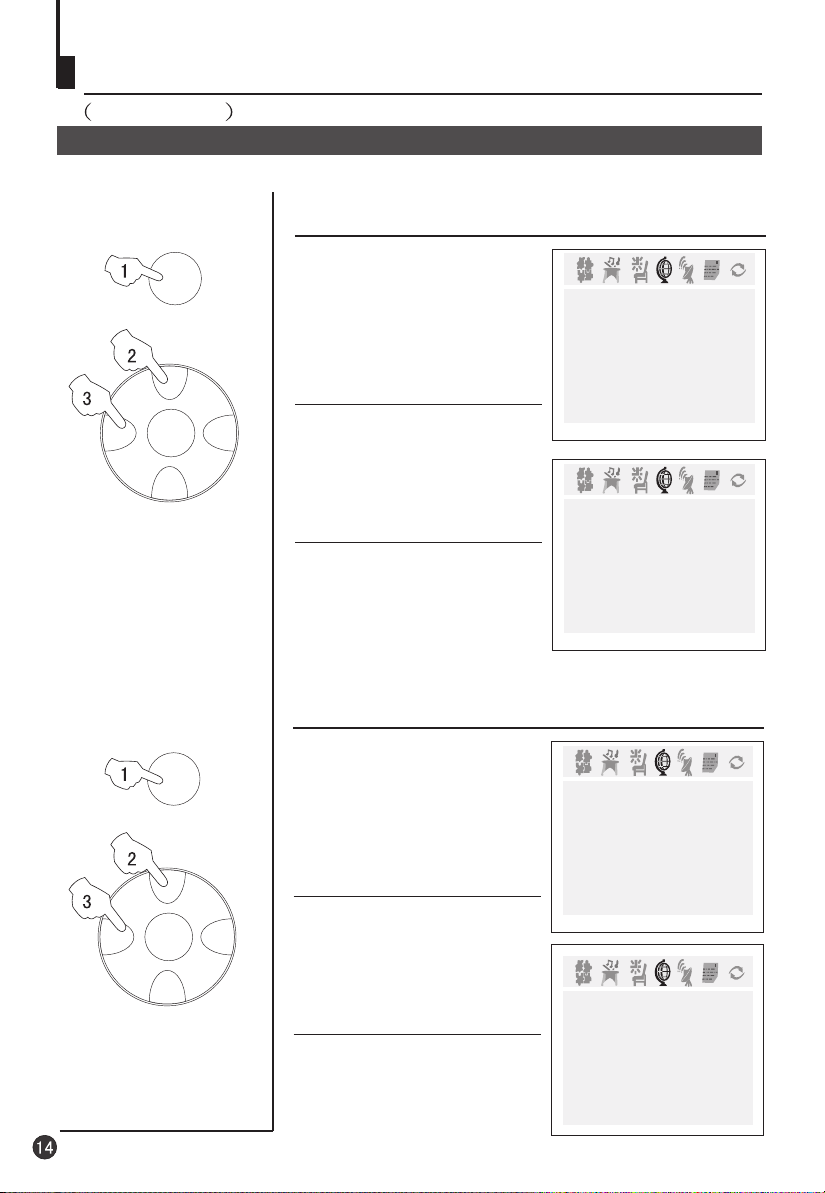

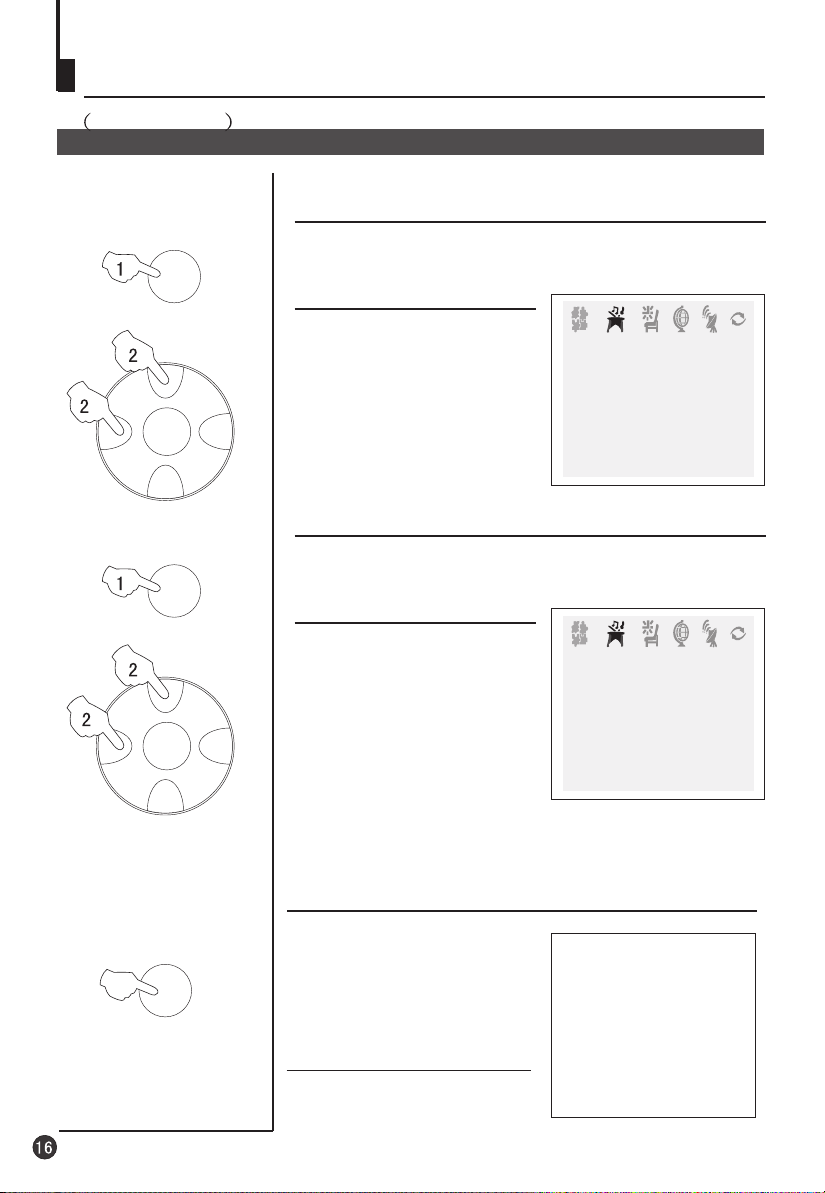

Convenient picture and sound control functions
Continued
Black stretch and noise reduce
How to select black stretch
FUNCTION
1 Press the FUNCTION menu
button , till the FUNCTION menu
CH+
VOL- VOL+
MENU
CH-
shown on the right display on the
screen.
2 buttons to
Press the CH+/-
select "BLACK STRETCH".
3 Press the VOL-/+ buttons to
turn the BLACK STRETCH
function "ON" or "OFF".
FUNCTION
BACKGROUND ON
BLACK STRETCH OFF
NOISE REDUCE ON
FADE ON
AVL ON
FUNCTION
BACKGROUND ON
BLACK STRETCH ON
NOISE REDUCE ON
FADE ON
AVL ON
OCT
OCT
FUNCTION
CH+
VOL- VOL+
MENU
CH-
How to select noise reduce
1 Press the FUNCTION menu
button , till the FUNCTION menu
shown on the right display on the
screen.
2 buttons to
Press the CH+/-
select "NOISE REDUCE".
3 Press the VOL-/+ buttons to
turn the NOISE REDUCE
function "ON" or "OFF".
OCT
FUNCTION
BACKGROUND ON
BLACK STRETCH OFF
NOISE REDUCE ON
FADE ON
AVL ON
OCT
FUNCTION
BACKGROUND ON
BLACK STRETCH ON
NOISE REDUCE ON
FADE ON
AVL ON
Page 16
Convenient picture and sound control functions
Continued
Multiple sound modes
How to choose sound mode
S.STD
SOUND
CH+
Press the S.STD button to select the
THEATER
desired sound quality. Four kinds
of sound models (i.e.,
" ","USER" and "SPEECH")
MUSIC
"THEATER",
can be selected in turn.
MUSIC
USER
SPEECH
The 4 modes are:
Speech-Designed to reduce the bass and treble which
enhances the voice for news programs;
Theatre-Enables extra bass and treble to enhance the
movie experience;
Music-Adjust the sound to best suit music programs;
User - A spare setting that can be adjust to personal
tastes.
How to customize you own sound quality
1 Press the SOUND menu button ,
till the SOUND menu shown on
the right display on the screen.
2 Press the CH+/- buttons to
move select the item to be
adjusted, then press the VOL-/+
buttons to obtain the desired
effect.
SOUND
VOLUME 45
BASS 48
TREBLE 48
BALANCE 0
SURROUND ON
WOOFER ON
VOL- VOL+
MENU
CH-
Item
VOLUME
BASS
TREBLE
BALANCE
Press VOL-
Weak
Weak
Weak
R down
Press VOL+
Strong
Strong
Strong
L down
Page 17
Convenient picture and sound control functions
Continued
Surround, Woofer and mute functions
How to use surround
SOUND
1 Press the SOUND menu button , till the FUNCTION menu
shown on the right display on the screen.
CH+
VOL- VOL+
MENU
CH-
SOUND
CH+
VOL- VOL+
MENU
CH-
2 Press the CH+/- buttons to
select "SURROUND", then
press the VOL-/+ buttons to
turn the SURROUND to ON..
SOUND
VOLUME 45
BASS 48
TREBLE 48
BALANCE 0
SURROUND ON
WOOFER ON
How to use Woofer
1 Press the SOUND menu button , till the FUNCTION menu
shown on the right display on the screen.
2 Press the CH+/- buttons to
select " WOOFER ", then
press the VOL-/+ buttons to
turn the Woofer to ON.
SOUND
VOLUME 45
BASS 48
TREBLE 48
BALANCE 0
SURROUND ON
WOOFER ON
How to eliminate sound
MUTE
1 Press the MUTE button on the
remote control and "MUTE" type
face will display on the lower part
of the screen. At this time, the
sound of the TV set is turned off.
2 If you want to recover the sound,
press the MUTE button again or
directly press the VOL-/+ buttons.
MUTE
Page 18
Time functions
Clock setting and timer on/off functions
VOL- VOL+
TIME
CH+
MENU
CH-
Clock setting
The clock will only work if the TV set if left turned on
or in standby. When the set is disconnect from the
power supply or is turned off by the main power on
the front panel, the clock loses power and will need to
be reset when the power is reconnected.
1 Press the TIME button,
and the TIME menu display on
the screen.
2Press the CH .+/- buttons select
"CLOCK", then press the VOL /+ buttons to adjust the time in
hour position; press again the
CH+/- buttons to select the
time in minute position, then
press the VOL +/- buttons to
adjust the value of minutes
menu
On/off timer
Using on/off timer function, the TV set can automatically
turn on to a preset program or shut down in a preset time.
TIME
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 1
OFF TIME --:-SLEEP TIME 0
REMIND TIME --:-REMIND PROG 1
CH+
VOL- VOL+
MENU
CH-
1 Press the TIME button
menu
to call up the TIME menu on the
screen.
2 Press the CH+/- buttons to
select "ON TIME", then press
the VOL -/+ buttons to set the
value in hour position; press
again the CH+/- buttons to
select the minute position and
set the value of the minute.(take
18:00 as an example)
3 Press the CH+/- buttons to
select "ON PROG", then press
the VOL-/+ or program direct
number buttons to select your
desired channel (take 8 as an
example).
4 Repeat step 1-2 to set OFF
TIME.(take 23:00 as an example)
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 1
OFF TIME --:-SLEEP TIME 0
REMIND TIME --:-REMIND PROG 1
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 8
OFF TIME 23:00
SLEEP TIME 0
REMIND TIME --:-REMIND PROG 1
Page 19

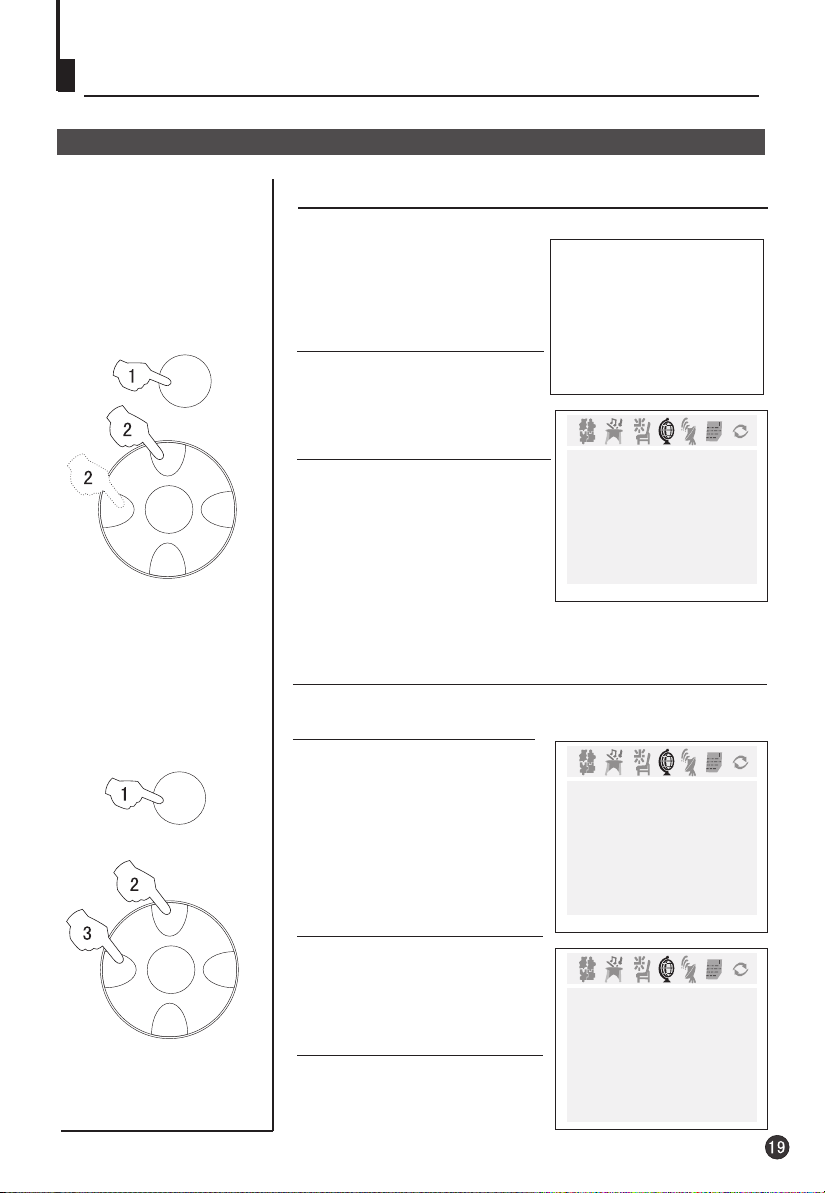

Time functions
Continued
Sleep timer and program presetting
Sleep timer
TIME
CH+
VOL- VOL+
MENU
CH-
TIME
CH+
VOL- VOL+
MENU
CH-
The TV set have 18 sections
option
for sleep timer function
(each section has a time
interval of 10 minutes)
(See right
0
10
20
chart):
170
1 Press the TIME button,
menu
180
and the TIME menu display on
the screen.
2 Press the CH +/- buttons to
select "SLEEP TIME".
3 Press the VOL -/+ buttons to
adjust the SLEEP TIME level.
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 8
OFF TIME 23:00
SLEEP TIME 120
REMIND TIME --:-REMIND PROG 1
REMIND PROG function
Program remind timer, that displays an on-screen reminder
prompt, when a program on a different channel is due to start.
1 Press the TIME button
to call up the TIME menu on the
screen.
2 Press the CH +/- buttons to
select "REMIND TIME", then
press the VOL -/+ buttons to
set the value in hour position;
press again the CH+/- buttons
to select the minute position,
and then set the value of the
minute.(take 19:00 as an
example)
3.Press the CH+/- buttons to
move the cursor to "REMIND
PROG", then press the VOL /+ buttons or the program
direct number buttons to set
the desired channel (take 18
as an example).
menu
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 8
OFF TIME 23:00
SLEEP TIME 120
REMIND TIME 19:00
REMIND PROG 1
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 8
OFF TIME 23:00
SLEEP TIME 120
REMIND TIME 19:00
REMIND PROG 18
Page 20
Set up functions
Screen saver and AV L functions
How to start screen saver function
When the BACKGROUD function
is ON, the screen will turn
automatically as shown "NO
SIGNAL" of moving ( black
background).
FUNCTION
1 Press the FUNCTION menu
button till the FUNCTION menu
,
shown on the right display on the
CH+
VOL- VOL+
MENU
CH-
screen.
2 Press the CH+/- buttons
to
select "BACKGROUND" and press
the VOL-/+ buttons to turn the
BACKGROUND function "ON"
NO SIGNAL
FUNCTION
BACKGROUND ON
BLACK STRETCH ON
NOISE REDUCE ON
FADE ON
AVL ON
.
OCT
FUNCTION
CH+
VOL- VOL+
MENU
CH-
AVL function
Automatic Volume Limit control reduces effect of large
volume changes such as when the ads come on.
1 Press the FUNCTION menu
button till the FUNCTION menu
,
shown on the right display
on the screen.
2 Press the CH+/-
select "AVL"
buttons to
.
3 Press the
the AVL function "ON" or "OFF"
VOL-/+ buttons to turn
.
FUNCTION
BACKGROUND ON
BLACK STRETCH ON
NOISE REDUCE ON
FADE ON
AVL OFF
FUNCTION
BACKGROUND ON
BLACK STRETCH ON
NOISE REDUCE ON
FADE ON
AVL ON
OCT
OCT
Page 21

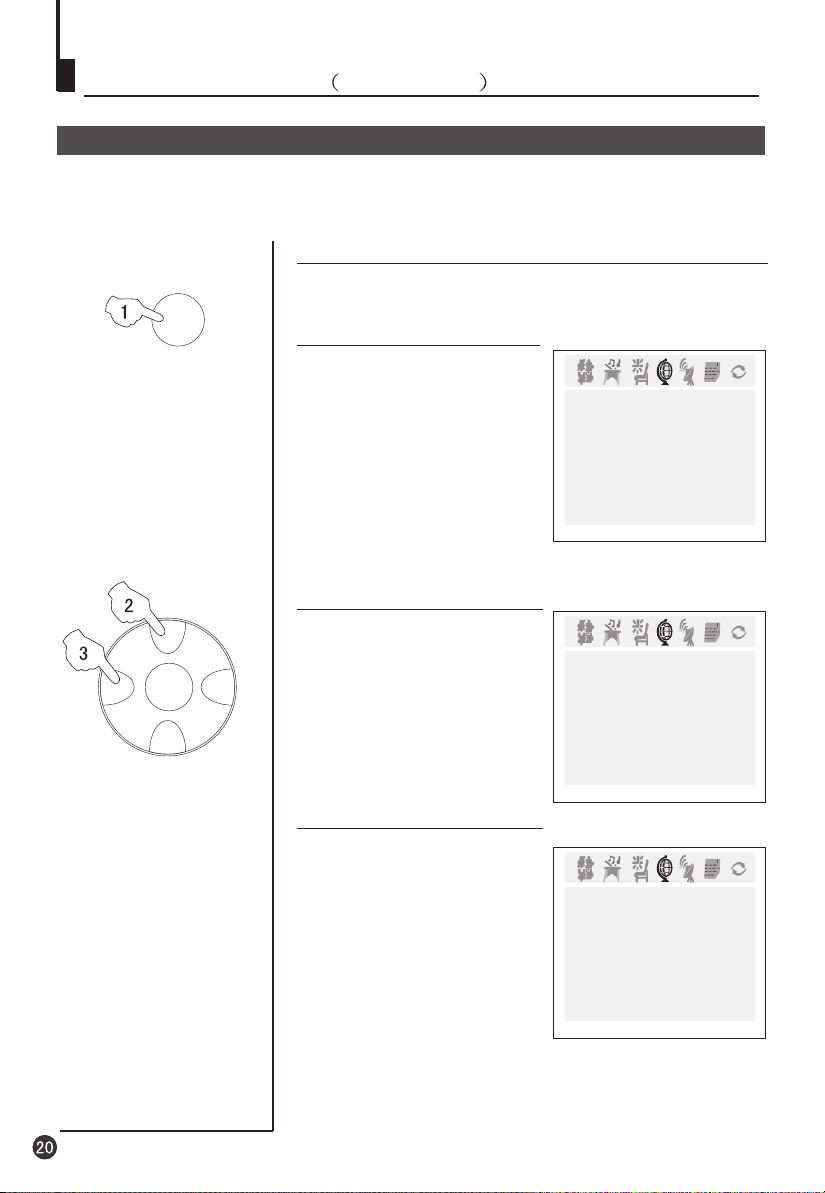

Set up functions Continued
Switch on/off modes
Switch on/off modes
FUNCTION
Provides professional picture fades between channel
change to reduce the effect of bright light flashes
common with channel change
CH+
VOL- VOL+
MENU
CH-
1 Press the FUNCTION menu
button till the FUNCTION
,
menu shown on the right
display on the screen.
2 Press the CH+/- buttons
select "FADE"
.
to
3 Press the
VOL-/+ buttons to turn
the FADE function "ON" or "OFF"
FUNCTION
BACKGROUND ON
BLACK STRETCH ON
NOISE REDUCE ON
FADE ON
AVL ON
FUNCTION
BACKGROUND ON
BLACK STRETCH ON
NOISE REDUCE ON
FADE ON
AVL ON
.
FUNCTION
BACKGROUND ON
BLACK STRETCH ON
NOISE REDUCE ON
FADE ON
AVL OFF
OCT
OCT
OCT
Page 22

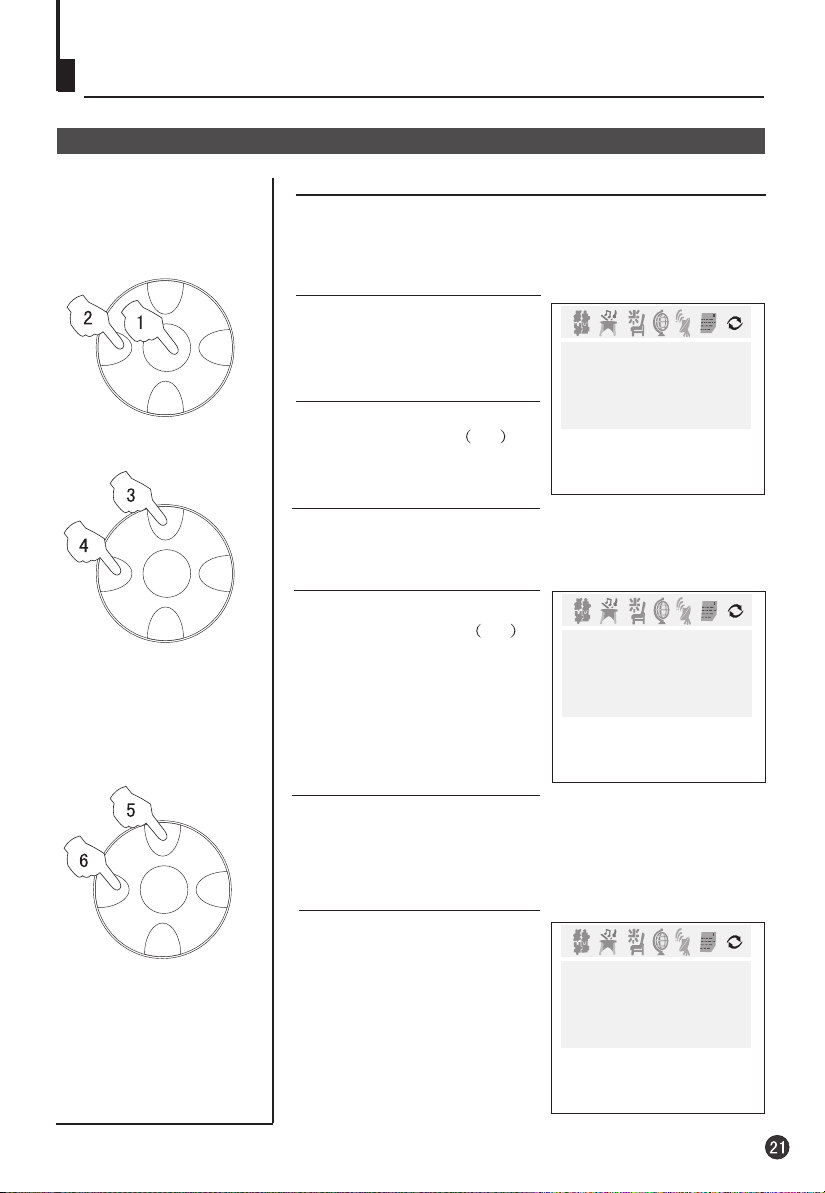

Position exchange function
Exchange
Exchange
This feature enables TV programs that may be on a wrong TV
channel number to be swapped/exchanged. This feature is
very useful when Automatic Search Tuning has been used, to
reallocate the found programs to the correct channel numbers.
CH+
VOL- VOL+
MENU
CH-
1 Press the MENU button again
(7 times) till the EXCHANGE
,
menu display on the screen.
2 Press the VOL / buttons or the
PROGRAM NUMBER 0-9
buttons to set PROGRAM 1 TO 6.
-+
OCT
EXCHANGE
PROG NO
1 6
PROG NO 2 2
EXCHANGE
CH+
VOL- VOL+
MENU
CH-
CH+
VOL- VOL+
MENU
CH-
3 buttons to move
Press the CH+/-
cursor to " PROG NO 2".
4 Press the VOL / buttons or
-+
PROGRAM NUMBER 0-9
buttons to set PROG NO 2 TO
9.
5 buttons to
Press the CH+/-
select "EXCHANGE".
6 Press the VOL-/+ buttons to set
"EXCHANGE".
OCT
EXCHANGE
PROG NO 1 6
PROG NO 2 9
EXCHANGE
OCT
EXCHANGE
PROG NO 1 6
PROG NO 2 9
EXCHANGE
Page 23
Others functions
Calendar, child lock and display functions
Calendar function
CH+
VOL- VOL+
MENU
CH-
LOCK
CALL
1 Press the MENU button again
(6 times) till the calendar menu
,
OCT
display on the screen.
2 Press the CH+/- buttons to turn
the YEAR/MONTH/DAY,press the
VOL-/+ buttons to set or adjust
the YEAR/MONTH/DAY.
Child lock function
When the TV set is on, press the LOCK button on the remote
control , then child lock function starts to take effect. At this
time, except for "POWER" button and "DISPLAY" button on
the remote control still take effect, the other buttons
(including the functional buttons on the TV set) all do not take
effect and this status can be kept even if the TV set is off.
When to cancel the child lock function, press LOCK button
on the remote control ,then indicating the chid lock function
has been cancelled.
Display function
Press the CALL button, then
the channel number and
system will be displayed on
the screen.
3
AUTO
BG
62.5MHz
EXIT
If you want to eliminate MENU display immediately
In general, after you press the MENU button, the menu
display (PICTURE, SOUND, TIME
, FUNCTION, TUNE,
CALENDAR, EXCHANGE,
within 15 seconds. If you want to eliminate these contents
immediately, please press the EXIT button.
ETC.) will automatically disappear
item
Page 24
Connecting the TV set to the other video and audio equipments
Connecting to the other video and audio equipments
You can connect a stereo to the AUDIO output terminals on the TV set to enjoy sounds of
higher quality. VIDEO and AUDIO output terminals output the video and audio signals being
monitored by the TV set. The electric levels of video and audio output signals are fixed.
To outside input
To video/audio input
DVD, VCD and other reproducing equipments
Page 25
Troubleshooting guide
To assist in location possible faults use help guide below.
BREAKDOWN PHENOMENON
Picture with snow
Double or Triple Image
Disturb
No Picture No sound
SOUND
Noise
Normal
Noise
No soundNormal
The aerial direction and connection
This is called ghosting which can be minimized with
an outside aerial, and good quality cable and
terminations. Altering the aerial direction can also
minimize this effect.
Electrical interference which can be caused
by cars, motorbikes etc, Fluorescent lamps
and dirty insulators on overhead power
cables.
Volume Sound mute
Ensure that the power supply is connected to the TV
set and turned on. Also ensure that the TV set is not
in "Listen Mode" or that the brightness and contrast
are not turned down.
CHECKING
Adjust colour control
No colour Normal volume
Adjust channel again
Scramble
Colour Spot
Note:
1.If the fault can not be repaired using the above guide consult with your local authorized service
center.
2.The TV set must only be repaired by a qualified registered service person. Never attempt to
remove the back cover as the TV set has dangerous voltages in side that may cause a fatally or fire.
3. The cabinet may produce the occasional "snapping sound" This is normal and caused by the
materials in the cabinet expanding with room temperature changes.
Normal or Weak Volume
Normal volume
Colour Purity fault which can be caused by moving
the TV set, placing magnets near the TV screen or
turning on/off house hold appliances such as vacuum
cleaners near the TV set. Turn the TV off with the
mains power switch for 15 minutes. When the power
is turn on again the TV set will automatically degauss
the picture. In server cases leave the TV set turned
off over night.
24
Page 26
Specifications
Model
Colour system
Sound system
Display tube
Sound output power
Power supply
Power consumption
Size mm
Supplied
accessories
AUTO PAL AV NTSC
BG
34 " pure flat CRT
5W+5W & 5W
AC 160V-250V~, 50/60Hz
<180W
848 width depth height
Remote control X1
Owner's manual X1
Battery(AA) X2
34F9K
The design and specifications may be changed without notice.
Page 27
Loading...
