Haier 32T51 User Manual

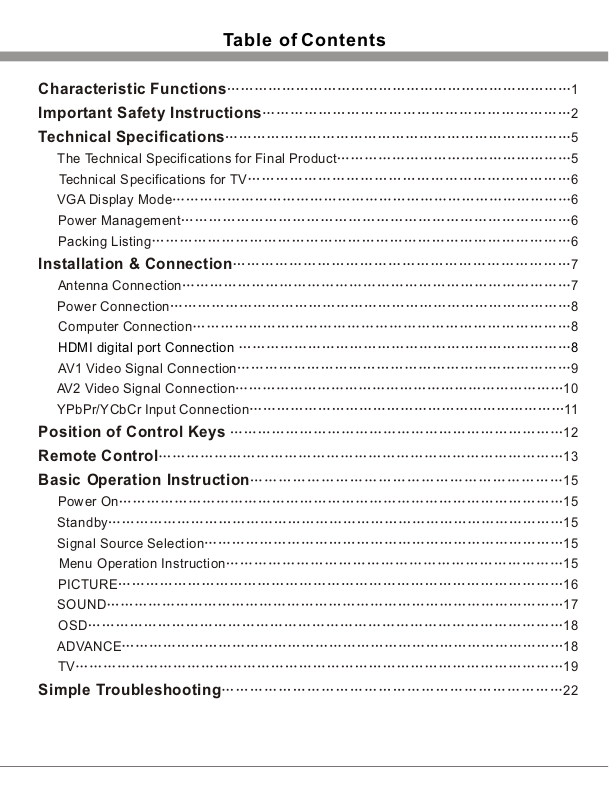

Table of Contents

Characteristic Functions 1

Important Safety Instructions 2

Technical Specifications 5

The Technical Specifications for Final Product 5

Technical Specifications for TV 6

VGA Display Mode 6

Power Management 6

Packing Listing 6

Installation & Connection 7

Antenna Connection 7

Power Connection 8

Computer Connection 8

HDMI digital port Connection 8

AV1 Video Signal Connection 9

AV2 Video Signal Connection 10

YPbPr/YCbCr Input Connection 11

Position of Control Keys 12

Remote Control 13

Basic Operation Instruction 15

Power On 15

Standby 15

Signal Source Selection 15

Menu Operation Instruction 15

PICTURE 16

SOUND 17

OSD 18

ADVANCE 18

TV 19

Simple Troubleshooting 22

Characteristic Functions

1. LCD panel with no glint and low radiation can ease eyes' fatigue and protect eyes.

2. High-quality LCD panel is adopted with high brightness, high contrast, wide viewing angle, and super fast response time. Super fast response time can greatly eliminate the shadow of moving images.

3. TV/Monitor with two in one and multiple input ports can easily switch among the Modes.

4. De-interlacing image disposal is adopted. Today's most advanced technique for movement compensation, can completely improve the saw tooth and vague edges of the athletic picture.

5. There are four smart sound modes and four smart image modes.

6. Dynamic contrast technology can obviously improve the definition and contrast of the picture

7. Tuner for frequency synthesis can support full auto search and manual search.

8. With perfect timing function, you can set time to turn off. It will be turned off in state of no signals, too.

9. Auto Adjustment can help you to setup the image into the best performance in a few seconds instead of complicated adjustment in PC mode.

10. Auto color balance adjustment technology can make the machine to reach the best color setting in PC mode.

11. Support hi-definitionYPbPr and double HDMI.

12. All functions can be realized with remote control, which is really a convenient operation.

13. Power is designed to save energy. The standby power consumption is less than1.5W.

14. Input ports include VGA, YPbPr, HDMI, S-Video, CVBS, USB and TV.

15. Output ports include AV and Earphone.

16. Support USB interface, you can look through picture of JPG format and play music files of Mp3 format.

Important Safety Instructions

Thank you to choose the LCD TV made by our company, a valuable product with excellent quality and multiple functions. This machine will bring you more audiovisual enjoyment. Its design can insure user s safety. All machine are strictly tested before leaving factory. But incorrect use can lead to electric shock or fire. In order to insure safety and extend its life, please read below regulations carefully before using it and comply with the following safety instructions.

When the following troubles occur, please pull out the plug and call the professional engineers to repair. A. The cable or plug is damaged. B. The product was fallen down or the case is damaged. C. Obvious abnormal situation occurs. In spite of correct operation according to the user manual but it still can't work normally. D. Some abnormal substances or liquid fall into it. E. Unusual sound or smell sends out.

There is high voltage inside the machine but no parts which can be repaired by users themselves. In order to assure the people's safety, please do not open the case to repair it by yourself. If it is needed to repair, please contact qualified engineer to repair.

Please put this machine in the place of well ventilation, instead of extremely hot, cool or moist, and direct sunlight.

The slots on the case is designed to release heat so as to assure that all inside components will not reach an extra high temperature and can work normally for a long time. Please do not cover the holes while place it.

Unless there is good ventilation installation, please do not put this machine in inlaid device.

Please do not place it on an unstable position so as to avoid falling off.

Do not place the LCD TV near water source, like a bathtub, pool, washing machine, or moist

Important Safety Instructions

cellar and similar environment.

During a thunder rain weather, do not touch the power cord and antenna cable. Please pull out the power line and aerial plugs for preventing thunder and lightning damage to this machine.

All cables can be connected or pull out only after power supply is turned off.

The power cord must be taken off before you clean the machine. Do not use the liquid cleanser or aerosol cleanser. It is recommended to use a wet soft cloth to clean the machine. Do not use the alcohol, impregnant or ammoniac liquid to wipe the screen.

If you will not use the machine for a long time, please pull out the power cord. Do not keep the sleeping mode for too long time.

Read the manual and marking label before using the machine, and keep the user manual for later use.

Don't use the attachments which are not recommended by the machine manufacturer as they may cause hazards.

The power cord must be placed correctly so as to avoid be trample or crush.

Please do not make the power socket overloaded or the power cord extended. Otherwise it will cause fire or electrical shock.

The LCD panel is fragile and expensive. The surface of the panel is easy to be scratched. Please do not use the hard thing to knock, press, score the panel. Otherwise it will be harmful for the panel. The exchange cost is very high.

All technical specification on this instruction book and outer package are subject to change without notice. If the instruction book has slight difference with actual operation, please take the actual operation as standard.

Important Safety Instructions

When the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

The machine should not suffer from waterdrop or watersplash, do not place the vessel with water (or other liquids) on it, for like this it is possibly to cause fire or electric shock.

The attaching plug should be inserted into the power point completely, otherwise it may cause spark to bring fire.

Please do not put candle, ash-tray, incense, inflammables or explosive nearby this machine.

Please do not stretch into any sharp object, metal or liquid, or touch the signal attachment or the inner of radiation hole, in order to avoid short circuit and product damage, or possibly causing electric shock. Especially pay attention when there are children on the spot.

Please do not use the machine immediately when moving the machine from low temperature place to high temperature one, or install and use at the place of facing air conditioning, otherwise it may cause the condensation in the machine, to cause fault.

Must be careful when moving this machine, avoiding being struck, especially pay attention to protect the screen part. In addition, if using handcart, must note the injury as the product is overturned from the handcart because of hard braking, overexerting and uneven ground.

Technical Specifications

The Technical Specifications for Final Product

Panel size

Max. Resolution

Best Resolution

Pixel Pitch

Active Area

Color

Panel Surface Disposal

Power Supply

Power Consumption of Speaker

Control Area of Remote Control

Operating Environment

Temperature

Humidity

Atmosphere Pressure

Storage Environment:

Temperature

1366 768

1360 768@60Hz

0.4215mm 0.4215mm

575.770mm 323.710mm

16.7M

Anti Glare

100V-240VAC 60/50Hz

10W+10W

8M 30

5 C ~ 40 C

10%~85%

86kpa-104kpa

-20 C ~55 C

1366 768

1360 768@60Hz

0.51075mm 0.51075mm

697.6845mm 392.256mm

16.7M

Anti Glare

100V-240VAC 60/50Hz

10W+10W

8M 30

5 C ~ 40 C

10%~85%

86kpa-104kpa

-20 C ~55 C

Humidity

Atmosphere Pressure

Dimension (L H W)

Unpacking: Excluding base

Including base

Packing

Weight

Net Weight

Gross Weight

5%~95%

86kpa-104kpa

652 449

104mm

652 498 104mm

770 570 200mm

10.5Kg

12.5Kg

5%~95%

86kpa-104kpa

786 531 110mm

786 577 110mm

900 660 220mm

12.5Kg

16.0Kg

Technical Specifications

Technical Specifications for TV

1.Supported Systems PAL+SECAM or PAL+NTSC

2.Storage channels: 199

3.TV(RF): 75 Imbalance

4.AV Video-Input: 75 ,1VP-P, RCA

5.AV Audio-Input: 20K , 500mV RMS

6.YPbPr/HDMI Video Input: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

VGA Display Mode

No.

Mode Resolution

VGA

SVGA

XGA

WXGA

720X400

640X480

800X600

1024X768

1360X768

Refresh

70Hz

60Hz

Note: Recommended mode:1360X768@60Hz

Power Management

This product is complied with EPA Energy Star Standard and compatible with VESA DPMS Standard.

Mode

Standby

Note: All the specifications in the user manual or on the packing carton may be changed without additional notice.

Details are listed as follows:

LED Indicator

Power Consumption

140W (26")

Off

170W (32")

Lighting

1.5W

Packing Listing

1. LCD TV

2. User Manual

3. Power Cable (or the machine itself has power cable)

4. Remote Control

(Excluding base subassembly)
