COLOR TV RECEIVER
OWNER'S MANUAL
Please READ this manual carefully
before operating the unit, and keep
it for future reference.
The Owner`s Manual for the Follow Models:
29F9D-P, 29T9D-P,29F9D,29T9D
*Please read this manual carefully before using your television and keep this
manual in a good place for future reference.
CONTENTS
Before Operation
Warning and cautions............................................................................2
Installation...............................................................................................3
Aerial connection...................................................................................3
Preparation of the remote control unit...................................................3
Function buttons and external sockets................................................4
Front panel of the TV set........................................................................4
Rear panel of the TV set........................................................................4
Buttons on the remote control..............................................................5
Basic operation
Switching on/off the TV set....................................................................6
Watching TV program.............................................................................7
Watching TV program...........................................................................7
Program swap and auto scan functions................................................8
Searching channel..................................................................................9
Full automatic search mode..................................................................9
Semi-automatic search.......................................................................10
Manual fine tune..................................................................................11
Program skip ......................................................................................12
Convenient picture and sound control functions.............................
Multiple picture modes ......................................................................13
Black stretch and noise reduce...........................................................14
Mute function......................................................................................15
Time functions......................................................................................16
Clock setting and timer on/off functions...........................................16
Sleep timer and program preset ......................................................17
Setup function ....................................................................................18
Screen saver and child lock functions................................................18
AVL and calendar functions................................................................19
Fade and select language..................................................................20
Position exchange function.................................................................21
Others
Connection to the external audio and video equipment..................22
Troubleshooting guide
Specifications.......................................................................................24
.........................................................................23
13
Warning and cautions
1. When you clean the TV set, please
pull out the power plug from AC outlet.
Don't clean the cabinet and the
screen with benzene, petrol and other
chemicals.
2. In order to prolong the using life of
the TV set, please place it in a well
ventilated location.
3. Don't place the TV
set in direct sunlight
or near a heat source.
4. Do not place the TV set near rain or
moisture as it may cause an electric
shock, or the TV set to catch fire. The
TV set must only
be used in dry in
door locations.
5. The back cover must only be
removed by a registered electrical
service person. Removing the back
cover may result in electric shock, fire
or damage to
the TV set.
6. If the TV set is not going to be used
for a long time, or there is a severe
thunder & Lighting storm, it is
recommended that the TV set be
disconnected from the AC power outlet
and the aerial plug removed.
Explanation on the display tube
In general, it is not needed to clean the tube surface. However, necessary,
it's surface can be cleaned with a dry cotton cloth after cutting off the power.
Don't use any cleanser. If using hard cloth, the tube surface will be damaged.
Installation
Aerial connection
Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV
system or an outdoor antenna .In different places, the suitable antenna type and position
are different.
300 twin-lead cable
Antenna adapter
(additional purchase)
Mixer
additional
purchase
75 coaxial cable
Antenna input
Plug
(additional purchase)
AC power socket
75 standard
coaxial type
Note
* It is recommended that you'd better use 75
disturbance caused by airwave.
* Don't bind antenna cable and power wire together.
coaxial cable to remove the
Preparation of the remote control unit
Battery installation
Take off the battery compartment cover. Place two AAA batteries, make sure that battery
polarity matches with the +/- mark inside the battery compartment.
Operation notes for the remote control unit
Under normal conditions, the life time of batteries is one year.
If you don't intend to use the unit for a long period or the electricity of the batteries is
used up, remove the batteries to prevent batteries acid from leaking into the battery
compartment.
Don't throw your batteries into a fire. Dispose of your batteries with a specified method.
Avoid the falling and the wetting of the remote control unit.
Function buttons and external sockets
Front and side panel of the TV set
Side-set terminals
Video1 input
terminal
Left sound
track
Right sound
track
MENU
Volume up/ down
TV/Video
(input selector
Channel selector

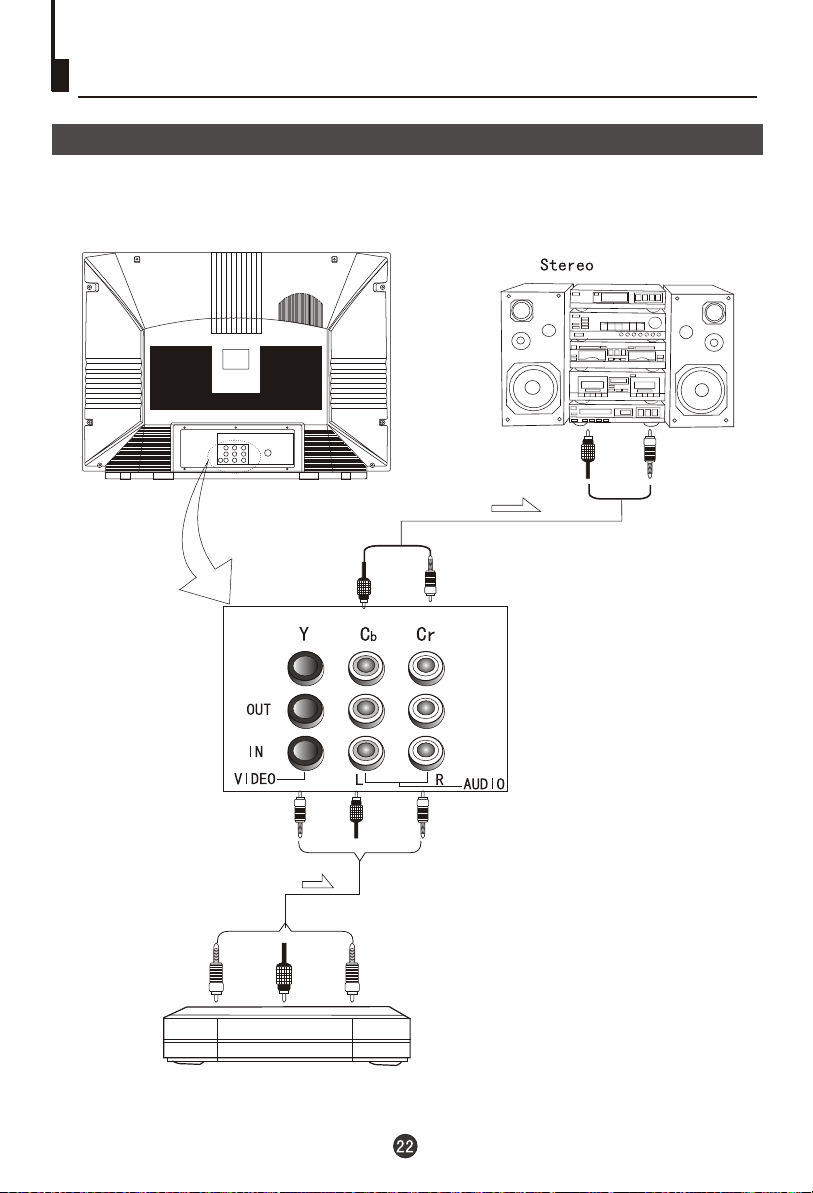

Rear panel of the TV set
Video output terminals: VIDEO AUDIO L, R
Video 2 input terminals: VIDEO AUDIO L, R
DVD input terminals: Y, Cb, Cr AUDIO L, R
If you want to connect the TV set to the other audio/video equipment, please
refer to P22.
Infrared sensor window
Power indicator
Antenna input
S-VIDEO
S-VIDEO input terminal
Power switch
Buttons on the remote control
MUTE POWER
CALL
TV/AV
SWAP
1 2 3
4 5 6
7 8 9
SCAN
0
P.STD
CH+
VOL
-
MENU
CH-
TUNE
-/--
TIME
FUNCTION
VOL
+
EXIT
Mute Button
Press to conceal the sound of programs.
Stand by Button
Screen Display Button
Swap function Button
TV and AV Exchange Button
To exchanger between TV and
other available video inputs
Digital selector
Program number Button
Program scan Button
Time menu
Picture mode selection
Function menu
Menu Select/ Adjust Button
Use this button to adjust the menu,
the volume and the channels.
Tune menu
Picture menu
Exit screen display
Buttons and Descriptions
Switching on/ off the TV set
In the following, the methods of using power switch and remote controller to switch
on/off power supply for the TV set will be explained.
Switching on/ off the TV set
Switching on/ off the TV set
1 Please press the power switch to switch on AC
power supply and the power indicator will light.
2 If the indicator is lighting in red, press the POWER
button on the remote control again.
Note
1 When you don't operate the TV set with a
remote control, you can turn on it directly
through pressing the P / on the TV set
(Child Lock must be turned off).
+ - buttons
4
AUTO
BG
POWER
2 If you want to exchange to standby status,
please press down the POWER button on the
remote control.
3 If you want to fully switch off the power supply
for the TV set, please press the power switch
button on the TV set.
Auto switch-off function
When the "Back" function is on, if an empty
channel is selected or the TV programs are
ended for the day, the power will be switched off 5
minutes later automatically. If the "OFF TIME" is
on, it will be switched off according to the
presetting time. The auto power off function does
not work under video input or when the
background is off.
(Note: If the "off timer" is less than 5 minutes, it
will be switched off automatically to the preset
Time. )
Watching TV
You can watch TV program in a preset channel.
Watching TV program
How to select TV program
Select the desired program
1 2 3
4 5 6
7 8 9
0
CH+
VOL
-
MENU
CH-
VOL
+
1 Using "Program number" buttons
Directly enter the channel number with the numeric keypad
on the remote control.
To select channel numbers from 10 ~ 99 press [-/--] button
and enter the two digit channel number
To select channel numbers from 100 ~ 218 press [-/--] button
twice and enter the 3 digit channel number
2 Using the CH+/- buttons
Press the CH+ button to select a channel number in number
increasing
Press the CH- button to select a channel number in number
decreasing
direction.
direction.
Select the desired sound
Press the VOL-/+ buttons on the remote or the front of the
TV set to adjust the volume level. The range is 0~99. When
the volume buttons are pressed the volume level is
displayed automatically on the TV screen.
VOL
-
TUNE
CH+
MENU
CH-
VOL
+
If the colour or sound of a channel is abnormal
The settings of the colo r
system or the sound system
may be wrong.
Press the TUNE button and
setting menu shown on the
right will display on the screen.
u
TUNE
COLOUR AUTO
SOUND BG
BAND VHFL
SKIP OFF
PROGRAM 0
SEARCH
FINE TUNE
AUTO SEARCH
If picture colo r is abnormalu
Use the CH+/- buttons to select Colour then the
VOL-/+ buttons to change between Auto,
SECAM and NTSC443
. Press the EXIT button to save
PAL, NTSC,
the setting.
If the picture sound is abnormal
Use the CH+/- buttons to select Sound then press the
VOL-/+ buttons to select the sound system.
Watching TV continued
Swap function enables quick swap to the last watched program.
Auto scan function enables automatic successive scanning of all the programs in
memory with (each channel will last about 2 seconds)."OFF" skip status
Program swap and auto scan functions
Program swap
Suppose the channel number
SWAP
1
you used just now is 8 and the
channel number you are using
is 18 (as shown in the figure).
2 If you want to return to the
last watched program channel
8, you can simply press the
SWAP button.
3 If you want to return to
channel 18, press the button
again. Through this function,
you can easily change
between the channel you are
using and the channel you
used last time.
18
AUTO
BG
8
AUTO
BG
18
AUTO
BG
SCAN
Auto program scan
1 If you want to select a
desirable program, you may
scan all the TV programs in
memory. You can simply press
the SCAN button to do this. The
programs will appear one after
another from beginning to end
(each channel number will last
about 2 seconds).
2 If you want to stop the function
during auto scanning, simply
press the SCAN button again.
1
AUTO
BG
SCAN
2
AUTO
BG
SCAN
3
AUTO
BG
SCAN
1
AUTO
BG
Searching channel
This TV set has three methods to set the channels, which are respectively full
automatic, semi automatic and manual fine tune.
-
In this section, how to use the remote control to set the channel is explained. You
can also use the buttons on the TV set to set channel.
Full automatic mode
VOL
-
CH+
MENU
CH-
TUNE
VOL
+
1 Press the TUNE menu button ,
till the TUNING menu shown on
the right display on the screen.
Press the CH+/-
2 buttons to
select "AUTO SEARCH".
3 Press the VOL+ button to
ensure automatic search
function operates. All channels
now playing program will be
automatically preset in order .
After the search has finished
,
the first program number will
display on the screen.
TUNE
COLOUR AUTO
SOUND BG
BAND VHFL
SKIP OFF
PROGRAM 0
SEARCH
FINE TUNE
AUTO SEARCH
TUNE
COLOUR AUTO
SOUND BG
BAND VHFL
SKIP OFF
PROGRAM 0
SEARCH
FINE TUNE
AUTO SEARCH
CALL
Display function
Press the CALL button, then
the channel number and the
systems will be displayed on
the screen.
4
AUTO
BG
Searching channel
Continued
Semi-automatic search
Semi-automatic search
1 Press the CH+/- buttons or
PROGRAM NUMBER 0-9
buttons to choose desired
channels I.E. channel 1
1
AUTO
BG
VOL
-
TUNE
CH+
MENU
CH-
VOL
+
2 Press the TUNE menu button ,
till the TUNING menu shown on
the right display on the screen.
3 buttons to
Press the CH+/-
select " SEARCH".
4 Press the VOL-/+ buttons to
start searching.
The VOL- down button is used
for lower side program search.
The VOL+ up button is used for
higher side program search.
Repeat this step, till find the
desired channel.
TUNE
COLOUR AUTO
SOUND BG
BAND VHFL
SKIP OFF
PROGRAM 0
SEARCH
FINE TUNE
AUTO SEARCH
1
EXIT
To turn off the on-screen menu
In general, after you press the MENU button, the menu
, FUNCTION, TUNE, EXCHANGE,
display (PICTURE, TIME
ETC.) will automatically disappear within 15 seconds. If you
want to eliminate these contents immediately, please press
the EXIT button.
item
Searching channel
Continued
Manual fine tune
Manual fine tune
If the picture and/or sound are poor, try using the FINE
TUNE feature. Do not use this feature unless
reception is poor.
VOL
-
VOL
-
CH+
MENU
CH-
TUNE
CH+
MENU
CH-
VOL
+
VOL
+
1 Press the CH+/- buttons or
PROGRAM NUMBER 0-9
button to choose desired
channels I.E. channel 1
2 Press the TUNE menu button ,
till the TUNING menu shown on
the right display on the screen.
3 buttons to
Press the CH+/-
select " FINE TUNE".
4 Press the VOL-/+ buttons all
through to carry out fine tune,
till the best picture and sound
are obtained.
1
AUTO
DK
TUNE
COLOUR AUTO
SOUND BG
BAND VHFL
SKIP OFF
PROGRAM 0
SEARCH
FINE TUNE
AUTO SEARCH
1
FINE TUNE
152.25MHz
Searching channel
Continued
Program skip
Program skip
The Program skip feature enables you to skip/hide
programs that you do not wish to be displayed when
using the CH+/- buttons. These channels will still be
displayed by directly using the channel number
buttons on the remote control.
VOL
-
VOL
-
CH+
MENU
CH-
TUNE
CH+
MENU
CH-
VOL
+
1 Press the CH+/- buttons or
PROGRAM NUMBER 0-9
button to choose desired
channels I.E. channel 1
2 Press the TUNE menu button ,
till the TUNING menu shown on
the right display on the screen.
3 buttons to
select "SKIP".
4 Press the VOL-/+ buttons to
turn the SKIP function "ON".
VOL
+
5 Press the TUNE button to close
the menu. When you use the CH /
buttons to select channel, this
channel will be skipped. However,
you can still use the PROGRAM
NUMBER buttons to select the
skipped channel numbers.
Press the CH+/-
1
AUTO
BG
TUNE
COLOUR AUTO
SOUND BG
BAND VHFL
SKIP OFF
PROGRAM 0
SEARCH
FINE TUNE
AUTO SEARCH
TUNE
COLOUR AUTO
SOUND BG
BAND VHFL
SKIP ON
PROGRAM 0
+-
SEARCH
FINE TUNE
AUTO SEARCH
If you want to recover the skipped channel
1 Use the PROGRAM NUMBER buttons to select the channel
number to be recovered.
2 Repeat those steps just now.
3 Press the VOL-/+ buttons to turn the SKIP function "OFF".
Convenient picture and sound control functions
Multiple picture modes
How to select picture modes
You can quickly select the desired picture mode from
four preset modes and one customized mode.
P.STD
Press the P.STD button to select the
STANDARD
desired picture quality. Five kinds
of picture modes (i.e.,
"STANDARD",
"RICH", "USER","LISTEN",
"SOFT" ) can be selected in turn.
RICH
USER
LISTEN
SOFT
How to customize your own picture status
1 Press the PICTURE menu button , till the menu
shown on the right display on the screen.
VOL
-
CH+
MENU
CH-
VOL
+
2 Press the CH+/- buttons to
select the item to adjusted,
then press the VOL-/+ buttons
to obtain the desired effect.
ITEM
CONTRAST
BRIGHTNESS
COLOUR
SHARPNESS
*Hue
Note:
The "Hue" item only appears when the colour system is NTSC.
Press VOL-
Weak
Dark
Shallow
Soft
lean to purple
CONTRAST 48
BRIGHTNESS 32
COLOUR 48
SHARPNESS 40
*HUE 60
BLACK STRETCH OFF
Press VOL+
Strong
Bright
Deep
Sharp
lean to green
Convenient picture and sound control functions
Continued
Black Stretch-(Automatically Increases the Contrast Rage)
Noise Reduce - (Picture Noise & Grain Reduction Circuit. Only use on poor reception.)
Black stretch and noise reduce
How to select BLACK STRETCH
VOL
-
CH+
MENU
1 Press the menu
button , till the menu
shown on the right display on the
screen.
Press the CH+/-
VOL
+
2 button to
select "BLACK STRETCH".
CONTRAST 48
BRIGHTNESS 32
COLOUR 48
SHARPNESS 40
*HUE 60
BLACK STRETCH OFF
VOL
-
CH-
FUNCTION
CH+
MENU
CH-
VOL
+
CONTRAST 48
3 Press the VOL-/+ buttons to
turn the BLACK STRETCH
function "ON" or "OFF".
BRIGHTNESS 32
COLOUR 48
SHARPNESS 40
*HUE 60
BLACK STRETCH ON
How to select NOISE REDUCE
1 Press the FUNCTION menu
button, till the menu
shown on the right display on the
screen.
2 buttons to
Press the CH+/-
select "NOISE REDUCE".
3 Press the VOL-/+ buttons to
turn the NOISE REDUCE
function "ON" or "OFF".
FUNCTION
FUNCTION
ENGLISH
BACKGROUND ON
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
FUNCTION
ENGLISH
BACKGROUND ON
NOISE REDUCE OFF
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
Convenient picture and sound control functions
Continued
Mute function
Sound mute
MUTE
1 Press the MUTE button on the
remote control and "MUTE" type
face will display on the lower part
of the screen. At this time, the
sound of the TV set is turned off.
2 If you want to recover the sound,
press the MUTE button again or
directly press the VOL-/+ buttons.
MUTE

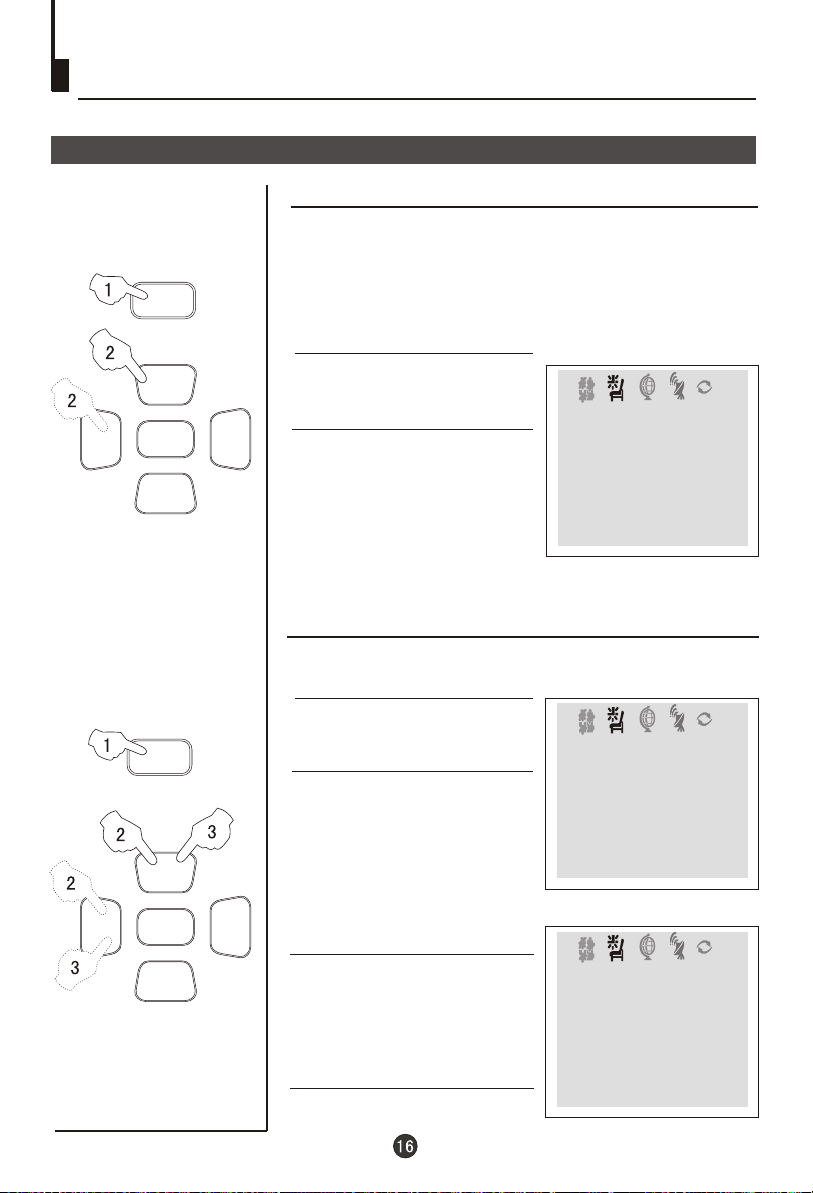

Time functions
Clock setting and timer on/off functions
TIME
Clock setting
The clock will only work if the TV set if left turned on
or in standby. When the set is disconnect from the
power supply or is turned off by the main power on
the front panel, the clock loses power and will need to
be reset when the power is reconnected.
VOL
-
VOL
-
CH+
MENU
CH-
TIME
CH+
MENU
VOL
+
VOL
+
1 Press the TIME button,
menu
and the TIME menu display on
the screen.
2Press the CH
+/- buttons select
"CLOCK", then press the VOL /+ buttons to adjust the time in
hour position; press again the
CH+/- buttons to select the
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 1
OFF TIME --:-SLEEP TIMER 0
REMIND TIME --:-REMIND PROG 1
time in minute position, then
press the VOL -/ +buttons to
adjust the value of minutes
.
On/off timer
Using on/off timer function, the TV set can automatically
turn on to a preset program or shut down in a preset time.
1 Press the TIME button
to call up the TIME menu on the
screen.
2 Press the CH+/- buttons to
select "ON TIME", then press
the VOL -/+ buttons to set the
value in hour position; press
again the CH+/- buttons to
select the minute position and
set the value of the minute.(take
18:00 as an example)
menu
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 1
OFF TIME --:-SLEEP TIMER 0
REMIND TIME --:-REMIND PROG 1
CH-
3 Press the CH+/- buttons to
select "ON PROG", then press
the VOL-/+ or program direct
number buttons to select your
desired channel (take 8 as an
example).
4 Repeat step 1-2 to set OFF
TIME.(take 23:00 as an example)
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 8
OFF TIME 23:00
SLEEP TIMER 0
REMIND TIME --:-REMIND PROG 1
Time functions
Continued
Sleep timer and program preset
Sleep timer
VOL
-
VOL
-
TIME
CH+
MENU
CH-
TIME
CH+
MENU
CH-
VOL
+
VOL
+
The TV set have 18 sections
for sleep timer function
option
(each section has a time
interval of 10 minutes)
(See right
0
10
20
chart):
170
1 Press the TIME button,
menu
180
and the TIME menu display on
the screen.
2 Press the CH +/- buttons to
select "SLEEP TIMER".
3 Press the VOL -/+ buttons to
adjust the SLEEP TIMER level.
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 8
OFF TIME 23:00
SLEEP TIMER 120
REMIND TIME --:-REMIND PROG 1
REMIND PROG function
Program remind timer, that displays an on-screen reminder
prompt, when a program on a different channel is due to start.
1 Press the TIME button
to call up the TIME menu on the
screen.
2 Press the CH +/- buttons to
select "REMIND TIME", then
press the VOL -/+ buttons to
set the value in hour position;
press again the CH+/- buttons
to select the minute position,
and then set the value of the
minute.(take 19:00 as an
example)
3.Press the CH+/- buttons to
select "REMIND PROG", then
press the VOL -/+ buttons or
the program direct number
buttons to set the desired
channel (take 18 as an
example).
NOTE: For
operate
turned off.
REMIND PROG to
CHILD LOCK must be
menu
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 8
OFF TIME 23:00
SLEEP TIMER 120
REMIND TIME 19:00
REMIND PROG 1
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 8
OFF TIME 23:00
SLEEP TIMER 120
REMIND TIME 19:00
REMIND PROG 18

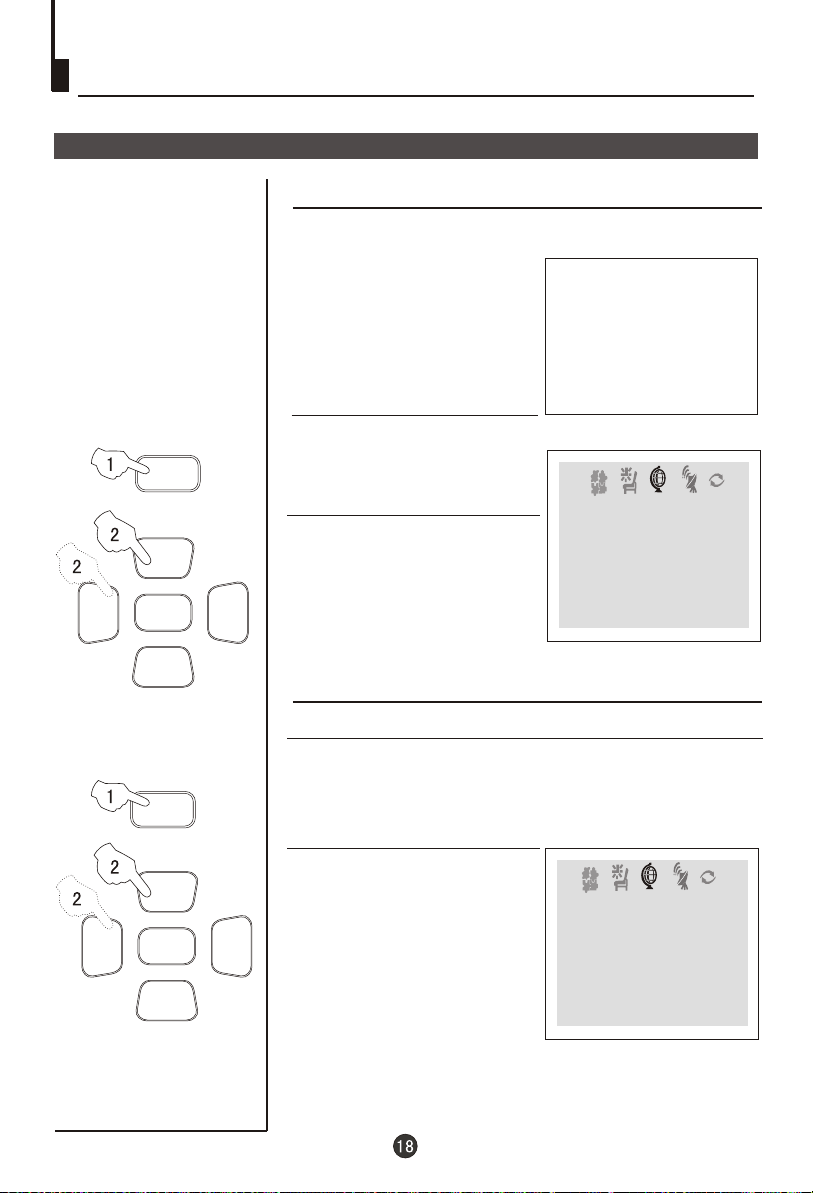

Set up function
Screen saver and childlock functions
How to start screen saver function
When the BACKGROUD function
is ON, the screen will turn
automatically as shown "NO
SIGNAL" of moving .
NO SIGNAL
VOL
-
VOL
-
FUNCTION
CH+
MENU
CH-
FUNCTION
CH+
MENU
CH-
VOL
+
VOL
+
1 Press the FUNCTION menu
button till the menu
,
FUNCTION
shown on the right display on the
screen.
2 Press the CH+/- buttons
to
select "BACKGROUND" and press
the VOL-/+ buttons to turn the
BACKGROUND function "ON"
FUNCTION
ENGLISH
BACKGROUND ON
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
.
Child lock function
Enables the TV front control buttons to be locked.
1 Press the FUNCTION menu
button till the menu
,
shown on the right display on the
screen.
2 Press the CH+/-
select "CHILD LOCK" and press
the VOL-/+ buttons to turn
CHILD LOCK function "ON"
FUNCTION
buttons to
FUNCTION
ENGLISH
BACKGROUND ON
.
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
NOTE:
All the control panel buttons on the front of the TV are disabled
when CHILD LOCK is turned on. The power switch will still turn
the TV set off.
Set up function
Continued
AVL and calendar functions
AVL function
1 Press the FUNCTION menu
FUNCTION
CH+
button till the FUNCTION menu
,
shown on the right display
on the screen.
FUNCTION
ENGLISH
BACKGROUND ON
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
VOL
-
VOL
-
MENU
CH-
FUNCTION
CH+
MENU
CH-
VOL
+
VOL
+
2 Press the CH+/-
"AVL"
.
3 Press
VOL-/+ button to turn the
AVL function "ON" or "OFF"
button to select
.
Calendar function
1 Press the FUNCTION menu
button till the menu
,
shown on the right display on the
screen.
2 Press the CH+/-
"CALENDAR" , then press the
VOL-/+ buttons to the CALENDAR
display on the screen.
3 Press the CH+/- buttons to turn
the YEAR/MONTH/DAY, press
VOL-/+ buttons to set or adjust
the YEAR/MONTH/DAY.
FUNCTION
button to select
FUNCTION
ENGLISH
BACKGROUND ON
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
FUNCTION
ENGLISH
BACKGROUND ON
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
Set up function
Continued
Fade and select a language
Fade
The FADE control allows time for the picture tube to
warm up and gently turned on, which can help prolong
the life of the picture tube.
VOL
-
VOL
-
FUNCTION
CH+
MENU
CH-
FUNCTION
CH+
MENU
CH-
VOL
+
VOL
+
1 Press the FUNCTION menu
button till the menu
,
FUNCTION
shown on the right display on
the screen.
2 Press the CH +/- buttons to
select "FADE .
3 Press the
the FADE function "ON" or "OFF"
VOL-/+ button to turn
.
Select a language
1 Press FUNCTION menu
button till menu
shown on the right display
on the screen.
2 Press the CH+/-
select " " . AVL
3 press the VOL-/+ buttons to select
the desired language. Then all the
items will be displayed in the
selected language.
FUNCTION
,
buttons to
FUNCTION
ENGLISH
BACKGROUND ON
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
FUNCTION
ENGLISH
BACKGROUND ON
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
FUNCTION
ENGLISH
BACKGROUND ON
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
Position exchange functions
Exchange
Exchange
This feature enables TV programs that may be on a wrong TV
channel number to be swapped/exchanged. This feature is
very useful when Automatic Search Tuning has been used, to
reallocate the found programs to the correct channel numbers.
VOL
-
VOL
-
CH+
MENU
CH-
CH+
MENU
CH-
CH+
VOL
+
VOL
+
1 Press the MENU button till the
,
EXCHANGE menu display on
the screen.
2 Press the VOL / buttons or the
-+
PROGRAM NUMBER 0-9
buttons to set PROGRAM 1 TO 6.
3 buttons to
Press the CH-/+
select " PROGRAM 2".
4 Press the VOL / buttons or
-+
the PROGRAM NUMBER 0-9
buttons to set PROGRAM 2 TO 9.
5 buttons to
Press the CH+/-
select "EXCHANGE".
EXCHANGE
PROGRAM 1 6
PROGRAM 2 2
EXCHANGE
EXCHANGE
PROGRAM 1 6
PROGRAM 2 9
EXCHANGE
VOL
-
MENU
CH-
VOL
+
6 Press the VOL-/+ buttons to set
"EXCHANGE".
EXCHANGE
PROGRAM 1 6
PROGRAM 2 9
EXCHANGE
Connecting the TV set to the other video and audio equipment
Connecting to the other video and audio equipment
You can connect a stereo to the AUDIO output terminals on the TV set to enjoy sounds of
higher quality. VIDEO and AUDIO output terminals output the video and audio signals being
monitored by the TV set. The electric levels of video and audio output signals are fixed.
To outside input
To video/audio input
DVD, VCD and other reproducing equipments
Troubleshooting guide
If the TV set has breakdown, please check according to the following list.
Checking
No power supply
No sound
Bad colour/ hue
Colour spot
Scramble
Double or triple
If power line is connected?
Whether sound mute is used?
Whether the adjustments of contrast, colour and hue are suitable?
If the position of the TV set is changed during its work, the colour
shadow may appear.
If this case occurs, please switch off the power supply for TV set
and let it cool for about 30 minutes, then switch on the power
supply again.
If there are disturbances from automobile, motorcycle, electric car,
fluorescence lamp, blower etc?
If there are disturbances from the other TV set, PC, game machine and
wireless broadcasting station?
Whether there is any reflection of broadcasting signal from mountain or building?
Whether the antenna position is changed or not?
Snowy picture
The remote
control
do not work
Whether the antenna connection is disconnected or fallen off?
Whether the antenna position is changed or not?
Whether the batteries in the remote control unit are used up or not?
Whether the installation of the batteries is correct or not?
Whether there is any barrier between the remote control and the infrared receiver?
Whether the infrared receiver is influenced by strong light?
Whether the main power supply is connected?
The cases shown below are not breakdowns:
Snapping sound from the
cabinet of the TV set
Uneven colour sometimes
appearing on a part of
the screen
If the breakdown can't be cleared after you doing by above steps,
e
t
N
o
please get in touch with the local cent r of service and don't open
the back cover yourself.
The snapping sound is caused by the telescoping of the
cabinet due to the temperature changing. It is normal,
please use it reassuringly.
This kind of uneven colour may be caused by bright picture
setting.
Even colour can be recovered by decreasing contrast.
e
Specifications
Colour system
Sound system
Display tube
Sound output power
Power supply
Power consumption
Size
Supplied
accessories
PAL, SECAM
DK,
29" CRT
5W+5W
~ 160-250V 50/60 Hz
150W
773 width 594 depth 0 heightx x50 mm
Remote control X1
Owner's manual X1
Battery(AAA) X2
, AV NTSC
BG
The design and specifications may be changed without notice.
Loading...
