COLOR TV RECEIVER
OWNER'S MANUAL
Please READ this manual carefully
before operating the unit, and keep
it for future reference.
The Owner`s Manual for the Follow Models:
21F3A, 21F3A-P, 21T3A, 21T3A-P
*Please read this manual carefully before using your television and keep this
manual in a good place for future reference.
*To achieve the best performance of your television, read this User's Manual
carefully and properly store it for future reference.
*Information of screen displays and figures in the User's Manual may vary due
to technical innovations or different models.
CONTENTS
Before Operation
Warning and cautions............................................................................2
Installation...............................................................................................3
Aerial connection...................................................................................3
Preparation of the remote control unit...................................................3
Function buttons and external sockets................................................4
Front panel of the TV set........................................................................4
Rear panel of the TV set........................................................................4
Buttons on the remote control..............................................................5
Basic operation
Switching on/off the TV set....................................................................6
Watching TV program.............................................................................7
Watching TV program...........................................................................7
Program swap and auto scan functions................................................8
Searching channel..................................................................................9
Full automatic search mode..................................................................9
Semi-automatic search.......................................................................10
Manual fine tune..................................................................................11
Program skip ......................................................................................12
Convenient picture and sound control functions.............................
Multiple picture modes ......................................................................13
Black stretch and noise reduce...........................................................14
Mute function......................................................................................15
Time functions......................................................................................16
Clock setting and timer on/off functions...........................................16
Sleep timer and program preset ......................................................17
Setup function ....................................................................................18
Screen saver and child lock functions................................................18
AVL and calendar functions................................................................19
Fade ..................................................................................................20
Position exchange function.................................................................21
TELETEXT
Teletext...............................................................................................22
Others
Connection to the external audio and video equipment..................24
Troubleshooting guide
Specifications.......................................................................................26
.........................................................................25
13
Warning and cautions
1. When you clean the TV set, please
pull out the power plug from AC outlet.
Don't clean the cabinet and the
screen with benzene, petrol and other
chemicals.
2. In order to prolong the using life of
the TV set, please place it in a well
ventilated location.
3. Don't place the TV
set in direct sunlight
or near a heat source.
4. Do not place the TV set near rain or
moisture as it may cause an electric
shock, or the TV set to catch fire. The
TV set must only
be used in dry in
door locations.
5. The back cover must only be
removed by a registered electrical
service person. Removing the back
cover may result in electric shock, fire
or damage to
the TV set.
6. If the TV set is not going to be used
for a long time, or there is a severe
thunder & Lighting storm, it is
recommended that the TV set be
disconnected from the AC power outlet
and the aerial plug removed.
Explanation on the display tube
Should the picture tube require cleaning, disconnect the power and use a dry
soft cotton cloth. Do not use any cleaner or abrasive cloths.
Installation
Aerial connection
For an optimum high quality picture, it is strongly advised that the TV set connect to an
external aerial(s) using high quality coax cable. When connecting to HiFi VCRs, satellite
(or cable) set top boxes, that the AV terminals are used to allow the stereo sound to be
transferred.
300 twin-lead cable
Antenna adapter
(additional purchase)
75 coaxial cable
Preparation of the remote control unit
Battery installation
Take off the battery compartment cover. Place two AA batteries, make sure that battery
polarity matches with the +/- mark inside the battery compartment.
Operation notes for the remote control unit
Under normal conditions, the life time of batteries is one year.
If you don't intend to use the unit for a long period or the electricity of the batteries is
used up, remove the batteries to prevent batteries acid from leaking into the battery
compartment.
Never place batteries in a fire.
Avoid dropping the remote control and/or getting it wet.
Function buttons and external sockets
Front panel of the TV set
Menu
TV/AV
switch
Volume
up/ down
Channel
position up/down
Signal receiver
Rear panel of the TV set
Power
switch
Power indicator
Antenna input
EXT
TV SCRAT Terminal
If you want to connect the TV set to the other audio/video equipment, please
refer to P24.
Buttons on the remote control
Buttons and Descriptions
MUTE
SCAN
SWAP
Program scan Button
ZOOM
CALL
LIGHT TV/AV
CH+
MENU
CH-
PICTURE SOUND
FUNCTIONTIME
S.STDP.STD
VOL+VOL-
Mute Button
Press to conceal the sound of programs.
No including)
Screen Display Button
Program number Button
Digital selector
Picture mode selection
Menu Select/ Adjust Button
Use this button to adjust the menu,
the volume and the channels
Teletext Button
Picture menu (Red)
Time menu (Yellow)
Tune menu (White)
Exit screen display/Teletext
Function menu (cyan)
Green Button
No including)
No including)
No including)
TV and AV Exchange Button
To exchanger between TV and
other available video inputs
Stand by Button
Swap function Button
TUNE
EXIT
Switching on/ off the TV set
In the following, the methods of using power switch and remote controller to switch
on/off power supply for the TV set will be explained.
Switching on/ off the TV set
Switching on/ off the TV set
1 Please press the power switch to switch on AC
power supply and the power indicator will light.
2 If the indicator is lighting in red, press the button
on the remote control again.
Note
1 When you don't operate the TV set with a
remote control, you can turn on it directly
through pressing the P / on the TV set
(Child Lock must be turned off).
+ - buttons
4
AUTO
BG
2 If you want to exchange to standby status,
please press down the button on the remote
control.
3 If you want to fully switch off the power supply
for the TV set, please press the power switch
button on the TV set.
Auto switch-off function
When the "Back" function is on, if an empty
channel is selected or the TV programs are
ended for the day, the power will be switched off 5
minutes later automatically. If the "OFF TIME" is
on, it will be switched off according to the
presetting time. The auto power off function does
not work under video input or when the
background is off.
(Note: If the "off timer" is less than 5 minutes, it
will be switched off automatically to the preset
Time. )
Watching TV
You can watch TV program in a preset channel.
Watching TV program
How to select TV program
Select the desired program
1 Using "Program number" buttons
Directly enter the channel number with the numeric keypad
on the remote control.
To select channel numbers from 10 ~ 99 press [-/--] button
and enter the two digit channel number
To select channel numbers from 100 ~ 218 press [-/--] button
twice and enter the 3 digit channel number
2 Using the CH+/- buttons
Press the CH+ button to select a channel number in number
CH+
VOL- VOL+
MENU
CH-
increasing
Press the CH- button to select a channel number in number
decreasing
Select the desired sound
Press the VOL-/+ buttons on the remote or the front of the
TV set to adjust the volume level. The range is 0~99. When
the volume buttons are pressed the volume level is
displayed automatically on the TV screen.
direction.
direction.
TUNE
CH+
VOL- VOL+
MENU
CH-
If the colour of a channel is abnormal
Usually this should be set in the
Auto position. However if the
colours displayed on the screen
are incorrect you can manually
select the correct colour system.
When finish remember to turn it
back to auto again so that other
programs will still work correctly.
To select the colour change
option press the TUNE button
on the remote control.
TUNE
COLOUR AUTO
BAND VHFL
SKIP OFF
PROGRAM 0
SEARCH
FINE TUNE
AUTO SEARCH
If picture colo r is abnormalu
Use the CH+/- buttons to select Colour then the
VOL-/+ buttons to change between Auto,
SECAM and NTSC443
. Press the EXIT button to save
PAL, NTSC,
the setting.
Watching TV continued
Swap function enables quick swap to the last watched program.
Auto scan function enables automatic successive scanning of all the programs in
memory with (each channel will last about 2 seconds)."OFF" skip status
Program swap and auto scan functions
Program swap
Suppose the channel number
SWAP
1
you used just now is 8 and the
channel number you are using
is 18 (as shown in the figure).
2 If you want to return to the
last watched program channel
8, you can simply press the
SWAP button.
3 If you want to return to
channel 18, press the button
again. Through this function,
you can easily change
between the channel you are
using and the channel you
used last time.
18
AUTO
BG
8
AUTO
BG
18
AUTO
BG
SCAN
Auto program scan
1 If you want to select a desirable program, you may scan all
the TV programs in memory. You can simply press the
SCAN button to do this. The program numbers will appear
one after another from beginning to end (each channel
number will last about 2 seconds).
2 If you want to stop the function during auto scanning, simply
press the SCAN button again.
Searching channel
This TV set has three methods to set the channels, which are respectively full
automatic, semi automatic and manual fine tune.
-
In this section, how to use the remote control to set the channel is explained. You
can also use the buttons on the TV set to set channel.
Full automatic mode
TUNE
CH+
VOL- VOL+
MENU
CH-
1 Press the TUNE menu button ,
till the TUNING menu shown on
the right display on the screen.
Press the CH+/-
2 buttons to
select "AUTO SEARCH".
3 Press the VOL+ button to
ensure automatic search
function operates. All channels
now playing program will be
automatically preset in order .
After the search has finished
,
the first program number will
display on the screen.
TUNE
COLOUR AUTO
BAND VHFL
SKIP OFF
PROGRAM 0
SEARCH
FINE TUNE
AUTO SEARCH
TUNE
COLOUR AUTO
BAND VHFL
SKIP OFF
PROGRAM 0
SEARCH
FINE TUNE
AUTO SEARCH
CALL
Display function
Press the CALL button, then
the channel number and the
systems will be displayed on
the screen.
4
AUTO
BG
Searching channel
Continued
Semi-automatic search
Semi-automatic search
1 Press the CH+/- buttons or
PROGRAM NUMBER 0-9
buttons to choose desired
channels I.E. channel 1
TUNE
2 Press the TUNE menu button ,
till the TUNING menu shown on
the right display on the screen.
3 buttons to
CH+
VOL- VOL+
MENU
CH-
Press the CH+/-
select " SEARCH".
1
AUTO
BG
TUNE
COLOUR AUTO
BAND VHFL
SKIP OFF
PROGRAM 0
SEARCH
FINE TUNE
AUTO SEARCH
EXIT
4 Press the VOL-/+ buttons to
start searching.
The VOL- down button is used
for lower side program search.
The VOL+ up button is used for
higher side program search.
Repeat this step, till find the
desired channel.
1
To turn off the on-screen menu
In general, after you press the MENU button, the menu
, FUNCTION, TUNE, EXCHANGE,
display (PICTURE, TIME
ETC.) will automatically disappear within 15 seconds. If you
want to eliminate these contents immediately, please press
the EXIT button.
item
Searching channel
Continued
Manual fine tune
Manual fine tune
If the picture and/or sound are poor, try using the FINE
TUNE feature. Do not use this feature unless
reception is poor.
CH+
VOL- VOL+
MENU
CH-
TUNE
CH+
VOL- VOL+
MENU
CH-
1 Press the CH+/- buttons or
PROGRAM NUMBER 0-9
button to choose desired
channels I.E. channel 1
2 Press the TUNE menu button ,
till the TUNING menu shown on
the right display on the screen.
3 buttons to
Press the CH+/-
select " FINE TUNE".
4 Press the VOL-/+ buttons all
through to carry out fine tune,
till the best picture and sound
are obtained.
1
AUTO
BG
TUNE
COLOUR AUTO
BAND VHFL
SKIP OFF
PROGRAM 0
SEARCH
FINE TUNE
AUTO SEARCH
1
FINE TUNE
152.25MHz
Searching channel
Continued
Program skip
Program skip
The Program skip feature enables you to skip/hide
programs that you do not wish to be displayed when
using the CH+/- buttons. These channels will still be
displayed by directly using the channel number
buttons on the remote control.
CH+
VOL- VOL+
MENU
CH-
1 Press the CH+/- buttons or
PROGRAM NUMBER 0-9
button to choose desired
channels I.E. channel 1
1
AUTO
BG
TUNE
CH+
VOL- VOL+
MENU
CH-
2 Press the TUNE menu button ,
till the TUNING menu shown on
the right display on the screen.
TUNE
COLOUR AUTO
BAND VHFL
3 buttons to
Press the CH+/-
select "SKIP".
SKIP OFF
PROGRAM 0
SEARCH
FINE TUNE
AUTO SEARCH
4 Press the VOL-/+ buttons to
turn the SKIP function "ON".
TUNE
COLOUR AUTO
BAND VHFL
5 Press the TUNE button to close
the menu. When you use the CH /
buttons to select channel, this
channel will be skipped. However,
SKIP ON
PROGRAM 0
SEARCH
+-
FINE TUNE
AUTO SEARCH
you can still use the PROGRAM
NUMBER buttons to select the
skipped channel numbers.
If you want to recover the skipped channel
1 Use the PROGRAM NUMBER buttons to select the channel
number to be recovered.
2 Repeat those steps just now.
3 Press the VOL-/+ buttons to turn the SKIP function "OFF".
Convenient picture and sound control functions
Multiple picture modes
How to select picture modes
You can quickly select the desired picture mode from
P.STD
four preset modes and one customized mode.
STANDARD
Press the P.STD button to select the
desired picture quality. Five kinds
of picture modes (i.e.,
"STANDARD",
"RICH", "USER","LISTEN",
RICH
USER
LISTEN
"SOFT" ) can be selected in turn.
The 5 modes are
SOFT
Listen-This is a new feature that blacks out the TV
screen when listening to music only channels;
Soft-Designed for night time low light viewing;
Standard -Designed for rooms that have good all round
lighting;
Rich-Designed for rooms with high ambient lighting such
as daytime sport;
User-A spare setting that can be adjusted to personal
tastes.
How to customize your own picture status
1 Press the PICTURE menu button , till the menu
shown on the right display on the screen.
CH+
VOL- VOL+
MENU
CH-
2 Press the CH+/- buttons to
select the item to adjusted,
then press the VOL-/+ buttons
to obtain the desired effect.
ITEM
CONTRAST
BRIGHTNESS
COLUOR
SHARPNESS
*Hue
Note:
The "Hue" item only appears when the colour system is NTSC.
Press VOL-
Weak
Dark
Shallow
Soft
lean to purple
CONTRAST 48
BRIGHTNESS 32
COLOUR 48
SHARPNESS 40
*HUE 60
BLACK STRETCH OFF
Press VOL+
Strong
Bright
Deep
Sharp
lean to green
Convenient picture and sound control functions
Continued
Black Stretch-(Automatically Increases the Contrast Rage)
Noise Reduce - (Picture Noise & Grain Reduction Circuit. Only use on poor reception.)
Black stretch and noise reduce
CH+
VOL- VOL+
MENU
CH-
FUNCTION
CH+
VOL- VOL+
MENU
CH-
How to select BLACK STRETCH
1 Press the menu
button , till the menu
shown on the right display on the
screen.
Press the CH+/-
2 button to
select "BLACK STRETCH".
3 Press the VOL-/+ buttons to
turn the BLACK STRETCH
function "ON" or "OFF".
CONTRAST 48
BRIGHTNESS 32
COLOUR 48
SHARPNESS 40
*HUE 60
BLACK STRETCH OFF
CONTRAST 48
BRIGHTNESS 32
COLOUR 48
SHARPNESS 40
*HUE 60
BLACK STRETCH ON
How to select NOISE REDUCE
1 Press the FUNCTION menu
button, till the menu
shown on the right display on the
screen.
2 buttons to
Press the CH+/-
select "NOISE REDUCE".
3 Press the VOL-/+ buttons to
turn the NOISE REDUCE
function "ON" or "OFF".
FUNCTION
FUNCTION
BACKGROUND ON
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
FUNCTION
BACKGROUND ON
NOISE REDUCE OFF
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
Convenient picture and sound control functions
Continued
Mute function
Sound mute
MUTE
1 Press the MUTE button on the
remote control and "MUTE" type
face will display on the lower part
of the screen. At this time, the
sound of the TV set is turned off.
2 If you want to recover the sound,
press the MUTE button again or
directly press the VOL-/+ buttons.
MUTE
Time functions
Clock setting and timer on/off functions
TIME
Clock setting
The clock will only work if the TV set if left turned on
or in standby. When the set is disconnect from the
power supply or is turned off by the main power on
the front panel, the clock loses power and will need to
be reset when the power is reconnected.
CH+
VOL- VOL+
MENU
CH-
TIME
CH+
VOL- VOL+
MENU
1 Press the TIME button,
menu
and the TIME menu display on
the screen.
2Press the CH
+/- buttons select
"CLOCK", then press the VOL /+ buttons to adjust the time in
hour position; press again the
CH+/- buttons to select the
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 1
OFF TIME --:-SLEEP TIMER 0
REMIND TIME --:-REMIND PROG 1
time in minute position, then
press the VOL -/ +buttons to
adjust the value of minutes
.
On/off timer
Using on/off timer function, the TV set can automatically
turn on to a preset program or shut down in a preset time.
1 Press the TIME button
to call up the TIME menu on the
screen.
2 Press the CH+/- buttons to
select "ON TIME", then press
the VOL -/+ buttons to set the
value in hour position; press
again the CH+/- buttons to
select the minute position and
set the value of the minute.(take
18:00 as an example)
menu
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 1
OFF TIME --:-SLEEP TIMER 0
REMIND TIME --:-REMIND PROG 1
CH-
3 Press the CH+/- buttons to
select "ON PROG", then press
the VOL-/+ or program direct
number buttons to select your
desired channel (take 8 as an
example).
4 Repeat step 1-2 to set OFF
TIME.(take 23:00 as an example)
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 8
OFF TIME 23:00
SLEEP TIMER 0
REMIND TIME --:-REMIND PROG 1
Time functions
Continued
Sleep timer and program preset
Sleep timer
TIME
CH+
VOL- VOL+
MENU
CH-
TIME
CH+
VOL- VOL+
MENU
CH-
The TV set have 18 sections
for sleep timer function
option
(each section has a time
interval of 10 minutes)
(See right
0
10
20
chart):
170
1 Press the TIME button,
menu
180
and the TIME menu display on
the screen.
2 Press the CH +/- buttons to
select "SLEEP TIMER".
3 Press the VOL -/+ buttons to
adjust the SLEEP TIMER level.
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 8
OFF TIME 23:00
SLEEP TIMER 120
REMIND TIME --:-REMIND PROG 1
REMIND PROG function
Program remind timer, that displays an on-screen reminder
prompt, when a program on a different channel is due to start.
1 Press the TIME button
to call up the TIME menu on the
screen.
2 Press the CH +/- buttons to
select "REMIND TIME", then
press the VOL -/+ buttons to
set the value in hour position;
press again the CH+/- buttons
to select the minute position,
and then set the value of the
minute.(take 19:00 as an
example)
3.Press the CH+/- buttons to
select "REMIND PROG", then
press the VOL -/+ buttons or
the program direct number
buttons to set the desired
channel (take 18 as an
example).
NOTE: For
operate
turned off.
REMIND PROG to
CHILD LOCK must be
menu
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 8
OFF TIME 23:00
SLEEP TIMER 120
REMIND TIME 19:00
REMIND PROG 1
TIME
CLOCK 17:18
ON TIME 18:00
ON PROG 8
OFF TIME 23:00
SLEEP TIMER 120
REMIND TIME 19:00
REMIND PROG 18
Set up function
Screen saver and childlock functions
How to start screen saver function
When the BACKGROUD function
is ON, the screen will turn
automatically as shown "NO
SIGNAL" of moving ( black
background).
NO SIGNAL
FUNCTION
CH+
VOL- VOL+
MENU
CH-
FUNCTION
CH+
VOL- VOL+
MENU
CH-
1 Press the FUNCTION menu
button till the menu
,
FUNCTION
shown on the right display on the
screen.
2 Press the CH+/- buttons
to
select "BACKGROUND" and press
the VOL-/+ buttons to turn the
BACKGROUND function "ON"
FUNCTION
BACKGROUND ON
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
.
Child lock function
Enables the TV front control buttons to be locked.
1 Press the FUNCTION menu
button till the menu
,
shown on the right display on the
screen.
2 Press the CH+/-
select "CHILD LOCK" and press
the VOL-/+ buttons to turn
CHILD LOCK function "ON"
FUNCTION
buttons to
FUNCTION
BACKGROUND ON
NOISE REDUCE ON
.
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
NOTE:
All the control panel buttons on the top of the TV are disabled
when CHILD LOCK is turned on. The power switch will still turn
the TV set off.
Set up function
Continued
AVL and calendar functions

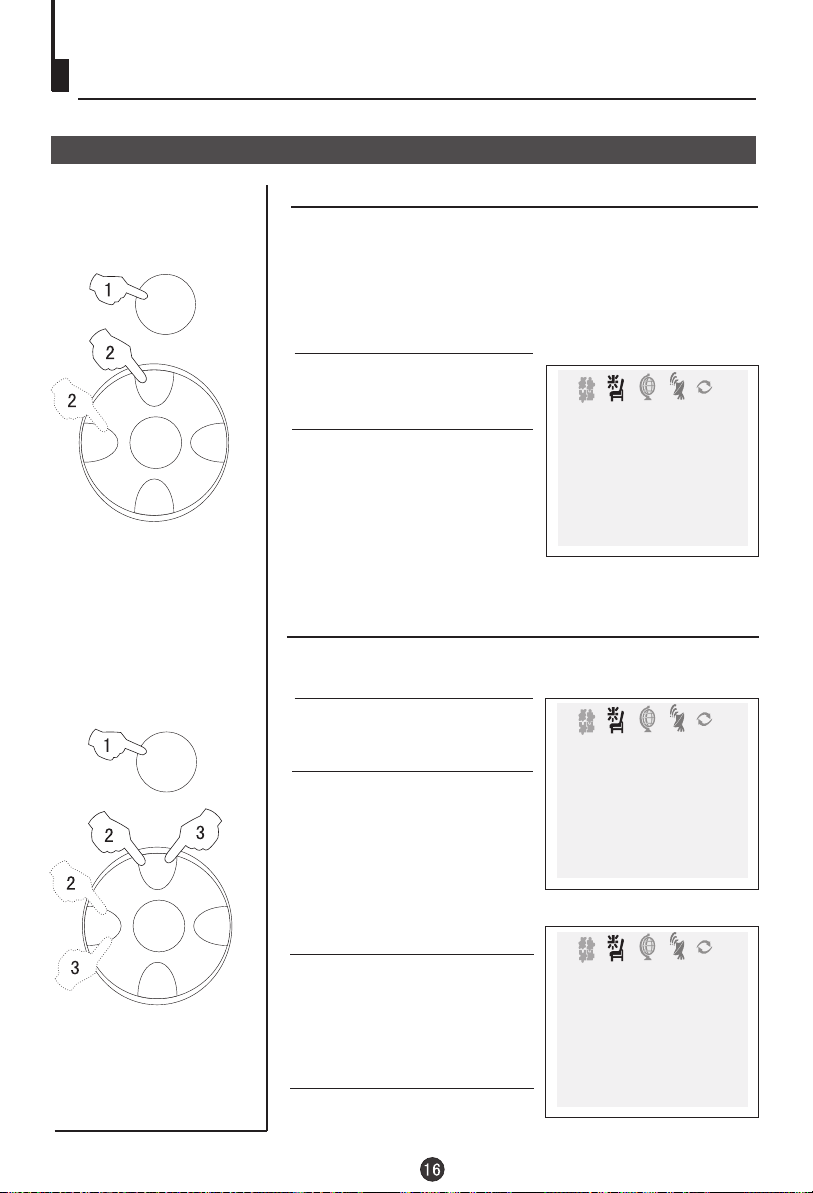

AVL function
Automatic Volume Limit control reduces effect of large
volume changes such as when the ads come on.
FUNCTION
CH+
VOL- VOL+
MENU
CH-
FUNCTION
CH+
VOL- VOL+
MENU
CH-
1 Press the FUNCTION menu
button till the FUNCTION menu
,
shown on the right display
on the screen.
2 Press the CH+/-
"AVL"
.
3 Press
VOL-/+ button to turn the
button to select
AVL function "ON" or "OFF"
.
FUNCTION
BACKGROUND ON
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
FUNCTION
BACKGROUND ON
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
Calendar function
Enables the TV sets internal calendar to be set.
1 Press the FUNCTION menu
button till the menu
,
shown on the right display on the
screen.
2 Press the CH+/-
"CALENDAR" , then press the
VOL-/+ buttons to the CALENDAR
display on the screen.
3 Press the CH+/- buttons to turn
the YEAR/MONTH/DAY, press
VOL-/+ buttons to set or adjust
the YEAR/MONTH/DAY.
FUNCTION
button to select
FUNCTION
BACKGROUND ON
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
Set up function
Continued
Fade
Fade
The FADE control allows time for the picture tube to
warm up and gently turned on, which can help prolong
the life of the picture tube.
FUNCTION
CH+
VOL- VOL+
MENU
CH-
1 Press the FUNCTION menu
button till the menu
,
FUNCTION
shown on the right display on
the screen.
2 Press the CH +/- buttons to
select "FADE .
3 Press the
the FADE function "ON" or "OFF"
VOL-/+ button to turn
.
FUNCTION
BACKGROUND ON
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
FUNCTION
BACKGROUND ON
NOISE REDUCE ON
FADE ON
CHILD LOCK OFF
AVL ON
CALENDAR
Position exchange functions
Exchange
Exchange
This feature enables TV programs that may be on a wrong TV
channel number to be swapped/exchanged. This feature is
very useful when Automatic Search Tuning has been used, to
reallocate the found programs to the correct channel numbers.
CH+
1 Press the MENU button again
VOL- VOL+
MENU
CH-
(6 times) till the EXCHANGE
menu display on the screen.
2 Press the VOL / buttons or the
PROGRAM NUMBER 0-9
buttons to set PROGRAM 1 TO 6.
,
-+
EXCHANGE
PROGRAM 1 6
PROGRAM 2 2
EXCHANGE
CH+
VOL- VOL+
MENU
CH-
CH+
VOL- VOL+
MENU
CH-
3 buttons to
Press the CH-/+
select " PROGRAM 2".
4 Press the VOL / buttons or
-+
the PROGRAM NUMBER 0-9
buttons to set PROGRAM 2 TO 9.
5 buttons to
Press the CH+/-
select "EXCHANGE".
6 Press the VOL-/+ buttons to set
"EXCHANGE".
EXCHANGE
PROGRAM 1 6
PROGRAM 2 9
EXCHANGE
EXCHANGE
PROGRAM 1 6
PROGRAM 2 9
EXCHANGE
Teletext
Teletext is an information system, broadcast by certain channels, which can be read like
a newspaper . It also provides subtitles for people with hearing difficulties or those who
are unfamiliar with the language in which a particular program is being broadcast (cable
networks, satellite channels, etc.).
Teletext
Teletext functions
You can press TELETEXT button into TELETEXT mode, press
again to leave TELETEXT mode. All menu related functions are
not available in TELETEXT mode. Only a few dir ect button
control functions are available in TELETEXT mode, they are:
Volume adjustment, but without OSD display.
Mute function, but without OSD display.
CH+
VOL- VOL+
MENU
CH-
Page up/down
Use the CH+/- buttons to browse next or previous page.
Page number entering
To select a teletext page either directly enter the page number
using the numeric key pad on the remote control or use the
CH+/- buttons, or the coloured Fast Text buttons.
Mix mode
While in Teletext mode press the button will show the
teletext data superimposed on top of the TV picture. Press
the button again to revert back to Full text.
Teletext
Continued
Teletext
Cancel mode
This feature allows the TV picture to be displayed while next
page to be searched is entered and found. Only the top
teletext line is displayed until the page is found. Press the
button to hide the teletext information. Either press the
button or the Text button to exit the cancel display mode.
Language change
Pressing the button will change the Teletext characters .
Hold
Pressing the button will stop the teletext page automatically updating. This feature is very useful where there are
several teletext pages or data on the same page number.
Size
Pressing the button changes between full screen top
half bottom half full screen. This feature is very useful as it
magnifies the image making the characters easier to read.
Reveal
Pressing the button will reveal hidden text. This feature
is used to reveal information such as answers to Teletext
on-line interactive puzzles.
Subcode / Time
While in normal TV mode only, pressing the button will
display the teletext time in the top right hand corner for a few
seconds
Switch teletext on/off
Press the button on the remote control to turn teletext
On/Off.
Subtitle
Pressing the button will get the teletext decoder to
automatically search for the subtitle page. In NZ the subtitle
is usually page 801.
Fast text coloured buttons
Fast text automatically displays the four most commonly
used pages that the broadcaster thinks that you may want
to choose next. Press the same coloured button on the
remote control as the coloured link at the bottom of the
teletext page to go directly to that page.
Connecting the TV set to the other video and audio equipment
Connecting to the other video and audio equipment
EXT
To TV EXT To TV EXT
To video/audio input
DVD, VCD and other reproducing equipment
To outside input
Stereo
Troubleshooting guide
To assist in location possible faults use help guide below.
BREAKDOWN PHENOMENON
Picture with snow
Double or Triple Image
Disturb
Normal
No Picture
No colour
SOUND
Noise
Normal
Noise
No sound
No sound
Normal volume
CHECKING
The aerial direction and connection
This is called ghosting which can be minimized
with an outside aerial, and good quality cable
and terminations. Altering the aerial direction
can also minimize this effect.
Electrical interference which can be caused by cars,
motorbikes etc, Fluorescent lamps and dirty
insulators on overhead power cables.
Volume Sound mute.
Ensure that the power supply is connected to the TV
set and turned on. Also ensure that the TV set is not
in "Listen Mode" or that the brightness and contrast
are not turned down.
Adjust colour control
Adjust channel again
Scramble
Colour Spot
Note:
1.If the fault can not be repaired using the above guide consult with your local authorized service
center.
2.The TV set must only be repaired by a qualified registered service person. Never attempt to
remove the back cover as the TV set has dangerous voltages in side that may cause a fatally or fire.
3. The cabinet may produce the occasional "snapping sound" This is normal and caused by the
materials in the cabinet expanding with room temperature changes.
Normal or Weak Volume
Normal volume
Colour Purity fault which can be caused by moving the
TV set, placing magnets near the TV screen or turning
on/off house hold appliances such as vacuum cleaners
near the TV set. Turn the TV off with the mains power
switch for 15 minutes. When the power is turn on again
the TV set will automatically degauss the picture. In
server cases leave the TV set turned off over night.
Specifications
Colour system
Sound system
Picture tube
Sound output power
Power requirements
Power consumption
Dimension
Accessories
PAL
BG
21"colour picture tube(the viewable dimension is 51cm)
2W not distortional
~ 220-230V 50/60Hz
70W
576 Width x395 Depth x458 Height mm
Remote control X1
Owner's manual X1
Battery(AA) X2
The design and specifications may be changed without notice.
01
0090505957A
Loading...
