HLH15BB/15HL25S/HLE20BB/20AL25S/HLH19BB/HLH19W
LCD TV
USER MANUAL
Please read this manual carefully
before using this TV set and keep it
for future reference.
Warning
WARNING
RISK ELECTRIC SHOOK
DO NOT OPEN
WARNING : To reduce the risk of electric shock do not remove cover or back.
No user-serviceable parts inside refer service to qualified service personnel.
Safety of operators has been taken into consideration at the design and manufacture
phase, but inappropriate operation may cause electric shock or fire. To prevent the product
from being damaged, the following rules should be observed for the installation, use and
maintenance of the product. Read the following safety instruction before starting the operation.
The User Manual uses the following symbols to ensure a safe operation and prevent
any damage to operators or properties:
THIS SYMBOL INDICATES THAT HIGH VOLTAGE IS PRESENT
INSIDE. IT IS DANGEROUS TO MAKE ANY KIND OF CONTACT
WITH ANY INSIDE PART OF THIS PRODUCT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT
OPERATING AND MAINTENANCE INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE APPLIANCE.
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rule. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, use and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However ,there is no
guarantee that interference with not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encourage to try to correct the interference by one or
more of the following measures:
*Reorient or relocate the receiving antenna.
*Increase the separation between the equipment and receiver.
*Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
*Consult the dealer or an experienced radio/TV technician for help.
This device compiles with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may be not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
FCC CAUTION:
To assure continued compliance and possible undesirable interference, the provided ferrite
cores must be used when connecting this plasma display to video equipment; and maintain
at least 40cm spacing to other peripheral device.
CANADIAN NOTICE:
This Class B digital apparatus compiles with Canadian ICES-003.
Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
Read all of the instructions before using this appliance. When using this
appliance, always exercise basic safety precautions, including the following:
1)Save these Instructions ---the safety and operating instructions should be
retained for future reference.
2)All warning on the appliance and in the operating instructions should be followed.
3)Cleaning --- Unplug from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use only dry cloth for cleaning.
4)Attachments ---do not use attachments not recommended by the manufacturer
as they may cause hazards.
5)Water and moisture -- do not place this product near water, for example, near a
bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near a
swimming pool.
6)Accessories ---do not place this unit on an unstable cart, stand, tripod, bracket,
or table. Use only with a cart, stand, tripod, bracket, or table recommend by the
manufacture, or sold with the unit.
7)Ventilation ---Slots and openings in the cabinets and the back or bottom are
provided for ventilation. These openings must not be blocked. In a built in
installation such a bookcase or rack do not install product unless proper ventilation
is provided.
8)Power Source ---this LCD TV should be operated only from the type of
power source indicated on the rating label. If you are not sure of the type of power
supply to your home, consult your appliance dealer or local power company.
9)Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet. To prevent electric shock, ensure
the grounding pin on the AC cord power plug is securely connected.
10)Power cord protection ---Power supply cords should be routed so that they are
not likely to be walked on or pinched by items placed upon or against them. Pay
particular attention to cords or plugs, convenience receptacle, and the point where
they exit from the appliance.
11)Lighting precaution ---for added protection for this product during a lighting
storm or when it is left unattended for long period of time, unplug it from the wall
outlet and disconnect the antenna or cable system. This will prevent damage to the
product due to lighting and power line surges.
12)Never push objects of any kind into this product through openings as they may
touch dangerous voltage point or short out parts that could result in a fire or electric
shock. Avoid spilling liquid of any kind on the product.
13)Servicing ---do not attempt to service the product by yourself, as opening or
removing covers may expose you to dangerous voltage or other hazards. Refer all
servicing to authorized service personnel.
14)Unplug this unit from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a. When the power supply cord or plug is damaged or frayed.
Safety Instructions
b.If liquid has been spilled, or objects have been fallen into the unit.
c.If the unit has been exposed to rain or water.
d.If the unit does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions, as
improper adjustment of other controls may result in damage and will often
require extensive work by a qualified technician to restore the unit to its normal
operation.
e.If the unit has been dropped or damaged in any way.
f.When the unit exhibits a distinct change in performance; this indicates a need
for service.
15)Heat --- The product should be situated away heat source such as radiators, heat
registers, stoves, or other products (Including amplifiers) that product heat.
16)Overloading ---Do not overload wall outlets and extension cord as this can result
in a risk of fire or electric shock.
SAVE THESE INSTRUCTIONS
Thank you for using our Haier product. This easy-to-use manual will guide you in
getting the best use of your product. Remember to record the model and serial
number. They are on label in back of the unit.
Model number
serial number
Date of purchase
Staple your receipt to your manual. You will need it to obtain warranty service.
To users:
Thank you for our LCD-TV. purchasing
Before connecting the LCD-TV and turning on the power, please
read this book carefully. Please keep this book for later use.
If the unit is disabled by an electrostatic discharge, please turn
the power to the unit and turn it back on to reset.
CONTENT
off
Front Panel Controls..................................................................................
Connection Options...................................................................................
Remote Control Key Functions...................................................................
Remote Control ..................................................................................
Installing Batteries..................................................................................
Connection Instructions.............................................................................
Grounding..............................................................................................
External equipment Connections..............................................................
Antenna Connection.............................................................................

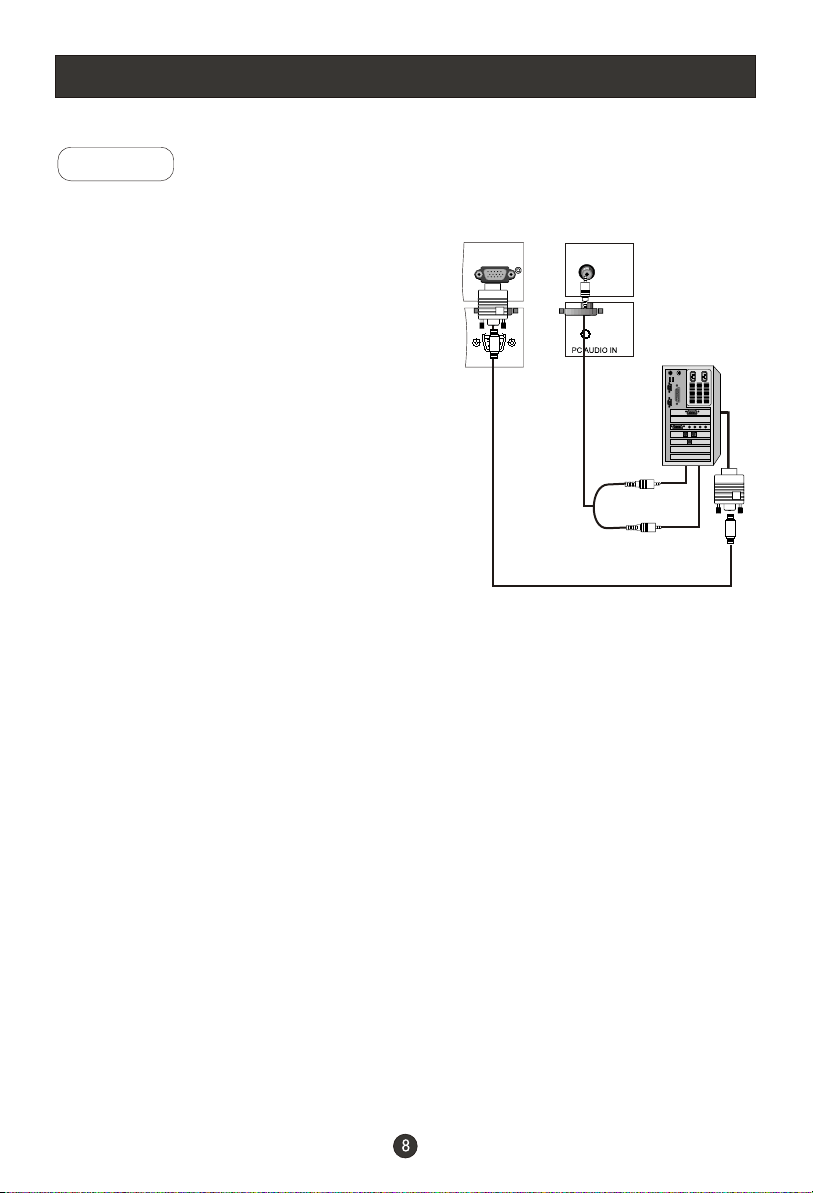

PC Setup.............................................................................................

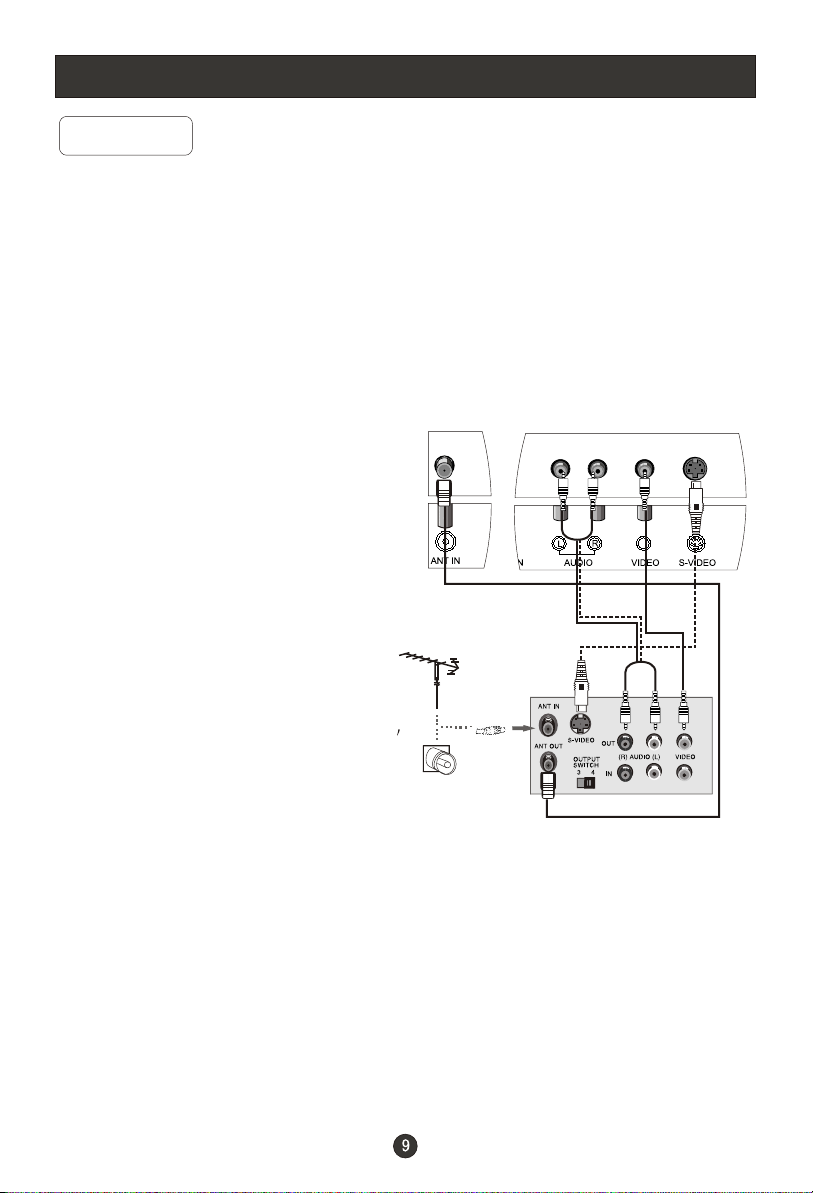

VCR Setup...........................................................................................
Cable TV Setup....................................................................................
External AV Source Setup......................................................................
Basic Operating Instructions.......................................................................
Turn on the LCD-TV.................................................................................
Audio Control..........................................................................................
Mute......................................................................................................
Select the TV Channel You Want...............................................................
Picture Mode...........................................................................................
Program Scan.........................................................................................
Sleep......................................................................................................
Menu Operations.......................................................................................
Picture Menu Options...............................................................................
Picture Menu Options Continued...............................................................
Sound Menu Options................................................................................
Sound Menu Options Continued................................................................

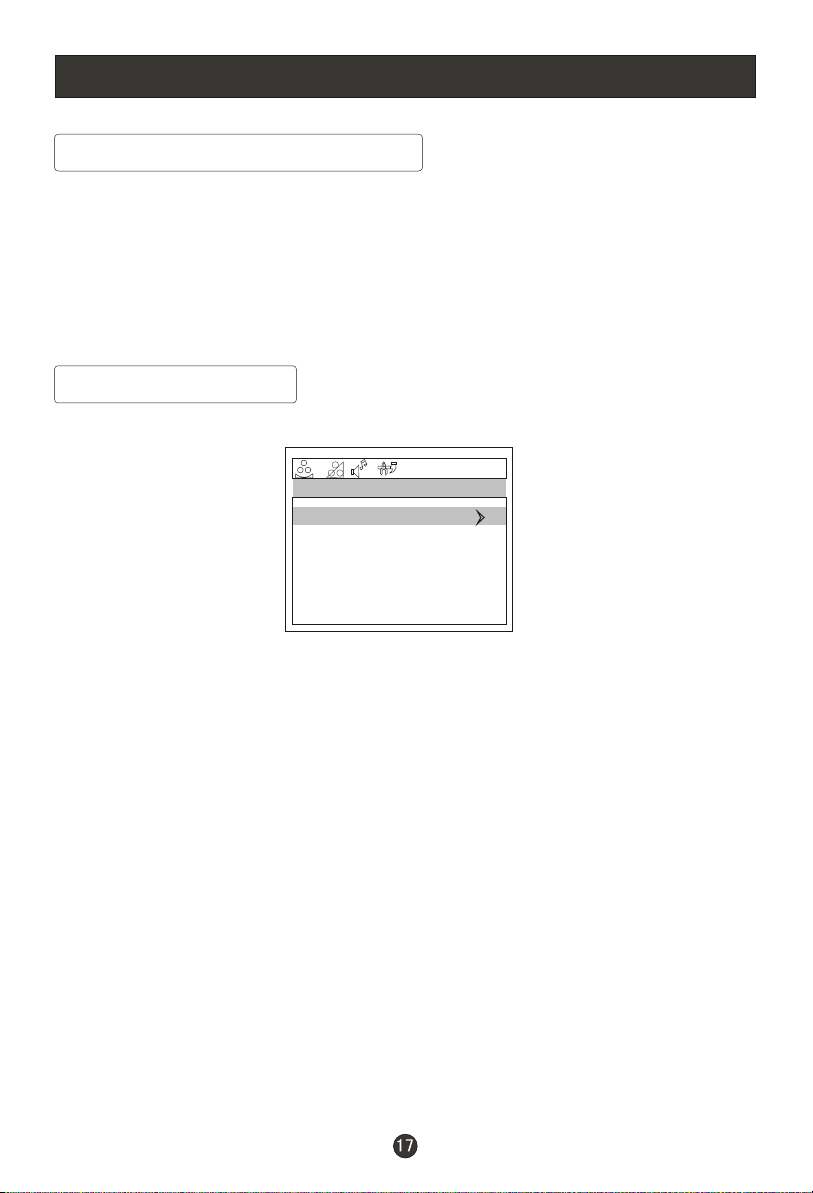

Function Menu Options.............................................................................
Function Menu Options Continued.............................................................
Adjust Menu Options................................................................................
Tuning Menu Options..............................................................................
Tuning Menu Options Continued..............................................................
Parental Menu Options.............................................................................
Parental Menu Options Continued.............................................................
Troubleshooting Guide...............................................................................
Specifications...........................................................................................
Warranty ..................................................................................................
2
3-4
5
6
6
7
7
7
7
8
9
10
10
11
11
11
11
12
12
12
12
13
13
14
14
15
16
17
17
18
19
19
20-22
23
24
25
Front Panel Controls
HLE20BB
67
567
15HL25S/20AL25S
2 3 14
2 3 14
1 2 3 4 5
TV/AV MENU VOL- VOL+ CH- CH+ POWER
HLH19BB
7
6
7
6
5
HLH19W
7
6
HLH15BB
Control Panel Function
1.TV/AV PC/COMPONENT/AV/SV/TV
2. MENU Press to select the main menu
3. VOL-(V-) Volume down / Left orientation to adjust the item in the OSD
VOL+ (V+) Volume up / Right orientation to adjust the item/Press to enter
4. CH- TV channel down / to select the item in the menu
CH+ TV channel up / to select the item in the menu
5. Power supply switch
6. Power indicator
Illuminates red in standby mode, illuminates green when the display is
turned on
7.Remote Sensor
Selects the input signals:
Receives the signals from the remote control
Connection Options
HLH15BB/15HL25S/HLE20BB/20AL25S
(The figure is just for reference, please see actual unit. )
AV /S-VIDEO/COMPONENT Audio Input
DC Power Cord Socket
This TV operates on DC
power. The voltage is
indicated on the specifications
page. Never attempt to
operate the TV on ac power
Connect audio
output from an external
device to these jacks
Antenna Input
Connect cable or
antenna signals to
the TV, either directly or through your
cable box.
Pb
Pr Y
DC IN
COMPONENT IN
DVD/DTV Input
Connect a component
device to these jacks
D-SUB Input
Connect to the VGA
15PIN analog output
connector of the PC
display card for PC
display purpose
D-SUB IN
PC AUDIO IN
PC Audio Input
Connect the PC output
connector from a PC to
the audio input port
R
L
AUDIO IN
V
VIDEO
S-VIDEO
Earphone port
S-Video Input
Connect S-Video out
from an S-Video device
to the jacks.
Video Input
Connect video
output from an external
device to this jack
ANT IN
Connection Options
HLH19BB/HLH19W
ANT IN
PC AUDIO IN
R
AUDIO IN
L
VIDEO IN
V
S-VIDEO
Pr Y
COMPONENT IN
Pb
VGA IN
The figure is just for reference, please see the real.
And the AC power supply switch is on the back of the set)
Antenna Input
Connect cable or
antenna signals to
the TV, either directly or through your
cable box.
PC Audio Input
Connect the audio
output from the pc
to the audio input port
Video Input
Connect video output
from an external
device to this jack
VGA Input
Connect to the VGA
15PIN analog output
connector of a PC
display card to use set
as a PC display
ANT IN
PC AUDIO IN
AUDIO IN
VIDEO IN
S-VIDEO
COMPONENT IN
VGA IN
Earphone port
AV/S-VIDEO/
R
L
V
COMPONENT Audio
Input
Connect audio output
from an external device
to these jacks
S-Video Input
Connect S-Video out
from an S-Video device
Pr Y
Pb
to the jacks.
DVD/DTV Input
Connect a component
video/audiodevice to
these jacks
Remote Control Key Functions
When using the remote control, aim it towards the remote sensor on the TV
1 2
3 4
5
7 8
9 10
12
13 14
15
MUTE
RECALL DISPLAY EXIT
1 2 3
4 5 6
7 8 9
MTS/SAP P.STD
0
MENU TV/AV
CH+
VOL
-
CCD SLEEP SCAN
CH-
VOL
+
Illustration of the keys on the remote control:
1. MUTE
2.
3. RECALL
4. EXIT
MUTE
Power supply switch
Quick TV channel switch(return to the last channel)
Menu exit
6
11
5. DISPLAY
6. 0-9
7. MTS/SAP
8. P.STD
9. MENU
10. TV/AV
11. CH+/CH-
12. VOL+
Display current input signal information
TV channel number select
Select MONO,STEREO, SAP in NTSC system
Select picture mode: PERSONAL/STANDARD/MILD/FRESH
To display/exit the main menu
Select PC/COMPONENT/AV/SV/TV
TV channel up/down or select the item of the menu
Volume up / to select the main menu/ to adjust the item/ to
enter the submenu.
VOL-
13. CCD
14. SCAN
15. SLEEP
Volume down / to select the main menu/ to adjust the item
Closed caption on/off
Channel scan
TV sleep button
Remote Control
Installing Batteries
1.Slide open the cover of the battery compartment on the back of the remote
control.
2.Load two batteries in the compartment. (plus and minus poles to
respective mark)
3.Replace the cover of the battery compartment.
AAA alkaline
-
+
Precautions
Make sure that there is no
obstacle between the remote
controller and television set.
Keep the remote control
away from heat sources or
humid areas to ensure
effective performance of
the remote.
As strong light may interfere with the
signals, change your position to
operate the remote control if
the television cannot be turned
on or off as expected.
Make sure that two AAA alkaline
batteries are loaded. The batteries
must be of the same type, must be
inserted properly, and must not be
rechargeable.
Connection Instructions
The connection instructions shown here are for model HLH15BB for reference only.
May differ with the other models mentioned.
Grounding
Ensure that you connect the grounding / earth wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.
External Equipment Connections
Antenna Connection
- Antenna or Cable Service with a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
wall antenna
socket
RF coaxial wire (75 ohm)
Bronze Wire
VHF antenna
UHF antenna
outdoor
antenna
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Turn clockwise to tighten.
To improve picture quality in a poor
signal area, purchase and install a
signal amplifier.
If the antenna needs to be split for two
TV s, install a 2-Way Signal Splitter
in the connections.
If the antenna is not installed properly,
contact your dealer for assistance.
NOTE: Cables shown are not included with the TV
Bronze Wire
Be careful not to bend the bronze
wire when connecting the antenna.
Connection Instructions
PC Setup
You can use your LCD-TV as a monitor for your personal computer using a VGA
cable (not supplied).
Connection and use steps:
1.Read the user guide supplied with
your computer and ensure that it has
a VGA connector;
2.Make sure that the power of the LCD
-TV and the PC are off;
3.Connect a D type 15-pin VGA interface
cable ( not supplied ) to the VGA video
interface connector on the PC. Then
connect the other end to the VGA video
interface connector on the back of the
LCD-TV.Tighten the screws on the VGA
connectors once they are firmly
connected;
4.Turn on the power of the LCD-TV first ,
and then turn on the power of the PC;
5.Press the TV/AV button to set the video
input mode of the LCD-TV to PC-RGB;
6.Check the image on your TV. There may be noise associated with the resolution,
vertical pattern, contrast or brightness in PC mode. If noise is present, change
the PC mode to another resolution, change the refresh rate to another rate or
adjust the brightness and contrast on the menu until the picture is clear. If the
refresh rate of the PC graphic card can not be changed,change the PC graphic
card or consult the manufacturer of the PC graphic card.
D-SUB IN
Connection Instructions
VCR Setup
- To avoid picture noise (interference), leave an adequate distance between the
VCR and TV
Connection and use steps:
1.Read the user guide supplied with your AV devices and ensure that it has
Composite or S-Video connectors;
2.Make sure that the power of the LCD-TV and the AV device are off;
Connection Option 1
Set VCR output switch to 3 or 4 and then
tune TV to the same channel number.
Connection Option 2
1. Connect the audio and video cables from
the VCR's output jacks to the TV input jacks,
as shown in the figure.
When connecting the TV to VCR, match
the jack colors (Video = yellow, Audio
Left = white,and Audio Right = red).
If you connect an S-VIDEO output from
VCR to the S-VIDEO input, the picture
quality is improved; compared to conne-
.
cting a regular VCR to the Video input.
2. Insert a video tape into the VCR and press
PLAY on the VCR. (Refer to the VCR owner s
manual.)
3
.Turn on the power of the LCD-TV first ;
and then turn on the power of the AV
device;
4.Press the TV/AV button to set the video
input mode of the LCD-TV to S-VIDEO
mode or AV mode.
V
IN
2
1
VCR
Connection Instructions
Cable TV Setup
- After subscribing to a cable TV service from a local provider you can watch cable
TV programming. The TV cannot display TV programming unless a TV tuner
device or cable TV converter box is connected to the TV.
- For further information regarding cable TV service, contact your local cable TV
service provider(s).
Connection Option 1
1. Select 3 or 4 with channel switch on cable
box.
2. Tune the TV channel to the same selected
output channel on cable box.
3. Select channels at the cable box or with
the cable box remote control.
Connection Option 2
1. Connect the audio and video cables from
the Cable Box's output jacks to the TV
input jacks, as shown in the figure.When
connecting the TV to a Cable Box, match
the jack colors
(Video = yellow, Audio Left = white, and
Audio Right = red).
2. Select the input source by using the TV/AV
button on the remote control.
3. Select your desired channel with the
remote control for cable box.
V
IN
External AV Source Setup
How to connect
Connect the audio and video cables from
the external equipment's output jacks to the
TV input jacks, as shown in the figure.
When connecting the TV to external equipment, match the jack colors (Video = yellow,
Audio Left = white, and Audio Right = red).
How to use
1. Select the input source by using the TV/AV
button on the remote control.
2. Operate the corresponding external equi pment. Refer to external equipment ope rating guide.
V
IN
Basic Operating Instructions
Turn on the LCD-TV
MUTE
RECALL DISPLAY EXIT
1 2 3
4 5 6
7 8 9
MTS/SAP P.STD
0
MENU TV/AV
CH+
VOL
CH-
CCD SLEEP SCAN
VOL
+
When the POWER button is pressed and the LCD-TV
is turned on, the indicator light on the front of the LCD-TV
changes from red to green. When the LCD-TV is turned off
using the power button, the LCD-TV will go into standby
mode and the indicator light turns red.
Note:
The display of the input mode
will disappear in 3 seconds.
TV
PC
COMPONENT
AV
SV
Switch Among Different Inputs: TV / PC / COMPONENT / AV / SV
Each time you press the TV/AV button, TV, PC, COMPONENT, AV, SV,
will appear on the screen in order.
Audio Control
1.Press the VOL+ button to increase the volume. A number will appear
on screen indicating the volume level.
2.Press the VOL- button to decrease the volume. A number will appear
on screen indicating the volume level.
30
Mute
1.Press the MUTE button to mute the sound temporarily. A mute icon
appears on the screen.
2.Press the MUTE button or VOL+/VOL- again to restore the sound.
The mute icon disappears.
Basic Operating Instructions
Select the TV Channel You Want
You can use the number keys on the remote control to directly select TV
channels.
The LCD-TV can store up to channels , and you can press the keys on the
remote control or on the panel to make a selection.
Picture Mode
Press P.STD button on the remote control for menu display . For desired mode as
follows:
PERSONAL STANDARD MILD FRESH
Program Scan
Press SCAN button to scan through all the memorized TV channels. The scan
will pause for about 2 seconds on each channel .
If you want to stop the function during auto scanning, simply press the SCAN
button again .
181
Sleep
Press SLEEP button to set the time : SLEEP 240-SLEEP 180-SLEEP 120
-SLEEP 90-SLEEP 60-SLEEP 45-SLEEP 30-SLEEP 15-SLEEP OFF
This feature allows you to turn off the television after a pre-selected
minutesnumber of
Menu Operations
* In this manual, the OSD (On Screen Display) may be different from your TV s
because it is just an example to
Press TV/AV to select the input source, and the menu is
illustrate the TV operation.
for each source
different .
1. Press MENU button to display the main menu, and VOL+/VOL-to select the
main menu .
2. Press CH+/CH- to scroll through the parameters
3. Press VOL+/VOL- buttons to make changes to the parameters
4. Press the EXIT button to exit the menu
Picture Menu Options
Picture quality can be adjusted for any input separately .
The picture quality on the screen can be adjusted as follows:
1. Press MENU button and VOL+/VOL- until the following menu appears
on the screen.
PC/COMPONENT MENU
BRIGHTNESS
CONTRAST
SHARPNESS
COLOR TEMP
COLOR
30
30
2
COOL
0
30
No available in component
No available in PC
TV/AV/SV MENU
BRIGHTNESS
CONTRAST
SHARPNESS
COLOR
HUE
Note: Symbols on top of the menu in this manual may be different from the actual set
50
50
2
50
50
Only available in NTSC system
Menu Operations
Picture Menu Options continued
2. Press CH+/CH- button to enter the picture menu and to go up and down to
select the desired option .
3.Press VOL+/VOL- button to increase and decrease the level to adjust the
selected option to your preference .
4. Repeat step 2 and step 3 until desired picture quality has been achieved .
Function:
BRIGHTNESS :Adjust the brightness of the picture . By increasing the level, it
will add more light to dark parts of the picture and by decreasing the level ,it will
add more dark to light parts of the picture.
CONTRAST : Adjust the contrast of the picture . The higher as
contrast becomes
the number increase.
SHARPNESS : Adjust the amount of the detail enhancement , the image
sharpness rises as the number increases (By increasing the level, it will show
cleaner and clearer images and by decreasing the level, it will make picture
smoother).
COLOR : Press VOL+/VOL- to adjust the color
HUE : Adjust the tone of the picture . Appear and be adjusted only under NTSC
mode
COLOR TEMP : Press to select the color temperature from
WARM/NEUTRAL/
COOL .
Sound Menu Options
Sound can be adjusted for any input as follows:
1. Press MENU and VOL+/VOL- button until the following menu appears on
the screen
SOUND
VOLUME
BALANCE
BASS
TREBLE
AUDIO MODE
AVL
50
0
30
70
VOICE
OFF
Menu Operations
Sound Menu Options continued
You can adjust sound options to the levels you prefer.
2. Press CH+/CH- button to enter the audio menu and to go up and down to
select the desired option .
3.Press VOL+/VOL- button to increase and decrease the level to adjust the
selected option to your preference .
4. Repeat step 2 and step 3 until desired sound quality has been achieved ..
Function :
VOLUME : Adjust the volume of your TV
BALANCE : Adjust the balance of the audio output from left to right . When
indication value of balance increases toward +50 , sound of the left speaker
becomes weaker . When indication value of balance decreases toward -50 ,
sound of the right speaker become weaker .
BASS : Adjust the bass of the sound . Can only be adjust under PERSONAL mode .
TREBLE : Adjust the treble of the sound . Can only be adjust under PERSONAL
mode .
AUDIO MODE : Press VOL+/VOL- to select among PERSONAL, VOICE, MUSIC
and THEATRE .
Automatic Volume Limit Control reduces the effect of high volumes by
AVL:
the limiting the same volume to all channels .
Menu Operations
Function Menu Options
Menu Language Selection:
The menus can be shown on the screen in the selected language. First select
your language.
1. Press MENU button and VOL+/VOL- until the following menu appears
on the screen.
FUNCTION
INPUT SOURCE TV
LANGUAGE ENGLISH
CC MODE OFF
BLUE SCREEN ON
RESET
2. Press CH+/CH- button to enter the function menu and to go up and down to
select the desired option .
3.Press VOL+/VOL- button to increase and decrease the level to adjust the
selected option to your preference .
Repeat step 2 and step 3 until desired settings have been achieved .
4.
Functions:
1. INPUT SOURCE : Display current mode . There are PC, COMPONENT ,
AV , SV ,TV to display .
2. LANGUAGE : Press VOL+/VOL- to select the OSD language.
3. CC MODE :Press VOL+/VOL-buttons to select the Closed Caption options.
Closed Captioning helps the hearing impaired with the broadcast program,
as well as helping children learn how to read. A built in decoder displays the
audio portion of a program as text on the screen when this option is selected.
OFF: When OFF is displayed on CC MODE is turned off.
CC1: When CC1 on TV means CC MODE is turned on.
is displayed
TV, it means
CC2 to CC4: For other modes of video related broadcast information.
TT1: For program guide and other information displayed by broadcasters.
(This blocks a large portion of the picture on your screen).
TT2 to TT4 :For other modes of information displayed by broadcasters.
(This blocks a large portion of the picture on your screen).
IMPORTANT: Closed captioning availability entirely depends on broadcasters
supplying the signal. Therefore, closed captioning might not always be
available and language availability will differ by broadcast.
Menu Operations
Function Menu Options Continued
Note: Select CC1 for full translation of the primary language such as English in
your area. Select CC2 for secondary language translation such as French or
any other language that may be broadcast in your area.
4.BLUE SCREEN: Press VOL+/VOL- to select ON or OFF.
To set On, the screen
will be in blue screen after 3 seconds if there is no signal.
5. RESET : Press VOL+ to reset some settings to the factory default .
Adjust Menu Options
1. Press MENU and VOL+/VOL- button until the following menu appears on the
screen
ADJUST
AUTO CONFIG
PHASE
CLOCK
H POSITION
V POSITION
Note: This menu is only appears in PC mode .
2. Press CH+/CH- button to enter the adjust menu and to go up and down to
select the desired option .
3.Press VOL+/VOL- button to increase and decrease the level to adjust the
selected option to your preference .
4. Repeat step 2 and step 3 until desired quality has been achieved ..
0
50
50
50
Functions:
AUTO CONFIG : Is opted for adjustment of picture location frequency and phase
parameters .
PHASE : Removes any horizontal distortion and clears or sharpness the displayed
characters .
CLOCK : Adjust the TFT-LCD to match the PC input source
H-POSITION : Picture horizontal position adjust
V-POSITION : Picture vertical position adjust .
Menu Operations
Tuning Menu Options
1. Press MENU and VOL+/VOL- button until the following menu appears on the
screen
CHANNEL 1
SKIP OFF
AFC ON
FINE TUNE
ANTENNA CATV
AUTO PROGRAM
TUNING
Note: This menu is only appears in TV mode .
2. Press CH+/CH- button to enter the turning menu and to go up and down to
select the desired option .
3.Press VOL+/VOL- button to increase and decrease the level to adjust the
selected option to your preference .
4.Repeat step 2 and step 3 until desired settings have been achieved .
Functions:
1. CHANNEL : Press VOL+/VOL-to go up and down to set the channel position.
The display will show the current playing channel.
Channel Coverage by Antenna:
Antenna Type Channel Range
VHF 2-13
UHF 14-69
CATV 1-125
2.
SKIP : If you want skip a channel , press VOL+/VOL- to select ON , and this
channel will be skipped next time when you press CH+/CH- . You can press
the digit buttons to select the channel . If you want to restore the channel , select
OFF.
3. AFC :
Auto frequency control. Select ON to improve the image quality .
Menu Operations
Tuning Menu Options Continued
4. FINE TUNE :
If the image and / or sound received is not very good , you can
press CH+/CH- to select FINE TUNE in the menu . Then , press VOL+/VOL-
button to adjust and improve the image quality. Do not use this feature unless
reception is poor.
5. ANTENNA : Press VOL+/VOL- button to select AIR (VHF and UHF) and CATV
reception preference.
6. AUTO PROGRAM :
Auto search and save the channel .Press the VOL+ button
to start automatic search function operation. All channels now available
will be automatically preset in order .After the search has finished,
the first program number will display on the screen. This search automatically
adds only the active channels in your area to the TV's memory. It deletes any
channels on which there is no broadcast or a poor signal.
Note: The AUTO PROGRAM function will scan the channels on the selected
antenna input. If the TV is connected to cable, please select CATV under
' ANTENNA ' sub menu.
Parental Menu Options
1. Press the MENU and VOL+/VOL- button until the following menu appears
on the screen .
2. Press CH+/CH- button to select PASSWORD .
PARENTAL
PASSWORD
----
3. Then input the password 0000. It will bring parental menu display on the
screen. You will see the ollowing menu on your screen:
PARENTAL
CHILD LOCK OFF
MPAA PG
PG RATING TV-14
PG CONTENTS --DV-CAN. ENGLISH C8+
CAN. FRENCH 8+
CHANGE PASSWORD
Menu Operations
Parental Menu Options Continued
This function enables you to block certain TV channels in accordance to the
requirements established by the FCC.
2. Press CH+/CH- button to enter the PARENTAL menu and to go up and down to
select the desired option .
3.Press VOL+/VOL- button to go into PG RATING and MPAA
Press VOL+/VOL- button to set the CHILD LOCK ON and PARENTAL LOCK OFF.
4. Repeat step 2 and step 3 until desired quality has been achieved .
CHILD LOCK:Child Lock off means the lock function is turned off . If the
Child Lock is in "off" mode then function will not be active to accept the
broadcast signal.Child Lock on means the lock function is turned on. If the
lock is in the "on" mode then function is activated to accept the broadcast signal.
MPAA: When MPAA rating is selected, you could select OFF/G/PG/PG-13
R/NC17/X .
PG RATING:Select the TV Rating option. You could select from OFF/TV-Y/TV-Y7/
TV-G/TV-PG/TV-14/TV-MA.
PG CONTENTS: Press to set the grade of the program . When there is this
grade of program , this program will not be display .
CAN. ENGLISH: Select this option. You could select from OFF/E/C/C8+/G/PG/
14+/18+ .
CAN. FRENCH: Select this option. You could select from OFF/E/G/8+/13+/16+/
18+ .
CHANGE PASSWORD: The "Default Password" preset by the manufacturer is
"0000" . If you want to change the preset password to your own password, just
choose any four digits that can be easily remembered and set. Once you set
password for a particular channel, that channel will be blocked.
Menu Operations
Parental Menu Options Continued
PARENTAL LOCK TECHNOLOGY:
The "P.L. Technology" allows you to use U.S. and Canadian Movies and TV
PROGRAMS Guide ratings to block certain types of TV programs and movies.
To clearly understand TV program rating codes, read the following
U.S. TV Program Ratings
NR: Not Rated-this means that programs are not rated or rating does not apply.
TV-Y: For all children - of rated programs are designed for a very young
audience, including children from ages 2-6.
TV-Y7: Directed older children - this type of rated programs may include
comedic violence of mild physical, or may frighten children under the age of 7.
TV-G: General audience - of rated programs contains little or no
violence, no strong language, and little or no sexual dialogue and situations.
TV-PG:Parental Guidance Suggested-this type of rated programs may contain
limited violence, some suggestive sexual dialogue and situations, and rare
language.
TV-14: Parents strongly cautioned-these types of rated programs may contain sexual
content, strong language and more intense violence.
TV-MA:Mature audience only of rated programs may contain sexual
violence, explicit sexual content and profane language.
FV: This type of rated programs contain Fantasy and cartoon violence.
Violence: This type of rated programs contain violence.
S: This type of rated programs contain sex.
L: This type of rated programs contain offensive language.
D: This type of rated programs contain dialogue with sexual content.
towards
these types
these types
these types
information:
Menu Operations
Parental Menu Options Continued
To understand clearly about movie rating codes, read the following list:
U.S. Movie Rating Chart
NR: This means movie is not rated yet. It is pending government rating approval.
G: General Audience-this type of movie rating means all ages admitted to see
the movie.
PG-13:Parents Strongly Cautioned - this type of movie rating means some material
may not be appropriate for children under13.
R: Restricted- This type of movie rating means children under 17 of age require
to be with parent or guardian.
NC-17:This type of movie rating means no one 17 and under admitted.
X: This type of movie rating means adults only.
To clearly understand Canadian program rating codes, read the
following list:
Canadian English Rating Chart
These types of programs are exempt from the rating system. Exempt
E:
programming includes:
videos, and variety of other programs.
This type of programming is intended
C: for children under age 8. There is no
offensive language, nudity or sexual content.
hese types
C8+:T of rated programs are generally considered acceptable for children
8 years and over. There is no profanity, nudity or sexual content.
hese types
G: T of rated programs are generally suitable for all audiences.
PG: Parental Guidance Suggested -in of rated programs, some material
may not be suitable for children.
14+: In of rated programs, some content may not be suitable for viewers
under the age of 14.Parents are strongly cautioned not to have their children
view 14+ rated programs by pre-teens and early teens.
18+: Adults Only-these types of rated programs are only for adult viewers only.
these types
news, sports, documentaries, talk shows, music
these types
Troubleshooting Guide
To assist in location possible faults use help guide below.
Troubleshooting
No picture, no sound
Blank screen
No sound
Poor sound
No picture in some
channel
No color for some channel
program (black and white)
Spots with some or
all pictures
Abnormal functioning
Verify if the television is properly plugged in.
Verify if the television is properly supplied with power.
Verify that electricity is available.
Verify if correct signals are input.
Press TV/AV button to change signal input to TV input.
Restart the television of power supply is interrupted.
Press MUTE button and verify if Mute mode is on.
Switch to another channel and verify if the same problem
happens.
Press VOL+ button to see if the problem can be solved.
Verify if sound system is functional. Refer to chapter on
adjusting.
Verify if correct channel is selected.
Adjust the antenna.
Make adjustments by FINE TUNE
Verify if the same problem exists in other channels.
Check picture and sound systems.
Refer to relative instructions in the Manual for color
adjust.
Verify if the antenna is correctly connected.
Verify if the antenna is in good condition.
Make fine adjustment of channel.
Disconnect the television from power supply and, 10
seconds later, reconnect to the power supply.
If the problem still exists, contact an authorized
service depot for technical assistance.
Note:
1.If the fault can not be repaired using the above guide consult with your local authorized
service center.
2.The TV set must only be repaired by a qualified registered service person. Never attempt to
remove the back cover as the TV set has dangerous voltages levels inside that may be
fatal or cause fire.
Specifications
Model
Picture, sound
system
Audio output
External input port
AC-DC adapter
Power consumption
Temperature
Accessories
Model
Picture, sound
system
Audio output
External input port
Power requirements
Power consumption
HLH15BB/15HL25S
NTSC-M
HLE20BB/20AL25S
1.5W+1.5W
AV input PC input S-VIDEO input PC audio input
Headphone output YPbPr input Antenna input DC input
Input: 110V 60Hz, Output: ~
48W
Working:5 C~35 C
Storage:-10 C~45 C
Remote control
Batteries
User manual
AC-DC adapter
HLH19BB/HLH19W
NTSC-M
--- 12V
60W
1.5W+1.5W
AV input PC input S-VIDEO input PC audio input
Headphone output YPbPr input Antenna input
120V 60Hz~
60W
Temperature
Accessories
Working:5 C~35 C
Storage:-10 C~45 C
Remote control
Batteries
User manual
NOTE
Design and specifications are subject to change without notice.
Dimensions quoted in this manual are approximate.
Warranty
Warranty
Warranty
and one year parts .
90 days labor
V0.3
0090508051A
Loading...
