FLMTA/FLMFA
GPS/Cellular/Wi-Fi
Antenna
-
3F-11, 130, Jian-Kang Rd., Chung Ho, Taiwan, R.O.C.
T
el: 886-2-32349610 Fax: 886-2-
82211522 E-Mail: sales@haicom.com.tw
www.haicom.com.tw
Haicom Electronics CORP.
Page 2
Page 1 of 11
1. Electrical Specification........................................................................................................... 2
1.1 Electrical Date.............................................................................................................2
2. Mechanical Specification........................................................................................................ 2
2.1 Mechanical Data ......................................................................................................... 2
2.2 Dimensions ................................................................................................................. 3
2.3 Connectors ..................................................................................................................3
2.4 Installation Location ................................................................................................... 4
2.5 RF Cable .....................................................................................................................4
RG-174/U........................................................................................................................4
3. Environmental Specification................................................................................................... 5
4. Ordering Information.............................................................................................................. 5
4.1 Model NO. ..................................................................................................................5
4.2 Housing Type.............................................................................................................. 5
4.3 Connector Type........................................................................................................... 5
4.4 Cable Type..................................................................................................................6
4.5 Cable Length............................................................................................................... 6
4.6 Label Type................................................................................................................... 7
4.7 Package Type.............................................................................................................. 7
5. Appendix................................................................................................................................. 8
5.1 Appendix 1：FLMTA/FLMFA ROSH Report........................................................... 8
5.2 Appendix 2：Gain Pattern and VSWR ......................................................................9
Page 3
Page 2 of 11
1. Electrical Specification
1.1 Electrical Date
GPS Active Antenna:
Patch Antenna
Frequency
1575.42 ± 3 MHz
VSWR 1.5 Max.
Bandwidth 20 MHz Min. at -10 dB
Axial Ratio 3 dB Typical
Impedance
50 Ω
Peak Gain
4 dBic Min. （7 ㎝×7 ㎝ ground plane）
Gain Coverage
≥ -4dBic at –90°≤ θ≤90°(over 75% volume)
Polarization RHCP
Amplifier Module
Amplifier Gain without cable Noise Figure Output VSWR DC Voltage DC Current
27dB Typical 1.8dB Typical 2.0 Max. DC 2.7V to 6.0V 8.5±4.5mA
Cellular Antenna:
Frequency 824~960MHz 1850~1990MHz
Peak Gain 4dBi Typical 3dBi Typical
VSWR
2.0：1
Impedance
50Ω
Pattern Type Omni-direction
Wi-Fi Antenna:
Frequency 2.4~2.4835GHz
Peak Gain 3dBi Typical
VSWR
2.0：1
Impedance
50Ω
Pattern Type Omni-direction
＊Gain Pattern and VSWR see appendix 2
2. Mechanical Specification
2.1 Mechanical Data
Item Specification
Weight (Without Cable) 56 grams max.
Size 143mm x 54.4mm x 16mm
Connector See 2.3
Cable See 2.5
Label See 4.6
Mounting Options Double stick tape
Housing Color Black
Page 4
Page 3 of 11
2.2 Dimensions
Cable Length
GPS Connector
Cellular Connector
C
G
54
46
143
FLMTA
Unit: mm
Material:ABS
Colar:Black
16
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN MILLIMETER
TOLERANCES:
ANGLE
± 1°
1 PLACE DECIMALS ± 0.2
2 PLACE DECIMALS
± 0.15
3 PLACE DECIMALS
± 0.05
7.1
7.1
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN MILLIMETER
TOLERANCES:
ANGLE
± 1°
1 PLACE DECIMALS ± 0.2
2 PLACE DECIMALS
± 0.15
3 PLACE DECIMALS
± 0.05
16
Colar:Black
Material:ABS
Unit: mm
FLMFA
143
46
54
Cellular Connector
GPS Connector
Cable Length
WLAN Connector
W
C
G
2.3 Connectors
SMA Plug(MB) SMA Jack(FB) SMA R/A Plug(MQ) SMB Plug(MC) SMB Jack(FC)
SMC Plug(MH) MCX Plug(ME) MCX Jack(FE) MCX R/A Plug(MP) MMCX Plug(MF)
MMCX Jack(FF) MMCX R/A Plug(MT) TNC Plug(MG) Fakra SMB Plug(KA) MC CARD Plug(MK)
GT5 Jack(FM)
＊Please see 4.3,if you need other connectors.
Page 5
Page 4 of 11
GPS
DOUBLE STICK TAPE
or
VELCRO TAPE

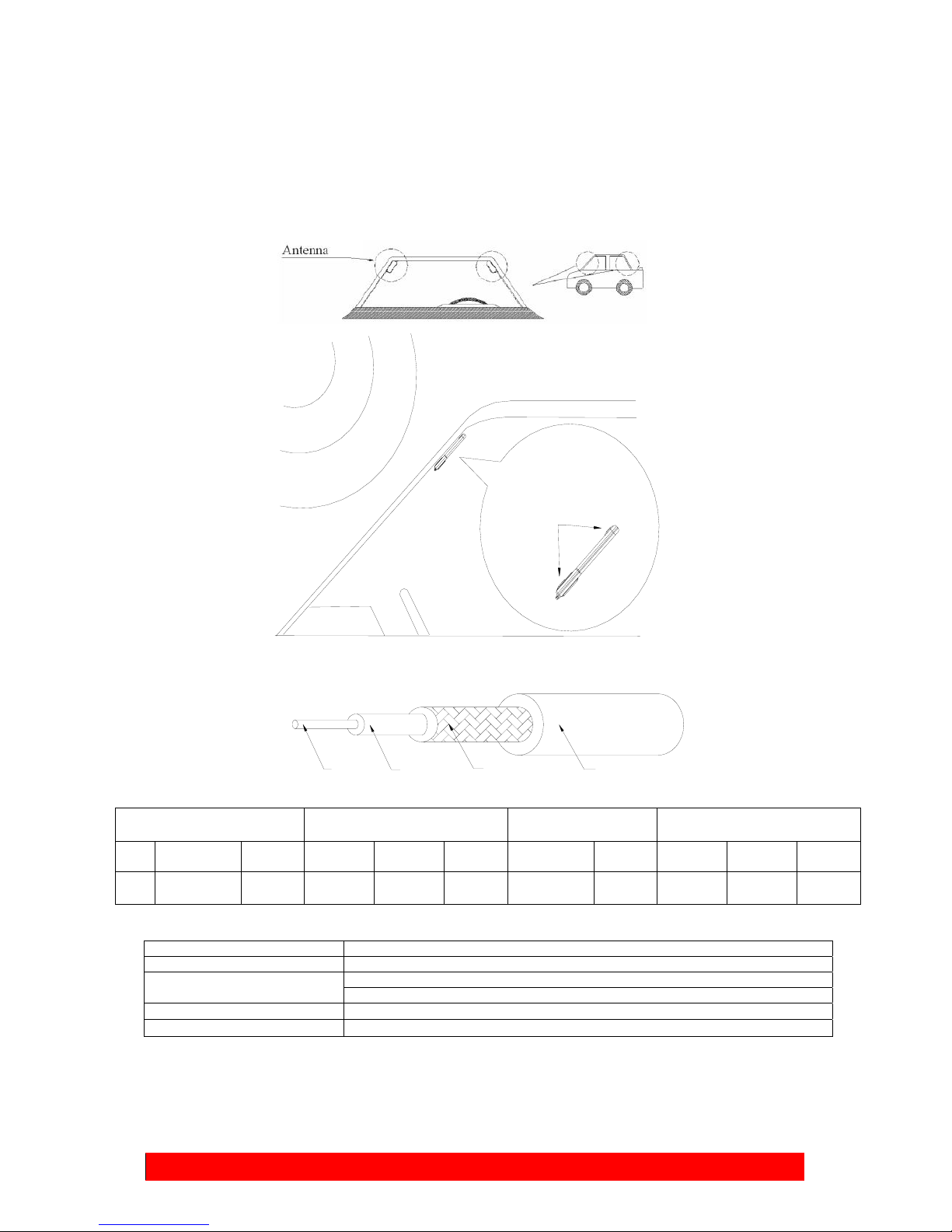

2.4 Installation Location
2.5 RF Cable
SheathBraid ShieldConductor
Insulation
RG-174/U
Structure：
Conductor
Bare Strand Copper Wire
CPE Insulation
XLPE (Cross-Linked Polyethylene)
Braid Shield
Tinned Copper Wire
Sheath
PVC ( Polyvinyl Chlor ide)
AWG Construction Diameter
Min.
Thickness
Nominal
Thickness
Diameter Construction Diameter
Min.
Thickness
Nominal
Thickness
Diameter
26 7 / 0.16A
approx.
0.48 mm
0.40 mm 0.485 mm
1.45 ±
0.10 mm
16/5/0.10
approx.
0.31 mm
0.31mm 0.375mm
2.70 ±
0.10 mm
Characteristics：
Items Specification
Rating 80 30V ℃
AC 500V / min.(Between Conductor and Shield)
Dielectric Strength
Spark Test AC 2000V / 0.15sec.
Insulation Resistance
Min.1000MΩ - Km (20 ) at DC 500V ℃
Characteristic Impedance
50Ω ± 5Ω (1MHz)
＊ If you need other cables, please see 4.4.
Page 6
Page 5 of 11
3. Environmental Specification
Items Specification
W orking Temperature
-40°C< T< +85°C
Storage T emperature
-50°C< T< +85°C
Humidity 95%~100% RH
4. Ordering Information
Item NO.
XXXXX-SXXXXXXXXX
4.1 Model NO.
4.2 Housing Type
4.3 Connector Type
4.7 Package Type
4.6 Label Type
4.5 Cable Length
4.4 Cable Type
4.1 Model NO. Item NO.:xxxxx-sxxxxxxxxx
4.2 Housing Type Item NO.:xxxxx-sxxxxxxxxx
NO. Specification
SB Black
＊ ”S” means ROSH, please see appendix 1
4.3 Connector Type Item NO.:xxxxx-sxxxxxxxxx
Model NO.
GPS
1575.42 ± 3 MHz
Cellular
824~960MHz
1850~1990MHz
Wi-Fi
2.4~2.4835GHz
FLMTA
√ √
FLMFA
√ √ √
NO.
Specification
(GPS Connector + Cellular Connector )
NO.
Specification
(GPS Connector + Cellular Connector )
DA SMA plug + TNC plug DB SMA plug + SMA plug
DC MCX plug + SMA plug DD SMA plug + Mini UHF plug
DE SMB plug + SMA plug
DF FAKRA SMB plug(Blue) + FAKRA SMB
plug(Bordeaux Violet)
FF
FAKRA SMB jack(Blue) + FAKRA SMB
jack(Bordeaux Violet)
DG MMCX plug + MMCX plug
DJ SMA plug + BNC plug DK BNC plug + SMA plug
DL MMCX R/A plug + MMCX R/A plug DM SMB plug + TNC plug
DN MMCX R/A plug + SMA plug DI SMA plug + FME plug
DP SMA R/A plug + SMA plug DQ SMC plug + SMA plug
DR MCX plug + TNC plug DS SMA plug + FME jack
DT SMA plug + SMA R/P plug DU SMA jack + SMA plug
DV MMCX R/A plug + SMA plug
Page 7
Page 6 of 11

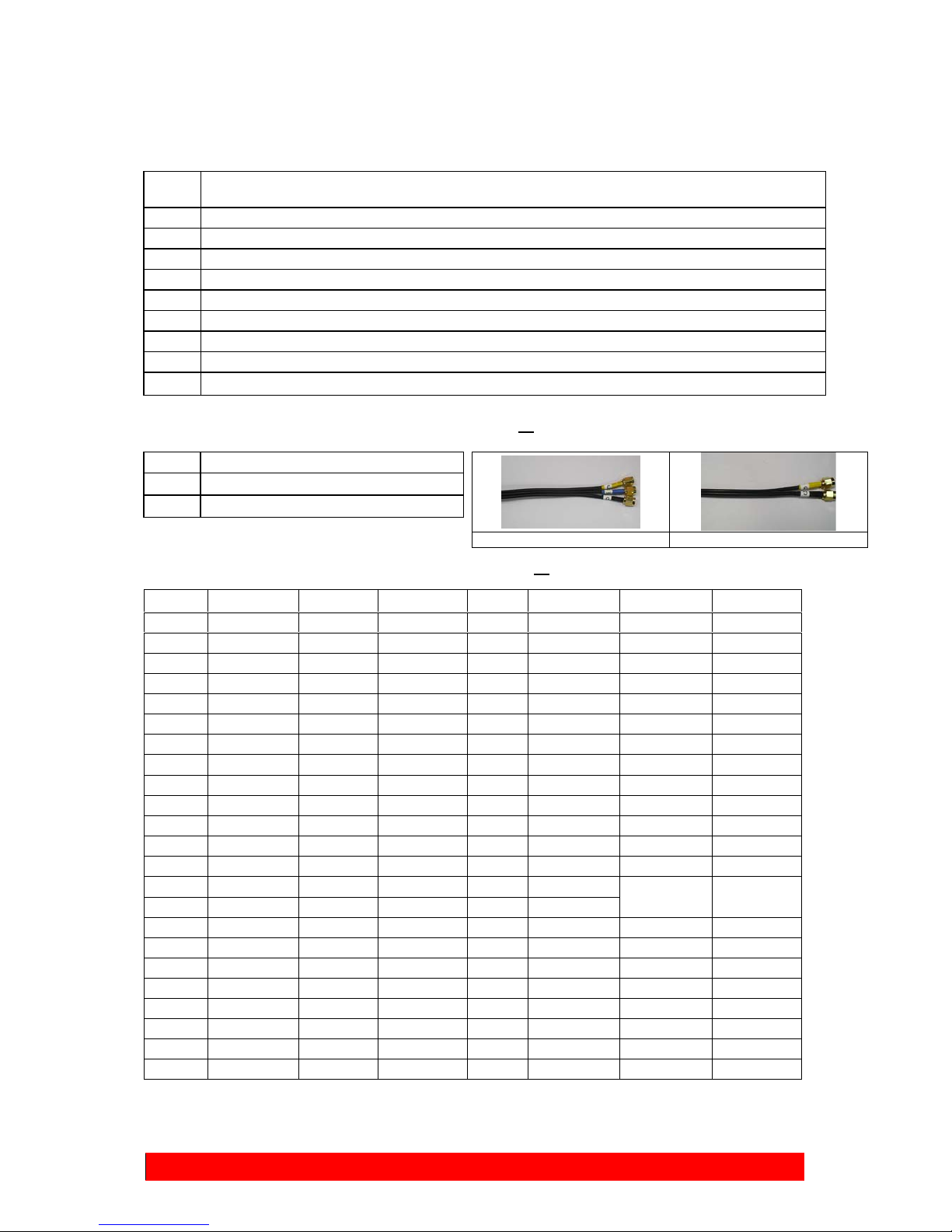

4.4 Cable Type Item NO.:xxxxx-sxxxxxxxxx
4.5 Cable Length Item NO.:xxxxx-sxxxxxxxxx
NO.
Specification
(GPS Connector + Cellular Connector + Wi-Fi Connector )
TA SMA plug + SMA plug + SMA plug
TB FAKRA SMB plug(Blue)+FAKRA SMB plug(Bordeaux)+FAKRA SMB plug(Blue&Gray)
TC FAKRA SMB plug(Blue)+FAKRA SMB plug(Bordeaux)+ FAKRA SMB plug(Black)
TD TNC R/P plug + TNC plug + TNC plug
FA SMA plug + SMA plug + MMCX plug
FD SMA plug + BNC plug + TNC R/P plug
FE SMA R/A plug + SMA R/A plug + SMA R/A plug
FF SMA plug + TNC plug + SMA R/P plug
FG
SMA plug + TNC plug + TNC R/P plug
NO. Specification
SA Dual bonded RG174 cable for FLMTA
SB Three bonded RG174 cable for FLMFA
Three bonded RG174 cable (SB)
Dual bonded RG174 cable (SA)
NO. Length NO. Length NO. Length NO. Length
LX Without Cable MA 1m EA 3" FA 1 feet
CA 2.7cm MB 1.5m EB 4" FB 4 feet
CB 4.0cm MC 2 m EC 5” FC 25 feet
CC 4.84cm ME 2.5m EE 5.5" FD 103 feet
CE 5cm MF 3m EF 6" FE 120 feet
CF 8cm MG 3.5m EG 7" FG 130 feet
CG 10cm MH 4m EH 8" FH 2 feet
CH 11cm
MJ
5m EJ 8.5"
FJ
20 feet
CJ 12cm MK 6m EK 9" FK 3 feet
CK 15cm ML 8m EL 9.5" FL 8 feet
CL 17cm MM 9m EM 10" FM 10 feet
CM 18cm MN 10m EN 12"
CN 19.5cm MP 10.5m EP 25"
CP 20cm MQ 12m EQ 72"
CQ 25cm MR 12.5m ER 4.5"
GA
GPS:5m
Cellular:3m
CR 30cm MS 15m ES 2.4"
CS 50cm MT 20m ET 19"
CT 40cm MU 30m EU 6.3"
CU 122cm MV 25m EV 18"
CV 60cm MW 2.15m EW 10.82"
MX 3.3m EX 15"
MY 7m EY 16"
EZ 2.75"
Page 8
Page 7 of 11

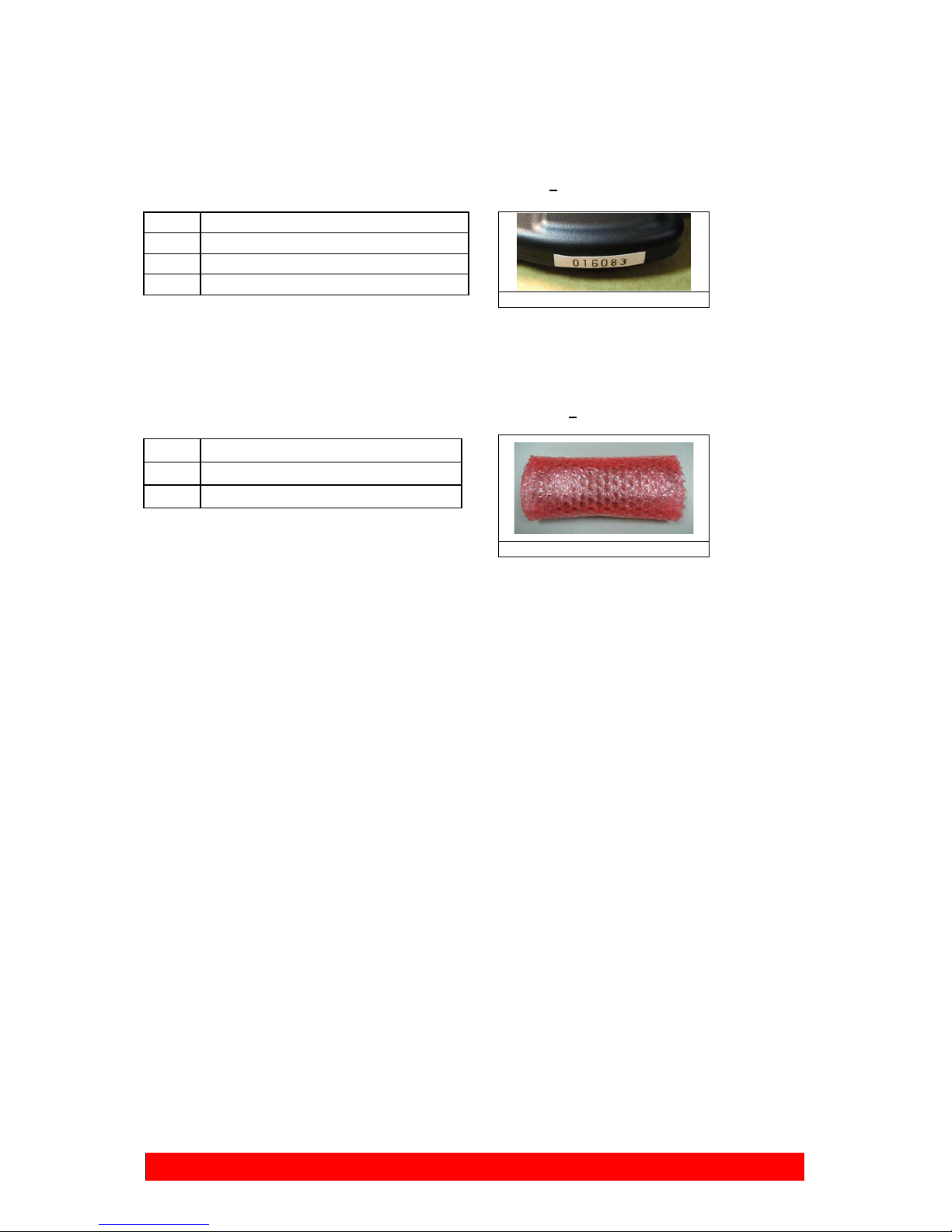

4.6 Label Type Item NO.:xxxxx-sxxxxxxxxx
NO. Specification
X Without Label
A ACC Label
C Customer Label
4.7 Package Type Item NO.:xxxxx-sxxxxxxxxx
NO. Specification
S Standard
C Non-Standard
Label(A)
Standard
Page 9
Page 8 of 11
5. Appendix
5.1 Appendix 1：FLMTA/FLMFA ROSH Report
Component Original Report No. Report refer to
Cadmium
(Cd)
Lead(Pb)
Mercury
(Hg)
Hex.Chromium
(Cr+6)
PBB PBDE
ET94O-02-013
Taiwan ETC
N.D. N.D. N.D. N.D. N.D. N.D.
SHEC0051237898-1
SGS Ltd.
N.D. N.D. N.D. N.D. N/A N/A
SHEC0050719293-1
SGS Ltd.
N.D. 6.0 N.D. N.D. N/A N/A
GZ050606340EC-2.1
SGS Ltd.
N.D. N.D. N.D. N.D. N/A N/A
Patch antenna
GZ050606340EC-2.2
SGS Ltd.
N.D. N.D. N.D. N.D. N/A N/A
CE/2005/72610 SGS Ltd.
- - - - N.D. N.D.
PCB SMT
CE/2004/B2398 SGS Ltd.
N.D.
12.70
N.D. N.D. - -
CE/2005/63784
SGS Ltd.
N.D. N.D. N.D. N.D. N.D. N.D.
PCB
CE/2005/63784A
SGS Ltd.
N.D. N.D. N.D. N.D. N.D. N.D.
ET94O-02-013
Taiwan ETC
N.D. N.D. N.D. N.D. N.D. N.D.
Filter
SH304686/CHEM
SGS Ltd.
N.D. 40.0 N.D. N.D.
N/A N/A
Transistor
CE/2004/83087
SGS Ltd.
N.D. 33.9 N.D. N.D. N.D. N.D.
Capacitor CE/2005/21030 SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
KA/2005/70988
SGS Ltd.
- 10.80 - - - -
KA/2005/70978
SGS Ltd.
- - - 59.3 - -
Resistor
KA/2005/70989
SGS Ltd.
N.D. N.D. N.D. N.D. N.D. N.D.
KA/2005/11024
SGS Ltd.
22.8. 15800 N.D. N.D.
N/A N/A
KA/2005/11027
SGS Ltd.
N.D 1640 N.D. N.D.
N/A N/A
KA/2005/11025
SGS Ltd.
63.9 12100 N.D. N.D
N/A N/A
KA/2005/11031
SGS Ltd.
N.D. N.D. N.D. N.D. N.D. N.D.
Connector
KA/2004/A0299
SGS Ltd.
N.D. 22.8 N.D. N.D.
N/A N/A
CE/2004/B3818
SGS Ltd.
N.D. N.D. N.D. N.D. N.D. N.D.
CE/2004/C0308
SGS Ltd.
N.D. N.D. N.D. N.D. N.D. N.D.
RG174 Cable
CE/2004/B3819
SGS Ltd.
N.D. N.D. N.D. N.D.
N/A N/A
CE/2005/90520 SGS Ltd. N.D. 13.0. N.D. N.D. N.D. N.D.
Shield
CE/2005/20333 SGS Ltd. N.D. 34.1 N.D. N.D. N/A N/A
CE/2005/403010 SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
CE/2005/402890 SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
Label
CE/2005/40307C SGS Ltd. N.D. N.D. N.D. N.D. N.D. N.D.
TOP COVER
BOTTOM COVER
KE/2005/51/51620 SGS Ltd N.D. N.D. N.D. N.D. N.D. N.D.
C418487 Intertek Ltd. N.D N.D N.D N.D - -
Screw
C418489 Intertek Ltd. N.D N.D N.D N.D - -
CE/2005/94309
SGS Ltd.
N.D. N.D. N.D. N.D. N.D. N.D.
PE Bag
CE/2004/C1701
SGS Ltd.
N.D. N.D. N.D. N.D.
N/A N/A
Double coated PE foam tape
CE/2005/41225
SGS Ltd.
N.D. N.D. N.D. N.D.
N.D. N.D.
Solder CE/2004/C0246A SGS Ltd. N.D. 327 N.D. N.D. N/A N/A
CE/2004/A0493C SGS Ltd. N.D. 17.2 N.D. N.D. N/A N/A
CE/2004/A0490C SGS Ltd. N.D. 16.2 N.D. N.D. N/A N/A
Cartons
CE/2004/11915A SGS Ltd. N.D. 71.1 N.D. N.D. N/A N/A
Paper carton CE/2005/22402A SGS Ltd. N.D. N.D. N.D. N.D. N/A N/A
None detect
Not available
Result: Complied with 2005/618/EC Article
Page 10
Page 9 of 11

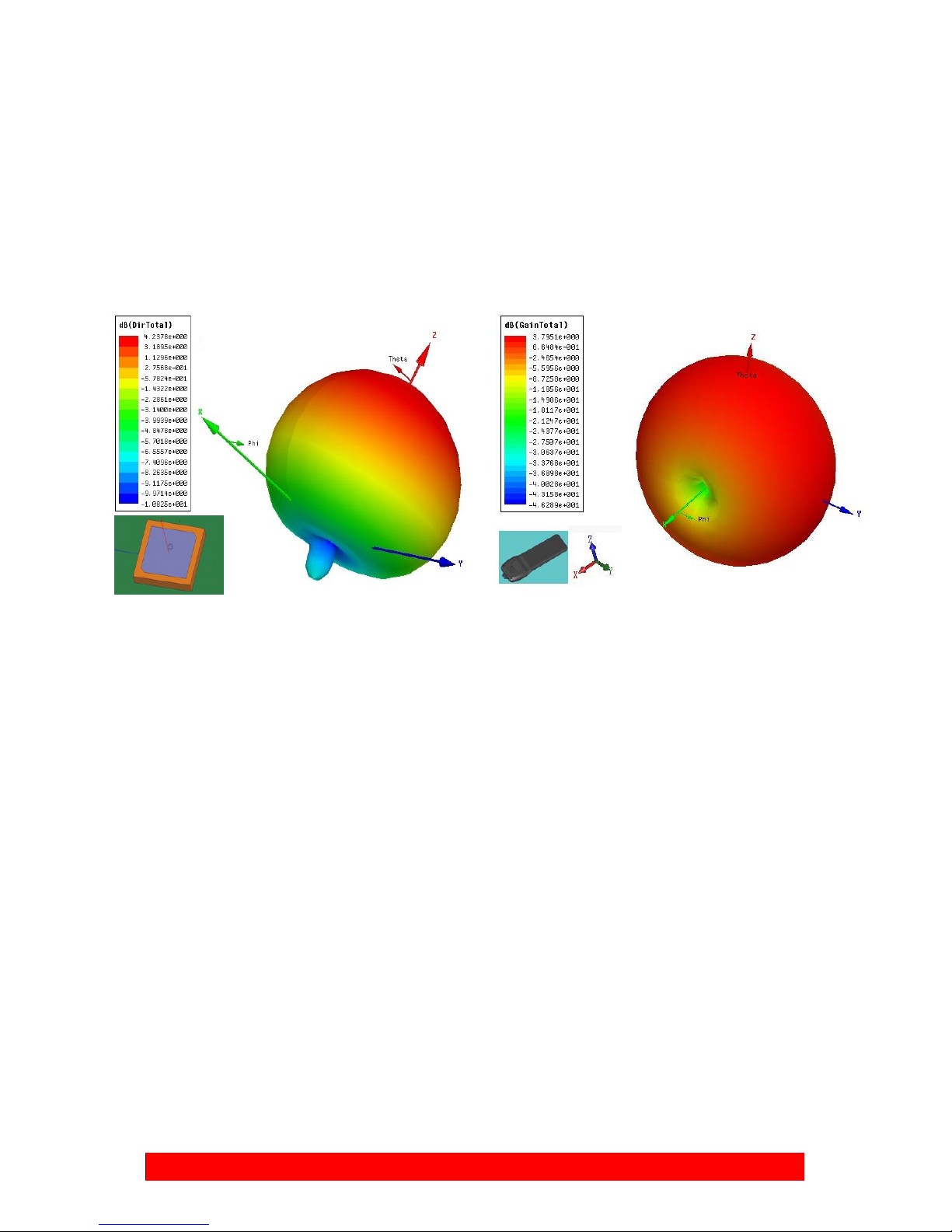

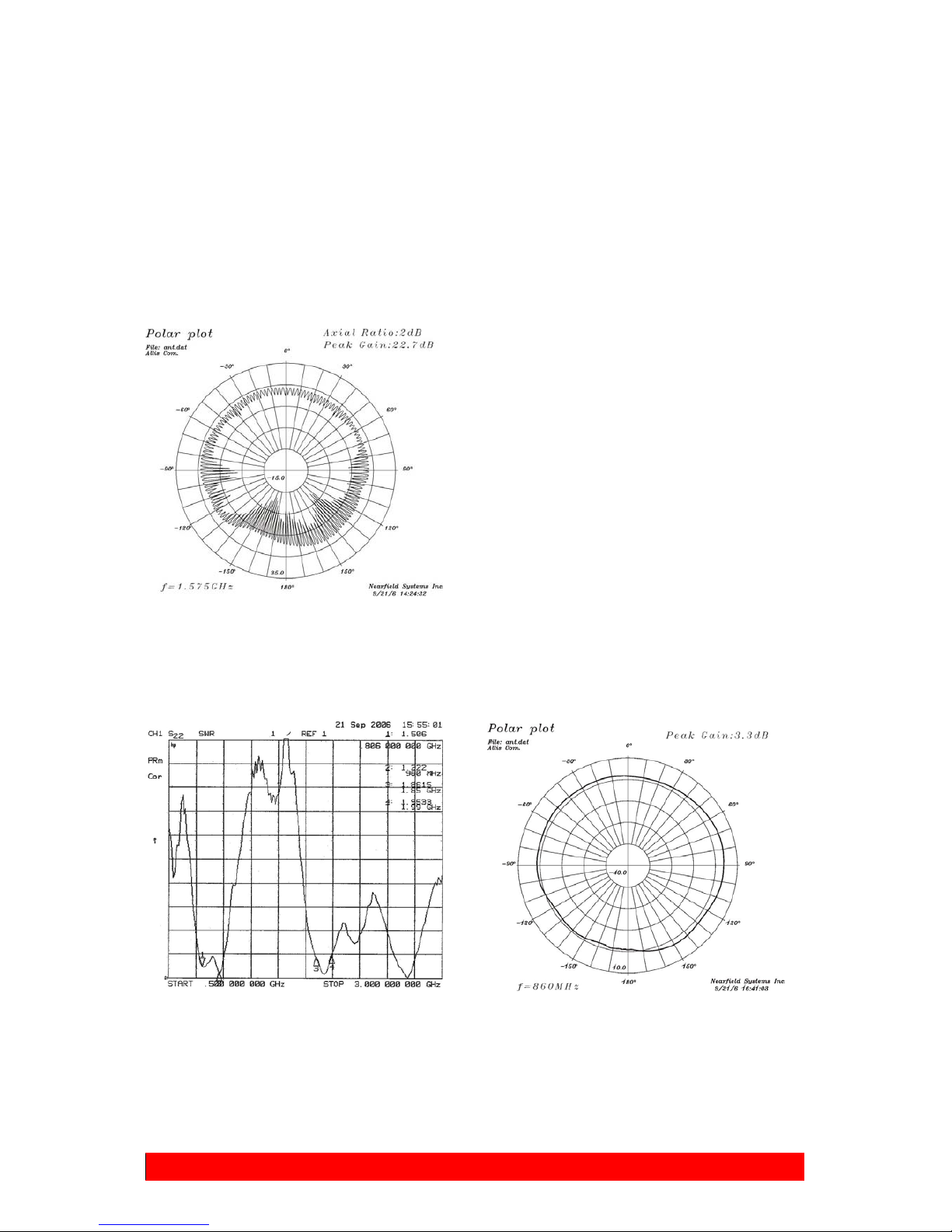

5.2 Appendix 2：Gain Pattern and VSWR
Test Equipment：NSI Spherical near-field measurement system
HP8722D Network analyzer
z GPS
Test Voltage : 5V
Cable length: 5m
Cable loss≒6dB
z Cellular(824~960MHz 1850~1990MHz)
VSWR:

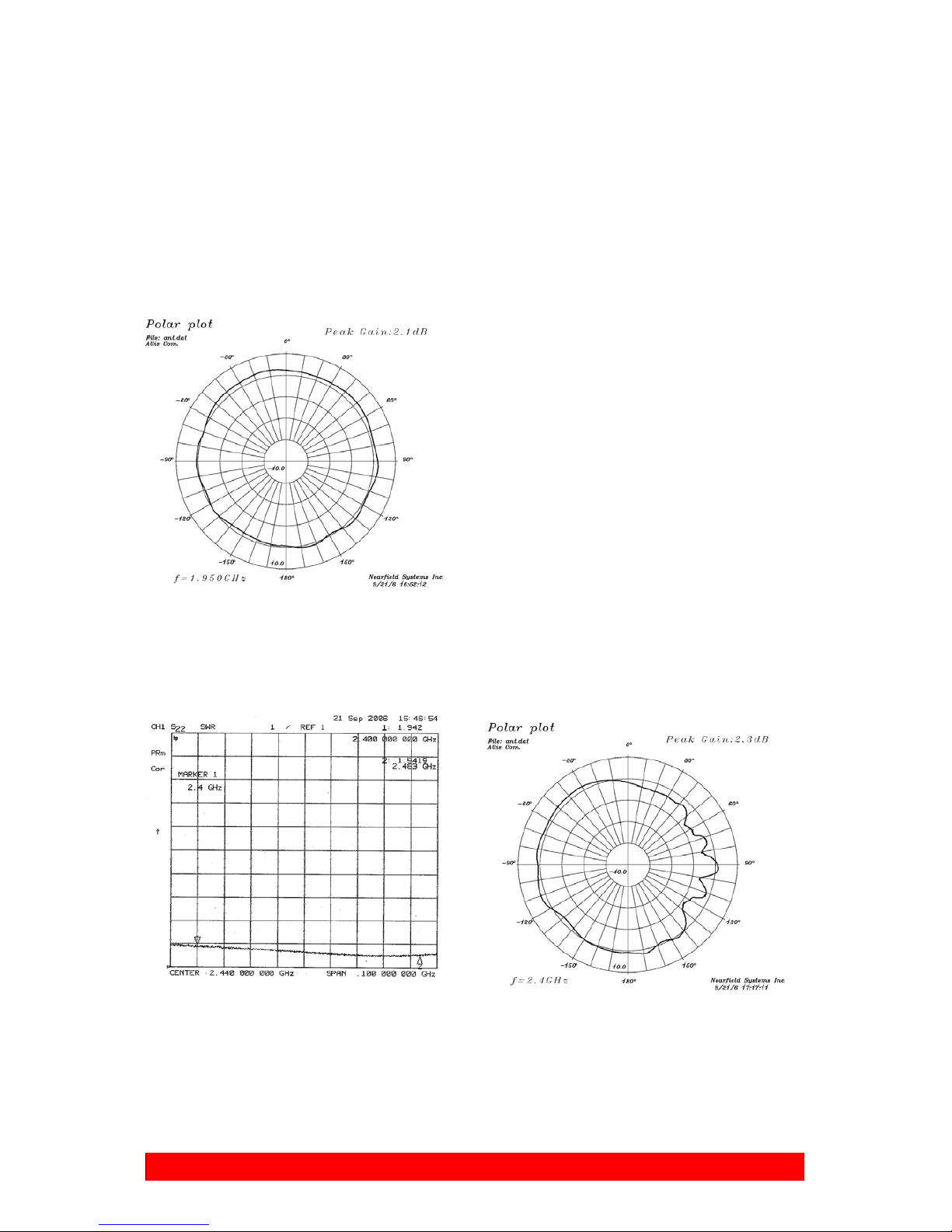

Gain Pattern:
Cable length: 24cm
Cable loss≒1dB
Page 11
Page 10 of 11
Gain Pattern:
Cable length: 24cm
Cable loss≒1dB
z Wi-Fi(2.4~2.4835GHz)
VSWR:
Gain Pattern:
Cable length: 24cm
Cable loss≒1dB
Page 12
Page 11 of 11
z Patch Antenna simulation z FLMT A/FLMF A Antenna simulation
Frequency: 1.575GHz Frequency: 860MHz
Loading...
