Haibrain PGSD834 User Manual

USER MANUAL

20547/201200711 • PGSD834

™

ALL RIGHTS RESERVED HAIBRAIN ©

PGSD834

™

Wireless Smoke Detector

PGSD834

3

TABLE OF CONTENTS

TABLE OF CONTENTS .................................................................... 3

SAFETY WARNINGS .......................................................................

3

INTRODUCTION .............................................................................

4

1. GENERAL INFORMATION AND FUNCTION...............................

4

2. APPLICATION ............................................................................. 4

3. POSITIONING ............................................................................. 5

4. INSTALLATION ........................................................................... 6

5. MOUNTING ................................................................................

6

6. REPLACING THE BATTERIES ......................................................7

7. CLEANING YOUR SMOKE DETECTOR.......................................

8

8. RED INDICATOR.........................................................................

8

9. WARNING! LIMITATIONS OF SMOKE ALARMS........................

9

10. TECHNICAL DATA..................................................................

10

DECLARATION OF CONFORMITY ...............................................

11

COPYRIGHTS ................................................................................ 12

SAFETY WARNINGS

• The PGSD834 smoke detector is designed specifically for
localised home use. If smoke is detected, the appliance will
sound a piercing alarm. Make sure the smoke detector is
installed in such a way that the built-in siren will be heard by
residents even when they are asleep. If necessary, install several
smoke detectors. For additional functionality, you can also use
the smoke detector in combination with Haibrain ProGuard800
security system. Attention: the operation of this additional
function is not included in the manufacturer's liability.

• This pr

oduct is not a toy. Keep out of reach of children.

• Check the detector every week to make sure it is in proper
working order.

• To prevent short circuits, this product should only be used
inside and only in dry spaces. Do not expose the components to
rain or moisture. Do not use the product close to a bath,
swimming pool etc.

• Do not expose the components of your systems to extremely
high temperatures or bright light sources.

© HAIBRAIN

4

• The product should only be repaired or serviced by a
qualified repairman.

• In case of improper usage or if you have, altered and
repaired the product yourself, all guarantees expire. Haibrain
does not accept responsibility in the case of improper usage of
the product or when the product is used for purposes other
than specified. Haibrain does not accept responsibility for
additional damage other than covered by the legal product
responsibility.

• Keep batteri

es out of the reach of children. Dispose of
batteries as chemical waste. Never use old and new batteries or
different types of batteries together. Remove the batteries
when you are not using the system for a longer period of time.
Check the polarity (+/-) of the batteries when inserting them in
the product. Wrong positioning can cause an explosion.

INTRODUCTION

The PGSD834 is a brand-name smoke detector with an
integrated Haibrain transmitter. The PGSD834 Smoke Detector is
for use with the Haibrain ProGuard800 systems. When you wish
to know more about the complete system, its possibilities and
its settings, then you can check out the installation manual or
visit http://www.haibrain.com.

1. GENERAL INFORMATION AND FUNCTION

The smoke detector can detect incipient low temperature fires
and open fires with smoke development. The smoke detector
operates by the optical principle. There are no radioactive
substances in this detector.

The smoke de

tector incorporates the following features:

• It monitors rooms for the development of smoke.

•

It has an integrated signal transmitter to trigger a Haibrain

ProGuard800 Security system.

2. APPLICATION

The radio smoke detector is intended for the detection of
smoke in interiors by the use of optical and acoustic warnings,

as well as wireless transmission over distances of up to 30
meters. Range may vary due to battery and temperature
conditions. The PGSD834 smoke detector does not sense gas,
heat or smokeless flames! The equipment may not be modified
under any circumstances.

3. POSITIONING

It is advisable to install several smoke detectors in your home.
At least one smoke detector should be installed on each floor.
This ensures that an effective warning is possible when a fire
starts. One smoke detector must be installed in the area
outside the bedroom which is used as the exit (corridor and/or
staircase). Also ensure that you install the smoke detector at a
location where it can be easily heard, even through the closed
door of the bedroom! (Otherwise you will not wake up during
a fire alarm!). Recommended best and acceptable locations to
mount smoke detectors (figure A):The smoke detector should
be installed on the ceiling in the centre

of the room. Smoke
rises and gathers in this area (figure B) and placing the smoke
alarm here guarantees the earliest possible alarm warning. For
sloping roofs, the smoke alarm should be installed about 1
meter from the highest point, as displayed in figure C. Smoke
detectors can be installed in all rooms, but not in the bathroom
or directly above the cooking area in the kitchen. To avoid
false alarms, do not install the PGSD834 smoke detector in your
kitchen, garage, in dusty places, in places with a higher than
average air flow (near ventilation, open windows), near metal
and in places where the temperature is below 5°C or above
37°C. Ensure that the smoke detector is not installed directly on
or near large metal objects as they can affect the radio range.
Before installing the PGSD834 smoke detector on your ceiling
or the wall, ensure that the PGSD834 is within range of your
Haibrain security system. You can test this by pushing the test
PGSD834

5

button of the PGSD834. The Haibrain security system should
now be triggered, depending on the settings. In the case of
range problems, choose a different location for your PGSD834
smoke d

etector. Moving the PGSD834 just a few centimetres

can make a big difference in range.

4. INSTALLATION

The following procedure explains the installation of the
PGSD834 wireless smoke detector and its registration to the
receiver.
To install smoke detectors:

1. Open the cover.

2. Install the batteries into the detector’s batteries

Compartment. See Figure Batteries Compartment

3. The PGSD834 enters Test mode.

From the Programming menu, select Devices, Zones [911].
Select the zone to which you want to register the transmitter;
the system initiates Registration mode. When Save? appears
on the panel’s LCD display, press 9.

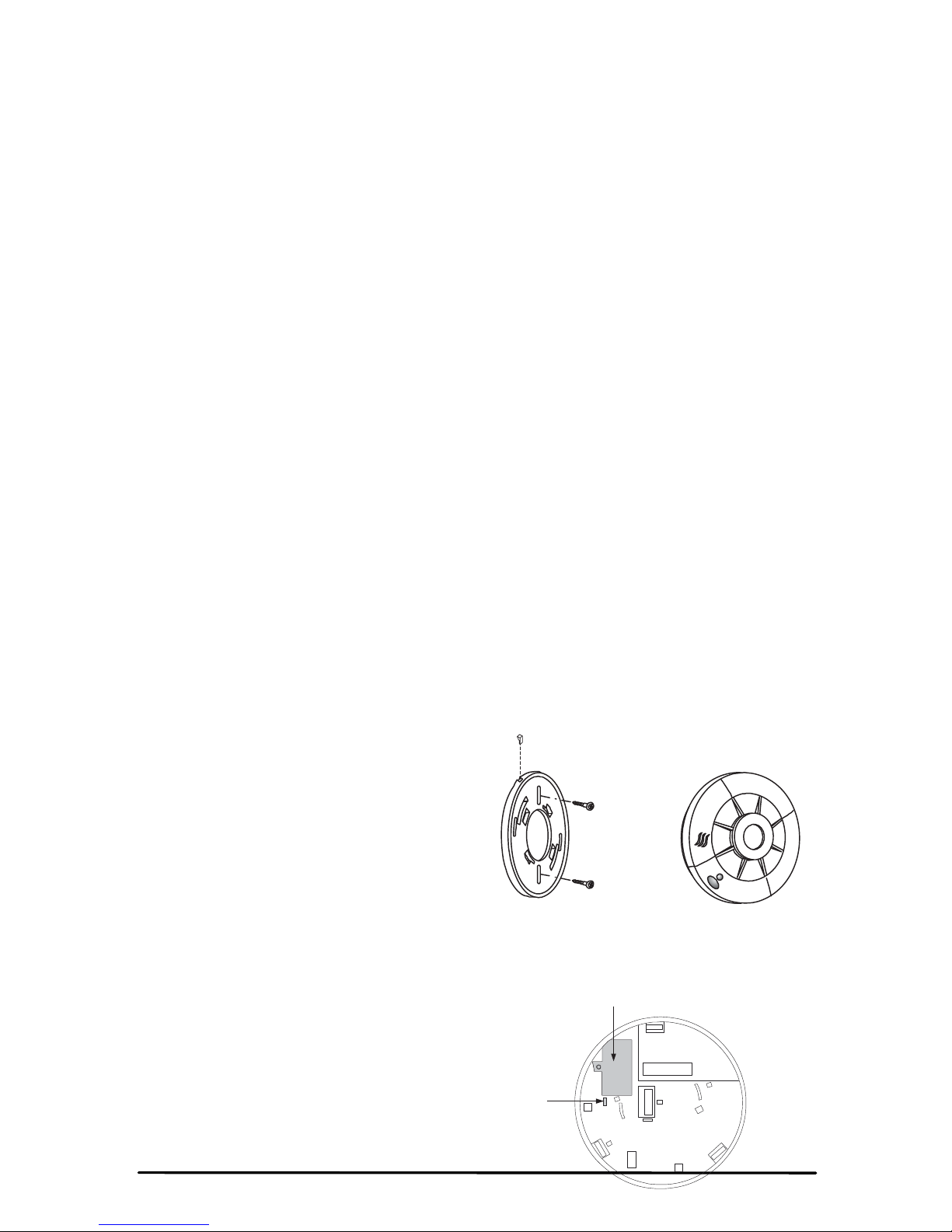

5. MOUNTING

© HAIBRAIN

6

Locking Pin

• Before permanently

mounting the unit, test
the transmitter from
the exact mounting
position.

Detector

Screws

Bracket

• Select the installation

location.

Battery Compartment

• Remove locking pin

securing the mounting
bracket to the unit (see
Figure).

Tamper

• Remove the mounting

bracket from the unit
by rotating it
counterclockwise.

PGSD834

7

• Use the bracket as a template for marking the mounting

holes

• Using an

appropriate drill, drill two holes at the marks and

insert anchors.

• Using screws (supplied) attach the bracket to the wall as in

Figure.

• Line up the side slot of the bracket and the detector. Push

the detector onto the mounting bracket and turn it clockwise
to fix it into place. Insert the locking pin in order to secure the
mounting bracket to the detector (see f

igure).

• Pull the

detector outward to make sure it is securely attached

to the mounting bracket.

WARNING:

• This detector is not suitable for installation in a hazardous

location, as defined in the national electrical cod

e.

WARNI

NG: Do not test with flame. This can set fire to the

alarm and damage the house. We do not recommend tes

ting

with s

moke as the results can be misleading unless sp

ecial

device is

used.

6. REPLACING THE BATTERIES

Fresh batteries should last about three years. When battery
power is low and replacement is necessary, the alarm will
“beep” and the LED will flash at the same time about once per
35 seconds for at least 30 days. For maximum reliability, replace
battery at least once a year.
Test the alarm for correct operation using the test button
whenever the batteries are replaced.
If the power indicator light ceases flashing, replace the battery.
Be sure to replace the battery as soon as possible to ensure
proper operation and to avoid a leaking battery. Leakage
could cause damage to the alarm, furniture and carpeting.

WARNI

NG: Use of any other battery than specified in the

technical data may be detrimental to the operation of the
Smoke Detector.

7. CLEANING YOUR SMOKE DETECTOR

Clean your smoke detector regularly. Use a soft bristle brush or
the brush attachment of your vacuum cleaner to remove dust
from the sides and cover slots where the smoke enters. Keep
cover closed while cleaning. Do not vacuum or brush inside the
Smoke Detector.
WARNING: Do not paint your smoke detector.

Other th

an the maintenance and cleaning described in this
leaflet, no other customer servicing of the product is required.
Repairs, when needed, must be performed only by the
manufacturer.

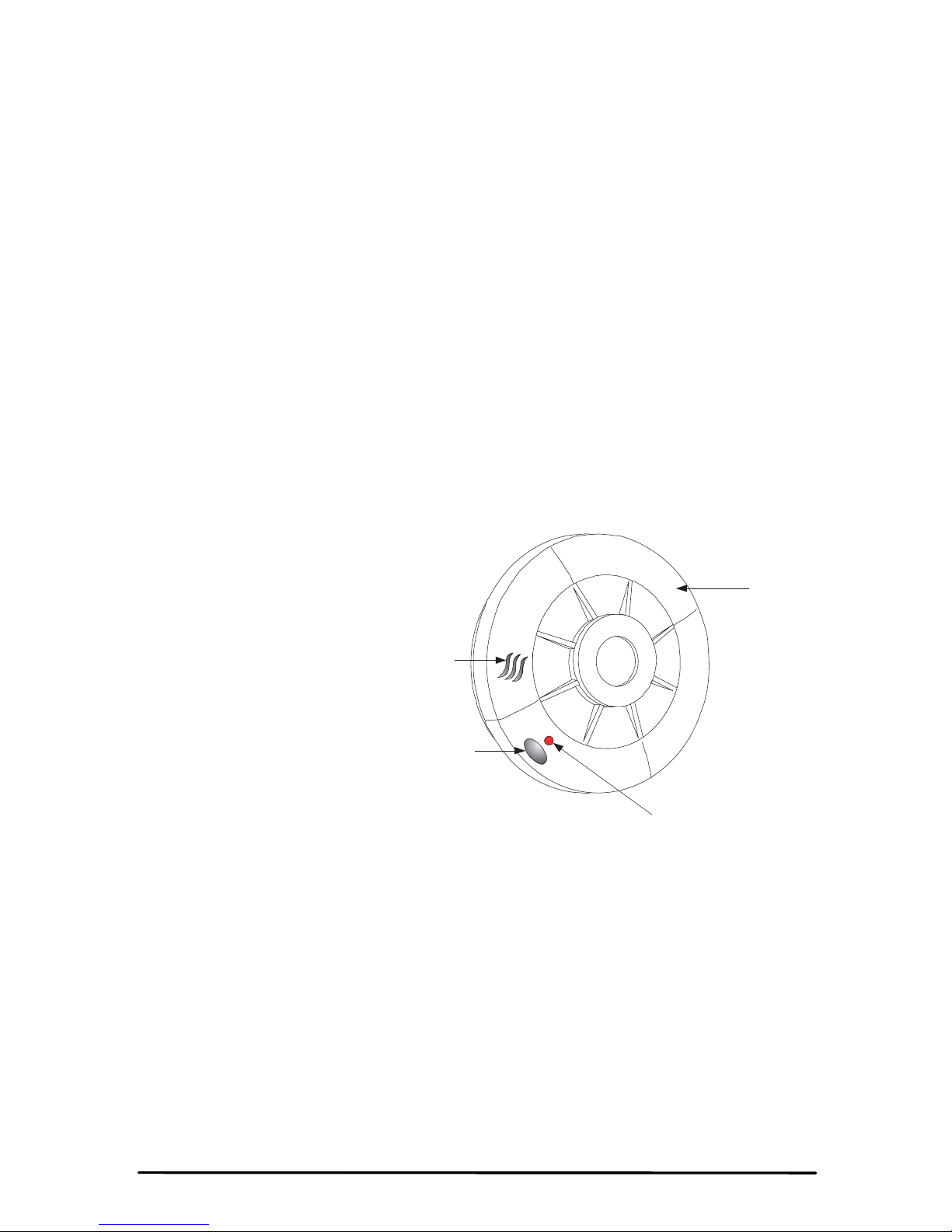

8. RED INDICATOR

When the red LED
indicator (see
Figure) flashes once
in 30 seconds, it
indicates the
detector is under
normal operation.
When the red LED
flashes very
frequently and an
audible alarm
sounds simultaneously, it indicates that the detector senses
smoke.

Detector

Buzzer
Openings

Test / Silence
Button

LED Indicator (Red)

NOTE:
The red LED behaves according to one of the following set
modes:
Mode 1: The red LED indicator will not reset automatically at
the end of an alarm event. This means that after the smoke
chamber is cleared, the audible alarm will stop automatically,
but the red LED indicator will continue to flash, until it is
manually restored by the user. To restore – press the test
button for 2-3 seconds, the LED will stop flashing.

© HAIBRAIN

8

PGSD834

9

Mode 2 (Default): The red LED will reset automatically at the
end of an alarm event.
The user can check to which mode the detector is defined and
switch between modes.

• To check the mode, press the Test button. The red LED will
light up. If the red LED lights up continuously the detector is in
Mode 1. If the red LED is blinking the detector is in Mode 2.

• To switch from one mode to another, press the Test button
for 8 seconds. The buzzer will sound and the red LED will
change its behaviour either from a continuous light to a
blinking light or from a blinking light to a continuous light.

9. WARNING! LIMITATIONS OF SMOKE ALARMS

Wireless smoke alarms are very reliable, but may not work
under all conditions. No fire alarm provides total protection of
life or property. Smoke alarms are not a substitute for life
insurance.
Smoke alarms require a source of power to work.
This smoke alarm will not operate and the alarm will not sound
if batteries are dead or not installed properly.
Smoke alarms may not be heard. A sound sleeper or someone
who has taken drugs or alcohol may not awaken if the alarm is
installed outside a bedroom. Closed or partially closed doors
and distance can block sound. This alarm is not designed for
the hearing impaired.
Smoke alarms may not always activate and provide warning
early enough. Smoke alarms only activate when enough smoke
reaches the alarm. If a fire starts in a chimney, wall, roof, on
the other side of closed doors, or on a different level of the
property enough smoke may not reach the alarm for it to
alarm.

Smoke alarms are a significant help in reducing loss, injury and
even death.
However, no matter how good a detection device is, nothing
works perfectly under every circumstance and we must warn
you that you cannot expect a smoke alarm to ensure that you
will never suffer any damage or injury.

© HAIBRAIN

10

10. TECHNICAL DATA

Operating Voltage: 6VDC
Typical Average Standby
Current:

0.010 mA

Typical T

est Current: 55mA
Typical Alarm Current: 55mA
Peak Trouble Pulse Current: 4.73mA
Peak Pulse Current: 0.074mA
Battery Life: At least 3 year under

normal conditions with

Lithium Batteries
Battery Type: 2xCR123 3V Lithium battery
Low Battery Threshold: 5.2VDC
Low Battery Beep rate: One beep every 30 seconds
Low Battery Life: At least 30 days from

warning signal
Operating Temperature: -10°C to 40°C
Operating Humidity: 10% to 85% RH, no

condensation or icing
Color: White
Dimensions: Diameter: 148 mm
Height: 53 mm
Alarm Sound Level: Exceeds 85dB at 3m

Transmitter Characteristics:

Nominal Center Frequency 868 MHz
Supervision Time 65 min

In order to continue improving the product, Haibrain
reserves the right to change specifications and/or designs
without prior notice.

Environmental Information for Customers in
the European Union

PGSD834

11

ase

d the product.

European Directive 2002/96/EC requires that the
equipment bearing this symbol on the product
and/or its packaging must not be disposed of

with unsorted municipal waste. The symbol
indicates that this product should be disposed of separately
from regular household waste streams. It is your responsibility
to dispose of this and other electric and electronic equipment
via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling
will help prevent potential negative consequences to the
environment and human health. For more detailed
information about the disposal of your old equipment, ple
contact your local authorities, waste disposal service, or the
shop where you purchase

DECLARATION OF CONFORMITY

Hereby, Haibrain BV, declares that this PGSD834 is in
compliance with the essential requirements and other relevant
provisions of the following Directives:

Directive

1999/5/EC of the European Parliament and of the
Council of 9 March 1999 on radio equipment and
telecommunications terminal equipment and the mutual
recognition of their conformity

Directive

2004/108/ec of the european parliament and of the
council of 15 December 2004 on the approximation of the laws
of the Member States relating to electromagnetic compatibility

Directive 2002/95/EC of the European Parliament and of the
Council of 27 January 2003 on the restriction of the use of
certain hazardous substances in electrical and electronic
equipment

HAIBRAIN BV

P.O. BOX 9301

3506 GH UTRECHT

THE NETHERLANDS

COPYRIGHTS

Copyright and all other proprietary rights in the content
(including but not limited to model numbers, software, audio,
video, text and photographs) rests with Haibrain B.V. Any use of
the Content, but without limitation, distribution, reproduction,
modification, display or transmission without the prior written
consent of Haibrain is strictly prohibited. All copyright and other
proprietary notices shall be retained on all reproductions."

© HAIBRAIN

12
