JK101SPD
JK102SPD
Parts list:

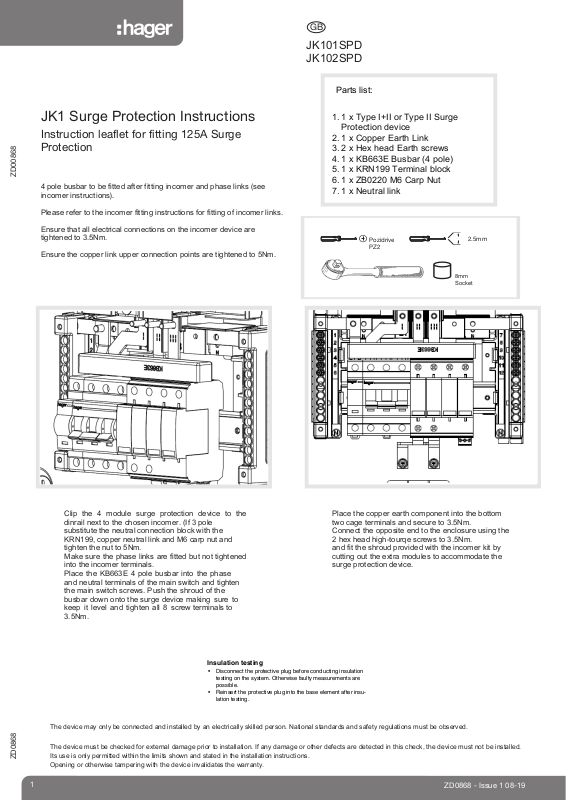

JK1 Surge Protection Instructions
Instruction leaflet for fitting 125A Surge
Protection
ZD00868ZD0868
4 pole busbar to be fitted after fitting incomer
incomer instructions).
Please refer to the incomer fitting instructions for fitting of incomer links.
Ensure that all electrical connections on the incomer device are
tightened to 3.5Nm.
Ensure the copper link upper connection points are tightened to 5Nm.
and phase links (see
1. 1 x Type I+II or Type II Surge
Protection device
2. 1 x Copper Earth Link
3. 2 x Hex head Earth screws
4. 1 x KB663E Busbar (4 pole)
5. 1 x KRN199 Terminal block
6.
1 x ZB0220 M6 Carp Nut
7. 1 x Neutral link
Pozidrive
PZ2
8mm
Socket
2.5mm

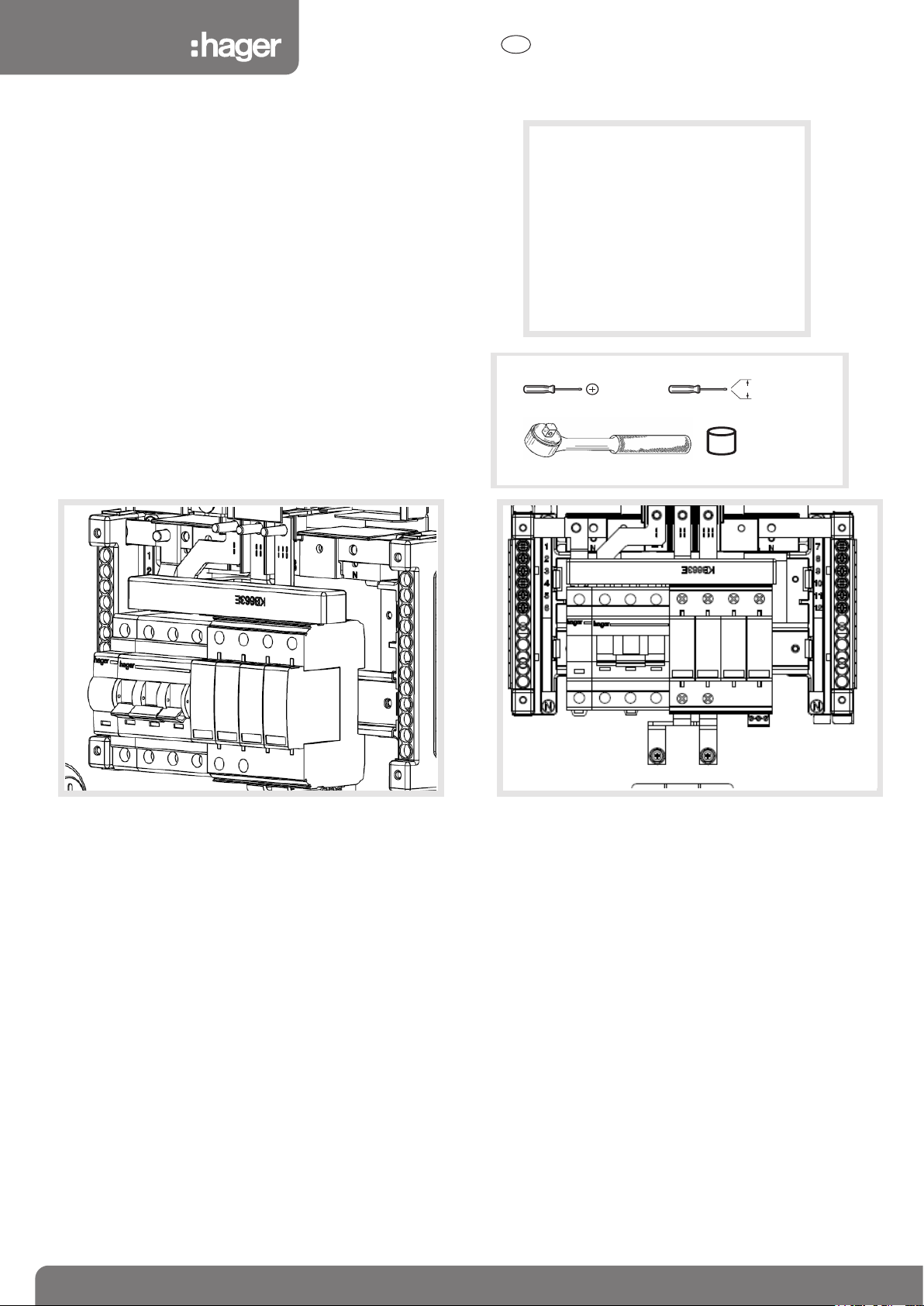

Clip the 4 module surge protection device to the
dinrail next to the chosen incomer. (If 3 pole
substitute the neutral connection block with the
KRN199, copper neutral link and M6 carp nut and
tighten the nut to 5Nm.
Make sure the phase links are fitted but not tightened
into the incomer terminals.
Place the KB663E 4 pole busbar into the phase
and neutral terminals of the main switch and tighten
the main switch screws. Push the shroud of the
busbar down onto the surge device making sure to
keep it level and tighten all 8 screw terminals to
3.5Nm.
Insulation testing
• Disconnect the protective plug before conducting insulation
testing on the system. Otherwise faulty measurements are
po
ssible.
• Reinsert the protective plug into the base element after insu-
lation testing.
The device may only be connected and installed by an electrically skilled person. National standards and safety regulations must be observed.
The device must be checked for external damage prior to installation. If any damage or other defects are detected in this check, the device must not be installed.
Its use is only permitted within the limits shown and stated in the installation instructions.
Opening or otherwise tampering with the device invalidates the warranty.
1
Place the copper earth component into the bottom
two cage terminals and secure to 3.5Nm.
Connect the opposite end to the enclosure using the
2 hex head high-tourqe screws to 3.5Nm.
and fit the shroud provided with the incomer kit by
cutting out the extra modules to accommodate the
surge protection device.
ZD0868 - Issue 1 08-19
