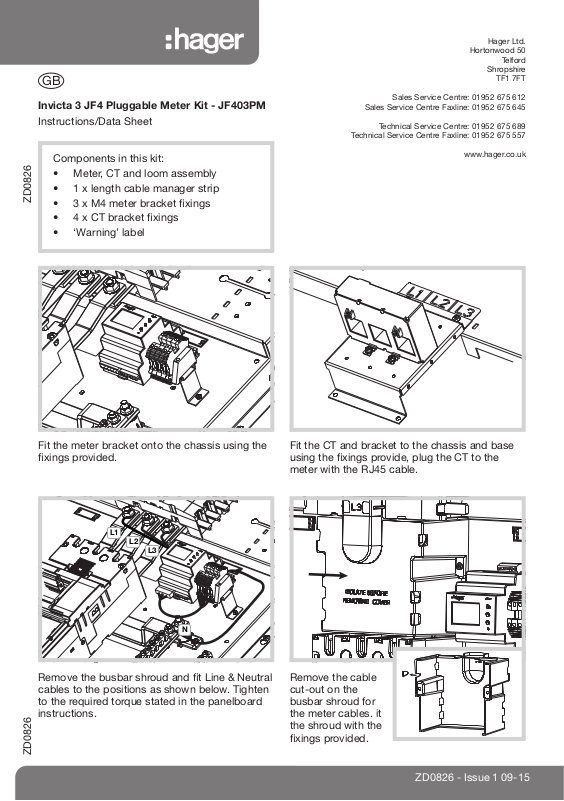

Invicta 3 JF4 Pluggable Meter Kit - JF403PM
Instructions/Data Sheet
Components in this kit:
• Meter, CT and loom assembly
• 1 x length cable manager strip
ZD0826ZD0826
• 3 x M4 meter bracket xings
• 4 x CT bracket xings
• ‘Warning’ label
Hager Ltd.
Hortonwood 50
Telford
Shropshire
TF1 7FT
Sales Service Centre: 01952 675 612
Sales Service Centre Faxline: 01952 675 645
Technical Service Centre: 01952 675 689
Technical Service Centre Faxline: 01952 675 557
www.hager.co.uk
Fit the meter bracket onto the chassis using the
xings provided.
L1
L2
L3
N
Remove the busbar shroud and t Line & Neutral
cables to the positions as shown below. Tighten
to the required torque stated in the panelboard
instructions.
Fit the CT and bracket to the chassis and base
using the xings provide, plug the CT to the
meter with the RJ45 cable.
Remove the cable
cut-out on the
busbar shroud for
the meter cables. it
the shroud with the
xings provided.
ZD0826 - Issue 1 09-15
