Hager HMD399 Technical data

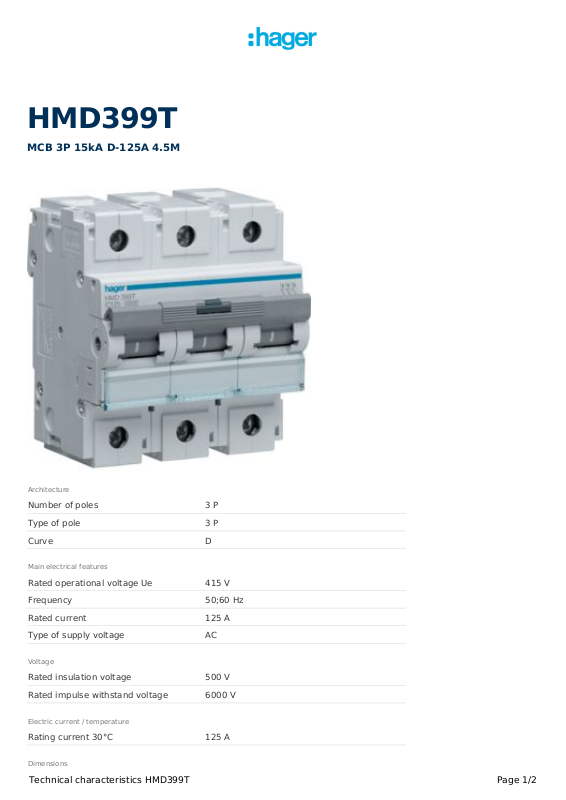

HMD399T

MCB 3P 15kA D-125A 4.5M

Architecture

Number of poles 3 P

Type of pole 3 P

Curve D

Main electrical features

Rated operational voltage Ue 415 V

Frequency 50;60 Hz

Rated current 125 A

Type of supply voltage AC

Voltage

Rated insulation voltage 500 V

Rated impulse withstand voltage 6000 V

Electric current / temperature

Rating current 30°C 125 A

Dimensions

Technical characteristics HMD399T Page 1/2

Depth of installed product 70 mm

Height of installed product 90 mm

Width of installed product 80 mm

Power

Total power loss under IN 34.93 W

Endurance

Electric endurance in number of cycles 4000

Number of mechanical operations 20000

Capacity

Number of modules 4.5

Installation, mounting

Tightening torque 3,5 to 5Nm

Connection

Connection cross-sect. flexible conductor 50mm²

Connection cross-sect. rigid cable 70mm²

Type of connection terminal with tightening compensation system

Standards

Standard text EN 60898-1 ; IEC 60947-2 ; AS ; NZS 60898-1

European directive WEEE concerned

Safety

Protection index IP IP20

Use conditions

Storage temperature -25/80 °C

Temperature

Operating temperature -25/70 °C

Technical characteristics HMD399T Page 2/2
