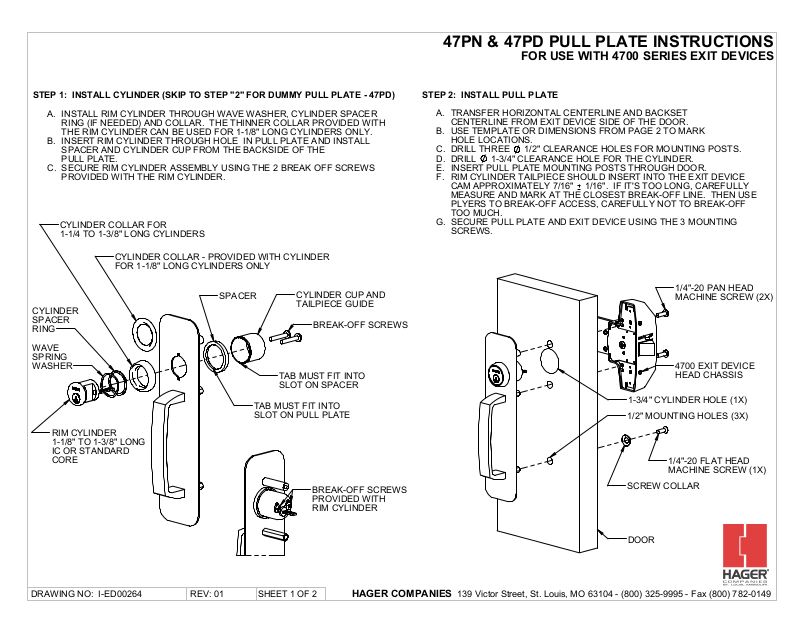

Page 1
47PN & 47PD PULL PLATE INSTRUCTIONS
FOR USE WITH 4700 SERIES EXIT DEVICES
STEP 1: INSTALL CYLINDER (SKIP TO STEP "2" FOR DUMMY PULL PLATE - 47PD)
INSTALL RIM CYLINDER THROUGH WAVE WASHER, CYLINDER SPACER
A.
RING (IF NEEDED) AND COLLAR. THE THINNER COLLAR PROVIDED WITH
THE RIM CYLINDER CAN BE USED FOR 1-1/8" LONG CYLINDERS ONLY.
INSERT RIM CYLINDER THROUGH HOLE IN PULL PLATE AND INSTALL
B.
SPACER AND CYLINDER CUP FROM THE BACKSIDE OF THE
PULL PLATE.
SECURE RIM CYLINDER ASSEMBLY USING THE 2 BREAK OFF SCREWS
C.
PROVIDED WITH THE RIM CYLINDER.
CYLINDER COLLAR FOR
1-1/4 TO 1-3/8" LONG CYLINDERS
CYLINDER COLLAR - PROVIDED WITH CYLINDER
FOR 1-1/8" LONG CYLINDERS ONLY
SPACER
CYLINDER
SPACER
RING
WAVE
SPRING
WASHER
TAB MUST FIT INTO
SLOT ON PULL PLATE
RIM CYLINDER
1-1/8" TO 1-3/8" LONG
IC OR STANDARD
CORE
CYLINDER CUP AND
TAILPIECE GUIDE
BREAK-OFF SCREWS
TAB MUST FIT INTO
SLOT ON SPACER
BREAK-OFF SCREWS
PROVIDED WITH
RIM CYLINDER
STEP 2: INSTALL PULL PLATE
TRANSFER HORIZONTAL CENTERLINE AND BACKSET
A.
CENTERLINE FROM EXIT DEVICE SIDE OF THE DOOR.
USE TEMPLATE OR DIMENSIONS FROM PAGE 2 TO MARK
B.
HOLE LOCATIONS.
DRILL THREE
C.
DRILL
D.
INSERT PULL PLATE MOUNTING POSTS THROUGH DOOR.
E.
RIM CYLINDER TAILPIECE SHOULD INSERT INTO THE EXIT DEVICE
F.
CAM APPROXIMATELY 7/16"
MEASURE AND MARK AT THE CLOSEST BREAK-OFF LINE. THEN USE
PLYERS TO BREAK-OFF ACCESS, CAREFULLY NOT TO BREAK-OFF
TOO MUCH.
SECURE PULL PLATE AND EXIT DEVICE USING THE 3 MOUNTING
G.
SCREWS.
1-3/4" CLEARANCE HOLE FOR THE CYLINDER.
1/2" CLEARANCE HOLES FOR MOUNTING POSTS.
1/16". IF IT'S TOO LONG, CAREFULLY
1/4"-20 PAN HEAD
MACHINE SCREW (2X)
4700 EXIT DEVICE
HEAD CHASSIS
1-3/4" CYLINDER HOLE (1X)
1/2" MOUNTING HOLES (3X)
1/4"-20 FLAT HEAD
MACHINE SCREW (1X)
SCREW COLLAR
DRAWING NO: I-ED00264
REV: 01
SHEET 1 OF 2
HAGER COMPANIES
DOOR
139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149
Page 2
47PN & 47PD PULL PLATE INSTRUCTIONS
FOR USE WITH 4700 SERIES EXIT DEVICES
11.75
298.5
2.81
71.4
1.43
36.3
5.93
150.6
3.00
76.2
R
.75
19.1
RIM CYLINDER
EXIT DEVICE
(SEE NOTE 1)
.45
11.3
C
C
L
1.50
38.1
1.44
36.5
.24
L
.08
2
6
1.49
37.9
2.88
73
5.44
138.2
1.44
36.5
6.88
174.7
REQUIRES A
L
C
CLEARANCE HOLE
L
C
THROUGH DOOR (3X)
1.50
38.1
.24
6
PULL PLATE
CORRESPONDS TO
EXIT DEVICE
REQUIRES A
CLEARANCE HOLE
THROUGH DOOR
C
1.75"
0.50"
L
C
L
1.58
40.1
NOTES:
MATCH THIS CENTERLINE UP WITH THE EXIT DEVICE CENTERLINE.
1.
THIS WILL ENSURE THE RIM CYLINDER TAILPIECE LINES UP WITH THE
EXIT DEVICE TAILPIECE CAM.
DRAWING NO: I-ED00264
REV: 01
1.68
42.5
SHEET 2 OF 2
1.62
41.1
HAGER COMPANIES
PULL PLATE
EXIT DEVICE
CORRESPONDS TO
139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149
