IMPORTANT SAFEGUARDS

WARNING-To guard against injury, basic safety pre­cautions should be observed including the following:

READ AND FOLLOW ALL SAFETY

INSTRUCTIONS

1. DANGER-T o avoid possible electric shock, special

care should be taken since water is employed in the
use of aquarium equipment. Follow these safety
instructions carefully.

2. All aquarium appliances must be disconnected
from the mains power supply before servicing an
aquarium or conducting any activity that allows
direct contact with the water.

WARNING: Disconnect the power from all aquarium
appliances before putting hands into the aquarium.

WARNING: If the appliance falls into the water DO
NOT reach for it! First unplug it, then retrieve it. If
electrical components of the appliance get wet,
unplug the appliance immediately.

3. Do not operate any aquarium appliance, which
malfunctions or is damaged in any way. The power
cord of this appliance cannot be replaced; if the elec­trical cord or plug is damaged, discard the appliance.

4. WARNING: The motor has no user serviceable
parts. Do not attempt repairs yourself; return the
appliance to an authorized service facility for service
or discard the appliance.

5. To avoid the possibility of the appliance or sock­et getting wet, position the aquarium to one side of
a wall-mounted socket preventing water dripping
onto the socket or plug.

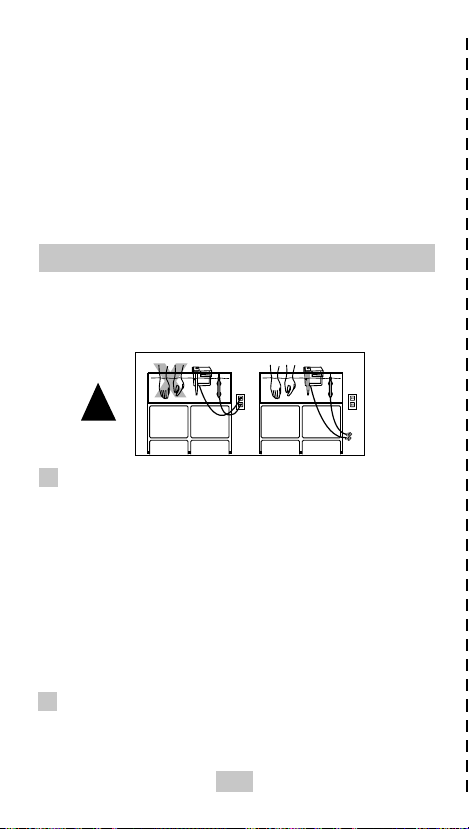

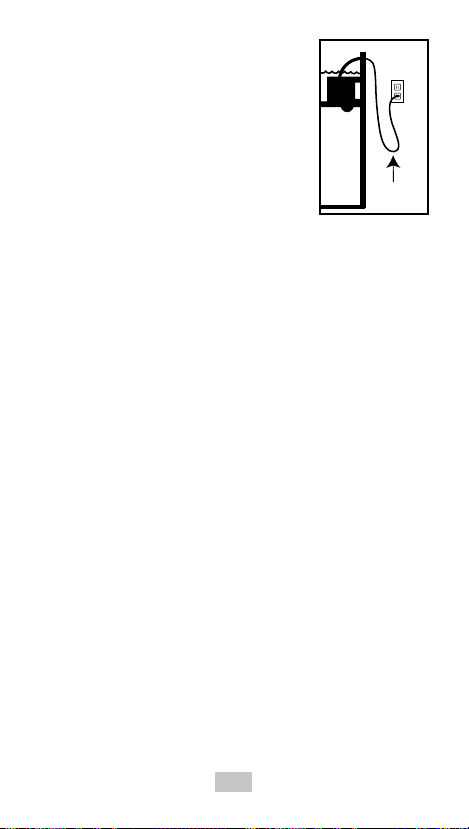

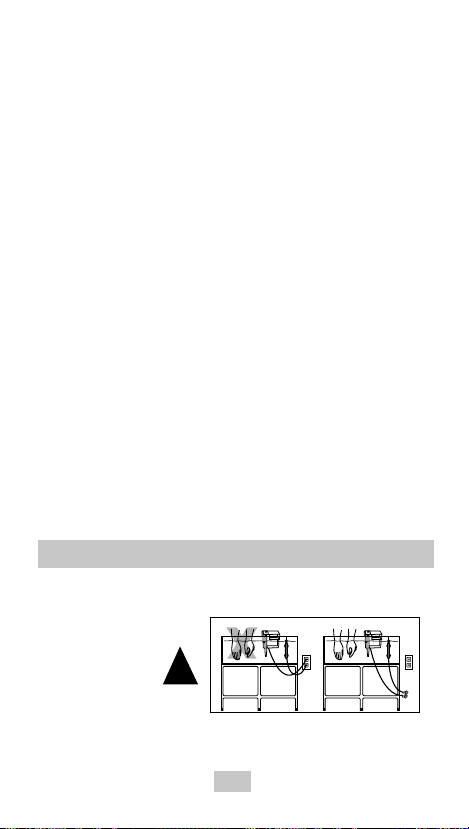

6. WARNING: Use a drip loop. A “drip loop” (see
illustration) should be arranged by the user for each
cord connecting an aquarium appliance to a socket.
The “drip loop” is that part of the electrical cord
below the level of the socket or the connector if an

1

extension cord is used to prevent
water from traveling along the
cord and coming in contact with
the socket.

If the plug or socket does get wet,
DO NOT unplug the cord.
Disconnect the fuse or circuit break­er that supplies power to the appli­ance. Then unplug and examine for
the presence of water in the socket.

7. WARNING: To prevent electric shock, supply
electrical power through a wall mounted Residual
Current Device (GFI-Ground Fault Current
Interrupter) with a residual operating current not
exceeding 30mA. If the appliance shows any sign of
current leakage or if the GFI switches off, disconnect
the power supply from mains and remove the appli­ance from the water.

8. WARNING: Do not permit children to use this
appliance unless they are closely supervised by an
adult at all times.

9. WARNING: Do not use an appliance for other than
its intended use. The use of attachments not recom­mended or sold by the appliance manufacturer may
cause an unsafe condition.

10. WARNING: Do not immerse this appliance deep­er than 1 meter or 40 inches.

11. WARNING: Do not operate this appliance out of
water.

Always unplug an appliance when not in use, before
putting on or taking off parts, and before cleaning.
Never yank cord to pull plug from socket. Grasp the
plug and pull to disconnect.

12. Do not install or store the appliance where it will
be exposed to the weather or to temperatures below
freezing.

13. Make sure the appliance is securely installed
before operating it.

2

14. Read and observe all the important notices on the
appliance.

15. If an extension cord is necessary, an electrical
cord with a proper rating should be used. An electri­cal cord rated for less amperes or watts than the
appliance rating may overheat. Care should be taken
to arrange the cord so that it will not be tripped over
or pulled.

16. SAVE THESE INSTRUCTIONS

INSTALLATION and OPERATION

See illustrations on pages 15-17.

CAUTION: Disconnect the electrical plug of all appliances
inside the aquarium before putting hands into the water.

Fluval 1 Plus

It is recommended that the foam pad is rinsed before the
first installation.

1. Remove the filter motor from the filter casing. (A)

2. Insert the suction cup into the slot directly below the

electrical cord adjacent to the magnetic impeller. (B)

3. Put the filter motor back on the filter case. (C)

4. Insert second suction cup into the keyhole near the

bottom of the filter case. (D)

5. Place the filter in the aquarium using the suction cups,
ensuring that the horizontal water outlet is at a mini­mum of 1 cm below the water surface. (E)

6. Plug into power source. (F)

Fluval 2, 3, 4 Plus

It is recommended that the foam pads are rinsed before the
first installation.

1. Attach suction cups to the suction cup bracket. (A)

2. Slide the Hose Adapter/Airflow Control Venturi Nozzle

!

3

AquaClear AquaClear

into the water outlet on the filter, making sure that the
hole is facing up. (B)

Note: If the adapter is to be used as a hose adapter or if the
unit is to be used at the bottom of an aquarium, the Airflow
Control Venturi Nozzle hole should be blocked with the
attached stopper. This will ensure maximum water flow.

(See B.2)

3. Push the airflow control device /venturi valve into the

top of the nozzle. (C)

4. Slide the suction cup bracket onto the rear of the filter

and hold it in place while attaching the filter to the
inside of the aquarium. (D)

5. Ensure the outlet is at a minimum of 1 cm below the

aquarium’s water surface. (See D.2)

Note: In order to have the airflow control device/venturi
valve work properly, it must remain above water. Turning the
valve located on the top of the airflow control device/venturi
valve will regulate the quantity of air produced. (See D.3)

6. Plug into power source. (E)
Adjust the water jet direction by moving the horizontal

water outlet from side to side. (F) Adjust the water flow
rate by moving the waterflow adjuster from + to – (G)

Fluval models 2, 3 and 4 Plus have a clogging indicator fea­ture. The yellow clogging indicator is located on the top of
the filter. The device will retract when the filtering media is
clogged.

Caution: This device is directly influenced by the position of
the water flow adjuster and by the accessories installed on
the horizontal water outlet. A correct indication is only possi­ble when the water flow adjuster is set to “maximum” and
no accessories are connected to the horizontal water outlet.

FILTER MAINTENANCE

CAUTION: Disconnect the electrical plug of all appliances
inside the aquarium before putting hands in the water.

We recommend cleaning the magnetic impeller and
impeller well (where the magnetic impeller is located) at
least once every two months. It’s a good idea to clean the
motor when servicing the filter media.

!

4

AquaClear AquaClear
