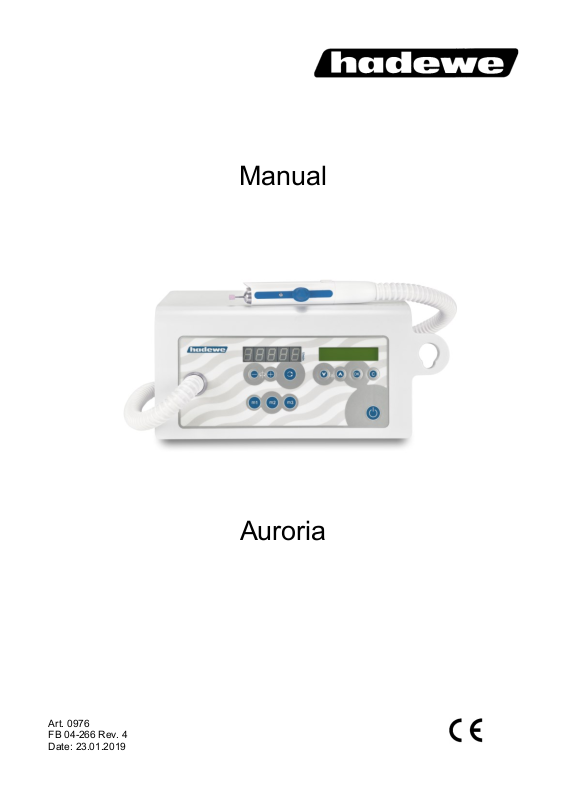

hadewe Auroria User Manual

Art. 0976
FB 04-266 Rev. 4
Date: 23.01.2019

Manual

Auroria

2

Directory

Foreword 3

Safety Instructions 4

Cleaning & Disinfection 9

Getting to Know the Unit 10

Before First Use 11
Area of Application 11

Operation 11

Use 13
Operating Steps 13

Working Positioning 14
Suction 16

Exchange Micro Filter 16
Exchange Control Unit Filter 16
Clamping the Bur/Tool 17

Setting up the Speed 17
Memory Buttons m1, m2, m3 17
Button on the Handpiece 17
Foot Switch 18
LCD Display 18

Messages 20

Maintenance & Care 21

Cleaning the Chuck 21

Maintenance Overview 22

Handling Instructions 23

Troubleshooting 24

Technical Data 25

3

Foreword

The Auroria foot care unit was produced according to strict quality criteria and uses the
latest technology in its design. The images in this manual may vary slightly from the
product you have bought as we are constantly developing our products.

This user manual includes a detailed description and explanation of how to use the
Auroria unit. If you have any questions or suggestions, you can contact us by telephone
or email.

This user manual belongs with the Auroria unit. Keep it somewhere safe. If you give
this product to someone else, please include this document as it includes important
information on how to correctly use the product.

Short description of functions

The Auroria is a device for the treatment of callus and nails. The handpiece is compati­ble with rotating tools such as diamond polishers, steel cutters and ceramic cutters.
These can reach at speeds up to 40,000 rpm and therefore provide an efficient way of
removing tissue. The direction of rotation can be changed by pressing a button. The
integrated filtered suction function effectively sucks up any dust particles. The rotation
speed and suction function can be adjusted using the keyboard. The device display will
notify you when the filter needs to be changed and when the device is due for inspec­tion

4

Safety Instructions

The installation of the working area has to cor­respond to the relevant regulations. Set up the
unit in such a way, that the air slits are not
blocked and the extracted air can escape well.

To avoid the risk of electrocution only connect
the device to the mains power supply.

If you pull the power plug, it will stop the con­nection to the mains power supply. Set up the
unit so that the power plug is always accessi­ble. The power switch should also always be
easily accessible.

Only switch on the unit if the handpiece rests
secured in the handpiece holder, or if you hold
it safely in your hand.

Prevent any liquids from entering into the con­trol unit, since this could damage the electronic
elements. Clean the outside of the box only
with a damped cloth. Make sure, that you have
unplugged the unit before.

Only when pulling the mains cable, you can
ensure that the device will be completely dis­connected from mains. Check the mains cable
regularly for damages and in case of such,
have it changed or repaired by an authorized

5

Safety Instructions

service center.

Prevent your hair from wrapping itself around
moving parts. If applicable, wear a hair net.

When working with materials, which might cre­ate dust or moisture, use a drilling unit with
suction or spray technique. Wear a nose and
mouth protection. Always follow the safety in­structions, provided by the manufacturer of the
materials being formed and used.

For safety reasons, you must always wear dis­posable gloves and protective glasses when
operating this unit. In addition, a face mask
conforming to EN 14683 type IIR or EN 149
FFP 2 must also be worn.

Ensure that the patient’s foot and the hand­piece are held firmly in place during the opera­tion. To prevent injury, work with extreme cau­tion on the foot of the patient and use only light
pressure.

Children should be supervised not to play with
the appliance. This appliance can be used by
children aged from 8 years and above and per­sons with reduced physical, sensory or mental
capabilities or lack of experience and

6

Safety Instructions

knowledge if they have been given supervision
or instruction concerning use of the appliance
in a safe way and understand the hazards in­volved. Cleaning and user maintenance shall
not be made by children without supervision.

Attention! Only use burs/tools which are permit­ted for speed level saved under m1 – m3!

To ensure that the bur/tool sits firmly in the
chuck, do not work with tools which

• have an oily shaft,

• are worn,

• are bent.

Before using the equipment, assure that:

• the tool can be pushed far enough into the
chuck (test this with a dipstick and clean if
necessary),

• the inserted tool sits properly in the chuck
and will not cant/jam while clamping it,

• the tool is approved for using it at the max
speed (see manufacturer’s instructions), or

• only use the speed required by the instru­ment,

• the tool is absolutely dry.

7

Safety Instructions

When changing the filter, it is advisable to wear
a face mask conforming to EN 14683 type IIR
or EN 149 FFP 2.

For safety reasons, do not change the tool
while the motor is running.

Switch off the unit immediately if

• the bur comes off during the treatment itself.

• the motor blocks during the treatment.

While doing any foot care, only operate the unit
with the suction turned on.

Only use the suction function if you have in­stalled the suction filter. Check this filter every
10 operating hours. If it is full, please exchange
it. A filter should be exchanged at least after 50
operating hours.

The light on the handpiece is for lighting the
area being treated. Do not look directly into the
light.

Never use the suction to vacuum any liquids
(or air/water fog which contains particles of liq­uids).

8

Safety Instructions

Always follow the operating instructions. Do not
carry out any repairs, modifications or mainte­nance work yourself. This is only to be accom­plished by an authorized specialist. The mains
cable may also only be changed by the manu­facturer, or an authorized specialist. Mainte­nance records may be supplied to repair work­shops and trained technicians upon request.
Never remove the housing, especially not while
the equipment is plugged into the socket, since
some components are under electric voltage.
Any unauthorized or improper handling (e.g.
trying to repair the unit) of the equipment will
immediately nullify the guarantee/warranty, and
any other liabilities of the manufacturer.

When the device is brought out of standby
mode it will run with the rotation speed and
suction power used last. Take care to not start
the mill at an overly high rotation speed. Select
the required rotation speed before changing
the milling tool.

9

Cleaning & Disinfection

The device is designed to be compatible with rotating in-

struments which do not penetrate the skin or mucosal or
inadvertently may still cause injuries. For this application please
adhere to the cleaning and disinfection instructions provided be­low. After every treatment please carry out the following steps:

• Remove the rotating tool (e.g. bur, capper etc.) first. Then

handle the tool according to the instructions of its manufactur­er.

• Remove tissue remains by wiping off the unit with a mildly

moistened paper cloth. Afterwards clean all surfaces with dis­infection cloth (e.g. Mikrozid AF Tücher of Schülke and Mayr)
There is no limit to the number of times this device can be
cleaned and disinfected during its recommended lifespan.

10

Getting to Know the Unit

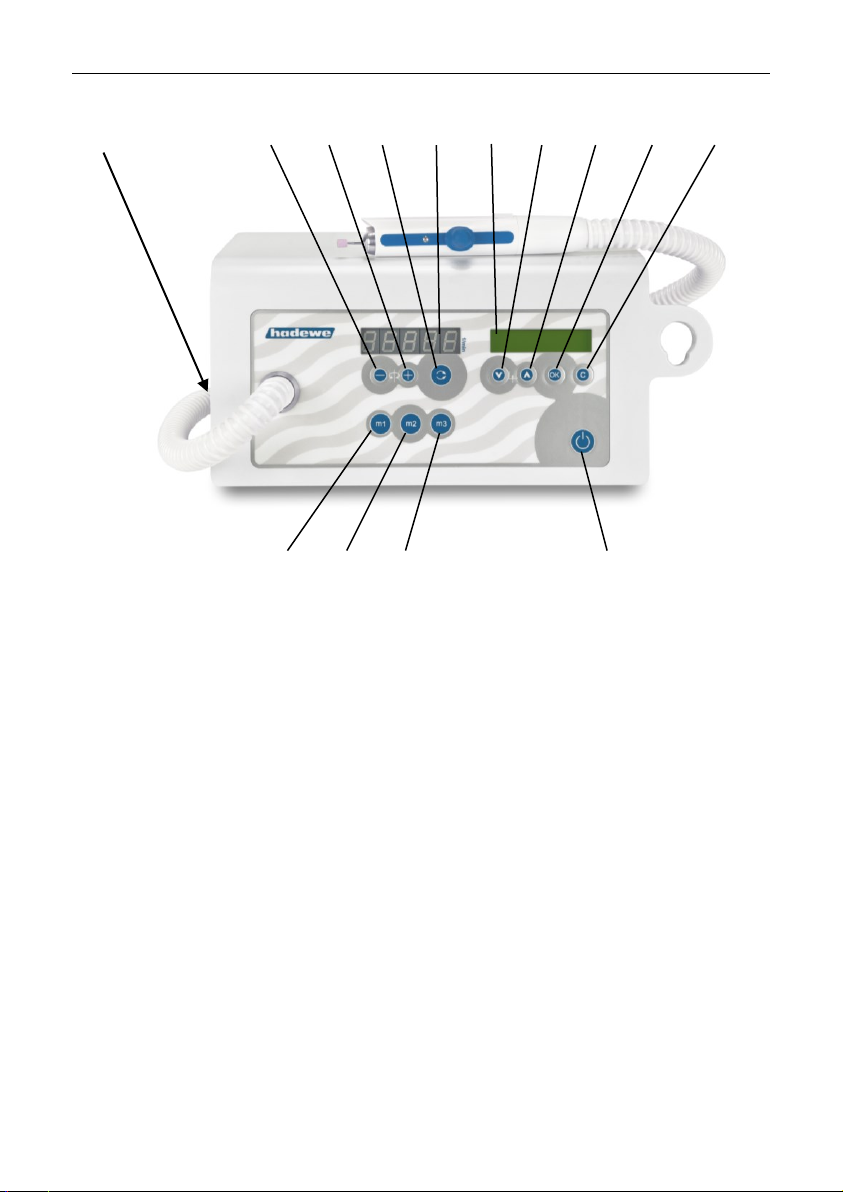

1 power switch
2 reduce speed
3 increase speed
4 change direction of speed
5 display for speed [rpm]
6 display for suction level, time, change of the filter bag etc.

7 menu button down  and reducing the suction level

8 menu button up  and increasing the suction level
9 menu button OK

10 menu button stop
11 memory button m1 for speed/suction level
12 memory button m2 for speed/suction level
13 memory button m3 for speed/suction level
14 ON/OFF button (standby)

1 2 3 4 5 6 7 8 9 10

11 12 13 14

11

Before First Use

Please read through the instructions
carefully before using the unit and
carefully note the safety advice.
Always keep this manual accessible
to any users of the drill.

Area of Application

This device should only be used by
people who have completed a foot
care qualification. Before use the
operator should familiarize with the
device by reading this manual or
being instructed by another.

The device must only be used in
closed spaces. It may be used in
hospitals, in a commercial environ­ment or in homes. The device is not
intended for use in operating rooms.

The control unit can be set up in a
cabinet or can be used as a porta­ble unit, e.g. in a carry case. It is
suitable for the following scopes:

• foot care (milling, trimming and

polishing),

• manicure (grinding, milling and

polishing works).

The devise is determined of
operating rotating instru-

ments, which will not
penetrate the skin or murcous
membrane if used appropriate, but
could evoke damages accidently.

Caution: In the area of

pedicure you have to work

with suction techniques.

Operation

The working area must conform to
the conditions described. Set up the
unit in such a way, that the air slits
are not blocked and the extracted
air can escape well. To guarantee
unhindered air flow there must a
gap of at least 12cm to the right of
the device.

Position the device so that the op­erating buttons are easy to reach
and the outlet of the hose is a max­imum distance of 60cm from the
patient's foot. The unit should be
30-90cm from the floor.

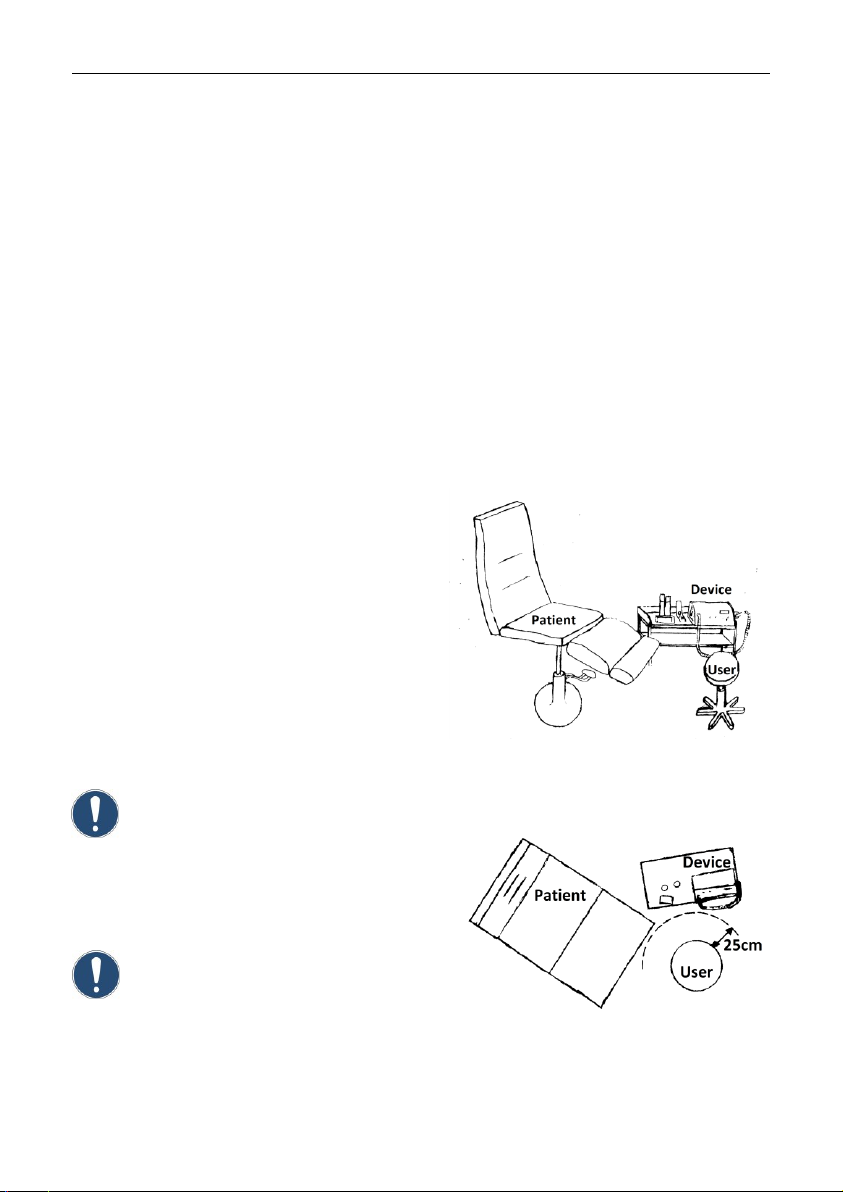

Image: Example of positioning of foot care unit
in treatment room

Image: Bird's eye view of work area

12

Before First Use

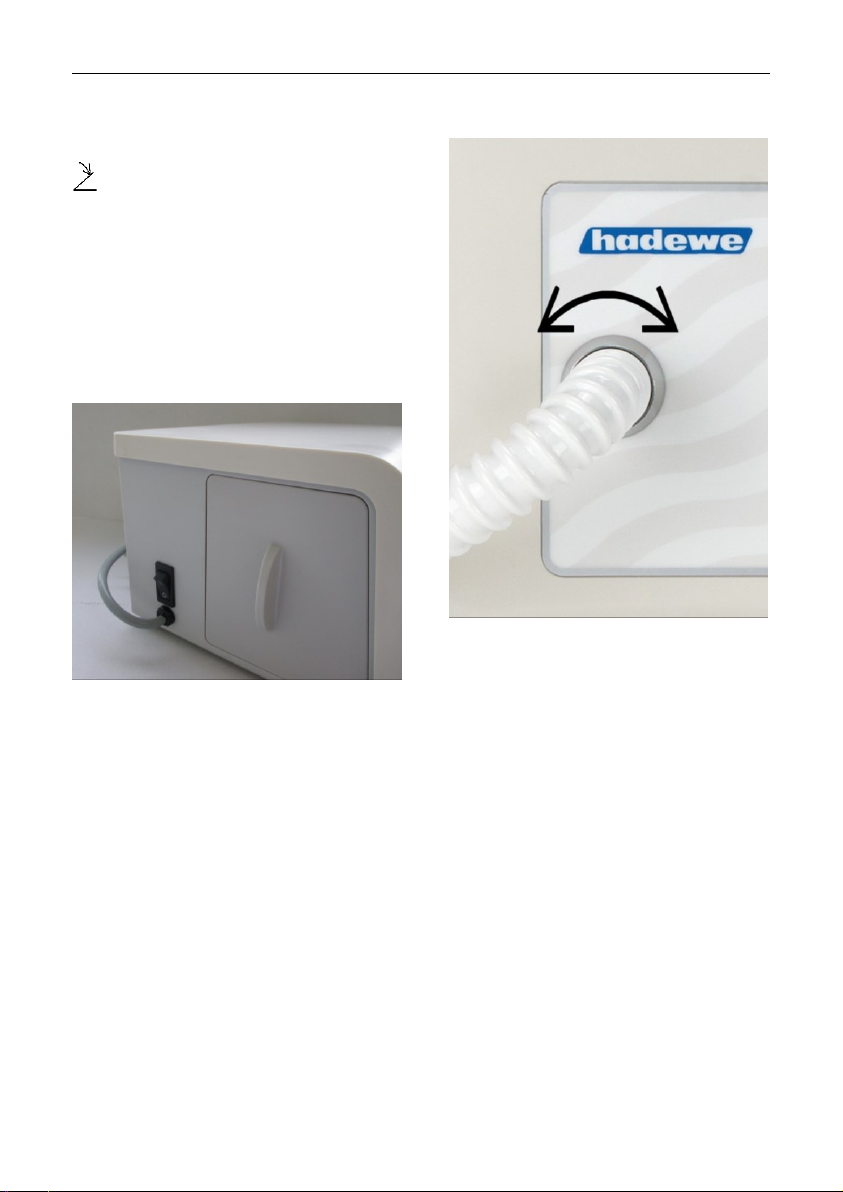

If you have a foot switch, insert its
plug into the port on the right of the
device which displays this symbol

.

Check that the filter bag and dust
filter are correctly fitted. Ensure that
the tool is fixed.

On the left side of the device you
will find the main power switch.
Press this switch to turn the unit on.

The word “Language?” will appear
on the display. Use the buttons 
and  to select a language and
press OK to confirm.

On the display will appear “Press
OK”. By pressing the OK button, the
counter which calculates the time
until the next inspection is due is set
to 0.

The device is now on standby. As
soon as the LCD display (6) is ac­tive the device is ready to use. Pick
up the handpiece. Should the
handpiece be twisted by the hose

you can adjust that at the control
unit.

To use the handpiece and suction
function press the button (14) on
the front of the unit.

13

Use

Operating Steps

In the following section the order in
which you should use the device is
described. Additionally, the individ­ual steps will be explained in detail.
Read the complete manual before
use.

After connecting the device to the
power press the standby button (14)
to make it start rotating. Use the
buttons (2) and (3) to select a rota­tion speed. Manufacturers often
provide recommendations for opti­mal rotation speeds. However, it is
important that you never exceed the
maximum recommended rotation
speed.

You can now choose the rotation
direction using the button (4). The
most commonly used direction is
clockwise. Most milling instrument
(steel instruments with steel cutters)
are optimised for clockwise use.
The rotation direction is irrelevant
for diamond cutters and high-grade
corundum sanders in terms of effi­ciency. Working anti-clockwise can
be beneficial if, for example, the
dust obscures your field of vision
when working clockwise.

Using buttons (7) and (8) you can
adjust the intensity of the suction.
Frequently used rotation speeds
and suction power settings can be
saved. First select the desired rota­tion speed and suction power. Save
these settings by pressing the
memory button m1 for 4 seconds.
To use your custom settings simply
press m1. Other values can be

saved using memory buttons m2
and m3.

After choosing rotation speed and
suction power you can start work­ing. If you want to take a break or
finish the job, press the standby
button (14). The handpiece motor
and suction will turn off. The hand­piece can now be placed in its
holder on the right of the unit. Alter­natively, you can switch the device
to standby by pressing and holding
the button on the handpiece or by
pressing the button on the foot
switch.

We recommend to disconnect the
device from the mains power supply
if is not going to be used for a while.
This will save electricity. The mains
plug must also be removed when it
comes to retiring the device.

14

Use

Work Positioning

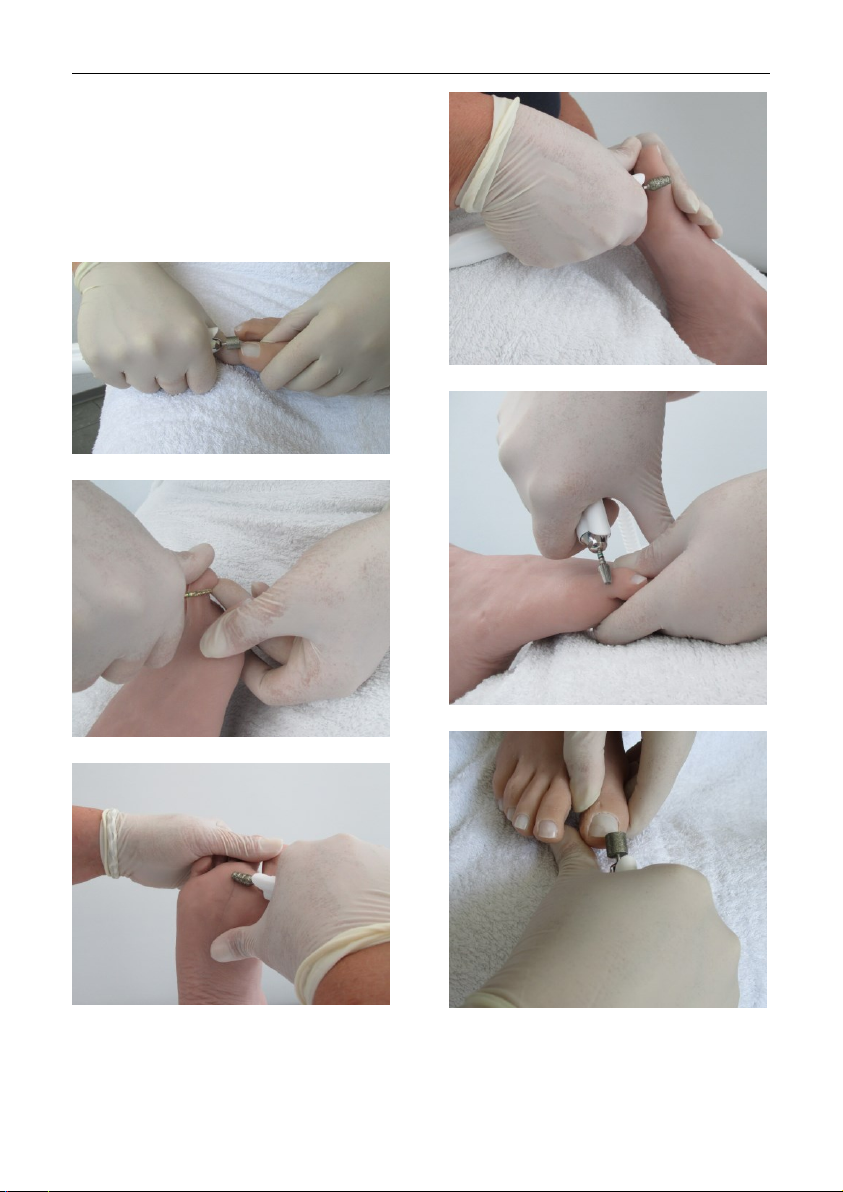

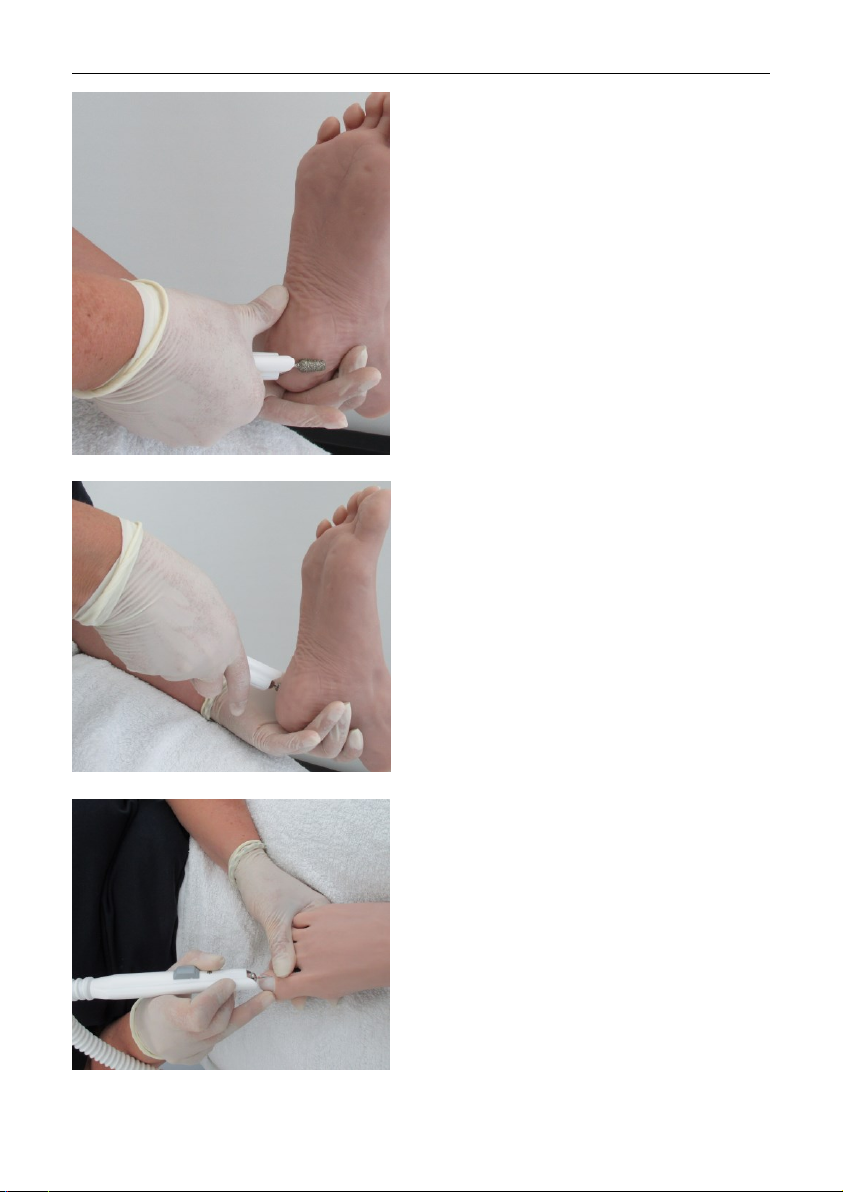

The following images are examples
of how to work on various parts of
the foot. Always make sure that the
foot is firmly gripped and that you
can work freely and without strain.

15

Use

16

Use

Suction

Switch on the suction with button
(8). The suction power can be regu­lated in 5 levels. You will see the
selected level in the display. Level 0
would mean that the suction is
turned off.

In case the suction motor over­heats, the unit will switch off auto­matically. Leave the unit to cool off
for a while before starting it again.
Should the same failure appear
again, please return the unit to your
supplier for inspection.

Exchange Micro Filter

When changing the filter, it
is advisable to wear a face
mask conforming to EN

14683 type IIR or EN 149 FFP 2.

Only operate the unit with a suction
filter assembled. Control the bag
after every 10 operating hours. Ex­change a full filter bag immediately.
A filter should be exchanged at
least after 50 operating hours.

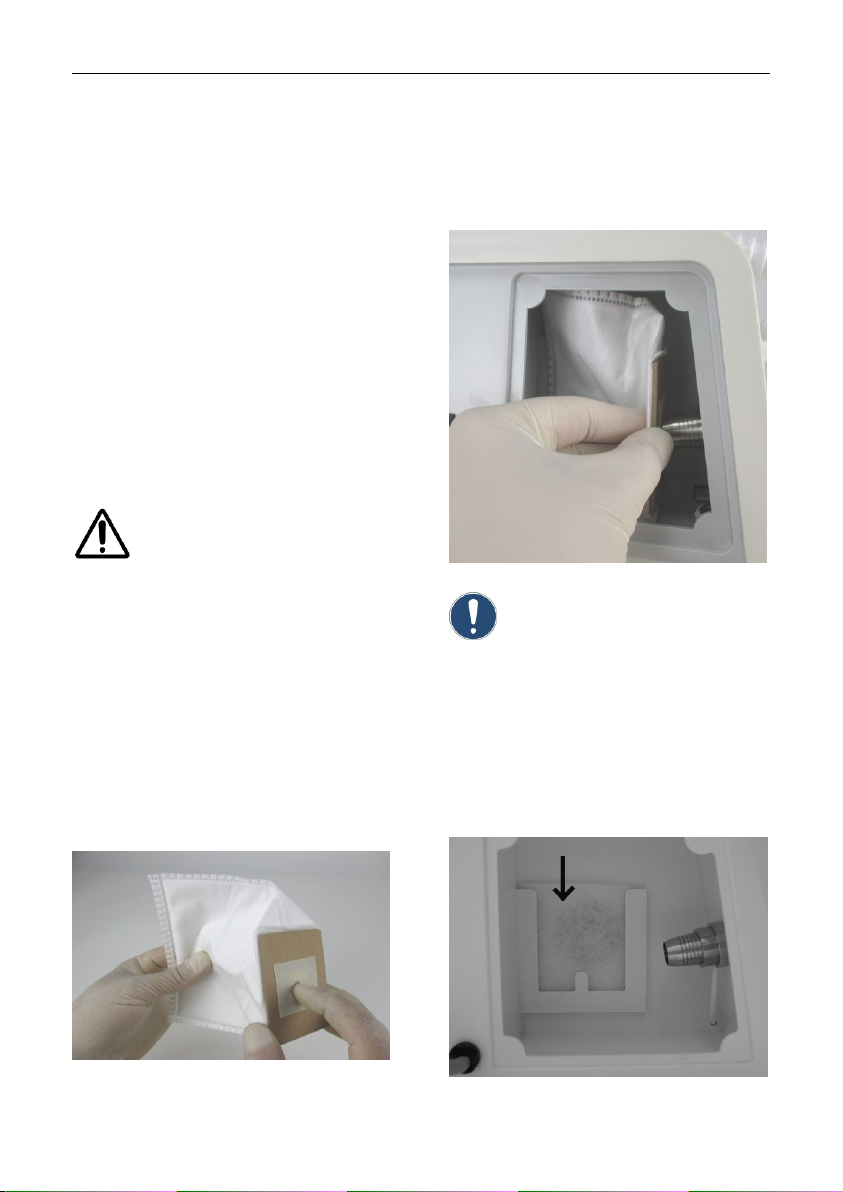

At first, unfold the paper of the mi­cro filter bag (art. 5179) and push
your finger into the opening in the
front.

Pull out the lid of the dust chamber
and remove the old filter. Hold the
filter in the middle to prevent it from
bending and sliding off (see picture
below). Therefore, you avoid it from
coming off again.

The dust filter (art. 5179)
must be used. The paper
filter (art. 5115) must NOT

be used.

Exchange Control Unit Filter

This filter (art. 3752) has to be ex­changed after every 200 operating
hours. Remove the old filter and
place the new one in its holder (see
picture below).

17

Use

Clamping the Bur/Tool

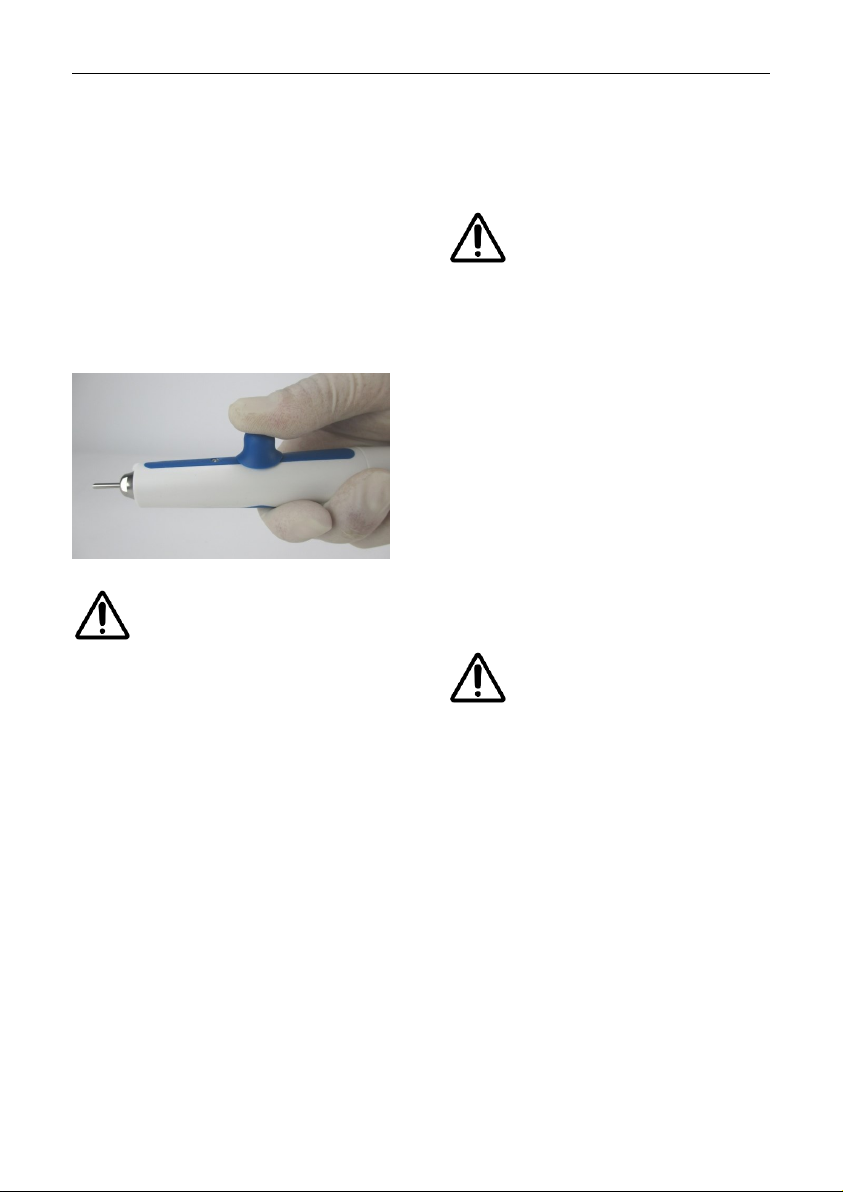

The handpiece is equipped with a
chuck, which can hold all burs with
a diameter of 2.35 mm (this is the
diameter usually used for tools in
podiatry). To open the chuck, push
the knob forward with your thumb
and leave it there. Now insert the
tool as far as possible. Pull back the
knob and the tool will be firmly
clamped.

For security reasons, only
change the tool if the
handpiece is turned off.

Setting up the Speed

Hold the handpiece (incl. tool) in
your hand or store it in the hand­piece holder attached to the side of
the control unit. Switch on the unit
with button (14). Now you can also
set the speed with buttons (2) and
(3). Choose the direction of rotation
with button (4).

Memory Buttons m1, m2, m3

Frequently used speed or suction
levels can be saved. Therefore,
three memory buttons are available.
At first, choose your speed/suction
level, and then save it by pushing
the memory button m1 for 4 sec­onds. To recall the above combina-

tion of speed/suction level, simply
press button m1 again. Further
combinations can be saved with m2
and m3.

Attention! Only use
burs/tools which are permit­ted for speed level saved

under m1 – m3!

Button on the Handpiece

If you press this button once (for a
short time), you can recall the
memorised combination of speed
and suction you saved under m1.
By pressing the button once again
(shortly), you recall the m2 setting.
You can switch between settings
m1 and m2 (not m3 though) by
using this button. If you press the
button on the handpiece for a long­er period, you will switch on/off the
complete control unit.

When the device is brought
out of standby mode, it will

run with the rotation speed
and suction power used last. Take
care to not start the mill at an overly
high rotation speed. Select the re­quired rotation speed before chang­ing the milling tool.

18

Use

Foot Switch (art. 0970)

Operation of the foot switch

Only use the original hadewe foot
switch, to avoid any damages. In­sert the plug of the foot switch into

the socket with the symbol .

Function of the foot switch

If you press on the foot switch once,
you can recall the memorized com­bination of speed and suction you
saved under m1. By pressing the
switch once again, you recall the
m2 setting. You can switch between
settings m1 and m2 (not m3
though) by using the foot switch this
way.

Attention! Only use
burs/tools which are permit­ted for speed level saved

under m1 – m3!

If you press the foot switch for a
longer period, you will switch on/off
the complete control unit.

LCD Display

The LCD display shows you infor­mation about the operating mode of
the control unit, such as direction of
rotation (left/right rotation), suction
level (level 1 – level 5) or date and
time. A warning notice to exchange
the filter bag will appear in the dis­play. It will also show, when the unit
should be brought to a maintenance
(after approx. 1 year).

By pressing the OK button, you will
access the selective list for settings
of the device. With the buttons 
and  you can go through the list
and select a setting by pressing OK.
With “C” you can stop a function to
return to the main menu.

The following functions are availa­ble:

• verification of changing the filter

bag (the date of the last ex­change will be displayed),

• turn light on/off at handpiece,

• show date of last maintenance,

• setting the time,

• setting the date,

• choose your language.

Change of filter bag approval

After every 50 operating hours dur­ing suction mode, you will read the

note „Check the filter bag”. When

this message appears, you have to
confirm the date of the exchange.
Choosing “Change filter” from the
selective list and then press OK.
Now the date of the last change will
be shown in the display. Press 
and then OK to confirm the change.

Turn ON/OFF light

To turn on the light on the hand­piece, take the following steps: Se­lect “light” from the selective list.
Approve by pressing OK. Press  to
choose between “light on” or “light
off”. Then press OK.

19

Use

Display date of maintenance

Select from the list “maintenance”.
Approve with the button “OK”. The
date of the last service will appear.
If you send in the device for
maintenance, hadewe or an ap­proved service agent will update the
date of service for you.

Setting the time

Select from the menu list “time”.
Confirm with the button OK. With
the button - and + you can set the
hours. With the buttons  and  you
can set the minutes. Press OK to
save the setting.

Setting the date

Select from the list “date”. Confirm
with OK. With the button - and +
you can set the day. With the button
 and  you can set the month.
With the button m1 and m2 you can
set the year. Press OK to save the
setting.

Choose your language

Select from the list “language”. Con­firm with the button OK. With the
button  and  you can select the
language. Press OK to save the
setting.

20

Messages

CHECK FILTER BAG

→ Change the filter bag (see page

16).

HANDPIECE CHECK

→ No handpiece is connected or
the handpiece is faulty.

MAINTENANCE RECOMMENDED
→ After longer operation of the unit
(approx. 1 year, depending on how
much the unit is used), the ex­change of moving parts, e.g. ball
bearings, washers and other parts
that will wear down in time will be­come necessary. A maintenance by
an approved hadewe service agent
is recommended after a year.

The control system will determine
the period between the last mainte­nance and shows a recommenda­tion for a new service. Please con­tact your distributor or an authorized
repair service, when this occurs.

In the display appears “Mainte­nance recommended”. Press OK.
The display shows “Note off?”. If the
message should still appear, select
“No” and the OK. If you do not want
this message to appear again dur­ing the next 2 months, press “Yes”
and then OK.

ERROR 1

→ The unit switches off when the

rotational speed of the handpiece
cannot be maintained.

ERROR 2

→ The unit switches off when the
speed of the suction motor cannot

be maintained.

ERROR 3

→ The unit switches off when if the
handpiece has been very heavily
used for a long period of time.

21

Maintenance & Care

Cleaning the Chuck

In the process of time, some dirt
might collect itself within the hand­piece and might affect its functions.
Therefore, the chuck has to be
cleaned monthly.

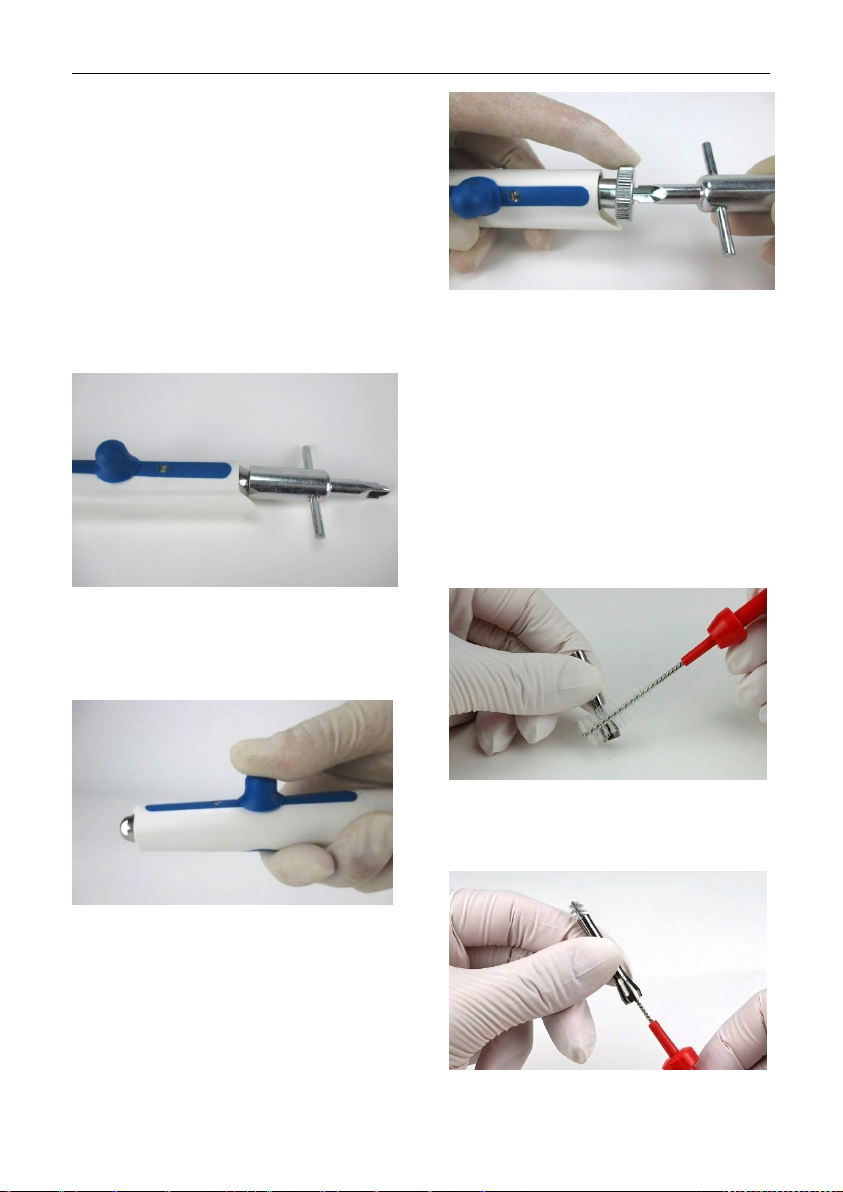

How to remove the chuck

Screw off the top of the handpiece
with the spanner shown in the pic­ture.

Now clean the inside of the hand­piece and the top with the brush.

For opening the chuck, push the
button forward.

Set the screw spanner (wrench) on
the axle and hold it tight. Now use
the front of the second spanner to
unscrew the chuck.

To assemble the chuck, follow the
steps in reverse order. Make sure
that the chuck is opened during the
assembly (the handpiece button
must be in forward position) and is
firmly applied afterwards.

How to clean the chuck
Soak the chuck in ethyl alcohol or a
cleaning liquid for tools. Clean the
slits of the chuck with the brush.

Use the brush to remove all dirt
residues from the drill-hole of the
chuck:

22

Maintenance & Care

Rinse the chuck very well, and
make sure you let it dry well after­wards. Cover your index finger with
a very little amount (just a drop) of
oil and rub in between your thumb
and index finger. Dab off the oil until
your fingers is only covered with a
very thin film of oil. Now move the
chuck in between your thumb and
index finger. There should be only a
very thin film of oil left on the chuck.
Please act according to the saying:
Less is more.

Maintenance Overview

What has to be
done?

How often?
Done by whom?

cleaning the
chuck

monthly by user

changing the
micro filter

every 50 hours of
operation
by user (check
after each 10
hours)

changing the
control unit filter

every 200 hours
of operation
by user

maintenance by
repair workshop
(changing worn
parts, housing,
cleaning, check
leakage current)

every 500 hours
of operation
by repair work­shop

23

Handling Instructions

Never put the handpiece into

any kind of liquid, and never
oil or grease the handpiece. Clean
its surface with a damped cloth. Pay
attention, that no moisture or liquid
enters the handpiece. Never use
spray disinfection.

Never put any wet burs or

instruments into the
handpiece. Its moisture could
damage the interior parts of the
handpiece.

Any materials used by

hadewe prevend a formation
of rust. In cases in which a rust
infestation was found within the
handpiece, thorough inspections
and examinations always have
proved that the rust had a foreign
origin (which was usually caused by
the tools used in these circum­stances). Even in high-grade steel
instruments of well known
manufacturers, formation of rust
can appear, e.g., through wrong
treatment with chemical cleaning
and disinfection liquids. This
extraneous rust affects internal
parts of the handpiece in form of
rust bloom and causes pitting.
Therefore, when you not working
with the handpiece, always remove
the bur/tool from it.

Always make sure that you
do not let the handpiece fall

down or exposes it to any
shocks. The ballbearings and the
motor could be damaged by this.
Only work with tools, which are
flawless. Do not work with tools

which

- are bent or out of balance

- whose shaft is worn out or

- are rusty.

Working with faulty tools will

cause a stronger vibration of
the handpiece. A damage of the ball
bearings, clamping technique or
motor could be the consequence.

Working with high pressure

will not improve the outcome
of your work, since the motor will
even be slowed down. A second
disadvantage is the stronger impact
on the ball bearings and the motor,
which will shorten their life span in
the long run.

In case of sending the de-

vice by mail remove the dust
filter before.

Only suck up dust or milling

waste, never suck up larger
particles such as small bits of cotton
wool as this may be get caught in
the handpiece and lead to block­ages.

24

Troubleshooting

Handpiece vibrates, is very noisy
or becomes warm in the front
part.

Use of bent burs/tools. → Use a
different bur/tool to test this. The
bur/tool itself can be tested with
the hadewe Bur Shaft Tester
(art. 4990) to see if it is bent.

Maximum allowed speed of the

tool was exceeded, which
caused a stronger vibration. →
Pay attention to the tool (e.g.
bur, capper and instrument)
manufacturers handling details.

Bur/tool can be inserted only
with difficulty or not at all.

Use of bent burs/tools. → Use a
different bur/tool to test this. The
bur/tool itself can be tested with
the hadewe Bur Shaft Tester
(art. 4990) to see if it is bent.

Chuck is dirty. → Clean the
chuck according to the instruc­tions in the manual.

Bur does not clamp, or does not

spin

Chuck is not tightened well. →
Tighten the chuck firmly accord­ing to the instruction in the man­ual.

Knob of the handpiece cannot be
moved easily.
Chuck is dirty. → Clean the

chuck according to the instruc­tions in the manual.

Rubber under the knob is tilted.
→Turn rubber about 90°.

Unit does not work at all.

Check, if the main switch of the
unit is turned on at the side of
the unit.

Foot switch is used constantly or

faulty. → Pull out the socket of
the foot switch to see if this is
the cause.

Pull out the mains plug to reset

the device.

The unit shows different sound
levels at different sites of use.
The sound level varies accord-

ing to the surroundings of the
unit. If you set up the unit direct­ly in front of a wall, the sound is
reflected stronger, as if it would,
while standing further away from
a wall.

Handpiece motor stutters shortly
(approx. 1 sec) when turning unit
on.
In very rare cases this effect did

appear. It will not harm or dam­age the device.

Suction function doesn't work.

The suction motor will turn off

automatically if it overheats. Let
the device cool down before us­ing it again. Send the device off
for inspection if this occurs re­peatedly.

For descriptions of the messages
on the device display, see page

20.

25

Technical Data

0976 Auroria
0976 UK Auroria
0976 US Auroria

total weight: 2,7 kg
dimension: W273xH142xD186 mm
input: 100-240 V~, 50/60 Hz
power consumpt.: 1A(100V)-0,5A(240V)
fuse primary:
F1, F2: 4 A time delayed safety fuse
fuse sec.: thermal fuse
protection class I
accuracy of speed display: ±10%

handpiece:

type B applied part
diameter: 19-25 mm
length: 144 mm
speed: 6.000 - 40.000 rpm

Ambient Conditions

The device is intended for use in
dry closed rooms.

Operation:
Temp.: +10°C to +26°C
Rel. humidity: 25% to 75%
(not condensed)
Air pressure: 700 hPa to 1060 hPa

Storage:
Temp: -5°C to +55°C
Rel. humidity: 10% to 95%
(not condensed)
Air pressure: 500 hPa to 1060 hPa

Transport (up to 4 weeks):
Temp: -5°C to +55°C
Rel. humidity: 10% to 95%
(not condensed)
Air pressure: 500 hPa to 1060 hPa

Operating Time

The device is designed for extend­ed usage.

Accessories & Spare Parts

art. no.

5179

micro filter

3752

filter

0970

foot switch

6158

cleaning brush

The dust filter (art. 5179)

must be used. The paper

filter (art. 5115) must NOT
be used.

The clamping system is designed
for rotating instruments, which have
a shaft of 2.35 mm in accordance
with DIN EN ISO 1797-1.

Declaration of Conformity

We declare under our sole respon­sibility, that the products podiatry
unit 0976, 0976 US and 0976 UK to
which this declaration relates, are
conform to the following standards
or normative documents:

2014/30/EU directive EMC
2014/35/EU low voltage directive

hadewe GmbH – Grambartstraße 10 –
30165 Hannover

Safety Check

A safety check must be done in
compliance with the regulations of
the country where the device is
used. The inspection interval is
once a year.

26

Technical Data

Disposal

The device and filter may
contain infectious material

such as residual sanding
dust or skin particles. Therefore,
please bear in mind the following
disposal instructions.

Disposing of the device
Old devices bought in Germany that
correspond to the electronic device
law should be sent directly to the
manufacturer (hadewe). We will
dispose of the device free of
charge. The devices should not be
taken to public disposal plants
(WEEE Reg. No. DE20392713, b2b
device). For disposal of this unit out
of Germany, please contact the site
where you bought this hadewe
product.

Note for the disposal of the device/
treatment system

Wear protecting gloves of the class
2 in accordance with DIN 374-2
during the disassembling of the
device. Also, wear a protective
mask for your face according
EN14683 version IIR or EN 149
FFP2.

Disposal of dust filter and coarse
dust filter

The filter bag and the coarse dust
filter are considered low contami­nated waste. Dispose those in
intransparent, liquid-tight, resistant
plastic sacks and do not dispose
them compressed in the regular
household garbage.

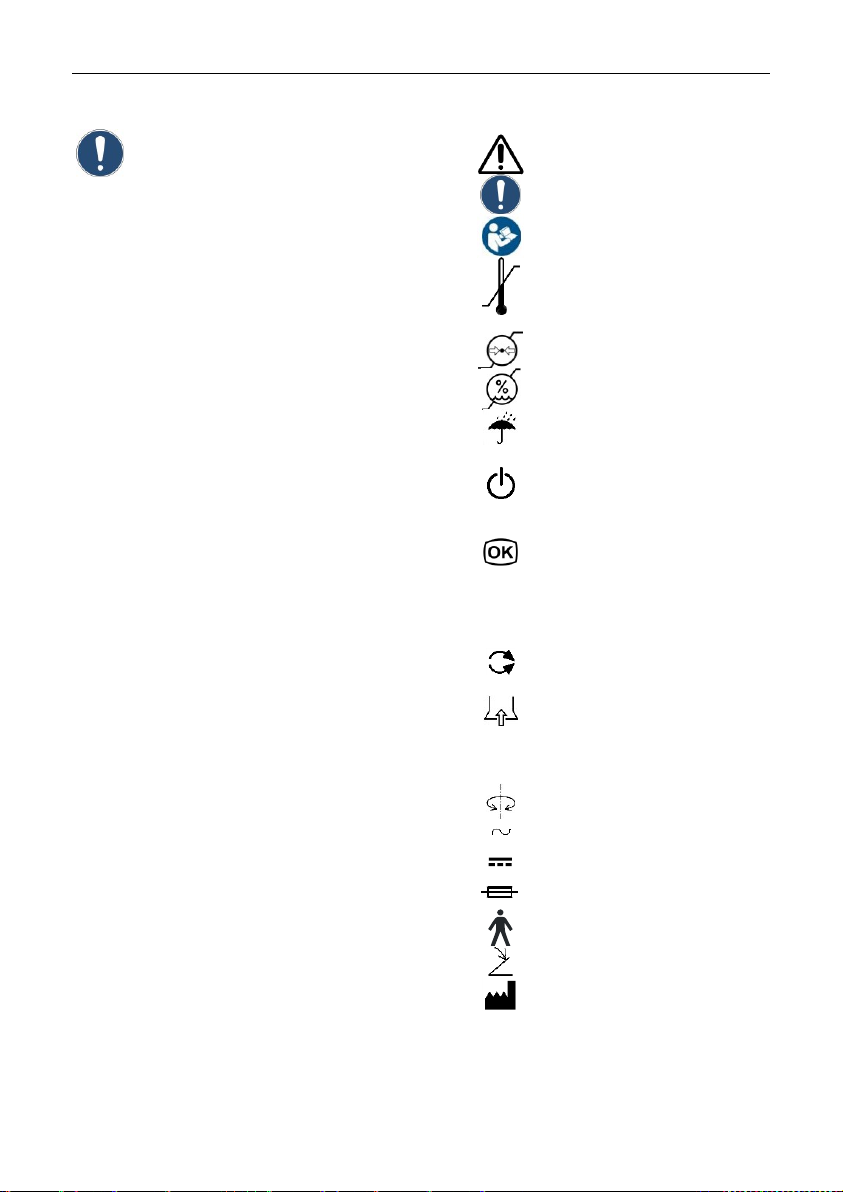

Symbols

Caution!

Important Note!

Follow instructions for use!

temperature limit
(indicates the lower and
upper temperature limit)

air pressure: permissible range

air humidity: permissible range

Keep dry!

ON/OFF button (standby)
(no disconnection from main
power supply)

enter menu/
confirm with OK

C

go back in menu/
cancel

change direction

suction

m1, m2, m3

memory buttons for speed/
suction output

rotation

alternating current

direct current

safety fuse

type B applied part
socket foot switch

date of manufacture,
name and address
of the manufacturer

hadewe GmbH
Grambartstraße 10
30165 Hannover
Germany
[email protected]
www.hadewe.de
