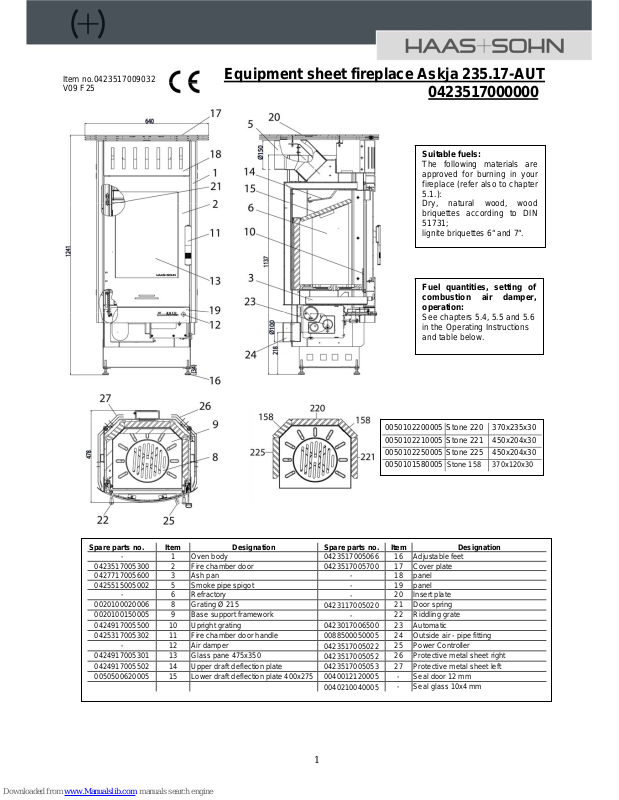

Equipment sheet fireplace Askja 235.17-AUT
0423517000000
Suitable fuels:
The following materials are approved for burning in your fireplace (refer also to chapter
5.1.): Dry, natural wood, wood briquettes according to DIN 51731; lignite briquettes 6“ and 7“.
Fuel quantities, setting of combustion air damper, operation:
See chapters 5.4, 5.5 and 5.6 in the Operating Instructions and table below.
Spare parts no. Item Designation Spare parts no. Item Designation
- 1 Oven body 0423517005066 16 Adjustable feet 0423517005300 2 Fire chamber door 0423517005700 17 Cover plate 0427717005600 3 Ash pan - 18 panel 0425515005002 5 Smoke pipe spigot - 19 panel
- 6 Refractory
-
20 Insert plate
0020100020006 8 Grating Ø 215
0423117005020
21 Door spring
0020100150005 9 Base support framework
-
22 Riddling grate
0424917005500 10 Upright grating
0423017006500
23 Automatic
0425317005302 11 Fire chamber door handle
0088500050005
24 Outside air - pipe fitting
- 12 Air damper
0423517005022
25 Power Controller
0424917005301 13 Glass pane 475x350
0423517005052
26 Protective metal sheet right
0424917005502 14 Upper draft deflection plate
0423517005053
27 Protective metal sheet left
0050500620005 15 Lower draft deflection plate 400x275
0040012120005
- Seal door 12 mm
0040210040005
- Seal glass 10x4 mm
0050102200005 Stone 220 370x235x30 0050102210005 Stone 221 450x204x30 0050102250005 Stone 225 450x204x30 0050101580005
Stone 158 370x120x30
Item no.0423517009032 V09 F25
Page 2
2
Fuels : Maximum fuel quantity : Air damper (12)
Automatic (25)
Wood logs , wood briquettes
2 – 3 logs (approx. 2,0 – 2.5 kg)
or 1 wood briquette (2,0 kg)
For 10 minutes:Open (middle),
then closed
IV
Lignite briquettes:
3 – 4 briquettes
Approx. 2,0 -2,5 kg
Open Automatic 0 - 3
Technical data: Askja 235.17-AUT Height 1241 mm Flue gas temperature on the spigot of the heat generator 290 °C Width 640 mm Minimum delivery pressure 12 Pa Depth without handles 740 mm Minimum delivery pressure with 0.8 times rated thermal capacity 10 Pa Weight 285 kg Flue mass flow 7,5 g/s Pipe spigot 150 mm Fuel Wood Wood briquette lignite briquettes Rated heating capacity 8 kW CO2 9,4% 10,0% 9,8% Thermal output range 3,6-8,6 kW Efficiency 80,7% 81,0% 80,2%
Approval no. EN 13240 RRF 40 09 1990
Burning: wood (12)
Heating up (12)
Burning: lignite briquettes (12) Adjustment by: Power Controller (25)
Page 3
1
Item no 0621350009031 V09 H06
ASKJA Assembly and Installation Instructions
Room for type designation and manufacturing number:
Our supply program: Oil stoves
Fireplaces
Pellet stoves Tiled and slow-burning stoves for wood and coal Slow-burning and auxiliary stoves for wood, coal and oil Fireplace inserts for wood Accessories for stove and fireplace Accessories for central oil supply Air humidifiers
HAAS+SOHN Sales in Germany OFENTECHNIK GMBH Haas+Sohn Ofentechnik GmbH
Urstein Nord 67 Herborner Straße 7-9 A-5412 Puch D-35764 Sinn Tel.:0043 (0) 662 44955-0 Telephone: 0049 (0) 2772 5010-0 Fax: 0043 (0) 662 44955 210 Fax: 0049 (0) 2772 5010-99 eMail: office@haassohn.com eMail: info@haassohn.com http://www.haassohn.com
Page 4
2
1 PRELIMINARY REMARKS
Please read the installation and operating instructions of your fireplace insert before these installation instructions.
These installation instructions also comprise:
“Complete equipment sheet “,
When unpacking the concrete elements you might discover irregularities (cracks or joints) which are filled with the enclosed adhesive.
2 PREREQUISITES
Before installing your fireplace kit always ascertain the load carrying capacity of the floor. The total weight of the complete fireplace kit (fireplace with refractory lining and the artificial stone lining) can range from approximately 290 to roughly 300 kg depending on the model. In the case of wooden beam ceilings it is imperative to consult a structural engineer.
Important: Observe the regulations of the fire protection authorities and the national building regulations applicable at the place of installation when installing your fireplace kit.
3 TOOLS
The following tools are required for the installation of the artificial stone lining:
– Water level – Rubber hammer – Open-end wrench size
13
– Steel square 90
o
– Pencil – Paint roller
– Trowel or spatula – Sponge
4 MATERIAL
– Paint – Possibly plaster – Water
5 INSTALLING THE KIT
1. Carefully unpack the artificial stone lining with accessories. Check your kit for completeness using the enclosed parts list. Sort the parts in accordance with the installation sequence (see written and illustrated parts list).
2. Align the fireplace at the right height by turning the adjusting feet using the open-end wrench size 13. The ideal height is shown in (Figure 2). For verification, also set up the base with marble slab or the slate slab. The lower edge of the panel with the air damper on the fireplace can be flush with the understructure of the concrete lining without joint or approximately 1 to 2 millimetre higher (Note: Bonding slightly changes the overall height: However it is possible to subsequently adjust the fireplace height by turning the adjusting feet as required.
3. Also adjust the distance to the adjustable wall to the right dimension (see Figure 2).
Page 5
3
Important: After this, adjust the fireplace in horizontal position using the water level.
4. It is now necessary to secure the flue pipe connection (for instance with double wall lining) in the fireplace (see installation and operating instructions of the fireplace).
5. Start with the installation of the kit.
6 NOTE
It is not permissible to assemble the kit without bonding the elements together and without securing the fireplace hood against sliding!
To avoid minor cracks in the wall we recommend filling these with acrylic compound (acrylic compound can be immediately painted over unlike silicon).
Once the fireplace kit has dried the fireplace can be painted (use mineral-base paint, no depth primer required). To obtain a fine-grain structure, simply mix some adhesive into the paint for the first coat. Use only paint for the second coat. Of course you can also use roll-on or rubbing plaster to finish the surface.
Allow the fireplace kit to dry at least 2 weeks before initial use. To start the fireplace: Carefully read the operating instructions and start the oven using little wood.
Heating at rated output can then commence after approximately one hour.
Page 6
4
Artificial stone kit - ASKJA – Parts list
Article No. No. Quantity Designation Type Material 0621350000100 1 1 Base plate Artificial stone Artificial stone
0621350000200 2 1 Base element lateral Artificial stone Artificial stone 0621350000300 3 1 Base element front Artificial stone Artificial stone 0621350000400 4 1 Lateral cover right Artificial stone Artificial stone 0621350000500 5 1 Lateral cover left Artificial stone Artificial stone 0621350000600 6 1 Support side parts Steel Steel 0621350010100 7 1 Base plate great black Artificial stone 0621350010200 8 1 Base plate front black Artificial stone 0621350010300 9 1 Base plate small black Artificial stone 0621350010400 10 1 Side parts right black Artificial stone 0621350010500 11 1 Side parts left black Artificial stone 0621350030100 7 1 Base plate great cotto Artificial stone 0621350030200 8 1 Base plate front cotto Artificial stone 0621350030300 9 1 Base plate small cotto Artificial stone 0621350030400 10 1 Side parts right cotto Artificial stone 0621350030500 11 1 Side parts left cotto Artificial stone 0621800105000 12 1 Adhesive 0621800105050 13 1 Acryl
Assembly instructions artificial stone kit ASKJA
Note: Ensure that the insert is accurately positioned prior to the assembly. Always ensure that the parts are assembled horizontally and plumb.
1. Assemble the fireplace kit in the dry condition. Check to see whether the elements are plumb and level. Mark the correct position using the pencil. After this, remove all elements and assemble one by one using the tile adhesive.
2. Mix the supplied adhesive (safety adhesive) with water until a consistency similar to toothpaste is obtained. Bond all elements together and to the wall. The bonding surface should be clean and slightly moistened to achieve optimum adhesive strength. Remove excess adhesive with the spatula and a moist cloth.
3. Once the kit has been finish painted, finally glue the plates to the bases.
Page 7
5
4.
Figure 2: Position fireplace insert
Figure 1: Position the base plate
Figure 5: Assemble the base elements right or left
Figure 3: Assemble the lateral covers
Figure 4: Assemble the support of
lateral covers
Page 8
6
Figure 6 : Assemble the side parts
Figure 8 : Assemble the cover plate
Figure 7 : Assemble the base plates
Page 9
7
Page 10
8
We wish you lots of pleasure with your fireplace kit by
Figure 9 : Dimensions
