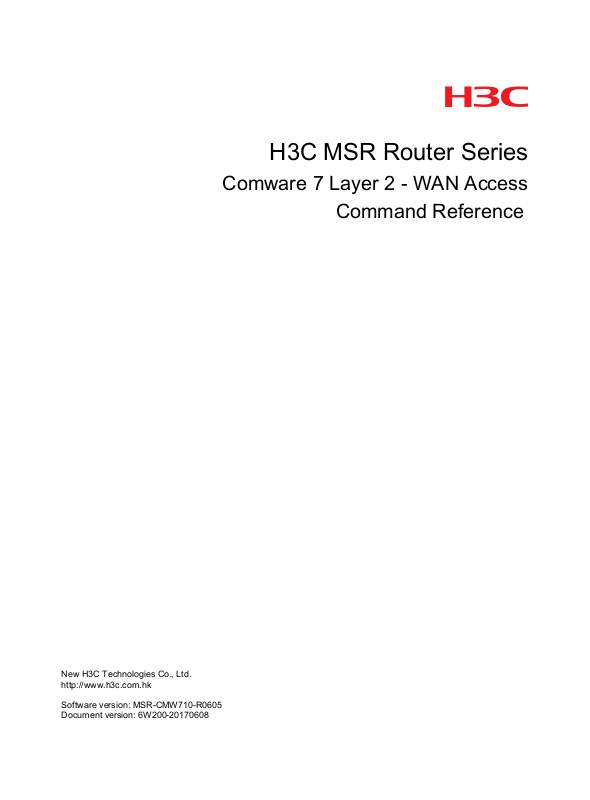

H3C MSR810-LUS, MSR810-LM-HK, MSR810-W, MSR2600-10-X1, MSR810-W-DB Command Reference Manual

...
H3C MSR Router Series
Document version: 6W200-20170608
Software version: MSR-CMW710-R0605
Comware 7 Layer 2 - WAN Access
Command Reference
Copyright © 2017, New H3C Technologies Co., Ltd. and its licensor s
All rights reserved
No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of New H3C Technologies Co., Ltd.
Trademarks
H3C, , H3CS, H3CIE, H3CNE, Aolynk, , H
3
Care, , IRF, NetPilot, Netflow, SecEngine, SecPath, SecCenter, SecBlade, Comware, ITCMM and HUASAN are trademarks of New H3C Technologies Co., Ltd.
All other trademarks that may be mentioned in this manual are the property of their respective owners
Notice
The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied.

Preface

Convention
Description
Convention
Description
This command reference describes the configuration commands for PPP, HDLC, L2TP, and so on.
This preface includes the following topics about the documentation:
Audience.
Conventions
Obtaining documentation
Technical support
Documentation feedback

Audience

This documentation is intended for:
Network planners.
Field technical support and servicing engineers.
Network administrators working with the H3C MSR Router series.

Conventions

The following information describes the conventions used in the documentation.

Command conventions

Boldface Bold
Italic
[ ] Square brackets enclose syntax choices (keywords or arguments) that are optional.
{ x | y | ... }
[ x | y | ... ]
{ x | y | ... } *
[ x | y | ... ] *
&<1-n>
# A line that starts with a pound (#) sign is comments.

GUI conventions

text represents commands and keywords that you enter literally as shown.
Italic text represents arguments that you replace with actual values.
Braces enclose a set of required syntax choices separated by vertical bars, from which you select one.
Square brackets enclose a set of optional syntax choices separated by vertical bars, from which you select one or none.
Asterisk marked braces enclose a set of required syntax choices separated by vertical bars, from which you select a minimum of one.
Asterisk marked square brackets enclose optional syntax choices separated by vertical bars, from which you select one choice, multiple choices, or none.
The argument or keyword and argument combination before the ampersand (&) sign can be entered 1 to n times.
Boldface
>
Window names, button names, field names, and menu items are in Boldface. For example, the
Multi-level menus are separated by angle brackets. For
New User
window opens; click OK.
Convention
Description
example,
File
>
Create
>
Folder
.

Symbols

Convention
Description
IMPORTANT:
TIP:
Convention
Description
T
T
T
T
WARNING!
CAUTION:
NOTE:

Network topology icons

An alert that calls attention to important information that if not understood or followed can result in personal injury.
An alert that calls attention to important information that if not understood or followed can result in data loss, data corruption, or damage to hardware or software.
An alert that calls attention to essential information.
An alert that contains additional or supplementary information.
An alert that provides helpful information.
Represents a generic network device, such as a router, switch, or firewall.
Represents a routing-capable device, such as a router or Layer 3 switch.
Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that supports Layer 2 forwarding and other Layer 2 features.
Represents an access controller, a unified wired-WLAN module, or the access controller engine on a unified wired-WLAN switch.
Represents an access point.
Wireless terminator unit.
Wireless terminator.
Represents a mesh access point.
Represents omnidirectional signals.
Represents directional signals.
Represents a security product, such as a firewall, UTM, multiservice security gateway, or load balancing device.
Represents a security module, such as a firewall, load balancing, NetStream, SSL VPN, IPS, or ACG module.

Examples provided in this document

Examples in this document might use devices that differ from your device in hardware model, configuration, or software version. It is normal that the port numbers, sample output, screenshots, and other information in the examples differ from what you have on your device.

Obtaining documentation

To a ccess the most up-to-date H3C product documentation, go to the H3C website at
http://www.h3c.com.hk
To obtain information about installation, configuration, and maintenance, click
http://www.h3c.com.hk/Technical_Documents
To obtain software version information such as release notes, click
http://www.h3c.com.hk/Software_Download

Technical support

service@h3c.com
http://www.h3c.com.hk

Documentation feedback

You can e-mail your comments about product documentation to info@h3c.com.
We appreciate your comments.

Contents

PPP and MP commands ···································································· 1
PPP commands ························································································································· 1
display ip pool ····················································································································· 1 display ppp access-user ······································································································· 3 display ppp compression iphc ································································································ 8 ip address ppp-negotiate ······································································································· 9 ip pool ····························································································································· 10 ip pool gateway ················································································································· 11 link-protocol ppp ················································································································ 12 nas-port-type ···················································································································· 12 ppp accm ························································································································· 14 ppp account-statistics enable ······························································································· 14 ppp acfc local-request ········································································································ 15 ppp acfc remote-reject ········································································································ 15 ppp authentication-mode ····································································································· 16 ppp chap password ············································································································ 17 ppp chap user ··················································································································· 18 ppp compression iphc enable ······························································································· 19 ppp compression iphc rtp-connections ··················································································· 19 ppp compression iphc tcp-connections ··················································································· 20 ppp ipcp dns ····················································································································· 21 ppp ipcp dns admit-any ······································································································· 22 ppp ipcp dns request ·········································································································· 23 ppp ipcp remote-address match ··························································································· 23 ppp ip-pool route ··············································································································· 24 ppp lcp delay ···················································································································· 25 ppp lqm ··························································································································· 25 ppp lqm lcp-echo ··············································································································· 26 ppp pap local-user ············································································································· 27 ppp pfc local-request ·········································································································· 28 ppp pfc remote-reject ········································································································· 28 ppp timer negotiate ············································································································ 29 remote address ················································································································· 29 remote address dhcp client-identifier ····················································································· 30 reset ppp compression iphc ································································································· 31 timer-hold ························································································································ 31 timer-hold retry ················································································································· 32 reset ppp access-user ········································································································ 33
MP commands ························································································································ 34
bandwidth ························································································································ 34 default ····························································································································· 34 description ······················································································································· 35 display interface mp-group ·································································································· 36 display interface virtual-access ····························································································· 39 display interface virtual-template ··························································································· 42 display ppp mp ················································································································· 44 interface mp-group ············································································································ 45 interface virtual-template ····································································································· 46 mtu································································································································· 47 ppp mp ···························································································································· 48 ppp mp binding-mode ········································································································· 48 ppp mp endpoint ··············································································································· 49 ppp mp fragment disable ····································································································· 50 ppp mp lfi delay-per-frag ····································································································· 51 ppp mp lfi enable ··············································································································· 51 ppp mp lfi size-per-frag ······································································································· 52
i
ppp mp max-bind ·············································································································· 53 ppp mp min-bind ··············································································································· 54 ppp mp min-fragment ········································································································· 54 ppp mp mp-group ·············································································································· 55 ppp mp short-sequence ······································································································ 56 ppp mp sort-buffer-size ······································································································· 56 ppp mp timer lost-fragment ·································································································· 57 ppp mp user ····················································································································· 58 ppp mp virtual-template ······································································································ 59 reset counters interface mp-group ························································································· 60 reset counters interface virtual-access ··················································································· 60 service ···························································································································· 61 service standby ················································································································· 63 shutdown ························································································································· 65
PPPoE commands ········································································· 66
PPPoE server commands ·········································································································· 66
display pppoe-server session packet ····················································································· 66 display pppoe-server session summary ·················································································· 68 display pppoe-server throttled-mac ······················································································· 70 display pppoe-server va-pool ······························································································· 71 ppp lcp echo mru verify ······································································································· 72 pppoe-server access-delay ·································································································· 73 pppoe-server access-line-id bas-info ····················································································· 73 pppoe-server access-line-id circuit-id parse-mode ···································································· 75 pppoe-server access-line-id circuit-id trans-format ···································································· 76 pppoe-server access-line-id content ······················································································ 77 pppoe-server access-line-id remote-id trans-format ·································································· 78 pppoe-server access-line-id trust ·························································································· 79 pppoe-server bind ············································································································· 80 pppoe-server session-limit ··································································································· 81 pppoe-server session-limit per-mac ······················································································· 82 pppoe-server session-limit per-vlan ······················································································· 83 pppoe-server session-limit total ···························································································· 84 pppoe-server tag ac-name ·································································································· 85 pppoe-server tag ppp-max-payload ······················································································· 86 pppoe-server tag service-name ···························································································· 87 pppoe-server throttle per-mac ······························································································ 88 pppoe-server virtual-template va-pool ···················································································· 89 reset pppoe-server ············································································································ 90
PPPoE client commands ··········································································································· 91
dialer diagnose ················································································································· 91 display pppoe-client session packet······················································································· 91 display pppoe-client session summary ··················································································· 93 pppoe-client ····················································································································· 93 reset pppoe-client ·············································································································· 94 reset pppoe-client session packet ························································································· 95
L2TP commands ············································································ 96
allow l2tp ························································································································· 96 bandwidth ························································································································ 97 default ····························································································································· 98 description ······················································································································· 98 display interface virtual-ppp ································································································· 99 display l2tp session ·········································································································· 102 display l2tp session temporary ··························································································· 103 display l2tp tunnel ············································································································ 104 display l2tp va-pool ·········································································································· 105 interface virtual-ppp ········································································································· 105 ip dscp ·························································································································· 106 l2tp enable ····················································································································· 107
ii
l2tp tsa-id ······················································································································· 107 l2tp virtual-template va-pool ······························································································· 108 l2tp-auto-client ················································································································ 109 l2tp-group ······················································································································ 110 lns-ip ···························································································································· 110 mandatory-chap ·············································································································· 111 mandatory-lcp ················································································································· 112 mtu······························································································································· 113 ppp access-control enable ································································································· 113 ppp lcp imsi accept ·········································································································· 114 ppp lcp imsi request ········································································································· 115 ppp lcp imsi string ············································································································ 115 ppp lcp sn accept ············································································································ 116 ppp lcp sn request ··········································································································· 116 ppp lcp sn string ·············································································································· 117 ppp user accept-format imsi-sn split ···················································································· 118 ppp user attach-format imsi-sn split ····················································································· 118 ppp user replace ············································································································· 119 reset counters interface virtual-ppp······················································································ 120 reset l2tp tunnel ·············································································································· 121 service ·························································································································· 121 service standby ··············································································································· 123 shutdown ······················································································································· 124 source-ip ······················································································································· 124 timer-hold ······················································································································ 125 timer-hold retry ··············································································································· 126 tunnel authentication ········································································································ 126 tunnel avp-hidden ············································································································ 127 tunnel flow-control ··········································································································· 128 tunnel name ··················································································································· 129 tunnel password ·············································································································· 129 tunnel timer hello ············································································································· 130 user ······························································································································ 131 vpn-instance ··················································································································· 131
HDLC commands ········································································· 133
link-protocol hdlc ············································································································· 133 timer-hold ······················································································································ 134 timer-hold retry ··············································································································· 135
HDLC link bundling commands ······················································· 137
bandwidth ······················································································································ 137 bundle id ······················································································································· 137 bundle load-balance ········································································································· 138 bundle max-active links ···································································································· 139 bundle member-priority ····································································································· 139 bundle min-active bandwidth ······························································································ 140 bundle min-active links ····································································································· 140 default ··························································································································· 141 description ····················································································································· 142 display bundle hdlc-bundle ································································································ 142 display interface hdlc-bundle ······························································································ 144 interface hdlc-bundle ········································································································ 148 mtu······························································································································· 148 reset counters interface ···································································································· 149 service ·························································································································· 149 service standby ··············································································································· 151 shutdown ······················································································································· 152
ISDN commands ·········································································· 154
display isdn active-channel ································································································ 154
iii
display isdn call-info ········································································································· 155 display isdn call-record ····································································································· 158 display isdn parameters ···································································································· 159 display isdn spid ·············································································································· 161 isdn bch-local-manage ····································································································· 163 isdn bch-select-way ········································································································· 164 isdn bri-slipwnd-size ········································································································· 165 isdn caller-number ··········································································································· 165 isdn calling ····················································································································· 166 isdn carry calling-name ····································································································· 167 isdn carry connected-name ······························································································· 167 isdn check-called-number ································································································· 168 isdn crlength ··················································································································· 169 isdn ignore connect-ack ···································································································· 169 isdn ignore hlc ················································································································ 170 isdn ignore llc ················································································································· 171 isdn ignore sending-complete ···························································································· 172 isdn l3-timer ··················································································································· 172 isdn leased-line ··············································································································· 174 isdn link-mode p2p ·········································································································· 174 isdn number-property ······································································································· 175 isdn overlap-sending ········································································································ 180 isdn pri-slipwnd-size ········································································································· 180 isdn progress-indicator ····································································································· 181 isdn progress-to-alerting enable ························································································· 182 isdn protocol-mode ·········································································································· 183 isdn protocol-type ············································································································ 184 isdn q921-permanent ······································································································· 185 isdn spid auto-trigger ········································································································ 186 isdn spid nit ···················································································································· 186 isdn spid resend ·············································································································· 187 isdn spid service ············································································································· 188 isdn spid timer ················································································································ 189 isdn spid1 ······················································································································ 189 isdn spid2 ······················································································································ 190 isdn two-tei ···················································································································· 191 permanent-active ············································································································ 192 power-source ················································································································· 193
ATM commands ··········································································· 194
bandwidth ······················································································································ 194 broadcast ······················································································································ 194 default ··························································································································· 195 description ····················································································································· 196 display atm map-info ········································································································ 196 display atm pvc-group ······································································································ 198 display atm pvc-info ········································································································· 202 display interface virtual-ethernet ························································································· 205 encapsulation ················································································································· 208 interface virtual-ethernet ··································································································· 209 mac-address ·················································································································· 210 map bridge ····················································································································· 210 map ip ··························································································································· 211 map ppp ························································································································ 213 mtu······························································································································· 213 oam ais-rdi ····················································································································· 214 oam loopback ················································································································· 215 oam ping ······················································································································· 216 precedence ···················································································································· 218 pvc ······························································································································· 219 pvc-group ······················································································································ 220
iv
remark atm-clp ················································································································ 221 reset atm interface ··········································································································· 222 reset counters interface virtual-ethernet ················································································ 222 service cbr ····················································································································· 223 service ubr ····················································································································· 224 service vbr-nrt ················································································································· 225 service vbr-rt ·················································································································· 226 shutdown ······················································································································· 227 shutdown ······················································································································· 228 transmit-priority ··············································································································· 228 vp limit ·························································································································· 229
Modem management commands ····················································· 231
country-code ·················································································································· 231 modem answer-timer ······································································································· 232 modem auto-answer ········································································································ 233 modem callback ·············································································································· 233 modem caller-number resolve ···························································································· 234 modem enable ················································································································ 235 sendat ··························································································································· 236
3G/4G modem management commands ··········································· 239
Common management commands ···························································································· 239
controller cellular ············································································································· 239 description ····················································································································· 239 display cellular ················································································································ 240 display controller cellular ··································································································· 251 dm-port open ·················································································································· 253 mode ···························································································································· 253 modem reboot ················································································································ 254 modem response ············································································································ 255 pin modify ······················································································································ 255 pin unlock ······················································································································ 256 pin verification enable ······································································································· 257 pin verify ························································································································ 258 plmn search ··················································································································· 259 plmn select ···················································································································· 260 reset counters controller cellular ························································································· 261 rssi ······························································································································· 261 sendat ··························································································································· 262 shutdown ······················································································································· 263 sim switch-back enable ····································································································· 263 sim switch-to ·················································································································· 264
trust-imsi ······················································································································ 265
3G modem-specific management commands ··············································································· 266
gsm band ······················································································································ 266 profile create ·················································································································· 267 profile delete ·················································································································· 268 profile main ···················································································································· 268 serial-set ······················································································································· 269 wcdma band ··················································································································· 269
4G modem-specific management commands ··············································································· 270
apn······························································································································· 270 apn-profile ····················································································································· 271 apn-profile apply ············································································································· 272 attach-format imsi-sn split ································································································· 272 authentication-mode ········································································································ 273 bandwidth ······················································································································ 274 default ··························································································································· 274 description ····················································································································· 275 display interface eth-channel ····························································································· 276
v
eth-channel ···················································································································· 279 imsi bind ························································································································ 280 interface eth-channel ········································································································ 280 ip address cellular-alloc ···································································································· 281 ipv6 address cellular-alloc ································································································· 282 lte band ························································································································· 282 mtu······························································································································· 283 pdp-type ························································································································ 284 reset counters interface ···································································································· 284 shutdown ······················································································································· 285
DDR commands ·········································································· 286
bandwidth ······················································································································ 286 default ··························································································································· 287 description ····················································································································· 287 dialer bundle enable ········································································································· 288 dialer bundle-member ······································································································ 288 dialer callback-center ······································································································· 289 dialer call-in ···················································································································· 290 dialer circular enable ········································································································ 291 dialer circular-group ········································································································· 292 dialer disconnect ············································································································· 293 dialer flow-interval ··········································································································· 293 dialer number ················································································································· 294 dialer peer-name ············································································································· 295 dialer priority ·················································································································· 295 dialer queue-length ·········································································································· 296 dialer route ····················································································································· 297 dialer threshold ··············································································································· 298 dialer timer autodial ········································································································· 299 dialer timer compete ········································································································ 300 dialer timer enable ··········································································································· 300 dialer timer idle ··············································································································· 301 dialer timer wait-carrier ····································································································· 302 dialer timer warmup ········································································································· 302 dialer-group ···················································································································· 303 dialer-group rule ·············································································································· 304 display dialer ·················································································································· 305 display interface dialer ······································································································ 306 interface dialer ················································································································ 309 mtu······························································································································· 309 ppp callback ··················································································································· 310 ppp callback ntstring ········································································································ 311 reset counters interface ···································································································· 311 service ·························································································································· 312 service standby ··············································································································· 313 shutdown ······················································································································· 315 standby routing-group ······································································································ 315 standby routing-group rule ································································································· 316 standby timer routing-disable ····························································································· 317 timer-hold ······················································································································ 317 timer-hold retry ··············································································································· 318
Frame Relay commands ································································ 320
broadcast ······················································································································ 320 display fr compression iphc ······························································································· 320 display fr compression stac ······························································································· 323 display fr fragment ··········································································································· 324 display fr inarp ················································································································ 325 display fr ipv6 map ··········································································································· 326 display fr lmi ··················································································································· 327
vi
display fr map ················································································································· 329 display fr pvc ·················································································································· 330 fr compression iphc enable ································································································ 332 fr compression iphc rtp-connections ···················································································· 333 fr compression iphc tcp-connections ···················································································· 334 fr compression stac enable ································································································ 336 fr dlci ···························································································································· 336 fr encapsulation ·············································································································· 337 fr fragment enable ··········································································································· 338 fr fragment size ··············································································································· 339 fr inarp ·························································································································· 339 fr inarp interval ················································································································ 340 fr interface-type ··············································································································· 341 fr ipv6 ind ······················································································································· 341 fr lmi n391dte ················································································································· 342 fr lmi n392dce ················································································································· 343 fr lmi n392dte ················································································································· 343 fr lmi n393dce ················································································································· 344 fr lmi n393dte ················································································································· 345 fr lmi t392dce ·················································································································· 346 fr lmi type ······················································································································· 347 fr map ··························································································································· 347 fr ipv6 ind holdtime ·········································································································· 348 fr ipv6 ind solicitation retrans-timer ······················································································ 349 link-protocol fr ················································································································· 350 reset fr compression iphc ·································································································· 350 reset fr inarp ··················································································································· 351 reset fr ipv6 ind ··············································································································· 351 reset fr pvc ····················································································································· 352 snmp-agent trap enable fr ································································································· 352 timer-hold ······················································································································ 353
Multilink Frame Relay commands ···················································· 354
bandwidth ······················································································································ 354 default ··························································································································· 354 description ····················································································································· 355 display interface mfr ········································································································· 356 display mfr ····················································································································· 359 fr mfr ····························································································································· 363 interface mfr ··················································································································· 363 link-protocol mfr ·············································································································· 364 mfr bundle-name ············································································································· 365 mfr fragment enable ········································································································· 366 mfr fragment size ············································································································ 366 mfr timer lost-fragment ····································································································· 367 mfr link-name ················································································································· 368 mfr retry ························································································································ 368 mfr timer ack ·················································································································· 369 mfr timer hello ················································································································· 370 mfr window-size ·············································································································· 371 reset counters interface ···································································································· 371 shutdown ······················································································································· 372
Index ························································································· 373
vii

PPP and MP commands

This feature is supported only on Layer 2 Ethernet ports on the following modules:
AM.
AS.
ASE.
BS.
CE3.
CPOS.
E1.
E1-F.
POS.
SAE.
T1.
T1-F.
Commands and descriptions for centralized devices apply to the following routers:
MSR810/810-W/810-W-DB/810-LM/810-W-LM/810-10-PoE/810-LM-HK/810-W-LM-HK/810-L
MS/810-LUS.
MSR2600-10-X1.
MSR 2630.
MSR3600-28/3600-51.
MSR3600-28-SI/3600-51-SI.
MSR3610-X1/3610-X1-DP/3610-X1-DC/3610-X1-DP-DC.
MSR 3610/3620/3620-DP/3640/3660.
Commands and descriptions for distributed devices apply to the following routers:
MSR5620.
MSR 5660.
MSR 5680.
IPv6-related parameters are not supported on the following routers:
MSR810/810-W/810-W-DB/810-LM/810-W-LM/810-10-PoE/810-LM-HK/810-W-LM-HK/810-L
MS/810-LUS.
MSR3600-28-SI/3600-51-SI.

PPP commands

display ip pool

Use display ip pool to display PPP address pools.
Syntax
display ip pool [ pool-name ] [ group group-name ]
1
Field
Description
Views
Any view
Predefined user roles
network-admin
network-operator
Parameters
pool-name: Specifies a PPP address pool by its name, a case-sensitive string of 1 to 31 characters.
group group-name: Displays PPP address pools in a group specified by its name, a case-sensitive
string of 1 to 31 characters.
Usage guidelines
If you do not specify any parameters, the command displays brief information about all PPP address pools.
If you specify an address pool, the command displays detailed information about the specified PPP address pool.
Examples
# Display brief information about all PPP address pools.
<Sysname> display ip pool Group name: a Pool name Start IP address End IP address Free In use aaa1 1.1.1.1 1.1.1.5 5 0 aaa2 1.1.1.6 1.1.1.10 5 0 Group name: b Pool name Start IP address End IP address Free In use bbb 1.1.2.1 1.1.2.5 4 1
2.2.2.1 2.2.2.5 5 0
# Display brief information about the PPP address pools in group a.
<Sysname> display ip pool group a Group name: a Pool name Start IP address End IP address Free In use aaa1 1.1.1.1 1.1.1.5 5 0 aaa2 1.1.1.6 1.1.1.10 5 0
# Display detailed information about PPP address pool bbb.
<Sysname> display ip pool bbb Group name: b Pool name Start IP address End IP address Free In use bbb 1.1.2.1 1.1.2.5 4 1
2.2.2.1 2.2.2.5 5 0 In use IP addresses: IP address Interface
1.1.2.1 POS2/2/0
Table 1 Command output
Free Number of free IP addresses.
In use Number of IP addresses that have been assigned.
2
Field
Description
In use IP addresses Information about the IP addresses that have been assigned.
Interface Local interface that requests the IP address for the peer interface.
Related commands
ip pool

display ppp access-user

Use display ppp access-user to display PPP user information.
Syntax
display ppp access-user { interface interface-type interface-number [ count ]
| ip-address ip-address | ipv6-address ipv6-address | username user-name | user-type { lac | lns | pppoa | pppoe } [ count ] }
Views
Any view
Predefined user roles
network-admin
network-operator
Parameters
interface interface-type interface-number: Displays brief information about PPP users on the
specified interface.
count: Displays the total number of PPP users that match the specified criteria. ip-address ip-address: Displays detailed information about the PPP user specified by its IP address. ipv6-address ipv6-address: Displays detailed information about the PPP user specified by its IPv6
address.
username user-name: Displays detailed information about the PPP user specified by its username,
a case-sensitive string of 1 to 80 characters.
user-type: Displays brief information about online users of the specified type. lac: Displays brief information about L2TP users for an LAC. lns: Displays brief information about L2TP users for an LNS. pppoa: Displays brief information about PPPoA users. pppoe: Displays brief information about PPPoE users.
Usage guidelines
Brief information about a PPP user includes the following:
Brief name of the VA interface.
Username.
MAC address.
IPv4 address, IPv6 address, or IPv6 prefix of the PPP user.
Detailed information about a PPP user includes the following:
Brief name of the VA interface.
User ID.
3
Field
Description
Username.
Authentication information.
Uplink and downlink traffic.
Access start time of the PPP user.
Examples
# Display brief information about PPP users on GigabitEthernet 1/0/1.
<Sysname> display ppp access-user interface gigabitethernet 1/0/1 Interface Username MAC address IP address IPv6 address IPv6 PDPrefix VA0 user1@h3c 0001-0101-9101 192.168.100.173 - ­VA1 user2@h3c 0001-0101-9101 192.168.80.173 2000::1 -
# Display the total number of PPP users on GigabitEthernet 1/0/1.
<Sysname> display ppp access-user interface gigabitethernet 1/0/1 count Total users: 2
Table 2 Command output
Interface Name of the VA interface corresponding to the user.
Username
MAC address
IP address
IPv6 address
IPv6 PDPrefix
Username of the user.
A hyphen (-) means that the user does not need authentication.
MAC address of the user.
A hyphen (-) means that the user is not a PPPoE user.
IP address of the user. A hyphen (-) means that no IP address is assigned to the user.
IPv6 address of the user. A hyphen (-) means that no IPv6 address is assigned to the user.
IPv6 prefix of the user. A hyphen (-) means that no IPv6 prefix is assigned to the user.
Total users Total number of PPP users.
# Display detailed information about the PPP user whose IP address is 50.50.50.3.
<Sysname> display ppp access-user ip-address 50.50.50.3 Basic: Interface: VA0 User ID: 0x28000002 Username: user1@hrss Domain: hrss Access interface: RAGG2 Service-VLAN/Customer-VLAN: -/­ MAC address: 0000-0000-0001 IP address: 50.50.50.3 IPv6 address: ­ IPv6 PD prefix: ­ VPN instance: 123 Access type: PPPoE Authentication type: CHAP
4
Field
Description
AAA: Authentication state: Authenticated Authorization state: Authorized Realtime accounting switch: Open Realtime accounting interval: 60s Login time: 2013-1-19 2:42:3:358 Accounting start time: 2013-1-19 2:42:3:382 Accounting state: Accounting Online time(hh:mm:ss): 0:7:34 Idle cut: 0 sec 0 byte Session timeout: 12000 s Time remained: 8000 s Byte remained: 20971520 bytes Redirect WebURL: http://6.6.6.6
ACL&QoS: User profile: profile123 (active) User group profile: ­ Inbound CAR: CIR 64000bps PIR 640000bps Outbound CAR: CIR 64000bps PIR 640000bps
NAT: Global IP address: 111.8.0.200 Port block: 28744-28748
Flow Statistic: IPv4 uplink packets/bytes: 7/546 IPv4 downlink packets/bytes: 0/0 IPv6 uplink packets/bytes: 0/0 IPv6 downlink packets/bytes: 0/0
ITA: Level-1 uplink packets/bytes: 100/128000 downlink packets/bytes: 200/256000 Level-2 uplink packets/bytes: 100/128000 downlink packets/bytes: 200/256000
Table 3 Command output
Basic Basic information.
Interface Brief name of the VA interface that corresponds to the user.
Username
Domain
Access interface Name of the access interface of the user.
Username of the user.
A hyphen (-) means that the user does not need authentication.
ISP domain name for authentication.
A hyphen (-) means that no ISP domain is specified for authentication.
5
Field
Description
Service-VLAN/Customer-VLAN
Service provider VLAN and customer VLAN information of the user.
A hyphen (-) means that no VLAN information is available.
IP address
IPv6 address
IPv6 PD prefix
VPN instance
Access type
Authentication type
Authentication state
IP address of the user. A hyphen (-) means that no IP address is assigned to the user.
IPv6 address of the user. A hyphen (-) means that no IPv6 address is assigned to the user.
Delegated IPv6 prefix of the user. A hyphen (-) means that no delegated IPv6 prefix is assigned to the user.
VPN instance to which the user belongs.
A hyphen (-) means that the user is not bound to any VPN instance.
Access type of the user:
PPPoE.
PPPoA.
L2TP.
Authentication type of the user:
PA P.
CHAP.
MS-CHAP.
MS-CHAP-V2.
Authentication state of the user:
Idle—The user has not been authenticated.
Authenticating—The user is being authenticated.
Authenticated—The user has been authenticated.
Authorization state of the user:
Authorization state
Realtime accounting switch
Realtime accounting interval
Login time Time when the user accessed the device through PPP.
Accounting start time
Online time(hh:mm:ss) Online duration of the current login.
Accounting state
Idle cut
Idle—The user has not been authorized.
Authorizing—The user is being authorized.
Authorized—The user has been authorized.
Open—The switch is on.
Closed—The switch is off.
Realtime accounting interval in seconds.
A hyphen (-) means that no real-time accounting interval is authorized.
Time when accounting started.
A hyphen (-) means that no accounting is performed on the user.
Accounting state of the user:
AccountingAccounting is on.
StopAccounting stops.
Traffic threshold for logging off the user in idle state.
If the traffic is less than the threshold within the specified period, the user is forcibly logged off.
6
Field
Description
Session timeout
Time remained
Byte remained
Redirect WebURL
User profile
User group profile
Authorization time for the user, in seconds.
A hyphen (-) means that no authorization time is specified for the user.
Remaining time for the user to stay online, in seconds.
A hyphen (-) means that no authorization time is specified for the user.
Remaining traffic for the user.
A hyphen (-) means that no authorization traffic is specified for the user.
Redirect Web URL address for the user.
A hyphen (-) means that no redirect Web URL address is specified for the user.
Name of the authorized user profile. The hyphen (-) means that no user profile is authorized.
The user profile has two states:
activeThe authorized user profile is successfully issued.
inactiveThe authorized user profile fails to be issued.
Name of the authorized user group profile. The hyphen (-) means that no user group profile is authorized.
The user group profile has two states:
activeThe authorized user group profile is successfully
issued.
inactiveThe authorized user group profile fails to be issued.
Inbound CAR Authorized inbound CARs, which contain the CIR and the PIR.
Outbound CAR Authorized outbound CARs, which contain the CIR and the PIR.
Global IP address
Port block
IPv4 uplink packets/bytes Number of packets and bytes for IPv4 uplink traffic.
IPv4 downlink packets/bytes Number of packets and bytes for IPv4 downlink traffic.
IPv6 uplink packets/bytes Number of packets and bytes for IPv6 uplink traffic.
IPv6 downlink packets/bytes Number of packets and bytes for IPv6 downlink traffic.
ITA
Level-n uplink packets/bytes
downlink packets/bytes
Related commands
Global IP address of the user.
This field is displayed if NAT444 is used. For information about
NAT444, see Layer 3—IP Services Co nfiguration Guide.
Port block of the user, from the start port to the end port.
This field is displayed if NAT444 is used.
ITA statistics.
ITA statistics are displayed after ITA is enabled.
traffic-separate enable
If the statistics are not included in flow statistics. For information about ITA and the
Configuration Guide. Number of packets and bytes for uplink traffic at accounting level n.
The value for n depends on the
value range is 1 to 8.
traffic-separate enable
command is configured, ITA
command, see Security
traffic level
command, and its
reset ppp access-user
7

display ppp compression iphc

Use display ppp compression iphc to display IP header compression (IPHC) statistics.
Syntax
display ppp compression iphc { rtp | tcp } [ interface interface-type interface-number ]
Views
Any view
Predefined user roles
network-admin
network-operator
Parameters
rtp: Displays IPHC RTP header compression statistics. tcp: Displays IPHC TCP header compression statistics. interface interface-type interface-number: Specifies an interface by its type and number. If you do
not specify this option, the command displays IPHC statistics on all interfaces.
Usage guidelines
When IPHC applies to an MP link:
If an MP template is used, such as a VT interface or a dialer interface, the associated VA
interface performs IPHC. You can view the compression information on the VA interface.
If an MP-group interface is used, the MP-group interface performs IPHC. You can view the
compression information on the MP-group interface.
When IPHC applies to a normal PPP link, the physical interface performs IPHC. You can view the compression information on the physical interface.
Examples
# Display IPHC RTP header compression statistics.
<Sysname> display ppp compression iphc rtp
----------------------Slot1---------------------­Interface: Virtual-Access0 Received: Compressed/Error/Total: 0/0/0 packets Sent: Compressed/Total: 0/0 packets Sent/Saved/Total: 0/0/0 bytes Packet-based compression ratio: 0% Byte-based compression ratio: 0% Connections: Rx/Tx: 16/16 Five-Minute-Miss: 0 (Misses/5Mins) Max-Miss: 0
# Display IPHC TCP header compression statistics.
<Sysname>display ppp compression iphc tcp
----------------------Slot1---------------------­Interface: Virtual-Access0
8
Field
Description
Received: Compressed/Error/Total: 0/0/0 packets Sent: Compressed/Total: 0/0 packets Sent/Saved/Total: 0/0/0 bytes Packet-based compression ratio: 0% Byte-based compression ratio: 0% Connections: Rx/Tx: 16/16 Five-Minute-Miss: 0 (Misses/5Mins) Max-Miss: 0
Table 4 Command output
Statistics for received packets:
Received:
Compressed/Error/Total
Sent:
Compressed/Total
Sent/Saved/Total
Packet-based compression ratio
Byte-based compression ratio
Compressed—Number of compressed packets.
Error—Number of error packets.
Total—Total number of received packets.
Statistics for sent packets:
Compressed—Number of compressed packets.
Total—Total number of sent packets.
Sent—Bytes of sent packets.
Saved—Bytes of saved packets.
Total—Total bytes to be sent if packets are not compressed.
Packet-based compression ratio—Ratio of compressed
packets to the total sent packets.
Byte-based compressio n ratio—Ratio of saved bytes to the
total sent bytes.
Connections:
Rx/Tx
Five-Minute-Miss
Max-Miss
Related commands
ppp compression iphc enable reset ppp compression iphc

ip address ppp-negotiate

Use ip address ppp-negotiate to enable IP address negotiation on an interface, so that the
interface can accept the IP address allocated by the server.
Use undo ip address ppp-negotiate to restore the default.
Syntax
ip address ppp-negotiate undo ip address ppp-negotiate
Number of connections.
Rx—Number of connections that the receiver can decompress.
Tx—Number of connections that the sender can compress.
Five-Minute-Miss—Number of search failures within the last 5
minutes.
Max-Miss—Maximum number of search failures within 5
minutes.
9
Default
IP address negotiation is disabled on an interface.
Views
Interface view
Predefined user roles
network-admin
Usage guidelines
If you execute the ip address ppp-negotiate and ip address commands multiple times, the most
recent configuration takes effect.
Examples
# Enable IP address negotiation on Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ip address ppp-negotiate
Related commands
ip address (Layer 3—IP Services Command Reference) remote address

ip pool

Use ip pool to configure a PPP address pool. Use undo ip pool to remove a PPP address pool or an IP address range of the PPP address pool.
Syntax
ip pool pool-name start-ip-address [ end-ip-address ] [ group group-name ] undo ip pool pool-name [ start-ip-address [ end-ip-address ] ]
Default
No PPP address pool is configured.
Views
System view
Predefined user roles
network-admin
Parameters
pool-name: Specifies a name for the PPP address pool to be created, a case-sensitive string of 1 to
31 characters.
start-ip-address [ end-ip-address ]: Specifies an IP address range. If you do not specify the end-ip-address argument, the PPP address pool has only the start IP address.
group group-name: Specifies a group by its name to which the PPP address pool belongs. The
group name is a c ase-sensitive string of 1 to 31 characters. If you do not specify this option, the
group name is default (the default group).
Usage guidelines
The system supports multiple address spaces that each correspond to a VPN instance. The same IP addresses can exist in different address spaces.
10
Each address space is represented by a group. One group can contain multiple PPP address pools, but one PPP address pool can belong to only one group.
One PPP address pool can contain multiple IP address ranges. You can execute this command multiple times to specify multiple IP address ranges for a PPP address pool. A PPP address pool can contain a maximum of 65535 IP addresses, and so can an IP address range.
IP address ranges in different groups can be overlapping, but those in the same group cannot.
Changes to a PPP address pool do not affect assigned IP addresses. For example, if you delete a PPP address pool from which an IP address has been assigned, the IP address can still be used.
When assigning IP address to users through a PPP address pool, make sure the PPP address pool excludes the gateway IP address of the PPP address pool.
Examples
# Configure PPP address pool aaa that contains IP addresses 129.102.0.1 through 129.102.0.10 for group a.
<Sysname> system-view [Sysname] ip pool aaa 129.102.0.1 129.102.0.10 group a
Related commands
display ip pool

ip pool gateway

Use ip pool gateway to configure a gateway address for a PPP address pool. Use undo ip pool gateway to remove the gateway address for the specified PPP address pool.
Syntax
ip pool pool-name gateway ip-address [ vpn-instance vpn-instance-name ] undo ip pool pool-name gateway
Default
A PPP address pool is not configured with a gateway address.
Views
System view
Predefined user roles
network-admin
Parameters
pool-name: Specifies an existing PPP address pool by its name, a case-sensitive string of 1 to 31
characters.
ip-address: Specifies a gateway address for the PPP address pool. vpn-instance vpn-instance-name: Specifies an existing MPLS L3VPN instance by its name, a
case-sensitive string of 1 to 31 characters. If you do not specify this option, the specified gateway belongs to the public network.
Usage guidelines
The IP pool gateway setting takes precedence over the DHCP pool gateway setting.
An interface on a BRAS must have an IP address before it can assign an IP address from a PPP or DHCP address pool to a client. This command enables interfaces that have no IP address to use a gateway address for IPCP negotiation and address allocation.
11
When you configure a gat eway address for a P PP address pool, follow these restrictions and guidelines:
If you also specify an IP address for an interface, the interface uses its own IP address to
perform IPCP negotiation.
You can specify only one gateway address for a PPP address pool. Different PPP address
pools must have different gateway addresses (different combinations of
and vpn-instance-name).
You can specify any gateway address for a PPP address pool.
Examples
# Specify gateway address 1.1.1.1 and VPN instance test for PPP address pool aaa.
<Sysname> system-view [Sysname] ip pool aaa gateway 1.1.1.1 vpn-instance test
Related commands
ip pool

link-protocol ppp

Use link-protocol ppp to enable PPP encapsulation on an interface.
Syntax
ip-address
link-protocol ppp
Default
PPP encapsulation is enabled on all interfaces except Ethernet, VLAN, and ATM interfaces.
Views
Interface view
Predefined user roles
network-admin
Examples
# Enable PPP encapsulation on Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] link-protocol ppp

nas-port-type

Use nas-port-type to configure the nas-port-type attribute on a VT interface. Use undo nas-port-type to restore the default.
Syntax
Default
nas-port-type { 802.11 | adsl-cap | adsl-dmt | async | cable | ethernet | g.3-fax | hdlc | idsl
| isdn-async-v110 | isdn-async-v120 | isdn-sync | piafs | sdsl | sync | virtual | wireless-other | x.25 | x.75 | xdsl }
undo nas-port-type
The nas-port-type attribute is determined by the service type and link type of the PPP user, as shown in Table 5.
12
Service type
Link type
Nas-port-type attribute
Table 5 Default nas-port-type attribute
PPPoE
PPPoA Any
L2TP Any
Views
VT interface view
Predefined user roles
network-admin
Parameters
802.11: Specifies IEEE 802.11. The code value is 19. adsl-cap: Specifies asymmetric DSL, Carrierless Amplitude Phase. The code value is 12. adsl-dmt: Specifies asymmetric DSL, Discrete Multi-Tone. The code value is 13. async: Specifies async. The code value is 0. cable: Specifies cable. The code value is 17. ethernet: Specifies Ethernet. The code value is 15. g.3-fax: Specifies G.3 Fax. The code value is 10.
Layer 3 virtual Ethernet interface
Other interfaces
xdsl ethernet xdsl virtual
hdlc: Specifies HDLC Clear Channel. The code value is 7. idsl: Specifies ISDN Digital Subscriber Line. The code value is 14. isdn-async-v110: Specifies ISDN Async V.110. The code value is 4. isdn-async-v120: Specifies ISDN Async V.120. The code value is 3. isdn-sync: Specifies ISDN Sync. The code value is 2. piafs: Specifies PHS Internet Access Forum Standard. The code value is 6. sdsl: Specifies symmetric DSL. The code value is 11. sync: Specifies sync. The code value is 1. virtual: Specifies virtual. The code value is 5. wireless-other: Specifies wireless–other. The code value is 18. x.25: Specifies X.25. The code value is 8. x.75: Specifies X.75. The code value is 9. xdsl: Specifies Digital Subscriber Line of unknown type. The code value is 16.
Usage guidelines
The nas-port-type attribute is used for RADIUS authentication and accounting. For more information about the nas-port-type attribute, see RFC 2865.
Examples
# Set the nas-port-type attribute to sync for Virtual-Template 1.
<Sysname> system-view [Sysname] interface virtual-template 1 [Sysname-Virtual-Template1] nas-port-type sync
13

ppp accm

Use ppp accm to set the ACCM value sent to the peer on an interface. Use undo ppp accm to restore the default.
Syntax
ppp accm hex-number undo ppp accm
Default
The ACCM value sent to the peer is 0x000A0000 on an interface.
Views
Interface view
Predefined user roles
network-admin
Parameters
hex-number: Specifies an ACCM value in hexadecimal format, in the range of 0 to 0xFFFFFFFF.
Usage guidelines
ACCM negotiation only applies to asynchronous links.
Examples
# Set the ACCM value sent to the peer to 0x01010101 on Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp accm 01010101

ppp account-statistics enable

Use ppp account-statistics enable to enable PPP accounting on an interface. Use undo ppp account-statistics enable to disable PPP accounting on an interface.
Syntax
ppp account-statistics enable [ acl { acl-number | name acl-name } ] undo ppp account-statistics enable
Default
PPP accounting is disabled on an interface.
Views
Interface view
Predefined user roles
network-admin
Parameters
acl: Specifies an ACL to match traffic. If no ACL is specified, the device generates statistics for all
PPP traffic.
acl-number: Specifies an ACL by its number in the range of 2000 to 3999, where:
14
2000 to 2999 are numbers for basic IPv4 and IPv6 ACLs.
3000 to 3999 are numbers for advanced IPv4 and IPv6 ACLs.
If the specified ACL number corresponds to an IPv4 ACL and an IPv6 ACL, both ACLs take effect.
name acl-name: Specifies an ACL by its name, a case-insensitive string of 1 to 63 characters that start with an alphabetical character. To avoid confusion, do not use all as an ACL name.
Examples
# Enable PPP accounting on Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp account-statistics enable

ppp acfc local-request

Use ppp acfc local-request to configure an interface to send ACFC requests by including the ACFC
option in outbound LCP negotiation requests.
Use undo ppp acfc local-request to restore the default.
Syntax
ppp acfc local-request undo ppp acfc local-request
Default
An interface does not include the ACFC option in outbound LCP negotiation requests.
Views
Interface view
Predefined user roles
network-admin
Examples
# Configure Serial 2/1/0 to send ACFC requests to the peer in PPP negotiation.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp acfc local-request

ppp acfc remote-reject

Use ppp acfc remote-reject to configure an interface to reject ACFC requests received from the
remote peer.
Use undo ppp acfc remote-reject to restore the default.
Syntax
Default
ppp acfc remote-reject undo ppp acfc remote-reject
An interface accepts ACFC requests received from the remote peer, and it performs ACFC on frames sent to the peer.
15
Views
Interface view
Predefined user roles
network-admin
Examples
# Configure Serial 2/1/0 to reject ACFC requests received from the remote peer.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp acfc remote-reject

ppp authentication-mode

Use ppp authentication-mode to configure PPP authentication on an interface. Use undo ppp authentication-mode to restore the default.
Syntax
ppp authentication-mode { chap | ms-chap | ms-chap-v2 | pap } * [ [ call-in ] domain { isp-name | default enable isp-name } ]
undo ppp authentication-mode
Default
PPP authentication is disabled on an interface.
Views
Interface view
Predefined user roles
network-admin
Parameters
chap: Uses CHAP authentication. ms-chap: Uses MS-CHAP authentication. ms-chap-v2: Uses MS-CHAP-V2 authentication. pap: Uses PAP authentication. call-in: Authenticates the call-in users only. This keyword can be configured when the local end acts
as the receiving end of DDR calls. For more information about DDR, see Layer 2 Configuration Guide.
domain isp-name: Specifies the ISP domain name for authentication, a case-insensitive string of 1
to 255 characters.
default enable isp-name: Specifies the default ISP domain name for authentication, a
case-insensitive string of 1 to 255 characters.
WAN Access
Usage guidelines
PPP authentication includes the following categories:
PAP—Two-way handshake authentication. The password is in plain text or cipher text.
CHAP—Three-way handshake authentication. The password is in plain text or cipher text.
MS-CHAP—Three-way handshake authentication. The password is in cipher text.
MS-CHAP-V2—Three-way handshake authentication. The password is in cipher text.
16
You can configure multiple authentication modes.
In any PPP authentication mode, AAA determines whether a us er can pass the authentication through a l ocal authentication database or an AAA server. For more information about AAA
authentication, see Security Configuration Gui de. If you configure the ppp authentication-mode command with the domain keyword specified, you
must perform the following tasks:
Use the specified ISP domain to authenticate the peer.
Use a PPP address pool associated with this ISP domain for address allocation (if necessary).
You can use the display domain command to display the domain configuration.
The system can obtain ISP domains through multiple ways during user authentication. The system chooses one of the following ISP domains for authentication in descending priority order:
ISP domain specified by the domain isp-name option. Use a PPP address pool associated with
this ISP domain for address allocation (if necessary). You can use the display domain
command to display the domain configuration.
ISP domain contained in the username. If the ISP domain does not exist on the local device, the
user's access request is denied.
ISP domain specified by the default enable isp-name option.
Default ISP domain in the system. You can use the domain default command to configure the
default ISP domain. If no default ISP domain is configured, the default ISP domain (system) is
used.
For authentication on a dialup interface, configure authentication on both the physical interface and the dialer interface. When a physical interface receives a D DR call request, it first initiates PPP negotiation and authenticates the dial-in user. Then it passes the call to the upper layer protocol.
Examples
# Configure Serial 2/1/0 to authenticate the peer by using PAP.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp authentication-mode pap
# Configure Serial 2/1/0 to authenticate the peer by using PAP, CHAP, and MS-C H A P.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp authentication-mode pap chap ms-chap
Related commands
domain default (Security Command Reference) local-user (Security Command Refere nce ) ppp chap password ppp chap user ppp pap local-user

ppp chap password

Use ppp chap password to set the password for CHAP authentication on an interface. Use undo ppp chap password to restore the default.
Syntax
ppp chap password { cipher | simple } string
17
undo ppp chap password
Default
No password is set for CHAP authentication on an interface.
Views
Interface view
Predefined user roles
network-admin
Parameters
cipher: Specifies a password in encrypted form. simple: Specifies a password in plaintext form. For security purposes, the password specified in
plaintext form will be stored in encrypted form. string: Specifies the password. Its plaintext form is a case-sensitive string of 1 to 255 characters. Its
encrypted form is a case-sensitive string of 1 to 97 characters.
Examples
# Set the password for CHAP authentication to plaintext password sysname on Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp chap password simple sysname
Related commands
ppp authentication-mode chap

ppp chap user

Use ppp chap user to set the username for CHAP authentication on an interface. Use undo ppp chap user to restore the default.
Syntax
ppp chap user username undo ppp chap user
Default
The username for CHAP authentication is null on an interface.
Views
Interface view
Predefined user roles
network-admin
Parameters
username: Specifies the username for CHAP authentication, a case-sensitive string of 1 to 80
characters. The username is sent to the peer for the local device to be authenticated.
Usage guidelines
To pass CHAP authentication, the username/password of one side must be the local username/password on the peer.
18
Examples
# Set the username for CHAP authentication to Root on Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp chap user Root
Related commands
ppp authentication-mode chap

ppp compression iphc enable

Use ppp compression iphc enable to enable IPHC on an interface. Use undo ppp compression iphc enable to disable IPHC on an interface.
Syntax
ppp compression iphc enable [ nonstandard ] undo ppp compression iphc enable
Default
IPHC is disabled on an interface.
Views
Interface view
Predefined user roles
network-admin
Parameters
nonstandard: Specifies the nonstandard encapsulation format. If you do not specify this keyword,
packets are encapsulated in standard format. You must specify this keyword when the device communicates with a non-H3C device. If you specify this keyword, this command enables RTP header compression.
Usage guidelines
IPHC includes RTP header compression and TCP header compression.
Enabling or disabling IPHC enables or disables both RTP header compression and T CP header compression.
To use IPHC, you must enable it on both sides of a PPP link.
When you enable IPHC on a VT, dialer, or ISDN interface, the setting does not immediately take
effect. For the setting to take effect, execute the shutdown and then undo shutdo wn commands on
the interface or its bound physical interface.
Examples
# Enable IPHC on Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp compression iphc enable

ppp compression iphc rtp-connections

Use ppp compression iphc rtp-connections to set the maximum number of connections for which
an interface can perform RTP header compression.
19
Use undo ppp compression iphc rtp-connections to restore the default.
Syntax
ppp compression iphc tcp-connections number undo ppp compression iphc tcp-connections
Default
An interface can perform RTP header compression for a maximum of 16 connections.
Views
Interface view
Predefined user roles
network-admin
Parameters
number: Specifies the maximum number of connections for which an interface can perform RTP
header compression. The value range for this argument is 3 to 1000:
When the number argument is set to a value less than or equal to 256, packets are compressed
in the format of COMPRESSED RTP 8.
When the number argument is set to a value greater than 256, packets are compressed in the
format of COMPRESSED RTP 16.
Usage guidelines
RTP is a connection-oriented protocol. An interface can accommodate multiple RTP connections.
RTP header compression occupies memory resources for maintaining connection information. This command can limit memory resources used by compression. For example, if you set the limit to 3, RTP header compression only applies to a maximum of three RTP connections.
After you execute this command, you must shut down and then bring up the interface to make the command take effect.
You can configure this command only when IPHC is enabled. The configuration is removed after IPHC is disabled.
Examples
# Set the maximum number of connections for which Serial 2/1/0 can perform RTP header compression to 10.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp compression iphc enable [Sysname-Serial2/1/0] ppp compression iphc rtp-connections 10
Related commands
ppp compression iphc enable

ppp compression iphc tcp-connections

Syntax
Use ppp compression iph c tcp-connections to set the maximum number of connections for which
an interface can perform TCP header compression.
Use undo ppp compression iphc tcp-connections to restore the default.
ppp compression iphc tcp-connections number
20
undo ppp compression iphc tcp-connections
Default
An interface can perform TCP header compression for a maximum of 16 connections.
Views
Interface view
Predefined user roles
network-admin
Parameters
number: Specifies the maximum number of connections for which an interface can perform TCP
header compression. The value range for this argument is 3 to 256.
Usage guidelines
TCP is a connection-oriented protocol. A link can accommodate multiple TCP connections.
TCP header compression occupies memory resources for maintaining connection information. This command can limit memory resources used by compression. For example, if you set the limit to 3, TCP header compression only applies to a maximum of three TCP connections.
After you execute this command, you must shut down and then bring up the interface to make the command take effect.
You can configure this command only when IPHC is enabled and packets are encapsulated in standard format. The configuration is removed after IPHC is disabled or packets are encapsulated in nonstandard format.
Examples
# Set the maximum number of connections for which Serial 2/1/0 can perform TCP header compression to 10.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp compression iphc enable [Sysname-Serial2/1/0] ppp compression iphc tcp-connections 10
Related commands
ppp compression iphc enable

ppp ipcp dns

Use ppp ipcp dns to configure the primary and secondary DNS server IP addresses to be allocated
in PPP negotiation on an interface.
Use undo ppp ipcp dns to delete the primary and secondary DNS server IP addresses to be
allocated in PPP negotiation on an interface.
Syntax
ppp ipcp dns primary-dns-address [ secondary-dns-address ] undo ppp ipcp dns primary-dns-address [ secondary-dns-address ]
Default
Views
The DNS server IP addresses to be allocated in PPP negotiation are not configured on an interface.
Interface view
21
Predefined user roles
network-admin
Parameters
primary-dns-address: Specifies a primary DNS server IP address. secondary-dns-address: Specifies a secondary DNS server IP address.
Usage guidelines
A device can assign DNS server IP addresses to its peer during PPP negotiation when the peer initiates requests.
To check the allocated DNS server IP addresses, execute the winipcfg or ipconfig /all command on
the host.
Examples
# Set the primary and secondary DNS server IP addresses to 100.1.1.1 and 100.1.1.2 for the peer on Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp ipcp dns 100.1.1.1 100.1.1.2

ppp ipcp dns admit-any

Use ppp ipcp dns admit-any to configure an interface to accept the DNS server IP addresses
assigned by the peer even though it does not request DNS server IP addresses from the peer.
Use undo ppp ipcp dns admit-any to restore the default.
Syntax
ppp ipcp dns admit-any undo ppp ipcp dns admit-any
Default
An interface does not accept the DNS server IP addresses assigned by the peer if it does not request DNS server IP addresses from the peer.
Views
Interface view
Predefined user roles
network-admin
Usage guidelines
You can configure an interface to accept the DNS server IP addresses assigned by the peer, through which domain names can be resolved for the device.
Typically, the server assigns a DNS server address to a client in PPP negotiation only when the client
is configured with the ppp ipcp dns request command. Some servers, however, forcibly assign DNS server addresses to clients. You must configure the ppp ipcp dns admit-any command on the
client devices to accept the DNS server addresses.
Examples
# Configure Serial 2/1/0 to accept DNS server IP addresses allocated by the peer.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp ipcp dns admit-any
22
Related commands

ppp ipcp dns request

ppp ipcp dns request
Use ppp ipcp dns request to enable an interface to actively request the DNS server IP address
from its peer.
Use undo ppp ipcp dns request to restore the default.
Syntax
ppp ipcp dns request undo ppp ipcp dns request
Default
An interface does not actively request the DNS server IP address from its peer.
Views
Interface view
Predefined user roles
network-admin
Usage guidelines
If a device is connected to a provider's access server through a PPP link, you can use this command. Then, the device can obtain the specified DNS server IP address from the access server during IPCP negotiation.
You can check the DNS server IP addresses by displaying information about the interface.
Examples
# Enable Serial 2/1/0 to actively request the DNS server IP address from its peer.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp ipcp dns request

ppp ipcp remote-address match

Use ppp ipcp remote-address match to enable the IP segment match feature for PPP IPCP
negotiation on an interface.
Use undo ppp ipcp remote-address match to restore the default.
Syntax
ppp ipcp remote-address match undo ppp ipcp remote-address match
Default
The IP segment match feature is disabled for PPP IPCP negotiation on an interface.
Views
Interface view
Predefined user roles
network-admin
23
BRAS Core router
Host
Switch
Usage guidelines
This command enables the local interface to check whether its IP address and the IP address of the remote interface are in the same network segment. If they are not, IPCP negotiation fails.
Examples
# Enable the IP segment match feature on Virtual-Template 1.
<Sysname> system-view [Sysname] interface virtual-template 1 [Sysname-Virtual-Template1] ppp ipcp remote-address match

ppp ip-pool route

Use ppp ip-pool route to configure a PPP address pool route. Use undo ppp ip-pool route to remove a PPP address pool route.
Syntax
ppp ip-pool route ip-address { mask-length | mask } [ vpn-instance vpn-instance-name ] undo ppp ip-pool route ip-address { mask-length | mask } [ vpn-instance vpn-instance-name ]
Default
No PPP address pool route is configured.
Views
System view
Predefined user roles
network-admin
Parameters
ip-address: Specifies the destination IP address of the PPP address pool route, in dotted decimal
notation.
mask-length: Specifies a mask length for the IP address, in the range of 0 to 32. mask: Specifies a mask for the IP address, in dotted decimal notation.
vpn-instance vpn-instance-name: Specifies an MPLS L3VPN instance by its name, a
case-sensitive string of 1 to 31 characters. If you do not specify this option, the PPP address pool route applies to the public network.
Usage guidelines
The BRAS uses PPP address pool routes to control downlink traffic forwarding.
After you configure a PPP address pool route, the BRAS generates a static blackhole route destined for the specified network. All traffic matching the blackhole route is discarded. When a legal user logs in, the BRAS adds a host route destined for the specified network. In addition, the BRAS uses a dynamic routing protocol to redistribute the PPP address pool route to the upstream device.
Figure 1 Network diagram for the PPP address pool route
Make sure the destination network of the PPP address pool route includes the PPP address pool. You can execute this command multiple times to configure multiple PPP address pool routes.
24
Examples
# Configure the PPP address pool route as 2.2.2.2/24.
<Sysname> system-view [Sysname] ppp ip-pool route 2.2.2.2 24

ppp lcp delay

Use ppp lcp delay to set the LCP negotiation delay timer. Use undo ppp lcp delay to restore the default.
Syntax
ppp lcp delay milliseconds undo ppp lcp delay
Default
PPP starts LCP negotiation immediately after the physical layer comes up.
Views
Interface view
Predefined user roles
network-admin
Parameters
milliseconds: Specifies the LCP negotiation delay timer in the range of 1 to 10000 milliseconds.
Usage guidelines
If two ends of a PPP link vary greatly in the LCP negotiation packet processing rate, configure this command on the end with a hi gher processing rate. The LCP negotiation delay timer prevents frequent LCP negotiation packet retransmissions. After the physical layer comes up, PPP starts LCP negotiation when the delay timer expires. If PPP receives LCP negotiation packets before the delay timer expires, it starts LCP negotiation immediately.
Examples
# Set the LCP negotiation delayer timer to 130 milliseconds.
<Sysname> system-view [Sysname] interface virtual-template 1 [Sysname-Virtual-Template1] ppp lcp delay 130

ppp lqm

Use ppp lqm to enable PPP link quality Monitoring (LQM) on an interface. Use undo ppp lqm to disable PPP LQM on an interface.
Syntax
Default
Views
ppp lqm close-percentage close-percentage [ resume-percentage resume-percentage ] undo ppp lqm
PPP LQM is disabled on an interface.
Interface view
25
Predefined user roles
network-admin
Parameters
close-percentage close-percentage: Specifies the PPP LQM close percentage in the range of 0 to
100.
resume-percentage resume-percentage: Specifies the PPP LQM resume percentage in the range
of 0 t o 100. The resume percentage must be greater than or equal to the close percentage. The default resume percentage is equal to the close percentage.
Usage guidelines
If you enable PPP LQM on both sides of a PPP link, make sure both sides have the same PPP LQM settings. Typically, there is no need to enable PPP LQM on both sides of a PPP link.
As a best practice, do not enable PPP LQM on a DDR dial-up link because DDR tears the link down when the link is closed by LQM. Then LQM cannot send LQR packets to resume the link.
Examples
# Enable PPP LQM on Serial 2/1/0, and set the PPP LQM close percentage to 90 and r esume percentage to 95.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp lqm close-percentage 90 resume-percentage 95

ppp lqm lcp-echo

Use ppp lqm lcp-echo to configure an interface to periodically send LCP echo packets when LQM
detects a low quality link.
Use undo ppp lqm lcp-echo to restore the default.
Syntax
ppp lqm lcp-echo [ packet size ] [ interval interval ] undo ppp lqm lcp-echo
Default
An interface does not send LCP echo packets when LQM detects a low quality link.
Views
Interface view
Predefined user roles
network-admin
Parameters
packet size: Specifies the size added for the LCP echo packet, in the range of 128 to 1500 bytes. interval interval: Specifies the interval for sending LCP echo packets, in the range of 1 to 10
seconds.
Usage guidelines
This feature can avoid PPP link flapping caused by loss of large LCP packets.
Examples
# Configure Serial2/1/0 to send a LCP echo packet every 1 second. The LCP echo packet is 1400 bytes larger than the original length.
26
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp lqm lcp-echo packet 1400 interval 1

ppp pap local-user

Use ppp pap local-user to set the local username and password for PAP authentication on an
interface.
Use undo ppp pap local-user to restore the default.
Syntax
ppp pap local-user username password { cipher | simple } string undo ppp pap local-user
Default
The local username and password for PAP authentication are blank on an interface.
Views
Interface view
Predefined user roles
network-admin
Parameters
username: Specifies the username of the local device for PAP authentication, a case-sensitive string
of 1 to 80 characters.
cipher: Specifies a password in encrypted form. simple: Specifies a password in plaintext form. For security purposes, the password specified in
plaintext form will be stored in encrypted form. string: Specifies the password. Its plaintext form is a case-sensitive string of 1 to 255 characters. Its
encrypted form is a case-sensitive string of 1 to 373 characters.
Usage guidelines
For the local device to pass PAP authentication on the peer, make sure the username and password configured for the local device are also configured on t he peer. You can configure the peer's
username and password by using the local-user username and password { cipher | simple } string
commands, respectively.
Examples
# Set the local username and password for PAP authentication to user1 and plaintext pass1 on
Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp pap local-user user1 password simple pass1
Related commands
local-user (Security Command Refere nce) password (Security Command Reference)
27

ppp pfc local-request

Use ppp pfc local-request to configure an interface to send PFC requests by including the PFC
option in outbound LCP negotiation requests.
Use undo ppp pfc local to restore the default.
Syntax
ppp pfc local-request undo ppp pfc local-request
Default
An interface does not include the PFC option in outbound LCP negotiation requests.
Views
Interface view
Predefined user roles
network-admin
Examples
# Configure Serial 2/1/0 to send PFC requests during PPP negotiation.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp pfc local-request

ppp pfc remote-reject

Use ppp pfc remote-reject to configure an i nterface to reject PFC requests received from the
remote peer.
Use undo ppp pfc remote to restore the default.
Syntax
ppp pfc remote-reject undo ppp pfc remote-reject
Default
An interface accepts PFC requests received from the remote peer, and it performs PFC on frames sent to the peer.
Views
Interface view
Predefined user roles
network-admin
Examples
# Configure Serial 2/1/0 to reject PFC requests received from the remote peer.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp pfc remote-reject
28

ppp timer negotiate

Use ppp timer negotiate to set the PPP negotiation timeout time on an interface. Use undo ppp timer negotiate to restore the default.
Syntax
ppp timer negotiate seconds undo ppp timer negotiate
Default
The PPP negotiation timeout time is 3 seconds on an interface.
Views
Interface view
Predefined user roles
network-admin
Parameters
seconds: Specifies the negotiation timeout time in the range of 1 to 10 seconds.
Usage guidelines
In PPP negotiation, if the local device receives no response from the peer during the timeout time after it sends a packet, the local device sends the last packet again.
Examples
# Set the PPP negotiation timeout time to 5 seconds on Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp timer negotiate 5

remote address

Use remote address to configure an interface to assign an IP address to the client. Use undo remote address to restore the default.
Syntax
remote address { ip-address | pool pool-name } undo remote address
Default
An interface does not assign an IP address to the client.
Views
Interface view
Predefined user roles
network-admin
Parameters
ip-address: Specifies the IP address to be assigned to the client.
pool pool-name: Specifies a PPP or DHCP address pool by its name from which an IP address is
assigned to the client. The pool name is a case-sensitive string of 1 to 31 characters.
29
Usage guidelines
This command can be used when the local interface is configured with an IP address, but the peer has no IP address. To enable the peer to accept the IP address assigned by the local interface
(server), you must configure the ip address ppp-negotiate command on the peer to make the peer
act as a client.
This command enables the local interface to forcibly assign an IP address to the peer. If the peer is
not configured with the ip address ppp-negotiate command but configured with an IP address, the
peer will not accept the assigned IP address. This results in an IPCP negotiation failure.
PPP supports IP address assignment from a PPP or DHCP address pool, but the PPP address pool takes precedence over the DHCP address pool. For example, if you use a pool name that identifies both a PPP address pool and a DHCP address pool, the system uses only the PPP address pool for address assignment.
To make the configuration of the remote address command take effect, configure this command before the ip address command, which triggers IPCP negotiation. If you configure the remote address command after the ip address command, the server assigns an IP address to the client
during the next IPCP negotiation.
After you use the remote address command to assign an IP address to the client, you can configure the rem ote address command again or the undo remote address command for the peer. However,
the new configuration does not take effect until the next IPCP negotiation.
Examples
# Specify the IP address to be assigned to the client as 10.0.0.1 on Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] remote address 10.0.0.1
# Configure Serial 2/1/0 to assign an IP address from address pool aaa to the client.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] remote address pool aaa
Related commands
ip address ppp-negotiate ip pool

remote address dhcp client-identifier

Use remote address dhcp client-identifier username to use the PPP usernames as the DHCP
client IDs.
Use undo remote address dhcp client-identifier to restore the default.
Syntax
remote address dhcp client-identifier username undo remote address dhcp client-identifier
Default
The PPP usernames are not used as the DHCP client IDs.
Views
Interface view
30
Predefined user roles
network-admin
Usage guidelines
This command uses PPP usernames as DHCP client IDs for DHCP pool address assignment. The DHCP pool can be an A AA-authorized address pool or an address pool configured by using
the remote address command.
Configure this command when different users use different PPP usernames to come online and PPP usernames are required to be used as DHCP client IDs.
Examples
# Use the PPP usernames as the DHCP client IDs on Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] remote address dhcp client-identifier username

reset ppp compression iphc

Use reset ppp compression iphc to clear IPHC statistics.
Syntax
reset ppp compression iphc [ rtp | tcp ] [ interface interface-type interface-number ]
Views
User view
Predefined user roles
network-admin
Parameters
rtp: Clears IPHC RTP header compression statistics. tcp: Clears IPHC TCP header compression statistics. interface interface-type interface-number: Specifies an interface by its type and number. If you do
not specify this option, the command clears IPHC statistics on all interfaces.
Usage guidelines
If neither rtp nor tcp is specified, this command clears both RTP header compression and TCP
header compression statistics.
Examples
# Clear IPHC statistics on all interfaces.
<Sysname> reset ppp compression iphc
Related commands
display ppp compression iphc

timer-hold

Use timer-hold to set the keepalive interval on an interface. Use undo timer-hold to restore the default.
Syntax
timer-hold seconds
31
undo timer-hold
Default
The keepalive interval is 10 seconds on an interface.
Views
Interface view
Predefined user roles
network-admin
Parameters
seconds: Specifies the interval for sending keepalive packets, in the range of 0 to 32767 seconds.
The value 0 disables keepalive packet sending.
Usage guidelines
An interface sends keepalive packets at keepalive intervals to detect the availability of the peer. If the interface fails to receive keepalive packets when the keepalive retry limit is reached, it considers the link faulty and reports a link layer down event.
To set the keepalive retry limit, use the timer-hold retry command.
On a s low link, increase the keepalive interval to prevent false shutdown of the interface. This situation might occur when keepalive packets are delayed because a large packet is being transmitted on the link.
Examples
# Set the keepalive interval to 20 seconds on Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] timer-hold 20
Related commands

timer-hold retry

timer-hold retry
Use timer-hold retry to set the keepalive retry limit on an interface. Use undo timer-hold retry to restore the default.
Syntax
timer-hold retry retries undo timer-hold retry
Default
The keepalive retry limit is 5 on an interface.
Views
Interface view
Predefined user roles
network-admin
Parameters
retries: Specifies the maximum number of keepalive attempts in the range of 1 to 255.
32
Usage guidelines
An interface sends keepalive packets at keepalive intervals to detect the availability of the peer. If the interface fails to receive keepalive packets when the keepalive retry limit is reached, it considers the link faulty and reports a link layer down event.
To set the keepalive interval, use the timer-hold command.
On a s low link, increase the keepalive retry limit to prevent false shutdown of the interface. This situation might occur when keepalive packets are delayed because a large packet is being transmitted on the link.
Examples
# Set the keepalive retry limit to 10 for Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] timer-hold retry 10
Related commands
timer-hold

reset ppp access-user

Use reset ppp access-user to log off a PPP user.
Syntax
reset ppp access-user { ip-address ipv4-ip-address [ vpn-instance ipv4-vpn-instance-name ] | ipv6-address ipv6-address [ vpn-instance ipv6-vpn-instance-name ] | username user-name }
Views
User view
Predefined user roles
network-admin
Parameters
ip-address ipv4-ip-address: Specifies a PPP user by its IP address. ipv6-address ipv6-address: Specifies a PPP user by its IPv6 address. vpn-instance ipv4-vpn-instance-name: Specifies a PPP user by the VPN to which the user belongs.
The ipv4-vpn-instance-name argument specifies the name of the IPv4 MPLS L3VPN instance, a
case-sensitive string of 1 to 31 c haracters. If you do not specify this option, the specified user
belongs to the public network. vpn-instance ipv6-vpn-instance-name: Specifies a PPP user by the VPN to which the user belongs.
The ipv6-vpn-instance-name argument specifies the name of the IPv6 MPLS L3VPN instance, a
case-sensitive string of 1 to 31 c haracters. If you do not specify this option, the specified user
belongs to the public network.
username user-name
characters.
: Sp
ecifies a PPP user by username, a case-sensitive string of 1 t o 80
Usage guidelines
This command takes effect only on the current login for a PPP user. The user can come online after it is logged off.
Examples
# Log off the PPP user at 192.168.100.2.
<Sysname> reset ppp access-user ip-address 192.168.100.2
33
Related commands
display ppp access-user

MP commands

bandwidth

Use bandwidth to set the expected bandwidth of an interface. Use undo bandwidth to restore the default.
Syntax
bandwidth bandwidth-value undo bandwidth

Default

The expected bandwidth (in kbps) is the interface baud rate divided by 1000.
Views
VT interface view
MP-group interface view
Predefined user roles
network-admin
Parameters
bandwidth-value: Specifies the expected bandwidth in the range of 1 to 400000000 kbps.
Usage guidelines
The expected bandwidth of an interface affects the link costs in OSPF, OSPFv3, and IS-IS. For more information, see Layer 3—IP Routing Configuration Guide.
Examples
# Set the expected bandwidth of Virtual-Template 10 to 1000 kbps.
<Sysname> system-view [Sysname] interface virtual-template 10 [Sysname-Virtual-Template10] bandwidth 1000
# Set the expected bandwidth of MP-group 2/0/0 to 1000 kbps.
<Sysname> system-view [Sysname] interface mp-group 2/0/0 [Sysname-MP-group2/0/0] bandwidth 1000
default
Syntax
Views
Use default to restore the default settings for a VT or MP-group interface.
default
VT interface view
MP-group interface view
34
the impact of this command before using it on a live network.
Predefined user roles
network-admin
Usage guidelines
CAUTION:
The default
command might interrupt ongoing network services. Make sure you are fully aware of
This command might fail to restore the default settings for some commands for reasons such as
command dependencies or system restrictions. Use the display this command in interface view to identify these commands. Use the undo forms of these commands or follow the command reference
to individually restore their default settings. If your restoration attempt still fails, follow the error message instructions to resolve the problem.
Examples
# Restore the default settings of Virtual-Template 10.
<Sysname> system-view [Sysname] interface virtual-template 10 [Sysname-Virtual-Template10] default
# Restore the default settings of MP-group 2/0/0.
<Sysname> system-view [Sysname] interface mp-group 2/0/0 [Sysname-Mp-group2/0/0] default

description

Use description to set the description for a VT or MP-group interface. Use undo description to restore the default.
Syntax
description text undo description
Default
The description for a V T or MP-group interface is interface name Interface (for example, Virtual-Template1 Interface or MP-group2/0/0 Interface).
Views
VT interface view
MP-group interface view
Predefined user roles
network-admin
Parameters
text: Specifies the interface description, a case-sensitive string of 1 to 255 characters.
Examples
# Set the description for Virtual-Template 10 to virtual-interface.
<Sysname> system-view [Sysname] interface virtual-template 10 [Sysname-Virtual-Template10] description virtual-interface
35
# Set the description for MP-group 2/0/0 to mpgroup-interface.
<Sysname> system-view [Sysname] interface mp-group 2/0/0 [Sysname-MP-group2/0/0] description mpgroup-interface

display interface mp-group

Use display interface mp-group to display information about a specified MP-group interface or all
MP-group interfaces.
Syntax
display interface [ mp-group [ interface-number ] ] [ brief [ description | down ] ]
Views
Any view
Predefined user roles
network-admin
network-operator
Parameters
interface-number: Specifies an existing MP-group interface by its number in the range of 0 to 1023.
(Centralized devices in standalone mode.)
interface-number: Specifies an existing MP-group interface by its number in the format of X/Y/Z. X
represents the slot number of the physical interface, in the range of 0 to 2. The value of Y is fixed at
0. Z represents the number of the MP-group interface, in the range of 0 to 1023. (Distributed devices in standalone mode.)
interface-number: Specifies an existing MP-group interface by its number in the format of X/Y/Z. X
represents the member ID of the IRF member device to which the physical interface belongs, in the range of 1 to 2. The value of Y is fixed at 0. Z represents the number of the MP-group interface, in the range of 0 to 1023. (Centralized devices in IRF mode.)
interface-number: Specifies an existing MP-group interface by its number in the format of R/X/Y/Z. R
represents the member ID of the IRF member device to which the physical interface belongs, in the range of 1 to 2. X represents the slot number of the physical interface, in the range of 0 to 2. The value of Y is fixed at 0. Z represents the number of the MP-group interface, in the range of 0 to 1023. (Distributed devices in IRF mode.)
brief: Displays brief interface information. If you do not specify this keyword, the command displays
detailed interface information.
description: Displays complete interface description. If you do not specify this keyword, the
command displays only the first 27 characters of the interface description if the description contains more than 27 characters.
down: Displays information about interfaces in physically down state and the causes. If you do not
specify this keyword, the command displays information about all interfaces.
Usage guidelines
If you do not specify the mp-group keyword, the command displays information about all interfaces
on the device.
If you specify the mp-group keyword without the interface-number argument, the command displays
information about all existing MP-group interfaces.
Examples
# Display detailed information about MP-group 2/0/0.
36
Field
Description
<Sysname> display interface mp-group 2/0/0 MP-group2/0/0 Current state: DOWN Line protocol state: DOWN Description: MP-group2/0/0 Interface Bandwidth: 2048kbps Maximum transmission unit: 1500 Hold timer: 10 seconds, retry times: 5 Internet address: 192.168.1.200/24 (primary) Link layer protocol: PPP LCP: initial Physical: MP, baudrate: 2048000 bps Output queue - Urgent queuing: Size/Length/Discards 0/100/0 Output queue - Protocol queuing: Size/Length/Discards 0/500/0 Output queue - FIFO queuing: Size/Length/Discards 0/75/0 Last clearing of counters: Never Last 300 seconds input rate: 0 bytes/sec, 0 packets/sec Last 300 seconds output rate: 0 bytes/sec, 0 packets/sec Input: 0 packets, 0 bytes, 0 drops Output: 0 packets, 0 bytes, 0 drops
# Display brief information about MP-group 2/0/0.
<Sysname> display interface mp-group 12 brief Brief information on interfaces in route mode: Link: ADM - administratively down; Stby - standby Protocol: (s) - spoofing Interface Link Protocol Primary IP Description MP2/0/0 DOWN DOWN --
# Display brief information about the MP-group interfaces in physically down state and the causes.
<Sysname> display interface mp-group brief down Brief information on interfaces in route mode: Link: ADM - administratively down; Stby - standby Interface Link Cause MP2/0/0 ADM Administratively MP2/0/1 DOWN Not connected
Table 6 Command output
Physical and administrative states of the interface:
DOWN (Administratively)—The interface was administratively shut down with the shutdown command.
Current state
DOWN—The interface is administratively up but physically
down (possibly because no physical link is present or the link is faulty).
UP—The interface is both administratively and physically up.
Line protocol state Data link layer state: UP or DOWN.
Description Interface description.
Bandwidth Expected bandwidth of the interface.
37
Field
Description
Hold timer Interval at which the interface sends keepalive packets.
Keepalive retry limit.
retry times
Internet protocol processing The interface cannot process IP packets currently.
The interface determines that its peer has been down if it does not receive a keepalive response when the keepalive retry limit is reached.
Internet address: 192.168.1.200/24 (primary)
LCP initial LCP negotiation is complete.
Physical Physical type of the interface.
baudrate Baud rate of the interface.
Output queue - Urgent queuing: Size/Length/Discards 0/100/0
Output queue - Protocol queuing: Size/Length/Discards 0/500/0
Output queue - FIFO queuing: Size/Length/Discards 0/75/0
Last clearing of counters: Never
Last 300 seconds input rate: 0 bytes/sec, 0 packets/sec
Last 300 seconds output rate: 0 bytes/sec, 0 packets/sec
Input: 0 packets, 0 bytes, 0 drops
Output: 0 packets, 0 bytes, 0 drops
Primary IP address of the interface.
Traffic statistics of the interface output queues.
Last time when statistics on the interface were cleared. indicates that statistics on the interface were never cleared.
Average rate of input packets and output packets in the last 300 seconds.
Total number of inbound packets of the interface (in the number of packets and in bytes), and the number of dropped incoming packets.
Total number of outbound packets of the interface (in the number of packets and in bytes), and the number of dropped outgoing packets.
Never
Brief information on interfaces in route mode
Link: ADM - administratively down; Stby - standby
Protocol: (s) - spoofing
Interface Abbreviated interface name.
Link
Brief information about Layer 3 interfaces.
Link status:
ADM—The interface has been administratively shut down. To recover its physical state, execute the undo shutdown
command.
Stby—The interface is operating as a backup interface. To see the primary interface, use the display interface-backup state command in High Availability Command Reference.
Indicates the line protocol is UP, but the physical link is an on-demand link or is not present.
Physical link state of the interface:
UP—The interface is physically up.
DOWNThe interface is physically down.
ADM—The interface has been administratively shut down. To
recover its physical state, use the undo shutdown command.
StbyThe interface is a backup interface.
38
Field
Description
Line protocol state:
UP—The line protocol is up.
Protocol
Primary IP Primary IP address of the interface.
DOWN—The line protocol is down.
UP(s)—The line protocol is up, but the physical link is an
on-demand link or is not present.
Interface description configured by using the command. If you do not specify the
display interface brief
Description
Cause
the characters of the description. If you specify the keyword, the command displays the complete description.
Causes for the physical state of the interface to be Down:
Not connected—No physical connection exists (possibly
because the network cable is disconnected or faulty).
Administratively—The interface was shut down with the shutdown command. To restore the physical state of the interface, use the undo shutdown command.
Related commands
reset counters interface mp-group

display interface virtual-access

Use display interface virtual-access to display information about VA interfaces.
Syntax
display interface [ virtual-access [ interface-number ] ] [ brief [ description | down ] ]
Views
Any view
description
description
command displays a maximum of 27
keyword,
description
Predefined user roles
network-admin
network-operator
Parameters
interface-number: Specifies a VA interface by its number.
brief: Displays brief interface information. If you do not specify this keyword, the command displays
detailed interface information.
description: Displays interface description information. This keyword does not apply to VA
interfaces because VA interfaces do not support description configuration.
down: Displays information about interfaces in physically down state and the causes. If you do not
specify this keyword, the command displays information about all interfaces.
Usage guidelines
If you do not specify the virtual-access keyword, the command displays information about all
interfaces on the device.
If you specify the virtual-access keyword without the interface-number argument, the command
displays information about all VA interfaces.
39
Field
Description
Examples
# Display information about Virtual-Access 1.
<Sysname> display interface virtual-access 1 Virtual-Access1 Current state: UP Line protocol state: UP Description: Virtual-Access1 Interface Bandwidth: 1920kbps Maximum transmission unit: 1500 Hold timer: 10 seconds, retry times: 5 Internet address: 122.1.1.1/24 (primary) Link layer protocol: PPP LCP: opened, MP: opened, IPCP: opened Physical: MP, baudrate: 1920000 bps Main interface: Virtual-Template1 Output queue - Urgent queuing: Size/Length/Discards 0/100/0 Output queue - Protocol queuing: Size/Length/Discards 0/500/0 Output queue - FIFO queuing: Size/Length/Discards 0/75/0 Last clearing of counters: Never Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec Input: 2 packets, 24 bytes, 0 drops Output: 2 packets, 24 bytes, 0 drops
# Display brief information about Virtual-Access 1.
<Sysname> display interface virtual-access 1 brief Brief information on interfaces in route mode: Link: ADM - administratively down; Stby - standby Protocol: (s) - spoofing Interface Link Protocol Primary IP Description VA1 DOWN DOWN --
# Display brief information about VA interfaces in physically down state and the causes.
<Sysname> display interface virtual-access brief down Brief information on interfaces in route mode: Link: ADM - administratively down; Stby - standby Interface Link Cause VA1 DOWN Not connected
Table 7 Command output
Physical and administrative states of the interface:
Current state
Line protocol state Data link layer state: UP or DOWN.
DOWN—The interface is administratively up but physically
down.
UP—The interface is both administratively and physically up.
Description Interface description.
Bandwidth Expected bandwidth of the interface.
Hold timer Interval at which the interface sends keepalive packets.
40
Field
Description
Keepalive retry limit.
retry times
Internet protocol processing: Disabled The interface cannot process IP packets currently.
The interface determines that its peer has been down if it does not receive a keepalive response when the keepalive retry limit is reached.
Internet address: 122.1.1.1/24 (primary)
LCP: opened, MP: opened, IPCP: opened
Physical Physical type of the interface.
Main interface VT interface associated with the VA interface.
Output queue - Urgent queuing: Size/Length/Discards 0/100/0
Output queue - Protocol queuing: Size/Length/Discards 0/500/0
Output queue - FIFO queuing: Size/Length/Discards 0/75/0
Last clearing of counters: Never
Last 300 seconds input rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec
Last 300 seconds output rate: 0 bytes/sec, 0 bits/sec, 0 packets/sec
Input: 2 packets, 24 bytes, 0 drops
Output: 2 packets, 24 bytes, 0 drops
Primary IP address of the interface.
The PPP connection has been successfully established.
Traffic statistics of the interface output queues.
Last time when statistics on the interface were cleared. indicates that statistics on the interface were never cleared.
Average rate of input packets and output packets in the last 300 seconds.
Total number of inbound packets of the interface (in the number of packets and in bytes), and the number of packets dropped among the inbound packets.
Total number of outbound packets of the interface (in the number of packets and in bytes), and the number of packets dropped among the outbound packets.
Never
Brief information on interfaces in route mode
Link: ADM - administratively down; Stby - standby
Protocol: (s) - spoofing
Interface Abbreviated interface name.
Link
Brief information about Layer 3 interfaces.
Link status:
ADM—The interface has been administratively shut down. To recover its physical state, execute the undo shutdown
command.
Stby—The interface is a backup interface. To see the primary interface, use the display interface-backup state command in High Availability Command Reference.
Indicates the line protocol is UP, but the physical link is an on-demand link or is not present.
Physical link state of the interface:
UP—The interface is physically up.
DOWNThe interface is physically down.
41
Field
Description
Line protocol state:
UP—The line protocol is up.
Protocol
Primary IP Primary IP address of the interface.
DOWN—The line protocol is down.
UP(s)—The line protocol is up, but the physical link is an
on-demand link or is not present.
Interface description configured by using the
Description
Cause
command. This field does not apply to VA interfaces because VA interfaces do not support description configuration.
Cause for the physical state of the interface to be Down.
Not connected
the network cable is disconnected or faulty).
Related commands
reset counters interface virtual-access

display interface virtual-template

Use display interface virtual-template to display information about VT interfaces.
Syntax
display interface [ virtual-template [ interface-number ] ] [ brief [ description | down ] ]
Views
Any view
Predefined user roles
network-admin
network-operator
description
indicates no physical link exists (possibly because
Parameters
interface-number: Specifies an existing VT interface by its number.
brief: Displays brief interface information. If you do not specify this keyword, the command displays
detailed interface information.
description: Displays complete interface description. If you do not specify this keyword, the
command displays only the first 27 characters of the interface description if the description contains more than 27 characters.
down: Displays information about interfaces in physically down state and the causes. If you do not
specify this keyword, the command displays information about all interfaces.
Usage guidelines
If you do not specify the virtual-template keyword, the command displays information about all
interfaces on the device.
If you specify the virtual-template keyword without the interface-number argument, the command
displays information about all existing VT interfaces.
Examples
# Display detailed information about Virtual-Template 1.
<Sysname> display interface virtual-template 1 Virtual-Template1
42
Field
Description
Current state: DOWN Line protocol state: DOWN Description: Virtual-Template1 Interface Bandwidth: 100000kbps Maximum transmission unit: 1500 Hold timer: 10 seconds, retry times: 5 Internet address: 192.168.1.200/24 (primary) Link layer protocol: PPP LCP: initial Physical: None, baudrate: 100000000 bps Output queue - Urgent queuing: Size/Length/Discards 0/100/0 Output queue - Protocol queuing: Size/Length/Discards 0/500/0 Output queue - FIFO queuing: Size/Length/Discards 0/75/0
# Display brief information about Virtual-Template 1.
<Sysname> display interface virtual-template 1 brief Brief information on interfaces in route mode: Link: ADM - administratively down; Stby - standby Protocol: (s) - spoofing Interface Link Protocol Primary IP Description VT1 DOWN DOWN --
# Display brief information about the VT interfaces in physically down state and the causes.
<Sysname> display interface Virtual-Template brief down Brief information on interfaces in route mode: Link: ADM - administratively down; Stby - standby Interface Link Cause VT0 DOWN Not connected VT12 DOWN Not connected VT1023 DOWN Not connected
Table 8 Command output
Current state
Line protocol state
Description Interface description.
Bandwidth Expected bandwidth of the interface.
Hold timer Interval at which the interface sends keepalive packets.
retry times
Physical state of the interface. This field for a VT interface can only
DOWN
be
.
Data link layer state. This field for a VT interface can only
DOWN
be
.
Keepalive retry limit.
The interface determines that its peer has been down if it does not receive a keepalive response when the keepalive retry limit is reached.
Internet protocol processing: Disabled The interface cannot process IP packets currently.
Internet address: 192.168.1.200/24 (primary)
Primary IP address of the interface.
LCP initial LCP initialization is complete.
43
Field
Description
Physical Physical type of the interface.
Output queue - Urgent queuing: Size/Length/Discards 0/100/0)
Output queue - Protocol queuing: Size/Length/Discards 0/500/0)
Output queue - FIFO queuing: Size/Length/Discards 0/75/0)
Traffic statistics of the interface output queues.
Brief information on interfaces in route mode
Link: ADM - administratively down; Stby - standby
Protocol: (s) - spoofing
Interface Abbreviated interface name.
Link
Protocol
Primary IP Primary IP address of the interface.
Description
Cause
Brief information about Layer 3 interfaces.
Link status:
ADM—The interface has been administratively shut down. To recover its physical state, use the un do shutdo wn command.
Stby—The interface is operating as a backup interface. To see the primary interface, use the display interface-backup state command in High Availability Command Reference.
Indicates the line protocol is UP, but the physical link is an on-demand link or is not present.
Physical link state of the interface. This field for a VT interface can only be
Line protocol state of the interface. This field for a VT interface can only be
Interface description configured by using the command. If you do not specify the the characters of the description. If you specify the keyword, the command displays the complete description.
Causes for the physical state of the interface to be Down.
Not connected
the network cable is disconnected or faulty).
DOWN
.
DOWN
.
display interface brief
indicates no physical link exists (possibly because
command displays a maximum of 27
description
description
keyword,
description

display ppp mp

Use display ppp mp to display MP information for MP-group interfaces.
Syntax
display ppp mp [ interface interface-type interface-number ]
Views
Any view
Predefined user roles
network-admin
network-operator
Parameters
interface interface-type interface-number: Specifies an interface by its number. If you do not specify
this option, the command displays MP information for all interfaces.
44
Field
Description
Examples
# Display MP information. (MP is configured through an MP-group interface.)
<Sysname> display ppp mp Template: MP-group2/0/0 max-bind: 20, fragment: enabled, min-fragment: 128 Master link: MP-group2/0/0, Active members: 2, Bundle Multilink Peer's endPoint descriptor: MP-group2/0/0 Sequence format: short (rcv)/long (sent) Bundle Up Time: 2012/11/05 07:29:33:612 0 lost fragments, 0 reordered, 0 unassigned, 0 interleaved Sequence: 0 (rcv)/0 (sent) Active member channels: 2 members Serial2/1/0:15 Up-Time: 2012/11/05 07:29:33:613 Serial2/1/0:16 Up-Time: 2012/11/05 07:30:10:945 Inactive member channels: 2 members Serial2/1/0:17 Serial2/1/0:18
Table 9 Command output
max-bind Maximum number of links that can be bound.
fragment Indicates whether MP fragmentation is enabled or disabled.
min-fragment Minimum size of an MP fragment.
Sequence format: short (rcv)/long (sent)
reordered Number of reassembled packets.
unassigned Number of packets waiting for being reassembled.
interleaved
Sequence: 0 (rcv)/0 (sent) Received sequence number/sent sequence number.
Up-Time Uptime of a member channel.

interface mp-group

Use interface mp-group to create an MP-group interface and enter its view, or enter the view of an
existing MP-group interface.
Use undo interface mp-group to remove an MP-group interface.
Sequence number header format of MP. The short sequence number format is used in the incoming direction, and the long sequence number format is used in the outgoing direction.
LFI breaks larger packets into fragments and interleaves the fragments between smaller packets for transmission.
Syntax
interface mp-group mp-number undo interface mp-group mp-number
Default
No MP-group interfaces exists.
45
Views
System view
Predefined user roles
network-admin
Parameters
mp-number: Specifies an existing MP-group interface by its number in the range of 0 t o 1023.
(Centralized devices in standalone mode.)
mp-number: Specifies an existing MP-group interface by its number in the format of X/Y/Z. X
represents the slot number of the physical interface, in the range of 0 to 2. The value of Y is fixed at
0. Z represents the number of the MP-group interface, in the range of 0 to 1023. (Distributed devices in standalone mode.)
mp-number: Specifies an existing MP-group interface by its number in the format of X/Y/Z. X
represents the member ID of the IRF member device to which the physical interface belongs, in the range of 1 to 2. The value of Y is fixed at 0. Z represents the number of the MP-group interface, in the range of 0 to 1023. (Centralized devices in IRF mode.)
mp-number: Specifies an existing MP-group interface by its number in the format of R/X/Y/Z. R
represents the member ID of the IRF member device to which the physical interface belongs, in the range of 1 to 2. X represents the slot number of the physical interface, in the range of 0 to 2. The value of Y is fixed at 0. Z represents the number of the MP-group interface, in the range of 0 to 1023. (Distributed devices in IRF mode.)
Usage guidelines
You must use the interface mp-group command together with the ppp mp mp-group command.
You can execute the two commands in either order.
Examples
# Create interface MP-group 2/0/0.
<Sysname> system-view [Sysname] interface mp-group 2/0/0 [Sysname-MP-group2/0/0]

interface virtual-template

Use interface virtual-template to create a VT interface and enter its view, or enter the view of an
existing VT interface.
Use undo interface virtual-template to remove a VT interface.
Syntax
interface virtual-template number undo interface virtual-template number
Default
No VT interfaces exist.
Views
System view
Predefined user roles
network-admin
46
Hardware
Value range
Parameters
number: Specifies a VT interface by its number. The following matrix shows the value ranges for the number argument:
MSR810/810-W/810-W-DB/810-LM/810-W-LM/810-10-PoE/810-LM-HK/810-W-LM-H K/810-LMS/810-LUS
MSR2600-10-X1 0 to 1023
MSR 2630 0 to 1023
MSR3600-28/3600-51 0 to 1023
MSR3600-28-SI/3600-51-SI 0 to 1023
MSR 3610 0 to 1023
MSR3610-X1/3610-X1-DP/3610-X1-DC/3610-X1-DP-DC 0 to 2047
MSR 3620/3620-DP/3640/3660 0 to 2047
MSR5620/5660/5680 0 to 4095
Usage guidelines
To remove a VT interface, make sure all the corresponding VA interfaces are removed and the VT interface is not in use.
Examples
# Create interface Virtual-Template 10.
<Sysname> system-view [Sysname] interface virtual-template 10 [Sysname-Virtual-Template10]
0 to 1023
mtu
Use mtu to set the MTU size of an interface. Use undo mtu to restore the default.
Syntax
mtu size undo mtu
Default
The MTU size of an interface is 1500 bytes.
Views
VT interface view
MP-group interface view
Predefined user roles
network-admin
Parameters
size: Specifies the MTU size in the range of 128 to 1500 bytes.
47
Usage guidelines
The MTU size setting of an interface affects the fragmentation and reassembly of IP packets on that interface.
For the configured MTU size to take effect, you must execute the shutdown command and then the undo shutdown command on the interface.
Examples
# Set the MTU size of Virtual-Template 10 to 1400 bytes.
<Sysname> system-view [Sysname] interface virtual-template 10 [Sysname-Virtual-Template10] mtu 1400
# Set the MTU size of MP-group 2/0/0 to 1200 bytes.
<Sysname> system-view [Sysname] interface mp-group 2/0/0 [Sysname-MP-group2/0/0] mtu 1200

ppp mp

Use ppp mp to enable MP for an interface. Use undo ppp mp to disable MP on an interface.
Syntax
ppp mp undo ppp mp
Default
An interface is enabled with PPP.
Views
Interface view
Predefined user roles
network-admin
Usage guidelines
To obtain more bandwidth, you can bind multiple PPP links to form a logical MP interface.
Examples
# Enable MP for Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp mp

ppp mp binding-mode

Syntax
Use ppp mp binding-mode to set the MP binding mode on an interface. Use undo ppp mp binding-mode to restore the default.
ppp mp binding-mode { authentication | both | descriptor } undo ppp mp binding-mode
48
Default
Both the username and the descriptor are used for MP binding on an interface.
Views
VT interface view
Dialer interface view
Predefined user roles
network-admin
Parameters
authentication: Uses the username for MP binding. both: Uses both the username and the endpoint descriptor for MP binding. descriptor: Uses the endpoint descriptor for MP binding.
Usage guidelines
The username is obtained from the peer during PAP, CHAP, MS-CHAP, or MS-CHAP-V2 authentication. The endpoint descriptor, which uniquely identifies a device, is obtained from the peer during LCP negotiation. Based on the username or endpoint descriptor, the system can locate the corresponding VT interface and create an MP bundle according to the template.
The descriptor mode cannot differentiate users. To bind users to different bundles, use the both
mode.
The authentication mode cannot differentiate peer devices. When multiple peer devices exist, use the both mode.
Examples
# Specify Virtual-Template 1 to use the username for MP binding.
<Sysname> system-view [Sysname] interface virtual-template1 [Sysname-Virtual-Template1] ppp mp binding-mode authentication

ppp mp endpoint

Use ppp mp endpoint to set the endpoint option. Use undo ppp mp endpoint to restore the default.
Syntax
ppp mp endpoint endpoint undo ppp mp endpoint
Default
The endpoint option carries the device name on an interface.
Views
Interface view
Predefined user roles
network-admin
Parameters
endpoint: Specifies the content of the endpoint option, a case-sensitive string of 1 to 20 characters.
49
Usage guidelines
The endpoint option (terminal descriptor) is negotiated during MP LCP negotiation.
When MP is configured by using a VT interface, an MP endpoint bases its link binding decisions on the remote endpoint descriptors, and assigns the links that receive the same endpoint descriptor to the same bundle. To avoid incorrect link binding on a VT interface, make sure the link descriptors used by different devices are unique. You must reconfigure an endpoint descriptor for a device if the default endpoint descriptor (device name) cannot uniquely identify the MP bundle at the remote end.
When MP is configured by using an MP-group interface, the negotiating endpoints do not base their binding decisions on the endpoint descriptor. By default, the endpoint descriptor of an interface in an MP-group is the MP-group interface name. If you configure an endpoint descriptor for the interface, the configured MP endpoint descriptor takes effect.
If the endpoint descriptor exceeds 20 bytes, the first 20 bytes are taken as the endpoint descriptor.
Examples
# Configure the endpoint descriptor of Serial 2/1/0 as 123456.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp mp endpoint 123456

ppp mp fragment disable

Use ppp mp fragment disable to disable MP fragmentation on an interface. Use undo ppp mp fragment disable to enable MP fragmentation on an interface.
Syntax
ppp mp fragment disable undo ppp mp fragment disable
Default
MP fragmentation is enabled on an interface.
Views
VT interface view
Dialer interface view
MP-group interface view
Predefined user roles
network-admin
Usage guidelines
If the peer device does not support fragment reassembly, you must configure the ppp mp fragment disable command to disable MP fragmentation on the local device. This enables the two devices to
communicate. After that, outgoing packets are not fragmented, but they still carry an MP sequence number and fragment tag.
After you configure the ppp mp fragment disable command on an interface, the settings configured with the ppp mp lfi enable and ppp mp min-fragment commands do n ot take effect on t he
interface.
Examples
# Disable MP fragmentation on MP-group 2/0/0.
<Sysname> system-view [Sysname] interface mp-group 2/0/0
50
[Sysname-MP-group2/0/0] ppp mp fragment disable
Related commands
ppp mp lfi enable ppp mp min-fragment

ppp mp lfi delay-per-frag

Use ppp mp lfi delay-per-frag to set the maximum LFI fragment transmission delay on an interface. Use undo ppp mp lfi delay-per-frag to restore the default.
Syntax
ppp mp lfi delay-per-frag time undo ppp mp lfi delay-per-frag
Default
The maximum LFI fragment transmission delay is 10 ms on an interface.
Views
VT interface view
Dialer interface view
MP-group interface view
Predefined user roles
network-admin
Parameters
time: Specifies the maximum LFI fragment transmission delay, in the range of 1 to 1000 ms.
Examples
# Set the maximum LFI fragment transmission delay to 20 ms on MP-group 2/0/0.
<Sysname> system-view [Sysname] interface mp-group 2/0/0 [Sysname-MP-group2/0/0] ppp mp lfi delay-per-frag 20
Related commands
ppp mp lfi enable ppp mp lfi size-per-frag

ppp mp lfi enable

Use ppp mp lfi enable to enable LFI on an interface. Use undo ppp mp lfi to disable LFI on an interface.
Syntax
Default
ppp mp lfi enable undo ppp mp lfi enable
LFI is disabled on an interface.
51
Views
VT interface view
Dialer interface view
MP-group interface view
Predefined user roles
network-admin
Usage guidelines
Disabling LFI also removes the user-configured settings of the maximum LFI fragment transmission delay and size.
Examples
# Enable LFI on MP-group 2/0/0.
<Sysname> system-view [Sysname] interface mp-group 2/0/0 [Sysname-MP-group2/0/0] ppp mp lfi enable
Related commands
ppp mp lfi delay-per-frag ppp mp lfi size-per-frag

ppp mp lfi size-per-frag

Use ppp mp lfi size-per-frag to set the maximum LFI fragment size (in bytes) on an interface. Use undo ppp mp lfi size-per-frag to restore the default.
Syntax
ppp mp lfi size-per-frag size undo ppp mp lfi size-per-frag
Default
On an interface, the maximum LFI fragment size is derived from this formula: (Expected bandwidth of the interface x Maximum LFI fragment transmission delay)/8.
Views
VT interface view
Dialer interface view
MP-group interface view
Predefined user roles
network-admin
Parameters
size: Specifies the maximum LFI fragment size in the range of 40 to 1500 bytes.
Usage guidelines
When LFI is enabled and bot h this command and the ppp mp lfi delay-per-frag command are configured, the maximum LFI fragment size is the value configured with the ppp mp lfi size-per-frag
command.
52
performance degradation. Make sure you understand the impact of this command on your network before you use it.
Examples
# Set the maximum LFI fragment size to 80 bytes on MP-group 2/0/0.
<Sysname> system-view [Sysname] interface mp-group 2/0/0 [Sysname-MP-group2/0/0] ppp mp lfi size-per-frag 80
Related commands
ppp mp lfi enable ppp mp lfi delay-per-frag

ppp mp max-bind

Use ppp mp max-bind to set the maximum number of PPP links in an MP bundle on an interface. Use undo ppp mp max-bind to restore the default.
Syntax
ppp mp max-bind max-bind-num undo ppp mp max-bind
Default
The maximum number of PPP links in an MP bundle is 16 on an interface.
Views
VT interface view
Dialer interface view
MP-group interface view
Predefined user roles
network-admin
Parameters
max-bind-num: Specifies the maximum number of PPP links in an MP bundle, in the range of 1 to
128.
Usage guidelines
IMPORTANT:
Use the default setting in most situations. Inappropriate use of this command can cause PPP
Set the maximum number of PPP links in an M P bundle to be greater than the actual number of bound links. Otherwise, MP binding fails.
The maximum number of PPP links configured for an MP bundle takes effect immediately. If the configured maximum number is smaller than the number of existing PPP links, the existing links are not affected.
Examples
# Set the maximum number of PPP links in an MP bundle to 12 on MP-group 2/0/0.
<Sysname> system-view [Sysname] interface mp-group 2/0/0 [Sysname-MP-group2/0/0] ppp mp max-bind 12
53

ppp mp min-bind

Use ppp mp min-bind to set the minimum number of PPP links in an M P bundle on a dialer
interface.
Use undo ppp mp min-bind to restore the default.
Syntax
ppp mp min-bind min-bind-num undo ppp mp min-bind
Default
On a dialer interface, the minimum number of PPP links in an MP bundle is 0, which means that MP dial-up relies on traffic detection.
Views
Dialer interface view
Predefined user roles
network-admin
Parameters
min-bind-num: Specifies the minimum number of PPP links in an MP bundle, in the range of 0 to 128.
Usage guidelines
This command specifies the minimum number of PPP links in a MP bundle to ensure the minimum bandwidth for the service.
When the minimum number of PPP links is set to a non -zero value, subsequent MP dial-up operations will not depend on traffic detection, but existing dial-up connections will be removed upon timeout.
The min-bind-num argument cannot be gr eater than the maximum number set with the ppp mp
max-bind command.
Examples
# Set the minimum number of PPP links in an MP bundle to 4 on Dialer 0.
<Sysname> system-view [Sysname] interface dialer 0 [Sysname-Dialer0] ppp mp min-bind 4
Related commands
ppp mp max-bind

ppp mp min-fragment

Use ppp mp min-fragment to set the minimum MP packet fragmentation size on an interface. Use undo ppp mp min-fragment to restore the default.
Syntax
Default
ppp mp min-fragment size undo ppp mp min-fragment
The minimum MP packet fragmentation size is 128 bytes on an interface.
54
Views
VT interface view
Dialer interface view
MP-group interface view
Predefined user roles
network-admin
Parameters
size: Specifies the minimum MP packet fragmentation size in the range of 128 t o 1500 b ytes.
Outgoing MP packets less than the minimum value will not be fragmented, and those greater than or equal to the minimum value will be fragmented.
Examples
# Set the minimum MP packet fragmentation size to 500 bytes on MP-group 2/0/0.
<Sysname> system-view [Sysname] interface mp-group 2/0/0 [Sysname-MP-group2/0/0] ppp mp min-fragment 500

ppp mp mp-group

Use ppp mp mp-group to assign an interface to an MP group, and enable MP for the interface. Use undo ppp mp to restore the default.
Syntax
ppp mp mp-group mp-number undo ppp mp
Default
An interface is enabled with PPP.
Views
Interface view
Predefined user roles
network-admin
Parameters
mp-number: Specifies an MP-group interface by its number.
Usage guidelines
This command should be used with the interface mp-group command. You can create an MP group
interface and then assign an interface to the MP group. You can also assign an interface to an MP group and then create the MP group.
Examples
# Assign Serial 2/1/0 to MP-group 2/0/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp mp mp-group 2/0/0
Related commands
interface mp-group
55

ppp mp short-sequence

Use ppp mp short-sequence to trigger MP short sequence number header format negotiation on
an interface. After the negotiation succeeds, the local end receives packets with short sequence numbers.
Use undo ppp mp short-sequence to restore the default.
Syntax
ppp mp short-sequence undo ppp mp short-sequence
Default
The long sequence number header format is used on an interface.
Views
Interface view
Predefined user roles
network-admin
Usage guidelines
This command applies to the incoming direction only. To enable the local end to transmit packets with short sequence numbers, configure this command on the remote end.
The sequence number format (long or short) of an MP bundle depends on the configuration of the first channel joining the MP bundle.
To negotiate the use of short sequence numbers on a dialer MP bundle, configure the command on the dialer interfaces and the ISDN D channels. To negotiate the use of short sequence numbers on a common MP bundle, use the command on al l its channels. The command will cause PPP re-negotiation.
Examples
# Configure the short sequence number header format of MP in the incoming direction of Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp mp mp-group 2/0/0 [Sysname-Serial2/1/0] ppp mp short-sequence

ppp mp sort-buffer-size

Use ppp mp sort-buffer-size to set the MP sort buffer size factor on an interface. Use undo ppp mp sort-buffer-size to restore the default.
Syntax
ppp mp sort-buffer-size size
Default
Views
undo ppp mp sort-buffer-size
The MP sort buffer size factor is 1 on an interface.
VT interface view
56
Dialer interface view
MP-group interface view
Predefined user roles
network-admin
Parameters
size: Specifies the MP sort buffer size factor in the range of 1 to 64.
Usage guidelines
The MP sort buffer size = the number of channels in the current MP bundle × size. You can use
the display ppp mp command to view the number of member channels in an MP bundle. If the
calculated MP sort buffer size is 20, the MP sort buffer can sort 20 packets.
When MP is used, the received packets might be out of order. The sort buffer is used to re-sort packets. A large sort buffer results in better re-sorting but increases delay. For voice packets, the transmission delay should be minimized.
Examples
# Set the MP sort buffer size factor to 64 on MP-group 2/0/0.
<Sysname> system-view [Sysname] interface mp-group 2/0/0 [Sysname-MP-group2/0/0] ppp mp sort-buffer-size 64

ppp mp timer lost-fragment

Use ppp mp timer lost-fragment to set the timer for MP to wait for the expected fragments on an
interface.
Use undo ppp mp timer lost-fragment to restore the default.
Syntax
ppp mp timer lost-fragment seconds undo ppp mp timer lost-fragment
Default
The timer for MP to wait for the expected fragments is 30 seconds on an interface.
Views
VT interface view
Dialer interface view
MP-group interface view
Predefined user roles
network-admin
Parameters
seconds: Specifies the timer for MP to wait for the expected fragment, in the range of 1 to 255
seconds.
Usage guidelines
A receiving end puts the received fragments in the buffer and reassembles them when it receives all the packet's fragments. You can configure a timer for MP to wait for the expected fragments. When the receiving end receives the first fragment of a packet, it starts the timer. When the timer expires, the system checks whether or not all fragments have arrived. If they have all arrived, the system
57
Hardware
Value range
reassembles the fragments. If they have not all arrived, the system discards all received fragments to release the buffer space.
Examples
# Set the timer for MP to wait for the expected fragment to 20 seconds on MP-group 2/0/0.
<Sysname> system-view [Sysname] interface mp-group 2/0/0 [Sysname-MP-group2/0/0] ppp mp timer lost-fragment 20

ppp mp user

Use ppp mp user to associate a username with a VT interface. Use undo ppp mp user to remove the association.
Syntax
ppp mp user username bind virtual-template number undo ppp mp user username
Default
No username is associated with a VT interface.
Views
System view
Predefined user roles
network-admin
Parameters
username: Specifies a username, a case-sensitive string of 1 to 80 characters.
bind virtual-template number: Specifies a VT interface by its number. The following matrix shows the value ranges for the number argument:
MSR810/810-W/810-W-DB/810-LM/810-W-LM/810-10-PoE/810-LM-HK/810-W-LM-H K/810-LMS/810-LUS
MSR2600-10-X1 0 to 1023
MSR 2630 0 to 1023
MSR3600-28/3600-51 0 to 1023
MSR3600-28-SI/3600-51-SI 0 to 1023
MSR 3610 0 to 1023
MSR3610-X1/3610-X1-DP/3610-X1-DC/3610-X1-DP-DC 0 to 2047
MSR 3620/3620-DP/3640/3660 0 to 2047
0 to 1023
MSR5620/5660/5680 0 to 4095
Usage guidelines
This command associates a username with a VT interface. After the user passes authentication, the system uses the settings on the VT interface to create an MP bundle and a VA interface to transmit data.
58
Hardware
Value range
You can configure the following parameters for a VT interface:
Local IP address and the peer IP address (or address pool).
ppp mp-commands.
Examples
# Associate username user 1 with Virtual-Template 1, and set the IP address of the VT interface to
202.38.60.1/24.
<Sysname> system-view [Sysname] ppp mp user user1 bind virtual-template 1 [Sysname] interface virtual-template 1 [Sysname-Virtual-Template1] ip address 202.38.60.1 255.255.255.0
Related commands
ppp mp

ppp mp virtual-template

Use ppp mp virtual-template to bind an interface to a VT interface and enable MP for the interface. Use undo ppp mp to restore the default.
Syntax
ppp mp virtual-template number undo ppp mp
Default
An interface is enabled with PPP.
Views
Interface view
Predefined user roles
network-admin
Parameters
number: Specifies a VT interface by its number. The following matrix shows the value ranges for the number argument:
MSR810/810-W/810-W-DB/810-LM/810-W-LM/810-10-PoE/810-LM-HK/810-W-LM-H K/810-LMS/810-LUS
MSR2600-10-X1 0 to 1023
MSR 2630 0 to 1023
MSR3600-28/3600-51 0 to 1023
0 to 1023
MSR3600-28-SI/3600-51-SI 0 to 1023
MSR 3610 0 to 1023
MSR3610-X1/3610-X1-DP/3610-X1-DC/3610-X1-DP-DC 0 to 2047
MSR 3620/3620-DP/3640/3660 0 to 2047
MSR5620/5660/5680 0 to 4095
59
Usage guidelines
After you bind an interface to a VT interface, you can optionally enable PAP, CHAP, MS-CHAP, or MS-CHAP-V2 authentication.
The interfaces bound to the same VT interface are bound together. The ppp mp virtual-template command and the ppp mp command are mutually exclusive.
Examples
# Bind Serial 2/1/0 to Virtual-Template 1, and enable MP for Serial 2/1/0.
<Sysname> system-view [Sysname] interface serial 2/1/0 [Sysname-Serial2/1/0] ppp mp virtual-template 1
Related commands
ppp mp

reset counters interface mp-group

Use reset counters interface mp-group to clear statistics on MP-group interfaces.
Syntax
reset counters interface [ mp-group [ interface-number ] ]
Views
User view
Predefined user roles
network-admin
Parameters
mp-group: Clears traffic statistics on MP-group interfaces.
interface-number: Specifies an existing MP-group interface by its number.
Usage guidelines
Before collecting traffic statistics regularly on an MP-group interface, clear the existing statistics.
If you do not specify the mp-group keyword, the command clears statistics on all interfaces. If you specify the mp-group keyword without the interface-number argument, the command clears
statistics on all MP-group interfaces.
If you specify both mp-group and interface-number, the command clears statistics on the specified
MP-group interface.
Examples
# Clear the statistics of MP-group 2/0/0
<Sysname> reset counters interface mp-group 2/0/0
Related commands
display interface mp-group

reset counters interface virtual-access

Use reset counters interface virtual-access to clear statistics on VA interfaces.
60
Syntax
reset counters interface [ virtual-access [ interface-number ] ]
Views
User view
Predefined user roles
network-admin
Parameters
virtual-access: Clears statistics on VA interfaces.
interface-number: Specifies an existing VA interface by its number.
Usage guidelines
Before collecting traffic statistics regularly on a VA interface, clear the existing statistics.
If you do not specify the virtual-access keyword, the command clears statistics on all interfaces. If you specify the virtual-access keyword without the interface-number argument, the command
clears statistics on all VA interfaces.
If you specify both virtual-access and interface-number, the command clears statistics on the
specified VA interface.
Examples
# Clear statistics on Virtual-Access 10.
<Sysname> reset counters interface virtual-access 10
Related commands
display interface virtual-access

service

Use service to specify a primary traffic processing slot for an interface. Use undo service to restore the default.
Syntax
Distributed devices in standalone mode/centralized devices in IRF mode:
service slot slot-number undo service slot
Distributed devices in IRF mode:
service chassis chassis-number slot slot-number undo service chassis
Default
No primary traffic processing slot is specified for an interface.
Views
VT interface view
Default command level
network-admin
61
Hardware
Command compatibility
Parameters
slot slot-number: Specifies a card by its slot number. (Distributed devices in standalone mode.) slot slot-number: Specifies an IRF member device by its member ID. (Centralized devices in IRF
mode.)
chassis chassis-number slot slot-number: Specifies a card on an IRF member device. The chassis-number argument represents the member ID of the IRF member device. The slot-number argument represents the slot number of the card. (Distributed devices in IRF
mode.)
Usage guidelines
The following matrix shows the command and hardware compatibility:
MSR810/810-W/810-W-DB/810-LM/810-W-LM/810-10-PoE /810-LM-HK/810-W-LM-HK/810-LMS/810-LUS
MSR2600-10-X1 No
MSR 2630 Yes
MSR3600-28/3600-51 Yes
MSR3600-28-SI/3600-51-SI No
MSR3610-X1/3610-X1-DP/3610-X1-DC/3610-X1-DP-DC Yes
MSR 3610/3620/3620-DP/3640/3660 Yes
MSR5620/5660/5680 Yes
No
This command is supported on distributed devices and IRF-capable centralized devices.
Specify traffic processing slots if a feature requires that all traffic on a VA interface be processed on the same slot.
For high availability, you can specify one primary and one backup traffic processing slot by using
the service command and the service standby command, respectively.
To avoid processing slot switchover, specify the primary slot before specifying the backup slot. If you specify the backup slot before specifying the primary slot, traffic is switched over to the primary slot immediately after you specify the primary slot.
If you specify both primary and backup slots for an interface, traffic on that interface is processed as follows:
The backup slot takes over when the primary slot becomes unavailable. The backup slot
continues to process traffic for the interface after the primary slot becomes available again. The switchover will not occur until the backup slot becomes unavailable.
When no specified traffic processing slots are available, the traffic is processed on the slot at
which it arrives. Then, the processing slot that first becomes available again takes over.
If you do not specify a primary or a backup traffic processing slot for an interface, traffic on that interface is processed on the slot at which the traffic arrives.
Examples
# (Distributed devices in standalone mode.) Specify slot 2 as the primary traffic processing slot for VA interfaces on Virtual-Template 10.
<Sysname> system-view [Sysname] interface virtual-template 10 [Sysname-Virtual-Template10] service slot 2
62
# (Centralized devices in IRF mode.) Specify slot 2 as the primary traffic processing slot for VA interfaces on Virtual-Template 10.
<Sysname> system-view [Sysname] interface virtual-template 10 [Sysname-Virtual-Template10] service slot 2
# (Distributed devices in IRF mode.) Specify slot 2 as the primary traffic processing slot for VA interfaces on Virtual-Template 10.
<Sysname> system-view [Sysname] interface virtual-template 10 [Sysname-Virtual-Template10] service chassis 2 slot 2
Related commands

service standby

service standby
Use service standby to specify a backup traffic processing slot for an interface. Use undo service standby to restore the default.
Syntax
Distributed devices in standalone mode/centralized devices in IRF mode:
service standby slot slot-number undo service standby slot
Distributed devices in IRF mode:
service standby chassis chassis-number slot slot-number undo service standby chassis
Default
No backup traffic processing slot is specified for an interface.
Views
VT interface view
Default command level
network-admin
Parameters
slot slot-number: Specifies a card by its slot number. (Distributed devices in standalone mode.) slot slot-number: Specifies an IRF member device by its member ID. (Centralized devices in IRF
mode.)
chassis chassis-number slot slot-number: Specifies a card on an IRF member device. The chassis-number argument represents the member ID of the IRF member device. The slot-number argument represents the slot number of the card. (Distributed devices in IRF
mode.)
Usage guidelines
The following matrix shows the command and hardware compatibility:
63
Hardware
Command compatibility
MSR810/810-W/810-W-DB/810-LM/810-W-LM/810-10-PoE /810-LM-HK/810-W-LM-HK/810-LMS/810-LUS
MSR2600-10-X1 No
MSR 2630 Yes
MSR3600-28/3600-51 Yes
MSR3600-28-SI/3600-51-SI No
MSR3610-X1/3610-X1-DP/3610-X1-DC/3610-X1-DP-DC Yes
MSR 3610/3620/3620-DP/3640/3660 Yes
MSR5620/5660/5680 Yes
No
This command is supported on distributed devices and IRF-capable centralized devices.
Specify traffic processing slots if a feature requires that all traffic on a VA interface be processed on the same slot.
For high availability, you can specify one primary and one backup traffic processing slot by using
the service command and the service standby command, respectively.
To avoid processing slot switchover, specify the primary slot before specifying the backup slot. If you specify the backup slot before specifying the primary slot, traffic is switched over to the primary slot immediately after you specify the primary slot.
If you specify both primary and backup slots for an interface, traffic on that interface is processed as follows:
The backup slot takes over when the primary slot becomes unavailable. The backup slot
continues to process traffic for the interface after the primary slot becomes available again. The switchover will not occur until the backup slot becomes unavailable.
When no specified traffic processing slots are available, the traffic is processed on the slot at
which it arrives. Then, the processing slot that first becomes available again takes over.
If you do not specify a primary or a backup traffic processing slot for an interface, traffic on that interface is processed on the slot at which the traffic arrives.
Examples
# (Distributed devices in standalone mode.) Specify slot 2 as the primary traffic processing slot for the VA interfaces on Virtual-Template 10. Specify slot 3 as the backup traffic processing slot for the VA interfaces on Virtual-Template 10.
<Sysname> system-view [Sysname] interface virtual-template 10 [Sysname-Virtual-Template10] service slot 2 [Sysname-Virtual-Template10] service standby slot 3
# (Centralized devices in IRF mode.) Specify slot 2 as the primary traffic processing slot for the VA interfaces on Virtual-Template 10. Specify slot 3 as the backup traffic processing slot for the VA interfaces on Virtual-Template 10.
<Sysname> system-view [Sysname] interface virtual-template 10 [Sysname-Virtual-Template10] service slot 2 [Sysname-Virtual-Template10] service standby slot 3
# (Distributed devices in RF mode.) Specify slot 2 on IRF member device 2 as the primary traffic processing slot for the VA interfaces on Virtual-Template 10. Specify slot 3 on IRF member device 2 as the backup traffic processing slot for the VA interfaces on Virtual-Template 10.
64
<Sysname> system-view [Sysname] interface virtual-template 10 [Sysname-Virtual-Template10] service chassis 2 slot 2 [Sysname-Virtual-Template10] service standby chassis 2 slot 3
Related commands
service

shutdown

Use shutdown to shut down an MP-group interface. Use undo shutdown to bring up an MP-group interface.
Syntax
shutdown undo shutdown
Default
An MP-group interface is up.
Views
MP-group interface view
Predefined user roles
network-admin
Examples
# Shut down MP-group 2/0/0.
<Sysname> system-view [Sysname] interface mp-group 2/0/0 [Sysname-MP-group2/0/0] shutdown
65
Hardware
PPPoE compatibility

PPPoE commands

Commands and descriptions for centralized devices apply to the following routers:
MSR810/810-W/810-W-DB/810-LM/810-W-LM/810-10-PoE/810-LM-HK/810-W-LM-HK/810-L
MS/810-LUS.
MSR2600-10-X1.
MSR 2630.
MSR3600-28/3600-51.
MSR3600-28-SI/3600-51-SI.
MSR3610-X1/3610-X1-DP/3610-X1-DC/3610-X1-DP-DC.
MSR 3610/3620/3620-DP/3640/3660.
Commands and descriptions for distributed devices apply to the following routers:
MSR5620.
MSR 5660.
MSR 5680.
IPv6-related parameters are not supported on the following routers:
MSR810/810-W/810-W-DB/810-LM/810-W-LM/810-10-PoE/810-LM-HK/810-W-LM-HK/810-L
MS/810-LUS.
MSR3600-28-SI/3600-51-SI.
The device does not support this feature in IRF mode.
The following matrix shows the feature and hardware compatibility:
MSR810/810-W/810-W-DB/810-LM/810-W-LM/810-10-PoE/810-LM­HK/810-W-LM-HK
MSR810-LMS/810-LUS No
MSR2600-10-X1 Yes
MSR 2630 Yes
MSR3600-28/3600-51 Yes
MSR3600-28-SI/3600-51-SI No
MSR3610-X1/3610-X1-DP/3610-X1-DC/3610-X1-DP-DC Yes
MSR 3610/3620/3620-DP/3640/3660 Yes
MSR5620/5660/5680 Yes

PPPoE server commands

Yes

display pppoe-server session packet

Syntax
Use display pppoe-server session packet to display packet statistics for PPPoE sessions.
Centralized devices in standalone mode:
66
Field
Description
display pppoe-server session packet [ interface interface-type interface-number ]
Distributed devices in standalone mode:
display pppoe-server session packet { slot slot-number | interface interface-type interface-number }
Views
Any view
Predefined user roles
network-admin
network-operator
Parameters
interface interface-type interface-number: Specifies an interface by its type and number. If you do
not specify an interface for centralized devices in standalone mode, the command displays packet statistics for PPPoE sessions on all interfaces.
slot slot-number: Specifies a card by its slot number. If you do not specify a card, the command
displays packet statistics for PPPoE sessions on all cards. (Distributed devices in standalone mode.)
Examples
# Display packet statistics for PPPoE sessions on GigabitEthernet 1/0/1.
<Sysname> display pppoe-server session packet interface gigabitethernet 1/0/1 Total PPPoE sessions: 2
Ethernet interface: GE1/0/1 Session ID: 1 InPackets: 37 OutPackets: 38 InBytes: 390 OutBytes: 406 InDrops: 0 OutDrops: 0
Ethernet interface: GE1/0/1 Session ID: 2 InPackets: 67 OutPackets: 48 InBytes: 490 OutBytes: 806 InDrops: 1 OutDrops: 2
Table 10 Command output
Ethernet interface Interface where the PPPoE session is present.
Session ID PPPoE session ID.
InPackets Number of packets received.
OutPackets Number of packets transmitted.
InBytes Number of bytes received.
OutBytes Number of bytes transmitted.
InDrops Number of discarded incoming packets.
OutDrops Number of discarded outgoing packets.
Related commands
display interface virtual-access
67

display pppoe-server session summary

Use display pppoe-server session summary to display summary PPPoE session information.
Syntax
Centralized devices in standalone mode:
display pppoe-server session summary [ interface interface-type interface-number ]
Distributed devices in standalone mode:
display pppoe-server session summary { slot slot-number | interface interface-type interface-number }
Views
Any view
Predefined user roles
network-admin
network-operator
Parameters
interface interface-type interface-number: Specifies an interface by its type and number. If you do
not specify an interface for centralized devices in standalone mode, the command displays summary PPPoE session information for all interfaces.
slot slot-number: Specifies a card by its slot number. If you do not specify a card, the command
displays summary PPPoE session information for all cards. (Distributed devices in standalone mode.)
Usage guidelines
Summary PPPoE session information on a phy sical interface can be di splayed only on the card where the interface resides. Summary PPPoE session information on a logical interface can be displayed on all cards.
Examples
# Display summary PPPoE session information on GigabitEthernet 1/0/1.
<Sysname> display pppoe-server session summary interface gigabitethernet 1/0/1 Total PPPoE sessions: 2
Ethernet interface: GE1/0/1 Session ID: 1 PPP interface: VA1 State: PADR_RCVD Remote MAC: 00e0-1500-7100 Local MAC: 00e0-1400-7300 Service VLAN: N/A Customer VLAN: N/A
Ethernet interface: GE1/0/1 Session ID: 2 PPP interface: VA2 State: OPEN Remote MAC:00e0-1600-7200 Local MAC: 00e0-1400-7400 Service VLAN: 2 Customer VLAN: 155
# (Centralized devices in standalone mode.) Display summary PPPoE session information on all interfaces.
<Sysname> display pppoe-server session summary Total PPPoE sessions: 2 Local PPPoE sessions: 1
68
Field
Description
Ethernet interface: GE1/0/2 Session ID: 1 PPP interface: VA1 State: OPEN Remote MAC: 0000-0000-0005 Local MAC: 0000-5e00-0101 Service VLAN: N/A Customer VLAN: N/A
Ethernet interface: RAGG1 Session ID: 1 PPP interface: VA0 State: OPEN Remote MAC: 0050-56c0-0005 Local MAC: 0000-5e00-0102 Service VLAN: N/A Customer VLAN: N/A
# (Distributed devices in standalone mode.) Display summary PPPoE session information on the MPU in slot 0.
<Sysname> display pppoe-server session summary slot 0 Total PPPoE sessions on slot 0: 1 Local PPPoE sessions on slot 0: 0
Ethernet interface: RAGG1 Session ID: 1 PPP interface: VA0 State: OPEN Remote MAC: 0050-56c0-0005 Local MAC: 0000-5e00-0102 Service VLAN: N/A Customer VLAN: N/A
# (Distributed devices in standalone mode.) Display summary PPPoE session information on the interface card in slot 2.
<Sysname> display pppoe-server session summary slot 2 Total PPPoE sessions on slot 2: 2 Local PPPoE sessions on slot 2: 1
Ethernet interface: GE2/0/2 Session ID: 1 PPP interface: VA1 State: OPEN Remote MAC: 0000-0000-0005 Local MAC: 0000-5e00-0101 Service VLAN: N/A Customer VLAN: N/A
Ethernet interface: RAGG1 Session ID: 1 PPP interface: VA0 State: OPEN Remote MAC: 0050-56c0-0005 Local MAC: 0000-5e00-0102 Service VLAN: N/A Customer VLAN: N/A
Table 11 Command output
Total PPPoE sessions
Local PPPoE sessions
Total PPPoE sessions on slot slot-number
Total number of PPPoE sessions on physical interfaces and logical interfaces (centralized devices in standalone mode).
Total number of PPPoE sessions on physical interfaces (centralized devices in standalone mode).
When an interface is specified, this field is not displayed.
Total number of PPPoE sessions (distributed devices in standalone mode).
When the
slot
slot-number option is specified, both
PPPoE sessions on the local card's physical interfaces and global PPPoE sessions are displayed.
69
Field
Description
Total number of PPPoE sessions on the local card's
Local PPPoE sessions on slot slot-number
Ethernet interface Interface where the PPPoE session is present.
Session ID PPPoE session ID.
PPP interface Virtual access interface created for the PPPoE session.
State
RemoteMAC MAC address of the remote end.
LocalMAC MAC address of the local end.
physical interfaces (distributed devices in standalone mode).
When an interface is specified, this field is not displayed.
PPPoE session state:
PADR RCVD—The PPPoE session is being
negotiated.
Open—The PPPoE session has been successfully
established.
Service VLAN
Customer VLAN
Service provider VLAN.
N/A
means no service provider VLAN is available.
Customer VLAN.
N/A
means no customer VLAN is available.

display pppoe-server throttled-mac

Use display pppoe-server throttled-mac to display information about blocked users.
Syntax
Centralized devices in standalone mode:
display pppoe-server throttled-mac [ interface interface-type int erf ace-number ]
Distributed devices in standalone mode:
display pppoe-server throttled-mac { slot slot-number | interface interface-type interface-number }
Views
Any view
Predefined user roles
network-admin
network-operator
Parameters
interface interface-type interface-number: Specifies an interface by its type and number. If you do
not specify an interface for centralized devices in standalone mode,, the command displays information about blocked users on all interfaces.
slot slot-number: Specifies a card by its slot number. If you do not specify a c ard, the command
displays information about blocked users on all cards. (Distributed devices in standalone mode.)
Examples
# Display information about blocked users on GigabitEthernet 1/0/1.
<Sysname> display pppoe-server throttled-mac interface gigabitethernet 1/0/1
70
Field
Description
Total 3 client MACs: Interface Remote MAC Start time Remaining time(s) GE1/0/1 00e0-1500-4100 2010-12-01,12:10:30 55 GE1/0/1 00e0-1500-4000 2010-12-01,12:10:40 65 GE1/0/1 00e0-1500-3300 2010-12-01,12:10:50 75
Table 12 Command output
Interface Interface at which the user is blocked.
Remote MAC MAC address of the user.
Start time Time to start blocking users.
Remaining time(s) Time left for blocking users, in seconds.
Related commands
pppoe-server throttle per-mac

display pppoe-server va-pool

Use display pppoe-server va-pool to display information about VA pools.
Syntax
display pppoe-server va-pool
Views
Any view
Predefined user roles
network-admin
network-operator
Examples
# (Centralized devices in standalone mode.) Display information about VA pools.
<Sysname> display pppoe-server va-pool VT interface Size Unused/State Virtual-Template1 1000 900 Virtual-Template2 1000 Creating
# (Distributed devices in standalone mode.) Display information about VA pools.
<Sysname> display pppoe-server va-pool Location VT interface Size Unused/State Virtual-Template1 1000 900 1/* Virtual-Template2 1000 1000
71
Field
Description
Table 13 Command output
Location
VT interface Virtual-Template interface that uses the VA pool.
Unused/State
Related commands
pppoe-server virtual-template va-pool

ppp lcp echo mru verify

Card and CPU where the VA pool resides.
This field is not displayed for centralized devices.
When the field displays a hyphen (-), it indicates a global VA pool.
If the device cannot display the CPU, an asterisks (*) is displayed, for example, 1/0/*.
VA pool capacity available for PPP users/current state of the VA pool.
Creating—The VA pool is being created.
Destroying—The VA pool is being removed.
Use ppp lcp echo mru verify to enable maximum receive unit (MRU) verification for PPPoE on a
VT interface.
Use undo ppp lcp echo mru verify to disable MRU verification for PPPoE.
Syntax
ppp lcp echo mru verify [minimum value ] undo ppp lcp echo mru verify
Default
MRU verification for PPPoE is disabled on a VT interface.
Views
VT interface view
Predefined user roles
network-admin
Parameters
minimum value: Specifies the minimum MRU in the range of 64 to 1500 bytes.
Usage guidelines
To support an M TU larger than 1492, PPPoE adds the PPP-Max-Payload option during PPPoE negotiation. This option identifies the MTU for the current PPPoE session. If the MTU is larger than 1492, PPP uses the MTU as the MRU during LCP negotiation, and reports the MTU after negotiation.
MRU verification prevents the negotiated MRU from exceeding the receiving and sending capabilities of the interface. If the negotiated MRU is larger than 1492, the PPPoE server sends an echo request that has the same size as the negotiated MRU. If the PPPoE server receives a reply, it uses the MRU as the MTU. If the PPPoE server fails to receive a reply, the following situations occur:
If the minimum MRU is configured, the PPPoE server sends a packet that has the same size as
the minimum MRU.
If the minimum MRU is not configured, the PPPoE server sends a packet that has the same size
as the negotiated MRU.
72
If the second verification still fails, the PPPoE server tears down the link.
NCP negotiation starts after the MRU verification succeeds.
Examples
# Enable MRU verification for PPPoE and set the minimum MRU to 1200 bytes on Virtual-Template
10.
<Sysname> system-view [Sysname] interface virtual-template 10 [Sysname-Virtual-Template10] ppp lcp echo mru verify minimum 1200

pppoe-server access-delay

Use pppoe-server access-delay to set the response delay time on an interface. Use undo pppoe-server access-delay to restore the default.
Syntax
pppoe-server access-delay delay-time undo pppoe-server access-delay
Default
No response delay time is set on an interface.
Views
Layer 3 Ethernet interface/subinterface view
Layer 3 virtual Ethernet interface/subinterface view
VLAN interface view
Layer 3 aggregate interface/subinterface view
VE-L3VPN interface/subinterface view
EFM interface/subinterface view
Predefined user roles
network-admin
Parameters
delay-time: Specifies the response delay time, in the range of 10 to 25500 milliseconds.
Usage guidelines
The system responds to the first packet of a PPP connection on the interface after the configured delay time elapses.
Examples
# Set the response delay time to 100 milliseconds on GigabitEthernet 1/0/1.
<Sysname> system-view [Sysname] interface gigabitethernet 1/0/1 [Sysname-GigabitEthernet1/0/1] pppoe-server access-delay 100

pppoe-server access-line-id bas-info

Use pppoe-server access-line-id bas-info to configure the nas-port-id attribute to automatically
include BAS information on an interface.
73
Interface type
Format
Use undo pppoe-server access-line-id bas-info to restore the default.
Syntax
pppoe-server access-line-id bas-info [ cn-163 ] undo pppoe-server access-line-id bas-info
Default
The nas-port-id attribute does not automatically include BAS information on an interface.
Views
Layer 3 Ethernet interface/subinterface view
Layer 3 virtual Ethernet interface/subinterface view
VLAN interface view
Layer 3 aggregate interface/subinterface view
VE-L3VPN interface/subinterface view
EFM interface/subinterface view
Predefined user roles
network-admin
Parameters
cn-163: Specifies the China-Telecom 163 format for the BAS information. If you do not specify this
keyword, BAS information in the China-Telecom format is included.
Usage guidelines
The bas-info formats include China Telecom and China Telecom 163.
BAS information in the China-Telecom format has the same format as the DSLAM upstream
interface information in the circuit-id in the China-Telecom format (see pppoe-server access-line-id circuit-id parse-mode). The interface in the BAS information is the DSLAM access interface on the
BAS device.
Table 14 shows the China-Telecom 163 format, where:
NAS_slot, NAS_subslot, and NAS_port refer to the numbering information of the DSLAM
access interface on the BAS device.
vpi and vci refer to VPI and VCI information.
vlanid and vlanid2 refer to inner VLAN and outer VLAN, respectively. Value for the vlanid of the
primary interface is fixed at 0.
Table 14 BAS information in China-Telecom 163 format
ATM interface
Primary interface or interface that does not carry inner VLAN or outer VLAN information.
slot=NAS_slot;subslot=NAS_subslot;port=NAS_port;vpi =XPI;vci=XCI;
slot=NAS_slot;subslot=NAS_subslot;port=NAS_port;vla nid=VLAN id;
Interface that carries inner VLAN and outer VLAN information.
slot=NAS_slot;subslot=NAS_subslot;port=NAS_port;vla nid=VLAN id;vlanid2=VLAN id2;
This command determines the content of the nas-port-id attribute that the PPPoE server delivers to the RADIUS server.
74
If the cn-163 keyword is specified, the PPPoE server automatically inserts the corresponding
BAS information before the parsed circuit-id. Then it sends the combination of the bas-info and circuit-id as the nas-port-id attribute to the RADIUS server.
If the cn-163 keyword is not specified, the PPPoE server creates a new circuit-id in
China-Telecom format. Then it sends the new circuit-id as the nas-port-id attribute to the RADIUS server. The new circuit-id contains the corresponding BAS information and the DSLAM user access information in the original circuit-id.
If this command is not executed, the nas-port-id attribute that the PPPoE server delivers to the
RADIUS server is determined by the pppoe-server access-line-id content command.
The RADIUS server cannot correctly parse a nas-port-id attribute that includes the remote-id and
BAS information. When you configure this command together with the pppoe-server access-line-id trust command, make sure the nas-port-id attribute sent to the RADIUS sever does not include the
remote-id.
Examples
# Configure the nas-port-id attribute to automatically include BAS information on GigabitEthernet 1/0/1.
<Sysname> system-view [Sysname] interface gigabitethernet 1/0/1 [Sysname-GigabitEthernet1/0/1] pppoe-server access-line-id bas-info
Related commands
pppoe-server access-line-id circuit-id parse-mode pppoe-server access-line-id content pppoe-server access-line-id trust

pppoe-server access-line-id circuit-id parse-mode

Use pppoe-server access-line-id circuit-id parse-mode to configure the format that an interface
uses to parse the circuit-id in the access line ID.
Use undo pppoe-server access-line-id circuit-id parse-mode to restore the default.
Syntax
pppoe-server access-line-id circuit-id parse-mode { cn-telecom | tr-101 } undo pppoe-server access-line-id circuit-id parse-mode
Default
An interface uses the TR-101 format to parse the circuit-id.
Views
Layer 3 Ethernet interface/subinterface view
Layer 3 virtual Ethernet interface/subinterface view
VLAN interface view
Layer 3 aggregate interface/subinterface view
VE-L3VPN interface/subinterface view
EFM interface/subinterface view
Predefined user roles
network-admin
75
Parameters
cn-telecom: Specifies China Telecom format. tr-101: Specifies TR-101 format.
Usage guidelines
The circuit-id formats include TR-101 and China Telecom.
The TR-101 format is Access-Node-Identifier atm slot/port:vpi.vci for AT M / D SL , and i s Access-Node-Identifier eth slot/port[:vlan-id] for Ethernet/DSL. The entire ID refers to the user access information on the DSLAM, where
Access-Node-Identifier refers to the identifier of the DSLAM.
The remainder refers to information about the user access interface on the DSLAM.
The China-Telecom format is {atm|eth|trunk} NAS_slot/NAS_subslot/NAS_port:XPI.XCI AccessNodeIdentifier/ANI_rack/ANI_frame/ANI_slot/ANI_subslot/ANI_port[:ANI_XPI.ANI_XCI], where:
{atm|eth|trunk} NAS_slot/NAS_subslot/NAS_port:XPI.XCI refers to DSLAM upstream interface
information, including upstream interface, VLAN, and VPI/VCI information:
When ATM/DSL is used, XPI.XCI refers to VPI/VCI information.
When Ethernet/DSL is used, XPI.XCI refers to VLAN information.
The remainder refers to user access information on the DSLAM, including DSLAM identifier and
user access interface.
For example, the circuit-id ge 1/0/1:4096.2345 guangzhou001/1/31/63/31/127 includes the following information:
DSLAM upstream interface information:
The type of the upstream interface is Ethernet interface.
The interface is located at slot 1, subslot 0, and port 1.
The outer VLAN ID is 4096 that means invalid VLAN, and the inner VLAN ID is 2345.
User access information on the DSLAM:
The identifier of the access node DSLAM is guangzhou001.
The rack number of the DSLAM is 1.
The user access interface is located at port 127, subslot 3, slot 63, and frame 31.
Examples
# Configure GigabitEthernet 1/0/1 to use China Telecom format to parse the circuit-id.
<Sysname> system-view [Sysname] interface gigabitethernet 1/0/1 [Sysname-GigabitEthernet1/0/1] pppoe-server access-line-id circuit-id parse-mode
cn-telecom
Related commands

pppoe-server access-line-id circuit-id trans-format

pppoe-server access-line-id circuit-id trans-format
Use pppoe-server access-line-id circuit-id trans-format to configure the transmission format for
the circuit-id in access line ID on an interface.
Use undo pppoe-server access-line-id circuit-id trans-format to restore the default.
Syntax
pppoe-server access-line-id circuit-id trans-format { ascii | hex }
76
undo pppoe-server access-line-id circuit-id trans-format
Default
The transmission format for the circuit-id in access line ID is a string of characters on an interface.
Views
Layer 3 Ethernet interface/subinterface view
Layer 3 virtual Ethernet interface/subinterface view
VLAN interface view
Layer 3 aggregate interface/subinterface view
VE-L3VPN interface/subinterface view
EFM interface/subinterface view
Predefined user roles
network-admin
Parameters
ascii: Specifies the character string format. For example, the circuit-id 00010002 is transmitted in the
form of 01 08 30 30 30 31 30 30 30 32.
hex: Specifies the hexadecimal format. For example, the circuit-id 00010002 is transmitted in the
form of 01 04 00 01 00 02.
Examples
# Configure GigabitEthernet 1/0/1 to use the hexadecimal format to transmit the circuit-id.
<Sysname> system-view [Sysname] interface gigabitethernet 1/0/1 [Sysname-GigabitEthernet1/0/1] pppoe-server access-line-id circuit-id trans-format hex

pppoe-server access-line-id content

Use pppoe-server access-line-id content to configure the content of the nas-port-id attribute
delivered to the RADIUS server on an interface.
Use undo pppoe-server access-line-id content to restore the default.
Syntax
pppoe-server access-line-id content { all [ separator ] | circuit-id | remote-id } undo pppoe-server access-line-id content
Default
The nas-port-id attribute contains only the circuit-id on an interface.
Views
Layer 3 Ethernet interface/subinterface view
Layer 3 virtual Ethernet interface/subinterface view
VLAN interface view
Layer 3 aggregate interface/subinterface view
VE-L3VPN interface/subinterface view
EFM interface/subinterface view
77
Predefined user roles
network-admin
Parameters
all: Sends both the circuit-id and remote-id.
separator: Specifies a separator that is one character long. By default, the value is a blank space.
The circuit-id and remote-id are connected by the separator.
circuit-id: Sends only the circuit-id. remote-id: Sends only the remote-id.
Usage guidelines
The PPPoE server on a BAS device uses the RADIUS nas-port-id attribute to send the access line ID received from a DSLAM device to the RADIUS server. The access line ID contains the circuit-id and remote-id. The RADIUS server compares the received nas-port-id attribute with the local line ID information to verify the location of the user.
For more information about the circuit-id, see the pppoe-server access-line-id circuit-id parse-mode command.
For more information about the remote-id, see pppoe-server access-line-id remote-id trans-format the command.
Do not use a character that exists in the circuit-id or remote-id as the separator. Otherwise, the RADIUS server might fail to parse the ID information.
This command determines the content of the nas-port-id attribute only when the pppoe-server
access-line-id bas-info command is not configured. Otherwise, the pppoe-server access-line-id bas-info command determines the content of the nas-port-id attribute.
Examples
# Configure GigabitEthernet 1/0/1 to deliver only the circuit-id to the RADIUS server.
<Sysname> system-view [Sysname] interface gigabitethernet 1/0/1 [Sysname-GigabitEthernet1/0/1] pppoe-server access-line-id content circuit-id
Related commands
pppoe-server access-line-id bas-info pppoe-server access-line-id circuit-id parse-mode pppoe-server access-line-id remote-id trans-format

pppoe-server access-line-id remote-id trans-format

Use pppoe-server access-line-id remote-id trans-format to configure the transmission format for
the remote-id in the access line ID on an interface.
Use undo pppoe-server access-line-id remote-id trans-format to restore the default.
Syntax
Default
pppoe-server access-line-id remote-id trans-format { ascii | hex } undo pppoe-server access-line-id remote-id trans-format
The transmission format for the remote-id is a string of characters on an interface.
78
Views
Layer 3 Ethernet interface/subinterface view
Layer 3 virtual Ethernet interface/subinterface view
VLAN interface view
Layer 3 aggregate interface/subinterface view
VE-L3VPN interface/subinterface view
EFM interface/subinterface view
Predefined user roles
network-admin
Parameters
ascii: Specifies the character string format. hex: Specifies the hexadecimal format.
Usage guidelines
The remote-id is the system MAC address of a PPPoE relay device (for example, DSLAM). It can be transmitted in character strings or hexadecimal format.
Examples
# Configure GigabitEthernet 1/0/1 to use the hexadecimal format to transmit the remote-id.
<Sysname> system-view [Sysname] interface gigabitethernet 1/0/1 [Sysname-GigabitEthernet1/0/1] pppoe-server access-line-id remote-id trans-format hex

pppoe-server access-line-id trust

Use pppoe-server access-line-id trust to configure the PPPoE server to trust the access line ID in
received packets on an interface.
Use undo pppoe-server access-line-id trust to restore the default.
Syntax
pppoe-server access-line-id trust undo pppoe-server access-line-id trust
Default
The PPPoE server does not trust the access line ID in received packets on an interface.
Views
Layer 3 Ethernet interface/subinterface view
Layer 3 virtual Ethernet interface/subinterface view
VLAN interface view
Layer 3 aggregate interface/subinterface view
VE-L3VPN interface/subinterface view
EFM interface/subinterface view
Predefined user roles
network-admin
79
Hardware
Value range
Usage guidelines
This command enables the PPPoE server to parse the circuit-id and remote-id in a received packet, and creates a new circuit-id and r emote-id. If the PPPoE server fails to parse the circuit-id or remote-id in a PADR packet, it discards the packet and does not return a PADS packet.
If this command is not executed, the PPPoE server does not parse the circuit-id and remote-id in a received packet. The contents of both the new circuit-id and the remote-id are null.
Examples
# Configure GigabitEthernet 1/0/1 to trust the access line ID in received packets.
<Sysname> system-view [Sysname] interface gigabitethernet 1/0/1 [Sysname-GigabitEthernet1/0/1] pppoe-server access-line-id trust
Related commands
pppoe-server access-line-id circuit-id parse-mode

pppoe-server bind

Use pppoe-server bind to enable the PPPoE server on an interface and bind the interface to a VT
interface.
Use undo pppoe-server bind to disable the PPPoE server on an interface.
Syntax
pppoe-server bind virtual-template number undo pppoe-server bind
Default
The PPPoE server is disabled on an interface.
Views
Layer 3 Ethernet interface/subinterface view
Layer 3 virtual Ethernet interface/subinterface view
VLAN interface view
Layer 3 aggregate interface/subinterface view
VE-L3VPN interface/subinterface view
EFM interface/subinterface view
Predefined user roles
network-admin
Parameters
virtual template number: Specifies a VT interface by its number.
The following matrix shows the value ranges for the number argument:
MSR810/810-W/810-W-DB/810-LM/810-W-LM/810-10-PoE/810-LM-HK/810-W-LM-H K/810-LMS/810-LUS
MSR2600-10-X1 0 to 1023
MSR 2630 0 to 1023
80
0 to 1023
Hardware
Value range
MSR3600-28/3600-51 0 to 1023
MSR3600-28-SI/3600-51-SI 0 to 1023
MSR 3610 0 to 1023
MSR3610-X1/3610-X1-DP/3610-X1-DC/3610-X1-DP-DC 0 to 2047
MSR 3620/3620-DP/3640/3660 0 to 2047
MSR5620/5660/5680 0 to 4095
Usage guidelines
A PPPoE server-enabled interface can be bound to a nonexistent VT interface.
If the interface has been bound to a VT interface, you cannot use this command to bind the interface to another VT interface. To do that, disable the PPPoE server on the interface first.
If both the PPPoE client and PPPoE server are enabled on an interface, the PPPoE client feature does not take effect.
Examples
# Enable the PPPoE server on GigabitEthernet 1/0/1 and bind the interface to Virtual-Template 1.
<Sysname> system-view [Sysname] interface gigabitethernet 1/0/1 [Sysname-GigabitEthernet1/0/1] pppoe-server bind virtual-template 1

pppoe-server session-limit

Use pppoe-server session-limit to set the maximum number of PPPoE sessions on an interface. Use undo pppoe-server session-limit to restore the default.
Syntax
pppoe-server session-limit number undo pppoe-server session-limit
Default
The number of PPPoE sessions on an interface is not limited.
Views
Layer 3 Ethernet interface/subinterface view
Layer 3 virtual Ethernet interface/subinterface view
VLAN interface view
Layer 3 aggregate interface/subinterface view
VE-L3VPN interface/subinterface view
EFM interface/subinterface view
Predefined user roles
network-admin
Parameters
number: Specifies the maximum number of PPPoE sessions on an interface, in the range of 1 to
65534.
81
Usage guidelines
PPPoE can establish a session when none of the following limits are reached:
Limit for a user on an interface.
Limit for a VLAN on an interface.
Limit on an interface.
Limit on a card. (Distributed devices in standalone.)
Limit on a device. (Centralized devices in standalone mode.)
New maximum number settings only apply to subsequently established PPPoE sessions.
Examples
# Set the maximum number of PPPoE sessions on GigabitEthernet 1/0/1 to 50.
<Sysname> system-view [Sysname] interface gigabitethernet 1/0/1 [Sysname-GigabitEthernet1/0/1] pppoe-server session-limit 50
Related commands
pppoe-server session-limit per-mac pppoe-server session-limit per-vlan pppoe-server session-limit total

pppoe-server session-limit per-mac

Use pppoe-server session-limit per-mac to set the maximum number of PPPoE sessions for a
user on an interface.
Use undo pppoe-server session-limit per-mac to restore the default.
Syntax
pppoe-server session-limit per-mac number undo pppoe-server session-limit per-mac
Default
A user can create a maximum of 100 PPPoE sessions on an interface.
Views
Layer 3 Ethernet interface/subinterface view
Layer 3 virtual Ethernet interface/subinterface view
VLAN interface view
Layer 3 aggregate interface/subinterface view
VE-L3VPN interface/subinterface view
EFM interface/subinterface view
Predefined user roles
network-admin
Parameters
number: Specifies the maximum number of PPPoE sessions for a user, in the range of 1 to 65534.
Usage guidelines
A user is identified by a MAC address.
82
PPPoE can establish a session when none of the following limits are reached:
Limit for a user on an interface.
Limit for a VLAN on an interface.
Limit on an interface.
Limit on a card. (Distributed devices in standalone.)
Limit on a device. (Centralized devices in standalone mode.)
New maximum number settings only apply to subsequently established PPPoE sessions.
Examples
# Set the maximum number of PPPoE sessions for a user on GigabitEthernet 1/0/1 to 50.
<Sysname> system-view [Sysname] interface gigabitethernet 1/0/1 [Sysname-GigabitEthernet1/0/1] pppoe-server session-limit per-mac 50
Related commands
pppoe-server session-limit pppoe-server session-limit per-vlan pppoe-server session-limit total

pppoe-server session-limit per-vlan

Use pppoe-server session-limit per-vlan to set the maximum number of PPPoE sessions for a
VLAN on an interface.
Use undo pppoe-server session-limit per-vlan to restore the default.
Syntax
pppoe-server session-limit per-vlan number undo pppoe-server session-limit per-vlan
Default
The number of PPPoE sessions for a VLAN on an interface is not limited.
Views
Layer 3 Ethernet subinterface view
Layer 3 virtual Ethernet subinterface view
Layer 3 aggregate subinterface view
VE-L3VPN subinterface view
EFM subinterface view
Predefined user roles
network-admin
Parameters
number: Specifies the maximum number of PPPoE sessions for a VLAN, in the range of 1 to 65534.
Usage guidelines
PPPoE can establish a session when none of the following limits are reached:
Limit for a user on an interface.
Limit for a VLAN on an interface.
83
Limit on an interface.
Limit on a card. (Distributed devices in standalone.)
Limit on a device. (Centralized devices in standalone mode.)
New maximum number settings only apply to subsequently established PPPoE sessions.
Examples
# Set the maximum number of PPPoE sessions for a VLAN on GigabitEthernet 1/0/1.1 to 50.
<Sysname> system-view [Sysname] interface gigabitethernet 1/0/1.1 [Sysname-GigabitEthernet1/0/1.1] pppoe-server session-limit per-vlan 50
Related commands
pppoe-server sessions limit pppoe-server sessions limit per-mac pppoe-server sessions limit total

pppoe-server session-limit total

Use pppoe-server session-limit total to set the maximum number of PPPoE sessions on a device. Use undo pppoe-server session-limit total to restore the default.
Syntax
Centralized devices in standalone mode:
pppoe-server session-limit total number undo pppoe-server session-limit total
Distributed devices in standalone mode:
pppoe-server session-limit slot slot-number total number undo pppoe-server session-limit slot slot-number total
Default
The number of PPPoE sessions on a device is not limited. (Centralized devices in standalone mode.)
The number of PPPoE sessions on a card is not limited. (Distributed devices in standalone.)
Views
System view
Predefined user roles
network-admin
Parameters
number: Specifies the maximum number of PPPoE sessions on a device, in the range of 1 to 65534.
slot slot-number: Specifies a card by its slot number. (Distributed devices in standalone mode.)
Usage guidelines
PPPoE can establish a session when none of the following limits are reached:
Limit for a user on an interface.
Limit for a VLAN on an interface.
Limit on an interface.
84
Limit on a card. (Distributed devices in standalone.)
Limit on a device. (Centralized devices in standalone mode.)
New maximum number settings only apply to subsequently established PPPoE sessions.
Examples
# (Centralized devices in standalone mode.) Set the maximum number of PPPoE sessions on a device to 3000.
<Sysname> system-view [Sysname] pppoe-server session-limit total 3000
# (Distributed devices in standalone mode.) Set the maximum number of PPPoE sessions on card 3 to 1500.
<Sysname> system-view [Sysname] pppoe-server session-limit slot 3 total 1500
Related commands
pppoe-server session-limit pppoe-server session-limit per-mac pppoe-server session-limit per-vlan

pppoe-server tag ac-name

Use pppoe-server tag ac-name to set the access concentrator (AC) name for the PPPoE server on
an interface.
Use undo pppoe-server tag ac-name to restore the default.
Syntax
pppoe-server tag ac-name name undo pppoe-server tag ac-name
Default
The AC name for the PPPoE server is the device name on an interface.
Views
Layer 3 Ethernet interface/subinterface view
Layer 3 virtual Ethernet interface/subinterface view
VLAN interface view
Layer 3 aggregate interface/subinterface view
VE-L3VPN interface/subinterface view
EFM interface/subinterface view
Predefined user roles
network-admin
Parameters
name: Specifies an AC name, a case-sensitive string of 1 to 64 characters.
Usage guidelines
The PPPoE server sends its AC name in PADO packets. PPPoE clients choose a PPPoE server by AC name. The PPPoE clients on H3C devices cannot identify PPPoE servers by AC name.
The device does not support an AC name comprised of all blank spaces.
85
Examples
# Specify the AC name for the PPPoE server on GigabitEthernet 1/0/1 as pppoes.
<Sysname> system-view [Sysname] interface gigabitethernet 1/0/1 [Sysname-GigabitEthernet1/0/1] pppoe-server tag ac-name pppoes

pppoe-server tag ppp-max-payload

Use pppoe-server tag ppp-max-payload to enable the PPPoE server to support the
ppp-max-payload tag and set a range for the tag on an interface.
Use undo pppoe-server tag ppp-max-payload to restore the default.
Syntax
pppoe-server tag ppp-max-payload [ minimum min-number maximum max-number ] undo pppoe-server tag ppp-max-payload
Default
The PPPoE server does not support ppp-max-payload tag on an interface. The PPPoE server ignores the ppp-max-payload tag in PADI or PADS packets from clients, and returns a PADO or PADS packets without the ppp-max-payload tag.
Views
Layer 3 Ethernet interface/subinterface view
Layer 3 virtual Ethernet interface/subinterface view
VLAN interface view
Layer 3 aggregate interface/subinterface view
VE-L3VPN interface/subinterface view
EFM interface/subinterface view
Predefined user roles
network-admin
Parameters
minimum min-number: Specifies the minimum value for the PPP maximum payload, in the range of
64 to 4470 bytes. The default value is 1492 bytes.
maximum max-number: Specifies the maximum value for the PPP maximum payload, in the range of 64 to 4470 bytes. The default value is 1500 bytes. The max-number argument must be equal or greater than the min-number argument.
Usage guidelines
This command enables the PPPoE server to forward large PPP packets with a payload larger than 1492 bytes and reduces fragmentation. If the ppp-max-payload tag sent by the PPPoE client is within the tag range, the PPPoE server returns a PADO or PADS packet that includes the tag. If not, the PPPoE server considers the received packets invalid, and i t does not return a PADO or PADS packet.
The j umboframe enable command can change the size of jumbo frames supported by the interface. The maximum size of the jumbo frames configured by the jumboframe enable command should be larger than the maximum value configured by the pppoe-server tag ppp-max-payload command.
Examples
# Enable the PPPoE server to support the ppp-max-payload tag and set the value for the PPP maximum payload to be in the range of 1494 to 1580 bytes on GigabitEthernet 1/0/1.
86
<Sysname> system-view [Sysname] interface gigabitethernet 1/0/1 [Sysname-GigabitEthernet1/0/1] pppoe-server tag ppp-max-payload minimum 1494 maximum 1508
Related commands
jumboframe enable (Interface Command References)

pppoe-server tag service-name

Use pppoe-server tag service-name to set a service name for a PPPoE server on an interface. Use undo pppoe-server tag service-name to restore the default.
Syntax
pppoe-server tag service-name name undo pppoe-server tag service-name
Default
A PPPoE server does not have a service name.
Views
Layer 3 Ethernet interface/subinterface view
Layer 3 virtual Ethernet interface/subinterface view
VLAN interface view
Layer 3 aggregate interface/subinterface view
VE-L3VPN interface/subinterface view
EFM interface/subinterface view
Predefined user roles
network-admin
Parameters
name: Specifies a service name, a case-sensitive string of 1 to 64 characters.
Usage guidelines
Service names identify the traffic destined for PPPoE servers when multiple PPPoE servers are providing services on the network. A PPPoE client establishes a session with the target PPPoE server by using the following process:
1. The client broadcasts a PADI packet.
2. The server compares its service name with the service-name tag field of the PADI packet. The
server sends a PADO packet to the client if either of the following conditions exists:
The field matches the service name.
No service name is configured.
3. The client sends a PADR packet to the server.
4. The server compares its service name with the service-name tag field of the PADR packet. The
server sends a PADS packet and sets up a session with the client if either of the following conditions exists:
The field matches the service name.
No service name is configured.
87
Examples
# Set the service name to pppoes for the PPPoE server on GigabitEthernet 1/0/1.
<Sysname> system-view [Sysname] interface gigabitethernet 1/0/1 [Sysname-GigabitEthernet1/0/1] pppoe-server tag service-name pppoes

pppoe-server throttle per-mac

Use pppoe-server throttle per-mac to set the PPPoE access limit on an interface. Use undo pppoe-server throttle per-mac to restore the default.
Syntax
pppoe-server throttle per-mac session-reque sts se ssion -request-period blocking-period undo pppoe-server throttle per-mac
Default
The PPPoE access rate is not limited on an interface.
Views
Layer 3 Ethernet interface/subinterface view
Layer 3 virtual Ethernet interface/subinterface view
VLAN interface view
Layer 3 aggregate interface/subinterface view
VE-L3VPN interface/subinterface view
EFM interface/subinterface view
Predefined user roles
network-admin
Parameters
session-requests: Specifies the maximum number of PPPoE session requests from a user within the
monitoring time. The value range is 1 to 100000.
session-request-period: Specifies the monitoring time in the range of 1 to 3600 seconds. blocking-period: Specifies the blocking time in the range of 1 to 3600 seconds.
Usage guidelines
This command limits the rate at which a us er (identified by MAC address) can create PPPoE sessions on an interface. If the number of PPPoE requests within the monitoring time exceeds the configured threshold, the device discards the excessive requests, and outputs log messages. If the blocking time is set to 0, the device does not block any requests, and it only outputs log messages.
The device uses a monitoring table and a blocking table to control PPP access rates.
Monitoring table—Stores a maximum of 8000 monitoring entries. Each entry records the
number of PPPoE sessions created by a user within the monitoring time. When the monitoring entries reach the maximum, the system stops monitoring and blocking session requests from
new users. The aging time of monitoring entries is determined by the session-request-period
argument. When the timer expires, the system starts a new round of monitoring for the user.
Blocking table—Stores a maximum of 8000 blocking entries. The system creates a blocking
entry if the access rate of a user reaches the threshold, and blocks requests from that user. When the blocking entries reach the maximum, the system stops blocking session requests from new users and it only outputs log messages. The aging time of the blocking entries is
88
Loading...
