Owner manual & safely Instructions
Save this manual keep this manual for the safety warnings and precautions, assembly, operations,
inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the
manual near the assembly diagram (or month and year of purchase if product has no number). Keep this
manual and the receipt in a safe and dry place for future reference.
5 Drawer
Industrial Roller Cart
When unpacking, make sure that the product is in intact
and undamaged. If any parts are missing or broken.
WARNING
Read this material before using this product. Failure to
do so can result in serious injury.
SAVE THIS MANUAL.
Notice originale
Specications
Component Size Weight Capacity
Top Compartment 1 25-1/2W x 19L x 4-3/4H 176 Lb
Top left drawer (x2) 2 12-1/2W x 17-3/4L x 2-1/2H 44 Lb each
Top right drawer 3 12-1/2W x 17-3/4L x 5H 88 Lb
Middle drawer 4 25-1/2W x 17-3/4L x 3H 88 Lb
Bottom drawer 5 25-1/2W x 17-3/4L x 5H 88 Lb
Bottom Shelf 6 29-1/2W x 18-1/2L x 3-1/2H 176 Lb
Total Combined Weight Capacity
(Evenly distributed from bottom up.)
704 Lb
2
Notice originale
IMPORTANT SAFETY INFORMATIONS
Assembly Precautions
1. assemble only according to these instructions.
Improper assembly can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty
gloves during assembly.
3. keep assembly area clear and well it.
4. keep bystanders out the area during assembly.
5. Do not assemble when tired or when under
the infuence of alcohol, drugs or medication.
6. Weight capacity and other product capabilities apply to properly and completly assembled
product only.
7. Assemble on a flat, level, hard and
smooth surface capable of safety supporting a
fully loaded Cart.
Use Precautions
TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING :
1. DO NOT SIT, STAND OR CLIMB ON THIS ITEM.
2. This product is not a toy or a toy chest. Do not allow children to play with or near this item.
3. Do not exceed weight capacities, evenly distributed from
bottom up. Be aware of dynamic loading ! Sudden load
movement may briefly create excess load causing product
failure.
4. Do not open more than one Drawer at once. Lid must be
open for Drawers to be unlocked.
5. Close and lock Drawers before moving.
6. use only on a flat, level, hard and smooth surface capable of safely supporting a fully loaded Cart. Do not roll
Cart over concrete seams or other rought/uneven surfaces.
7. Do not lift using handle(s).
Do not lift while loaded.
8. lock Swivel Casters after moving.
9. Do not mount on truck bed or any other moving
object.
10. Use as intended only.
11. inspect before every use; do not use if parts
are loose or damaged.
12. Maintain product labels and nameplates.
These carry important sefety information. If
unreadable or missing.
3
Notice originale

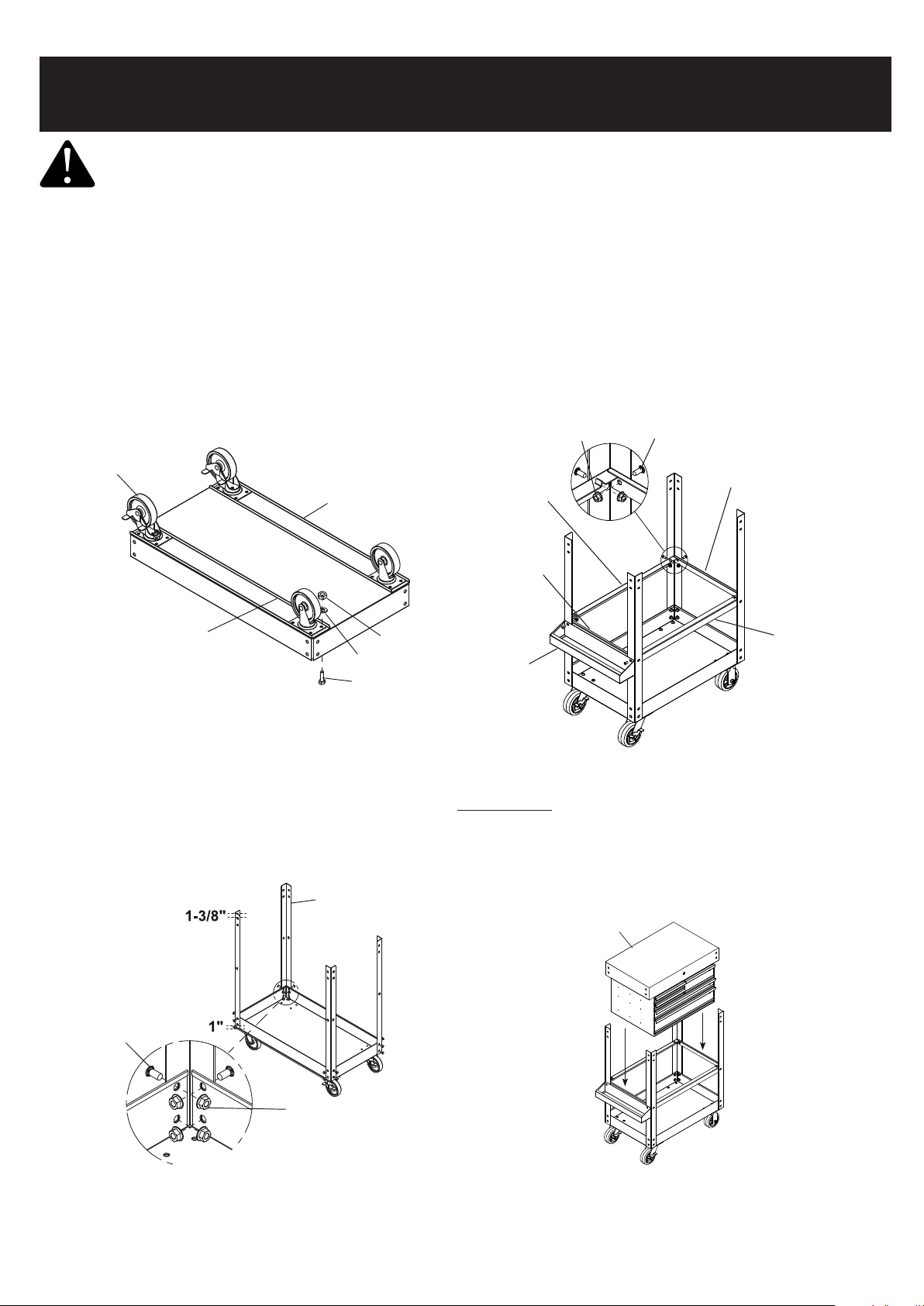

ASSEMBLY INSTRUCTIONS
READ THE ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
document including all text under subheadling there in before set up or use this product.
Note : Finger tighten hardware until assembly is complete.
1. Assembly on a flat, level, hard and smooth surface
capable of safely supporting a fully loaded Cart.
2. Attach two xed casters (10) to one side of the bottom shelf (8), using eight sets of bolts (11), washers
(12) and nuts (13).
3. Attach two locking swivel casters (9) to the other
side, using eight sets of bolts (11), washers (12) and
nuts (13).
Locking
Swivel Caster
Bottom
Shelf
Fixed
Caster
Nut
Washer
Bolt
5. Attach front/back cross support (6) to the inside of
posts using four sets of bolts (14) and nuts (15).
6. On the same side as swivel casters, attach tray
(16) to the outside, and a side cross support (7) to
the inside of posts using two sets of bolts (14) and
nuts (15).
7. On the other side, attach the remaining side cross
support to the inside of posts using two sets of bolts
(14) and nuts (15).
Nut
Back
Cross
Support
Side
Cross
Support
Tray
Bolt
Side
Cross Support
Front
Cross
Support
Figure A
4. Attach posts (18) to the outside corners otr the bottom shelf, using sixteen sets of bolts (14) and nuts
(15).
Note : make sure the bolt holes on the upper ends of
posts measure 1-3/8 from the top and the lower holes
measure 1 from the bottom ends.
Post
Bolt
Nut
Figure C
WARNING ! The chest is heavy; do not attempt to lift
and lower onto cross supports without assistance.
8. With assistance, lift up the chest, then lower it carefuly between the posts until its bottom edges rest on
the cross supports.
Chest
Figure B
Figure A
4
Notice originale

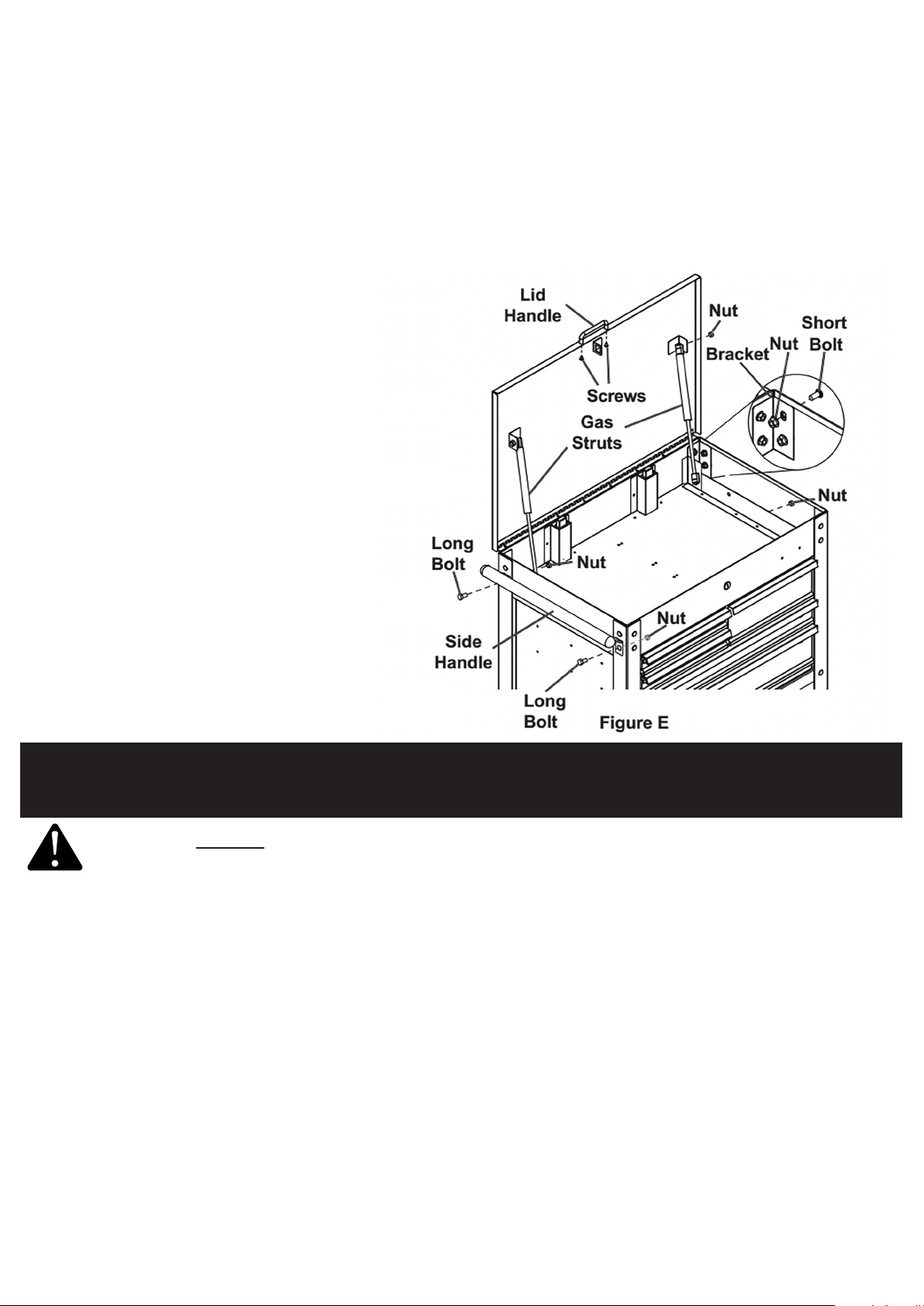

9. Attach side handle (17) to lower holes on same side as locking swivel casters, using two sets of bolts (11) and
nuts (15).
10. Attach lid handle (21) using two screws (22).
11. Place one bracket (19) in each corner of chest. Attach posts to chest using fourteen sets of bolts (14) and nuts
(15).
12. Attach gas struct (20) using four nuts (13).
13. Tighten all hardware, starting at the bottom.
Operations Instructions
READ THE ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
document including all text under subheadlings there in before set up or use of this product.
1. Unlock drawers and ll Cart evenly, from bottom to top.
Do not exceed weight capacities.
2. Close all drawers and lock them.
3. Unlock swivel casters.
4. Roll cart to a flat, level, hard and smooth surface capable of safely supporting a fully loaded cart. Do not roll cart
over concrete seams or other rought/uneven surfaces.
5. Lock swivel casters.
5
Notice originale
Maintenance and Servicing
Procedures not specically explained in this manual must be performed only by a qualied
technician.
WARNING
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE :
Do not use damaged equipment. If any part becomes damaged, have the problem corrected before further
use.
1. PERIODICALLY, inspect the general
condition of the Cart. Check for :
• loose hardware
• misalignment or binding of moving parts
• brake operation
• caster swivel function and movement
• cracked or broken parts
• any other conditions that may affect its safe operation
2. Wipe external surfaces of the cart with clean cloth.
3. Libricate drawer slides as needed.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, ANS NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERE TO, OR ARISING OUT OF HIS OR HER INSTALLATION OF
REPLACEMENT PARTS THERE TO.
6
Notice originale
Parts List and Diagram
Parts List
Part Description Qty
1 Lid 1
2 Chest 1
3a Top left Drawer 2
3b Top right Drawer 1
3c Middle Drawer 1
3d Bottom Drawer 1
4 Drawer slide 10
5 Rail 10
6 Front/back Cross Support 2
7 Slide cross Support 2
8 Bottom Shelf 1
9 Locking Swivel caster 2
10 Fixed Caster 2
Record Serial number here :
Note : If product has no serial number, record month and year
of purchase instead
Part Description Qty
11 Caster bolt (M8x20) 18
12 Washer (08) 16
13 Nut (M8) 20
14 Bolt (M8x16) 38
15 Nut (M8) 40
16 Tray 1
17 Side Handle 1
18 Post 4
19 Bracket 4
20 Gas Strut 2
21 Lid Handle 1
22 Screw (M4x6) 2
Note : Some parts are listed and shown for il-
lustration purposes only, and are not available
individually as replacement parts.
7

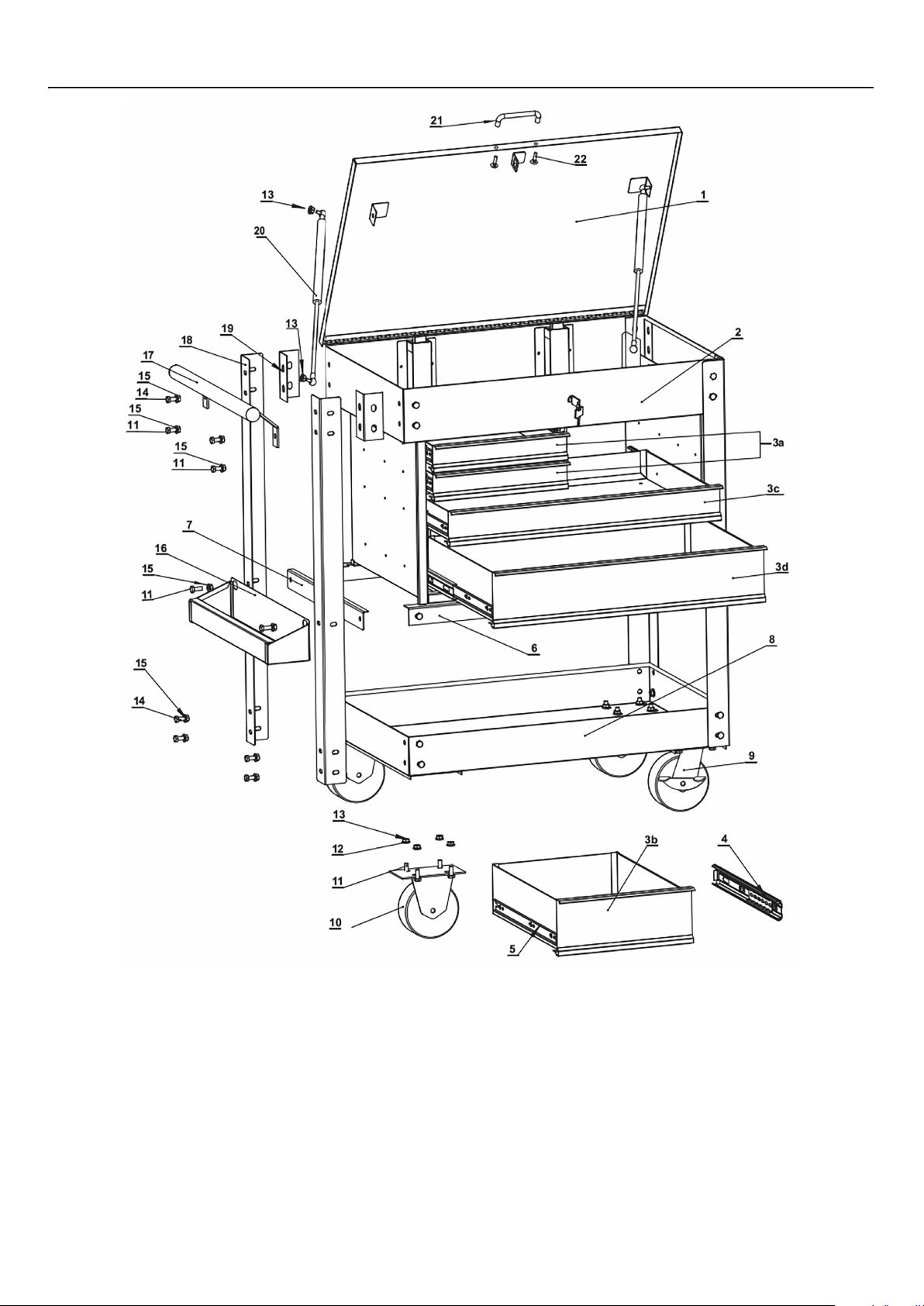

Assembly Diagram
