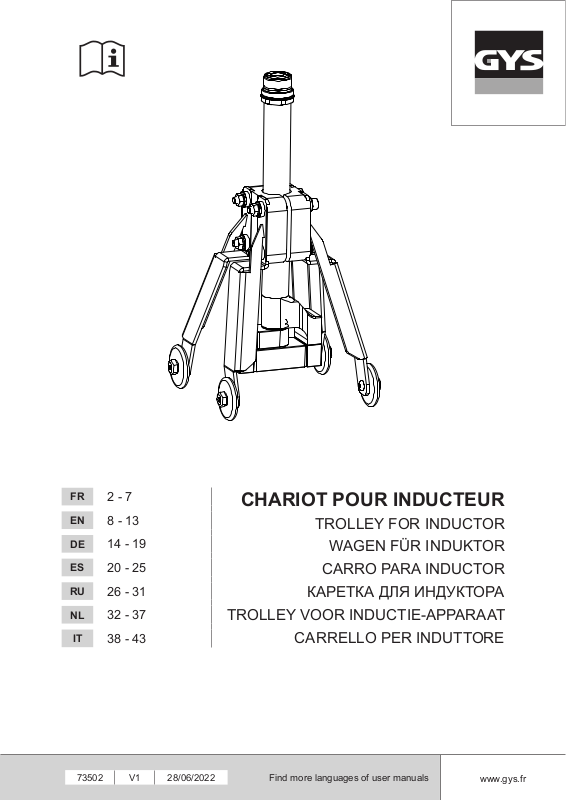

GYS TROLLEY FOR INDUCTOR User guide [fr]

Page 1
FR
2 - 7
CHARIOT POUR INDUCTEUR
EN
DE
ES
RU
NL
IT
73502 V1 28/06/2022
8 - 13
14 - 19
20 - 25
26 - 31
32 - 37
38 - 43
TROLLEY FOR INDUCTOR
WAGEN FÜR INDUKTOR
CARRO PARA INDUCTOR
TROLLEY VOOR INDUCTIE-APPARAAT
CARRELLO PER INDUTTORE
Find more languages of user manuals
www.gys.fr
Page 2
Notice de montage
Notice originale
Installation de l’inducteur sur le chariot 4 roulettes (livré ainsi)
1. Dévisser l’inducteur de la lance.
Inducteurs compatibles
059795 L180 065000 L180 Spiral
CHARIOT POUR INDUCTEUR
2. Dévisser les 4 écrous M6 pour écarter les supports soudés et glisser l’axe cuivré de la lance dans l’ensemble chariot.
2
Page 3
Notice de montage
Notice originale
CHARIOT POUR INDUCTEUR
3. Revisser l’inducteur. Puis régler sa hauteur par rapport à la pièce à chau󰀨er.
FR
Ø min 90 mm
4. Revisser les 4 écrous pour serrer et vérouiller la lance à la hauteur ajustée.
4 N·m
3
Page 4
Notice de montage
Notice originale
Installation de l’inducteur sur le chariot 8 roulettes (à monter)
Désignation Quantity Reference
Palonnier 4 K0892
Roulette chariot 8 M0391
Axe chariot 8 M0392
Vis M5 x 16 TCB Tx25 8 42169
CHARIOT POUR INDUCTEUR
Entretoise palonnier 4 M0414
1. Démonter les 4 roulettes présentes sur le chariot reçu.
4
Page 5
Notice de montage
Notice originale
2. Monter les doubles-roulettes.
CHARIOT POUR INDUCTEUR
FR
4 N·m
3. Dévisser l’inducteur de la lance.
Inducteurs compatibles
059795 L180 065000 L180 Spiral
5
Page 6
Notice de montage
Notice originale
CHARIOT POUR INDUCTEUR
4. Dévisser les 4 écrous M6 pour écarter les supports soudés et glisser l’axe cuivré de la lance dans l’ensemble chariot.
Ø min 160 mm
6
Page 7
Notice de montage
Notice originale
CHARIOT POUR INDUCTEUR
5. Revisser l’inducteur. Puis régler sa hauteur par rapport à la pièce à chau󰀨er.
FR
6. Revisser les 4 écrous pour serrer et vérouiller la lance à la hauteur ajustée.
4 N·m
7
Page 8
Operating manual
Translation of the original instructions
Installing the inductor on the 4-wheel trolley (supplied as is)
1. Unscrew the inductor from the lance.
Compatible inductors
059795 L180 065000 L180 Spiral
CARRIAGE FOR INDUCTOR
2. Unscrew the 4 M6 nuts to remove the welded brackets and slide the copper shaft of the lance into the trolley assembly.
8
Page 9
Operating manual
Translation of the original instructions
CARRIAGE FOR INDUCTOR
3. Screw the inductor back on. Then adjust its height in relation to the workpiece to be heated.
Ø min 90 mm
IN
4 Screw the 4 nuts back on to tighten and lock the lance at the adjusted height.
4 N·m
9
Page 10
Operating manual
Translation of the original instructions
Installing the inductor on the 8-wheel trolley (to be tted)
Description Quantity Reference
Spreader bar 4 K0892
Trolley wheel 8 M0391
Trolley axle 8 M0392
Screw M5 x 16 TCB Tx25 8 42169
CARRIAGE FOR INDUCTOR
Spreader bar spacer 4 M0414
1. Remove the 4 castors on the received trolley.
10
Page 11
Operating manual
2. Mount the double rollers.
Translation of the original instructions
CARRIAGE FOR INDUCTOR
4 N-m
IN
3. Unscrew the lance inductor.
Compatible inductors
059795 L180 065000 L180 Spiral
11
Page 12
Operating manual
Translation of the original instructions
CARRIAGE FOR INDUCTOR
4. Unscrew the 4 M6 nuts to remove the welded brackets and slide the copper shaft of the lance into the carriage assembly.
Ø min 160 mm
12
Page 13
Operating manual
Translation of the original instructions
CARRIAGE FOR INDUCTOR
5. Screw the inductor back on. Then adjust its height in relation to the workpiece to be heated.
IN
6. Screw the 4 nuts back on to tighten and lock the lance at the adjusted height.
4 N-m
13
Page 14
Betriebsanleitung
Übersetzung der Originalbetriebsanleitung
Installation des Induktors auf dem 4-Rollen-Wagen (wird so geliefert)
1. Schrauben Sie den Induktor von der Lanze ab.
Kompatible Induktoren
059795 L180 065000 L180 Spirale
WAGEN FÜR INDUKTOR
2. Lösen Sie die 4 Muttern M6, um die geschweißten Halterungen zu entfernen und schieben Sie die kupferfarbene Lanzenachse in den Wagen.
14
Page 15
Betriebsanleitung
Übersetzung der Originalbetriebsanleitung
WAGEN FÜR INDUKTOR
3. Schrauben Sie den Induktor wieder an. Dann stellen Sie die Höhe des Induktors in Bezug auf das zu beheizende Werkstück ein.
Ø min 90 mm
VON
4. Schrauben Sie die 4 Muttern wieder an, um die Lanze in der eingestellten Höhe festzuziehen und zu verriegeln.
4 N·m
15
Page 16
Betriebsanleitung
Übersetzung der Originalbetriebsanleitung
Installation des Induktors auf dem 8-Rollen-Wagen (wird montiert)
Bezeichnung Quantity Reference
Traverse 4 K0892
Laufrolle 8 M0391
Laufrollenachse 8 M0392
Schraube M5 x 16 TCB Tx25 8 42169
WAGEN FÜR INDUKTOR
Distanzstück Traverse 4 M0414
1. Demontieren Sie die 4 Rollen des erhaltenen Wagens.
16
Page 17
Betriebsanleitung
Übersetzung der Originalbetriebsanleitung
2. Montieren Sie die Doppelrollen.
WAGEN FÜR INDUKTOR
4 N-m
VON
3. Schrauben Sie den Induktor von der Lanze ab.
Kompatible Induktoren
059795 L180 065000 L180 Spirale
17
Page 18
Betriebsanleitung
Übersetzung der Originalbetriebsanleitung
WAGEN FÜR INDUKTOR
4. Lösen Sie die 4 Muttern M6, um die geschweißten Halterungen zu entfernen und schieben Sie die kupferfarbene Achse der Lanze in die Wageneinheit.
Ø min 160 mm
18
Page 19
Betriebsanleitung
Übersetzung der Originalbetriebsanleitung
WAGEN FÜR INDUKTOR
5. Schrauben Sie den Induktor wieder an. Dann stellen Sie die Höhe des Induktors in Bezug auf das zu beheizende Werkstück ein.
VON
6. Schrauben Sie die 4 Muttern wieder an, um die Lanze in der eingestellten Höhe festzuziehen und zu verriegeln.
4 N-m
19
Page 20
Manual de uso
Traducción de las instrucciones originales
CARRO PARA EL INDUCTOR
Instalación del inductor en el carro de 4 ruedas (suministrado tal cual)
1. Desenrosque el inductor de la lanza.
Inductores compatibles
059795 L180 065000 L180 Espiral
2. Desenrosque las 4 tuercas M6 para retirar los soportes soldados y deslice el eje de cobre de la lanza en el conjunto del carro.
20
Page 21
Manual de uso
Traducción de las instrucciones originales
CARRO PARA EL INDUCTOR
3. Vuelva a enroscar el inductor. A continuación, ajuste su altura en relación con la pieza a calentar.
Ø min 90 mm
4. Vuelva a enroscar las 4 tuercas para apretar y bloquear la lanza a la altura ajustada.
ES
4 N·m
21
Page 22
Manual de uso
Traducción de las instrucciones originales
Instalación del inductor en el carro de 8 ruedas (a montar)
Descripción Cantidad Referencia
Barra esparcidora 4 K0892
Rueda del carro 8 M0391
Eje del carro 8 M0392
Tornillo M5 x 16 TCB Tx25 8 42169
CARRO PARA EL INDUCTOR
Distanciador de la barra esparcidora 4
4. Retire las 4 ruedas del carro recibido.
22
Page 23
Manual de uso
2. Monte los rodillos dobles.
Traducción de las instrucciones originales
CARRO PARA EL INDUCTOR
4 N-m
ES
3. Desenrosque el inductor de la lanza.
Inductores compatibles
059795 L180 065000 L180 Espiral
23
Page 24
Manual de uso
Traducción de las instrucciones originales
CARRO PARA EL INDUCTOR
4. Desenrosque las 4 tuercas M6 para retirar los soportes soldados y deslice el eje de cobre de la lanza en el conjunto del carro.
Ø min 160 mm
24
Page 25
Manual de uso
Traducción de las instrucciones originales
CARRO PARA EL INDUCTOR
5. Vuelva a enroscar el inductor. A continuación, ajuste su altura en relación con la pieza a calentar.
ES
6. Vuelva a enroscar las 4 tuercas para apretar y bloquear la lanza a la altura ajustada.
4 N-m
25
Page 26
Инструкция по применению
Перевод оригинальных инструкций
КАРЕТКА ДЛЯ ИНДУКТОРА
Установка индуктора на 4-колесную тележку (поставляется как есть)
1. Открутите индуктор от копья.
Совместимые индукторы
059795 L180 065000 L180 Spiral
2. Открутите 4 гайки М6, чтобы снять приваренные кронштейны, и вставьте медный вал копья в узел тележки.
26
Page 27
Инструкция по применению
Перевод оригинальных инструкций
КАРЕТКА ДЛЯ ИНДУКТОРА
3. Прикрутите индуктор обратно. Затем отрегулируйте его высоту относительно нагреваемой заготовки.
Ø min 90 mm
4 Закрутите 4 гайки, чтобы затянуть и зафиксировать копье на отрегулированной высоте.
4 N·m
RU
27
Page 28
Инструкция по применению
Перевод оригинальных инструкций
Установка индуктора на 8-колесную тележку (устанавливается)
Описание Количество Ссылка
Распорная планка 4 K0892
Колесо тележки 8 M0391
Ось тележки 8 M0392
Винт M5 x 16 TCB Tx25 8 42169
КАРЕТКА ДЛЯ ИНДУКТОРА
Распорная планка 4 M0414
1. Снимите 4 ролика с полученной тележки.
28
Page 29
Инструкция по применению
Перевод оригинальных инструкций
2. Установите двойные ролики.
КАРЕТКА ДЛЯ ИНДУКТОРА
4 Н-м
3. Открутите индуктор копья.
RU
Совместимые индукторы
059795 L180 065000 L180 Spiral
29
Page 30
Инструкция по применению
Перевод оригинальных инструкций
КАРЕТКА ДЛЯ ИНДУКТОРА
4. Открутите 4 гайки M6, чтобы снять приваренные кронштейны, и вставьте медный вал копья в узел каретки.
Ø min 160 mm
30
Page 31
Инструкция по применению
Перевод оригинальных инструкций
КАРЕТКА ДЛЯ ИНДУКТОРА
5. Прикрутите индуктор обратно. Затем отрегулируйте его высоту относительно нагреваемой заготовки.
6. Закрутите 4 гайки, чтобы затянуть и зафиксировать копье на отрегулированной высоте.
4 Н-м
RU
31
Page 32
Gebruikershandleiding
Vertaling van de originele handleiding
Installeren van de inductor op de 4-wielige wagen (geleverd zoals hij is)
1. Schroef de spoel van de lans.
Compatibele spoelen
059795 L180 065000 L180 Spiraal
SLEDE VOOR INDUCTOR
2. Schroef de 4 M6 moeren los om de gelaste beugels te verwijderen en schuif de koperen schacht van de lans in de trolleyconstructie.
32
Page 33
Gebruikershandleiding
Vertaling van de originele handleiding
SLEDE VOOR INDUCTOR
3. Schroef de spoel er weer op. Stel vervolgens de hoogte ervan in ten opzichte van het te verwarmen werkstuk.
Ø min 90 mm
4 Schroef de 4 moeren weer vast om de lans op de ingestelde hoogte vast te zetten en te
vergrendelen.
4 N·m
NL
33
Page 34
Gebruikershandleiding
Vertaling van de originele handleiding
Installeren van de inductor op de 8-wielige wagen (te monteren)
Beschrijving Hoeveelheid Referentie
Spreidstang 4 K0892
Trolleywiel 8 M0391
Trolleyas 8 M0392
Schroef M5 x 16 TCB Tx25 8 42169
SLEDE VOOR INDUCTOR
Spreidstang afstandhouder 4 M0414
1. Verwijder de 4 zwenkwielen van de ontvangen wagen.
34
Page 35
Gebruikershandleiding
2. Monteer de dubbele rollen.
Vertaling van de originele handleiding
SLEDE VOOR INDUCTOR
4 N-m
3. Schroef de lansspoeler los.
NL
Compatibele spoelen
059795 L180 065000 L180 Spiraal
35
Page 36
Gebruikershandleiding
Vertaling van de originele handleiding
SLEDE VOOR INDUCTOR
4. Schroef de 4 M6 moeren los om de gelaste beugels te verwijderen en schuif de koperen as van de lans in de slede.
Ø min 160 mm
36
Page 37
Gebruikershandleiding
Vertaling van de originele handleiding
SLEDE VOOR INDUCTOR
5. Schroef de inductor er weer op. Stel vervolgens de hoogte ervan in ten opzichte van het te verwarmen werkstuk.
6. Schroef de 4 moeren weer vast om de lans op de ingestelde hoogte vast te zetten en te vergrendelen.
NL
4 N-m
37
Page 38
Manuale di utilizzo
Traduzione delle istruzioni originali
Installazione dell'induttore sul carrello a 4 ruote (fornito così com'è)
1. Sviti l'induttore dalla lancia.
Induttori compatibili
059795 L180 065000 L180 Spirale
CARRELLO PER INDUTTORE
2. Sviti i 4 dadi M6 per rimuovere le sta󰀨e saldate e faccia scorrere l'albero di rame della lancia
nel gruppo del carrello.
38
Page 39
Manuale di utilizzo
Traduzione delle istruzioni originali
CARRELLO PER INDUTTORE
3. Riavviti l'induttore. Quindi regoli la sua altezza in relazione al pezzo da riscaldare.
Ø min 90 mm
4. Riavviti i 4 dadi per stringere e bloccare la lancia all'altezza regolata.
IT
4 N·m
39
Page 40
Manuale di utilizzo
Traduzione delle istruzioni originali
Installazione dell'induttore sul carrello a 8 ruote (da montare)
Descrizione Quantità Riferimento
Barra distanziatrice 4 K0892
Ruota del carrello 8 M0391
Asse del carrello 8 M0392
Vite M5 x 16 TCB Tx25 8 42169
CARRELLO PER INDUTTORE
Distanziatore della barra distanziatrice 4 M0414
1. Rimuova le 4 ruote del carrello ricevuto.
40
Page 41
Manuale di utilizzo
2. Montare i rulli doppi.
Traduzione delle istruzioni originali
CARRELLO PER INDUTTORE
4 N-m
3. Sviti l'induttore della lancia.
IT
Induttori compatibili
059795 L180 065000 L180 Spirale
41
Page 42
Manuale di utilizzo
Traduzione delle istruzioni originali
CARRELLO PER INDUTTORE
4. Sviti i 4 dadi M6 per rimuovere le sta󰀨e saldate e faccia scorrere l'albero di rame della lancia
nel gruppo del carrello.
Ø min 160 mm
42
Page 43
Manuale di utilizzo
Traduzione delle istruzioni originali
CARRELLO PER INDUTTORE
5. Riavviti l'induttore. Quindi regoli la sua altezza in relazione al pezzo da riscaldare.
6. Riavviti i 4 dadi per stringere e bloccare la lancia all'altezza regolata.
IT
4 N-m
43
Page 44
GYS France
Siège social / Headquarter 1, rue de la Croix des Landes - CS 54159 53941 Saint-berthevin Cedex France
www.gys.fr +33 2 43 01 23 60 service.client@gys.fr
GYS UK
Filiale / Subsidiary Unit 3 Great Central Way CV21 3XH - Rugby - Warwickshire United Kingdom
www.gys-welding.com +44 1926 338 609 uk@gys.fr
GYS Italia
Filiale / Filiale
Vega – Parco Scientico Tecnologico di
Venezia Via delle Industrie, 25/4 30175 Marghera - VE Italia
www.gys-welding.com +39 041 53 21 565 italia@gys.fr
GYS China
Filiale / 子公司 6666 Songze Road, Qingpu District 201706 Shanghai China
www.gys-china.com.cn +86 6221 4461 contact@gys-china.com.cn
GYS GmbH
Filiale / Niederlassung Professor-Wieler-Straße 11 52070 Aachen Deutschland
www.gys-schweissen.com +49 241 / 189-23-710 aachen@gys.fr
GYS Iberica
Filiale / Filial Avenida Pirineos 31, local 9 28703 San Sebastian de los reyes España
www.gys-welding.com +34 917.409.790 iberica@gys.fr
Loading...
