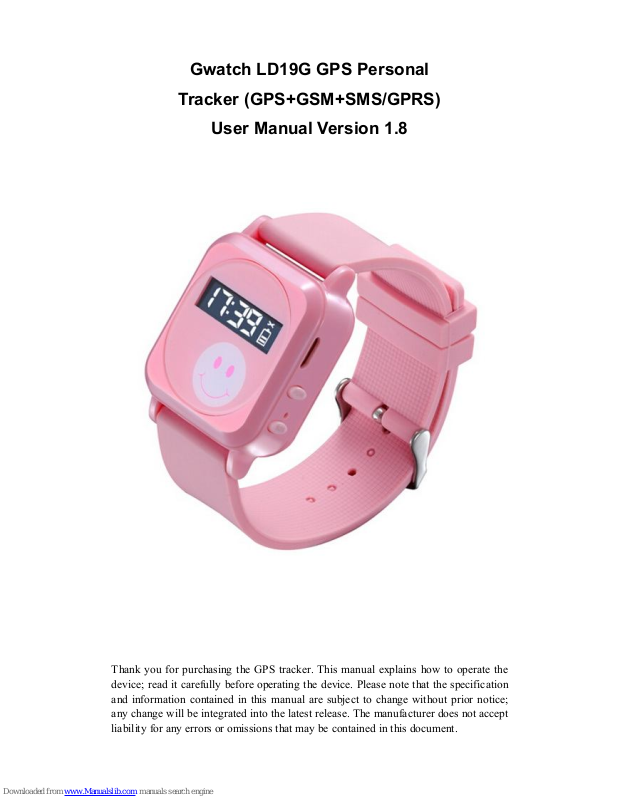

Gwatch LD19G User Manual

Gwatch LD19G GPS Personal

Tracker (GPS+GSM+SMS/GPRS)

User Manual Version 1.8

Thank y o u f o r purchasing the GPS tracker. This manual explains h o w to operate the
device; read i t carefully b e f o r e operating the device. Please n o t e that the specification
and information contained i n this manual are subject to change without prior n o t i c e ;
any change will b e integrated i n t o the latest release. The manufacturer does n o t accept
liability f o r any errors or omissions that m a y b e contained i n this document.

I. Accessories.

Your package contains the following:

Quantity Item

1 GPS tracker unit
1 Electrical plug
1 USB cable
1 User manual

Before continuing, ensure that you are familiar with your GPS tracker

LED Screen Icon Instructions:

Display Screen Icon Instructions

Icon Instructions

GPS function on but no GPS signal

GPS function on and GPS signal available

GSM signal strength volume

No GSM sim card

Battery volume

Battery in charging under working status

Battery in charging under off-working status

Battery fully

SOS Status of SOS

II. Technical data

GSM Frequency 850/900/1800/1900MHZ

GSM/GPS chip MTK6260/MTK3337

GPRS Class 12,TCP/IP build in GSM MODULE

GPS sensitivity -159dBm

GPS location accuracy 5-25m

LBS location accuracy 50-200m

Speed accuracy 0.1m/Second

GPS cold start <38 second

GPS warm start <32 second

GPS hot start <2 second

Maximum Elev 18,000m

maximum speed 515m/second

Weight 15g

Average standby current <10mA

Operating temperature -20---70℃

Humidity 20%---80%

Dimensions 38mm×35mm×15 mm (main unit)

Voltage Rechargeable 450mAh battery

Power supply DC5V

Standby time >48h

Buttons

POW: power on/off, hang off

SOS: SOS call and receive call (Two way communication only)
