Page 1
R
K-BUS
○
Power Supply
User manual-Ver. 1
KP/D30.640.1
KNX/EIB Intelligent Installation Systems
Page 2
Green Life in GVS
2
K-BUS Power Supply User manual-Ver. 1
Contents
1. Introduction....................................................................................................................... 3
2. Technical Parameter......................................................................................................... 3
3. Dimension and Connection Diagram.............................................................................. 4
4. Normal Working Test....................................................................................................... 5
Important safeguards
1) Before use, please read this instruction carefully and use the power supply strictly according to
the instruction
2) This power supply is for indoor use only and shall be installed in distribution box which can
provide the protection mechanism for avoid electric shock
3) Please keep this equipment from humidity.
4) Before use, the input and output voltage must be checked to secure correct use
5) The cover may under no circumstances be opened. If the cover is damaged, then the adaptor
may no longer be used.
6) The power supply shall be installed and used according to national wiring rules.
7) For indoor use only
8) The product is not a toy, keep it where the children can not reach it.
9) The power supply are only supply for EIB / KNX system equipment with bus line connection
terminal
10) Correct Disposal of this product:
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact the retailer where the product
was purchased. They can take this product for environmental safe recycling.
Page 3
Green Life in GVS
3
K-BUS Power Supply User manual-Ver. 1
1. Introduction
2. Technical Parameter
EIB/KNX power supply produces and monitors EIB / KNX system voltage. The bus line is decoupled
from the power supply with the integrated choke.
The power supply is connected to the bus line with a bus connection terminal. A reset is triggered by
pressing the reset push button and lasts 22 seconds (regardless of the duration of the push button
action).The bus line disconnected from the power supply and the devices connected to this bus line are
returned to their initial state. If the line should be disconnected for a longer period, the bus connection
terminal must be removed from power supply.
A 30V DC auxiliary voltage is made available via an additional connection terminal. This voltage can
be used to supply a further bus line (in connection with a separate choke).
Power supply: Input voltage: 95V ~255 Vac，47~63Hz
Power loss: <6 W
Efficiency: 75%
Output: EIB/KNX output (DPSU): 1 line with integrated choke
EIB/KNX nominal voltage: 30 V DC +1/–2 V, SELV
Auxiliary voltage output: 1 (without choke)
Auxiliary voltage: 30 V DC +1/–1 V, SELV
EIB/KNX nominal current:
(Total of EIB/KNX and auxiliary voltage output) 640 mA, short-circuit-proof
Sustained short-circuit current: < 1.3 A
Mains failure back-up time: >200ms
Operating/Display:
Green LED “ON”: output voltage is OK;
Red LED “I>I
Reset push button: reset at the EIB / KNX output (starts when the push button is
Red LED: Reset at the EIB/KNX output.
Connection: power supply: 2-srew terminals
Cable cross-section: single-core 0.2—4.0mm
”: overload or short circuit
max
pressed and lasts 22 seconds);
Multi-core 0.2—2.5mm
2
2
EIB/KNX output: Bus connection terminal (black/red)
Auxiliary voltage output: connection terminal (yellow/grey)
IP Grade: IP 00, EN 60529
Ambient temperature range:
Page 4
Green Life in GVS
4
K-BUS Power Supply User manual-Ver. 1
3. Dimension and Connection Diagram

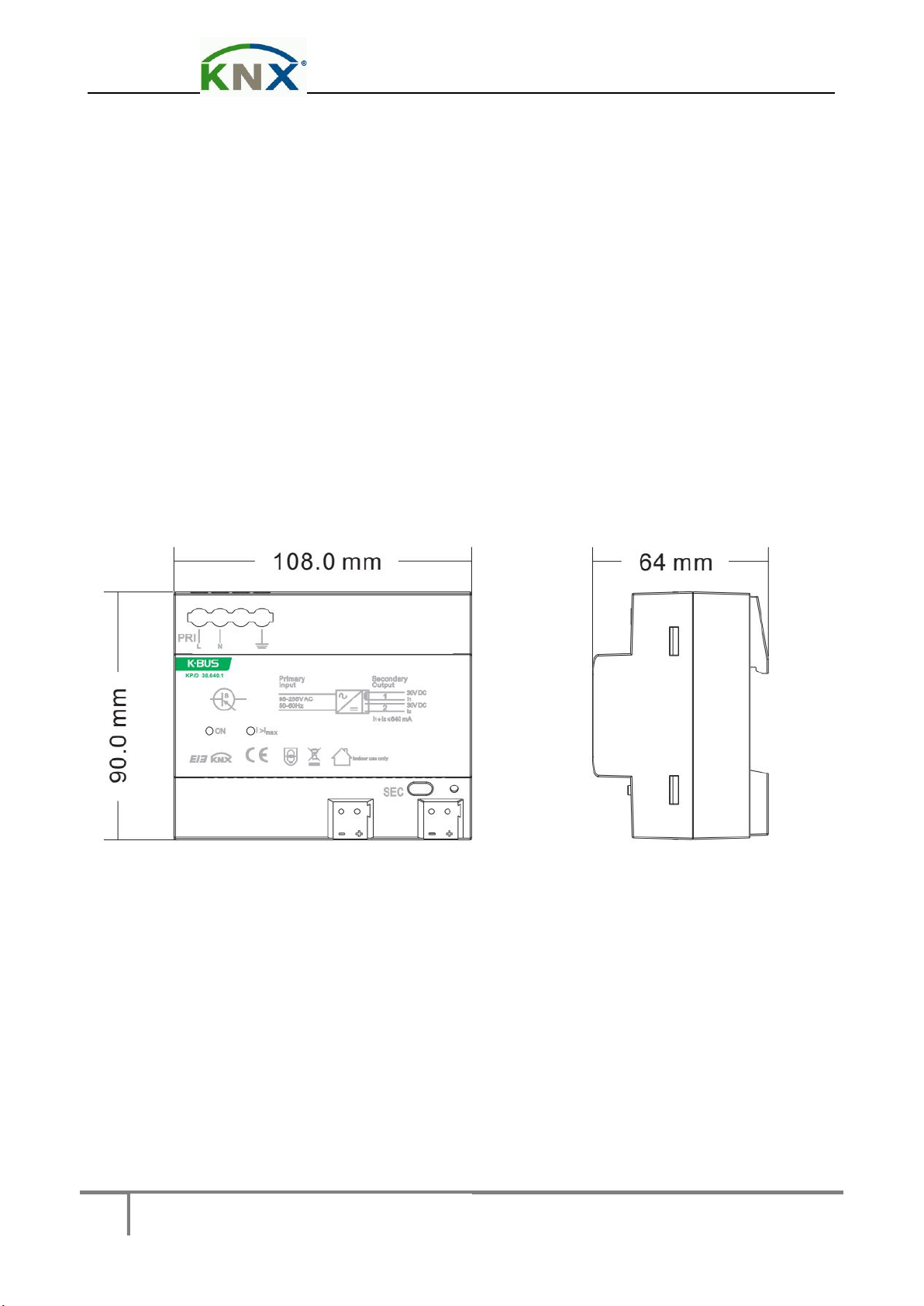

◆ Dimension drawing:
Operation: -5 °C ~ + 45 °C
Storage: – 25 °C ~ + 55 °C
Transport: – 25 °C ~ + 70 °C
Housing & Color: plastic, white
Mounting: On 35mm mounting rail
Dimension: 90×108×64mm（H×W×D）
Weight: 0.2kg
CE norm: In accordance with the EMC guideline and the low voltage guideline
Page 5
Green Life in GVS
5
K-BUS Power Supply User manual-Ver. 1

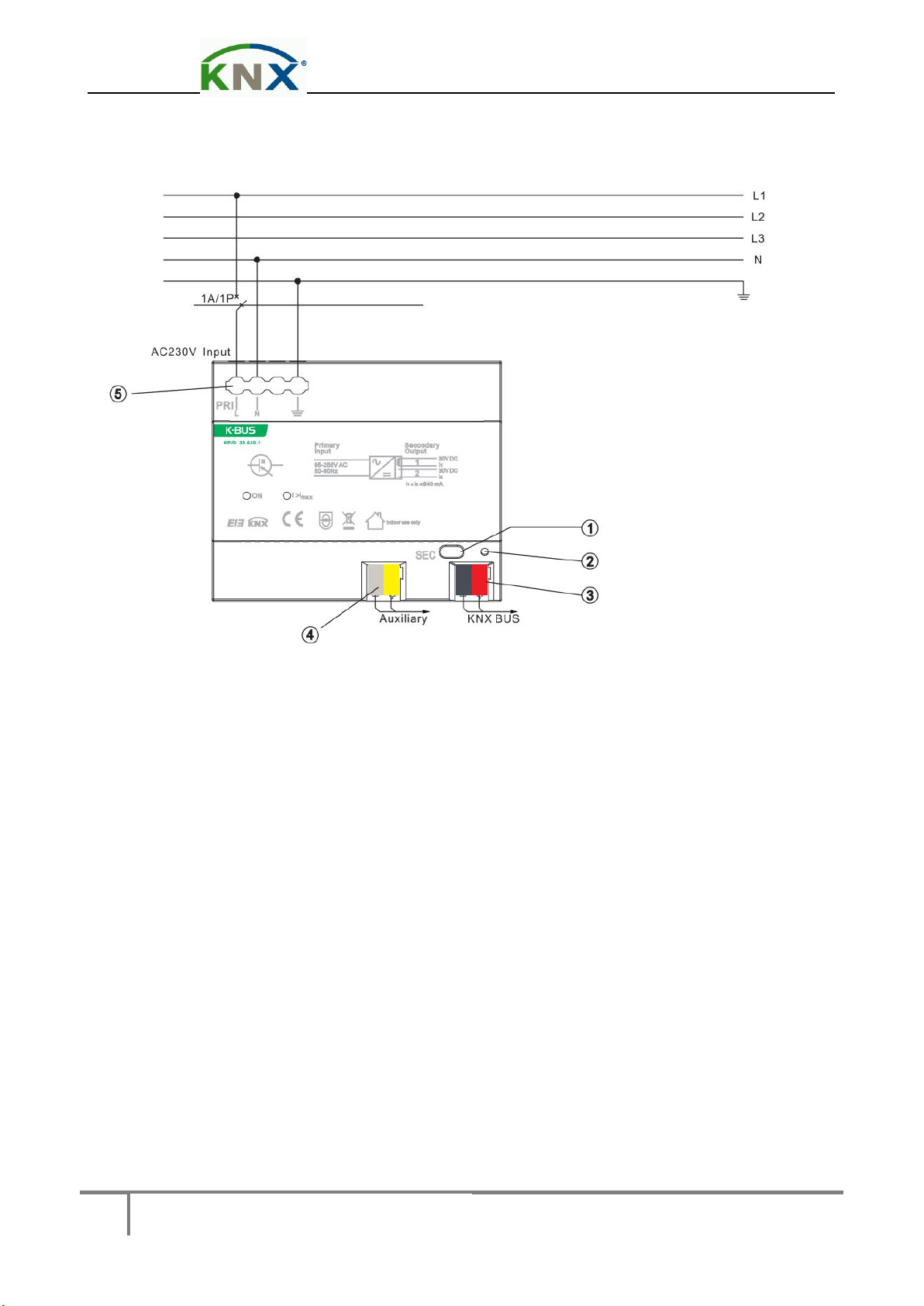

◆ Connection Diagram:
4. Normal Working Test
1. Reset push button
2. Red LED (Reset)
3. Bus connection terminal (EIB/KNX output)
4. Connection terminal (auxiliary voltage output)
5.Mains supply
ON: Green LED（output voltage is ok）
I>I
: Red LED（overload/ short circuit）
max
Switch on the mains voltage once the device has been correctly installed, the green LED “ON”, all
other LEDs are switched off, the device is functioning correctly.
