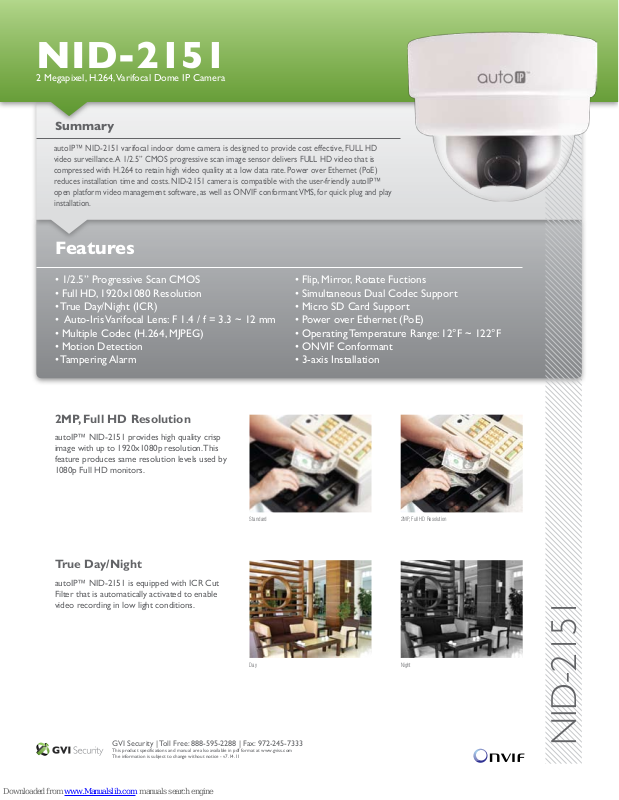

GVI Security NID-2151 Specifications

NID-2151

2 Megapixel, H.264, Varifocal Dome IP Camera

Summary

autoIP™ NID-2151 varifocal indoor dome camera is designed to provide cost effective, FULL HD
video surveillance. A 1/2.5” CMOS progressive scan image sensor delivers FULL HD video that is
compressed with H.264 to retain high video quality at a low data rate. Power over Ethernet (PoE)
reduces installation time and costs. NID-2151 camera is compatible with the user-friendly autoIP™
open platform video management software, as well as ONVIF conformant VMS, for quick plug and play
installation.

Features

• 1/2.5” Progressive Scan CMOS

• Full HD, 1920x1080 Resolution

• True Day/Night (ICR)

• Auto-Iris Varifocal Lens: F 1.4 / f = 3.3 ~ 12 mm

• Multiple Codec (H.264, MJPEG)

• Motion Detection

• Tampering Alarm

2MP, Full HD Resolution

autoIP™ NID-2151 provides high quality crisp
image with up to 1920x1080p resolution. This
feature produces same resolution levels used by
1080p Full HD monitors.

Standard 2MP, Full HD Resolution

True Day/Night

autoIP™ NID-2151 is equipped with ICR Cut
Filter that is automatically activated to enable
video recording in low light conditions.

• Flip, Mirror, Rotate Fuctions

• Simultaneous Dual Codec Support

• Micro SD Card Support

• Power over Ethernet (PoE)

• Operating Temperature Range: 12°F ~ 122°F

• ONVIF Conformant

• 3-axis Installation

GVI Security | Toll Free: 888-595-2288 | Fax: [phone]

This product specifications and manual are also available in pdf format at www.gviss.com
The information is subject to change without notice - v7.14.11

Day Night

NID-2151

NID-2151

2 Megapixel, H.264, Varifocal Dome IP Camera

Specications

Camera

Image Sensor 1/2.5” Progressive CMOS
Picture Elements 1920(H) x 1080(V)
Minimum Illumination Color 0.5 lux @ F1.4 at 50 IRE

Shutter Speed 1~ 1/10000 sec.
White Balance Manual / AWB / ATW
Lens F 1.4 / f = 3.3 ~ 12 mm

Video

Compression H.264/MJPEG
Streaming Simultaneous H.264 + MJPEG

Resolution H.264/MJPEG Full HD 1080p/HD 720p/SXGA/D1/VGA/QVGA/CIF
Frame Rate 30 fps at HD and lower resolutions

Image Settings Auto-Iris Yes

Day/Night True Day/Night

Audio

Bi-directional Audio Line-out/Line-in (Mic-in)
Compression G.711/G.726

Alarm

I/O Input 5V 10kΩ

Network

Connector RJ-45
Interface 10/100Mbps Ethernet (RJ-45)
Supported Protocols TCP/IP, UDP, RTP, RTSP, HTTP, ICMP,FTP, SMTP, DHCP, PPPoE, UPnP

User Account Allowance 20

Other Connectors

Micro SD SDHC
Analog Video BNC, 1.0 Vp-p / 75Ω

Environmental

Operating Temperature 12°F~122°F (-10°C ~ 50°C)
Operating Humidity 10% to 90%, No Condensation

Power

Power Source DC12V/AC24V/PoE
Power Consumption LED off 5W

Certifications and Dimensions

Certifications CE, FCC, RoHS
IP66 No
Dimension (W x H) 5.9 x 5.1 in (151 x 130 mm)
Weight 1.50 lbs (0.7 kg )

B/W 0.1 lux @ F1.4 at 50 IRE

71° ~ 21°

H.264 + H.264

15fps at Full HD

Exposure Auto/Manual
Brightness Manual
Sharpness Manual
Contrast Manual
Saturation Manual
Hue Manual
Motion detection On/Off
Tampering Alarm Yes
Privacy Mask 2 Masks

Output Relay 300VDC/AC

Transparent, Color

and IGMP

Dimensions (unit : in)

5.9

5.1

Certications

Side/Rear Panel

GVI Security | Toll Free: 888-595-2288 | Fax: [phone]

This product specifications and manual are also available in pdf format at www.gviss.com
The information is subject to change without notice - v7.14.11

NID-2151
