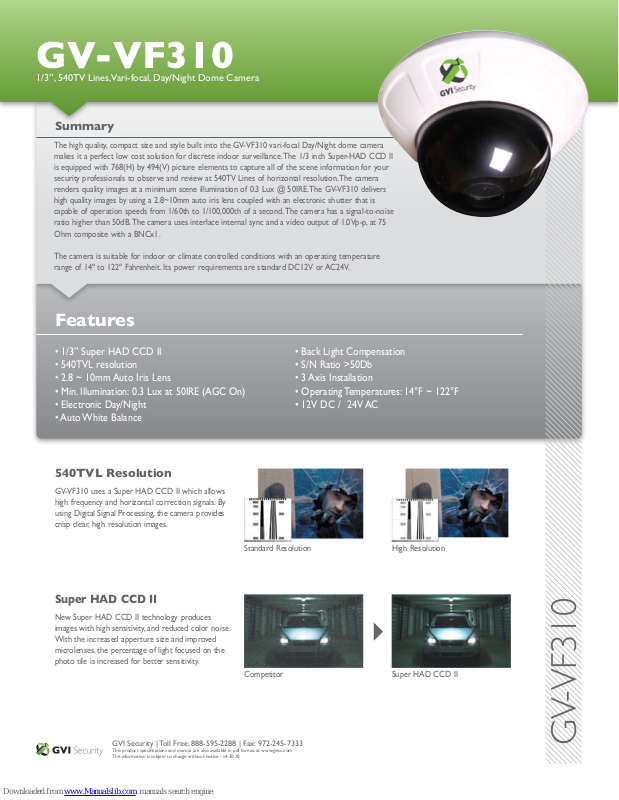

GVI Security GV-VF310 Specifications

GV-VF310

1/3”, 540TV Lines, Vari-focal, Day/Night Dome Camera

Summary

The high quality, compact size and style built into the GV-VF310 vari-focal Day/Night dome camera
makes it a perfect low cost solution for discrete indoor surveillance. The 1/3 inch Super-HAD CCD II
is equipped with 768(H) by 494(V) picture elements to capture all of the scene information for your
security professionals to observe and review at 540TV Lines of horizontal resolution. The camera
renders quality images at a minimum scene illumination of 0.3 Lux @ 50IRE. The GV-VF310 delivers
high quality images by using a 2.8~10mm auto iris lens coupled with an electronic shutter that is
capable of operation speeds from 1/60th to 1/100,000th of a second. The camera has a signal-to-noise
ratio higher than 50dB. The camera uses interlace internal sync and a video output of 1.0Vp-p, at 75
Ohm composite with a BNCx1.

The camera is suitable for indoor or climate controlled conditions with an operating temperature
range of 14º to 122º Fahrenheit. Its power requirements are standard DC12V or AC24V.

Features

• 1/3” Super HAD CCD II

• 540TVL resolution

• 2.8 ~ 10mm Auto Iris Lens

• Min. Illumination: 0.3 Lux at 50IRE (AGC On)

• Electronic Day/Night

• Auto White Balance

540TVL Resolution

GV-VF310 uses a Super HAD CCD II which allows
high frequency and horizontal correction signals. By
using Digital Signal Processing, the camera provides
crisp clear, high resolution images.

Super HAD CCD II

New Super HAD CCD II technology produces
images with high sensitivity, and reduced color noise.
With the increased apperture size and improved
microlenses, the percentage of light focused on the
photo tile is increased for better sensitivity.

• Back Light Compensation

• S/N Ratio >50Db

• 3 Axis Installation

• Operating Temperatures: 14°F ~ 122°F

• 12V DC / 24V AC

Standard Resolution

Competitor Super HAD CCD II

High Resolution

GVI Security | Toll Free: 888-595-2288 | Fax: [phone]

This product specications and manual are also available in pdf format at www.gviss.com
The information is subject to change without notice - v4.30.10

GV-VF310

GV-VF310

1/3”, 540TV Lines, Vari-focal, Day/Night Dome Camera

Specications

Camera Type Day/Night Vari-focal Day/Night Dome Camera
Image Device Super HAD CCD II

Min. Illumination Color 0.3Lux @ 50IRE (AGC On)(F1.4)
Shutter Speed Electronic 1/60-1/100,000 second
White Balance Auto
AGC/BLC Automatic
Sync Internal
Lens 2.8 ~ 10mm
Resolution Horizontal 540TVL
Video Output 1.0Vp-p, 75Ω Comp., BNCx1
S/N Ratio >50dB
Environmental Conditions Operating Temperature 14°F to 122°F (-10°C - +50°C )

Power 12V DC/ 24V AC
Physical Specification Dimensions (WxH) 5.9 in x 4.3 in (150mm x 109mm)

Size 1/3”
Pixel 768(H) x 494(V)

Humidity 90% Max

Dimensions (unit : in)

Ø3.74

4.29

2.2

Ø5.9 3.04

Certications

Front/Rear Panel

4 - Ø 0.2

3.04
