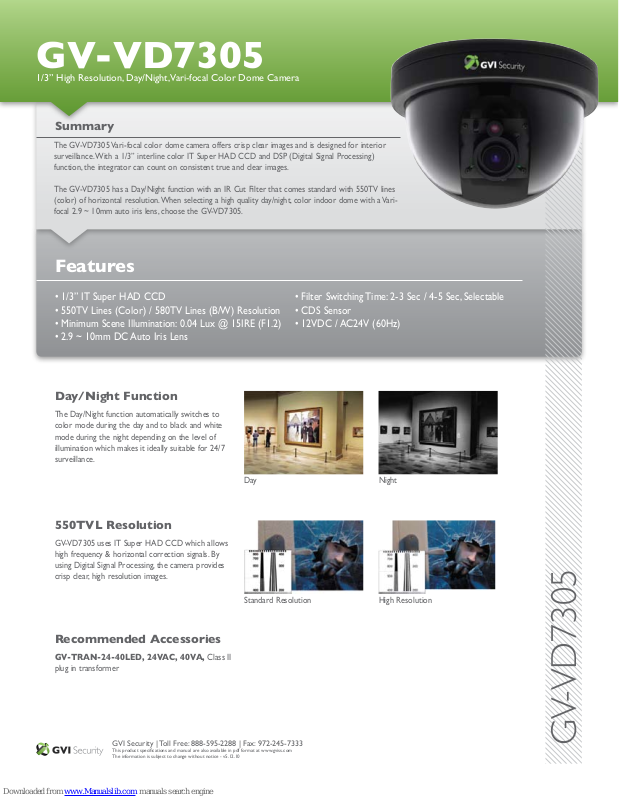

Page 1
GV-VD7305
1/3” High Resolution, Day/Night, Vari-focal Color Dome Camera
Summary
The GV-VD7305 Vari-focal color dome camera offers crisp clear images and is designed for interior
surveillance. With a 1/3” interline color IT Super HAD CCD and DSP (Digital Signal Processing)
function, the integrator can count on consistent true and clear images.
The GV-VD7305 has a Day/Night function with an IR Cut Filter that comes standard with 550TV lines
(color) of horizontal resolution. When selecting a high quality day/night, color indoor dome with a Varifocal 2.9 ~ 10mm auto iris lens, choose the GV-VD7305.
Features
• 1/3” IT Super HAD CCD
• 550TV Lines (Color) / 580TV Lines (B/W) Resolution
• Minimum Scene Illumination: 0.04 Lux @ 15IRE (F1.2)
• 2.9 ~ 10mm DC Auto Iris Lens
Day/Night Function
The Day/Night function automatically switches to
color mode during the day and to black and white
mode during the night depending on the level of
illumination which makes it ideally suitable for 24/7
surveillance.
Day Night
550TVL Resolution
GV-VD7305 uses IT Super HAD CCD which allows
high frequency & horizontal correction signals. By
using Digital Signal Processing, the camera provides
crisp clear, high resolution images.
• Filter Switching Time: 2-3 Sec / 4-5 Sec, Selectable
• CDS Sensor
• 12VDC / AC24V (60Hz)
Recommended Accessories
GV-TRAN-24-40LED, 24VAC, 40VA, Class II
plug in transformer
GVI Security | Toll Free: 888-595-2288 | Fax: 972-245-7333
This product specications and manual are also available in pdf format at www.gviss.com
The information is subject to change without notice - v5.12.10
Standard Resolution
High Resolution
GV-VD7305
Page 2
GV-VD7305
1/3” High Resolution, Day/Night, Vari-focal Color Dome Camera
Specications
Camera Type Color/BW High Resolution Vari-focal Dome Camera
Image Device IT Super HAD CCD
Scanning System 525 lines, 2:1 Interlace
Min. Scene Illumination Color 0.04 Lux @ 15IRE (F1.2)
Functions BLC On/Off
Lens Size 2.9 - 10mm DC Auto Iris, F1.2 D/N Lens
Resolution Horizontal 550(Color) TV Lines
Video Output VBS 1.0Vp-p VBS 1.0Vp-p
S/N Ratio S/N Ratio 48dB
OSD OSD No
Environmental Conditions Operating Temperature -10˚C ~ 50˚C (14˚F ~ 122˚F)
Power Power Requirement 12VDC / AC24V (60Hz)
Physical Specification Dimensions (øxH) 4.8 x 3.74 in / 120 x 95 mm
Size 1/3”
Pixels Effective: 768(H) x 494(V)
Horz. Freq. Internal Mode 15,734 Hz
Horz. Freq. Line-lock Mode 15,750 Hz
Vert. Freq. Internal Mode 59.94 Hz
Vert. Freq. Line-lock Mode 60Hz
B/W 0.0004 Lux @ 15IRE (F1.2)
AGC Auto
FL On/Off
Sync Internal
White Balance ATW / AWC
Day/Night Delay selectable, 2-3 sec / 4-5 sec
CDS Light Sensor
Shutter Speed 1/60 sec
Vertical 350TV Lines
Humidity Less than 90%
Power Consumption 2.5W (240mA)
Weight 0.5lbs / 227g
0.5 Lux @ 50IRE (F1.2)
0.03 Lux @ 50IRE (F1.2)
580(B/W) TV Lines
Dimensions (unit : in)
Certications
Front/Rear Panel
Ø4.8
3.74
GVI Security | Toll Free: 888-595-2288 | Fax: 972-245-7333
This product specications and manual are also available in pdf format at www.gviss.com
The information is subject to change without notice - v5.12.10
GV-VD7305
