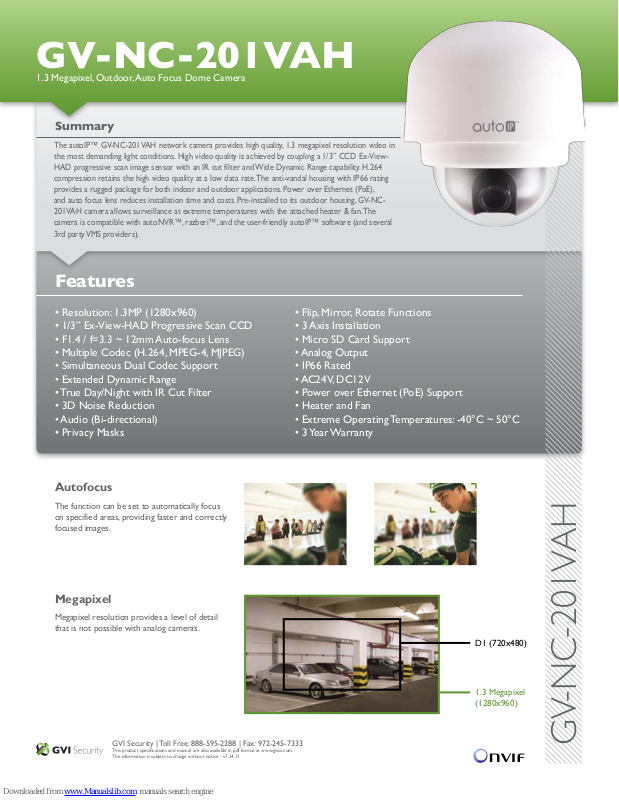

GVI Security GV-NC-201VAH Specifications

GV-NC-201VAH

1.3 Megapixel, Outdoor, Auto Focus Dome Camera

Summary

The autoIP™ GV-NC-201VAH network camera provides high quality, 1.3 megapixel resolution video in
the most demanding light conditions. High video quality is achieved by coupling a 1/3” CCD Ex-View­HAD progressive scan image sensor with an IR cut filter and Wide Dynamic Range capability. H.264
compression retains the high video quality at a low data rate. The anti-vandal housing with IP66 rating
provides a rugged package for both indoor and outdoor applications. Power over Ethernet (PoE),
and auto focus lens reduces installation time and costs. Pre-installed to its outdoor housing, GV-NC­201VAH camera allows surveillance at extreme temperatures with the attached heater & fan. The
camera is compatible with autoNVR™, razberi™, and the user-friendly autoIP™ software (and several
3rd party VMS providers).

Features

• Resolution: 1.3MP (1280x960)

• 1/3” Ex-View-HAD Progressive Scan CCD

• F1.4 / f=3.3 ~ 12mm Auto-focus Lens

• Multiple Codec (H.264, MPEG-4, MJPEG)

• Simultaneous Dual Codec Support

• Extended Dynamic Range

• True Day/Night with IR Cut Filter

• 3D Noise Reduction

• Audio (Bi-directional)

• Privacy Masks

Autofocus

The function can be set to automatically focus
on specified areas, providing faster and correctly
focused images.

Megapixel

Megapixel resolution provides a level of detail
that is not possible with analog cameras.

• Flip, Mirror, Rotate Functions

• 3 Axis Installation

• Micro SD Card Support

• Analog Output

• IP66 Rated

• AC24V, DC12V

• Power over Ethernet (PoE) Support

• Heater and Fan

• Extreme Operating Temperatures: -40°C ~ 50°C

• 3 Year Warranty

D1 (720x480)

GVI Security | Toll Free: 888-595-2288 | Fax: [phone]

This product specications and manual are also available in pdf format at www.gviss.com
The information is subject to change without notice - v7.14.11

1.3 Megapixel
(1280x960)

GV-NC-201VAH

GV-NC-201VAH

1.3 Megapixel, Outdoor, Auto Focus Dome Camera

Specifications

Camera

Image Sensor 1/3” Sony Progressive CCD
Picture Elements 1280(H) x 960(V)
Resolution >700 TVL
Minimum

Illumination

Shutter Speed 1 ~ 1/10000 sec.
White Balance Manual / ATW (1500 ~ 15000K)

Lens

Lens Type Motorized Auto Focus F 1.4 / f = 3.3 ~ 12mm

Operation

Video Compression H.264 / MJPEG / MPEG-4
Video Streaming Simultaneously H.264 + MJPEG

Day/Night True Day/Night (ICR)
Resolution H.264 1.3M 1280x960/HD 1280x720/ D1 / VGA / QVGA / CIF / QCIF

Frame rate 1280 x 960 @ 12.5 / 15 fps

Image Setting Brightness Manual

Audio Two-way Audio Line out, Line in / Mic in

Alarm Input 5V 10k Ω pull up

Network

Interface 10/100 Mb Ethernet (RJ-45)
Protocol TCP/IP, UDP, RTP, RTSP, HTTP, ICMP, FTP, SMTP, DHCP and IGMP
Password Levels User and Administrator
Internet Browser Internet Explorer (6.0+)
User Account 20

Mechanical

Connectors Power 3 pins terminal block

LED Indicator Power, Link, ACT

General

Operating Temperature
IP66 Yes
Power Source DC12V / PoE / AC24V
Power Consumption Camera 6W

Dimension Ø 5.94 x 5.43 in. (Ø151 x 130mm) (Indoor)

Weight 1.8 lbs

Color 0.02 lux @ F 1.4
B/W 0.002 lux @ F 1.4

MPEG-4 + MJPEG
MJPEG + BNC
H.264 + H.264
H.264 + BNC

MJPEG 1.3M 1280x960/HD 1280x720/ D1 / VGA / QVGA / CIF / QCIF
MPEG-4 1.3M 1280x960/HD 1280x720/ D1 / VGA / QVGA / CIF / QCIF

720p @ 25 / 30 fps

Exposure Auto / Manual / Fixed shutter / Auto Iris
Backlight On/Off
Sharpness Manual
Contrast Manual
White Balance Auto / Manual / Indoor / Outdoor
Digital Zoom 1x ~ 16x
Image Rotation Flip, Mirror, and 180˚ Rotate
WDR Off / 4 Level Adjustment
3D Noise Reduction On/Off
Privacy Mask 5 Masks

Compression G.711 / G.726

Output Photo relay output 300VDC / AC

Ethernet RJ-45
Micro SD SDHC support
Audio 4 pins terminal block
Alarm 4 pins terminal block
Analog Video 1.0 Vp-p / 75 Ω, BNC

-40°C ~ 50°C Humidity: 10% to 90%, no condensation

w/ Motorized Lens 9.6W
Heater 20W

Ø 6.69 x 8.26 in. (Ø170 x 210mm) (with Outdoor housing)

Dimensions (unit : in)

Certifications

Side/Rear Panel

4.17

8.26

6.73 4.47

GVI Security | Toll Free: 888-595-2288 | Fax: [phone]

This product specications and manual are also available in pdf format at www.gviss.com
The information is subject to change without notice - v7.14.11

GV-NC-201VAH
