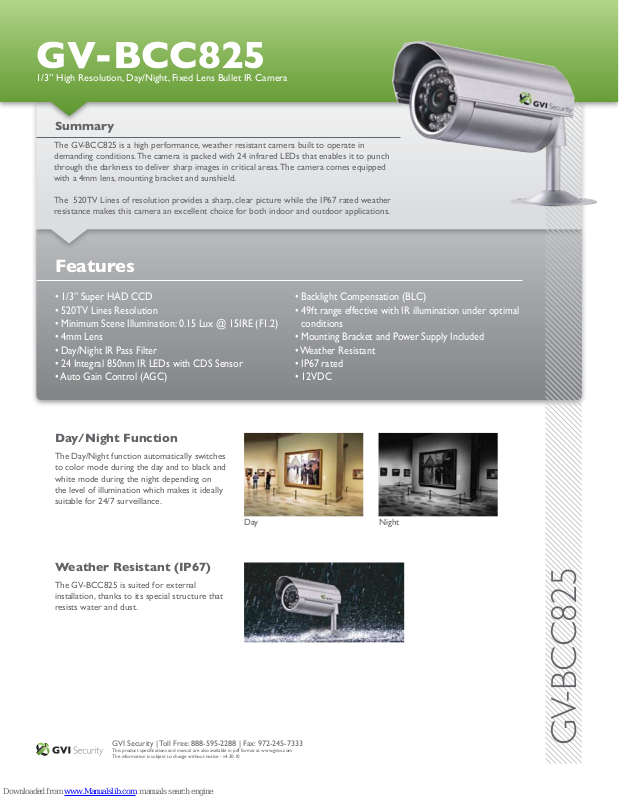

Page 1
GV-BCC825
1/3” High Resolution, Day/Night, Fixed Lens Bullet IR Camera
Summary
The GV-BCC825 is a high performance, weather resistant camera built to operate in
demanding conditions. The camera is packed with 24 infrared LEDs that enables it to punch
through the darkness to deliver sharp images in critical areas. The camera comes equipped
with a 4mm lens, mounting bracket and sunshield.
The 520TV Lines of resolution provides a sharp, clear picture while the IP67 rated weather
resistance makes this camera an excellent choice for both indoor and outdoor applications.
Features
• 1/3” Super HAD CCD
• 520TV Lines Resolution
• Minimum Scene Illumination: 0.15 Lux @ 15IRE (F1.2)
• 4mm Lens
• Day/Night IR Pass Filter
• 24 Integral 850nm IR LEDs with CDS Sensor
• Auto Gain Control (AGC)
Day/Night Function
The Day/Night function automatically switches
to color mode during the day and to black and
white mode during the night depending on
the level of illumination which makes it ideally
suitable for 24/7 surveillance.
Day Night
Weather Resistant (IP67)
The GV-BCC825 is suited for external
installation, thanks to its special structure that
resists water and dust.
• Backlight Compensation (BLC)
• 49ft range effective with IR illumination under optimal
conditions
• Mounting Bracket and Power Supply Included
• Weather Resistant
• IP67 rated
• 12VDC
GVI Security | Toll Free: 888-595-2288 | Fax: 972-245-7333
This product specications and manual are also available in pdf format at www.gviss.com
The information is subject to change without notice - v4.30.10
GV-BCC825
Page 2
GV-BCC825
1/3” High Resolution, Day/Night, Fixed Lens Bullet IR Camera
Specications
Camera Type Color Bullet IR Camera
Image Device Sony Super HAD Interline Transfer CCD
Scanning System 525 lines, 2 : 1 Interlace
Min. Scene Illumination 0.15 Lux @ 15IRE (F1.2)
Shutter Speed 1/60 ~100,000 sec (max)
Functions AGC On/Off
Lens Size 4mm fixed
Resolution Horizontal 520 (Color) TV Lines
Video Output 1Vp-p Composite, 75ohms
S/N Ratio S/N Ratio 48 dB (AGC Off)
Environmental Conditions Operating Temperature 14˚F ~ 122˚F (-10˚C ~ 50˚C)
Power Power Requirement 12 VDC (+/-10%)
Physical Specification Housing Aluminum
Dimensions With Sunshield (ø x H) 2.5 x 4.5 in / 63.5 x 114.3 (long) mm
Certifications Protection Rating IP67
Size 1/3”
Pixels – Effective 768(H) x 494(V)
Frequency 15.734 KHz (H), 59.94 Hz (V)
Synchronization Internal
ELC/ALC On/Off
BLC On/Off
Flickerless On/Off
Day/Night Yes, IR Pass Filter
White Balance AWB / ATW
Illumination 850nm, Integrated light sensor
Range 49ft (approx.) 24 LEDs
Humidity 10% ~ 90% non-condensing
Power Consumption (24LED) 3.6 W Max
Without Sunshield (ø x H) 2.0 x 3.5 in / 50.8 x 88.9 (long) mm
Dimensions (unit : in)
23.5 (Ø)
Certications
Front/Rear Panel
4.5
GVI Security | Toll Free: 888-595-2288 | Fax: 972-245-7333
This product specications and manual are also available in pdf format at www.gviss.com
The information is subject to change without notice - v4.30.10
GV-BCC825
