Guide to the Appliance
Remove the oven and all materials from the carton and oven cavity.

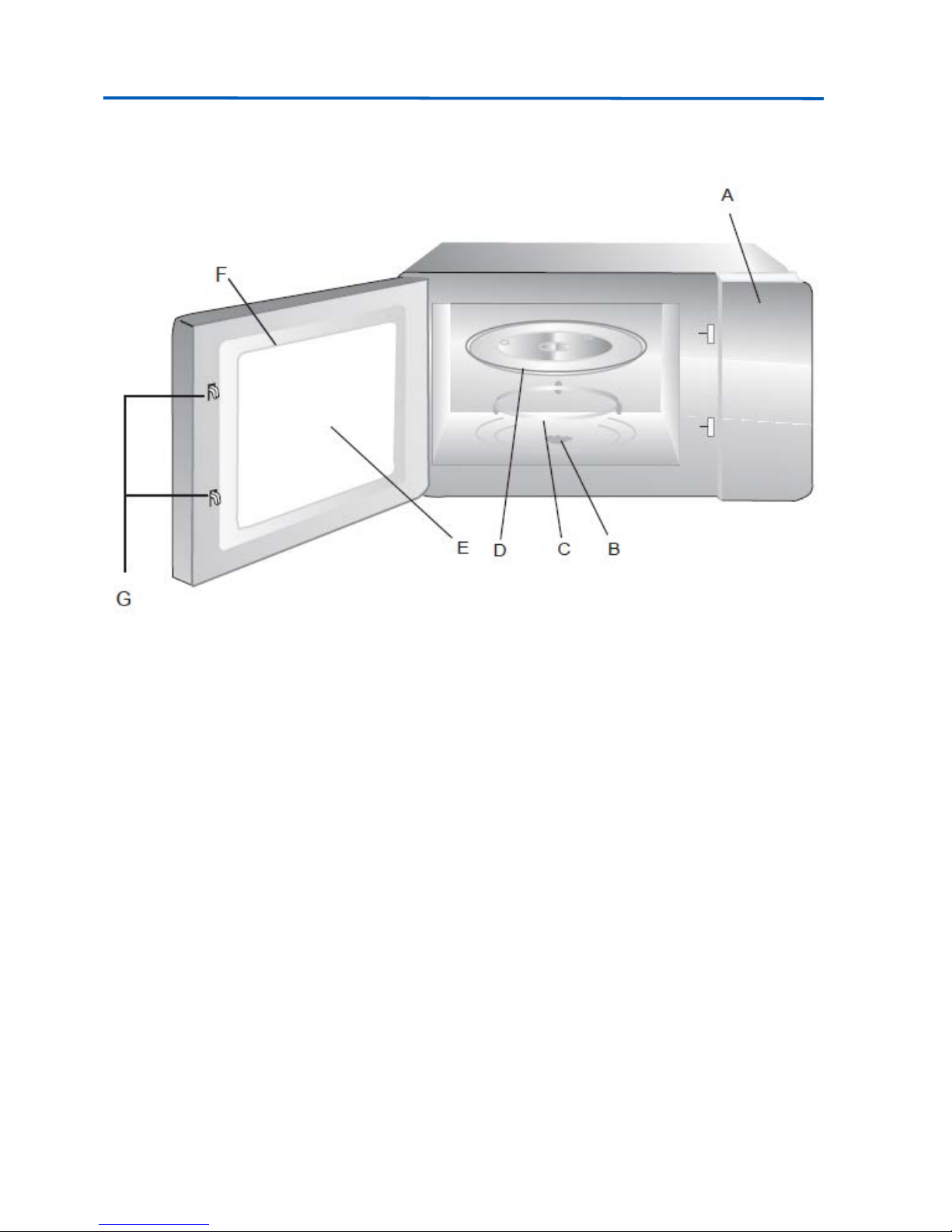

A. Control panel
B. Turntable shaft
C. Turntable ring assembly
D. Glass tray
E. Observation window
F. Door assembly
G. Safety interlock system
Note:
Due to production improvements, the appliance may differ slightly from the diagram
shown. Diagrams in this instruction manual are ready for reference only.
2
Caring for the Environment
Responsible disposal of the packaging
The packaging of your appliance has been selected from environmentally friendly materials and
can usually be recycled. Please ensure these are disposed of correctly.
Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all
packaging materials are out of reach and are safely disposed of. Please ensure they are offered
for recycling rather than throwing these materials away.
Responsible disposal of the appliance
At the end of its working life, do not throw this appliance out with your household rubbish. An
environmentally friendly method of disposal will ensure that valuable raw materials can be
recovered and used again
.
Electrical and electronic appliances contain materials and substances which, if handled or
disposed of incorrectly, could be potentially hazardous on the environment and human health.
Observe any local regulations regarding the disposal of electrical consumer goods and dispose
of it appropriately.
The plug must be rendered useless and the cable cut off directly behind the appliance or the
machine to prevent misuse.
3
Safety Information and Warnings
IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
To avoid possible exposure to excessive microwave energy follow the below precautions.
Do not attempt to operate this oven with the door open, this can result in harmful exposure to
microwave energy. It is important not to break or tamper with the safety interlocks.
Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
WARNING
: If the door or door seals are damaged, the oven must not be operated until it has
been repaired by a qualified person.
To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave
oven energy when using your appliance, follow basic precautions, including the following:
•
WARNING:
Liquids and other foods must not be heated in sealed containers as they are
liable to explode.
•
WARNING:
It is hazardous for anyone other than a qualified person to carry out any
service or repair that involves the removal of a cover which gives protection against
exposure to microwave energy.
• The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning the use of the appliance by a
person who responsible for their safety.
• Children should be supervised to ensure they do not play with the appliance.
• Keep the appliance and its cord out of reach of children.
• Only use utensils suitable for use in microwave ovens.
• The oven should be cleaned regularly and any food deposits should be removed.
• When heating food in plastic or paper containers, keep an eye on the oven due to the
possibility of ignition.
• If smoke is emitted, switch off or unplug the appliance and keep the door closed in order
to stifle any flames.
• Do not overcook food.
• Do not use the oven cavity for storage purposes. Do not store items, such as bread,
cookies, etc. inside the oven.
• Remove wire twist-ties and metal handles from paper or plastic containers/bags before
placing them in the oven.
• Install or locate this oven only in accordance with the installation instructions provided.
• Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens
as they may explode whilst in the microwave or after cooking time has ended.
• This appliance is intended to be used in households and similar applications such as:
-staff kitchen areas in shops, offices and other working environments;
-by clients in hotels, motels and other residential type environments;
-farm houses;
-bed and breakfast type environments.
4
Safety Information and Warnings
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
• Do not store or use this appliance outdoors.
• Do not use this oven near water, in a wet basement or near a swimming pool.
• The temperature of accessible surfaces may be high when the appliance is operating. The
surfaces are liable to get hot during use. Keep the cord away from the heated surface,
and do not cover any of the vents on the appliance.
• Do not let the power cord hang over edge of table or counter.
• Failure to maintain the appliance in a clean condition could lead to deterioration of the
surface, which could adversely affect the life of the appliance and possibly result in a
hazardous situation.
• The contents of feeding bottles and baby food jars should be stirred or shaken and the
temperature checked before consumption, in order to avoid burns.
• Microwave heating of beverages can result in delayed eruptive boiling; therefore care
must be taken when handling the container.
• Children should be supervised to ensure that they do not play with the appliance.
• The appliance is not intended to be operated by means of an external timer or separate
remote-control system.
• Accessible parts may become hot during use. Young children should be kept away.
• Steam cleaners are not to be used.
• During use the appliance becomes hot.
• Only use the temperature probe recommended for this oven (for ovens provided with a
facility to use a temperature-sensing probe.)
•
WARNING:
The appliance and its accessible parts become hot during use. Care should be
taken to avoid touching heating elements should be kept away unless supervised.
• The microwave oven must be operated with the decorative door open (for ovens with a
decorative door).
• The rear surface of the appliance should be placed against a wall.
• The microwave oven should not be placed in a cabinet unless it has been tested in a
cabinet.
• The microwave oven is intended for heating food and beverages. Drying of food or
clothing and heating of warming pads, slippers, sponges, damp clothes and similar items
may lead to risk of injury, ignition or fire.
• It is very dangerous to operate the appliance without any food inside.
5
Safety Information and Warnings
DANGER.
Electric Shock Hazard. Touching some of the internal components can cause serious
personal injury or death. Do not disassemble this appliance.
WARNING.
Electric Shock Hazard. Improper use of the grounding can result in electric shock. Do
not plug into an outlet until appliance is properly installed and grounded.
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces
the risk of electric shock by providing an escape wire for the electric current. This appliance is
equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged
into an outlet that is properly installed and grounded.
Consult a qualified electrician or serviceman if the grounding instructions are not completely
understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary
to use an extension cord, use only a 3-wire extension cord.
A short power-supply cord is provided to reduce the risks resulting from becoming entangled in
or tripping over a longer cord.
If a long cord set or extension cord is used:
1. The marked electrical rating of the cord set or extension cord should be at least as great
as the electrical rating of the appliance.
2. The extension cord must be a grounding-type 3-wire cord.
3. The long cord should be arranged so that it will not drape over the counter or tabletop
where it can be pulled on by children or tripped over unintentionally.
WARNING.
Some utensils are not safe to use in the appliance, this includes some non-metallic
utensils. If in doubt, you can test the utensil in question following the procedure below.
1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in
question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave
cooking.
Do not exceed 1 minute cooking time.
6
Getting Started
Remove all packing material and accessories. Examine the oven for any damage such as dents or
broken door. Do not install if the appliance is damaged.
This is a free standing appliance and is not designed to be built-in. do not block any intake or
outlet openings on the appliance.
Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not
remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.
Installation
1. Select a level surface that provides enough open space for the intake and/or outlet vents.
a. The minimum installation height is 85cm.
b. The rear surface of appliance should be placed against a wall. Leave a minimum
clearance of 30cm above the appliance, a minimum clearance of 20cm is required
between the microwave oven and any adjacent walls.
c. Do not remove the legs from the bottom of the appliance.
d. Blocking the intake and/or outlet openings can damage the appliance.
e. Place the oven as far away from radios and TVs as possible. Operation of the
microwave oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is
the same as the voltage and the frequency on the rating label.
WARNING
. Do not install the microwave oven over a cooktop or other heat-producing
appliance. If installed near or over a heat source, the oven could be damaged and the warranty
would be void.
The accessible surface may be hot during operation.
7
Basic Set Up
Clock Setting
1. Press ‘CLOCK’ and ’00:00’ will display.
2. Use the number keys to enter the current time (eg. If the time is 12:10, press the number
keys ‘1,2,1,0’)
3. Press ‘CLOCK’ to finish setting the time, the ‘:’ will flash and then the clock will be
illuminated.
4. If the numbers entered are not within range of 1:00-12:59, the setting will be invalid.
Note
1. If the ‘STOP/CLEAR’ button is pressed or there is no adjustment made within in 1 minute
during the time setting the process, the microwave oven will automatically exit the clock
setting function and go back to the former setting.
2. If the appliance is reset, follow steps 1 to 3 as the time will need to be set again.
Turntable Installation
1. Never place the glass tray upside down. The glass tray should never be restricted.
2. Both glass tray and turntable ring assembly must always be used during cooking.
3. Ensure all food and containers of food are always placed on the glass tray for cooking.
4. If glass tray or turntable ring assembly cracks or breaks, contact GVA customer care.

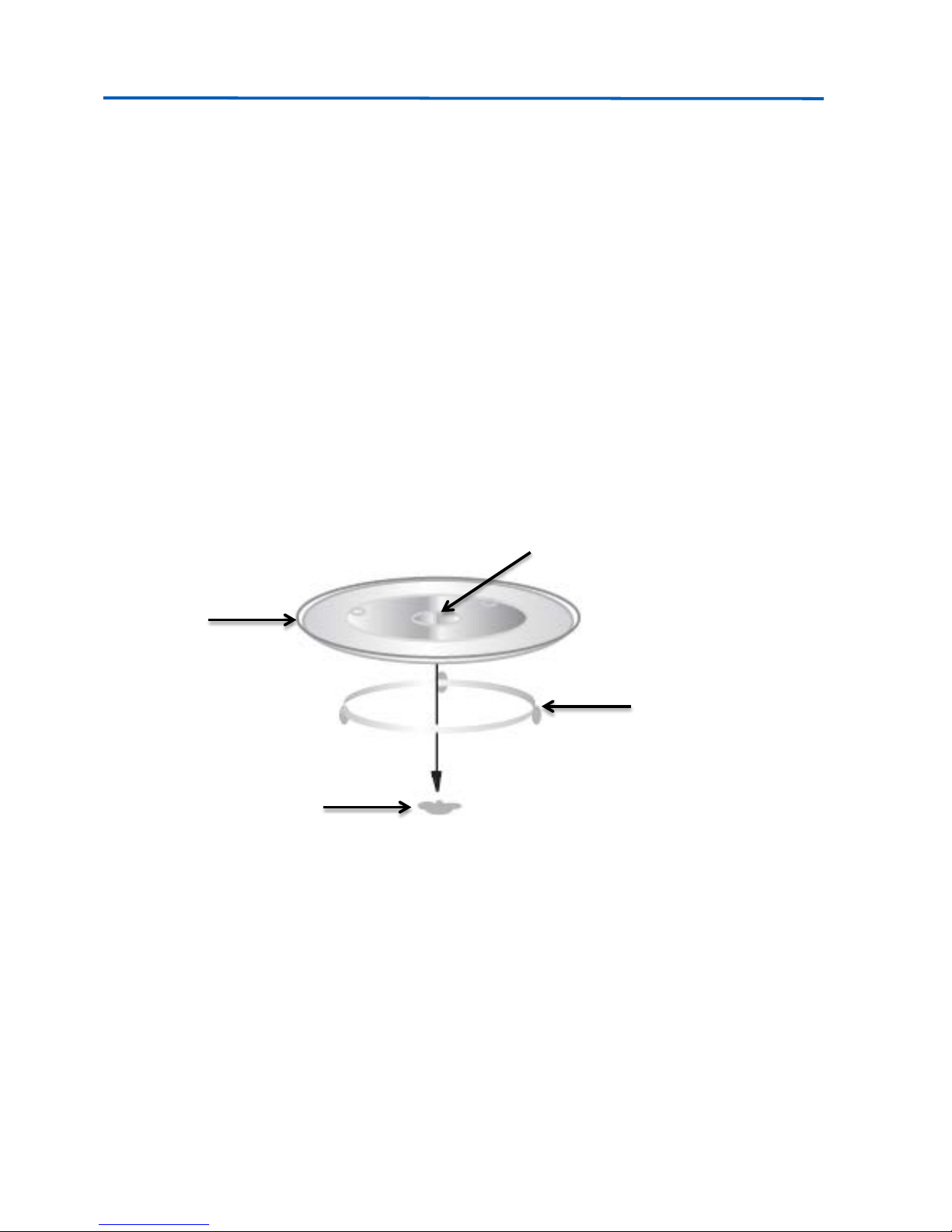

Glass tray
Turntable shaft
Turntable ring assembly
Hub (underside)
8
Operation Instructions
Power Levels
Level
10 9 8 7 6 5 4 3 2 1 0
Power
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
0%
Display
PL10
PL9
PL8
PL7
PL6
PL5
PL4
PL3
PL2
PL1
PL0
Kitchen Timer
1. Press ‘KITCHEN TIMER’, LED screen will display 00:00, and the first hour figure will flash.
2. Press the number keys to enter the required time for the timer.(the maximum cooking
time is 99 minutes and 99 seconds)
3. Press ‘START/+30SEC’ to confirm setting.
4. When the timer countdown is complete, the buzzer will sound 5 times. If the clock has
been set, the current time will be displayed.
Note:
During kitchen timer, any program cannot be set.
Microwave Cooking Function
1. Press ‘TIME COOK’ once, LED screen will display ‘00:00’.
2. Press number keys to input the cooking time; the maximum cooking time is 99 minutes
and 99 seconds.
3. Press ‘POWER’ once, LED screen will display ‘PL10’. The default power is 100% power.
Now you can press number keys to adjust the power level.
4. Press ‘START/+30SEC’ to start cooking.
Example: to cook food with 50% microwave power for 15 minutes.
a. Press ‘TIME COOK’ once, ’00:00’ will display on the screen.
b. Press ‘1’,’5’,’0’,’0’ in order.
c. Press ‘POWER’ once, and then press ‘5’ to select 50% microwave power.
d. Press ‘START/+30SEC’ to start cooking.
Note.
1. If the ‘STOP/CLEAR’ button is pressed or there is no adjustment made within in 1 minute
of selecting setting for cooking, the microwave oven will automatically exit the function.
2. If ‘PL0’ is selected, the oven will work with fan and no power.
3. During microwave cooking, ‘POWER’ can be pressed to change the power you need. After
pressing ‘POWER’, the current power will flash for 3 seconds, now you can press the
corresponding number button to change the power level. The oven will work with the
selected power for the rest of the cooking time.
Quick Start Function
1. In standby mode, instant cooking at 100% power level can be started by selecting a cooking
time from 1 to 6 minutes by pressing number keys 1 to 6. Press ‘START/+30SEC’ to increase
the cooking time; the maximum cooking time is 99 minutes and 99 seconds.
9
Operation Instructions
2. In standby mode, instant cooking at 100% power level for 30 seconds cooking time can
be started by pressing ‘START/+30SEC’. Each press of the same button will increase
cooking time by 30 seconds. The maximum cooking time is 99 minutes and 99
seconds.
Note:
during microwave cooking and defrost time, more time can be added by pressing the
‘START/30SEC’ button.
Weight Defrost Function
1. Press ‘WEIGHT DEFROST’, LED screen will display ‘dEF1’.
2. Press number keys to input weight of food to be defrosted. Input the weight between
the range 100~2000g.
3. If the weight input is not within 100~2000g, the input will be invalid.
4. Press ‘START/+30SEC’ to start defrosting, the cooking time will be displayed.
Time Defrost Function
1. Press ‘TIME DEFROST’, LED screen will display ‘dEF2’.
2. Press number keys to input defrosting time. The effective time range is 00:01~99:99
3. The default microwave power is power level 3. If you want to change the power level,
press ‘POWER’ once, and the LED will display ‘PL 3’, then press the number key of the
power level you want.
4. Press ‘START/+30SEC’ to start defrosting. The cooking time will be displayed.
Memory Function
1. Press ‘0/MEMORY’ to choose memory 1-3 procedure. The LED will display 1,2,3.
2. If the procedure has been set, press ‘START/ +30 SEC." to use it. If not, continue to
set the procedure. Only one or two stages can be set.
3. After finishing the setting, press ‘START/ +30 SEC’ once to save the procedure and
turn back to the waiting states. If you press ‘START/ +30 SEC’ again, it will start
cooking.
Example: to set the following procedure as the second memory option, that is memory procedure
2. To cook the food with 80% microwave power for 3minutes and 20 seconds. The steps are as
follows:
a. In standby mode, press ‘0/MEMORY’ twice, stop pressing until the screen displays ‘2’.
b. Press ‘TIME COOK’ once, then press ‘3’,’2’,’0’ in order
c. Press ‘POWER’ once, ’PL10’ will display, then press ‘8’ and ‘PL8’ will display.
d. Press ‘START/+30 SEC’ to save the setting. The buzzer will sound once then and then go
back to standby mode. If you press ‘START/+30SEC’ again, the procedure will be saved
as memory 2 and operated.
e. If the electricity is cut off, the procedure will need to be reset.
f. If you want to run the saved procedure, in standby mode, press ‘0/MEMORY’ twice, the
screen will display ‘2’, then press ‘START/+30SEC’ to start.
10
Operation Instructions
Multi Stage Cooking
At most 2 stages can be set for cooking. In multi-stage cooking, if one stage is defrosting, then
defrosting will be placed as the first stage automatically.
Note:
Auto cooking will not work in the multi-stage cooking function.
Example: if you want to cook with 80% microwave power for 5 minutes and then at 60%
microwave.
a. Press ‘TIME COOK’ once, then press ‘5’,’0’,’0’ to set the cooking time;
b. Press ‘POWER’ once and then press‘ 8’ to select 80% microwave power.
c. Press ‘TIME COOK’ once, then press ‘1’,’0’,’0’,’0’ to set the cooking time;
d. Press ‘POWER’ once, and then press "’’ to select 60% microwave power.
e. Press ‘START/ +30 SEC’ to start cooking.
Inquiring Function
1. In the cooking state, press ‘CLOCK’, the LED will display the clock for three seconds.
2. In the microwave cooking state, press ‘POWER’ to view the microwave power level, the
current microwave power will be displayed on the screen for three seconds.
In the multi-stage function, follow the above to check the power level or clock.
Lock/Unlock Function
Lock
: In standby mode, press ‘STOP/CLEAR’ for 3 seconds, there will be a long ‘beep’ sound
denoting the children-lock state is active; the screen will display “ ”
Unlock
: In locked state, press ‘STOP/CLEAR’ for 3 seconds, there will be a long ‘beep’ sound
denoting that the lock has been released.
End of cooking audio indicator
When the cooking time is complete, the buzzer will sound 5 ‘beep’ sounds to alert that the
cooking is finished.
Additional information
1. In the standby state, if the set clock digital tube displays current time, the icon ‘ : ‘ will
flash; otherwise, it will show ‘0:00’.
2. In setting function state, LED displays corresponding setting.
3. In working or pause state, LED displays remaining cooking time.
11
Advanced Features
Popcorn Option
1. Press ‘POPCORN’ repeatedly until the number you wish appears in the display, ‘50’, and
‘100’g will display in order.
2. Press ‘START/+30 SEC’ to cook, the buzzer will sound once. When cooking time has
finished, the buzzer sounds five times and then turns back to standby mode.
IMPORTANT
1. When selecting 85-100g of popcorn, it is suggested that you fold down a triangle on each
corner of the bag before cooking.
2. If/When the popcorn bag expands and no longer rotates properly, please press
STOP/CLEAR button once and open the oven door and adjust the bag position to
ensure even cooking.
Potato Option
1. Press ‘POTATO’ repeatedly until the number you wish appears in the display, ‘1’,’2’,’3’
will display in order.
‘1’ SET: 1 potato (approximate 230 gram)
‘2’ SETS: 2 potatoes (approximate 460 gram)
‘3’ SETS: 3 potatoes (approximate 690 gram)
For example, press ‘POTATO’ once, ‘1’ appears.
2. Press ‘START/+30 SEC’ to cook, the buzzer will sound once. When cooking time has
finished, buzzer sounds five times and then turns back to standby mode.
Frozen Vegetables Option
1. Press ‘FROZEN VEGETABLE’ repeatedly until the number you wish appears in the display,
‘150’,’350’,’500’g will display in order.
For example, press ‘FROZEN VEGETABLE’ once and ‘150’ will appear.
2. Press ‘START/+30 SEC’ to start the cooking and the buzzer will sound once. When
cooking has finished, the buzzer will sound five times and the display will go back to the
standby mode.
Beverage Option
1. Press ‘BEVERAGE’ repeatedly until the number you wish appears in the display, ‘1’,’2’,’3’
cup will display in order (one cup is approximately 120ml). For example, press
‘BEVERAGE’ once and ‘1’ will appear.
12
Advanced Features
2. Press ‘START/+30 SEC.’ to start cooking and the buzzer will sound once. When cooking
has finished, the buzzer sounds five times and the display will go back to the standby
mode.
Dinner Plate Option
1. Press ‘DINNER PLATE’ repeatedly until the number you wish appears in the display,
‘250’,’350’,’500’g will display in order.
For example, press ‘DINNER PLATE’ once and ‘250’ will appear.
2. Press ‘START/+30 SEC.’ to start cooking and the buzzer will sound once. When cooking
has finished, the buzzer sounds five times and the display will go back to the standby
mode.
Pizza Option
1. Press ‘PIZZA’ repeatedly until the number you wish appears in the display,
‘100’,’200’,’400’g will display in order.
For example, press ‘PIZZA’ once and ‘100’ will appear.
2. Press ‘START/+30 SEC.’ to start cooking and the buzzer will sound once. When cooking
has finished, the buzzer sounds five times and the display will go back to the standby
mode.
13
Hints and Tips
Materials you can use in the appliance
Aluminium foil
Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Browning dish
Follow manufacturer’s instructions. The bottom of browning dish must
be at least 5mm (3/16 inch) above the turntable. Incorrect usage may
cause the turntable to break.
Dinnerware
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Glass jars
Always remove lid. Use only to heat food until just warm. Most glass
jars are not heat resistant and may break.
Glassware
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Oven cooking bags
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Paper plates and cups
Use for short–term cooking/warming only. Do not leave oven
unattended while cooking.
Paper towels
Use to cover food for reheating and absorbing fat. Use with supervision
for short-term cooking only.
Parchment paper
Use as a cover to prevent splattering or a wrap for steaming.
Plastic
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labelled ‘Microwave Safe’. Some plastic containers soften, as the food
inside gets hot. ‘Boiling bags’
and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Plastic wrap
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers
Microwave-safe only (meat and candy thermometers).
Wax paper
Use as a cover to prevent splattering and retain moisture.
Materials to avoid in the appliance
Aluminium tray
May cause arcing. Transfer food into microwave-safe dish.
Food carton with
metal handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or metaltrimmed utensils
Metal shields the food from microwave energy. Metal trim may cause
arcing.
Metal twist ties
May cause arcing and could cause a fire in the oven.
Paper bags
May cause a fire in the oven.
Plastic foam
Plastic foam may melt or contaminate the liquid inside when exposed to
high temperatures.
Wood
Wood will dry out when used in the microwave oven and may split or
crack.
14
Troubleshooting
If you experience a problem with your microwave, please check the following table for solutions.
If after these checks you are unable to solve the issue with your appliance, contact GVA customer
care for advice.
Problem
Possible Cause
Solution
Microwave does not
start.
Power cord is not plugged in
properly
Unplug the power cord, wait 10
seconds and then plug it back into
the socket.
Circuit breaker has tripped.
Check the circuit breaker at the
power board and reset if
necessary.
Trouble with outlet.
Test the outlet with other electrical
appliances.
No heat in the
microwave.
Door is not closed properly.
Open the door and close it again,
ensure it closes properly.
The turntable makes
noise when the
microwave is in
operation.
Turntable ring assembly or the
bottom of the cavity is dirty.
Clean the microwave as per the
instructions in the Care and
Maintenance section.
The below may occur when the microwave oven is in operation, this is normal.
Interference with TV or radio reception.
When the microwave oven is in operation there may be interference with your TV and/or radio
reception.
The light in the appliance is dim.
If a low cooking power is selected, the light in the microwave oven may be dim.
Steam accumulating on the door.
During cooking, steam may be produced and will escape through the vents, as the door of the
microwave is cool the steam may accumulate here.
15
Care and Maintenance
Cleaning
Always turn off and unplug the appliance before cleaning.
• To clean the cavity of the oven use a slightly damp cloth.
• Clean the accessories with soapy water, rinse and dry thoroughly before placing back into
the appliance.
• The door frame, seal and neighbouring parts must be cleaned carefully with a damp cloth
to remove dirt.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven cavity or
glass in the door as this can scratch the surface or result in shattering of the glass.
• For easier cleaning of the cavity walls with baked on food, place half a lemon in a bowl,
add 300mls of water and heat on 100% microwave power for 10 minutes. Wipe the oven
clean using a soft, dry cloth.
16
Technical Specifications
Model: GVAEM720CCC
Rated Voltage: 240V~50Hz
Rated Input Power (Microwave): 1050W
Rated Output Power (Microwave): 700W
Oven Capacity: 20L
Turntable Diameter: 255mm
External Dimensions: 440 x 343 x 258mm
Weight: approximately 10kg
17
M.E.W. (Australia) Pty Ltd
15 Vaughan St
Essendon Fields VIC 3041
ACN 152 719 036
1300 725 885
customercare@gvaproducts.com.au
gvaproducts.com.au
While every effort has been made in the preparation of this instruction manual, the publishers cannot be
held responsible for the accuracy of the information contained herein or any consequences arising from it.
Loading...
