GVA GVA22FLEDCJ Instruction Manual

Instruction Manual

21.5” (54cm) FHD LED LCD TV

With Built-in DVD Player

/ GVA22FLEDCJ

Customer Help Line
TEL: [phone]

2

Important safety instructions

3

Connections and functions

8

Accessories list

9

Remote control

10

Inserting batteries

12

Using the remote control

12

Installing the antenna

13

Connecting your equipment to the TV

Connecting a VCR or video camera

14

Connecting earphones

14

Connecting a satellite/cable TV set top box,Watching cable/pay TV

15

Connecting an external DVD player

16

Connecting a PC

17

Getting started

Powering the LED LCD TV

18

Selecting an input source

18

Operating the menus

19

Channel menu

19

Picture menu

23

Sound menu

25

Time menu

26

Option menu

28

Lock menu

29

Other menus

30

Multimedia menus

32

PVR (Personal video recorder)

36

Some points about disc

40

Using the in-built DVD player

41

FAQ s

43

Specifications

44

Contents

Customer Help Line
TEL: [phone]

3

Read this manual thoroughly before first use and keep it in a safe place for
future reference, along with the warranty card, purchase receipt and carton.
The safety precautions enclosed herein reduce the risk of fire, electric shock
and injury when correctly adhered to.

Follow all instructions and take notice of all the warnings.

Important safety instructions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

To reduce the risk of electric shock, do not
remove the cover (or back). This unit contains
no user-serviceable parts inside. Refer all
servicing to qualified service personnel only

.

The lightning flash with an arrowhead
symbol within an equilateral triangle is
intended to alert you to the presence of
non-insulated dangerous voltage within
the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.

The exclamation point within an equi­lateral triangle is intended to alert you
to the presence of important operating
and maintenance (servicing) instructions
in the literature accompanying the
appliance.

IMPORTANT WARNINGS AND CAUTIONS!

t Only connect this TV set to a mains socket with a protective earthing

connection.

t To prevent damage which may result in fire or an electric shock hazard, do not

expose this appliance to rain or moisture.

t Do not change or modify the appliance in any way.

t Only use the attachments/accessories specified by the manufacturer.

Customer Help Line
TEL: [phone]

4

Installation

t Only install this TV set in accordance with the manufacturer’s instructions.

t If a television is not positioned in a sufficiently stable location, it can

be potentially hazardous due to falling. To prevent injuries from your
television falling, take a few simple precautions:

t Only use furniture that can safely support the television.
t Ensure the TV is not overhanging the edge of the supporting furniture.
t Educate children about the dangers of climbing on furniture to reach

the TV controls.

t Do not place the TV on cloth or other materials.
t Do not place the television on tall furniture (for example, cupboards or

bookcases) without anchoring both the furniture and the television to
a suitable support.

t When deciding on where to put the TV set, make sure the place is:

t Well ventilated.
t Away from damp and cold.
t Protected from overheating and away from direct sunlight.
t Away from moisture drips or splashes.
t Protected from excessive dust or grease.

t Do not install this equipment in a confined space such as a bookcase or

similar unit.

t Do not install the TV set near any heat sources such as radiators, stoves or

other audio visual equipment (including amplifiers) that produce heat.

t Do not place containers with any liquids (such as vases) or with small

metallic objects on top of the unit. If liquid enters the unit or any metal
object falls into the unit, it may result in short-circuit, fire or electric shock.

t Do not use or store flammable or combustible materials near the unit.

Doing so may result in fire or explosion.

t Do not place any naked flame sources, such as lit candles, cigarettes or

incense sticks on top of the TV set.

t Install the antenna away from high-voltage power lines and

communication cables and make sure it is installed securely. If the
antenna touches a power line, contact with the antenna could result in
fire, electric shock or serious injury.

t Install the unit at an adequate distance from the wall to ensure sufficient

ventilation. If the temperature inside the unit rises, it may result in fire.

Important safety instructions (Cont.)

Customer Help Line
TEL: [phone]

5

Electrical safety and cord handling

t Before installing this TV set, make sure your outlet voltage corresponds to

the voltage stated on the appliance rating label.

t To reduce the risk of fire or electric shock, do not expose this appliance to

rain or moisture; do not use it anywhere near water.

t Do not touch the power plug with wet hands; doing so may cause an

electric shock.

t Do not use a damaged power cord, plug or loose outlet. Doing so may

cause an electric shock.

t Do not plug several devices into the same outlet. Doing so may cause the

outlet to overheat and start a fire.

t Insert the power plug fully into the outlet. A loose or improperly inserted

power plug may cause a fire.

t Do not bend, twist or kink the power cord excessively. Do not allow

anything to rest on or roll over the power cord and antenna cable. Doing
so may cause a fire or an electric shock.

t Do not run the power cord near heat-producing appliances such as

radiators, stoves or irons. The excessive heat could melt the insulation and
expose live wires, resulting in fire or electric shock.

t Always grasp the plug when disconnecting the power cord. Pulling the cord

can damage the internal wire and may cause a fire.

t Unplug this TV during lightning storms or when unused for long periods

of time. Not doing so may result in fire or electric shock.

Important safety instructions (Cont.)

Customer Help Line
TEL: [phone]

6

Usage conditions and restrictions

t Follow the instructions in this manual when installing and adjusting the

TV set. Only adjust those controls that are covered in this instruction
manual, as improper adjustment of other controls may result in damage.
If this happens, unplug the TV set and have it serviced by appropriately
qualified personnel, or phone the after sales support line for advice.

t Do not cover the ventilation openings with items such as newspapers,

tablecloths, curtains etc. as this could impede ventilation.

t Do not insert objects of any kind into this unit through the cabinet slots,

as they could touch the current-carrying parts or short-circuit parts,
resulting in fire, electric shock or damage to the unit.

t If you notice any unusual odours or smoke around the unit, immediately

disconnect the unit from the outlet and contact the service centre. Failure
to do so may result in fire or electric shock.

t When not using the unit for long periods of time, disconnect the power

cord from the wall outlet. Dust could accumulate over time on the unit
and cause it to generate heat and ignite, or deteriorate insulation, which
in turn may result in an electrical fire.

t When moving the unit, be sure to turn off the unit and unplug the power

cord from the wall outlet. Moving the unit with the power cord connected
to the outlet may cause damage to the cord, resulting in fire or electric
shock.

t When removing the batteries from the remote control, make sure children

do not swallow them. Keep the batteries out of reach of infants and
children and seek medical attention immediately if a child has swallowed
a battery.

t This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instructions
concerning use of the appliance by a person responsible for their safety.

t Young children should be supervised to ensure they do not play with the

appliance.

Important safety instructions (Cont.)

Customer Help Line
TEL: [phone]

7

Cleaning and maintenance

t To reduce the risk of fire and electric shock, always unplug the TV before

cleaning.

t Wipe off any moisture, dirt or dust on the power plug pins with a clean,

dry cloth. Failure to do so may result in fire or electric shock.

t Only use a soft, dry cloth for cleaning the TV set. Do not clean it with a

damp cloth. Never clean with industrial strength polish, wax, benzene,
paint thinner, air freshener, lubricant, detergent or other chemicals.

t Do not attempt to service the unit yourself; never disassemble or modify it

in any way. Doing so may result in fire or electric shock. If the unit requires
repair, contact the after sales support line.

t Refer all servicing to qualified service personnel. Servicing is required

when the TV has been damaged in any way, such as when the power
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the TV, when the TV has been exposed to rain or moisture, does
not operate normally, or has been dropped.

Important safety instructions (Cont.)

Customer Help Line
TEL: [phone]

8

1 DC in 12V
2USB
3 HDMI 1
4VGA
5 PC Audio In
6YPbPr

7Antenna 75Ω
8 Earphone out
9SPDIF

10 Video and audio (R/L)
11 HDMI 2
12 DVD slot

1 Power ON/OFF
2 Select the input signals/Exit

the menu (SOURCE)
3 MENU
4 TV channel down/down

orientation (CH-)
5 TV channel up/up orientation

(CH+)
6 Volume down/left orientation

(VOL -)
7 Volume up/right orientation

(VOL+)
8Open/Close the DVD (

)
9Play/Pause the DVD ( )
10Stop the DVD (

)

Connections and functions

SOURC E

123 4567

8
9

10

Customer Help Line
TEL: [phone]

9

Instruction

manual

Remote

control

Adaptor

Batteries

The c

ration of the components ma erent. The following

illustration is for representation only.

Accessories list

Customer Help Line
TEL: [phone]

10

Remote control

The buttons

The buttons on the remote control and similarly marked ones on the main
unit perform similar functions.

POWER ( ) Power/standby
MUTE (

) Press to mute or restore the volume
SOURCE Inputsource
PMODE Picture mode
SMODE Sound mode
AUDIO I/II Select audio mode
SLEEP Sleep timer
0-9 Number (0, 1-9)

-/-- Multi digits (-/--)

Channel return

MENU Main menu
EXIT Exit menu(or exit OSD)
TEXT Switch to Teletext* mode
DISPLAY INFO Display program information
OK/ENTER

/ / / Navigation keys

V+/V- Volume control
P+/P- Channel select

*Teletext

Teletext or Austext is no longer available, nor is there any
plan for a replacement teletext service in Australia. For
more information, please visit the websites of the Australian
channel providers. However, one teletext option,“closed
captions”, is still working on most Australian television
channels. This service allows you to activate subtitles while
watching normal television programs that pro

vide it.

To access “closed captions” while watching a program, press

the teletext button (TEXT/MIX) on the remote control, then
enter the numbers 801 on the remote control to activate
the subtitles. To exit the subtitles, press the TEXT/MIX
button again.

Customer Help Line
TEL: [phone]

11

Remote control (Cont.)

TITLE Return to the title in DVD mode (TITLE)
GOTO Select the GOTO time in DVD mode
ANGLE Change the angle in DVD mode

(only when it is available)

REPEAT Select repeat mode in DVD mode
A-B Repeat from A to B in DVD mode

/ / / Shortcut buttons in TV and Media mode

MEDIA Media select
HOLD Picture freeze (in DTV mode only)
ZOOM Picture zoom
[

] DVD/USB Play/pause / Time-shift recording

[

] DVD/USB Previous

[

] DVD/USB Next

[

] DVD/USB Stop

[

] DVD/USB Fast-backward

[

] DVD/USB Fast-forward

[

] DTV recording

DVD SETUP Display DVD setup menu in DVD mode
TV/RADIO TV/Radio Select
EPG Electronic program guide
FAV Favourite channel list
SUBTITLE DTV subtitle
INDEX Recorded list
[

] Open/Close the DVD

D.MENU Return to the ROOT menu in DVD mode

Teletext buttons *

TEXT/MIX
HOLD Teletext hold
SUBTITLE Subtitle
INDEX Teletext index
SIZE Teletext size

/ / / The RED, GREEN, YELLOW and BLUE buttons

are used for quick access to colour-coded pages transmitted by FAST
TEXT broadcast. For example:RED selects city information, BLUE travel
information, GREEN weather information and YELLOW selects TV
programming.

Media, PVR and other buttons

Customer Help Line
TEL: [phone]

12

1. Open the cover at the back of the remote control unit completely.

2. Insert two 1.5V AAA batteries, ensuring the polarities (+ / -) of the
batteries are correctly aligned and the batteries are properly pushed
into place so they can power the remote control unit.

3. Slide the cover back into position.

NOTE: When testing the remote control unit after replacing the batteries,

make sure the TV is properly connected to the mains power supply.

Precautions when using batteries

t Do not use old and new batteries together.
t Do not use different types of battery (for example, Manganese and

Alkaline batteries) together.

t Note that there are chargeable and non-chargeable batteries. Do not

attempt to charge non-chargeable batteries.

t Remove the batteries from the remote control unit if you do not intend to

use the unit for a long time.

t When disposing used batteries, follow any guidelines for recycling and

disposal of batteries that apply in your local area.

Using the remote control

To use the remote control, point it towards the remote sensor at the front of
the television. The remote control has a range of up to approximately ve
metres from the TV at an angle of up to 30 degrees each to the right and left
of the sensor. The remote control will not operate if its path is blocked.

Inserting batteries

Remote control (Cont.)

Customer Help Line
TEL: [phone]

13

Make sure to connect the coaxial cable to the analog/digital input of the TV.

Installing the antenna

Wall jack with
F-connector

External antenna

Analog + digital 75 Ω

Coaxial antenna cable

Dipole antennas may be used with your VIVID
television by connecting directly to the RF port
on the back of your television (see diagram).

It is recommended you use a digital antenna as
this will provide a better quality signal in areas
with poor reception.

Using a dipole antenna

Customer Help Line
TEL: [phone]

14

Connecting a VCR or video camera

Connection to the terminals of other equipment may differ depending on
the brand and model.

Connect the earphone jack into the Earphone Out terminal.

Watching a video tape

1. Turn on the LED LCD TV.

2. Turn your VCR on.

3. Press the SOURCE button on the TV remote control and use the up/down
navigation keys [

] to select AV; then press OK.

4. Press the PLAY button on your VCR (or its remote control).

Connect a composite cable from the LED LCD TV’s Composite In terminal to
the VCR’s Composite Out terminal, making sure to match the colours of the
terminals to the colours of the plugs.

Composite cable

Audio cable

Earphones

Video

Connecting your equipment to the TV

Connecting earphones

Customer Help Line
TEL: [phone]

15

Connecting your equipment to the TV (Cont.)

Connecting a satellite/cable TV set top box

Connecting to the Composite terminal

In order to watch cable/pay TV, you must subscribe to your local pay TV
provider and install its separate receiver (set top box). Connection to the
terminals of other equipment may differ depending on brand and model.

Connect a composite cable from the LED LCD TV’s Composite In terminal
to the Composite Out terminal of the cable/pay TV receiver (set top box),
making sure to match the colours of the terminals with the colours of the
plugs.

Connecting to the HDMI terminal

Connect an HDMI cable from the HDMI terminal of the set top box to the
HDMI terminal of the LED LCD TV.

Watching cable/pay TV

1. Turn on the LED LCD TV.

2. Press the SOURCE button on the remote control of the LED LCD TV and
use the up/down navigation keys [

] to select AV; then press

OK or, if the HDMI cable has been connected, select HDMI and then press
OK.

3. Turn your cable broadcasting receiver (set top box) on and select the

channel you wish to view.

Cable broadcasting receiver

Composite cable

Cable broadcasting receiver

HDMI cable

Customer Help Line
TEL: [phone]

16

Connecting to the HDMI terminal

Connect an HDMI cable from the HDMI terminal of the DVD player to the
HDMI terminal of the LED LCD TV.

Connecting an external DVD player

Connecting to the Component terminal

Connection to the terminals of other equipment may differ depending on
the brand and model.

Playing a DVD from an external DVD player

1. Turn on the LED LCD TV.

2. Press the SOURCE button and use the up/down navigation keys
[

] to select the YPbPr option; then press OK to confirm or,

if the HDMI cable has been connected, select HDMI and then press OK.

3. Turn on your external DVD player, insert a DVD and press the PLAY button.

1. Connect a component cable from the LED LCD TV’s Y, Pb, Pr terminals to
the DVD’s Out terminals.

2. Connect an audio cable from the LED LCD TV’s Audio terminals (RL and
AV1) to the DVD’s Audio Out (left and right) terminals.

DVD

DVD

Component connection cable

HDMI connecting cable

Connecting your equipment to the TV (Cont.)

Customer Help Line
TEL: [phone]

17

Connecting a PC

Connection to the terminals of other equipment may differ depending on
the brand and model.

NOTE: Please check your PC instruction manual for the correct settings.

1. Connect a D-Sub cable from the LED LCD TV’s PC Input terminal to the
PC’s RGB terminal.

2. Connect an audio cable from the LED LCD TV’s PC Audio terminal to the
PC’s Audio terminal.

NOTE: Only for PCs that have an audio terminal.

Using your LED LCD TV as a PC monitor

1. Turn on the LED LCD TV.

2. Press the SOURCE button and use the up/down navigation keys
[

] to select the VGA option; then press OK to confirm.

PC Audio Cable

PC

Analog RGB (D-Sub 15 pin) cable

Connecting your equipment to the TV (Cont.)

Customer Help Line
TEL: [phone]

18

Powering the LED LCD TV

To turn the power ON or OFF:

1 Make sure the power cable is properly plugged in.
2 Turn on the power by pressing the switch at the back of the TV.
3Press the POWER button on the remote control.
NOTE: Make sure you are aiming the remote control unit at the sensor at

the front of the TV.

You can select between the TV signal and the input signal of other
equipment connected to the TV.

Use this function to switch to the input source you wish to view.

Selecting an input source

Press the SOURCE button on the remote control.

Press the up/down navigation keys to move to the

desired input source.

Press the OK button to confirm your selection.

SOURCE

Getting started

Customer Help Line
TEL: [phone]

19

1. Press the MENU button on the remote control, the on-screen menu will
appear on the screen.

2. Use the left and right navigation keys to select your main option.

The main menu items, from left to right, are:

Channel Picture Sound Time Option Lock

Operating the menus

Channel menu

From the Channel menu you can search channels, either automatically or
manually, and set up a variety of channel options.

NOTE: You can only select the Channel menu in ATV/DTV mode.
NOTE: All default settings have been selected for Australia.

Customer Help Line
TEL: [phone]

20

Auto Scan

In the Auto Scan submenu you can select your country and the tune type:
DTV+ATV, DTV only and ATV only.

Press

/ / / to make your selection, then press ENTER to start scanning.

When DTV+ATV is selected, half the scanning is for analog TV channels and
the other half for digital channels.

When ATV tuning, you can press EXIT to skip ATV tuning and start DTV
tuning, as below:

Operating the menus (Cont.)

Customer Help Line
TEL: [phone]

21

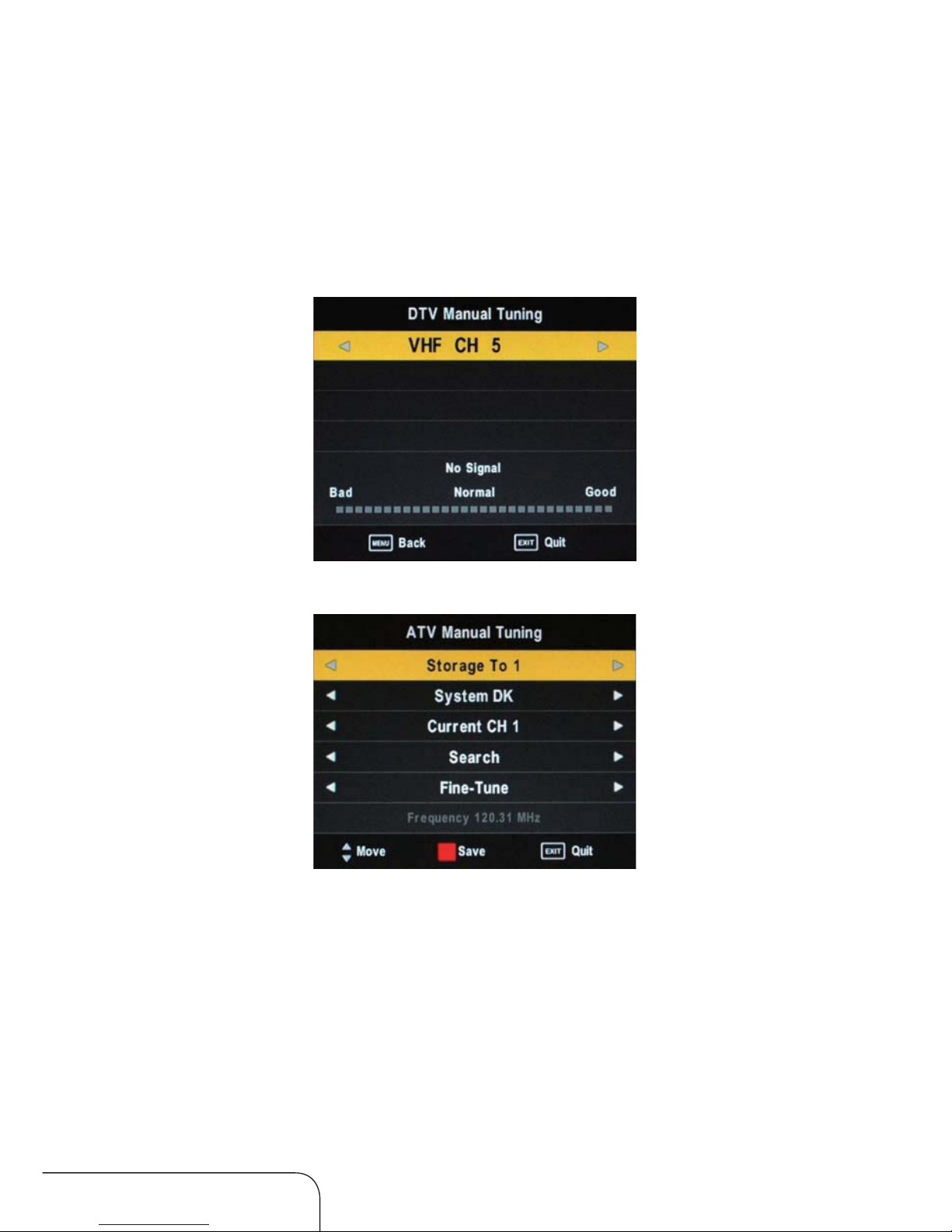

DTV Manual Tuning

1. Use the left/right navigation keys to select a channel, then press ENTER to
conrm if any signal strength shows.

2. Press ENTER to conrm tuning (only in DTV mode).

ATV Manual Tuning

Storage To: Select a position (from 1 to 100) to store the channel.
System: Default option depends on country selection, you can select BG,

DK, I and L. Select BG for Australia.

Current CH: Select a channel (from 1 to 100) you want to tune.
Search: Use the arrow keys to commence the search.
Fine-Tune:Select to ne-tune manually.
Frequency: Displays the current frequency following searching or ne-tuning.

NOTE: After manual tuning you must press the red key for storage, other-

wise your tuned channels will not be stored when changing the
mode.

Operating the menus (Cont.)

Customer Help Line
TEL: [phone]

22

Program Edit

Encryption

Identity

LCN

CH

Name

Skip

Identity

Lock

Identity

Fav

Identity

System

S 21 ABC1

Operating the menus (Cont.)

In the Program Edit submenu, you have various options for setting up your
channels, including Delete, Move, Rename, Skip, Lock and Favourite.

NOTE: Skip and Favourite cannot be used together.

DELETE: Press the RED button to delete the current channel.

RENAME:Press the GREEN button to modify the current channel name

(only in ATV mode).

MOVE: Press the YELLOW button to move the position of the channel.

(only in ATV mode)

SKIP: Select a channel and press the BLUE button to skip that channel when

scanning channels with the CH+/- button.

FAV: Select a channel and press the FAV button to set it as a favourite

channel.

Signal Information

In DTV mode, this shows signal information including channel, network,
modulation, quality and strength.

Record Mode

In this mode you can set the PVR to record and check PVR specications.

Customer Help Line
TEL: [phone]

23

Picture menu

Operating the menus (Cont.)

Picture Mode

Change the picture display mode with the right/left / navigation keys.
You can select from Standard, Mild, User and Dynamic modes.

NOTE:You need to set Picture Mode to User to be able to adjust contrast,

brightness, colour and sharpness. The tint value can only be adjusted
in NTSC signal.

Customer Help Line
TEL: [phone]

24

Contrast / Brightness / Colour / Sharpness

Use the / keys to switch between contrast, brightness, colour and
sharpness, then use the / keys to adjust the values.

Red / Green / Blue

Use the / keys to switch between red, green and blue, then use the /
keys to adjust the value.

Aspect Ratio

Use the / keys to select your desired aspect ratio, you can choose from
16:9, ZOOM1, ZOOM2, 4:3 and Auto.

Noise Reduction

Use the /

Colour Temperature

Use the / keys to adjust the value, you can selec t Normal, Cool, Warm or
User.

Operating the menus (Cont.)

Medium

Customer Help Line
TEL: [phone]

25

Sound menu

Sound Mode

Use the / keys to change modes, you can select from Standard, Music,
Movie, Sports or User.
NOTE:You can select treble, bass, balance. To adjust the setting, change the

mode turn to user automatically

Treble/ Bass/ Balance

Use the / keys to switch between treble, bass and balance, then use the

/ keys to adjust the value.

Auto Volume

When set to “On”, the volume of the channel is automatically controlled.

Surround sound

Choose to turn the surround sound “On” or “O”.

Operating the menus (Cont.)

Customer Help Line
TEL: [phone]

26

Time menu

Clock

Use the / keys to select Clock, then use the / keys to set the time.

NOTE: You cannot change the time manually in DTV mode, as the time

comes directly from a signal source.

O time

You can set the time when the TV set will be turned o automatically, you
can also set the frequency:

Repeat options:
O / Once / Everyday / Mon~Fri / Mon~Sat / Sat~Sun / Sun.

Hour/Minute
To change the time, use the

/ keys to select this option, then use the /

keys to adjust the time.

Operating the menus (Cont.)

Customer Help Line
TEL: [phone]

27

On time

You can set the time when the TV set will be turned on automatically, you
can also set the frequency,volume and program.

Repeat options

Hour/Minute

To change the time, use the

/ keys to select this option, then use the /

keys to adjust the time.

Volume/Source/Channel

Use the

/ keys to adjust the volume, source or channel.

NOTE:To select a channel, choose AT V/DTV as source.

Sleep timer

automatically after 10, 20, 30, 60, 90, 120, 180 or 240 minutes.

Auto sleep

automatically after 10 minutes when there is no signal.

Time zone

Select your state of residency for the correct time.

Operating the menus (Cont.)

Daylight saving time (DST)

Time during which clocks are set one hour ahead of local standard time
when the function “On”.

Customer Help Line
TEL: [phone]

28

NOTE: All your picture, sound, time and option settings will be lost when

restoring factory defaults.

Option menu

Operating the menus (Cont.)

OSD language

Use the / keys to select this option, then select your preferred on-screen display
language.

Audio language 1st/2nd

Use the

/ keys to select this option, then select your preferred 1st and 2nd audio

language (in DTV mode only).

Subtitle language 1st/2nd

Use the

/ keys to select this option, then select your preferred 1st and 2nd subtitle

language (in DTV mode only).

OSD duration

Use the

/ keys to select this option, then set your preferred duration for on-screen

display messages.

Country

to ‘Australia’. This can only be changed by performing the ‘Restore Factory Default’
option below.

Restore factory default

Use the

/ keys to select this option to restore factory default settings.

Blue Screen

Control the screen blue automaically when no signal that you turn the function “On”.

Customer Help Line
TEL: [phone]

29

Lock System

you cannot manually search and adjust channels. To change this setting,
you must enter a password: the default password is“0000”.

Set Password

password is wrong,“password doesn’t match” will appear on the screen.
Press the

key to exit and go back to main menu.

Press the

key to cancel your password and to set a new one.

Block Program

Enter the submenu, select a channel and press the GREEN key to block it. Check
to make sur e it is blocked . To watch a blocked channel, enter the password.

Parental Guidance

Choose from the following parental control levels: Block R and Above, Block
AV and Above, Block MA and Above, Block M and Above, Block PG and
Above, Block G and Above, Block C and Above, B

lock P and Above, Block ALL

and No Block.

NOTE:Ifyou forget your passw or d , enter the master password “4711” to reset.

Lock menu

Operating the menus (Cont.)

Customer Help Line
TEL: [phone]

30

Channel List

Press the OK button on the remote control to display the list of all tuned
channels, as below:

Favourite List

Press the FAV button on the remote control to display your list of favourite
channels.

Other menus

Operating the menus (Cont.)

Hotel Setting

Allows you to Enable and Disable variousfeatures of the TV.

Hotel Lock: Enable or Disable the feature
Lock Channel: Enable or Disable access to the Channel Menu
Set Source: Set the default Input Source
Channel Number : Use with Set Source options
Picture Lock: Enable or Disable access to the Picture Menu
Key Lock: Enable or Disablebuttons on TV
Max Volume: Set the maximumselectable v

olume level

Source Lock: Enable or Disable the various Sources such as HDMI, AV, etc.
Clear Lock: Restore all HotelSettings to default.

Customer Help Line
TEL: [phone]

31

EPG (Electronic Program Guide)

EPG stands for Digital Electronic Program Guide. It is supplied by the
program providers and oers information about the programs to be
broadcast. You can access it in digital mode by pressing the EPG button on
the remote control, the menu will appear on the screen, as below:

NOTE: When the TV is rst turned on (in DTV mode), no EPG information

is displayed. If still no EPG information is displayed after you have
brought up the EPG menu, use the

/ and / buttons to navigate to
the channel you wish to display the information from and when it is
highlighted, press OK on the remote control to activate it.

Once you have activated a channel, use the

/ buttons to go to the top row

(Channel), then use the

button to bring up the programs to be broadcast

and the / buttons to move up and down the dierent timeslots.

Index

Press this button to bring up the index, press the

/ buttons to select the

time list or channel list.

Record

To record a selected program, press the RECORD button and insert an
appropriate USB device (see page 40 for more on this).

Schedule

Press the YELLOW button to bring up a schedule of programmed recordings.

Remind

Press the GREEN button and use the / buttons to navigate between programs.

Operating the menus (Cont.)

Customer Help Line
TEL: [phone]

32

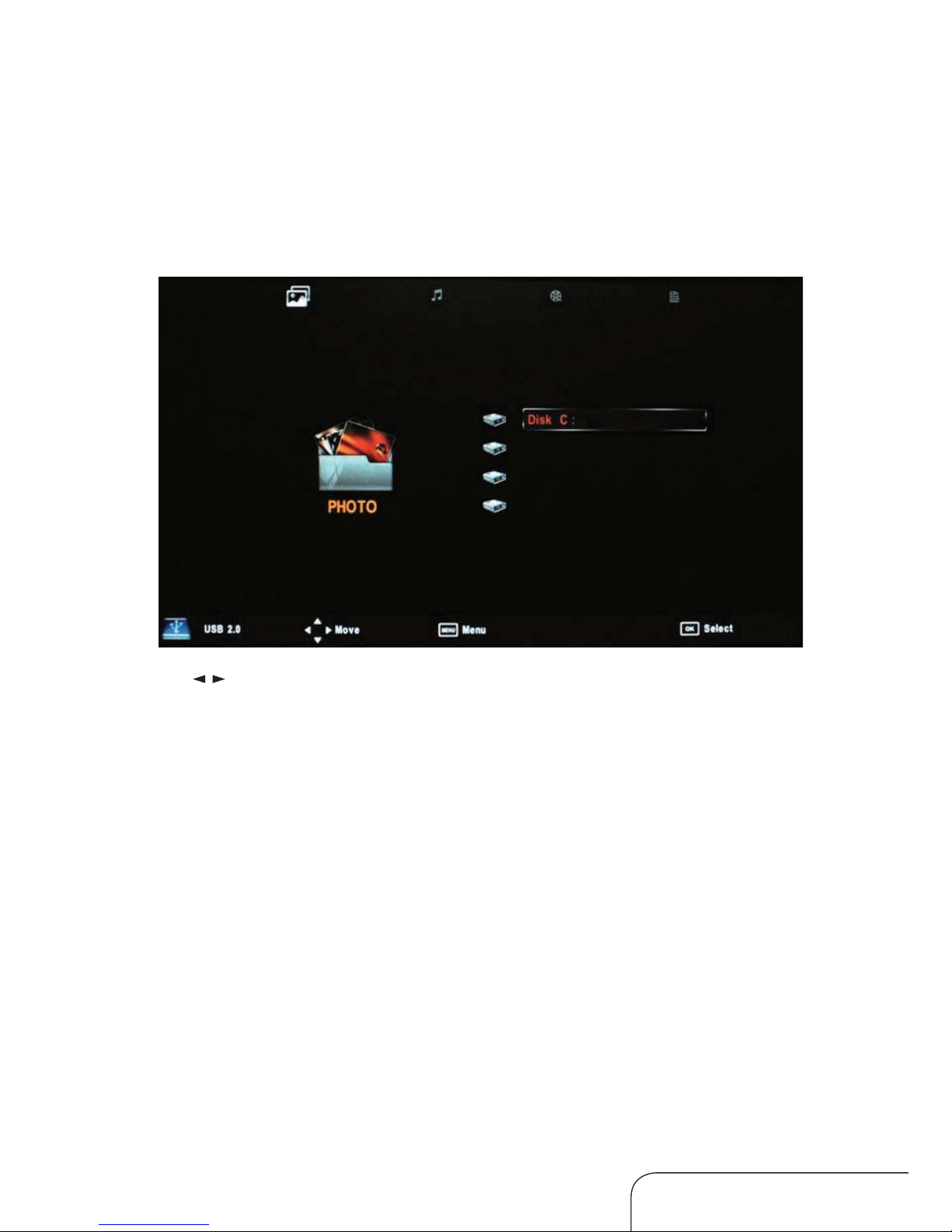

Multimedia menus

Press the SOURCE button on the remote control, then choose USB to
enter Multimedia mode. Make sure you have an appropriate USB device
connected.
Your options are as below, from left to right:
PHOTO MUSIC MOVIE TEXT

Use the

/ buttons to select your option and press OK to enter the

submenu.

Text submenu

In the Text submenu, your chosen text le and details will be displayed in a
preview frame. Press OK [Play] to enter full screen text mode.

Operating the menus (Cont.)

Customer Help Line
TEL: [phone]

33

Photo submenu

In the Photo submenu, your chosen picture and details will be displayed in a
preview frame. Press to display it in full screen mode, press OK again for
more options, as below:

Repeat: Press OK and choose between three repeat modes: Repeat 1,

Repeat All, Repeat none.

Music: Press OK to play background music.

Playlist: Press OK to display a playlist.

Info: Press OK to display the information about the picture.

Rotate: Press OK to rotate the picture.

One option rotates the picture in

a clockwise direction, the other option rotates it anti-clockwise.

Zoom Out/In: Press OK to zoom out of the picture, or choose the other

option to zoom in on the picture.

Operating the menus (Cont.)

Customer Help Line
TEL: [phone]

34

in a preview frame. Press to enter full screen music mode. Music will
be played back just like on a PC with the appropriate software. There is a
playlist, basic information, processing sign, operation guide part, as below:

Repeat: Choose between Repeat 1, Repeat All, Repeat none.

Music submenu

Operating the menus (Cont.)

Go To: Use number(0,1-9) buttons to adjust the numbers.

Customer Help Line
TEL: [phone]

35

In the Movie submenu, your movie will be displayed in a preview frame.
Press to display it in full screen mode, press OK again for more options,
as below:

Repeat: Choose between Repeat 1, Repeat All, Repeat none.

Set A: Choose this function to repeat playback of a certain section (A-B).

Playlist: Press OK to display the playlist.

Info: Press OK to display the information about the movie.

Slow forward: Press OK to play the movie/go for ward

with slow speed.

Stepforward: Press OK to play the movie/go forward in steps.

Zoom In/Out: Press OK to zoom out of the display, or to zoom in on it.

Move View: Use this to move the display if the movie is too big for the

screen.

Movie subme

nu

Operating the menus (Cont.)

Go To: Use number(0,1-9) buttons to adjust the numbers.

Customer Help Line
TEL: [phone]

36

PVR (Personal Video Recorder)

Operating the menus (Cont.)

This TV features a PVR recording and playback function which lets you:

• Instantly record a TV program (via the one-touch recording button on the remote
control).

• Time-shift playback of a digital television program.

• Set a timer to record future television programs (via the EPG).

For details about these recording functions, see pages 38-39.

IMPORTANT: For any type of recording with this television, you must have inserted

a USB device into the appropriate USB port.

USB setup

PVR file system

In DTV mode, enter the Channel menu (see
page 19) and select PVR File System.

Select the disk for storing the content you
want to record.

Check PVR file system

Select “Check PVR File System” and press
OK to check your USB device. If no USB
device is connected, a notice will advise you
accordingly.

Customer Help Line
TEL: [phone]

37

Operating the menus (Cont.)

Format

If your USB device is recognised and
working, you can select Format.

size).

IMPORTANT: If you select Format, all
data will be deleted!

Press the

/ keys to select PVR File
System Type, then press OK to format
the USB device. The Format Disk screen
appears:

After formatting, the system will

size.

Speed

indicate the available USB speed.

Storage capacity

Approximate storage capacity required when recording digital signals:

Time SD Channels HD Channels

30 minutes 1.4 GB 3.1 GB

60 minutes 2.8 GB 6.2 GB

90 minutes 4.3 GB 9.3 GB

120 minutes 5.7 GB 12.4 GB

150 minutes 7.2 GB 15.5 GB

180 minutes 8.6 GB 18.6 GB

Customer Help Line
TEL: [phone]

38

Operating the menus (Cont.)

Time-shift function

The time-shift function allows you to pause the live TV signal, then resume playback
at your convenience. While in DTV mode, press the

PLAY/PAUSE button initiate

time-shift mode and pause the program. Press again to resume playback. Use the

/ keys, then press [OK] to select a function such as Fast Forward from the on­screen toolbar. Press the EXIT button to hide/display the on-screen toolbar. Press
the STOP button to exit time-shift mode and return to live TV signal.

NOTE: Using this function requires a formatted USB

storage device be connected to the TV. This
function temporarily uses space on the attached
USB storage device, but is removed when time­shift more is exited.

Recorded list

Display the list of recorded programs either via the
Channel menu or directly by pressing the INDEX button
when in DTV mode.

Play

Press OK to play the selected program, or press

to play

the recorded program directly. The

icon will appear

when you start playback.

Delete

Press the RED button to delete the selected program.

Recording

Select “Record Start” from the Channel menu and press the OK button to start
recording. To stop recording, select Stop in the operation menu (see the bar below)
and press the OK button to operate.

NOTE: You can also press the REC button to start (and the button to stop)

recording directly.

The system can record and play back DTV at the same time. Select the appropriate
action from the panel above and press OK to operate.

This icon will be appear when you start recording.

Customer Help Line
TEL: [phone]

39

Operating the menus (Cont.)

Info

Press the INFO button to display or close program
information.

Record mode

Enter Record Mode via the Channel menu.

Mode:

every day, weekly, Auto.

Start Time: Set the date and time to start recording.

End Time: Set the date and time to end recording.

Important notes

When using the Media function, remember the following important points:

• We strongly recommend you back up all data in the USB storage device to another
storage device so you do not risk losing any data in case of an unexpected device
failure or accident. We do not assume liability for any loss of data due to misuse

or malfunction. Data backup is your personal responsibility.

• You cannot change to a channel from another broadcaster or select another func­tion

while in recording mode.

• If the signal is interrupted or removed while in recording mode, the recording will
stop until the signal is established. This may cause you to lose program content.

• Do not turn the TV o

uring recording, otherwise the TV will exit the PVR function

and turn to standby mode.

• Th

recorded can only be used in this TV. Do not copy it to any other device.

• When you are in PVR recording mode, you may experience some di

culty with a

scheduled recording at di

erent times without removing the USB recording device.
You will need to remove the USB device as it is required to reset after each record­ing to protect the device from damage. You may also see the message ‘DISK NOT
READY’ displayed. Remove the device, reconnect and proceed with your recording.

• Some USB storage devices may not be compatible for smooth operation with this TV.

• For lar

le sizes and large capacity storage devices, the loading speed may be longer.

• The recognition speed of a USB storage device may vary depending on the device.

• When connecting or disconnecting the USB storage device, ensure the TV is not in

Media mode, otherwise the USB device or th

les stored in it may be damaged.

• Only use a USB storage device formatted in a FAT

le system provided with the

Windows operating system. If it is formatted by a di

erent utility program that is

not supported by Windows, it may not be recognised.

• Ensure any USB devices connected to the TV do not use/exceed 500mA power rating.

• An “Unsupported File” message will be displayed if th

le format or codec is unsup-

ported or corrupted. (Refer to speci

cations table on page 40 for supported le types.)

Customer Help Line
TEL: [phone]

40

Operating the menus (Cont.)

Some points about discs

The following types of disc can be played on this unit:

Region number

The region number (RegionalRestriction Code) is built into this unit.
This unit can play region number 4 DVD video discs.

DVD video discs

DVD video discs are divided into titles, and the tit

les are subdivided into chapters.

Audio CD discs

Audio CD discs are divided into tracks:

CAUTION:

tOnly the above types of disc can be played on this unit; DVD Video, VCD and audio

CD, otherwise cannot be played back.

tA DVD-R that has recorded movie data can generally be played back

on this unit,
but not necessarily all DVDs of this type: playback capability depends on the
recording conditions.

tA DVD-R without any recorded movie data cannot be played back.
tA DVD-RW (video mode) can generally be

played back, but not necessarily all

DVDs of this type: playback capability depends on the recording conditions.

tA DVD-RW (VR mode) cannot be played back.
tA DVD+R/+RW can generally be played bac

k, but not necessarily all DVDs of this

type: playback capability depends on the recording conditions.

Multiple languages

Multi-language subtitles

Multi-angle

Multi-aspect

Region number

Closed captions

Customer Help Line
TEL: [phone]

41

Language setting

Operating the menus (Cont.)

English
English
Western European
English
English

Language: Select language for the OSD menus and messages.
Subtitle: Select subtitle language(DVD only).
Mp4 subtitle: Select MP4 subtitle.
Audio: Select audio language(DVD only).

DVD menu: S

elect DVD menu language(DVD only).

Using the in-built DVD player

Insert the DVD disc into the DVD slot. Be sure to have label side of DVD
facing the front of the TV. If the disc is inserted incorrectly, it will be ejected.

The DVD Player will accept and play your DVD

disc automatically, even
when the TV is in DTV mode.
To eject the disc at anytime, press the OPEN key on the TV or

key on the

remote control.

Press

key to Play/ Pause the program.
Press / key to go to the previous chapter/next chapter
Press

/ key to go backward/forward.

Press

key to Stop playing the program.

The keys for DVD SETUP, A-B, ANGLE, REPEAT, D.MENU, SUBTITLE,

PROGRAM, GOTO are used in the DVD mode, more detail please see the
instruction of Remote control (Page 10 and 11).

Customer Help Line
TEL: [phone]

42

Operating the menus (Cont.)

Audio setting

Digital Output: Select digital ouput mode, you can select PCM, RAW or Off.

Digital Output

Off

PCM

RAW

Rating setting

Allow you to set parental control. The default password is “8888”. You can set
password.

Language setting

Aspect Ratio: Select aspect ratio, you can select 16:9 or 4:3.
View Mode: Select view mode.
TV System: Select TV system standard, you can select PAL/NTSC.

Aspec t Ratio :16 :9
View Mo de :Auto Fi t
TV Syst em :PAL

Customer Help Line
TEL: [phone]

43

Do not use any other function that is not mentioned in this instruction manual. If
you experience any problems with your LED LCD TV, check the list below and take
any necessary steps before calling for

service. If the problem still occurs, turn the

power off and contact the after sales support line.

Problem Action

The screen does not appear/
illuminate.

Check that the power is on.
Check that you have not pressed the BLUE button
and switched OFF power to the screen.

The screen appears too
slowly after the power is
turned on.

This problem occu

rs only briefly in the process of
image elimination processing, which is necessary
for hiding temporary screen noise that occurs
when the power is turned on. If the screen
does not turn on after one minute, contact our

customer after sales support line.

The screen is too bright or too

dark.

Check the brightness and/or contrast
adjustments.

The screen is too large or too
small.

Adjust the screen size by selecting the zoom button.

Stripes appear on the
screen and it shakes.

Stop using wirel

ess telephones, hair dryers and

electrical appliances near the TV.

Access to the programs is
blocked.

Check that you have not changed the access code
or password. To reset, please enter the following
master password“4711”.

The screen appears, but
there is no sound.

1. Press the MUTE button.

2. Increase the sound level by pressing the

volume adjustment button.

3. Check that the sound terminal of yourexternal

input is connected properly.

4.Checkthat the

audio cables are connected properly.

5. Selectand check the other input.

Ifthe sound still does not work and the other

channels are the same after you have checked the
above points , contact the after sales support line.

The remote control does
not work.

1. Check if the main power is swit

ched on.

2. Check that the batteries of the remote control

are loaded properly.

3.Checkfor any obstacles between the LED LCD

TV and the remote controland remove them, if

necessary.

4. If the batteries have no power, replace them

with two new batteries of the same type.

FAQs

Model GVA22FLEDCJ

Panel system 54cm (21.5”) FHD LCD LED panel

Display resolution 1920 × 1080

Television system HD DVB-T, PAL DK/BG/I, SECAM DK/BG

Inputs/outputs

ATV/DTV(RF 75

) 1

CVBS input/audio(L/R) 1

HDMI input 2

YPbPr 1

VGA input 1

PC audio input 1

USB 1

Storage Multimedia format support

MOVIE MPEG2 AVI, MP4, DIVX4, DIVX5,XVID

(max. resolution 720×576 pixel,
max. baud rate 6Mbps)

MPEG1/2 MPG, MPEG, VOB, DAT,TRP, TS

(max. baud rate 9.8Mbps)

PHOTO BMP, JPG,

PNG

BMP, JPG
(max. resolution 3000×3000 pixel)

PNG
(max. resolution 1000×1000 pixel)

MUSIC MP3 32K-320K

DVD 1 (Support DVD/CD/CDR/CD-RW/DVD-RW)

SPDIF output 1

Earphone output 1

OSD language Multiple

Speaker consumption 2×3W

Power supply DC 12V, 3A

Power consumption <36W

Power standby <1W

Specifications
