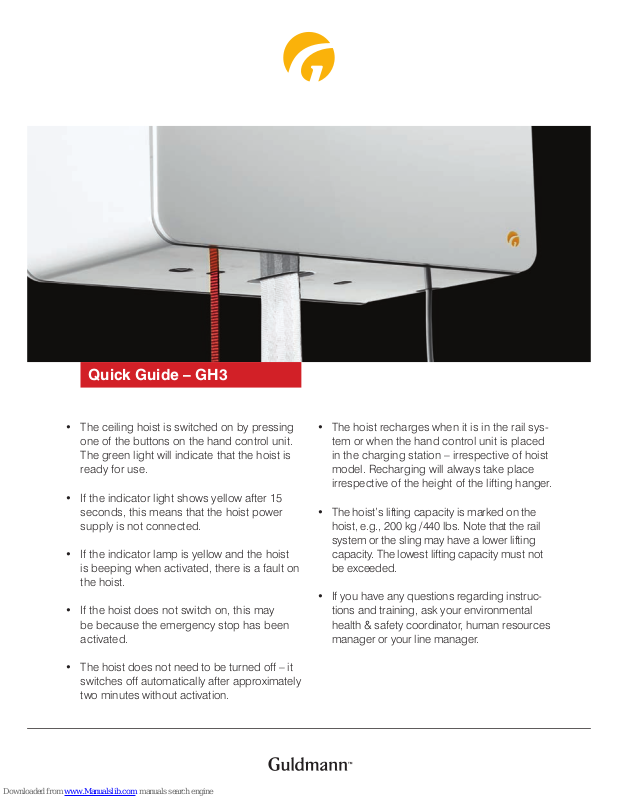

Guldmann GH3 Quick Manual

• The ceiling hoist is switched on by pressing
one of the buttons on the hand control unit.
The green light will indicate that the hoist is
ready for use.

• If the indicator light shows yellow after 15
seconds, this means that the hoist power
supply is not connected.

• If the indicator lamp is yellow and the hoist
is beeping when activated, there is a fault on
the hoist.

• If the hoist does not switch on, this may
be because the emergency stop has been
activated.

• The hoist does not need to be turned off – it
switches off automatically after approximately
two minutes without activation.

• The hoist recharges when it is in the rail sys­tem or when the hand control unit is placed
in the charging station – irrespective of hoist
model. Recharging will always take place
irrespective of the height of the lifting hanger.

• The hoist’s lifting capacity is marked on the
hoist, e.g., 200 kg /440 lbs. Note that the rail
system or the sling may have a lower lifting
capacity. The lowest lifting capacity must not
be exceeded.

• If you have any questions regarding instruc­tions and training, ask your environmental
health & safety coordinator, human resources
manager or your line manager.

Quick Guide – GH3

Safety functions

Emergency stop

• One pull on the red strap. Use only in emer­gencies, when there is an immediate need to
stop the hoist.

• When the emergency stop is activated, only
the hoist’s emergency lowering device will
function.

• Deactivate the emergency stop by press­ing the “stop” button (yellow button) on the
hoist. Then press one of the buttons on the
hand control unit twice.

Emergency lowering device

This is activated by a prolonged pull on the
red strap. Use only in an emergency. This
function allows the patient to be lowered
when the hoist has failed to work.

Scan here for user manual, etc.
concerning use of the GH3.

Accessories

Lifting hanger

Place the sling straps in the hooks. Check
that the straps have been correctly attached
to the hanger.

Lifting sling

We recommend using a lifting sling with two
or four loop attachments for attaching the
sling to the lifting hanger. The sling must
always correspond with the hoist’s lifting
capacity. In case of doubt concerning the
use of a lifting sling, please contact your
supplier.

Daily cleaning and
maintenance

Clean with a damp cloth and ordinary de­tergent. Do not use strong acids, bases or
alcohol when cleaning. See user manual.
