Guilin Feiyu Technology VIMBLE C Instruction Manual

Instruction Manual
EN V 1.0
3-Axis Stabilized Handheld Gimbal For SmartPhone
GuiLin FeiYu Technology Incorporated Company
User Guide
Attention !
(1) Please install the smartphone before powering on the gimbal! (2) When not in use, turn off the gimbal and then remove the smartphone.
!
1
1
Prior to use, please be sure to fill the battery.
Attach the smartphone with the quick-release adapter,and ensure it is secure.
Tips: Please take off the protective casing
of the smartphone before installation.
Installing the phone
Power on:Short press Bluetooth shutter/Power 0.5s until the
green light up, then release it to turn on the gimbal. Power off:Long press Bluetooth shutter/Power at the same time 5s
until the red light constant on, then release it to turn off the gimbal.
Attention: Turn the gimbal on after the phone has
been secured properly.
In case of low battery, the indicator will flash red 3 times every 5 seconds. Please charge Vimbles or replace the battery.
!
2
Power on / off
Bluetooth shutter /Power
Please refer to“Explanation of LED indicator modes”
Product Overview
* The smartphone shown in the picture is only for reference
2
Joystick
Joystick
Bluetooth shutter
Bluetooth shutter operating instructions
① To take a picture, press the Bluetooth shutter. ② To start or stop recording a video, press and hold the Bluetooth shutter for 1 second.
Up
Down
Left
Right
For toggle switch operation, pleaserefer to “Modes / Functions”
Tilting
axis
Panning axis
USB port
Toggle switch
LED indicator
Rolling axis
1/4 inch screw hole
Handle
(Built-in battery)
/
USB数据线 X1

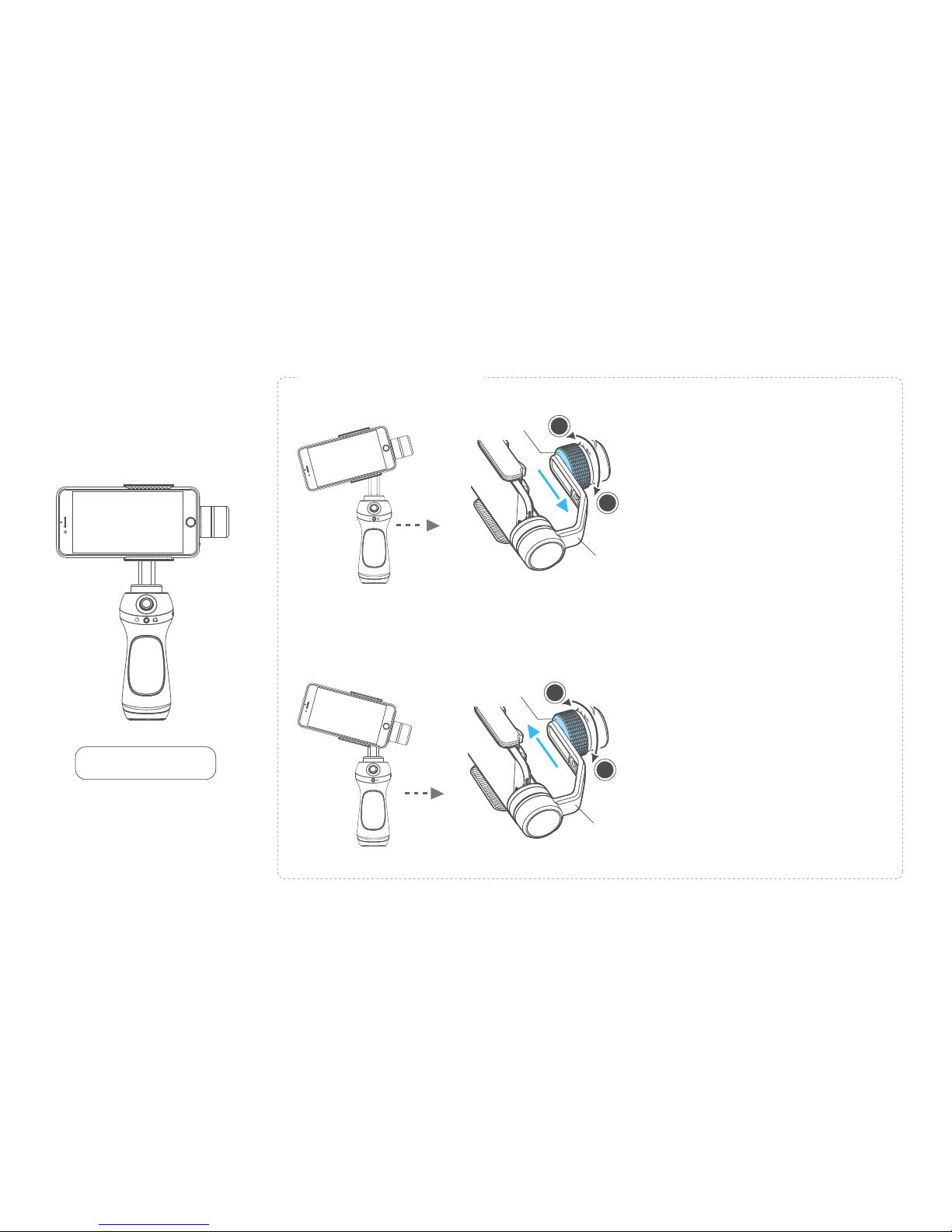

Balance Adjustment
Best Balance
How to balance adjustment
If the iPhone tilted to the right,then
loose the knob ring, move the cross arm to the left, try to adjust to the best balance then tight it.
If the iPhone tilted to the left,then
loose the knob ring, move the cross arm to the right, try to adjust to the best balance then tight it.
T
Cross arm
Knob ring
Cross arm
Knob ring
T
L
L
3
Download and connect APP
1
Connecting APP
Start the app on your smartphone,follow the instructions to connect the smartphone with gimbal via Bluetooth.
App Store
Download APP
Download "Feiyu ON" and install it.
(1)IOS version:
(2) Android version:
Google play
Feiyu ON
Download
GuiLin FeiYu Technology Incorporated Company
Feiyu ON
2
4
Zoom 1.OX
Firmware
TIME-LAPSE
SLO-MO
VIDEO PH OTO SQUARE FANC
AE AF AWB
A
Camera Cimbal
Feiyu ON
Download
GuiLin FeiYu Technology Incorporated Company
Feiyu ON
Choose a device
FY_WG2_XX
D7:58:42:2D:DD:xx
Searching...
Rssi=xx
cancel
Modes / Functions
The orientation of the camera is fixed.
Working Modes
Panning Mode
Tilting and rolling direction are fixed, and the camera lens moves according to the hand movementof the user.
Panning and Tilting Mode
The rolling direction is fixed, and the camera lens moves according to the hand movement of the user.
Lock Mode
Reset
≤30°
≤30°
Press the toggle switch on the back one time
Press the toggle switch on the back one time
Press the toggle switch on the back one time
Press the toggle switch on the back one time
30°≥
30°≥
Vertical Shooting
Vertical Shooting
Vertical Shooting Mode
Mode / Function Operating Instructions
Toggle switch Function Instructions
Modes / Functions Explanation
Single tap
Panning and Tilting Mode
Boot default panning mode,press one time then switch to panning and tilting mode,press again swith to panning mode
Double tap Lock Mode
Under panning mode 、panning and tilting mode, long press then switch to lock mode,release to go back
Long press Bluetooth shutter/Power and Toggle switch 1s
Standby
Press the toggle switch again to wake the gimbal
Need to connect mobile phone APP
5
Left and right toggle
Zoom in / Zoom out
Long press Reset
Reset the tilting axis of the gimbal to initial orientation and initial mode
RGB three-color lights
Explanation of LED indicator modes
Gimbal operating mode and LED indicator:
Mode / Status
Blue light flashes once
Note: The two RGB indicators have thesame status
Blue light flashes twice
Panning
Panning and tilting mode
Lock mode / InitializingBlue light on steadily
Blue light keeps flashing
Initialization failure / Malfunction
Blue light flashes three times Standby
Low batteryRed light flashes three times
Red light keeps flashing
Switching to standby mode/ Gimbal will power off
RGB three-color lights
LED indicator modes during charging:
Mode / Status
Green light
Red light
Fully charged
Gimbal is being charged
6
LED indicator
Firmware Upgrade
MICRO USB
Upgrade........
PC
USB port
7
Please visit the official website www.feiyu-tech.com to download the relevant programs for upgrading, including USB driver, firmware upgrade software and product firmware, and install the relevant software, decompress the firmware files for standby application.
(1)
(2)
Feiyu ON
Option 1: connect the gimbal with PC via micro USB cable, and then upgrade the firmware.
Option 2: connect the gimbal with Smarphone via bluetooth, and then upgrade the firmware.
new firmware is available, do you want to upgrade?
×
Firmware upgrade
Yes
No
Settings Updata
new firmware is available, do you want to upgrade?
×
Firmware upgrade
Yes
No
/ /
Gimbal initialization
You can initialize your gimbal :
(1) when camera is not level (2) if not used for a long period of time (3) in case of extreme temperature variations
Adjusting steps:
1
Long press toggle switch until switching to standby mode
Red light flashes
Blue light flashes quickly for three times
Initialization successful
3
Stands on table
2
Press the toggle switch for three times
Blue light is on
8
Parameters
9
320°
320°
320°
min 2°/s max 75°/s
min 3°/s max 150°/s
Titling Angle
Rolling Angle
Panning Angle
Adaption
Weight
iPhone series / HUAWEI P9 / HUAWEI P9 Plus / Mi 5 / MEIZU MX6 / SAMSUNG NOTE 5 / S7 or other smartphones with the similar dimensions
420g (not including smartphone
Titling Increments
Panning Increments
Usage time 5 Hours
D I S C L A I M E R
10
DelTron Interlligence reserves the right to amend this manual and the terms and conditions of use the product atany time.
You can get the latest user manual from the official website: www.vimbles.com
The Company assumes no liability for any risks related to or resulting from the debug and use of this product (including the direct, indirect or third-party losses).
Prohibit any user for any illegal purpose. Users will be responsible for all behaviors of purchase and use products.
For any unknown sources of using, we will not be at any services.
The updating and changes of product firmware and program may cause changes in function descriptions in this user manual, please read the instructions carefully before upgrading the firmware and use the corresponding user manual.
Attention
When the gimbal is not in use or placed on the table, please ensure it is powered off.
Please correctly assemble the gimbal in accordance with the diagram.
Please install the phone before powering on the gimbal.
