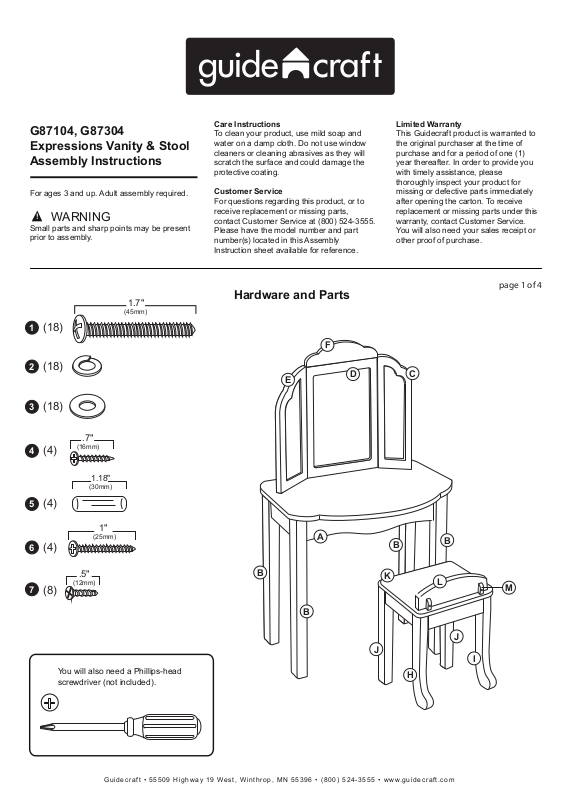

Page 1
G87104, G87304
Expressions Vanity & Stool
Assembly Instructions
For ages 3 and up. Adult assembly required.
!
WARNING
Small parts and sharp points may be present
prior to assembly.
1.7"
(45mm)
1
(18)
2
(18)
Care Instructions
To clean your product, use mild soap and
water on a damp cloth. Do not use window
cleaners or cleaning abrasives as they will
scratch the surface and could damage the
protective coating.
Customer Service
For questions regarding this product, or to
receive replacement or missing parts,
contact Customer Service at (800) 524-3555.
Please have the model number and part
number(s) located in this Assembly
Instruction sheet available for reference.
Hardware and Parts
F
E
D
Limited Warranty
This Guidecraft product is warranted to
the original purchaser at the time of
purchase and for a period of one (1)
year thereafter. In order to provide you
with timely assistance, please
thoroughly inspect your product for
missing or defective parts immediately
after opening the carton. To receive
replacement or missing parts under this
warranty, contact Customer Service.
You will also need your sales receipt or
other proof of purchase.
page 1 of 4
C
3
(18)
.7"
4
(4)
5
(4)
(16mm)
1.18"
(30mm)
1"
(25mm)
6
(4)
.5"
7
(8)
(12mm)
You will also need a Phillips-head
screwdriver (not included).
A
B
B
K
B
L
M
B
J
J
I
H
Guidecraft • 55509 Highway 19 We st, Winthrop, MN 55396 • (800) 524-3555 • w w w. guide c r a ft.c o m
Page 2
page 2 of 4
A
1
1
A
4
4
4
4
3
3
2
1
B
A
2
1
B
B
B
C
7
7
7
7
D
E
7
7
7
7
STEP 2
STEP 1
F
G
E
C
D
5
D
5
STEP 3 STEP 4
Guidecraft • 55509 Highway 19 West, Winthrop, MN 55396 • (800) 524-3555 • www.guidecraft.com
Page 3
page 3 of 4
I
H
J
K
J
NOTE: For correct assembly, ensure that
the back legs curve away from the seat’s
backrest (shown below).
L
M
K
M
5
6
5
6
6
3
3
2
1
2
1
6
STEP 5 STEP 6
Guidecraft • 55509 Highway 19 West, Winthrop, MN 55396 • (800) 524-3555 • www.guidecraft.com
Page 4

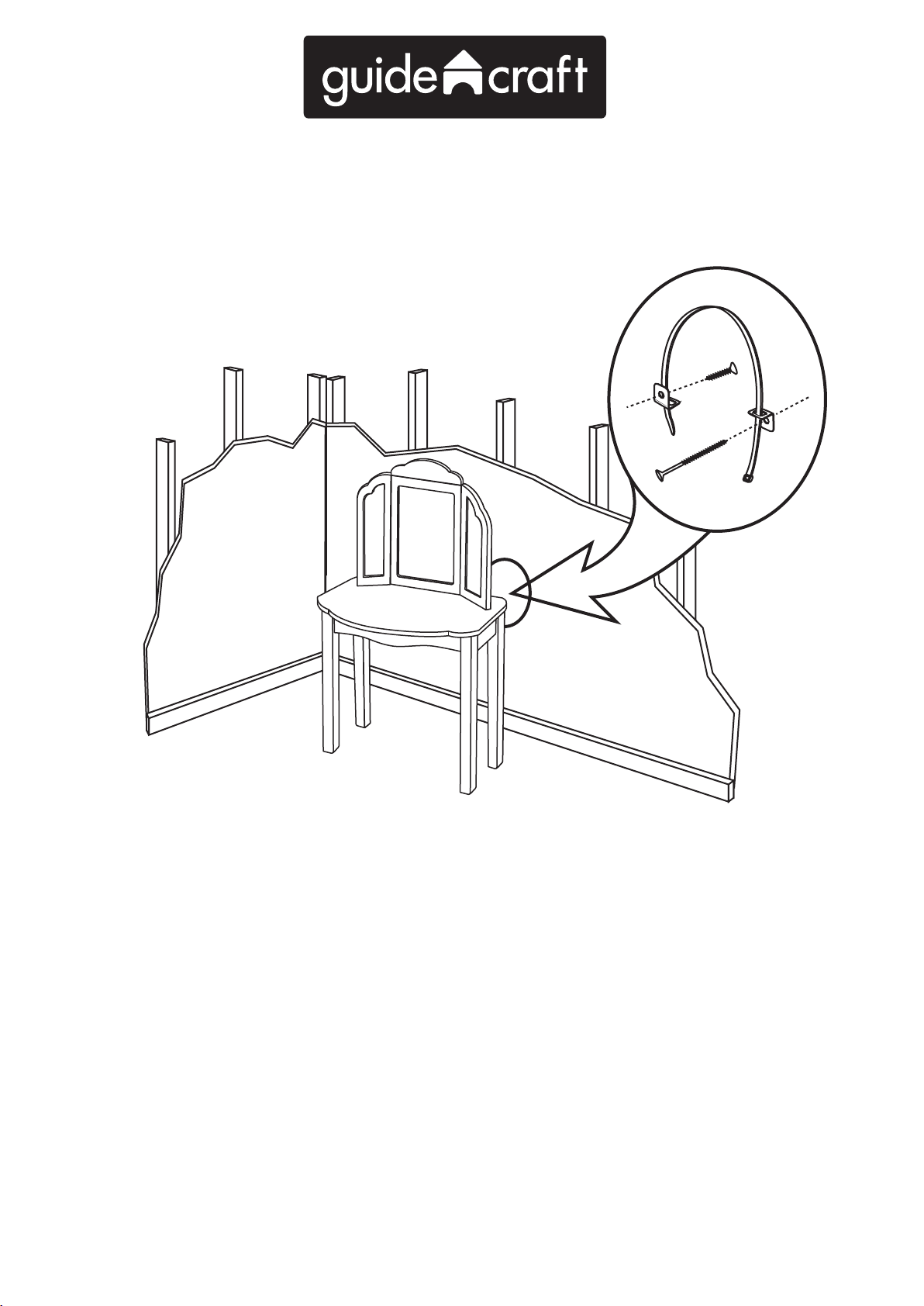

Vanity Anti-Tipping Bracket
page 4 of 4
Tipping furniture may injure young children. Use of
this tipping restraint hardware is highly recommended.
This hardware, when properly installed, could
provide protection against the unexpected tipping
of furniture due to improper use.
WARNING: This product is only a deterrent. It is not a
substitute for proper adult supervision.
1. Attach one of the mounting brackets securely to
the back, center of the furniture using the short
screw.
2. Find the stud in the wall and mark the location on
the wall for the mounting of the second bracket.
Mount the bracket with a 2" wood screw, approximately 2" below the bracket mounted to the
furniture.
Guidecraft • 55509 Highway 19 West, Winthrop, MN 55396 • (800) 524-3555 • www.guidecraft.com
3. If a stud cannot be found purchase a "Hollow-Wall
Anchor Bolt" and attach the second bracket to the
wall using that bolt.
4. Place the furniture so the bracket on the back is in
line with the bracket on the wall.
5. Lace an end of the nylon restraint strap down
through each bracket. Bring both ends together and
slide the beaded end of the strap through the
keyhole shaped slot in the other end unit until it is
snug. Pull down on the beaded end until it snap
locks into the keyhole.
6. Check to make sure the strap is securely laced and
locked to the brackets.
